Review

Research Progress of Laser Cladding on the Surface of Titanium and Its Alloys

1
Xi’an Key Laboratory of High Performance Oil and Gas Field Materials, School of Material Science and Engineering, Xi’an Shiyou University, Xi’an 710065, China
2
Shenzhen Institute, Peking University, Shenzhen 518057, China
3
Huizhou Port Customs, Huizhou 516081, China
4
PKU-HKUST Shen Zhen-Hong Kong Institution, Shenzhen 518057, China
5
School of Mechanical Engineering, Yangzhou University, Yangzhou 225009, China
6
Institute of New Materials, Guangdong Academy of Sciences, National Engineering Laboratory of Modern Materials Surface Engineering Technology, Guangdong Provincial Key Laboratory of Modern Surface Engineering Technology, Guangzhou 510650, China
*
Author to whom correspondence should be addressed.
Materials 2023, 16(8), 3250; https://doi.org/10.3390/ma16083250
Submission received: 1 March 2023 / Revised: 10 April 2023 / Accepted: 11 April 2023 / Published: 20 April 2023

Abstract

:
Titanium (Ti) and its alloys have been widely employed in aeronautical, petrochemical, and medical fields owing to their fascinating advantages in terms of their mechanical properties, corrosion resistance, biocompatibility, and so on. However, Ti and its alloys face many challenges, if they work in severe or more complex environments. The surface is always the origin of failure for Ti and its alloys in workpieces, which influences performance degradation and service life. To improve the properties and function, surface modification becomes the common process for Ti and its alloys. The present article reviews the technology and development of laser cladding on Ti and its alloys, according to the cladding technology, cladding materials, and coating function. Generally, the laser cladding parameters and auxiliary technology could influence the temperature distribution and elements diffusion in the molten pool, which basically determines the microstructure and properties. The matrix and reinforced phases play an important role in laser cladding coating, which can increase the hardness, strength, wear resistance, oxidation resistance, corrosion resistance, biocompatibility, and so on. However, the excessive addition of reinforced phases or particles can deteriorate the ductility, and thus the balance between functional properties and basic properties should be considered during the design of the chemical composition of laser cladding coatings. In addition, the interface including the phase interface, layer interface, and substrate interface plays an important role in microstructure stability, thermal stability, chemical stability, and mechanical reliability. Therefore, the substrate state, the chemical composition of the laser cladding coating and substrate, the processing parameters, and the interface comprise the critical factors which influence the microstructure and properties of the laser cladding coating prepared. How to systematically optimize the influencing factors and obtain well-balanced performance are long-term research issues.

1. Introduction

Titanium (Ti) and its alloys have been commonly regarded as space metals, ocean metals, and biological metals in the 21st century due to their high specific strength, high fatigue resistance, high corrosion resistance, and excellent biocompatibility [1,2,3,4,5]. Thus, Ti and its alloys are widely used in aerospace, national defense, military, petrochemical, mechanical construction, and biomedical fields and other fields [6,7,8]. In 1940, Luxembourg scientist Knoll developed a method to reduce Ti from TiCl4 by magnesium, which became a common way for industrial manufacturing [7]. Ti is located in the fourth period and the IVB group in the periodic table of chemical elements with an atomic number of 22 and a density of 4.5 g/cm3. The melting point of Ti is 1668 °C, which is about 1000 °C higher than that of aluminum [9]. In general, Ti has a hexagonal closed-packed (HCP, α-Ti) lattice structure below 883 °C and then transforms to a body-centered cubic (BCC, β-Ti) lattice structure above 883 °C. Meanwhile, when some alloying elements are added to Ti, Ti alloys with different phase constituents are designed. These alloys have better properties compared with commercial pure Ti (CP-Ti), which promotes a wider application of Ti-based alloys. Generally, Ti alloys could be simply classified by the phase constituents, including α-Ti alloys, (α + β)-Ti alloys, β-Ti alloys, and shape-memory Ti alloys [10,11]. The α-Ti alloys are mainly composed of the α phase which is obtained by the α-stabilizers such as Al, O, and N. They have excellent castability and weldability, but their strength and plasticity are relatively low. In comparison, (α + β)-Ti alloys with a certain amount of α-stabilizers and β-stabilizers (such as V, Mo, and Ta) show a dual-phase microstructure (5–30% β phase) at room temperature. Compared with α-Ti alloys, these dual-phase alloys possess higher strength. In addition, they can be further strengthened by heat treatment [12,13]. β-Ti alloys with high amounts of β-stabilizers are mainly composed of a β phase. They display desirable corrosion resistance, higher strength, and better biocompatibility compared with other Ti alloys [14]. Shape memory Ti alloys have shaped memory effects and superelasticity, which derives from the reversible solid-state phase transformation between the higher temperature parent phase and lower temperature martensite phase. The TiNi alloy is a famous shape memory alloy and the first commercial Ti-based shape-memory alloy. Subsequently, many elements, such as Ag, Zr, Pd, and Hf, are added to the conventional TiNi alloys, which produces TiNiAg, TiNiZr, TiNiPd, and TiNiZrHf, respectively, and other Ti-based shape memory alloys [15,16]. Thus, the desirable properties of Ti and its alloys have been paid more attention. Ti and its alloys have become the most potential materials in more applications fields.
However, Ti and its alloys still have some disadvantages such as low hardness, an unsatisfied work hardening ratio, poor wear resistance, and so on [17,18]. For example, the microhardness of CP-Ti is in the range of 150–200 HV1 and the typical Ti-6Al-4V alloy has a microhardness of 290–375 HV1. Thus, Ti and its alloys show limited fatigue and wear resistance, which would easily result in component failure during its service. Moreover, the strength of Ti and its alloys would decrease sharply at higher temperatures (>600 °C), which indicates that Ti materials could not bear high loading in high temperature environments. In addition, as the choice of clinic implant, Ti and its alloys are inactive and could not induce tissue growth in vivo. However, the ion dissolution from Ti and its alloys or their wear debris could result in inflammation [19,20]. To conquer these disadvantages, many methods have been developed and surface modification has been thought of as the most convenient one.

1.1. Surface Modification for Ti and Its Alloys

1.1.1. Buttering Welding

Buttering welding (BW) is a surface modification technology that can achieve metallurgical bonding between the substrate and cladding materials with an external heating source. Because of the metallurgical bonding, the BW cladding layer exhibits a relatively satisfactory service life [21]. Moreover, buttering welding has a wide scope of cladding materials, which can prepare wear-resistant layers, corrosion-resistant layers, and high-temperature-resistant layers on the substrate based on the requirements of workpieces [22]. The most commonly used cladding materials are Fe-based, Ni-based, Co-based, and Cu-based alloys [23]. Traditionally, buttering welding is performed by arc welding, submerged arc welding, and GMAW, which are relatively mature and widely applied. Recently, high-energy particle beam welding, tungsten inert gas welding (TIG), and plasma arc welding have been adopted to perform buttering welding [24]. Due to the abundance of cladding materials and external heating sources, the BW becomes one of the most convenient and economical methods to modify the substrate surface [25]. Rohan et al. [26] prepared a titanium matrix cermet (TMC) layer on the TC4 alloy surface with plasma transferred arc welding, which effectively improved the wear resistance of the TC4 alloy. Though BW has some advantages, it also possesses some shortcomings. The high heat output generates a large heat-affected zone, which influences the mechanical properties of the substrate greatly. Moreover, the big, remelted zone restricts its application in the workpieces with complicated shapes and precise dimensional tolerance. In addition, secondary machining is necessary for the BW modified surface.

1.1.2. Arc Cladding

Different from the high thickness of buttering welding, arc cladding (AC) can produce a relatively thin modification layer by the arc heat source. Generally, argon (Ar) is always used as the protective gas during the arc cladding process, which can effectively isolate oxygen, avoiding the reaction of the cladding material with oxygen. Therefore, it also has similar advantages to buttering welding, such as low cost, simple process, easy operation, and large penetration depth of the cladding layer. Therefore, the macroscopic quality of the cladding layer surface prepared by arc cladding is relatively good, and the defects such as pores and slag inclusions can mostly be avoided [27,28]. Recently, a TiN-strengthened wear-resistant coating was prepared on a TC4 alloy surface by tungsten arc cladding [29]. With the increase in the TiN phase quantity in the cladding layer, the hardness of the cladding layer can reach up to 660 HV1, about 1.9 times of the matrix (350 HV1). Bao et al. [30] prepared a TiB-reinforced Ti-based composite coating on a TC4 alloy surface by the flux-cored wire and TIG, which exhibited that the TiB2 particles preferred to aggregate on the surface of the molten pool, contributing to the surface hardness. The as-prepared TiB-reinforced coating had higher hardness (571 HV0.5) and excellent wear resistance with minimum wear loss (14.10 mg). Huang et al. [31] added CO2 in Ar protective gas during the arc cladding on a TC4 alloy and revealed that the added CO2 promoted the solid solution of C and O and a subsequent reaction with Ti to form TiOx and TiC reinforcements. The microhardness of the cladding layer is about 600 HV1 which is 1.7 times that of the Ar protective gas. However, the heat output of arc cladding is still relatively dispersed, which results in a heat-affected zone with a high width. In addition, the high heat output and rapid cooling could lead to cracks in the cladding layer [32].

1.1.3. Plasma Cladding

Plasma cladding (PC) applies the high-energy plasma arc as a heat source to fabricate the cladding layer on the substrate surface, which has the characteristics of high energy concentration, fast heating speed, low cost, easy control, large area processing, high cladding efficiency, a high powder utilization rate, and a low dilution rate of the cladding layer. Due to the high energy concentration, the cladding layer could obtain good bonding strength with the substrate, which promotes its application in many lightweight metals [33,34]. Liu et al. [35] prepared a metal/ceramic composite cladding layer with the mixed powders of titanium iron and asphalt by plasma cladding, which is composed of fine TiC and Ti2O3. The microhardness of the composite coating was 1640 HV0.2 and had good wear resistance. Similarly, the TiB2-TiC-NiAl composite coating was prepared on the Q235 steel surface by plasma cladding with improved mechanical properties [36]. However, the crack is the defect that frequently appeared in the surface layer prepared by PC, which is mainly attributed to the wide heat affected zone and high residual internal stress.

1.1.4. Electron Beam Cladding

Electron beam cladding (EBC) is another type of surface modification or repairing method with high-energy output. Unlike plasma cladding, the energy concentration of EBC is much higher and the size of the molten pool is smaller, which could obtain a cladding layer with low roughness [37]. Before EBC processing, a layer of alloy powders with a thickness of several microns to several millimeters would be preset on the surface of the substrate by spraying and then the cladding is performed by high-energy electron beam scanning [38]. Due to the high energy density, the cladding layer prepared by EBC has a dense structure and good bonding strength with the substrate. In addition, the high cladding rate and small molten pool decrease the heat-affected zone and residual stress [39,40,41]. The recent research prepared the (Ti,W)C1−x composite coatings on the TC4 alloy surface by EBC with multi-phase and reinforcements [42]. The microhardness of the composite coating was up to 860 HV1, which improved the wear resistance greatly. Bataev et al. [43] prepared a Ti3Al layer on a CP-Ti plate by EBC, which increased the microhardness to 540–610 HV1 and obtained better sliding wear resistance and fixed abrasive friction. Lenivtseva et al. [44] fabricated a ceramic reinforced composite layer on a CP-Ti surface by EBC with 50 wt% TiC + 50 wt% CaF2 and 40 wt% Ti + 10 wt% graphite + 50 wt% CaF2 mixed powders. The results revealed that the powders with relative high melting points could be well dispersed in the cladding layer and have a good phase interface. Due to the well-dispersed TiC and graphite, the microhardness of the cladding could reach a maximum of 8 GPa and its wear rate was decreased to about 40% of the CP-Ti. Actually, the EBC also has some disadvantages. The EBC process needs a high vacuum environment and the electron beam is easily interfered with by stray electromagnetic fields, which restricts its application for components with a large size.

1.1.5. Laser Cladding

Laser cladding (LC) is a rapidly developed surface modification method with combined advantages of EBC and AC, because of its high energy density and environment tolerability. Therefore, it could be used in high vacuum, gas shielding, or atmosphere environments. Due to the high energy density, LC could prepare the thin layer on the relatively complex structure surface from powder or wire feeding, while the adjusting of focal distance could change the depth of the molten pool and control the heat affected zone [45,46]. Combined with the small laser spot diameter, the thickness, surface roughness, and layer interface of the cladding layer could be optimized by parameter adjustment [47,48]. These advantages contribute to the formation of the cladding layer having metallurgical bonding with the substrate and good mechanical properties [49]. Lv et al. [50] prepared a hydroxyapatite (Ca10(PO4)6(OH)2, HA) composite layer on a CP-Ti surface by LC with mixed CaCO3 and CaHPO4 powders, which increased the biocompatibility obviously. The Ti3Al + TiB/Ti in situ composite layer was prepared on a TC alloy surface by LC from Ti and AlB2 powders [51]. The composite cladding layer increased the microhardness to 804 HV0.3 and decreased the wear rate to 12.5% of the TC4 substrate. Jiang et al. [52] fabricated a highly densified WC-Co composite layer on a TC4 alloy surface by LC, which demonstrated a well bonded interface. Moreover, the composite cladding layer obtained a microhardness as high as 1536 HV0.5 and a wear rate of 1.5 g/h.

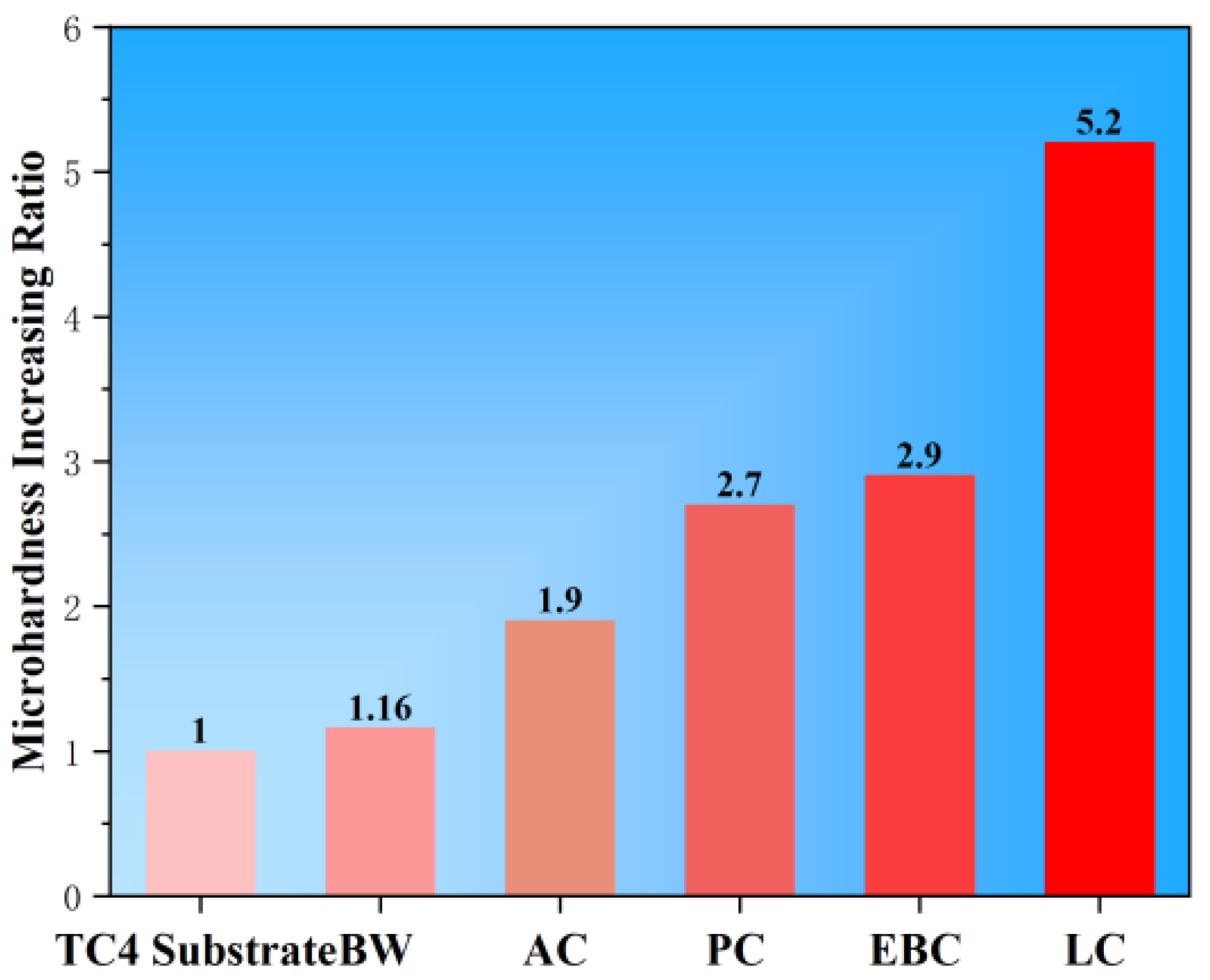

Compared with well-developed surface modification technologies, it can be found that BW has a high dilution rate, which makes it difficult to obtain a thin and uniformly distributed cladding layer. Defects such as pores, slag inclusions, and arc crater cracks are prone to form, resulting in poor properties [53], while AC has shortcomings of shallow penetration depth, a slow cladding rate, and impurity from the tungsten electrode, which affects the cladding layer quality [54]. PC exerts redundant heat, which leads to great residual internal stress and deformation of the substrate [33,55]. For EBC, the requirement on the processing environment is high, which handicaps its wider application [56,57]. On the contrary, LC possesses the advantages of a high energy density, small molten pool, and high processing precision, which could optimize the cladding layer significantly [58,59,60]. As shown in Figure 1, the increasing ratio of the Y-axis microhardness represents the strengthening of multiples of the different coating microhardnesses relative to the TC4 substrate microhardness. The comparative analysis of the microhardness of the cladding layers fabricated by different surface modification methods demonstrates that the microhardness increases with the increase in energy density and the LC layer has the highest microhardness [12,26,36,45,46]. Besides the effect of microstructure and reinforcements, the improved remelting capability by the output energy density plays an important role. Table 1 illustrates a comparison of the various surface cladding processes.
Due to the obvious advantages of LC processing, it demonstrates application potential in many industry fields. However, as a kind of surface cladding method, the mechanical properties of the cladding layer could be influenced by the detailed processing parameters and cladding materials. Therefore, the recent research on the LC processed Ti and its alloys are reviewed in the present paper to demonstrate its prospects.

2. LC Processing

LC processing is a process that remelts and merges the cladding materials and substrate surface simultaneously. The mechanical properties of the cladding layer are related to the LC parameters. Generally, the LC system is mainly composed of laser equipment, a motion control system, a powder feeding system, and protecting gas delivery, as shown in Figure 2 [61]. The laser equipment outputs the laser beam, which determines the laser type and output energy. The motion control system always employs the computer to control the robot, which can design the laser cladding route, laser cladding speed, laser spot size, and so on. The speed of powder feeding and the protecting gas shielding effect could be adjusted by the powder feeding system and protecting gas delivery. Therefore, many kinds of parameters could be set to optimize the LC processed layer.
Previous research [62] reveals that only a small proportion of laser power is used to melt the powders and most of the laser power is reflected off or used to remelt the substrate. Actually, the size of the molten pool is significantly influenced by the laser energy, which determines the height of the cladding layer [63]. To increase the molten pool size, either the output laser energy or the parameters should be adjusted. However, the higher output laser energy could lead to a deeper remelted substrate and a higher dilution ratio, which changes the mechanical properties of the substrate. Because the changing of laser scanning speed, focal distance, and the size of laser spot could be classified into the output of laser energy, the powder feeding method and auxiliary technology become the research issue.

2.1. LC Processing Technology

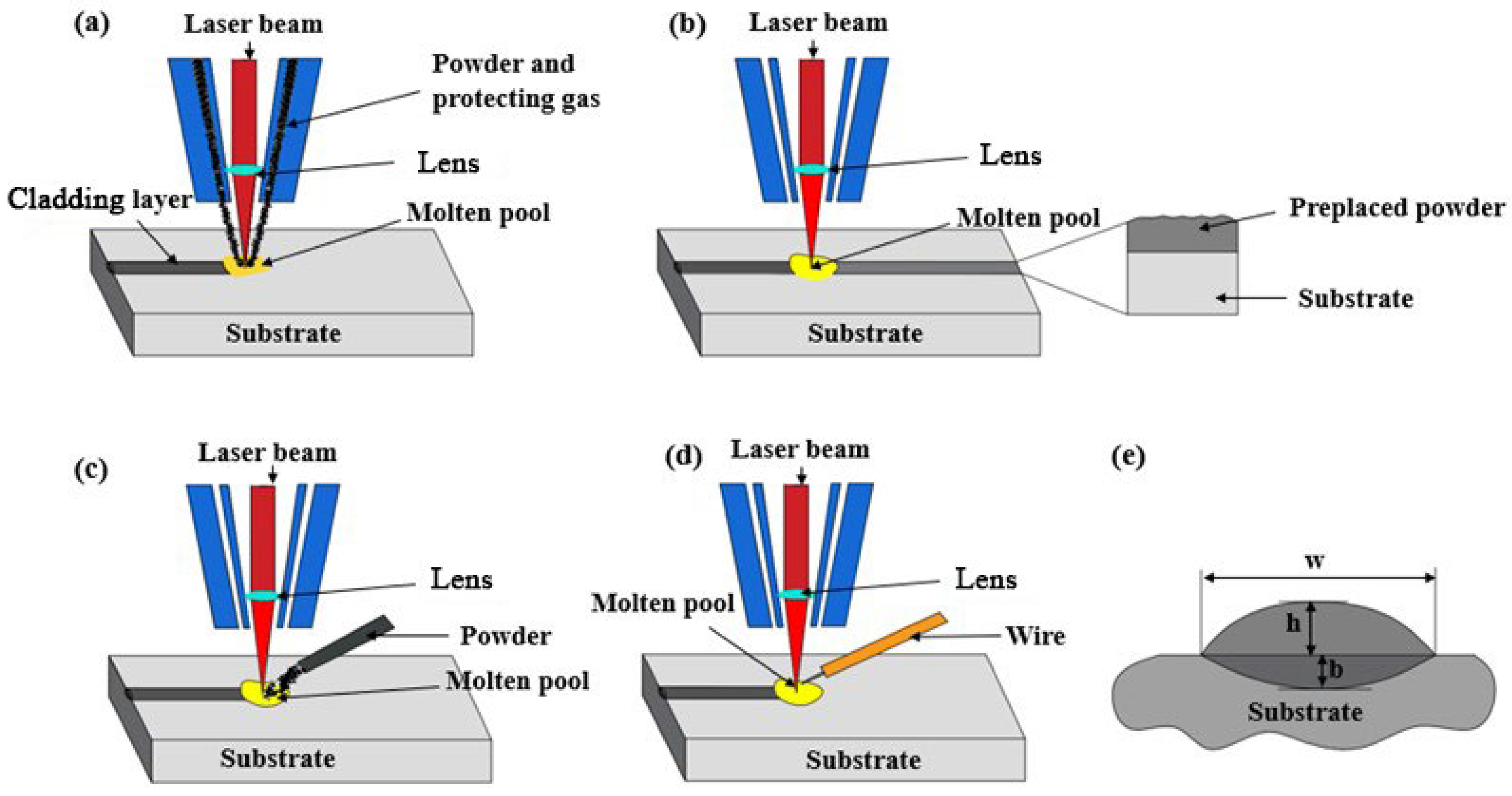

Based on the powder feeding method, the LC processing mode mainly includes four kinds: coaxial powder feeding, pre-placed powder off-axis powder feeding, and wire feeding, as shown in Figure 3 [64]. For the coaxial powder feeding, the cladding powders are directly fed into the laser beam, and then the remelting and cladding are performed on the substrate surface simultaneously [65]. For the pre-placed powder, the cladding powders were spread on the substrate surface in advance and remelted by the subsequent laser beam scanning [66]. Off-axis feeding and wire feeding have similar processing, in which the powder and wire are fed into the molten pool and remelted by laser irradiation [67].
Coaxial powder feeding is the most commonly used powder feeding method, which could be applied to a structure with a complex shape. Because the powders are remelted on the substrate as they are sprayed, the cladding layer has a uniform thickness, small grain size, and good bonding strength with the substrate. Zhang et al. [68] prepared a TiCx/CrTi4-based composite layer on the surface of a TC4 alloy by coaxial powder feeding, which demonstrates a better appearance and fine microstructure with few cracks and pores. Due to the uniformly distributed TiCx strengthening phase, the cladding layer exhibits significantly improved mechanical properties. The pre-placed powder method has more requirements on the shape of the substrate and the plane structure adopts this method preferentially. The mixed powders can be used in the pre-placed powder method to fabricate the composite cladding layer conventionally. Xu et al. [69] fabricated a TiC-particle-reinforced Ni-based gradient composite layer by LC with pre-placed ball-milled Ti, graphite, and Ni60A powders. The gradient composite layer improved the hardness and wear resistance of the substrate greatly. Off-axis powder feeding requires an additional pipeline to send the powders to the laser beam scanned region. Due to the short remelting time of powders, it is important to optimize parameters to obtain the well cladding layer. Corbin et al. [70] investigated the relationship between parameters and the quality of the cladding layer during the off-axis powder feeding assisted LC 6061 Al powder on the 6061-T6511 substrate surface. They demonstrated that the cladding layer height (h) increases with the increased ratio of powder feeding speed (F) and scanning speed (V), while cladding layer width (w) and molten layer depth (b) increase with the increased ratio of laser power (P) and scanning speed (V), as shown in Figure 3. Compared with traditional powder cladding, wire feeding cladding has the advantages of a good processing environment, high surface finish, and a high material utilization rate. However, the vibration of the wire during the feeding could seriously affect the cladding quality and processing stability.
Compared with the pre-placed powder feeding method, coaxial powder feeding, off-axis feeding, and wire feeding could be classified into synchronous cladding in which the feeding material is remelted simultaneously with the substrate surface. Because of the controlled heat input, the remelting, cladding, and solidification are finished in a short time, which could well control the cladding layer’s morphology. For the pre-placed powder feeding method, the laser irradiation melts powders first and then the substrate, which results in a bigger molten pool and influences the morphology of the cladding layer. In addition, the binder or moisture may lead to the formation of a pore in the cladding layer. As a result, the cladding layer obtained by the pre-placed powder method is not as uniform and dense as the coaxial powder feeding method. The off-axis powder feeding and wire feeding cladding methods could decrease the size of the molten pool but they are sensitive to the processing parameters. In contrast, the coaxial powder feeding process is stabler and more precise, because the remelting of powders by a laser beam and cladding with the molten substrate surfacealmost finish at the same time. The laser beam is not attenuated by the powder particles and the energy utilization rate is high, which benefits LC processing with a constant state. Therefore, the coaxial powder feeding method is the most widely used in the practical application of LC technology.

2.2. LC Processing Parameters

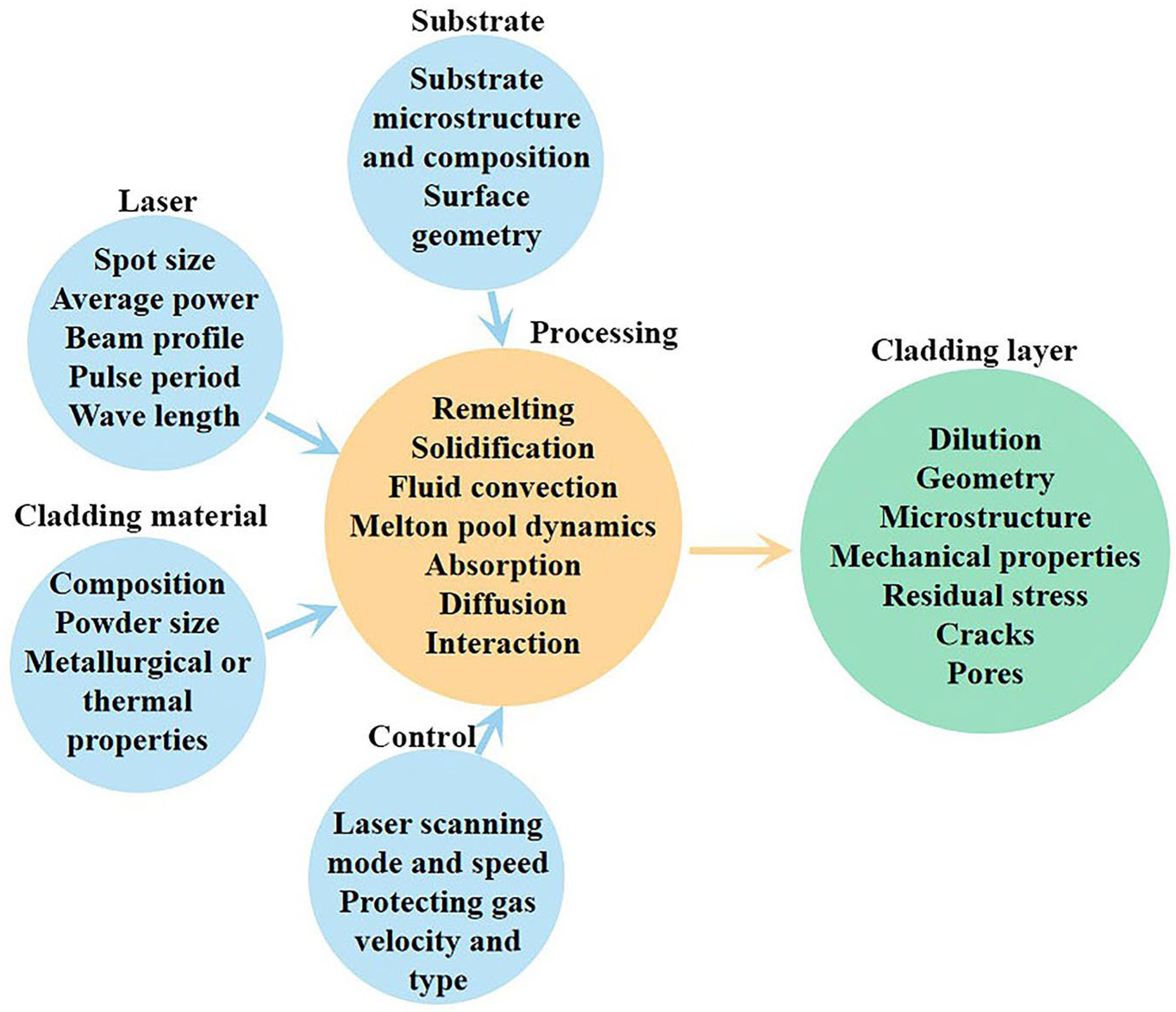

For LC processing, its parameters are derived from the laser, cladding materials, motion robot, feeding, and gas delivery [71]. These parameters can exert an influence on the LC processing systematically and affect the remelting and solidification of the cladding materials and substrate, as shown in Figure 4. Generally, the morphology of the cladding layer is the focus that attracts the most attention, because it affects the quality of the modified substrate surface, while the metallurgical behavior of the cladding materials and substrate influences the microstructure and mechanical properties of the cladding layer. Therefore, the melt pool and its interaction with the substrate have been investigated based on the parameters.

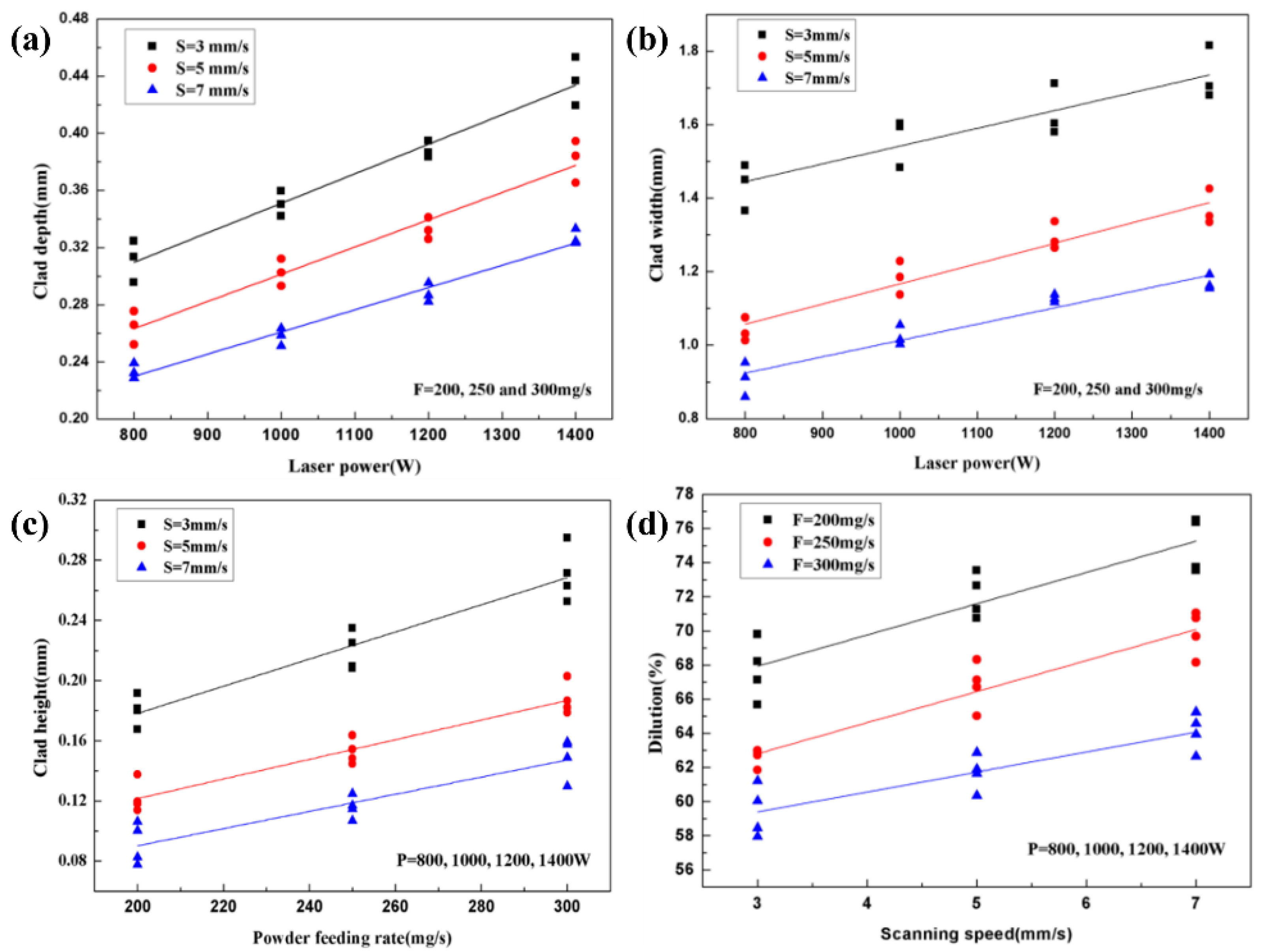

For LC processing, the geometry of the cladding layer is related to the cladding region and remelting region, which could be defined as the dilution ratio in Equation (1) [71].
η = S melt S melt + S clad
where the η is the dilution ratio, Smelt is the area of the molten substrate, and Sclad is the area of the cladding layer.
Based on the description in Figure 3, the dilution ratio η is related to the height of the cladding layer and substrate melted layer. The increasing dilution ratio indicates that the height of the substrate melted layer is increased or the height of the cladding layer is decreased, which benefits the spreading of the cladding layer. Because the depth of the molten pool is highly dependent on the input energy, a higher laser energy density would increase the size of the molten pool. According to previous research [71,72], the laser energy density (Led) could be the indicator of the amount of transferred energy from the laser, which is responsible for the melting of the cladding materials and substrate. The laser energy density could be defined as Equation (2).
L ed = P VD L ( J / mm 2 )
where P refers to the laser power (W), V refers to the laser scanning speed (mm/s), and DL refers to the laser spot size (mm). This reveals that the laser energy density decreases with the increase in the laser scanning speed and spot size. Considering the small size of the molten pool and its thermal diffusion, the cooling rate of the molten pool would demonstrate the directionally solidified feature and relative coarse microstructure, which also influence the geometry of the cladding layer.
The investigation [73] on the LC ceramic-reinforced Ti-based powders reveals that the depth and width of the cladding layer increase with the laser power, while the height of the cladding layer and the dilution increase with the powder feeding rate and laser scanning speed, as shown in Figure 5. It can be seen that the depth and width of the cladding layer almost have a linear relationship with the laser power when the laser scanning speed is defined. When the powder feeding rate is specific, the dilution is almost linear with the laser scanning speed. This indicates that the laser power exerts a significant influence on the geometry of the cladding layer. Aghili et al. [74] remelted Cr3C2-NiCr mixed powders on the surface of titanium aluminide (TiAl) and revealed that the height of the cladding layer, wetting angle, and depth of the molten layer are proportional to the laser power and inversely proportional to the powder feeding rate and laser scanning speed.

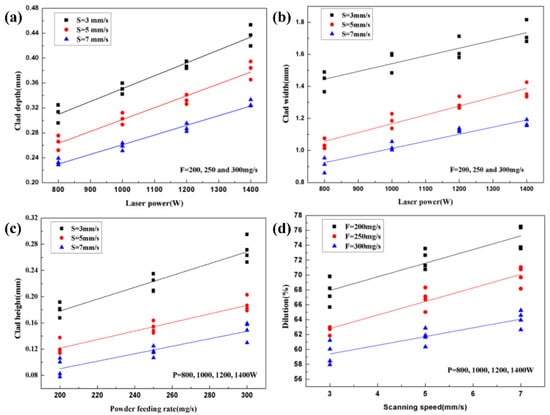

Except for the typical analysis method based on energy density, there are still some other methods. Onwubolu et al. [75] fabricated a nickel-based alloy cladding layer on the steel surface and applied response surface methodology (RSM) to predict the geometry of the cladding layer. The results indicate that RSM could well predict the results and instruct the optimization of LC parameters. The research of Sun et al. [76] used RSM to analyze the parameters of laser cladding of a TC4 alloy and demonstrated that it could predict the geometry of the cladding layer, combined with experimental design and central composition design. Chen et al. [77] prepared a TiC cladding layer on a TC4 alloy surface and used a support vector machine (SVM) to analyze the results, which provided the optimized parameters for the following LC. Zhang et al. [78] set a novel process parameter optimization approach for laser cladding based on a multi-objective slime mold algorithm (MOSMA) and support vector regression (SVR), which obtained well-optimized LC process parameters.

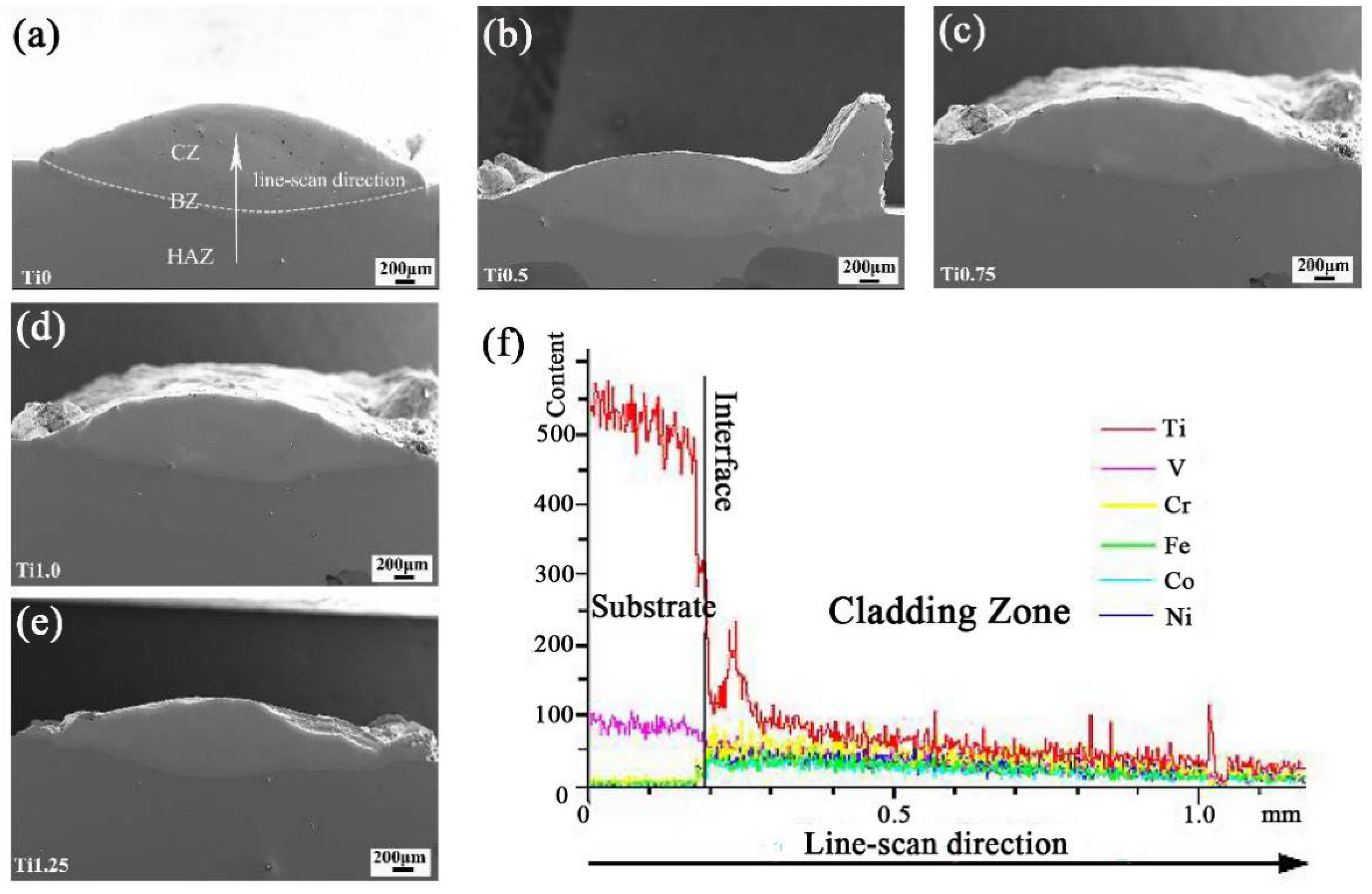

Generally, the quality of the cladding layer by LC is obviously influenced by the parameters, and how to predict their impact is a meaningful research topic. The present investigation methods such as SRM, SVM, and SVR could help the parameters’ optimization. However, the analysis model is highly dependent on plenty of experimental data. In addition, the present analysis models mainly focus on hardness and wear, which is limited. Research on these analysis models should be carried out in the future to extend their prediction capability and demonstrate more mechanical properties.

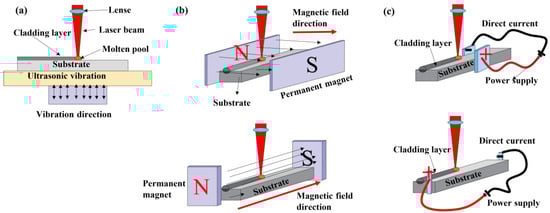

2.3. Auxiliary Technology

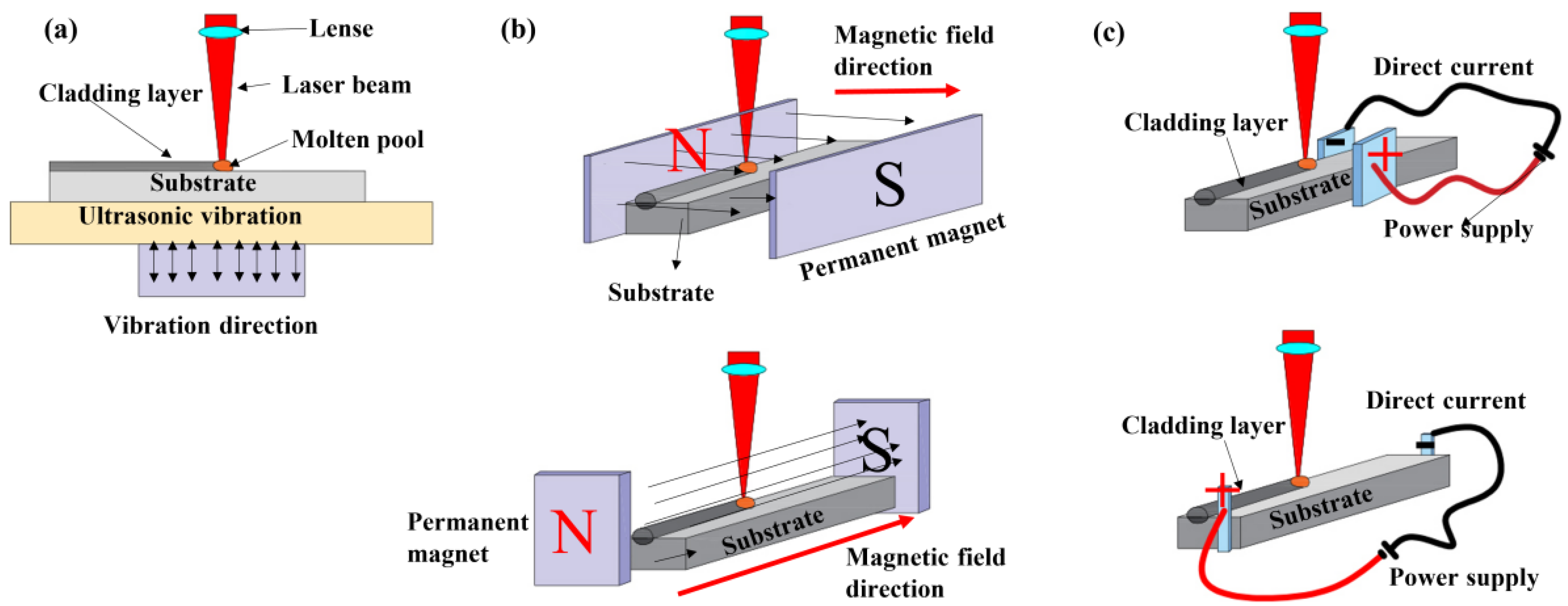

Based on LC parameters’ optimization, energy density is an important factor, which influences the size of the molten pool. The higher the energy density input, the bigger size of the molten pool. However, the increased laser energy density also increases the depth of the molten layer of the substrate, which is detrimental to the mechanical properties of the substrate. Moreover, the small size of the molten pool also results in rapid solidification and coarse dendrites during the LC process, which is harmful to the mechanical properties. Therefore, to optimize the microstructure of the molten pool and reduce the molten layer in the substrate, some kinds of auxiliary technologies have been developed, and some typical auxiliary technologies are shown in Figure 6.
Ultrasonic vibration (UV) is a useful technology that has been widely applied to optimize microstructures and decrease defects during the manufacturing of alloy components [79]. During laser cladding, UV could improve the fluidity of the molten pool and the microstructure during solidification. The previous research fabricated the Fe-Cr stainless steel part by UV-assisted laser cladding, which obtained the net shaping part with significantly decreased microcracks and pores, as shown in Figure 6a [80]. Research on the UV-assisted LC IN718 revealed that the cladding layer had a smaller grain size and the precipitates had been well refined, which improved the microhardness and quality of the cladding layer [81]. Moreover, the presence of UV during LC could redistribute the ceramic particles and decrease the friction coefficient significantly [82]. The well-improved microstructure and mechanical properties of the cladding layer by UV should be attributed to the inhibition of dendrite coarsening, which increases the melt fluidity and homogenizes the temperature distribution. Therefore, the molten pool has more time to undergo solidification and reduce the metallurgical defects. Chen et al. [83] revealed that UV-assisted LC decreased the internal tension stress by fragmenting dendrites and then alleviated the cracking around the interface. In conclusion, UV optimized the molten pool through the released sonic flow agitation, increasing the nucleation rate and improving the elemental distribution.
The external magnetic field and electronic field are always employed to improve the elemental diffusion during LC, as shown in Figure 6b,c. The magnetic field is produced by the permanent magnet or the electro-magnet, while the electronic field is produced by the electrodes fixed in a special position. The direction of the magnetic field or electronic field could be parallel or perpendicular to the direction of LC. The presence of a magnetic field could help the diffusion of elements and contribute to the microstructure optimization [84,85]. The magnetostriction effect decreases the thermal expansion and thermal stress, which decrease the crack sensitivity of the cladding layer by combining with well-reduced element segregation [86,87]. Moreover, the magnetic field could accelerate the flow in the molten pool and decrease the porosity, which is beneficial to the adhesion strength and wear properties of the cladding layer [88]. For electric-field-assisted laser cladding, the compound effect would be generated with thermal diffusion. Ouyang et al. [45] investigated the effect of the electrostatic field on the microstructure and mechanical properties of 316 L stainless steel prepared by laser cladding and revealed that the electrostatic field opposite the laser scanning direction promoted the elements’ diffusion and benefited directional solidification, but the electrostatic field consistent with the laser scanning direction restricted the elements’ diffusion and benefited ordered mushy solidification. Recent research has revealed that the electric field could increase the nucleation rate and refine the grain size, which improved the microhardness and corrosion resistance [89]. Actually, more research has optimized laser cladding processing by the mixture of electric and magnetic fields. Huo et al. [90] fabricated an In718/WC composite coating by electromagnetic-compound-field-assisted laser cladding and revealed that the induced downward Ampere force enhanced the Marangoni convection in the molten pool, which results in the uniformly distributed WC particles in the composite coating. In conclusion, either the electric field or the magnetic field influences the microstructure by the improvement of element diffusion or particle distribution. With the help of auxiliary technology, the laser cladding layer can obtain a better microstructure and mechanical properties. Auxiliary-technology-assisted LC would be the prospective process to perform the surface modification of Ti-based alloy.

3. LC Materials

During LC processing, the LC materials play an important role, because their properties directly determine the performance of the cladding layer. In order to obtain a cladding layer with better mechanical properties, it is necessary to select the appropriate cladding material. Except for the mechanical properties, the chemical composition and physical properties of the LC materials should be considered to meet the metallurgical requirements during LC processing [91]. Some principles could be set for the selection of LC materials [92]. Firstly, the cladding materials should have a similar thermal expansion coefficient to the substrate. Secondly, the melting temperature of the cladding materials should not be higher than that of the substrate. Thirdly, the cladding materials should have better wettability on the substrate. Based on the initial shape, the LC material could be divided into a powder, paste, wire, and bar. Actually, powders of LC materials have been widely applied in LC processing because of their better metallurgical molding capability [93,94]. According to the phase constituent, the powder LC materials can be mainly classified into the following categories: metal alloy powders, ceramic and ceramic composite powders, and rare earth (RE)-oxide-doped powders [95].

3.1. Metal Alloy Powders

Metal alloy powders are the most applied LC materials for the surface modification of Ti-based materials, because of their better metallurgical fusion during cladding. In addition, the metal-based interface between the cladding layer and substrate is beneficial to the adhesion strength [96]. The metal alloy powders for LC materials are mainly composed of self-fluxing alloy powders and high-entropy alloy powders, based on their physical or metallurgical properties.

3.1.1. Self-Fluxing Alloy Powders

The self-fluxing alloy powder always contains the Si, B, and other elements which have a strong deoxidation effect [97,98]. Moreover, these elements help to decrease the melting temperature of all of the powders, which benefits self-melting during LC processing. In most cases, self-fluxing alloy powders are the first choice for LC materials. In addition, there are many kinds of self-fluxing alloy powders such as nickel-based, cobalt-based, and iron-based self-fluxing alloy powders, which could be applied for the surface modification of titanium alloys, magnesium alloys, and steel.
Ni-based self-fluxing alloy powders have the advantages of excellent wettability, good corrosion resistance, high-temperature self-lubrication, etc. They are suitable for cladding on structural parts with strict requirements on wear resistance, corrosion resistance, and fatigue resistance. The research on the NiCoCrAlY cladding layer on the TC4 substrate by LC demonstrated that the grain size in the cladding layer was influenced by the laser scanning speed, temperature gradient, and cooling speed [99]. With the optimization of LC parameters, the microstructure and mechanical properties of the NiCoCrAlY cladding layer were enhanced. Jeyaprakash et al. [100] compared the NiCrMoNb and NiCrBSiC cladding layers on the TC4 substrate by LC and exhibited that the refractory elements could help the wear resistance by the formation of the stiffness phase. Sun et al. [101] prepared a TiC/NiCrBSi composite coating by LC on the surface of TC4 and revealed that the solubility of TiC particles in the molten pool also increased with the increased laser power. The agglomeration of TiC particles refined the grain, which contributed to the dense cladding layer and improved the hardness.
Co-based alloy powders are another commonly used LC powder material with good wear and corrosion resistance at high-temperature [102,103]. During LC processing, the Co addition prefers to form the stiffness phases with the other refractory element, which is beneficial to the strength of the cladding layer [104]. Weng et al. [105] remelted the Co-based self-fluxing powders on a TC4 substrate by LC and demonstrated the formation of reinforcing phases such as CoTi, CoTi2, TiC, TiB2, TiB, Ti5Si3, and so on. Furthermore, the occurence of ceramic particles in the cladding layer by Co-based self-fluxing powders would increase the wear resistance significantly by more than 10 times that of the substrate. However, the exceeding formation of ceramic particles in the cladding layer would coarsen the grain structure and be detrimental to the wear resistance.
Fe-based alloy powder materials have the advantages of low cost and good wear resistance. Usually, they are used in the LC modification of cast iron and low-carbon steel substrates. Compared with Ni-based and Co-based alloy powders, Fe-based alloy powders have some disadvantages such as poor self-fluxing properties, a high crack rate, poor oxidation resistance, etc. Therefore, the Fe-based alloy powders almost have no application in the LC modification of titanium and its alloys.
In the surface modification of Ti-based materials, the Ti-based self-fluxing powders are the most potential LC powder materials, because of their good metallurgical fusion. Ge et al. [106] prepared a Ti-Al-Nb alloy coating on the surface of TC4 by LC from mixed Ti, Al, and Nb powders. The microstructure analyses revealed that Ti3Al, AlNb2, and α-Ti are the main phases, which increased the hardness and wear resistance to 1.7 times and 2.9 times of the substrate, respectively. Because the conventional added elements of Si and B always induce the formation of a ceramic phase, this kind of LC material could be classified into ceramic composite powders. Actually, the self-fluxing alloy powders used for Ti-based alloy surface modification are mainly Co- or Ni-based powders (Table 2). In general, the self-fluxing alloy powders have similar properties to the substrate, which helps to obtain a better interface between the cladding layer and the substrate. The selection of the self-fluxing alloy powders is dependent on the working environment of the surface-modified parts.

3.1.2. High-Entropy Alloy Powders

The high-entropy alloy (HEA) is a new type of material that is composed of five or more elements with similar molar ratios. Compared to conventional alloys, HEA has more advantages such as better corrosion resistance, high fatigue strength, higher oxidation resistance, good thermal stability, better yield strength, high hardness, good fracture toughness, good biocompatibility, and better abrasion resistance [49,113,114]. The improved properties of the HEA should be ascribed to the slow element diffusion, high entropy, cocktail effect, and lattice distortion [115,116,117]. Therefore, HEA powder has attracted much attention in the development of LC powder materials and many kinds of HEA powders have been developed, as shown in Table 3.
A recent study fabricated an AlTiVMoNb HEA cladding layer on a TC4 surface and revealed that the HEA cladding layer increased the hardness and high-temperature oxidation resistance [120]. However, the element diffusion from the substrate induced the element distribution evolution [73]. Li et al. [121] prepared the CrFeNi2V0.5Tix HEA cladding layer on TC4 by LC and demonstrated that the Ti ratio influenced the morphology of the cladding layer, as shown in Figure 7. Figure 7a–e illustrated thes SEM images of the cross-section of the CrFeNi2V0.5Tix cladding layer with different Ti (0.25–1.25) content, and Figure 7f shows the line-scanning analysis results for the Ti0 coatings. With the increasing Ti content, the height of the cladding layer decreases, and the ratio of width and height increases gradually. In addition, the dilution by the remelted substrate increases the Ti content in the cladding layer. Furthermore, the interdiffusion between the cladding layer and substrate contributes to the improvement of the metallurgical bond. Interestingly, the hardness of the cladding layer remains unchanged when the Ti ratio in the HEA powder is below 1.0, but the hardness decreased significantly when the Ti ratio in the HEA powder was higher than 1.25, and the hardness decreased significantly. Considering the wear behavior, the HEA powders of CoCrFeNi2V0.5Ti0.75 could obtain the cladding layer with the best performance.
Though the HEA powders have some advantages, the multi-component composition feature always induces high dilution between the cladding layer and the Ti-based substrate, which influences the mechanical properties of the cladding layer and substrate. Therefore, more research is still needed to clarify the influence of interdiffusion on the microstructure stability and service life of the cladding layer and substrate, especially in a high-temperature environment. Actually, the improvement of the metal-based cladding layer is restricted by its intrinsic properties. Therefore, cladding materials with specific properties are developed.

3.2. Ceramics and Ceramic Composite Powders

Ceramics are a kind of material with a highly stable crystal structure and excellent tolerance to extreme environments, which contributes to its wide application [134,135]. For laser cladding, ceramic powders are always applied to improve the wear resistance, corrosion resistance, oxidation resistance, or hardness of the Ti-based materials [136,137]. Now, there are many kinds of ceramic powders developed for LC materials such as oxide, nitride, carbide, boride, and silicide. These ceramic powders could be used as cladding materials directly and fused with the remelted substrate surface. Due to their low wettability with metal, ceramic powders are mostly blended with metal to prepare the ceramic composite powders.

3.2.1. Pure Ceramic Powders

During LC processing, the pure ceramic powders need more energy to fuse with the Ti-based substrate, due to its high melting point. In addition, most ceramic powders prefer to aggregate on the surface of a molten pool, due to their relatively low density. Therefore, auxiliary technology or reaction synthesis is usually designed to obtain the well distributed ceramic cladding layer. Recent studies [138,139] prepared a TiC-ceramic-strengthened cladding layer on a TC4 substrate surface by LC from nano TiC powders, as shown in Figure 8. The nano TiC powders were remelted and recrystallized during LC processing, which promoted the TiC dendrites in the cladding layer. Even though the TiC is recrystallized, the TiC dendrites are still segregated in the cladding surface. The remelted substrate surface diluted the TiC ceramic, while the precipitation of TiC induced the formation of the α2-Ti3Al phase, as shown in Figure 8f–k. With the strengthening of the TiC ceramic cladding layer, the microhardness and fracture toughness of the substrate were improved without any influence on biocompatibility. Chen et al. [102] fabricated a TiC/TiB ceramic cladding layer on a TC4 substrate surface from in situ synthesis by LC, which demonstrated that the multi-ceramic phases could be obtained simultaneously. In addition, the mechanical properties of the substrate surface were enhanced significantly. Tian et al. [140] prepared a composite cladding layer on a TC4 substrate surface from C and Si mixed powders and showed the formation of TiC and Ti5Si3 ceramic phases. The refined TiC and Ti5Si3 ceramic phase in the cladding layer increased the hardness to 1500 HV0.1 and decreased the wear resistance to a quarter of the substrate. Previously, the TiN had been fabricated on the Ti-based alloy by laser nitriding, which improves the corrosion resistance obviously [141].
Although the ceramic cladding layer could the improve hardness, wear resistance, and corrosion resistance, the significant difference in the thermal expansion coefficient and elastic modulus between the ceramic and Ti-based alloys always induces great internal stress, which prefers to result in cracks and even interface delamination [142]. In addition, the formation of a ceramic phase in the molten pool would decrease the fluidity and promote the solidification defects [143]. Such disadvantages restrict the application of pure ceramic powders in the surface modification of Ti-based alloys by LC.

3.2.2. Ceramic/Metal Composite Powders

Considering the disadvantages of pure ceramic cladding powders, ceramic/metal composite powders are the cladding materials with the most potential for LC processing. Especially for the ceramic cladding powders with the addition of Ti-based alloying powders, they could make full use of the strengthening effect of ceramic powders and the fusion effect of Ti-based alloying powders, which benefits the metallurgical bond between the cladding layer and substrate. Moreover, the better weldability and ductility of the metal powders would enhance the toughness, wear behavior, and so on. Therefore, ceramic/metal composite powders have become the research focus for the surface modification of Ti-based materials. Until now, many kinds of ceramic/metal composite powders have been developed such as Ti-based ceramic composite powders, Ni-based ceramic composite powders, and Co-based ceramic composite powders.
The research [8,61,107,110,111,144,145,146,147,148,149,150,151,152,153,154,155,156,157,158,159,160,161,162,163,164,165,166] on the ceramic/metal composite powders for LC processing reveals that in situ and extrinsic strengthening ceramic phases have been widely applied in the development of ceramic/metal composite powders for LC processing, as shown in Table 4. For the Ti-based alloy substrate, the Ti-based ceramic strengthening phases are always preferred and cooperate with the Ti-based alloy powders, which contributes to obtaining a cladding layer with excellent wear resistance. Moreover, the B4C ceramic powder is added to the composite powders to achieve the synthesized Ti-based phase or other ceramic phases in the cladding layer. However, the WC, h-BN, and ZrO2 ceramic particles with ultra-high stiffness are also applied in the ceramic/metal composite powders to improve the hardness and wear resistance of the cladding layer. In general, the present research on the surface modification of Ti-based alloy substrates by ceramic/metal composite powders mainly focuses on hardness, wear resistance, and oxidation resistance.
Actually, the mechanical properties of the cladding layer fabricated by the ceramic/metal composite powders are closely related to the powders’ morphology, ceramic/metal ratio, ceramic distribution, fusion state of the composite powders, and dilution effect, etc. The systematical optimization of these factors would benefit the microstructure of the cladding layer, which enhances the mechanical properties of the cladding layer. Based on the chemical composition of the metal additive, the Ti-based composite powders with ceramic particles have the best metallurgical bond and excellent properties at room temperature. The Co- and Ni-based composite powders with ceramic particles have better properties at high temperatures. In conclusion, ceramic/metal composites are one of the most widely used and studied cladding materials for the surface modification of Ti-based alloy substrates by LC processing.

3.2.3. Bioceramic Composite Powders

Due to the rapid formation of TiO2 passivation film on the surface, Ti-based alloys possess excellent corrosion resistance, which benefits their biocompatibility. Therefore, Ti-based alloys have been widely applied to fabricate biomedical implants which are used in orthopedics and stomatology, etc. However, the formed TiO2 passivation film has no bioactive function and cannot realize the molecular association with soft or hard tissue. In addition, Ti-based alloys always have an ion releasing effect that may be detrimental to the biocompatibility. To improve the biocompatibility of Ti-based alloy implants and promote their synostosis, the surface modification on the Ti-based alloy has been investigated thoroughly [167]. For LC processing, bioceramic composite powders are a hot research topic and have been studied widely. According to their functional features, the bioceramic powders are mainly divided into bioactive ceramic powders and bioinert ceramic powders. The bioactive ceramic powders can increase biological activity and contribute to the capability of synostosis, such as ceramic glass and hydroxyapatite (HA) [168,169], while the bio-inert ceramic powders mainly act as the shielding layer for the Ti-based alloy to avoid ion release, such as TiN or ZrO2 ceramic [134].
Recently, many researchers [107,167,170] have performed investigations on the HA bioceramic composite layer prepared by LC on a TC4 alloy substrate, which demonstrated greatly improved biocompatibility. Liu et al. [171] fabricated a Ca/P bioceramic layer on a TC4 alloy substrate from hydroxyapatite powder by LC processing. The bioceramic-based composite layer was mainly composed of α-Ti, Ti3P, TiO, CaO, CaTiO3, and β-Ca3(PO4)2 phases and had no cracks or pores inside (Figure 9a–d). During the simulated body solution immersion test, the Ca/P bioceramic cladding layer released more Ca and P ions (Figure 9e), which benefited the formation of HA on the surface and the proliferation of MG-63 cells, as Figure 9f–k shows the morphology of the MG-63 cells cultured on the substrate. Compared with the TC4 alloy substrate, the Ca/P cladding layer improves the biocompatibility obviously.

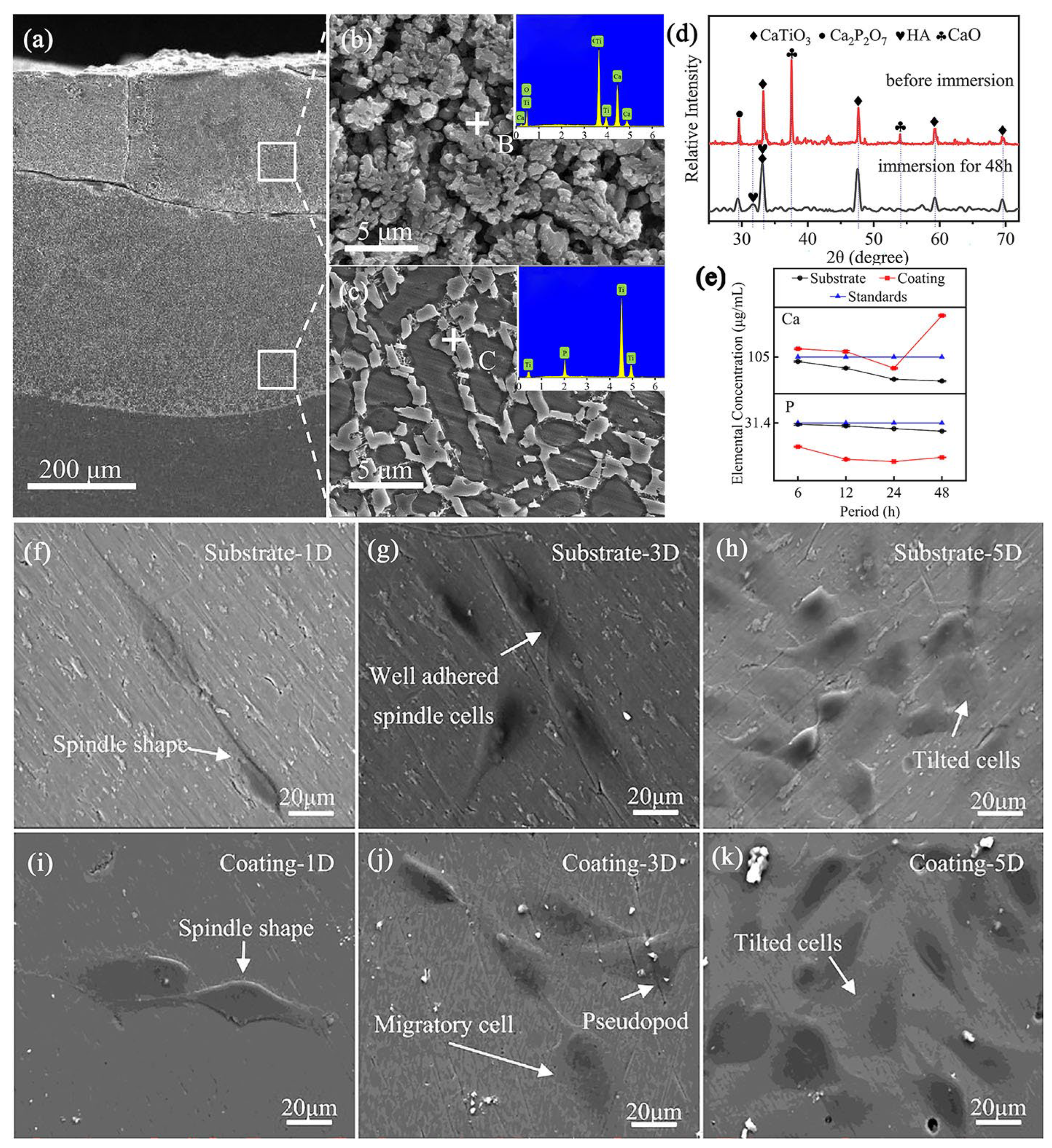

Li et al. prepared a CaO-SiO2-MgO bioceramic composite coating on a TC4 alloy surface to improve its biological activity and revealed that the formation of CaTiO3 refined the microstructure of the ceramic layer and contributed to the performance [172]. Zhu et al. Fabricated a calcium phosphate bioceramic coating on the surface of a titanium alloy by LC, which demonstrated the formation of bioactive phases of β-tricalcium phosphate (β-TCP) and hydroxyapatite (HA) in the ceramic layer [173]. In fact, the osteoclasts promoted the dissolving of the bioceramic phase and resulted in small pores on the surface, which helped the proliferation of osteoblasts and benefited the entire biocompatibility. Among the bioceramic materials, HA is the most applied one, because of its bioactive advantage during osseointegration. Therefore, HA or HA-based composites have been considered as the candidates with the most potential for the surface modification of Ti-based implants, such as intramedullary nails, fixation plates, screws, etc.
For biomedical implants, the surface modification is important to enhance their biocompatibility, but the reasonable selection of cladding materials is the crucial factor [174]. An ideal bioceramic cladding material should have a bioactive effect and fuse well with the substrate. Due to the obviously different thermal expansion coefficients between the bioceramics- and Ti-based alloy substrates, thermal stress is always generated along the interface and leads to cracks. Wollastonite and wollastonite-based silicate powders are developed for Ti-based alloy surface modification, because of their osteoconductive features and similar thermal expansion to Ti-based alloy [175]. In addition, the bioceramic particle strengthened alloy powders become the most selected choice for the surface modification of Ti-based biomedical alloy by LC processing. However, the surface properties are related to the ratio of bioceramics, powders shape, substrate state, LC parameters, and so on. Therefore, the properties of the cladding layer from bioceramics-based powders are not stable, and more investigations should be performed to reveal the internal mechanisms.

3.3. Rare-Earth-Oxide-Doped Powders

The cracks formed in the cladding layer are the main defects generated during LC processing. To eliminate such defects, post-heat treatment is mostly applied but the treatment time is long and difficult to perform on large workpieces. Therefore, microstructure control during the LC process becomes a helpful strategy to restrict the crystal coarsening and decrease thermal stress. The rare earth (RE) elements have the effect to refine the microstructure and increase mechanical properties [176,177,178]. During LC processing, the added RE oxides prefer to arrest the oxygen or impurities in the molted pool and act as the nucleus and pinning particles [179]. The optimization of solidification behavior and microstructure would contribute to the surface morphology, mechanical properties, and wear behavior.

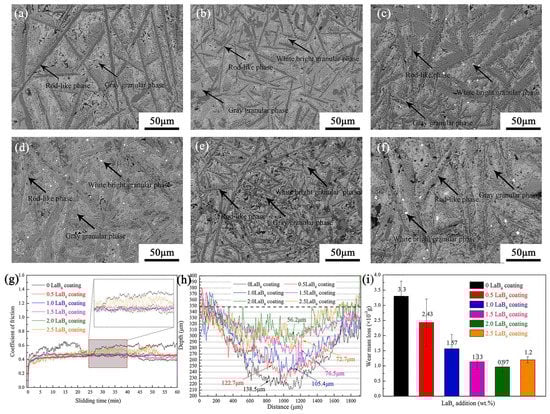

Previous research [180] added nano Y2O3 particles in TiC/Ni composite powders and prepared the cladding layer on a TC4 alloy substrate. The microstructure analyses revealed that the Y2O3 dispersedly distributed in the cladding layer and promoted the relatively uniform distribution of TiC particles, which increased the microhardness to 1380 HV1. Zhang et al. [181] added different Y2O3 in TC4-Ni45-Co-WC composite powders and prepared the cladding layer on a TC4 alloy surface, which revealed that the reasonable Y2O3 content could almost eliminate the cracks. Such an improvement was mainly ascribed to the higher supercooling resulting from the existence of Y2O3 and the wear properties are benefited by the microstructure evolution. Gong et al. [182] added CeO2 in a Ni60A powder to prepare the cladding layer on the TC4 alloy substrate and found that the added CeO2 promoted the absorption of energy and increased the fluidity of the molten pool. The improvement of melt reduced the crack sensitivity of the cladding layer and increased the hardness and wear resistance. Liu et al. [183] fabricated a γ/Cr7C3/TiC composite cladding layer on a TiAl alloy substrate by LC and demonstrated that the addition of La2O3 could refine and purify the cladding layer and decrease the volume fraction of primary blocky Cr7C3. In addition, the dilution effect was weakened and the microhardness of the cladding layer increased. Research on a CeO2-doped Ni-based composite cladding layer revealed that the appropriate CeO2 content could improve the corrosion resistance, but more CeO2 content would result in a reduction [184]. Based on the properties required on the surface, many kinds of RE-oxide-doped composite powders have been developed, as shown in Table 5.
During LC processing, the solidification rate and impurity influence the microstructure and mechanical properties greatly. Especially the ceramic- or refractory metal- based powders, they decrease the fluidity of melt and the involved impurities enhance the effect further [198]. The addition of RE oxides could make full use of their reactive surface and arrest the impurity, which purifies the melt and benefits the fluidity. However, the RE oxides also prefer to aggregate together and excessive addition would lead to segregation and microstructure coarsening [199]. In addition, the presence of RE oxides in the cladding layer would affect the microstructure during the heat treatment. Therefore, the balanced RE oxide addition is the crucial factor for the RE-oxide-doped powders. In addition, the LC parameters should be adjusted according to the composition of the RE-oxide-doped cladding powders.
In summary, the performance of the cladding layer obtained by LC is related to the powders primarily. The morphology, chemical composition, and the size of the powders are the main features that influence the microstructure and mechanical properties obviously. Based on the property requirements, reasonable powders should be selected to obtain the cladding layer. In turn, the selected powders determine the LC parameters. It is a crucial issue to obtain the cladding layer with reasonable dilution, low internal stress, and a fine and uniform microstructure. Although some progress has been achieved in the development of LC powders, it is still a challenge to quantitatively design the content of the powder based on the required performance on the cladding layer. More research is needed to on LC powders for their diversification, serialization, and standardization.

4. Functional Coatings

Though Ti and its alloys have relatively excellent performance, severe working environments always exert different impacts on the components. Therefore, the Ti and its alloy components have to endure one or more influencing factors such as wear, high-temperature oxidation, and corrosion. To obtain more capabilities, surface modification based on LC processing could be applied and a series of corresponding functional coatings were developed, including wear-resistant coating, corrosion-resistant coating, high-temperature oxidation-resistant coating, biological coating, and so on [200].

4.1. Wear-Resistant Coatings

Ti and its alloy components are prone to failure in complex service environments due to their low surface hardness and weak wear resistance. By selecting appropriate cladding materials and LC processing parameters, the hardness and wear resistance of Ti and its alloys surface could be improved significantly. Generally, there are many kinds of methods to improve surface performance, such as fine grain strengthening, solid solution strengthening, and dispersion strengthening. Actually, the dispersion strengthening with the stiffness phase is the most potential one, because of its obvious strengthening effect. Moreover, this kind of strengthening method is also convenient to realize by the reinforced phases such as ceramic or intermetallic compounds [201,202]. Based on the content of the reinforced phase, the wear-resistant coating could be mainly divided into the metal matrix ceramic composite coatings and intermetallic compound coatings, whose strengthening effect is related to the type, quantity, distribution, and interface of the reinforcing phase [203].
Due to the high stability and stiffness of the ceramic, more LC composite coatings select the ceramic, such as TiC, TiB, TiB2, TiN, SiC, and WC, as the reinforced phase. Recent studies [193,194,195,196] prepared TiB2 particles or TiB-short-fiber-reinforced titanium-based composite coatings on a titanium substrate surface with excellent wear-resistant properties. Due to the nucleation effect of the ceramic particles, the corresponding composite coatings always have a fine grain structure, which increases the microhardness and wear resistance further. Therefore, the TiB2- or TiB-reinforced composite coating increased the wear resistance twice as much as the titanium substrate. However, the excessive ceramic addition would lead to its aggregation and coarsening. To avoid the coarsening of the single phase, a recent study adopted the in situ formation of a multi-ceramic reinforced phase in the LC coating by the addition of LaB6 and B4C powders [146]. The results revealed that the amount of TiC, TiB, and TiB2 phases increased with the increased LaB6 and B4C content, as shown in Figure 10a–f. Moreover, the addition of LaB6 resulted in the formation of La2O3 along the grain boundary of TiB2, which restrained its growth and promoted the thinning of the TiB2 rod-like phase. The evolution of multi-ceramic phase morphology induced an increase in microhardness but a decrease in wear resistance, as shown in Figure 10g which shows the coefficients of friction curves. Compared with the LC coating without LaB6, the wear loss of the best multi-ceramic phase LC coating decreased by about 71%, as shown in Figure 10h,i which shows the section profiles of the wear track and the wear mass losses of the coatings with different amounts of LaB6 addition.

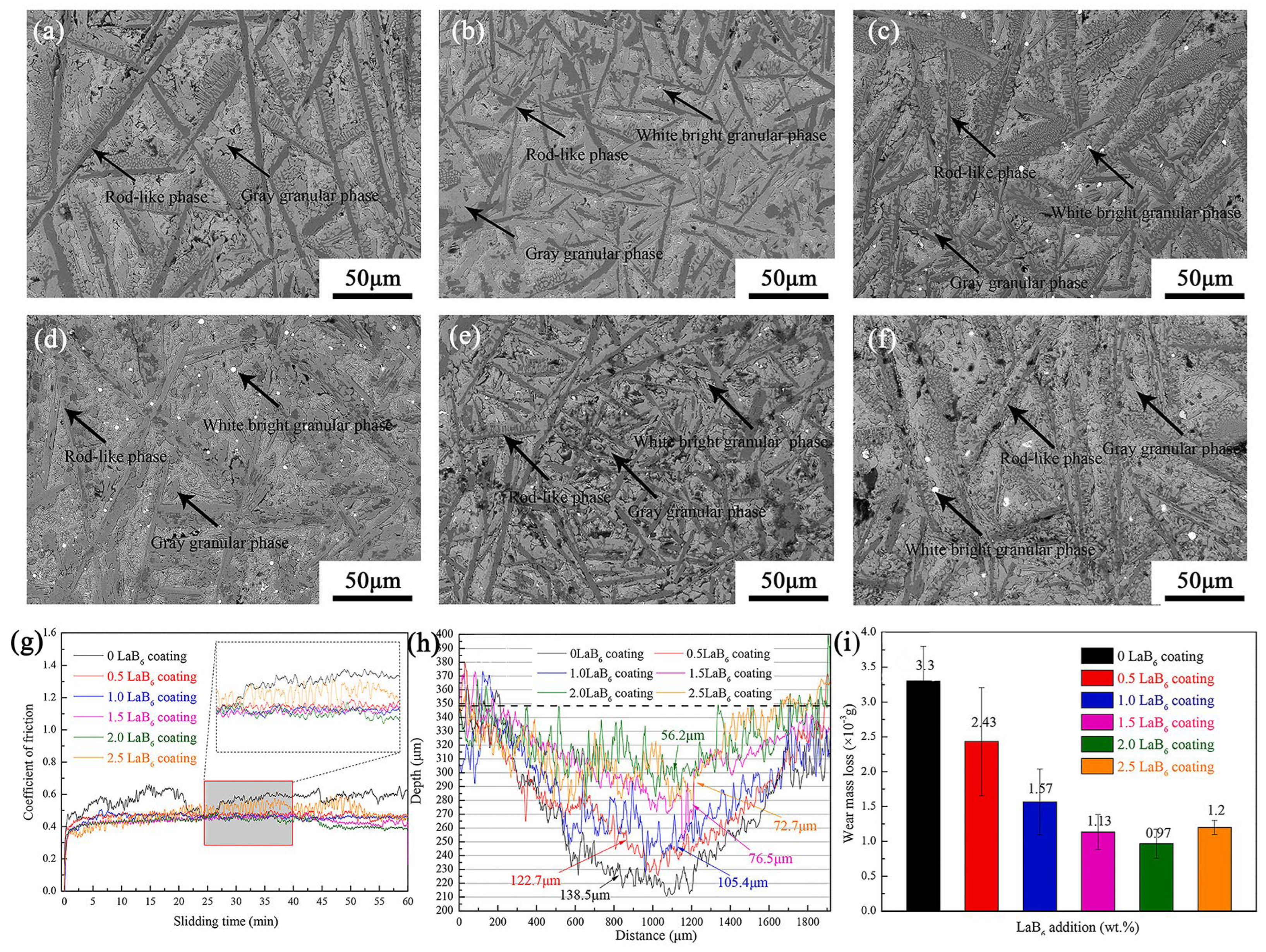

Though the ceramic composite LC coating could improve the wear resistance of the titanium-based materials, the high brittleness of the ceramic phase and its interfacial mismatching with the matrix are prone to induce microcracks and failure [204]. The intermetallic compound has a metallic constituent and a long-range ordered crystal structure, which ensures its high strength and thermal stability [202,205,206]. Therefore, intermetallic compounds were introduced into the LC composite coating on titanium or its alloys’ surface modification. Usually, it is preferred for Ti-Al-, Ti-Ni-, and Ti-Co-based intermetallic compounds to be chosen as the reinforced phase, such as TiAl, Ti3Al, Ti5Si3, Ti2Ni, CoTi2, CoTi, AlTi2, and AlCo5, etc. In order to improve the wear resistance of the TC4 alloy, the TiAl, CoTi2, and Ti5Si3 phase strengthened composite coatings were fabricated, which decreased the friction coefficient and wear rate greatly [207]. In addition, some intermetallic compounds modified the matrix and could produce a self-lubricating behavior at high temperatures, which could be used to design the special component. More studies have made full use of intermetallic compounds and ceramic phase to design LC coatings with balanced properties. Feng et al. [51] prepared a (Ti3Al + TiB)/Ti composite coating on a TC4 alloy by LC and obtained a good metallurgical bond between the coating and the substrate. The in situ formed Ti3Al and TiB phases interacted with each other, which refined the grain of the LC coating and increased its hardness to 2.3 times that of the matrix. The (Ti3Al + TiB)/Ti composite coating prepared by LC changed the wear behavior from the adhesive wear of TC4 alloy to the present micro-cutting and brittle peeling, And it decreased the friction coefficient and wear loss to 50% and 12.5% of the substrate, respectively.
Comparatively, the titanium matrix of the coating still has some disadvantages, such as low strength and wear resistance. Then, some studies have introduced the heterogeneous alloy coating on the titanium alloy surface. Wang et al. [208] fabricated a Ni-based composite coating on a TA2 pure titanium substrate surface from Ni-Trihaloy700 alloy powders by LC, which mainly comprised the Laves phase and γ matrix. Combined with the fine grain structure, the solid solution strengthening effect by Cr and Mo alloying elements increased the strength of the coating and its microhardness was about five times that of the substrate. Lu et al. [209] prepared a different hexagonal boron nitride (h-BN)-doped Ni60 composite coating on a TC4 alloy substrate by LC and revealed that the combination of h-BN, TiC, and TiB2 strengthening particles could improve the microhardness to 1155.32 HV0.2 which is about three times that of the substrate (about 370 HV0.2), and the wear resistance was improved simultaneously.
Based on the recent research on wear resistance coatings prepared by LC, it can be summarized that the strengthening phase and matrix microstructure play an important role by increasing the hardness and restricting wear scratching. Especially for the coating with the self-lubricating requirement, the phase constituent would exert great influence. In addition, the quality and bonding strength of the LC coating also contributes much to the wear resistance. Due to the different advantages of ceramic composite coating, intermetallic compound composite coating, and heterogeneous alloy coating, they could be utilized in different environments.

4.2. Corrosion Resistant Coatings

Generally, Ti and its alloys easily react with oxygen to form a dense TiO2 oxide film on the surface, which makes them have good corrosion resistance [210]. However, in some extreme service conditions (such as high temperature, erosion–corrosion, or high salt environment), the TiO2 oxide films would be destroyed, which exposes the substrate to the service environment [211]. The corrosion medium would accelerate the corrosion rate on the substrate. Therefore, the failure of the surface protecting layer is detrimental to the long-term service and safety of Ti and its alloy components, which handicaps their application in many fields. To meet the requirements of the extreme service, surface modifications are always applied to form the corrosion resistant coating and improve the surface properties [142]. Especially for the component with impact or other loadings, the LC coating on the Ti and its alloy component would be more valuable, because of its better bonding strength.

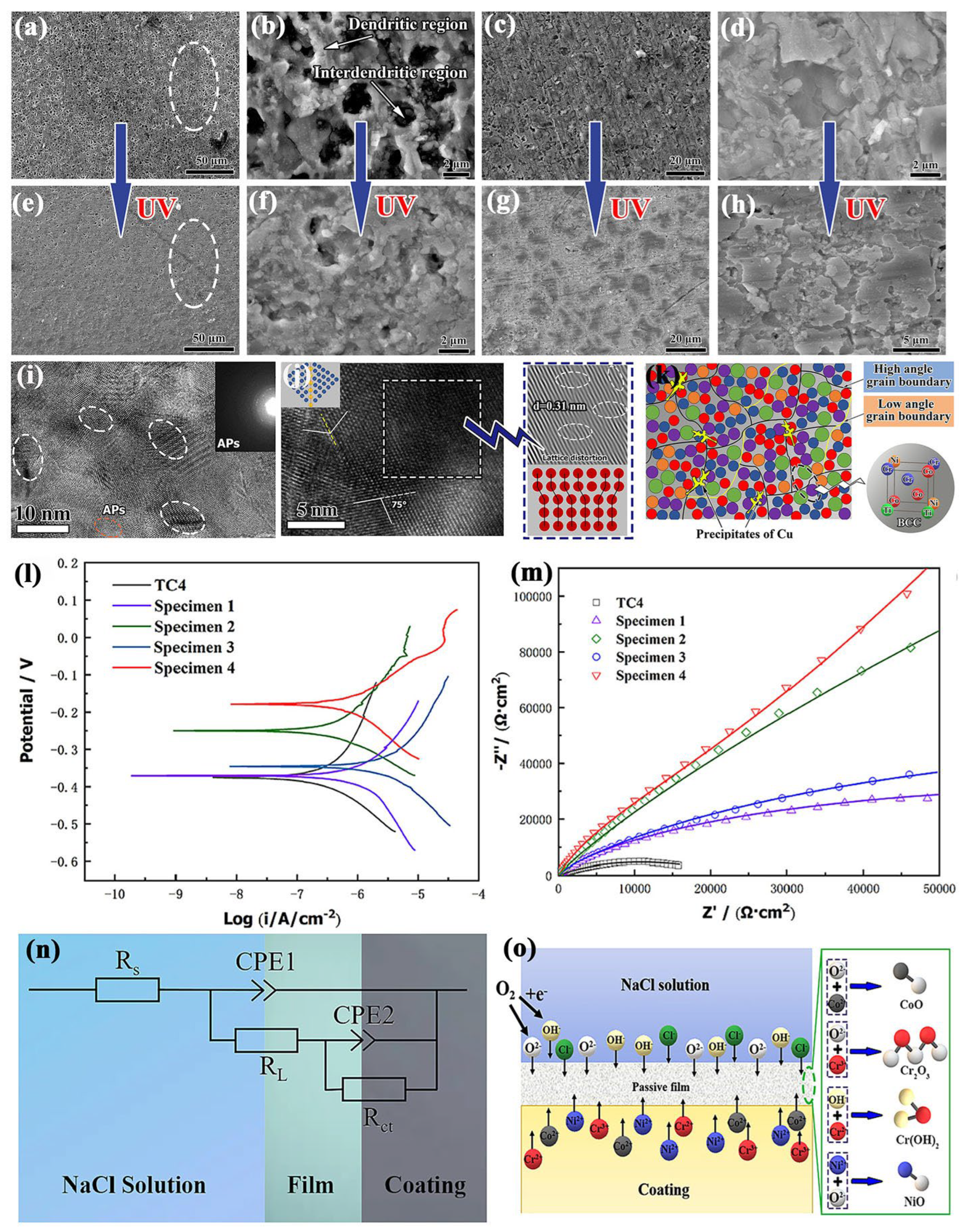

Considering the interfacial bonding and corrosion resistance, metal- and ceramic-based coatings are the main choice for the corrosion-resistant coating of Ti and its alloys fabricated by LC. For the metal-based corrosion resistant coating, the Ni, Cr, Co, Al, and rare earth elements are the preferred elements that could form the phases with high corrosion resistance. In addition, the solid solution effect and dispersed precipitates help to improve the strength of the LC coating and benefit the erosion–corrosion resistance. Recently, many studies have investigated Ni-Co-Cr based cladding coatings on Ti-based substrates to obtain excellent corrosion resistance [212,213,214,215]. The results indicated that a good metallurgical bond could be realized between the cladding coating and substrate without any cracks and pores by the optimization of parameters. Compared with the Ti-based substrate, the corrosion voltage and current of the cladding coating covered Ti-based substrate decreased significantly in different corrosion environments (such as 3.5% NaCl solution, simulated body fluid), especially the corrosion current. Hu et al. [215] prepared Ni-based alloy (1.0 wt% C, 16.0 wt% Cr, 3.5 wt% B, 4.5 wt% Si, bal. Ni) cladding coatings with different TaC additions (0 wt%, 5 wt%, 10 wt%, 20 wt%, 30 wt%, and 40 wt%) on a TC4 substrate by LC processing, which revealed that interdiffusion of substrate elements induced the formation of TiC, TiB, and TiB2, while the TaC addition suppressed these precipitations. Benefiting from the suppression effect, the coating with TaC addition had a higher TiO2 proportion in the passive film, compared with that without TaC addition. In addition, Ta2O5 also formed in the passive film, which contributed to the improvement of corrosion resistance as well. The increased TiO2 content cooperated with Ta2O5 in the passive film and improved the corrosion resistance of the Ni-based cladding coating. Zhang et al. [216] prepared the CoCrNi medium entropy alloy base coatings on TC4 substrates by LC assisted with ultrasonic vibration (UV), which demonstrated the BCC solid solution matrix strengthened with (Ni, Co)Ti2 and TiC was the main feature, as shown in Figure 11. The UV-assisting treatment could refine the precipitates and grain structure, which helps with the restricting of corrosion pits. In addition, the substructures were increased with the UV treatment, because of the redistribution of elements. Compared with the CoCrNi medium entropy alloy base coating fabricated by low laser energy, the coating by high laser energy demonstrated higher corrosion potential and corrosion impedance, which indicated a well improved corrosion resistance. The well optimized microstructure, precipitate, and elements distribution contributed the most to the improved corrosion resistance, especially the uniformly distributed corrosion elements. Therefore, a corrosion-resistant coating cooperated with the appropriate auxiliary technology would obtain the reduplicated corrosion performance.
Comparatively speaking, the phase with high chemical stability is very helpful to the corrosion-resistant coating, but the balance between the interfacial bonding and corrosion resistance should be considered systematically. In addition, the additive in the cladding coating plays an important role in the corrosion resistance, which enhances the corrosion resistance by the precipitation. For the corrosion-resistant coating fabricated by LC technology, the chemical composite, phase constituent, microstructure and bonding strength could influence the corrosion behavior of the cladding coating and should be considered synergistically.

4.3. High-Temperature Oxidation-Resistant Coatings

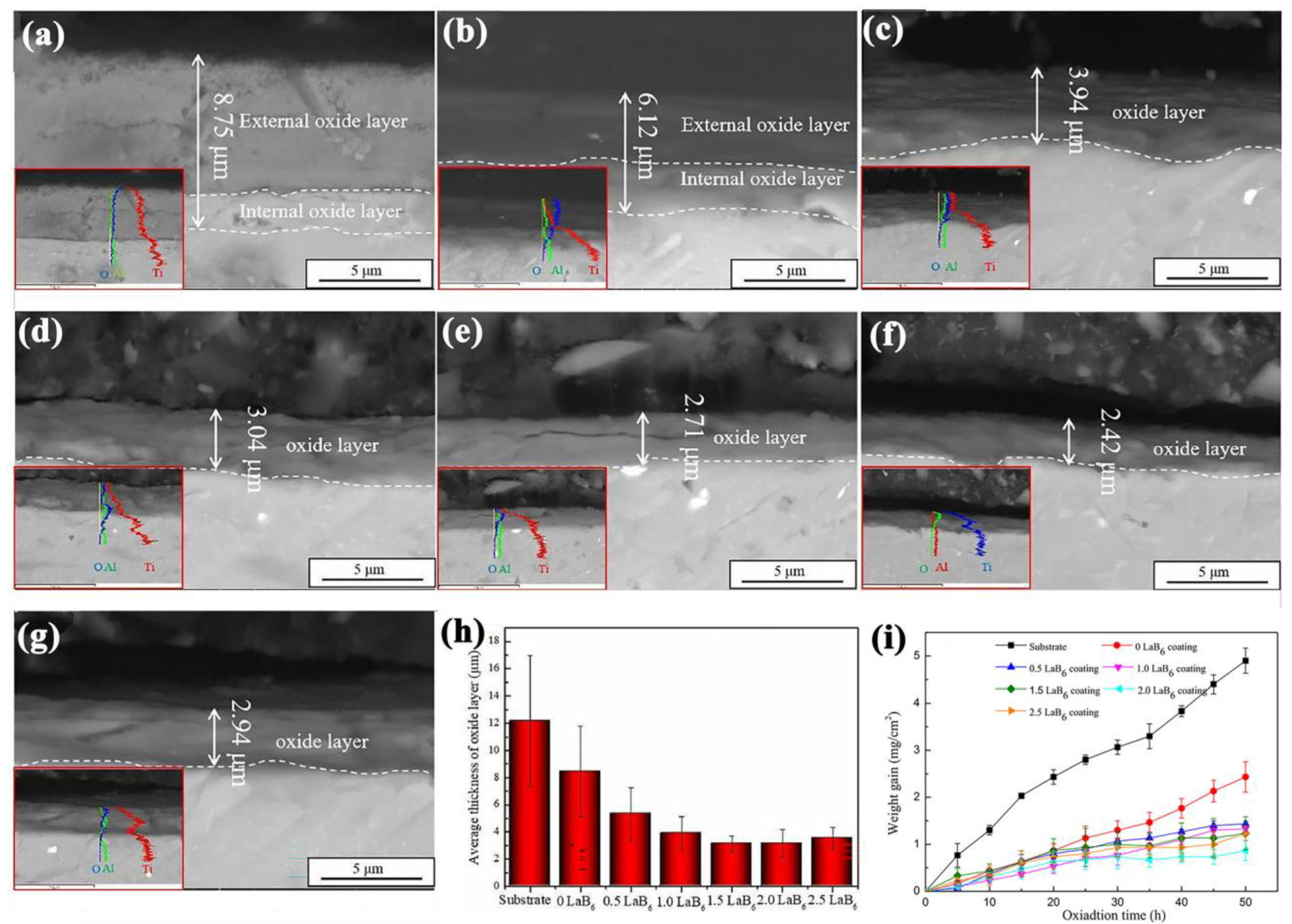

As a kind of material with high strength and low density, Ti alloys have been widely used in the aerospace industry as high-temperature components, such as compressor casings, rotor blades, etc. Though the in situ surface TiO2 oxide film could restrain oxidation, it is really thin and could not handicap the internal oxygen diffusion and inner oxidation. If the TiO2 oxide film on the Ti alloy surface is thick, the high interfacial stress would influence the bonding strength. For example, the Ti6Al4V alloy can work well below 350 °C, but it would experience serious oxidation and nitriding, when the service temperature is higher than 600 °C. This will lead to a sharp decline in the creep resistance and high-temperature oxidation resistance, which greatly limits their application at higher temperatures [217,218]. For Ti-based alloys, the “thermal barrier” protecting layer should be fabricated, if its service temperature exceeds the threshold of 600 °C [219]. Considering the lightweight of aerospace components, it is an issue to improve the oxidation resistance of the Ti alloys with a reasonable thickness of cladding coating.
Generally, the MCrAlY (M = Ni, Co, or NiCo) coatings have been considered as the most valuable thermal barrier coatings due to their excellent properties in oxidation resistance [220]. The well prepared α-Al2O3 + NiCoCrAlTaY bilayer coatings exhibit 6–10 times the oxidation resistance of the substrate, because of the low oxygen diffusivity and low growth rates [221]. In addition, their good adhesion to the alloy matrix and ceramics has made them an excellent transit layer. These advantages promote their wide application in the high-temperature protection coating. A recent study prepared a Ti-Cu-NiCoCrAlTaY composite coatings on the surface of a TC4 alloy by LC technology and revealed that the dense double-layer formed in the composite coating enhanced oxidation resistance further [222]. Guo et al. [8] prepared a NiCrBSi coating with and without WC addition on a TA2 pure titanium substrate by LC, which demonstrated that the presence of an intermetallic compound promoted the formation of dense and compact microstructures and benefited the oxidation resistance. In addition, A12O3 could play an important role, because of its excellent oxidation resistance and high thermal stability under high-temperature conditions. Yin et al. [193] used LC processing to prepare the (TiC + TiBx)/Ti cladding coatings with different LaB6 additions (0 wt%, 0.5 wt%, 1.0 wt%, 2.0 wt%, and 2.5 wt%) on a TC4 substrates and investigated the effect of LaB6 addition on the high-temperature oxidation performance. At 600 °C for 50 h, the TC4 substrate underwent significant oxidation, but the (TiC + TiBx)/Ti cladding coating decreased the oxidation obviously, as shown in Figure 12. Figure 12a–g illustrates the cross-section morphology of the Ti-6Al-4V substrate and coatings with different amounts of LaB6 addition, and (h) shows the oxide layers’ average thickness. For the specimen with cladding coating, the addition of LaB6 decreased the oxidation weight gain from 2.43 mg/cm2 to 1.30 mg/cm2, when its content increased from 0 wt% to 1.0 wt%. Moreover, the oxidation law gradually changed from the linear law to the parabolic law when the LaB6 addition increased to 1.5 wt%, indicating that the oxide layer gradually became dense and protective, as shown in Figure 12i. Such an improvement should be attributed to the microstructure optimization by the LaB6 addition. Firstly, the rod-like TiB2 phase is refined by the added LaB6, reducing the crack sensitivity. Moreover, the addition of LaB6 refined the grain size of oxides and benefited the formation of a continuous and compact oxide layer. In addition, the in situ formed La2O3 lowers the oxygen content in the coating. Feng et al. [223] prepared a (Ti3Al + TiB/Ti) composite coating on TC4 by LC, which decreased the weight gain by 70%-80%. Compared with the TiO2 oxide layer on the bare TC4 surface, the (Ti3Al + TiB/Ti) composite coating formed a dense TiO2 + Al2O3 compound layer, and the Al2O3 layer could effectively hinder the diffusion of oxygen. In addition, the single TiO2 oxide layer generated high interface stress, which easily induced cracks in the interface of the coating, while the Al2O3-doped TiO2 compound layer decreased the stress concentration and the cracks, which is beneficial to the long-term service of the cladding coating. Similarly, Liu et al. [224] prepared a TiN/Ti3Al intermetallic composite coating on the surface of a TC4 alloy by LC and revealed that Al2O3 and TiO2 are the main formed phases during the isothermal oxidation at 600 °C and 800 °C. Due to the good balance between oxidation resistance and interface stress, the TiN/Ti3Al intermetallic composite coating demonstrated an excellent high-temperature protecting effect. Though the ceramic or intermetallic reinforced cladding coating could benefit the oxidation, the adhesion strength would be influenced. Especially for the component with high-temperature friction, the interaction of oxidation and friction requires the coating to possess the stiffness, oxidation resistance, and good adhesion simultaneously [225]. To achieve the requirement, the previous research added LaB6 to a Ti-TiC-TiBx composite coating prepared by LC and showed that the oxidation weight gain of the composite coating with LaB6 addition had been decreased to the half or less of that without LaB6 addition. In addition, the wear resistance of the composite coating was also improved obviously. Recently, a study tried to make full use of the Ti5Si3 to form TiO2 and SiO2 compound oxides on a Ti-based alloy, which revealed that the good oxidation resistance could be obtained at high temperature [226]. Such a feature of Ti5Si3 could be applied to fabricate the protection cladding coating on the Ti-based materials.
Based on the studies on the corrosion-resistant coating, it can be found that the regular metal-based coating could obtain a well bonded interface with the substrate, while the ceramic- or intermetallic-compound-reinforced composite coating would have better corrosion resistance. How to balance the bond strength and corrosion resistance is a crucial issue. The active elements, such as rare earth elements, have been thought as the effective one to improve the bond strength and corrosion resistance simultaneously. However, the appropriate addition amount should be fully evaluated with the corrosion resistance requirement. Therefore, the cladding coating which has integrated with the advantages of metallic and ceramic materials should be more prospective and have application valuable.

4.4. Biocompatible Coatings

As mentioned above, Ti-based materials have good biocompatibility, because of their high chemical stability. Compared with other metals, Ti-based materials are more favorable to be used in biomedical implants [170,172,173,175,227,228,229,230,231,232,233,234,235]. Due to the formation of TiO2 passivation film on their surface, Ti-based alloys have been defined as an inert metal and almost have no bioactivity, which influences tissue regeneration. Moreover, the ion dissolution from Ti-based alloys always induces an inflammatory reaction. To improve the bioactivity of a Ti-based alloy implant, surface modification should be performed, and LC has been considered as the most attractive one because of its well bonding strength. In addition, the chemical constituents of the surface modification layer could be more diversified based on the requirement of implants. Until now, bioactive ceramics such as hydroxyapatite (HA), fluorapatite (FA), and β-tricalcium phosphate (β-TCP) have been prepared on the Ti-based alloys’ surfaces by LC. Due to the similar chemical content or crystal structure to bones, these bioactive ceramics could play an important role in promoting osteogenesis and new bone generation [170].
Due to the special crystal structure of HA, the high temperature during LC processing would lead to the decomposition of HA and the formation of unstable phases. Paital et al. [229] prepared an HA cladding coating on a TC4 alloy by LC and demonstrated that the phase constituents mainly include CaTiO3, TiO2, α-TCP, and Ca(OH)2, which could regenerate the thick HA layer in simulated body fluid (SBF) solution. The greatly improved wettability or hydrophilicity by HA promotes cell adhesion and proliferation, which is beneficial to osseointegration and osteogenesis. A previous study [231] prepared a Ca-P-based coating on a TC4 alloy substrate by LC, which demonstrated that LC processing changed the substrate surface to a coarser state with regular morphology. The evolved surface morphology and formed HA content induced the adhesion and proliferation of MC3T3-E1 osteoblast cells. In addition, the research added the copper in the Ca-Si-based coating fabricated on the TC4 alloy substrate by using LC technology and revealed the in situ formed Ca2SiO4, CaTiO3, and Cu2O phases inside [232]. Moreover, the compound phases promoted the formation of HA in the SBF solution and demonstrated the ultrafine squamous-like morphology. Due to the existence of Cu-based phases, the cladding coatings exhibited obvious antibacterial properties on E. coli, especially for the coating with higher Cu content. Such a feature could be applied to solve the bacterial infection problem during surgery. Additionally, the increased wettability by the HA benefited nutrition transfer, which promoted cell differentiation. Therefore, the biocompatibility of the TC4 alloy with a Ca-based coating was much better than that without coating. In order to improve the osteogenesis at the initial stage of implantation, Jiang et al. [233] doped antibiotics drugs in an HA coating, which could inhibit bacterial infection. Chakraborty et al. [234] prepared a titanium-based HA composite coating which almost matched the mechanical properties of human bones and had a better osteoinductive ability. The advantage of HA in drug carriers and its well-matched mechanical properties with bone promote its wide application in orthopedic clinics. Wu et al. [236] prepared three kinds of Ti-Cu-based metallic glass composite coatings (Ti45Zr5Cu41Ni9, Ti45Zr5Cu41Ni6Sn3, and Ti51Zr5Cu41Ni3) on a Ti substrate by LC, which could induce the deposition of calcium phosphate as shown in Figure 13a–c. Though the dissolution of the Cu ion could realize the antibacterial function, it also decreased the cytocompatibility. As shown in Figure 13d, the morphology of osteoblastic cells cultured on a substrate with metallic glass composite coatings for 1, 3, and 5 days (inset images showing the fluorescence micrograph and the live cells stained with green). It can be found that compared with the Ti substrate, the cell activity cultured on the Ti-Cu based metallic glass composite coatings decreased obviously, which indicated the cytotoxicity. Comparatively, the Ti51Zr5Cu41Sn3 coating showed better cytocompatibility, which could be developed further for the candidates of orthopedic implants and dental materials. This is attributed to relatively high amorphous content in the Ti51Zr5Cu41Sn3 coating.
Actually, FA has the same apatite phase as HA and shares a similar composition, while FA has the improved chemical stability, lower dissolution rate and better thermal stability. Thus, in order to avoid HA changing to an unstable phase at high-temperature, Chien et al. [227] used FA instead of HA and mixed it with 20 wt% α-Al2O3 to prepare the composite coating on a Ti6Al4V substrate by LC. The composite coating was mainly composed of FA, β-TCP, CaF2, θ-Al2O3, CaTiO3, and CaAl2O4 phases. It was found that after immersion in simulated body fluids for 14 days, a dense bone-like apatite layer was formed on the surface of the composite coating, which exhibited excellent biological activity. Wollastonite is another promising bioactive coating material for titanium alloys used in bone tissue repair and replacement, due to its osteoconductive properties [175]. In a CaO-SiO2-MgO ceramic composite coating prepared by LC, the silicon compound in the cladding layer can effectively promote the formation of apatite [172]. In addition, the FA layer was formed on the cladding layer surface, when the composite coating was immersed in simulated body fluid (SBF) for 21 days. The composite coating did not cause hemolysis and was non-toxic to cells, indicating its good biocompatibility. Zhu et al. [173] also prepared calcium phosphate bio-ceramic coatings containing bioactive phases of β-TCP and HA and revealed that the osteoclast precursors on the coating have excellent proliferation ability. Furthermore, the coating can be digested by osteoclasts and have excellent biological activity.

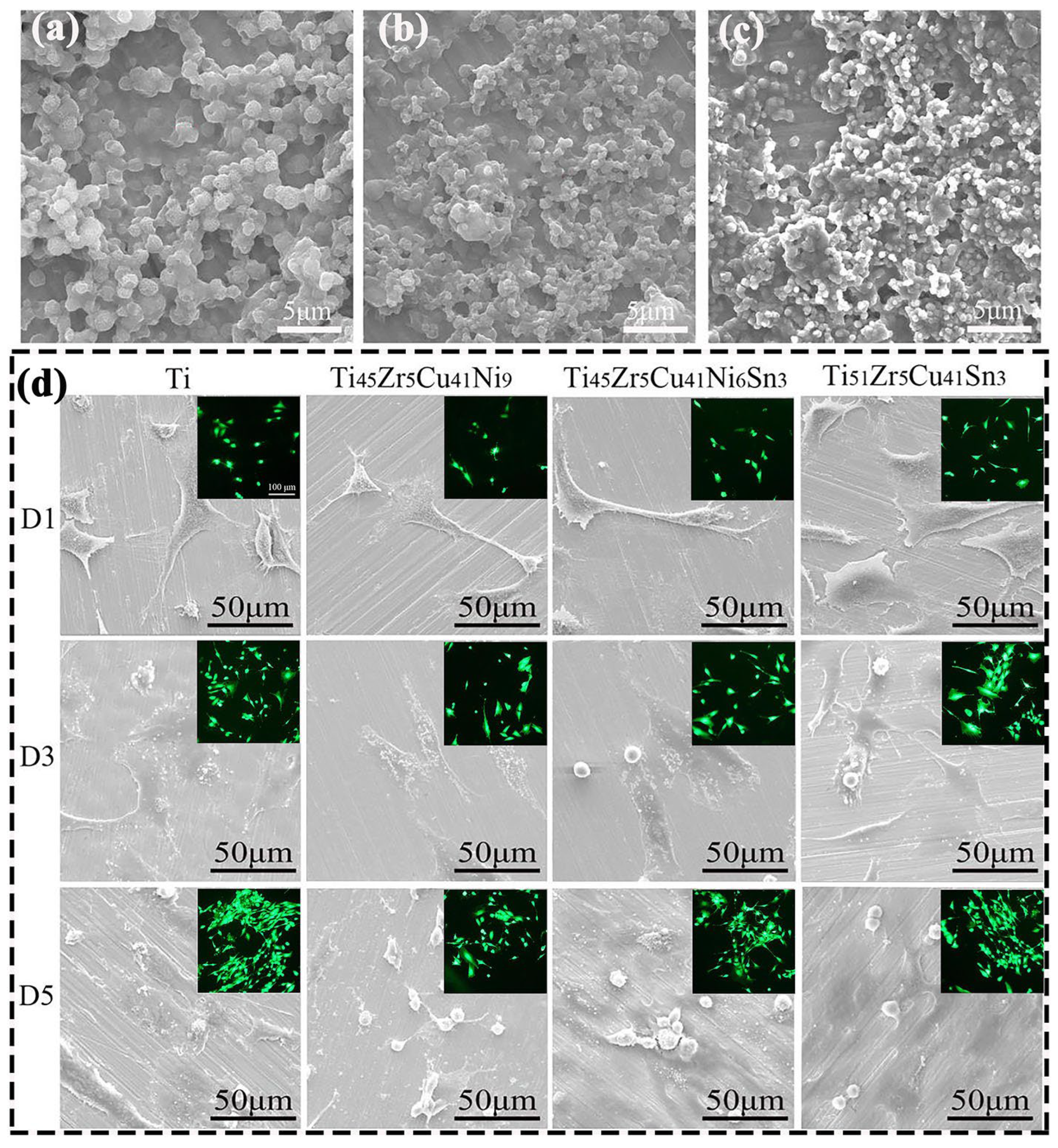

Due to the special physical and mechanical properties of the Ti-based alloys, they were widely applied in the orthopedic implant. To improve the osteogenesis and osseointegration capability of the Ti-based alloy implant, the bioactive coatings such as HA, FA, and β-TCP demonstrate obvious advantages, due to the bone induction effect. The similar crystal structure and chemical composition of these bioactive coatings benefit the adhesion and differentiation of osteoblasts. However, due to the complex in vivo physiological environments, the biological coating fabricated by LC still needs further verification in clinical trials.

4.5. Other Functional Coatings

Besides wear-resistant coatings, corrosion-resistant coatings, high-temperature anti-oxidation coatings, and biological coatings, some studies have developed the multi-functional or gradient functional coatings by using LC technology. For example, protection coatings with a high proportion of stiffness phases always have high hardness but low ductility, which is prone to inducing microcracks during their service and restrains their application. In recent years, gradient functional coatings have been developed and exhibit the gradient evolution from substrate to surface in microstructure, phase constituent, and mechanical properties [237]. With such a gradient evolution, the stress concentration could be well eliminated and the service life can be improved greatly [238]. Cui et al. [239] prepared FeCoCrNiMnAl0.5-FeCoCrNiMnAl gradient HEA coatings with a body-centered cubic crystal layer and a face-centered cubic crystal layer, which exhibited the dynamic recrystallization and grain deformation in different layers. Such a gradient function layer structure could not only relieve the piling up of dislocations but also refine the superficial microstructure, which contributes to the toughness and strength simultaneously. Lin et al. [240] prepared a TiB2/TiB gradient coating on a TC4 alloy by LC, which made full use of the distribution of TiB2/TiB to increase the hardness and restrict the initiation of cracks. Liang et al. [241] prepared TiNi/Ti2Ni-based composite coatings with a gradient distribution of TiC- and TiBx-reinforced phases on the TC4 alloy, which demonstrated the typical gradually decreased microhardness from surface to substrate, as shown in Figure 14f.

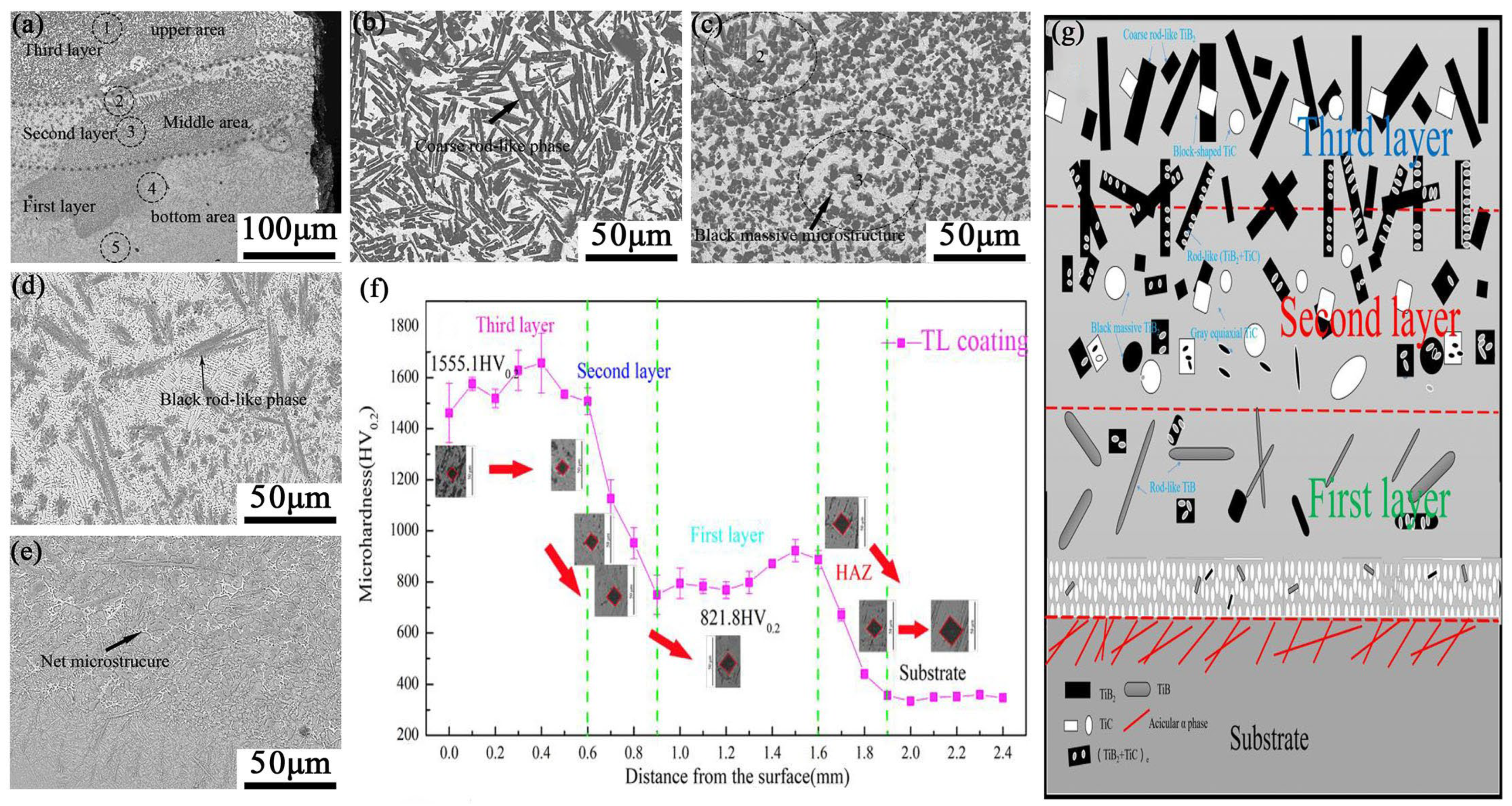

Figure 14a–e illustrates the microstructures of feature areas in the triple-layer coating: (a) is the overall microstructure of the triple-layer coating; (b–e) are the upper area (TL coating), transition region between the upper area and middle area, the middle area, the transition region between the middle area and bottom area, and the bottom area in the triple-layer coating, respectively. From these pictures, it can be seen that all feature areas show different microstructures. Different microstructures exhibit different microhardness values (Figure 14g). The reason is that the content of ceramics is high, but the gradient distribution feature well relieves the stress concentration and eliminates the microcracks. Due to the synergistic strengthening effect of the triple layers, the composite coating exhibited excellent wear resistance.
Actually, the service condition for a Ti-based alloy component is always complex. Especially for a component working in extreme environments, the friction would be accompanied by vibration. The vibration would result in the irregular load on the friction pairs, which deteriorates the wear resistance and decreases the service life [242]. To solve the problem, solid lubricating phases are added to the cladding material to realize the self-lubricating function which relieves the excessive wear by overload. Shakti et al. [243] prepared a Ni-WS2-Ti-6Al-4V self-lubricating coating on a TC4 alloy and revealed that the lubricate phase WS2 could be well dispersed in the cladding coating, which decreased the wear lost to half of the substrate and the friction coefficient to 0.25, because the adhesion wear became the predominant mechanism. Liu et al. [244] prepared a TiN/WS2 + hBN/NiCrBSi composite coating with WS2 and TiS lubricant phases on a TC4 alloy, which realized the self-lubricating effect and ultra-high microhardness. The friction behavior exhibited that the composite coating decreased the friction coefficient to about 0.3458 and the wear rate obviously.
Other coatings with multi-functions are also continually developed to meet work environment requirements. SELVAN J.S [245] prepared a Ni-SiC-based high-temperature thermal barrier coating on pure Ti by LC, which possessed TiNiSi, TiSi, Ti5Si3, and NiTi2 phases with high thermal and chemical stability. The intermetallic-compound-strengthened composite coating exhibited the balanced properties and met the requirement of working in thermal, mechanical, corrosive, and erosive environments. Based on the laser cladding technology, nitriding was performed on the Ti-5Al-5Mo-5V-1Cr-1Fe coating and formed a TiN-reinforced phase in the coating, which improved the fretting resistance obviously [246]. Gushchina [247] fabricated an alternating Ti6Al4V and Cp-Ti multilayer coating by LC to enhance the impact strength of Cp-Ti. Compared with the crack propagation energy of the Ti substrate (90.5 ± 3.9 J, 91.8 ± 0.3 J and 87.9 ± 8.3 J), those of the specimens with multilayer coating were decreased to half or less (31.1 ± 2.3 J, 49.8 ± 6.3 J and 37.1 ± 7.0 J) in different directions. The improved crack resistance should be attributed to the Ti6Al4V layer which is the main contributor to anisotropy of the fracture energy. Generally, the development of functional cladding coatings is mainly based on the working environment requirement, while their properties are dependent on the microstructure design and phase constituent.
According to the above studies on surface modification of Ti and its alloys by LC, it can be concluded that the design and fabrication of the coatings are mainly dependent on the requirement of the working or service environment. The properties are the crucial factor for the coating, whether it is single-phase or multi-phase. However, the microstructure and properties are closely related to each other [58,247]. A well-optimized microstructure would enhance the mechanical properties, corrosion resistance, wear resistance, oxidation resistance, biocompatibility, and so on. Though the in situ precipitation or extrinsic addition of ceramic, intermetallic compound particles would strengthen the cladding coating obviously, the balance between brittleness and ductility is still a critical issue. Considering the functional requirement, the surface modification of Ti and its alloys should be designed systematically according to the schematic diagram shown in Figure 15. Before the cladding coating fabrication, the chemical composition or phase constituent should be designed based on the working environment requirements and substrate properties. Furthermore, the reasonable active element addition would improve the distribution of the strengthening phase and the phase interface. After that, the processing parameters of LC should be well optimized to eliminate metallurgical defects and obtain the ideal microstructure. Moreover, the interface between the cladding coating and substrate should be well treated to enhance the interface bonding strength. The interface including the phase interface, layer interface, and substrate interface plays an important role in microstructure stability, thermal stability, chemical stability, and mechanical reliability. Therefore, the substrate state, chemical composition of the cladding coating and substrate, the processing parameters, and the interface comprise the critical factors which influence the microstructure and properties of the cladding coating prepared by LC. How to systematically optimize these factors and obtain well-balanced performance are long-term research issues. The in-depth investigation on these factors would explore the inner mechanism and develop more protective coating or technology for Ti and its alloys, which helps to extend the application field of this kind of materials.

5. Conclusions

Ti and its alloys have been widely applied in many fields, because of their fascinating advantages in their mechanical properties, corrosion resistance, biocompatibility, and so on. However, Ti and its alloys face many challenges, if their components work in more severe or complex environments. Generally, the surface is always the origin of failure for Ti and its alloy workpiece, which influences the performance degradation and service life. To improve the properties and function, surface modification becomes the common processing for Ti and its alloys. In the present work, the technology and development of laser-cladding-modified Ti and its alloys have been reviewed, according to the cladding technology, cladding materials, and coating function.

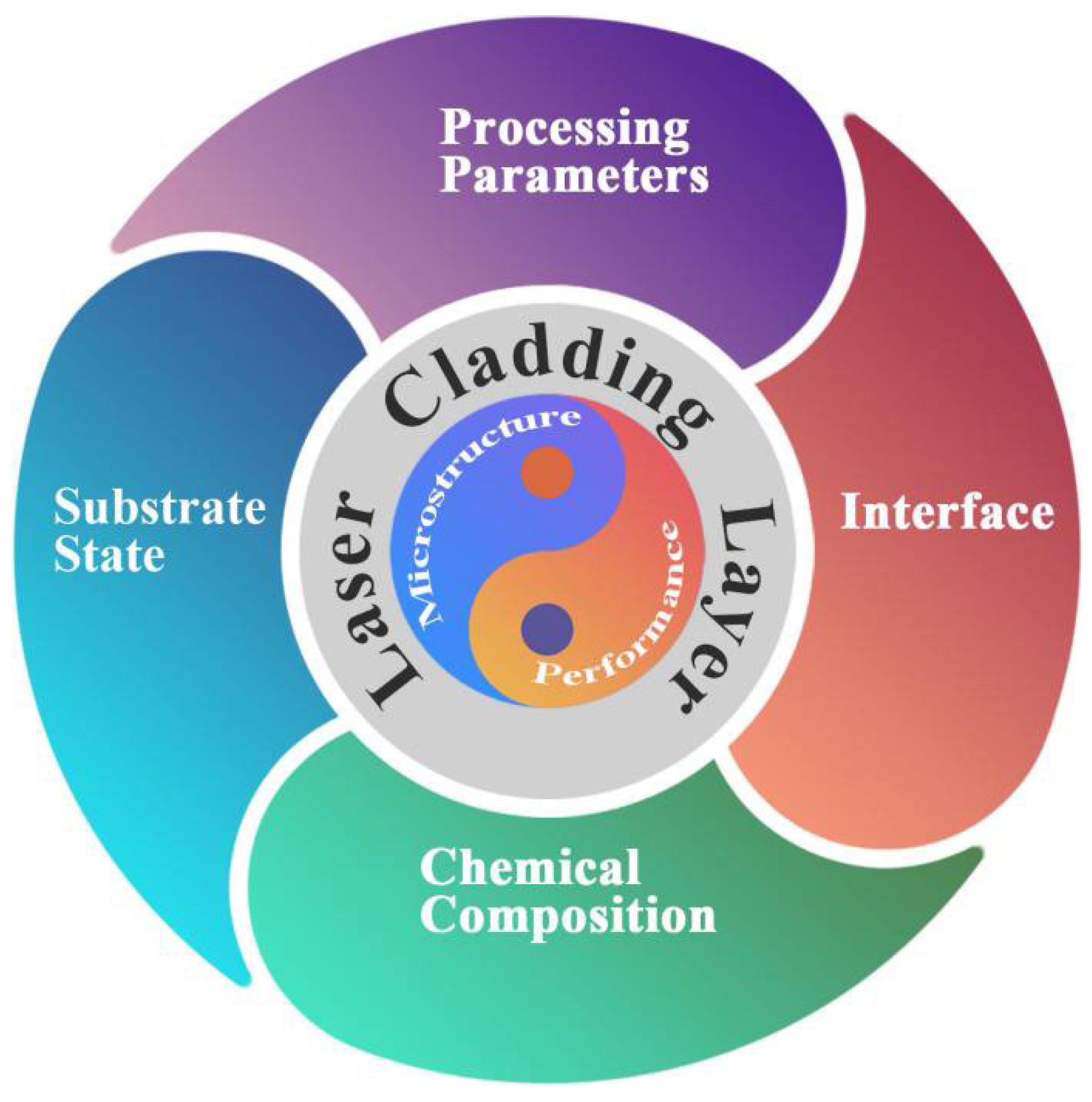

The laser cladding parameters could influence the temperature distribution and elements diffusion in the molten pool by the amount and efficiency of input energy, which changes the quality and properties of the laser cladding coating. Auxiliary technology improves the elements’ transfer and temperature distribution in the molten pool through the external mechanical energy, electric, or magnetic field, which benefits microstructure optimization and properties improvement. The matrix of the laser cladding coating determines the basic properties and should be well designed based on the requirements of the service environment, while the reinforced phases or particles, such as ceramic and intermetallic compounds play an important role in the laser cladding coating, which could increase the hardness, strength, wear resistance, oxidation resistance, corrosion resistance, biocompatibility, and so on. However, the excessive addition of a reinforced phase or particles would deteriorate the ductility, and thus the balance between functional properties and basic properties should be considered during the design of the chemical composition of laser cladding coatings. In addition, the interface including the phase interface, layer interface, and substrate interface plays an important role in microstructure stability, thermal stability, chemical stability, and mechanical reliability. Therefore, the substrate state, the chemical composition of the laser cladding coating and substrate, the processing parameters, and the interface comprise the critical factors which influence the microstructure and properties of the laser cladding coating prepared.
In the future, a laser cladding coating with better properties would still be the main research focus. Especially for the workpiece serviced in harsh environments, the Ti and its alloys with an excellent surface cladding coating would be more prospective, because of its good adhesion with the substrate. To realize this goal, well designed cladding coating structure and high-precision manufacturing technology should be developed firstly. Then, the integration of multi-phase strengthening and a reasonable layer structure would be one of most promising research topics, which would produce the multi-functional coating, but the precise regulation on the phase distribution is a challenge. Moreover, how to make full use of auxiliary technology to optimize the microstructure of the cladding coating would be a research focus, which could improve the properties further. In general, the development of a laser cladding coating on Ti and its alloys would mainly depend on the requirements of their structural and functional components. How to systematically optimize the influencing factors and obtain well-balanced performance are long-term research issues.

Author Contributions

Conceptualization, H.Z., C.Z., W.X. and L.S.; methodology, L.S.; software, C.Z. and W.X.; validation, R.L., B.D. and J.J.; formal analysis, M.W. and L.S.; investigation, X.Z., C.Z., R.M. and C.C.; resources, H.Z. and C.Z.; data curation, C.Z. and L.S.; writing—original draft preparation, H.Z., C.Z., D.W., B.D. and R.L.; writing—review and editing, J.J., X.Y. and L.S.; visualization, X.Z. and L.S.; supervision, L.S.; project administration, H.Z., J.J. and L.S. All authors have read and agreed to the published version of the manuscript.

Funding

The authors gratefully acknowledge the support provided by the Guangdong Basic and Applied Basic Research Foundation (2020A1515110055, 2019A1515110067 and 2020A1515011301), the Shenzhen Basic Research Project (JCYJ20210324120001003, JCYJ20200109144604020, and JCYJ20200109144608205), the Natural Science Basic Research Program of Shaanxi (2021JM-403), the Scientific Research Program Funded by Shaanxi Provincial Education Department (21JC027), the Postgraduate Innovation and Practice Ability Development Fund of Xi’an Shiyou University (YCS21212139 and YCS22113161), the Xi’an Shiyou University Student Innovation and Entrepreneurship Training Plan (202110705032 and S202210705082), and the IER Foundation (IERF202102, IERF202201, and IERF202202).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gomez-Gallegos, A.; Mandal, P.; Gonzalez, D.; Zuelli, N.; Blackwell, P. Studies on Titanium Alloys for Aerospace Application. In Defect and Diffusion Forum; Trans Tech Publications Ltd: Stafa-Zurich, Switzerland, 2018; pp. 419–423. [Google Scholar]
  2. Wang, M.; Lin, X.; Huang, W. Laser additive manufacture of titanium alloys. Mater. Technol. 2016, 31, 90–97. [Google Scholar] [CrossRef]
  3. Whittaker, M.T. Titanium Alloys 2017; MDPI: Basel, Switzerland, 2018; Volume 8, p. 319. [Google Scholar]
  4. Bache, M. Titanium Alloys: Processing and Properties; MDPI: Basel, Switzerland, 2021; Volume 11, p. 1426. [Google Scholar]
  5. Jia, Z.; Xu, X.; Zhu, D.; Zheng, Y. Design, Printing, and Engineering of Regenerative Biomaterials for Personalized Bone Healthcare. Prog. Mater. Sci. 2023, 134, 101072. [Google Scholar] [CrossRef]
  6. Bahl, S.; Suwas, S.; Chatterjee, K. Comprehensive review on alloy design, processing, and performance of β Titanium alloys as biomedical materials. Int. Mater. Rev. 2020, 66, 114–139. [Google Scholar] [CrossRef]
  7. Boyer, R.R. An overview on the use of titanium in the aerospace industry. Mater. Sci. Eng. A 1996, 213, 103–114. [Google Scholar] [CrossRef]
  8. Guo, C.; Zhou, J.; Chen, J.; Zhao, J.; Yu, Y.; Zhou, H. Improvement of the oxidation and wear resistance of pure Ti by laser cladding at elevated temperature. Surf. Coat. Technol. 2010, 205, 2142–2151. [Google Scholar] [CrossRef]
  9. Bondioli, I.R.; Bottino, M.A. Evaluation of shear bond strength at the interface of two porcelains and pure titanium injected into the casting mold at three different temperatures. J. Prosthet. Dent. 2004, 91, 541–547. [Google Scholar] [CrossRef] [PubMed]
  10. Zhang, L.C.; Chen, L.Y. A review on biomedical titanium alloys: Recent progress and prospect. Adv. Eng. Mater. 2019, 21, 1801215. [Google Scholar] [CrossRef]
  11. Anil Kumar, V.; Gupta, R.; Prasad, M.; Narayana Murty, S. Recent advances in processing of titanium alloys and titanium aluminides for space applications: A review. J. Mater. Res. 2021, 36, 689–716. [Google Scholar] [CrossRef]
  12. Wang, W.; Xu, X.; Ma, R.; Xu, G.; Liu, W.; Xing, F. The influence of heat treatment temperature on microstructures and mechanical properties of titanium alloy fabricated by laser melting deposition. Materials 2020, 13, 4087. [Google Scholar] [CrossRef]
  13. Feng, Q.; Duan, B.; Jiao, L.; Chen, G.; Zou, X.; Lu, X.; Li, C. Microstructure and tensile properties of a multi-alloyed α+ β titanium alloy Ti4. 5Al10. 5V3Fe. Mater. Chem. Phys. 2023, 295, 127110. [Google Scholar] [CrossRef]
  14. Wang, X.-Q.; Zhang, Y.-S.; Han, W.-Z. Design of high strength and wear-resistance β-Ti alloy via oxygen-charging. Acta Mater. 2022, 227, 117686. [Google Scholar] [CrossRef]
  15. Miyazaki, S. My experience with Ti–Ni-based and Ti-based shape memory alloys. Shape Mem. Superelasticity 2017, 3, 279–314. [Google Scholar] [CrossRef]
  16. Dalle, F.; Perrin, E.; Vermaut, P.; Masse, M.; Portier, R. Interface mobility in Ni49.8Ti42.2Hf8 shape memory alloy. Acta Mater. 2002, 50, 3557–3565. [Google Scholar] [CrossRef]
  17. Qu, J.; Blau, P.J.; Watkins, T.R.; Cavin, O.B.; Kulkarni, N.S. Friction and wear of titanium alloys sliding against metal, polymer, and ceramic counterfaces. Wear 2005, 258, 1348–1356. [Google Scholar] [CrossRef]
  18. Yu, H.; Lu, L.; Wang, Z.; Chen, C. Microstructure and Wear Resistance of a Composite Coating Prepared by Laser Alloying with Ni-Coated Graphite on Ti-6Al-4V Alloy. Materials 2022, 15, 5512. [Google Scholar] [CrossRef] [PubMed]
  19. Noumbissi, S.; Scarano, A.; Gupta, S. A literature review study on atomic ions dissolution of titanium and its alloys in implant dentistry. Materials 2019, 12, 368. [Google Scholar] [CrossRef] [PubMed]
  20. Kumazawa, R.; Watari, F.; Takashi, N.; Tanimura, Y.; Uo, M.; Totsuka, Y. Effects of Ti ions and particles on neutrophil function and morphology. Biomaterials 2002, 23, 3757–3764. [Google Scholar] [CrossRef]
  21. Azwan, M.; Maleque, M.; Rahman, M. TIG torch surfacing of metallic materials–a critical review. Trans. Inst. Met. Finish 2019, 97, 12–21. [Google Scholar] [CrossRef]
  22. Gao, F.; Zhou, J.; Zhou, J.; Shen, L.; Zhang, J.; Tao, Y.; Li, M. Microstructure and properties of surfacing layers of dies manufactured by bimetal-gradient-layer surfacing technology before and after service. Int. J. Adv. Manuf. Technol. 2017, 88, 1289–1297. [Google Scholar] [CrossRef]
  23. Shan, J.; Dong, Z.; Xu, B. The development of surfacing welding technology in China and its application status in basic industries. Surf. Eng. 2002, 15, 19–22. [Google Scholar]
  24. Shi, Z.-P.; Wang, Z.-B.; Wang, J.-Q.; Qiao, Y.-X.; Chen, H.-N.; Xiong, T.-Y.; Zheng, Y.-G. Effect of Ni interlayer on cavitation erosion resistance of NiTi cladding by tungsten inert gas (TIG) surfacing process. Acta Metall. Sin. Engl. 2020, 33, 415–424. [Google Scholar] [CrossRef]
  25. Choudhary, L.; Chhotani, P.; Menghani, J. Study on wear behaviour on hardfacing alloy. Trans. Indian Inst. Met. 2019, 72, 2465–2475. [Google Scholar] [CrossRef]
  26. Rohan, P.; Lukáč, F.; Kolaříková, M.; Krum, S.; Horník, J.; Lukeš, J.; Šepitka, J.; Kuchař, J. Pulsed Plasma Surfacing of Titanium Matrix Cermet Based on B4C. J. Therm. Spray. Technol. 2022, 31, 1975–1984. [Google Scholar] [CrossRef]
  27. Fan, Q.; Chen, C.; Fan, C.; Liu, Z.; Cai, X.; Lin, S.; Yang, C. Effect of high Fe content on the microstructure, mechanical and corrosion properties of AlCoCrFeNi high-entropy alloy coatings prepared by gas tungsten arc cladding. Surf. Coat. Technol. 2021, 418, 127242. [Google Scholar] [CrossRef]
  28. Klimpel, A.; Dobrzański, L.; Lisiecki, A.; Janicki, D. The study of the technology of laser and plasma surfacing of engine valves face made of X40CrSiMo10-2 steel using cobalt-based powders. J. Mater. Process Technol. 2006, 175, 251–256. [Google Scholar] [CrossRef]
  29. Huang, J.; Liu, S.; Yu, S.; Yu, X.; Chen, H.; Fan, D. Arc deposition of wear resistant layer TiN on Ti6Al4V using simultaneous feeding of nitrogen and wire. Surf. Coat. Technol. 2020, 381, 125141. [Google Scholar] [CrossRef]
  30. Bao, Y.; Huang, L.; An, Q.; Jiang, S.; Zhang, R.; Geng, L.; Ma, X. Metal transfer and microstructure evolution during wire-feed deposition of TiB/Ti composite coating. J. Mater. Process Technol. 2019, 274, 116298. [Google Scholar] [CrossRef]
  31. Huang, J.; Liu, S.; Wu, L.; Yu, S.; Yu, X.; Yuan, W.; Liao, Y.; Fan, D. The microstructures and corrosion behavior of cladding layer on Ti-6Al-4V alloy using arc deposition with Ar and CO2 mixed shield gas. J. Alloys Compd. 2021, 857, 157557. [Google Scholar] [CrossRef]
  32. Fu, F.; Zhang, Y.; Chang, G.; Dai, J. Analysis on the physical mechanism of laser cladding crack and its influence factors. Optik 2016, 127, 200–202. [Google Scholar] [CrossRef]
  33. Zhou, Y.-X.; Zhang, J.; Xing, Z.-G.; Wang, H.-D.; Lv, Z.-L. Microstructure and properties of NiCrBSi coating by plasma cladding on gray cast iron. Surf. Coat. Technol. 2019, 361, 270–279. [Google Scholar] [CrossRef]
  34. Zhang, R.; Jiang, F.; Chen, S. Comparison of energy acted on workpiece among twin-body plasma arc welding, non-transferred plasma arc welding and plasma arc welding. J. Manuf. Process 2016, 24, 152–160. [Google Scholar] [CrossRef]
  35. Liu, J. TiC/Fe cermet coating by plasma cladding using asphalt as a carbonaceous precursor. Prog. Nat. Sci. 2008, 18, 447–454. [Google Scholar] [CrossRef]
  36. Cao, L.; Xia, Y.; Cui, H.; Li, Q.; Zhu, B.; Wang, Q. Microstructural characteristics of TiB2–TiC–NiAl composite coatings via plasma cladding process. Surf. Eng. 2019, 35, 997–1002. [Google Scholar] [CrossRef]
  37. Anikeev, S.G.; Shabalina, A.V.; Kulinich, S.A.; Artyukhova, N.V.; Korsakova, D.R.; Yakovlev, E.V.; Vlasov, V.A.; Kokorev, O.V.; Hodorenko, V.N. Preparation and Electron-Beam Surface Modification of Novel TiNi Material for Medical Applications. Appl. Sci. 2021, 11, 4372. [Google Scholar] [CrossRef]
  38. Chen, J.; Liu, H.; Peng, Z.; Tang, J. Study on the Solidification Behavior of Inconel617 Electron Beam Cladding NiCoCrAlY: Numerical and Experimental Simulation. Coatings 2022, 12, 58. [Google Scholar] [CrossRef]
  39. Zhang, L.C.; Liu, Y.; Li, S.; Hao, Y. Additive manufacturing of titanium alloys by electron beam melting: A review. Adv. Eng. Mater. 2018, 20, 1700842. [Google Scholar] [CrossRef]
  40. Song, R.; Zhang, K.; Chen, G. Electron beam surface remelting of AISI D2 cold-worked die steel. Surf. Coat. Technol. 2002, 157, 1–4. [Google Scholar] [CrossRef]
  41. Petrov, P. Electron beam surface remelting and alloying of aluminium alloys. Vacuum 1997, 48, 49–50. [Google Scholar] [CrossRef]
  42. Liu, D.; Chen, Q.; Wang, D.; Zhang, R.; Wang, W. Formation and Tribological Properties of Electron Beam Cladding (Ti, W) C1-x Composite Coatings on Ti-6Al-4V Surfaces. Acta Metall. Sin. 2020, 56, 1025–1035. [Google Scholar]
  43. Bataev, I.; Lazurenko, D.; Golkovskii, M.; Bataev, A.; Matts, O. Surface Hardening of Titanium Under Non-Vacuum Electron-Beam Cladding of an Aluminum-Containing Powder Mixture. Met. Sci. Heat Treat 2019, 60, 619–624. [Google Scholar] [CrossRef]
  44. Lenivtseva, O.; Bataev, I.; Golkovskii, M.; Bataev, A.; Samoilenko, V.; Plotnikova, N. Structure and properties of titanium surface layers after electron beam alloying with powder mixtures containing carbon. Appl. Surf. Sci. 2015, 355, 320–326. [Google Scholar] [CrossRef]
  45. Ouyang, W.; Xu, Z.; Chao, Y.; Liu, Y.; Luo, W.; Jiao, J.; Sheng, L.; Zhang, W. Effect of electrostatic field on microstructure and mechanical properties of the 316L stainless steel modified layer fabricated by laser cladding. Mater. Charact. 2022, 191, 112123. [Google Scholar] [CrossRef]
  46. Liu, Y.; Ouyang, W.; Wu, H.; Xu, Z.; Sheng, L.; Zou, Q.; Zhang, M.; Zhang, W.; Jiao, J. Improving surface quality and superficial microstructure of LDED Inconel 718 superalloy processed by hybrid laser polishing. J. Mater. Process Technol. 2022, 300, 117428. [Google Scholar] [CrossRef]
  47. Singh, S.; Goyal, D.K.; Kumar, P.; Bansal, A. Laser cladding technique for erosive wear applications: A review. Mater. Res. Express 2020, 7, 012007. [Google Scholar] [CrossRef]
  48. Wang, D.; Zhu, Y.; Qu, G.; Zhou, X. Research on Dilution of Laser Cladding Assisted by Pulsed Current Based on Orthogonal Experiment. In Proceedings of the Journal of Physics: Conference Series, Moscow, Russia, 21–22 April 2021; p. 012087. [Google Scholar]
  49. Arif, Z.U.; Khalid, M.Y.; ur Rehman, E.; Ullah, S.; Atif, M.; Tariq, A. A review on laser cladding of high-entropy alloys, their recent trends and potential applications. J. Manuf. Process 2021, 68, 225–273. [Google Scholar] [CrossRef]
  50. Lu, X.; Lin, X.; Cao, Y.; Hu, J.; Gao, b.; Huang, W. Effects of process parameters and heat treatment on the phase composition of in-situ hydroxyapatite coatings synthesized by laser cladding on pure titanium surfaces. Rare Metal Mat. Eng. 2011, 40, 714–717. [Google Scholar]
  51. Feng, Y.; Feng, K.; Yao, C.; Li, Z.; Sun, J. Microstructure and properties of in-situ synthesized (Ti3Al + TiB)/Ti composites by laser cladding. Mater. Des. 2018, 157, 258–272. [Google Scholar] [CrossRef]
  52. Jiang, C.; Zhang, J.; Chen, Y.; Hou, Z.; Zhao, Q.; Li, Y.; Zhu, L.; Zhang, F.; Zhao, Y. On enhancing wear resistance of titanium alloys by laser cladded WC-Co composite coatings. Int. J. Refract Hard Met. 2022, 107, 105902. [Google Scholar] [CrossRef]
  53. Wu, D.; Hu, C.; Zhao, W.; Zhang, Y.; Zou, Y. Influence of external magnetic field on twin-wire indirect arc surfacing stainless steel layer. Vacuum 2019, 169, 108958. [Google Scholar] [CrossRef]
  54. Han, X.; Li, C.; Chen, X.; Jia, S. Numerical simulation and experimental study on the composite process of submerged arc cladding and laser cladding. Surf. Coat. Technol. 2022, 439, 128432. [Google Scholar] [CrossRef]
  55. Ding, H.; Dai, J.; Dai, T.; Sun, Y.; Lu, T.; Li, M.; Jia, X.; Huang, D. Effect of preheating/post-isothermal treatment temperature on microstructures and properties of cladding on U75V rail prepared by plasma cladding method. Surf. Coat. Technol. 2020, 399, 126122. [Google Scholar] [CrossRef]
  56. Fesharaki, M.N.; Shoja-Razavi, R.; Mansouri, H.A.; Jamali, H. Microstructure investigation of Inconel 625 coating obtained by laser cladding and TIG cladding methods. Surf. Coat. Technol. 2018, 353, 25–31. [Google Scholar] [CrossRef]
  57. Peng, Y.; Zhang, W.; Li, T.; Zhang, M.; Wang, L.; Song, Y.; Hu, S.; Hu, Y. Microstructures and mechanical properties of FeCoCrNi high entropy alloy/WC reinforcing particles composite coatings prepared by laser cladding and plasma cladding. Int. J. Refract Met. H 2019, 84, 105044. [Google Scholar] [CrossRef]
  58. Yuan, C.; Wang, B.; Wang, J.; Wang, Y.; Sheng, L.; Jiao, J.; Yao, J.; Huang, Y.; Zhang, W. Effects of incidence angle and optimization in femtosecond laser polishing of C/SiC composites. Ceram. Int. 2022, 48, 32290–32304. [Google Scholar] [CrossRef]
  59. Wang, B.; Huang, Y.; Jiao, J.; Wang, H.; Wang, J.; Zhang, W.; Sheng, L. Numerical simulation on pulsed laser ablation of the single-crystal superalloy considering material moving front and effect of comprehensive heat dissipation. Micromachines 2021, 12, 225. [Google Scholar] [CrossRef] [PubMed]
  60. Xu, J.; Jing, C.; Jiao, J.; Sun, S.; Sheng, L.; Zhang, Y.; Xia, H.; Zeng, K. Experimental Study on Carbon Fiber-Reinforced Composites Cutting with Nanosecond Laser. Materials 2022, 15, 6686. [Google Scholar] [CrossRef]
  61. Zhao, Y.; Yu, T.; Sun, J.; Jiang, S. Microstructure and properties of laser cladded B4C/TiC/Ni-based composite coating. Int. J. Refract Hard Met. 2020, 86, 105112. [Google Scholar] [CrossRef]
  62. Gedda, H.; Powell, J.; Wahlström, G.; Li, W.; Engström, H.; Magnusson, C. Energy redistribution during CO2 laser cladding. In Proceedings of the International Congress on Applications of Lasers & Electro-Optics, Jacksonville, FL, USA, 15–18 October 2001; pp. 549–558. [Google Scholar]
  63. Gao, J.; Wu, C.; Hao, Y.; Xu, X.; Guo, L. Numerical simulation and experimental investigation on three-dimensional modelling of single-track geometry and temperature evolution by laser cladding. Opt. Laser Technol. 2020, 129, 106287. [Google Scholar] [CrossRef]
  64. Rodrigues, M.B.; Silva, R.G.N.; Pereira, M.; Silva, R.H.G.E.; Teichmann, E.W. Effect of dynamic wire feeding on deposition quality in laser cladding process. J. Laser Appl. 2020, 32, 022065. [Google Scholar] [CrossRef]
  65. Chen, L.; Yu, T.; Chen, X.; Zhao, Y.; Guan, C. Process optimization, microstructure and microhardness of coaxial laser cladding TiC reinforced Ni-based composite coatings. Opt. Laser Technol. 2022, 152, 108129. [Google Scholar] [CrossRef]
  66. Zhang, H.; Lian, G.; Zhang, Y.; Pan, Y.; Cao, Q.; Yang, J.; Ke, D. The influence of powder size on the microstructure and properties of Mo2FeB2 coating fabricated via laser cladding with pre-placed powder. Int. J. Adv. Manuf. Technol. 2022, 120, 6041–6052. [Google Scholar] [CrossRef]
  67. Grohol, C.M.; Shin, Y.C.; Frank, A. Laser cladding of aluminum alloys with concurrent cryogenic quenching for improved microstructure and hardness. Surf. Coat. Technol. 2022, 439, 128460. [Google Scholar] [CrossRef]
  68. Zhang, Z.; Yang, F.; Zhang, H.; Zhang, T.; Wang, H.; Xu, Y.; Ma, Q. Influence of CeO2 addition on forming quality and microstructure of TiCx-reinforced CrTi4-based laser cladding composite coating. Mater. Charact. 2021, 171, 110732. [Google Scholar] [CrossRef]
  69. Xu, L.; Xiao, R.; Qu, G.; Wang, D. In Situ Synthesized Graded TiC Particulate Reinforced Ni-based Composite Coating Prepared by Laser Cladding. In Proceedings of the Intelligent Manufacturing and Automation Technology (MEMAT) 2021, Guilin, China, 15–17 January 2021; p. 012050. [Google Scholar]
  70. Grohol, C.M.; Shin, Y.C.; Frank, A. Laser cladding of aluminum alloy 6061 via off-axis powder injection. Surf. Coat. Technol. 2021, 415, 127099. [Google Scholar] [CrossRef]
  71. Toyserkani, E.; Khajepour, A.; Corbin, S.F. Laser Cladding; CRC press: Boca Raton, FL, USA, 2004. [Google Scholar]
  72. Emamian, A.; Corbin, S.F.; Khajepour, A. Effect of laser cladding process parameters on clad quality and in-situ formed microstructure of Fe–TiC composite coatings. Surf. Coat. Technol. 2010, 205, 2007–2015. [Google Scholar] [CrossRef]
  73. Li, Y.; Zhang, P.; Bai, P.; Su, K.; Su, H. TiBCN-ceramic-reinforced Ti-based coating by laser cladding: Analysis of processing conditions and coating properties. Coatings 2019, 9, 407. [Google Scholar] [CrossRef]
  74. Aghili, S.; Shamanian, M. Investigation of powder fed laser cladding of NiCr-chromium carbides single-tracks on titanium aluminide substrate. Opt. Laser Technol. 2019, 119, 105652. [Google Scholar] [CrossRef]
  75. Onwubolu, G.C.; Davim, J.P.; Oliveira, C.; Cardoso, A. Prediction of clad angle in laser cladding by powder using response surface methodology and scatter search. Opt. Laser Technol. 2007, 39, 1130–1134. [Google Scholar] [CrossRef]
  76. Sun, Y.; Hao, M. Statistical analysis and optimization of process parameters in Ti6Al4V laser cladding using Nd: YAG laser. Opt. Lasers Eng. 2012, 50, 985–995. [Google Scholar] [CrossRef]
  77. Chen, T.; Wu, W.; Li, W.; Liu, D. Laser cladding of nanoparticle TiC ceramic powder: Effects of process parameters on the quality characteristics of the coatings and its prediction model. Opt. Laser Technol. 2019, 116, 345–355. [Google Scholar] [CrossRef]
  78. Zhang, Y.; Gong, B.; Tang, Z.; Cao, W. Application of a Bio-Inspired Algorithm in the Process Parameter Optimization of Laser Cladding. Machines 2022, 10, 263. [Google Scholar] [CrossRef]
  79. Ning, F.; Cong, W. Ultrasonic vibration-assisted (UV-A) manufacturing processes: State of the art and future perspectives. J. Manuf. Process 2020, 51, 174–190. [Google Scholar] [CrossRef]
  80. Ning, F.; Cong, W. Microstructures and mechanical properties of Fe-Cr stainless steel parts fabricated by ultrasonic vibration-assisted laser engineered net shaping process. Mater. Lett. 2016, 179, 61–64. [Google Scholar] [CrossRef]
  81. Zhu, L.; Yang, Z.; Xin, B.; Wang, S.; Meng, G.; Ning, J.; Xue, P. Microstructure and mechanical properties of parts formed by ultrasonic vibration-assisted laser cladding of Inconel 718. Surf. Coat. Technol. 2021, 410, 126964. [Google Scholar] [CrossRef]
  82. Mi, H.; Chen, T.; Deng, Z.; Li, S.; Liu, J.; Liu, D. Microstructure and Mechanical Properties of TiC/TiB Composite Ceramic Coatings In-Situ Synthesized by Ultrasonic Vibration-Assisted Laser Cladding. Coatings 2022, 12, 99. [Google Scholar] [CrossRef]
  83. Chen, C.; Deng, Q.; Song, J. The influence of Ni content and ultrasonic vibration to cracks in process of laser cladding. J. Trans. Nanjing Univ. Aeronaut. Astronaut. S 2005, 1, 44–48. [Google Scholar]
  84. Sheng, L.; Guo, J.; Zhou, L.; Ye, H. The effect of strong magnetic field treatment on microstructure and room temperature compressive properties of NiAl–Cr (Mo)–Hf eutectic alloy. Mater. Sci. Eng. A 2009, 500, 238–243. [Google Scholar] [CrossRef]
  85. Sheng, L.; Guo, J.; Ren, W.; Zhang, Z.; Ren, Z.; Ye, H. Preliminary investigation on strong magnetic field treated NiAl–Cr (Mo)–Hf near eutectic alloy. Intermetallics 2011, 19, 143–148. [Google Scholar] [CrossRef]
  86. Qi, K.; Yang, Y.; Sun, R.; Hu, G.; Lu, X.; Li, J.; Liang, W.; Jin, K.; Xiong, L. Effect of magnetic field on crack control of Co-based alloy laser cladding. Opt. Laser Technol. 2021, 141, 107129. [Google Scholar] [CrossRef]
  87. Zhang, Q.; Zhang, P.; Yan, H.; Yu, Z.; Wu, D.; Shi, H.; Li, S.; Tian, Y. Magnetic-field-assisted laser cladding in the preparation of a crack-free Fe-Cr-Mo-CYB amorphous coating on steel. Philos. Mag. Lett. 2020, 100, 86–93. [Google Scholar] [CrossRef]
  88. Zhao, Y.; Wu, M.; Jiang, P.; Li, R.; Cheng, J.; Chen, Y. Microstructure of WTaNbMo refractory high entropy alloy coating fabricated by dynamic magnetic field assisted laser cladding process. J. Mater. Res. Technol. 2022, 20, 1908–1911. [Google Scholar] [CrossRef]
  89. Zhai, L.; Wang, Q.; Zhang, J.; Ban, C. Effect of alternating current electric field on microstructure and properties of laser cladding Ni–Cr–B–Si coating. Ceram. Int. 2019, 45, 16873–16879. [Google Scholar] [CrossRef]
  90. Huo, K.; Zhou, J.; Dai, F.; Xu, J. Particle distribution and microstructure of IN718/WC composite coating fabricated by electromagnetic compound field-assisted laser cladding. Appl. Surf. Sci. 2021, 545, 149078. [Google Scholar] [CrossRef]
  91. Dong, S.; Ma, Y.; Xu, B.; Han, W. Research status of laser cladding materials. Mater. Rev. 2006, 20, 5–9. [Google Scholar]
  92. Han, T.; Zhou, K.; Chen, Z.; Gao, Y. Research Progress on Laser Cladding Alloying and Composite Processing of Steel Materials. Metals 2022, 12, 2055. [Google Scholar] [CrossRef]
  93. Chang, C.; Liao, H.; Yi, L.; Dai, Y.; Cox, S.C.; Yan, M.; Liu, M.; Yan, X. Achieving ultra-high strength and ductility in Mg–9Al–1Zn-0.5 Mn alloy via selective laser melting. Adv. Powder Mater. 2022, 2, 100097. [Google Scholar] [CrossRef]
  94. Wang, C.; Xu, D.; Lin, L.; Li, S.; Hou, W.; He, Y.; Sheng, L.; Yi, C.; Zhang, X.; Li, H. Large-pore-size Ti6Al4V scaffolds with different pore structures for vascularized bone regeneration. Mater. Sci. Eng. C 2021, 131, 112499. [Google Scholar] [CrossRef]
  95. Tong, X.; Li, F.-H.; Liu, M.; Dai, M.-J.; Zhou, H. Thermal fatigue resistance of non-smooth cast iron treated by laser cladding with different self-fluxing alloys. Opt. Laser Technol. 2010, 42, 1154–1161. [Google Scholar] [CrossRef]
  96. Sheng, L.; Yang, F.; Xi, T.; Lai, C.; Ye, H. Influence of heat treatment on interface of Cu/Al bimetal composite fabricated by cold rolling. Compos. B. Eng. 2011, 42, 1468–1473. [Google Scholar] [CrossRef]
  97. Simunovic, K.; Havrlisan, S.; Saric, T.; Vukelic, D. Modeling and Optimization in Investigating Thermally Sprayed Ni-Based Self-Fluxing Alloy Coatings: A Review. Materials 2020, 13, 4584. [Google Scholar] [CrossRef]
  98. Umanskyi, O.; Pareiko, M.; Storozhenko, M.; Krasovskyy, V. Wetting and interfacial behavior of Fe-based self-fluxing alloy–refractory compound systems. J. Superhard Mater. 2017, 39, 99–105. [Google Scholar] [CrossRef]
  99. Meng, Q.; Geng, L.; Ni, D. Laser cladding NiCoCrAlY coating on Ti-6Al-4V. Mater. Lett. 2005, 59, 2774–2777. [Google Scholar] [CrossRef]
  100. Jeyaprakash, N.; Yang, C.-H.; Tseng, S.-P. Characterization and tribological evaluation of NiCrMoNb and NiCrBSiC laser cladding on near-α titanium alloy. Int. J. Adv. Manuf. Tech. 2020, 106, 2347–2361. [Google Scholar] [CrossRef]
  101. Sun, R.; Yang, D.; Guo, L.; Dong, S. Laser cladding of Ti-6Al-4V alloy with TiC and TiC + NiCrBSi powders. Surf. Coat. Technol. 2001, 135, 307–312. [Google Scholar] [CrossRef]
  102. Sakata, K.; Nakano, K.; Miyahara, H.; Matsubara, Y.; Ogi, K. Microstructure control of thermally sprayed Co-based self-fluxing alloy coatings by diffusion treatment. J. Therm. Spray Technol. 2007, 16, 991–997. [Google Scholar] [CrossRef]
  103. Sheng, L. A Co–Cr–Ni–W–C Alloy Processed by Multiple Rolling. Strength Mater. 2020, 52, 103–109. [Google Scholar] [CrossRef]
  104. Majumdar, J.D.; Manna, I.; Kumar, A.; Bhargava, P.; Nath, A. Direct laser cladding of Co on Ti–6Al–4V with a compositionally graded interface. J. Mater. Process Tech. 2009, 209, 2237–2243. [Google Scholar] [CrossRef]
  105. Weng, F.; Yu, H.; Chen, C.; Dai, J. Microstructures and wear properties of laser cladding Co-based composite coatings on Ti–6Al–4V. Mater. Des. 2015, 80, 174–181. [Google Scholar] [CrossRef]
  106. Ge, X.; Zhong, Y.; Xu, X.; Tao, J.; Liu, Q.; Wu, G.; He, X. Study on Laser Alloying Ti-Al-Nb Coating on TC4 Titanium Alloy Surface. Rare Metal Mat. Eng. 2017, 46, 2266–2270. [Google Scholar]
  107. Weng, F.; Yu, H.; Chen, C.; Liu, J.; Zhao, L.; Dai, J. Microstructure and property of composite coatings on titanium alloy deposited by laser cladding with Co42+ TiN mixed powders. J. Alloys Compd. 2016, 686, 74–81. [Google Scholar] [CrossRef]
  108. Shasha, L.; Yuhang, W.; Weiping, Z. Microstructure and wear resistance of laser clad cobalt-based composite coating on TA15 surface. Rare Metal. Mat. Eng. 2014, 43, 1041–1046. [Google Scholar] [CrossRef]
  109. Weng, F.; Yu, H.; Liu, J.; Chen, C.; Dai, J.; Zhao, Z. Microstructure and wear property of the Ti5Si3/TiC reinforced Co-based coatings fabricated by laser cladding on Ti-6Al-4V. Opt. Laser Technol. 2017, 92, 156–162. [Google Scholar] [CrossRef]
  110. Meng, Q.; Geng, L.; Zhang, B. Laser cladding of Ni-base composite coatings onto Ti–6Al–4V substrates with pre-placed B4C+ NiCrBSi powders. Surf. Coat. Technol. 2006, 200, 4923–4928. [Google Scholar] [CrossRef]
  111. Sun, R.; Lei, Y.; Niu, W. Laser clad TiC reinforced NiCrBSi composite coatings on Ti–6Al–4V alloy using a CW CO2 laser. Surf. Coat. Technol. 2009, 203, 1395–1399. [Google Scholar] [CrossRef]
  112. Zhuang, H.; Zhang, Q.; Zhang, D. Microstructure and Tribological Properties of Ni-Based Laser-Clad Coatings by Rare Earth Modification. J. Therm. Spray Technol. 2021, 30, 1410–1431. [Google Scholar] [CrossRef]
  113. Cheng, H.; Fang, Y.; Xu, J.; Zhu, C.; Dai, P.; Xue, S. Tribological properties of nano/ultrafine-grained FeCoCrNiMnAlx high-entropy alloys over a wide range of temperatures. J. Alloys Compd. 2020, 817, 153305. [Google Scholar] [CrossRef]
  114. Malatji, N.; Lengopeng, T.; Pityana, S.; Popoola, A. Microstructural, mechanical and electrochemical properties of AlCrFeCuNiWx high entropy alloys. J. Mater. Res. Technol. 2021, 11, 1594–1603. [Google Scholar] [CrossRef]
  115. Wen, X.; Cui, X.; Jin, G.; Liu, Y.; Zhang, Y.; Fang, Y. In-situ synthesis of nano-lamellar Ni1.5CrCoFe0.5Mo0.1Nbx eutectic high-entropy alloy coatings by laser cladding: Alloy design and microstructure evolution. Surf. Coat. Technol. 2021, 405, 126728. [Google Scholar] [CrossRef]
  116. Song, H.; Yang, J.; Jo, Y.; Song, T.; Kim, H.; Lee, B.-J.; Lee, S. Excellent combination of cryogenic-temperature strength and ductility of high-entropy-alloy-cored multi-layered sheet. J. Alloys Compd. 2019, 797, 465–470. [Google Scholar] [CrossRef]
  117. Wang, X.; Guo, W.; Fu, Y. High-entropy alloys: Emerging materials for advanced functional applications. J. Mater. Chem. A 2021, 9, 663–701. [Google Scholar] [CrossRef]
  118. CHEN, J.-m.; Chun, G.; ZHOU, J.-s. Microstructure and tribological properties of laser cladding Fe-based coating on pure Ti substrate. T Nonferr. Metal. Soc. 2012, 22, 2171–2178. [Google Scholar] [CrossRef]
  119. Xiang, K.; Chen, L.-Y.; Chai, L.; Guo, N.; Wang, H. Microstructural characteristics and properties of CoCrFeNiNbx high-entropy alloy coatings on pure titanium substrate by pulsed laser cladding. Appl. Surf. Sci. 2020, 517, 146214. [Google Scholar] [CrossRef]
  120. Chen, L.; Wang, Y.; Hao, X.; Zhang, X.; Liu, H. Lightweight refractory high entropy alloy coating by laser cladding on Ti–6Al–4V surface. Vacuum 2021, 183, 109823. [Google Scholar] [CrossRef]
  121. Li, Y.; Liang, H.; Nie, Q.; Qi, Z.; Deng, D.; Jiang, H.; Cao, Z. Microstructures and wear resistance of CoCrFeNi2V0.5Tix high-entropy alloy coatings prepared by laser cladding. Crystals 2020, 10, 352. [Google Scholar] [CrossRef]
  122. Zhang, H.; Dai, J.; Sun, C.; Li, S. Microstructure and wear resistance of TiAlNiSiV high-entropy laser cladding coating on Ti-6Al-4V. J. Mater. Process Technol. 2020, 282, 116671. [Google Scholar] [CrossRef]
  123. Cai, Z.; Jin, G.; Cui, X.; Liu, Z.; Zheng, W.; Li, Y.; Wang, L. Synthesis and microstructure characterization of Ni-Cr-Co-Ti-V-Al high entropy alloy coating on Ti-6Al-4V substrate by laser surface alloying. Mater. Charact. 2016, 120, 229–233. [Google Scholar] [CrossRef]
  124. Huang, C.; Zhang, Y.; Vilar, R.; Shen, J. Dry sliding wear behavior of laser clad TiVCrAlSi high entropy alloy coatings on Ti–6Al–4V substrate. Mater. Des. 2012, 41, 338–343. [Google Scholar] [CrossRef]
  125. Huang, C.; Zhang, Y.; Shen, J.; Vilar, R. Thermal stability and oxidation resistance of laser clad TiVCrAlSi high entropy alloy coatings on Ti–6Al–4V alloy. Surf. Coat. Technol. 2011, 206, 1389–1395. [Google Scholar] [CrossRef]
  126. Cai, Y.; Chen, Y.; Manladan, S.M.; Luo, Z.; Gao, F.; Li, L. Influence of dilution rate on the microstructure and properties of FeCrCoNi high-entropy alloy coating. Mater. Des. 2018, 142, 124–137. [Google Scholar] [CrossRef]
  127. Huang, C.; Tang, Y.-Z.; Zhang, Y.-Z.; Dong, A.-P.; Tu, J.; Chai, L.-J.; Zhou, Z.-M. Microstructure and dry sliding wear behavior of laser clad AlCrNiSiTi multi-principal element alloy coatings. Rare Metals. 2017, 36, 562–568. [Google Scholar] [CrossRef]
  128. Cai, Z.; Cui, X.; Liu, Z.; Li, Y.; Dong, M.; Jin, G. Microstructure and wear resistance of laser cladded Ni-Cr-Co-Ti-V high-entropy alloy coating after laser remelting processing. Opt. Laser Technol. 2018, 99, 276–281. [Google Scholar] [CrossRef]
  129. Liu, S.; Zhao, G.; Wang, X.; Zhou, C. Design and characterization of AlNbMoTaCux high entropy alloys laser cladding coatings. Surf. Coat. Technol. 2022, 447, 128832. [Google Scholar] [CrossRef]
  130. Ren, Z.; Hu, Y.; Tong, Y.; Cai, Z.; Liu, J.; Wang, H.; Liao, J.; Xu, S.; Li, L. Wear-resistant NbMoTaWTi high entropy alloy coating prepared by laser cladding on TC4 titanium alloy. Tribol. Int. 2023, 182, 108366. [Google Scholar] [CrossRef]
  131. Han, L.; Lingling, M.; Chaoqun, W.; Sun, L.; Zhang, W. Microstructure and properties of laser cladding AlBxCoCrNiTi high-entropy alloy coating on titanium alloys. Surf. Technol. 2017, 46, 226–231. [Google Scholar]
  132. Liang, G.; Jin, G.; Cui, X.; Qiu, Z.; Wang, J. Designing AlCoCrFeNiTi high-entropy alloy with the directional array TiN by magnetic field-assisted laser cladding. Appl. Phys. A 2021, 127, 350. [Google Scholar] [CrossRef]
  133. Prabu, G.; Duraiselvam, M.; Jeyaprakash, N.; Yang, C.-H. Microstructural evolution and wear behavior of AlCoCrCuFeNi high entropy alloy on Ti–6Al–4V through laser surface alloying. Met. Mater. Int. 2021, 27, 2328–2340. [Google Scholar] [CrossRef]
  134. Sheng, L.; Xiao, Y.; Jiao, C.; Du, B.; Li, Y.; Wu, Z.; Shao, L. Influence of layer number on microstructure, mechanical properties and wear behavior of the TiN/Ti multilayer coatings fabricated by high-power magnetron sputtering deposition. J. Manuf. Process 2021, 70, 529–542. [Google Scholar] [CrossRef]
  135. Li, Y.; Zhao, G.; Qi, H.; Li, M.; Zheng, Y.; Qian, Y.; Sheng, L. Preparation of single-phase Ti2AlN coating by magnetron sputtering with cost-efficient hot-pressed Ti-Al-N targets. Ceram. Int. 2018, 44, 17530–17534. [Google Scholar] [CrossRef]
  136. Jiang, F.; Cheng, L.; Zhang, J.; Wang, Y. Fabrication of barium-strontium aluminosilicate coatings on C/SiC composites via laser cladding. J. Mater. Sci. Technol. 2017, 33, 166–171. [Google Scholar] [CrossRef]
  137. Feng, Z.; Tang, M.; Liu, Y.; Yan, Z.; Li, G.; Zhang, R. In situ synthesis of TiC-TiN-reinforced Fe-base plasma cladding coatings. Surf. Eng. 2018, 34, 309–315. [Google Scholar] [CrossRef]
  138. Chen, T.; Deng, Z.; Liu, D.; Zhu, X.; Xiong, Y. Bioinert TiC ceramic coating prepared by laser cladding: Microstructures, wear resistance, and cytocompatibility of the coating. Surf. Coat. Technol. 2021, 423, 127635. [Google Scholar] [CrossRef]
  139. Chen, T.; Li, W.; Liu, D.; Xiong, Y.; Zhu, X. Effects of heat treatment on microstructure and mechanical properties of TiC/TiB composite bioinert ceramic coatings in-situ synthesized by laser cladding on Ti6Al4V. Ceram. Int. 2021, 47, 755–768. [Google Scholar] [CrossRef]
  140. Tian, Y.; Chen, C. Microstructures and wear properties of in situ formed composite coatings produced by laser alloying technique. Mater. Lett. 2007, 61, 635–638. [Google Scholar] [CrossRef]
  141. Biswas, A.; Li, L.; Chatterjee, U.; Manna, I.; Pabi, S.; Majumdar, J.D. Mechanical and electrochemical properties of laser surface nitrided Ti–6Al–4V. Scr. Mater. 2008, 59, 239–242. [Google Scholar] [CrossRef]
  142. Weng, F.; Chen, C.; Yu, H. Research status of laser cladding on titanium and its alloys: A review. Mater. Des. 2014, 58, 412–425. [Google Scholar] [CrossRef]
  143. Yang, C.; Cheng, X.; Tang, H.; Tian, X.; Liu, D. Influence of microstructures and wear behaviors of the microalloyed coatings on TC11 alloy surface using laser cladding technique. Surf. Coat. Technol. 2018, 337, 97–103. [Google Scholar] [CrossRef]
  144. Huang, B.; Gao, Y.; Chen, P.; Xiong, W.; Tang, J. Microstructure and properties of Ni+ B4C/Ti coatings by high-frequency induction cladding. Surf. Innov. 2018, 7, 59–67. [Google Scholar] [CrossRef]
  145. Wang, W.-F.; Jin, L.-S.; Yang, J.-G.; Sun, F.-J. Directional growth whisker reinforced Ti-base composites fabricated by laser cladding. Surf. Coat. Technol. 2013, 236, 45–51. [Google Scholar] [CrossRef]
  146. Liang, J.; Yin, X.; Lin, Z.; Chen, S.; Liu, C.; Yan, S.; Dong, S. Effects of LaB6 on microstructure evolution and properties of in-situ synthetic TiC+ TiBx reinforced titanium matrix composite coatings prepared by laser cladding. Surf. Coat. Technol. 2020, 403, 126409. [Google Scholar] [CrossRef]
  147. Zhang, H.; Yu, H.; Chen, C. Microstructure and wear resistance of composite coating by laser cladding Ni60A/B4C pre-placed powders on Ti-6Al-4V substrate. Sci. Eng. Compos. Mater. 2017, 24, 541–546. [Google Scholar] [CrossRef]
  148. Wanliang, W.; Yong, L.; Dezhuang, Y.; Wenrong, H. Microstructure of TiC dendrites reinforced titanium matrix composite layer by laser cladding. J. Mater. Sci. Lett. 2003, 22, 1169–1171. [Google Scholar] [CrossRef]
  149. Sun, R.; Mao, J.; Yang, D. Microscopic morphology and distribution of TiC phase in laser clad NiCrBSiC–TiC layer on titanium alloy substrate. Surf. Coat. Technol. 2002, 155, 203–207. [Google Scholar] [CrossRef]
  150. Dong, Y.; Wang, H. Microstructure and dry sliding wear resistance of laser clad TiC reinforced Ti–Ni–Si intermetallic composite coating. Surf. Coat. Technol. 2009, 204, 731–735. [Google Scholar] [CrossRef]
  151. Liu, R.; Dang, X.; Gao, Y.; Wu, T.; Zhu, Y. The Wear Behavior of the Laser Cladded Ti-Al-Si Composite Coatings on Ti-6Al-4V Alloy with Additional TiC. Materials 2021, 14, 4567. [Google Scholar] [CrossRef] [PubMed]
  152. Zhou, S.; Dai, X. Laser induction hybrid rapid cladding of WC particles reinforced NiCrBSi composite coatings. Appl. Surf. Sci. 2010, 256, 4708–4714. [Google Scholar] [CrossRef]
  153. Diao, Y.; Zhang, K. Microstructure and corrosion resistance of TC2 Ti alloy by laser cladding with Ti/TiC/TiB2 powders. Appl. Surf. Sci. 2015, 352, 163–168. [Google Scholar] [CrossRef]
  154. Lin, Y.; Yao, J.; Lei, Y.; Fu, H.; Wang, L. Microstructure and properties of TiB2–TiB reinforced titanium matrix composite coating by laser cladding. Opt. Lasers Eng. 2016, 86, 216–227. [Google Scholar] [CrossRef]
  155. Riquelme, A.; Escalera-Rodríguez, M.D.; Rodrigo, P.; Otero, E.; Rams, J. Effect of alloy elements added on microstructure and hardening of Al/SiC laser clad coatings. J. Alloys Compd. 2017, 727, 671–682. [Google Scholar] [CrossRef]
  156. Lin, Y.; Yao, J.; Wang, L.; Zhang, Q.; Li, X.; Lei, Y.; Fu, H. Effects of TiB2 particle and short fiber sizes on the microstructure and properties of TiB2-reinforced composite coatings. J. Mater. Eng. Perform. 2018, 27, 1876–1889. [Google Scholar] [CrossRef]
  157. Li, J.; Chen, C.; Lin, Z.; Squartini, T. Phase constituents and microstructure of laser cladding Al2O3/Ti3Al reinforced ceramic layer on titanium alloy. J. Alloys Compd. 2011, 509, 4882–4886. [Google Scholar] [CrossRef]
  158. Lin, Y.; Chen, Z.; Li, Y.; Zhu, W.; Wen, X.; Wang, X. Microstructure and hardness properties of TiB ceramic coatings prepared in situ by laser cladding on TC4 titanium alloy. Infrared Laser Eng. 2012, 41, 2694–2698. [Google Scholar]
  159. Zhang, H.; Yu, H.; Chen, C. Microstructure and Wear Resistance of Composite Coating by Laser Cladding Al/TiN on the Ti–6 Al–4 V Substrate. Surf. Rev. Lett. 2015, 22, 1550044. [Google Scholar] [CrossRef]
  160. Sui, X.; Lu, J.; Hu, J.; Zhang, W. Effect of specific energy on microstructure and properties of laser cladded TiN/Ti3AlN-Ti3Al composite coating. Opt. Laser Technol. 2020, 131, 106428. [Google Scholar] [CrossRef]
  161. Yang, Y.; Zhang, D.; Yan, W.; Zheng, Y. Microstructure and wear properties of TiCN/Ti coatings on titanium alloy by laser cladding. Opt. Lasers Eng. 2010, 48, 119–124. [Google Scholar] [CrossRef]
  162. Das, M.; Bhattacharya, K.; Dittrick, S.A.; Mandal, C.; Balla, V.K.; Kumar, T.S.; Bandyopadhyay, A.; Manna, I. In situ synthesized TiB–TiN reinforced Ti6Al4V alloy composite coatings: Microstructure, tribological and in-vitro biocompatibility. J. Mech. Behav. Biomed. 2014, 29, 259–271. [Google Scholar] [CrossRef]
  163. Li, M.; Huang, J.; Zhu, Y.; Li, Z. Effect of heat input on the microstructure of in-situ synthesized TiN–TiB/Ti based composite coating by laser cladding. Surf. Coat. Technol. 2012, 206, 4021–4026. [Google Scholar] [CrossRef]
  164. Zhou, S.; Lei, J.; Dai, X.; Guo, J.; Gu, Z.; Pan, H. A comparative study of the structure and wear resistance of NiCrBSi/50 wt.% WC composite coatings by laser cladding and laser induction hybrid cladding. Int. J. Refract Met. H 2016, 60, 17–27. [Google Scholar] [CrossRef]
  165. Li, W.; Xu, P.; Wang, Y.; Zou, Y.; Gong, H.; Lu, F. Laser synthesis and microstructure of micro-and nano-structured WC reinforced Co-based cladding layers on titanium alloy. J. Alloys Compd. 2018, 749, 10–22. [Google Scholar] [CrossRef]
  166. Qi, C.; Zhan, X.; Gao, Q.; Liu, L.; Song, Y.; Li, Y. The influence of the pre-placed powder layers on the morphology, microscopic characteristics and microhardness of Ti-6Al-4V/WC MMC coatings during laser cladding. Opt. Laser Technol. 2019, 119, 105572. [Google Scholar] [CrossRef]
  167. Xiao, Y.; Qiao, Y.; Li, Y.; Sheng, L.; Lai, C.; Xi, T. Research progress on surface modification technology of medical titanium and titanium alloys. Mater. Rep. 2019, 33, 336–342. [Google Scholar]
  168. Wen, C.; Qian, J.; Luo, L.; Zeng, J.; Sa, B.; Zhan, X.; Wang, J.; Sheng, L.; Zheng, Y. Effect of nitrogen on the structure evolution and biological properties of mesoporous bioactive glass nanospheres: Experiments and simulations. J. Non. Cryst. Solids. 2022, 578, 121329. [Google Scholar] [CrossRef]
  169. Tan, Y.; Ma, L.; Chen, X.; Ran, Y.; Tong, Q.; Tang, L.; Li, X. Injectable hyaluronic acid/hydroxyapatite composite hydrogels as cell carriers for bone repair. Int. J. Biol. Macromol. 2022, 216, 547–557. [Google Scholar] [CrossRef]
  170. Montazerian, M.; Hosseinzadeh, F.; Migneco, C.; Fook, M.V.; Baino, F. Bioceramic coatings on metallic implants: An overview. Ceram. Int. 2022, 48, 8987–9005. [Google Scholar] [CrossRef]
  171. Liu, B.; Deng, Z.; Liu, D. Preparation and Properties of Multilayer Ca/P Bio-Ceramic Coating by Laser Cladding. Coatings 2021, 11, 891. [Google Scholar] [CrossRef]
  172. Li, H.; Wang, D.; Hu, C.; Dou, J.; Yu, H.; Chen, C.; Gu, G. Microstructure, mechanical and biological properties of laser cladding derived CaO-SiO2-MgO system ceramic coatings on titanium alloys. Appl. Surf. Sci. 2021, 548, 149296. [Google Scholar] [CrossRef]
  173. Zhu, Y.; Liu, Q.; Xu, P.; Li, L.; Jiang, H.; Bai, Y. Bioactivity of calcium phosphate bioceramic coating fabricated by laser cladding. Laser Phys. Lett. 2016, 13, 055601. [Google Scholar] [CrossRef]
  174. Kuo, P.H.; Joshi, S.S.; Lu, X.; Ho, Y.H.; Xiang, Y.; Dahotre, N.B.; Du, J. Laser coating of bioactive glasses on bioimplant titanium alloys. Int. J. Appl. Glass. Sci. 2019, 10, 307–320. [Google Scholar] [CrossRef]
  175. Kamboj, N.; Kazantseva, J.; Rahmani, R.; Rodríguez, M.A.; Hussainova, I. Selective laser sintered bio-inspired silicon-wollastonite scaffolds for bone tissue engineering. Mater. Sci. Eng. C 2020, 116, 111223. [Google Scholar] [CrossRef]
  176. Zhang, H.; Yong, Z.; Zengda, Z.; Chuanwei, S. Effects of CeO2 on microstructure and corrosion resistance of TiC-VC reinforced Fe-based laser cladding layers. J. Rare Earth 2014, 32, 1095–1100. [Google Scholar] [CrossRef]
  177. Sheng, L.; Guo, J.; Tian, Y.; Zhou, L.; Ye, H. Microstructure and mechanical properties of rapidly solidified NiAl–Cr (Mo) eutectic alloy doped with trace Dy. J. Alloys Compd. 2009, 475, 730–734. [Google Scholar] [CrossRef]
  178. Sheng, L.; Du, B.; Hu, Z.; Qiao, Y.; Xiao, Z.; Wang, B.; Xu, D.; Zheng, Y.; Xi, T. Effects of annealing treatment on microstructure and tensile behavior of the Mg-Zn-Y-Nd alloy. J. Magnes. Alloy. 2020, 8, 601–613. [Google Scholar] [CrossRef]
  179. Sheng, L.; Wang, L.; Xi, T.; Zheng, Y.; Ye, H. Microstructure, precipitates and compressive properties of various holmium doped NiAl/Cr (Mo, Hf) eutectic alloys. Mater. Des. 2011, 32, 4810–4817. [Google Scholar] [CrossRef]
  180. Zhang, K.-M.; Zou, J.-X.; Jun, L.; Yu, Z.-S.; Wang, H.-P. Synthesis of Y2O3 particle enhanced Ni/TiC composite on TC4 Ti alloy by laser cladding. T Nonferr. Metal. Soc. 2012, 22, 1817–1823. [Google Scholar] [CrossRef]
  181. Zhang, T.; Zhuang, H.; Zhang, Q.; Yao, B.; Yang, F. Influence of Y2O3 on the microstructure and tribological properties of Ti-based wear-resistant laser-clad layers on TC4 alloy. Ceram. Int. 2020, 46, 13711–13723. [Google Scholar] [CrossRef]
  182. Yuling, G.; Meiping, W.; Xiaojin, M.; Chen, C. Effect of CeO2 on crack sensitivity and tribological properties of Ni60A coatings prepared by laser cladding. Adv. Mech. Eng. 2021, 13, 16878140211013125. [Google Scholar] [CrossRef]
  183. Liu, X.-B.; Yu, R.-L. Effects of La2O3 on microstructure and wear properties of laser clad γ/Cr7C3/TiC composite coatings on TiAl intermatallic alloy. Mater. Chem. Phys. 2007, 101, 448–454. [Google Scholar] [CrossRef]
  184. Ye, F.; Shao, W.; Ye, X.; Liu, M.; Xie, Y.; Bian, P.; Wang, X.; Liu, L.; Wu, H. Microstructure and corrosion behavior of laser-cladding CeO2-doped Ni-based composite coatings on TC4. J. chem. 2020, 2020, 8690428. [Google Scholar] [CrossRef]
  185. Cui, C.; Wu, M.; Miao, X.; Zhao, Z.; Gong, Y. Microstructure and corrosion behavior of CeO2/FeCoNiCrMo high-entropy alloy coating prepared by laser cladding. J. Alloys Compd. 2022, 890, 161826. [Google Scholar] [CrossRef]
  186. Zhang, Z.; Yang, F.; Zhang, H.; Zhang, T.; Wang, H. Microstructure and element distribution of laser cladding TiCx-reinforced CrTi4-based composite coating with CeO2/Ce2O3. Mater. Lett. 2021, 283, 128772. [Google Scholar] [CrossRef]
  187. Chen, T.; Liu, D.; Wu, F.; Wang, H. Effect of CeO2 on microstructure and wear resistance of TiC bioinert coatings on Ti6Al4V alloy by laser cladding. Materials 2017, 11, 58. [Google Scholar] [CrossRef]
  188. Weng, F.; Yu, H.; Chen, C.; Liu, J.; Zhao, L.; Dai, J. Fabrication of Co-based coatings on titanium alloy by laser cladding with CeO2 addition. Mater. Manuf. Process 2016, 31, 1461–1467. [Google Scholar] [CrossRef]
  189. Wang, H.; Chen, T.; Cong, W.; Liu, D. Laser cladding of Ti-based ceramic coatings on Ti6Al4V alloy: Effects of CeO2 nanoparticles additive on wear performance. Coatings 2019, 9, 109. [Google Scholar] [CrossRef]
  190. Yanan, L.; Ronglu, S.; Wei, N.; Tiangang, Z.; Yiwen, L. Effects of CeO2 on microstructure and properties of TiC/Ti2Ni reinforced Ti-based laser cladding composite coatings. Opt. Lasers Eng. 2019, 120, 84–94. [Google Scholar] [CrossRef]
  191. Chen, T.; Wu, F.; Wang, H.; Liu, D. Laser cladding in-situ Ti (C, N) particles reinforced Ni-based composite coatings modified with CeO2 nanoparticles. Metals 2018, 8, 601. [Google Scholar] [CrossRef]
  192. Feng, Y.; Feng, K.; Yao, C.; Li, Z. Effect of LaB6 addition on the microstructure and properties of (Ti3Al+ TiB)/Ti composites by laser cladding. Mater. Des. 2019, 181, 107959. [Google Scholar] [CrossRef]
  193. Yin, X.; Liang, J.; Gao, Y.; Lin, Z.; Chen, S.; Liu, C.; Tian, K.; Zhang, H.; Tang, G. Effects of LaB6 on the high-temperature oxidation behavior of TiC+ TiBx reinforced titanium matrix composite coatings fabricated by laser cladding. Surf. Coat. Technol. 2021, 421, 127445. [Google Scholar] [CrossRef]
  194. Wang, K.; Du, D.; Liu, G.; Chang, B.; Hong, Y. Microstructure and properties of WC reinforced Ni-based composite coatings with Y2O3 addition on titanium alloy by laser cladding. Sci. Technol. Weld. Join. 2019, 24, 517–524. [Google Scholar] [CrossRef]
  195. Zhang, Z.; Yang, Q.; Yu, Z.; Wang, H.; Zhang, T. Influence of Y2O3 addition on the microstructure of TiC reinforced Ti-based composite coating prepared by laser cladding. Mater. Charact. 2022, 189, 111962. [Google Scholar] [CrossRef]
  196. Wang, L.; Yang, L.; Huang, Y.; Yuan, Y.; Jia, C. Effects of Y2O3 addition on the microstructure and wear-resistant performance of TiN/TiB-reinforced Ti-based laser-clad coatings on Ti-6Al-4V alloys. Mater. Today Commun. 2021, 29, 102752. [Google Scholar] [CrossRef]
  197. Li, J.; Luo, X.; Li, G. Effect of Y2O3 on the sliding wear resistance of TiB/TiC-reinforced composite coatings fabricated by laser cladding. Wear 2014, 310, 72–82. [Google Scholar] [CrossRef]
  198. Sheng, L.; Yang, F.; Guo, J.; Xi, T.; Ye, H. Investigation on NiAl–TiC–Al2O3 composite prepared by self-propagation high temperature synthesis with hot extrusion. Compos. B. Eng. 2013, 45, 785–791. [Google Scholar] [CrossRef]
  199. Guo, J.; Sheng, L.; Tian, Y.; Zhou, L.; Ye, H. Effect of Ho on the microstructure and compressive properties of NiAl-based eutectic alloy. Mater. Lett. 2008, 62, 3910–3912. [Google Scholar] [CrossRef]
  200. Lu, S.; Zhou, J.; Wang, L.; Liang, J.; Cao, S.; Li, K. Research progress of laser cladding ceramic coating on titanium alloy surface. Surf. Technol. 2019, 48, 82–90. [Google Scholar]
  201. Sheng, L.; Yang, Y.; Lai, C.; Chen, X.; Xi, T. Microstructure evolution of a Ti–Al–Sn–Zr based alloy during the hot compression deformation. Mater. Express 2019, 9, 1127–1133. [Google Scholar] [CrossRef]
  202. Sheng, L.Y.; Guo, J.T.; Xi, T.F.; Zhang, B.; Ye, H.Q. ZrO2 strengthened NiAl/Cr (Mo, Hf) composite fabricated by powder metallurgy. Prog. Nat. Sci. Mater. 2012, 22, 231–236. [Google Scholar] [CrossRef]
  203. Guo, B.; Zhou, J.; Zhang, S.; Zhou, H.; Pu, Y.; Chen, J. Phase composition and tribological properties of Ti–Al coatings produced on pure Ti by laser cladding. Appl. Surf. Sci. 2007, 253, 9301–9310. [Google Scholar] [CrossRef]
  204. Sheng, L.; Yang, F.; Xi, T.; Guo, J.; Ye, H. Microstructure evolution and mechanical properties of Ni3Al/Al2O3 composite during self-propagation high-temperature synthesis and hot extrusion. Mater. Sci. Eng. A 2012, 555, 131–138. [Google Scholar] [CrossRef]
  205. Sheng, L.; Yang, F.; Xi, T.; Zheng, Y.; Guo, J. Improvement of compressive strength and ductility in NiAl–Cr (Nb)/Dy alloy by rapid solidification and HIP treatment. Intermetallics 2012, 27, 14–20. [Google Scholar] [CrossRef]
  206. Zhang, W.; Du, K.; Chen, X.; Sheng, L.; Ye, H. Thermally stable coherent domain boundaries in complex-structured Cr2Nb intermetallics. Philos. Mag. 2016, 96, 58–70. [Google Scholar] [CrossRef]
  207. Gao, Q.; Yan, H.; Qin, Y.; Zhang, P.; Guo, J.; Chen, Z.; Yu, Z. Laser cladding Ti-Ni/TiN/TiW + TiS/WS2 self-lubricating wear resistant composite coating on Ti-6Al-4V alloy. Opt. Laser Technol. 2019, 113, 182–191. [Google Scholar] [CrossRef]
  208. Wang, W.; Sun, F.; Wang, M. Laser Cladding Ni-Based Tribaloy 700 Coatings on TA2 Titanium Alloy. Chin. J. Lasers 2007, 34, 1710. [Google Scholar]
  209. Lu, X.-L.; Liu, X.-B.; Yu, P.-C.; Qiao, S.-J.; Zhai, Y.-J.; Wang, M.-D.; Chen, Y.; Xu, D. Synthesis and characterization of Ni60-hBN high temperature self-lubricating anti-wear composite coatings on Ti6Al4V alloy by laser cladding. Opt. Laser. Technol. 2016, 78, 87–94. [Google Scholar] [CrossRef]
  210. Li, B.; Zhang, L.; Li, Y.; Li, H.; Zhou, L.; Liang, C.; Wang, H. Corrosion Resistance and Biological Properties of Anatase and Rutile Coatings on a Titanium Surface. Chem. Lett. 2019, 48, 1355–1357. [Google Scholar] [CrossRef]
  211. Hua, F.; Mon, K.; Pasupathi, P.; Gordon, G.; Shoesmith, D. A review of corrosion of titanium grade 7 and other titanium alloys in nuclear waste repository environments. Corrosion 2005, 61, 987–1003. [Google Scholar] [CrossRef]
  212. Guo, C.; Zhou, J.; Zhao, J.; Wang, L.; Yu, Y.; Chen, J.; Zhou, H. Microstructure and tribological properties of a HfB2-containing Ni-based composite coating produced on a pure Ti substrate by laser cladding. Tribol. Lett. 2011, 44, 187–200. [Google Scholar] [CrossRef]
  213. Malatji, N.; Popoola, A.; Pityana, S.; Lengopeng, T. Fabrication of Ti10Fe5Si5Cr3Nb composite coatings on Ti-6Al-4V alloy using laser cladding technique. Mater. Res. 2021, 24, e20210080. [Google Scholar] [CrossRef]
  214. Zhao, H.; Li, J.; Gao, W.; Huang, D.; Chen, G.; Zhang, M. Microstructure, Corrosion Resistance, and Wear Resistance of In Situ Synthesized NiTi-Based Coating by Laser Induction Hybrid Rapid Cladding. J. Mater. Eng. Perform. 2022. [Google Scholar] [CrossRef]
  215. Hu, L.-F.; Li, J.; Lv, Y.-H.; Tao, Y.-F. Corrosion behavior of laser-clad coatings fabricated on Ti6Al4V with different contents of TaC addition. Rare Metals 2020, 39, 436–447. [Google Scholar] [CrossRef]
  216. Li, W.; Li, J.; Xu, Y. Investigation into the Corrosion Wear Resistance of CoCrFeNiAlx Laser-Clad Coatings Mixed with the Substrate. Metals 2022, 12, 460. [Google Scholar] [CrossRef]
  217. Dai, J.; Zhang, H.; Sun, C.; Li, S.; Chen, C.; Yang, Y. The effect of Nb and Si on the hot corrosion behaviors of TiAl coatings on a Ti-6Al-4V alloy. Corros. Sci. 2020, 168, 108578. [Google Scholar] [CrossRef]
  218. Casadebaigt, A.; Hugues, J.; Monceau, D. High temperature oxidation and embrittlement at 500–600 C of Ti-6Al-4V alloy fabricated by Laser and Electron Beam Melting. Corros. Sci. 2020, 175, 108875. [Google Scholar] [CrossRef]
  219. Zhou, H.; Li, F.; He, B.; Wang, J. Air plasma sprayed thermal barrier coatings on titanium alloy substrates. Surf. Coat. Technol. 2007, 201, 7360–7367. [Google Scholar] [CrossRef]
  220. Chen, R.; Gong, X.; Wang, Y.; Qin, G.; Zhang, N.; Su, Y.; Ding, H.; Guo, J.; Fu, H. Microstructure and oxidation behaviour of plasma-sprayed NiCoCrAlY coatings with and without Ta on Ti44Al6Nb1Cr alloys. Corros. Sci. 2018, 136, 244–254. [Google Scholar] [CrossRef]
  221. Daroonparvar, M.; Yajid, M.A.M.; Kay, C.M.; Bakhsheshi-Rad, H.; Gupta, R.K.; Yusof, N.M.; Ghandvar, H.; Arshad, A.; Zulkifli, I.S.M. Effects of Al2O3 diffusion barrier layer (including Y-containing small oxide precipitates) and nanostructured YSZ top coat on the oxidation behavior of HVOF NiCoCrAlTaY/APS YSZ coatings at 1100 °C. Corros. Sci. 2018, 144, 13–34. [Google Scholar] [CrossRef]
  222. Li-Yan, L.; Yu, Z.; Yun-Jie, J.; Yan, L.; Hong-Fang, T.; Yu-Jun, C.; Cheng-Xin, L. High speed laser cladded Ti-Cu-NiCoCrAlTaY burn resistant coating and its oxidation behavior. Surf. Coat. Technol. 2020, 392, 125697. [Google Scholar] [CrossRef]
  223. Feng, Y.; Feng, K.; Yao, C.; Li, Z.; Sun, J. High temperature oxidation and wear resistance of in situ synthesized (Ti3Al+ TiB)/Ti composites by laser cladding. Metall. Mater. Trans. A 2019, 50, 3414–3428. [Google Scholar] [CrossRef]
  224. Liu, H.; Zhang, X.; Jiang, Y.; Zhou, R. Microstructure and high temperature oxidation resistance of in-situ synthesized TiN/Ti3Al intermetallic composite coatings on Ti6Al4V alloy by laser cladding process. J. Alloys Compd. 2016, 670, 268–274. [Google Scholar] [CrossRef]
  225. Zhao, Y.; Yu, T.; Chen, L.; Chen, Y.; Guan, C.; Sun, J. Microstructure and wear resistance behavior of Ti–C–B4C-reinforced composite coating. Ceram. Int. 2020, 46, 25136–25148. [Google Scholar] [CrossRef]
  226. Nan, X.; Zhao, M.; Lu, Y.; Sekido, N.; Yoshimi, K. High-temperature oxidation behavior of a Ti5Si3-incorporated MoSiBTiC alloy. Intermetallics 2020, 125, 106895. [Google Scholar] [CrossRef]
  227. Chien, C.; Liu, C.; Kuo, T.; Wu, C.; Hong, T. Bioactivity of fluorapatite/alumina composite coatings deposited on Ti6Al4V substrates by laser cladding. Appl. Phys. A 2016, 122, 303. [Google Scholar] [CrossRef]
  228. Sui, Q.; Meng, L.; Wang, S.; Li, P.; Yin, X.; Wang, L. Effect of Nb addition on mechanical properties and corrosion behavior of Ti6Al4V alloy produced by selective laser melting. J. Mater. Res. 2020, 35, 571–579. [Google Scholar] [CrossRef]
  229. Dos Santos, M.L.; dos Santos Riccardi, C.; de Almeida Filho, E.; Guastaldi, A.C. Biomimetic calcium phosphates-based coatings deposited on binary Ti-Mo alloys modified by laser beam irradiation for biomaterial/clinical applications. MRS Adv. 2018, 3, 1711–1718. [Google Scholar] [CrossRef]
  230. Chien, C.-S.; Ko, Y.-S.; Kuo, T.-Y.; Liao, T.-Y.; Lin, H.-C.; Lee, T.-M.; Hong, T.-F. Surface properties and in vitro bioactivity of fluorapatite/TiO2 coatings deposited on Ti substrates by Nd: YAG laser cladding. J. Med. Biol. Eng. 2015, 35, 357–366. [Google Scholar] [CrossRef]
  231. Paital, S.R.; Bunce, N.; Nandwana, P.; Honrao, C.; Nag, S.; He, W.; Banerjee, R.; Dahotre, N.B. Laser surface modification for synthesis of textured bioactive and biocompatible Ca–P coatings on Ti–6Al–4V. J. Mater. Sci. Mater. Med. 2011, 22, 1393–1406. [Google Scholar] [CrossRef] [PubMed]
  232. Hou, B.; Yang, Z.; Yang, Y.; Zhang, E.; Qin, G. In vitro bioactivity, tribological property, and antibacterial ability of Ca–Si-based coatings doped with cu particles in-situ fabricated by laser cladding. Appl. Phys. A 2018, 124, 256. [Google Scholar] [CrossRef]
  233. Jiang, J.; Han, G.; Zheng, X.; Chen, G.; Zhu, P. Characterization and biocompatibility study of hydroxyapatite coating on the surface of titanium alloy. Surf. Coat. Technol. 2019, 375, 645–651. [Google Scholar] [CrossRef]
  234. Chakraborty, R.; Raza, M.S.; Datta, S.; Saha, P. Synthesis and characterization of nickel free titanium–hydroxyapatite composite coating over Nitinol surface through in-situ laser cladding and alloying. Surf. Coat. Technol. 2019, 358, 539–550. [Google Scholar] [CrossRef]
  235. Jia, Z.; Li, M.; Xiu, P.; Xu, X.; Cheng, Y.; Zheng, Y.; Xi, T.; Wei, S.; Liu, Z. A novel cytocompatible, hierarchical porous Ti6Al4V scaffold with immobilized silver nanoparticles. Mater. Lett. 2015, 157, 143–146. [Google Scholar] [CrossRef]
  236. Wu, H.; Liang, L.; Lan, X.; Yin, Y.; Song, M.; Li, R.; Liu, Y.; Yang, H.; Liu, L.; Cai, A. Tribological and biological behaviors of laser cladded Ti-based metallic glass composite coatings. Appl. Surf. Sci. 2020, 507, 145104. [Google Scholar] [CrossRef]
  237. Fathi, R.; Wei, H.; Saleh, B.; Radhika, N.; Jiang, J.; Ma, A.; Ahmed, M.H.; Li, Q.; Ostrikov, K.K. Past and present of functionally graded coatings: Advancements and future challenges. Appl. Mater. Today 2022, 26, 101373. [Google Scholar] [CrossRef]
  238. Yang, M.; Pan, Y.; Yuan, F.; Zhu, Y.; Wu, X. Back stress strengthening and strain hardening in gradient structure. Mater. Res. Lett. 2016, 4, 145–151. [Google Scholar] [CrossRef]
  239. Cui, Y.; Shen, J.; Geng, K.; Hu, S. Fabrication of FeCoCrNiMnAl0. 5-FeCoCrNiMnAl gradient HEA coating by laser cladding technique. Surf. Coat. Technol. 2021, 412, 127077. [Google Scholar] [CrossRef]
  240. Lin, Y.; Lei, Y.; Li, X.; Zhi, X.; Fu, H. A study of TiB2/TiB gradient coating by laser cladding on titanium alloy. Opt. Lasers Eng. 2016, 82, 48–55. [Google Scholar] [CrossRef]
  241. Liang, J.; Yin, X.; Lin, Z.; Chen, S.; Liu, C.; Wang, C. Microstructure and wear behaviors of laser cladding in-situ synthetic (TiBx+ TiC)/(Ti2Ni+ TiNi) gradient composite coatings. Vacuum 2020, 176, 109305. [Google Scholar] [CrossRef]
  242. Quazi, M.; Fazal, M.; Haseeb, A.; Yusof, F.; Masjuki, H.; Arslan, A. A review to the laser cladding of self-lubricating composite coatings. Lasers Manuf. Mater. 2016, 3, 67–99. [Google Scholar] [CrossRef]
  243. Kumar, S.; Kumar, M.; Mandal, A.; Das, A. Ni–WS2–Ti–6Al–4V self-lubricating coating on TC4 alloy by laser cladding. Surf. Eng. 2022, 38, 313–323. [Google Scholar] [CrossRef]
  244. Liu, K.; Yan, H.; Zhang, P.; Zhao, J.; Yu, Z.; Lu, Q. Wear Behaviors of TiN/WS2+ hBN/NiCrBSi Self-Lubricating Composite Coatings on TC4 Alloy by Laser Cladding. Coatings 2020, 10, 747. [Google Scholar] [CrossRef]
  245. Selvan, J.S.; Subramanian, K. High-temperature thermal barrier coating formation by laser alloying of CP-Ti with pre-placed Ni-SiC coating. J. Mater. Sci. 2003, 38, 4783–4801. [Google Scholar] [CrossRef]
  246. Liu, L.; Shangguan, Y.; Tang, H.; Wang, H. Fretting wear behavior of laser-nitrided Ti–5Al–5Mo–5V–1Cr–1Fe alloy fabricated by laser melting deposition. Appl. Phys. A 2014, 116, 1993–2000. [Google Scholar] [CrossRef]
  247. Gushchina, M.O.; Kuzminova, Y.O.; Dubinin, O.N.; Evlashin, S.A.; Vildanov, A.M.; Klimova-Korsmik, O.G.; Turichin, G.A. Multilayer composite Ti-6Al-4 V/Cp-Ti alloy produced by laser direct energy deposition. Int. J. Adv. Manuf. Technol. 2022, 124, 907–918. [Google Scholar] [CrossRef]
Figure 1. Microhardness enhancement ratio of cladding layers on a TC4 substrate fabricated by different methods and deepen color indicates the methods with hgih energy density. (BW: buttering welding; AC: arc cladding; PC: plasma cladding; EBC: electron beam cladding; LC: laser cladding).
Figure 1. Microhardness enhancement ratio of cladding layers on a TC4 substrate fabricated by different methods and deepen color indicates the methods with hgih energy density. (BW: buttering welding; AC: arc cladding; PC: plasma cladding; EBC: electron beam cladding; LC: laser cladding).
Materials 16 03250 g001
Figure 2. Schematic diagram of the LC system (reprinted from Ref. [61] with the kind permission of Elsevier).
Figure 2. Schematic diagram of the LC system (reprinted from Ref. [61] with the kind permission of Elsevier).
Materials 16 03250 g002
Figure 3. Schematic diagrams of the LC processing mode: (a) coaxial powder feeding method; (b) pre-placed powder method; (c) off-axis powder feeding method; (d) wire feeding method; (e) cross-sectional morphology of the cladding region.
Figure 3. Schematic diagrams of the LC processing mode: (a) coaxial powder feeding method; (b) pre-placed powder method; (c) off-axis powder feeding method; (d) wire feeding method; (e) cross-sectional morphology of the cladding region.
Materials 16 03250 g003
Figure 4. Schematic diagram showing the influence factors during LC processing.
Figure 4. Schematic diagram showing the influence factors during LC processing.
Materials 16 03250 g004
Figure 5. Influence of main processing parameters on geometrical characteristics of single-pass cladding: (a) the effect of the main processing parameter on the clad depth; (b) the effect of the main processing parameter on the clad width; (c) the effect of the main processing parameter on the clad height; (d) the effect of the main processing parameter on the dilution rate [73]. Reprinted with the kind permission of MDPI.
Figure 5. Influence of main processing parameters on geometrical characteristics of single-pass cladding: (a) the effect of the main processing parameter on the clad depth; (b) the effect of the main processing parameter on the clad width; (c) the effect of the main processing parameter on the clad height; (d) the effect of the main processing parameter on the dilution rate [73]. Reprinted with the kind permission of MDPI.
Materials 16 03250 g005
Figure 6. Schematic diagram of LC processing assisted with auxiliary technology: (a) ultrasonic vibration; (b) magnetic field treatment; (c) electric field treatment.
Figure 6. Schematic diagram of LC processing assisted with auxiliary technology: (a) ultrasonic vibration; (b) magnetic field treatment; (c) electric field treatment.
Materials 16 03250 g006
Figure 7. SEM images of the cross-section and line-scan result of the CrFeNi2V0.5Tix cladding layer with different Ti content: (a) Ti0; (b) Ti0.5; (c) Ti0.75; (d) Ti1.0; and (e) Ti1.25, and (f) line-scanning analysis results of Ti0 coatings (CZ: cladding zone; BZ: bonding zone; HAZ: heat-affected zone) [121]. Reprinted with the kind permission of MDPI.
Figure 7. SEM images of the cross-section and line-scan result of the CrFeNi2V0.5Tix cladding layer with different Ti content: (a) Ti0; (b) Ti0.5; (c) Ti0.75; (d) Ti1.0; and (e) Ti1.25, and (f) line-scanning analysis results of Ti0 coatings (CZ: cladding zone; BZ: bonding zone; HAZ: heat-affected zone) [121]. Reprinted with the kind permission of MDPI.
Materials 16 03250 g007

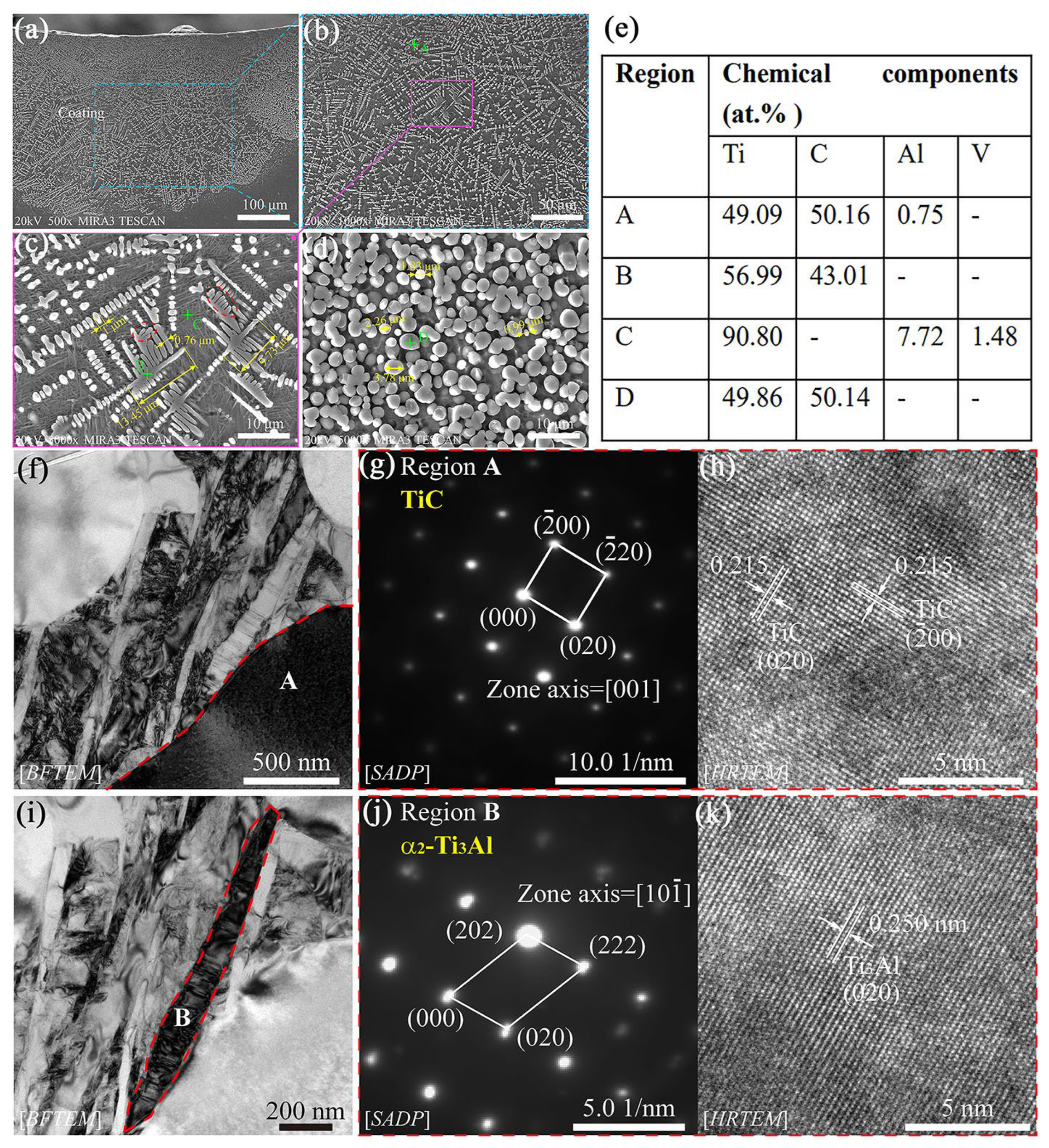

Figure 8. Microstructure of the TiC ceramic cladding layer and TEM analysis: (a) cross-sectional morphology; (b) low-magnification image and (c) high-magnification image of TiC dendrites; (d) high-magnification image of TiC granular grains; (e) EDS analysis results of TiC ceramic coating (A,B,C,D are the selected areas in (bd)); (f) BFTEM image of the TiC phase and its corresponding; (g,h) SADP and HRTEM images of the TiC phase; (i) BFTEM image of the α2-Ti3Al phase and its corresponding; (j,k) SADP and HRTEM images of the α2-Ti3Al phase (Reprinted from Ref. [138] with the kind permission of Elsevier).
Figure 8. Microstructure of the TiC ceramic cladding layer and TEM analysis: (a) cross-sectional morphology; (b) low-magnification image and (c) high-magnification image of TiC dendrites; (d) high-magnification image of TiC granular grains; (e) EDS analysis results of TiC ceramic coating (A,B,C,D are the selected areas in (bd)); (f) BFTEM image of the TiC phase and its corresponding; (g,h) SADP and HRTEM images of the TiC phase; (i) BFTEM image of the α2-Ti3Al phase and its corresponding; (j,k) SADP and HRTEM images of the α2-Ti3Al phase (Reprinted from Ref. [138] with the kind permission of Elsevier).
Materials 16 03250 g008
Figure 9. (a) The macrograph of the Ca/P ceramic cladding layer on the TC4 substrate; (b) microstructure and the EDS results at point B of the cladding layer; (c) microstructure and the EDS results at point C of the transition layer; (d) XRD patterns of the cladding layer with and without immersion; (e) Ca and P concentrations in the immersion solution with different specimens and time; (fh) morphology of the cultured MG-63 cells on the TC4 substrate for 1, 3, and 5 days; (ik) morphology of the cultured MG-63 cells on the Ca/P cladding layer for 1, 3, and 5 days [171]. Reprinted with the kind permission of MDPI.
Figure 9. (a) The macrograph of the Ca/P ceramic cladding layer on the TC4 substrate; (b) microstructure and the EDS results at point B of the cladding layer; (c) microstructure and the EDS results at point C of the transition layer; (d) XRD patterns of the cladding layer with and without immersion; (e) Ca and P concentrations in the immersion solution with different specimens and time; (fh) morphology of the cultured MG-63 cells on the TC4 substrate for 1, 3, and 5 days; (ik) morphology of the cultured MG-63 cells on the Ca/P cladding layer for 1, 3, and 5 days [171]. Reprinted with the kind permission of MDPI.
Materials 16 03250 g009
Figure 10. SEM images of the microstructure in the upper area of each coating: (a) without LaB6 addition, (b) 0.5 LaB6 addition, (c) 1.0 LaB6 addition, (d) 1.5 LaB6 addition, (e) 2.0 La6 addition, (f) 2.5 LaB6 addition, (g) friction coefficient of the cladding coatings with different LaB6 additions, (h) wear depth of the cladding coatings with different LaB6 additions, and (i) wear loss of the cladding coatings with different LaB6 additions (Reprinted from Ref. [146] with the kind permission of Elsevier).
Figure 10. SEM images of the microstructure in the upper area of each coating: (a) without LaB6 addition, (b) 0.5 LaB6 addition, (c) 1.0 LaB6 addition, (d) 1.5 LaB6 addition, (e) 2.0 La6 addition, (f) 2.5 LaB6 addition, (g) friction coefficient of the cladding coatings with different LaB6 additions, (h) wear depth of the cladding coatings with different LaB6 additions, and (i) wear loss of the cladding coatings with different LaB6 additions (Reprinted from Ref. [146] with the kind permission of Elsevier).
Materials 16 03250 g010
Figure 11. Microstructure and electrochemical performance of the CoCrNi-medium-entropy-alloy-based coating on TC4 substrates: (a,b) low laser power fabricated coating (specimen 1); (c,d) high laser power fabricated coating (specimen 3); (e,f) low laser power fabricated coating with UV (specimen 2); (g,h) high laser power fabricated coating with UV (specimen 4), (i,j) HRTEM image showing the substructure and crystal defects (the white dotted circles indicating formed dislocations); (k) schematic diagram of atomic structure; (l) Tafel polarization curves; (m) Nyquist plots in 3.5 wt% NaCl solutione; (n) equivalent circuit diagram, and (o) schematic diagram of the corrosion mechanismm (Reprinted from Ref. [216] with the kind permission of Elsevier).
Figure 11. Microstructure and electrochemical performance of the CoCrNi-medium-entropy-alloy-based coating on TC4 substrates: (a,b) low laser power fabricated coating (specimen 1); (c,d) high laser power fabricated coating (specimen 3); (e,f) low laser power fabricated coating with UV (specimen 2); (g,h) high laser power fabricated coating with UV (specimen 4), (i,j) HRTEM image showing the substructure and crystal defects (the white dotted circles indicating formed dislocations); (k) schematic diagram of atomic structure; (l) Tafel polarization curves; (m) Nyquist plots in 3.5 wt% NaCl solutione; (n) equivalent circuit diagram, and (o) schematic diagram of the corrosion mechanismm (Reprinted from Ref. [216] with the kind permission of Elsevier).
Materials 16 03250 g011
Figure 12. Cross-section morphology of oxide layers obtained at 600 °C for 50 h for the Ti-6Al-4V substrate and (TiC + TiBx)/Ti coatings with different amounts of LaB6 addition and corresponding weight gain curves with time: (a) Ti-6Al-4V substrate, (b) 0 wt% LaB6-doped coating, (c) 0.5 wt% LaB6-doped coating, (d) 1.0 wt% LaB6-doped coating, (e) 1.5 wt% LaB6-doped coating, (f) 2.0 wt% LaB6-doped coating, (g) 2.5 wt% LaB6-doped coating, (h) average thickness, (i) oxidation weight gain (Δw/A) curves (Reprinted from Ref. [193] with the kind permission of Elsevier).
Figure 12. Cross-section morphology of oxide layers obtained at 600 °C for 50 h for the Ti-6Al-4V substrate and (TiC + TiBx)/Ti coatings with different amounts of LaB6 addition and corresponding weight gain curves with time: (a) Ti-6Al-4V substrate, (b) 0 wt% LaB6-doped coating, (c) 0.5 wt% LaB6-doped coating, (d) 1.0 wt% LaB6-doped coating, (e) 1.5 wt% LaB6-doped coating, (f) 2.0 wt% LaB6-doped coating, (g) 2.5 wt% LaB6-doped coating, (h) average thickness, (i) oxidation weight gain (Δw/A) curves (Reprinted from Ref. [193] with the kind permission of Elsevier).
Materials 16 03250 g012
Figure 13. Surface morphology of a metallic glass composite coating immersed in SBF for 7 days: (a) Ti45Zr5Cu41Ni9 coating; (b) Ti45Zr5Cu41Ni6Sn3 coating; (c) Ti51Zr5Cu41Sn3 coating; (d) morphology of osteoblastic cells cultured on the substrate and metallic glass composite coatings for 1, 3 and 5 day (inset images showing the fluorescence micrograph and the live cells stained with green) (reprinted from Ref. [236] with the kind permission of Elsevier).
Figure 13. Surface morphology of a metallic glass composite coating immersed in SBF for 7 days: (a) Ti45Zr5Cu41Ni9 coating; (b) Ti45Zr5Cu41Ni6Sn3 coating; (c) Ti51Zr5Cu41Sn3 coating; (d) morphology of osteoblastic cells cultured on the substrate and metallic glass composite coatings for 1, 3 and 5 day (inset images showing the fluorescence micrograph and the live cells stained with green) (reprinted from Ref. [236] with the kind permission of Elsevier).
Materials 16 03250 g013
Figure 14. Microstructure, microhardness, and schematic diagrams of TiNi/Ti2Ni-based composite coatings with gradient distribution of TiC- and TiBx-reinforced phases on the TC4 alloy. (a) Overall microstructure along the cross-sectional direction, (b) enlarged microstructure of area 1 in (a), (c) enlarged microstructure of area 2 and 3 in (a), (d) enlarged microstructure of area 4 in (a), (e) enlarged microstructure of area 5 in (a), (f) microhardness variation along the cross-sectional direction, and (g) schematic diagram showing the reinforced phases distribution (the red line indicates the demarcation line of each coating) (reprinted from Ref. [241] with the kind permission of Elsevier).
Figure 14. Microstructure, microhardness, and schematic diagrams of TiNi/Ti2Ni-based composite coatings with gradient distribution of TiC- and TiBx-reinforced phases on the TC4 alloy. (a) Overall microstructure along the cross-sectional direction, (b) enlarged microstructure of area 1 in (a), (c) enlarged microstructure of area 2 and 3 in (a), (d) enlarged microstructure of area 4 in (a), (e) enlarged microstructure of area 5 in (a), (f) microhardness variation along the cross-sectional direction, and (g) schematic diagram showing the reinforced phases distribution (the red line indicates the demarcation line of each coating) (reprinted from Ref. [241] with the kind permission of Elsevier).
Materials 16 03250 g014
Figure 15. The schematic diagram of the main influencing factors on the laser cladding coating.
Figure 15. The schematic diagram of the main influencing factors on the laser cladding coating.
Materials 16 03250 g015
Table 1. The characteristics of the different methods.
Table 1. The characteristics of the different methods.
CharacteristicBWACPCEBCLC
Energy densityLowLowModerateModerateHigh
AutomaticityLowModerateHighHighHigh
Heat-affected zoneHighHighModerateModerateLow
ControllabilityLowModerateHighHighHigh
CostLowModerateModerateModerateHigh
Table 2. The self-fluxing alloy powders for the surface modification of Ti-based alloys by LC.
Table 2. The self-fluxing alloy powders for the surface modification of Ti-based alloys by LC.
Cladding MaterialsSubstratesStrengthening PhasesPropertiesRef.
Co42 + TiNTC4 AlloyTiN + TiC + Co3Ti + TiC0.3N0.7 + NiTiH + WR[107]
Co42 + B4C + SiC + Y2O3TC4 AlloyCoTi + CoTi2 + NiTi + TiC + TiB2 + TiB + Cr7C3 + Ti5Si3H + WR[105]
Co50TA15TiB2 + Cr5Si3 + TiC + SiC + Co3Ti + NiC + WBH + WR[108]
Co42 + SiCTC4 AlloyCoTi + CoTi2 + NiTi + Cr7C3 + TiB + TiC + Ti5Si3H + WR[109]
NiCrBSi + WCTA2Cr2Ni3 + Cr3Si + TiC + WC + W2C + B4CrTiH + WR + OB[8]
NiCrBSi+ B4CTC4 Alloyγ-Ni + TiB2 + TiC + CrBH[110]
NiCrBSi + TiCTC4 AlloyTiC + Cr23C6 + CrB + TiB2WR[111]
NiCrMoNbα-Ti AlloyCr23C6 + Cr5B3 + NbCH + WR[100]
NiCrBSiCCr23C6 + Cr5B3 + CrBH + WR
Ni45 + TC4 + NiCr-Cr3C2TC4 AlloyTiC + TiB2 + Ti2NiH + WR[112]
Remarks: hardness (H); wear resistance (WR); biocompatibility (B); corrosion performance (CP); oxidation behaviors (OB).
Table 3. The HEA powders for the surface modification of Ti-based alloys by LC.
Table 3. The HEA powders for the surface modification of Ti-based alloys by LC.
Cladding MaterialsSubstratesStrengthening PhasesPropertiesRef.
FeNiCrMoWSiBCTA2Fe2Ti + Fe2B + Fe3Si + Ti2NiH + WR[118]
CoCrFeNiNbPure TiBCC + Cr2Ti+ Cr2NbH[119]
AlTiVNbMoTC4 AlloyBCCH[120]
CoCrFeNiVTiTC4 AlloyBCC + (Co,Ni)Ti2H + WR[121]
TiAlNiSiVTC4 AlloyBCC + (Ti,V)5Si3 + TiNH + WR[122]
NiCrCoTiVAlTC4 AlloyBCC + FCCH[123]
TiVCrAlSiTC4 AlloyBCC + (Ti,V)5Si3H + WR[124]
TiVCrAlSiTC4 AlloyBCC + (Ti,V)5Si3H + WR + OB[125]
FeCoCrNiTC4 AlloyFCC + BCC + Cr7C3H + CP + OB[126]
AlCrNiSiTiTi64 Alloy(Ti,Cr)5Si3 + NiAlH+ WR[127]
NiCrCoTiVTC4 AlloyBCC + (Ni,Co)Ti2H + WR[128]
AlNbMoTaCuTC4 AlloyHCP + FCC + BCCH + WR[129]
NbMoTaWTiTC4 AlloyBCCH+WR[130]
AlBCoCrNiTiTC4 AlloyBCC + TiB2 + (Co,Ni)Ti2H + WR[131]
AlCoCrFeNiTiTC4 AlloyBCC + TiN + (Ni,Co)Ti2CP[132]
AlCoCrCuFeNiTC4 AlloyBCCH + WR[133]
Remarks: hardness (H); wear resistance (WR); biocompatibility (B); corrosion performance (CP); oxidation behaviors (OB).
Table 4. The ceramic/metal composite powders for the surface modification of Ti-based alloys by LC.
Table 4. The ceramic/metal composite powders for the surface modification of Ti-based alloys by LC.
Composite Material SystemsSubstratesReinforced PhasePropertiesRef.
CeramicsMetals
B4CNiCrBSiTC4 alloyTiC + TiB2 + CrBH[110]
B4CTi + NiTA15 alloyTiB + TiC + TiNi + Ti2NiH and WR[144]
B4CTi811Ti811 alloyTiC + TiBH[145]
B4CTC4TC4 alloyTiC + TiB2 + TiBH and WR[146]
B4CNi60ATC4 alloyTiC + TiB2 + CrB + Ni3TiH and WR[147]
TiC + B4CNi204TC4 alloyTiC + TiB2H and WR[61]
TiCTiTC4 alloyTiCH[148]
TiCNiCrBSiTC4 alloyTiC + TiB2H[149]
TiCTi-Ni-SiTA15 alloyTiCH and WR[150]
TiCNiCrBSiTC4 alloyCr23C6 + TiC + TiB2 + CrBWR[111]
TiCTi + Al + SiTC4 alloyTiC + TiAl3 H and WR[151]
TiCAlTC4 alloyTi3Al + Al3Ti + TiAl + TiCH[152]
TiC + TiB2TiTC2 alloyTiC + TiB2H and CP[153]
TiB2TC4TC4 alloyTiB2 + TiBH and WR[154]
TiB2TiTC4 alloyTiAl3 + TiAl + Ti3Al + TiB2H[155]
TiB2TiTC4 alloyTiB +TiB2 + B27H and WR[156]
TiB2 + Al2O3Fe3AlTC4 alloyTi3Al + Fe3Al + TiB2 + Al2O3H[157]
TiB2TC4TC4 alloyTiB2 + TiBH and WR[158]
TiNAlTC4 alloyTiN + Ti3Al + TiAl + Al3TiH and WR[159]
TiNCo42TC4 alloyNiTi + TiN + TiC + TiBH and WR[107]
TiNTi + AlTC21 alloyTi3Al + Ti3AlN + TiNH and WR[160]
TiCNTiTC4 alloyTiCN + TiO2H and WR[161]
h-BNTC4TC4 alloyTiN + TiB+ Ti3N1.29 + BNWR and B[162]
h-BNTiTi-3Al-2V alloyTiN + TiB + BNH and WR[163]
TaCNiCrBSiTC4 alloyTiC + TiB2 + TiB + TaCOB[164]
WCNi60ATA2WC + TiCH, OB, and WR[8]
WCCo + TiTC4 alloyTiC + TiB2 + Cr3C2 + WCWR[165]
WCTC4TC4 alloyW + WC + W2C + TiCH[166]
Remarks: hardness (H); wear resistance (WR); biocompatibility (B); corrosion performance (CP); oxidation behaviors (OB); tensile properties (TP); geometric properties (GP); magnetic properties (MP).
Table 5. The rare-earth-doped powders for the surface modification of Ti-based alloys by LC.
Table 5. The rare-earth-doped powders for the surface modification of Ti-based alloys by LC.
Cladding MaterialsSubstratesStrengthening PhasesPropertiesRef.
TC4 + NiCr-Cr3C2 + CeO2TC4 AlloyFCC + CrTi4 + TiCH[68]
Ni25 + CeO2TC4 AlloyTi2Ni + Ni3Ti + TiCH + CP[184]
FeCoNiCrMo + CeO2TC4 AlloyBCC + FCCH + CP[185]
TC4 + NiCr-Cr3C2 + CeO2TC4 AlloyFCC + CrTi4 + TiCH + WR[186]
Ni60 + TiN + CeO2TC4 AlloyTi(C,N) + Ni3Ti + Cr7C3 + TiCH + WR[187]
Co42 + B4C + CeO2TC4 AlloyCoTi2 +NiTi + TiC + Cr7C3 + TiB2 + TiBH + WR[188]
TiC + ZrO2 + CeO2TC4 AlloyTiC + TiO + VC + TiVC2H + WR[187]
TiCN + SiO2 + CeO2TC4 AlloyTiN + Ti6O + Ti3SiC2H + WR[189]
TC4-Ni60-CeO2Ti811 AlloyTiC + Ti2Ni + TiB2H + WR[190]
Ni60A + CeO2TC4 AlloyTi2Ni + TiC + TiB2H + WR[182]
Ni60-TiN-C-CeO2TC4 AlloyTiN+ Ti(C,N)+ TiCH + WR[191]
TC4 + B4C + LaB6TC4 AlloyTiC + TiB + TiB2H + WR[146]
Ti + AlB2 + LaB6TC4 AlloyTiB + Ti3AlH + WR[192]
TC4 + B4C + LaB6TC4 AlloyTiO2 + TiC + TiB + TiB2OB[193]
NiCrBSi + WC + Y2O3TC4 AlloyTiC + TiB2 + Ni3BH + WR[194]
TC4 + NiCr-Cr3C2 + Y2O3TC4 AlloyFCC + CrTi4 + TiCH + WR[195]
Ti + h-BN + Y2O3TC4 AlloyTiB + TiNH + WR[196]
Ti + B4C + Al + Y2O3TC4 AlloyTiB + TiCH + WR[197]
Co42-B4C-SiC-Y2O3TC4 AlloyCoTi + CoTi2 + NiTi + TiC + TiB2 + TiB + Cr7C3 + Ti5Si3H + WR[105]
Remarks: hardness (H); wear resistance (WR); biocompatibility (B); corrosion performance (CP); oxidation behaviors (OB).
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhao, H.; Zhao, C.; Xie, W.; Wu, D.; Du, B.; Zhang, X.; Wen, M.; Ma, R.; Li, R.; Jiao, J.; et al. Research Progress of Laser Cladding on the Surface of Titanium and Its Alloys. Materials 2023, 16, 3250. https://doi.org/10.3390/ma16083250

AMA Style

Zhao H, Zhao C, Xie W, Wu D, Du B, Zhang X, Wen M, Ma R, Li R, Jiao J, et al. Research Progress of Laser Cladding on the Surface of Titanium and Its Alloys. Materials. 2023; 16(8):3250. https://doi.org/10.3390/ma16083250

Chicago/Turabian Style

Zhao, Hui, Chaochao Zhao, Weixin Xie, Di Wu, Beining Du, Xingru Zhang, Min Wen, Rui Ma, Rui Li, Junke Jiao, and et al. 2023. "Research Progress of Laser Cladding on the Surface of Titanium and Its Alloys" Materials 16, no. 8: 3250. https://doi.org/10.3390/ma16083250

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
