Advanced Integration of Glutathione-Functionalized Optical Fiber SPR Sensor for Ultra-Sensitive Detection of Lead Ions

by
Jiale Wang
1,†,
Kunpeng Niu
1,†,
Jianguo Hou
1,
Ziyang Zhuang
1,
Jiayi Zhu
1,
Xinyue Jing
1,
Ning Wang
1,*,
Binyun Xia
1,* and
Lei Lei
2
1
National Engineering Research Center of Fiber Optic Sensing Technology and Networks, Wuhan University of Technology, Wuhan 430070, China
2
Zhongshan Institute of Modern Industrial Technology of SCUT, South China University of Technology, Zhongshan 528400, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Materials 2024, 17(1), 98; https://doi.org/10.3390/ma17010098
Submission received: 3 December 2023 / Revised: 21 December 2023 / Accepted: 22 December 2023 / Published: 24 December 2023
(This article belongs to the Section Materials Chemistry)
Browse Figures
Versions Notes

Abstract

:
It is crucial to detect Pb2+ accurately and rapidly. This work proposes an ultra-sensitive optical fiber surface plasmon resonance (SPR) sensor functionalized with glutathione (GSH) for label-free detection of the ultra-low Pb2+ concentration, in which the refractive index (RI) sensitivity of the multimode-singlemode-multimode (MSM) hetero-core fiber is largely enhanced by the gold nanoparticles (AuNPs)/Au film coupling SPR effect. The GSH is modified on the fiber as the sensing probe to capture and identify Pb2+ specifically. Its working principle is that the Pb2+ chemically reacts with deprotonated carboxyl groups in GSH through ligand bonding, resulting in the formation of stable and specific chelates, inducing the variation of the local RI on the sensor surface, which in turn leads to the SPR wavelength shift in the transmission spectrum. Attributing to the AuNPs, both the Au substrates can be fully functionalized with the GSH molecules as the probes, which largely increases the number of active sites for Pb2+ trapping. Combined with the SPR effect, the sensor achieves a sensitivity of 2.32 × 1011 nm/M and a limit of detection (LOD) of 0.43 pM. It also demonstrates exceptional specificity, stability, and reproducibility, making it suitable for various applications in water pollution, biomedicine, and food safety.

1. Introduction

Lead pollution is abundant in the atmosphere, water, and soil, resulting in significant environmental pollution [1,2,3]. Additionally, it poses a threat to human health through the ecosystem, causing severe damage to the neurological, hematopoietic, and digestive systems [4,5,6]. The World Health Organization recommends that the lead content in drinking water should not exceed 10 ppb, and the U.S. Environmental Protection Agency sets the maximum allowable lead concentration in food at 72 nmol/L [7,8]. Therefore, there is an urgent need to develop effective technology for detecting lead ions (Pb2+).
Currently, the typical techniques employed for detecting Pb2+ mainly include fluorescence [9,10], electrochemical [11,12], colorimetric [13], and atomic absorption methods [14,15]. While these detection methods can effectively analyze the substances qualitatively and quantitatively, they suffer from limitations including low sensitivity, insufficient detection limitation, high detection cost, and complex operational procedures. Hence, it is highly significant to develop a Pb2+ detection method that possesses high sensitivity, and high accuracy as well as simple structure and low cost. In comparison to the aforementioned detection techniques, optical fiber sensing technology finds extensive application in areas such as temperature, strain, refractive index (RI), biosensing, and chemical sensing owing to its high sensitivity, immunity to electromagnetic interference, small size, low cost, ease of integration, and operational versatility [16,17,18].
Recently, a lot of optical fiber sensors have been designed and reported for Pb2+ detection, and by designing and optimizing both the micro-structure fiber and sensitive materials, optical fiber structures are primarily utilized to enhance sensor sensitivity. Additionally, the design of sensitive materials can further improve sensitivity while ensuring sensor specificity to the detector. Firstly, the reported microstructured optical fibers mainly include the Fiber Bragg grating (FBG) [19,20,21,22], D/U-type fiber [23,24,25], tapered fiber [26,27,28], de-cladding fiber [29], interferometric fiber [30,31], and end-reflective fiber [32]. These micro-structured fibers necessitate chemical or mechanical etching to remove the cladding, resulting in reduced durability and stability and complex manufacturing. Beyond that, their sensitivity is often required for further improvement. Recently, an optical fiber surface plasmon resonance (SPR) sensor utilizing multimode-singlemode-multimode (MSM) hetero-core fiber was reported. The sensor exhibits high sensitivity to changes in RI (3313.15 nm/RIU), along with excellent stability, durability, simple fabrication, and relatively low cost [33].
In addition, the selection of the appropriate sensitive material directly influences the detection accuracy of the sensor. Specific recognition and capture of Pb2+ is accomplished through the modification of various sensitive materials on the surface of the optical fiber. Several Pb2+-sensitive materials have been investigated, including chelating agents [34], molecularly imprinted polymers (MIPs) [35], nanomaterials [36], and biological materials [37]. Among these materials, chelating agents are commonly employed as sensitive materials for optical fiber Pb2+ sensors. They are favored due to their easy preparation and processing, low cost, and their ability to selectively form complexes with Pb2+, resulting in high sensitivity and selectivity compared to the other types of materials. However, certain chelating agents used in optical fiber Pb2+ sensors, such as Dimercaptosuccinic acid (DMSA) [38], Dimercaprol (BAL) [39], and Thioacetic acid (TAA) [40], are toxic, particularly to water or human samples, leading to contamination and potential harm. Glutathione (GSH) is a tripeptide compound consisting of glutamic acid, cysteine, and glycine. Both glutamic acid and cysteine contain carboxyl groups (-COOH), and the oxygen atoms within these groups can act as ligands, forming coordination bonds with Pb2+. The Pb2+ chemically binds to the deprotonated carboxyl groups in the amino acids through ligand bond formation, leading to the formation of stable and specific chelates [41]. Simultaneously, the three amino acids are linked together by peptide bonds, forming a linear GSH molecule. The linear structure of GSH provides it with a certain degree of flexibility and variability, enabling it to adapt to various spatial configurations and interactions, thereby specifically facilitating the formation of ligand bonds with lead ions. Furthermore, GSH is non-toxic, odorless, easy to prepare, and exhibits excellent biocompatibility. Consequently, combined with the high RI sensitivity of the SPR fiber, it is possible to develop various sensors with high sensitivity and excellent selectivity by different functionalization according to the corresponding detection targets.
In this work, an MSM hetero-core fiber modified with gold nanoparticles (AuNPs) and GSH is proposed for Pb2+ detection. Specifically, the sensing surface is formed by coating the single-mode fiber (SMF) with a layer of Au, onto which AuNPs and GSH molecules are self-assembled. The GSH molecule serves as a highly chelating sensitive material for Pb2+ detection. The modification of AuNPs enhances the SPR effect, thereby amplifying the optical sensing signal. A significant change in the SPR peak of the transmission spectrum occurs when there is a local RI change on the sensing surface of the SMF, caused by varying concentrations of Pb2+ in the medium being measured. The proposed sensor is characterized by a simple structure, easy fabrication, real-time monitoring, high sensitivity, low limit of detection (LOD), as well as good specificity, and excellent stability in the detection of Pb2+.

2. Working Principle

Figure 1a shows a schematic diagram of the structure and experimental setup of the proposed optical fiber Pb2+ sensor. The structure consists of a multimode fiber (MMF) as the signal transmission area and an SMF (15 mm) as the sensing area. The light signal emitted from the light source enters the core of the MMF and is transmitted into the SMF through total reflection in the core. Due to the large difference in diameter between the core of the SMF and the core of the MMF, the light signal emitted from the core of the MMF partially leaks into the cladding of the SMF, and total reflection occurs at the interface between the cladding of the SMF and the Au film and leads to the excitation of the evanescent wave (EW) [42]. The EW enters into the Au film and the AuNPs on the surface of the SMF, at the interface between the Au film and the medium to be measured, and the surface plasma wave (SPW) is excited, while at the interface between the AuNPs and the medium to be measured, the localized surface plasma wave (LSPW) is also excited. When the frequency of the EW matches that of the SPW and the LSPW, resonance occurs between photons and electrons, leading to the SPR effect and the localized surface plasmon resonance (LSPR) effect. The energy at the wavelengths corresponding to the EW is then coupled to the SPW and the LSPW, resulting in the attenuation of the reflected light signal. This signal is subsequently emitted from the core of the SMF. The output transmission spectrum can be recorded when the SPR/LSPR effect is excited on the fiber. Pb2+ in the medium to be measured forms specific and stable chelates with GSH on the surface of the optical fiber through ligand bonding (the specific binding mechanism of GSH to Pb2+ is shown in Figure 1b and Figure S1), which leads to a change in the local RI of the sensing region, causing a shift in the wavelength corresponding to the EW (Figure 1c). By detecting the one-to-one correspondence between the resonance wavelength and the Pb2+ concentration, the Pb2+ concentration can be determined. The LSPR effect induced by AuNPs also transfers a portion of the energy to the Au film on the optical fiber’s surface. This augmentation of the SPR effect on the Au film contributes to enhancing the sensitivity of the proposed sensor [43].
The principle of the Pb2+ detection sensor is summarized in Equation (1) [44]. In this equation, it is illustrated that when lead ions bind to the GSH located on the gold film surface, a small change in the GSH’s RI occurs. Consequently, the SPR effect is altered, leading to a shift in the position of the SPR resonance peaks. This systematic shift is then observed across the entire MSM spectrum. Ultimately, it manifests as changes in the wavelengths recorded in the monitored transmission spectrum.
Δ λ m a x = m Δ n 1 − exp ⁡ ( − 2 d l d ) }
The amount of wavelength change ( Δ λ m a x ) in fiber optic SPR sensors can be calculated using the RI sensitivity (m), the change in RI ( Δ n ) caused by the adsorbent material on the sensing region’s surface, the thickness of the adsorbent layer (d), and the length of electromagnetic field decay ( l d ) on the optical fiber’s surface. Therefore, the concentration of Pb2+ solutions can be used as the detection target.

3. Material and Methods

3.1. Experimental Materials and Chemical Reagents

GSH was purchased from Macklin Biochemical Technology Co., Ltd. (Shanghai, China). DL-Dithiothreitol (DTT, 99%) was purchased from Aladdin Reagent Co., Ltd. (Shanghai, China). Phosphate buffered saline (PBS) was purchased from Sigma-Aldrich Trading Co., Ltd. (Shanghai, China). Sodium citrate (Na3C6H5O7.2H2O), chloroauric acid tetrahydrate (HAuCl4-4H2O), iron chloride (FeCl3), lead chloride (PbCl2), aluminum chloride (AlCl3), magnesium chloride (MgCl2), barium chloride (BaCl2), cobalt chloride (CoCl2), calcium chloride (CaCl2), sodium chloride (NaCl), and mercury chloride (HgCl2) were purchased from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China). SMF (core/cladding diameter, 8/125 μm) and MMF (core/cladding diameter, 50/125 μm) were purchased from Yangtze Optical Fiber and Cable Co., Ltd. (Wuhan, China). Deionized (DI) water was used to prepare the solution for this study.

3.2. Fabrication of AuNPs/GSH-Modified SPR Optical Fiber Sensor Probe

Figure 2 illustrates the fabrication process of a Pb2+ detection probe, which is modified with AuNP/GSH and consists of an MSM hetero-core fiber structure. In this study, the MSM hetero-core fiber structure is composed of a 15-mm-long SMF connected to two multimode fibers using a standard fiber fusion splicer and fiber cutter. To investigate the influence of SMF length on the sensing properties within the MSM heterocore structure, five distinct MSM architectures were fabricated, each with a different SMF length of 5 mm, 10 mm, 15 mm, 20 mm, and 25 mm. Following comprehensive analysis, it was determined that the optimal SMF length for the sensor was 15 mm (detailed results are presented in Figures S2 and S3, Tables S1 and S2). The fibers were subsequently washed multiple times with ethanol and DI water to eliminate the residual impurities and dust and then dried in a vacuum oven for further use. The sensing region of the optical fiber was sequentially coated with a 5 nm thick chromium layer followed by a 60 nm thick Au layer using a magnetron sputter coater. The MSM hetero-core fiber structure coated with a 60 nm thick Au film was subsequently fabricated.
To successfully modify the AuNPs on the surface of the sensor, the Au-coated optical fiber was immersed in a 1 mL DTT solution at room temperature for 1.5 h. DTT acts as a bridge, with one S-base bond of DTT connected to the Au film through an Au-S bond and the other S-base bond connected to the AuNPs through an Au-S bond. The DTT-modified optical fiber was then removed and rinsed multiple times with alcohol and DI water to eliminate any residual DTT that was not successfully modified on the surface. The successfully modified DTT optical fiber was then immersed continuously in the prepared AuNPs solution for 3 h while avoiding exposure to light. AuNPs were synthesized and their dimensional size (~20 nm) was controlled using a previously reported method (details of the preparation process can be found in Figure S4). The surface of the fiber was then modified with the synthesized AuNPs. Subsequently, the AuNPs-modified fiber was immersed in a GSH solution and shielded from light for 4 h. The S-base bond on GSH was used to bind with AuNPs through an Au-S bond. Finally, the optical fiber SPR sensor was successfully prepared with AuNPs/GSH modification on MSM optical fiber.
Additionally, we recorded the real-time stable transmittance spectra of the sensors after each material modification during the fabrication process. Figure S5 displays the transmittance spectra of the MSM optical fiber during the Au-film coating and modification with AuNPs and GSH. The transmittance spectra of the sensor, while modifying different materials on its surface, indicate noticeable wavelength drift. This observation confirms the successful modification of Au, AuNPs, and GSH on the surface of the optical fiber.

3.3. Instrument and Characterization

The MMF-SMF-MMF optical fiber was fabricated by using the fusion splicer (FSM-60s, Fujikura Ltd., Tokyo, Japan). The Au film was deposited onto the SMF section by magnetron sputtering (Bestec GmbH, Berlin, Germany). The absorption spectra of the sample solutions were characterized by the UV-Visible spectrophotometer (AvaSpec-ULS2048L, Avantes Co., Ltd., Beijing, China). The surface of the sensor and the AuNPs on the SMF were observed by scanning electron microscopy (SEM) (Zeiss G300, Carl Zeiss AG, Oberkochen, Baden-Wurttemberg, Germany). The elemental distribution on the surface of the fabricated sensor before and after the detection of Pb2+ was also analyzed by energy dispersive spectroscopy (EDS, Zeiss Sigma HD, Germany) and X-ray photoelectron spectrometer (XPS, Thermo ESCALAB 250Xi, Thermo Fisher Scientific Co., Waltham, MA, USA). Finally, the experimental setup included a halogen lamp light source (Ocean Optics HL-2000, Dunedin, FL, USA), an optical fiber spectrometer (Ocean Optics USB 2000+, Dunedin, FL, USA), and a light displacement stage.

3.4. Device Testing

Figure 1 shows the experimental setup used to study the performance of the sensor in detecting Pb2+. The sensor was placed in a V-shaped tank filled with a specific concentration of lead ions. One end of the sensor was connected to a halogen lamp light source, and the other end was connected to an optical fiber spectrometer. Different concentrations of Pb2+ solutions were prepared by diluting a 1 mM PbCl2 solution. The AuNPs/GSH-modified sensor was immersed in the different concentrations of Pb2+ solutions for 3 min. Once the spectra stabilized, the transmission spectra of the sensor were observed and recorded. Before each measurement, the sensing area of the sensor was washed with DI water and PBS solution to remove impurities and unreacted Pb2+. All experiments were conducted at a temperature of 25 ± 1 °C.

4. Results and Discussions

4.1. Characterization

To demonstrate the successful fabrication and effectiveness of the optical fiber sensor for detecting Pb2+, the materials modified on the fiber’s surface were characterized during its fabrication and Pb2+ detection.
The surface morphology and chemical composition of the AuNPs/GSH-functionalized fibers after Pb2+ capture were characterized using SEM and EDS, as depicted in Figure 3a–c. In Figure 3a, the SEM image displays a uniform and dense film on the surface of the AuNPs/GSH-functionalized fiber. Figure 3b shows an SEM image of the sensor surface after modification with AuNPs, revealing the uniform distribution of approximately 20 nm-sized AuNPs on the Au film surface. Figure 3c presents the elemental mapping analysis of N, O, S, and Pb on the optical fiber sensor after Pb2+ capture. The presence of S confirms the successful attachment of AuNPs/GSH to the fiber, while the presence of Pb demonstrates the sensor’s ability to detect Pb2+, illustrating the strong recognition and capture capabilities of GSH molecules towards Pb2+. Figure S6 displays the elemental distribution of the optical fiber sensor following Pb2+ capture, providing further evidence of the successful encapsulation of the AuNPs/GSH functional film on the surface of the fiber, enabling the detection of Pb2+ in aqueous solutions. Simultaneously, this sensor identifies Pb2+ by capturing it through surface-modified GSH. This process alters the RI within the sensing region, and these minute RI changes are converted into a detectable wavelength shift response.
The UV-visible absorption spectra of AuNPs, GSH, AuNPs/GSH, and AuNPs/GSH/Pb2+ during the fabrication and Pb2+ detection of the sensor are presented in Figure 3d. Among them, AuNPs exhibited an absorption peak at 520 nm, indicating their spherical shape [45]. The AuNPs exhibited a strong absorption peak at 520 nm, confirming their maximum absorption at this wavelength, while also displaying a secondary strong absorption peak at 234 nm. The self-assembled AuNPs/GSH exhibited a broad absorption peak at 671 nm, indicating the formation of Au-S bonds between AuNPs and GSH [46]. The addition of Pb2+ resulted in a decrease in the absorbance peak of AuNPs/GSH, providing evidence that the positively charged Pb2+ was attracted to the negatively charged carboxyl group of AuNPs-GSH, leading to its attachment to AuNPs/GSH.
Figure 3e displays the XPS of the sensor obtained before and after Pb2+ detection. The upper part of Figure 3e shows peaks corresponding to N1s and S2p, suggesting the successful modification of GSH molecules on the surface of the fiber. The lower part of Figure 3e and Figure S7 reveal the emergence of a new Pb4f peak, indicating the successful capture of Pb2+ by the GSH molecule on the sensor in the solution.

4.2. RI Sensitivity of Sensor

To further validate the enhanced RI sensitivity brought about by AuNPs, the RI sensitivities of the sensors were measured and recorded before and after modifying the surfaces of the Au film-coated fibers with AuNPs. Figure S8 shows the results of the RI sensitivity tests conducted on the optical fiber sensor coated only with Au film, while Figure 4 depicts the RI sensitivity test results of the optical fiber sensor after modifying the surface of the Au film-coated fiber with AuNPs. The RIs of the surroundings around the sensors were determined using NaCl solutions at concentrations of 0%, 5%, 10%, 15%, 20%, and 25%, corresponding to the RIs of 1.3320, 1.3407, 1.3492, 1.3582, 1.3672, and 1.3765. The transmission spectra of both sensors showed significant redshifts as the RI increased, as shown in Figure 4 and Figure S8. However, there was a notable difference in the total wavelength drifts between the two sensors, with the former experiencing a total wavelength shift of 120.69 nm and the latter experiencing a shift of 98.33 nm. As a result, the RI sensitivities of the two sensors were significantly different, with the former having an RI sensitivity of 2778.2 nm/RIU and the latter possessing an RI sensitivity of 2053.2 nm/RIU. The optical fiber sensor modified with AuNPs demonstrated an approximately 35% higher RI sensitivity compared to the sensor coated only with pure Au film.

4.3. Detection of Pb2+

To evaluate the sensor performance for Pb2+ detection, three SPR sensors were employed: one pure Au-coated sensor without AuNPs and GSH modification, one pure Au-coated sensor with GSH modification but without AuNPs, and one Au-coated sensor with both AuNPs and GSH modification. These sensors were used to measure various Pb2+ concentrations. The degree of sensor response to Pb2+ can be visualized by the magnitude of wavelength shift in the transmission spectra. Figure 5a shows that the dip in the transmission spectrum experiences a notable redshift as the Pb2+ concentration increases within the concentration range of 10−12 M to 10−4 M. The maximum wavelength shift is 5.39 nm, indicating a strong sensor response to low Pb2+ concentration (0.43 pM). This sensitivity can be attributed to the formation of chelates between lead ions and GSH, which induces structural changes in the GSH molecule, leading to alterations in light scattering and absorption properties. Consequently, the local RI on the fiber surface undergoes significant changes, resulting in the highly sensitive detection of Pb2+. Moreover, the modification of AuNPs induces the LSPR effect on the fiber surface, which further enhances the SPR effect and improves the sensitivity of the optical fiber sensor for Pb2+ detection.
A mathematical function was fitted to correlate the wavelength of the transmission spectrum with the Pb2+ concentration, and the results are presented in Figure 5b, demonstrating a good linear correlation between the logarithm of Pb2+ concentration and the corresponding wavelength. The fitting function, y = 0.5908lgC + 587.4641, yielded an R2 value of 0.9919. The sensor demonstrated a sensitivity of 2.32 × 1011 nm/(mol/L) for Pb2+ detection, and the LOD of the sensor can be estimated to be C L O D = δ λ / S = 0.43 pM [47]. This LOD is significantly below the maximum permissible concentration of Pb2+ in drinking water set by the WHO at 10 ppb. However, the fiber optic SPR sensor without AuNPs modification displayed reduced detection sensitivity, higher LOD, and a narrower detection range compared to the sensor modified with AuNPs/GSH. The sensitivity, LOD, and detection range of the unmodified sensor were 2.32 × 1011 nm/(mol/L), 0.43 pM, and 10−12 M to 10−4 M, respectively. Additionally, the optical fiber sensor with unmodified AuNPs and GSH exhibited minimal or negligible response, as detailed in Figure S9.

4.4. Stability of the Sensor

The long-term stability of the ion sensor was measured as well. The sensor was immersed in four Pb2+ solutions with concentrations of 10−12 M, 10−9 M, 10−6 M, and 10−4 M for a continuous duration of 90 min, and measurements were taken at 10 min intervals. Figure 6 illustrates the measurement results, showing that the maximum deviation of the optical fiber sensor from the initial wavelength is only 0.09 nm, 0.09 nm, 0.07 nm, and 0.03 nm for the four respective concentrations, all falling within the acceptable range of error. These variations may be attributed to background noise from the spectrometer and thus result in minor fluctuations during the experiment. In conclusion, the sensor exhibits excellent stability.

4.5. Repeatability of the Sensor

Repeatability is a crucial parameter for evaluating sensor performance. Six repetitions of the test were conducted using Pb2+ solutions at concentrations of 10−12, 10−9, 10−6, and 10−4 M. The tests were performed on three identical optical fiber SPR sensors that had been modified with AuNPs/GSH. The sensors were cleaned with DI water and alcohol three times after each test and then dried in air to restore their initial state. Figure 7 presents the results of the repeated tests performed on one identical sensor using Pb2+ solutions at concentrations of 10−12, 10−9, 10−6, and 10−4 M. The wavelength changes exhibited deviations of 0.03, 0.06, 0.07, and 0.04 nm, correspondingly (the other two experiments are shown in Figure S10). These results indicate the consistent repeatability of the optical fiber sensor in detecting Pb2+ under various measurements of the same concentration.

4.6. Specificity of the Sensor

The specificity of the sensor refers to its capability to selectively recognize specific ions, which is crucial for achieving highly sensitive and accurate measurements. To assess the specificity of the AuNPs/GSH-modified optical fiber sensor for Pb2+ detection, the potential interference from other common metal ions (Ca2+, Al3+, Hg2+, Ba2+, Mg2+, Fe3+, Co2+, Na+) was measured. The same experimental conditions as those used for Pb2+ detection were employed, and the concentrations of all metal ions were set to 10−4 M (the concentrations of all metal ions at 10−10, 10−9, 10−8, 10−7, 10−6, and 10−5 M are shown in Figure S11). Figure 8 illustrates the wavelength shift of the sensor in various metal ion solutions, indicating that the sensor exhibits minimal response to all metal ions except Pb2+. This suggests that the sensor exhibits excellent specificity, which may be attributed to the fact that when the carboxyl group in the GSH molecule forms a ligand bond with Pb2+, the carboxyl group (–COOH) undergoes deprotonation while the amino (–NH2) group undergoes protonation, and the protonated amino group prevents the binding of GSH to other metal ions, which leads to the selective binding of GSH to Pb2+.

4.7. Discussions

Here, we summarize the recent research work on Pb2+ detection through optical sensors. Their performances were also compared in detail in Table 1. Our sensor exhibits an applicable detection range that surpasses most existing sensors, giving it a clear advantage. Therefore, the sensor could satisfy most requirements for Pb2+ measurement. Furthermore, the optical fiber SPR sensor proposed in our work is at a significant advantage in terms of both Pb2+ detection sensitivity and the LOD. The sensitivity of our sensor is two orders of magnitude higher than the previously reported highest sensitivity (2.55 × 109 nm/M). Finally, the highly biocompatible material (GSH) we employed as the sensing element holds promise for the development of a novel wearable sensor that enables real-time monitoring of lead ion concentration levels in the human body, which might be achieved by combining a flexible biocompatible plastic optical fiber with the sensitive materials mentioned in this work. Of course, the detection performance of the sensors is yet to be verified in various complex environments for practical applications, but these highly sensitive sensors with universal sensing platforms can be utilized to detect various low concentrations of ions and biochemical molecules by functionalizing the SPR fiber with probes with specificity.

5. Conclusions

In summary, a synergistic SPR-enhanced optical fiber sensor functionalized with the self-assembly GSH is developed for highly sensitive and selective detection of lead ions. By modifying AuNPs on the Au film-coated optical fiber, both the RI sensitivity and the specific surface area of the optical fiber improved. This enhancement increases the number of surface active sites and the number of modified probes, greatly improving the sensitivity of the sensor for detecting Pb2+. In addition, the presence of deprotonated carboxyl groups in GSH enables stable chelation between Pb2+ and GSH, leading to a significant modification in the localized RI on the sensor’s surface, and improves the specificity and long-term stability of Pb2+ ion detection. The experimental results demonstrated that the proposed sensor exhibited a significant response across the dynamic concentration range between 10−12 and 10−4 mol/L, with a high sensitivity of 2.32 × 1011 nm/(mol/L). The LOD was determined to be 0.43 pM. Consequently, the optical fiber sensor developed in this study holds great promise for trace detection of Pb2+ in various environments, particularly its potential application in the detection of lead contamination in water, food, and biological samples.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ma17010098/s1, Figure S1: The mechanism of GSH-specific capturing Pb2+; Figure S2: Measured normalized spectra of MMF-SMF-MMF structures with different sensing lengths: (a) 5mm, (b) 10mm, (c) 15mm, (d) 20mm, (e) 25mm. (f) Plots of surface plasmon resonace peak wavelength versus refractive index for sensors with different sensing lengths; Table S1: Wavelength values at the resonance valley of sensors with different sensing lengths at different refractive index values; Figure S3: Transmittance spectra of sensor of different sensing lengths at n = 1.3320; Table S2: Parameters of gold-plated fiber SPR sensors with different sensing lengths at refractive index value of 1.3320; Figure S4: The preparation of AuNPs; Figure S5: The SPR wavelength variation of the hetero-core fiber coated with Au film, Au film/AuNPs, and Au film/AuNPs/GSH; Figure S6: The elemental distribution on the optical fiber sensor after capturing the Pb2+; Figure S7: High-resolution Pb4f spectrum of AuNPs/GSH-modified SPR optical fiber after the addition of Pb2+; Figure S8: RI sensitivity measurement of the sensor coated with pure Au-film. (a) Transmission spectra of the sensor coated with pure Au-film in NaCl solutions with different RI. (b) The linear fitting curve of the sensor coated with pure Au-film; Figure S9: Variations in wavelength of the sensors at different Pb2+ concentrations; Figure S10: (a) No.1 of repeatability of the proposed sensor. (b) No.2 of repeatability of the proposed sensor; Figure S11: The specificity tests of the sensor for different metal ions at different concentrations. (a) At 1 × 10−5 mol/L. (b) At 1 × 10−6 mol/L. (c) At 1 × 10−7 mol/L. (d) At 1 × 10−8 mol/L. (e) At 1 × 10−9 mol/L. (f) At 1 × 10−10 mol/L.

Author Contributions

Conceptualization, J.W. and K.N.; methodology, J.W. and J.H.; software, J.W.; validation, N.W. and B.X.; formal analysis, J.W.; investigation, J.W., K.N. and J.H.; resources, J.W., Z.Z., J.Z. and X.J.; data curation, K.N., N.W. and B.X.; writing—original draft preparation, J.W. and K.N.; writing—review and editing, J.W., K.N., N.W. and B.X.; visualization, L.L.; supervision, K.N., Z.Z., J.Z., X.J., N.W. and B.X.; project administration, K.N. and N.W.; funding acquisition, N.W., B.X. and L.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work is supported by the Science and Technology Major Project of Hubei Province, China (Grant No. 2023BCA003); the Knowledge Innovation Program of Wuhan-Basic Research (Grant No. 2023010201010095); the second batch of special funds for Scientific and Technological Development in Zhongshan (Grant No. 2020AG021); the Transverse research project of ZhongShan BacSense Technology Limited Company (Grant No. YFKT20221210).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author. The data are not publicly available due to privacy restrictions.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Beardsley, C.A.; Fuller, K.Z.; Reilly, T.H.; Henry, C.S. Method for analysis of environmental lead contamination in soils. Analyst 2021, 146, 7520–7527. [Google Scholar] [CrossRef] [PubMed]
  2. Fouskaki, M.; Chaniotakis, N.A. Thick membrane, solid contact ion selective electrode for the detection of lead at picomolar levels. Anal. Chem. 2005, 77, 1780–1784. [Google Scholar] [CrossRef] [PubMed]
  3. Cui, W.; Abbasi, Z.; Ren, C. Real-time lead detection device based on nanomaterials modified microwave-microfluidic sensor. Sens. Actuators B-Chem. 2023, 362, 114652. [Google Scholar] [CrossRef]
  4. Larsen, B.; Sánchez-Triana, E. Global health burden and cost of lead exposure in children and adults: A health impact and economic modelling analysis. Lancet Planet. Health 2023, 7, e831–e840. [Google Scholar] [CrossRef] [PubMed]
  5. Bouida, L.; Rafatullah, M.; Kerrouche, A.; Qutob, M.; Alosaimi, A.M.; Alorfi, H.S.; Hussein, M.A. A review on cadmium and lead contamination: Sources, fate, mechanism, health effects and remediation methods. Water 2022, 14, 3432. [Google Scholar] [CrossRef]
  6. Lacerda, D.; Pestana, I.A.; dos Santos Vergílio, C.; de Rezende, C.E. Global decrease in blood lead concentrations due to the removal of leaded gasoline. Chemosphere 2023, 324, 138207. [Google Scholar] [CrossRef] [PubMed]
  7. Shah, A.; Zahid, A.; Khan, A.; Iftikhar, F.J.; Nisar, J.; Fernandez, C.; Kraatz, H.B. Development of a highly sensitive electrochemical sensing platform for the trace level detection of lead ions. J. Electrochem. Soc. 2019, 166, B3136. [Google Scholar] [CrossRef]
  8. Fernández, L.; Espinoza-Montero, P.; Sánchez-Sarango, M.; Bolaños-Méndez, D.; Álvarez-Paguay, J.; Domínguez-Granda, L.; Rodríguez, A.; Romero, H.; Debut, A.; Ortiz, V. Simultaneous quantification of lead, cadmium and zinc in superficial marine sediments using a carbon-fiber microelectrode modified with bismuth film. Sci. Rep. 2023, 13, 20232. [Google Scholar] [CrossRef]
  9. Sitko, R.; Musielak, M.; Serda, M.; Talik, E.; Gagor, A.; Zawisza, B.; Malecka, M. Graphene oxide decorated with fullerenol nanoparticles for highly efficient removal of Pb (II) ions and ultrasensitive detection by total-reflection X-ray fluorescence spectrometry. Sep. Purif. Technol. 2021, 277, 119450. [Google Scholar] [CrossRef]
  10. Kim, H.N.; Ren, W.X.; Kim, J.S.; Yoon, J. Fluorescent and colorimetric sensors for detection of lead, cadmium, and mercury ions. Chem. Soc. Rev. 2012, 41, 3210–3244. [Google Scholar] [CrossRef]
  11. Alam, A.U.; Howlader, M.M.R.; Hu, N.; Deen, M.J. Electrochemical sensing of lead in drinking water using β-cyclodextrin-modified MWCNTs. Sens. Actuators B-Chem. 2019, 296, 126632. [Google Scholar] [CrossRef]
  12. Nguyen, T.T.H.; Pham, T.H.Y.; Doan, T.D.; Thi, N.H.; Oanh, H.T.; Nguyen, T.T.; Hoang, M.H. Silver nanowire/graphene oxide electrode for electrochemical detection of lead ions. Chem. Pap. 2022, 76, 5459–5469. [Google Scholar] [CrossRef]
  13. Solra, M.; Bala, R.; Wangoo, N.; Soni, G.K.; Kumar, M.; Sharma, R.K. Optical pico-biosensing of lead using plasmonic gold nanoparticles and a cationic peptide-based aptasensor. Chem. Commun. 2020, 56, 289–292. [Google Scholar] [CrossRef] [PubMed]
  14. Ali, M. Preconcentration and determination of trace amounts of heavy metals in water samples using membrane disk and flame atomic absorption spectrometry. Chin. J. Chem. 2007, 25, 640–644. [Google Scholar] [CrossRef]
  15. Jigam, A.A.; Dauda, B.E.N.; Tijani, J.O.; Yusuf, H.N.; Umar, Z.T. Determination of copper, zinc, lead and some biochemical parameters in fresh cow milk from different locations in Niger State. J. Food Sci. 2011, 5, 156–160. [Google Scholar]
  16. Menon, S.; Usha, S.P.; Manoharan, H.; Kishore, P.V.N.; Sai, V.V.R. Metal–organic framework-based fiber optic sensor for chromium (VI) detection. ACS Sens. 2023, 8, 684–693. [Google Scholar] [CrossRef]
  17. Chauhan, M.; Singh, V.K. Review on recent experimental SPR/LSPR based fiber optic analyte sensors. Opt. Fiber Technol. 2021, 64, 102580. [Google Scholar] [CrossRef]
  18. Pawar, D.; Kale, S.N. A review on nanomaterial-modified optical fiber sensors for gases, vapors and ions. Microchim. Microchim. Acta 2019, 186, 253. [Google Scholar] [CrossRef]
  19. Yap, S.H.K.; Chien, Y.H.; Tan, R.; bin Shaik Alauddi, A.R.; Ji, W.B.; Tjin, S.C.; Yong, K.T. An advanced hand-held microfiber-based sensor for ultrasensitive lead ion detection. ACS Sens. 2018, 3, 2506–2512. [Google Scholar] [CrossRef]
  20. Ghosh, S.; Dissanayake, K.; Asokan, S.; Sun, T.; Rahman, B.A.; Grattan, K.T. Lead (Pb2+) ion sensor development using optical fiber gratings and nanocomposite materials. Sens. Actuators B-Chem. 2022, 364, 131818. [Google Scholar] [CrossRef]
  21. Wang, F.; Zhang, Y.; Lu, M.; Du, Y.; Chen, M.; Meng, S.; Ji, W.; Sun, C.; Peng, W. Near-infrared band Gold nanoparticles-Au film “hot spot” model based label-free ultratrace lead (II) ions detection via fiber SPR DNAzyme biosensor. Sens. Actuators B-Chem. 2021, 337, 129816. [Google Scholar] [CrossRef]
  22. Du, J.; Cipot-Wechsler, J.; Lobez, J.M.; Loock, H.P.; Crudden, C.M. Periodic Mesoporous Organosilica Films: Key Components of Fiber-Optic-Based Heavy-Metal Sensors. Small 2010, 6, 1168–1172. [Google Scholar] [CrossRef] [PubMed]
  23. Biswas, R.; Bhuyan, R.; Boruah, B.S.; Mazumder, N. Assessing heavy metal ion contamination through functionalized D-shaped optical fiber. Opt. Fiber Technol. 2022, 72, 102996. [Google Scholar] [CrossRef]
  24. Boruah, B.S.; Biswas, R. In-situ sensing of hazardous heavy metal ions through an ecofriendly scheme. Opt. Laser Technol. 2021, 137, 106813. [Google Scholar] [CrossRef]
  25. Boruah, B.S.; Biswas, R. An optical fiber based surface plasmon resonance technique for sensing of lead ions: A toxic water pollutant. Opt. Fiber Technol. 2018, 46, 152–156. [Google Scholar] [CrossRef]
  26. Yin, Y.; Li, S.; Wang, S.; Jia, S.; Ren, J.; Farrell, G.; Lewis, E.; Wang, P. Ultra-high-resolution detection of Pb2+ ions using a black phosphorus functionalized microfiber coil resonator. Photonics Res. 2019, 7, 622–629. [Google Scholar] [CrossRef]
  27. Liu, C.; Sun, Z.; Zhang, L.; Lv, J.; Yu, X.F.; Chen, X. Black phosphorus integrated tilted fiber grating for ultrasensitive heavy metal sensing. Sens. Actuators B-Chem. 2018, 257, 1093–1098. [Google Scholar] [CrossRef]
  28. Teng, P.; Jiang, Y.; Chang, X.; Shen, Y.; Liu, Z.; Copner, N.; Yang, J.; Li, K.; Bowkett, M.; Yuan, L.; et al. Highly sensitive on-line detection of trace Pb2+ based on tapered fiber integrated with black phosphorus. Opt. Fiber Technol. 2021, 66, 102668. [Google Scholar] [CrossRef]
  29. Riza, M.A.; Go, Y.I.; Maier, R.R.; Harun, S.W.; Anas, S.B.A. Enhanced fiber mounting and etching technique for optimized optical power transmission at critical cladding thickness for fiber-sensing application. Laser Phys. 2021, 31, 126201. [Google Scholar] [CrossRef]
  30. Al Noman, A.; Dash, J.N.; Cheng, X.; Tam, H.Y.; Yu, C. PCF based modal interferometer for lead ion detection. Opt. Express 2022, 30, 4895–4904. [Google Scholar] [CrossRef]
  31. Li, G.; Liu, Z.; Feng, J.; Zhou, G.; Huang, X. Pb2+ fiber optic sensor based on smart hydrogel coated Mach-Zehnder interferometer. Opt. Laser Technol. 2022, 145, 107453. [Google Scholar] [CrossRef]
  32. Dhara, P.; Kumar, R.; Binetti, L.; Nguyen, H.T.; Alwis, L.S.; Sun, T.; Grattan, K.T. Optical fiber-based heavy metal detection using the localized surface plasmon resonance technique. IEEE Sens. J. 2019, 19, 8720–8726. [Google Scholar] [CrossRef]
  33. Zhu, W.; Huang, Q.; Wang, Y.; Lewis, E.; Yang, M. Enhanced sensitivity of heterocore structure surface plasmon resonance sensors based on local microstructures. Opt. Eng. 2018, 57, 076105. [Google Scholar] [CrossRef]
  34. Sakhraoui, H.E.E.Y.; Mazouz, Z.; Attia, G.; Fourati, N.; Zerrouki, C.; Maouche, N.; Nessark, B. Design of L-Cysteine and acrylic acid imprinted Polypyrrole sensors for picomolar detection of lead ions in simple and real media. IEEE Sens. J. 2019, 20, 4147–4155. [Google Scholar] [CrossRef]
  35. Faradilla, P.; Setiyanto, H.; Manurung, R.V.; Saraswaty, V. Electrochemical sensor based on screen printed carbon electrode–zinc oxide nano particles/molecularly imprinted-polymer (SPCE–ZnONPs/MIP) for detection of sodium dodecyl sulfate (SDS). RSC Adv. 2022, 12, 743–752. [Google Scholar] [CrossRef] [PubMed]
  36. Pan, K.; Tang, X.; Qu, G.; Tang, H.; Wei, K.; Lv, J. Mesoporous Silica/Iron Phthalocyanine Light-Driven Nanomaterials for Efficient Removal of Pb2+ Ions from Wastewater. ACS Appl. Nano Mater. 2023, 6, 12816–12827. [Google Scholar] [CrossRef]
  37. Gupta, A.; Verma, N.C.; Khan, S.; Tiwari, S.; Chaudhary, A.; Nandi, C.K. Paper strip based and live cell ultrasensitive lead sensor using carbon dots synthesized from biological media. Sens. Actuators B-Chem. 2016, 232, 107–114. [Google Scholar] [CrossRef]
  38. Venkateswarlu, S.; Kumar, B.N.; Prathima, B.; SubbaRao, Y.; Jyothi, N.V.V. A novel green synthesis of Fe3O4 magnetic nanorods using Punica Granatum rind extract and its application for removal of Pb (II) from aqueous environment. Arab. J. Chem. 2019, 12, 588–596. [Google Scholar] [CrossRef]
  39. Borges, V.C.; Nogueira, C.W. The role of thiol-reducing agents on modulation of glutamate binding induced by heavy metals in platelets. Toxicol. In Vitro 2008, 22, 438–443. [Google Scholar] [CrossRef]
  40. Cankurtaran, H.; Karadayi, E.B.; Sungur, S. Cosnductive composites of serigraphic inks and their usage in heavy metal sensor and biosensor. Prog. Org. Coat. 2016, 98, 6–9. [Google Scholar] [CrossRef]
  41. García-Santos, I.; Castiñeiras, A.; Mahmoudi, G.; Babashkina, M.G.; Zangrando, E.; Gomila, R.M.; Safin, D.A. Lead (ii) supramolecular structures formed through a cooperative influence of the hydrazinecarbothioamide derived and ancillary ligands. CrystEngComm 2022, 24, 368–378. [Google Scholar] [CrossRef]
  42. Liu, X.; Li, M.; Singh, R.; Wang, Y.; Xie, Y.; Su, X.; Gao, F.; Li, G.; Kumar, D.; Zhang, B.; et al. Feasibility analysis of an SMS-/MSM-/SMSMS-based optical fiber sensor structure. Appl. Opt. 2022, 61, 2327–2332. [Google Scholar] [CrossRef] [PubMed]
  43. Mustafa, D.E.; Yang, T.; Xuan, Z.; Chen, S.; Tu, H.; Zhang, A. Surface plasmon coupling effect of gold nanoparticles with different shape and size on conventional surface plasmon resonance signal. Plasmonics 2010, 5, 221–231. [Google Scholar] [CrossRef]
  44. Szunerits, S.; Boukherroub, R. Sensing using localised surface plasmon resonance sensors. Chem. Commun. 2012, 48, 8999–9010. [Google Scholar] [CrossRef] [PubMed]
  45. Yazdani, S.; Daneshkhah, A.; Diwate, A.; Patel, H.; Smith, J.; Reul, O.; Cheng, R.; Izadian, A.; Hajrasouliha, A.R. Model for gold nanoparticle synthesis: Effect of pH and reaction time. ACS Omega 2021, 6, 16847–16853. [Google Scholar] [CrossRef] [PubMed]
  46. Gong, C.; Li, Z.; Liu, G.; Wang, R.; Pu, S. A sensitive fluorescence “turn on” nanosensor for glutathione detection based on Ce-MOF and gold nanoparticles. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2022, 265, 120362. [Google Scholar] [CrossRef]
  47. Agrawal, H.; Shrivastav, A.M.; Gupta, B.D. Surface plasmon resonance based optical fiber sensor for atrazine detection using molecular imprinting technique. Sens. Actuators B-Chem. 2016, 227, 204–211. [Google Scholar] [CrossRef]
  48. Verma, R.; Gupta, B.D. Detection of heavy metal ions in contaminated water by surface plasmon resonance based optical fibre sensor using conducting polymer and chitosan. Food Chem. 2015, 166, 568–575. [Google Scholar] [CrossRef]
  49. Feng, B.; Zhu, R.; Xu, S.; Chen, Y.; Di, J. A sensitive LSPR sensor based on glutathione-functionalized gold nanoparticles on a substrate for the detection of Pb2+ ions. RSC Adv. 2018, 8, 4049–4056. [Google Scholar] [CrossRef]
  50. Shrivas, K.; Sahu, B.; Deb, M.K.; Thakur, S.S.; Sahu, S.; Kurrey, R.; Kant, T.; Patle, T.K.; Jangde, R. Colorimetric and paper-based detection of lead using PVA capped silver nanoparticles: Experimental and theoretical approach. Microchem. J. 2019, 150, 104156. [Google Scholar] [CrossRef]
  51. Roto, R.; Mellisani, B.; Kuncaka, A.; Mudasir, M.; Suratman, A. Colorimetric sensing of Pb2+ ion by using ag nanoparticles in the presence of dithizone. Chemosensors 2019, 7, 28. [Google Scholar] [CrossRef]
  52. Abdullah, S.; Azeman, N.H.; Mobarak, N.N.; Zan, M.S.D.; Bakar, A.A.A. Sensitivity enhancement of localized SPR sensor towards Pb (II) ion detection using natural bio-polymer based carrageenan. Optik 2018, 168, 784–793. [Google Scholar] [CrossRef]
  53. Qiu, G.; Ng, S.P.; Liang, X.; Ding, N.; Chen, X.; Wu, C.M.L. Label-free LSPR detection of trace lead (II) ions in drinking water by synthetic poly (mPD-co-ASA) nanoparticles on gold nanoislands. Anal. Chem. 2017, 89, 1985–1993. [Google Scholar] [CrossRef] [PubMed]
  54. Qiu, G.Y.; Law, A.H.; Ng, S.P.; Wu, C.L. Label-free detection of lead (II) ion using differential phase modulated localized surface plasmon resonance sensors. Procedia Eng. 2016, 168, 533–536. [Google Scholar] [CrossRef]
  55. Nawi, N.M.; Abdullah, S.; Bakar, A.A.A. Gold nanoparticles/graphene oxide/polyaniline nanocomposites film as sensitive LSPR-based sensor for Pb (II) ions detection. In Proceedings of the 2014 IEEE 5th International Conference on Photonics (ICP), Kuala Lumpur, Malaysia, 2–4 September 2014; pp. 188–190. [Google Scholar]
Materials 17 00098 g001

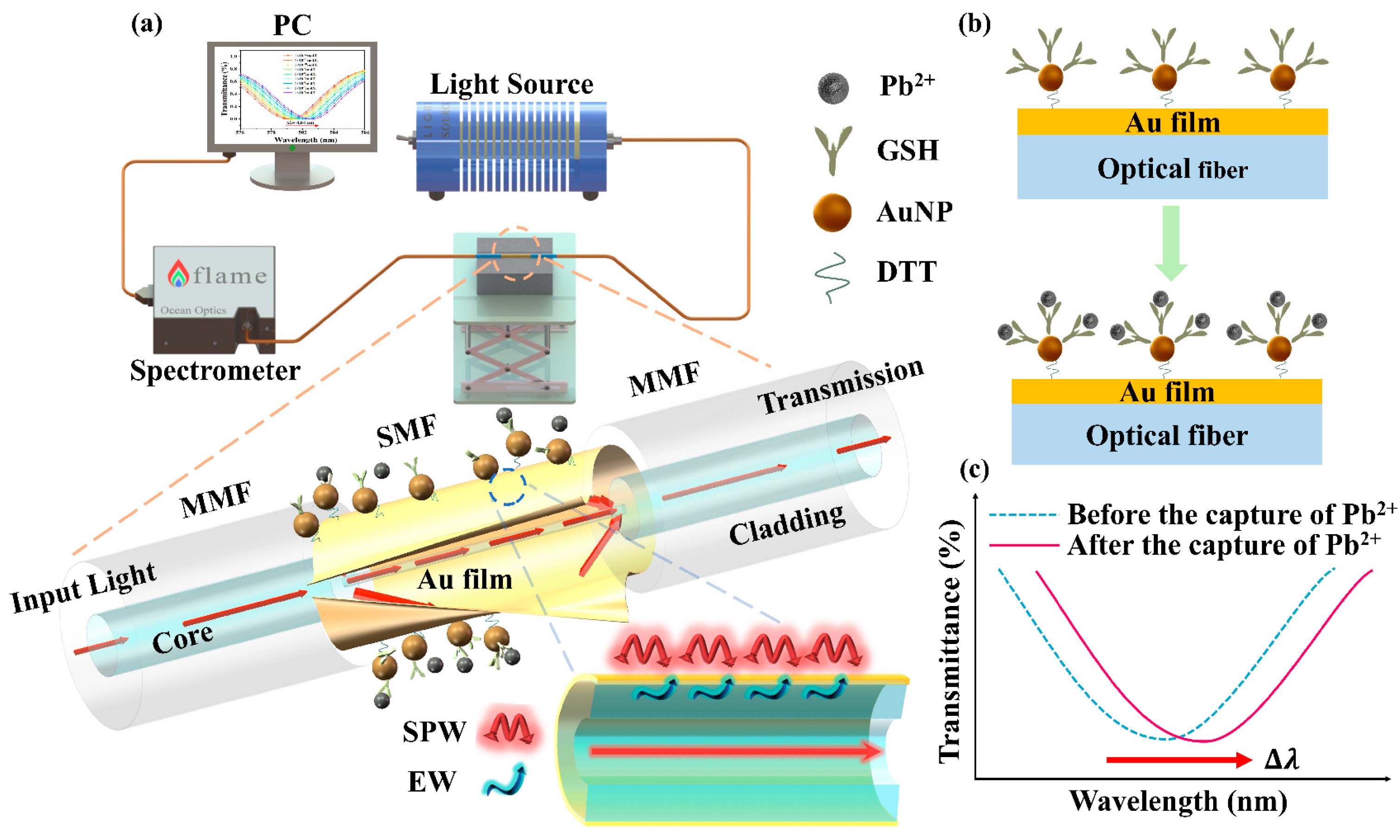

Figure 1. Schematic and working principle of the AuNPs/GSH-modified SPR optical fiber sensor. (a) Schematic of the AuNPs/GSH-modified SPR optical fiber sensor; (b) schematic structure of the sensing part of the AuNPs/GSH modified-SPR optical fiber sensor; (c) working principle of the AuNPs/GSH-modified SPR optical fiber sensor.
Figure 1. Schematic and working principle of the AuNPs/GSH-modified SPR optical fiber sensor. (a) Schematic of the AuNPs/GSH-modified SPR optical fiber sensor; (b) schematic structure of the sensing part of the AuNPs/GSH modified-SPR optical fiber sensor; (c) working principle of the AuNPs/GSH-modified SPR optical fiber sensor.
Materials 17 00098 g001
Materials 17 00098 g002

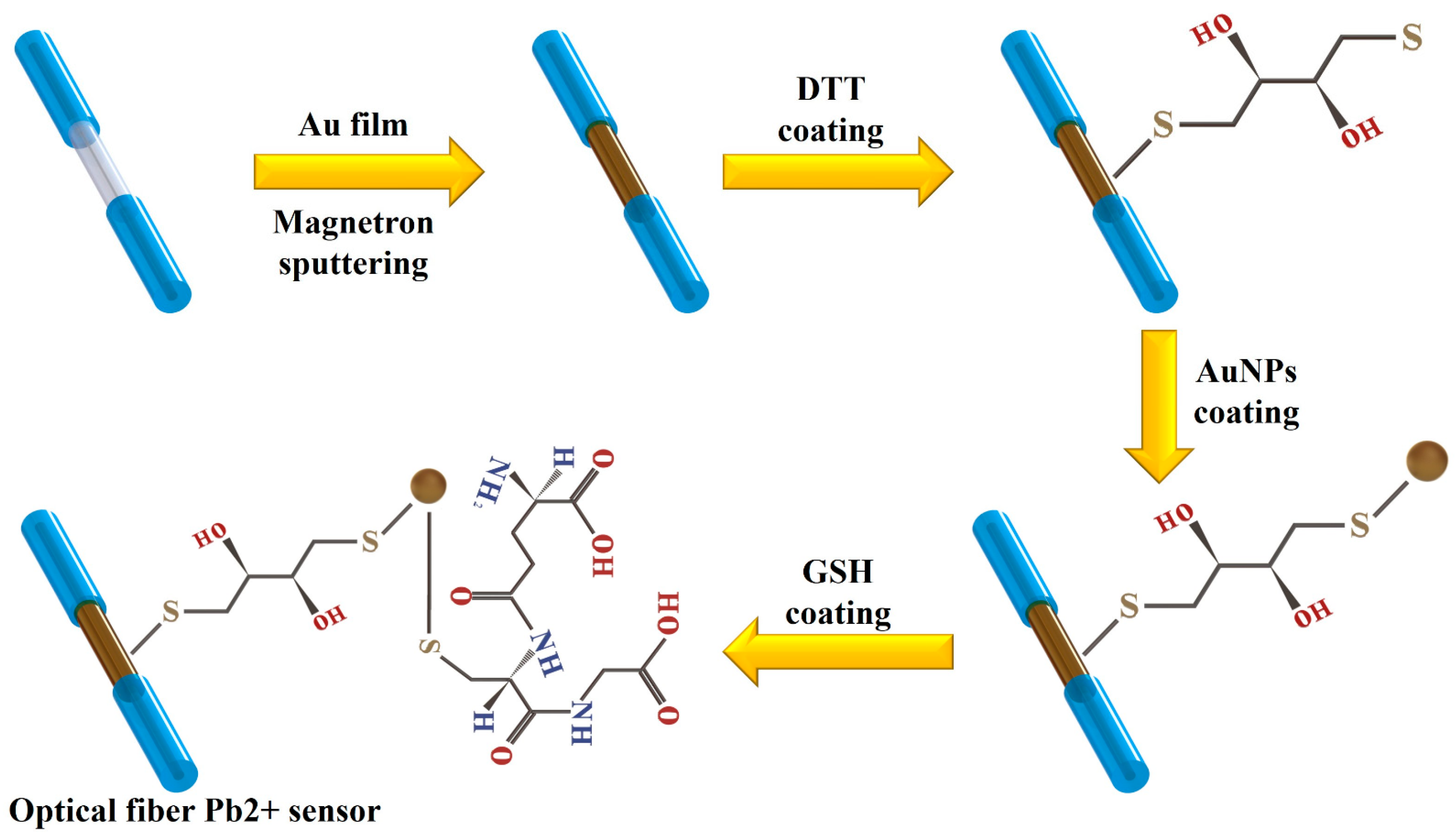

Figure 2. The processes to fabricate the AuNPs/GSH-modified SPR optical fiber sensor.
Figure 2. The processes to fabricate the AuNPs/GSH-modified SPR optical fiber sensor.
Materials 17 00098 g002
Materials 17 00098 g003

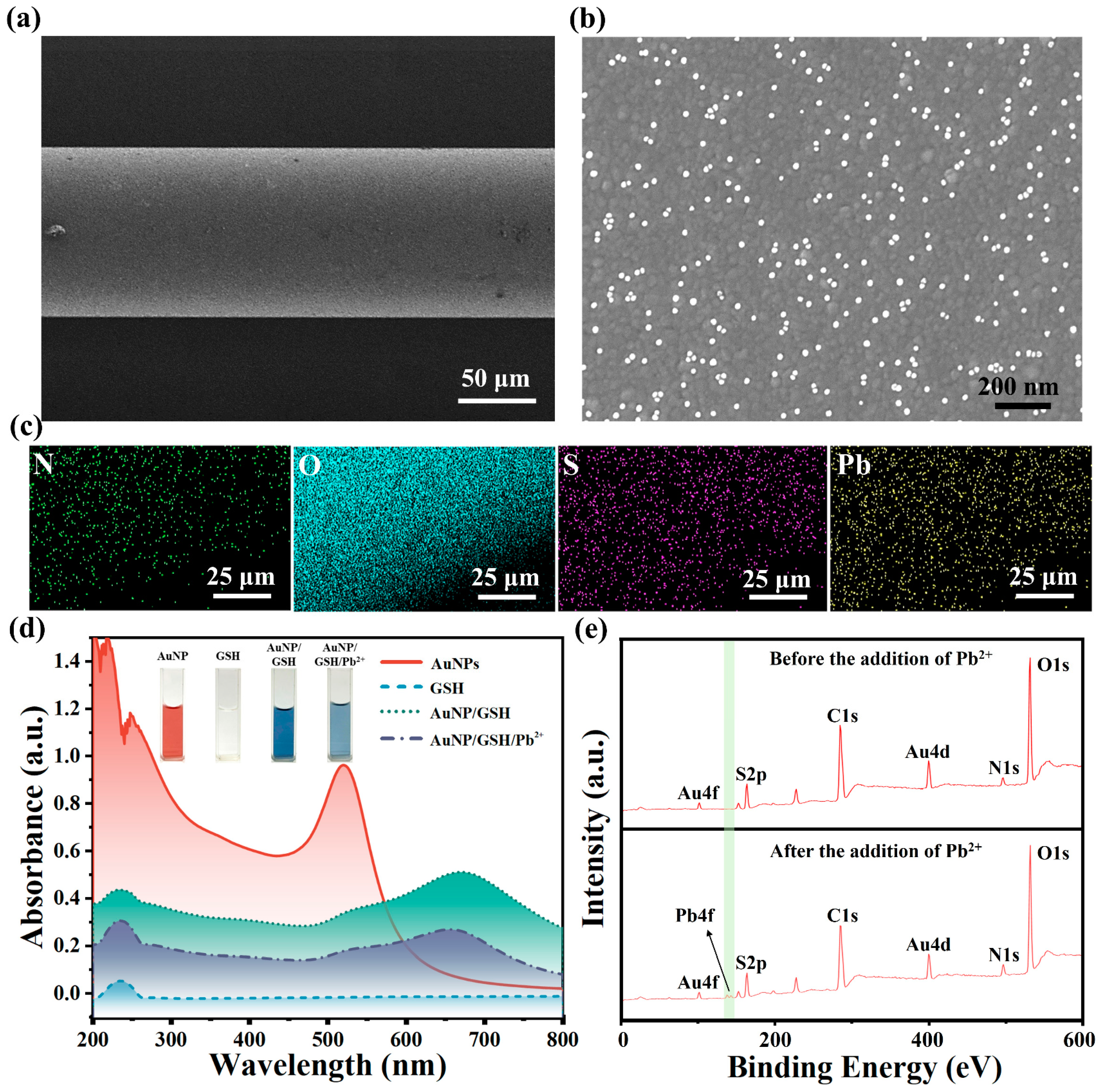

Figure 3. Characterization of the functional AuNPs/GSH on the fiber. (a) SEM characterization of the surface on the sensor; (b) SEM characterization of the fiber modified with AuNPs; (c) EDS analysis of the sensing probe surface after capturing Pb2+. (d) UV-vis of AuNPs, GSH, AuNPs/GSH, and AuNPs/GSH/Pb2+ and their separate solution states; (e) XPS survey spectra of the sensor obtained before and after Pb2+ detection.
Figure 3. Characterization of the functional AuNPs/GSH on the fiber. (a) SEM characterization of the surface on the sensor; (b) SEM characterization of the fiber modified with AuNPs; (c) EDS analysis of the sensing probe surface after capturing Pb2+. (d) UV-vis of AuNPs, GSH, AuNPs/GSH, and AuNPs/GSH/Pb2+ and their separate solution states; (e) XPS survey spectra of the sensor obtained before and after Pb2+ detection.
Materials 17 00098 g003
Materials 17 00098 g004

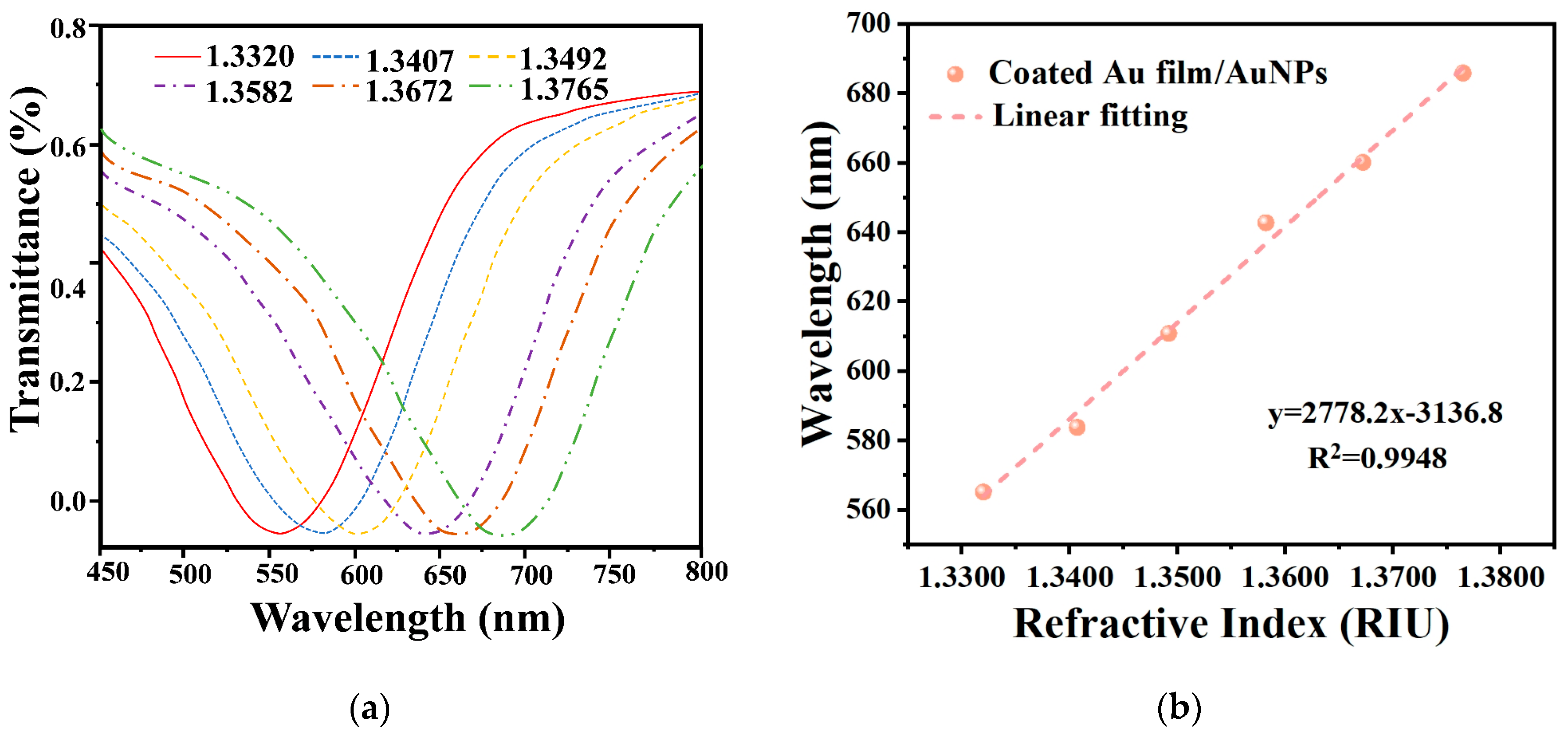

Figure 4. RI sensitivity measurement after the modification of AuNPs. (a) Transmission spectrum of SPR fiber modified with AuNPs in NaCl solutions with different RI. (b) The linear fitting curve of SPR optical fiber sensors with modified AuNPs.
Figure 4. RI sensitivity measurement after the modification of AuNPs. (a) Transmission spectrum of SPR fiber modified with AuNPs in NaCl solutions with different RI. (b) The linear fitting curve of SPR optical fiber sensors with modified AuNPs.
Materials 17 00098 g004
Materials 17 00098 g005

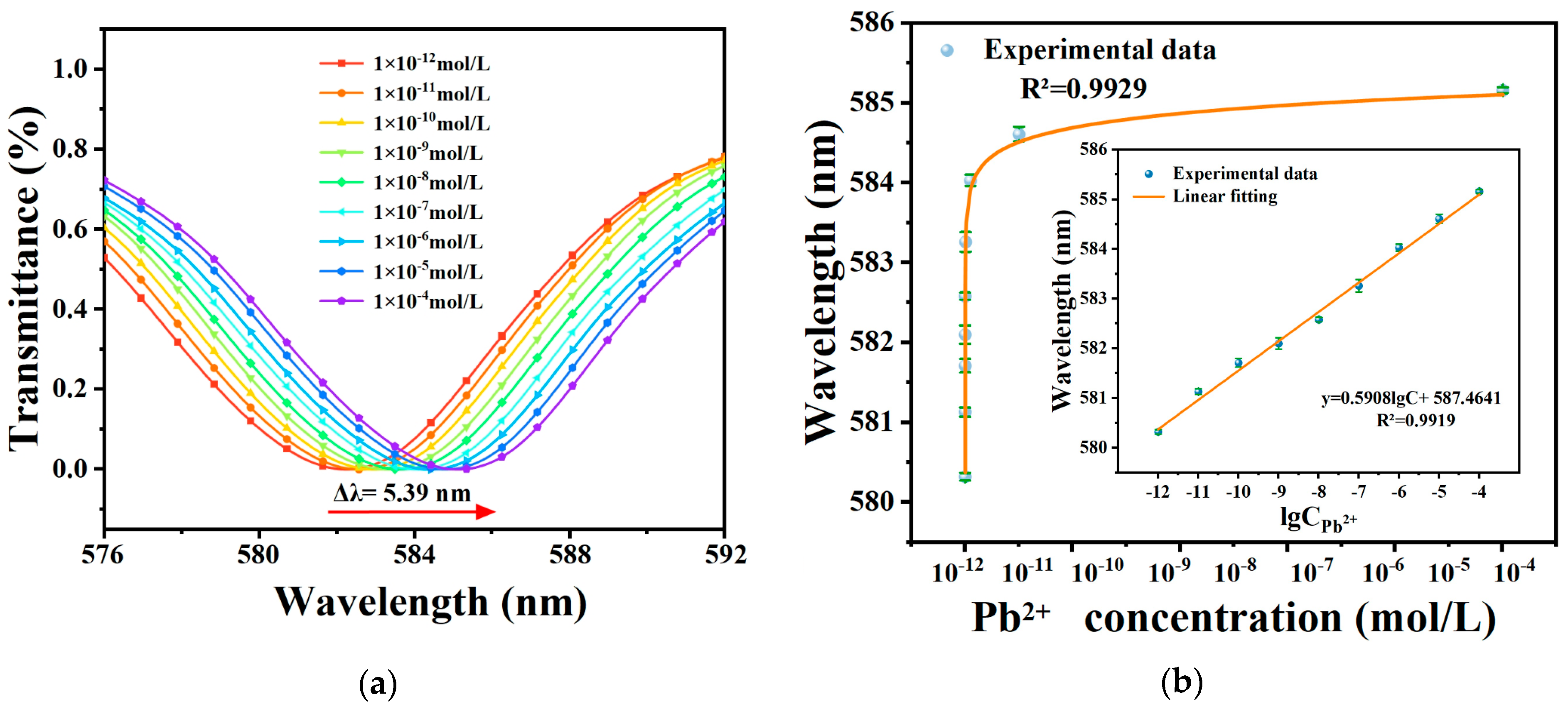

Figure 5. (a) Spectral shifts for one dip of the sensor at different concentrations. (b) Linear depen-ence of the dip wavelength on the concentration at room temperature.
Figure 5. (a) Spectral shifts for one dip of the sensor at different concentrations. (b) Linear depen-ence of the dip wavelength on the concentration at room temperature.
Materials 17 00098 g005
Materials 17 00098 g006

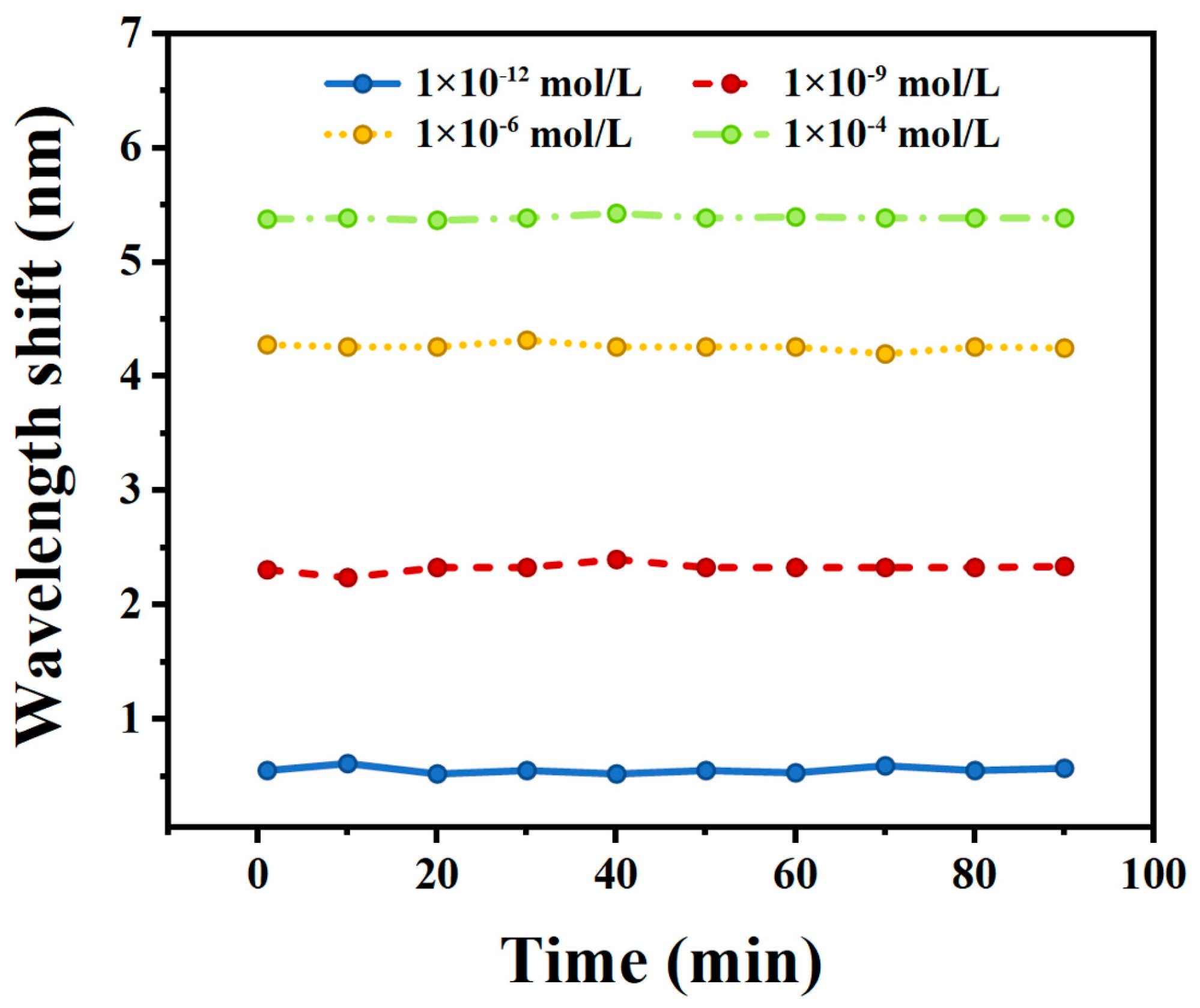

Figure 6. Measurement of the stability of the sensor in three lead ion solutions.
Figure 6. Measurement of the stability of the sensor in three lead ion solutions.
Materials 17 00098 g006
Materials 17 00098 g007

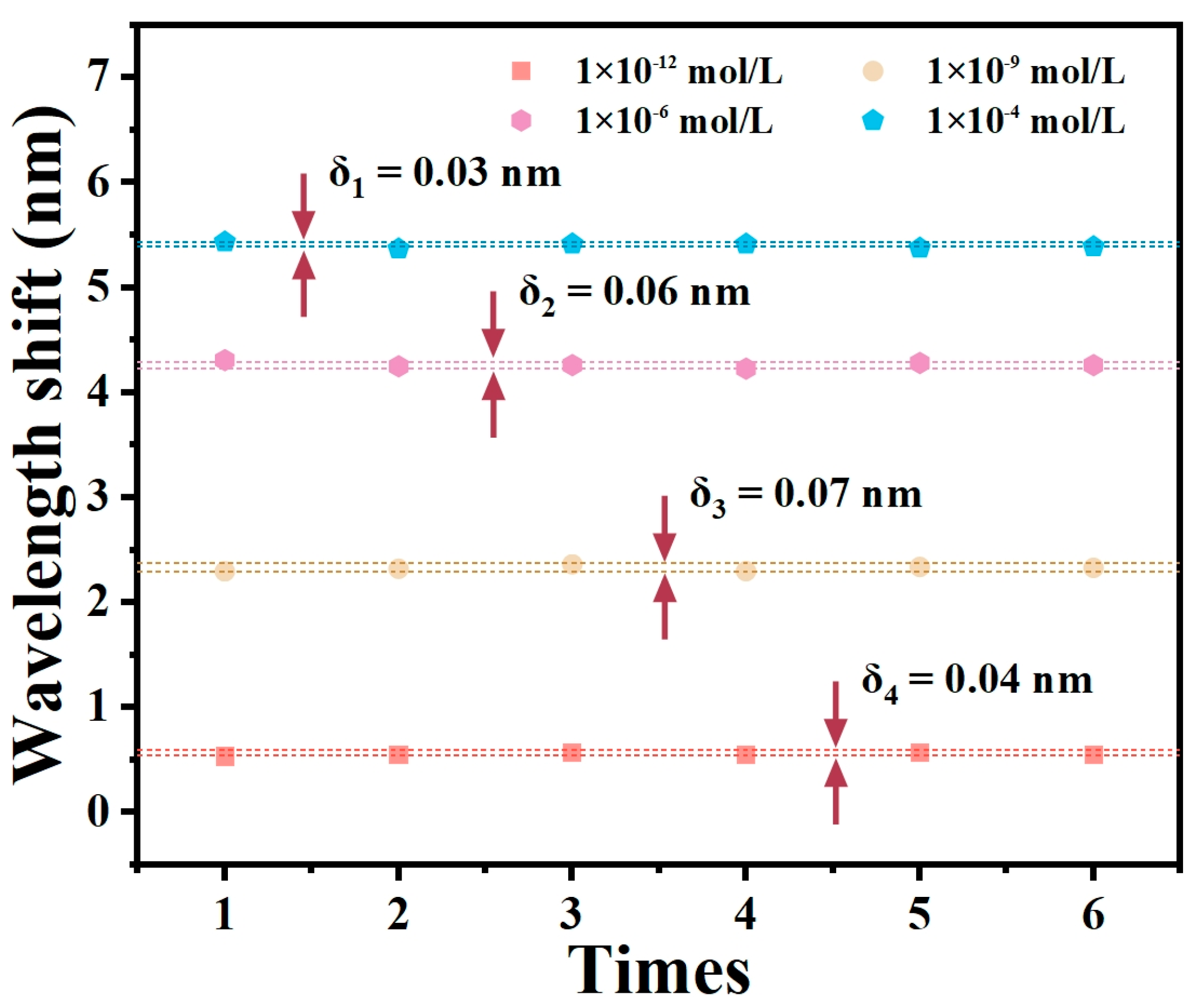

Figure 7. Repeatability of the proposed sensor.
Figure 7. Repeatability of the proposed sensor.
Materials 17 00098 g007
Materials 17 00098 g008

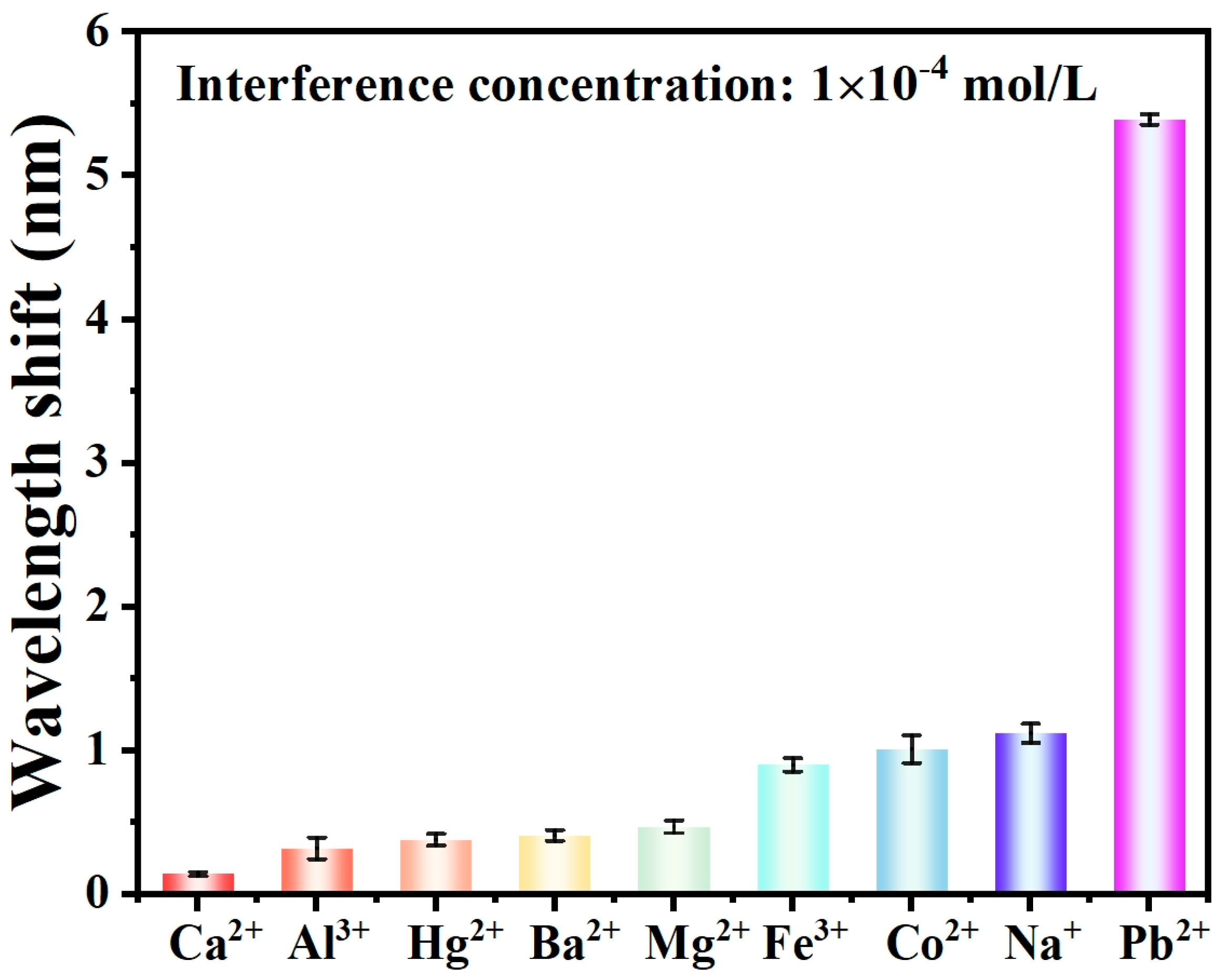

Figure 8. The specificity tests of the sensor for different metal ions.
Figure 8. The specificity tests of the sensor for different metal ions.
Materials 17 00098 g008
Table 1. Performance comparison of different optical Pb2+ sensors.
Table 1. Performance comparison of different optical Pb2+ sensors.
Structure/
Method		LOD
(pM)		Sensitivity
(nm/M)		Dynamic Range
(pM)		Sensing LayerRef.
Fiber Bragg grating 1.80 × 103/1.80 × 103–1.80 × 104L-glutathione[19]
Fiber Bragg grating500.002.55 × 109 500–1 × 109 CCS-NGO/PAA
nanocomposite		[20]
Fiber Bragg grating8.56/10–106DNAzyme/AuNPs[21]
Fiber Bragg grating9.65 × 1042.10 × 1064.49 × 105–4.63 × 108PMO/BTESPTS[22]
Tapered fiber102.47/360–1.80 × 108 Black phosphorus[26]
Tapered fiber8.60/8.60–3019 Black phosphorus[27]
Tapered fiber62.201.23 × 1073.02 × 102–3.02 × 108 Black phosphorus[28]
Interferometric fiber3019.001.03 × 107 3019–1.51 × 105 Chitosan-PVA/
GSH/AuNPs		[30]
Interferometric fiber2.45 × 1088.16 × 1052 × 105–1.20 × 106Hydroxyethyl methacrylate crosslinked hydrogel[31]
End reflection fiber8.00 × 108280.00 8 × 108–1 × 1010 AuNPs/1,1-Mercaptoundecanoic acid[32]
Plastic clad silica optical
fiber		158.002.10 × 1093.60 × 104–7.20 × 105Pyrrole/CS/ITO/Ag[48]
ITO glass50.00/100–1 × 107AuNPs/GSH[49]
Colorimetry9.60 × 104/9.60 × 104–4.80 × 106 Paper-based/AgNPs/PVA[50]
Colorimetry3100.005.90 × 1072.40 × 103–4.80 × 104AgNPs/dithizone[51]
Optical
sensor		/2.10 × 109/AuNPs/kappa-carrageenan[52]
Optical
sensor		53.00/53–2.40 × 104AuNIs/Poly (m-phenylenediamine-co-aniline-2-sulfonic acid) copolymer nanoparticles[53]
Optical
sensor		720.00//AuNIs/Poly (m-phenylenediamine-co-Aniline-2-
sulfonic acids) copolymer		[54]
LSPR sensor1.40 × 105/1.40 × 105–1.40 × 107AuNPs/GO/PANI[55]
Multimode-singlemode-multimode fiber0.432.32 × 10111–1 × 108 AuNPs/GSHThis Work
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Wang, J.; Niu, K.; Hou, J.; Zhuang, Z.; Zhu, J.; Jing, X.; Wang, N.; Xia, B.; Lei, L. Advanced Integration of Glutathione-Functionalized Optical Fiber SPR Sensor for Ultra-Sensitive Detection of Lead Ions. Materials 2024, 17, 98. https://doi.org/10.3390/ma17010098

AMA Style

Wang J, Niu K, Hou J, Zhuang Z, Zhu J, Jing X, Wang N, Xia B, Lei L. Advanced Integration of Glutathione-Functionalized Optical Fiber SPR Sensor for Ultra-Sensitive Detection of Lead Ions. Materials. 2024; 17(1):98. https://doi.org/10.3390/ma17010098

Chicago/Turabian Style

Wang, Jiale, Kunpeng Niu, Jianguo Hou, Ziyang Zhuang, Jiayi Zhu, Xinyue Jing, Ning Wang, Binyun Xia, and Lei Lei. 2024. "Advanced Integration of Glutathione-Functionalized Optical Fiber SPR Sensor for Ultra-Sensitive Detection of Lead Ions" Materials 17, no. 1: 98. https://doi.org/10.3390/ma17010098

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
