The Characterization of Fixation of Ba, Pb, and Cu in Alkali-Activated Fly Ash/Blast Furnace Slag Matrix
Materials Research Centre, Faculty of Chemistry, Brno University of Technology, Purkyňova 118, Brno 61200, Czech Republic
*
Author to whom correspondence should be addressed.
Materials 2016, 9(7), 533; https://doi.org/10.3390/ma9070533
Submission received: 13 April 2016
/
Revised: 21 June 2016
/
Accepted: 24 June 2016
/
Published: 30 June 2016
(This article belongs to the Special Issue Advances in Geopolymers and Alkali-Activated Materials)
Abstract
:The fixation of heavy metals (Ba, Cu, Pb) in an alkali-activated matrix was investigated. The matrix consisted of fly ash and blast furnace slag (BFS). The mixture of NaOH and Na-silicate was used as alkaline activator. Three analytical techniques were used to describe the fixation of heavy metals—X-ray photoelectron spectroscopy (XPS), scanning electron microscopy (SEM) equipped with energy dispersive X-ray spectroscopy (EDS), and X-ray powder diffraction (XRD). All heavy metals formed insoluble salts after alkaline activation. Ba was fixed as BaSO4, and only this product was crystalline. EDS mapping showed that Ba was cumulated in some regions and formed clusters. Pb was present in the form of Pb(OH)2 and was dispersed throughout the matrix on the edges of BFS grains. Cu was fixed as Cu(OH)2 and also was cumulated in some regions and formed clusters. Cu was present in two different chemical states; apart from Cu(OH)2, a Cu–O bond was also identified.
1. Introduction
Heavy metals are a significant part of various industrial and chemical waste materials, which can be a serious environmental threat. Waste materials with heavy metal content are processed by the set of procedures called stabilization/solidification. During these procedures, many different materials such as concrete and glass are used. In the past few decades, a new material for the inhibition of hazardous materials was used—alkali-activated material (AAM) [1,2].
The history of AAMs began in 1940s, when Kühl [3] and later Purdon [4] used an alkali activator for the activation of blast furnace slag. Nowadays, AAMs include broad types of materials—blast furnace slag, metakaolin, fly ash, etc. However, AAMs can vary in chemical or phase composition, and an alkali activator (high pH) is always used during the preparation of them. The main difference among AAMs is the content of calcium. AAMs can be divided into the groups of high-calcium alkali-activated materials (HCAAMs) and low-calcium alkali-activated materials (LCAAMs). HCAAMs are represented by alkali-activated blast furnace slag (BFS) or other types of slag (steel, phosphorus, copper, nickel, etc.). The C–S–H and C–A–S–H gels are assumed to be the main hydration products of alkali activation of HCAAMs. This gel has a similar structure like disordered tobermorite-like C–S–H(I) type and AlO4 tetrahedra enable the extension or crosslinking of the silicon chains. The secondary hydration products are formed depending on the composition of blast furnace slag and used activator. AFm type phases were identified when using NaOH as the activator, hydrotalcite was identified in activated slags with a high amount of MgO, and zeolites were identified in BFS with a high amount of Al2O3 [5,6,7,8,9,10]. A considerably different structure is present after the alkali activation of LCAAMs. The structure can be described as a disordered cross-linked aluminosilicate network, which consists of SiO4 and AlO4 tetrahedra linked by oxygen atoms. The negative charge of AlO4 is balanced by the presence of a positive ion in the structure. Usually Na+ or K+ serve as the charge-balancing ions, but Ca2+, Ba2+, Mg2+, and NH4+ can also occur. In fact, the structure of LCAAMs is very similar to the structure of zeolites [5,11,12]. The main reaction product of the alkali activation of the mixture of both types of AAMs (BFS and fly ash) is the N–A–S–H type gel. The gel is actually of a C–S–H type with a high concentration of tetrahedrally coordinated Al and an interlayer of Na ions incorporated into its structure [13].
The ability of AAMs to immobilize heavy metals and other hazardous materials in their structure has been investigated since the second half of the last century. The efficiency of the inhibition of heavy metals and other hazardous materials within AAMs depends on more factors including the type of immobilized material, its dosage, the type of matrix, the nature of alkaline activator, and its concentration. In general, Pb, Zn, Cr, and B reach a high efficiency of immobilization in AAMs, as opposed to Cu, Cd, and As, which have worse inhibition results. There are two different ways of how to fix heavy metals in the matrix—physical and chemical. Often, both of these types occur at the same time. The physical immobilization of heavy metals is the same in AAMs as in other binders (e.g., ordinary Portland cement). The physical immobilization is linked with the mechanical properties of matrix and its porosity. The chemical fixation means bonding with newly formed alumino-silicate phases. Some metals are fixed by forming insoluble salts, mainly hydroxides or silicates [14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29].
The aim of this study was to describe, how heavy metals (Ba, Pb, Cu) are fixed within the matrix based on the alkali-activated mixture of fly ash and BFS, what their chemical state is, and how they are distributed in the matrix. The description of form and chemical state of heavy metals after the activation was enabled by using a modern analytical method—X-ray photoelectron spectroscopy.
2. Materials and Methods
2.1. Sample Preparation
Blast furnace slag and high-temperature fly ash were used as raw materials. Their chemical composition is shown in Table 1. The mixture of NaOH and Na-silicate (weight ratio SiO2:Na2O—3.1; wt % SiO2—27.3) was used as the alkaline activator. Heavy metals were used in the form of Ba(NO3)2 p. a., Pb(NO3)2 p. a., and CuCl2∙2H2O p. a. They were added as solids in the dosage of 2.5 wt % of binder. Finally, three matrices with added heavy metals were prepared—one matrix for each heavy metal. Demineralized water was used throughout. The composition of matrices is listed in Table 2. The preparation of the matrix started with the mixture of all solid compounds together for 5 min, followed by the adding of the alkaline activator and mixing for another 5 min. After mixing, the samples were cast in steel molds measuring 20 × 20 × 100 mm3 and vibrated for 90 s. All analyses were performed after 28 days of open curing at ambient conditions.
2.2. Methods
The X-ray photoelectron spectroscopy (XPS) analyses were carried out with an Axis Ultra DLD spectrometer (Kratos Analytical Ltd., Manchester, UK) using a monochromatic Al Kα (hν = 1486.7 eV) X-ray source operating at 150 W (10 mA, 15 kV). The spectra were obtained using the analysis area of ~300 × 700 μm. The Kratos charge neutralizer system was used for all analyses. The high-resolution spectra were measured with the step size of 0.1 eV and 20 eV pass energy. The instrument base pressure was 2 × 10−8 Pa. The spectra were analyzed using the CasaXPS software (version 2.3.15) (Casa Software Ltd., Teignmouth, UK) and were charge-corrected to the main line of the carbon C 1s spectral component (C–C, C–H) set to 284.80 eV. Standard Shirley background was used for all sample spectra.
The scanning electron microscopy (SEM) and energy dispersive X-ray spectroscopy (EDS) analyses were performed using a JEOL JSM-7600F (JEOL Ltd., Tokyo, Japan) scanning electron microscope equipped with X-Max 80 mm2 SDD detector in back-scattering mode. The working distance for all samples was 15 mm, the accelerate voltage was 15 kV, and the probe current was 1 nA. Prior to the SEM analysis, all samples were polished for 6 h by a cross-section polisher JEOL (JEOL Ltd., Tokyo, Japan). All samples were sputtered by gold to obtain good surface conductivity.
The X-ray powder diffraction (XRD) data were obtained using a PANanalytical Empyrean (PANanalytical B.V., Almelo, The Netherlands) diffractometer with CuKα radiation (1.54 Å) operating at the voltage of 40 kV, and the current of 30 mA and equipped with 3D detection system PIXcel3D (PANanalytical B.V., Almelo, The Netherlands). All samples were step-scanned from 5° to 90° 2θ using vertical high-resolution goniometer with a step size of 0.013° 2θ. Time per step was 96 s. The variable slits with an irradiated length of 10 mm were used. Presented X-ray patterns have an original background that has not been subtracted.
3. Results and Discussion
3.1. XPS
The XPS results show the chemical state of examined elements (Pb, Ba, Cu). In the case of lead, the high-resolution spectrum gives the binding energy of 138.6 eV for Pb 4f7/2 line (Figure 1), typical for Pb(OH)2. The conversion of primary phase Pb(NO3)2 to hydroxide will probably take place in the same way as in the hydration of Portland cement. This salt forms insoluble hydroxide in an alkaline solution and may form a coating on the cement (blast furnace slag) particles, which can be observed in Figure 6. There is no evidence that the lead compound creates highly insoluble Pb3SiO5 as in the system of alkali-activated fly ash in Palomo et al.’s study [29].
The Ba 4d spectrum (Figure 2) demonstrates the creation of BaSO4 with a binding energy of Ba 3d5/2 of 780.0 eV, which is consistent with the EDS analysis.
Finally, the XPS spectrum of Cu 2p (Figure 3) shows two different chemical states. The first Cu 2p3/2 component at 934.8 eV with a strong shake-up satellite belongs to Cu(OH)2. Shake-up peaks may occur when the outgoing photoelectron simultaneously interacts with a valence electron and excites it to a higher-energy level. The kinetic energy of the shaken-up core electron is then slightly reduced giving the satellite structure a few eV below (higher on the calculated binding energy scale) the core level position [30]. It should be noted that the determination of Cu(OH)2 also depends on the peak shape and main peak to shake up peak separation. The second Cu 2p3/2 peak at 932.7 eV represents the bond of Cu with O. That can be interpreted as the formation of copper oxide or the formation of the bond with the matrix.
3.2. SEM
The microstructure of prepared matrices with heavy metals was characterized by the SEM analysis. The regions containing heavy metals were investigated with EDS analysis. In all images, remaining particles of fly ash and grains of BFS are evident. High-temperature fly ash consists of spherical particles of various sizes. Some of them can be hollow, and smaller particles are encapsulated in bigger ones in many cases. BFS is represented by grains of irregular shape. The remaining space is filled by alumino-silicate gel.
Figure 4 shows the SEM image of the prepared matrix. The light structure in the middle of the image represents the area with a high amount of barium. Performed EDS analysis determined barium, sulfur, and oxygen as the main components of the structure (Table 3). Their molar ratio of 1:1:4 responds to BaSO4. These results correspond with the XPS analysis. BaSO4 was also identified by the XRD analysis. Subsequently, the mapping of chemical elements within the matrix was performed. The mapping (Figure 7) showed that Ba cumulated in some bigger areas such as BaSO4, rather than being dispersed uniformly throughout the matrix. Unlike Cu and Pb, Ba did not form hydroxide because of the good solubility of Ba(OH)2. The sulfates originated from raw materials due to the fact that the chemical composition of both fly ash and blast furnace slag contained a sufficient amount of sulphur to form BaSO4.
In Figure 5, the SEM image of the area with cumulated Cu is displayed. It can be seen as “foggy” lighter structure of irregular shape in the central part of image. The prevailing components are Cu and O (Table 4). The molar ratio of 1:1.6 shows Cu(OH)2 as a possible reaction product of Cu. This assumption was proved by the XPS analysis. No Cu(OH)2 was identified by the XRD analysis. It indicates a non-crystalline character of Cu(OH)2. The mapping showed similar results as in the case of barium. Cu tends to cumulate in small areas of Cu(OH)2 rather than being dispersed throughout the matrix. The difference of distribution between barium and copper is that copper forms a higher number of smaller clusters.
Figure 6 shows the detail of a grain of BFS. A coating of small particles are visible on the edges of the grain. The EDS analysis proved that the coating contained Pb (Table 5). The particles are supposed to be formed of Pb(OH)2 according to XPS analysis. Unlike both previous elements, Pb did not cumulate in larger clusters of Pb(OH)2, but it seems to be dispersed throughout the matrix (Figure 7). The reason that Pb did not form bigger clusters could be caused by the smaller amount of Pb atoms in the matrix. All metals were added in wt %, so the amount of Pb atoms in the matrix is the lowest, because of its superlative molar weight.
3.3. XRD
The XRD analysis identified only one crystalline compound of fixed heavy metals—BaSO4. The XRD patterns of the alkali-activated matrix are shown in Figure 8. The patterns of BaSO4 are described, the rest of the patterns belongs to the phases of the matrix (quartz, mullite, merwinite, calcite, magnetite) and to NaCl. No compounds of Pb and Cu were identified by XRD, since they are fixed in the amorphous phases.
4. Conclusions
The fixation of three heavy metals—Ba, Pb, and Cu—in alkali-activated matrices based on blast furnace slag and fly ash was examined. The XPS analyses proved that all metals formed insoluble salts—BaSO4, Pb(OH)2 and Cu(OH)2—after alkaline activation. Only Cu was present in matrices in two different chemical states; apart from Cu(OH)2, a Cu–O bond was also identified. Both Pb(OH)2 and Cu(OH)2 were present in an amorphous or semicrystaline form, which could not be identified by XRD. The distribution of heavy metals within the matrices was quite different. Ba and Cu were not dispersed throughout the matrix evenly and were cumulated in some regions. On the other hand, EDS mapping showed that Pb did not form clusters and was present as a coating on the edges of grains of the blast furnace slag in the whole matrix. The results show that the metals were fixed mainly by encapsulation in the matrix and forming insoluble salts. Only in the case of Cu can the formation of some chemical bond with newly formed phases after alkali activation be assumed.
Acknowledgments
This work was financially supported by the project “Materials Research Centre at FCH BUT”—Sustainability and Development, REG LO1211—with financial support from National Programme for Sustainability I (Ministry of Education, Youth and Sports).
Author Contributions
Jan Koplík and František Šoukal conceived and designed the experiments; Jan Koplík performed the experiments; Jiří Másilko and Lukáš Kalina performed the analysis; Jan Koplík wrote the paper.
Conflicts of Interest
The authors declare no conflict of interest.
Abbreviations
The following abbreviations are used in this manuscript:
| BFS | blast furnace slag |
| XPS | X-ray photoelectron spectroscopy |
| SEM | scanning electron microscopy |
| EDS | energy dispersive X-ray spectroscopy |
| XRD | X-ray powder diffraction |
| AAM | alkali-activated material |
| HCAAMs | high-calcium alkali-activated materials |
| LCAAMs | low-calcium alkali-activated materials |
References
- Shi, C.; Fernandéz-Jimenéz, A. Stabilization/solidification of hazardous and radioactive wastes with alkali-activated cements. J. Hazard. Mater. 2006, B137, 1656–1663. [Google Scholar] [CrossRef] [PubMed]
- Chang, H.O. Hazardous and Radioactive Waste Treatment Technologies Handbook; CRC Press LLC: Boca Raton, FL, USA, 2001. [Google Scholar]
- Shi, C.; Krivenko, P.V.; Roy, D. Alkali-Activated Cements and Concretes; Taylor & Francis: New York, NY, USA, 2006. [Google Scholar]
- Purdon, A.O. The action of alkalis on blast-furnace slag. J. Soc. Chem. Ind. 1940, 59, 191–202. [Google Scholar]
- Provis, J.L.; van Deventer, J.S.J. Alkali Activated Materials: State-of-the Art-Report; Springer: Dorderecht, The Netherlands, 2014. [Google Scholar]
- Fernandéz-Jimenéz, A.; Palomo, A.; Revuelta, D. Akali activation of industrial by-products to develop new eath-friendly cements. In Proceeding of the 11th International Conference on Non-Conventional Materials and Technologies, Bath, UK, 6–9 September 2009; pp. 1–15.
- Myers, R.J.; Bernal, S.A.; San Nicolas, R.; Provis, J.L. Generalized structural description of calcium-sodium aluminosilicate hydrate gels: The cross linked substituted tobermorite model. Langmuir 2013, 29, 5294–5306. [Google Scholar] [CrossRef] [PubMed]
- Bernal, S.A.; Provis, J.L.; de Mejía Gutierez, R.; Rose, V. Evolution of binder structure in sodium silicate-activated slag-metakaolin blends. Cem. Concr. Compos. 2011, 33, 46–54. [Google Scholar] [CrossRef]
- Escalante-Garcia, J.; Fuentes, A.F.; Gorokhovsky, A.; Fraire-Luna, P.E.; Mendoza-Suarez, G. Hydration products and reactivity of blast-furnace slag activated by various alkalis. J. Am. Ceram. Soc. 2003, 86, 2148–2153. [Google Scholar] [CrossRef]
- Ben Haha, M.; Lothenbach, B.; Le Saout, G.; Winnefeld, F. Influence of slag chemistry on the hydration of alkali-activated blast-furnace slag—Part I: Effect of MgO. Cem. Concr. Res. 2011, 41, 955–963. [Google Scholar] [CrossRef]
- Komnitsas, K.; Zaharaki, D. Geopolymerisation: A review and prospects for the minerals industry. Min. Eng. 2007, 20, 1261–2277. [Google Scholar] [CrossRef]
- Provis, J.L.; Lukey, G.C.; van Deventer, J.S.J. Do geopolymers actually contain zeolites? A reexamination of existing results. Chem. Mater. 2005, 17, 3075–3085. [Google Scholar] [CrossRef]
- Puertas, F.; Martínez-ramírez, S.; Alonso, S.; Vázquez, T. Alkali-activated fly ash/slag cement. Strength behavior and hydration products. Cem. Concr. Res. 2000, 30, 1625–1632. [Google Scholar] [CrossRef]
- Van Jaarsveld, J.G.S.; van Deventer, J.S.J.; Lorenzen, L. Factor affecting the immobilization of metals in geopolymerized fly ash. Metall. Mater. Trans. 1998, 29B, 283–291. [Google Scholar] [CrossRef]
- Phair, J.W.; van Deventer, J.S.J.; Smith, J.D. Effect of Al source and alkali activation on Pb and Cu immobilization in fly-ash based “geopolymers”. App. Geochem. 2004, 19, 423–434. [Google Scholar] [CrossRef]
- Xu, J.Z.; Zhou, Y.L.; Chang, Q.; Qu, H.Q. Study on the factors affecting the immobilization of heavy metals in fly ash-based geopolymers. Mater. Lett. 2006, 60, 820–822. [Google Scholar] [CrossRef]
- Palomo, A.; de la Fuente, J.I.L. Alkali-activated cementious materials: Alternative matrices for the immobilization of hazardous wastes Part I. Stabilization of boron. Cem. Conc. Res. 2003, 33, 281–288. [Google Scholar] [CrossRef]
- Zhang, J.; Provis, J.L.; Feng, S.; van Deventer, J.S.J. Geopolymers for immobilization of Cr6+, Cd2+, and Pb2+. J. Hazard. Mater. 2008, 157, 587–598. [Google Scholar] [CrossRef] [PubMed]
- Fernández-Jiménez, A.; Palomo, A.; Macphee, D.E.; Lachowski, E.E. Fixing arsenic in alkali-activated cementious matrices. J. Am. Ceram. Soc. 2005, 88, 1122–1126. [Google Scholar] [CrossRef]
- Phair, J.W.; van Deventer, J.S.J. Effect of silicate activator pH on the leaching and material characteristic of waste-based inorganic polymers. Min. Eng. 2001, 14, 289–304. [Google Scholar] [CrossRef]
- Zhang, Y.; Sun, W.; Chen, Q.; Chen, L. Synthesis and heavy metal immobilization behaviors of slag based geopolymer. J. Hazard. Mater. 2007, 143, 206–213. [Google Scholar]
- Deja, J. Immobilization of Cr6+, Cd2+, Zn2+ and Pb2+ in alkali-activated slag binders. Cem. Concr. Res. 2002, 32, 1971–1979. [Google Scholar] [CrossRef]
- Škvára, F.; Kopecký, L.; Šmilauer, V.; Bittnar, Z. Material and structural characterization of alkali activated low-calcium brown coal fly ash. J. Hazard. Mater. 2009, 168, 711–720. [Google Scholar] [CrossRef] [PubMed]
- Zhang, J.; Provis, J.L.; Feng, D.; van Deventer, J.S.J. The role of sulfide in the immobilization of Cr(VI) in fly ash geopolymers. Cem. Concr. Res. 2008, 38, 681–688. [Google Scholar] [CrossRef]
- Bankowski, P.; Zhou, L.; Hodges, R. Using inorganic polymer to reduce leach rates of metals from brown coal fly ash. Min. Eng. 2004, 17, 159–166. [Google Scholar] [CrossRef]
- Álvarez-Ayuso, E.; Querol, X.; Plana, F.; Alastuey, A.; Moreno, N.; Izquierdo, M.; Font, O.; Moreno, T.; Diez, S.; Vázquez, E.; et al. Environmental, physical and structural characterization of geopolymer matrixes synthesized from coal (co-)combustion fly ash. J. Hazard. Mater. 2008, 154, 175–183. [Google Scholar] [CrossRef] [PubMed]
- Fernández Pereira, C.; Luna, Y.; Querol, X.; Antenucci, D.; Vale, J. Waste stabilization/solidification of an electric arc furnace dust using fly ash-based geopolymers. Fuel 2009, 88, 1185–1193. [Google Scholar] [CrossRef]
- Li, F.; Li, Q.; Zhai, J.; Sheng, G. Effect of zeolitization of CFBC fly ash on immobilization of Cu, Pb and Cr. Ind. Eng. Chem. Res. 2007, 46, 7087–7095. [Google Scholar] [CrossRef]
- Palomo, A.; Palacios, M. Alkali-activated matrices for the immobilization of hazardous waste Part II. Cem. Concr. Res. 2003, 33, 289–295. [Google Scholar] [CrossRef]
- Watts, J.F.; Wolstenholme, J. An Introduction to Surface Analysis by XPS and AES; John Wiley & Sons: Chichester, UK, 2005. [Google Scholar]

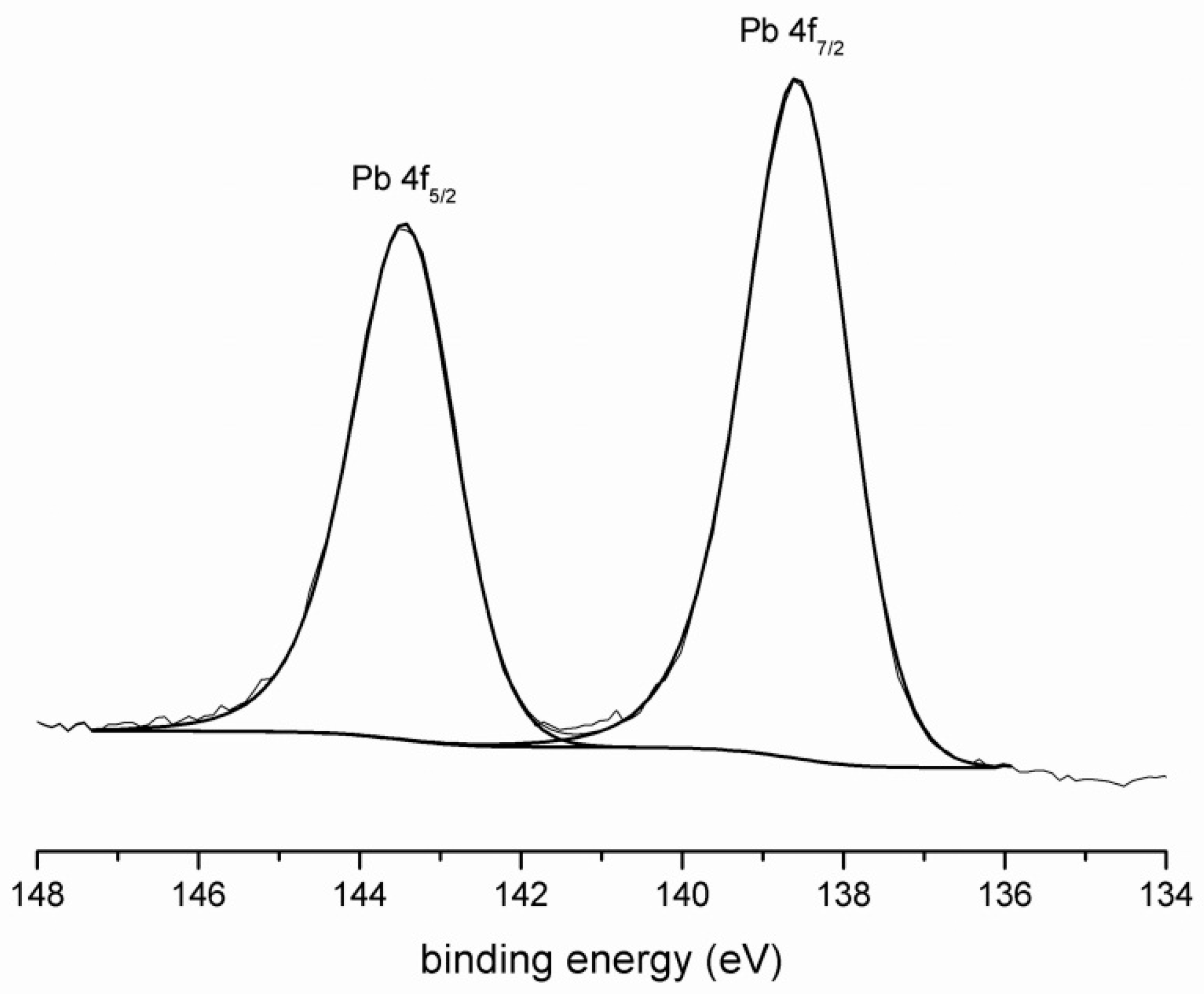

Figure 1.
X-ray photoelectron spectroscopy (XPS) spectrum of Pb.

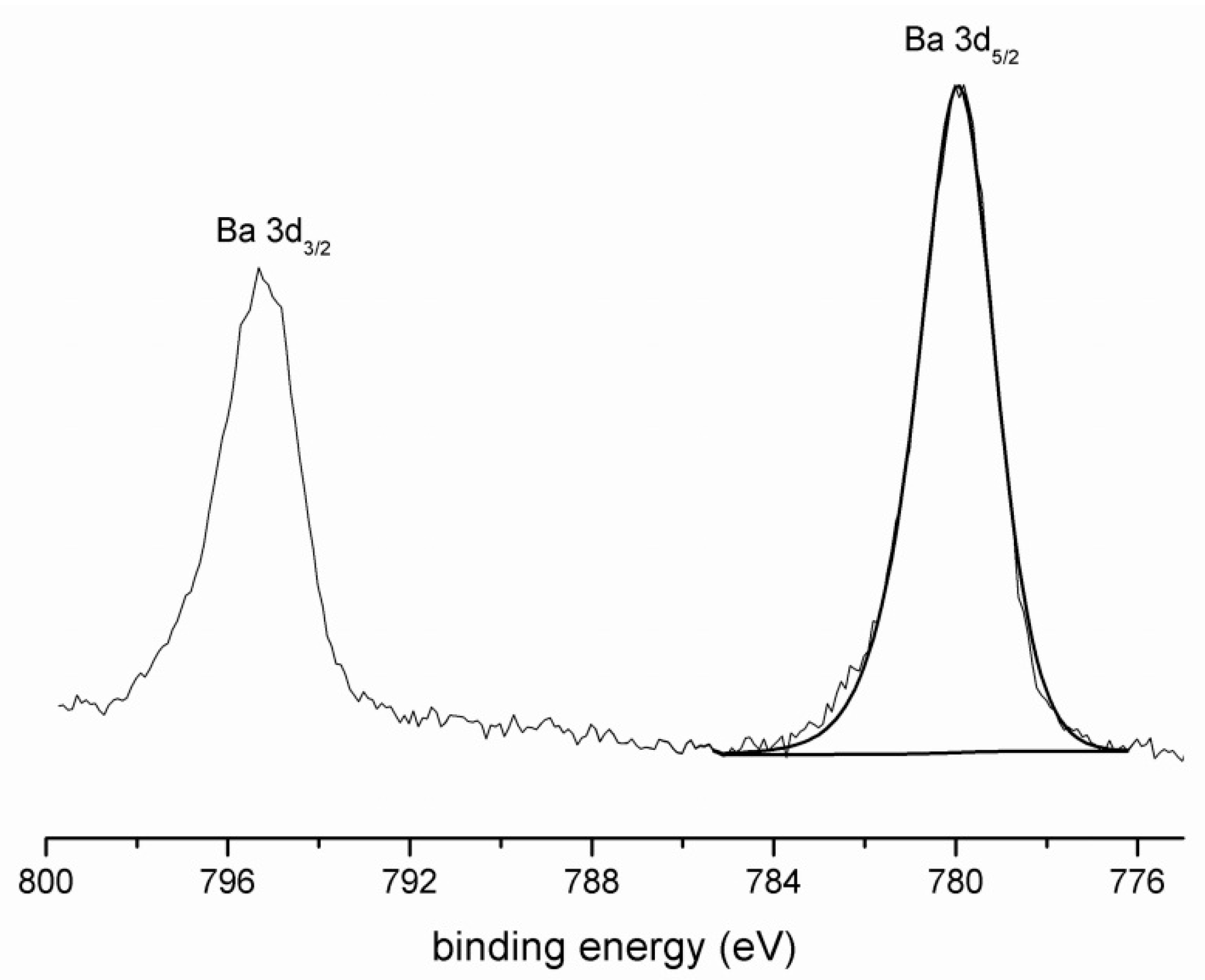

Figure 2.
XPS spectrum of Ba.

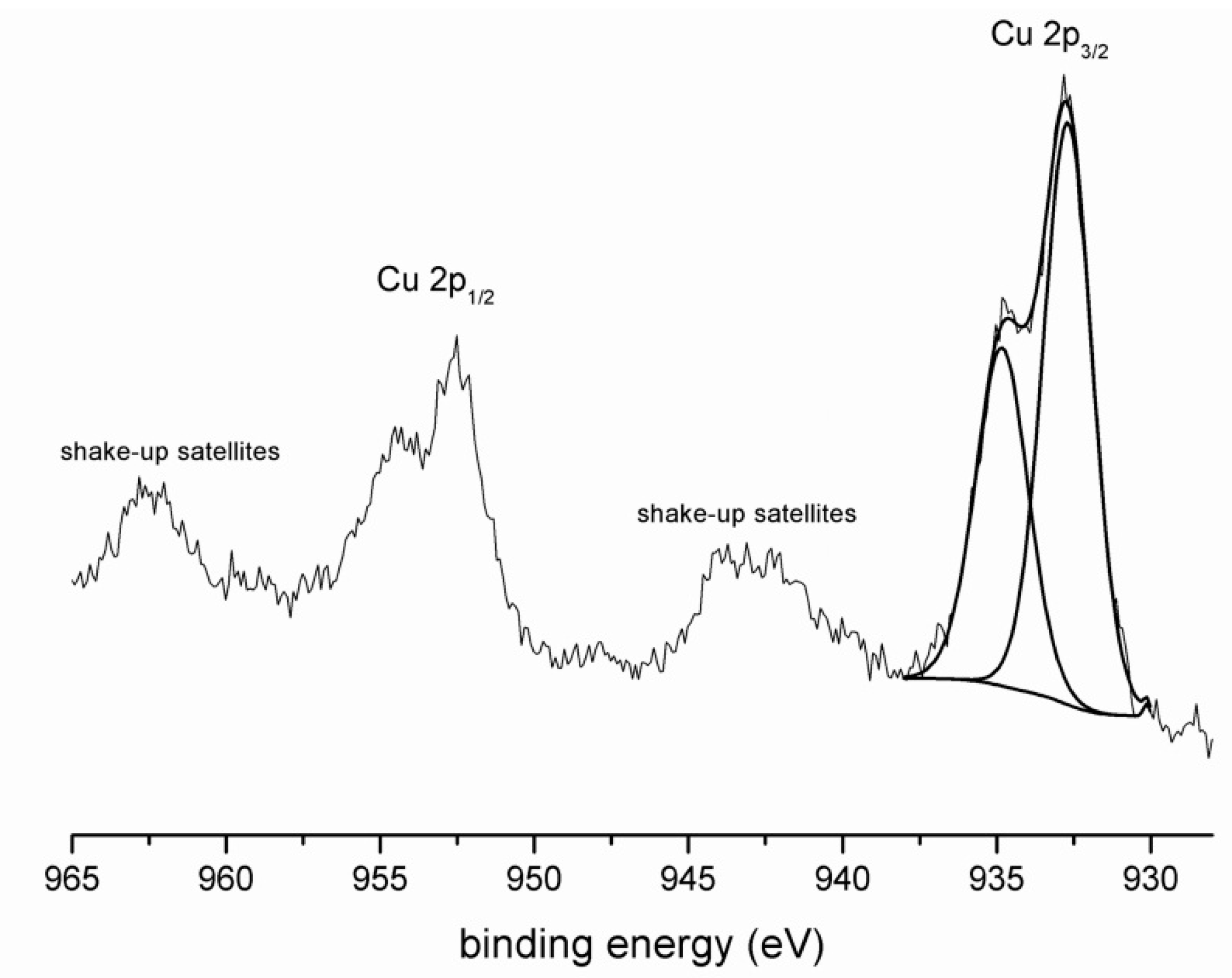

Figure 3.
XPS spectrum of Cu.

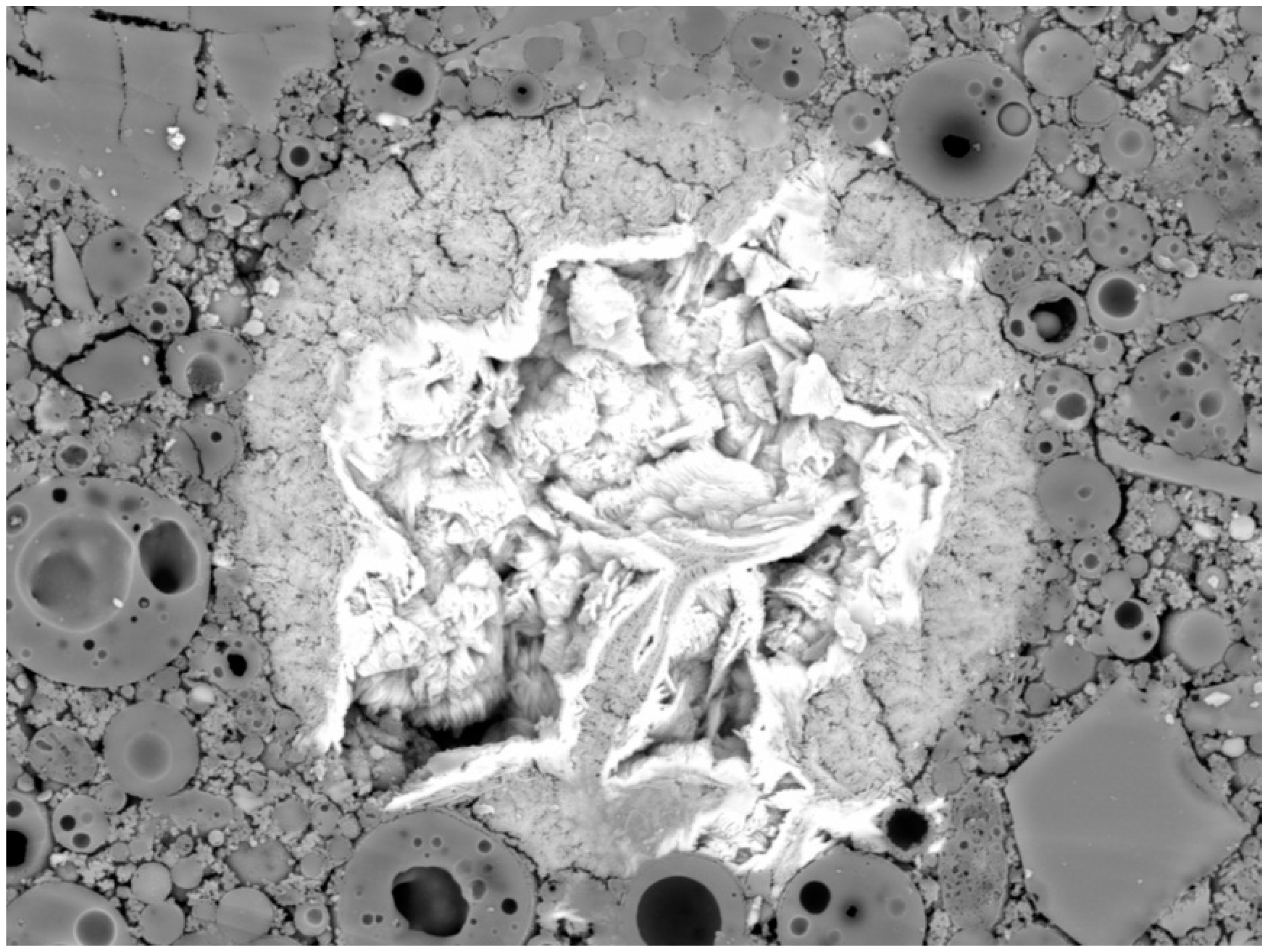

Figure 4.
Scanning electron microscopy (SEM) image of the region with fixed barium, magnitude 2000×.
Figure 4.
Scanning electron microscopy (SEM) image of the region with fixed barium, magnitude 2000×.

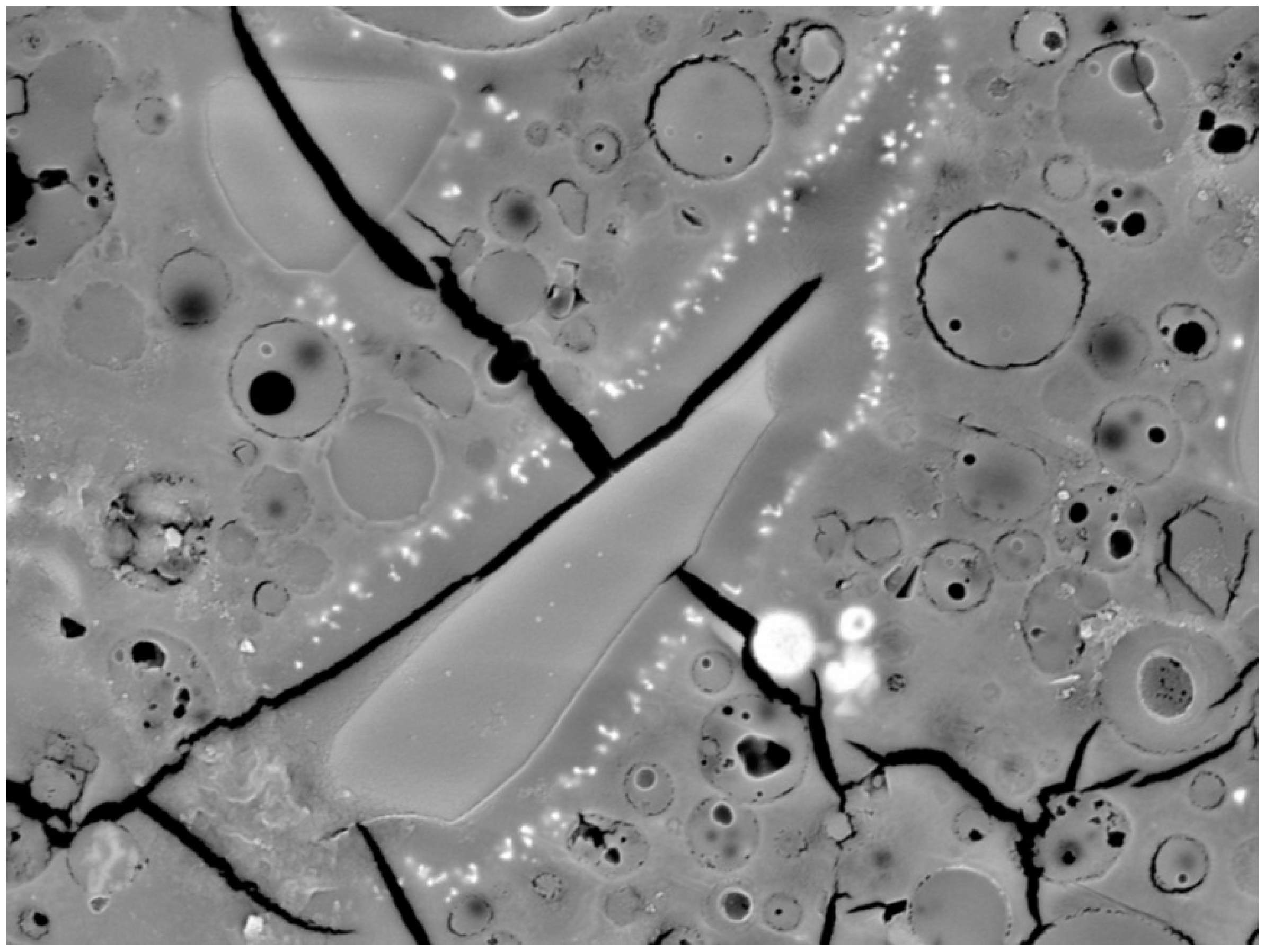

Figure 5.
SEM image of region with fixed Cu, magnitude 7000×.

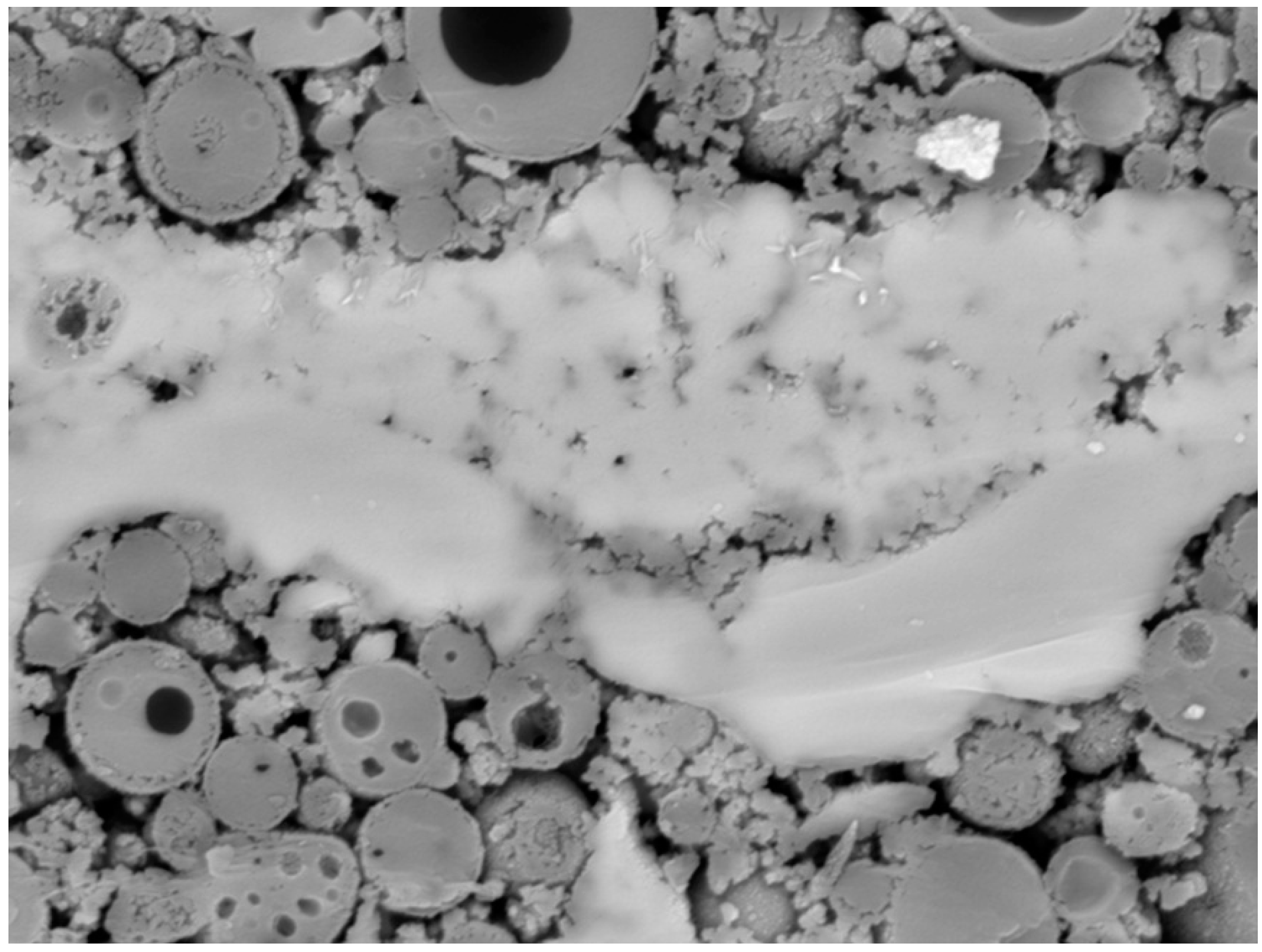

Figure 6.
SEM image of Pb coating on the BFS grain, magnitude 4000×.

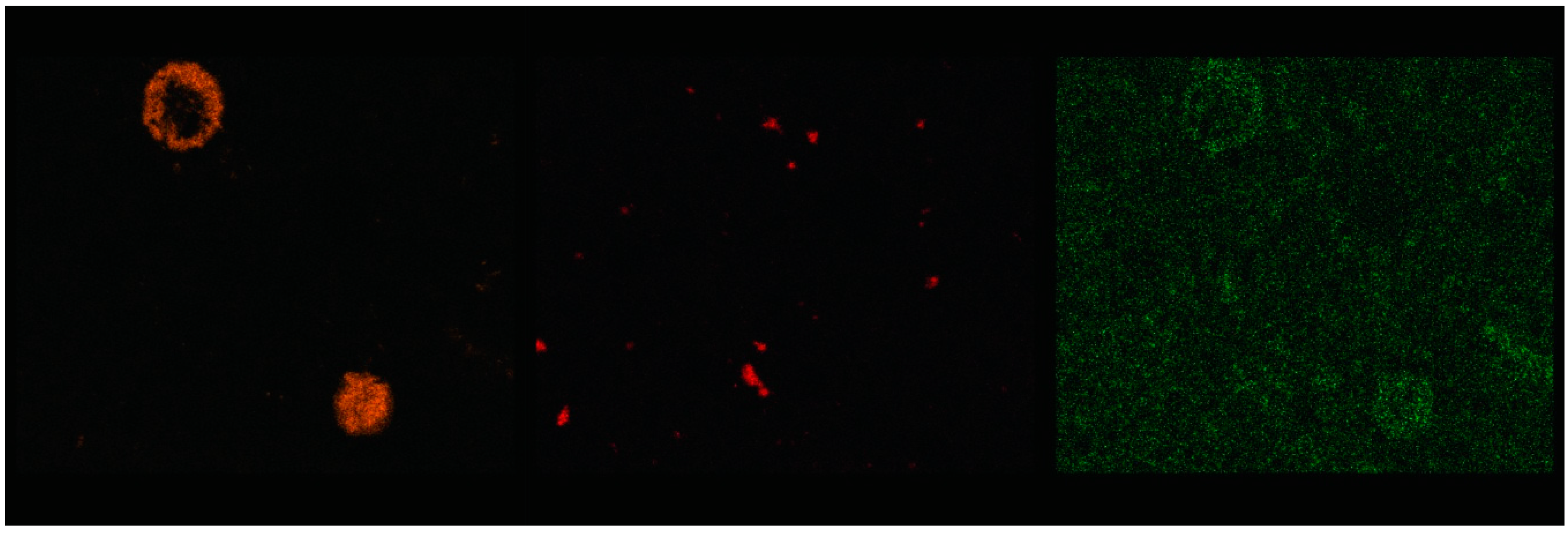

Figure 7.
EDS mapping of Ba, Cu, and Pb in the matrix.

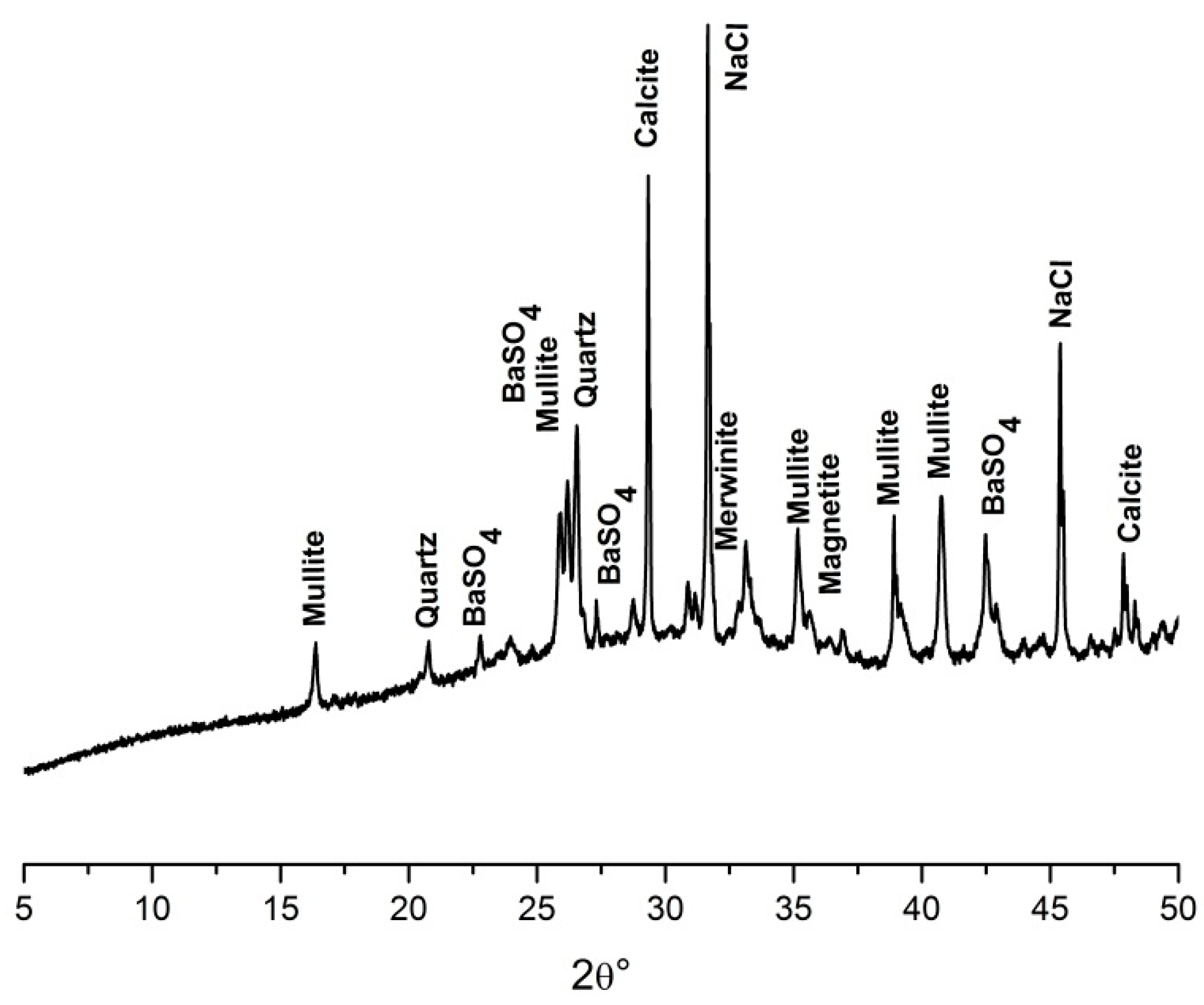

Figure 8.
X-ray powder diffraction (XRD) patterns of the alkali-activated material (AAM) matrix with heavy metals.

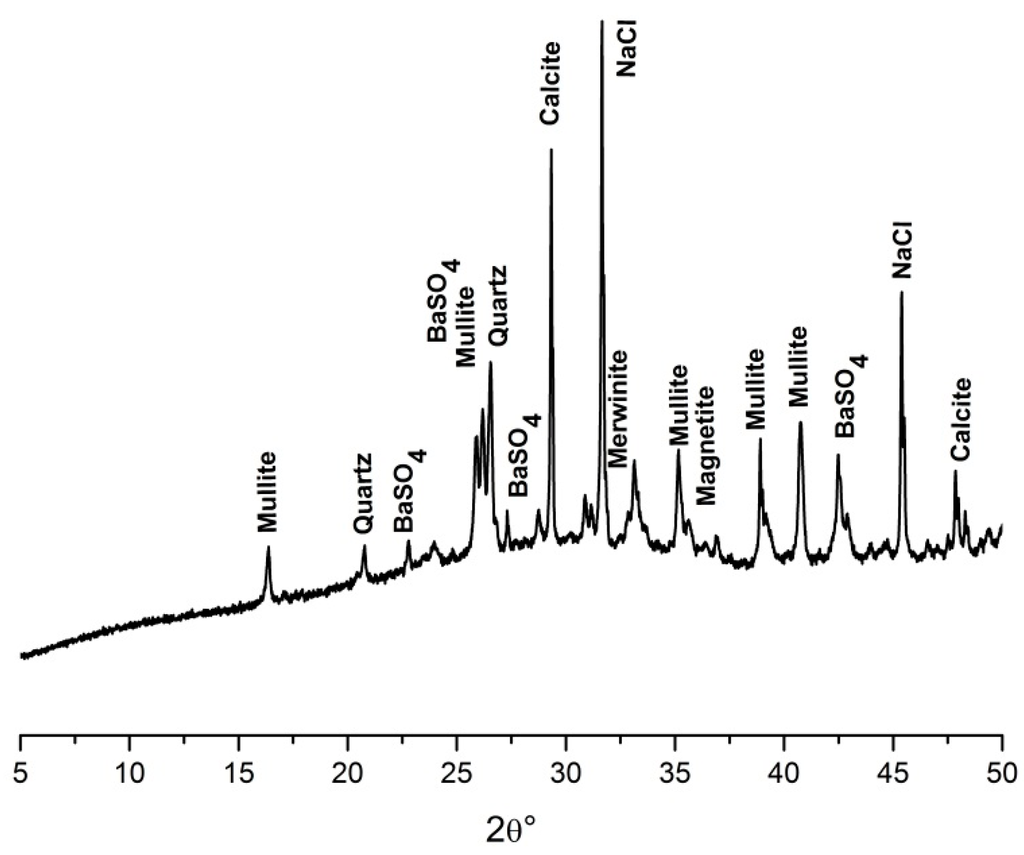

Figure 8.
X-ray powder diffraction (XRD) patterns of the alkali-activated material (AAM) matrix with heavy metals.
| Fly Ash | |||||||||
| SiO2 | Al2O3 | CaO | Na2O | K2O | MgO | SO3 | Fe2O3 | TiO2 | P2O5 |
| 50.30 | 27.70 | 3.84 | 0.76 | 2.67 | 1.15 | 0.87 | 10.40 | 1.45 | 0.28 |
| Blast Furnace Slag | |||||||||
| SiO2 | Al2O3 | CaO | Na2O | K2O | MgO | SO3 | Fe2O3 | TiO2 | MnO |
| 34.70 | 9.05 | 41.1 | 0.41 | 0.90 | 10.5 | 1.46 | 0.25 | 0.96 | 0.55 |
| Slag | Fly ash | NaOH | Na2O.SiO2 | Water | Ba, Pb, Cu |
|---|---|---|---|---|---|
| 15.6 | 57.4 | 6.1 | 6.2 | 12.2 | 2.5 |
| O | Na | Si | S | Cl | K | Ca | Fe | Ba |
|---|---|---|---|---|---|---|---|---|
| 62.86 | 0.59 | 1.96 | 14.44 | 1.76 | 1.12 | 0.32 | 0.59 | 16.36 |
| O | Al | Si | Cl | Ca | Fe | Cu | Pb |
|---|---|---|---|---|---|---|---|
| 55.8 | 0.87 | 6.91 | 1.31 | 0.34 | 0.28 | 33.79 | 0.38 |
| O | Mg | Al | Si | S | K | Ca | Ti | Fe | Cu | Pb |
|---|---|---|---|---|---|---|---|---|---|---|
| 58.36 | 5.48 | 5.64 | 20.08 | 0.58 | 3.29 | 4.25 | 0.28 | 0.57 | 0.42 | 1.04 |
