Continuous Measurements of Temporal and Vertical Variations in Atmospheric CO2 and Its δ13C in and above a Subtropical Plantation

by
Changhua Chen
1,
Xuefa Wen
1,2,3,
Jingyuan Wang
1,* and
Qingjun Guo
1,2
1
Key Laboratory of Ecosystem Network Observation and Modelling, Center for Environmental Remediation, Institute of Geographic Sciences and Natural Resources Research, Chinese Academy of Sciences, Beijing 100101, China
2
College of Resources and Environment, University of Chinese Academy of Sciences, Beijing 100190, China
3
Yanshan Earth Critical Zone and Surface Fluxes Research Station, University of Chinese Academy of Sciences, Beijing 101408, China
*
Author to whom correspondence should be addressed.
Forests 2021, 12(5), 584; https://doi.org/10.3390/f12050584
Submission received: 3 April 2021 / Revised: 3 May 2021 / Accepted: 5 May 2021 / Published: 7 May 2021
(This article belongs to the Special Issue Stable Isotope Applications in Forest Ecosystems)
Browse Figures
Versions Notes

Abstract

:
Atmospheric CO2 dynamics in forest ecosystems are dependent on interactions between photosynthesis, respiration, and turbulent mixing processes; however, the carbon isotopic composition of atmospheric CO2 (δ13C) is not well established due to limited measurement reports. In this study, a seven-inlet profile system with a Picarro analyzer was developed to conduct continuous in situ measurements of CO2 and its δ13C in and above a subtropical plantation from 2015 to 2017. Results showed that ecosystem CO2 concentration was the lowest in the afternoon and reached its peak at dawn, which mirrored variations in its δ13C in and above the canopy. Inverse seasonal variations were apparent between CO2 and its δ13C in and above the canopy, and δ13C was positive during the peak growing season and negative at other times. Diel and seasonal variations in ecosystem CO2 and its δ13C were mainly affected by the vapor pressure deficit, followed by photosynthetic active radiation, temperature, and the enhanced vegetation index in and above the canopy; however, environmental and physiological factors had reverse or no effects near the forest floor. Nocturnal gradients of vertical variations in atmospheric CO2 and its δ13C were greater than diurnal variations due to weak turbulent mixing under more stable atmospheric conditions overnight. These results implicate that photosynthesis and respiration dominated CO2 dynamics above the canopy, while CO2 recycling by photosynthesis and turbulent mixing changed CO2 dynamics in the canopy.

1. Introduction

Forest ecosystems fix approximately one-third of the current anthropogenic CO2 emissions from the atmosphere [1,2]; hence, an accurate assessment of forest carbon sink is important to better understand the global carbon budget [3,4]. The stable carbon isotope composition of ecosystem CO2 (δ13C) is a powerful tool for tracing carbon cycling and its exchange with the atmosphere [5]. CO2 dynamics in forest ecosystems are the results of canopy photosynthesis, respiration of different components (leaf, stem, root, and soil microbes), and turbulent mixing processes [6,7]; however, patterns of δ13C are not well established due to limited measurements, particularly during the day [8]. Higher CO2 concentration is always associated with more negative δ13C of forest air [8,9]. Isotope ratio infrared spectroscopy (IRIS) technology has been used to continuously observe ecosystem CO2 and its δ13C [8,9,10,11], providing insight into the underlying mechanisms of δ13C dynamics in forest ecosystems [12,13].
Biogenic CO2 has a significant imprint on diurnal variations in ecosystem δ13C [14]. Mass discrimination or isotope effects, which will cause changes in isotope abundance, result in isotopic fractionation during chemical, physical and biological processes [15]. Figure 1 shows that photosynthetic discrimination (13Δ) against heavier 13C leads to isotopic enrichment of forest canopy 13CO2 during the daytime [16,17]. Conversely, post-photosynthetic fractionation during plant respiration [14,18], metabolic fractionation from soil microbial respiration [19,20], and diffusion fractionation of soil efflux [21,22] cause isotopic depletion of the ecosystem CO2. The refixation of respired CO2 affects the δ13C of source CO2 during canopy photosynthesis [6]. Furthermore, the troposphere exchanges 12CO2 and 13CO2 with ecosystem air by turbulent mixing [23], which varies the relative contributions of ecosystem photosynthesis and component respiration during the daytime; limited mixing among these component respiration creates vertical stratification of ecosystem CO2 and its δ13C under stable nighttime conditions [24]. However, forest CO2 dynamics in a hilly ecosystem are generally influenced by complex terrain [25]; local flows and weather conditions will also influence on the short-term variations in δ13C of forest CO2.
The response of forest ecosystem CO2 and its δ13C to environmental stress and physiological activity may differ below and within the canopy. Ecosystem photosynthesis, respiration, and turbulent mixing are all associated with variations in canopy structure, temperature, moisture conditions, etc. [26,27]. There are empirical relationships between climate variation and the ecosystem response, which are negatively correlated with soil moisture (SWC) and precipitation, and positively correlated with vapor pressure deficit (VPD), air temperature (Ta), and photosynthetic active radiation (PAR). 13Δ increases with reductions in water content in boreal forest mosses [28], and there is a time lag between carbon isotopic composition of ecosystem respiration (δR) and VPD [29,30,31,32]. However, the relative contributions of ecosystem photosynthesis and respiration and their isotopic signatures vary with phenological activity and environmental disturbance [25,26]; they respond differently to precipitation [33,34] and drought [35,36], suggesting that there may be fundamental differences in the environmental factors and physiological activity at the canopy spatial scale. Some studies reported that δ13C values of forest respiration were significantly correlated with VPD within the canopy [30,31,32,37], and soil moisture near the forest floor [25].
Subtropical forest ecosystems in the East Asian monsoon region have a high CO2 uptake, similar to that of North American and European temperate forests [38]. We developed a multi-inlet 12CO2 and 13CO2 profile system combined with a Picarro analyzer to conduct in situ measurements of atmospheric CO2 and its δ13C in and above the canopy in a subtropical plantation from 2015 to 2017. This study aims to (1) examine the temporal (diel and seasonal) and vertical variations of atmospheric CO2 and its δ13C in and above the forest ecosystem, and (2) elucidate the effects of environmental and physiological factors and atmospheric conditions on temporal and vertical variations.

2. Materials and Methods

2.1. Site Description

Field measurements were conducted at the ChinaFLUX Qianyanzhou site (26°44′52″ N, 115°03′47″ E, elevation 102 m) in Southeastern China. This hilly region is strongly influenced by the subtropical East Asian monsoon climate. The subtropical plantation was planted around 1985 and is dominated by Pinus massoniana Lamb., Pinus elliottii Englem., and Cunninghamia lanceolate Hook., with a canopy height of approximately 16–18 m. The dominant shrubs are Loropetalum chinense Oliv. and Adinandra mellettii Hook.et Am., with canopy heights below 5 m. The herbaceous layer includes Dicranopteris dichotoma (Thunb.) Bernh., Dryopteris peninsulae Kitag., and Woodwardia japonica (L. f.) Sm., with heights below 1 m. The litter layer is present year-round, and has a thickness of approximately 5 cm. The soil type is mainly acid red soil, and the bulk density of the surface soil (0–40 cm) is 1.57 g cm−3. CO2 emissions from soil inorganic carbon were not considered.

2.2. Profile System In Situ Measurements

The mixing ratios of 12CO2 and 13CO2 were measured using a multi-inlet profile system from 14 January 2015 (Figure 1). The multi-inlet profile system was comprised of a Picarro G2201-i CO2 δ13C analyzer (Picarro Inc., Sunnyvale, CA, USA) using wavelength-scanned cavity ring-down spectroscopy, seven air sampling inlets, and three standard gases (Std1, Std2, and Std3). The distribution of sampling inlets at 1.6, 7.6, 11.6, 15.6, 23.6, 31.6, and 39.6 m formed a vertical atmospheric profile below, within, and above the canopy.
In a sampling sequence, the three standard gases were each scanned for five minutes; then, the seven ambient air inlets were selected in turn for three minutes each and scanned 14 times. The standard gases and sampling air were pumped continuously at a flow rate of 0.03 L min−1 into the analyzer and signals were recorded at 0.3 Hz with standard temperature and pressure. Allan variance analysis showed that the G2201-i analyzer had the best precision for CO2 (0.01 ppm) and δ13C (0.01‰) at 7600 s [35]. Some data during the summer of 2017 were missing due to extreme thunderstorm events. A more detailed instrument configuration can be found in the literature [11].

2.3. Calibration of Forest CO2 and Its δ13C

A three-point linear calibration scheme was applied to correct the measured ecosystem atmosphere 12CO2 and 13CO2 and standard gases from 2015 to 2017 [11]. The corrected atmospheric 12CO2 and 13CO2 were then used to calculate atmospheric CO2 and its δ13C as follows:
CO 2 = CO 2 12 + CO 2 13 1 − f
and
δ 13 C = CO 2 13 CO 2 12 R VPDB − 1 × 1000
where CO2 is the total mixing ratio (μmol mol−1), f is the fraction of all CO2 isotopomers (0.00474), δ 13 C represents the delta notation of isotopic mixing ratios (‰), and R VPDB is the standard molar ratio of 0.0111797.
The differences (mean ± SD) between the calibrated and true values of Std1, Std2, and Std3 ranged from −1.63 ± 0.13 to 3.09 ± 0.28 μmol mol−1 for CO2 and from −0.027 ± 0.075 to 0.017 ± 0.048‰ for δ13C (Table 1). The strong performance of the multi-inlet CO2 and its δ13C profile sampling system ensured the long-term stability and accuracy of observations.

2.4. Meteorological Measurements and Atmospheric Conditions

Meteorological measurements were completed with an eddy covariance (EC) flux system which was mounted on a tower at 39.6 m. The EC system was comprised of an open-path CO2/H2O analyzer (Model Li-7500, Licor Inc., Lincoln, NE, USA) and a 3D sonic anemometer (Model CSAT3, Campbell Scientific Inc., Logan, UT, USA). Meteorological measurements from 2015 to 2017 provided the photosynthetic active radiation (PAR), air temperature (Ta), humidity (RH), wind velocity (WS) and direction, precipitation, soil temperature (Ts), and soil moisture (SWC). Meteorological data were averaged at half hourly intervals. More detailed data processing and quality control are provided in [39].
We used two estimates to describe atmospheric stability: the friction wind velocity (u*) and scaled Obukhov length atmospheric stability (ξ, = (z − d)/L). The u* was calculated at a height of 39.6 m using mean horizontal and vertical wind speeds. ξ was determined using the displacement height (d), and the Obukov length (L) was calculated.

2.5. Vegetation and Aridity Indexes and Statistical Analyses

The enhanced vegetation index (EVI) is considered to be a physiological factor of forest carbon flux that is more responsive to leaf area and canopy biophysical characteristics [40]. We obtained 16-EVI data at a spatial resolution of 250 m from the MOD13Q1 and MYD13Q1 product subsets [41], merged the two subsets by time, and then linearly interpolated the data to obtain daily values from 2015 to 2017.
Budyko’s aridity index (AI) was expressed as the ratio of monthly precipitation and potential evapotranspiration, where AI < 1 indicates periods of drought stress [42], and potential evapotranspiration is calculated in the same way as in [43].
Correlations were calculated using the Pearson method to analyze the relationships between environmental and physiological factors and atmospheric CO2 and its δ13C in and above the forest ecosystem. Statistical significance was fixed to p-value < 0.001.

3. Results

3.1. Environmental and Biological Factors

Figure 2 shows seasonal variations of AI, and environmental (PAR, Ta, Ts, VPD, and SWC) and biological factors (EVI) between 2015 and 2017. Averaged across all three years, the AI from July to October was less than 1 under the influence of the subtropical anticyclone, indicating seasonal drought stress during this period (Figure 2a). Environmental factors and vegetation physiological activity varied with season (Figure 2b–f). The three-year averages of PAR, Ta, Ts, VPD, SWC, and EVI were 18.49± 12.35 mol m−2 d−1, 18.54 ± 8.06 °C, 18.20 ± 6.46 °C, 0.41 ± 0.38 KPa, 0.24 ± 0.06 m3 m−3, and 0.36 ± 0.09 m2 m−2, respectively. Annual precipitation was highest in 2015 (1755.8 mm), but its annual SWC was lowest due to intense evaporation.

3.2. Temporal and Vertical Variations of Ecosystem CO2 and Its δ13C

Figure 3 shows the monthly mean diel variation of half hourly ecosystem CO2 and its δ13C below (1.6 and 7.6 m), within (11.6 and 15.6 m) and above (23.6, 31.6, and 39.6 m) the canopy (2015–2017); the original time series of atmospheric CO2 and its δ13C at each individual height are shown in Figures S1 and S2, respectively. Atmospheric CO2 decreases and its δ13C becomes more positive with canopy height; diel CO2 mirrors variations in its δ13C at different canopy heights (Figure 3). The diel pattern of CO2 is lowest in the afternoon (14:00–15:00) and peaks at dawn (5:00–6:00). Conversely, peak δ13C occurred in the afternoon, and was the lowest in the early morning.
The diel patterns of CO2 and its δ13C were more apparent near the forest floor (1.6 m) due to the contribution of soil- and understory-respired CO2 (Figure 3). Differences in mean diel ranges were 0.92 to 290.8 μmol mol−1 for CO2, and 0.0006 to 9.3‰ for δ13C; the largest differences at 1.6 m were 76.25 ± 51.64 μmol mol−1 for mean diel CO2 and −3.03 ± 2.06‰ for mean diel δ13C. Differences in nocturnal CO2 and its δ13C among different canopy heights were greater than daytime differences, especially during the peak growing season (from April to October), which was related to the overnight atmospheric conditions.
Figure 4 shows seasonal variations in daily atmospheric CO2 and its weighted mean δ13C below, within, and above the canopy (2015–2017). Seasonal patterns were more significant at increased canopy height. Variations in CO2 within and above the canopy followed a downward trend in July and August, when forest photosynthesis became more vigorous, and peaked in November and December. Seasonal variations in δ13C mirrored those of CO2 and were more positive during the peak growing season and negative at other times.
Seasonal patterns of CO2 and its δ13C were not apparent below the forest canopy (Figure 4). CO2 recycling from the soil and understory affected the biogenic contributors to forest atmosphere, and potentially changed the seasonal patterns of CO2 and its δ13C below the canopy. Overall, CO2 had a seasonal range of 389.6 to 518.7 μmol mol−1 and δ13C ranged from −12.2‰ to −4.8‰ between 2015 and 2017. Statistics indicated that differences in seasonal CO2 and its δ13C at different canopy heights were greater during the peak growing season compared to other periods in response to environmental stress and physiological activity.

3.3. Effects of Atmospheric Conditions on Variations in Ecosystem CO2 and Its δ13C

We selected a rainy (DOY137–140 in 2015) and drought (DOY215–218 in 2015) period as typical study periods to analyze the impact of different atmospheric conditions during the daytime and overnight. Black areas in Figure 5 show the occurrence of stable conditions (u* < 0.4 m s−1, ξ > 0.1) during the daytime (10:00–16:00) and night (22:00–4:00) for both the rainy and drought periods. Due to weak turbulence in the nocturnal flow, the stable atmospheric conditions overnight lasted longer than during the day for both the rainy and drought periods. However, nocturnal atmospheric conditions were more stable during the rainy period, which might be related to the local circulations in hilly terrain during the drought period.
Figure 6 shows vertical variations in atmospheric CO2, its δ13C, and wind speed (WS) for each day during the rainy and drought periods. Nocturnal gradients of vertical variations in forest ecosystem CO2 and its δ13C were greater than diurnal variations, and daytime ecosystem CO2 throughout the canopy was similar to that of CO2 in the well-mixed atmosphere above the canopy. Vertical variations in ecosystem CO2 and its δ13C during the rainy period were more significant than those in the drought period both during the day and overnight. Moreover, forest ecosystem CO2 increased and its δ13C became more negative as the WS decreased below the canopy because high CO2 from soil autotrophic and heterotrophic respiration was diffused and concentrated near the forest floor.

3.4. Effects of Environmental and Biological Factors on Variations in Ecosystem CO2 and Its δ13C

Figure 7 shows the Pearson correlations of atmospheric CO2 and its δ13C with environmental (PAR, Ta, Ts, VPD, RH, and SWC) and biological factors (EVI) at diel (Figure 7a,b) and seasonal (Figure 7c,d) time scales (2015–2017). Atmospheric CO2 within and above the canopy was significantly negatively correlated with photosynthetically active radiation (PAR), temperature (Ta and Ts), and EVI (p < 0.001) at the diel and seasonal scales, and was positively correlated with moisture conditions (VPD, SWC, and RH). Accordingly, the δ13C of atmospheric CO2 had a significant inverse correlation with these factors. The effects of environmental and biological factors on atmospheric CO2 and its δ13C varied with canopy height. At diel scales, PAR, VPD, and RH had more obvious effects on canopy (15.6 m) CO2 and its δ13C compared to other layers; correlations of other factors at the seasonal scale became stronger with canopy height.
There were reverse effects of temperature (Ta and Ts) and EVI on CO2 and its δ13C near the forest floor (1.6 m), and correlations of PAR and SWC at this layer were low or insignificant (Figure 7). This indicates that the response of forest ecosystem CO2 and its δ13C to environmental stress and physiological activity varies at canopy spatial scales. The overall effects of environmental and biological factors were VPD > RH > PAR > Ta > Ts >SWC for CO2 and its δ13C at the diel scale, and VPD > PAR > Ta > EVI > Ts > SWC for CO2 and VPD > Ta > PAR > Ts > EVI > SWC for δ13C at the seasonal scale.

4. Discussion

4.1. Diel Variations and Effects of δ13C of Ecosystem CO2

The diel cycle of ecosystem atmospheric CO2 and its δ13C essentially reflect short-term variations in ecosystem photosynthesis, respiration, and their related carbon isotopic fractionation and environmental factors. Observed patterns in δ13C of ecosystem CO2 showed distinct diurnal variations in and above a subalpine forest [8]; values of δ13C reached its maximum in the afternoon and minimum in the morning with values ranging from −11.01 to −7.94‰ near the floor of the deciduous forest [10]. Diurnal variations in photosynthetic discrimination (13Δ) in C3 plants generally range from 10 to 35‰ [9,44,45], and high 13Δ values have been measured or modeled at dawn and dusk [44,46]. Ecosystem exchange studies have often assumed that there was no short-term variation in the carbon isotope of ecosystem respiration (δR) between day and night; hence, the intercept of the nightly Keeling plot [47] or the slope of the nightly Miller-Tans plot [48] reflected the daily δR values. However, considering changes in the substrate of autotrophic respiration at the diel scale and the relative contribution of components to ecosystem respiration, some studies have found that there was a more positive trend in the evening and a gradual decrease overnight [30,49], a general pattern trending to negative [50] or positive [51], or no short-term variation in δR [52]. Short-term and diurnal variations ranged from 3 to 10‰ in forest ecosystem respiration [14,53].
There were deviations in the phases of the diel cycle between ecosystem CO2 and its δ13C because of the carbon isotopic disequilibrium (13D = δA − δR) between ecosystem photosynthesis (δA) and δR. The 13D value determined the weights of ecosystem CO2 resulting from isotopic enrichment by 13Δ, and isotopic depletion by post-photosynthetic fractionation in plants and metabolic fractionation from soil microbes. Observational and modeling studies have frequently produced estimates of 13D > 0 at the ecosystem scale [44,45,54], suggesting that isotopic depletion during ecosystem respiration was stronger than the enrichment by 13Δ. Thus, ecosystem δ13C trending to positive would peak earlier than CO2 in the afternoon. Conversely, the maximum diel variation in ecosystem CO2 occurred at dawn (Figure 3), and the minimum of δ13C occurred earlier than the CO2 peaks because the 13Δ values were high in the initial stages of photosynthesis. In summary, the peak and trough of ecosystem δ13C, in theory, occurred earlier than that of CO2 in the diel cycle.

4.2. Seasonal Variations and Effects of δ13C of Ecosystem CO2

Seasonal variations in ecosystem atmospheric CO2 and its δ13C generally reflected seasonal fluctuations of background CO2, ecosystem photosynthesis, and respiration. Since the Industrial Revolution, fossil fuel burning and land use changes have decreased δ13C values in the troposphere CO2, and the increase in 13Δ slows down this declining trend [55,56]. The background values of δ13C of ecosystem CO2 at two typical atmospheric stations in China (Waliguan and Shangdianzi) were more positive in summer than in spring [57]. Meanwhile, there were seasonal variations in ecosystem photosynthesis and respiration. The 13Δ values were obtained by gas exchange measurements and Farquhar’s model [16]. Wingate et al. [9] reported that broad seasonal changes in 13Δ were reflected in the carbon isotopic composition of the stem, soil, and ecosystem in a maritime pine stand (Pinus pinaster Ait.); however, they became decoupled from soil respiration during rainy periods. Similar to seasonal variations in background CO2 [31,58], the seasonal variations in δ13C of forest ecosystem CO2 were more than 7‰ [30,59].
Forest understory provided important contributions to ecosystem respiration [13]; CO2 recycling from the soil and understory changed atmospheric CO2 and its δ13C in the canopy. The mechanisms of seasonal 13Δ are still unclear due to a lack of field observations; however, Choi et al. [60] reported that 13Δ was increased by irrigation due to increased stomatal and/or mesophyll conductance in a loblolly pine stand (Pinus taeda L.), Wingate et al. [9] showed that rain events caused 13Δ to increase above 20‰ in a maritime pine stand (Pinus pinaster Ait.), and another study further indicated that precipitation controlled the latitude distribution of 13Δ across the world [61]. In this study, seasonal variations in ecosystem atmospheric CO2 and its δ13C were affected by VPD, PAR, Ta, and EVI, and there were reverse effects for Ta and EVI near the forest floor (Figure 7). Schaeffer et al. [25] also found stronger correlations between δR within the canopy and VPD, and δR near the ground and SWC in a subalpine coniferous forest. The effects of SWC on ecosystem CO2 and its δ13C were not significant in this study, as forest ecosystems may use the VPD to regulate the effects of moisture conditions on vegetation photosynthesis, or the groundwater buffering of plant uptake [43] to mitigate drought stress.

4.3. Vertical Variations and Effects of δ13C of Ecosystem CO2

Vertical variations in ecosystem CO2 and its δ13C formed the “canopy effect” [24], in which ecosystem CO2 increases, while its δ13C is progressively isotopically depleted towards the forest floor [8,29]. Heterogeneity was apparent in the distribution of ecosystem components and the allocation of resources and environmental factors at the canopy spatial scale [62,63]. Reasons for the vertical profile of δ13C of ecosystem CO2 are as follows: (1) turbulent mixing between canopy CO2 and isotopically enriched CO2 from the troposphere; (2) PAR becomes progressively weaker near the floor, causing an increase in the CO2 concentration ratio in the intercellular space to canopy air (Ci/Ca); thus, 13Δ values are increased [17,64] and δA is depleted; and (3) the isotopic dilution effect of CO2 below the canopy due to soil respiration.
Atmospheric conditions impacted turbulent mixing between the isotopically enriched background CO2 and depleted biogenic CO2. The forest atmosphere under stable nighttime conditions was stratified with poor mixing within and below the canopy, forming a distinct profile structure of forest ecosystem CO2 and its δ13C (Figure 6). The atmospheric boundary layer brought high momentum down to the canopy top under unstable conditions, which impacted the vertical profiles of turbulence moments and integral length scales within and above the canopy [65]. In this study, the subtropical high controlled the drought period; consequently, more sunny days and drainage flow with the development of temperature inversions influenced the transport of CO2 in complex terrain [25]. Furthermore, forest CO2 dynamics are dependent on interactions between photosynthesis, respiration, and turbulent mixing processes (Figure 1). It is likely that photosynthesis and respiration dominated CO2 dynamics above the canopy, while CO2 recycling by photosynthesis and turbulent mixing changed CO2 dynamics in the canopy. Further investigations are needed to quantify the effects of photosynthesis, respiration, and turbulent mixing processes to the forest CO2 dynamics.

5. Conclusions

In this study, we developed a multi-inlet profile system with a Picarro analyzer to continuously measure CO2 and its δ13C below, within, and above the canopy in a subtropical plantation from 2015 to 2017. Diel and seasonal patterns of ecosystem CO2 mirrored variations in δ13C at seven different canopy heights. Temporal variations in ecosystem CO2 and its δ13C were affected by VPD > PAR > T > EVI; however, environmental and physiological factors displayed reverse or no effects near the forest floor. Nocturnal gradients of vertical variations in ecosystem CO2 and its δ13C were greater than diurnal variations due to weak turbulent mixing under stable conditions, and vertical gradients during the rainy period were more significant compared to those during the drought period, possibly due to drainage flow during the drought period.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/f12050584/s1, Figure S1: The original time series of ecosystem CO2 at seven heights in and above a subtropical plantation between 2015 and 2017, Figure S2: The original time series of δ13C of ecosystem CO2 at seven heights in and above a subtropical plantation between 2015 and 2017.

Author Contributions

C.C. and X.W. contributed to fieldwork; C.C. analyzed all data and prepared the manuscript. C.C., X.W., J.W., and Q.G. reviewed manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Natural Science Foundation of China (31901133, 41830860, and 42077302) and China Postdoctoral Science Foundation (2019M660779).

Data Availability Statement

The datasets generated and/or analyzed during the current study are available from the corresponding author on reasonable request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Grassi, G.; House, J.; Dentener, F.; Federici, S.; den Elzen, M.; Penman, J. The key role of forests in meeting climate targets requires science for credible mitigation. Nat. Clim. Chang. 2017, 7, 220–226. [Google Scholar] [CrossRef]
  2. Pan, Y.D.; Birdsey, R.A.; Fang, J.; Houghton, R.; Kauppi, P.E.; Kurz, W.A.; Phillips, O.L.; Shvidenko, A.; Lewis, S.L.; Canadell, J.G.; et al. A Large and Persistent Carbon Sink in the World’s Forests. Science 2011, 333, 988–993. [Google Scholar] [CrossRef] [Green Version]
  3. Le Quere, C.; Peters, G.P.; Andres, R.J.; Andrew, R.M.; Boden, T.A.; Ciais, P.; Friedlingstein, P.; Houghton, R.A.; Marland, G.; Moriarty, R.; et al. Global carbon budget 2013. Earth Syst. Sci. Data 2014, 6, 235–263. [Google Scholar] [CrossRef] [Green Version]
  4. Walden, L.L.; Fontaine, J.B.; Ruthrof, K.X.; Matusick, G.; Harper, R.J.; Hardy, G.E.S.J. Carbon consequences of drought differ in forests that resprout. Glob. Chang. Biol. 2019, 25, 1653–1664. [Google Scholar] [CrossRef]
  5. Flanagan, L.B.; Ehleringer, A.R. Ecosystem-atmosphere CO2 exchange: Interpreting signals of change using stable isotope ratios. Trends Ecol. Evol. 1998, 13, 10–14. [Google Scholar] [CrossRef]
  6. Sternberg, L.D.L.O. A Model to Estimate Carbon Dioxide Recycling in Forests Using 13C/12C Ratios and Concentrations of Ambient Carbon-Dioxide. Agric. For. Meteorol. 1989, 48, 163–173. [Google Scholar] [CrossRef]
  7. Lloyd, J.; Kruijt, B.; Hollinger, D.Y.; Grace, J.; Francey, R.J.; Wong, S.C.; Kelliher, F.M.; Miranda, A.C.; Farquhar, G.D.; Gash, J.H.C.; et al. Vegetation effects on the isotopic composition of atmospheric CO2 at local and regional scales: Theoretical aspects and a comparison between rain forest in amazonia and a boreal forest in Siberia. Aust. J. Plant Physiol. 1996, 23, 371–399. [Google Scholar] [CrossRef]
  8. Bowling, D.R.; Burns, S.P.; Conway, T.J.; Monson, R.K.; White, J.W.C. Extensive observations of CO2 carbon isotope content in and above a high-elevation subalpine forest. Global Biogeochem. Cycles 2005, 19. [Google Scholar] [CrossRef]
  9. Santos, E.; Wagner-Riddle, C.; Lee, X.; Warland, J.; Brown, S.; Staebler, R.; Bartlett, P.; Kim, K. Use of the isotope flux ratio approach to investigate the C18O16O and 13CO2 exchange near the floor of a temperate deciduous forest. Biogeosciences 2012, 9, 2385–2399. [Google Scholar] [CrossRef] [Green Version]
  10. Wingate, L.; Ogee, J.; Burlett, R.; Bosc, A.; Devaux, M.; Grace, J.; Loustau, D.; Gessler, A. Photosynthetic carbon isotope discrimination and its relationship to the carbon isotope signals of stem, soil and ecosystem respiration. New Phytol. 2010, 188, 576–589. [Google Scholar] [CrossRef]
  11. Chen, C.; Pang, J.; Wei, J.; Wen, X.; Sun, X. Inter-comparison of three models for δ13C of respiration with four regression approaches. Agric. For. Meteorol. 2017, 247, 229–239. [Google Scholar] [CrossRef]
  12. Braendholt, A.; Ibrom, A.; Steenberg Larsen, K.; Pilegaard, K. Partitioning of ecosystem respiration in a beech forest. Agric. For. Meteorol. 2018, 252, 88–98. [Google Scholar] [CrossRef] [Green Version]
  13. Paul-Limoges, E.; Wolf, S.; Eugster, W.; Hortnagl, L.; Buchmann, N. Below-canopy contributions to ecosystem CO2 fluxes in a temperate mixed forest in Switzerland. Agric. For. Meteorol. 2017, 247, 582–596. [Google Scholar] [CrossRef] [Green Version]
  14. Brüggemann, N.; Gessler, A.; Kayler, Z.; Keel, S.G.; Badeck, F.; Barthel, M.; Boeckx, P.; Buchmann, N.; Brugnoli, E.; Esperschutz, J.; et al. Carbon allocation and carbon isotope fluxes in the plant-soil-atmosphere continuum: A review. Biogeosciences 2011, 8, 3457–3489. [Google Scholar] [CrossRef] [Green Version]
  15. Meier-Augenstein, W. Isotope Effects, Mass Discrimination and Isotopic Fractionation. In Stable Isotope Forensics; John Wiley & Sons: Hoboken, NJ, USA, 2010; pp. 10–15. [Google Scholar]
  16. Badeck, F.W.; Tcherkez, G.; Nogues, S.; Piel, C.; Ghashghaie, J. Post-photo synthetic fractionation of stable carbon isotopes between plant organs—A widespread phenomenon. Rapid Commun. Mass Spectrom. 2005, 19, 1381–1391. [Google Scholar] [CrossRef]
  17. Farquhar, G.D.; O’Leary, M.H.; Berry, J.A. On the Relationship Between Carbon Isotope Discrimination and the Intercellular Carbon Dioxide Concentration in Leaves. Aust. J. Plant Physiol. 1982, 9, 121. [Google Scholar] [CrossRef]
  18. Von Caemmerer, S.; Millgate, A.; Farquhar, G.D.; Furbank, R.T. Reduction of ribulose-1,5-bisphosphate carboxylase/oxygenase by antisense RNA in the C4 plant Flaveria bidentis leads to reduced assimilation rates and increased carbon isotope discrimination. Plant Physiol. 1997, 113, 469–477. [Google Scholar] [CrossRef] [Green Version]
  19. Werner, C.; Gessler, A. Diel variations in the carbon isotope composition of respired CO2 and associated carbon sources: A review of dynamics and mechanisms. Biogeosciences 2011, 8, 2437–2459. [Google Scholar] [CrossRef] [Green Version]
  20. Apostel, C.; Herschbach, J.; Bore, E.K.; Spielvogel, S.; Kuzyakov, Y.; Dippold, M.A. Food for microorganisms: Position-specific 13C labeling and 13C-PLFA analysis reveals preferences for sorbed or necromass C. Geoderma 2018, 312, 86–94. [Google Scholar] [CrossRef]
  21. Moyes, A.B.; Gaines, S.J.; Siegwolf, R.T.W.; Bowling, D.R. Diffusive fractionation complicates isotopic partitioning of autotrophic and heterotrophic sources of soil respiration. Plant Cell Environ. 2010, 33, 1804–1819. [Google Scholar] [CrossRef]
  22. Van Asperen, H.; Warneke, T.; Sabbatini, S.; Hopker, M.; Nicolini, G.; Chiti, T.; Papale, D.; Bohm, M.; Notholt, J. Diel variation in isotopic composition of soil respiratory CO2 fluxes: The role of non-steady state conditions. Agric. For. Meteorol. 2017, 234, 95–105. [Google Scholar] [CrossRef]
  23. Zappa, C.J.; McGillis, W.R.; Raymond, P.A.; Edson, J.B.; Hintsa, E.J.; Zemmelink, H.J.; Dacey, J.W.H.; Ho, D.T. Environmental turbulent mixing controls on air-water gas exchange in marine and aquatic systems. Geophys Res. Lett. 2007, 34. [Google Scholar] [CrossRef] [Green Version]
  24. Martinelli, L.A.; Almeida, S.; Brown, I.F.; Moreira, M.Z.; Victoria, R.L.; Sternberg, L.S.L.; Ferreira, C.A.C.; Thomas, W.W. Stable carbon isotope ratio of tree leaves, boles and fine litter in a tropical forest in Rondonia, Brazil. Oecologia 1998, 114, 170–179. [Google Scholar] [CrossRef]
  25. Schaeffer, S.M.; Anderson, D.E.; Burns, S.P.; Monson, R.K.; Sun, J.; Bowling, D.R. Canopy structure and atmospheric flows in relation to the delta 13C of respired CO2 in a subalpine coniferous forest. Agric. For. Meteorol. 2008, 148, 592–605. [Google Scholar] [CrossRef]
  26. Migliavacca, M.; Reichstein, M.; Richardson, A.D.; Mahecha, M.D.; Cremonese, E.; Delpierre, N.; Galvagno, M.; Law, B.E.; Wohlfahrt, G.; Black, T.A.; et al. Influence of physiological phenology on the seasonal pattern of ecosystem respiration in deciduous forests. Glob. Chang. Biol. 2015, 21, 363–376. [Google Scholar] [CrossRef] [PubMed]
  27. Buchmann, N.; Kao, W.Y.; Ehleringer, J.R. Carbon dioxide concentrations within forest canopies—Variation with time, stand structure, and vegetation type. Glob. Chang. Biol. 1996, 2, 421–432. [Google Scholar] [CrossRef]
  28. Williams, T.G.; Flanagan, L.B. Effect of changes in water content on photosynthesis, transpiration and discrimination against 13CO2 and C18O16O in Pleurozium and Sphagnum. Oecologia 1996, 108, 38–46. [Google Scholar] [CrossRef] [PubMed]
  29. Riveros-Iregui, D.A.; Hu, J.; Burns, S.P.; Bowling, D.R.; Monson, R.K. An interannual assessment of the relationship between the stable carbon isotopic composition of ecosystem respiration and climate in a high-elevation subalpine forest. J. Geophys. Res. Biogeosci. 2011, 116. [Google Scholar] [CrossRef] [Green Version]
  30. Werner, C.; Unger, S.; Pereira, J.S.; Maia, R.; David, T.S.; Kurz-Besson, K.; David, J.S.; Maguas, C. Importance of short-term dynamics in carbon isotope ratios of ecosystem respiration (δ13C) in a Mediterranean oak woodland and linkage to environmental factors. New Phytol. 2006, 172, 330–346. [Google Scholar] [CrossRef]
  31. Shim, J.H.; Powers, H.H.; Pereira, J.S.; Maia, R.; David, T.S.; Kurz-Besson, C.; David, J.S.; Maguas, C. The role of interannual, seasonal, and synoptic climate on the carbon isotope ratio of ecosystem respiration at a semiarid woodland. Glob. Chang. Biol. 2011, 17, 2584–2600. [Google Scholar] [CrossRef]
  32. Ekblad, A.; Bostrom, B.; Holm, A.; Comstedt, D. Forest soil respiration rate and δ13C is regulated by recent above ground weather conditions. Oecologia 2005, 143, 136–142. [Google Scholar] [CrossRef]
  33. Chen, J.; Luo, Y.Q.; Xia, J.; Shi, Z.; Jiang, L.; Niu, S.; Zhou, X.; Cao, J. Differential responses of ecosystem respiration components to experimental warming in a meadow grassland on the Tibetan Plateau. Agric. For. Meteorol. 2016, 220, 21–29. [Google Scholar] [CrossRef] [Green Version]
  34. Dorrepaal, E.; Toet, S.; van Logtestijn, R.S.P.; Swart, E.; van de Weg, M.J.; Callaghan, T.V.; Aerts, T. Carbon respiration from subsurface peat accelerated by climate warming in the subarctic. Nature 2009, 460, 616–619. [Google Scholar] [CrossRef]
  35. Miao, G.F.; Noormets, A.; Domec, J.-C.; Fuentes, M.; Trettin, C.C.; Sun, G.; McNulty, S.G.; King, J.S. Hydrology and microtopography control carbon dynamics in wetlands: Implications in partitioning ecosystem respiration in a coastal plain forested wetland. Agric. Forest Meteorol. 2017, 247, 343–355. [Google Scholar] [CrossRef]
  36. Doughty, C.E.; Metcalfe, D.B.; Girardin, C.A.J.; Farfan Amezquita, F.; Galiano Carbera, D.; Huaraca Huasco, W.; Silva-Espejo, J.E.; Araujo-Murakami, A.; da Costa, M.C.; Rocha, W.; et al. Drought impact on forest carbon dynamics and fluxes in Amazonia. Nature 2015, 519, 78–82. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Pang, J.P.; Wen, X.F.; Sun, X.; Huang, K. Intercomparison of two cavity ring-down spectroscopy analyzers for atmospheric 13CO2/12CO2 measurement. Atmos. Meas. Tech. 2016, 9, 3879–3891. [Google Scholar] [CrossRef] [Green Version]
  38. Yu, G.R.; Chen, Z.; Peng, C.; Ciais, P.; Wang, Q.; Li, X.; Zhu, X. High carbon dioxide uptake by subtropical forest ecosystems in the East Asian monsoon region. Proc. Natl. Acad. Sci. USA 2014, 111, 4910–4915. [Google Scholar] [CrossRef] [Green Version]
  39. Wen, X.F.; Wang, H.M.; Wang, J.-L.; Yu, G.-R.; Sun, X.-M. Ecosystem carbon exchanges of a subtropical evergreen coniferous plantation subjected to seasonal drought, 2003–2007. Biogeosciences 2010, 7, 357–369. [Google Scholar] [CrossRef] [Green Version]
  40. Huete, A.; Didan, K.; Miura, T.; Rodriguez, E.P.; Gao, X.; Ferreira, L.G. Overview of the radiometric and biophysical performance of the MODIS vegetation indices. Remote Sens. Environ. 2002, 83, 195–213. [Google Scholar] [CrossRef]
  41. The Oak Ridge National Laboratory Distributed Active Archive Center (ORNL DAAC). MODIS and VIIRS Land Products Global Subsetting and Visualization Tool. 2018. Available online: https://daac.ornl.gov/cgi-bin/dsviewer.pl?ds_id=1379 (accessed on 13 November 2020).
  42. Budyko, M.I. Climate and Life; Academic Press: New York, NY, USA, 1974. [Google Scholar]
  43. Yang, B.; Wen, X.; Sun, X. Seasonal variations in depth of water uptake for a subtropical coniferous plantation subjected to drought in an East Asian monsoon region. Agric. For. Meteorol. 2015, 201, 218–228. [Google Scholar] [CrossRef]
  44. Chen, C.; Wei, J.; Wen, X.; Sun, X.; Guo, Q. Photosynthetic Carbon Isotope Discrimination and Effects on Daytime NEE Partitioning in a Subtropical Mixed Conifer Plantation. Agric. For. Meteorol. 2019, 272, 143–155. [Google Scholar] [CrossRef]
  45. Zobitz, J.M.; Burns, S.P.; Reichstein, M.; Bowling, D.R. Partitioning net ecosystem carbon exchange and the carbon isotopic disequilibrium in a subalpine forest. Glob. Chang. Biol. 2008, 14, 1785–1800. [Google Scholar] [CrossRef]
  46. Wingate, L.; Seibt, U.; Moncrieff, J.B.; Jarvis, P.G.; Lloyd, J. Variations in 13C discrimination during CO2 exchange by Picea sitchensis branches in the field. Plant Cell Environ. 2007, 30, 600–616. [Google Scholar] [CrossRef]
  47. Keeling, C.D. The Concentration and Isotopic Abundances of Atmospheric Carbon Dioxide in Rural Areas. Geochim. Cosmochim. Acta 1958, 13, 322–334. [Google Scholar] [CrossRef]
  48. Miller, J.B.; Tans, P.P.; White, J.W.C.; Conway, T.J.; Vaughn, B.W. The atmospheric signal of terrestrial carbon isotopic discrimination and its implication for partitioning carbon fluxes. Tellus B Chem. Phys. Meteorol. 2003, 55, 197–206. [Google Scholar] [CrossRef]
  49. Bowling, D.R.; Sargent, S.D.; Tanner, B.D.; Ehleringer, J.R. Tunable diode laser absorption spectroscopy for stable isotope studies of ecosystem-atmosphere CO2 exchange. Agric. For. Meteorol. 2003, 118, 1–19. [Google Scholar] [CrossRef]
  50. Zhang, J.; Griffis, T.J.; Baker, J.M. Using continuous stable isotope measurements to partition net ecosystem CO2 exchange. Plant Cell Environ. 2006, 29, 483–496. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  51. Unger, S.; Maguas, C.; Pereira, J.S.; Aires, L.M.; David, T.S.; Werner, C. Disentangling drought-induced variation in ecosystem and soil respiration using stable carbon isotopes. Oecologia 2010, 163, 1043–1057. [Google Scholar] [CrossRef] [PubMed]
  52. Kodama, N.; Barnard, R.L.; Salmon, Y.; Weston, C.; Ferrio, J.P.; Holst, J.; Werner, R.A.; Saurer, M.; Rennenberg, H.; Buchmann, N.; et al. Temporal dynamics of the carbon isotope composition in a Pinus sylvestris stand: From newly assimilated organic carbon to respired carbon dioxide. Oecologia 2008, 156, 737–750. [Google Scholar] [CrossRef]
  53. Sun, W.; Resco, V.; Williams, D.G. Environmental and physiological controls on the carbon isotope composition of CO2 respired by leaves and roots of a C3 woody legume (Prosopis velutina) and a C4 perennial grass (Sporobolus wrightii). Plant Cell Environ. 2012, 35, 567–577. [Google Scholar] [CrossRef]
  54. Bowling, D.R.; Ballantyne, A.P.; Miller, J.B.; Burns, S.P.; Conway, T.J.; Menzer, O.; Stephens, O.O.; Vaughn, B.H. Ecological processes dominate the 13C land disequilibrium in a Rocky Mountain subalpine forest. Glob. Biogeochem. Cycles 2014, 28. [Google Scholar] [CrossRef]
  55. Graven, H.; Keeling, R.F.; Rogelj, J. Changes to Carbon Isotopes in Atmospheric CO2 Over the Industrial Era and into the Future. Glob. Biogeochem. Cycles 2020, 34. [Google Scholar] [CrossRef] [PubMed]
  56. Graven, H.; Allison, C.E.; Etheridge, D.M.; Hammer, S.; Keeling, R.F.; Levin, I.; Meijer, H.A.J.; Rubino, M.; Tans, P.P.; Trudinger, C.M.; et al. Compiled records of carbon isotopes in atmospheric CO2 for historical simulations in CMIP6. Geosci. Model Dev. 2017, 10, 4405–4417. [Google Scholar] [CrossRef] [Green Version]
  57. Liu, L.; Zhou, L.; Vaughn, B.; Miller, J.B.; Brand, W.A.; Rothe, M.; Xia, L. Background variations of atmospheric CO2 and carbon-stable isotopes at Waliguan and Shangdianzi stations in China. J. Geophys. Res. Atmos. 2014, 119, 5602–5612. [Google Scholar] [CrossRef]
  58. Scartazza, A.; Mata, C.; Matteucci, G.; Yakir, D.; Moscatello, S.; Brugnoli, E. Comparisons of δ13C of photosynthetic products and ecosystem respiratory CO2 and their responses to seasonal climate variability. Oecologia 2004, 140, 340–351. [Google Scholar] [CrossRef] [PubMed]
  59. McDowell, N.G.; Bowling, D.R.; Schauer, A.; Irvine, J.; Bond, B.J.; Law, B.E.; Ehleringer, J.R. Associations between carbon isotope ratios of ecosystem respiration, water availability and canopy conductance. Glob. Chang. Biol. 2004, 10, 1767–1784. [Google Scholar] [CrossRef]
  60. Choi, W.J.; Chang, S.X.; Allen, H.L.; Kelting, D.L.; Ro, H.-M. Irrigation and fertilization effects on foliar and soil carbon and nitrogen isotope ratios in a loblolly pine stand. For. Ecol. Manag. 2005, 213, 90–101. [Google Scholar] [CrossRef]
  61. Basu, S.; Ghosh, S.; Sanyal, P. Spatial heterogeneity in the relationship between precipitation and carbon isotopic discrimination in C3 plants: Inferences from a global compilation. Glob. Planet. Chang. 2019, 176, 123–131. [Google Scholar] [CrossRef]
  62. Ghashghaie, J.; Badeck, F.W. Opposite carbon isotope discrimination during dark respiration in leaves versus roots—A review. New Phytol. 2014, 201, 751–769. [Google Scholar] [CrossRef]
  63. Wegener, F.; Beyschlag, W.; Werner, C. Dynamic carbon allocation into source and sink tissues determine within-plant differences in carbon isotope ratios. Funct. Plant Biol. 2015, 42, 620–629. [Google Scholar] [CrossRef] [Green Version]
  64. Brooks, A.; Farquhar, G.D. Effect of Temperature on the CO2/O2 Specificity of Ribulose-1,5-Bisphosphate Carboxylase Oxygenase and the Rate of Respiration in the Light—Estimates from Gas-Exchange Measurements on Spinach. Planta 1985, 165, 397–406. [Google Scholar] [CrossRef] [PubMed]
  65. Sullivan, P.P.; Patton, E.G.; Shaw, R.H.; Finnigan, J.J.; Weil, J.C. Atmospheric Stability Influences on Coupled Boundary Layer and Canopy Turbulence. J. Atmos. Sci. 2016, 73, 1621–1647. [Google Scholar]
Forests 12 00584 g001 550

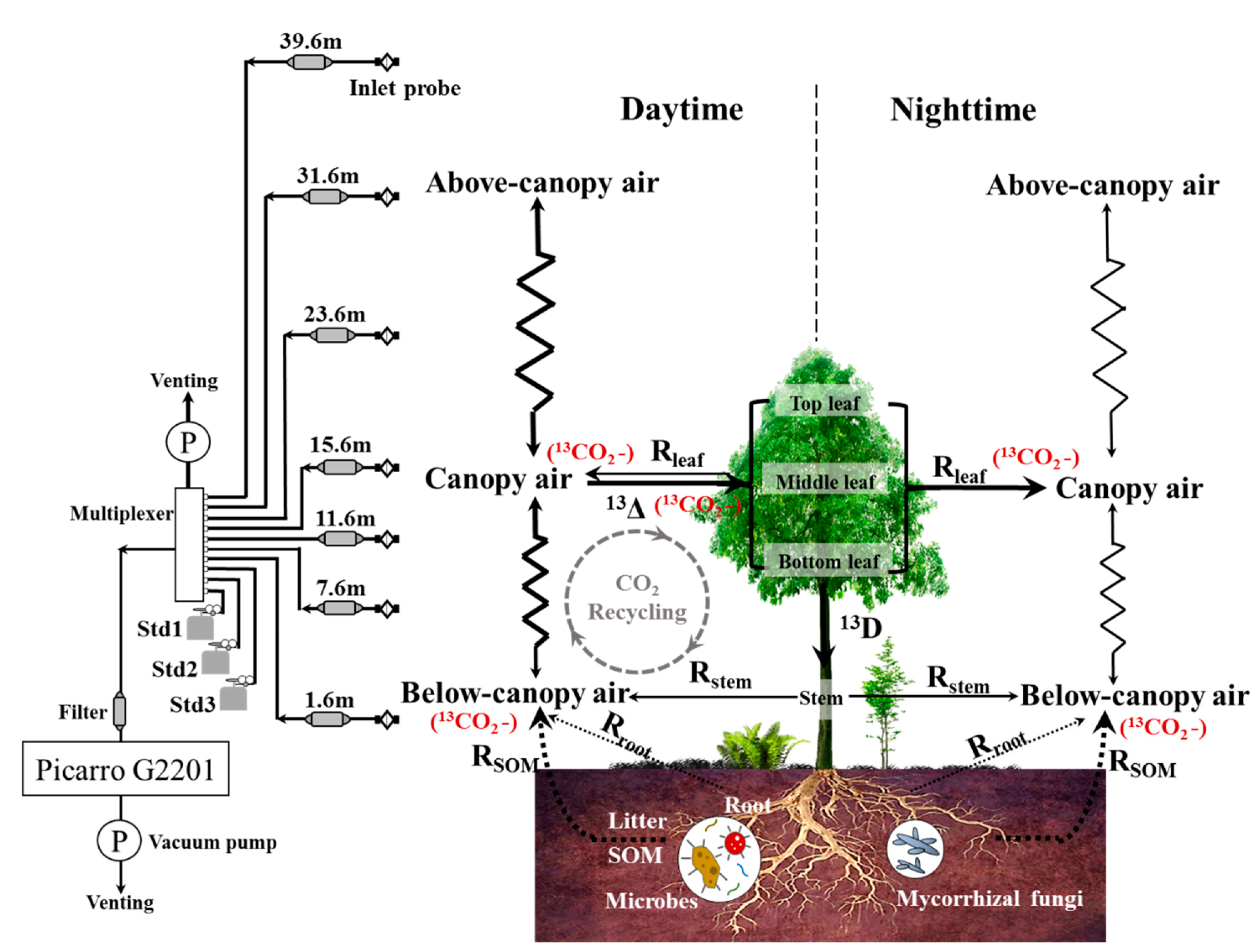

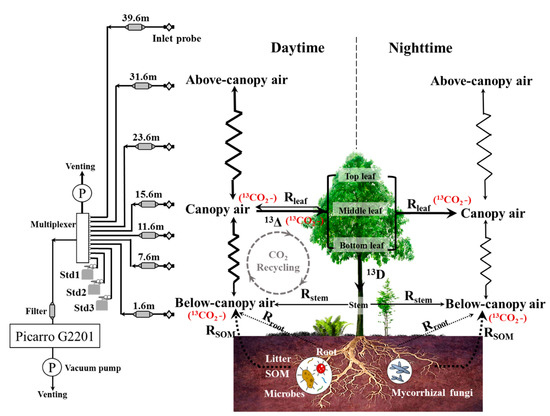

Figure 1. The processes contributing to forest CO2 and its stable carbon isotope (δ13C), and the multi-inlet profile system used to sample CO2 and its δ13C in and above the canopy. 13Δ represents photosynthetic carbon isotope discrimination, R represents the respiration of different components, and 13D represents the carbon isotopic disequilibrium between ecosystem photosynthesis and respiration. SOM represents soil organic matter. The gray dashed lines represent the recycling of respired ecosystem CO2 by photosynthesis, black broken lines represent turbulent mixing, and black dotted lines represent the CO2 diffusion of soil respiration ignoring chemoautotrophic and anaplerotic fixation. Std1, Std2, and Std3 represent three standard gases of the profile system. Picarro G2201 represents the Picarro G2201-i CO2 δ13C analyzer (Picarro Inc., Sunnyvale, CA, USA).
Figure 1. The processes contributing to forest CO2 and its stable carbon isotope (δ13C), and the multi-inlet profile system used to sample CO2 and its δ13C in and above the canopy. 13Δ represents photosynthetic carbon isotope discrimination, R represents the respiration of different components, and 13D represents the carbon isotopic disequilibrium between ecosystem photosynthesis and respiration. SOM represents soil organic matter. The gray dashed lines represent the recycling of respired ecosystem CO2 by photosynthesis, black broken lines represent turbulent mixing, and black dotted lines represent the CO2 diffusion of soil respiration ignoring chemoautotrophic and anaplerotic fixation. Std1, Std2, and Std3 represent three standard gases of the profile system. Picarro G2201 represents the Picarro G2201-i CO2 δ13C analyzer (Picarro Inc., Sunnyvale, CA, USA).
Forests 12 00584 g001
Forests 12 00584 g002 550

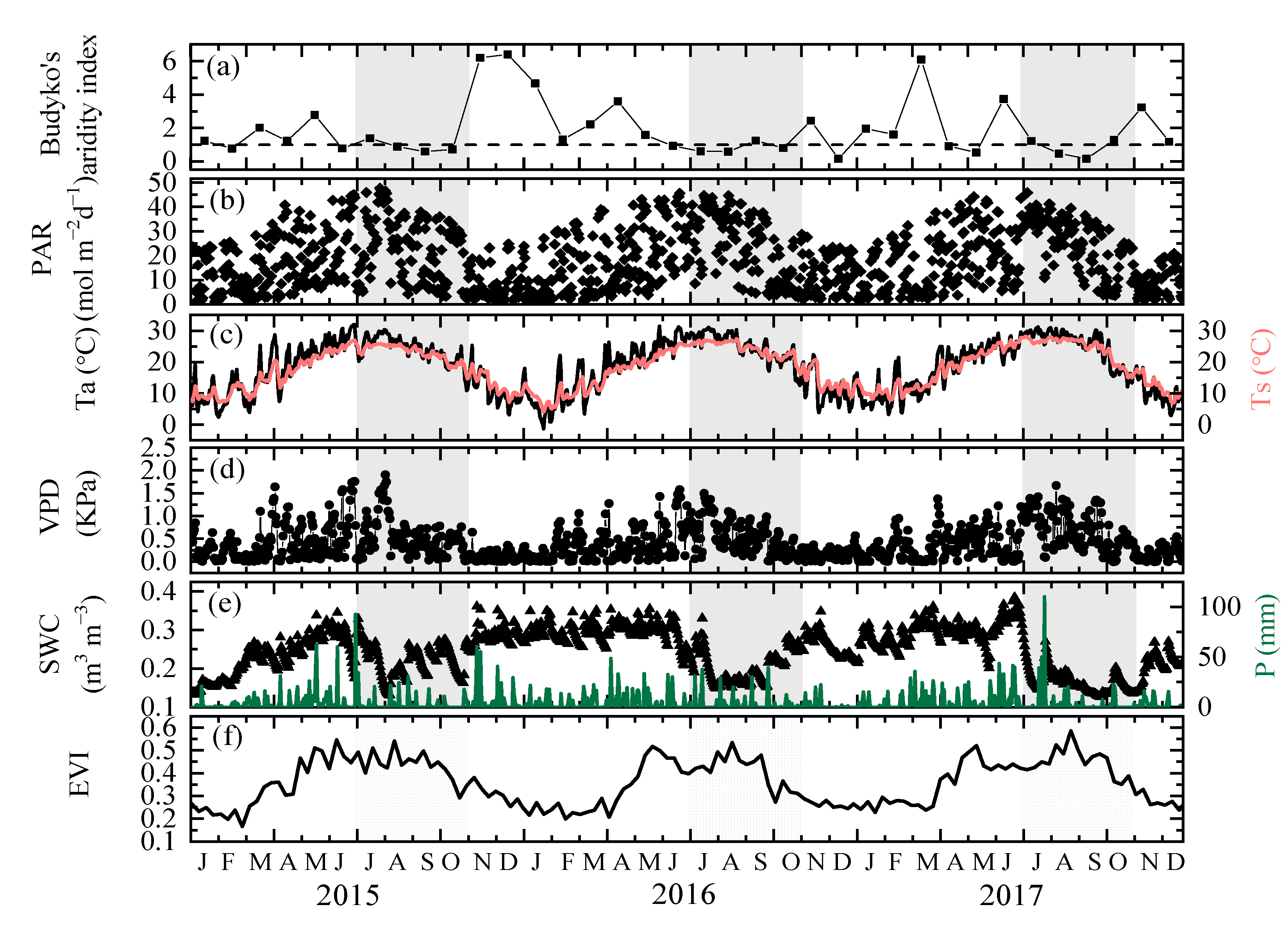

Figure 2. Seasonal variations in monthly (a) Budyko’s aridity index (AI), daily (b) photosynthetically active radiation at a height of 39.6 m (PAR), (c) canopy air temperature at height of 11.6 m (Ta) and soil temperature at a depth of 5 cm (Ts), (d) atmospheric vapor pressure deficit (VPD) at height of 11.6 m, (e) soil moisture at a depth of 5cm (SWC) and precipitation, and (f) the enhanced vegetation index (EVI) between 2015 and 2017. Gray areas represent seasonal drought periods (July−October) based on the AI values.
Figure 2. Seasonal variations in monthly (a) Budyko’s aridity index (AI), daily (b) photosynthetically active radiation at a height of 39.6 m (PAR), (c) canopy air temperature at height of 11.6 m (Ta) and soil temperature at a depth of 5 cm (Ts), (d) atmospheric vapor pressure deficit (VPD) at height of 11.6 m, (e) soil moisture at a depth of 5cm (SWC) and precipitation, and (f) the enhanced vegetation index (EVI) between 2015 and 2017. Gray areas represent seasonal drought periods (July−October) based on the AI values.
Forests 12 00584 g002
Forests 12 00584 g003 550

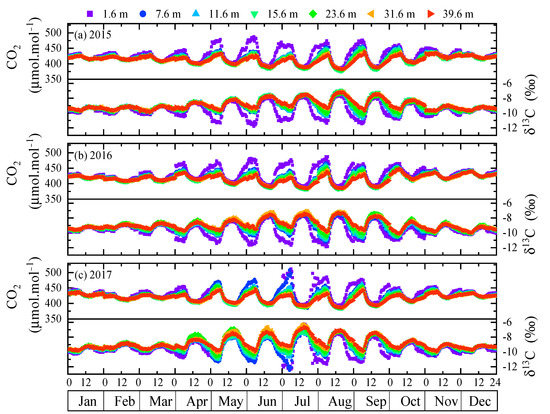

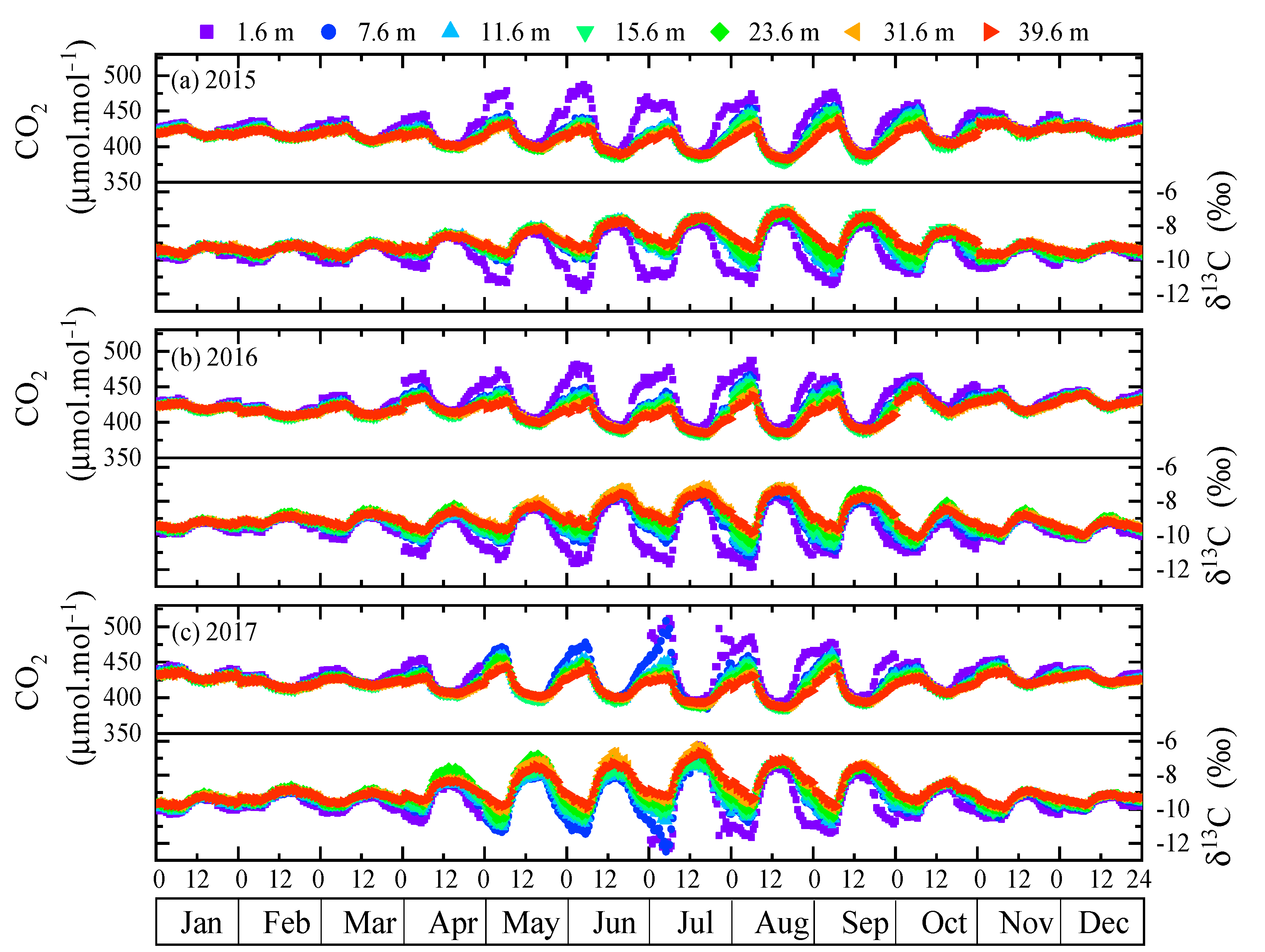

Figure 3. Monthly mean diel variations of ecosystem CO2 and its δ13C below (1.6 and 7.6 m), within (11.6 and 15.6 m) and above (23.6, 31.6, and 39.6 m) the canopy (2015–2017). (a–c) are results of 2015, 2016, and 2017, respectively.
Figure 3. Monthly mean diel variations of ecosystem CO2 and its δ13C below (1.6 and 7.6 m), within (11.6 and 15.6 m) and above (23.6, 31.6, and 39.6 m) the canopy (2015–2017). (a–c) are results of 2015, 2016, and 2017, respectively.
Forests 12 00584 g003
Forests 12 00584 g004 550

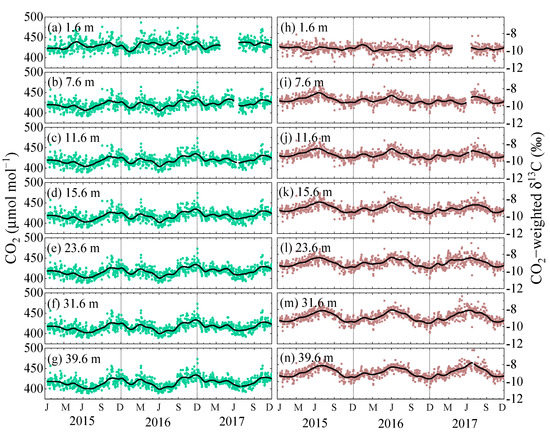

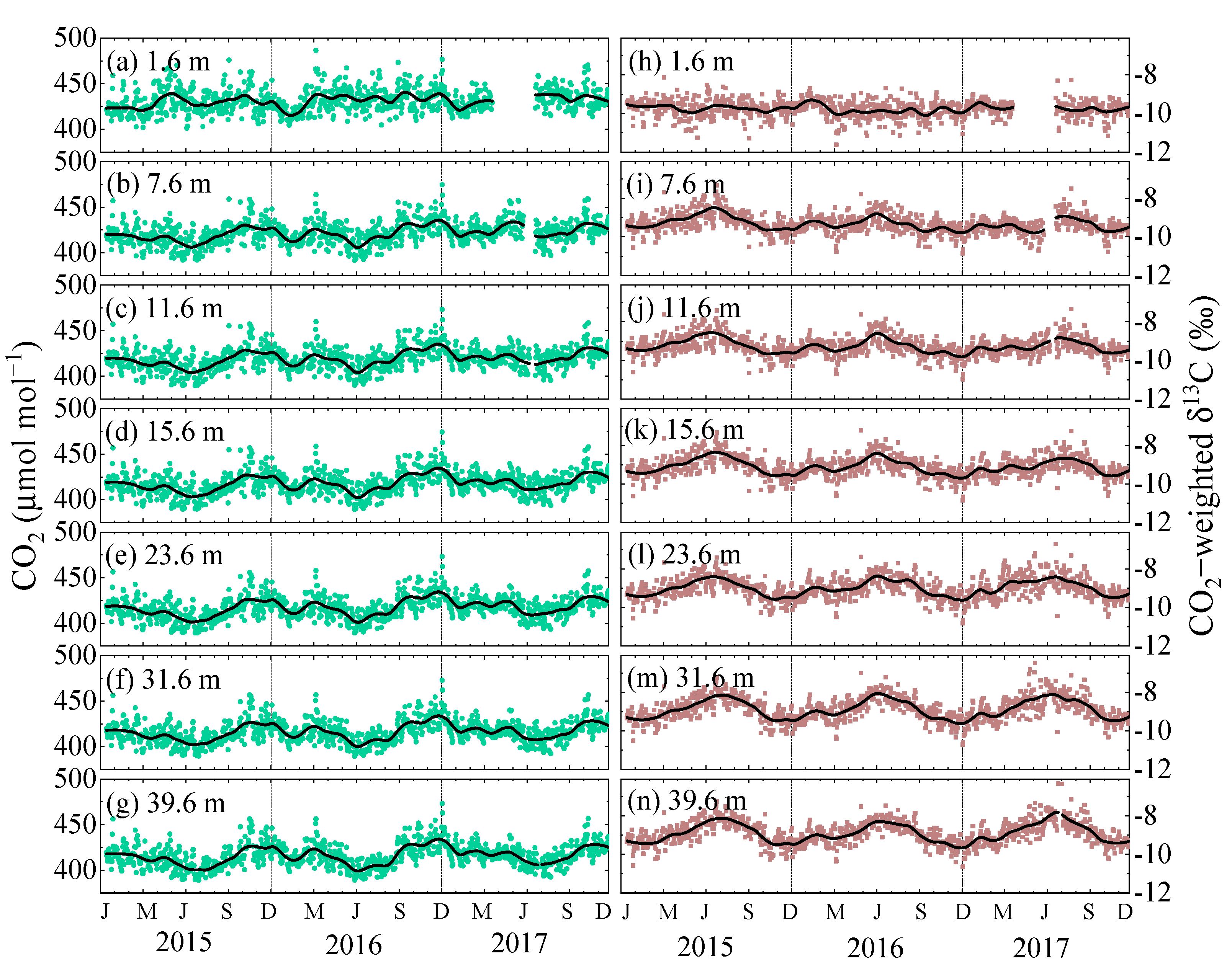

Figure 4. Seasonal variations in daily ecosystem CO2 (a–g) and its weighted δ13C (h–n) below (1.6 and 7.6 m), within (11.6 and 15.6 m) and above (23.6, 31.6, and 39.6 m) the canopy (2015–2017). The black curves represent locally weighted smoothing lines.
Figure 4. Seasonal variations in daily ecosystem CO2 (a–g) and its weighted δ13C (h–n) below (1.6 and 7.6 m), within (11.6 and 15.6 m) and above (23.6, 31.6, and 39.6 m) the canopy (2015–2017). The black curves represent locally weighted smoothing lines.
Forests 12 00584 g004
Forests 12 00584 g005 550

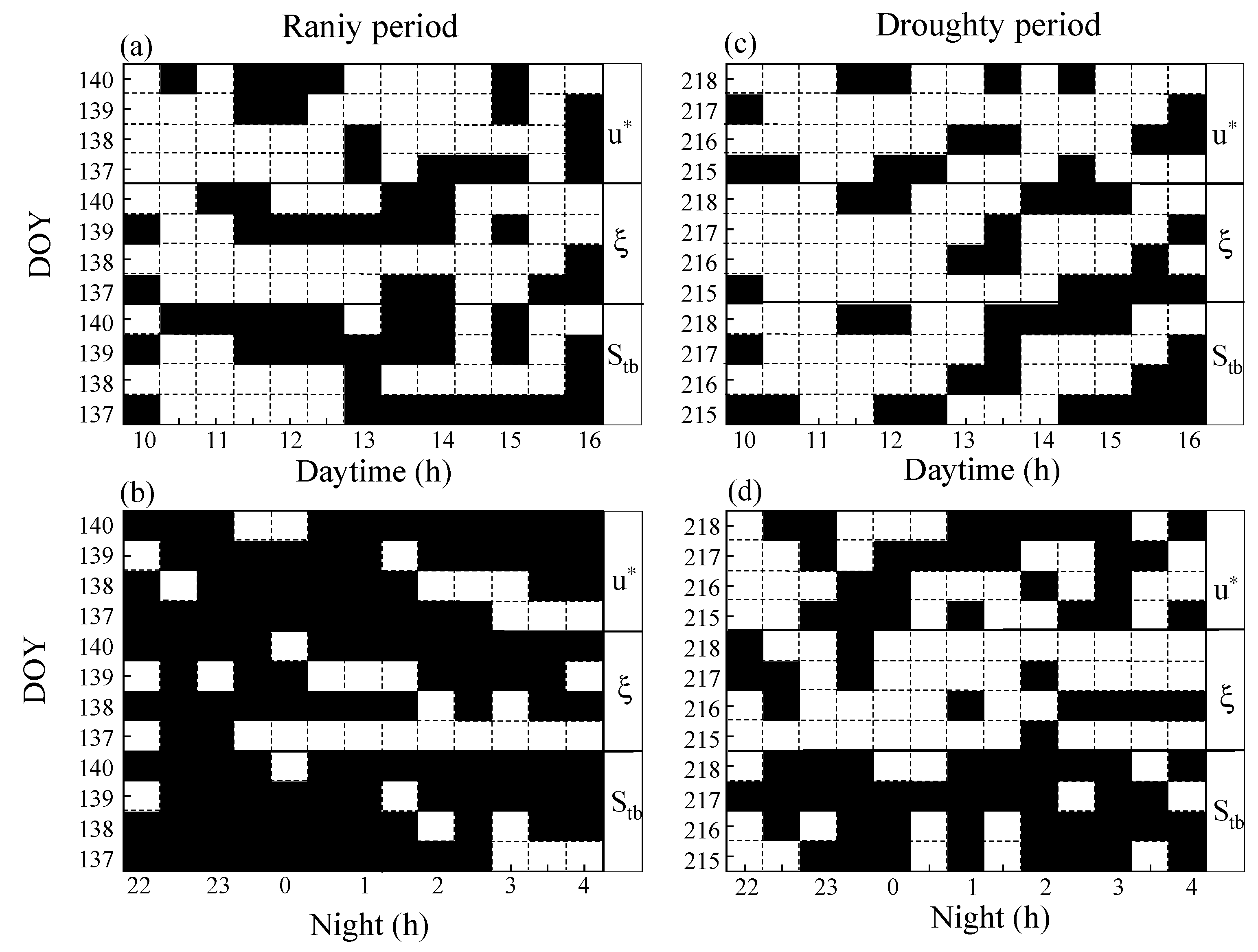

Figure 5. Binary matrix of half hourly friction velocity (u*), atmospheric stability (ξ), and atmospheric conditions (Stb) as determined by the two stability indicators during the daytime (10:00–16:00) and overnight (22:00–4:00) for the typical rainy and drought periods. Black areas show time periods under stable conditions (u* < 0.4 m s−1, ξ > 0.1). (a,b) are results during daytime and overnight for the rainy period, (c,d) are results during daytime and overnight for the droughty period.
Figure 5. Binary matrix of half hourly friction velocity (u*), atmospheric stability (ξ), and atmospheric conditions (Stb) as determined by the two stability indicators during the daytime (10:00–16:00) and overnight (22:00–4:00) for the typical rainy and drought periods. Black areas show time periods under stable conditions (u* < 0.4 m s−1, ξ > 0.1). (a,b) are results during daytime and overnight for the rainy period, (c,d) are results during daytime and overnight for the droughty period.
Forests 12 00584 g005
Forests 12 00584 g006 550

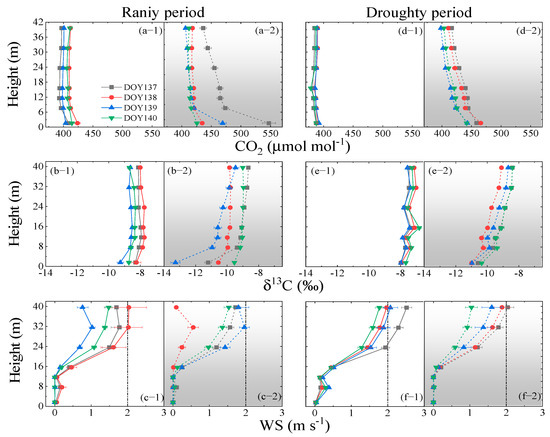

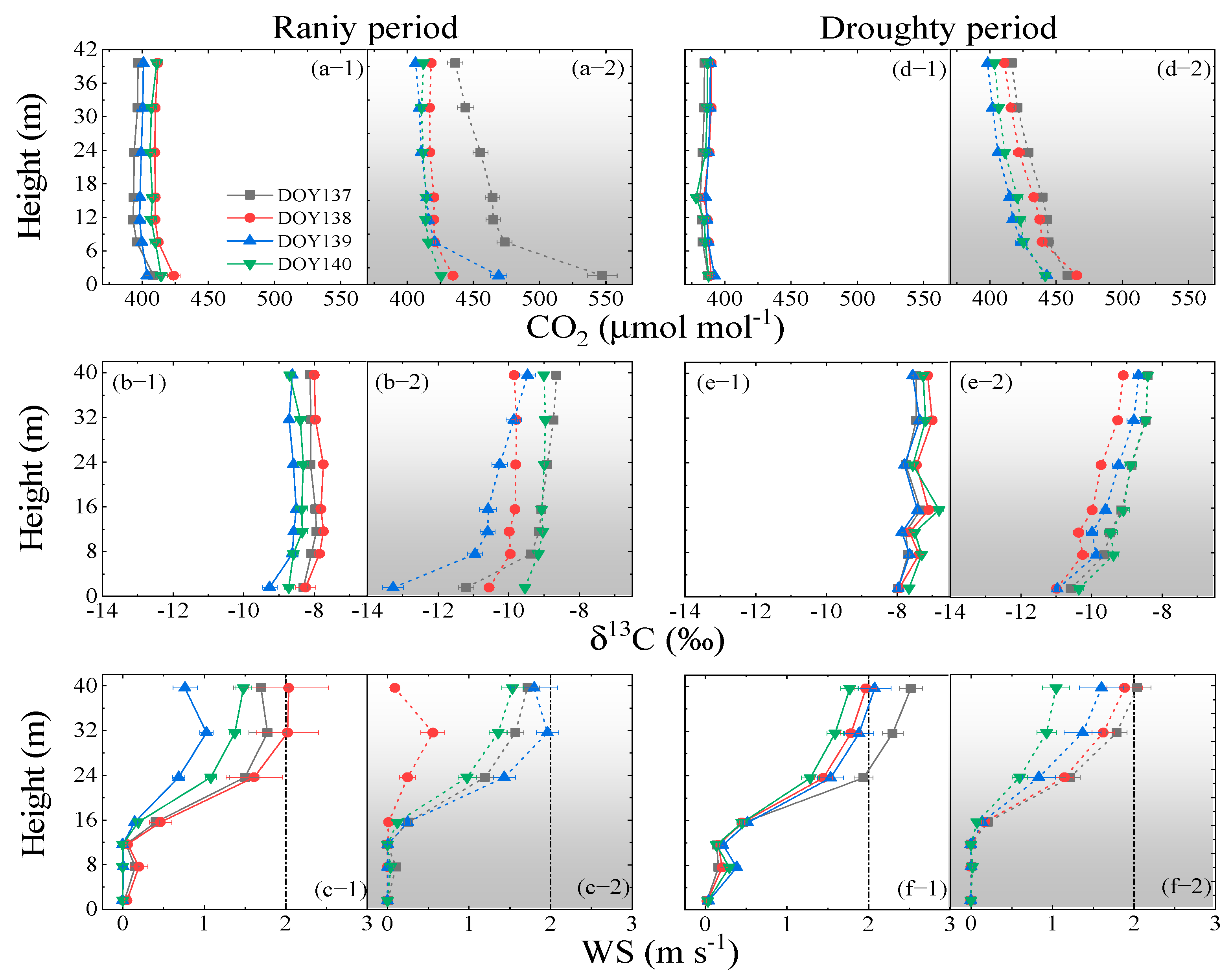

Figure 6. Daily mean vertical variations of ecosystem CO2 (a,d), its δ13C (b,e) and wind speed (WS) (c,f) for each day during the typical rainy (DOY 137–140) and drought (DOY 215–218) periods. White and grey areas represent the diurnal (10:00–16:00) and nocturnal (22:00–4:00) results, respectively.
Figure 6. Daily mean vertical variations of ecosystem CO2 (a,d), its δ13C (b,e) and wind speed (WS) (c,f) for each day during the typical rainy (DOY 137–140) and drought (DOY 215–218) periods. White and grey areas represent the diurnal (10:00–16:00) and nocturnal (22:00–4:00) results, respectively.
Forests 12 00584 g006
Forests 12 00584 g007 550

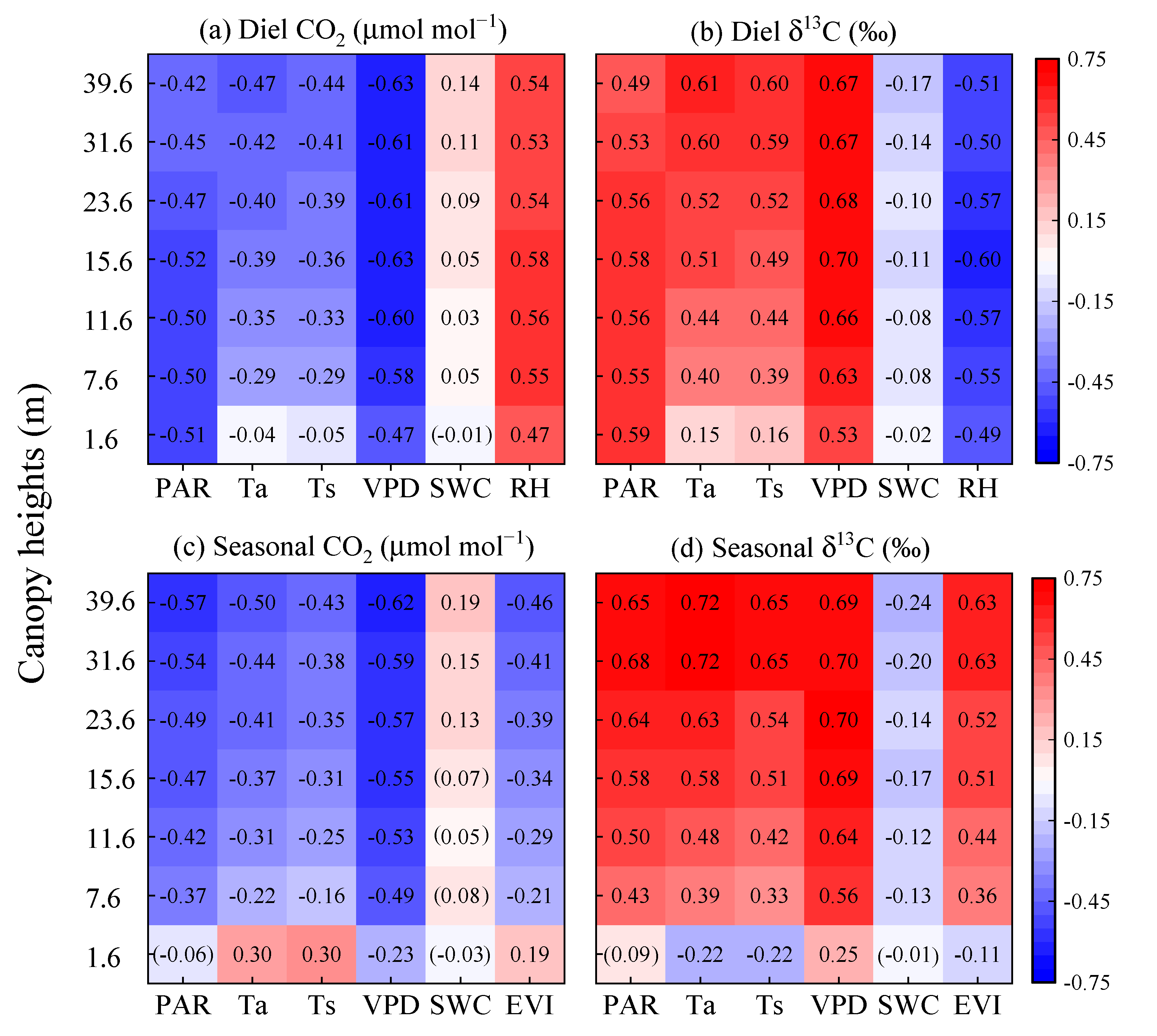

Figure 7. Correlation matrix of daily CO2 and its δ13C at different canopy layers with half hourly (a,b) and daily (c,d) environmental and biological factors between 2015 and 2017. Pearson correlation coefficients in brackets are not significant (p > 0.001).
Figure 7. Correlation matrix of daily CO2 and its δ13C at different canopy layers with half hourly (a,b) and daily (c,d) environmental and biological factors between 2015 and 2017. Pearson correlation coefficients in brackets are not significant (p > 0.001).
Forests 12 00584 g007
Table
Table 1. Validation data for the multi−inlet CO2 and its δ13C vertical profile sampling system.
Table 1. Validation data for the multi−inlet CO2 and its δ13C vertical profile sampling system.
YearCO2 (μmol mol−1)δ13C (‰)
Std1Std2Std3Std1Std2Std3
2015−1.59 ± 0.173.00 ± 0.341.42 ± 0.140.006 ± 0.049−0.009 ± 0.0770.004 ± 0.030
2016−1.63 ± 0.133.09 ± 0.28−1.46 ± 0.110.017 ± 0.048−0.027 ± 0.0750.011 ± 0.030
2017−1.62 ± 0.133.06 ± 0.281.45 ± 0.100.011 ± 0.051−0.017 ± 0.0790.009 ± 0.032
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Chen, C.; Wen, X.; Wang, J.; Guo, Q. Continuous Measurements of Temporal and Vertical Variations in Atmospheric CO2 and Its δ13C in and above a Subtropical Plantation. Forests 2021, 12, 584. https://doi.org/10.3390/f12050584

AMA Style

Chen C, Wen X, Wang J, Guo Q. Continuous Measurements of Temporal and Vertical Variations in Atmospheric CO2 and Its δ13C in and above a Subtropical Plantation. Forests. 2021; 12(5):584. https://doi.org/10.3390/f12050584

Chicago/Turabian Style

Chen, Changhua, Xuefa Wen, Jingyuan Wang, and Qingjun Guo. 2021. "Continuous Measurements of Temporal and Vertical Variations in Atmospheric CO2 and Its δ13C in and above a Subtropical Plantation" Forests 12, no. 5: 584. https://doi.org/10.3390/f12050584

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
