Exploring the Use of Solid Biofertilisers to Mitigate the Effects of Phytophthora Oak Root Disease

by
Aida López-Sánchez
1,†,
Miquel Capó
1,2,*,†,
Jesús Rodríguez-Calcerrada
1,
Marta Peláez
1,
Alejandro Solla
3,
Juan A. Martín
1,4 and
Ramón Perea
1,4
1
Departmento de Sistemas y Recursos Naturales, Universidad Politécnica de Madrid, Ciudad Universitaria s/n, 28040 Madrid, Spain
2
Departamento de Biología, Universitat de les Illes Balears. Cra. Valldemossa Km 7,5 s/n, 07122 Palma, Spain
3
Faculty of Foresty, Institute for Dehesa Research (INDEHESA), Universidad de Extremadura, Avenida Virgen del Puerto 2, 10600 Plasencia, Spain
4
Centro para la Conservación de la Biodiversidad y el Desarrollo Sostenible (CBDS), Universidad Politécnica de Madrid, C/José Antonio Novais 10, 28040 Madrid, Spain
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Forests 2022, 13(10), 1558; https://doi.org/10.3390/f13101558
Submission received: 7 September 2022 / Revised: 19 September 2022 / Accepted: 20 September 2022 / Published: 24 September 2022
(This article belongs to the Special Issue Quercus Research for Improvement and Protection: From Field and Greenhouse Experiments to Biotechnology and Molecular Analysis)
Browse Figures
Review Reports Versions Notes

Abstract

:
Oak forests are facing multiple threats due to global change, with the introduction and expansion of invasive pathogens as one of the most detrimental. Here, we evaluated the use of soil biological fertiliser Biohumin® to improve the response of Quercus ilex L. to the soil-borne pathogen Phytophthora cinnamomi Rands by using one-year-old seedlings fertilised at 0, 12.5, and 25% concentrations of Biohumin® (v/v). Our hypothesis was that plant vigour and response to the pathogen would improve with Biohumin®. The effects of soil infestation and fertilisation were tested by assessing plant survival, growth, and physiology. The soil infested with P. cinnamomi negatively affected all the studied traits. We observed that a moderate concentration of Biohumin® (12.5%) increased plant survival. However, a high concentration (25%) reduced the survival compared with the control, probably as a result of the stress caused by both biotic (infection) and abiotic (soil toxicity) factors. Biohumin® at the highest concentration reduced the plant height-to-stem diameter ratio (H/D) and negatively affected plant biomass and physiological activity. Combined biofertilisation and infection induced synergistic negative effects in the leaf water potential compared with infection and fertilisation applied alone. A higher concentration of Biohumin® may favour pathogens more than plants. Further studies should explore the causes of the negative effect of the high concentration of Biohumin® observed here and evaluate if lower concentrations may benefit plant survival and physiology against soil pathogens.

1. Introduction

The increase in anthropogenic disturbances during the last century has generated new sources of stress in plants [1]. For instance, water deficit and temperature increase associated with human-induced climate change [2,3] have favoured the arrival and spread of emerging diseases and pests and have originated some abiotic–biotic interactions with synergistic negative effects on plants [4,5]. During the seedling stage, plants are highly vulnerable to abiotic and biotic stress, which limits seedling establishment and the probability to reach the subsequent life stages [6,7,8]. Consequently, in the short term, seedling recruitment might be highly compromised by diseases [9,10,11]. This situation calls for applied research to find solutions that reduce plant stress and recruitment failure.
The Mediterranean oak-dominated systems are facing unprecedented levels of biotic and abiotic stresses, such as drought, soil-borne pathogens, and insect outbreaks [12,13,14]. Phytophthora diseases are currently a major threat to many oak forests and are becoming an important threat to tree conservation [15,16,17]. The impact of Phytophthora species is enhanced by some factors such as habitat loss, drought, mismanagement, and extreme climate events [13,18,19,20]. In particular, the soil-borne root oomycete Phytophthora cinnamomi Rands is one of the most harmful and widespread pathogens worldwide [21,22,23]. Holm oak (Quercus ilex L.), cork oak (Q. suber L.), and chestnut (Castanea spp.) are particularly susceptible to P. cinnamomi in their seedling stage [24], with Q. ilex being the most susceptible oak species to P. cinnamomi. The root rot caused by P. cinnamomi is exacerbated by the high frequency and intensity of droughts and high temperatures in the Mediterranean area [25,26]. Waterlogging in combination with subsequent water deprivation is the worst scenario for Q. ilex if soils are infested with P. cinnamomi [26]. A higher frequency of extreme rain events that saturate the soil might be particularly beneficial for P. cinnamomi, potentially boosting its soil density beyond any possible defence response of the susceptible hosts [27]. However, an average drier climate might imply suboptimal conditions for P. cinnamomi infections, allowing for a slower advance of the disease in invaded areas [27]. There are no accurate data on the incidence or extent of holm oak decline in Spain, although, in 2010, official sources estimated the holm oak loss at ca. 8000 ha per year [28].
Soil chemical properties influence plant susceptibility to Phytophthora spp. infection [29,30], and the use of fertilisers has been proposed to enhance plant performance against pathogens [31]. Several studies have compared the benefits of organic vs. inorganic fertilisers on plant physiology and growth against Phytophthora species [32]. However, studies have mostly focused on crops [31,33], and less attention has been paid to species from natural ecosystems and foundation tree species such as oaks (Quercus spp.). In general, soil N fertilisation increases the photosynthetic machinery and plant vigour, which might have a positive effect on plant resistance to diseases, either by decreasing the infection by pathogens or by increasing plant tolerance and recovery potential after infection [34]. Previous research has explored the possibility of elevating the calcium content in soil to suppress the chlamydospore viability of pathogenic oomycetes [35]. The use of biological liquid substrates containing organic N, organic P, S, Ca, Mg, and trace elements (Fe, Mn, B, Zn) successfully reduced oak defoliation in the adult tree layer of a mixed oak forest stand [36]. In contrast, disease tolerance could be negatively affected if fertilisers induce a reduction in root-to-shoot ratio, which exacerbates the soil water uptake restrictions caused by root rot [37]. To reduce the impact of Phytophthora species in oak, it is important to search for solutions based on soil organic and/or inorganic fertilisers.
In this study, we aimed to assess the effect of the soil biological fertiliser Biohumin® (BIOHUMIN Deutschland GmbH, Berlin, Germany) on the vulnerability of holm oak seedlings to P. cinnamomi. This fertiliser was selected because (i) it contains fluvic humic acids and other trace elements that would improve soil water retention and cationic exchange, and (ii) its solid structure facilitates its application in the field. Specifically, we aimed to (i) elucidate how plant physiology and growth benefit from the application of the biological fertiliser and (ii) compare the impact of P. cinnamomi on fertilised and no-fertilised plants. Our hypotheses were that (i) plant vigour would increase after using Biohumin®, and (ii) fertilised individuals would be less susceptible to P. cinnamomi infection in terms of survival, water uptake, and plant vigour, in comparison to unfertilised plants.

2. Materials and Methods

2.1. Description of the Product

The product Biohumin® is an organic soil fertiliser that contains 0.5% organic N, 0.3% P, 0.5% S, 1% Ca, 0.2% Mg, 0.3% trace elements (Fe, Mn, B, Zn), 55% organic substance, 20% humic fulvic acids, and water (Biohumin® Deutschland GmbH, Berlin, Germany). Biohumin® improves the availability of trace elements in the soil (Fe, Mn, B, Zn). Biohumin® has been included in the FIBL (Research Institute of Organic Agriculture, Switzerland) list of biofertilisers as a product suited to soil biological structuring. This product was used as a model of solid mix (organic and inorganic) fertiliser during the experiment.

2.2. Seedling Origin and Cultivation

Seedlings from five adult holm oak trees from a forest infested by P. cinnamomi were used [38]. The forest is a 515 ha woodland dehesa located 445 m.a.s.l. in the Province of Huelva, SW Spain (37°52′ N, 6°14′ W), managed for swine production. Its climate is Mediterranean pluviseasonal oceanic, characterised by hot and long dry summers, from May to October, and strong interannual (452–894 mm/year) and intra-annual rainfall variability (5–128 mm/month). The selected mother trees had similar age, size, ecological conditions, and no external crown damage.
In November 2019, 100 sound acorns of similar size (ca. 8–10 g) were collected from each of the five selected holm oak trees. Acorns had no signs of insect damage (i.e., no oviposition perforations or larvae exit holes) and successfully passed a viability test using a flotation method [39]. The acorns were germinated inside a plastic bag for 60 days at 5 °C in the Faculty of Forestry (Universidad Politécnica de Madrid, Madrid, Spain). When the radicle emerged, at the end of January, we selected 360 acorns for plantation in 3 dm3 pots filled with a sterilised substrate of the same weight (1.6 kg).
We prepared three substrates (n = 360 seedlings; 120 for each soil treatment): (1) 25% silica sand, 75% peat NOVARBO C1LE 70/30D, NPK 12-14-24, Novarbo®, and 0% Biohumin® (hereafter BIO 0% (v/v) plants); (2) 25% sand, 50% peat, and 25% Biohumin® (BIO 25% (v/v) plants); and (3) 25% sand, 62.5% peat, and 12.5% Biohumin® (BIO 12.5% (v/v) plants). Percentages refer to the volumes used for each compound of the substrate and were chosen to compare our results with those reported in the previous literature that used a concentration of 18% [40]. For each soil treatment (n = 120 seedlings), half of the plants were assigned to the P. cinnamomi infection treatment group and the other half to a control group (Figure 1). On each pot, we introduced two 0.06 dm3 cylindrical tubes to inoculate the plant with P. cinnamomi without damaging the root system [41]. Five months after seedling emergence, inoculation with P. cinnamomi was performed (see below).

2.3. Phytophthora cinnamomi Cultivation and Inoculation

The P. cinnamomi A2 strain used in the experiment (code UEx1) was isolated from the rhizosphere of an infected Q. ilex tree located in Valverde de Mérida (Badajoz, Spain) [9]. The identity of the pathogen was checked by comparing its morphological features with those typical for P. cinnamomi. The inoculum was prepared following the methodology of Jung, Blaschke, and Neumann (1996), with some modifications [42]. We mixed 440 cm3 of fine vermiculite, 35 cm3 of whole oat grains, and 310 mL of multivitamin (V8) juice broth (containing 200 mL L−1 of V8 juice and 800 mL L−1 of demineralised water amended with 3 g L−1 CaCO3) in 1-l Erlenmeyer flasks that were autoclaved twice. Four 5 mm × 5 mm plugs from the border of a P. cinnamomi colony growing in Petri dishes with potato, dextrose, and agar were added to the flasks containing the medium and kept in the dark at 20 °C for five weeks. Additional flasks containing the same medium but without P. cinnamomi plugs were incubated as controls for application to BIO 0% plants.
Soil infestation was conducted on 24 June 2019. The inoculum was rinsed with demineralised water to remove excess nutrients. Then, the two cylinders per pot were removed to deliver the inoculum in the empty volume. Each plant received 120 mL of inoculum, while the control plants received the same quantity of culture medium without P. cinnamomi. To stimulate P. cinnamomi sporulation and zoospore release, the infested and control pots were waterlogged for 2 days by using two different pools (3300 dm3). All the plants were under the same environmental conditions, in a greenhouse with automatic irrigation and cooling.
At the end of the experiment, P. cinnamomi was reisolated from the root samples collected from the artificially infested soil. Rootlets from six randomly chosen plants from each treatment were cut into 1 cm segments, surface-sterilised (1 min in 1% sodium hypochlorite), rinsed with sterile water, dried in a laminar flood chamber, and finally plated onto NARPH agar selective medium. The colonies of P. cinnamomi were identified under a microscope through their distinctive morphological structures such as clustered hyphal swellings, chlamydospores, and sporangia.

2.4. Response Variables

Oak survival was recorded every 10 days from 24 June to 3 September. The morphological and physiological parameters were assessed in September, at the end of the experiment, by using a subsample of 36 plants for biomass (6 plants × 3 soil treatments (ST) × 2 Phytophthora infection treatments (PI)) and 60 plants for size and physiology (10 plants × 3 soil treatments × 2 Phytophthora infection treatments (PI)).
As morphological variables, we measured the plant height (H), the basal diameter (D), and the H/D ratio. Thereafter, we harvested the plants and separated the organs for oven-drying (3–4 days at 72 °C). The dry biomass of fine roots (i.e., roots < 2 mm diameter), coarse roots, stems, and leaves were weighed to calculate the leaf mass fraction (LMF, g leaves g−1 plant), the stem mass fraction (SMF, g stems g−1 plant), the root mass fraction (RMF, g roots g−1 plant), the fine-root mass fraction (FRMF, g fine roots g−1 plant), the fine-root-to-leaf biomass fraction (FR/LB, g fine root g−1 leaves), and the root-to-shoot ratio (R/S ratio, g roots g−1 stems plus leaves).
As physiological variables, we measured the leaf water potential (Ψ), the leaf gas exchange, and chlorophyll a fluorescence. The water potential of one leaf per plant was measured at midday with a pressure chamber (PMS Instrument Company, Albany, OR, USA). The leaf gas exchange and chlorophyll a fluorescence were measured with a Li-6400 portable photosynthesis system (Li-Cor Inc., NE, USA). We used a 6400-40 leaf chamber fluorometer, which includes a 2 cm2 leaf chamber equipped with low emission diodes providing both actinic and far-red light. The measurements were made in two days, approximately from 11:00 h to 14:00 h, in the leaves already acclimated to full sunlight in the greenhouse. We set the airflow at 300 μmol s−1, the temperature at 25 °C, the light at 1200 μmol m−2 s−1, and the air CO2 concentration at 400 ppm. The air’s relative humidity ranged between 45% and 65% across the measurements. Under these conditions, we measured net CO2 assimilation (Pn), stomatal conductance to water vapor (gs), transpiration I, and intercellular CO2 concentration (Ci). The Pn/gs ratio was used as a proxy of the instantaneous water use efficiency. After recording the gas exchange variables, fluorescence was measured under “steady-state” light conditions (1200 μmol m−2 s−1; Fs) and after a saturating light pulse (>7000 μmol m−2 s−1; Fm’) to calculate the effective quantum yield of photosystem II (ΦPSII: F–’ − Fs)/Fm’) and the electron transport rate (ETR: ΦPSII × 0.84 × 0.5 × 1200 μmol m−2 s−1 [43].

2.5. Data Analysis

The maximal models (containing all the predictors) used for analyses are summarised in Table 1. For oak seedling survival, we used Kaplan–Meier non-parametric models (Table 1). In the maximal model, we clustered all the oak seedlings that originated from the same mother tree to indicate the correlated groups of observations within the survival analysis (Table 1).
For oak morphological and physiological variables, we developed generalised linear mixed models (GLMMs) [44]. Box–Cox transformations [45] were applied when needed to calculate the transformation lambda that maximises the likelihood function. Thus, some of the response variables were fitted to a gamma error distribution with their corresponding power lambda link function (Table S1). When monotonic transformations were not necessary, the response variables were fitted to a Gaussian error distribution with the identity function. For all the models, the analyses included the mother tree to account for the random effect structure (Table 1).
We used the model averaging approach to select the final models [46]. We first fitted the maximal model containing all the predictors. Then, we ranked all the possible models derived from the maximal model by their AIC weights using the “dredge” function within the “MuMIn” package of R and selected those with the best AIC weight (hereafter top models), i.e., which had ΔAIC < 2 (Table S2) [46]. Finally, we obtained the model-averaged coefficients of the top models as well as the relative importance of each predictor (from 0 to 1) by using the “model.avg” function of “MuMIn” (Table S3) [46].
Data processing and statistics were performed using R 3.6.0 [47] with the modules “lme4” [48], “car” [49], and “MuMIn” [50].

3. Results

3.1. Survival of Oak Seedlings

The infection of plants with P. cinnamomi affected seedling survival (ꭙ2 = 13.700, p < 0.001; Figure 2A), which was higher in the control plants (80.5%) than in the infected ones (55.1%) at day 161 post-infestation. In contrast, similar values of seedling survival were found between soil treatments (ꭙ2 = 0.600, p = 0.800; Figure 2B). The interaction between soil treatment and infection by P. cinnamomi was significant (ꭙ2 = 19.500, p = 0.002), because seedling survival was similar in the control and infected plants using the 25% BIO treatment but different in 0 and 12.5% BIO treatments, with the control plants always surviving more than the infected ones.

3.2. Effects on Plant Growth

Treatments with 12.5% BIO and 25% BIO showed lower values of LMF (≈0.84-fold difference) than 0% BIO (Table 2, Figure 3). In addition, the plants infected with P. cinnamomi had higher LMF than the controls when using 12.5% BIO and 25% BIO soil treatments (1.26- and 1.14-fold difference, respectively), while the opposite was observed in 0% BIO (Figure 3).
No differences were observed between soil treatments and P. cinnamomi treatments for RMF or R/S. However, the plants treated with 25% BIO had lower heights and H/D ratios than those treated with 0% BIO (0.79- and 0.80-fold difference, respectively; Table 2). There were no significant differences in the height (Z = 1.273, p = 0.203) and the H/D ratio (Z = 1.091, p = 0.275) between the 12.5% BIO- and 25% BIO-treated plants. In addition, the plants infected with P. cinnamomi had lower H/D ratios than the mock-inoculated plants in 0% BIO and 12.5% BIO but not in 25% BIO (0.97-fold difference for 0% BIO and 0.92-fold difference for 12.5% BIO, respectively; Figure 4).

3.3. Effects on Plant Physiology

We did not find any significant differences in Pn, gs, Ci, E, Pn/gs, or Pn/E concentrations between soil treatments and P. cinnamomi treatments (Table 3). However, the P. cinnamomi-infected plants showed marginally higher Ci than the control plants (1.05-fold difference; p = 0.064; Table 3), and marginally lower Pn/gs (0.87-fold difference; p = 0.089; Table 3). We found significant differences in the ETR and Ψ depending on soil treatments (Table 3). The fertilised plants (12.5% BIO and 25% BIO treatments) showed lower values of the ETR and Ψ (≈0.76 and ≈0.79-fold difference, respectively) than the plants not fertilised (0% BIO; Table 3). In addition, P. cinnamomi-infected plants showed more negative Ψ (1.27-fold difference) than the control plants (Table 3).
We found no significant interaction between soil treatments and P. cinnamomi treatments for any of the physiological variables. Interactions did not appear in the top models during model selection due to their low relative importance in modelling (Table S4).

4. Discussion

Several studies reported how biological fertilisers favour plant growth and physiology [51,52,53]. However, the role of biological fertilisers in enhancing plant resistance against soil-borne pathogens is not clear and is still under study. Assessing the combination of biological fertilisers and P. cinnamomi-soil infection is crucial to disentangle whether biological fertilisers are positive for plants, or if they induce plant stress. Here, we observed that the Biohumin® fertiliser affected plant susceptibility to P. cinnamomi, with high concentrations causing additional stress to soil infestation.

4.1. Survival of Oak Seedlings

Soil infestation by P. cinnamomi compromises the proper development of seedlings and limits the recruitment of tree populations [22,23], including Quercus species [6,38,54]. Our results showed that the survival of the Q. ilex seedlings infested by P. cinnamomi was lower than that of the control plants, in agreement with previous studies [9,55]. This negative effect has been observed in Q. suber forests [56], and it is considered an important threat to oak conservation in Mediterranean systems [56,57,58].
It was expected that the plant survival after P. cinnamomi inoculation would increase with Biohumin® treatment, as reported for other inorganic and organic fertilisers [59,60]. In this study, it was observed that the plants fertilised with 12.5% Biohumin® or not fertilised had higher survival rates than the plants fertilised with 25% Biohumin®, across all the non-infested treatments. However, the highest concentration of Biohumin® (25% Bio) did not show a positive effect on the survival of the infected plants, compared with that of the uninfected plants. It appears that a combined biotic (infection) and abiotic (soil toxicity) stress occurred, as reported in other studies [7,61,62]. By exploring the plant growth and leaf physiological parameters in this study, we sought to shed light on the effect of the interaction between fertilisation application and P. cinnamomi infection on plant survival.

4.2. Plant Growth

Plant growth was reduced after the inoculation of P. cinnamomi depending on the dosage of Biohumin®. Previous studies have reported that P. cinnamomi negatively affects plant growth and development [21,23]. Our results showed that the inoculation of P. cinnamomi reduced the fraction of the biomass invested in leaves (LMF), the plant height (H), and the ratio of plant height-to-stem diameter (H/D). This effect is not rare, as many pathogens from the genus Phytophthora spp. reduced the aerial biomass (leaves and stems) or even belowground parts [41,63].
On the other hand, the use of a high concentration of Biohumin® (25% Bio) influenced plant growth; it reduced the plant height (but not the stem diameter) and H/D. This result reinforces the idea that 25% of Biohumin® was excessive and negative for plant development and, therefore, did not protect the plants against P. cinnamomi. In fact, the plants treated with 25% of Biohumin® showed a similar plant size irrespective of P. cinnamomi infection. It is not uncommon that high concentrations of fertilisers interfere with the correct development of plants, as reported for inorganic [64] and organic fertilisers [65].

4.3. Plant Physiology

The impact of P. cinnamomi infection was also noticeable on the physiology of plants. The variables ETR and Ψ were lower after the inoculation of P. cinnamomi. After root infection, P. cinnamomi grows inter- and intracellularly in the host tissue, causing severe structural changes in Q. ilex [66,67]. A common consequence of root destruction by Phytophthora spp. is the decreased water absorption capacity of the infected plants. For example, root water transport failure was observed on susceptible Eucalyptus sieberi when infected with P. cinnamomi [68]. A major reduction in hydraulic conductivity was observed within the first 2 weeks after infection, although the pathogen had colonised only 8%–12% of the total root system, indicating that the infection by P. cinnamomi of a susceptible host could trigger a generalised dysfunction in plant–water relations, which could be mediated by hormonal changes and the toxins released by the pathogen [69]. In this study, the ETR and Ψ did not decrease to the levels jeopardising survival, which probably reinforces the assumption that other factors are involved during infection. The results presented here revealed evidence indicating that the pathogen negatively affected the plant function, reducing the plants’ biomass increment and reallocation of resources, as observed in other studies [41].
Biofertilisation also reduced the ETR and Ψ, independently of the concentration used in the substrate. Although the effects were of low magnitude, they indicated that the use of Biohumin® at high concentrations did not help improve the physiology of the plants; rather, it may have caused toxicity [65]. Furthermore, the combined fertilisation and P. cinnamomi soil infestation induced synergistic effects in Ψ, causing more stress for plants than when using each factor alone. Further studies must evaluate if concentrations lower than those applied in this study may benefit plant physiology.

4.4. Using Biological Fertilisers to Enhance Protection against P. cinnamomi

Overall, the use of Biohumin® did not seem to help the plants to cope with soil infestation, and some variables indicated low plant vigour when P. cinnamomi inoculation and fertilisation were combined. Contrary to our expectations, the 25% concentration of Biohumin® negatively affected the Q. ilex individuals, probably due to plant toxicity, as discussed above. The use of fertilisers to reduce plant susceptibility to disease is under debate, but many positive effects have been reported, especially on crops [70,71]. Hence, the use of a particular fertiliser must be experimentally supported in each circumstance. According to our experiment, in terms of many of the study variables, the use of Biohumin® was not beneficial to promote plant resistance against P. cinnamomi, especially when applied at high concentrations (i.e., 25% BIO).

5. Conclusions

In this study, the biological fertiliser Biohumin® at 12.5% (v/v) increased the survival of one-year-old Q. ilex seedlings after inoculation with P. cinnamomi. This advantage was not observed when using the fertiliser at 25% (v/v). At this higher dose, the combined effect of P. cinnamomi infection and fertilisation had negative, synergistic effects on plant survival and vigour. Plants showed low physiological activity after infection by P. cinnamomi and the application of fertiliser at 25% (v/v). Revealing the proper dose of biological fertilisers is relevant to improve plant resistance to P. cinnamomi and favour tree regeneration and sustainability in oak forests.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/f13101558/s1, Table S1: Summary of evaluated morphological and physiological response variables for data analysis; Table S2: Summary of Kaplan–Meier non-parametric models fitted to analyse the main factors—soil treatment and P.c Infection—affecting the survival of oak seedlings; Table S3. Results of model selection of the generalised linear mixed models fitted to analyse the main factors—soil treatment (S), biotic stress (B)—affecting different morphological response variables; Table S4. Results of model selection of the generalised linear mixed models fitted to analyse the main factors—soil treatment (S), biotic stress (B)—affecting different physiological response variables.

Author Contributions

Conceptualisation, R.P., J.A.M. and A.L.-S.; methodology, A.L.-S., J.R.-C., J.A.M., M.P. and A.S.; formal analysis, M.C. and A.L.-S.; resources, R.P. and A.L.-S.; writing—original draft preparation, M.C., A.L.-S., R.P. and J.R.-C.; writing—review and editing, all authors; supervision, J.A.M., A.S., R.P. and A.L.-S.; funding acquisition, R.P. and A.L.-S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Universidad Politécnica de Madrid and Comunidad de Madrid, through project GLOBAFLOR Ref. APOYO-JOVENES-9OHUU0-10-3L226X (pluriannual agreement for young researchers).

Data Availability Statement

Not applicable.

Acknowledgments

We thank Fundación Monte Mediterráneo, and especially Ernestine Lüdeke and Hans-Gerd Neglein, for facilitating the acorn collection. We also thank David Medel, Jorge Pallarés, Eva Miranda, and Luis Adrián Lara for their help in lab work. M.C. and M.P. were supported by Margarita Salas postdoctoral fellowship (Ministerio de Universidades, Gobierno de España) through the Recovery, Transformation, and Resilience Plan funded by the European Union (NextGenerationEU).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Underwood, E.C.; Viers, J.H.; Klausmeyer, K.R.; Cox, R.L.; Shaw, M.R. Threats and Biodiversity in the Mediterranean Biome. Divers. Distrib. 2009, 15, 188–197. [Google Scholar] [CrossRef]
  2. Lutz, J.A.; van Wagtendonk, J.W.; Franklin, J.F. Climatic Water Deficit, Tree Species Ranges, and Climate Change in Yosemite National Park. J. Biogeogr. 2010, 37, 936–950. [Google Scholar] [CrossRef]
  3. IPCC. Climate Change 2014: Synthesis Report. Contribution of Working Groups I, II and III to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change; IPCC: Geneva, Switzerland, 2014. [Google Scholar]
  4. Tubby, K.V.; Webber, J.F. Pests and Diseases Threatening Urban Trees under a Changing Climate. Forestry 2010, 83, 451–459. [Google Scholar] [CrossRef]
  5. Shahzad, A.; Ullah, S.; Dar, A.A.; Sardar, M.F.; Mehmood, T.; Tufail, M.A.; Shakoor, A.; Haris, M. Nexus on Climate Change: Agriculture and Possible Solution to Cope Future Climate Change Stresses. Environ. Sci. Pollut. Res. 2021, 28, 14211–14232. [Google Scholar] [CrossRef]
  6. Tyler, C.M.; Kuhn, B.; Davis, F.W. Demography and Recruitment Limitations of Three Oak Species in California. Q. Rev. Biol. 2006, 81, 127–152. [Google Scholar] [CrossRef]
  7. López-Sánchez, A.; Peláez, M.; Dirzo, R.; Fernandes, G.W.; Seminatore, M.; Perea, R. Spatio-Temporal Variation of Biotic and Abiotic Stress Agents Determines Seedling Survival in Assisted Oak Regeneration. J. Appl. Ecol. 2019, 56, 2663–2674. [Google Scholar] [CrossRef]
  8. Domínguez-Begines, J.; Ávila, J.M.; García, L.V.; Gómez-Aparicio, L. Soil-Borne Pathogens as Determinants of Regeneration Patterns at Community Level in Mediterranean Forests. New Phytol. 2020, 227, 588–600. [Google Scholar] [CrossRef]
  9. Corcobado, T.; Miranda-Torres, J.J.; Martín-García, J.; Jung, T.; Solla, A. Early Survival of Quercus ilex Subspecies from Different Populations after Infections and Co-Infections by Multiple Phytophthora Species. Plant Pathol. 2017, 66, 792–804. [Google Scholar] [CrossRef]
  10. Fensham, R.J.; Radford-Smith, J. Unprecedented Extinction of Tree Species by Fungal Disease. Biol. Conserv. 2021, 261, 109276. [Google Scholar] [CrossRef]
  11. Gomes Marques, I.; Solla, A.; David, T.S.; Rodríguez-González, P.M.; Garbelotto, M. Response of Two Riparian Woody Plants to Phytophthora Species and Drought. For. Ecol. Manag. 2022, 518, 120281. [Google Scholar] [CrossRef]
  12. Haavik, L.J.; Billings, S.A.; Guldin, J.M.; Stephen, F.M. Emergent Insects, Pathogens and Drought Shape Changing Patterns in Oak Decline in North America and Europe. For. Ecol. Manag. 2015, 354, 190–205. [Google Scholar] [CrossRef]
  13. Rodríguez-Calcerrada, J.; Sancho-Knapik, D.; Martin-StPaul, N.K.; Limousin, J.-M.; McDowell, N.G.; Gil-Pelegrín, E. Drought-Induced Oak Decline—Factors Involved, Physiological Dysfunctions, and Potential Attenuation by Forestry Practices. In Oaks Physiological Ecology. Exploring the Functional Diversity of Genus Quercus L.; Springer: Cham, Switzerland, 2017; pp. 419–451. [Google Scholar]
  14. San-Eufrasio, B.; Castillejo, M.Á.; Labella-Ortega, M.; Ruiz-Gómez, F.J.; Navarro-Cerrillo, R.M.; Tienda-Parrilla, M.; Jorrín-Novo, J.V.; Rey, M.D. Effect and Response of Quercus ilex subsp. ballota [Desf.] Samp. Seedlings From Three Contrasting Andalusian Populations to Individual and Combined Phytophthora cinnamomi and Drought Stresses. Front. Plant Sci. 2021, 12, 1727. [Google Scholar] [CrossRef] [PubMed]
  15. Brasier, C.M. Phytophthora cinnamomi as a Contributory Factor in European Oak Declines. In Recent Advances in Studies on Oak Decline; Luisi, N., Lerario, P., Vannini, A.B., Eds.; Proc. Int. Cong. Selva di Fasano: Putignano, Italy, 1993; pp. 49–57. [Google Scholar]
  16. Rizzo, D.M.; Garbelotto, M. Sudden Oak Death Endangers Forests. Front. Ecol. Environ. 2003, 1, 197–204. [Google Scholar] [CrossRef]
  17. Jung, T.; Pérez-Sierra, A.; Durán, A.; Jung, M.H.; Balci, Y.; Scanu, B. Canker and Decline Diseases Caused by Soil- and Airborne Phytophthora Species in Forests and Woodlands. Persoonia Mol. Phylogeny Evol. Fungi 2018, 40, 182–220. [Google Scholar] [CrossRef]
  18. Branco, M.; Ramos, A.P. Coping with Pests and Diseases. In Cork Oak Woodlands on the Edge: Ecology, Adaptive Management, and Restoration; Aronson, J., Pereira, J.S., Pausas, J.G., Eds.; Island Press: Washington, DC, USA, 2012; pp. 103–113. [Google Scholar]
  19. Duque-Lazo, J.; Navarro-Cerrillo, R.M.; van Gils, H.; Groen, T.A. Forecasting Oak Decline Caused by Phytophthora cinnamomi in Andalusia: Identification of Priority Areas for Intervention. For. Ecol. Manag. 2018, 417, 122–136. [Google Scholar] [CrossRef]
  20. Martín-García, J.; Solla, A.; Corcobado, T.; Siasou, E.; Woodward, S. Influence of Temperature on Germination of Quercus ilex in Phytophthora cinnamomi, P. gonapodyides, P. quercina and P. psychrophila Infested Soils. For. Pathol. 2015, 45, 215–223. [Google Scholar] [CrossRef]
  21. De Sampaio e Paiva Camilo-Alves, C.; da Clara, M.I.E.; de Almeida Ribeiro, N.M.C. Decline of Mediterranean Oak Trees and Its Association with Phytophthora cinnamomi: A Review. Eur. J. For. Res. 2013, 132, 411–432. [Google Scholar] [CrossRef]
  22. Hansen, E.M. Phytophthora Species Emerging as Pathogens of Forest Trees. Curr. For. Rep. 2015, 1, 16–24. [Google Scholar] [CrossRef]
  23. Kamoun, S.; Furzer, O.; Jones, J.D.G.; Judelson, H.S.; Ali, G.S.; Dalio, R.J.D.; Roy, S.G.; Schena, L.; Zambounis, A.; Panabières, F.; et al. The Top 10 Oomycete Pathogens in Molecular Plant Pathology. Mol. Plant Pathol. 2015, 16, 413–434. [Google Scholar] [CrossRef]
  24. Rodríguez-Molina, M.C.; Torres-Vila, L.M.; Blanco-Santos, A.; Palo Núñez, E.J.; Torres-Álvarez, E. Viability of Holm and Cork Oak Seedlings from Acorns Sown in Soils Naturally Infected with Phytophthora cinnamomi. For. Pathol. 2002, 32, 365–372. [Google Scholar] [CrossRef]
  25. Peñuelas, J.; Gordon, C.; Llorens, L.; Nielsen, T.; Tietema, A.; Beier, C.; Bruna, P.; Emmett, B.; Estiarte, M.; Gorissen, A. Nonintrusive Field Experiments Show Different Plant Responses to Warming and Drought among Sites, Seasons, and Species in a North-South European Gradient. Ecosystems 2004, 7, 598–612. [Google Scholar] [CrossRef]
  26. Corcobado, T.; Cubera, E.; Juárez, E.; Moreno, G.; Solla, A. Drought events determine performance of Quercus ilex seedlings and increase their susceptibility to Phytophthora cinnamomi. Agric. For. Meteorol. 2014, 192, 1–8. [Google Scholar] [CrossRef]
  27. Homet, P.; González, M.; Matías, L.; Godoy, O.; Pérez-Ramos, I.M.; García, L.V.; Gómez-Aparicio, L. Exploring Interactive Effects of Climate Change and Exotic Pathogens on Quercus Suber Performance: Damage Caused by Phytophthora Cinnamomi Varies across Contrasting Scenarios of Soil Moisture. Agric. For. Meteorol. 2019, 276–277, 107605. [Google Scholar] [CrossRef]
  28. Ruiz-Gómez, F.J.; Pérez-de-Luque, A.; Navarro-Cerrillo, R.M. The involvement of Phytophthora root rot and drought stress in holm oak decline: From ecophysiology to microbiome influence. Curr. For. Rep. 2019, 5, 251–266. [Google Scholar] [CrossRef]
  29. Jönsson, U. A Conceptual Model for the Development of Phytophthora Disease in Quercus robur. New Phytol. 2006, 171, 55–68. [Google Scholar] [CrossRef]
  30. Encinas-Valero, M.; Esteban, R.; Hereş, A.M.; Vivas, M.; Fakhet, D.; Aranjuelo, I.; Solla, A.; Moreno, G.; Yuste, J.C. Holm Oak Decline Is Determined by Shifts in Fine Root Phenotypic Plasticity in Response to Belowground Stress. New Phytol. 2022, 235, 2237–2251. [Google Scholar] [CrossRef] [PubMed]
  31. Sharma, K.; Bruns, C.; Butz, A.F.; Finckh, M.R. Effects of Fertilizers and Plant Strengtheners on the Susceptibility of Tomatoes to Single and Mixed Isolates of Phytophthora infestans. Eur. J. Plant Pathol. 2012, 133, 739–751. [Google Scholar] [CrossRef]
  32. Cocozza, C.; Abdeldaym, E.A.; Brunetti, G.; Nigro, F.; Traversa, A. Synergistic Effect of Organic and Inorganic Fertilization on the Soil Inoculum Density of the Soilborne Pathogens Verticillium dahliae and Phytophthora spp. under Open-Field Conditions. Chem. Biol. Technol. Agric. 2021, 8, 24. [Google Scholar] [CrossRef]
  33. Muryati, L.O.; Deni, E.; Pnaca, J.S.; Diah, S. Effect of Organic Fertilizers on Susceptibility of Potted Durian Seedlings to Phytophthora Diseases. J. Fruit Ornam. Plant Res. 2009, 17, 67–77. [Google Scholar]
  34. Pagán, I.; García-Arenal, F. Tolerance to Plant Pathogens: Theory and Experimental Evidence. Int. J. Mol. Sci. 2018, 19, 810. [Google Scholar] [CrossRef]
  35. Serrano, M.S.; Ríos, P.; González, M.; Romero, M.Á.; Fernández-Rebollo, P.; Sánchez, M.E. A Review of Integrated Control of Phytophthora Root Rot in Oak Rangeland Ecosystems. IOBC-WPRS Bull. 2017, 127, 139–146. [Google Scholar]
  36. López-Sánchez, A.; Perea, R. The Use of Biological Liquid Fertilizers against Oak Decline Associated with Phytophthora spp. New For. 2021, 52, 713–731. [Google Scholar] [CrossRef]
  37. Tschaplinski, T.J.; Blake, T.J. Effects of Root Restriction on Growth Correlations, Water Relations and Senescence of Alder Seedlings. Physiol. Plant. 1985, 64, 167–176. [Google Scholar] [CrossRef]
  38. Sapp, M.; Tyborski, N.; Linstädter, A.; López Sánchez, A.; Mansfeldt, T.; Waldhoff, G.; Bareth, G.; Bonkowski, M.; Rose, L.E. Site-Specific Distribution of Oak Rhizosphere-Associated Oomycetes Revealed by Cytochrome c Oxidase Subunit II Metabarcoding. Ecol. Evol. 2019, 9, 10567–10581. [Google Scholar] [CrossRef] [PubMed]
  39. Perea, R.; Miguel, A.S.; Martínez-Jauregui, M.; Valbuena-Carabaña, M.; Gil, L. Effects of Seed Quality and Seed Location on the Removal of Acorns and Beechnuts. Eur. J. For. Res. 2012, 131, 623–631. [Google Scholar] [CrossRef]
  40. Carbone, O. Essay of Biostimulants for the Management of Failed Areas in the Vineyards. Master’s Thesis, Università degli Studi di Torino, Turin, Italy, 2016. [Google Scholar]
  41. Ruiz-Gómez, F.J.; Pérez-de-Luque, A.; Sánchez-Cuesta, R.; Quero, J.L.; Cerrillo, R.M.N. Differences in the Response to Acute Drought and Phytophthora cinnamomi Rands Infection in Quercus ilex L. Seedlings. Forests 2018, 9, 634. [Google Scholar] [CrossRef]
  42. Jung, T.; Blaschke, H.; Neumann, P. Isolation, Identification and Pathogenicity of Phytophthora Species from Declining Oak Stands. Eur. J. For. Pathol. 1996, 26, 253–272. [Google Scholar] [CrossRef]
  43. Maxwell, K.; Johnson, G.N. Chlorophyll Fluorescence—A Practical Guide. J. Exp. Bot. 2000, 51(345), 659–668. [Google Scholar] [CrossRef]
  44. Venables, W.N.; Ripley, B.D. Random and Mixed Effects. In Modern Applied Statistics; Springer: New York, NY, USA, 2002; pp. 271–300. [Google Scholar]
  45. Box, G.E.P.; Cox, D.R. An Analysis of Transformations. J. R. Stat. Soc. Ser. B 1964, 26, 211–243. [Google Scholar] [CrossRef]
  46. Burnham, K.P.; Anderson, D.R. Model Selection and Multi-Model Inference: A Practical Information-Theoretic Approach; Springer Verlag: New York, NY, USA, 2002. [Google Scholar]
  47. R Core Team. R: A Language and Environment for Statistical Computing; R Core Team: Vienna, Austria, 2022. [Google Scholar]
  48. Bates, D.; Mächler, M.; Bolker, B.M.; Walker, S.C. Fitting Linear Mixed-Effects Models Using Lme4. J. Stat. Softw. 2015, 67, 48. [Google Scholar] [CrossRef]
  49. Fox, J.; Weisberg, S. An R Companion to Applied Regression: Appendices. Robust Regres. R 2014, 2, 1–17. [Google Scholar] [CrossRef]
  50. Barton, K. MuMIn: Multi-Model Inference. In R Package Version 1.43.17. Available online: https://cran.r-project.org/web/packages/MuMIn/MuMIn.pdf (accessed on 26 May 2022).
  51. Arab, A.; Zamani, G.; Sayyari, M.; Asili, J. Effects of Chemical and Biological Fertilizers on Morpho-Physiological Traits of Marigold (Calendula officinalis L.). Eur. J. Med. Plants 2015, 8, 60–68. [Google Scholar] [CrossRef]
  52. Hassan, T.U.; Bano, A. Biofertilizer: A Novel Formulation for Improving Wheat Growth, Physiology and Yield. Pak. J. Bot. 2016, 48, 2233–2241. [Google Scholar]
  53. Choudhury, A.T.M.A.; Kennedy, I.R. Prospects and Potentials for Systems of Biological Nitrogen Fixation in Sustainable Rice Production. Biol. Fertil. Soils 2004, 39, 219–227. [Google Scholar] [CrossRef]
  54. López-Sánchez, A.; Bareth, G.; Bolten, A.; Rose, L.E.; Mansfeldt, T.; Sapp, M.; Linstädter, A. Effects of Declining Oak Vitality on Ecosystem Multifunctionality: Lessons from a Spanish Oak Woodland. For. Ecol. Manag. 2021, 484, 118927. [Google Scholar] [CrossRef]
  55. Vivas, M.; Hernández, J.; Corcobado, T.; Cubera, E.; Solla, A. Transgenerational Induction of Resistance to Phytophthora cinnamomi in Holm Oak. Forests 2021, 12, 100. [Google Scholar] [CrossRef]
  56. Gómez, M.C.; González, M.; Gómez-Aparicio, L.; Serrano, M.S. Coexistent Mediterranean Woody Species as a Driving Factor of Phytophthora cinnamomi Infectivity and Survival. Ann. Appl. Biol. 2020, 177, 41–50. [Google Scholar] [CrossRef]
  57. Bunny, F.J.; Crombie, D.S.; Williams, M.R. Growth of Lesions of Phytophthora cinnamomi in Stems and Roots of Jarrah (Eucalyptus marginata) in Relation to Rainfall and Stand Density in Mediterranean Forest of Western Australia. Can. J. For. Res. 1995, 25, 961–969. [Google Scholar] [CrossRef]
  58. Scanu, B.; Linaldeddu, B.T.; Deidda, A.; Jung, T. Diversity of Phytophthora Species from Declining Mediterranean Maquis Vegetation, Including Two New Species, Phytophthora crassamura and P. ornamentata Sp. Nov. PLoS ONE 2015, 10, e0143234. [Google Scholar] [CrossRef]
  59. Dogbatse, J.A.; Arthur, A.; Awudzi, G.K.; Quaye, A.K.; Konlan, S.; Amaning, A.A. Effects of Organic and Inorganic Fertilizers on Growth and Nutrient Uptake by Young Cacao (Theobroma cacao L.). Int. J. Agron. 2021, 2021, 5516928. [Google Scholar] [CrossRef]
  60. Chemura, A. The Growth Response of Coffee (Coffea arabica L) Plants to Organic Manure, Inorganic Fertilizers and Integrated Soil Fertility Management under Different Irrigation Water Supply Levels. Int. J. Recycl. Org. Waste Agric. 2014, 3, 59. [Google Scholar] [CrossRef]
  61. Dresselhaus, T.; Hückelhoven, R. Biotic and Abiotic Stress Responses in Crop Plants. Agronomy 2018, 8, 267. [Google Scholar] [CrossRef]
  62. Solla, A.; García, L.; Pérez, A.; Cordero, A.; Cubera, E.; Moreno, G. Evaluating Potassium Phosphonate Injections for the Control of Quercus ilex Decline in SW Spain: Implications of Low Soil Contamination by Phytophthora cinnamomi and Low Soil Water Content on the Effectiveness of Treatments. Phytoparasitica 2009, 37, 303–316. [Google Scholar] [CrossRef]
  63. Maurel, M.; Robin, C.; Capron, G.; Desprez-Loustau, M.L. Effects of Root Damage Associated with Phytophthora cinnamomi on Water Relations, Biomass Accumulation, Mineral Nutrition and Vulnerability to Water Deficit of Five Oak and Chestnut Species. For. Pathol. 2001, 31, 353–369. [Google Scholar] [CrossRef]
  64. James, E.C.; Van Iersel, M.W. Fertilizer Concentration Affects Growth and Flowering of Subirrigated Petunias and Begonias. HortScience 2001, 36, 40–44. [Google Scholar] [CrossRef]
  65. Chang, K.H.; Wu, R.Y.; Chuang, K.C.; Hsieh, T.F.; Chung, R.S. Effects of Chemical and Organic Fertilizers on the Growth, Flower Quality and Nutrient Uptake of Anthurium andreanum, Cultivated for Cut Flower Production. Sci. Hortic. 2010, 125, 434–441. [Google Scholar] [CrossRef]
  66. Redondo, M.Á.; Pérez-Sierra, A.; Abad-Campos, P.; Torres, L.; Solla, A.; Reig-Armiñana, J.; García-Breijo, F. Histology of Quercus ilex Roots during Infection by Phytophthora cinnamomi. Trees 2015, 29, 1943–1957. [Google Scholar] [CrossRef]
  67. Ruiz Gómez, F.J.; Navarro-Cerrillo, R.M.; Sánchez-Cuesta, R.; Pérez-de-Luque, A. Histopathology of Infection and Colonization of Quercus ilex Fine Roots by Phytophthora cinnamomi. Plant Pathol. 2015, 64, 605–616. [Google Scholar] [CrossRef]
  68. Dawson, P. Impact of Root Infection by Phytophthora cinnamomi on the Water Relations of Two Eucalyptus Species That Differ in Susceptibility. Phytopathology 1984, 74, 486. [Google Scholar] [CrossRef]
  69. Oßwald, W.; Fleischmann, F.; Rigling, D.; Coelho, A.C.; Cravador, A.; Diez, J.; Dalio, R.J.; Horta Jung, M.; Pfanz, H.; Robin, C.; et al. Strategies of Attack and Defence in Woody Plant-Phytophthora Interactions. For. Pathol. 2014, 44, 169–190. [Google Scholar] [CrossRef]
  70. Zainuddin, N.; Keni, M.F.; Ibrahim, S.A.S.; Masri, M.M.M. Effect of Integrated Biofertilizers with Chemical Fertilizers on the Oil Palm Growth and Soil Microbial Diversity. Biocatal. Agric. Biotechnol. 2022, 39, 102237. [Google Scholar] [CrossRef]
  71. Bergstrand, K.J. Organic Fertilizers in Greenhouse Production Systems—A Review. Sci. Hortic. 2022, 295, 110855. [Google Scholar] [CrossRef]
Forests 13 01558 g001 550
Figure 1. Experimental design including details of acorn sampling, soil fertilisation, acorn germination, plant growth, and P. cinnamomi soil infestation. Red numbers refer to the sample size at each step.
Figure 1. Experimental design including details of acorn sampling, soil fertilisation, acorn germination, plant growth, and P. cinnamomi soil infestation. Red numbers refer to the sample size at each step.
Forests 13 01558 g001
Forests 13 01558 g002 550
Figure 2. Survival probability of Q. ilex plants since plant emergence, depending on the infection by P. cinnamomi (A) using mock-inoculated plants vs. P. cinnamomi-inoculated plants, and the Biohumin® concentration treatments (B) with 0, 12.5, and 25% BIO proportion in substrate. Dots indicate measures taken during experiment, and lines are the predicted values by the model.
Figure 2. Survival probability of Q. ilex plants since plant emergence, depending on the infection by P. cinnamomi (A) using mock-inoculated plants vs. P. cinnamomi-inoculated plants, and the Biohumin® concentration treatments (B) with 0, 12.5, and 25% BIO proportion in substrate. Dots indicate measures taken during experiment, and lines are the predicted values by the model.
Forests 13 01558 g002
Forests 13 01558 g003 550

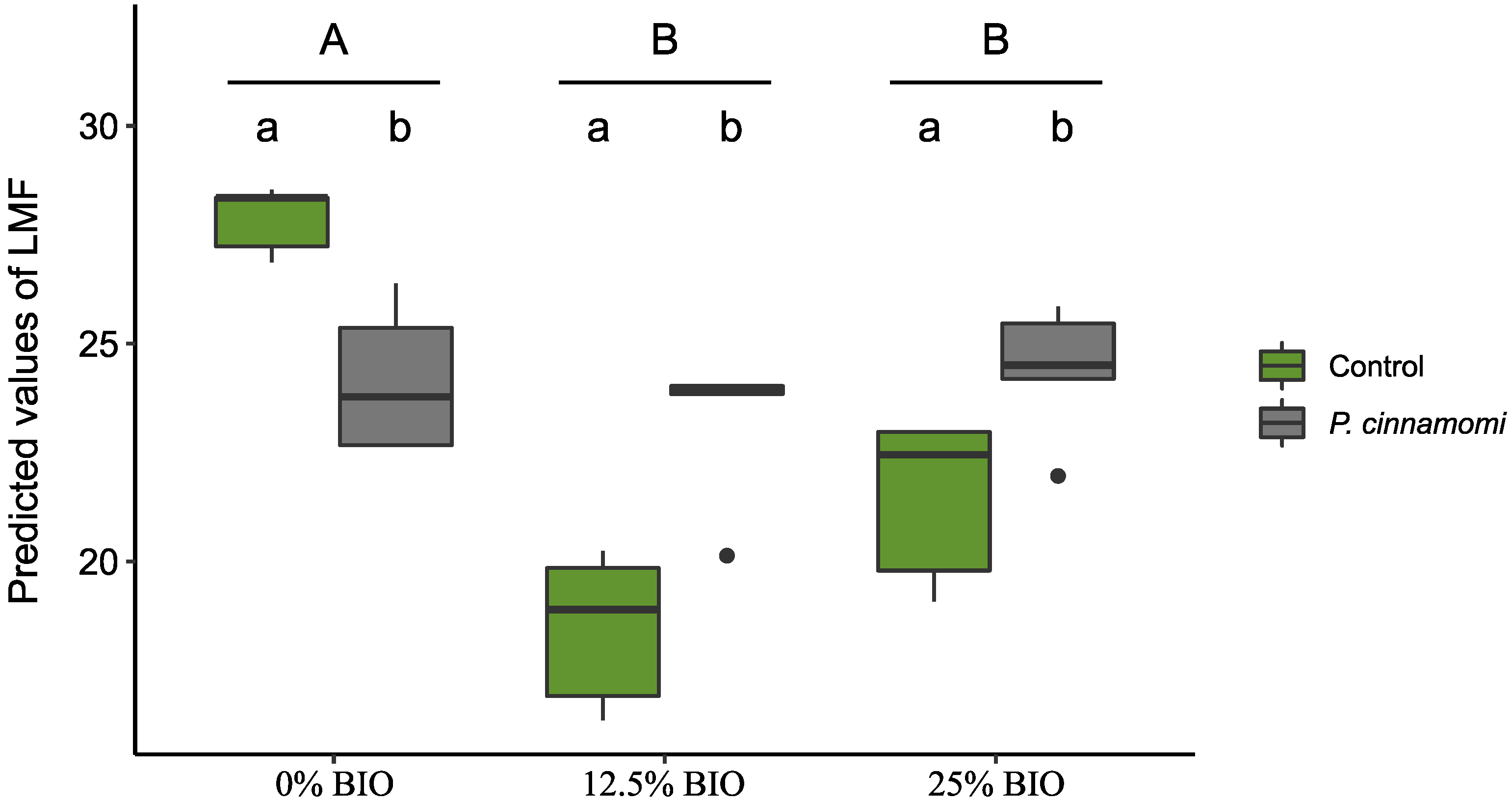

Figure 3. Boxplot of predicted values of leaf mass fraction (leaf dry mass/total plant dry mass; LMF) separated by soil treatments (x-axis) and P. cinnamomi infection (control plants shown in green colour; infected plants in grey). Lowercase letters indicate differences between P. cinnamomi infection treatments, and capital letters indicate differences among soil treatments.
Figure 3. Boxplot of predicted values of leaf mass fraction (leaf dry mass/total plant dry mass; LMF) separated by soil treatments (x-axis) and P. cinnamomi infection (control plants shown in green colour; infected plants in grey). Lowercase letters indicate differences between P. cinnamomi infection treatments, and capital letters indicate differences among soil treatments.
Forests 13 01558 g003
Forests 13 01558 g004 550

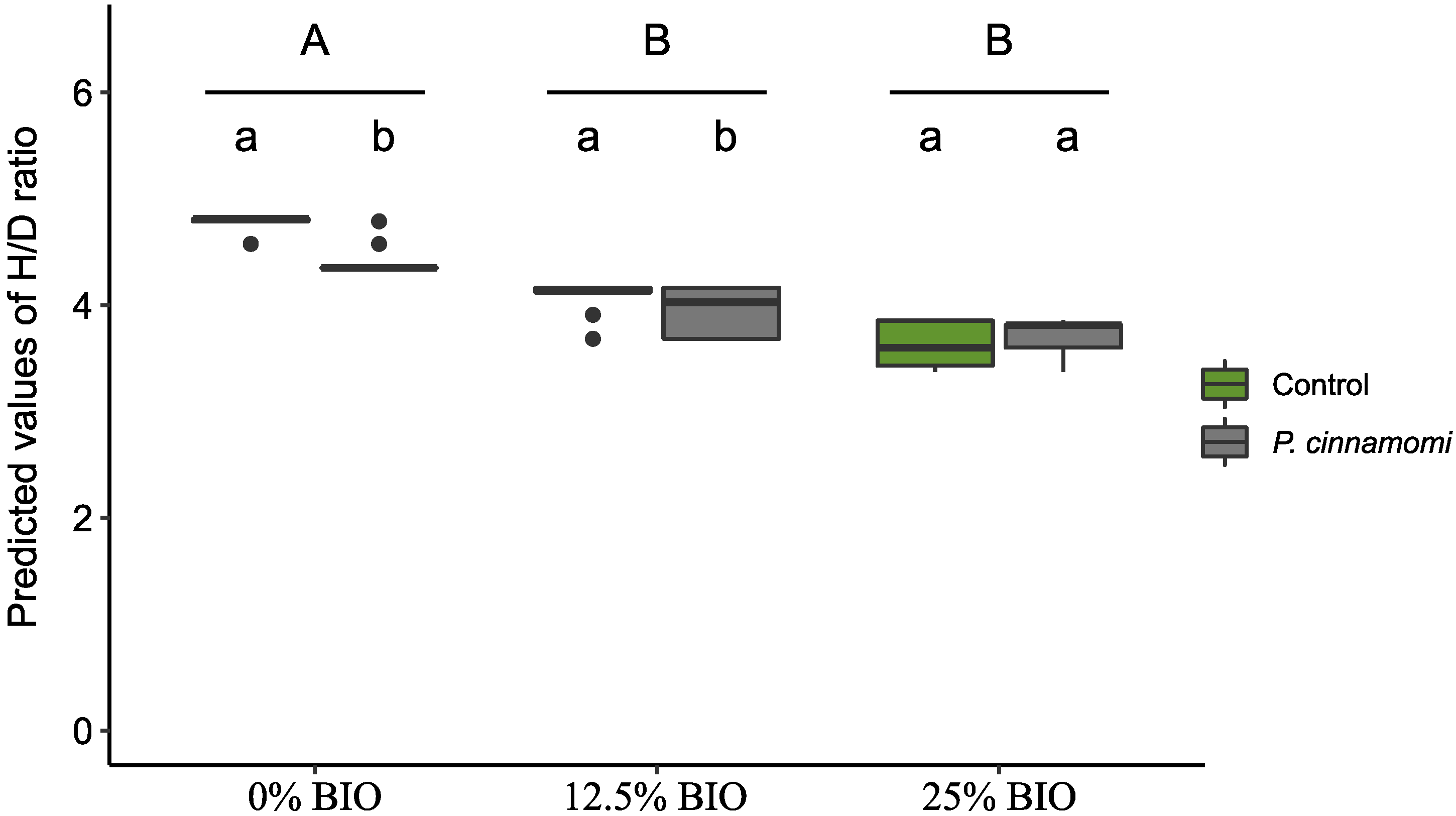

Figure 4. Boxplot of predicted values of height:diameter ratio (H/D) separated by soil treatments (x-axis) and P. cinnamomi infection (control plants, green; infected plants, grey). Lowercase letters indicate differences between P. cinnamomi infection treatments, and capital letters indicate differences among soil treatments.
Figure 4. Boxplot of predicted values of height:diameter ratio (H/D) separated by soil treatments (x-axis) and P. cinnamomi infection (control plants, green; infected plants, grey). Lowercase letters indicate differences between P. cinnamomi infection treatments, and capital letters indicate differences among soil treatments.
Forests 13 01558 g004
Table
Table 1. Summary of maximal models performed for data analysis in this study.
Table 1. Summary of maximal models performed for data analysis in this study.
Model TypeModelResponse Variable (Group) 1Fixed Effect 2Random EffectSample Size (n)
Kaplan–MeierIOak survivalST × PI1|Mother Tree360
GLMMsIIMorphology (biomass)ST × PI1|Mother Tree36
GLMMsIIIMorphology (size)ST × PI1|Mother Tree60
GLMMsIVPhysiologyST × PI1|Mother Tree60
1 Morphology and physiology includes several response variables. 2 Fixed factors = ST: Biohumin® soil treatment (0% vs. 12.5% vs. 25% Biohumin® fraction); PI: Phytophthora soil infestation treatment.
Table
Table 2. Summary of the top linear mixed models (ΔAIC < 2) fitted to analyse main and interaction effects of factors soil treatment (ST) and P. cinnamomi infection (PI) on morphological variables (II and III models in Table 1). Asterisks indicate statistical significance (p < 0.05 *, p < 0.01 **, p < 0.001 ***).
Table 2. Summary of the top linear mixed models (ΔAIC < 2) fitted to analyse main and interaction effects of factors soil treatment (ST) and P. cinnamomi infection (PI) on morphological variables (II and III models in Table 1). Asterisks indicate statistical significance (p < 0.05 *, p < 0.01 **, p < 0.001 ***).
Response VariableFixed EffectsImportance 2LevelsCoeff.SEz-Valuep
Root biomass 1Intercept 0.5760.05011.4400.001 ***
LMFIntercept 26.7432.05612.633<0.001 ***
Soil Treatment0.85Bio 12.5%−7.0893.2352.1420.032 *
Bio 25%−4.5702.9421.5110.031 *
PI Infection0.60P. cinnamomi−2.2773.4210.6510.515
ST × PI0.39B 12.5% × PI8.6003.9452.0920.036 *
B 25% × PI6.7003.9451.6300.003 **
FRMFIntercept 9.4960.86210.674<0.001 ***
PI Infection0.40P. cinnamomi−1.3511.3370.9740.330
R/S ratioIntercept 1.1480.03531.339<0.001 ***
Soil Treatment0.72Bio 12.5%0.0600.0291.9690.050
Bio 25%0.0310.0360.8330.405
PI Infection0.94P. cinnamomi−0.0490.0281.7170.086
ST × PI0.23B 12.5% × PI−0.0110.0510.2110.833
B 25% × PI−0.0790.0511.4730.141
FR/LBIntercept 9.2290.66913.800<0.001 ***
Height (H)Intercept 20.2091.19616.539<0.001 ***
Soil Treatment 0.84Bio 12.5%−2.2051.5951.3530.176
Bio 25%−4.2291.5772.6250.009 **
PI Infection0.33P. cinnamomi−0.0261.2950.0200.984
Basal diameter (D)Intercept 4.5100.16127.413<0.001 ***
PI Infection0.29P. cinnamomi0.2510.2650.9260.354
H/D ratioIntercept 4.9070.40411.947<0.001 ***
Soil Treatment0.88Bio 12.5%−0.8170.4541.7620.078
Bio 25%−1.3400.5692.3250.020 *
PI Infection0.52P. cinnamomi−1.0770.4972.1160.034 *
ST × PI0.36B 12.5% × PI0.7380.6931.0390.059
B 25% × PI1.5240.6852.1700.160
1 Biomass of roots less than 2 mm in diameter. LMF: leaf mass fraction; FRMF: fine-root mass fraction; R/S ratio: root-to-shoot ratio; FR/LB: fine-root-to-leaf biomass fraction.. Results for soil treatment refer to Biohumin® 12.5% and 25% against control plants (i.e., Biohumin® 0% is included in intercept), and results for biotic stress refer to P. cinnamomi-infected plants against control plants (i.e., uninfected plants are included in intercept). 2 Importance: Importance of predictor variable in the model averaging approach.
Table
Table 3. Summary of the top linear mixed models (ΔAIC < 2) fitted to analyse main factors—soil treatment and P.c. infection—affecting physiological variables (IV models of Table 1). Asterisks indicate statistical significance (p < 0.05 *, p < 0.01 **, p < 0.001 ***).
Table 3. Summary of the top linear mixed models (ΔAIC < 2) fitted to analyse main factors—soil treatment and P.c. infection—affecting physiological variables (IV models of Table 1). Asterisks indicate statistical significance (p < 0.05 *, p < 0.01 **, p < 0.001 ***).
VariableFixed EffectsImportance 2LevelsCoeff.SEz-Valuep
PnIntercept 8.4760.61513.543<0.001 ***
P.c. Infection0.44P. cinnamomi−1.0450.9411.0870.277
gsIntercept −1.8340.10916.521<0.001 ***
Soil Treatment0.31Bio 12.5%−0.2630.180811.4240.154
Bio 25%−0.1800.181310.9690.332
P.c. Infection0.32P. cinnamomi−0.0890.1470.5910.554
CiIntercept 284.9275.60950.063<0.001 ***
P.c. Infection0.69P. cinnamomi13.5147.1371.8540.064
ETRIntercept 1.0850.002645.189<0.001 ***
Soil Treatment0.96Bio 12.5%−0.0050.0022.6130.009 **
Bio 25%−0.0060.0022.8780.004 **
P.c. Infection0.33P. cinnamomi0.0010.0020.3050.761
EIntercept 1.9410.15012.9730.001 **
Pn/gs ratioIntercept 61.3643.38417.866<0.001 ***
P.c. Infection0.63P. cinnamomi−7.6674.4231.6970.089
Pn/E ratioIntercept 4.3540.20221.5930.001 ***
ΨIntercept 3.0040.09531.700<0.001 ***
Soil Treatment0.85Bio 12.5%−0.2160.095−2.2700.023 *
Bio 25%−0.2320.096−2.4130.016 *
P.c. Infection0.97P. cinnamomi0.2360.0763.1080.002 **
Pn: Net CO2 assimilation; gs: stomatal conductance to water vapor; Ci: intercellular CO2 concentration; ETR: electron transport rate; E: transpiration; Pn/gs ratio: proxy of instantaneous water use efficiency; Ψ: water potential. Importance: Importance of predictor variable in the model averaging approach. Results for soil treatment refer to Biohumin® 12.5% and 25% against control plants (Biohumin® 0%), and results for biotic stress refer to P. cinnamomi-infected plants against control (uninfected) plants. 2 Importance: Importance of predictor variable in the model averaging approach.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

López-Sánchez, A.; Capó, M.; Rodríguez-Calcerrada, J.; Peláez, M.; Solla, A.; Martín, J.A.; Perea, R. Exploring the Use of Solid Biofertilisers to Mitigate the Effects of Phytophthora Oak Root Disease. Forests 2022, 13, 1558. https://doi.org/10.3390/f13101558

AMA Style

López-Sánchez A, Capó M, Rodríguez-Calcerrada J, Peláez M, Solla A, Martín JA, Perea R. Exploring the Use of Solid Biofertilisers to Mitigate the Effects of Phytophthora Oak Root Disease. Forests. 2022; 13(10):1558. https://doi.org/10.3390/f13101558

Chicago/Turabian Style

López-Sánchez, Aida, Miquel Capó, Jesús Rodríguez-Calcerrada, Marta Peláez, Alejandro Solla, Juan A. Martín, and Ramón Perea. 2022. "Exploring the Use of Solid Biofertilisers to Mitigate the Effects of Phytophthora Oak Root Disease" Forests 13, no. 10: 1558. https://doi.org/10.3390/f13101558

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
