Characterization of Fungal Pathogens Associated with White Pine Needle Damage (WPND) in Northeastern North America

by
Kirk Broders
1,*,
Isabel Munck
2,
Stephen Wyka
1,
Gloria Iriarte
1 and
Eric Beaudoin
1
1
Department of Biological Sciences, University of New Hampshire, Durham, NH 03824, USA
2
USDA Forest Service, State & Private Forestry, 271 Mast Rd., Durham, NH 03824, USA
*
Author to whom correspondence should be addressed.
Forests 2015, 6(11), 4088-4104; https://doi.org/10.3390/f6114088
Submission received: 9 September 2015 / Revised: 4 November 2015 / Accepted: 6 November 2015 / Published: 12 November 2015
(This article belongs to the Special Issue Joint IUFRO 7.02.02 “Foliage, shoot and stem diseases of forest trees” and 7.03.04 “Diseases and insects in forest nurseries” Working Parties Meeting)
Browse Figures
Versions Notes

Abstract

:
Eastern white pine is a crucial ecological and economic component of forests in the northern USA and eastern Canada, and is now facing an emerging problem in white pine needle damage (WPND). It is still unclear whether WPND results from one, or the combination of several fungal pathogens. Therefore, the first objective of this study was to characterize the fungi associated with WPND in the northeastern United States and document the damage being done to mature eastern white pine as a result of repeated defoliation. To date, 22 species of fungi, either cultured from diseased pine needles or formed fruiting bodies on pine needles were identified based on morphology and sequence data. Lecanosticta acicola and a putative new species of Septorioides were the species most frequently recovered from diseased needles, in addition to needle cast fungi Lophophacidium dooksii and Bifusella linearis, two obligate fungal pathogens that were frequently observed on pine needles in the northeast, but have not been known to cause excessive defoliation of eastern white pine. A second objective was to monitor yearly the health of 63 pairs of healthy and unhealthy trees in eight affected locations throughout New England. Since 2012, affected trees are increasingly and repeatedly chlorotic and defoliated every year. Trees that were initially healthy are now exhibiting symptoms. While L. acicola appears to be the primary pathogen causing WPND, several other common needle pathogens are being more frequently observed and the role of climate change may be important in the disease ecology of WPND. These defoliation events, while once a sporadic occurrence, have now become more frequent as observed in continued crown deterioration of eastern white pine in long-term monitoring plots followed during the course of this three-year study.

1. Introduction

In recent years, greater frequency and severity of biotic attacks and climate extremes—as well as interactions between biotic and climate stressors—have contributed to increased tree mortality rates worldwide [1,2] At the whole tree level, defoliation by pathogens and environmental stress can limit a tree’s ability to take up water and nutrients, which can affect forest productivity and carbon stocks [3,4]. Eastern white pine (Pinus strobus) is a crucial ecological and economic component of forests in the northern USA and eastern Canada, and is now facing an emerging problem in white pine needle damage (WPND) a new disorder of eastern white pine that is likely due to one or more fungal pathogens.
During the summer of 2010, WPND was observed frequently throughout New England generating much public concern. Symptoms consisted of yellow and brown discoloration of one-year old needles, and affected needles dropped causing tree crowns to look thin a year after initial infection. Needles of both mature trees and regeneration were damaged. Preliminary diagnosis of this foliar damage has been attributed to frost and two foliar diseases, brown spot needle blight caused by the fungus Lecanosticta acicola (formerly known as Mycosphaerella dearnessii) [5] and Canavirgella needle cast caused by C. banfieldii, recently determined to be the same species as Lophophacidium dooksii [6] and herein referred to as L. dooksii as that name has precedence. Diagnosing the damage agent is difficult because both fungi cause similar symptoms, although they can be differentiated by their sexual and asexual fruiting bodies produced at different times in the growing season. The sexual fruiting structures of L. dooksii are produced through the winter and are visible earlier in the spring, whereas L. acicola pycnidia fruits in June [7]. Consequently, L. dooksii hysterothecia could be present in infected needles by April and fruiting bodies of both L. dooksii and L. acicola could be present by June. In addition, fruiting bodies of other fungi including Bifusella linearis and several undetermined species have been observed on diseased needles.
Both L. dooksi and B. linearis are known to cause needle cast diseases on eastern white pine in the northeast, but neither pathogen has been reported to cause the periodic large scale defoliation that has occurred over the last decade. While, brown spot caused by L. acicola has been frequently associated with WPND damage, this fungus has not historically been associated with disease on mature white pines in the northeast. Brown spot has been a persistent problem in long leaf pine plantations in the southeastern U.S. and scotch pine in Minnesota and Wisconsin [8,9], but severe defoliation of eastern white pine by L. acicola in the northeast was not reported prior to 2005 [10]. It is possible that a change in temperature and precipitation patterns over the past decade in the northeast have contributed to a potential range shift as well as contributed to repeated defoliation events by L. acicola and other pathogens in the northern forest. However, to date there is little data to substantiate this claim, but a more thorough investigation of the fungi contributing to the defoliation event would be a positive first step in developing future management strategies.
The importance of this new disease has been observed in the substantial increase in the number of reports of WPND in the last four years as evidenced by the Forest Health Monitoring reports from Maine, New Hampshire, Massachusetts, and Vermont [11]. In addition, a recent forest service pest alert, “Eastern White Pine Needle Damage”, outlined the importance of this emerging problem on white pine in the northeast [10] and its potential to be a problem in all regions of the United States and Canada within the range of eastern white pine. White pine foliar damage was mapped during 2010 aerial forest health detection surveys in New England. In Maine alone 24,328 hectares were reported damaged (Figure 1). However, several fungi and frost were associated with the foliar damage, thus coding the damage consistently during the aerial surveys was challenging. There was a need to understand the extent of the damage that could be directly related to foliar pathogens. Consequently, the first objective of this study was to identify the fungi commonly associated with the symptoms of white pine needle damage in the northeastern U.S., and the second objective, was to monitor the health of white pines affected by WPND over time.
Forests 06 04088 g001 1024

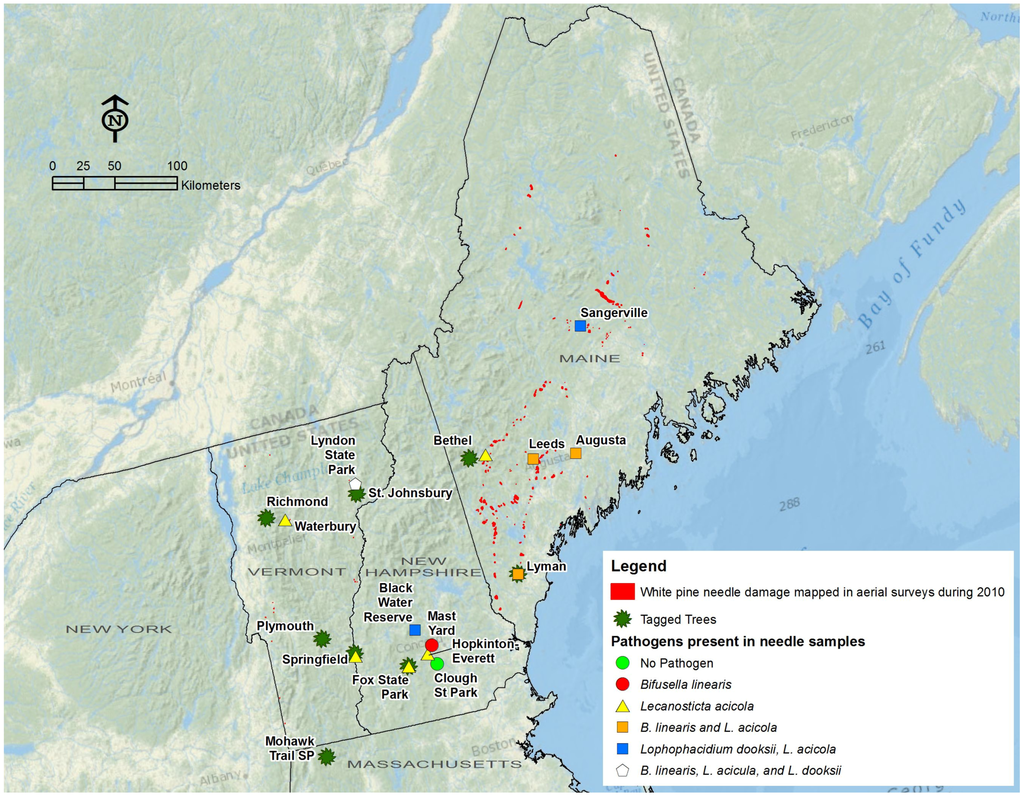

Figure 1. Map of white pine foliar damage detected during aerial detection surveys (red), long-term monitoring sites to evaluate repeated defoliation (dark green), and 13 sites sampled by State Forest Health Cooperators from Maine, New Hampshire, and Vermont during 2011 and the presence of Bifusella linearis, Lophophacidium dooksii, and Lecanosticta acicola at each of those locations.
Figure 1. Map of white pine foliar damage detected during aerial detection surveys (red), long-term monitoring sites to evaluate repeated defoliation (dark green), and 13 sites sampled by State Forest Health Cooperators from Maine, New Hampshire, and Vermont during 2011 and the presence of Bifusella linearis, Lophophacidium dooksii, and Lecanosticta acicola at each of those locations.
Forests 06 04088 g001

2. Methods

Isolate collection. Forest Health State Cooperators from Maine, New Hampshire, and Vermont collected samples from at least three to five white pine stands per State that exhibited damage during 2011, along with stand information. These 13 forest units (stands) were located throughout New England (43.10° to 45.17° N, 69.36° to 72.77° W) (Figure 1). Most of these were natural stands located in wetland areas, but trees on dry steep slopes in one plantation in Vermont were also sampled. As multiple pathogens were associated with the damage, sexual and asexual reproductive structures would fruit at different times, stands were sampled between 25 April and 2 May and again during 13–22 June 2011. When available, samples were also collected from one healthy control tree. Each sample consisted of a quart-size (1 L) bag full of branch tips. Samples were taken from a total of 60 trees in all age classes. In May 2011, 729 branch tips and 1153 incubated needles were examined. Similarly, in June 2011, 384 branch tips and 901 incubated needles were examined. Additional samples from another eight sites were sent in by Forest Health State Cooperators during 2011 and 2012 in response to sporadic defoliation events in the region.
Samples were sent to the U.S. Forest Service Durham Field Office where they were processed for pathogen identification. All branch tips were visually examined for fungal fruiting structures. Disease incidence was recorded based on presence or absence of disease symptoms. Bifusella linearis was identified by Mary Inman; diagnostician for the Connecticut Agricultural Experiment Station. Twenty needles from one representative branch tip per tree were placed in a moist chamber; incubated at 25 °C for 24 to 72 h; and then examined with the aid of dissecting and light microscopes. To enable sporulation, moist chambers consisted of Petri plates with filter papers moistened with deionized water sealed with Parafilm. In order to observe the pathogens in culture as well as extract DNA from mycelia; pure cultures of each isolate were obtained. To do this; three to five symptomatic needles from each tree were surfaced sterilized in a 10% bleach solution for one minute; rinsed three times with de-ionized H2O; and allowed to dry in a fume hood. Small segments (1 cm) of dry needles were either plated directly onto potato dextrose agar (PDA) or incubated in a humid chamber with 500 µL of sterile H2O for two days; to enhance sporulation followed by transfer of spores to PDA and incubated at room temperature with ambient light (Difco™). Once pure cultures were established; isolates were transferred onto PDA plates overlaid with a Cellophane membrane (Flexel Sales Inc., Atlanta, GA, USA); and grown for one to two weeks. Under aseptic conditions mycelia were scrapped off and placed inside 2 mL microcentrifuge tubes (VWR); frozen for 1 h at −80 °C; and freeze dried for two days. Genomic DNA extraction from dried mycelium followed the modified cetyltrimethyl ammonium bromide (CTAB) method. DNA was then used for molecular identification described below.
In addition to morphological identification a subset of isolates were identified based on the sequence of their internal transcribed spacer (ITS) regions 1 and 2, including the 5.8s rDNA. Once isolates were in pure culture, they were organized based on morphology and growth characteristics in culture. Representative samples from each morphotype at each location were included for DNA extraction and molecular identification. DNA was extracted from mycelia as described above and stored at −20 °C. PCR was performed in 30 μL reaction volume containing 6 μL of 5× Green GoTaq reaction buffer (Promega Corp., San Luis Obisbo, CA, USA), 2.4 μL of 25 mM MgCl2, 0.75 μL containing 10 mM each dNTP, 0.2 units of GoTaq Taq DNA polymerase, 0.9 μL of each primer ITS1 and ITS4 [12] at 10 pmol·μL−1, 2 μL of 15 ng/µL DNA and 16.85 μL of sterile distilled water. The PCR amplification conditions were initial denaturation at 94 °C for 2 min, followed by 35 cycles of 30 s at 94 °C, 30 s at 54 °C, and 30 s at 72 °C, with a final 5 min at 72 °C. Amplified products were purified using Qiaquick spin columns (Qiagen Inc., Gaithersburg, MD, USA). DNA was quantified using a NanoDrop 1000 spectrophotometer (Thermo Scientific, Waltham, MA, USA). Amplified products were sequenced by including 14 ng of purified DNA with the BigDye version 3.1 Ready Reaction Kit (Applied Biosystems, Foster City, CA, USA) on an ABI 3730 DNA Analyzer (Applied BioSystems) at the University of New Hampshire Hubbard Center for Genome Studies.
Needles containing the fruiting structures of potential obligate fungi were washed in a 10% bleach solution for 1 min, triple rinsed with deionized water, placed in a sterile moist chamber, and incubated at 25 °C for 48 h. Fruiting structures were scrapped off the needle and directly placed into a sterile 2 mL tube with silica and two or three metal beads. Tubes were vortexed at max speed for 5 min and DNA extraction followed the Power Plant Pro DNA Isolation Kit (MoBio Laboratories, Inc., Carlsbad, CA, USA). PCR was performed in the same manner as above.

2.1. Phylogenetic Analysis

Raw sequences were manually adjusted and edited using BioEdit and were deposited in GenBank as listed in Table 1. To infer species and outgroups, closely related species were imported from GenBank. When possible sequences were used only from vouchered cultures from either the Centraalbureau voor Schimmelcultures (CBS) fungal biodiversity center, or other published source. The phylogenetic and molecular analyses were completed using MEGA version 4.0 [13]. Alignments were completed using ClustalW and trees were inferred using the neighbor joining (NJ) method (Kimura two-parameter distance calculation) and maximum likelihood (ML) method. Gaps were treated as missing data with missing or ambiguous sites ignored for the affected pairwise comparison. All positions were included in the analyses and relative support for the branches was estimated with 1000 bootstrap replications [14] for NJ analysis. Analysis of polymorphic sites was completed using DnaSP [15].
Table
Table 1. Cultured isolates or fruiting bodies of fungi recovered from symptomatic white pine needles in the northeastern United States.
Table 1. Cultured isolates or fruiting bodies of fungi recovered from symptomatic white pine needles in the northeastern United States.
Sample I.D.LocationStateDNA a SourceSpeciesGenBank b Accession
EBJul30-10TollandCTFruit bodyHemiphacidium longisporumKT000188
EBJul30-11TollandCTFruit bodyHemiphacidium longisporumKT000189
WPF 111-12GAugustaMEMyceliaHendersonia pinicolaKT000174
WPF 97-12GAugustaMEMyceliaLophodermium macciKT000171
WPF 180-12GAugustaMEMyceliaPyrenochaeta spp.KT000185
WPF 21-12ABethelMEMyceliaAllantophomopsiella pseudotsugaeKT000147
WPF 19-12ABethelMEMyceliaCladosporiumKT000145
WPF 157-12GBethelMEMyceliaHendersonia pinicolaN/A
WPF 2-12ABethelMEMyceliaLecanosticta acicolaKT000153
WPF 32-12ABethelMEMyceliaLecanosticta acicolaN/A
WPF 33-12ABethelMEMyceliaLecanosticta acicolaN/A
WPF 4-12ABethelMEMyceliaLecanosticta acicolaKT000154
WPF 5-12ABethelMEMyceliaLecanosticta acicolaKT000155
WPF 9-12ABethelMEMyceliaLecanosticta acicolaKT000134
WPF 28-12ABethelMEMyceliaPhaeosphaeria pontiformisKT000144
WPF 26-12ABethelMEMyceliaSeptorioides sp. nov.KT000142
WPF 15-12ABethelMEMyceliaSydowia polysporaKT000149
WPF 17-12ABethelMEMyceliaSydowia polysporaKT000156
WPF 23-12ABethelMEMyceliaSydowia polysporaKT000151
WPF 69-12GBlackwaterMEMyceliaSeptorioides sp. nov.N/A
1528LeedsMEMyceliaLecanosticta acicolaKT007127
1666LeedsMEMyceliaLecanosticta acicolaKT007128
WPF 37-12GLeedsMEMyceliaLecanosticta acicolaN/A
WPF 56-12ALeedsMEMyceliaLecanosticta acicolaKT000166
WPF 44-12GLeedsMEMyceliaLecanosticta acicolaN/A
WPF 51-12GLeedsMEMyceliaLophodermium nitensKT000163
WPF 54-12GLeedsMEMyceliaPestalotiopsis jesteriKT000164
WPF 55-12GLeedsMEMyceliaPestalotiopsis jesteriKT000165
WPF 120-12GLeedsMEMyceliaPhaeomoniella sp.KT000175
WPF 48-12GLeedsMEMyceliaPhialocephala fluminisKT000162
WPF 42-12GLeedsMEMyceliaSeptorioides sp. nov.KT000161
WPF 46-12GLeedsMEMyceliaSeptorioides sp. nov.KT000138
WPF 103-12GLymanMEMyceliaFungal endophyteKT000172
WPF 93-12GLymanMEMyceliaHendersonia pinicolaN/A
1671LymanMEMyceliaLecanosticta acicolaKT007129
WPF 102-12GLymanMEMyceliaSeptorioides sp. nov.N/A
WPF 106-12GLymanMEMyceliaSeptorioides sp. nov.KT000173
WPF 158-12GLymanMEMyceliaSeptorioides sp. nov.N/A
WPF 90-12GLymanMEMyceliaSeptorioides sp. nov.KT000170
WPF 151-12GSangervilleMEMyceliaFungal endophyteKT000179
WPF 152-12GSangervilleMEMyceliaHendersonia pinicolaN/A
WPF 85-12GSangervilleMEMyceliaHendersonia pinicolaKT000169
WPF 86-12GSangervilleMEMyceliaHendersonia pinicolaN/A
WPF 87-12GSangervilleMEMyceliaHendersonia pinicolaN/A
1675SangervilleMEMyceliaLecanosticta acicolaKT007130
WPF 14-12ASangervilleMEMyceliaParaconiothyrium spp.KT000176
WPF 150-12GSangervilleMEMyceliaRhizosphaera kalkhoffiiKT000178
WPF 121-12GSangervilleMEMyceliaSeptorioides sp. nov.KT000140
WPF 147-12GSangervilleMEMyceliaSeptorioides sp. nov.KT000139
WPF 149-12GSangervilleMEMyceliaSeptorioides sp. nov.KT000135
WPF 18-12ASangervilleMEMyceliaSeptorioides sp. nov.KT000157
WPF 22-12ASangervilleMEMyceliaSydowia polysporaKT000148
WPF 73-12GBlackwaterNHMyceliaLecanosticta acicolaKT000168
EBJul30-4GilmantonNHFruit bodyHendersonia pinicolaKT000192
1678HillsboroNHMyceliaLecanosticta acicolaKT007131
WPF 75-12GHopkintonNHMyceliaHendersonia pinicolaN/A
WPF 21-12AHopkintonNHMyceliaSeptorioides sp. nov.N/A
WPF 25-12AHopkintonNHMyceliaSeptorioides sp. nov.KT000160
WPF 27-12AHopkintonNHMyceliaSeptorioides sp. nov.KT000143
WPF 71-12GMast YardNHMyceliaDothiodiomyceteKT000167
1679MerrimackNHMyceliaLecanosticta acicolaKT007132
EBJul30-16MonadnockNHFruit bodyHendersonia pinicolaKT000191
EBJul30-2New HamptonNHFruit bodyHemiphacidium longisporumKT000190
EBJul30-9New HamptonNHFruit bodyLophophacidium dooksiiKT000187
EBJul30-15SanborntonNHFruit bodyBifusella linearisKT000195
EBJul30-5ScituateRIFruit bodyBifusella linearisKT000193
WPF 16-12ABethelVTMyceliaSydowia polysporaKT000150
1681BrookfieldVTMyceliaLecanosticta acicolaKT007133
EBJul30-6PlymouthVTMyceliaBifusella linearisKT000194
EBJul30-1PlymouthVTMyceliaLophophacidium dooksiiKT000186
V-3-4RichmondVTMyceliaSeptorioides sp. nov.KT000137
WPF 172-12GSpringfieldVTMyceliaFungal endophyteKT000183
WPF 165-12GSpringfieldVTMyceliaSeptorioides sp. nov.KT000180
WPF 167-12GSpringfieldVTMyceliaSeptorioides sp. nov.KT000181
WPF 175-12GSpringfieldVTMyceliaSeptorioides sp. nov.KT000184
WPF 170-12GSpringfieldVTMyceliaSydowia polysporaKT000182
WPF 176-12GSpringfieldVTMyceliaSydowia polysporaN/A
WPF 174-12GSpringfieldVTMyceliaHendersonia pinicolaN/A
V-5-2UnderhillVTMyceliaSeptorioides sp. nov.KT000136
V-1-4WaterburyVTMyceliaHendersonia pinicolaKT000152
1506WaterburyVTMyceliaLecanosticta acicolaKT007125
1518WaterburyVTMyceliaLecanosticta acicolaKT007126
WPF 144-12GWaterburyVTMyceliaPestalotiopsis uvicolaKT000177
WPF 20-12AWaterburyVTMyceliaSeptorioides sp. nov.KT000146
WPF 24-12AWaterburyVTMyceliaSeptorioides sp. nov.KT000141
V-1-9WaterburyVTMyceliaDiscostroma fuscellumKT000158
a Indicates whether DNA was extracted from mycelia grown in culture or direction from a fruiting structure on an symptomatic white pine needle; b Those isolates identified by morphology, but for which the internal transcribed spacer (ITS) regions was not sequenced are labeled as N/A.

2.2. Long-Term White Pine Health Monitoring

Eight long-term monitoring plots have been established throughout New England in sites where pines were maintaining adequate growth and healthy crowns prior to the disease outbreak within four different frost hardiness zones to determine the long-term effects of repeated defoliations on affected trees (Figure 1). At each of the eight long-term monitoring plots, pairs of healthy and unhealthy trees were tagged during 2012 and their crown condition has been monitored yearly by U.S. Forest Service and State Forest Health Cooperators. It was not possible to find completely unaffected trees in affected sites; thus trees with the greenest and fullest crowns were chosen as the healthy controls. At each site, pairs of healthy and unhealthy trees were tagged at the base of their stems. The following variables were collected for each tagged tree: latitude and longitude coordinates, diameter at breast height (1.3 m from the ground), overall health rating, and chlorosis and defoliation severity rating. Tree crowns were visually inspected to determine disease severity defined as the proportion of the crown with chlorosis or defoliation as follows: crown not affected, less than a third of the crown affected, one-third to two-thirds of the crown affected, or more than two-thirds of the crown affected. The location of the damage was also recorded: bottom, middle, or top of the crown. To establish the effect of “year” and “initial health status” on WPND severity, data were analyzed using a linear mixed model (PROC GLIMMIX) in SAS (SAS Institute Inc., version 9.4, 2012, Cary, NC, USA). “Year” and “initial health status” were fixed effects and “site” was a random factor, and the response variables were either “chlorosis rating per tree” or “defoliation rating per tree”.

3. Results

3.1. Morphologic Diversity of Fungi Associated with WPND

A total of 13 forest units (stands) were sampled throughout northern New England during 2011 in addition to receiving samples from another eight sites in 2011 and 2012, and samples were taken from a total of 60 trees in all age classes. In May 2011, 11 of the 60 trees were asymptomatic and considered to be controls. By June 2011, only nine of these trees were asymptomatic. Needles from two of these trees had L. acicola fruiting bodies. The needles of the remaining six apparently initially asymptomatic trees did not yield signs or symptoms of foliar pathogens. In May 2011, 729 branch tips and 1153 incubated needles were examined. Of the 1153 needles collected and incubated in May, 6% had B. linearis ascomata, 4% had L. acicola conidiomata, and 6% had L. dooksii ascomata. Similarly, in June 2011, 384 branch tips and 901 incubated needles were examined. Of the 901 needles collected and incubated in June, 2% had B. linearis ascomata, 22% had L. acicola conidiomata, and 1% had L. dooksii ascomata.
Signs and symptoms of L. dooksii, B. linearis, and L. acicola (Figure 2) were the most frequently observed pathogens. Both B. linearis and L. dooksii produce elongated (4–22 mm), ascomata (Figure 2A,B) [7,16]. The ascomata of B. linearis are shiny and black (Figure 2A), whereas L. dooksi ascomata are grey and embedded in the needle (Figure 2B) [16]. These two fungi can be distinguished by the shape of their hyaline ascospores. Bifusella linearis ascospores are constricted in the middle [17], whereas L. dooksi ascospores are oval [6,7]. Lecanosticta acicola produces acervular, erumpent, brown conidiomata (Figure 2C) and solitary, brown conidia that are straight to curved, and subcylindrical [18,19,20]. Several other fungi were found fruiting on needles, but these fungi were not associated with needle blight or needle cast symptoms and appeared to be secondary invaders.
Forests 06 04088 g002 1024
Figure 2. Disease symptoms and reproductive structures of (A) Bifusella linearis; (B) Lophophacidium dooksii; and (C) Lecanosticta acicola on eastern white pine.
Figure 2. Disease symptoms and reproductive structures of (A) Bifusella linearis; (B) Lophophacidium dooksii; and (C) Lecanosticta acicola on eastern white pine.
Forests 06 04088 g002
Diagnostic B. linearis fruiting bodies were present in samples collected in April and June 2011 from the same five sites (Figure 1). Similarly, L. dooksii fruiting bodies were observed in samples collected in April and June from the same three sites. Both these needle cast fungi produce sexual fruiting structures that take a year to develop. In contrast, L. acicola was only found fruiting at four sites in April; however, by June, it was fruiting in samples from ten sites (Figure 1). Unlike the needle cast fungi, L. acicola produces asexual fruiting structures that result in more than one disease cycle through the growing season.
Samples were disease free from only one site, Clough State Park, which is in New Hampshire. Although needles from trees at Clough State Park were symptomatic, their needles did not yield fungal fruiting bodies when incubated suggesting that the symptoms observed at this site were potentially caused by abiotic agents such as frost. Lecanosticta acicola was the most widely distributed pathogen occurring in 14 of 21 sites, and was found alone or co-occurring with the needle cast fungi. All three pathogens were present in one tree at one site, Lyndon State Park in Vermont (Figure 1).
In April, fruiting structures of all three fungi were found in less than 20% of the trees sampled. By June, 48% of the trees yielded samples with signs of L. acicola. Between April and June, the proportion of trees with symptoms of chlorosis and defoliation increased from 25% to 50% and 0% to 45%, respectively (Figure 3). In April, 68% of the trees yielded samples with necrotic needles, although the necrosis was limited to less than one-third of the needle. In contrast, the chlorosis of samples collected in June exceeded more than two-thirds of the needle. It is possible that the proportion of necrotic needles decreased due to the needle drop in June.
Forests 06 04088 g003 1024

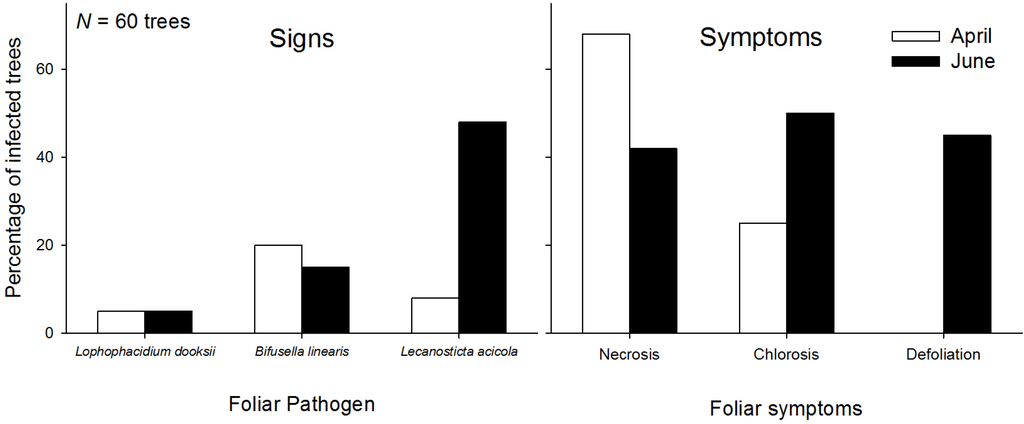

Figure 3. Frequency of foliar disease signs and symptoms on infected trees.
Figure 3. Frequency of foliar disease signs and symptoms on infected trees.
Forests 06 04088 g003

3.2. Genetic Diversity of Fungi Associated with WPND

A total of 186 isolates were recovered from infected needles and grown in pure cultures. Representative individuals from each of the morphological groups identified above were also identified to species based on the ITS sequence. In total 87 isolates from 22 locations across New England were sequenced. The primary focus of this study was to identify pathogenic fungi that are associated with diseased needles on trees suffering from WPND. However, in the process of isolating fungi from the needles several putative fungal endophytes were also identified. In addition to the expected pathogens B. linearis, L. acicola, and L. dooksii, several other known pine pathogens were identified in the course of this study, and for many of these pathogens this represents the first time the ITS region has been sequenced. As many of the species are obligate pathogens and have not been successfully cultured, DNA needed to be extracted directly from the fruiting bodies.
In total, 22 species representing 13 families were identified, of which 12 species represent either pathogens or weak parasites and 10 species represent saprophytes or endophytes based on phylogenetic similarity to known pathogens or saprophytes (Figure 4). The pathogens included the expected species of B. linearis, L. acicola, and L. dooksii, but also included several other known pathogens including Rhizosphaeria kalkhoffii, Hemiphacidium longisporum, and Allantophomopsis cytisporea. Other weak parasites and endophytes included Discostroma fuscellum, Lophodermium macci, L. conigenum, L. nitens, Neostagonospora caricis, Pyrenochaeta cava, Paraconiothyrium spp., Phialocephala sp., Phaeomoniella spp., Sydowia polyspora, and three species of Pestiolopsis.
Forests 06 04088 g004 1024

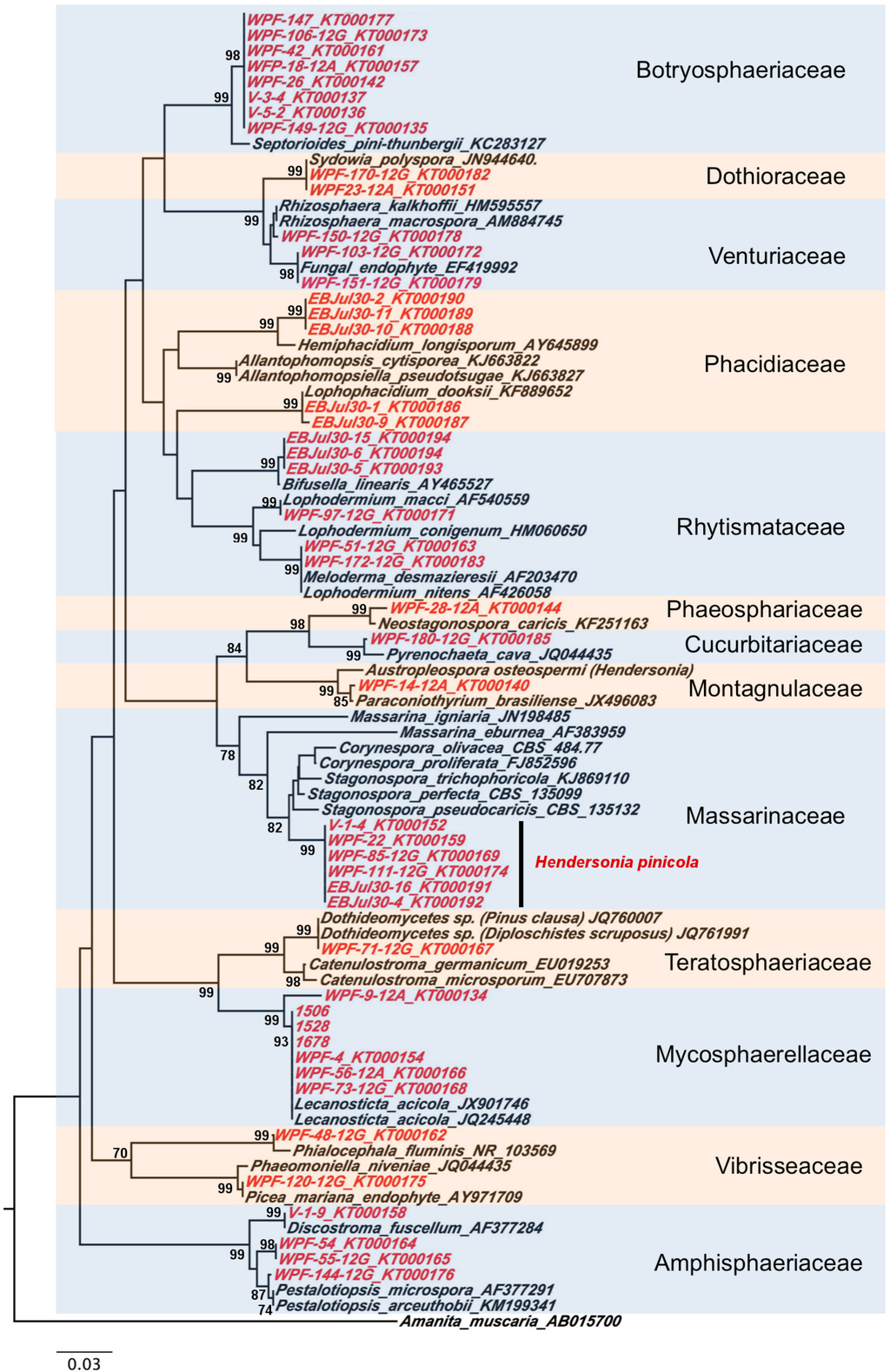

Figure 4. Neighbor-joining phylogenetic tree based on the sequence of the Internal Transcribed Spacer regions 1 and 2 of fungi isolated from symptomatic eastern white pine needles (red font) as well as closely related species imported from Genbank (black font). Isolates are followed by their respective Genbank accession numbers. Bootstrap values > 70% were included at the nodes.
Figure 4. Neighbor-joining phylogenetic tree based on the sequence of the Internal Transcribed Spacer regions 1 and 2 of fungi isolated from symptomatic eastern white pine needles (red font) as well as closely related species imported from Genbank (black font). Isolates are followed by their respective Genbank accession numbers. Bootstrap values > 70% were included at the nodes.
Forests 06 04088 g004
Several of the isolates recovered in this study appear to be putative new species based on sequence similarity to known species (Figure 4). Of these the three that were recovered on more than one occasion include a species closely related to Hemiphacidium longisporium, a species closely related to Septorioides pini-thunbergii, and a species that is a member of the Massarinaceae and closely related to the genus Stagonospora. All of these appear to be either pathogens or weak parasites. In the case of the putative Hemiphacidium species, all three ITS sequences were generated from DNA that was extracted from the fruiting structure, and no cultures of this likely biotroph were recovered. The isolate belonging to the Massarinaceae, was morphologically determined to be Hendersonia pinicola, a well-known weak parasite and secondary colonizer of pine needles [20]. Hendersonia is an anamorphic genus that appears to by polyphyletic and difficult to categorize as it was recently listed as an asexual state of Phaeosphaeriaceae [21,22]. However, the genus was synonymized under Stagonospora and is currently placed in Massarinaceae [23], which agrees with the results of our analysis. Most recently, Hendersonia osteospermi, which is pathogenic on the invasive shrub Bitous bush (Chrysanthemoides monilifera) in Australia, was determined to be the anamorphic stage of the newly named genus and species Austropleospora osteospermi [24], which happens to be in a different family than H. pinicola. This would indicate that further taxonomic clarification is needed for this organism and the genus Hendersonia. Finally, the second most frequently isolated species from diseased white pine needles after L. acicola in this study appears to be a putative new species of Septorioides. Very little is known about this genus and to date only a single species, S. pini-thunbergii, which is pathogenic on Pinus thunbergii in Japan, has been described [25] This putative new species is a member of the Botryosphaeriales but current research indicates that members of the genus Septorioides form a new distinct family from the Botryosphariaceae, tentatively named Septorioidiaceae [26]. Further phylogenetic, morphological, and ecological analyses are currently in progress in order to understand this organism, its evolutionary history, and its role in WPND [3].

3.3. Long-Term White Pine Health Monitoring

Crown conditions for a total of 127 tagged trees are assessed every year by U.S. Forest Service and State Forest Health Cooperators from mid-June to early July when the affected pines exhibit most obvious symptoms of chlorosis. Crown deterioration progresses from bottom to top consistent with rain-splash dispersed foliar diseases. The effect of “year” (p < 0.0001), “initial health status” (p < 0.0001), and their interaction (p ≤ 0.05) had a significant effect on the severity of both chlorosis and defoliation. Initially unhealthy trees continued to exhibit chlorosis and defoliation every year of the survey (Figure 5). In contrast to initially healthy trees, for which chlorosis and defoliation was limited to less than a third of the crown, chlorosis and defoliation was between a third and two-thirds of the crown for initially unhealthy trees (Figure 5). The proportion of the crown with chlorosis increased consistently every year for both initially healthy and unhealthy trees (Figure 5). Initially unhealthy trees did not recover from year to year. The proportion of the crown with defoliation increased for initially unhealthy trees from 2013 to 2015. Similarly, the proportion of the crown with defoliation increased for initially healthy trees from 2012 to 2013 and did not change after 2013 (Figure 5).
Forests 06 04088 g005 1024

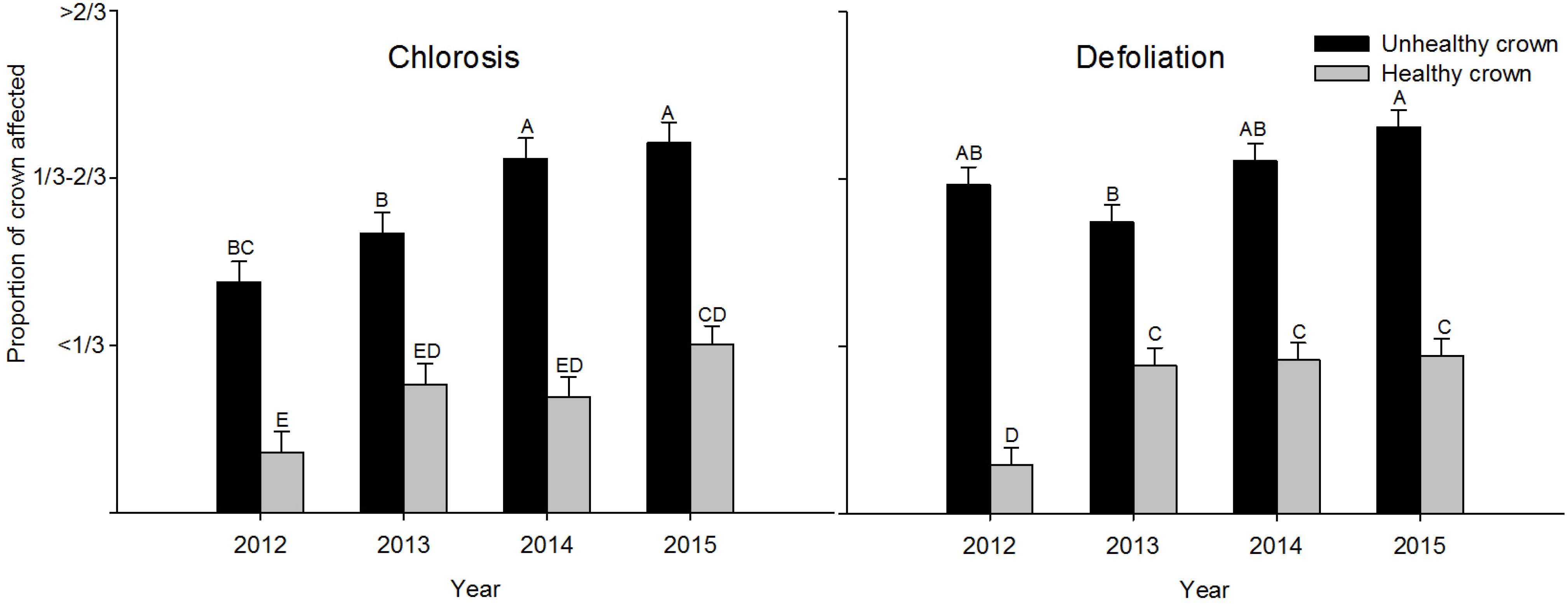

Figure 5. Frequency of chlorosis and defoliation of healthy and unhealthy eastern white pine at eight long-term monitoring sites from 2012 thru 2015. Bars represent means and standard errors (N = 127 trees). Values with the same letter are not statistically different (α = 0.05).
Figure 5. Frequency of chlorosis and defoliation of healthy and unhealthy eastern white pine at eight long-term monitoring sites from 2012 thru 2015. Bars represent means and standard errors (N = 127 trees). Values with the same letter are not statistically different (α = 0.05).
Forests 06 04088 g005

4. Discussion

Based on morphological observations and genetic data, the recent white pine defoliation events in the northeastern U.S. and eastern Canada are due in large part to the brown spot pathogen L. acicola, in addition to several needle cast fungi including L. dooksii, B. linearis, and the putative new species of Septorioides. At one site all three pathogenic fungi were present and multiple pathogens were found on the same tree at another location. Lecanosticta acicola was the most frequently observed, widely distributed pathogen, and most consistently associated with chlorosis and defoliation in late June. It is likely that wet spring weather, favorable to disease development, during several consecutive years has led to an outbreak of foliar diseases. Trees in a variety of sites across northern New England were affected. Thus, the observed foliar damage is probably not site related.
Prior to this outbreak, damage caused by Dook’s needle blight was reported on less than 0.1% of eastern white pines [7]. Similarly, although brown spot needle blight is common on two- and three-needle pines, it typically is not associated with white pine. In addition, Bifusella needle cast is rarely reported in northeastern North America; however, this disease may have been misdiagnosed or overlooked in the past.
Affected trees are repeatedly symptomatic and defoliated every year since the WPND outbreak was first observed in 2010. The disease is spreading from symptomatic trees to initially healthy trees. The consequence of repeated defoliations by these pathogens is unknown, but these fungi are expected to continue to cause damage in years following unusually wet springs.
The role of climate in these defoliation events is still not clear, however in many areas of the world, including the northeastern U.S., climate-change scenarios are predicting a wetter and warmer climate. This is indeed the case, as the northeastern U.S. has experienced above average precipitation and average to above average temperatures from 2003–2014 including six years that were in the top 10% for precipitation with 2011 being the wettest on record, and four years in the top 10% for temperature [27]. These represent optimum conditions to promote foliar disease caused by a number of foliar fungal pathogens. This future outlook not only raises the likelihood of increased disease outbreaks caused by endemic fungal pathogens, but also increases the likelihood of pathogens from southern latitudes moving northward, as has been recently documented with crop pathogens [28]. This scenario is playing out in eastern white pine trees in the northeastern U.S. and eastern Canada, which have experienced a series of defoliating events in the last decade caused by fungi associated with WPND [10]. In 2010, these fungi were responsible for 24,369 hectares of damage to white pine forests in Maine [11] while in 2012 they caused additional damage to 4900 and 1500 hectares of white pine forests in New Hampshire and Vermont, respectively (Frament per. comm.). This study was able to document that these symptoms were primarily attributed to the fungal pathogen Lecanosticta acicola and on occasion Lophophacidium dooksi and Bifusella linearis. While WPND-infested white pine trees are generally capable of recovering from a single defoliation event, in 2014 the first cases of mortality in eastern white pine due to repeated WPND-induced defoliations were observed in our research sites (Munck per. comm.). Concern over WPND has expanded to an international level as important pine growing regions including Canada and Europe have been affected [18,29].
Based on our results, we believe that the brown spot pathogen L. acicola has recently become established in the northeast as several consecutive years with wetter and warmer than average weather during the spring created an environment conducive to an epidemic of this fungus. Brown spot has been a persistent problem in long leaf pine plantations in the southeastern U.S. and scotch pine in Minnesota and Wisconsin [8,9], but severe defoliation of eastern white pine by L. acicola in the northeast was not reported prior to 2005 [10]. Given current climate change scenarios for the region [30], the potential for WPND epidemics will likely increase, especially if the region continues to see greater than average rainfall in June, which in preliminary studies has been determined to drive epidemics of WPND [31]. Given the ecological and economic importance of eastern white pine in the northern U.S. and eastern Canada, reliably predicting the spread and impacts of WPND is critical to guiding management and policy recommendations. Current research is underway that will provide valuable information needed about the climatic factors that favor or inhibit epidemics of these fungi, the long-term effects of repeated defoliation on eastern white pine, and the impact on ecosystem processes, including carbon dynamics, water balance, and nutrient cycling, in white pine dominated stands.

Acknowledgments

We would like to thank UNH undergraduate student Gabriella Hernandez for her assistance with fungal isolation, UNH graduate students Mike Simmons and Cameron McIntire for assitance rating trees as well as Forest Health State Cooperators from Maine, Massachusetts, New Hampshire, and Vermont for collecting and sending in infected pine needles. We would also like to thank Rebecca Lilja, U.S. Forest Service, for map creation. This work was funded by the U.S. Forest Service Evaluation Monitoring grant #NE-EM-B-13-03.

Author Contributions

Kirk Broders and Isabel Munck conceived and designed the project and experiments. Stephen Wyka, Gloria Iriarte, and Eric Beaudoin developed and executed the methods for fungal cultivation, DNA extraction, and identification. Kirk Broders, Isabel Munck, and Stephen Wyka analyzed the data. Kirk Broders and Isabel Munck wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. McDowell, N.G.; Beerling, D.J.; Breshears, R.A.; Breshears, D.D.; Fisher, R.A.; Raffa, K.F.; Stitt, M. The interdependence of mechanisms underlying climate-driven vegetation mortality. Trends Ecol. Evolut. 2011, 26, 523–532. [Google Scholar] [CrossRef] [PubMed]
  2. Weed, A.S.; Ayres, M.P.; Hicke, J.A. Consequences of climate change for biotic disturbances in North American forests. Ecol. Monogr. 2013, 83, 441–470. [Google Scholar] [CrossRef]
  3. Woods, A. Is the health of British Columbia’s forests being influenced by climate change? If so, was this predictable? Can. J. Plant Pahol. 2011, 33, 117–126. [Google Scholar] [CrossRef]
  4. Hicke, J.A.; Allen, C.D.; Desai, A.R.; Dietze, M.C.; Hall, R.J.; Hogg, E.H. (Ted); Kashian, D.M.; Moore, D.; Raffa, K.F.; Sturrock, R.N.; et al. Effects of biotic disturbances on forest carbon cycling in the United States and Canada. Glob. Chang. Biol. 2012, 18, 7–34. [Google Scholar] [CrossRef]
  5. Quaedvlieg, W.; Groenewald, J.Z.; de Jesús Yáñez-Morales, M.; Crous, P.W. DNA barcoding of Mycosphaerella species of quarantine importance to Europe. Persoonia 2012, 29, 101–115. [Google Scholar] [CrossRef] [PubMed]
  6. Laflamme, G.; Broders, K.; Cote, C.; Munck, I.; Iriarte, G.; Innes, L. Priority of Lophophacidium over Canavirgella: Taxonomic status of Lophophacidium dooksii and Canavirgella banfieldii, causal agents of a white pine needle disease. Mycologia 2015, 107, 745–753. [Google Scholar] [CrossRef] [PubMed]
  7. Merrill, W.; Wenner, N.G.; Dreisbach, T.A. Canavirgella banfieldii gen. and sp. nov.: A needlecast fungus on pine. Can. J. Bot.-Rev. Can. Bot. 1996, 74, 1476–1481. [Google Scholar] [CrossRef]
  8. Skilling, D.D.; Nicholls, T.H. Brown Spot Needle Disease: Biology and Control in Scotch Pine Plantatinos; USDA Forest Service Research Paper NC-109; U.S. Department of Agriculture, Forest Service, North Central Forest Experiment Station: St. Paul, MN, USA, 1974; p. 23. [Google Scholar]
  9. Huang, Z.Y.; Smalley, E.B.; Guries, R.P. Differentiation of Mycosphaerella dearnessii by cultural charactes and RAPD analysis. Phytopathology 1995, 85, 522–527. [Google Scholar] [CrossRef]
  10. Munck, I.A.; Ostrofsky, W.D.; Burns, B. Pest Alert: Eastern White Pine Needle Damage; NA-PR-01-11; USDA Forest Service, Northeastern Area State and Private Forestry: Newtown, PA, USA, 2011. [Google Scholar]
  11. U.S. Forest Service. Forest Health Highlights. Available online: http://fhm.fs.fed.us/fhh/fhmusamap.shtml (accessed on 16 June 2015).
  12. White, T.J.; Bruns, T.; Lee, S.; Taylor, J. Amplification and direct sequencing of fungal ribosomal RNA genes for phylogenetics. In PCR Protocols: A Guide to Methods and Applications; Innis, M.A., Gelfand, D.H., Eds.; Academic Press: San Diego, CA, USA, 1990; pp. 315–322. [Google Scholar]
  13. Kumar, S.; Tamura, K.; Nei, M. MEGA3: Integrated software for molecular evolutionary analysis and sequence alignment. Brief. Bioinform. 2004, 5, 150–163. [Google Scholar] [CrossRef] [PubMed]
  14. Felsenstein, J. Confidence limits on phylogenies: An approach using the bootstrap. Evolution 1985, 6, 227–242. [Google Scholar] [CrossRef]
  15. Rozas, J.; Sanchez-DelBarrio, J.C.; Messenguer, X.; Rozas, R. DnaSP, DNA polymorphism analyses by the coalescent and other methods. Bioinformatics 2003, 19, 2496–2497. [Google Scholar] [CrossRef] [PubMed]
  16. Corlett, M.; Shoemaker, R.A. Lophophacidium dooksii n. sp., a phacidiaceous fungus on needles of white pine. Can. J. Bot. 1984, 62, 1836–1840. [Google Scholar] [CrossRef]
  17. Horst, R.K.; Westcott, C. Westcott’s Plant Disease Handbook, 7th ed.; Springer: Dordrecht, The Netherlands, 2008. [Google Scholar]
  18. Jankovsky, L.; Palovcikova, D.; Tomsovsky, M. Brown spot needle blight associated with Mycosphaerella dearnessii occurs on Pinus rotundata in the Czech Republic. Plant Pathol. 2009, 58. [Google Scholar] [CrossRef]
  19. Jurc, D.; Jurc, M. Mycosphaerella dearnessii occurs in Slovenia. Plant Pathol. 2010, 59, 808. [Google Scholar] [CrossRef]
  20. Darker, G.D. A revision of the genera of the Hypodermataceae. Can. J. Bot. 1967, 45, 1399–1444. [Google Scholar] [CrossRef]
  21. Hyde, K.D.; McKenzie, E.H.C.; KoKo, T.W. Towards incorporating anamorphic fungi in a natural classification—Checklist and notes for 2010. Mycosphere 2011, 2, 1–88. [Google Scholar]
  22. Wijayawardene, N.N.; McKenzie, E.H.C.; Hyde, K.D. Towards incorporating anamorphic fungi in a natural classification checklist and notes from 2011. Mycosphere 2012, 3, 157–228. [Google Scholar] [CrossRef]
  23. Quaedvlieg, W.; Verkley, G.J.M.; Shin, H.D.; Barreto, R.W.; Alfenas, A.C.; Swart, W.J.; Groenewald, J.Z.; Crous, P.W. Sizing up Septoria. Stud. Mycol. 2013, 75, 307–390. [Google Scholar] [CrossRef] [PubMed]
  24. Morin, L.; Shivas, R.G.; Piper, M.C.; Tan, Y.P. Austropleospora osteospermi gen. et sp. nov. and its host specificity and distribution on Chrysanthemoides monilifera ssp. rotundata in Australia. Fungal Divers. 2010, 40, 65–74. [Google Scholar] [CrossRef]
  25. Kaneko, S.; Fujioka, H.; Zinno, Y. A new species of Septoria on Japanese black pine. Trans. Mycol. Soc. Jpn. 1989, 30, 463–466. [Google Scholar]
  26. Wyka, S.; Broders, K.D. Septorioides strobus sp. nov., a new species, within the new family Septorioideaceae, associated with needle defoliation of eastern white pine (Pinus strobus L.). Fungal. Biol. 2015; submitted for publication. [Google Scholar]
  27. NOAA National Centers for Environmental Information. State of the Climate: National overview for June 2015. Available online: http://www.ncdc.noaa.gov/sotc/national/201507 (accessed on 10 August 2015).
  28. Bebber, D.P.; Ramotowski, M.A.T.; Gurr, S.J. Crop pests and pathogens move polewards in a warming world. Nat. Clim. Chang. 2013, 3, 985–988. [Google Scholar] [CrossRef]
  29. Hintsteiner, M.; Cech, T.L.; Halmschlager, E.; Stauffer, C.; Kirisits, T. First report of Mycosphaerella dearnessii on Pinus nigra var. nigra in Austria. For. Pathol. 2012, 42, 437–440. [Google Scholar] [CrossRef]
  30. Frumhoff, P.C.; McCarthy, J.J.; Melillo, J.M.; Moser, S.C.; Wuebbles, J.D. Confronting Climate Change in the U.S. Northeast; Synthesis Report of the Northeast Climate Impact Assessment (NECIA); Union of Concerned Scientist (UCS): Cambridge, MA, US, 2007. [Google Scholar]
  31. Broders, K.D.; Wyka, S.; Munck, I. Characterization and distribution of fungi associated with needle defoliation of eastern white pine (Pinus strobus). Int. For. Rev. 2014, 16, 322. [Google Scholar]

Share and Cite

MDPI and ACS Style

Broders, K.; Munck, I.; Wyka, S.; Iriarte, G.; Beaudoin, E. Characterization of Fungal Pathogens Associated with White Pine Needle Damage (WPND) in Northeastern North America. Forests 2015, 6, 4088-4104. https://doi.org/10.3390/f6114088

AMA Style

Broders K, Munck I, Wyka S, Iriarte G, Beaudoin E. Characterization of Fungal Pathogens Associated with White Pine Needle Damage (WPND) in Northeastern North America. Forests. 2015; 6(11):4088-4104. https://doi.org/10.3390/f6114088

Chicago/Turabian Style

Broders, Kirk, Isabel Munck, Stephen Wyka, Gloria Iriarte, and Eric Beaudoin. 2015. "Characterization of Fungal Pathogens Associated with White Pine Needle Damage (WPND) in Northeastern North America" Forests 6, no. 11: 4088-4104. https://doi.org/10.3390/f6114088

Article Metrics

Back to TopTop
