Article

An Assessment of the Environmental Impacts of Transgenic Triploid Populus tomentosa in Field Condition

by
Qi Guo
1,
Nan Lu
1,2,
Zijing Luo
1,
Yuhan Sun
1,
Shaowu Jin
3,
Shaoming Wang
3,
Zhimin Guo
3,
Feifei Li
4,
Shouyi Chen
5,
Wanke Zhang
5,
Qingju Ji
6 and
Yun Li
1,*
1
Beijing Advanced Innovation Center for Tree Breeding by Molecular Design, National Engineering Laboratory for Tree Breeding, Key Laboratory of Genetics and Breeding in Forest Trees and Ornamental Plants, Ministry of Education, College of Biological Sciences and Technology, Beijing Forestry University, Beijing 100083, China
2
State Key Laboratory of Forest Genetics and Tree Breeding, Key Laboratory of Tree Breeding and Cultivation of State Forestry Administration, Research Institute of Forestry, Chinese Academy of Forestry, Beijing 100091, China
3
Luoning County Lv Village State-owned Forest Farm, Luoning County, Luoyang 471700, Henan, China
4
Dongsong Township Government of Luoning County, Luoning County, Luoyang 471700, Henan, China
5
Institute of Genetics and Developmental Biology, Chinese Academy of Sciences, Beijing 100101, China
6
Cangzhou Municipal Forestry Seeding and Cutting Management Center, Cangzhou 061001, Hebei, China
*
Author to whom correspondence should be addressed.
Forests 2018, 9(8), 482; https://doi.org/10.3390/f9080482
Submission received: 13 July 2018 / Revised: 2 August 2018 / Accepted: 3 August 2018 / Published: 8 August 2018
(This article belongs to the Special Issue Genetic Diversity of Tree Species in Forest and Conservation Management)
Browse Figures
Versions Notes

Abstract

:
Populus tomentosa grow rapidly, but are salt susceptible. To quickly and efficiently gain new poplar breeds with better salt resistance, a DREB transcription factor derived from Atriplex hortensis was transformed into triploid Populus tomentosa by our lab, which significantly improved the salt tolerance of host plants. However, environmental impacts of transgenic plants must be assessed before large-scale cultivation in China. Here, we conducted a field trial of AhDREB1 transgenic and non-transgenic triploid Populus tomentosa to assess the impact of transgenic trees on rhizospheric soil microbial communities and allelopathic activity of leaves. No significant differences in the number of soil microbes present were detected between the transgenic lines and the non-transgenic controls. The allelopathic activity of leaves from both the transgenic and non-transgenic lines varied with sampling time, but did not differ significantly between the transgenic and non-transgenic lines. These results indicate that the impact on the environment of AhDREB1 transgenic P. tomentosa did not differ significantly from that of the non-transformed controls for the variables observed in this field trial. We also investigated the persistence of AhDREB1 genes in decomposing transgenic poplar leaf on the soil under natural conditions for five months, and our data indicated that fragments of the genetically modified DNA were not detectable in the field after more than two months. We used a triphenyl tetrazolium chloride test (TTC) (or pollen germination method) and hybridization to test the pollen viability and fertility, respectively, of the transgenic and non-transgenic trees and the results showed that the pollen viability of both the transgenic and non-transgenic trees was extremely low in 2016; the receptor plant may have been sterile.

1. Introduction

Genetic engineering is a form of breeding known for its high efficiency and relative speed compared with traditional breeding. Since the first transgenic plants were created in 1983, more than 160 million hectares have been planted with genetically modified crops, and this area is expected to increase in the future [1]. However, commercial production of transgenic plants is currently limited to a few crops, such as maize, soybean, and cotton [2]. Commercial cultivation of transgenic trees remains very limited. Except for Carica papaya L. ringspot virus-resistant papaya and small-scale cultivation of transgenic poplar, transgenic trees are not yet grown commercially [3,4].
It has been reported that about one-fifth of the world’s irrigated land is adversely affected by soil salinization and, in China, the total area of available salty land is 3.67 × 107 hm2 [5]. Genetically engineered plants have potential application to these lands. Using transgenic technologies, genes known to increase resistance to saline soils can be transferred into host plants, and the resultant transgenic plants can be selected for stress tolerance and other properties such as productivity. Compared to traditional breeding methods, transgenic breeding is quicker and thus more cost-effective. Transgenic breeding also enables genes to be moved between species, and even between Kingdoms, something that traditional breeding methods cannot achieve.
Populus is cultivated widely in China as an important tree species for timber and urban greening. It is reported that more than 7 million hectares of Populus have been afforested in China [6]. Triploid Populus tomentosa, an economically important species, is famous for its rapid growth and high productivity. It has been cultivated widely for pulpwood, firewood, and timber [6]. To improve the biotic and abiotic stress resistance genes, such as mtlD, JERF, DREB, and NHX, have been transformed into several species of Populus, including triploid Populus tomentosa [7,8,9,10]. However, transgenic plants continue to be controversial and resistance to cultivation remains. One of the major issues is uncertainty about their influences on the environment. According to the Cartagena protocol on Biosafety, the possible adverse impacts of transgenic plants include at least six categories: (1) potential impacts on non-target species; (2) potential spread of transgenic crops as weeds; (3) potential for cross-pollination between transgenic crops and non-transgenic crops and wild plants; (4) potential impacts on soil bacteria and the nitrogen cycle; (5) indirect effects on the environment; and (6) potential effects on human health [11]. To fulfil the terms of the Cartagena protocol on Biosafety, environmental biosafety assessment must be performed to collect data in support of safety of transgenic plants [12]. Because tree species are commonly perennial and have longer lifespans, longer biodegradation, greater potential for long-distance dispersal of pollen and seeds, and greater size than crops and other annual plants, the potential impact of transgenic trees on the environment may be more substantial and continuous [13]. To date, many biosafety studies and field supervisory tests for genetically modified plants have been conducted [1,14,15].
To evaluate the potential risks of transgenic plants on soil bacteria and other undergrowth vegetation, the number of the rhizosphere microbe community and allelopathic activity of transgenic plants must be measured because foreign gene expression could change the released substances of the receptor plants, which may impact the rhizosphere microbe community or the growth of undergrowth vegetation [16]. Although some field trials of transgenic plants have shown no significant difference on the microbial communities or allelopathic activity between transgenic and non-transgenic plants [1,16,17,18], Fang et al. [19] found inhibiting the expression of a Phenylalanine Ammonia-lyase by RNAi in rice changed the allelopathy and rhizosphere microflora. Beckers et al. [20] thought the rhizosphere microflora changes might be due to changes of metabolism in transgenic plants. These studies indicated that overexpress or suppress the expression of some genes may change the allelopathy or rhizosphere microflora of transgenic plants, which may depend on the variety of foreign gene and receptor plants. Thus, the allelopathy or rhizosphere microflora of all the transgenic plants must be measured during the field test.
Another major constraint on the use of genetically engineered plants is gene transfer, including horizontal gene transfer (HGT) and vertical gene transfer. HGT refers to the transfer of genes between sexually incompatible organisms in a manner other than traditional reproduction. Although the frequency of HGT from plants to bacteria is quite low [21], the transformation of Acinetobacter sp. BD413 with the neomycin phosphotransferase II (npt II) gene from transgenic plants has been reported [22]. DNA could be released into soil from decaying organs, such as fallen leaves, and if such DNA was not rapidly degraded by extracellular DNAses, it might be taken up by competent bacteria [23,24]. The latter process involves the transfer of foreign genes into offspring through sexual reproduction and known as gene flow. Gene flow is a primary determinant of potential ecological impacts of transgenic trees [3], and it has been reported in other plants [25,26]. Some experts thought gene flow may lead to the loss of genetic diversity in the germplasm pool, and the loss of valued species, ecosystem resources, or crop yield and quality due to weedless [27]. Thus, how long the foreign DNA could exist in decomposing leaves and the potential of gene flow must be considered in an environmental biosafety assessment of transgenic plants.
Here, we report an assessment of the environmental impact of transgenic triploid P. tomentosa harboring an AhDREB1 gene, which encodes a dehydration responsive element-binding (DREB)-like transcription factor cloned from the halophyte Atriplex hortensis [28]. The expression of this transgene improves the salt tolerance of receptor trees significantly by regulating multiple salinity and alkali stress resistance-related genes. Such trees have been cultivated in the field since 2005 [15]. Based on the experience and knowledge obtained from a previous trial, we assessed the effects on soil microorganisms, pollen fertility, persistence of DNA in decomposing leaves, and allelopathic activity. We intended to provide a reference for large-scale field release and for deployment of genetic engineering tree breeding programs in the future.

2. Materials and Methods

2.1. Plant Materials

The transgenic Populus line T-46, containing the DREB gene derived from A. hortensis and driven by the cauliflower mosaic virus 35S promoter, was used as the subject transgenic tree [9]. The non-transgenic Populus line 401, which is a triploid hybrid Populus “401” ((P. tomentosa × P. bolleana) × P. tomentosa) created by Beijing Forestry University, was used for comparison (control). It was also the receptor plant of transgenic Populus T-46. The foreign gene did not affect the growth of host plant and improved the saline resistance in the greenhouse condition. The triploid hybrid Populus “401” was obtained by hybridizing diploid P. tomentosa (♂) and “P. tomentosa × P. bolleana” (♀), and, to get the 2n female gamete, the flower bud of P. tomentosa × P. bolleana was treated with physical method before pollination [29,30].

2.2. Field Trial Conditions

The field trial started in 2005 and the field conditions were presented previously [15]. The experimental field was located in Dongying, Shan Dong Province, China (36°56′ N, 118°17′ E), and the annual average temperature, rainfall, amount of sunshine, and evaporation were 12.3 °C, 597 mm, 2590.1 h, and 2032 mm, respectively. This study was approved by the Chinese State Forestry Administration (Permit (2005) No. 07). In China, a field test of GMO requires and application to Chinese State Forestry Administration, and the transgenic plants can only be released on the specified location after being approved. All of the poplar types were cultivated in the field and were grown in saline soil that was irrigated (only once at planting). The field was managed as for standard Populus. The trial field, which covered an area of 37,000 m2, contained transgenic poplars and control poplars distributed in rows. An external border planted with Fraxinus chinensis was used as a buffer zone to prevent transgene flow through pollen dispersal. To investigate whether the transgenic trees could influence other plants in the field, weeds and other wild plants in the field were not removed. To reduce anthropogenic influences, the field was located far from residential areas. We originally had five fields containing five transgenic lines in total; unfortunately, the other fields were destroyed in 2008 for local construction requirement and only this field was preserved.

2.3. Materials Collection

Soil and leaf samples were collected every season from July 2014 to May 2015, and stems were collected from 10 randomly selected transgenic and 10 randomly selected non-transgenic poplars. All of the leaves were taken near the tip of the lowest branches (in winter, because there are no leaves on the branch, we collected the leaves that were just about to fall from the branches as the leaves of winter). Soil samples were collected ~30 cm from the trunk (the transgenic tree was the center of an equilateral triangle, and the sampling points were at the three angles; the soil samples were obtained as close to the roots as possible and at the same distance from the trunk, and then the three samples were fully mixed together). The floral branches of transgenic and non-transgenic plants were collected in January 2015. In addition, female (as hybrid materials) and male (as control) floral branches were collected from P. tomentosa × P. bolleana “TB04” and “TB16” at the West Campus of China Agricultural University. All branches were water-cultured in a greenhouse (15–25 °C) at Beijing Forestry University. Pollen samples were collected from freshly dehiscent anthers on transgenic and non-transgenic plants.

2.4. Determining Allelopathic Activity in Leaves from Transgenic Populus

Allelopathic activity was determined by the sandwich method and the soil-mix method according to Yu et al. [16] with a few modifications. Allelopathic activity determined by the sandwich method was accomplished by harvesting leaves from 10 individual trees of transgenic trees and non-transgenic trees. The fresh leaf material was dried at 60 °C for 24 h. The dried leaves were stored desiccated and used for assays within two weeks. Dried leaf tissue (100 mg) was placed into sterilized Petri dishes (60 mm in diameter and 16 mm in depth). Low melting point agar (5 mL, 0.5% w/v) was added to each dish; the agar was allowed to cool and solidify and then another 5 mL of low-melting point agar was added. Five lettuce seeds were placed in each dish, and the plates were incubated in the dark for 72 h at 25 °C (six dishes, each individual tree). For the soil-mix method, 1 g of dried leaf tissue was mixed with 100 g of soil and then divided equally into six plastic cells (3.5 cm in length, 3.5 cm in width, and 2.5 cm in depth). Five lettuce seeds were then sown on the surface of the leaf-soil mixture. Water was applied to each cell, and the cells were placed into a plant growth chamber and incubated in the dark for five days at 25 °C. Radicle and hypocotyl lengths were measured after the growth of the seedlings had been terminated by an overnight freezing at −20 °C. The lowest and highest values were discarded, and means were calculated from the values for the three remaining seedlings from all six dishes for each individual poplar, totally 18 seedlings. Allelopathic activity was evaluated as relative growth compared to growth of control seedlings that were grown in agar or soil without Populus leaves.
Differences in allelopathic activity between trangenic and non-transgenic poplar were assessed by a one-way ANOVA using SPSS 19.0 software (SPSS Inc., Chicago, IL, USA).

2.5. Evaluation of Soil Microbe Populations

To assess the impact of the transgenic trees on soil microbe numbers, soil samples were collected four times (from July 2014 to May 2015) and evaluated for numbers of bacteria, actinomycetes, and fungi using the spread plate method according to Wei et al. [31]. One half (10 g) of the weighed 20-g soil samples was dried overnight at 80 °C. The remaining 10 g of soil were diluted 10-fold with sterile water and then placed on a shaking incubator (150 rpm) for 30 min. The soil samples were then withdrawn in 1 mL of diluent into a transfer pipette and used to coat medium plates (beef extract-peptone medium for bacteria, Martin agar medium for actinomycetes, and Gause’s No. 1 synthetic medium base, which was modified for fungi). After 1 h at room temperature, the plates were transferred to an incubator at 27 °C for bacteria, 28 °C for actinomycetes, and 25 °C for fungi. Fungal colonies were counted three days after inoculation. Actinomycetes and bacteria were counted seven days after inoculation. To distinguish colonies of actinomycetes and bacteria, all colonies were counted and then the agar surface was gently wiped with 70% ethanol. The remaining colonies were counted as actinomycetes, and the other colonies were counted as bacteria.
Differences in soil microbe populations between transgenic and non-transgenic poplar were assessed by a one-way ANOVA using SPSS 19.0 software (SPSS Inc., Chicago, IL, USA).

2.6. Foreign Gene DNA Persistence in Decomposing Leaves

The experiment was started in July 2014 and completed in December 2014. Air-dried transgenic leaves (10 g) were placed into plastic boxes (50 cm in height, 25 cm in width, and 15 cm in depth), which contained about 3 kg of cultivated soil. The leaves were placed above the soil. The boxes were covered by permeable fiberglass nets to keep the plant material in the boxes as intact as possible. To keep the leaves under outdoor conditions, the boxes were placed on the balcony of our laboratory at Beijing Forestry University.
Samples were collected once each month. Genomic DNA was isolated from the leaves of the transgenic samples using a Plant Genomic DNA Kit (Tiangen Biotech, Beijing, China); polymerase chain reaction (PCR) amplifications were performed to identify the AhDREB1 gene coding sequence; and three combinations of primers were used at different positions. The characteristics of the primers used in this study are summarized in Table 1. PCR was performed in a reaction volume of 20 µL containing 50 ng of DNA, 1 µL of each primer at 10 µM, and 10 µL of Taq DNA polymerase (Takara Bio Inc., Otsu, Japan). The PCR profiling conditions for the three combinations of primers consisted of denaturation at 94 °C for 5 min, followed by 30 cycles of 94 °C for 30 s, 65 °C for 40 s, and 72 °C for 1 min 30 s, with a final extension at 72 °C for 5 min (F1 and R1 primers); denaturation at 94 °C for 5 min, followed by 30 cycles of 94 °C for 30 s, 58 °C for 40 s, and 72 °C for 1 min 30 s, with a final extension at 72 °C for 10 min (F2 and R2 primers); and denaturation at 94 °C for 5 min, followed by 30 cycles of 94 °C for 30 s, 54 °C for 40 s, and 72 °C for 1 min 30 s, with a final extension at 72 °C for 5 min (F3 and R3 primers).
As a positive PCR control as well as to monitor the integrity of the genomic DNA extracted, we also performed PCR amplification of the 18S ribosomal region. A 348-bp ribosomal fragment was generated by PCR under the above-mentioned conditions using 50 ng of genomic DNA together with the primers F18S and R18S, as described by [32].

2.7. Pollen Viability and Fertility

Pollen viability was tested using the triphenyl tetrazolium chloride (TTC) staining method and a pollen germination in vitro in solid medium method as soon as samples were collected from freshly dehiscent anthers, according to Lu et al. [33]. In our study, the pollen of transgenic (T-46) and non-transgenic (401) hybrid P. tomentosa was tested. Pollen of P. tomentosa × P. bolleana (TB16) was also tested as a control.
In the TTC staining method, pollen was stained with TTC (1.0% by weight in 50% sucrose) and was dusted with a brush onto a microscope slide to which four or five drops of stain had been added. A coverslip was immediately placed on the slide, and its edges were sealed with nail varnish. After a 15-min incubation at 40 °C, the pollen was observed under a microscope, and approximately 400 pollen grains from each replicate from the four different areas were counted (three replicates for each staining treatment) to determine pollen viability. The pollen viability by TTC test was expressed with the following formula: Pollen viability (%) = (number of stained pollen/number of observed pollen) × 100%.
For the pollen germination in vitro in solid medium method, pollen was dusted with a brush onto a solid medium (pH 6.0) containing 120 g·L−1 sucrose, 120 mg·L−1 H3BO3, 50 mg·L−1 CaCl2, and 7 g·L−1 agar. The pollen germination rate was detected after incubation at 25 °C for 0.5, 3, and 1 h. The pollen was observed under a microscope, and approximately 400 pollen grains from each replicate from the four different areas were counted (three replicates for each treatment) to determine pollen germination rates. The pollen viability by the pollen germination in vitro in solid medium method was expressed with the following formula: Pollen viability (%) = (number of germinated pollen/number of observed pollen) × 100%.
According to Li and Kang [34], the stigma receptivity of “P. tomentosa × P. bolleana” catkins can be evaluated through their developmental status in the water-cultured condition. When female catkins of “TB04” showed optimal receptivity, they were pollinated with fresh pollen of “TB16”, “401”, and “T-46”. After treatment, the catkins were water-cultured in the greenhouse until seed maturation. Then, seeds were harvested.

3. Results

3.1. Assessment of Allelopathic Activity

Leaf allelopathic activity was determined by the sandwich method (Figure 1) and the soil-mix method (Figure 2). In the sandwich method, both the relative growth of the hypocotyl and the radicle changed with seasonal shifts. The relative growths of the hypocotyl of transgenic Populus and non-transgenic Populus were about 0.76–0.97 and 0.80–0.87, respectively, and those of the radicle were about 0.70–0.74 and 0.69–0.82, respectively, with the transgenic line and the non-transgenic line showing no significant difference (ANOVA, p > 0.05, α = 0.05, Table S1). Similar results were also found by the soil-mix method (Table S2). Although the relative growths of the hypocotyl and the radicle were less than 1, the transgenic line did not show a significant difference compared to the non-transgenic line.

3.2. Assessment of Microbial Diversity

The numbers of organisms adjacent to soil planted with transgenic and non-transgenic Populus were evaluated by the plate count method and the results are shown in Figure 3. Although the numbers of culturable bacteria, actinomycetes, and fungi changed with seasonal shifts, significant differences in the three culturable microorganisms from the soil samples were not detected between the transgenic and non-transgenic lines (ANOVA, p > 0.05, α = 0.05, Table S3).

3.3. Detection of the AhDREB1 Gene and Ribosomal Sequences with Specific PCR Primers

To detect the AhDREB1 gene from environmental samples, we designed PCR primer sets that specifically amplified various regions of the target sequence in degrading leaves collected from August to December 2014. Our partial PCR amplification results are shown in Figure 4. Target sequences could be amplified during the first two months by all of the three pairs of primers pairs, and fragments of 198 bp, 723 bp, and 443 bp were obtained in August and September; however, no PCR product was amplified from the genomic DNA of leaves during the subsequent three months.

3.4. Pollen Vitality and Fertility

The pollen vitality data, as evaluated by the TTC test and the in vitro pollen germination test, are shown in Table 2. In the TTC test, about 56.7% of “TB16” pollen was stained red, which indicates that 56.7 ± 6.5% of these pollens had good vitality; however, no pollen of “T-46” or “401” was stained (Figure S1). The in vitro pollen germination test showed similar results (Figure S2). After 0.5 h of incubation, some “TB16” pollen had already begun to germinate, and, after 6 h, 67.4 ± 8.7% of the pollen had germinated; however, no pollen of “T-46” or “401” had germinated after 6 h.
The results of the hybridization test are shown in Table 3. In total, 1104 TB04 capsules were pollinated with the pollen of TB16, and 36 seeds eventually formed. The seed setting rate was 3.26%. However, neither “T-46” × “TB04” nor “401” × “TB04” had germinated pollen after 6 h, and the seed setting rate was 0%: no seed was obtained.

4. Discussion

Before transgenic Populus can be commercialized, the possible impacts of transgenic plants on the native ecosystem, such as the rhizosphere microbial community and the surrounding vegetation, must be determined. In our study, we used the sandwich method (and the soil-mix method) and the plate culture method, respectively, to evaluate each of these risks. The impacts of released substances on the allelopathic activity and rhizosphere microorganisms of plants were evaluated by these methods.
In our study, the allelopathic activity of the transgenic Populus varied with seasonal change, and these changes may have been due to seasonal differences in metabolism. Transgenic and non-transgenic samples showed no significant difference, which indicates that the AhDREB1 transgenic Populus may not present risks to surrounding vegetation. Our result was similar to that of Oguchi et al. (2014) [1], who found in a transgenic Eucalyptus tree field test that the allelopathic activity of transgenic and non-transgenic trees showed no significant difference by the soil-mix method or the sandwich method. However, the allelopathic activity differed significantly with sampling time in the sandwich method, whereas seasonal periodicity was not found by the soil-mix method. Their study indicated that the experimental method and the sampling timing used to determine allelopathic activity should be considered carefully. In the future, more methods should be tried in allelopathic activity studies.
After cultivation in the field for nine years, we made a comparison between the culturable rhizospheric microorganisms of the transgenic and non-transgenic trees, and significant differences between the numbers of culturable bacteria, actinomycetes, and fungi from the soil samples were not detected between the transgenic and non-transgenic lines (α = 0.05). These results agree with the results of our previous field trials for AhDREB1-gene transgenic Populus in 2009 [31]. These results indicated that expression of the AhDREB1 gene in Populus does not affect the number of culturable microorganisms present. Similar results were also shown by Zhu et al. [35]; in their study, there was no or very limited impact of an eight-year-old transgenic poplar on the bacterial communities in the rhizosphere. However, more than 90% of microorganisms are not culturable [36]. Hence, only limited numbers of microorganisms were detected in our study, and it remains unclear whether expression of the AhDREB1 gene in Populus influenced the overall microorganism diversity in the rhizosphere soil. To develop a sensitive detection method for AhDREB1 recombinant sequences from environmental samples, we designed.
PCR primer sets that specifically amplified various regions of the target sequence. To confirm the integrity of the DNA extracted from various samples, we also used a combination of primers to amplify a region of the 18S ribosomal DNA. Our results indicated that recombinant DNA from the transgenic poplar material was digested in as little as three months under natural conditions. In our study, large DNA fragments (723 bp) and small fragments (198 bp) were not detectable at the third month. However, Hay et al. [24] found that although large recombinant DNA fragments were not detectable by PCR test, smaller target gene fragments could be detected in samples at four months after transgenic poplar leaves had been exposed to external environmental conditions. They suggested that the recombinant DNA sequences may have been cut randomly into shorter fragments over the incubation time. In addition, they also found that the degradation rate of recombinant DNA from transgenic poplar leaf was higher when leaves were placed below the soil than when leaves were placed above the soil or weeds. In their study, the foreign gene was degraded completely in the fourth month, which is slower than in our study, and this difference may be attributable to the host plant in their study being P. alba L. × P. grandidentata, rather than (P. tomentosa × P. bolleana) × P. tomentosa (this study). Although there is no evidence that degradation rates of recombinant DNA vary among different Populus species, Widmer and Seidle [37] found that the recombinant npt II gene could be detected for up to 77 and 137 days from tobacco and potato transgenic material, respectively, which indicates that the host plant may influence the degradation rate of recombinant DNA. In addition, both soil microbial activity and the activity of free DNase in soil may explain the rapid degradation of DNA; soil type and composition may be other relevant factors. Our study can facilitate the study of possible recombinant DNA from transgenic plant material being available for lateral transfer to soil microorganisms. Our results showed rapid initial degradation of the DNA of a foreign gene in transgenic Populus and similar results have been obtained in other studies. Hay et al. [24] thought that because transgenic crop or tree DNA degrades rapidly, possible transfer of recombinant genes from transgenic material to microorganisms is unlikely to occur.
Gene flow is a primary determinant of the potential ecological impacts of transgenic trees, and the possible transgene flow of transgenic Populus must be considered before large-area planting. According to years of research from our lab, P. tomentosa has a very low success rate when hybridized with other Populus, except for some P. tomentosa × P. bolleana and P. alba × P. glandulosa lines [38]. The P. tomentosa × P. bolleana “TB04” has proven successful when hybridized with P. tomentosa [39], thus, in our study, we chose “TB04” as the female parent to hybridize with transgenic Populus. Before the hybridization, we regulated the water culture time of male and female flower branches to ensure that the pollen vitality and stigmatic receptivity were at good levels on the pollination day. If pollen vitality and stigmatic receptivity are not well-known, erroneous conclusions from hybridization experiments are possible. The stigmatic receptivity was best when the stigma was shiny with a large amount of mucus on it and with total cracking. In our study, the stigma was pollinated at the best receptivity day and the pollen was collected one or two days before the pollination. However, in our study, neither the pollen of transgenic (T-46) Populus nor that of non-transgenic (401) Populus was viable as determined by TTC test or the pollen germination method, and the result of the hybridization also verified the low pollen fertility. The low pollen fertility of T-46 may be due to the high male sterility of triploid plants. However, Kang and Mao [39] performed a hybridization using “TB04” as the female parent and the allo-triploid P. tomentosa line “B312” [40] as the male parent and obtained 58 seedlings (gamete fertility was 3.19%), which indicates that triploid may not the main reason of unfertile but low pollen viability of the host plant (401) in 2016. However, we performed hybridization in only one year, and it remains uncertain whether the low pollen fertility is permanent or temporary. Additional experiments to study the pollen fertility will be undertaken in future studies.
It is unfortunate that we had only one transgenic line in our field test (in 2005, we had more than one transgenic line, but the fields of the other lines were destroyed in 2008 and only this one field was conserved). To study the environmental impact of the AhDREB1-gene transgenic Populus further, we conducted another field test in 2016.

5. Conclusions

In this study, we conducted a field trial of AhDREB1 transgenic and non-transgenic triploid Populus tomentosa to assess the impact of transgenic trees on rhizospheric soil microbial communities and allelopathic activity of leaves. We found that: (1) The impact on the environment of AhDREB1 transgenic P. tomentosa did not differ significantly from that of the non-transformed controls for the variables observed in this field trial, which indicates that the AhDREB1 transgenic Populus may not present risks to surrounding vegetation and affect the number of culturable microorganisms present. (2) The fragments of the genetically modified DNA were not detectable in the field after more than two months, showing rapid initial degradation of the DNA of a foreign gene in transgenic Populus. (3) Whether the low pollen fertility is permanent or temporary in our study is still uncertain. Our study indicated that AhDREB1 transgenic may not significantly impact the surrounding environment.

Supplementary Materials

The following are available online at https://www.mdpi.com/1999-4907/9/8/482/s1, Figure S1: Pollen viability tested by triphenyl tetrazolium chloride (TTC) at the day of anther opening. Stained pollens were observed only in TB16 (left); no pollens were stained in transgenic poplar T-46 (middle); or non-transgenic poplar 401 (right), the red arrows are stained pollen grains; the black arrows are unstained pollen grains. Figure S2: Pollen viability tested by the in vitro pollen germination test at the day of anther opening. Line 1: in vitro pollen germination test after 0.5 h; Line 2: in vitro pollen germination test after 1 h; Line 3: in vitro pollen germination test after 6 h. Germinated pollen were observed only in TB16 after 0.5 h (first line); no pollens were germinated even after 6 h in transgenic poplar T-46 or non-transgenic poplar 401 (third line), Table S1: Analysis of variance of allelopathic activity by sandwich method. Differences at probability for F-distribution (p) < 0.05 are considered as significantly different (α = 0.05), Table S2: Analysis of variance of allelopathic activity by soil-mixed method. Differences at probability for F-distribution (p) < 0.05 are considered as significantly different (α = 0.05), Table S3: Analysis of variance of cultureable soil microorganism numbers. Differences at probability for F-distribution (p) < 0.05 are considered as significantly different (α = 0.05).

Author Contributions

Y.L. designed the experiments; Q.G. and N.L. wrote the paper; Q.G., N.L., Z.L. and Y.S. performed the experiments and analyzed the data; and J.W., S.W., Z.G., F.L., S.Y., W.Z. and Q.J. participated in the experiment and help to complete the experiments.

Funding

This research was funding by the Science and Technology Development Center of the State Forestry Administration Project (JC-2017-02), the National Science and Technology Major Project of the Ministry of Science and Technology of China (2018ZX08021001-003-002), the National High Technology Research and Development Program of China (2013AA102703), the Science and Technology Development Center of the State Forestry Administration Project (JJ-2012-04), the Fundamental Research Funds for the Central Universities (2016BLPX13), and International Science & Technology Cooperation Program of China (2014DFA31140).

Acknowledgments

We appreciate the anonymous reviewers and the editor for thoughtful feedback that improved the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Oguchi, T.; Kashimura, Y.; Mimura, M.; Yu, X.; Matsunaga, E.; Nanto, K.; Watanabe, K.N. A multi-year assessment of the environmental impact of transgenic Eucalyptus trees harboring a bacterial choline oxidase gene on biomass, precinct vegetation and the microbial community. Transgenic Res. 2014, 23, 767–777. [Google Scholar] [CrossRef] [PubMed]
  2. Li, Y.H.; Peng, Y.F.; Hallerman, E.M.; Wu, K.M. Biosafety management and commercial use of genetically modified crops in China. Plant Cell Rep. 2014, 33, 565–573. [Google Scholar] [CrossRef] [PubMed]
  3. DiFazio, S.P.; Leonardi, S.; Slavov, G.T.; Garman, S.L.; Adams, W.T.; Strauss, S.H. Gene flow and simulation of transgene dispersal from hybrid poplar plantations. New Phytol. 2012, 193, 903–915. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Halford, N.G. Toward two decades of plant biotechnology: Successes, failures, and prospects. Food Energy Secur. 2012, 1, 9–28. [Google Scholar] [CrossRef]
  5. Li, J.; Pu, L.; Han, M.; Zhu, M.; Zhang, R.; Xiang, Y. Soil salinization research in China: Advances and prospects. J. Geogr. Sci. 2014, 24, 943–960. [Google Scholar] [CrossRef]
  6. Zhu, Z.T.; Zhang, Z.Y. The status and advances of genetic improvement of Populus tomentosa Carr. J. Beijing For. Univ. 1997, 6, 1–7. [Google Scholar]
  7. Hu, L.; Lu, H.; Liu, Q.; Chen, X.; Jiang, X. Overexpression of mtlD gene in transgenic Populus tomentosa improves salt tolerance through accumulation of mannitol. Tree Physiol. 2005, 25, 1273–1281. [Google Scholar] [CrossRef] [PubMed]
  8. Li, Y.; Su, X.; Zhang, B.; Huang, Q.; Zhang, X.; Huang, R. Expression of jasmonic ethylene responsive factor gene in transgenic poplar tree leads to increased salt tolerance. Tree Physiol. 2008, 29, 273–279. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Du, N.X.; Liu, X.; Li, Y.; Chen, S.Y.; Zhang, J.S.; Ha, D.; Deng, W.G.; Sun, C.K.; Zhang, Y.Z.; Pijut, P.M. Genetic transformation of Populus tomentosa to improve salt tolerance. Plant Cell Tissue Organ Cult. 2012, 108, 181–189. [Google Scholar] [CrossRef]
  10. Jiang, C.Q.; Zheng, Q.S.; Liu, Z.P.; Xu, W.J.; Liu, L.; Zhao, G.M.; Long, X.H. Overexpression of Arabidopsis thaliana Na+/H+ antiporter gene enhanced salt resistance in transgenic poplar (Populus × euramericana ‘Neva’). Trees 2012, 26, 685–694. [Google Scholar] [CrossRef]
  11. Eggers, B.; Mackenzie, R. The Cartagena protocol on biosafety. J. Int. Econ. Law 2000, 3, 525–543. [Google Scholar] [CrossRef]
  12. Devos, Y.; Aguilera, J.; Diveki, Z.; Gomes, A.; Liu, Y.; Paoletti, C.; Jradin, P.; Herman, L.; Perry, J.N.; Waigmann, E. EFSA’s scientific activities and achievements on the risk assessment of genetically modified organisms (GMOs) during its first decade of existence: Looking back and ahead. Transgenic Res. 2014, 23, 1–25. [Google Scholar] [CrossRef] [PubMed]
  13. Strauss, S.H.; Tan, H.; Boerjan, W.; Sedjo, R. Strangled at birth? Forest biotech and the Convention on Biological Diversity. Nat. Biotechnol. 2009, 27, 519–527. [Google Scholar] [CrossRef] [PubMed]
  14. Häggman, H.; Raybould, A.; Borem, A.; Fox, T.; Handley, L.; Hertzberg, M.; Lu, M.Z.; Macdonald, P.; Oguchi, T.; Pasquali, G.; et al. Genetically engineered trees for plantation forests: Key considerations for environmental risk assessment. Plant Biotechnol. J. 2013, 11, 785–798. [Google Scholar] [CrossRef] [PubMed]
  15. Lu, N.; Wei, B.; Sun, Y.H.; Liu, X.; Chen, S.Y.; Zhang, W.K.; Zhang, Y.Z.; Li, Y. Field Supervisory Test of DREB-Transgenic Populus: Salt Tolerance, Long-Term Gene Stability and Horizontal Gene Transfer. Forests 2014, 5, 1106–1121. [Google Scholar] [CrossRef] [Green Version]
  16. Yu, X.; Kikuchi, A.; Shimazaki, T.; Yamada, A.; Ozeki, Y.; Matsunaga, E.; Watanabe, K.N. Assessment of the salt tolerance and environmental biosafety of Eucalyptus camaldulensis harboring a mangrin transgene. J. Plant Res. 2013, 126, 141–150. [Google Scholar] [CrossRef] [PubMed]
  17. Chun, Y.J.; Kim, H.J.; Park, K.W.; Jeong, S.C.; Lee, B.; Back, K.; Kim, H.M.; Kim, C. Two-year field study shows little evidence that PPO-transgenic rice affects the structure of soil microbial communities. Biol. Fertil. Soils 2012, 48, 453–461. [Google Scholar] [CrossRef]
  18. Sahoo, R.K.; Ansari, M.W.; Tuteja, R.; Tuteja, N. Salt tolerant SUV3 overexpressing transgenic rice plants conserve physicochemical properties and microbial communities of rhizosphere. Chemosphere 2015, 119, 1040–1047. [Google Scholar] [CrossRef] [PubMed]
  19. Fang, C.; Zhuang, Y.; Xu, T.; Li, Y.; Li, Y.; Lin, W. Changes in rice allelopathy and rhizosphere microflora by inhibiting rice phenylalanine ammonia-lyase gene expression. J. Chem. Ecol. 2013, 39, 204–212. [Google Scholar] [CrossRef] [PubMed]
  20. Beckers, B.; De Beeck, M.; Weyens, N.; Van Acker, R.; Van Montagu, M.; Boerjan, W.; Vangronsveld, J. Lignin engineering in field-grown poplar trees affects the endosphere bacterial microbiome. Proc. Natl. Acad. Sci. USA 2016, 113, 2312–2317. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  21. Schlüter, K.; Fütterer, J.; Potrykus, I. “Horizontal” gene transfer from a transgenic potato line to a bacterial pathogen (Erwinia chrysanthemi) occurs—If at all—At an Extremely Low Frequency. Nat. Biotechnol. 1995, 13, 1094–1098. [Google Scholar] [CrossRef]
  22. Gebhard, F.; Smalla, K. Transformation of Acinetobacter sp. strain BD413 by transgenic sugar beet DNA. Appl. Environ. Microbiol. 1998, 64, 1550–1554. [Google Scholar] [PubMed]
  23. Gebhard, F.; Smalla, K. Monitoring field releases of genetically modified sugar beets for persistence of transgenic plant DNA and horizontal gene transfer. FEMS Microbiol. Ecol. 1999, 28, 261–272. [Google Scholar] [CrossRef] [Green Version]
  24. Hay, I.; Morency, M.J.; Séguin, A. Assessing the persistence of DNA in decomposing leaves of genetically modified poplar trees. Can. J. For. Res. 2002, 32, 977–982. [Google Scholar] [CrossRef]
  25. Chèvre, A.; Eber, F.; Baranger, A.; Renard, M. Gene flow from transgenic crops. Nature 1997, 389, 924. [Google Scholar] [CrossRef]
  26. Chen, L.; Lee, D.; Song, Z.; Suh, H.; Lu, B. Gene flow from cultivated rice (Oryza sativa) to its weedy and wild relatives. Ann. Bot. 2004, 93, 67–73. [Google Scholar] [CrossRef] [PubMed]
  27. Hokanson, K.; Ellstrand, N.; Dixon, A.; Kulembeka, H.; Olsen, K.; Raybould, A. Risk assessment of gene flow from genetically engineered virus resistant cassava to wild relatives in Africa: An expert panel report. Transgenic Res. 2015, 25, 1–11. [Google Scholar] [CrossRef] [PubMed]
  28. Shen, Y.G.; Zhang, W.K.; Yan, D.Q.; Du, B.X.; Zhang, J.S.; Liu, Q.; Chen, S.Y. Characterization of a DRE-binding transcription factor from a halophyte Atriplex hortensis. Theor. Appl. Genet. 2003, 107, 155–161. [Google Scholar] [CrossRef] [PubMed]
  29. Li, Y.; Zhu, Z.T.; Tian, Y.T.; Zhang, Z.Y.; Kang, X.Y. Obtaining triploids by high and low temperature treating female flower buds of white poplar. J. Beijing For. Univ. 2000, 22, 7–12. [Google Scholar]
  30. Xu, Z.H.; Li, Y.; Cui, B.B. Studies on growing traits of new clones of Populus tomentosa Carr. from female gamete chromosome doubling (in Chinese). J. Baoding Univ. 2009, 22, 61–66. [Google Scholar]
  31. Wei, B.; Li, Y.; Du, N.X.; Liu, X. Transgene stability of transgenic hybrid of Populus [(Populus tomentosa × P. bolleana) × P. tomentosa] and its effect on soil microorganism. J. Nucl. Agric. Sci. 2009, 23, 1054–1059. [Google Scholar]
  32. Simon, L.; Lalonde, M.; Bruns, T.D. Specific amplification of 18S fungal ribosomal genes from vesicular-arbuscular endomycorrhizal fungi colonizing roots. Appl. Environ. Microbiol. 1992, 58, 291–295. [Google Scholar] [PubMed]
  33. Lu, N.; Dai, L.; Wu, B.; Zhang, Y.; Luo, Z.J.; Xun, S.H.; Sun, Y.H.; Li, Y. A preliminary study on the crossability in Robinia pseudoacacia L. Euphytica 2015, 206, 555–566. [Google Scholar] [CrossRef]
  34. Li, Y.H.; Kang, X.Y. Stigma Receptivity and Its Detection Methods of White Poplars. Acta Bot. Boreal 2007, 27, 864–870. [Google Scholar]
  35. Zhu, W.; Chu, Y.; Ding, C.; Huang, Q.; Zhang, B.; Zhang, W.; Su, X. Assessing bacterial communities in the rhizosphere of 8-year-old genetically modified poplar (Populus spp.). J. For. Res. 2016, 27, 939–947. [Google Scholar] [CrossRef]
  36. Amann, R.I.; Ludwig, W.; Schleifer, K.H. Phylogenetic identification and in situ detection of individual microbial cells without cultivation. Microbiol. Rev. 1995, 59, 143–169. [Google Scholar] [PubMed]
  37. Widmer, F.; Seidler, R.J. Quantification of transgenic plant marker gene persistence in the field. Mol. Ecol. 1997, 6, 1–7. [Google Scholar] [CrossRef]
  38. Kang, X.Y. Study on mechanism of pollen abortion in Chinese white poplar (Populus tomentosa Carr.) Study on mechanism. Sci. Silvae Sin. 2001, 37, 35–39. [Google Scholar]
  39. Kang, X.Y.; Mao, J.F. Gamete fertility and morphological variations in offsprings of triploid clones Populus tomentosa (in Chinese). J. Beijing For. Univ. 2001, 23, 20–23. [Google Scholar]
  40. Zhu, Z.T.; Lin, H.B.; Kang, X.Y. Study on allotriploid breeding of Populus tomentosa B301 clones. Sci. Silvae Sin. 1995, 31, 499–506. [Google Scholar]
Forests 09 00482 g001 550

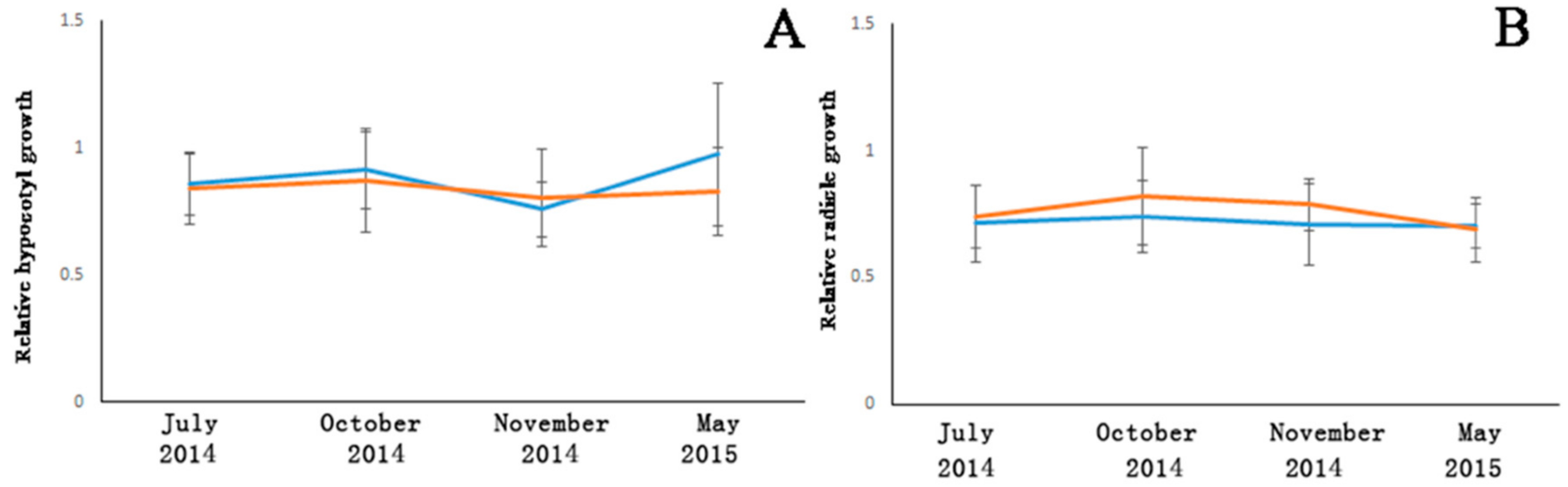

Figure 1. Changes in the allelopathic activity of leaf tissue from transgenic (blue) and non-transgenic (orange) Populus for relative hypocotyl (A) and radicle (B) growth compared to blank controls in different sampling time points as determined by the sandwich method. No significant difference was detected between the transgenic group and the non-transgenic group on respective samplings points (α = 0.05).
Figure 1. Changes in the allelopathic activity of leaf tissue from transgenic (blue) and non-transgenic (orange) Populus for relative hypocotyl (A) and radicle (B) growth compared to blank controls in different sampling time points as determined by the sandwich method. No significant difference was detected between the transgenic group and the non-transgenic group on respective samplings points (α = 0.05).
Forests 09 00482 g001
Forests 09 00482 g002 550

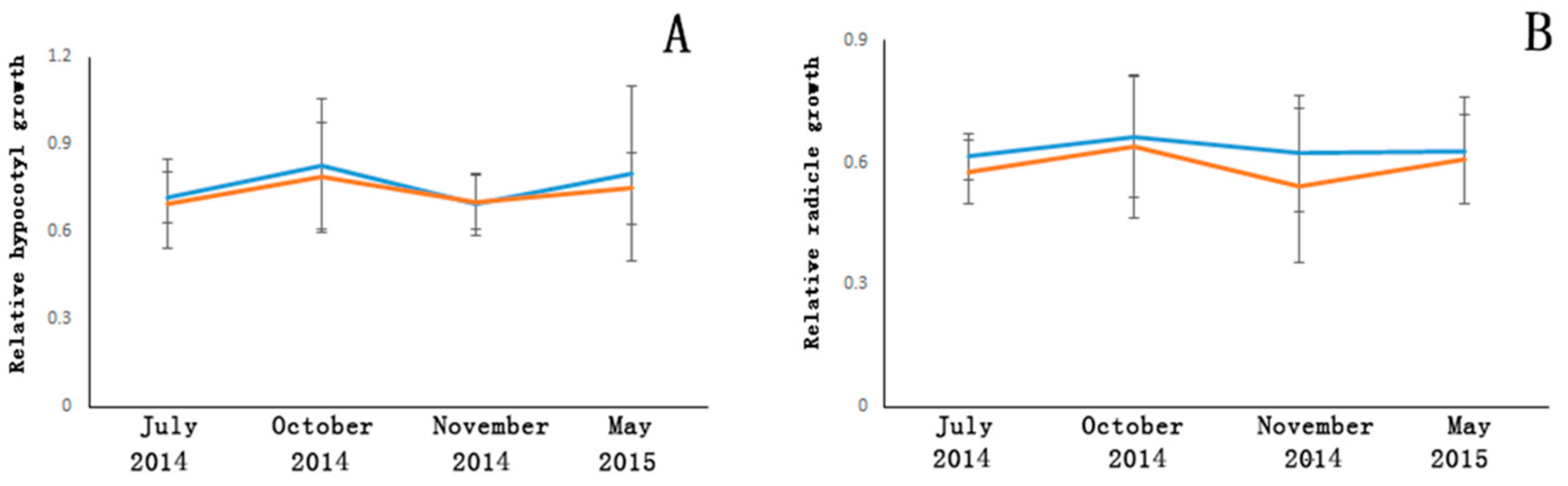

Figure 2. Changes in the allelopathic activity of leaf tissue from transgenic (blue) and non-transgenic (orange) Populus for relative hypocotyl (A) and radicle (B) growth compared to blank controls in different sampling time points as determined by the soil-mix method. No significant difference was detected between the transgenic group and non-transgenic group on respective samplings points (α = 0.05).
Figure 2. Changes in the allelopathic activity of leaf tissue from transgenic (blue) and non-transgenic (orange) Populus for relative hypocotyl (A) and radicle (B) growth compared to blank controls in different sampling time points as determined by the soil-mix method. No significant difference was detected between the transgenic group and non-transgenic group on respective samplings points (α = 0.05).
Forests 09 00482 g002
Forests 09 00482 g003 550
Figure 3. Changes in the numbers of bacteria (A), fungi (B), and actinomycetes (C) in soil adjacent to transgenic and non-transgenic Populus in different sampling time points. No significant differences were detected between the transgenic group and the non-transgenic group at respective samplings points (α = 0.05).
Figure 3. Changes in the numbers of bacteria (A), fungi (B), and actinomycetes (C) in soil adjacent to transgenic and non-transgenic Populus in different sampling time points. No significant differences were detected between the transgenic group and the non-transgenic group at respective samplings points (α = 0.05).
Forests 09 00482 g003
Forests 09 00482 g004 550

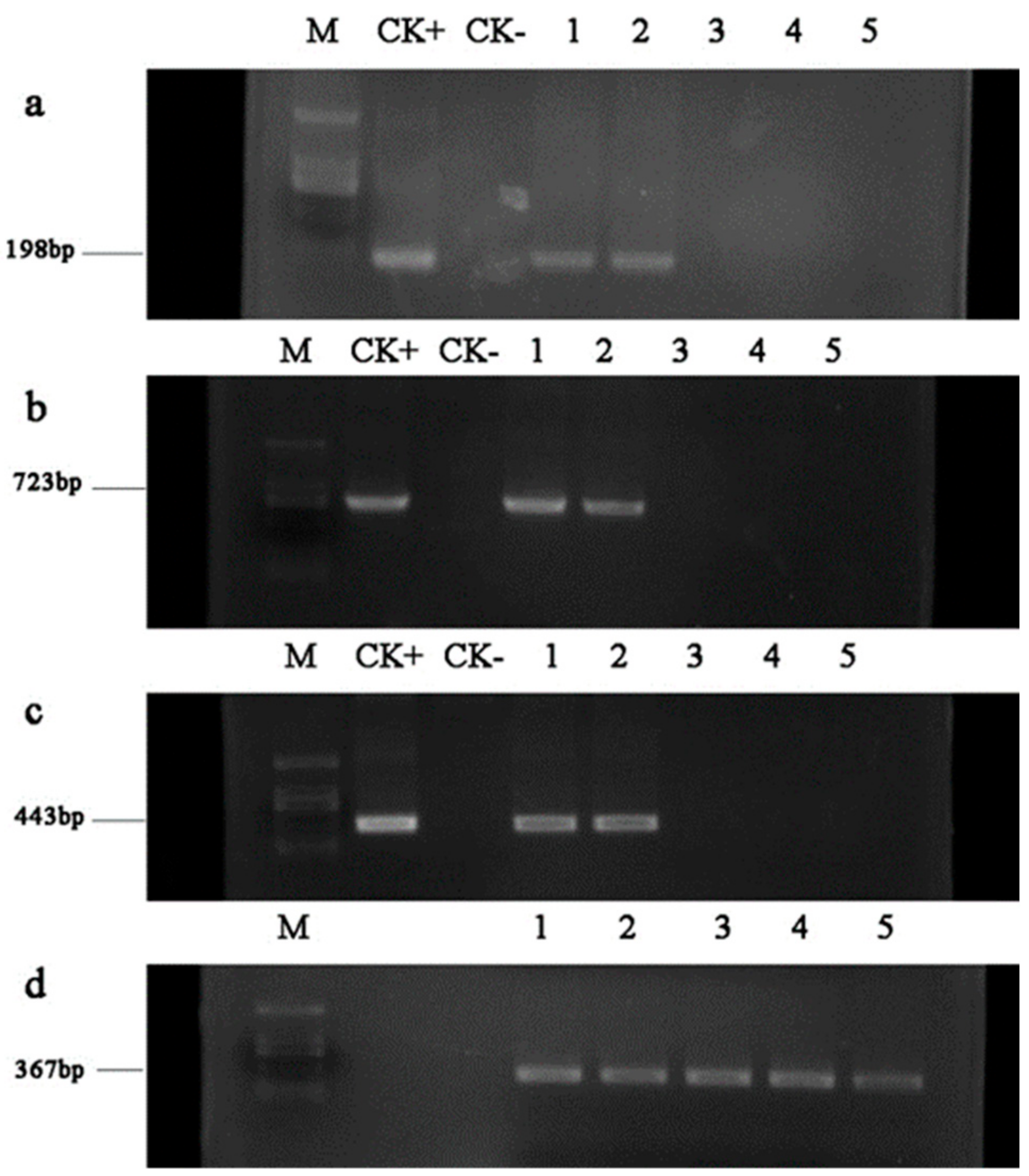

Figure 4. PCR probe of exposed-leaf DNA extracts using three AhDREB1-specific primer pairs and ribosomal primers: (a) 1% agarose gel with AhDREB1 PCR products of 198 bp obtained with primers F2 and R2; (b) 1% agarose gel with AhDREB1 PCR products of 723 bp obtained with primers F1 and R1; (c) 1% agarose gel with AhDREB1 PCR products of 443 bp obtained with primers F3 and R3; and (d) 1% agarose gel with ribosomal PCR products of 367 bp obtained with primers F18s and R18s. M, D2000 DNA marker; CK+, transgenic poplar DNA; CK–, non-transgenic poplar DNA; 1–5: the samples (1, August 2014; 2, September 2014; 3, October 2014; 4, November 2014; 5, December 2014).
Figure 4. PCR probe of exposed-leaf DNA extracts using three AhDREB1-specific primer pairs and ribosomal primers: (a) 1% agarose gel with AhDREB1 PCR products of 198 bp obtained with primers F2 and R2; (b) 1% agarose gel with AhDREB1 PCR products of 723 bp obtained with primers F1 and R1; (c) 1% agarose gel with AhDREB1 PCR products of 443 bp obtained with primers F3 and R3; and (d) 1% agarose gel with ribosomal PCR products of 367 bp obtained with primers F18s and R18s. M, D2000 DNA marker; CK+, transgenic poplar DNA; CK–, non-transgenic poplar DNA; 1–5: the samples (1, August 2014; 2, September 2014; 3, October 2014; 4, November 2014; 5, December 2014).
Forests 09 00482 g004
Table
Table 1. Primers used in this study.
Table 1. Primers used in this study.
PrimersTm (°C)SequencePosition at ATGAmplification Product (bp)
F1635-ATGAGCTACTCATACCCACCTCCA-31–723723 bp
R1655-TTAAGATTCAGATGATAATATAGC-3
F2555-TGCGTTTACGGAGGAATG-3160–357198 bp
R2585-CGTTTACCCAAGAACAGGAC-3
F3545-AATTCTCCGATCCCATTTC-3216–658443 bp
R3545-AGCTGCTTTGGCTTACGA-3
F18S565-GGGGGAGTATGGTCGCAAGGC-3Universal
R18S575-TCAGTGTAGCGCGCGTGCGGC-3Universal367 bp
Table
Table 2. Pollen viability (%) of three male parents at blooming day by the TTC and in vitro pollen germination tests (6 h).
Table 2. Pollen viability (%) of three male parents at blooming day by the TTC and in vitro pollen germination tests (6 h).
Male ParentTTC TestIn Vitro Pollen Germination Test
T-46 (transgenic populus)0.0%0.0%
401 (non-transgenic populus)0.0%0.0%
TB16 (CK)56.7 ± 6.5%67.4 ± 8.7%
Table
Table 3. Hybridization of T-46 (transgenic Populus), 401 (non-transgenic Populus), and TB16 (CK) as male parents with Populus tomentosa × Populus bolleana (TB04) as the female parent.
Table 3. Hybridization of T-46 (transgenic Populus), 401 (non-transgenic Populus), and TB16 (CK) as male parents with Populus tomentosa × Populus bolleana (TB04) as the female parent.
ParentsNumber of Pollinated CapsulesNumber of SeedsSeed Setting Rate (%)
Female ParentsMale Parents
TB04T-46 (transgenic populus)158500%
TB04401 (non-transgenic populus)137600%
TB04TB16 (CK)1104363.26%
