Supply Chain Optimization for Energy Cogeneration Using Sugarcane Crop Residues (SCR)
Abstract
:1. Introduction
1.1. Background and Motivation

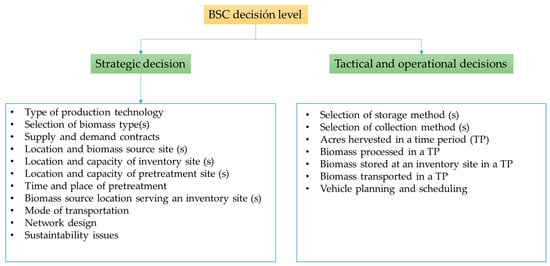

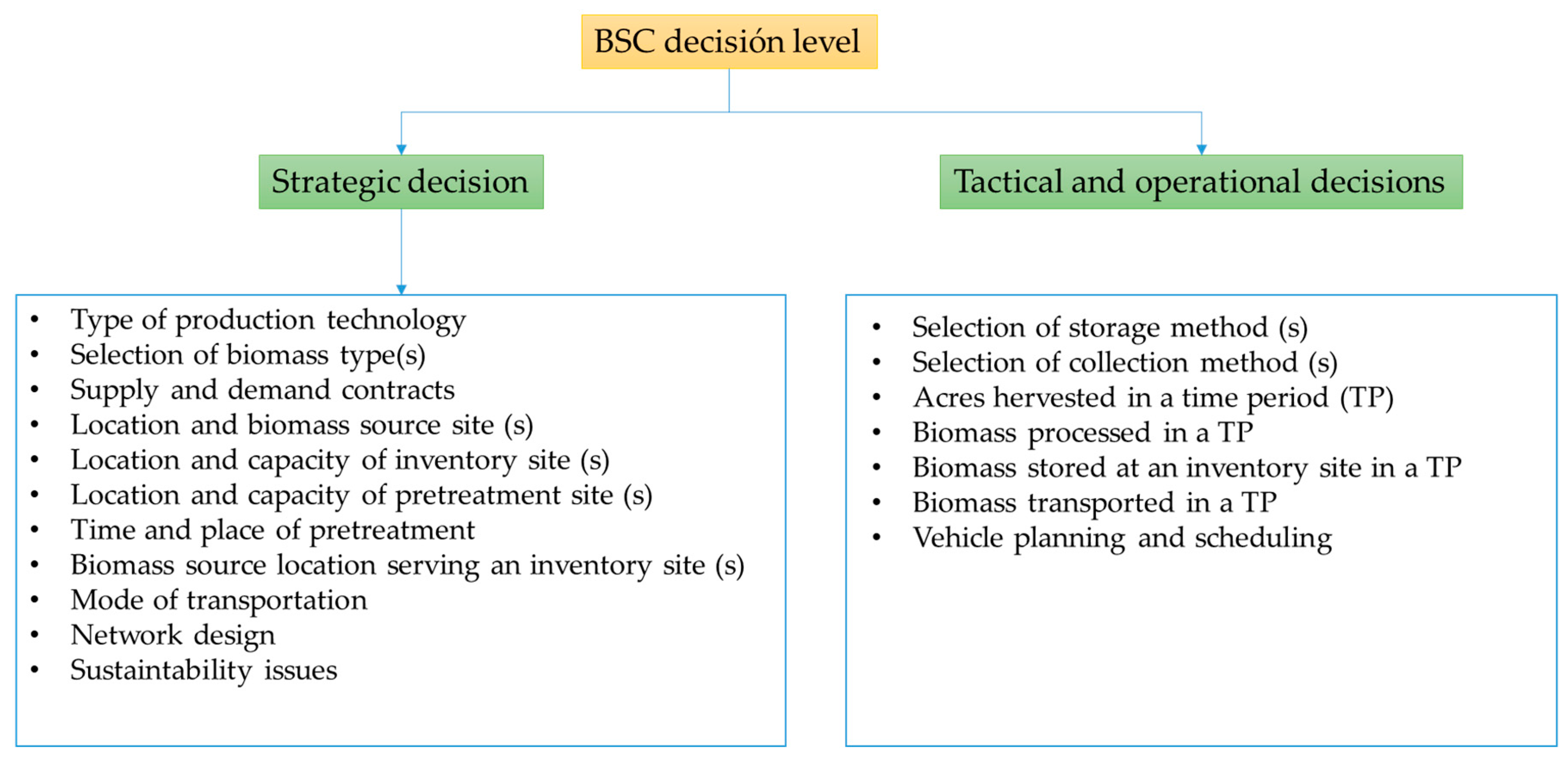

1.2. Literature Review—Bioenergy Supply Chain Optimization
2. Model
2.1. Problem Description

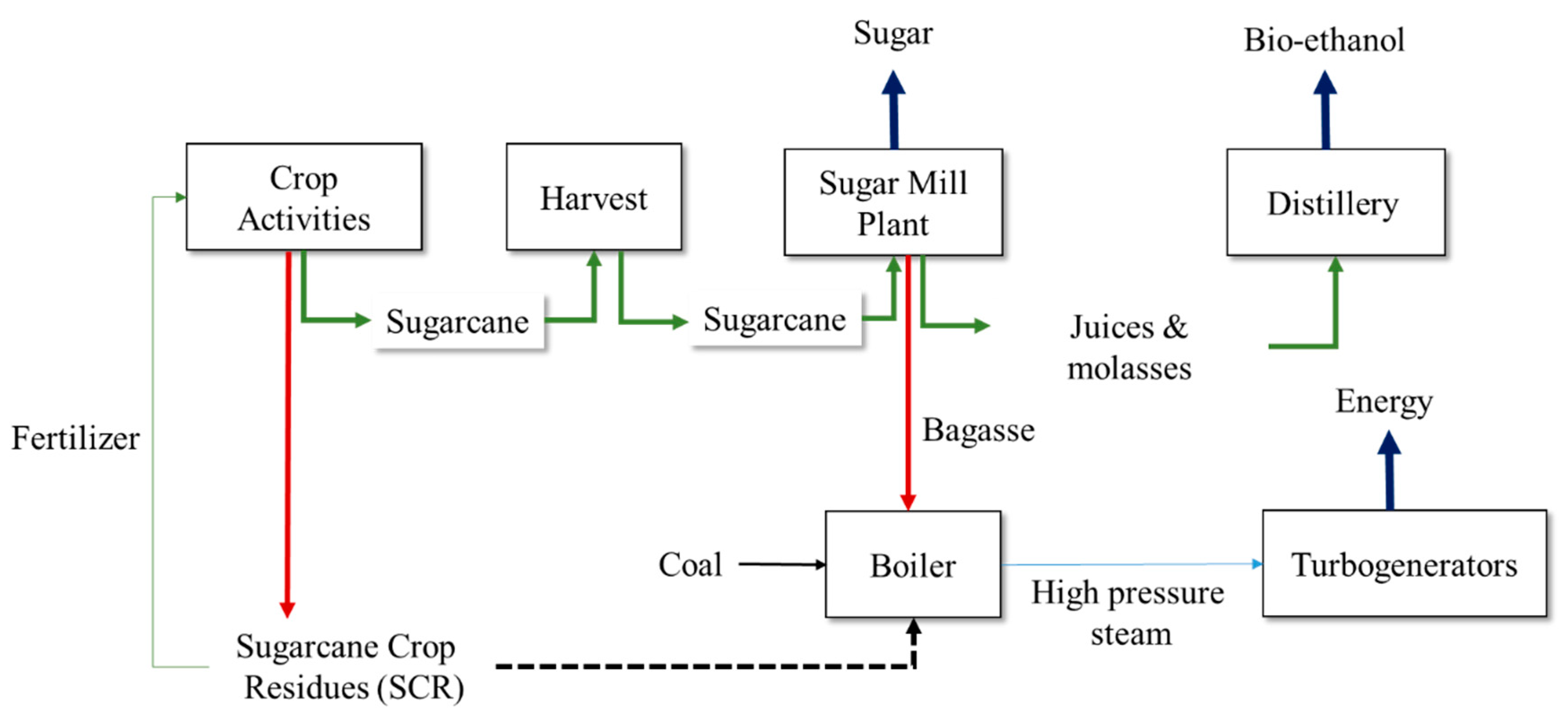

2.2. The Process
- Distance from the plot to the factory;
- Sucrose contents in the crop;
- Availability of vehicles, harvesting equipment, and crews;
- In-factory waiting time for raw materials (the sugar contents in the canes start decreasing the moment they are cut, a process called inversion).
2.3. Using Crop Residue to Generate Electricity
- Crop residue generates less CO2 equivalent than coal;
- Sugar cane mills have to purchase coal or exchange it for post-production byproducts. Crop residue is basically free.
2.4. Mathematical Model
2.4.1. Parameters
- Tons of crop residue available on plot i.
- : Energy value of the crop residue from plot i (kw*h/ton).
- : Pollution caused by burning the crop residue from plot i (CO2 tons/ton of crop residue burned).
- : Rectilinear distance (km) from plot i to the factory.
- : Fixed cost of collecting the crop residue from plot i ($).
- : Transportation cost ($/(ton*km)).
- : Baseline level of coal consumption (tons).
- : Cost of coal ($/ton).
- : Energy value of coal (kw*h/ton).
- : Pollution caused by burning coal (CO2 tons/ton of coal burned).
- : Value of carbon bonds ($/tons of CO2 removed) [33].
- : Sales price of energy.
- : Vehicles and crews available today for collection and transportation of crop residue.
2.4.2. Detailed Information about the Parameters
- : These are the tons of sugar cane crop residue that can be obtained from lot i. On average, it is possible to harvest 110 tons of sugar cane from a hectare of crop. From that, it has been estimated that the crop residue lies between 19% and 37% of that total weight [18]. The TCR from a given plot depends on its area, the variety of sugar cane grown, and the harvesting tools that are in use.
- : This represents the energy that can be obtained from a ton of crop residue. Reference [18] shows that sugar cane residue has a calorific potential of 16 kilojoules per ton. Converting this potential into kilowatts-hour, we get that on average sugar cane crop residue may generate 0.00444 kwh/ton.
- : Pollution caused by burning the crop residue from plot i. This parameter has been estimated as an average of 35.1 kg of CO2 equivalent per ton of crop residue burned [34].
- : Rectilinear distance from a plot to the sugar cane mill. The structure of plots and roadways is predominantly rectilinear. For a factory located at the distance to a plot with coordinates would be (Figure 3).
- : Fixed cost of collecting the crop residue from plot i ($). This is the cost related to fixed salary of the driver of the vehicle and the cost of ownership of said vehicle. It depends neither on the tons transported nor on the distance. We have calculated this cost at $32 USD per trip, assuming three trips per day per crew. We calculated this cost considering the fixed salaries of the crews, assuming full utilization of their work, and also considering the cost of ownership of the vehicles required for the transportation of the sugarcane crop residue. The cost of operation of the vehicles is included in the parameter COST.
- : This is the variable transportation cost. We have calculated its value at $0.115 USD per ton-km.
- : This is a user-supplied value. For our exercise we will use a value of 100 ton/day as a baseline (obtained from an actual sugar cane mill).
- : Cost of acquisition of coal in $/ton USD. This cost may vary according to the sources the individual company uses to acquire its coal. There are different acquisition strategies, including long-term contracts, open market contracts and the exchange of bagasse for coal with the paper mills. For this model, we used $75/ton USD.
- : Energy value of coal (kwh/ton). The coal used by sugar cane mills has a calorific power of 0.00666 kwh/ton on average.
- : Pollution caused by burning coal (CO2 tons/ton of coal burned). This value has been estimated as 2.66 tons of CO2 per ton of coal burned [34].
- : Value of carbon bonds ($/tons of CO2 removed). We will use $25 USD per ton of equivalent CO2, as this is close to the average in the first part of 2019 [33].
- : Sales price of energy. In Colombia, this price is currently $0.028 USD/kwh [35].
- : Trips for residue collection and transportation available today. In our example, VAV ranges between 15 and 25 for any given day.
2.4.3. Variables
- : Binary: 1 if the residue from plot i is collected, 0 if not.
- : Amount of tons of crop residue collected from plot i.
- : Tons of coal burned today.
- Income obtained through the sale of green bonds.
- Electricity sold.
- Savings realized if the coal purchased is less than the baseline.
- Total fixed transportation costs.
- Total variable transportation costs.
2.4.4. Objective Function:
2.4.5. Constraints
3. Results
4. Discussion
5. Conclusions
- SCR releases less equivalent CO2 than coal when burned for electricity generation;
- SCR is basically free. It is a byproduct of the harvesting of the sugarcane. CO2 is a raw material that has to be acquired through private contracts or the commodities market;
- SCR can be collected using crews, equipment, and vehicles that are similar to those used for the harvesting and transportation of sugarcanes.
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
Appendix A
Julia Code
using JuMP using GLPK using MathOptInterface using CSV
# Read data from file data = CSV.read("Model-Data.csv")
# Create indexed parameters TCR = data.TCR CP = data.CP P = data.P D = data.D
# Create constants FCOST = 32; COST = 0.115; COAL = 100 CCL = 75; CPC = 0.00666; POL = 2.66 CBOND = 25; SPE = 0.028; VAV = 18
# Count the number of plots plots = size(TCR)[1]
# Create optimization model m = Model(with_optimizer(GLPK.Optimizer))
# Declare decision variables @variable(m, y[1:plots], Bin) @variable(m, x[1:plots] >= 0) @variable(m, cpur >= 0)
# Declare cost variables for the objective function @variable(m, bond_income >= 0) @variable(m, elec_sold >= 0) @variable(m, coal_savings >= 0) @variable(m, fixed_transp >= 0) @variable(m, var_transp >= 0)
# Declare the objective function @objective(m, Max, bond_income + elec_sold + coal_savings - fixed_transp - var_transp)
# The new level of pollution must not exceed the baseline @constraint(m, pol_base, cpur*POL + sum(x[i]*P[i] for i in 1:plots) <= COAL*POL)
# The electricity generated must not be less than the baseline @constraint(m, elec_gen, sum(x[i]*CP[i] for i in 1:plots) + (cpur*CPC) >= COAL*CPC)
# The number of plots to collect crop residue is limited by # the number of trips available per day @constraint(m, collect_plots, sum(y[i] for i in 1:plots) <= VAV)
# If a plot is not selected, no crop residue can be collected from it @constraint(m, residue[i=1:plots], x[i] <= TCR[i]*y[i])
# Assign value to the cost variables of the objective function @constraint(m, bondincome, bond_income == (COAL*POL - sum(x[i]*P[i] for i in 1:plots) - cpur*POL) * CBOND) @constraint(m, elecsold, elec_sold == (sum(x[i]*CP[i] for i in 1:plots) + ((cpur-COAL)*CPC))*SPE) @constraint(m, coalsavings, coal_savings == (COAL - cpur)*CCL) @constraint(m, fixedtransp, fixed_transp == sum(y[i]*FCOST for i in 1:plots)) @constraint(m, vartransp, var_transp == sum(x[i]*D[i]*COST for i in 1:plots))
print(m)
status = optimize!(m)
println("Profit: ", JuMP.objective_value(m)) println("Plots to collect: ", JuMP.value.(y)) println("Crop residue: ", JuMP.value.(x)) println("Coal to buy: ", JuMP.value(cpur)) println("Bond Income: ", JuMP.value(bond_income)) println("Electricity Sold: ", JuMP.value(elec_sold)) println("Coal Savings: ", JuMP.value(coal_savings)) println("Fixed Transp: ", JuMP.value(fixed_transp)) println("Variable Transp: ", JuMP.value(var_transp)) println("Residue Collected: ", sum(JuMP.value.(x)))
Appendix B
Instance Data
Plot. | TCR | CP | P | D |
---|---|---|---|---|
P1 | 37 | 0.0030336 | 0.0352 | 17.14 |
P2 | 30 | 0.0032734 | 0.0334 | 3.42 |
P3 | 26 | 0.0058655 | 0.0363 | 21.16 |
P4 | 39 | 0.0041573 | 0.0331 | 15.65 |
P5 | 26 | 0.0032552 | 0.0361 | 3.24 |
P6 | 35 | 0.0032061 | 0.0338 | 15.31 |
P7 | 37 | 0.0057260 | 0.0347 | 22.56 |
P8 | 33 | 0.0040761 | 0.0345 | 21.03 |
P9 | 21 | 0.0059792 | 0.0336 | 5.55 |
P10 | 33 | 0.0037543 | 0.036 | 24.73 |
P11 | 33 | 0.0052091 | 0.0354 | 17.78 |
P12 | 32 | 0.0044785 | 0.0333 | 22.54 |
P13 | 27 | 0.0030945 | 0.0343 | 11.12 |
P14 | 27 | 0.0044857 | 0.0363 | 16.47 |
P15 | 30 | 0.0046803 | 0.0353 | 22.67 |
P16 | 36 | 0.0054730 | 0.0367 | 13.91 |
P17 | 24 | 0.0042343 | 0.034 | 22.60 |
P18 | 23 | 0.0039274 | 0.0349 | 14.76 |
P19 | 30 | 0.0044093 | 0.0341 | 22.49 |
P20 | 26 | 0.0055547 | 0.0353 | 16.93 |
References
- Biomass Energy Resource Center Home Page. Available online: https://www.biomasscenter.org/ (accessed on 12 November 2019).
- Perea-Moreno, M.-A.; Samerón-Manzano, E.; Perea-Moreno, A.-J. Biomass as renewable energy: Worldwide research trends. Sustainability 2019, 11, 863. [Google Scholar] [CrossRef]
- Sharma, B.; Ingalls, R.G.; Jones, C.L.; Khanchi, A. Biomass supply chain design and analysis: Basis, overview, modeling, challenges, and future. Renew. Sustain. Energy Rev. 2013, 24, 608–627. [Google Scholar] [CrossRef]
- Yue, D.; You, F.; Snyder, S.W. Biomass-to-bioenergy and biofuel supply chain optimization: Overview, key issues and challenges. Comput. Chem. Eng. 2014, 66, 36–56. [Google Scholar] [CrossRef]
- De Meyer, A.; Cattrysse, D.; Rasinmäki, J.; Van Orshoven, J. Methods to optimise the design and management of biomass-for-bioenergy supply chains: A review. Renew. Sustain. Energy Rev. 2014, 31, 657–670. [Google Scholar] [CrossRef]
- Cambero, C.; Sowlati, T. Assessment and optimization of forest biomass supply chains from economic, social and environmental perspectives—A review of literature. Renew. Sustain. Energy Rev. 2014, 36, 62–73. [Google Scholar] [CrossRef]
- Sindhu, R.; Gnansounou, E.; Binod, P.; Pandey, A. Bioconversion of sugarcane crop residue for value added products—An overview. Renew. Energy 2016, 98, 203–215. [Google Scholar] [CrossRef]
- Sector Agroindustrial de la Caña. Informe Anual 2018–2019. Available online: https://www.asocana.org/ modules/documentos/3/362.aspx (accessed on 29 October 2019).
- Go, A.W.; Conag, A.T.; Igdon, R.M.B.; Toledo, A.S.; Malila, J.S. Potentials of agricultural and agro-industrial crop residues for the displacement of fossil fuels: A Philippine context. Energy Strategy Rev. 2019, 23, 100–113. [Google Scholar] [CrossRef]
- Cervi, W.R.; Lamparelli, R.A.C.; Seabra, J.E.A.; Junginger, M.; van der Hilst, F. Bioelectricity potential from ecologically available sugarcane straw in Brazil: A spatially explicit assessment. Biomass Bioenergy 2019, 122, 391–399. [Google Scholar] [CrossRef]
- Khatiwada, D.; Leduc, S.; Silveira, S.; McCallum, I. Optimizing ethanol and bioelectricity production in sugarcane biorefineries in Brazil. Renew. Energy 2016, 85, 371–386. [Google Scholar] [CrossRef]
- Olivério, J.L.; Ferreira, F.M. Cogeneration—A new source of income for sugar and ethanol mills or bioelectricity—A new business. Proc. Int. Soc. Sugar Cane Technol. 2010, 27. [Google Scholar]
- Bocci, E.; Di Carlo, A.; Marcelo, D. Power plant perspectives for sugarcane mills. Energy 2009, 34, 689–698. [Google Scholar] [CrossRef]
- Hiloidhari, M.; Araújo, K.; Kumari, S.; Baruah, D.C.; Ramachandra, T.V.; Kataki, R.; Thakur, I.S. Bioelectricity from sugarcane bagasse co-generation in India—An assessment of resource potential, policies and market mobilization opportunities for the case of Uttar Pradesh. J. Clean. Prod. 2018, 182, 1012–1023. [Google Scholar] [CrossRef]
- Pierossi, M.A.; Bertolani, F.C. Sugarcane trash as feedstock for biorefineries: Agricultural and logistics issues. In Advances in Sugarcane Biorefinery: Technologies, Commercialization, Policy Issues and Paradigm Shift for Bioethanol and By-Products; Chandel, A.K., Silveira, M.H.L., Eds.; Elsevier: Amsterdam, The Netherlands, 2017; pp. 17–39. [Google Scholar]
- León-Martinez, T.; Dopíco-Ramírez, D.; Triana-Hernández, O.; Medina-Estevez, M. Sobre los Derivados de la Caña de Azúcar; ICIDCA: Habana, Cuba, 2013; Volume 47, pp. 13–22. [Google Scholar]
- Cobo-Barrera, D.F. Pirólisis de Residuos de Cosecha de Caña de Azúcar (RAC) como Alternativa de Aprovechamiento en Procesos de Cogeneración. Master’s Thesis, Universidad del Valle, Cali, Colombia, May 2012. [Google Scholar]
- Ojeda, W.; Saltaren, J.; Lucuara, J.; Gómez, A.; Gil, N. Valorización de residuos agrícolas de cosecha (RAC) de caña de azúcar mediante densificación mecánica. In Proceedings of the XI Congreso Atalac-Tecnicaña, Cali, Colombia, 24–28 September 2018; pp. 488–496. [Google Scholar]
- Zandi Atashbar, N.; Labadie, N.; Prins, C. Modelling and optimisation of biomass supply chains: A review. Int. J. Prod. Res. 2018, 56, 3482–3506. [Google Scholar] [CrossRef]
- Flores Hernández, U.; Jaeger, D.; Islas Samperio, J. Bioenergy potential and utilization costs for the supply of forest woody biomass for energetic use at a regional scale in Mexico. Energies 2017, 10, 1192. [Google Scholar] [CrossRef]
- Hofsetz, K.; Silva, M.A. Brazilian sugarcane bagasse: Energy and non-energy consumption. Biomass Bioenergy 2012, 46, 564–573. [Google Scholar] [CrossRef]
- Rentizelas, A.A.; Tolis, A.J.; Tatsiopoulos, I.P. Logistics issues of biomass: The storage problem and the multi-biomass supply chain. Renew. Sustain. Energy Rev. 2009, 13, 887–894. [Google Scholar] [CrossRef]
- Agustina, F.; Vanany, I.; Siswanto, N. Biomass Supply Chain Design, Planning and Management: A Review of Literature. In Proceedings of the 2018 IEEE International Conference on Industrial Engineering and Engineering Management, Bangkok, Thailand, 16–19 December 2018; pp. 884–888. [Google Scholar]
- Smithers, J. Review of sugarcane trash recovery systems for energy cogeneration in South Africa. Renew. Sustain. Energy Rev. 2014, 32, 915–925. [Google Scholar] [CrossRef]
- Florentino, H.D.O.; De Lima, A.D.; De Carvalho, L.R.; Balbo, A.R.; Homem, T.P.D. Multiobjective 0-1 integer programming for the use of sugarcane residual biomass in energy cogeneration. Int. Trans. Oper. Res. 2011, 18, 605–615. [Google Scholar] [CrossRef]
- Carvajal, J.; Sarache, W.; Costa, Y. Addressing a robust decision in the sugarcane supply chain: Introduction of a new agricultural investment project in Colombia. Comput. Electron. Agric. 2019, 157, 77–89. [Google Scholar] [CrossRef]
- Higgins A., J.; Laredo, L.A. Improving harvesting and transport planning within a sugar value chain. J. Oper. Res. Soc. 2006, 57, 367–376. [Google Scholar] [CrossRef]
- López-Milán, E.; Plà-Aragonés, L.M. A decision support system to manage the supply chain of sugar cane. Ann. Oper. Res. 2014, 219, 285–297. [Google Scholar] [CrossRef]
- López-Milán, E.; Plà-Aragonés, L.M. Optimization of the supply chain management of sugarcane in Cuba. Int. Ser. Oper. Res. Manag. Sci. 2015, 224, 107–127. [Google Scholar]
- Go, A.W.; Conag, A.T. Utilizing sugarcane leaves/straws as source of bioenergy in the Philippines: A case in the Visayas Region. Renew. Energy 2019, 132, 1230–1237. [Google Scholar] [CrossRef]
- Alonso-Pippo, W.; Luengo, C.A.; Felfli, F.F.; Garzone, P.; Cornacchia, G. Energy recovery from sugarcane biomass residues: Challenges and opportunities of bio-oil production in the light of second generation biofuels. J. Renew. Sustain. Energy 2009, 1, 063102. [Google Scholar] [CrossRef]
- Portugal-Pereira, J.; Soria, R.; Rathmann, R.; Schaeffer, R.; Szklo, A. Agricultural and agro-industrial residues-to-energy: Techno-economic and environmental assessment in Brazil. Biomass Bioenergy 2015, 81, 521–533. [Google Scholar] [CrossRef]
- Roca, R. El precio del CO2, imparable: Marca un nuevo récord por encima de €27 por tonelada, el doble que hace un año. El Periodico de la Energía. 12 April 2019. Available online: https://elperiodicodelaenergia. com/el-precio-del-co2-imparable-marca-un-nuevo-record-por-encima-de-27-e-por-tonelada-el-doble-que-hace-un-ano/ (accessed on 30 October 2019).
- Castillo, J.L.; Lucuara, J.E. Uso de residuos agrícolas de cosecha (RAC) como combustible no convencional para generar energía eléctrica en calderas de potencia. In Proceedings of the 3er. Encuentro de Usuarios de Calderas Colombia, Bogota, Colombia, 12–13 May 2016; Available online: https://www.ceaca.com/wp-content/uploads/2016/06/7-USO-DE-RESIDUOS-AGRÍCOLAS-DE-COSECHA-COMO-COMBUSTIBLE.pdf (accessed on 17 November 2019).
- Fuentes renovables tendrían participación del 8% en la torta energética nacional. La República. 23 October 2019. Available online: https://www.larepublica.co/economia/fuentes-renovables-tendran-participacion-del-8-en-la-torta-energetica-nacional-2923630 (accessed on 29 October 2019).
- Bezanson, J.; Edelman, A.; Karpinski, S.; Shah, V.B. Julia: A fresh approach to numerical computing. Siam Rev. 2017, 59, 65–98. [Google Scholar] [CrossRef] [Green Version]
Variety | Total |
---|---|
(t SCR/t cane) | |
CC 01–1940 | 0.2657 |
CC 85–92 | 0.2479 |
CC 93–4418 | 0.2624 |
Others | 0.2587 |
Total Profit | $13,708.04 USD | ||||
Plots collected | P2 | P5 | P9 | P11 | P16 |
Tons collected | 30.0 | 26.0 | 21.0 | 30.8 | 36.0 |
Coal to buy | 0.0 | ||||
Bond Income | $6523.53 USD | ||||
Electricity Sold | 0.0 | ||||
Coal Savings | $7500 (USD | ||||
Fixed Transp. | 160.0 | ||||
Variable Transp. | 155.50 | ||||
Residue Collected | 143.823 |
