Evaluation of Suitable Amount of Water and Fertilizer for Mature Grapes in Drip Irrigation in Extreme Arid Regions

Abstract

Low water and fertilizer use efficiency have become important factors restricting the sustainable development of agriculture in extreme arid areas, typically like Xinjiang in China. In order to optimize the water and fertilizer management system of grape drip irrigation in the region, field experiments were carried out to study the effects of different water and fertilizer treatments on the physiological growth, yield, and quality of grapes. Meanwhile, principal component analysis, grey correlation analysis, and regression analysis were used to quantify the relative optimal amount of water and fertilizer. The results showed that the effects of water and fertilizer interaction on the photosynthetic index and fluorescence index of grape leaves, in different growth periods, ng reached extremely significant levels (p < 0.01). The physiological indicators showed regular changes with the increase and decrease of water and fertilizer use and the appropriate amount of water and fertilizer could maintain the index at a superior level. Meanwhile, there are differences in the index of different growth stages and regular changes with the growth period. The effects of water and fertilizer interaction on the yield, water use efficiency, and quality of drip irrigation reached a very significant level (p < 0.01). The yield reached the maximum in W3F2 treatment and the yield increased by 29.76% compared with the minimum yield of W1F1. The quality index reached a superior level in W3F2 treatment. The results of principal component analysis and grey correlation analysis showed that the optimal water and fertilizer dosage was W3F2 (irrigation 750 mm, fertilization 750 kg ha⁻¹), of which N (300 kg ha⁻¹)-P₂O₅ (150 kg ha⁻¹)-K₂O (300 kg ha⁻¹), and multiple regression analysis was employed to determine the optimal range of water and fertilizer use is the following: Irrigation volume 725–825 mm and fertilization amount 684–889 kg ha⁻¹, of which N (273.6–355.6 kg ha⁻¹) - P₂O₅ (136.8–177.8 kg ha⁻¹) - K₂O (273.6–355.6 kg ha⁻¹). The research results can provide a scientific basis for the water and fertilizer management and drip irrigation technology of drip irrigation in seedless white grape fields in extremely arid areas and it is of great significance for the efficient use of regional water and fertilizer resources and the realization of sustainable socio-economic development in the region.

1. Introduction

The Tuha area has become a famous production base for melons and fruit in China, due to its natural environmental advantages, such as long illumination time and a large temperature difference between day and night. As the dominant pillar industry in the region, grape planting accounts for 80.3% of the total area planted with crops. Among them, the planting area of early and late non-nuclear white grapes accounts for 20% of the country, accounting for more than 60% of the whole of Xinjiang. It is the largest non-nuclear white grape production base in China and the grape advantage area in the national agricultural product zoning [1,2]. At this stage, large-scale matured irrigation is used in the Tuha area. The irrigation quota is as high as 16,500 m³ ha⁻¹ [3], but the agricultural water saving level is low, water resources are wasted seriously and the ecological water is seriously occupied, and the ecological environment is fragile. It is becoming more and more severe [4]. At the same time, the relevant fertilization system has not been formulated in a targeted manner and there is a lack of scientific and rational fertilization technology to guide the production. A large number of and excessive fertilization conditions are widespread. Irrigation and fertilization are two important factors influencing agricultural production. Appropriate water and fertilizer use can achieve “promoting water with fertilizer and regulating fertilizer with water”, so that the synergistic regulation of water and fertilizer can be fully exerted, thereby improving crop yield and quality and water and fertilizer utilization. The purpose of efficiency is of great significance to the sustainable development of agriculture and the protection of the ecological environment in the region and the world [5,6,7].

In recent years, many scholars have carried out a lot of research on the effects of water and fertilizer coordinated regulation on crop physiology, yield, and quality under drip irrigation conditions, have developed appropriate irrigation and fertilization systems based on crop response indicators, and have obtained many research results, which show that different water and fertilizer dosages can affect crop physiology, yield, and quality, to varying degrees. Appropriate water and fertilizer use can improve crop photosynthetic capacity, water and fertilizer use efficiency, yield, and quality [8,9,10,11,12]. Under normal irrigation conditions, the increase in the amount of fertilization can maintain the maximum photochemical yield and photosystem II (PSII) potential photochemical efficiency of the leaves at a higher level, which leads to the increase of the proportion of the open part of the PSII reaction center, thereby increasing the apparent electron transport rate and the actual photochemical quantum efficiency of PSII. This achieves the goal of improving crop photosynthesis [13]. At present, in the experimental research, the optimal water and fertilizer treatments, according to the crop response index, are mostly based on principal component analysis and gray correlation methods. Some scholars use two methods to quantitatively analyze the optimal water and fertilizer treatment of greenhouse green peppers [14], greenhouse tomatoes [15], lettuce [16], and cucumbers [17]. The research results are in line with actual production. Since, in the actual production, the optimal water and fertilizer dosage for each evaluation index may appear in two treatments, some scholars use the regression analysis method combined with the spatial analysis method to determine the optimum water and fertilizer application range of cucumbers [18], greenhouse tomatoes [19], and cauliflower [20]. The research results have a guiding significance for actual production. Although some scholars have studied the effects of water and fertilizer coupling on crop physiology, yield, and quality, no studies have shown the effect of water and fertilizer coupling on the related indicators of drip irrigation of seedless white grapes, especially in extreme arid regions. At the same time, some scholars have used the principal component analysis, gray correlation analysis, and regression analysis to obtain some results in determining the amount of water and fertilizer in crops. However, the above methods are not used in the research for the calculation and analysis, which makes the results have certain limitations.

On this basis, field experiments were carried out to study the effects of different water and fertilizer treatments on the physiology, yield, and quality of drip irrigation grapes in extreme arid areas. Principal component analysis, grey correlation analysis, and regression analysis were used to quantify the amount of water and fertilizer, based on the response indicators. The main purpose of this study is to explore the optimal water and fertilizer combination model with high yield and high efficiency and provide a theoretical basis and technical support for grape drip irrigation water and fertilizer management in extremely arid areas.

2. Materials and Methods

2.1. Experimental Site

The experiment was carried out in the Hami District Irrigation Experimental Station of the 13th Division of the Xinjiang Production and Construction Corps from April to October 2018 (93°37′22″ E, 42°41′57″ N). The area is located in the mid-latitude of the Eurasian hinterland, the easternmost part of the Xinjiang Uygur Autonomous Region, affected by the control of the westerly belt and is a typical temperate continental arid climate. The main weather conditions in the area are the following: Dry and less rain, large temperature differences, annual average temperature of 9.8 °C, an annual precipitation of 33.8 mm, an annual evaporation of 3300 mm, an annual average sunshine of 3 358 h, an annual total solar radiation of 6 397.35 MJ/m², ≥10 °C accumulated temperature of 4 058.3 °C, and a frost-free period 182 d. The annual average wind speed is 2.3 to 4.9 m/s and the easterly wind is prevailing. The groundwater depth of the test site is greater than 8.0 m and the irrigation water source uses groundwater. The basic physical and chemical properties of the test soil (0–80 cm) in the test station are shown in

Table 1. Basic physical and chemical properties of the tested soil.

Soil Layer (cm)	Soil Type	Field Moisture Capacity (%)	Soil Bulk Density (g·cm−3)	Organic Matter (g·kg−1)	Total N (g·kg−1)	Available P (mg·kg−1)	Available K (mg·kg−1)
0–20	Sand	17.52 ± 0.05	1.58 ± 0.03	10.52	0.51	22.09	215.54
20–40	Loamy sand	18.34 ± 0.03	1.56 ± 0.04	8.53	0.49	20.23	141.25
40–60	Loamy sand	18.22 ± 0.04	1.54 ± 0.03	9.09	0.50	22.45	152.41
60–80	Sand	17.92 ± 0.03	1.60 ± 0.07	7.86	0.47	17.66	192.55

.

2.2. Field Experiment Layout

The field district experiment was carried out with the 15a (2003 planted) mature seedless white grape vine in the Hami District Irrigation Experimental Station of the 13th Division of the Xinjiang Production and Construction Corps. The grape planting was carried out by local small scaffolding cultivation, a large ditch planting mode, and the ditch. The length is 40 m, the groove width is 1.0 m, and the groove depth is 0.5 m. The grape plant spacing is 1.0 m and the row spacing is 5.0 m. The test plot size is 40 m long and 6.0 m wide. The plot area is 240 m² and the planting density is 80 plants/zone. The drip irrigation belt laying mode adopts 1 row and 3 tubes, that is, one drip irrigation belt is arranged at the root of the tree and 30 cm from the root side of the root. The drip irrigation belt is a single-wing labyrinth with an inner diameter of 16 mm and a wall thickness of 0.18 mm. The spacing is 300 mm, the dripper flow rate is designed as 3.0 L/h, and the drip irrigation belt working pressure is 0.08–0.10 MPa. All districts are equipped with separate water meters and fertilization tanks to control the amount of irrigation and fertilization accurately and the drip irrigation and fertilization are controlled by water and fertilizer integrated equipment.

2.3. Experiment Design

In this experiment, the irrigation and fertilization are based on the literature [21,22]. On this basis, two factors of irrigation and fertilization are set up, among which 4 levels of irrigation treatment are provided, as follows: Amounts totaling 600, 675, 750, and 825 mm (labeled as W1, W2, W3, and W4, respectively); fertilization treatment has 3 levels, 450, 750, and 1050 kg ha⁻¹ (labeled F1, F2, and F3, respectively), using a N:P₂O₅:K₂O = 2:1:2 fertilization ratio. The test was carried out in a completely combined design according to the above treatment levels, with a total of 12 treatments and 3 replicates. The specific test design is shown in

Table 2. Design of experimental treatments.

Treatment	Irrigation Amount (mm)	Fertilizer Amount (kg ha−1)
		N	P2O5	K2O	Total
W1F1	600	180	90	180	450
W1F2	600	300	150	300	750
W1F3	600	420	210	420	1050
W2F1	675	180	90	180	450
W2F2	675	300	150	300	750
W2F3	675	420	210	420	1050
W3F1	750	180	90	180	450
W3F2	750	300	150	300	750
W3F3	750	420	210	420	1050
W4F1	825	180	90	180	450
W4F2	825	300	150	300	750
W4F3	825	420	210	420	1050

.

The seedless white grape has an obvious period in the whole growth period. According to the growth characteristics of the seedless white grape at different periods, the growth period is divided into six periods, namely, the germination period (16–28 April), new shoot growth period (29 April–28 May), the flowering period (29 May–7 June), the berry growth period (8 June–12 July), the berry ripening period (13 July–21 August), the mature period of the vines (22 August–15 September), and the total growth period is 152 d. The principle of irrigation and fertilization is a small number of times and the amount of irrigation and fertilization is the same for each irrigation. When fertilizing, the fertilizer is completely dissolved in the fertilization tank, the water is dripped for 30 minutes before the fertilization, and the fertilization is ended 30 minutes before the water is stopped. See

Table 3. Irrigation and fertilization treatments at different growth periods.

Growth Period	Water Treatment						Fertilizer Treatment
	Irrigation Amount (mm)				Irrigation Times	Irrigation Cycle (d)	Fertilizer Amount (kg ha−1)			Fertilization Times
	W1	W2	W3	W4			F1	F2	F3
Germination period	25	28.125	31.25	34.375	1	12	45	75	105	1
Shoot growth period	125	140.625	156.25	171.875	5	7	90	150	210	2
Flowering period	25	28.125	31.25	34.375	1	7	45	75	105	1
Berry growth period	200	225	250	275	8	5	180	300	420	4
Berry mature period	175	196.875	218.75	240.625	7	5	90	150	210	2
Branch mature period	50	56.25	62.5	68.75	2	12	0	0	0	0
Whole growth period	600	675	750	825	24	152	450	750	1050	10

for details of irrigation and fertilization treatment at different growth periods.

2.4. Measurements and Methods Applied

2.4.1. Photosynthetic Index

The measurement work was carried out in a clear and cloudless day during different growth periods, in this study, 22 May (shoot growth period), 5 June (flowering period), 30 June (berry growth period, and 4 August (berry ripening period), were selected and the CI-340 handheld photosynthesis measurement system, produced by American CID Company, was adopted. The samples were collected from a well-developed and uniform plant with, from 10:00 to 12:00, and weight of 5–7 pieces of new shoot tips that grow uniformly were then measured. Measurement calculation items include net photosynthetic rate (P_n), transpiration rate (T_r), stomatal conductance (G_s), and intercellular CO₂ concentration (C_i). During the measurement, 3 sets of stable data were collected from each group of leaves continuously, of which the average value was used as the processing photosynthetic index data.

2.4.2. Fluorescence Index

The determination of the fluorescence parameters in the four growth periods and the determination of the photosynthesis index was carried out simultaneously and the functional leaves were selected in accordance with the photosynthetic index. The chlorophyll fluorescence parameters were determined using a PAM-2500 portable chlorophyll fluorescence measurement system, manufactured by WALZ, Germany. The initial fluorescence (F₀) was measured with weakly measured light before dawn (04:00) on the day of the measurement date, followed by saturation pulsed light treatment (6000 μmol·m⁻²·s⁻¹, pulse time 0.8 s) to determine the maximum fluorescence (F_m). The initial fluorescence (F₀) and maximum fluorescence (F_m) of the corresponding treated leaves were manually input before determining the chlorophyll fluorescence parameters under natural light conditions. The steady-state fluorescence (F_s) was measured with natural light as actinic light between 10:00 and 12:00, and then the saturation pulse (6000 μmol·m⁻²·s⁻¹, pulse time 0.8 s) was turned on to determine the maximum response fluorescence (Fm′) of the corresponding treatment light. Then, the far infrared light was turned on (6–7 μmol·m^-2·s⁻¹ for 6 s) to measure the minimum fluorescence (F₀′) for one transient illumination. According to the above-measured data, refer to the corresponding calculation methods to calculate the original photochemistry maximum yield (F_v/F_m), photochemical quenching coefficient (q^P), and PSII actual photochemical quantum efficiency (ΦPSII). The specific formulas are as follows [23,24]:

$$F_v/F_m=(F_m-F_0)/F_m,$$

(1)

$$q^P=({F_m}^{\prime }-Fs)/({F_m}^{\prime }-{F_0}^{\prime }),$$

(2)

$$\mathsf{\Phi }PS\mathrm{II}=({F_m}^{\prime }-F_s)/{F_m}^{\prime }$$

(3)

where F_v is the maximum variable fluorescence in the dark adaptation state.

2.4.3. Yield and Quality

Grape yield was measured with 5 plants in each plot during the ripening period of the berries and averaged, then converted to hectare yield.

After measuring the output, 500 g of fresh grape samples were taken and and entrusted to the Agricultural and Rural Agricultural Quality Supervision and Inspection Center (Shihezi) to determine the soluble solids and titrate the acid and vitamin C quality indexes.

2.4.4. Irrigation Water, Fertilizer Utilization Efficiency and Yield Increase Effect

The iWUE is calculated as follows [25]:

$$iWUE=Y/I$$

(4)

where Y is the grape yield (kg ha⁻¹) and I is the irrigation quota (m³·ha⁻¹).

The PFP is calculated as follows [26]:

$$PFP=Y/F$$

(5)

where Y is the grape yield (kg ha⁻¹), and F is the amount of fertilizer (kg ha⁻¹).

The E_i is calculated as follows [27]:

$$E_i=(Y_X-Y_L)/Y_L$$

(6)

where Y_X is the yield of a certain water and fertilizer treatment (kg ha⁻¹) and Y_L is the yield of W1F1 water and fertilizer treatment (kg ha⁻¹).

2.4.5. Principal Component Analysis

The principal component analysis of this paper is carried out by MATLAB, specifically as follows:

$$\begin{array}{l}\mathrm{A}=\mathrm{xlsread}(‘\mathrm{data}.\mathrm{xlsx}’);\%\mathrm{Open}\mathrm{the}\mathrm{data}\mathrm{and}\mathrm{assign}\mathrm{the}\mathrm{data}\mathrm{to}\mathrm{matrix}\mathrm{A}\\ \mathrm{x}=\mathrm{zscore}\left(\mathrm{A}\right);\%\mathrm{Standardized}\mathrm{data}\\ [\mathrm{coeff},\mathrm{score},\mathrm{latent},\mathrm{tsquare}]=\mathrm{princomp}\left(\mathrm{x}\right);\%\mathrm{Call}\mathrm{principal}\mathrm{component}\mathrm{analysis}\\ \mathrm{latent}’;\%\mathrm{Calculated}\mathrm{eigenvalue}\\ \mathrm{y}={(100\ast \mathrm{latent}/\mathrm{sum}(\mathrm{latent}\left)\right)}^{\prime };\%\mathrm{Calculated}\mathrm{contribution}\mathrm{rate}\end{array}$$

(7)

According to the contribution rate, calculated by the MATLAB program, the principal component evaluation value is calculated by taking the cumulative contribution rate ≥85% as the principal component standard.

$$Z_k=r_{k1}{x}_1+r_{k2}{x}_2+......+r_{km}{x}_m(k<m)$$

(8)

where m=8, Z_k is the principal component evaluation value, r_km is the component coefficient (Computation by MATLAB), and x_m is the normalized value of each response index (Computation by MATLAB).

The comprehensive evaluation value is calculated, based on the two principal component evaluation values, as follows:

$$Z=y1Z_1+y2Z_2+......ynZk(n=k)$$

(9)

where Z is the comprehensive evaluation value, Z_k is the principal component evaluation value, and y_n is the contribution ratio corresponding to the principal component (Computation by MATLAB).

2.4.6. Grey Correlation Analysis

The grey correlation analysis of this paper is carried out by MATLAB, specifically as follows:

$$\begin{array}{l}[\mathrm{data},\mathrm{name}]=\mathrm{xlsread}(‘\mathrm{data}.\mathrm{xlsx}’,‘\mathrm{sheet}1’,‘\mathrm{A}1:\mathrm{M}8’);\%\mathrm{Open}\mathrm{raw}\mathrm{data}\\ \mathrm{zxlNum}=12;\%\mathrm{Subsequence}\mathrm{number}\mathrm{i}\left(\mathrm{n}\right)\\ \mathrm{zbNum}=8;\%\mathrm{Number}\mathrm{of}\mathrm{indexs}\mathrm{k}\left(\mathrm{n}\right)\\ \mathrm{rou}=0.5;\%\mathrm{Discriminant}\mathrm{coefficient}\\ \mathrm{aveData}=\mathrm{mean}\left(\mathrm{data}\right);\%\mathrm{Average}\mathrm{of}\mathrm{each}\mathrm{column}\\ \mathrm{for}\mathrm{i}=1:\mathrm{zbNum}\\ \mathrm{newData}(\mathrm{i},:)=\mathrm{data}(\mathrm{i},:)./\mathrm{aveData};\%\mathrm{Non}-\mathrm{dimensionalized}\mathrm{sequence}\mathrm{data}\\ \mathrm{end}\\ \mathrm{for}\mathrm{i}=2:\mathrm{zxlNum}+1\\ \mathrm{diff}(:,\mathrm{i}-1)=\mathrm{abs}\left(\mathrm{newData}\right(:,1)-\mathrm{newData}(:,\mathrm{i}\left)\right);\%\mathrm{Range}\\ \mathrm{end}\\ \mathrm{maxDiffxl}=\max \left(\mathrm{diff}\right);\%\mathrm{Row}\mathrm{vector}\mathrm{consisting}\mathrm{of}\mathrm{the}\mathrm{maximum}\mathrm{range}\mathrm{of}\mathrm{each}\mathrm{column}\\ \mathrm{minDiffxl}=\min \left(\mathrm{diff}\right);\%\mathrm{Row}\mathrm{vector}\mathrm{consisting}\mathrm{of}\mathrm{the}\mathrm{minimum}\mathrm{range}\mathrm{of}\mathrm{each}\mathrm{column}\\ \mathrm{for}\mathrm{i}=1:\mathrm{zbNum}\\ \mathrm{for}\mathrm{j}=1:\mathrm{zxlNum}\\ \mathrm{correlation}(\mathrm{i},\mathrm{j})=\left(\mathrm{minDiffxl}\right(\mathrm{j})+\mathrm{rou}\ast \mathrm{maxDiffxl}(\mathrm{j}\left)\right)/\left(\mathrm{diff}\right(\mathrm{i},\mathrm{j})+\mathrm{rou}\ast \mathrm{maxDiffxl}(\mathrm{j}\left)\right);\%\mathrm{Correlation}\mathrm{coefficient}\\ \mathrm{end}\\ \mathrm{end}\\ \mathrm{correlationNew}=\mathrm{mean}\left(\mathrm{correlation}\right);\%\mathrm{Average}\mathrm{correlation}\mathrm{degree}\end{array}$$

(10)

2.4.7. Data Normalization

The data of each response index of grape drip irrigation is calculated using the linear normalization (Min-Max normalization) [28], as follows:

$$X_{norm}=\frac{X-X_{min}}{X_{max}-X_{min}}$$

(11)

where X_norm is the normalized value; X is the raw data that needs to be normalized; and X_min and X_max denote the minimum and maximum value of the original data.

3. Results and Analysis

3.1. Effect of Water and Fertilizer Dosage on Photosynthesis Index of Drip Irrigation Grapes

3.1.1. Effects of Water and Fertilizer Application Rate on P_n and T_r of Drip Irrigation Grape Leaves

The regularity and variance analysis of net photosynthetic rate (P_n) and transpiration rate (T_r) are shown in

Table 4. Effect of water and fertilizer application on the P_n and T_r of drip irrigation grape leaves.

Treatment	Pn (μmol·m−2·s−1)				Tr (mmol·m−2·s−1)
	Shoot Growth Period	Flowering Period	Berry Growth Period	Berry Mature Period	Shoot Growth Period	Flowering Period	Berry Growth Period	Berry Mature Period
W1F1	10.06 ± 0.06g	14.92 ± 0.16h	25.00 ± 0.04h	19.25 ± 0.07h	3.09 ± 0.06h	4.12 ± 0.03h	5.27 ± 0.10h	4.66 ± 0.04h
W1F2	11.23 ± 0.03f	16.04 ± 0.08g	25.80 ± 0.07g	21.00 ± 0.04g	3.17 ± 0.04gh	4.19 ± 0.13gh	5.32 ± 0.03gh	4.72 ± 0.03gh
W1F3	10.92 ± 0.13f	15.91 ± 0.06g	25.23 ± 0.04h	19.56 ± 0.06h	3.24 ± 0.08g	4.27 ± 0.10fg	5.41 ± 0.01fg	4.79 ± 0.06fg
W2F1	11.71 ± 0.16e	17.02 ± 0.28f	27.93 ± 0.18f	21.89 ± 0.01f	3.36 ± 0.06f	4.36 ± 0.08ef	5.48 ± 0.06ef	4.85 ± 0.07ef
W2F2	12.66 ± 0.21d	18.84 ± 0.41d	30.55 ± 0.07e	24.21 ± 0.44d	3.42 ± 0.03ef	4.41 ± 0.01ef	5.54 ± 0.06e	4.89 ± 0.01ef
W2F3	11.75 ± 0.23e	17.79 ± 0.14e	28.09 ± 0.13f	23.24 ± 0.62e	3.51 ± 0.01de	4.49 ± 0.04de	5.60 ± 0.04de	4.91 ± 0.03e
W3F1	12.68 ± 0.03d	19.01 ± 0.27d	30.98 ± 0.03d	23.43 ± 0.04e	3.57 ± 0.10cd	4.62 ± 0.03cd	5.68 ± 0.03cd	5.03 ± 0.10d
W3F2	14.38 ± 0.08a	22.95 ± 0.06a	33.27 ± 0.04a	27.86 ± 0.06a	3.82 ± 0.03a	4.89 ± 0.04a	5.95 ± 0.07a	5.31 ± 0.01a
W3F3	13.27 ± 0.23c	20.00 ± 0.06c	31.98 ± 0.11c	25.28 ± 0.03c	3.64 ± 0.06bc	4.70 ± 0.04bc	5.73 ± 0.04c	5.11 ± 0.03cd
W4F1	13.82 ± 0.27b	21.52 ± 0.42b	32.00 ± 0.16c	25.55 ± 0.07c	3.71 ± 0.01ab	4.74 ± 0.06bc	5.79 ± 0.01bc	5.17 ± 0.03bc
W4F2	14.41 ± 0.01a	23.01 ± 0.04a	33.45 ± 0.07a	27.90 ± 0.08a	3.83 ± 0.04a	4.90 ± 0.06a	5.97 ± 0.10a	5.33 ± 0.04a
W4F3	14.03 ± 0.04b	21.87 ± 0.18b	32.50 ± 0.17b	26.70 ± 0.14b	3.77 ± 0.03a	4.80 ± 0.03ab	5.86 ± 0.03ab	5.23 ± 0.03ab
Two-factor analysis of variance (F value analysis)
W	43.004 **	40.827 **	80.635 **	30.823 **	55.166 **	52.093 **	38.383 **	44.068 **
F	1.251	1.191	0.697	1.869	0.563	0.544	0.724	0.699
W × F	183.907 **	320.043 **	1759.637 **	356.471 **	47.742 **	37.370 **	35.846 **	48.722 **

Note: The values are “mean ± standard error”. Different lowercase letters in the same column indicate significant difference between treatments (p < 0.05); * indicates significant difference at p = 0.05 level, and ** indicates significant difference at p = 0.01 level. The same below.

. See from Table 4, the effects of water and fertilizer interaction, irrigation single factor on P_n and T_r of grape leaves under drip irrigation at different growth stages reached a very significant level (p < 0.01).

It is observable in Table 4 that the P_n of the drip irrigation grape leaves reached the highest level in the berry growth period and the average value of each water and fertilizer treatment was 29.73 μmol·m⁻²·s⁻¹, the lowest level in the shoot growth period and the average value of water and fertilizer treatments was 12.58 μmol·m⁻²·s⁻¹, with the promotion of the growth period, with the overall trend increasing and then decreasing. Under different fertility treatments, the P_n of drip-irrigated grape leaves, under different fertility treatments, showed that under the same fertilization conditions, the P_n of grape leaves increased with the increase of the irrigation amount. Under the same irrigation condition, the grape leaves’ P_n increased first and then decreased with the increase of the fertilization amount. Under the condition of water and fertilizer interaction, the maximum value of P_n in grape leaves appeared in W4F2 treatment and the minimum appeared in W1F1 treatment. There was no significant difference between W3F2 treatment and W4F2 treatment at each growth period (p > 0.05). There were obvious regularity changes of the P_n in leaves under different water and fertilizer treatment conditions.

It can also be seen from Table 4 that the drip-filled grape leaves’ T_r reached the highest level in the berry growth period and the average value of each water and fertilizer treatment was 5.63 mmol·m⁻²·s⁻¹, which was at the lowest level in the new shoot growth period. The average value of each water and fertilizer treatment was 3.51 mmol·m⁻²·s⁻¹, which tends to increase first and then decrease with the growth of the growth period. Under different fertility treatments, the T_r of drip irrigation grape leaves, under different fertility treatments, showed that, under the same fertilization conditions, the T_r of grape leaves increased with the increase of irrigation amount. Under the same irrigation condition, under W1 and W2 irrigation levels, the grape leaves’ T_r increased with the increase of the fertilization amount. Under W3 and W4 irrigation levels, the grape leaves’ T_r increased first and then decreased with the increase of the fertilization amount, that is, under the condition of water and fertilizer interaction, the maximum value of grape leaves’ T_r appeared in the W4F2 treatment and the minimum value appeared in the W1F1 treatment and there was no significant difference between W3F2 treatment and W4F2 treatment in each growth period (p> 0.05). There were obvious regularity changes of the leaf T_r under different water and fertilizer treatment conditions.

In summary, a reasonable amount of water and fertilizer can reduce the abscisic acid content of grape leaves and increase the content of cytokinin and auxin, thereby increasing the P_n and T_r of drip irrigation grape leaves.

3.1.2. Effects of Water and Fertilizer Application on G_s and C_i in Drip Irrigation Grape Leaves

The regularity and variance analysis of stomatal conductance (G_s) and intercellular CO₂ concentration (C_i) are shown in

Table 5. Effects of water and fertilizer application on the G_s and C_i in drip irrigation grape leaves.

Treatment	Gs (mmol·m −2·s −1)				Ci (μmol·mol −1)
	Shoot Growth Period	Flowering Period	Berry Growth Period	Berry Mature Period	Shoot Growth Period	Flowering Period	Berry Growth Period	Berry Mature Period
W1F1	101.32 ± 0.96g	156.31 ± 0.98h	223.47 ± 0.66i	185.62 ± 2.29j	354.45 ± 2.05a	285.76 ± 2.49a	190.97 ± 5.70a	238.47 ± 2.07a
W1F2	115.21 ± 0.30ef	177.23 ± 3.92f	252.76 ± 1.07g	210.39 ± 1.97h	330.04 ± 2.88c	260.44 ± 2.21c	163.75 ± 1.06de	220.71 ± 5.24b
W1F3	108.57 ± 2.02fg	165.38 ± 6.53g	241.14 ± 1.61h	198.67 ± 3.78i	342.35 ± 6.15b	272.85 ± 5.44b	176.22 ± 1.73b	231.55 ± 5.02a
W2F1	116.77 ± 3.15ef	182.45 ± 3.46f	263.87 ± 5.47f	225.97 ± 8.44g	336.67 ± 3.78bc	268.46 ± 0.65b	173.56 ± 5.03bc	220.72 ± 6.67b
W2F2	127.15 ± 1.20cd	215.38 ± 0.54cd	294.61 ± 0.86cd	250.00 ± 2.83de	301.21 ± 5.95ef	236.78 ± 2.52e	156.32 ± 4.70e	195.99 ± 2.81d
W2F3	120.23 ± 0.33de	198.76 ± 1.75e	278.09 ± 0.13e	235.47 ± 6.32f	321.15 ± 4.45d	248.78 ± 3.93d	167.88 ± 4.07cd	208.77±1.08c
W3F1	126.99 ± 1.43cd	207.65 ± 7.99d	288.69 ± 5.22d	242.79 ± 3.95ef	302.88 ± 2.66e	243.84 ± 5.43d	148.29 ± 3.24f	192.14 ± 1.61d
W3F2	144.24 ± 2.49a	239.78 ± 0.31a	322.66 ± 0.93a	280.96 ± 1.47a	278.87 ± 1.23gh	212.73 ± 3.86g	120.66 ± 0.48h	160.34 ± 4.72f
W3F3	133.12 ± 1.24bc	218.66 ± 1.90c	293.78 ± 5.35cd	253.41 ± 0.58cd	294.34 ± 1.90f	228.97 ± 1.37f	130.18 ± 4.50g	182.23 ± 4.56e
W4F1	136.65 ± 11.81ab	222.23 ± 3.15c	300.23 ± 7.40c	260.22 ± 1.10c	281.23 ± 1.74g	212.22 ± 3.14g	134.53 ± 3.49g	158.63 ± 5.13f
W4F2	145.52 ± 2.15a	240.32 ± 0.45a	323.95 ± 1.34a	283.13 ± 2.64a	256.51 ± 2.14i	185.56 ± 0.79h	102.42 ± 2.01i	135.54 ± 2.17h
W4F3	139.06 ± 4.16ab	230.39 ± 0.55b	310.55 ± 2.05b	270.46 ± 0.65b	270.76 ± 5.32h	206.54 ± 2.18g	113.51 ± 2.14h	147.94 ± 2.91g
Two-factor analysis of variance (F value analysis)
W	27.957 **	32.542 **	32.071 **	35.792 **	37.461 **	31.915 **	30.851 **	57.503 **
F	1.724	1.866	1.973	1.701	1.689	2.011	1.984	1.059
W × F	25.543 **	128.274 **	160.288 **	140.424 **	138.033 **	178.836 **	122.079 **	144.658 **

. As shown in Table 5, the effects of water and fertilizer interaction, irrigation single factor on the G_s and C_i of grape leaves under drip irrigation at different growth stages reached a very significant level (p < 0.01).

It can be seen from Table 5 that the G_s of the drip-filled grape leaves reached the highest level in the berry growth period and the average value of each water and fertilizer treatment was 282.82 mmol·m⁻²·s⁻¹, which was at the lowest level in the new shoot growth period. The average value of each water and fertilizer treatment was 126.24 mmol·m⁻²·s⁻¹, with the promotion of the growth period, the overall trend of increasing and then decreasing. Under different fertility treatments, the G_s of drip-irrigated grape leaves, under different fertility treatments, showed that, under the same fertilization conditions, the G_s of grape leaves increased with the increase of irrigation amount. Under the same irrigation condition, grape leaves’ G_s increased first and then decreased with the increase of the fertilization amount. Under the condition of water and fertilizer interaction, the maximum value of G_s in grape leaves appeared in theW4F2 treatment and the minimum value appears in the W1F1 treatment. In each growth period, there was no significant difference between W3F2 treatment and W4F2 treatment (p > 0.05). There were obvious regularity changes of G_s in leaves under different water and fertilizer treatment conditions, indicating that G_s can better reflect the water and fertilizer deficit of drip irrigation.

It can also be seen from Table 5 that the C_i of the drip irrigation grape leaves reached the highest level in the shoot growth period, the average value of each water and fertilizer treatment was 305.87 μmol·m⁻²·s⁻¹, which was at the lowest level in the berry growth period, and the average value of each water and fertilizer treatment was 148.19 μmol·m⁻²·s⁻¹. This was the opposite to the change of P_n, T_r and G_s with the growth period. Under different fertility treatments, the grape leaves of the drip irrigation grape showed that, under the same fertilization conditions, the C_i of the grape leaves decreased with the increase of irrigation amount. Under the same irrigation condition, the grape leaves’ C_i first decreased and then increased with the increase of the fertilization amount. Under the condition of water and fertilizer interaction, the maximum value of grape leaf C_i appears in the W1F1 treatment and the minimum value appears in the W4F2 treatment. There are obvious regularity changes of C_i in leaves under different water and fertilizer treatment conditions, indicating that C_i can also reflect the water and fertilizer deficit of drip irrigation.

In summary, reasonable water and fertilizer use can promote the evapotranspiration of water and the migration of mineral elements, reduce the activity of nitrate reductase, increase the chlorophyll content and the accumulation of carbohydrates in vascular sheath cells to improve the gas exchange capacity of grape leaves, and finally affect the photosynthetic carbonization ability of grapes.

3.2. Effect of Water and Fertilizer Dosage on Grape Fluorescence Index

3.2.1. Effects of Water and Fertilizer Application on F_v/F_m of Drip-irrigated Grape Leaves

The effects of different water and fertilizer treatments on the original photochemistry maximum yield (F_v/F_m) of drip-irrigated grape leaves at different growth stages are shown in

Table 6. Effects of water and fertilizer application on the F_v/F_m of drip-irrigated grape leaves.

Treatment	Fv/Fm
	Shoot Growth Period	Flowering Period	Berry Growth Period	Berry Mature Period
W1F1	0.602 ± 0.02i	0.621 ± 0.02h	0.653 ± 0.01f	0.638 ± 0.02f
W1F2	0.704 ± 0.01fg	0.732 ± 0.01fg	0.761 ± 0.02cd	0.740 ± 0.01cd
W1F3	0.730 ± 0.01ef	0.763 ± 0.01def	0.798 ± 0.02bc	0.769 ± 0.02bc
W2F1	0.637 ± 0.02hi	0.656 ± 0.02h	0.690 ± 0.03ef	0.670 ± 0.01ef
W2F2	0.736 ± 0.01def	0.777 ± 0.01cde	0.805 ± 0.01abc	0.776 ± 0.02bc
W2F3	0.756 ± 0.02cde	0.793 ± 0.02bcd	0.821 ± 0.03ab	0.808 ± 0.02ab
W3F1	0.674 ± 0.02gh	0.707 ± 0.02g	0.725 ± 0.01de	0.710 ± 0.02de
W3F2	0.773 ± 0.01bcd	0.804 ± 0.01abc	0.825 ± 0.02ab	0.813 ± 0.01ab
W3F3	0.785 ± 0.02abc	0.820 ± 0.02ab	0.837 ± 0.01ab	0.824 ± 0.03a
W4F1	0.712 ± 0.01fg	0.753 ± 0.01ef	0.771 ± 0.03c	0.758 ± 0.01c
W4F2	0.807 ± 0.02ab	0.825 ± 0.02ab	0.841 ± 0.02ab	0.830 ± 0.04a
W4F3	0.815 ± 0.01a	0.832 ± 0.01a	0.849 ± 0.01a	0.841 ± 0.02a
Two-factor analysis of variance (F value analysis)
W	3.349 *	3.085	2.131	2.866
F	17.639 **	17.570 **	21.946 **	18.100 **
W × F	30.097 **	34.131 **	20.204 **	23.204 **

. The effects of water and fertilizer interaction, fertilization single factor on F_v/F_m of grape leaves under drip irrigation, at different growth stages reached a very significant level (p < 0.01).

As an important parameter to measure the photosyntheticity of crops, F_v/F_m can reflect the quantum yield of all PSII reaction centers when they are open and it is a probe indicating good indicators of stress and photoinhibition [29]. It can be seen from Table 6 that the F_v/F_m of the drip irrigation grape leaves reached the highest level in the berry growth period and the average value of each water and fertilizer treatment was 0.781, which was the lowest level in the new shoot growth period and the average value of each water and fertilizer treatment was 0.728. During the growth period, the overall progress of the promotion is firstly increased and then decreased. The F_v/F_m of drip irrigation grape leaves, under different growth, periods showed that, under the same fertilization conditions, the F_v/F_m of grape leaves increased with the increase of the irrigation amount. Under the same irrigation condition, the grape leaf F_v/F_m increased with the increase of fertilization amount, that is, under the interaction of water and fertilizer, the maximum value of the grape leaf F_v/F_m appeared in the W4F3 treatment and the minimum appeared in the W1F1 treatment. There was no significant difference between the W4F3 and W3F2 and W3F3 in the growth period, except for the shoot growth period (p > 0.05).

In summary, reasonable water and fertilizer use can increase the activity of Ribulose-1,5-bisphosphate (RUBP) carboxylase in grape leaves and then increase the F_v/F_m, so as to increase the accumulation of photosynthetic products in crops.

3.2.2. Effects of Water and Fertilizer Application on q^P of Drip Irrigation Grape Leaves

The change law and variance analysis of the photochemical quenching coefficient (q^P) are shown in

Table 7. Effects of water and fertilizer application on the q^P of drip irrigation grape leaves.

Treatment	qP
	Shoot Growth Period	Flowering Period	Berry Growth Period	Berry Mature Period
W1F1	0.378 ± 0.02g	0.501 ± 0.01fg	0.659 ± 0.01g	0.629 ± 0.01f
W1F2	0.423 ± 0.03fg	0.536 ± 0.01ef	0.690 ± 0.02fg	0.673 ± 0.03ef
W1F3	0.301 ± 0.01h	0.442 ± 0.02g	0.603 ± 0.03h	0.557 ± 0.02g
W2F1	0.453 ± 0.03def	0.591 ± 0.03de	0.762 ± 0.02de	0.728 ± 0.01cd
W2F2	0.484 ± 0.01cd	0.632 ± 0.02cd	0.805 ± 0.01cd	0.767 ± 0.02c
W2F3	0.393 ± 0.01g	0.524 ± 0.03f	0.694 ± 0.02fg	0.662 ± 0.02ef
W3F1	0.568 ± 0.01b	0.715 ± 0.02ab	0.863 ± 0.02ab	0.829 ± 0.03ab
W3F2	0.618 ± 0.02a	0.773 ± 0.03a	0.907 ± 0.04a	0.873 ± 0.04a
W3F3	0.478 ± 0.03cde	0.623 ± 0.04d	0.782 ± 0.03d	0.756 ± 0.01c
W4F1	0.514 ± 0.04c	0.646 ± 0.02cd	0.793 ± 0.02cd	0.766 ± 0.01c
W4F2	0.566 ± 0.01b	0.688 ± 0.05bc	0.833 ± 0.01bc	0.814 ± 0.02b
W4F3	0.429 ± 0.02efg	0.558 ± 0.01ef	0.724 ± 0.01ef	0.695 ± 0.01de
Two-factor analysis of variance (F value analysis)
W	11.286 **	13.267 **	15.358 **	14.397 **
F	5.195 *	4.118 *	3.834 *	4.235 *
W × F	32.874 **	23.906 **	34.234 **	37.291 **

. The effects of water and fertilizer interaction, fertilization single factor on the q^P of grape leaves under drip irrigation at different growth stages, reached a very significant level (p < 0.01) and the single factor of fertilization reached a significant level (p < 0.05).

The value q^P refers to the fluorescence quenching caused by the excitation energy being captured by the open reaction center and converted into chemical energy, reflecting the redox state of PSII stability of the original electron acceptor QA and the openness of the PSII reaction center, further reflecting the crop’s photosynthetic efficiency and utilization of light energy [30]. It can be seen from Table 7 that the q^P of drip irrigation grape leaves reached the highest level in the berry growth period and the average value of water and fertilizer treatment was 0.760, which was the lowest level in the new shoot growth period. The average value of each water and fertilizer treatment was 0.467, which was promoted with the growth period, with the overall trend increasing and then decreasing. Under different fertility treatments, the q^P of drip-irrigated grape leaves, under different fertility treatments, showed that, under the same fertilization conditions, the q^P of grape leaves increased first and then decreased with the increase of irrigation amount. Under the same irrigation condition, the q^P of grape leaves increased first and then decreased with the increase of fertilization amount. Under the condition of water and fertilizer interaction, the maximum value of q^P in grape leaves appeared in the W3F2 treatment, and the minimum appeared in the W1F3 treatment.

In summary, a reasonable amount of water and fertilizer can increase the openness and photochemical activity of the PSII reaction center, reduce the degree of photoinhibition of the crop, and thus achieve the purpose of improving the photosynthetic capacity of the crop.

3.2.3. Effects of Water and Fertilizer Application on ΦPSII of Drip Irrigation Grape Leaves

The effects of different water and fertilizer treatments on PSII actual photochemical quantum efficiency (ΦPSII) of grape leaves in drip-irrigated grape leaves at different growth stages are shown in

Table 8. Effects of water and fertilizer application on the ΦPSII of drip irrigation grape leaves.

Treatment	ΦPSII
	Shoot Growth Period	Flowering Period	Berry Growth Period	Berry Mature Period
W1F1	0.218 ± 0.03d	0.311 ± 0.01h	0.425 ± 0.01h	0.401 ± 0.02g
W1F2	0.298 ± 0.02c	0.392 ± 0.01efg	0.525 ± 0.03g	0.498 ± 0.03e
W1F3	0.220 ± 0.01d	0.337 ± 0.02gh	0.454 ± 0.01gh	0.428 ± 0.01fg
W2F1	0.289 ± 0.03c	0.388 ± 0.02fg	0.501 ± 0.01g	0.478 ± 0.01ef
W2F2	0.356 ± 0.01b	0.491 ± 0.02c	0.648 ± 0.03bcd	0.595 ± 0.03cd
W2F3	0.297 ± 0.01c	0.416 ± 0.04def	0.564 ± 0.01f	0.535 ± 0.03de
W3F1	0.368 ± 0.03b	0.506 ± 0.02bc	0.601 ± 0.01cd	0.579 ± 0.02cd
W3F2	0.478 ± 0.02a	0.621 ± 0.04a	0.748 ± 0.04a	0.710 ± 0.04a
W3F3	0.375 ± 0.02b	0.511± 0.03bc	0.645 ± 0.01bc	0.623 ± 0.03bc
W4F1	0.346 ± 0.03b	0.456 ± 0.02cde	0.575 ± 0.01ef	0.566 ± 0.01cd
W4F2	0.457 ± 0.01a	0.568 ± 0.05ab	0.701 ± 0.03b	0.676 ± 0.04ab
W4F3	0.350 ± 0.01b	0.464 ± 0.01cd	0.621 ± 0.01de	0.584 ± 0.02cd
Two-factor analysis of variance (F value analysis)
W	13.030 **	14.647 **	16.226 **	14.321 **
F	4.332 *	3.530 *	3.613 *	3.893 *
W × F	31.988 **	20.414 **	46.168 **	26.511 **

. The effects of water and fertilizer interaction, fertilization single factor on ΦPSII of grape leaves under drip irrigation at different growth stages, reached a very significant level (p < 0.01) and the single factor of fertilization reached a significant level (p < 0.05).

The value ΦPSII refers to the quantum efficiency of the actual electron transfer, reflecting the transmission of PSII and PSI. It can be seen from Table 8 that the ΦPSII of the drip irrigation grape leaves reached the highest level in the berry growth period and the average value of each water and fertilizer treatment was 0.584, which was the lowest level in the new shoot growth period. The average value of each water and fertilizer treatment was 0.338, which was promoted with the growth period, with the overall trend increasing and then decreasing. Under different fertility treatments, the ΦPSII of drip-irrigated grape leaves showed that, under the same fertilization conditions, the ΦPSII of grape leaves increased first and then decreased with the increase of irrigation amount. Under the same irrigation condition, the ΦPSII of grape leaves increased first and then decreased with the increase of the fertilization amount. Under the condition of water and fertilizer interaction, the maximum value of the ΦPSII of grape leaves appeared in the W3F2 treatment and the minimum appeared in the W1F1 treatment.

In summary, a reasonable amount of water and fertilizer can improve the antioxidant capacity of crop leaves, slow down the oxidation rate of membrane lipids, enhance the photosynthetic electron capacity, and thus achieve the purpose of improving crop photosynthetic capacity.

3.3. Effect of Water and Fertilizer Dosage on Grape Yield, Water Use Efficiency, and the Quality of Drip Irrigation

The effects of different water and fertilizer treatments on the yield, water use efficiency, and the quality of drip irrigation during different growth periods are shown in

Table 9. Effect of water and fertilizer dosage on grape yield, water use efficiency, and the quality of drip irrigation.

Treatment	Yield (kg ha−1)	iWUE (kg·m−3)	PFP (kg·kg−1)	Ei (%)	Soluble Solid (%)	Titratable Acid (%)	Vitamin C (mg·100g−1)
W1F1	20317 ± 287g	3.39 ± 0.04bc	45.15 ± 0.63c	—	19.56 ± 0.20h	0.420 ± 0.02e	7.37 ± 0.06f
W1F2	20676 ± 376fg	3.45 ± 0.06ab	27.57 ± 0.50g	1.77	21.31 ± 0.30cd	0.445 ± 0.01de	7.92 ± 0.05d
W1F3	21266 ± 79f	3.54 ± 0.01a	20.25 ± 0.07j	4.67	20.94 ± 0.16de	0.495 ± 0.01bc	8.34 ± 0.07b
W2F1	22562 ± 183e	3.34 ± 0.02c	50.14 ± 0.40b	11.05	19.83 ± 0.18gh	0.445 ± 0.02de	7.69 ± 0.01e
W2F2	22828 ± 534e	3.38 ± 0.07bc	30.44 ± 0.71f	12.36	21.72 ± 0.20bc	0.502 ± 0.01bc	8.06 ± 0.01c
W2F3	23725 ± 287d	3.51 ± 0.04a	22.60 ± 0.27i	16.77	21.29 ± 0.28cd	0.506 ± 0.01ab	8.32 ± 0.03b
W3F1	24356 ± 175cd	3.25 ± 0.02d	54.12 ± 0.38a	19.88	20.08 ± 0.27fgh	0.467 ± 0.01cd	7.97 ± 0.02cd
W3F2	26364 ± 397a	3.52 ± 0.05a	25.11 ± 0.37h	29.76	22.45 ± 0.42a	0.541 ± 0.01a	8.45 ± 0.10ab
W3F3	25320 ± 190b	3.38 ± 0.02bc	33.76 ± 0.25e	24.62	20.92 ± 0.24de	0.492 ± 0.02bc	8.49 ± 0.02a
W4F1	24649 ± 272bc	2.99 ± 0.03e	54.78 ± 0.60a	21.32	20.44 ± 0.17ef	0.501 ± 0.03bc	7.71 ± 0.08b
W4F2	26077 ± 313a	3.16 ± 0.03d	34.77 ± 0.41d	28.35	22.07 ± 0.28ab	0.541 ± 0.02a	8.33 ± 0.07b
W4F3	24715 ± 162bc	3.00 ± 0.01e	23.54 ± 0.15i	21.65	20.26 ± 0.25fg	0.522 ± 0.02ab	8.52 ± 0.10a
Two-factor analysis of variance (F value analysis)
W	54.931 **	22.151 **	0.366	/	0.343	4.706 *	1.71
F	0.553	1.373	166.542 **	/	36.909 **	5.300 *	28.686 **
W × F	95.18 **	39.393 **	1646.636 **	/	24.912 **	11.316 **	74.356 **

. The effects of water and fertilizer interaction on the yield, water use efficiency, and the quality of drip irrigation, in different growth stages, reached extremely significant levels (p < 0.01).

It is observable from Table 9 that the yield of drip irrigation grape is between 20317 kg ha⁻¹ and 26364 kg ha⁻¹. Under the same fertilization condition, the yield of F1 fertilization treatment increased with the increase of irrigation amount. The yield of F2 and F3 fertilization treatment increased first and then decreased with the increase of irrigation amount. Under the same irrigation conditions, the yield of W1 and W2 irrigation treatment increased with the increase of fertilization amount. W4 irrigation treatment yield increased first and then decreased with the increase of fertilizer application. The maximum yield was obtained in W3F2 treatment. The irrigation water use efficiency and fertilizer partial productivity reached the maximum at W1F3 (3.54 kg·m⁻³) and W4F1 (54.78 kg·kg⁻¹), respectively, and did not reach optimal in W3F2. The soluble solids ranged from 19.56% to 22.45%, which was the largest in the W3F2 treatment. Titratable acid ranged from 0.420% to 0.541%, of which the maximum value was obtained in the W4F2 treatment and there was no significant difference between the W4F2 treatment and the W3F2 treatment (p > 0.05). Vitamin C was between 7.37 mg·100g⁻¹–8.52 mg·100g⁻¹, of which the maximum value is obtained in the W4F3 treatment. There was no significant difference between the W4F3 treatment and the W3F2 treatment (p > 0.05). The yield increase effect reflected the increase of the yield of different water and fertilizer treatments, compared with the W1F1 treatment. The yield increase effect of the W3F2 treatment reached a maximum of 29.76%, most obviously, this is consistent with the results of the production indicators.

In summary, the W3F2 treatment has the most obvious effect on improving grape yield and grape quality, indicating that reasonable water and fertilizer use can improve crop yield and quality indicators and achieve the purpose of improving quality and efficiency.

3.4. Comprehensive Evaluation of Suitable Amount of Water and Fertilizer for Drip Irrigation Grapes in Extreme Arid Areas

3.4.1. Evaluation of Suitable Amounts of Water and Fertilizer for Drip Irrigation Grapes in Extreme Arid Area Based on Principal Component Analysis

In the evaluation process of grape drip irrigation water and fertilizer treatment, it is not convincing to evaluate the rationality of water and fertilizer treatment only through the single response indicator of crops. Therefore, based on principal component analysis, the net photosynthetic rate (P_n), the original photochemical maximum yield (F_v/F_m), yield, irrigation water use efficiency, fertilizer partial productivity, soluble solids, titratable acid, and vitamin C were comprehensively quantified to evaluate the optimal water and fertilizer treatment, of which P_n and F_v/F_m, the analytical data for the indicators, were selected from the growth stage of berries with vigorous physiological activities, as shown in

Table 10. Response value of each drip irrigation grape with different water and fertilizer treatment.

Treatment	Pn	Fv/Fm	Yield	iWUE	FPP	Soluble Solid	Titratable Acid	Vitamin C
W1F1	25.00	0.653	20317	3.386	45.149	19.56	0.420	7.37
W1F2	25.80	0.761	20676	3.446	27.568	21.31	0.445	7.92
W1F3	25.23	0.798	21266	3.544	20.253	20.94	0.495	8.34
W2F1	27.93	0.690	22562	3.343	50.138	19.83	0.445	7.69
W2F2	30.55	0.805	22828	3.382	30.437	21.72	0.502	8.06
W2F3	28.09	0.821	23725	3.515	22.595	21.29	0.506	8.32
W3F1	30.98	0.725	24356	3.247	54.124	20.08	0.467	7.97
W3F2	33.27	0.825	26364	3.376	33.760	22.45	0.541	8.45
W3F3	31.98	0.837	25320	3.515	25.109	20.92	0.492	8.49
W4F1	32.00	0.771	24649	2.988	54.776	20.44	0.501	7.71
W4F2	33.45	0.841	26077	3.161	34.769	22.07	0.541	8.33
W4F3	32.50	0.849	24715	2.996	23.538	20.26	0.522	8.52

.

The comprehensive evaluation analysis calculates the comprehensive evaluation value according to the MATLAB program, given by Equation (7) in combination with Equations (8) and (9).

The comprehensive evaluation of different water and fertilizer treatments based on the response indicators of drip irrigation grapes is shown in

Table 11. Comprehensive evaluation of different water and fertilizer treatments based on the response indicators of drip irrigation grapes.

Treatment	Z1	Z2	Z	Rank
W1F1	−4.34	−0.01	−2.56	12
W1F2	−1.59	1.68	−0.48	8
W1F3	−0.30	2.40	0.48	7
W2F1	−2.67	−0.80	−1.79	11
W2F2	0.59	0.59	0.51	6
W2F3	0.84	1.56	0.92	4
W3F1	−1.13	−1.67	−1.12	10
W3F2	2.78	−0.10	1.61	1
W3F3	1.52	0.78	1.11	3
W4F1	−0.30	−2.68	−0.91	9
W4F2	2.66	−0.90	1.32	2
W4F3	1.94	−0.86	0.91	5

. It is observable from the above that W3F2 is integrated and its evaluation value was the highest, followed by the W4F2 and W3F3 treatments, indicating that the comprehensive response index of the W3F2 treatment drip irrigation grape was the best. The W4F2 and W3F3 treatments had higher comprehensive response indicators among all the fertilization treatments. The comprehensive evaluation value of each treatment under the F1 fertilization level was low and the effect was the worst. It is indicated that the reasonable amount of water and fertilizer can make the comprehensive evaluation of each response index of drip irrigation grape reach the best level, which is conducive to crop growth and development and can achieve the purpose of improving yield and quality.

3.4.2. Comprehensive Evaluation of Suitable Amount of Water and Fertilizer for Drip Irrigation Grape in an Extreme Arid Area, Based on Grey Correlation Analysis

The gray correlation analysis method was used to comprehensively evaluate the suitable amount of grape drip irrigation water and fertilizer and the significance and purpose were consistent with the principal component analysis. The aim was to compare the net photosynthetic rate (P_n) of the drip irrigation grape response index and the maximum photochemical yield (F_v/F_m). Comprehensively, quantitative analyses of yield, irrigation water use efficiency, fertilizer partial productivity, soluble solids, titratable acid, and vitamin C were carried out to evaluate the optimal water and fertilizer treatment.

The response index data of drip irrigation grapes, under different water and fertilizer treatments, were used as comparison series. Maximum values of response indexes, under different water and fertilizer treatments, were used as reference series. The analysis data of P_n and F_v/F_m were selected from the growth period of berries with vigorous physiological activities, as shown in

Table 12. Comparison series and reference series of response indexes of drip irrigation grapes with different water and fertilizer treatments.

Treatment	Sequence	Pn	Fv/Fm	Yield	iWUE	PFP	Soluble Solid	Titratable Acid	Vitamin C
Reference sequence	x0	33.45	0.849	26364	3.544	54.776	22.45	0.541	8.52
W1F1	x1	25.00	0.653	20317	3.386	45.149	19.56	0.420	7.37
W1F2	x2	25.80	0.761	20676	3.446	27.568	21.31	0.445	7.92
W1F3	x3	25.23	0.798	21266	3.544	20.253	20.94	0.495	8.34
W2F1	x4	27.93	0.690	22562	3.343	50.138	19.83	0.445	7.69
W2F2	x5	30.55	0.805	22828	3.382	30.437	21.72	0.502	8.06
W2F3	x6	28.09	0.821	23725	3.515	22.595	21.29	0.506	8.32
W3F1	x7	30.98	0.725	24356	3.247	54.124	20.08	0.467	7.97
W3F2	x8	33.27	0.825	26364	3.376	33.760	22.45	0.541	8.45
W3F3	x9	31.98	0.837	25320	3.515	25.109	20.92	0.492	8.49
W4F1	x10	32.00	0.771	24649	2.988	54.776	20.44	0.501	7.71
W4F2	x11	33.45	0.841	26077	3.161	34.769	22.07	0.541	8.33
W4F3	x12	32.50	0.849	24715	2.996	23.538	20.26	0.522	8.52

.

The grey correlation analysis calculates the relevance value according to the MATLAB program, given by Equation (10). The comprehensive evaluation of different water and fertilizer treatments, based on the response indicators of drip irrigation grapes, is shown in

Table 13. Comprehensive evaluation of different water and fertilizer treatments based on the response indicators of drip irrigation grapes.

Treatment	Correlation Degree	Rank
W1F1	0.724	12
W1F2	0.771	9
W1F3	0.779	8
W2F1	0.738	10
W2F2	0.785	7
W2F3	0.799	5
W3F1	0.797	6
W3F2	0.829	1
W3F3	0.824	2
W4F1	0.736	11
W4F2	0.822	3
W4F3	0.811	4

. It can be seen from the above that the correlation of W3F2 is the highest, followed by W3F3 and W4F2. In the fertilization treatment, the correlation degree of each treatment under the F1 fertilization level was generally low and the effect was poor. The analysis results are basically consistent with the conclusions obtained by principal component analysis, which further demonstrates that the reasonable comprehensive response index of crops under water and fertilizer treatment can achieve the purpose of improving quality and efficiency.

3.4.3. Comprehensive Evaluation of suitable Amount of Water and Fertilizer for Drip Irrigation Grapes in an Extreme Arid Area, Based on Multiple Regression Analysis

In order to understand the dynamic and continuous changes of the response indexes of drip irrigation grapes in the setting range of water and fertilizer use, comprehensively quantitative evaluation of the suitable amount of water and fertilizer for drip irrigation in extremely arid areas, the water and fertilizer dosage, were treated as independent variables, the values P_n, F_v/F_m, yield, irrigation water use efficiency, fertilizer partial productivity, soluble solids, titratable acid, and vitamin C were regarded as output variables and regression analysis was adopted to construct a regression equation (see

Table 14. Regression relationship between water and fertilizer use and response indicators of drip irrigation grapes.

Output Variables Y	Regression Equation	R2	Significant
Pn	Y1 = −1.260 × 10−4W2 − 1.741 × 10−5F2 + 3.744 × 10−6WF + 0.210W + 0.024F − 62.697	0.973	<0.01
Fv/Fm	Y2 = −4.994 × 10−7W2 − 4.510 × 10−7F2 − 6.928 × 10−7WF + 0.002W + 0.001F − 0.518	0.967	<0.01
Yield	Y3 = −0.115W2 − 0.001F2 − 0.003WF + 186.552W + 5.659F − 51085.576	0.891	<0.01
iWUE	Y4 = −1.322 × 10−5W2−7.064 × 10−7F2 − 9.287 × 10−7WF + 0.018W + 0.002F − 3.073	0.831	<0.05
FPP	Y5 = −1.571 × 10−4W2 + 9.682 × 10−5F2 − 2.351× 10−5WF + 0.273W − 0.172F + 3.257	0.912	<0.01
Soluble solid	Y6 = −2.037 × 10−5W2 − 1.544 × 10−5F2 − 1.151 × 10−5WF + 0.040W + 0.033F − 5.660	0.891	<0.01
Titratable acid	Y7 = -3.778 × 10−7W2 − 2.090 × 10−7F2 − 3.433 × 10−7WF + 0.001W + 6.242 × 10−4F − 0.158	0.825	<0.05
Vitamin C	Y8 = −1.117 × 10−5W2 − 1.538 × 10−6F2 − 1.616 × 10−6WF + 0.019W + 0.005F − 1.313	0.897	<0.01

). It can be seen from Table 14 that the effect of water and fertilizer dosage on each output variable reached a significant level (p < 0.05) and the determination coefficient was more than 0.800.

Under the condition of drip irrigation, the irrigation amount of W1 and W4 treatments were respectively the upper and lower limits of watering and the fertilization amounts of F1 and F3 treatment were the upper and lower limits of fertilization, respectively. MATLAB is used to solve the maximum value of each regression equation in Table 14 and the corresponding water and fertilizer dosage.

Table 15. The maximum response index of drip irrigation grapes and the corresponding water and fertilizer dosages.

Output Variable	Maximum	Irrigation Amount/ (mm)	Fertilization Amount/ (kg ha−1)
Pn/ (μmol·m −2·s −1)	35.331	825.000	777.967
Fv/Fm	0.895	825.000	474.998
Yield/ (kg ha−1)	26876	797.400	1050.000
iWUE/ (kg·m−3)	3.732	645.979	990.987
PFP/ (kg·kg−1)	55.035	825.000	450.000
Soluble solid/ (%)	22.498	759.926	785.421
Titratable acid/ (%)	0.549	825.000	815.736
Vitamin C/ (mg·100g−1)	8.942	774.500	1050.000

shows that under the same water and fertilizer dosage, the response index of drip-irrigated grape did not reach the maximum value, among which the P_n, F_v/F_m, yield, soluble solids, titratable acid, and vitamin C index were relatively close to the irrigation and fertilization area, while iWUE and PFP were similar to other indicators in the irrigation and fertilization area. Since the area is far away, two indices of iWUE and PFP will not be considered in the following comprehensive evaluation.

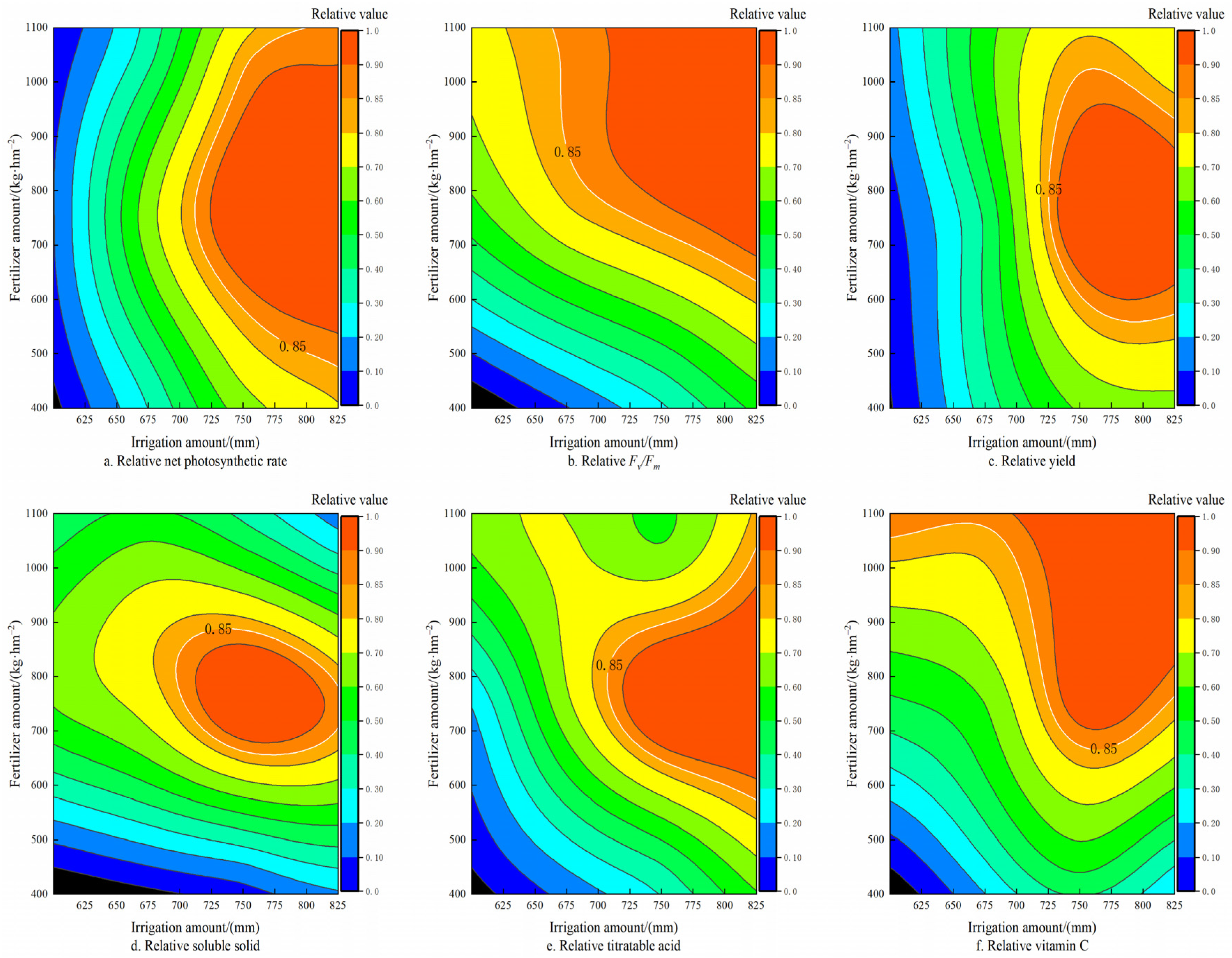

As a consequence of the P_n, F_v/F_m, yield, soluble solids, titratable acid, and vitamin C could not reach their maximum values under the same water and fertilizer application and each response indicator has different dimensions and cannot be directly evaluated comprehensively. Therefore, before the comprehensive evaluation, the linear normalization method is used to dimensionalize all the response index data and the data of each response index is scaled and compressed in the interval (0,1). The relationship between the amount of water and fertilizer and the relative value of each response index of drip irrigation grape can be obtained (see Figure 1).

In the comprehensive evaluation of P_n, F_v/F_m, yield, soluble solids, titratable acid, and vitamin C indicators of drip irrigation, the indicators in Figure 1 were 0.90, 0.85, and 0.80. The acceptable area is comprehensively evaluated. As can be seen from Figure 1, there are overlapping areas for each indicator in the 0.90 acceptable area, but the overlapping area is relatively small and slightly deviated from the relative value of the soluble solids. In the 0.80 acceptable area, there are also overlapping areas within the indicators, but the overlap area is too large to cause deviation from the extreme value. Overlapping areas of the 0.85 acceptable areas of each indicator meet the evaluation requirements.

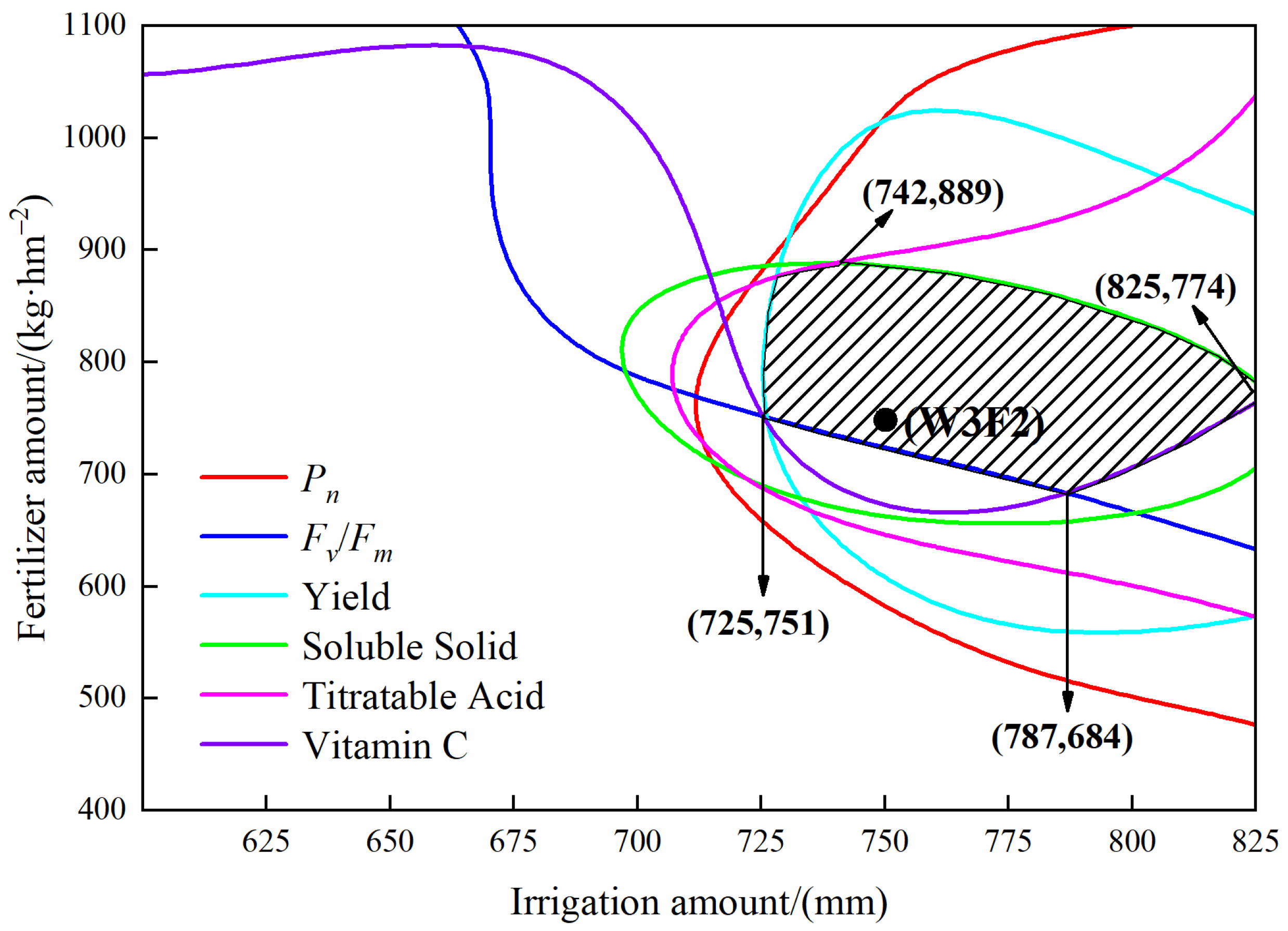

Based on the above analysis, each response indicator ≥0.85 of the maximum acceptable area is defined as a reasonably acceptable range. The 0.85 contours of each response index in Figure 1 are projected and combined and a comprehensive evaluation analysis chart of each response index can be obtained (see Figure 2). It can be seen from Figure 2 that the irrigation range of each response index reaching a ≥0.85 maximum is 725–825 mm, and the fertilization interval is 684–889 kg ha⁻¹, of which N(273.6–355.6 kg ha⁻¹)-P₂O₅ (136.8–177.8 kg ha⁻¹)—K₂O (273.6–355.6 kg ha⁻¹). W3F2 (irrigation volume 750 mm, fertilization volume 750 kg ha⁻¹) is also treated in this area.

4. Discussion

Photosynthesis is a process in which plants absorb light energy and synthesize rich organic substances, such as carbon dioxide and water to release oxygen simultaneously. During the growth and development of plants, they develop in a direction favorable for photosynthesis, thereby achieving the purpose of adapting to the surrounding growth environment [31]. Increasing photosynthesis conversion will be an important way to increase crop yields in the future [32]. This study showed that, under the same irrigation treatment, the photosynthesis indicators P_n, T_r, and G_s first increased and then decreased with the increase of fertilizer application. Under the same fertilization treatment, photosynthesis indicators P_n, T_r, and G_s increased with the increase of the amount of irrigation. The maximum value was obtained in thee W4F2 treatment and there was no significant difference between the W3F2 treatment and the W4F2 treatment (p > 0.05), while the C_i performance was reversed and the minimum value was obtained in W4F2, showing obvious non-stomatal factors. It is indicated that water stress affected the plant photosynthesis to a certain extent and too high or too low fertilization amounts affect the photosynthesis. The appropriate water and fertilizer dosage could make the photosynthetic conversion efficiency reach a high level. This is similar to the conclusions of some scholars [33,34].

Chlorophyll fluorescence kinetics technology can detect rapid and non-invasive detection of plant photosynthetic systems under environmental stress [35]. Under normal conditions, the light energy absorbed by chlorophyll is consumed by photosynthetic electron transport, chlorophyll fluorescence emission, and heat dissipation pathways. Crop stress by growing environment may affect photosynthetic electron transport and cause damage to the chlorophyll structure. In this study, F_v/F_m were used as probes for good indicators of environmental stress and photoinhibition. The F_v/F_m value was positively correlated with water and fertilizer use and there was no significant difference between the W4F3 and W3F3 treatments. It is indicated that increasing the amount of water and fertilizer can increase the F_v/F_m, and, in the influence of F_v/F_m, the fertilization factor is greater than the irrigation factor, indicating that increasing the amount of fertilizer can alleviate the photoinhibition and photodamage caused by water stress. There was no significant difference between treatment of the W4F3 and W3F3 treatments. Too little and excessive application of water and fertilizer had antagonistic effects on q^P and ΦPSII. Under the condition of water and fertilizer stress, the crop was restricted by photosynthetic substrate, which reduced the light energy that crops could use. Most of the absorbed light quantum are lost in the form of heat energy and are not used for photosynthesis. The physiological activities of crops are inhibited, resulting in a decrease in photosynthesis and photochemical quenching coefficient, which in turn shows a decrease in the actual photochemical quantum efficiency of PSII. The degree of inhibition increases. It is indicated that the reasonable amount of water and fertilizer can increase the maximum yield of primary photochemistry, potential photochemical efficiency of PSII, the photochemical quenching coefficient, and the PSII actual photochemical quantum efficiency, which is related to similar previous results [36,37].

Crop yield and quality indicators are the main factors directly affecting economic income. Reasonable water and fertilizer use can increase crop yield and quality and achieve the goal of low input and high output in agricultural production. Crop yield is positively correlated with irrigation amount and fertilization amount within a certain range [38]. Exceeding a certain level of irrigation and fertilization will reduce yield and quality of crops. Increasing irrigation capacity will reduce irrigation water use efficiency [39]. Fertilizer use efficiency decreases as the amount of fertilizer applied increases [40]. This study showed that water and fertilizer interaction had significant effects on yield, quality, and water and fertilizer use efficiency. The yield reached the maximum in the W3F2 treatment and the yield increased by 29.76%, compared with the minimum yield of W1F1. The quality index reached a superior level in the W3F2 treatment, indicating the reasonable amount of water and fertilizer can improve the crop yield and quality and achieve the purpose of improving quality and efficiency. The findings are similar to previous studies.

The optimization of water and fertilizer management aims to ensure that the crop maintains a good physiological growth state to achieve a high quality and a high yield, while reducing the amount of water and fertilizer to achieve efficient production, achieving the goal of coordinated development of economic and environmental benefits and achieving the sustainable development of agricultural production. In this study, the net photosynthetic rate of the physiological indicators of drip irrigation grapes, the maximum yield of primary photochemistry, and the yield and quality index were used as comprehensive evaluation indicators. Principal component analysis and grey correlation analysis were used to comprehensively quantify the evaluation indexes of different water and fertilizer treatments. The results of the analytical methods show that the W3F2 treatment is the best. Using multiple regression analysis combined with spatial analysis method, the comprehensive evaluation of grape drip irrigation water and fertilizer is the following: Irrigation amount 725–825 mm; fertilization amount 684–889 kg ha⁻¹, of which N (273.6–355.6 kg ha⁻¹) - P₂O₅ (136.8–177.8 kg ha⁻¹) - K₂O (273.6–355.6 kg ha⁻¹). W3F2 treatment is also in this range. Three comprehensive evaluation methods are used to comprehensively quantify the response of different water and fertilizer treatment indicators, not only to quantitatively evaluate the optimal water and fertilizer treatment, but also to provide a suitable range of water and fertilizer use, which can provide a basis for optimal management of grape drip irrigation water and fertilizer in extreme arid areas.

Through the experimental study, the suitable range of water and fertilizer for grape drip irrigation in an extreme arid area was given. However, there are still some following aspects to be studied: (1) The test is carried out for a short period and the obtained results need to be tested for long-term tests; (2) The optimal water and fertilizer treatment obtained by the test is concentrated in high-water fertilizer, in this range, water and fertilizer treatment should be added to further determine the appropriate amount of water and fertilizer.

5. Conclusions

In this paper, we could draw the following three main conclusions:

(1) Based on principal component analysis and grey correlation analysis, the net photosynthetic rate (P_n) of grape drip irrigation response, the maximum photochemical yield (F_v/F_m), yield, irrigation water use efficiency, fertilizer partial productivity, soluble solids, titratable acid, and vitamin C were comprehensively evaluated and the optimal water and fertilizer treatment was W3F2 (irrigation volume 750 mm, fertilization volume 750 kg ha⁻¹), of which N (300 kg ha⁻¹)-P₂O₅ (150 kg ha⁻¹)-K₂O (300 kg ha⁻¹). Using multiple regression analysis combined with a spatial analysis method, the comprehensive evaluation of grape drip irrigation water and fertilizer is the following: Irrigation amount 725–825 mm; fertilization amount 684–889 kg ha⁻¹, of which N (273.6–355.6 kg ha⁻¹) - P₂O₅ (136.8–177.8 kg ha⁻¹) - K₂O (273.6–355.6 kg ha⁻¹).

(2) Under different water and fertilizer treatments, the physiological, yield, and quality indexes of drip-irrigated grapes are different and the numerical changes are regular. The interaction of water and fertilizer has a significant impact on the response indicators. Reasonable water and fertilizer dosage provide an excellent growth environment for drip-irrigated grapes and has a positive impact on the response indicators.

(3) The relative photosynthesis and chlorophyll fluorescence index of grapes under drip irrigation changed regularly with the advance of the growth period, under different water and fertilizer treatments.
