Spatiotemporal Differentiation of Soil Organic Carbon of Grassland and Its Relationship with Soil Physicochemical Properties on the Northern Slope of Qilian Mountains, China

Abstract

The soil organic carbon pool is an important part of the global carbon cycle, and its accumulation and decomposition affect the balance of the global carbon cycle. It is important to understand scientifically the temporal and spatial variation of soil organic carbon (SOC) and its influencing factors, which could aid further understanding of the accumulation and decomposition of SOC. In order to reveal the relationship between soil organic carbon and soil’s physicochemical properties, six plots were selected on the east, middle and west of forest steppes and typical grasslands on the northern slope of Qilian Mountains during two consecutive growing seasons from 2013 to 2014. Soil samples under 0–30 cm were used to study the spatiotemporal differentiation of SOC and its relationship with the soil’s physicochemical properties in the grassland of the study area. The results show that the content of SOC in the grassland in 2013 was higher than that in 2014, and that it decreased gradually from east to west. The content of SOC is significantly different between the soil layer of 0–10 cm and the soil layers of 10–20 cm and 20–30 cm (p < 0.05), and it decreases with increases in soil depth. The SOC content on forest steppe is higher than that on typical grassland. Significant positive correlations appear between SOC with soil water content and soil nutrients (alkaline nitrogen, available phosphorus, available potassium) (p < 0.01), but there are significant negative correlations between SOC and soil temperature, soil pH, and soil electrical conductivity (p < 0.01).

1. Introduction

Soil is an important part of the carbon pool of terrestrial ecosystems, in which carbon mostly in the form of organic matter is about 1400–1500 Pg, accounting for 65% of the total carbon pool of terrestrial ecosystems [1,2]. SOC is mainly composed of organic substances, such as humus, various animals and plant residues that are decomposed and synthesized by microorganisms [3,4]. The grassland ecosystem is the primary part of the global terrestrial ecosystem. As an important part of the terrestrial carbon cycle [5,6,7], it plays the double role of both carbon source and carbon sink in the global carbon cycle. Grassland not only provides lots of high-quality pasture for animal husbandry, but also plays significant roles in windproof and sand fixation, water source conservation, and ecological carbon fixation [8]. According to statistics, the grassland area in China is about 4 × 10⁸ hm², accounting for 41.7% of the total land area [9], and the carbon stock of the grassland ecosystem is 29.1 Pg C [10], accounting for about 10% of the total grassland carbon storage in the world. In grassland, soil carbon mainly exists in the form of organic carbon, which is concentrated in the surface layer at a depth of 0–30 cm [11]. Studies have shown that SOC of the surface layer can participate in the dynamic coupling of the carbon cycle in terrestrial ecosystems, and its reserves, distribution, and cycle are closely related to the environment [12]. Therefore, understanding the detailed distribution of SOC in the surface layer will provide a basis for the research on carbon cycles in terrestrial ecosystems.

The spatiotemporal distribution of SOC can reflect the regional SOC change trend. Many studies have estimated the distribution and reserves of SOC on global [13,14], national [15], and regional scales [16]. For example, based on 2696 soil profiles in the world, Post et al. estimated that the global carbon storage is 1395.5 Gt [17]. Based on the 3411 soil profiles of the second national soil survey in China, Wu et al. estimated that the storage of SOC in the surface layer was about 3.25 × 10¹⁰ t, and pointed out that the spatial distribution of SOC was higher in the east and lower in the west [18]. Using measured data and GIS methods, Wen et al. studied the spatiotemporal distribution of SOC in Yangjuangou watershed in Loess Plateau and found that it is closely related to land use patterns [19]. In the study of carbon cycle at the regional scale, it was found that the SOC of the surface layer is very sensitive to vegetation types [19]. Diverse combinations of water and heat will directly affect the decomposition and transformation of SOC by microorganisms [12]. As one of the indicators to measure grassland soil quality, the content and quality changes of SOC in grassland definitely affect soil physicochemical properties [20], and the reverse is also true. Therefore, studying the spatiotemporal distribution of SOC in the surface layer and its relationship with physicochemical properties can help to improve the understanding of the cycle mechanism of SOC in specific regions.

Studies on SOC in grassland mostly focus on the dynamic changes of organic carbon storage [21,22], and center on the influence of natural factors on it [23,24]. However, there are few studies on the correlation between SOC and its physicochemical properties. Regarding soil nutrients, Raven et al. [25] revealed that the changes of soil nutrients cause those of soil microbes, which further lead to those of SOC. At present, it is unclear how the soil environment factors affect the SOC, so it is necessary to discuss the correlation between SOC and soil physicochemical properties.

The Qilian Mountains have a special geographical location at the confluence of the Qinghai-Tibetan Plateau, Inner Mongolia Plateau, and Loess Plateau [26], and located in a semi-arid region in northwest China [27]. It has a large area of forests and grasslands, so it is an important ecological barrier in northwest China. In recent years, many scholars have studied SOC in the Qilian Mountains [28,29,30,31], but few studies have explored the relationship between SOC and soil physicochemical properties. Therefore, two different grassland types were selected on the northern slope of Qilian Mountain, and the spatiotemporal differentiation of SOC and its correlation with soil physicochemical properties were studied. The aim is to provide a preliminary basis for the theoretical research of grassland ecosystems and the ecological environment construction of the Qilian Mountains.

2. Materials and Methods

2.1. Description of the Study Area

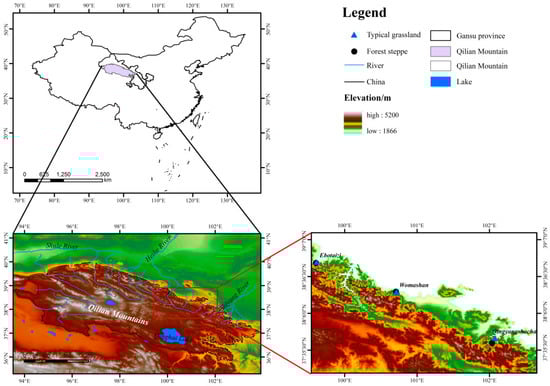

The study was carried out in the Qilian Mountains (Figure 1), that is situated in the northeast of Qinghai-Tibetan Plateau, and crosses Qinghai and Gansu provinces in China, and borders Hexi Corridor in the north, Qaidam Basin in the south, Wushaoling in the east and the Dangjin mountain pass in the west, and coordinates of about 35°43′ N to 39°36′ N latitude and 93°30′ E to 103°00′ E longitude. The Qilian Mountains are composed of several parallel mountains and wide valleys from northwest to southeast, of which the total length is about 1000 km and the maximum width is about 300 km [32]. Affected by the alpine climate of Qinghai-Tibetan Plateau and the arid climate of northwest China, the Qilian Mountains have typical characteristics of both a continental climate and plateau climate. The annual temperature is below 4 °C, and the annual precipitation is concentrated in May to September and varies between 400 to 700 mm. Because of complex natural geographical conditions, the vegetation of the Qilian Mountains has various types, and it has obvious vertical zonality. From low to high altitude, the vegetation types are in turn desert steppe, typical grassland, forest steppe, alpine shrub meadow vegetation, and alpine cold desert meadow; correspondingly the soil types are in turn mountain calcareous soil, mountain chestnut soil, forest gray cinnamon soil, alpine shrub meadow soil, and alpine cold desert soil [33].

2.2. Soil Sample Collection

From May to September in 2013 and 2014, the sample plots from east to west were set up at Qingyangshancha located in Menyuan county, Womashan located in Minle county and Ebotaizi located in Sunanin county on the northern slope of the Qilian Mountains, and soil samples were collected in the forest steppes and typical grasslands (Figure 1,

Table 1. Basic overview of sampling points.

Sampling Point	Vegetation Types	Long-E	Lat-N	Alt(m)	Coenotype
Qingyangshancha	Forest steppe	101.93	37.73	2710	Stipa sareptana var. krylovii + Carex heterostachya
	Typical grassland	101.97	37.79	2487	Artemisia capillaris + Medicago ruthenica (L.) Trautv.
Womashan	Forest steppe	100.66	38.41	2722	Stipa sareptana var. krylovii + Carex spp
	Typical grassland	100.66	38.40	2534	Stipa sareptana var. krylovii + Potentilla acaulis
Ebotaizi	Forest steppe	99.59	38.79	2762	Leymus secalinus + Stipa grandis
	Typical grassland	99.60	38.80	2608	Carex spp + Stipa grandis

). In each sample plot, three sample plots of 3 m × 3 m were arranged randomly, and five small plots of 1 m × 1 m were set at the four corners and the center of each sample plot. Samples were collected from soil layers 0–10 cm, 10–20 cm, and 20–30 cm; the five repeated samples were mixed into one soil sample, which was put into aluminum box and sampling bag and sealed. In two consecutive years from 2013 to 2014, a total of 360 soil samples were collected. From those, 180 soil samples were used to determine soil water content (W%), and 180 soil samples used to determine soil physicochemical properties. At the same time, ground thermometers were inserted into the sample plot to observe and record the ground temperature at 5 cm, 10 cm, and 15 cm.

2.3. Soil Sample Analysis

After the soil wet weights (M_w) were determined, the soil samples used to determine soil water content were dried to a constant weight in an oven at 105 °C, and then the dry weights (M_d) were determined. Prior to the soil analysis, the soil samples used to determine soil physicochemical properties were dried under room temperature for two weeks and were put through 0.15 mm and 1 mm sieves to remove plant residues and gravel. The soil organic matter was determined by a potassium dichromate external heating method [34]. The soil pH was measured with a PH meter, and the soil EC was measured by a conductivity meter. The alkaline nitrogen, available phosphorus and available potassium were measured by a TFC-1B rapid colorimetrical tester that is mainly determined by the traditional curve coordinate method through the use of the transmittance T value and absorbance A value of the instrument. The above experiments were completed in the Soil Analysis Laboratory of the college of Geography and Environmental Science, Northwest Normal University.

2.4. Research Method

Using Equation (1), the soil water content was calculated.

$$\mathrm{soil}\mathrm{water}\mathrm{content}=\frac{{\mathrm{M}}_w-{\mathrm{M}}_d}{{\mathrm{M}}_d}\ast 100\%$$

(1)

where M_w represents the soil wet weight and M_d represents the soil dry weight.

The SOC content was calculated by Equation (2).

$$\mathrm{C}=\frac{\left(V_0-V\right)\ast C_2\ast 0.003\ast 1000}{M\ast 10}$$

(2)

where C represents the content of organic carbon (g/kg), V₀ represents the volume of ferrous sulfate consumed by each blank sample, V represents the volume of ferrous sulfate consumed by each sample, M represents the quality of the sample, C₂ represents the standard solution concentration of ferrous sulfate, and V₁ represents volume of ferrous sulfate consumed.

In addition, four plots—east plot (EP), middle plot (MP), western plot (WP) and whole plot (AP)—were used for comparative analysis, and each area contained two different grassland types: forest steppe and typical grassland.

3. Results

3.1. SOC Changes of Grassland

3.1.1. Temporal Changes of SOC of Grassland

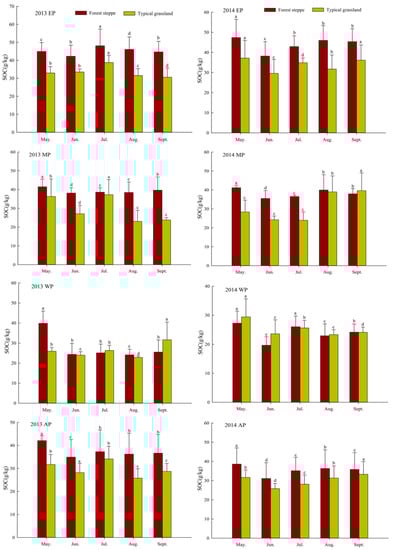

As shown in Figure 2, the contents of SOC of forest steppe and typical grassland at the EP in 2013 reached maximum values on July, which were 48.10 g/kg and 38.75 g/kg, respectively. While in 2014, the maximum values of SOC of them appeared on May, which were 47.4 g/kg and 37.17 g/kg, respectively. At the MP, the SOC content of forest steppe was higher than that of typical grassland. Contrary to forest steppe, the distribution of SOC of typical grassland was unstable; the maximum value reached 37.25 g/kg in July of 2013, but reached 39.59 g/kg in September of 2014. At the WP, the SOC content of typical grassland was higher than that of forest steppe in July and September of 2013 and in May, June and August of 2014, in which the contents of them were 36.32 g/kg, 31.66 g/kg, 29.40 g/kg, 23.61 g/kg and 23.33 g/kg, respectively. At the AP, the highest SOC values of forest steppe all occurred in May, which were 42.07 g/kg in 2013 and 38.60 g/kg in 2014, respectively. The highest SOC value of typical grassland was 34.11 g/kg in July of 2013, but that was 33.29 g/kg in September of 2014.

3.1.2. Vertical Changes of SOC of Grassland

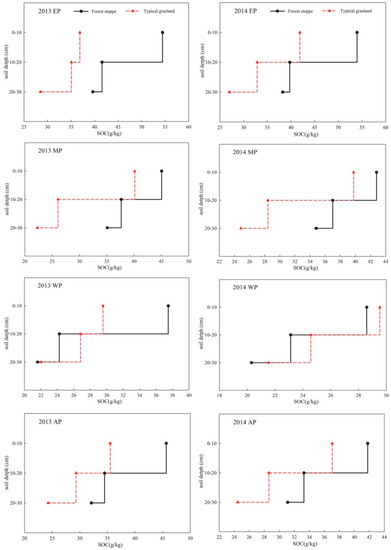

As can be seen from Figure 3, the SOC content of different grassland types on the northern slope of the Qilian Mountains show a decreasing trend with an increase in soil depth. The SOC content of forest steppe varies widely in different soil depths. In the soil layers of 0–10 cm, 10–20 cm and 20–30 cm at the AP, the SOC contents of forest steppe in 2013 were 45.66 g/kg, 34.49 g/kg and 32.10 g/kg, respectively, and those in 2014 were 41.78 g/kg, 33.29 g/kg and 31.12 g/kg, respectively. Being different from forest steppe, the SOC contents of typical grassland vary little at each soil layer. In the soil layers of 0–10 cm, 10–20 cm and 20–30 cm, the contents of SOC in 2013 were 35.52 g/kg, 29.33 g/kg and 24.27 g/kg, respectively, and those in 2014 were 37.06 g/kg, 28.62 g/kg and 24.46 g/kg, respectively. The SOC of forest steppe is concentrated on the surface layer, but that of typical grassland is evenly distributed in each soil layer. In terms of space, the contents of SOC of forest steppe and typical grassland all decrease gradually from east to west. At each plot, the SOC content shows a negative correlation with soil depth; the content of organic carbon decreases as the soil depth deepens. At the same time, the SOC content of forest steppe is slightly higher than that of typical grassland in each soil layer. However, the SOC content of typical grassland was higher than that of forest steppe at the WP in 2014.

3.1.3. Spatial Changes of SOC of Grassland

The spatial heterogeneity of SOC in the study area is large, which is reflected by the fact that the contents of SOC are different under different soil layers. Descriptive statistical analysis was made for the contents of SOC of different grassland types in different depths during two consecutive years (

Table 2. Descriptive statistics of SOC content of different grassland types in different soil layers.

Sample Plot	Vegetation Types	Soil Depth (cm)	2013(Year)					2014(Year)
			SOC (g/kg)	Min (g/kg)	Max (g/kg)	SE	CV (%)	SOC (g/kg)	Min (g/kg)	Max (g/kg)	SE	CV (%)
EP	Forest Steppe	0–10	54.45 ± 4.28a	50.29	61.18	4.28	7.86	53.96 ± 4.72a	48.31	60.19	4.72	8.75
		10–20	41.58 ± 0.20b	41.23	41.67	0.20	0.47	39.73 ± 3.23b	34.08	41.56	3.23	8.12
		20–30	39.62 ± 2.54c	35.29	41.45	2.54	6.41	38.24 ± 3.48b	32.21	40.57	3.48	9.11
	Typical Grassland	0–10	36.87 ± 2.76a	34.78	41.67	2.76	7.50	41.87 ± 4.38a	38.08	49.30	4.38	10.46
		10–20	35.07 ± 3.74b	31.78	41.45	3.74	10.68	32.85 ± 6.06b	24.73	41.38	6.06	18.44
		20–30	28.48 ± 3.71b	23.85	33.13	3.71	13.03	26.97 ± 3.51b	23.85	32.32	3.51	13.02
MP	Forest steppe	0–10	45.05 ± 3.57a	40.79	49.63	3.57	7.92	42.80 ± 4.92a	37.42	50.79	4.92	11.49
		10–20	37.65 ± 2.96a	34.85	41.67	2.96	7.86	37.00 ± 2.82a	32.65	40.35	2.82	7.63
		20–30	35.09 ± 0.93b	34.19	36.39	0.93	2.64	34.80 ± 3.43a	31.33	40.13	3.43	9.86
	Typical Grassland	0–10	40.13 ± 15.39a	25.54	62.50	15.39	38.36	39.77 ± 12.95a	25.71	55.57	12.95	32.58
		10–20	26.09±3.85b	22.97	31.99	3.85	14.77	28.42 ± 5.58b	22.86	35.18	5.58	19.62
		20–30	22.31 ± 4.47c	15.49	27.59	4.47	20.04	24.86 ± 5.15b	19.23	31.00	5.15	20.72
WP	Forest Steppe	0–10	37.49 ± 14.12a	28.18	62.50	14.12	37.66	28.59 ± 4.03a	22.41	33.13	4.03	14.11
		10–20	24.24 ± 3.80b	20.99	30.67	3.80	15.66	23.12 ± 1.81b	20.99	24.95	1.81	7.81
		20–30	21.60 ± 2.88b	18.79	26.27	2.88	13.34	20.31 ± 3.20b	15.60	23.85	3.20	15.77
	Typical Grassland	0–10	29.56 ± 6.74a	23.63	41.01	6.74	22.82	29.54 ± 5.26a	24.39	38.08	5.26	17.81
		10–20	26.83±4.41b	23.01	34.08	4.41	16.44	24.57 ± 1.80b	21.87	26.49	1.80	7.33
		20–30	22.03 ± 1.36b	19.89	23.23	1.36	6.17	21.54 ± 1.82b	18.79	23.63	1.82	8.45
AP	Forest Steppe	0–10	45.66 ± 10.83a	28.18	62.50	10.83	23.73	41.78 ± 11.55a	22.41	60.19	11.55	27.64
		10–20	34.49 ± 8.10b	20.99	41.67	8.10	23.49	33.29 ± 7.93b	20.99	41.56	7.93	23.82
		20–30	32.10 ± 8.20b	18.79	41.45	8.20	25.53	31.12 ± 8.63b	15.60	40.57	8.63	27.73
	Typical Grassland	0–10	35.52 ± 10.19a	23.63	62.50	10.19	28.69	37.06 ± 9.61a	24.39	55.57	9.61	25.94
		10–20	29.33 ± 5.62b	22.97	41.45	5.62	19.15	28.62 ± 5.71b	21.87	41.38	5.71	19.94
		20–30	24.27 ± 4.43b	15.49	33.13	4.43	18.27	24.46 ± 4.17b	18.79	32.32	4.17	17.06

The soil organic carbon data are the mean ± SE. Different letters in the same type indicate significant differences (p < 0.05) SE: standard error, CV: coefficient of variation.

). It can be seen from Table 2 that the contents of SOC of forest steppe and typical grassland on the northern slope of the Qilian Mountain in 2013 was higher than that in 2014. Taking the EP as an example, the SOC content of forest grassland in 2013 varied from 35.29 g/kg to 61.18 g/kg, and that of typical grassland varied from 23.85 g/kg to 41.67 g/kg. In 2014, the SOC content of forest steppe varied from 32.21 g/kg to 60.19 g/kg, and that of typical grassland varied from 23.85 g/kg to 41.38 g/kg. From east to west (EP → MP → WP) the contents of SOC of forest steppe and typical grassland all decreased gradually in two consecutive growing seasons. For example, in the soil layer of 0–10 cm at the EP, MP and WP, the SOC contents of forest steppe in 2013 were 54.45 g/kg, 45.05 g/kg, and 37.49 g/kg, respectively, and those in 2014 were 53.96 g/kg, 42.08 g/kg and 28.59 g/kg, respectively.

The SOC contents of forest steppe in 2013 were significantly different from the soil layer of 20–30 cm and soil layers of 0–10 cm or 10–20 cm (p < 0.05), but there were not significantly differences between each soil depth in 2014. Similar to this, the contents of SOC of typical grasslands in 2013 varied significantly in each soil layer (p < 0.05), and in 2014 showed significant differences from the soil layer of 0–10 cm and soil layers of 10–20 cm or 20–30 cm (p < 0.05). In two consecutive growing seasons, the SOC contents also showed strong differences among different grassland types. Comparing three sampling plots in the vertical profile, the most significant difference in SOC between them occurs at the MP. From 2013 to 2014, the SOC contents of forest steppe were higher than those of typical grassland, except for that at the WP in 2014.

3.2. Changes of Soil Physicochemical Properties of Grassland

3.2.1. Changes of Soil Physical Properties of Grassland

It can be seen from

Table 3. Changes of soil physical properties in different soil layers.

Sample Plot	Vegetation Types	Soil Depth (cm)	2013(Year)		2014(Year)
			Soil Water Content (%)	Soil Temperature (°C)	Soil Water Content (%)	Soil Temperature (°C)
EP	Forest Steppe	0–10	35.62 ± 9.7a	17.1 ± 6.16a	34.65 ± 10.22a	17.96 ± 4.95a
		10–20	31.37 ± 10.98a	14.78 ± 4.69a	27.06 ± 7.86b	13.72 ± 4.1a
		20–30	28.69 ± 11.8a	13.54 ± 3.35a	24.39 ± 8.17b	10.92 ± 2.48b
	Typical Grassland	0–10	25.26 ± 9.97a	21.12 ± 5.54a	23.17 ± 4.41a	20.56 ± 4.69a
		10–20	17.33 ± 6.47a	19.26 ± 5.71a	19.4 ± 4.86b	19.44 ± 5.5a
		20–30	14.77 ± 6.76a	17.44 ± 3.81a	18.42 ± 5.25b	16.42 ± 4.36a
MP	Forest Steppe	0–10	23.49 ± 15.1a	17.12 ± 5.57a	33.98 ± 3.74a	14.8 ± 4.25a
		10–20	19.2 ± 13.59a	14.9 ± 2.94a	29.28 ± 2.42a	11.66 ± 3.99a
		20–30	18.31 ± 10.46a	14.54 ± 2.37a	25.33 ± 5.66a	10.86 ± 3.21a
	Typical Grassland	0–10	19.08 ± 13.76a	19.32 ± 5.32a	26.48 ± 2.68a	20.92 ± 2.95a
		10–20	12.22 ± 8.78a	17.34 ± 4.35a	23.74 ± 3.59a	17.86 ± 4.44a
		20–30	11.57 ± 8.93a	16.42 ± 3.43a	20.62 ± 6.2b	14.54 ± 3.35a
WP	Forest steppe	0–10	19.24 ± 11.21a	15.4 ± 4.43a	19.71 ± 4.83a	19.44 ± 9.04a
		10–20	16.37 ± 11.58a	14.82 ± 2.93a	11.18 ± 2.69a	16 ± 6.58a
		20–30	15.23 ± 12.01a	14.36 ± 2.67a	9.75 ± 2.16b	13.44 ± 3.57b
	Typical Grassland	0–10	19.49 ± 11.66a	15.9 ± 4.39a	18.7 ± 4.31a	18.76 ± 6.23a
		10–20	16.99 ± 12.14a	15.08 ± 3.91a	14.31 ± 3.42a	15.54 ± 5.35a
		20–30	15.72 ± 12.59a	14.96 ± 2.94a	11.91 ± 2.97a	12.78 ± 3.96b

Different letters in the same type indicate significant differences (p < 0.05).

that the soil water content of sample plots in 2013 varied from 11.57% to 35.62%, and there was no significant difference in different soil layers of forest steppe and typical grassland in the same plot. In 2014, the soil water content varied from 9.75% to 34.65%. At the EP, the soil water content of forest steppe and typical grassland in the soil layer of 0–10 cm is different significantly from that in soil layers of 10–20 cm and 20–30 cm. At the MP, the soil water content of typical steppe in soil layer of 20–30 cm is significantly different from that in soil layers of 0–10 cm and 10–20 cm, but that of forest steppe is not different significantly in different soil layers. At the WP, the water content of forest steppe in the soil layer of 20–30 cm is different significantly from that in soil layers of 0–10 cm and 10–20 cm, but there is no significant difference of soil water content between soil layers of typical grassland. With the deepening of the soil layer, the soil water content of three sample plots shows a continuous decreasing trend. To sum up, the soil water content in 2013 was higher than in 2014, and that of same soil layers decreases from east to west (EP → MP → WP).

In 2013, the soil temperature was 13.54–21.12 °C, and there was no significant difference in different soil layers of forest steppe and typical grassland in the same plot. In 2014, the soil temperature was 10.86–20.56 °C. At the EP, the soil temperature of forest steppe in the soil layer of 20–30 cm is different significantly from that of soil layers of 0–10 cm and 10–20 cm, but there is no significant difference of soil temperature between soil layers of typical grassland. At the MP, the soil temperature of forest steppe and typical grassland is not significantly different in different soil layers. At the WP, the soil temperature of forest steppe and typical grassland in soil layer of 20–30 cm is significantly different from that of soil layers of 0–10 cm and 10–20 cm. To sum up, the soil temperature in 2013 was higher than that in 2014, and the soil temperature of same soil layers decreases from east to west (EP → MP → WP), and the soil tempearture decreases with the deepening of soil depth in the vertical section.

3.2.2. Changes of Soil Chemical Properties of Grassland

It can be seen from

Table 4. Changes of soil chemical properties in different soil layers.

Sample Plot	Vegetation Types		2013 (Year)					2014 (Year)
		Soil Detph (cm)	Alkaline Nitrogen (mg/kg)	Available Phosphorus (mg/kg)	Available Potassium (mg/kg)	pH	Soil EC (us/cm)	Alkaline Nitrogen (mg/kg)	Available Phosphorus (mg/kg)	Available Potassium (mg/kg)	pH	Soil EC (us/cm)
EP	Forest Steppe	0–10	54.45 ± 4.28a	160.8 ± 133.04a	194.6 ± 159.74a	8.04 ± 0.3a	7.47 ± 1.77a	24.11 ± 14.25a	60.4 ± 58.99a	161.4 ± 54.14a	24.11 ± 14.25a	5.07 ± 1.82a
		10–20	41.58 ± 0.2a	210.8 ± 153.19a	72.4 ± 79.92a	8.15 ± 0.15a	6.24 ± 0.86b	20.16 ± 15.89a	48.2 ± 45.91a	92.9 ± 75.08a	20.16 ± 15.89a	4.24 ± 0.96a
		20–30	39.62 ± 2.54a	52.8 ± 27.55b	33.2 ± 37.27b	8.19 ± 0.22a	7.49 ± 3.8a	30.95 ± 25.97a	68.6 ± 70.34a	62.8 ± 54.43a	30.95 ± 25.97a	4.02 ± 0.69a
	Typical Grassland	0–10	36.87 ± 2.76a	76.9 ± 60.2a	246 ± 99.97a	8.18 ± 0.5a	5.23 ± 0.75b	19.2 ± 23.71a	61.2 ± 47.71a	273.3 ± 102.49a	19.2 ± 23.71a	4.29 ± 1.03b
		10–20	35.07 ± 3.74a	89.6 ± 78.42a	268 ± 78.77a	8.24 ± 0.11a	9.73 ± 4.29a	12.77 ± 5.19b	39.2 ± 36.99a	261.9 ± 124.93a	12.77 ± 5.19b	11.21 ± 7.06a
		20–30	28.48 ± 3.71a	79.2 ± 96.95a	188.2 ± 103.73a	8.3 ± 0.09a	10.37 ± 4.52a	23.35 ± 11.56a	72.5 ± 97.81a	254.3 ± 74.98a	23.35 ± 11.56a	8.25 ± 6.88a
MP	Forest Steppe	0–10	32.25 ± 32.62a	48.2 ± 59.88a	160.6 ± 113.57a	8.1 ± 0.15a	5.4 ± 1.09a	20.04 ± 13.88a	60.3 ± 51.34a	67.6 ± 29.71a	20.04 ± 13.88a	3.21 ± 0.29a
		10–20	20.68 ± 10.46b	99.2 ± 107.58a	25.4 ± 32.07b	8.26 ± 0.11a	4.49 ± 0.77a	18.73 ± 13.18a	63.1 ± 45.08a	34.5 ± 47.23b	18.73 ± 13.18a	3.22 ± 0.47a
		20–30	30.68 ± 33.77a	94.6 ± 69.86a	21.8 ± 13.37b	8.29 ± 0.12a	4.59 ± 0.76a	8.47 ± 6.62b	53.2 ± 63.14a	70.6 ± 118.78a	8.47 ± 6.62b	3.2 ± 0.42a
	Typical Grassland	0–10	14.6 ± 8.53b	28.7 ± 21.76a	63.6 ± 55.68a	8.37 ± 0.12a	4.06 ± 0.42a	23.45 ± 32.98a	47.8 ± 38.57a	176.1 ± 132.01a	23.45 ± 32.98a	3.87 ± 0.77a
		10–20	19.8 ± 19.87b	30.7 ± 27.39a	8.6 ± 3.78b	8.33 ± 0.07a	3.98 ± 0.21a	18.78 ± 17.46a	35 ± 25.32a	40.2 ± 58.68b	18.78 ± 17.46a	3.83 ± 0.78a
		20–30	32.65 ± 29.01a	49.6 ± 45.57a	10.6 ± 8.82b	8.49 ± 0.17a	3.59 ± 0.96a	34.72 ± 41.6a	46.2 ± 53.27a	28.2 ± 48.93b	34.72 ± 41.6a	3.82 ± 0.71a
WP	Forest Steppe	0–10	56.08 ± 96.26a	64.1 ± 51.59a	206.6 ± 114.28a	8.3 ± 0.17a	4.68 ± 0.62b	8.6 ± 5.23a	45.7 ± 47.07a	175.3 ± 64.46a	8.6 ± 5.23a	3.01 ± 0.80a
		10–20	12.58 ± 8.92b	92.95 ± 146.86a	143.2 ± 88.16a	8.42 ± 0.07a	4.21 ± 0.34b	10.95 ± 8.08a	53.7 ± 78.04a	197.6 ± 88.69a	10.95 ± 8.08a	3 ± 0.58a
		20–30	25.8 ± 25.96b	38.15 ± 56.97b	171.4 ± 120.95a	8.54 ± 0.21a	5.2 ± 2.31a	13.1 ± 10.05a	78.8 ± 114.07a	216.3 ± 106.86a	13.1 ± 10.05a	3.62 ± 0.74a
	Typical Grassland	0–10	23.56 ± 19.48b	38.1 ± 31.6a	78.8 ± 64.29a	8.44 ± 0.1a	4.24 ± 0.23b	9.15 ± 8.53a	77.9 ± 68a	138.6 ± 73.12a	9.15 ± 8.53a	3.69 ± 1.17a
		10–20	31.62 ± 38.67a	33 ± 18.12a	70.8 ± 53.18a	8.49 ± 0.06a	5.57 ± 2.89b	9.45 ± 5.42a	73.7 ± 75.75a	105.6 ± 60.05a	9.45 ± 5.42a	5.39 ± 1.65a
		20–30	38.96 ± 46.81a	44.4 ± 42.95a	43.4 ± 55.67a	8.55 ± 0.12a	9.14 ± 8.69a	18.4 ± 15.89a	42.7 ± 47a	65.6 ± 52.17b	18.4 ± 15.89a	5.08 ± 2.61a

Different letters in the same type indicate significant differences (p < 0.05).

that the content of alkaline nitrogen in 2013 varied from 12.58 mg/kg to 56.08 mg/kg. At the EP, there is no significant difference in alkaline nitrogen content of forest steppe and typical grassland in each soil layer. At the MP, the content of alkaline nitrogen of forest steppe in the soil layer of 10–20 cm is lower significantly than that in soil layers of 0–10 cm and 20–30 cm, while that of typical grassland in the soil layer of 20–30 cm is significantly higher than that in soil layers of 0–10 cm and 10–20 cm. At the WP, the alkaline nitrogen content of forest steppe in the soil layer of 0–10 cm is significantly higher than that in soil layers of 10–20 cm and 20–30 cm, but that of typical grassland in the soil layer of 0–10cm is significantly lower than that in soil layers of 10–20 cm and 20–30 cm. In 2014, the content of alkaline nitrogen varied from 8.47 mg/kg to 34.72 mg/kg. At the EP, there is no significant difference in the alkaline nitrogen content of forest steppe in different soil layers, but that of tyoical grassland in the soil layer of 10–20 cm is significantly lower than that in soil layers of 0–10cm and 20–30 cm. At the MP, the content of alkaline nitrogen of forest steppe in the soil layer of 20–30 cm is lower significantly than that in soil layers of 0–10 cm and 10–20 cm, while that of typical grassland is not significantly different in each soil layer. At the WP, there is no significant difference in alkaline nitrogen content of forest steppe and typical grassland in different soil layers.

In 2013, the content of available phosphorus was 28.7–210.8 mg/kg. At the EP, the content of available phosphorus of forest steppe in the soil layer of 20–30 cm is significantly lower than that in soil layers of 0–10 cm and 10–20 cm, while that of typical grassland is not significantly different in each soil layer. At the MP, the content of available phosphorus of forest steppe and typical grassland is not obviously different in different soil layers. At the WP, the content of available phosphorus of forest steppe in the soil layer of 20–30 cm is lower significantly than that in soil layers of 0–10 cm and 10–20 cm, but there is no significant difference in available phosphorus content of typical grassland in each soil layer. In 2014, the content of available phosphorus was 35–78.8 mg/kg. There was no significant difference in available phosphorus content of forest steppe and typical grassland in different soil layers.

In 2013, the content of available potassium varied from 8.6 mg/kg to 268 mg/kg. At the EP, the content of available potassium in forest steppe is significantly lower than that in soil layers of 0–10 cm and 10–20 cm, while there is no significant difference in that in typical grassland in each soil layer. At the MP, the content of available potassium of forest steppe and typical grassland in the soil layer of 0–10 cm is significantly higher than that in soil layers of 10–20 cm and 20–30 cm. At the WP, the content of available potassium of forest steppe and typical grassland is not significantly different in different soil layers. In 2014, the content of available potassium varied from 28.2 mg/kg to 273.3 mg/kg. At the EP, there is no significant difference in the available potassium content of forest steppe and typical grassland in each soil layer. At the MP, the content of available potassium of forest steppe in the soil layer of 10–20cm is significantly lower than that in soil layers of 0–10 cm and 20–30 cm, while that of typical grassland in the soil layer of 0–10 cm is significantly higher than that in soil layers of 10–20 cm and 20–30 cm. In the WP, there is no significant difference of available potassium content of forest steppe in different soil layers, while that of typical grassland in the soil layer of 20–30 cm is significantly lower than that in soil layers of 0–10 cm and 10–20 cm.

The soil pH in 2013 was 8.04–8.54, and that in 2014 was 8.1–8.61. There is no significant difference of soil pH of forest steppe and typical grassland in different soil layers. In 2013, the soil electrical conductivity varied from 3.59 us/cm to 10.37 us/cm. At the EP, the soil electrical conductivity of forest steppe in the soil layer of 10–20 cm is significantly lower than that in soil layers of 0–10 cm and 20–30 cm, while the soil electrical conductivity of typical grassland in the soil layer of 0–10 cm is significantly lower than that in soil layers of 10–20 cm and 20–30 cm. At the MP, the soil electrical conductivity of forest steppe and typical grassland is not significantly different in each soil layer. At the WP, the soil electrical conductivity of forest steppe and typical grassland in the soil layer of 20–30 cm is significantly higher than that in soil layers of 0–10 cm and 10–20 cm. In 2014, the soil electrical conductivity varied from 3.2 us/cm to 11.21 us/cm. At the EP, the soil electrical conductivity of forest steppe is not significantly different in different soil layers, but that of typical grassland in the soil layer of 0–10 cm is significantly lower than that in soil layers of 10–20 cm and 20–30 cm. In the MP and WP, there is no significant difference in the soil electrical conductivity of forest steppe and typical grassland in each soil layer.

4. Discussion

4.1. Differences of SOC Content between Forest Steppe and Typical Grassland

The content of soil organic carbon is a quantitative index to measure the storage of soil organic carbon. On the northern slope of the Qilian Mountains, the contents of SOC of forest steppe and typical grassland in 2013 were higher than those in 2014. This may be due to the relatively high temperature and relatively low precipitation in 2013, which led to more input and less decomposition of organic matter. Duncan’s multiple tests showed that there are significant differences in the SOC of forest steppe and typical grassland in different months. But the temporal changes of SOC of forest steppe and typical grassland are consistent, and the content of SOC of forest steppe is slightly higher than that of typical grassland. In vertical profile, the distribution of underground plant roots could affect the content of organic carbon. At different soil layer depths, the contents of SOC of forest steppes and typical grassland are the largest in the soil layer of 0–10 cm, and decrease gradually with increasing soil depth. This is consistent with previous studies [35,36,37,38,39]. In the grassland ecosystem, the vegetation roots mainly distribute on the surface layer of soil with a depth of 0–30 cm [40], and the humus concentrates on it, so the organic carbon also concentrates on the surface layer of soil. However, with the increase of soil depth, the distribution of vegetation roots and the accumulation of organic matter decrease, so the content of SOC also decreases correspondingly. From east to west (EP → MP → WP), the SOC contents of forest grassland and typical grassland reduces gradually. This may be related to the amount of precipitation. Affected by the continent climate, the precipitation from east to west decreases gradually, which causes the accumulation rate of organic matter to decrease and the decomposition rate to slow down, further reducing the content of SOC. In two consecutive growing seasons, the content of SOC of forest steppe is significantly higher than that of typical grasslands. This is because the plant roots of typical grassland are shallower and the input of organic matter is less, which in turn affects the accumulation of SOC [5]. Studies by Nepstad et al. [41] and Trumbore et al. [42] have shown that the main source of SOC in the deep soil layer is plant roots, which controls its circulation and distribution. Compared to typical grassland, forest steppe has more underground plant roots, so the content of SOC in the deeper soil layer is slightly higher. In summary, the spatial heterogeneity of SOC occurs with different times, different regions and different grassland types.

4.2. Relationships between Soil Physicochemical Properties and SOC of Grassland

4.2.1. Relationship between SOC and Soil Temperature and Soil Water Content of Grassland

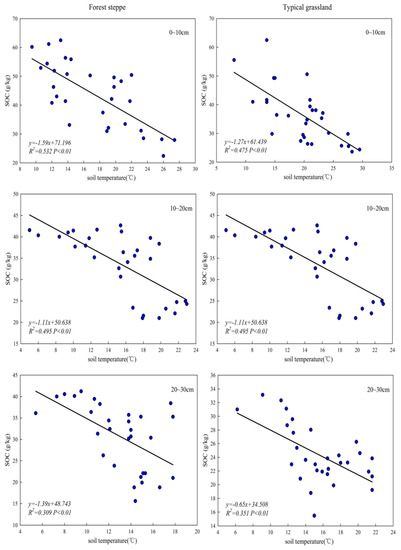

It can be seen from Figure 4 that the SOC of different grassland types in different soil layers on the northern slope of Qilian Mountains has a significant negative correlation with soil temperature (p < 0.01), and that the negative correlation becomes weaker and weaker as the soil depth deepens. Studies have shown that the lower the soil temperature is, the weaker the soil respiration is, and vice versa [43,44,45]. When the soil respiration is weak, the decomposition rate of soil organic matter decreases and the SOC content increases [46,47]. Therefore, there is a negative correlation between soil temperature and SOC content. In soil layers of 0–10 cm, 10–20 cm and 20–30 cm, the correlation coefficients of SOC and soil temperature of forest steppe are 0.729, 0.704 and 0.556, respectively, and those of typical grassland are 0.689, 0.686 and 0.592, respectively. In different soil layers, the contents of SOC of forest steppe and typical grassland are significantly and negatively correlated with soil temperature, which is consistent with the previous studies [39,48]. For forest steppe or typical grassland, the correlation coefficient of soil temperature and SOC at the soil layer of 0–10 cm is the largest, and the smallest at the soil layer of 20–30 cm. Soil temperature affects the accumulation and differentiation of soil organic matter. If the soil temperature rises, the decomposition rate of soil organic matter accelerates, and the amount of SOC accumulation decreases. Because the affection of soil temperature to SOC becomes smaller, the negative correlation is most significant at the soil layer of 0–10 cm. In different soil layers, the correlation coefficients of soil temperature and SOC of forest steppe are all higher than those of typical grassland, which indicates that the accumulation of SOC in forest steppe is easily affected by soil temperature.

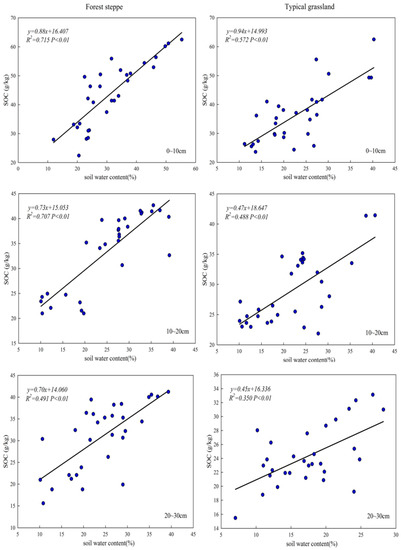

It can be seen from Figure 5 that SOC and soil water content of different grassland types in different soil layers on the northern slope of Qilian Mountains have a significant positive correlation (p < 0.01). In the soil layers of 0–10 cm, 10–20 cm and 20–30 cm, the correlation coefficients of SOC and soil water content in forest steppe are 0.846, 0.841 and 0.701, respectively, and those of typical grassland are 0.756, 0.699 and 0.592, respectively. In different soil layers, the correlations between SOC and soil water content of forest steppe are all higher than those of typical grassland. More soil water can prevent the decomposition of SOC, so the content of SOC is higher in the soil layer that has more soil water. Compared to typical grassland, the soil water in different soil layers is higher at forest steppe. Taking the soil layer of 0–10 cm and 10–20 cm as an example, the soil water contents of forest steppe are 28.28% and 22.74%, but that of typical grassland are 22.03% and 17.33%. In different soil layers, the contents of organic carbon are consistent with the contents of soil water. Changes in soil water conditions affect the accumulation and decomposition of organic matter. If the content of soil water increases, the aboveground vegetation and root biomass increase, and the decomposition rate of litter and roots accelerate [49], which has a certain impact on the accumulation of SOC. Therefore, there is a positive correlation between soil water and SOC. In each soil layer, the contents of SOC and soil water contents of forest steppe and typical grassland are significantly and positively correlated, which is consistent with the researches of Yang [50] in the Tibetan grassland of China and Fu [51] in the Alxa grassland of China.

4.2.2. Relationship between SOC and Soil Nutrients of Grassland

From

Table 5. Relationship between SOC and soil nutrient elements of different grassland types in different soil layers.

Index	Soil Depth (cm)	Forest Steppe			Typical Grassland
		Regression Equation	Correlation Coefficient r	Significance Level p	Regression Equation	Correlation Coefficient r	Significance Level p
Alkaline Nitrogen (mg/kg)	0–10	y = 0.08x + 41.163	0.315	<0.01	y = 0.15x + 33.526	0.298	< 0.01
	10–20	y = 0.18x + 29.724	0.440	<0.01	y = 0.01x + 28.824	0.032	< 0.01
	20–30	y = 0.03x + 30.448	0.126	<0.01	y = 0.03x + 23.324	0.228	< 0.01
Available Phosphorus (mg/kg)	0–10	y = 0.06x + 39.077	0.443	<0.01	y = 0.07x + 32.418	0.338	< 0.01
	10–20	y = 0.02x + 31.517	0.310	<0.01	y = 0.02x + 27.852	0.205	< 0.01
	20–30	y = 0.01x + 30.388	0.114	<0.01	y = 0.01x + 24.067	0.077	< 0.01
Available Potassium (mg/kg)	0–10	y = 0.02x + 39.985	0.210	<0.01	y = 0.03x + 30.704	0.405	< 0.01
	10–20	y = 0.02x + 32.001	0.190	<0.01	y = 0.02x + 25.904	0.540	< 0.01
	20–30	y = 0.05x + 25.891	0.230	<0.01	y = 0.02x + 22.226	0.559	< 0.01

, in different soil layers, the SOC and soil nutrients of different grassland types on the northern slope of Qilian Mountains have a significant positive correlation (p < 0.01). The content of SOC of forest steppe has the highest correlation with alkaline nitrogen in the soil layer of 10–20 cm (r = 0.440), but that of typical grassland has the highest correlation with alkaline nitrogen in soil layer of 0–10 cm (r = 0.298). The content of alkaline nitrogen is related to the content and quality of organic matter in the soil, and is related to the amount of nitrogen fertilizer put into the soil. The growth of vegetation in the study area is not affected by human factors, so the content of soil alkaline nitrogen is only related to the content and quality of organic matter. Nitrogen exists in the soil in the form of organic nitrogen. Plants can’t absorb and use organic nitrogen directly, but it can be converted into effective nitrogen that plants can use (Alkaline Nitrogen) by the mineralization of soil microorganisms [11]. Among different soil layers, the contents of SOC of forest steppe and typical grassland show a significant and positive correlation with alkaline nitrogen. In soil layers of 0–10 cm, the content of SOC of typical grassland has the highest correlation with alkaline nitrogen. The correlation between them is the most obvious, because the mineralization of soil microorganisms is the fastest, which makes nitrogen more quickly convert into alkaline nitrogen and promotes the accumulation of organic matter. Compared to typical grassland, the vegetation root of forest steppe distributes in deeper soil layers, so the correlation between SOC and alkaline nitrogen in the soil layer of 10–20 cm is the highest.

Phosphorus is a necessary nutrient element for all living organisms and is closely related to the content of SOC [52]. For forest steppe and typical grassland, the correlation coefficients between SOC and available phosphorus are all the largest in the soil layer of 0–10 cm, and they are 0.443 and 0.338, respectively. As the soil depth increases, the correlation between SOC and available phosphorus becomes smaller. The level of available phosphorus indicates the storage and supply capacity of phosphorus in soil, which reflects the change in soil phosphorus nutrients. As the depth of soil layer increases, the content of available phosphorus in soil decreases, which is consistent with the change of SOC with depth. Potassium is one of the nutrients for plant growth, which exists in soil in the form of effective potassium. Potassium can not only promote crop respiration and photosynthesis, but also act as an activator for many enzymes in crops [53]. The correlations between SOC and available potassium of forest steppe and typical grassland are obviously different in different soil layers. The correlation is the highest in the soil layer of 20–30 cm, and the correlation coefficients of them are 0.230 and 0.559, respectively.

In summary, the correlations between SOC with alkaline nitrogen and available phosphorus of forest steppe are higher, while the correlation between SOC and available potassium of typical grassland is higher. In addition, the content of soil nutrients is related to the soil microbial activity. If the microbial activity is more frequent, the conversion rate of soil organic matter is faster and the content of soil nutrients is higher. With the increase of the soil depth, the soil nutrients decrease gradually, which is consistent with the change of SOC. For surface soil, because the soil structure is loose, the soil aeration is better, there are more underground plant roots and the biological activities are more frequent, the soil nutrients are richer and the content of SOC is higher.

4.2.3. Relationship between SOC and pH Value and Electrical Conductivity of Grassland

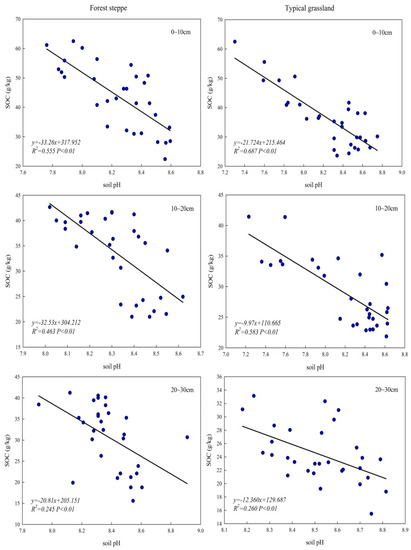

Soil acidity and alkalinity affect the presence, conversion and effectiveness of soil organic matter [54], and pH values that are too high (>8.5) or too low (<5.5) will inhibit the activity of microorganisms and reduce the decomposition SOC rate [33]. The soil of forest steppe and typical grassland on the northern slope of Qilian Mountains is alkaline (Figure 6). The value of soil pH of forest steppe varies between 7.6 and 9.9, and that of typical grassland varies between 7.2 and 8.9. There are significant negative correlations between SOC and the soil pH of forest steppe and typical grassland at different soil layers (p < 0.01), which is consistent with the researched results by Zhang Peng et al. [33]. The soil environment of the study area is generally alkaline, which inhibits the activity of microbes, and affects soil respiration and reduces the input of organic carbon [54]. In each soil layer of 0–10 cm, 10–20 cm and 20–30 cm, the correlation coefficients between SOC and soil pH of forest steppe are 0.745, 0.680 and 0.495, respectively, and those of typical grassland are 0.829, 0.764 and 0.510, respectively. As the soil layer deepens, the soil pH increases correspondingly.

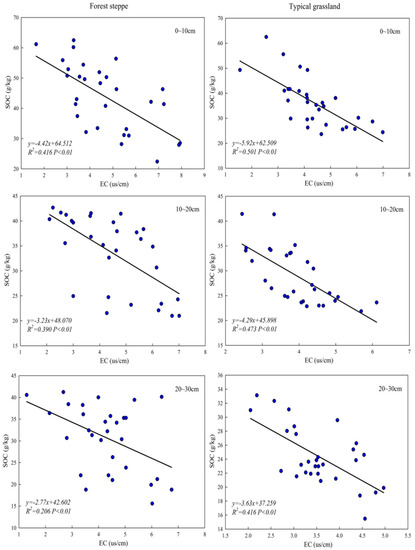

As can be seen from Figure 7, in different soil layers, SOC and soil electrical conductivity of forest steppe and typical grassland have significantly negative correlations (p < 0.01), which is consistent with the results of Feng Jin et al. [20]. The soil electrical conductivity reflects the state of soil salinity under certain water conditions. The soil electrical conductivity of forest steppe in soil layers of 0–10 cm and 20–30 cm concentrates on 2–6 us/cm, but in soil layers of 10–20 cm concentrate on 3 us/cm–5 us/cm. However, the soil electrical conductivity of typical grassland in soil layers of 0–10 cm and 20–30 cm concentrate on 3–5 us/cm, but in soil layer of 10–20 cm concentrates on 2–6 us/cm. In general, the correlations between SOC and soil electrical conductivity become weaker with the soil layer deepening.

4.2.4. Effects of Soil Physicochemical Properties on SOC of Grassland

In different soil layers, the differences of soil physicochemical properties of grassland affect the content of SOC [55], which in turn affects the distribution of SOC of grassland. In addition, the accumulation of SOC of grassland comes mostly from the littering of aboveground vegetation and the transformation of underground plant roots. Water and heat conditions affect the spatial distribution pattern of SOC [56,57]. From east to west of the Qilian Mountain (EP → MP → WP), in both forest steppe and typical grassland, the content of soil water reduces gradually and the soil temperature also reduces gradually, which causes the accumulation of soil organic matter to decrease, and further causes the content of SOC to decrease. Studies have shown that the content of SOC directly affects the soil nutrient status [58]. When the content of SOC increases, more nitrogen, phosphorus and potassium are released in the soil, which promote the growth of aboveground vegetation, and promote the content of SOC. The soil pH values of forest steppe and typical grassland in the study area exceed 7, and the content of SOC is significantly and negatively correlated with the soil pH. Soil electrical conductivity has a significant impact on soil organic matter. The soil electrical conductivity is higher, soil salinity is also higher, but the accumulation of soil organic matter is lower. In each soil layer, soil electrical conductivity and SOC of forest steppe and typical grassland show a significant and negative correlation. Although there are close relationships between soil physicochemical properties and SOC of grassland in study area, their change mechanism and process need to be further studied.

5. Conclusions

After selecting six plots on the east, middle and west of forest steppe and typical grasslands on the northern slope in the Qilian Mountains during two consecutive growing seasons from 2013 to 2014, the spatiotemporal differentiation of SOC and its relationships with soil physicochemical properties were studied. The following results were concluded from this the research in the study area.

• The spatial and temporal difference of SOC at forest steppe and typical grassland is significant. On the time scale, the content of SOC in 2013 was higher than that in 2014. On the spatial scale, the content of SOC of forest steppe and typical grassland decreased gradually from east to west.
• The contents of SOC of forest steppes are higher than those of typical grassland, and both of them decrease with the increase of soil depth. There is a significant difference in the content of SOC among soil layers of 0~10 cm, 10–20 cm and 20–30 cm (p < 0.05). In each soil layer, the variation coefficients of SOC increase from east to west (EP > MP > WP).
• Positive correlations appear significantly between SOC and soil water content and soil nutrients (alkaline nitrogen, available phosphorus, available potassium) (p < 0.01), but negative correlations appear significantly between SOC and soil temperature, soil pH and soil electrical conductivity (p < 0.01).

The physicochemical properties of soil have an important impact on the growth of plants, which in turn affects the accumulation of soil organic carbon. The dynamic change process of soil organic carbon of grassland includes two aspects; on the one hand the input of carbon is the process by which humus solidifies animal and plant residues in the soil, and on the other hand the output of carbon is the process of soil respiration. From a micro level, the soil surface and the microenvironment in the soil surface affect the input and transformation of carbon, and control the formation and decomposition of organic carbon. From a macro perspective, climate conditions and the human environment affect the formation and decomposition of regional organic carbon. With the background of global warming, the grassland ecosystem may change from a “carbon pool” to a “carbon source”. Therefore, improving the carbon sequestration capacity of grasslands and promoting the virtuous cycle of the ecosystem are important aspects of future research into the carbon cycle.
