Operating of Gasoline Engine Using Naphtha and Octane Boosters from Waste as Fuel Additives

Abstract

Fuel quality is an important indicator for the suitability of alternative fuel for the utilization in internal combustion (IC) engines. In this paper, light naphtha and fusel oil have been introduced as fuel additives for local low octane gasoline to operate a spark ignition (SI) engine. Investigated fuel samples have been prepared based on volume and denoted as GN10 (90% local gasoline and 10% naphtha), GF10 (90% local gasoline and 10% fusel oil), and GN5F5 (90% local gasoline, 5% naphtha and 5% fusel oil) in addition to G100 (Pure local gasoline). Engine tests have been conducted to evaluate engine performance and exhaust emissions at increasing speed and constant wide throttle opening (WTO). The study results reveal varying engine performance obtained with GN10 and GF10 with increasing engine speed compared to local gasoline fuel (G). Moreover, GN5F5 shows higher brake power, lower brake specific fuel consumption, and higher brake thermal efficiency compared to other investigated fuel samples over the whole engine speed. The higher CO and CO₂ emissions were obtained with GN10 and GF10, respectively, over the entire engine speed and the minimum CO emissions observed with GN5F5. Moreover, the higher NO_x emission was observed with pure local gasoline while the lowest was observed with GF10. On the other hand, GN5F5 shows slightly higher NO_x emissions than GF10, which is lower than GN10 and gasoline. Accordingly, GN5F5 shows better engine performance and exhaust emissions, which can enhance the local low gasoline fuel quality using the locally available fuel additives.

1. Introduction

Global warming and increasing energy demand engage researchers to search for a suitable alternative to reduce the dependence on mineral fuel. Petroleum fuel currently represents a significant share among other fuel sources [1,2,3]. The primary energy-consuming sectors in the world are industry and transportation, which depend mainly on IC engines that consume liquid mineral fuel. The utilization of this fuel is restricted by the limited sources, increasing price, and environmental pollution [4,5,6]. Furthermore, the combustion emissions of mineral fuel can be considered as the primary contributor to environmental pollution. Therefore, many agreements have been legislated to restrict the increasing global warming, which indicates the utilization of high quality fuels that combust efficiently with fewer pollutants to achieve this target [7,8,9,10].

Though many alternative fuels have been suggested by different researchers to be used in SI engine [8,11,12,13,14], petroleum based fuel is the most dominant. Hence, focusing on the utilization of high fuel quality to enhance the fuel combustion efficiency is a viable option to face the energy crises challenge and global warming [15]. Fusel oil is a by-product of the waste products processed by the method of fermentation. The high oxygen content and octane number of fusel oil attract researchers to introduce fusel oil as fuel for SI engines [16,17]. Naphtha is one of the leading products of refineries. It is used in many industries like the petrochemical industry as a feedstock, gasoline fuel blend, and widely as a diluent [18,19,20,21]. The biggest producer of naphtha worldwide is the Middle East. The major share of this product is consumed by countries with substantial petrochemical interests, like Korea and Japan, which are considered the leading importers [18].

Naphtha is a light, highly flammable mixture produced from the tar of coal, refined petroleum, or shale gas. Naphtha can be classified into three main types, including the light naphtha, which is used as a gasoline fuel blend and widely in the petrochemical industry [22,23,24]. Medium naphtha can also be used as a gasoline fuel blend and offers a more comprehensive range of uses in reforming or the petrochemical industry. The last type of naphtha is the heavy naphtha used mainly to produce or improve gasoline components [25]. Light naphtha is composed of pentane and slightly heavier material. It is produced from crude oil distillation or natural gas liquid (NGLs) separation and, in this case, called natural gasoline or pentanes plus [12,19,25,26,27]. Light naphtha is often blended directly with gasoline in the refinery up to 5% blending ratio due to its low octane number and relatively high vapour pressure, which limits utilization at a higher percentage [19].

Naphtha is used as a source for fuel production due to its large energy content, where the amount of created chemical energy measured to be 3.14 megajoules of energy per litter [28,29,30]. Moreover, naphtha is used in many other applications as a fuel, including stoves, heating units, lanterns, cigarette lighters, and blowtorches due to its clean-burning in addition to its utilization as a fuel additive [31].

Wang et al. [29] studied the auto ignition characteristics of gasoline-naphtha blend fuel spray in a constant volume optically accessible combustion chamber using light naphtha at different blending ratios. Varying ignition delay was used to achieve auto-ignition of the tested fuel samples according to the adopted experimental conditions. The obtained results reveal the random distribution of the auto-ignition in the combustion chamber with similar spray angle and front penetration length before auto-ignition.

In another study, Wang et al. [32] conducted an experimental investigation to evaluate the impact of naphtha addition with commercial gasoline on the two-stage combustion characteristics of multiple premixed compression ignition (MPCI) mode. The study results reveal that adding naphtha results in achieving stable combustion in a wide load range. Furthermore, higher thermal efficiency is obtained for naphtha and gasoline in MPCI mode than diesel in CDC mode due to the low heat transfer loss for gasoline and low exhaust loss for naphtha. To control NO_x emissions within the limits of EURO VI, separated combustion in MPCI is essential to reduce cylinder temperature with a moderate EGR ratio below 30%.

Wang et al. [20] conducted a study to investigate the performance of modern SI engine operation with a blend of gasoline fuel and gas to liquid naphtha at full load conditions. Thermal analysis was conducted for correlating fuel properties with experimental engine data. The obtained results reveal comparable combustion characteristics and exhaust emissions for the investigated fuel with the standard EN228 gasoline fuel at full load conditions. Furthermore, the fuel consumption with the tested fuel blend was found to be higher than that of gasoline due to the reduced octane rating caused by naphtha. Moreover, lower particulate emissions were measured with gasoline fuels containing up to 15.4 vol.% naphtha compared to gasoline.

Simsek and Uslu [33] introduced fusel oil with different ratios (0–30%) to operate spark ignition (SI) engine as an alternative energy source to gasoline at different engine compression ratios and operation conditions. Their study finding indicates the future focus of similar research concerning the optimization of blended fusel oil–gasoline fuel. Similar work has found that fusel oil and gasoline blend at different ratios can be employed for operating engines [34]. The same optimization concept has been used to indicate the optimum operating parameters at 10% and 20% fusel oil ratio with gasoline [35].

All the studies mentioned above listed that the utilization of fusel oil can mitigate fuel combustion pollution. However, the low calorific value restricted the utilization of fusel oil at a high percentage ratio with gasoline. Furthermore, though naphtha has a low octane number, it contains a large amount of chemical energy. Based on the author’s knowledge, no study has been conducted to investigate the addition of light naphtha and fusel fuel as a low octane blend to the local commercial gasoline.

This study investigates the addition of fusel oil as an octane enhancer and naphtha as an additive with high energy content to the local low octane gasoline fuel. An engine test has been conducted with different fuel samples to evaluate the engine performance and exhaust emissions compared to pure local gasoline as a threshold.

The proposed research is organized as follows. Section 2 introduces the methodology. Section 3 presents the results and discussion. Section 4 highlights the conclusions of the paper.

2. Methodology

2.1. Fuel Preparation

A blend of local low octane gasoline, light naphtha and fusel oil was used to operate a gasoline engine. Properties of the selected fuel are shown in

Table 1. Properties of local gasoline, light naphtha and fusel oil [4,21].

Parameters	Local Gasoline	Light Naphtha	Fusel Oil
Oxygen cc	-	-	18
H/C ratio	2.25	2.34	-
Density(kg/m3) at 20 C	765	654	800.3
lower heating value(Mj/kg)	41.8	45.1	35.32
RON	86	65	98.7
Cetan number	10	41	42
Latenet heat T 298 K(Kj/kg)	500	-	874
Flashpoint (c)	38	-	42
Viscosity, (mm2/s) at 40 °C	0.467	2.74	4.162
Autoignition temperature, °C	~300	-	416

. Local low octane gasoline was supplied from a local petrol station in Kirkuk, Iraq. Light naphtha was supplied by a local chemical company while fusel oil was provided by Eskişehir sugar factory, Turkey. The investigated fuel blend denoted as G100 (Pure Local gasoline), GN10 (90% Local gasoline and 10% naphtha), GF10 (90% Local gasoline and 10% fusel oil), and GN5F5 (90% Local gasoline, 5% naphtha and 5% fusel oil). Each fuel sample was prepared based on volume and mixed using a magnetic stirrer for about 20 min at 2000 rpm to ensure a homogenous fuel blend. Prepared fuel samples were stored in airtight glass bottles in the laboratory at room temperature for the engine test.

2.2. Engine Test

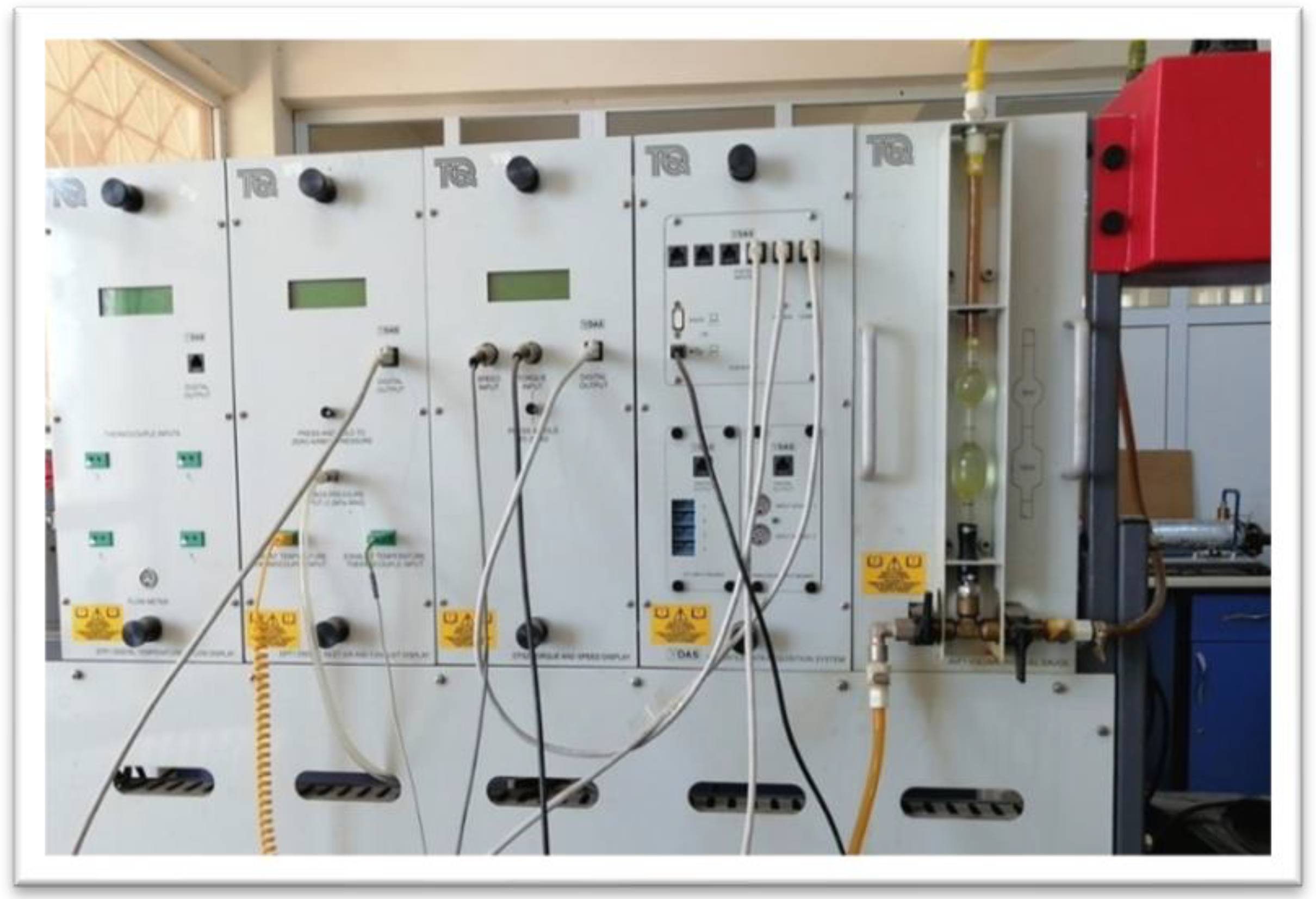

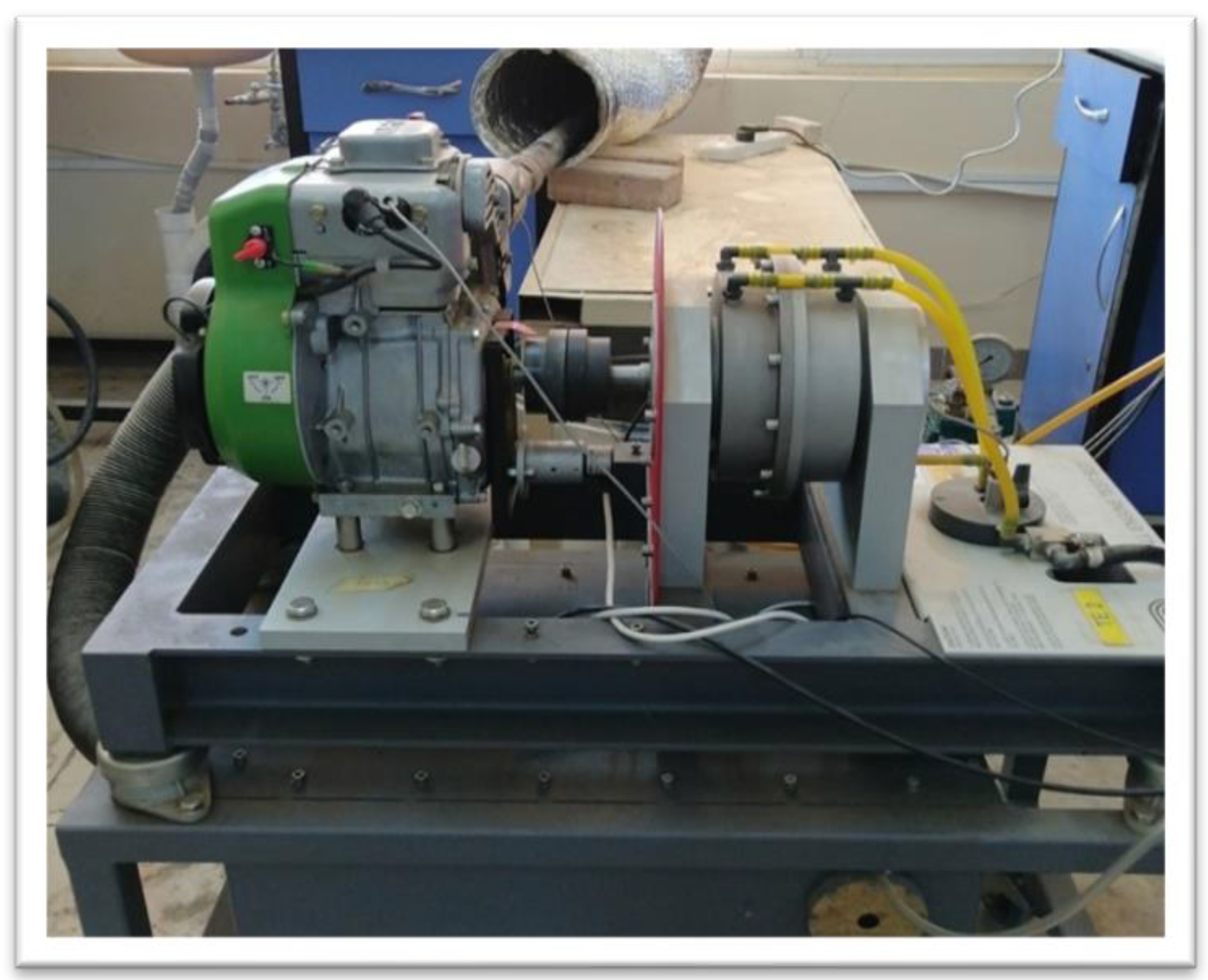

The fuel engine test was conducted using a single-cylinderTD110 spark ignition engine with a constant compression ratio of 9.5:1. The engine shown in Figure 1 is a naturally aspirated four-stroke portal fuel injection with a total displacement of 230 cc and cylinder bore and piston stroke of 66 mm and 57 mm, respectively. The engine produced maximum power of 3.6 kW and a maximum speed of 3600 rpm. A hydraulic dynamometer was used to apply the desired load on the engine through the control valve that regulates the pump water flow. The adjusted pressure was indicated utilizing a pressure gauge connected to the dynamometer water flow pipe. Digital meters on the measuring panel shown in Figure 2 measure the torque, brake power and temperatures at different points on the engine. Brake-specific fuel consumption (BSFC) of the engine was measured using a glass tube with a 16 mL bulb, in which the time consumed is measured using a stopwatch. The engine was warmed up for about 15 min. Then, data collection commenced with the tested fuel. Each test was repeated in triplicate, and the average is considered the final result for more accurate and reliable study results.

3. Results and Discussion

When using fuel additives with gasoline, it is essential to evaluate engine performance exhaust emissions as an important indicator for the suitability of fuel blend to operate an SI engine efficiently. Although gasoline fuel has different specifications according to the regional fuel standards, SI engines are designed and fabricated by the different manufacturers based on the same standard fuel specifications range. This study tested different fuel samples in SI engine at increasing engine speed within the engine operation range from 1000 to 3000 rpm and constant wide throttle opening (WTO). The results have been studied and discussed to indicate the engine behaviour with different fuel samples.

3.1. Engine Performance

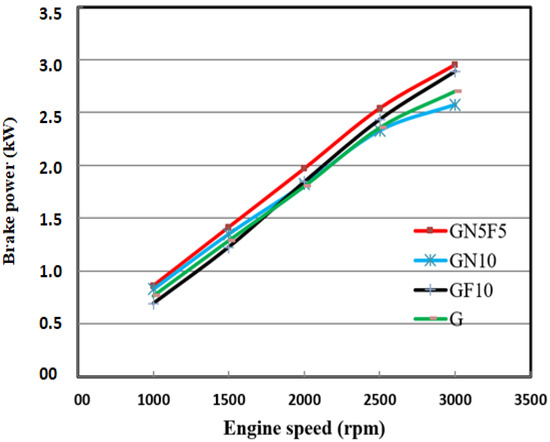

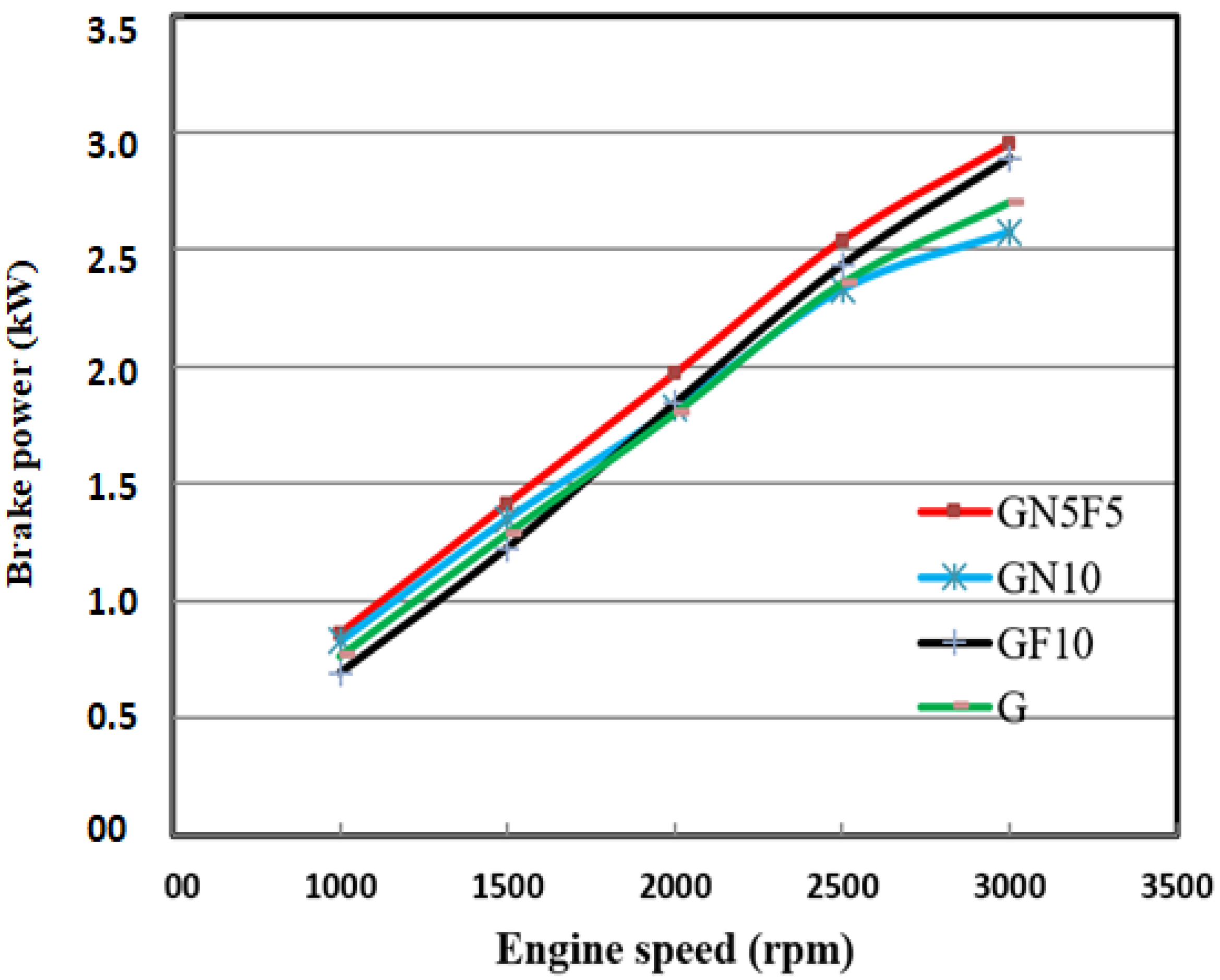

Engine brake power represents the noticeable parameter that can be considered to evaluate the output power. It is calculated based on the measured torque and specified engine speed. Figure 3 shows that, in general, engine brake power reveals a similar increasing trend with increasing engine speed using all investigated fuel samples, indicating reasonable behaviour of the tested engine in terms of output power. However, significant variation is observed among the value of brake power obtained with different fuel samples. At low engine speed, the addition of 10% naphtha and 10% fusel oil to local gasoline results in an improvement of engine brake power to 0.828 kW and deterioration to 0.691 kW respectively compared to 0.765 kW for local gasoline at 1000 rpm, while GN5F5 produced the highest brake power of 0.859 kW. The deviation of engine brake power with GN10 and GF10 converges with increasing engine speed to reach a similar value to G at medium engine speed. At the same time, GN5F5 shows higher brake power compared to other investigated fuel samples. The deviation of engine brake power with GN10 and GF10 was observed again with increasing engine speed. At a high speed of 3000 rpm, the addition of 10% naphtha and 10% fusel oil to local gasoline fuel results in a deterioration of engine brake power to 2.890 kW and improvement to 2.576 kW respectively compared to 2.701 kW for local gasoline while GN5F5 produced the highest brake power of 2.953 kW which is higher than that of local gasoline by 9.3%. This is due to the enhancement in both the octane number and heating value of the fuel compared to other fuel samples.

3.2. Brake Specific Fuel Consumption

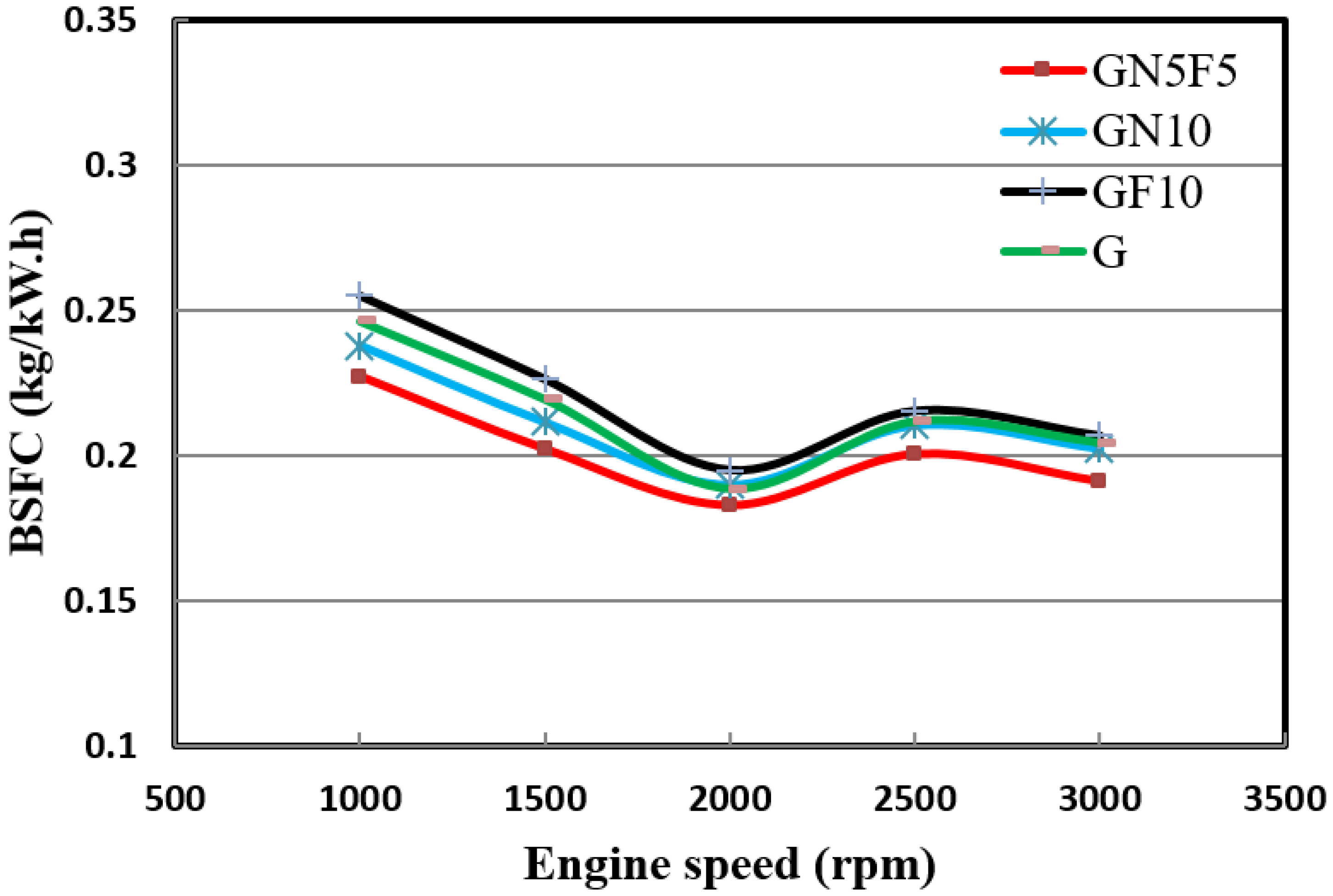

Although the engine brake power can be considered to evaluate the engine output power, brake specific fuel consumption (BSFC) is another important indicator for the engine performance assessment. Figure 4 shows that, in general, engine BSFC reveals a similar trend of variation with increasing engine speed using all investigated fuel samples, indicating reasonable behaviour of the tested engine in terms of fuel consumption. However, significant variation is observed among the value of BSFC observed with different fuel samples.

At low engine speed, adding 10% naphtha and 10% fusel oil to local gasoline results in a decrease in BSFC to 0.237 kg/kW.h and an increase to 0.255 kg/kW.h respectively compared to 0.246 kg/kW.h for local gasoline at 1000 rpm, while GN5F5 produced the lowest BSFC of 0.227 kg/kW.h. The deviation of engine brake power with GN10 and GF10 converges with increasing engine speed to reach a similar value to G for GN10 at medium engine speed with a higher value for GF10. At the same time, GN5F5 shows a lower BSFC compared to other investigated fuel samples. The deviation of BSFC with GN10 and GF10 continues to converge with increasing engine speed. At the high speed of 3000 rpm, adding 10% naphtha and 10% fusel oil to local gasoline fuel results in a comparable BSFC of 0.202 kg/kW.h and 0.206 kg/kW.h respectively compared to 0.204 kg/kW.h for local gasoline, while GN5F5 produced the lowest value of 0.19 kg/kW.h, which is lower than that of local gasoline by 6.8%.

3.3. Brake Thermal Efficiency

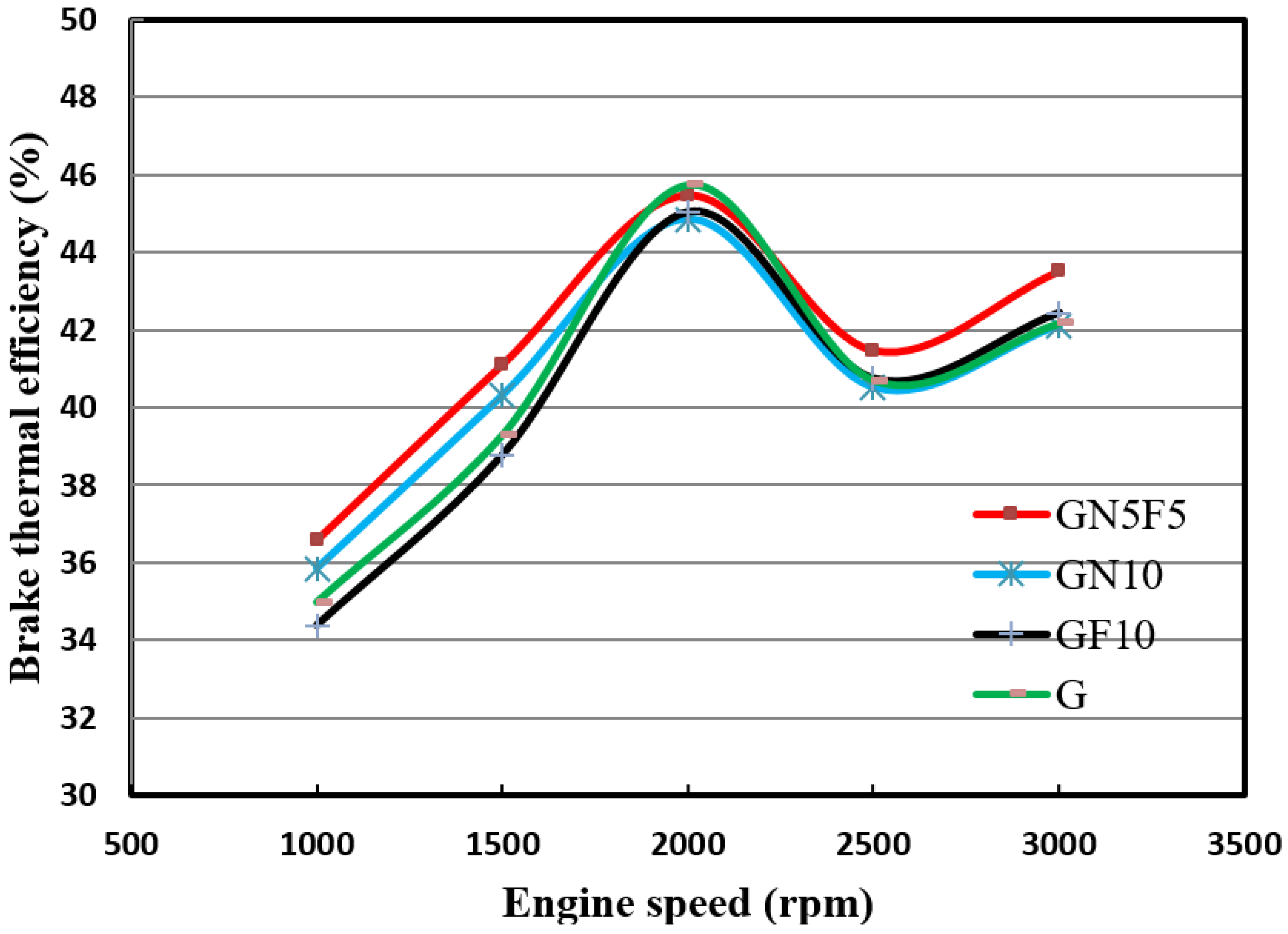

Engine brake thermal efficiency (BTE) is the overall indicator of fuel conversion efficiency and combustion quality. Although engine brake power and brake specific fuel consumption reveal different trends with the investigated fuel samples, brake thermal efficiency can be adopted to evaluate the overall engine performance. Figure 5 shows that, in general, engine BTE reveals a similar trend of variation with increasing engine speed using all investigated fuel samples, which indicates reasonable behaviour of the tested engine in term of BTE.

However, significant variation is observed among the values of BTE with different fuel samples. At low engine speed, the addition of 10% naphtha and 10% fusel oil to local gasoline results in an increase in BTE to 35.85% and deterioration to 34.4% respectively compared to 34.8% for local gasoline at 1000 rpm, while GN5F5 produced the highest BTE of 36.57%. The deviation of engine brake power with GN10 and GF10 converge with increasing engine speed to reach a similar value at medium engine speed with a higher value for G and GN5F5. The convergence of BTE with GN10 and GF10 in addition to G continue with increasing engine speed to reach comparable values at the high speed of 3000 rpm. On the other hand, the higher BTE was observed for GN5F5 with increasing engine speed, which is higher than that of local gasoline by 3.2%.

3.4. Exhaust Emission

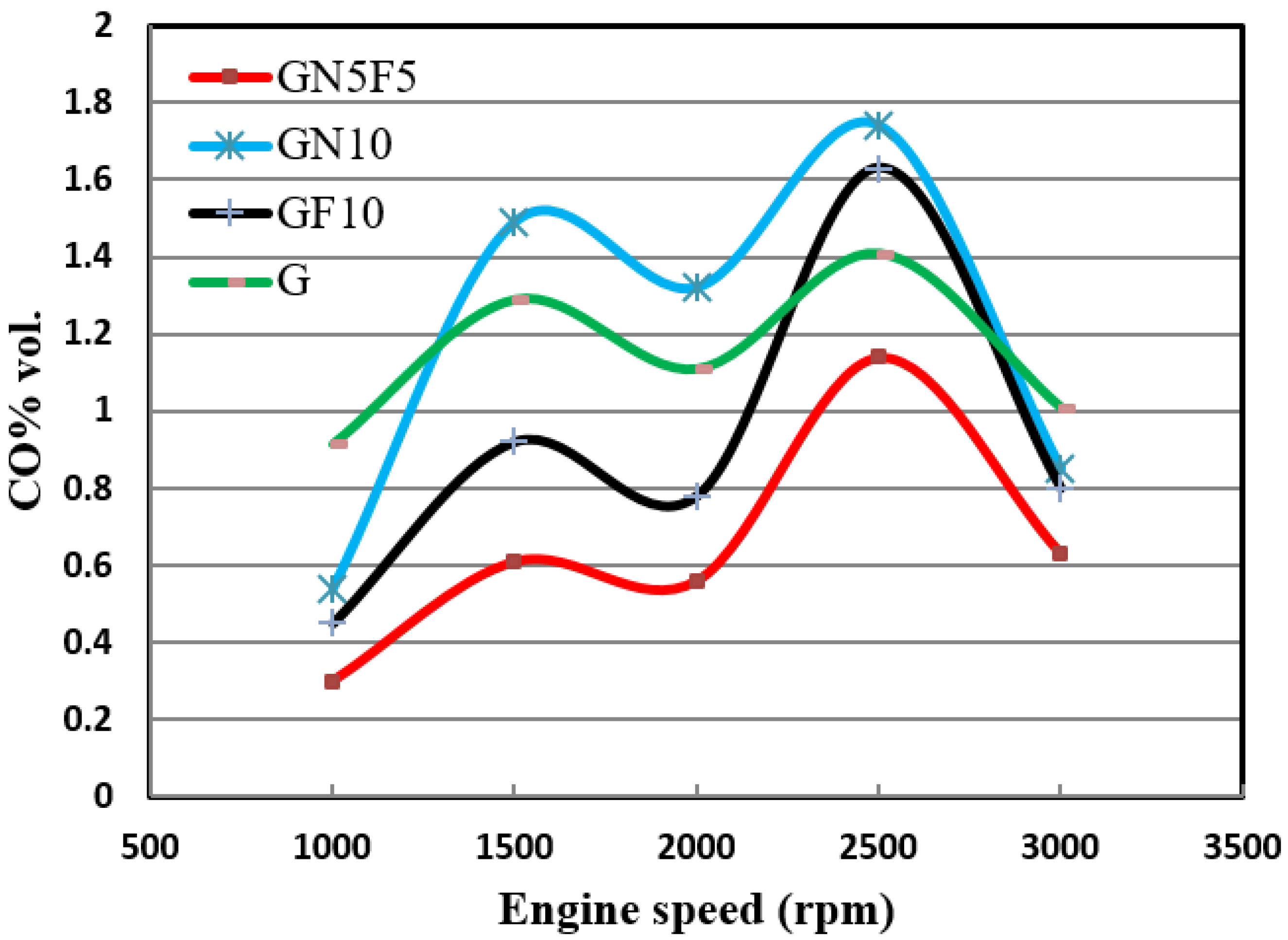

Exhaust emissions are important indicators for the suitability of the suggested fuel for operating an SI engine, especially with the current legislation restricting the emitted pollutants that contributes to global warming. The emission of carbon monoxide (CO) derives from the incomplete combustion of the air–fuel mixture in the combustion chamber and is affected strongly by the temperature at the end of the combustion phase. Figure 6 presents the variation of CO emissions for different tested fuel samples with increasing engine speed. The higher CO emissions were obtained with GN10 followed by pure gasoline approximately over the entire engine speed. Both naphtha and gasoline are hydrocarbon fuels that tend to provide incomplete oxidation during the combustion in the combustion chamber. However, adding fusel oil to gasoline results in complete oxidation, reducing the generation of CO emissions. Minimum CO emissions were observed with GN5F5 over the whole engine speed. This may be attributed to the higher oxygen content of fusel oil and the moderate effect of octane number and heating value of naphtha and fusel oil on the mixture combustion temperature, which indicates complete combustion.

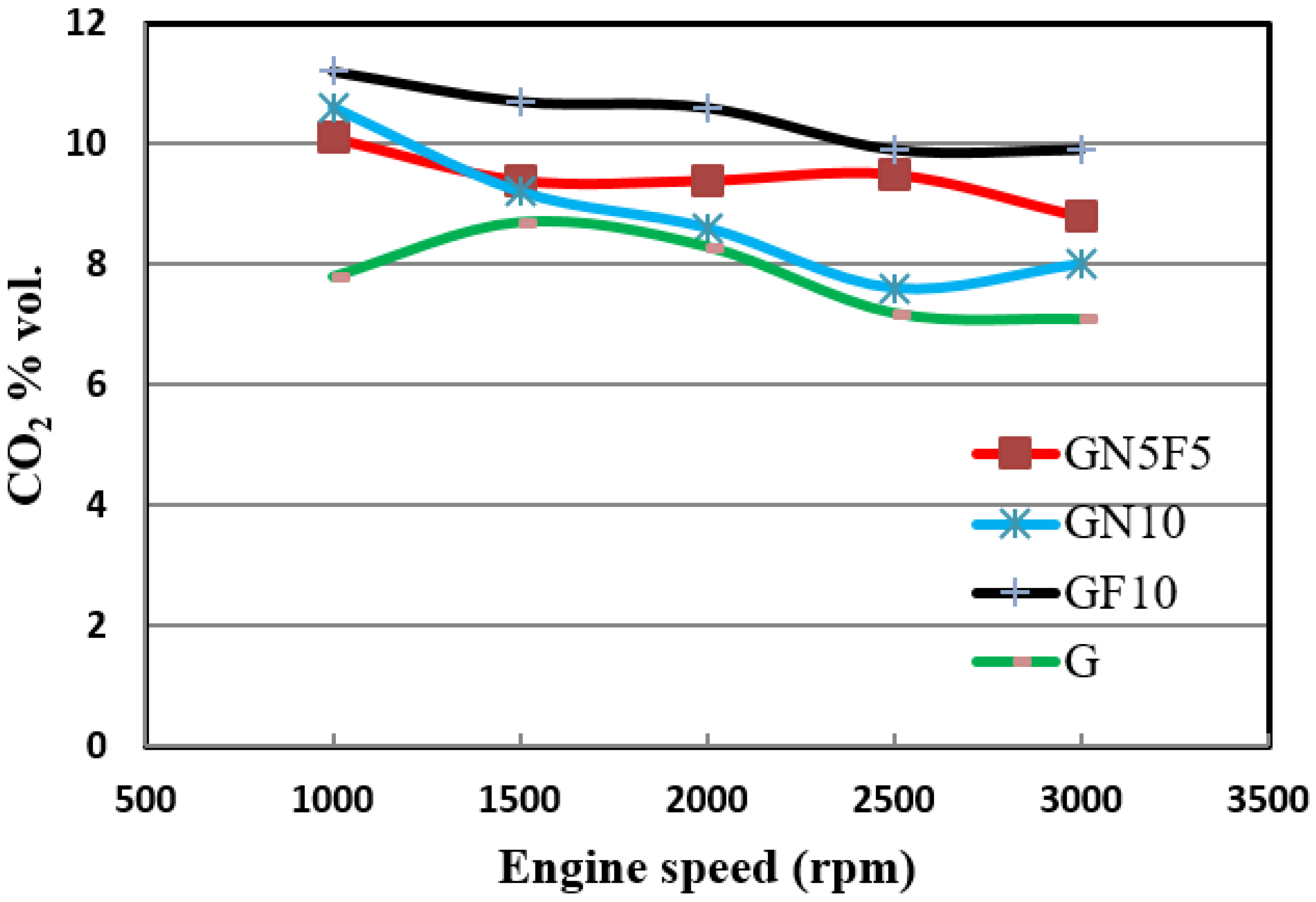

The emission of carbon dioxide (CO₂) derived from the complete combustion of the air–fuel mixture in the combustion chamber is affected strongly by the oxygen content. Figure 7 presents the variation of CO₂ emissions for different tested fuel samples with increasing engine speed. The higher CO₂ emissions obtained with GF10 over the entire engine speed may be attributed to the higher oxygen content of fusel oil. Both naphtha and gasoline showed lower observed CO₂ emissions. However, GN5F5 shows a slight increment in the generation of CO emissions, which is lower than that of GF10. This may be attributed to the higher oxygen content of fusel oil and the moderate effect of the octane number of naphtha on fuel mixture combustion, which indicates complete combustion.

NO and NO₂ are the most common nitrogen oxides as the other oxides quantities are relatively small. NO_x is formed as a by-product from the oxidation of nitrogen molecules inside the cylinder at a high temperature. Most of the literature indicated a reduction in NO_x emission with increasing alcoholic fuel content.

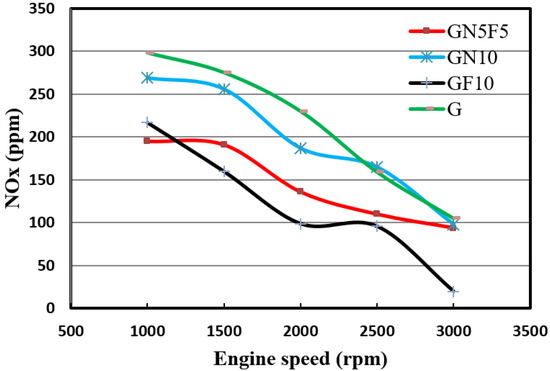

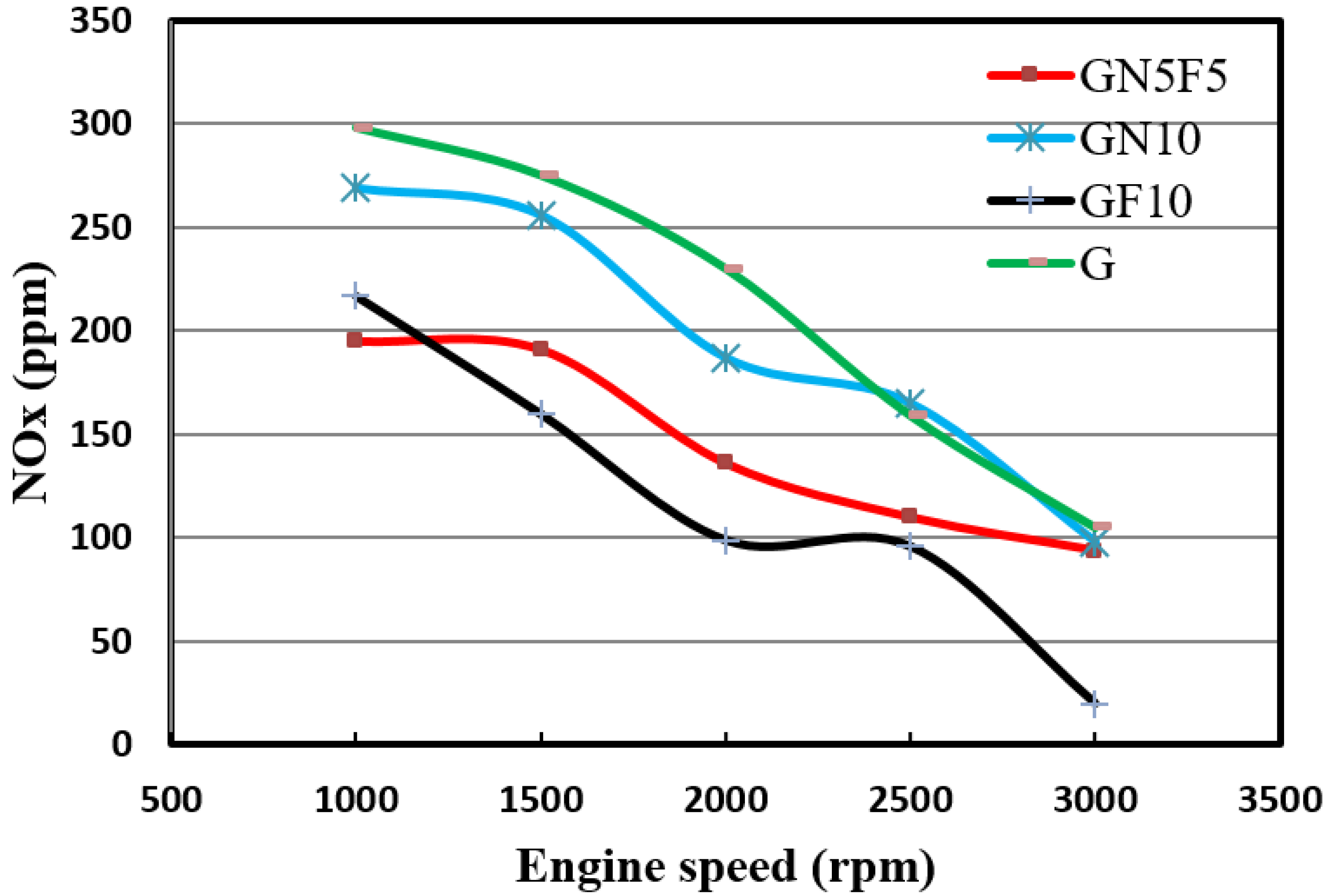

The variations of NO_x emissions for different tested fuel samples with increasing engine speed are shown in Figure 8. In general, the NO_x emissions were decreased as the engine speed increased. The NO_x emission of gasoline is the highest, while that for GF10 is the lowest, which could be explained by the lower in-cylinder temperature due to the cooling effect of fusel oil during the combustion phase. GN5F5 shows slightly higher NO_x emissions than GF10, which is lower than that of GN10 and gasoline.

4. Conclusions

When using fuel additives with gasoline, it is essential to evaluate engine performance exhaust emissions. In this study, fusel oil as octane enhancer and naphtha as an additive with high energy content to the commercial gasoline fuel have been investigated. A blend of commercial gasoline, light naphtha, and fusel oil was used to operate a gasoline engine. Different blends have been investigated in this study, including GN10, GF10, GN5F5, and pure commercial gasoline (G100). Based on the property characterization and engine test results, the following conclusions can be addressed:

• GN5F5 shows higher brake power and lower brake-specific fuel consumption compared to other investigated fuel samples over the whole engine speed.
• Significant variation was observed among the values of BTE with different fuel samples and the higher BTE was observed for GN5F5.
• Varying engine performance was obtained with GN10 and GF10 at increasing engine speed compared to local gasoline fuel (G).
• The higher CO emissions were obtained with GN10 followed by pure gasoline approximately over the entire engine speed range and the minimum CO emissions were observed with GN5F5.
• The higher CO₂ emissions were obtained with GF10 over the entire engine speed while GN5F5 shows a slight increment in the generation of CO emissions, lower than that of GF10.
• Gasoline emits higher NO_x emissions while GF10 is the lowest. GN5F5 shows slightly higher NO_x emissions than GF10, which is lower than GN10 and gasoline.

Finally, it can be concluded that GN5F5 was observed to be a better mixing blend in terms of engine performance and exhaust emissions. This fuel mix can be adopted to enhance engine operation using locally available fuel additives, which mitigates environmental pollution, especially when using waste by-product additives.
