Disentangling the Factors That Contribute to the Growth of Betula spp. and Cunninghami lanceolata in China Based on Machine Learning Algorithms
Abstract
:1. Introduction
2. Materials and Methods
2.1. Study Area
2.2. Data
2.3. Model Development
- Individual tree size: DBH of the individual tree.
- Competition factors: stand density index (SDI), stand origin (ORG), stand canopy density (SCD), and Simpson’s diversity index (SIDI). ORG was divided into 2 categories: plantation and natural [2].
- Bioclimatic factors: Geographical factors, including latitude, LAT (°), longitude, LONG (°), and elevation, ELEV (m). Meteorological factors, including average annual temperature, TEMP (°C) and annual precipitation, PREC (mm).
- Topographical factors: Slope, (SL), aspect, (AZ), and slope position (TPI). There are nine slope directions in the aspect: flat land without slope direction, eight slope directions from north to south and east to west. TPI was categorized into six types based on the topography: ridge, uphill, mid-slope, downhill, valley, and flat ground.
- Soil factors: Soil thickness, ST (cm), and humus thickness, HT (cm).
2.4. Model Validation
3. Results
3.1. ML Algorithms
3.1.1. Model Construction
3.1.2. Model Evaluation
3.2. Disentangling the Factors That Contribute to Tree Growth

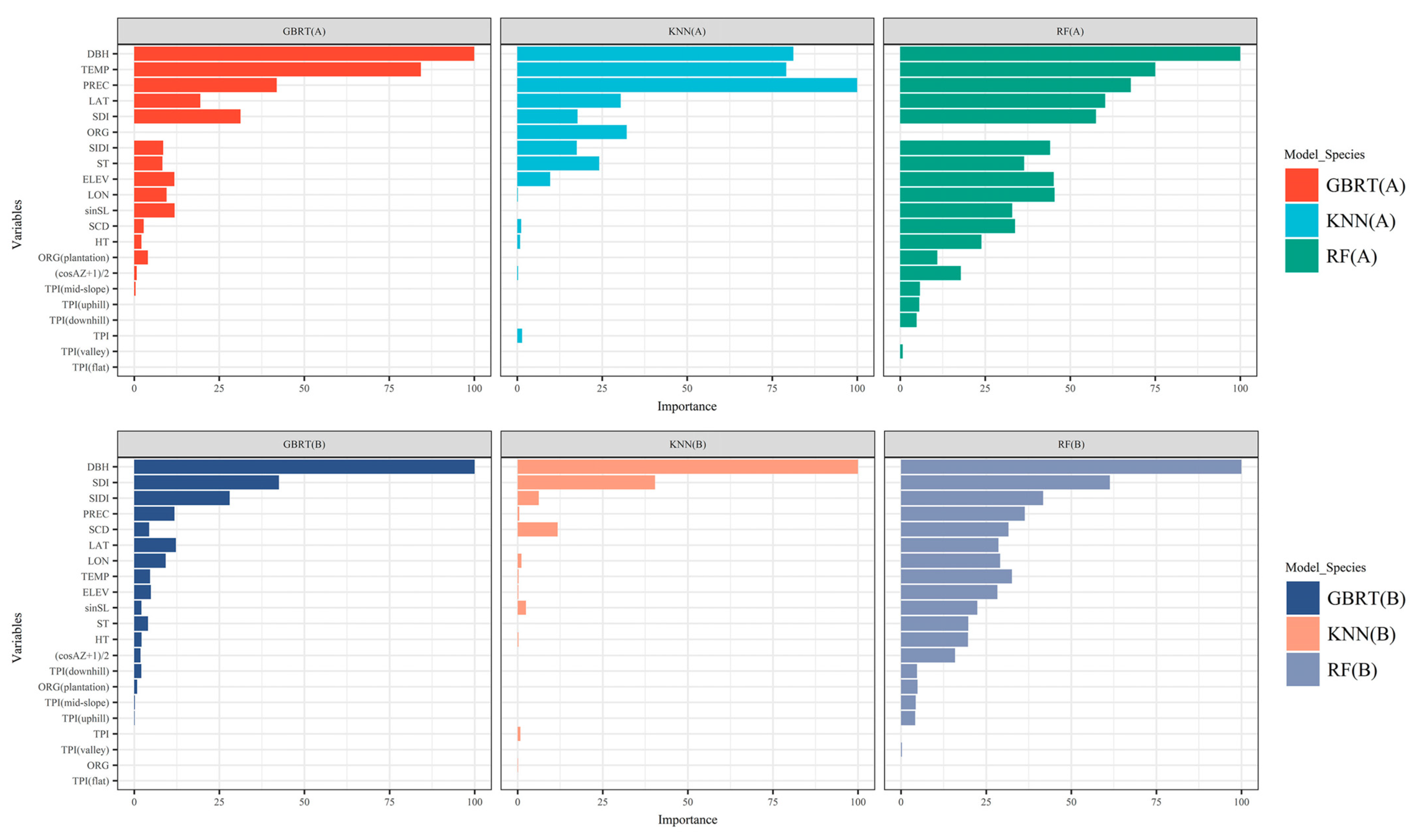

3.2.1. Variation Importance Analysis

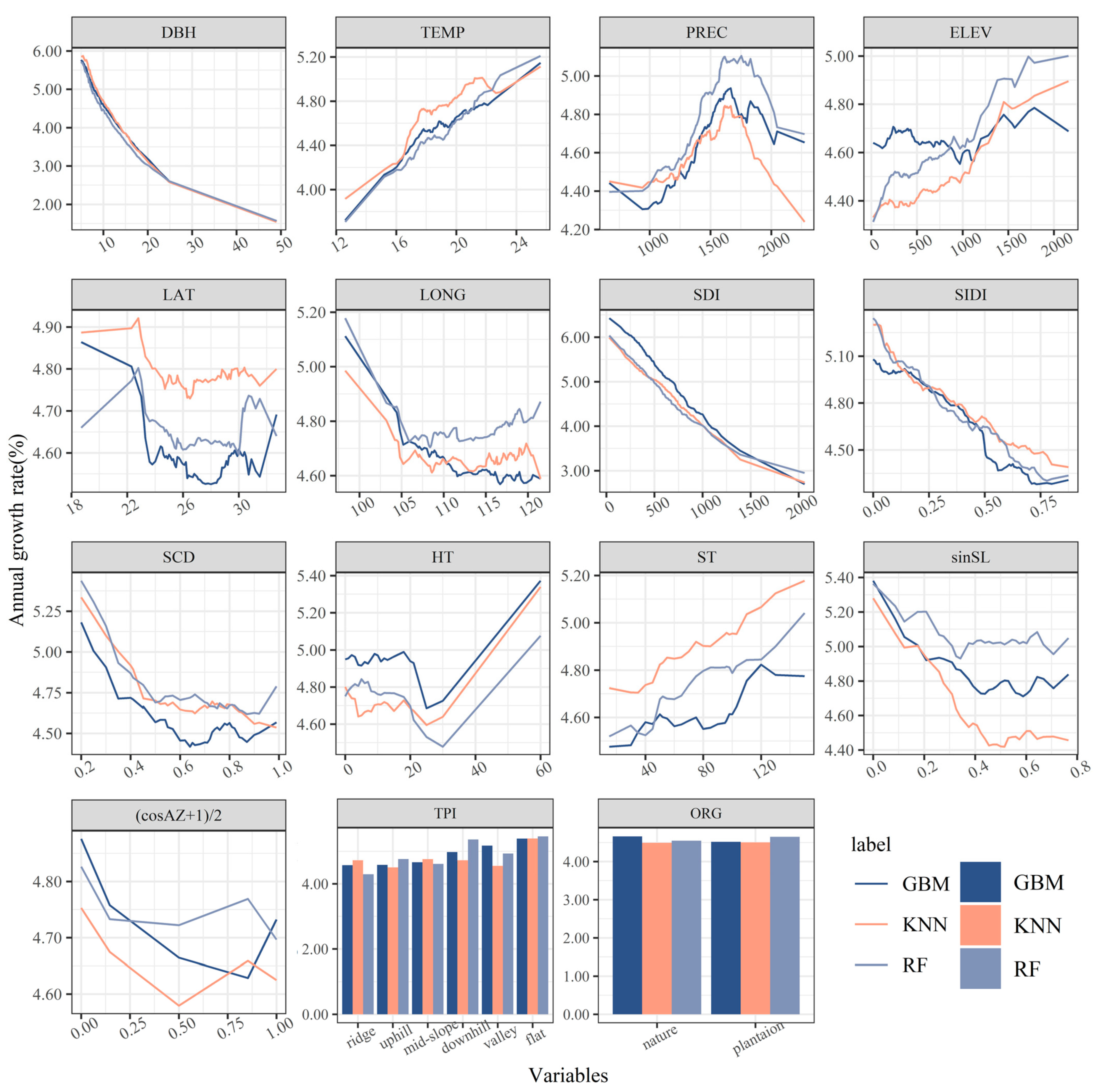

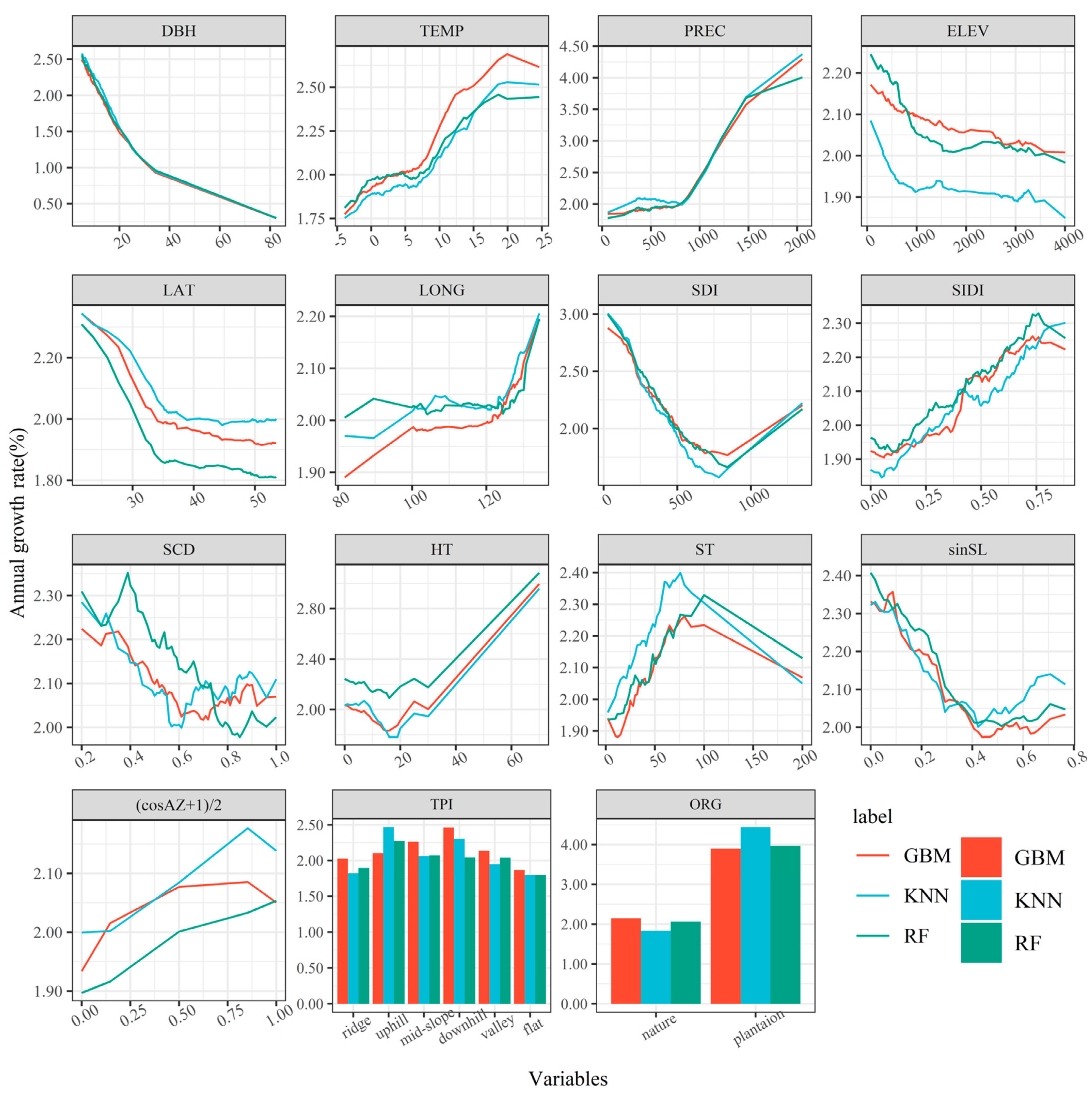

3.2.2. Partial Dependency Analysis
4. Discussion
5. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Zhu, Y.; Feng, Z.; Lu, J.; Liu, J. Estimation of Forest Biomass in Beijing (China) Using Multisource Remote Sensing and Forest Inventory Data. Forests 2020, 11, 163. [Google Scholar] [CrossRef] [Green Version]
- Laubhann, D.; Sterba, H.; Reinds, G.J.; De Vries, W. The impact of atmospheric deposition and climate on forest growth in European monitoring plots: An individual tree growth model. For. Ecol. Manag. 2009, 258, 1751–1761. [Google Scholar] [CrossRef]
- Zeng, W.; Zhang, L.; Chen, X.; Cheng, Z.; Ma, K.; Li, Z. Construction of compatible and additive individual-tree biomass models for Pinustabulaeformis in China. Can. J. For. Res. 2017, 47, 467–475. [Google Scholar] [CrossRef]
- Dobbertin, M. Tree growth as indicator of tree vitality and of tree reaction to environmental stress: A review. Eur. J. For. Res. 2005, 124, 319–333. [Google Scholar] [CrossRef]
- Woollons, R.C.; Snowdon, P.; Mitchell, N.D. Augmenting empirical stand projection equations with edaphic and climatic variables. For. Ecol. Manag. 1997, 98, 267–275. [Google Scholar] [CrossRef]
- Ashraf, M.I.; Zhao, Z.; Bourque, C.P.A.; MacLean, D.A.; Meng, F. Integrating biophysical controls in forest growth and yield predictions with artificial intelligence technology. Can. J. For. Res. 2013, 43, 1162–1171. [Google Scholar] [CrossRef]
- Reis, L.P.; de Souza, A.L.; Mazzei, L.; Dos Reis, P.C.M.; Leite, H.G.; Soares, C.P.B.; Torres, C.M.M.E.; Da Silva, L.F.; Ruschel, A.R. Prognosis on the diameter of individual trees on the eastern region of the amazon using artificial neural networks. For. Ecol. Manag 2016, 382, 161–167. [Google Scholar] [CrossRef]
- Condés, S.; Sterba, H. Comparing an individual tree growth model for Pinus halepensis Mill. in the Spanish region of Murcia with yield tables gained from the same area. Eur. J. For. Res. 2008, 127, 253–261. [Google Scholar] [CrossRef]
- Choi, J.; An, H. A Forest Growth Model for the Natural Broadleaved Forests in Northeastern Korea. Forests 2016, 7, 288. [Google Scholar] [CrossRef]
- Pdp, A.; Cpda, B.; Bd, C.; Ist, D.; Jnms, E.; Prvg, F. An individual-based spatially explicit simulation model for strategic forest management planning in the eastern Amazon. Ecol. Model. 2004, 173, 335–354. [Google Scholar]
- Valle, D.; Phillips, P.; Vidal, E.; Schulze, M.; Grogan, J.; Sales, M.; van Gardingen, P. Adaptation of a spatially explicit individual tree-based growth and yield model and long-term comparison between reduced-impact and conventional logging in eastern Amazonia, Brazil. For. Ecol. Manag. 2007, 243, 187–198. [Google Scholar] [CrossRef]
- Zhao, X.; Feng, Z.; Zhou, Y.; Lin, Y. Key Technologies of Forest Resource Examination System Development in China. Engineering 2020, 6, 491–494. [Google Scholar] [CrossRef]
- Lu, J.; Feng, Z.; Zhu, Y. Estimation of Forest Biomass and Carbon Storage in China Based on Forest Resources Inventory Data. Forests 2019, 10, 650. [Google Scholar] [CrossRef] [Green Version]
- Thurnher, C.; Klopf, M.; Hasenauer, H. MOSES—A tree growth simulator for modelling stand response in Central Europe. Ecol. Model. 2017, 352, 58–76. [Google Scholar] [CrossRef]
- Qiu, Z.X.; Feng, Z.K.; Song, Y.N.; Li, M.L.; Zhang, P.P. Carbon sequestration potential of forest vegetation in China from 2003 to 2050: Predicting forest vegetation growth based on climate and the environment. J. Clean Prod. 2020, 252, 119715. [Google Scholar] [CrossRef]
- Moisen, G.G.; Freeman, E.A.; Blackard, J.A.; Frescino, T.S.; Zimmermann, N.E.; Edwards, T.C. Predicting tree species presence and basal area in Utah: A comparison of stochastic gradient boosting, generalized additive models, and tree-based methods. Ecol. Model. 2006, 199, 176–187. [Google Scholar] [CrossRef]
- Martin, M.P.; Wattenbach, M.; Smith, P.; Meersmans, J.; Jolivet, C.; Boulonne, L.; Arrouays, D. Spatial distribution of soil organic carbon stocks in France. Biogeosciences 2011, 8, 1053–1065. [Google Scholar] [CrossRef] [Green Version]
- Zhang, Y.; Chen, H.Y.H.; Reich, P.B. Forest productivity increases with evenness, species richness and trait variation: A global meta-analysis. J. Ecol. 2012, 100, 742–749. [Google Scholar] [CrossRef]
- Ren, Y.; Chen, S.; Wei, X.; Xi, W.; Luo, Y.; Song, X.; Zuo, S.; Yang, Y. Disentangling the factors that contribute to variation in forest biomass increments in the mid-subtropical forests of China. J. For. Res. 2016, 27, 919–930. [Google Scholar] [CrossRef]
- Beaudoin, A.; Bernier, P.Y.; Guindon, L.; Villemaire, P.; Guo, X.J.; Stinson, G.; Bergeron, T.; Magnussen, S.; Hall, R.J. Mapping attributes of Canada’s forests at moderate resolution through KNN and MODIS imagery. Can. J. For. Res. 2014, 44, 521–532. [Google Scholar] [CrossRef] [Green Version]
- Kilham, P.; Hartebrodt, C.; Kändler, G. Generating Tree-Level Harvest Predictions from Forest Inventories with Random Forests. Forests 2019, 10, 20. [Google Scholar] [CrossRef] [Green Version]
- Sharkovsky, A.N.; Maistrenko, Y.L.; Romanenko, E.Y. Difference Equations and Their Applications; Ser. Mathimatics and Its Applications; Kluwer Academic: Dordrecht, The Netherlands, 1993. [Google Scholar]
- Fang, J.; Shen, Z.; Tang, Z.; Wang, X.; Wang, Z.; Feng, J.; Liu, Y.; Qiao, X.; Wu, X.; ZhengJ, C. Forest community survey and the structural characteristics of forests in China. Ecography 2012, 35, 1059–1071. [Google Scholar] [CrossRef]
- State Forestry and Grassland Administration (SFGA). Forest Resources Report of China: The 9th National Forest Resource Inventory; China Forestry Publishing House: Beijing, China, 2019. (In Chinese) [Google Scholar]
- Zeng, W.; Tomppo, E.; Healey, S.P.; Gadow, K.V. The national forest inventory in China: History—Results—International context. Ecosyst 2015, 2, 23. [Google Scholar] [CrossRef] [Green Version]
- State Forestry and Grassland Administration (SFGA). Technical Specifications on National Continuous Forest Inventory; State Forestry and Grassland Administration (SFGA): Beijing, China, 2014. (In Chinese)
- Adame, P.; Hynynen, J.; Ca Ellas, I.; Río, M.D. Individual-tree diameter growth model for rebollo oak (Quercus pyrenaica Willd.) coppices. For. Ecol. Manag. 2008, 255, 1011–1022. [Google Scholar] [CrossRef]
- Zhu, J.; Zheng, J.; Li, L.; Huang, R.; Ren, H.; Wang, D.; Dai, Z.; Su, X. Application of Machine Learning Algorithms to Predict Central Lymph Node Metastasis in T1-T2, Non-invasive, and Clinically Node Negative Papillary Thyroid Carcinoma. Front. Med. 2021, 8, 635771. [Google Scholar] [CrossRef]
- Elith, J.; Hastie, J. A working guide to boosted regression trees. J. Anim. Ecol. 2008, 77, 802–813. [Google Scholar] [CrossRef]
- Goyal, R.; Chandra, P.; Singh, Y. Suitability of KNN Regression in the Development of Interaction based Software Fault Prediction Models. IERI Procedia 2014, 6, 15–21. [Google Scholar] [CrossRef] [Green Version]
- Ou, Q.; Lei, X.; Shen, C. Individual Tree Diameter Growth Models of Larch–Spruce–Fir Mixed Forests Based on Machine Learning Algorithms. Forests 2019, 10, 187. [Google Scholar] [CrossRef] [Green Version]
- Wang, D.; Thunéll, S.; Lindberg, U.; Jiang, L.; Trygg, J.; Tysklind, M.; Souihi, N. A machine learning framework to improve effluent quality control in wastewater treatment plants. Sci. Total Environ. 2021, 784, 147138. [Google Scholar] [CrossRef]
- Friedman, J. Greedy function approximation: A gradient boosting machine. Ann. Stat. 2001, 29, 1189–1232. [Google Scholar] [CrossRef]
- Huang, S.; Yang, Y.; Wang, Y. A Critical Look at Procedures for Validating Growth and Yield Models. In Modelling Forest Systems; Amaro, A., Reed, D., Soares, P., Eds.; CAB International: Wallingford, UK, 2003. [Google Scholar]
- Zeng, W.; Duo, H.; Lei, X.; Chen, X.; Wang, X.; Pu, Y.; Zou, W. Individual tree biomass equations and growth models sensitive to climate variables for Larix spp. in China. Eur. J. For. Res. 2017, 136, 233–249. [Google Scholar] [CrossRef]
- Zhang, H.; Feng, Z.; Chen, P.; Chen, X. Development of a Tree Growth Difference Equation and Its Application in Forecasting the Biomass Carbon Stocks of Chinese Forests in 2050. Forests 2019, 10, 582. [Google Scholar] [CrossRef] [Green Version]
- Moreno, P.; Palmas, S.; Escobedo, F.; Cropper, W.; Gezan, S. Individual-Tree Diameter Growth Models for Mixed Nothofagus Second Growth Forests in Southern Chile. Forests 2017, 8, 506. [Google Scholar] [CrossRef] [Green Version]
- Han, Y.; Wu, B.; Wang, K.; Guo, E.; Dong, C.; Wang, Z. Individual-tree form growth models of visualization simulation for managed Larix principis-rupprechtii plantation. Comput. Electron. Agric. 2016, 123, 341–350. [Google Scholar] [CrossRef]
- Saud, P.; Lynch, T.B.; Anup, K.C.; Guldin, J.M. Using quadratic mean diameter and relative spacing index to enhance height–diameter and crown ratio models fitted to longitudinal data. Forestry 2016, 89, 215–229. [Google Scholar] [CrossRef] [Green Version]
- Scolforo, H.F.; Scolforo, J.R.S.; Thiersch, C.R.; Thiersch, M.F.; McTague, J.P.; Burkhart, H.; Ferraz Filho, A.C.; de Mello, J.M.; Roise, J. A new model of tropical tree diameter growth rate and its application to identify fast-growing native tree species. For. Ecol. Manag. 2017, 400, 578–586. [Google Scholar] [CrossRef]
- Legates, D.R.; Mccabe, G.J. Evaluating the use of “goodness-of-fit” Measures in hydrologic and hydroclimatic model validation. Water Resour. Res. 1999, 35, 233–241. [Google Scholar] [CrossRef]
- Willmott, C.J. Some Comments on the Evaluation of Model Performance. Bull. Am. Meteorol. Soc. 1982, 63, 1309–1369. [Google Scholar] [CrossRef] [Green Version]
- Webster, C.R.; Lorimer, C.G. Minimum Opening Sizes for Canopy Recruitment of Midtolerant Tree Species: A Retrospective Approach. Ecol. Appl. 2005, 15, 1245–1262. [Google Scholar] [CrossRef]
- Zhang, H.; Feng, Z.; Shen, C.; Li, Y.; Feng, Z.; Zeng, W.; Huang, G. Relationship between the geographical environment and the forest carbon sink capacity in China based on an individual-tree growth-rate model. Ecol. Indic. 2022, 138, 108814. [Google Scholar] [CrossRef]
- Farrior, C.E.; Bohlman, S.A.; Hubbell, S.; Pacala, S.W. Dominance of the suppressed: Power-law size structure in tropical forests. Science 2016, 351, 155. [Google Scholar] [CrossRef] [Green Version]
- Kozak, A.; Kozak, R. Does cross validation provide additional information in the evaluation of regression models? Can. J. For. Res. 2003, 33, 976–987. [Google Scholar] [CrossRef]
- Lhotka, J.M.; Loewenstein, E.F. An individual-tree diameter growth model for managed uneven-aged oak-shortleaf pine stands in the Ozark Highlands of Missouri, USA. For. Ecol. Manag 2011, 261, 770–778. [Google Scholar] [CrossRef]
- Vieira, G.C.; de Mendonça, A.R.; Da Silva, G.F.; Zanetti, S.S.; Da Silva, M.M.; Dos Santos, A.R. Prognoses of diameter and height of trees of eucalyptus using artificial intelligence. Sci. Total Environ. 2018, 619–620, 1473–1481. [Google Scholar] [CrossRef] [PubMed]
- Mehtatalo, L.; De-Miguel, S.; Gregoire, T.G. Modeling height-diameter curves for prediction. Can. J. For. Res. 2015, 45, 826–837. [Google Scholar] [CrossRef] [Green Version]
- Gollob, C.; Ritter, T.; Vospernik, S.; Wassermann, C.; Nothdurft, A. A Flexible Height–Diameter Model for Tree Height Imputation on Forest Inventory Sample Plots Using Repeated Measures from the Past. Forests 2018, 9, 368. [Google Scholar] [CrossRef] [Green Version]
- Troll, C. The upper timberlines in different climatic zones. Arct. Alp. Res. 1973, 5, A3–A18. [Google Scholar]
- Way, D.A.; Oren, R. Differential responses to changes in growth temperature between trees from different functional groups and biomes: A review and synthesis of data. Tree Physiol. 2010, 30, 669–688. [Google Scholar] [CrossRef] [Green Version]
- Gómez-Aparicio, L.; García-Valdés, R.; Ruíz-Benito, P.; Zavala, M.A. Disentangling the relative importance of climate, size and competition on tree growth in Iberian forests: Implications for forest management under global change. Glob. Chang. Biol. 2011, 17, 2400–2414. [Google Scholar] [CrossRef] [Green Version]
- Hart, S.J.; Laroque, C.P. Searching for thresholds in climate–radial growth relationships of Engelmann spruce and subalpine fir, Jasper National Park, Alberta, Canada. Dendrochronologia 2013, 31, 9–15. [Google Scholar] [CrossRef]
- Toledo, M.; Poorter, L.; Peña-Claros, M.; Alarcón, A.; Balcázar, J.; Leaño, C.; Licona, J.C.; Llanque, O.; Vroomans, V.; Zuidema, P.; et al. Climate is a stronger driver of tree and forest growth rates than soil and disturbance. J. Ecol. 2011, 99, 254–264. [Google Scholar] [CrossRef]
- Adams, H.R.; Barnard, H.R.; Loomis, A.K.; University of Colorado. Topography alters tree growth-climate relationships in a semi-arid forested catchment. Ecosphere 2014, 5, t116–t148. [Google Scholar] [CrossRef]
- Scholten, T.; Goebes, P.; Kühn, P.; Seitz, S.; Assmann, T.; Bauhus, J.; Bruelheide, H.; Buscot, F.; Erfmeier, A.; Fischer, M.; et al. On the combined effect of soil fertility and topography on tree growth in subtropical forest ecosystems—A study from SE China. J. Plant Ecol. 2017, 10, 111–127. [Google Scholar] [CrossRef]
- Myburgh, P.A.; Van Zyl, J.L.; Conradie, W.J. Effect of Soil Depth on Growth and Water Consumption of Young Vitis vinifera L. cv Pinot noir. S. Afr. J. Enol. Vitic. 2017, 17, 53–62. [Google Scholar] [CrossRef] [Green Version]
- Liu, J.; Yunhong, T.; Slik, J.W.F. Topography related habitat associations of tree species traits, composition and diversity in a Chinese tropical forest. For. Ecol. Manag 2014, 330, 75–81. [Google Scholar] [CrossRef]
- Coomes, D.A.; Allen, R.B. Effects of size, competition and altitude on tree growth. J. Ecol. 2007, 95, 1084–1097. [Google Scholar] [CrossRef]
- Binkley, D.; Stape, J.L.; Ryan, M.G.; Barnard, H.R.; Fownes, J. Age-related Decline in Forest Ecosystem Growth: An Individual-Tree, Stand-Structure Hypothesis. Ecosystems 2002, 5, 58–67. [Google Scholar] [CrossRef]
Statistics | Unit | Betula spp. | Cunninghamia lanceolata (Lamb.) Hook. | ||||||
---|---|---|---|---|---|---|---|---|---|
Min | Median | Mean | Max | Min | Median | Mean | Max | ||
Annual growth rate | % | 0.03 | 1.33 | 2.03 | 45.08 | 0.06 | 3.44 | 4.69 | 49.31 |
DBH | cm | 5.0 | 10.1 | 11.8 | 83.0 | 5.0 | 9.7 | 10.7 | 49.0 |
Latitude | ° | 21.5 | 41.1 | 41.9 | 53.5 | 18.7 | 26.3 | 26.9 | 32.7 |
Longitude | ° | 81.6 | 116.0 | 113.6 | 134.3 | 98.3 | 114.6 | 113.5 | 121.5 |
Elevation | m | 70 | 1340 | 1679 | 4100 | 20 | 580 | 628 | 2160 |
Annual average temperature | °C | −3.9 | 4.6 | 4.6 | 24.6 | 12.6 | 19.0 | 19.1 | 25.6 |
Annual precipitation | mm | 56.7 | 439.3 | 491.8 | 2053.1 | 666.0 | 1488.0 | 1476.0 | 2274.0 |
Soil thickness | cm | 2 | 45 | 45 | 200 | 15 | 80 | 77 | 150 |
Humus thickness | cm | 0 | 4 | 6 | 70 | 0 | 5 | 8 | 60 |
SinSL | - | 0.0 | 0.3 | 0.3 | 0.8 | 0.0 | 0.5 | 0.5 | 0.8 |
(CosAZ + 1)/2 | - | 0.0 | 0.5 | 0.4 | 1.0 | 0.0 | 0.5 | 0.5 | 1.0 |
Stand canopy density | - | 0.2 | 0.7 | 0.7 | 1.0 | 0.2 | 0.7 | 0.7 | 1.0 |
Simpson’s diversity index | - | 0.0 | 0.4 | 0.4 | 0.9 | 0.0 | 0.3 | 0.3 | 0.9 |
Stand density index | - | 23.0 | 414.5 | 417.9 | 1365.7 | 29.0 | 610.1 | 631.8 | 2060.9 |
Variable | Description | Calculation Criteria |
---|---|---|
SL | Sine of slope | SinSL |
AZ | Cosine variation of aspect | (CosAZ + 1)/2 |
SDI | Stand density index | |
SIDI | Simpson diversity index |
Statistical Indices | Equation | Ideal |
---|---|---|
BIAS: | 0 | |
Root mean square error (RMSE): | 0 | |
Mean absolute error (MAE): | 0 | |
Coefficient of correlation (R2): | 1 | |
Willmott’s Index of Agreement (WIA): | 1 | |
Total relative error (TRE): | 0 |
Model | Betula spp. | Cunninghamia lanceolata (Lamb.) Hook. | ||||
---|---|---|---|---|---|---|
RMSE | R2 | MAE | RMSE | R2 | MAE | |
GBRT | 1.865 | 0.345 | 1.196 | 3.626 | 0.327 | 2.594 |
KNN | 1.599 | 0.519 | 0.946 | 3.144 | 0.491 | 2.114 |
RF | 1.537 | 0.560 | 0.937 | 3.059 | 0.526 | 2.108 |
Species | Verify | Annual Growth-Rata (%) | Future DBH (cm) | ||||
---|---|---|---|---|---|---|---|
GBRT | KNN | RF | GBRT | KNN | RF | ||
Betula spp. | BIAS | 0.008 | −0.004 | −0.005 | −0.01 | −0.02 | −0.04 |
RMSE | 1.888 | 1.582 | 1.528 | 0.90 | 0.74 | 0.75 | |
MAE | 1.200 | 0.933 | 0.932 | 0.60 | 0.47 | 0.48 | |
R2 | 0.345 | 0.540 | 0.571 | 0.981 | 0.987 | 0.987 | |
WIA | 0.675 | 0.840 | 0.832 | 0.995 | 0.997 | 0.997 | |
TRE | 0.398 | −0.186 | −0.253 | −0.070 | −0.137 | −0.324 | |
Cunninghamia lanceolata (Lamb.) Hook. | BIAS | −0.049 | 0.001 | −0.028 | −0.04 | −0.03 | −0.08 |
RMSE | 3.612 | 3.127 | 3.048 | 1.53 | 1.31 | 1.30 | |
MAE | 2.597 | 2.097 | 2.091 | 1.18 | 0.95 | 0.96 | |
R2 | 0.319 | 0.489 | 0.515 | 0.900 | 0.926 | 0.928 | |
WIA | 0.655 | 0.815 | 0.798 | 0.974 | 0.981 | 0.982 | |
TRE | −1.049 | 0.013 | −0.607 | −0.312 | −0.222 | −0.588 |
