Article

Enhancing the Biodiesel Production Potential of Synechococcus elongatus and Anabaena Cyanobacterial Strain Isolated from Saline Water Using Different Media Composition and Organic Carbon Sources

by
Jeevitha Parthiban
1 and
Ranjitha Jambulingam
2,*
1
School of Advanced Science, Vellore Institute of Technology, Vellore 632014, India
2
CO2 Research and Green Technologies Center, Vellore Institute of Technology, Vellore 632014, India
*
Author to whom correspondence should be addressed.
Sustainability 2023, 15(1), 870; https://doi.org/10.3390/su15010870
Submission received: 22 November 2022 / Revised: 14 December 2022 / Accepted: 20 December 2022 / Published: 3 January 2023
(This article belongs to the Special Issue Sustainable and Renewable Energy: Biodiesel Production)
Browse Figures
Review Reports Versions Notes

Abstract

:
In the present study, Synechococcus elongatus and Anabaena, two cyanobacterial species were cultured using different media conditions such as ASN III, modified ASN III, BG-11, and BBM for the enrichment of biomass and lipid productivity. The experimental result clearly shows that BG 11 was the efficient and cost-effective medium for both the isolated cyanobacterial species such as Synechococcus elongatus and Anabaena. The influence of organic carbon sources on biomass and lipid productivity of the selected cyanobacterial species were studied when cultivated in a BG-11 medium using different organic carbon sources such as sucrose, glucose, sodium acetate and glycerol under mixotrophic conditions. Based on the experimental results, the isolated cyanobacterial strain Synechococcus elongatus and Anabaena showed an enriching effect on lipid production under mixotrophic conditions, but whereas Synechococcus elongatus showed a significant effect three times greater lipid productivity compared with Anabaena cyanobacterial strain, by the addition of glycerol as a supplement to the culture media.

1. Introduction

Microalgae are microscopic in size that can be found in both freshwater and seawater [1,2]. More than 30,000 different species have already been separated and identified, and they can be divided into prokaryotic cyanobacteria (or) eukaryotic microorganisms [3]. These microorganisms carry out photosynthesis as a natural mechanism for reducing the carbon dioxide concentration in the atmosphere. The short generation time and exponential growth of microalgae in a favorable environment are the main characteristics of microalgae [4]. Generally, three types of cultivation techniques were used for the growth of microalgae species, and they are autotrophy, heterotrophy, and mixotrophy cultivation techniques. These cultivation techniques were used based on environmental factors that are required for their metabolism [5,6]. The majority of autotrophic cultivation is carried out in the open pond and closed photobioreactor (PBR) systems. Generally, organic compounds are used as a carbon source, which is required for energy production in heterotrophic cultivation [7]. Under mixotrophic metabolism, a two-stage growth system, the first stage is a heterotrophic process, when the organic carbon content is high, and the second stage is autotrophic, which starts the initiation of photosynthesis. Microalgae have the tendency to capture CO2 and utilize it as an energy source for biomass and lipid production [7,8,9]. Most of the microalgae can utilize flue gas emissions from the environment for their nutritional needs [10] and remove pollutants from wastewater [11,12]. Furthermore, microalgal biomass has several applications, such as phytomedicines, bioethanol, biomethane, biohydrogen, biodiesel, etc. In most cases, microalgae containing high lipids content can be used for the production of biodiesel in the majority of developed nations [13]. During the extraction of the fatty acids, the microalgal residue was used for the production of bio-methane, bio-ethanol and bio-diesel [13,14,15,16,17,18,19,20,21]. It is a source of amino acids, pigments, and vitamins in the cosmetic and pharmaceutical industries [22,23]. Consequently, microalgae are essential in biofertilization, promoting the growth of various plants. The present research work is mainly focused on the growth optimization study of the isolated cyanobacterial species Synechococcus elongatus and Anabaena from seawater using different carbon sources in the presence of different media conditions.

2. Materials and Methods

2.1. Isolation and Screening of Cyanobacterial Strains

The seawater samples were collected from Keelakkarai, Pamban coastal location of the Ramanathapuram district. To keep the cyanobacterial cultures active, the collected seawater sample was put into a sterile bottle and stored at 30 ± 2 °C. These samples were cultured in ASN III, BG-11, modified ASN III and BBM medium and kept the cultures for incubation for about seven days. After a week, the culture begins to use the medium for development, and the conical flasks start to show filamentous growth. In modified ASN III, BG-11, ASN III and BBM medium, cyanobacteria were grown in the medium. In direct isolation, the selected colonies were picked from the ASN III, BG-11, modified ASN III and BBM medium and viewed under a compound microscope. The water sample was serially diluted using distilled water under a laminar airflow chamber for serial dilution and streak plate method. The various concentrations ranged between 10−9, 10−8, 10−7, 10−6, 10−5, 10−4, 10−3, 10−2, and 10−1 were diluted and used for further sampling. A total of 1 mL of the stock solution was diluted with 9 mL of distilled water using a micropipette. Each 1 mL of the sample was taken from the previously mixed solution. The selected colonies were inoculated at ASN III, BG-11, modified ASN III and BBM medium and kept at 30 ± 2 °C. The pure colonies were cultured in ASN III, BG-11, modified ASN III and BBM medium in a rotary shaker at 250 rpm under photoperiod at RT 30 ± 2 °C. Finally, the obtained pure cultures were used for mass culturing of the isolated cyanobacterial strains.

2.2. Mass Culturing of Isolated Cyanobacterial Strain

The isolated cyanobacterial strain isolated from saline water was cultivated in different culture mediums to analyze the significant impact on growth metabolism and lipid productivity. The four different media used in the photoautotrophic cultivation of the isolated cyanobacterial strains are ASN III, BG11 [24], BBM, and modified ASN III [25].

2.3. Influence of Organic Carbon Sources on Lipid and Biomass Production

The impact of various sources of carbon such as glycerol, sucrose, sodium acetate and glucose was added to the isolated cyanobacterial strains and tested in the ASN III media, modified ASN III BG-11 and BBM. In the experiment, 0.5 g/L quantity of different organic sources such as glycerol, sucrose, sodium acetate and glucose under a sterilized medium. The experiments were performed for approximately 16 days at pH 7.3 (30 °C) under fluorescent lamp conditions.

2.4. Media Optimization and Analytical Characterization Studies

The optical density at 680 nm (OD680) was used for the measurement of algal biomass (g/L), using a UV-visible spectrophotometer (Hitachi 5300) to measure the growth of microalgae. For the estimation of biomass, a sample of algae in the amount of 50 mL was filtered through a Whatman filter that had been pre-weighed before being dried in an oven at 60 °C until constant weight. The biomass productivity P (mg/L/day) was determined using empirical formula;
P = (W2 − W1)/T
where T = cultivation time; W2 = biomass concentration of the last day; W1 = initial biomass concentration.

2.5. Extraction of Lipid from Microalgal Biomass

The lipid was extracted from the isolated cyanobacterial strain by the Folch extraction method [26]. Initially, 500 mg of biomass was treated with 10 mL of chloroform/methanol (2:1 v/v), and the mixture was stirred at room temperature for 30 min. The cell debris and supernatant were separated from the mixture by centrifuging it at 6000 rpm for 15 min. This supernatant was rinsed with 1% NaCl solution and agitated in a vortex mixture for 10 min and centrifuged for 15 min at 3000 rpm and the lower chloroform layer with lipid was removed and collected for further processing. The collected organic layer contains lipids, and excess solvent was removed using a distillation process. Using gravimetric, the lipid content was determined. The following equation was used to compute the lipid productivity (mg/L/d):
Lipid productivity = (Lipid contentt × W1-Lipid contento × W2)/t × 1000
where Lipid contento = Algal cells’ initial lipid concentration; Lipid contentt = the level of lipids on the final day of cultivation.

2.6. Evaluation of the Fatty Acid Profile and Fuel Properties

The lipid extracted from the microalgal strain was converted into fatty acid methyl esters using the Folch method. A molar ratio of (6:1) methanol and lipid was treated with 2.5 mL of 1% potassium hydroxide and heated in a magnetic stirrer for about 3 h at 55 °C. After 3 h, the resulting solution was washed with 15 mL of n-hexane as an organic solvent. The organic layer was separated from the aqueous layer and the organic layer was further distilled using a simple distillation unit to remove the excess of the solvent and finally obtained the product as FAME (Fatty acid methyl esters) [27]. Fatty acids in 200 µL hexane were used for the analysis of a gas chromatograph (Agilent 8890 series) fitted with a Flame Ionization Detector (FID) with a flow rate of 1 mL/min. Fatty acids peaks were identified using a GC analysis of their retention period with an actual standard and were then standardized. As an internal standard, heptadecanoic acid was used. The fuel characteristics of the biodiesel produced from S. elongatus species were analyzed using standard protocol [28].

3. Results and Discussion

Synechococcus elongatus and Anabaena are two different cyanobacterial strains isolated from saline water and belong to the families Synechococcaceae and Nostocaceae and class Cyanophyceae respectively. The two cyanobacteria strain morphology was identified using an optical microscope. The individual single colony cells ranged from size 2 to 10 µm. Microalgal cells are spherical, unicellular, and green in color. The two cyanobacterial species, Synechococcus elongatus and Anabaena, were cultivated in 500 mL Erlenmeyer flasks (conical flasks) with 250 mL of each of four media: ASN III, modified ASN III BG-11, and BBM. The findings showed that, in all media, the isolated microalgal species exhibited a lag time of 2 days and an exponential phase of 6 days and finally reaching the stationary phase as shown in Figure 1a,b. Consequently, the selected microalgal strain biomass dry weight (OD) does not remain constant with optical density when varying the growth media conditions. Figure 2 shows the dry-weight biomass concentration of different media compositions of the isolated microalgal strain at the stationary phase. Among the two microalgal strains, modified ASN III (1.45 ± 0.07 g/L), ASN III (1.39 ± 0.06 g/L), BBM (1.59 ± 0.07 g/L) and BG-11 (1.65 ± 0.08 g/L) and showed significant biomass concentrations were found in Synechococcus elongatus, respectively. In BG-11, Anabaena (1.55 ± 0.07 g/L) exhibited the highest biomass concentrations. This is due to the increased concentrations of nitrogen which are accelerating biomass growth [29]. Modified ASN III exhibited the highest nitrogen concentration, which resulted in reduced biomass concentration [29].
The percentage of lipids to biomass dry weight and lipid content were recorded under different medium conditions. A significant difference in lipid content between the isolated strains and culture conditions and biomass concentration was observed. Figure 3 and Figure 4 illustrate the lipid contents and productivity of two isolated microalgal strains under different culture mediums. In Synechococcus elongatus, BBM media showed the highest lipid content at 15.90 ± 0.75%, whereas Anabaena at 13.03 ± 0.41% showed comparatively less than S. elongatus in BBM. In the ASN III growth medium, the lowest level of lipid content for both the isolated microalgal strains. Synechococcus elongatus exhibits the highest lipid productivity at 13.10 ± 0.6 mg/L/d, followed by Anabaena at 11.28 ± 0.61 mg/L/d showed comparatively less than S. elongatus. The selection of culture media is influenced by a number of variables, including the desired product, medium cost and growth rate. For the biomass growth and lipid productivity of different microalgae, nutrient plays a vital role in the growth metabolism. Under nitrogen-starvation situation causes higher fat accumulation supports these findings [30,31,32,33]. The selected media ASN III and modified ASN III exhibited the lowest lipid content and productivity on average, followed by BBM and BG-11, while ASN III exhibited the highest on average, according to a comparison of culture media. When microalgae are grown under unfavorable conditions, including lacking nutrients, their lipid content often rises [30,31,32]. Li et al. (2012) reported that nitrogen content can increase the lipid percentage of some microalgae species by up to 30%. In comparison to the BG-11 medium, nitrogen-rich showed enhanced lipid productivity, whereas BBM medium showed significant lipid content and productivity due to its lower phosphate and nitrogen concentrations [29].

3.1. Impact of Organic Carbon Sources on Lipid and Biomass Productivity

Two cyanobacterial strains, Synechococcus elongatus and Anabaena, were cultivated in an optimized BG-11 medium with various organic carbon sources at room temperature under a 16:8 light: dark cycle [34]. Different organic carbon sources, such as glycerol, sucrose, glucose and sodium acetate, were used with a fixed concentration of (0.5 g/L) to enhance the lipid and biomass production of the selected cyanobacterial strains. Under the mixotrophic growth of two cyanobacterial strains, glucose was shown to be the best organic carbon source, such as glycerol, sodium acetate, and sucrose. According to the study, when glucose was added, Synechococcus elongatus and Anabaena produced their highest levels of biomass at 2.15 and 1.85 g/L, respectively, during the stationary phase Figure 5a,b. Similarly, in the medium supplemented with glucose along with the isolated microalgal strains and achieved the highest biomass productivity was 274.46 mg/L/day for Synechococcus elongatus and 240 mg/L/day for Anabaena, respectively. These results show glucose is an effective carbon source for enhancing microalgal biomass productivity [35,36,37,38].
Out of the four carbon sources, glycerol showed significant lipid content in Synechococcus elongatus, but Anabaena showed lesser lipid content compared with Synechococcus elongatus (Figure 6). Synechococcus elongatus and Anabaena both produce 24.12% and 17.19% of the lipid, respectively. In the glycerol medium, the lipid yield was analyzed and found to be 491.04 mg/L for Synechococcus elongatus and 370 mg/L for Anabaena. This is because glucose is converted into glucose-6-phosphate into pyruvate and enters the TCA cycle, where it is used to produce pyruvate into ATP via the mitochondrial oxidative phosphorylation pathway [39,40]. The maximal lipid productivity for Synechococcus elongatus and Anabaena was found to be 50.17 mg/L/d and 35.89 mg/L/d, respectively, in the glycerol medium (Figure 7).

3.2. Analytical Characterization of the Lipids and Biodiesel Obtained from the Isolated Cyanobacterial Strains

The lipids obtained from the isolated microalgae (Synechococcus elongatus and Anabaena) were analyzed in a GC instrument to identify the fatty acid content, as shown in Table 1. Based on the GC results, Synechococcus elongatus contains higher saturated fatty acid levels (33%) than Anabaena (30%). The extensive survey suggests that the perfect biodiesel should contain a certain quantity of saturated and polyunsaturated fatty acids to sustain its strong oxidative stability and overwhelm the cold flow model [41,42]. Monounsaturated fatty acids, such as oleic acid (18:1) and palmitoleic acid (16:1), are essential for achieving the optimal balance between oxidative stability and cold flow [41,42]. Reports indicate that biodiesel blends with a larger proportion of C16–C18 fatty acids have excellent fuel properties [41]. As demonstrated in Table 1, linolenic (18:3), oleic (18:1), palmitic (16:0), linoleic (18:2), palmitoleic (16:1) and stearic (18:0) acids constitute the primary components of the fatty acid compositions of the isolated cyanobacterial strains. Lower biodiesel oxidation stability is caused by a higher polyunsaturated fatty acid, according to European standards EN14214 [41]. The lowest concentration of linolenic acid (C18:3) was found in Synechococcus elongatus (6.1%), and the highest concentration was found in Anabaena (5.49%).
The biodiesel produced from Synechococcus elongatus and Anabaena was tested for their fuel properties, as shown in Table 2. The total quantity of biodiesel unsaturation was analyzed by iodine value. The polymerization of glycerides and the deposit of lubricant in the engine could happen as a result of the biodiesel’s higher iodine value [43]. According to European Standard EN 14214, the iodine value of biodiesel should not be higher than 120 g I2/100 g. According to this study, Anabaena has the lowest iodine value (88.17), while Synechococcus elongatus has the highest value (93.04). The biodiesel should contain the least cetane value should be 47, 45 and 51, respectively, according to ASTMD6751, European (EN 14214), Australian, and National Petroleum Agency (ANP255) standards. The presence of saturated fatty acids in lipids has a significant impact on these characteristics. The cetane values of Synechococcus elongatus and Anabaena in this experiment were found to be 57.42 and 53.51, respectively. The oxidative stability must be greater than 6 h, according to EN 14214. The biodiesel produced by the Synechococcus elongatus shows oxidative stability at 6.8 h, whereas Anabaena shows oxidative stability at 6.1 h. They could point range of ASTM D6751 is −3 to 12 °C, and the pour point range is −15 to 20 °C. For Synechococcus elongatus and Anabaena, the cloud point ranges are 10.81 and 5.7 °C, respectively, whereas the pour point ranges are 3.18 and 4.11 °C. Calorific value, a measure of the amount of energy released during fuel combustion, was found to be lowest for Anabaena (39.11 MJ/Kg) and highest for Synechococcus elongatus (40.18 MJ/Kg) [44]. Based on the above fuel properties, the biodiesel produced from the lipids of Synechococcus elongatus and Anabaena can be used as biofuel in the diesel engine after analysis of their engine characteristics in the future at the industry level.

4. Conclusions

The present study concludes that two cyanobacterial species, Synechococcus elongatus and Anabaena, were isolated from the saline water. The isolated cyanobacterial strain was cultivated in four different culture mediums to enhance biomass and lipid productivity. Out of all four, ASN III, BG-11 modified ASN III, and BBM medium showed significant lipid production in BG11 when supplemented with glycerol. Synechococcus elongatus showed higher lipid content compared with the Anabaena species in BG-11, growth media supplemented with glycerol under mixotrophic conditions. Synechococcus elongatus and Anabaena can be potential candidates for the production of biodiesel production based on their fatty acid composition and fuel properties. The biodiesel produced from Synechococcus elongatus and Anabaena was further tested for engine characteristics to use in diesel engines as a fuel in the future at the industry level.

Author Contributions

Methodology, R.J.; Formal analysis, J.P.; Investigation, J.P.; Writing—original draft, J.P.; Supervision, R.J. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data from this study are available.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Nigam, P.S. Microbial enzymes with special characteristics for biotechnological applications. Biomolecules 2013, 3, 597–611. [Google Scholar] [CrossRef] [PubMed]
  2. Barbera, E.; Sforza, E.; Kumar, S.; Morosinotto, T.; Bertucco, A. Cultivation of Scenedesmusobliquus in liquid hydrolysate from flash hydrolysis for nutrient recycling. Bioresour. Technol. 2016, 207, 59–66. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Torres-Carvajal, L.; Gonza´lez-Delgado, A.; Barajas, A.; Urbina-Suarez, N. The effects of wavelength and salinity on biomass production from Haematococcuspluvialis. Contemp. Eng. Sci. 2017, 10, 1693–1700. [Google Scholar] [CrossRef]
  4. Mata, T.M.; Martins, A.A.; Caetano, N.S. Microalgae for biodiesel production and other applications: A review. Renew. Sustain. Energy Rev. 2010, 14, 217–232. [Google Scholar] [CrossRef] [Green Version]
  5. Buono, S.; Colucci, A.; Angelini, A.; Langellotti, A.L.; Massa, M.; Martello, A.; Fogliano, V.; Dibenedetto, A. Productivity and biochemical composition of Tetradesmusobliquus and Phaeodactylumtricornutum: Effects of different cultivation approaches. J. Appl. Phycol. 2016, 28, 3179–3192. [Google Scholar] [CrossRef]
  6. Adesanya, V.O.; Davey, M.P.; Scott, S.A.; Smith, A.G. Kinetic modelling of growth and storage molecule production in microalgae under mixotrophic and autotrophic conditions. Bioresour. Technol. 2014, 157, 293–304. [Google Scholar] [CrossRef]
  7. Chen, C.-Y.; Yeh, K.-L.; Aisyah, R.; Lee, D.-J.; Chang, J.-S. Cultivation, photobioreactor design and harvesting of microalgae for biodiesel production: A critical review. Bioresour. Technol. 2011, 102, 71–81. [Google Scholar] [CrossRef]
  8. Zhan, J.; Rong, J.; Wang, Q. Mixotrophic cultivation, a preferable microalgae cultivation mode for biomass/bioenergy production, and bioremediation, advances and prospect. Int. J. Hydrogen Energy 2017, 42, 8505–8517. [Google Scholar] [CrossRef]
  9. Moon, M.; Kim, C.W.; Park, W.-K.; Yoo, G.; Choi, Y.-E.; Yang, J.-W. Mixotrophic growth with acetate or volatile fatty acids maximizes growth and lipid production in Chlamydomonas reinhardtii. Algal Res. 2013, 2, 352–357. [Google Scholar] [CrossRef]
  10. Shu, C.-H.; Tsai, C.-C. Enhancing oil accumulation of a mixed culture of Chlorella sp. and Saccharomyces cerevisiae using fish waste hydrolysate. J. Taiwan Inst. Chem. Eng. 2016, 67, 377–384. [Google Scholar] [CrossRef]
  11. Lam, M.K.; Lee, K.T. Renewable and sustainable bioenergies production from palm oil mill effluent (POME): Win–win strategies toward better environmental protection. Biotechnol. Adv. 2011, 29, 124–141. [Google Scholar] [CrossRef] [PubMed]
  12. Go´mez-Serrano, C.; Morales-Amaral, M.D.M.; Aci_en, F.G.; Escudero, R.; Fernández-Sevilla, J.M.; Molina-Grima, E. Utilization of secondary-treated wastewater for the production of freshwater microalgae. Appl. Microbiol. Biotechnol. 2015, 99, 6931–6944. [Google Scholar] [CrossRef] [PubMed]
  13. Han, J.; Thomsen, L.; Pan, K.; Thomsen, C. Two-step process: Enhanced strategy for wastewater treatment using microalgae. Bioresour. Technol. 2018, 268, 608–615. [Google Scholar] [CrossRef] [PubMed]
  14. Wang, K.; Brown, R.C.; Homsy, S.; Martinez, L.; Sidhu, S.S. Fast pyrolysis of microalgae remnants in a fluidized bed reactor for bio-oil and biochar production. Bioresour. Technol. 2013, 127, 494–499. [Google Scholar] [CrossRef]
  15. Hirano, A.; Ueda, R.; Hirayama, S.; Ogushi, Y. CO2 fixation and ethanol production with microalgal photosynthesis and intracellular anaerobic fermentation. Energy 1997, 22, 137–142. [Google Scholar] [CrossRef]
  16. Ross, A.; Biller, P.; Kubacki, M.; Li, H.; Lea-Langton, A.; Jones, J. Hydrothermal processing of microalgae using alkali and organic acids. Fuel 2010, 89, 2234–2243. [Google Scholar] [CrossRef]
  17. Tsapekos, P.; Kougias, P.; Alvarado-Morales, M.; Kovalovszki, A.; Corbie`re, M.; Angelidaki, I. Energy recovery from wastewater microalgae through anaerobic digestion process: Methane potential, continuous reactor operation and modelling aspects. Biochem. Eng. J. 2018, 139, 1–7. [Google Scholar] [CrossRef]
  18. Becker, E.V. Micro-algae as a source of protein. Biotechnol. Adv. 2007, 25, 207–210. [Google Scholar] [CrossRef]
  19. Fernandes, B.; Dragone, G.; Abreu, A.P.; Geada, P.; Teixeira, J.; Vicente, A. Starch determination in Chlorella vulgaris—A comparison between acid and enzymatic methods. J. Appl. Phycol. 2012, 24, 1203–1208. [Google Scholar] [CrossRef] [Green Version]
  20. Koyande, A.K.; Chew, K.W.; Rambabu, K.; Tao, Y.; Chu, D.-T.; Show, P.-L. Microalgae: A potential alternative to health supplementation for humans. Food Sci. Hum. Wellness 2019, 8, 16–24. [Google Scholar] [CrossRef]
  21. Milledge, J.J. Commercial application of microalgae other than as biofuels: A brief review. Rev. Environ. Sci. Biotechnol. 2019, 10, 31–41. [Google Scholar] [CrossRef]
  22. Sampath-Wiley, P.; Neefus, C.D.; Jahnke, L.S. Seasonal effects of sun exposure and emersion on intertidal seaweed physiology: Fluctuations in antioxidant contents, photosynthetic pigments and photosynthetic efficiency in the red alga Porphyra umbilicalis Kützing (Rhodophyta, Bangiales). J. Exp. Mar. Biol. Ecol. 2008, 83–91. [Google Scholar] [CrossRef]
  23. Barsanti, L.; Gualtieri, P. Algae: Anatomy, Biochemistry, and Biotechnology; CRC Press: Boca Raton, FL, USA, 2014. [Google Scholar]
  24. Safi, C.; Zebib, B.; Merah, O.; Pontalier, P.-Y.; Vaca-Garcia, C. Morphology, composition, production, processing and applications of Chlorella vulgaris: A review. Renew. Sustain. Energy Rev. 2014, 35, 265–278. [Google Scholar] [CrossRef] [Green Version]
  25. Ilavarasi, A.; Mubarakali, D.; Praveenkumar, R.; Baldev, E.; Thajuddin, N. Optimization of various growth media to freshwater microalgae for biomass production. Biotechnology 2011, 10, 540–545. [Google Scholar] [CrossRef] [Green Version]
  26. Rippka, R.; Deruelles, J.; Waterbury, J.B.; Herdman, M.; Stanier, R.Y. Generic assignments, strain histories and properties of pure cultures of cyanobacteria. J. Gen. Microbiol. 1979, 111, 1–61. [Google Scholar] [CrossRef] [Green Version]
  27. Folch, J.; Lees, M.; Sloane Stanley, G. A simple method of isolation and purification of total lipids from animal tissues. J. Biol. Chem. 1957, 226, 497–509. [Google Scholar]
  28. Kumari, P.; Reddy, C.R.K.; Jha, B. Comparative evaluation and selection of a method for lipid and fatty acid extraction from macroalgae. Anal. Biochem. 2011, 415, 134–144. [Google Scholar] [CrossRef]
  29. Sinha, S.K.; Gupta, A.; Bharalee, R. Production of biodiesel from freshwater microalgae and evaluation of fuel properties based on fatty acid methyl ester profile. Biofuels 2016, 7, 69–78. [Google Scholar] [CrossRef]
  30. Li, Y.; Fei, X.; Deng, X. Novel molecular insights into nitrogen starvation-induced triacylglycerols accumulation revealed by differential gene expression analysis in green algae Micractiniumpusillum. Biomass Bioenergy 2012, 42, 199–211. [Google Scholar] [CrossRef]
  31. Gareth, G.; Abdul, K.H.; Vikas, S.; Ganesh, D. Key Targets for Improving Algal Biofuel Production. Clean Technol. 2021, 3, 711–742. [Google Scholar] [CrossRef]
  32. Converti, A.; Casazza, A.A.; Ortiz, E.Y.; Perego, P.; Del Borghi, M. Effect of temperature and nitrogen concentration on the growth and lipid content of Nannochloropsisoculata and Chlorella vulgaris for biodiesel production. Chem. Eng. Process. Process Intensif. 2009, 48, 1146–1151. [Google Scholar] [CrossRef]
  33. Feng, P.; Deng, Z.; Hu, Z.; Fan, L. Lipid accumulation and growth of Chlorella zofingiensis in flat plate photobioreactors outdoors. Bioresour. Technol. 2011, 102, 10577–10584. [Google Scholar] [CrossRef] [PubMed]
  34. Griffiths, M.J.; Harrison, S.T.L. Lipid productivity as a key characteristic for choosing algal species for biodiesel production. J. Appl. Phycol. 2009, 21, 493–507. [Google Scholar] [CrossRef]
  35. Sharma, A.K.; Sahoo, P.K.; Singhal, S. Comparative evolution of biomass production and lipid accumulation potential of Chlorella species grown in a bubble column photobioreactor. Biofuels 2016, 7, 389–399. [Google Scholar] [CrossRef]
  36. Sun, Y.; Liu, J.; Xie, T.; Xiong, X.; Liu, W.; Liang, B.; Zhang, Y. Enhanced lipid accumulation by Chlorella vulgaris in a two-stage fed-batch culture with glycerol. Energy Fuels 2014, 28, 3172–3177. [Google Scholar] [CrossRef]
  37. Perez-Garcia, O.; Escalante, F.M.E.; de-Bashan, L.E.; Bashan, Y. Heterotrophic cultures of microalgae: Metabolism and potential products. Water Res. 2011, 45, 11–36. [Google Scholar] [CrossRef]
  38. Cheirsilp, B.; Torpee, S. Enhanced growth and lipid production of microalgae under mixotrophic culture condition: Effect of light intensity, glucose concentration and fed-batch cultivation. Bioresour. Technol. 2012, 110, 510–516. [Google Scholar] [CrossRef]
  39. Yang, C.; Hua, Q.; Shimizu, K. Energetics and carbon metabolism during growth of microalgal cells under photoautotrophic, mixotrophic and cycliclight-autotrophic/dark-heterotrophic conditions. Biochem. Eng. J. 2000, 6, 87–102. [Google Scholar] [CrossRef]
  40. Lu, J.; Sheahan, C.; Fu, P. Metabolic engineering of algae for fourth generation biofuels production. Energy Environ. Sci. 2011, 4, 2451–2466. [Google Scholar] [CrossRef]
  41. Cao, H.; Zhang, Z.; Wu, X.; Miao, X. Direct Biodiesel Production from Wet Microalgae Biomass of Chlorella pyrenoidosa through In Situ Transesterification. BioMed Res. Int. 2013, 2013, 930686. [Google Scholar] [CrossRef] [Green Version]
  42. Knothe, G. Improving biodiesel fuel properties by modifying fatty ester composition. Energy Environ. Sci. 2009, 2, 759–766. [Google Scholar] [CrossRef]
  43. Hoekman, S.K.; Broch, A.; Robbins, C.; Ceniceros, E.; Natarajan, M. Review of biodiesel composition, properties, and specifications. Renew. Sustain. Energy Rev. 2012, 16, 143–169. [Google Scholar] [CrossRef]
  44. Francisco, E.C.; Neves, D.B.; Jacob-Lopes, E.; Franco, T.F. Microalgae as feedstock for biodiesel production: Carbon dioxide sequestration, lipid production and biofuel quality. J. Chem. Technol. Biotechnol. 2010, 85, 395–403. [Google Scholar] [CrossRef]
Sustainability 15 00870 g001 550

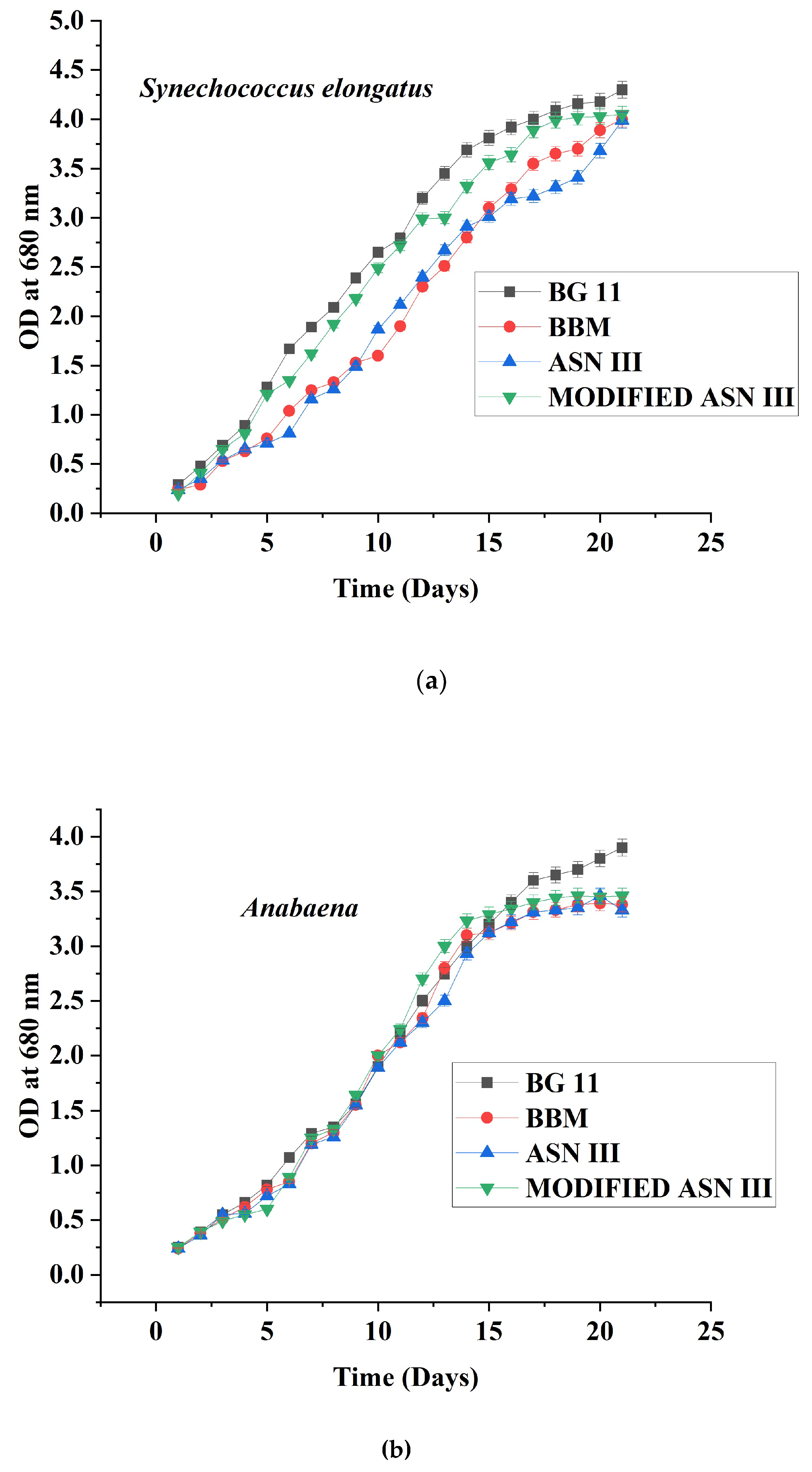

Figure 1. Growth curves of (a) Synechococcus elongatus and (b) Anabaena under different media conditions.
Figure 1. Growth curves of (a) Synechococcus elongatus and (b) Anabaena under different media conditions.
Sustainability 15 00870 g001
Sustainability 15 00870 g002 550

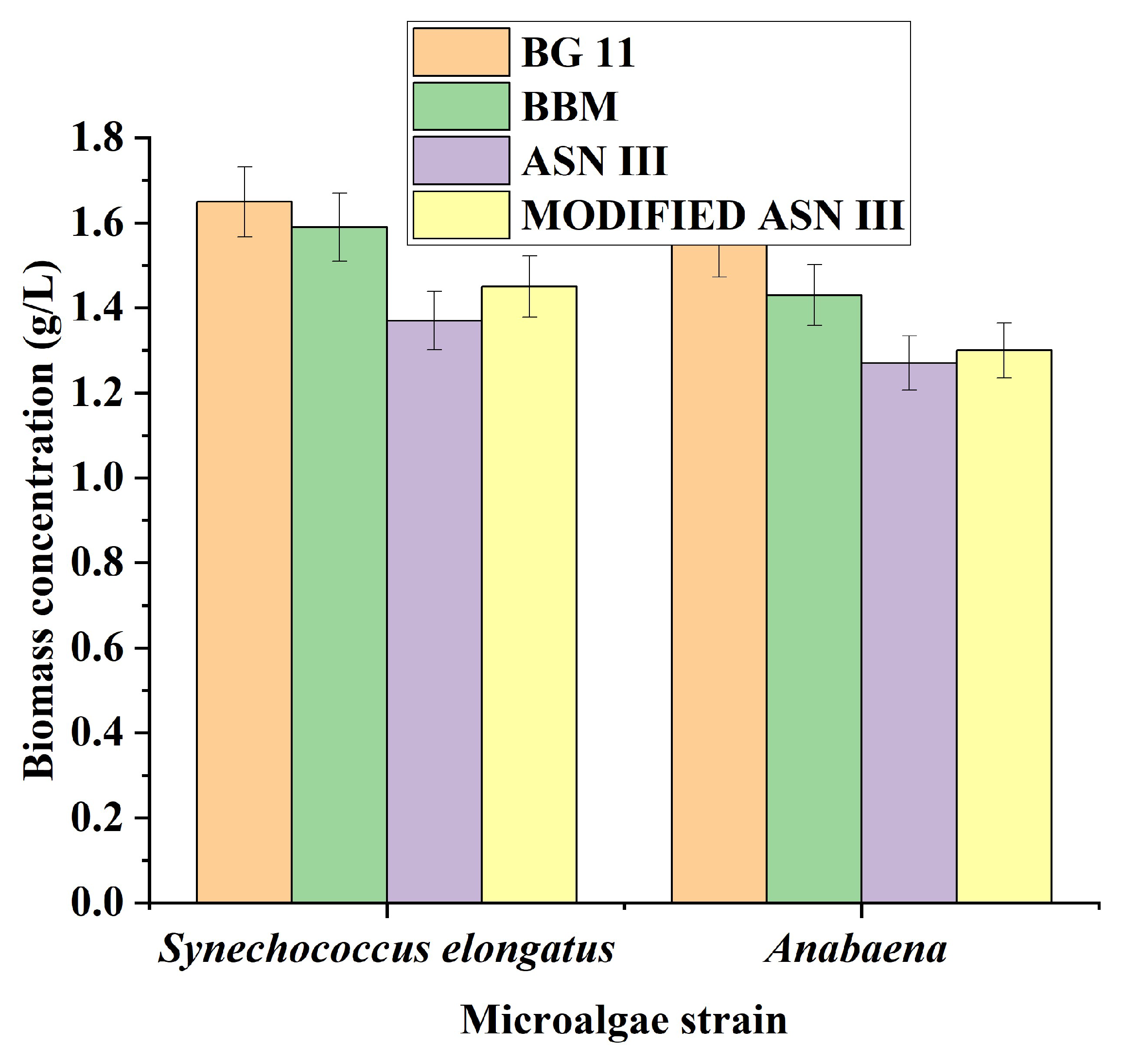

Figure 2. Biomass DW concentration comparisons of Synechococcus elongatus and Anabaena under different media conditions.
Figure 2. Biomass DW concentration comparisons of Synechococcus elongatus and Anabaena under different media conditions.
Sustainability 15 00870 g002
Sustainability 15 00870 g003 550

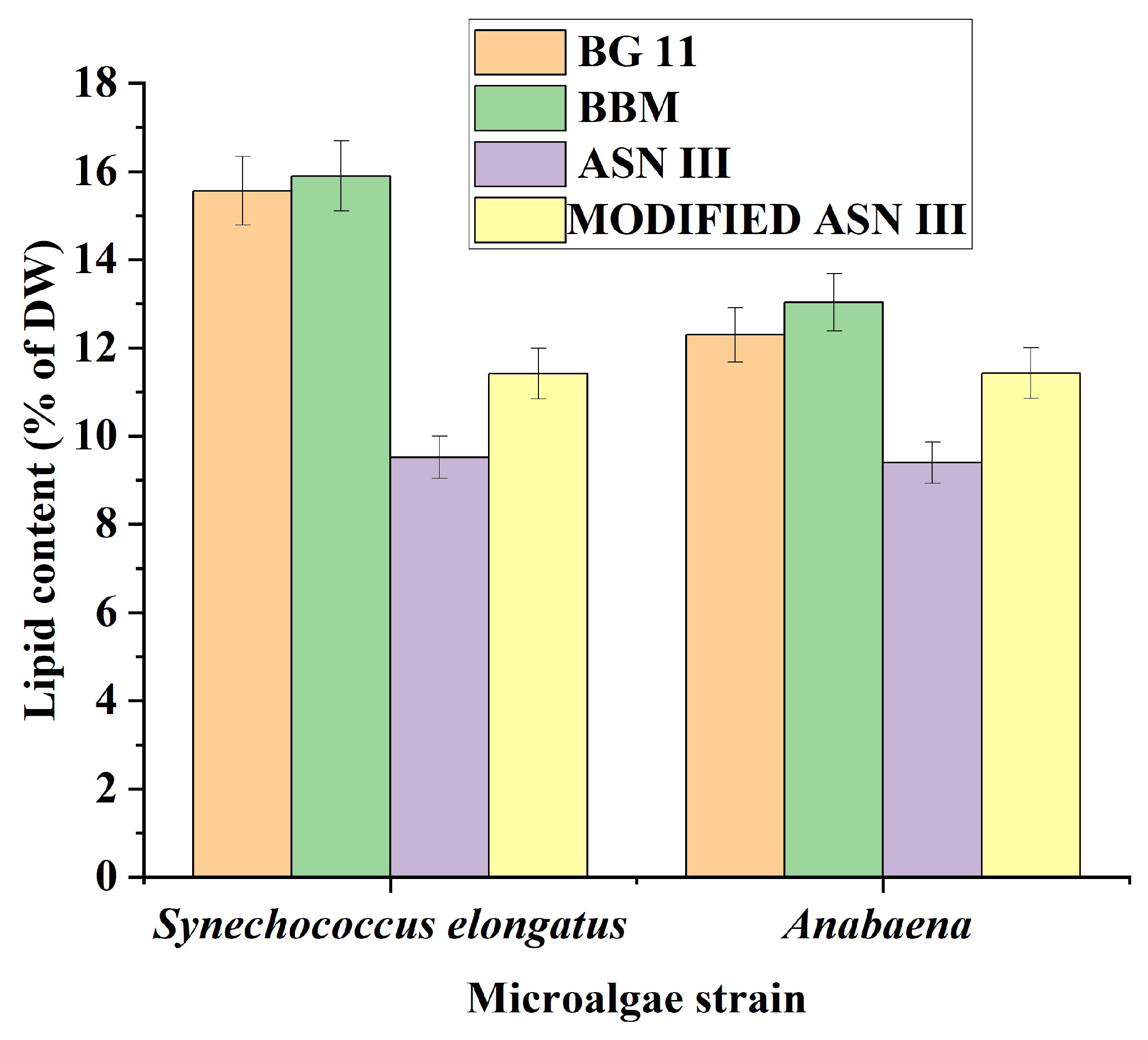

Figure 3. Lipid content comparisons of Synechococcus elongatus and Anabaena under different media conditions.
Figure 3. Lipid content comparisons of Synechococcus elongatus and Anabaena under different media conditions.
Sustainability 15 00870 g003
Sustainability 15 00870 g004 550

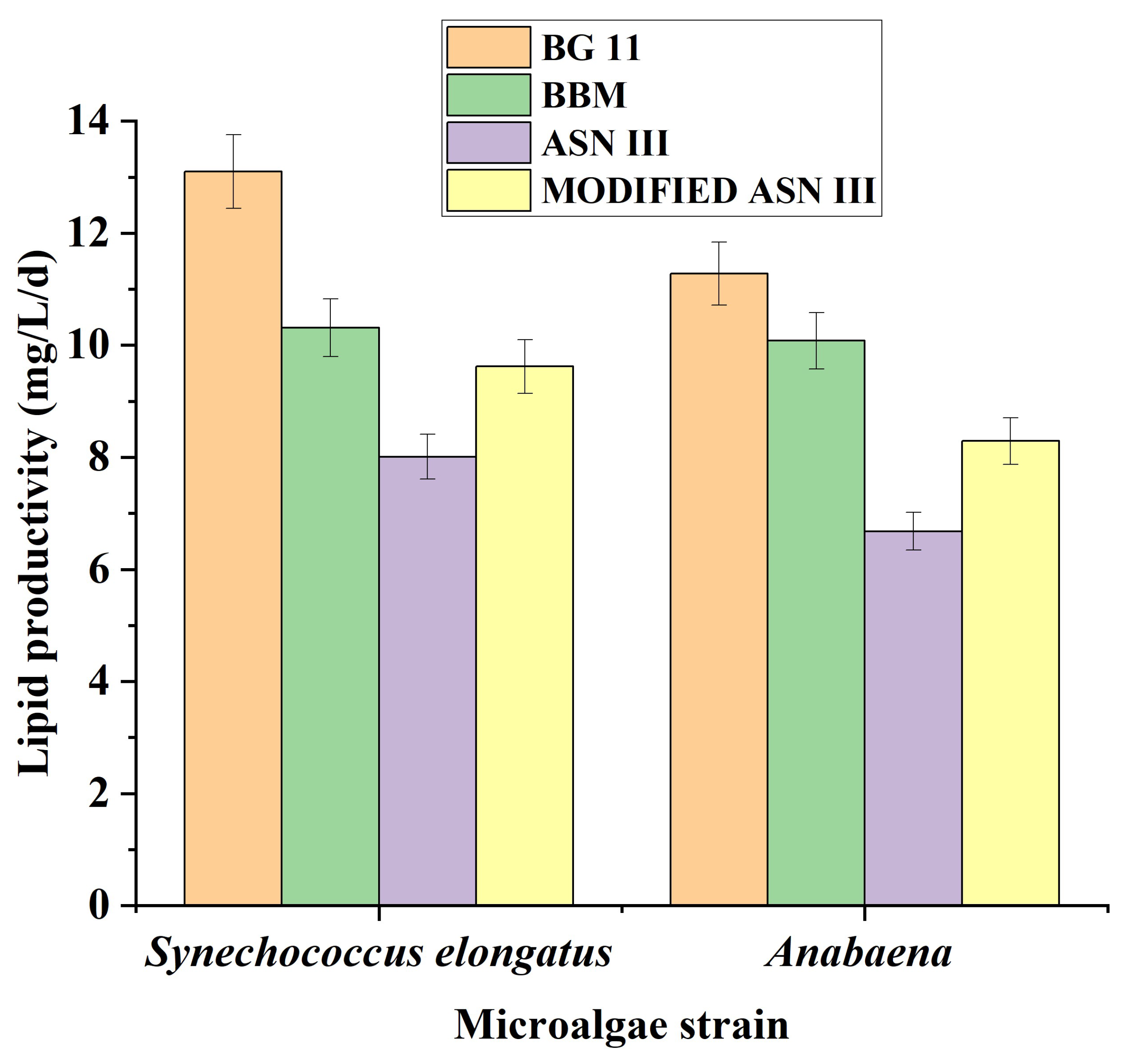

Figure 4. Lipid productivity comparisons of Synechococcus elongatus and Anabaena under different media conditions.
Figure 4. Lipid productivity comparisons of Synechococcus elongatus and Anabaena under different media conditions.
Sustainability 15 00870 g004
Sustainability 15 00870 g005 550
Figure 5. Biomass growths of (a) Synechococcus elongatus and (b) Anabaena under different carbon sources.
Figure 5. Biomass growths of (a) Synechococcus elongatus and (b) Anabaena under different carbon sources.
Sustainability 15 00870 g005
Sustainability 15 00870 g006 550

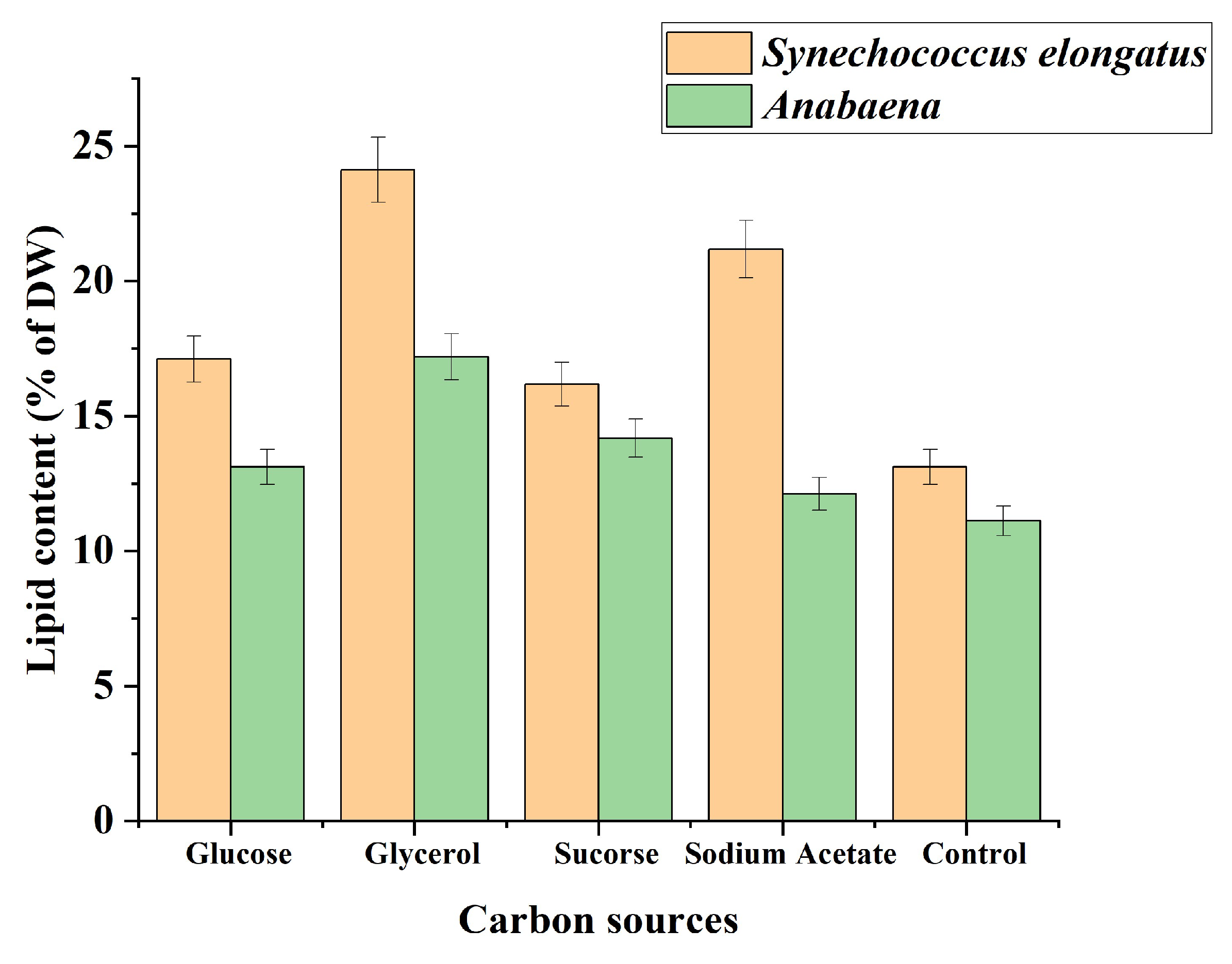

Figure 6. Lipid content comparisons of Synechococcus elongatus and Anabaena in four different carbon sources.
Figure 6. Lipid content comparisons of Synechococcus elongatus and Anabaena in four different carbon sources.
Sustainability 15 00870 g006
Sustainability 15 00870 g007 550

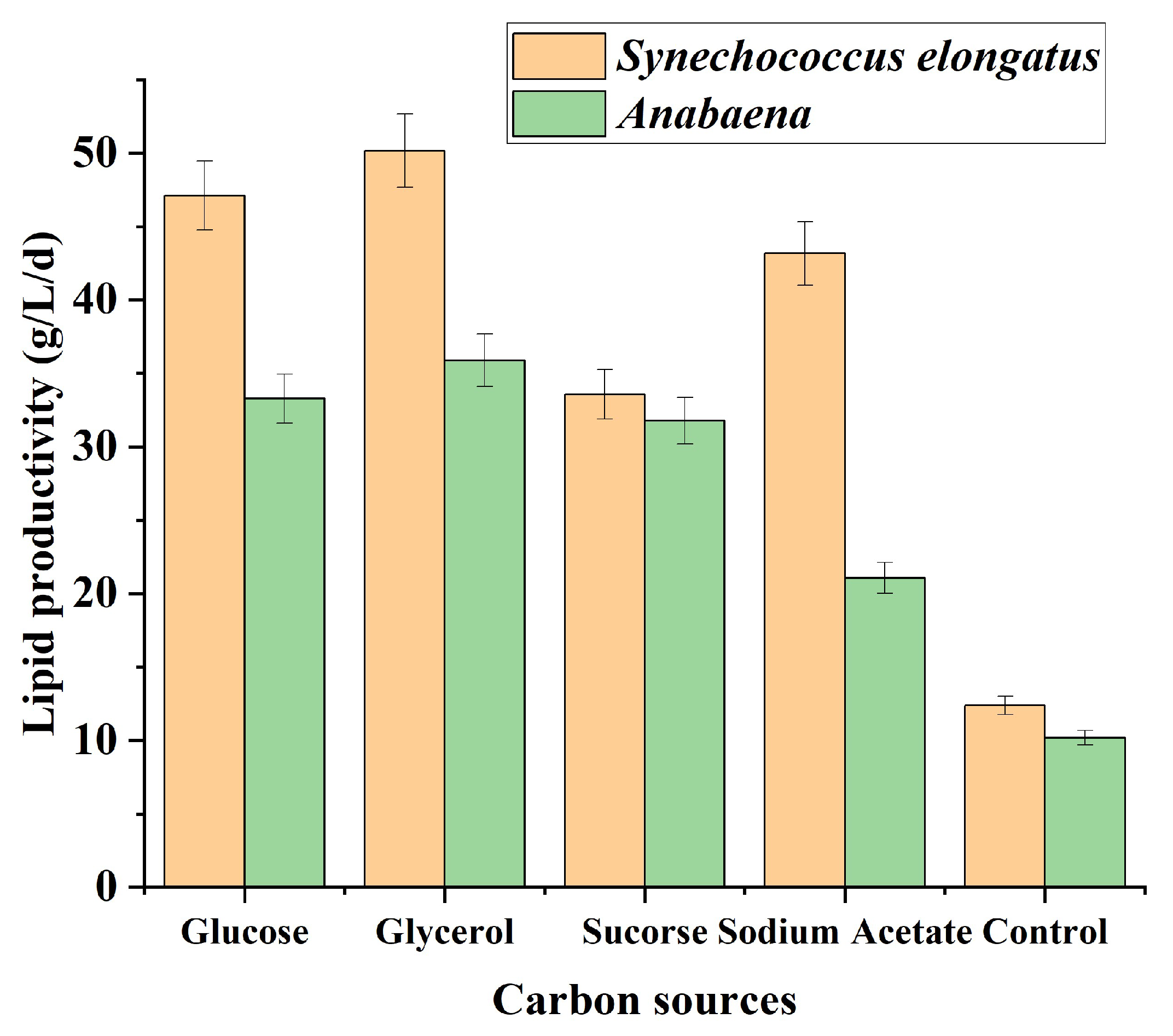

Figure 7. Lipid productivity comparisons of Synechococcus elongatus and Anabaena in four different carbon sources.
Figure 7. Lipid productivity comparisons of Synechococcus elongatus and Anabaena in four different carbon sources.
Sustainability 15 00870 g007
Table
Table 1. Fatty acid profile of Synechococcus elongatus and Anabaena.
Table 1. Fatty acid profile of Synechococcus elongatus and Anabaena.
Fatty Acid Composition (%)Synechococcus elongatusAnabaena
Polyunsaturated fatty acids 36.181933.179
Saturated fatty acids 33.153932.0591
Monounsaturated
fatty acids 		37.148029.1870
Octadecanoic acid4.19373.7882
Tetradecanoic acid2.89322.1814
Palmitoleic acid2.61752.3389
Linolenic acid6.1025.4918
Lauric acid1.31721.1028
Decanoic acid1.52410.8142
Table
Table 2. Fuel characteristics of Synechococcus elongatus and Anabaena biodiesel production.
Table 2. Fuel characteristics of Synechococcus elongatus and Anabaena biodiesel production.
Fuel PropertiesASTMSynechococcus
elongatus		Anabaena
Pour point (°C)−5 to 103.184.11
DU (%)-89.9183.11
Higher heating value (MJ/Kg)45.5 40.1839.11
Cloud point (°C)−3 to 1510.815.7
LCSF (°C)-4.994.77
CFPP (°C)-−1.47−1.11
Oxidation stability (h)Min 8 h6.86.1
Cetane number47–6557.4253.51
Saponification value
(mg KOH g−1 oil)		218182.10179.21
Iodine value
(g I2100 g−1 oil)		12093.0488.17
