3.1. Materials and Methodology
The theoretical framework of the relationship between urbanization and ikization was outlined above. Next, two aspects of investigation need to be carried out. One is to use data to demonstrate that the replacement process satisfies a logistic process or a generalized logistic process, and the other is to prove that excessive replacement can lead to abnormal results. To achieve this, it is necessary to use certain scientific methods. In fact, there were three ways now to proceed in science: mathematical theory, laboratory experiment, and computer modeling [
44]. This study cannot rely heavily on laboratory experiments, but mathematical models and computer simulation can be used to illustrate the problem. The city of Beijing can be taken to make a positive analysis, and a model of nonlinear dynamics based on Equations (4) and (6) can be employed to make numerical calculations and simulation analysis.
The basic tools of replacement dynamics including squashing functions, sigmoid curves, and allometric equations, can be utilized to analyze the rapid growth of Beijing city. The variables comprise the traditional measures, urban area and population size, and a new measurement, the scaling exponent. However, a city has no characteristic scale and urban form cannot be effectively described with common measures such as area and size [
17]. Urban area can be subjectively defined rather than objectively measured. As an alternative, urban form and growth should be described with the fractal dimension. The fractal dimension is a kind of scaling exponent indicating the extent of space filling and the degree of spatial complexity. The fractal dimension can be evaluated with the box-counting method, and the fractal dimension growth can be modeled with sigmoid functions [
30]. Although the urban area depends on definition rather than objective measurement, it is necessary to define a comparable urban boundary before calculating the fractal dimension in order to ensure the comparability of calculation results. At present, three approaches can be employed to designate urbanized areas or demarcate urban agglomerations. The first is the city-clustering algorithm (CCA) presented by Rozenfeld et al. [
45,
46], the second is the fractal-based method presented by Tannier et al. [
47], and the third is a variant of the CCA based on street nodes/blocks developed by Jiang and Jia [
48]. In this work, the urbanized area of Beijing is determined by using the CCA. By means of 15 years of remote sensing data of the urbanized area from 1984 to 2018, we can examine the urban sprawl of Beijing in the past 30 years.
3.2. Empirical Results of Beijing
Because of the destruction of the geographical environment and the rupture of traditional culture, the symptom of ikization seems to have appeared partially in Chinese people. Various phenomena of Iks such as corruption, indifference, schadenfreude, no sense of responsibility, and making counterfeit goods have been discussed in detail [
9]. On the other hand, the problems of fast urbanization of China have been studied by many scholars from varied perspectives. However, the mathematical modeling and quantitative analyses are seldom reported on rapid urbanization in the literature. In China, the typical signs of fast urbanization are urban sprawl, bubble economy of real estate, and large-scale demolition of traditional settlements. These signs are correlated with one another. As indicated above, one of the aspects of urbanization is urban form [
1,
3], which takes on sprawl during the stage of rapid urbanization. Due to scale dependence, the fractal dimension becomes an effective parameter for characterizing urban morphology [
17,
30]. Beijing, the capital of China, can be regarded as a microcosm of China, which in turn can be treated as a macrocosm of Beijing. The model of a city’s growth is always consistent with the model of urbanization of its country. We might as well take Beijing as an example to illustrate the dynamic process of China’s fast urbanization by means of fractal parameters. The calculation results of fractal parameters of Beijing’s urban form for 15 years are as follows, and the time span of the data is 35 years (
Table 4).
Fractal dimension increase takes on a squashing effect and can be modeled by squashing functions. The squashing functions include the conventional logistic function, fractional logistic function, and quadratic logistic function [
49]. The fractal parameters of Chinese urban growth can be described with a quadratic logistic function [
49,
50]. The curve-fitting method and least squares method can be utilized to estimate the parameters of models (
Table 5). There are three basic and important parameters in a multifractal spectrum; that is, capacity dimension, information dimension, and correlation dimension. Based on the dataset consisting of 15 data points from 1984 to 2018, a quadratic logistic model of Beijing’s urban growth based on capacity dimension can be constructed as below:
where
t denotes time, and
D0(
t) refers to the capacity dimension of time
t. The goodness-of-fit is about

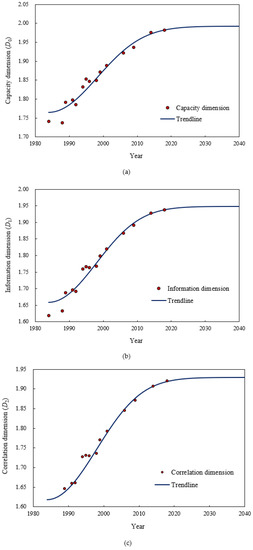

R² = 0.9835 (
Figure 4a). In terms of this model, the inherent rate of growth of capacity dimension is approximately 0.0529.
Capacity dimension is based on the dummy variable and reflects space-filling extent. It cannot mirror detailed features of spatial distribution. The information dimension is based on metric variables and can be utilized to reveal spatial uniformity. Spatial uniformity and spatial heterogeneity are two different sides of the same coin. Where Beijing is concerned, based on the dataset comprising 15 data points of the information dimension, a quadratic logistic model can be made as follows:
in which
D1(
t) denotes the information dimension of time
t. The goodness-of-fit is about
R² = 0.9902 (
Figure 4b). In light of this model, the inherent growth rate of the information dimension is around 0.0550. The relative growth rate of the capacity dimension (0.0529) is slightly less than that of the information dimension (0.0550). This suggests that the spatial homogenization of urban morphology in Beijing is faster than the spatial filling.
The correlation dimension is direct measure of spatial complexity in geographical systems. If we want to investigate the spatial dependence and complication of urban morphology, it is necessary to build a model with the help of the correlation dimension. As far as Beijing is concerned, based on the dataset comprising 15 data points of the correlation dimension, a quadratic logistic model can be given as below:
in which
D2(
t) denotes the correlation dimension of time
t. The goodness-of-fit is about
R² = 0.9918 (
Figure 4c). According to this model, the inherent growth rate of the correlation dimension is around 0.0556. Obviously, the relative growth rate of the information dimension (0.0550) is slightly less than that of the correlation dimension (0.0556). This indicates that the spatial correlation speed of urban morphology in Beijing is higher than the speed of spatial homogenization, and even higher than the speed of spatial filling.

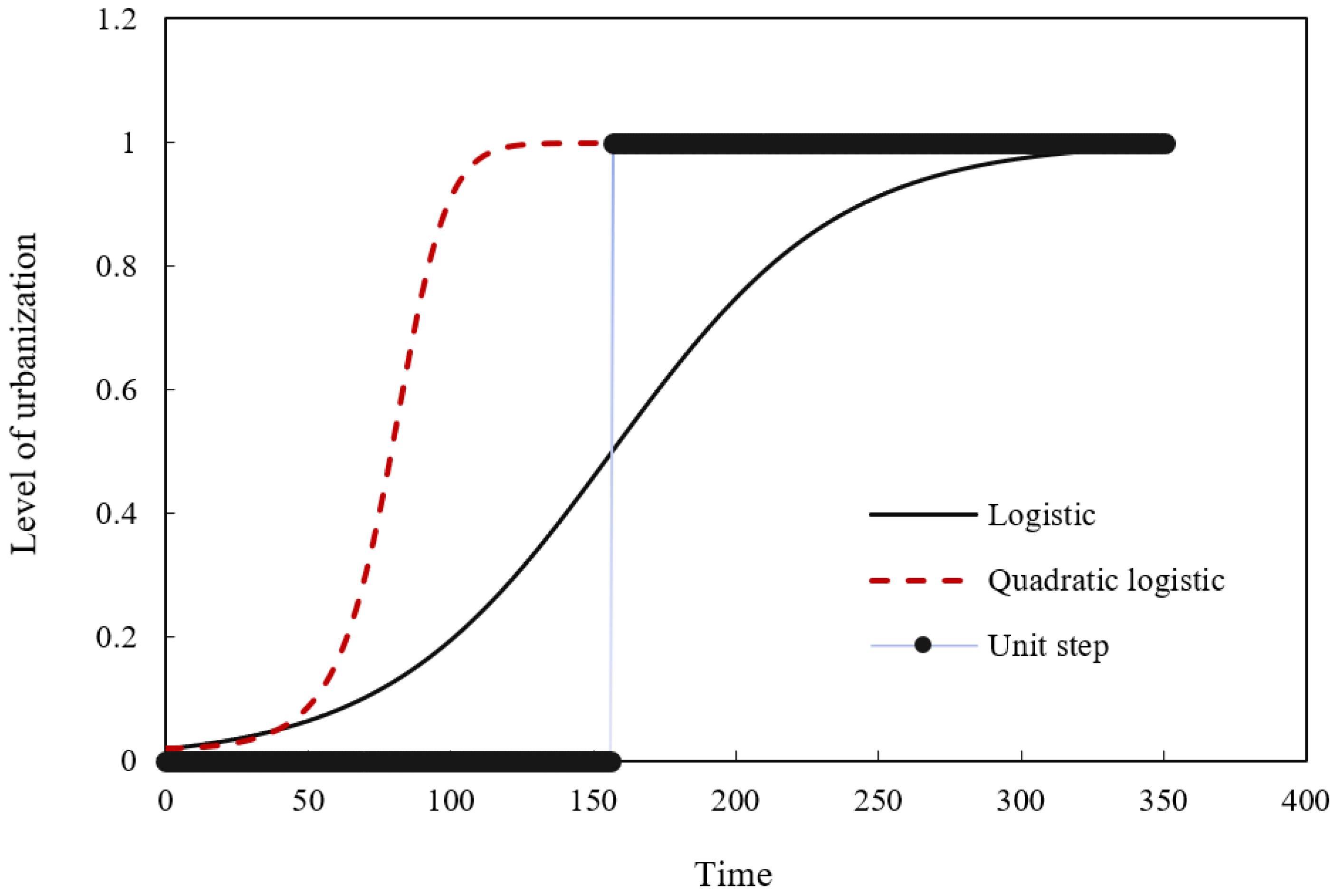

As indicated above, a city’s growth is consistent with urbanization of a nation. The natural urbanization curve can be described with the conventional logistic function. If the urbanization curve exhibits a quadratic logistic function, the latent scaling exponent, i.e., the order of time, is 2, and thus it indicates fast urbanization. After all, the quadratic logistic growth comes between exponential growth and the conventional logistic growth. The quadratic logistic model suggests that the relative growth rate of urban sprawl is much higher than the relative growth rate under normal circumstances. The model form of fractal dimension growth of Beijing’s urban form lends further support to the suggestion of fast urbanization of China.
Quantitative and modeling analysis includes two main aspects: one is the mathematical structure of the model, and the other is the model parameters and their changes. Now, based on the mathematical model structure and parameters, we can analyze the basic properties of Beijing’s urbanization. Where model structure is concerned, the curves of fractal dimension growth of Beijing’s urban form can be modeled by the quadratic logistic function rather than the common logistic function. As indicated above, a city’s growth is consistent with urbanization of a nation. The natural urbanization curve can be described with the conventional logistic function. If the urbanization curve exhibits a quadratic logistic function, the latent scaling exponent, i.e., the order of time, is 2, and thus it indicates a fast urbanization process. After all, the quadratic logistic growth comes between exponential growth and the conventional logistic growth. The quadratic logistic model suggests that the relative growth rate of urban sprawl is much higher than the relative growth rate under normal circumstances. The model structure of fractal dimension growth of Beijing’s urban form lends further support to the suggestion of fast urbanization of China.
A model’s form reflects the macroscopic structure of a system, while the model parameters reflect the element relationships at the microscopic level of the system. As far as the model’s parameters are concerned, three values should be investigated. Firstly, the capacity parameters of the fractal dimension, Dmax, are all greater than D = 1.92, approaching the limit of the Euclidean dimension of the embedding space, d = 2. This implies that, after the city of Beijing reaches its limit of growth, the buffer space of this city will be very small. Secondly, although the inherent growth rates of fractal parameters are relatively close to one another, there are subtle differences between them. As mentioned above, the inherent growth rate of the correlation dimension is higher than that of the information dimension, and the inherent growth rate of the information dimension is higher than that of the capacity dimension. This means that the multifractal structure in Beijing is trending towards a monofractal structure. Considering the very high capacity value of fractal parameters (Dmax), we judge that the fractal structure of Beijing may even degenerate towards Euclidean geometric structure. Thirdly, the order of the time is 2, suggesting fast urban growth. The order of time is actually a latent scaling exponent, which comes between 1 and 2, in theory. The higher the value, the faster the urban growth. The theoretical upper limit is 2. The time order of Beijing’s urban fractal dimension growth has reached its theoretical limit. As we know, Beijing is a megacity in the world. If the characters of fast urbanization appear in the middle-sized and small cities, it can be regarded as normal. However, a megacity such as Beijing shows varied signs of fast urbanization, and so it is abnormal. This suggests a sort of urbanization bubble or bubble economy behind urbanization, which in turn suggests environmental disruption and cultural rupture.
3.3. Numerical Calculation and Simulation
The above empirical analysis gives the observational evidence of the fast replacement process and one of its mathematical models. The key influencing factor of replacement dynamics can be revealed by numerical computation and simulation. Based on Equation (3), a simple model of the nonlinear replacement process can be expressed as a pair of differentiation equations as below [
10]:
where the meanings of symbols
x and
y are the same as those in Equation (3), and
a,
b,
c,
d are four parameters (
Table 6). From Equation (11), a logistic function indicating a replacement curve such as in Equation (4) can be derived. This suggests that Equations (4) and (5) are based on the nonlinear dynamics model, Equation (11). However, Equation (11) is a pair of differentiation equations, which can be applied to mathematical reasoning rather than numerical experimentation. Numerical experiments can be conducted using difference equations. Discretizing Equation (11) yields a pair of difference equations as follows:
which is a discrete replacement dynamical model and can be employed to make numerical computation and simulation.
Adjusting model parameter values will output different numerical calculation results. Fix some parameters, change a certain parameter, and see if there are significant differences in the output results. Through such operations, it is possible to distinguish between primary and secondary influencing factors. This process is similar to laboratory experiments, so it can be considered as a numerical simulation or mathematical experiment [
10]. The results show that the key influencing factors are the coupling parameters,
b and
d, rather than the natural growth parameters,
a and
c. In theory,
b equals
d. The values of
b and
d reflects the strength of interaction and speed of replacement. When the values of
b and

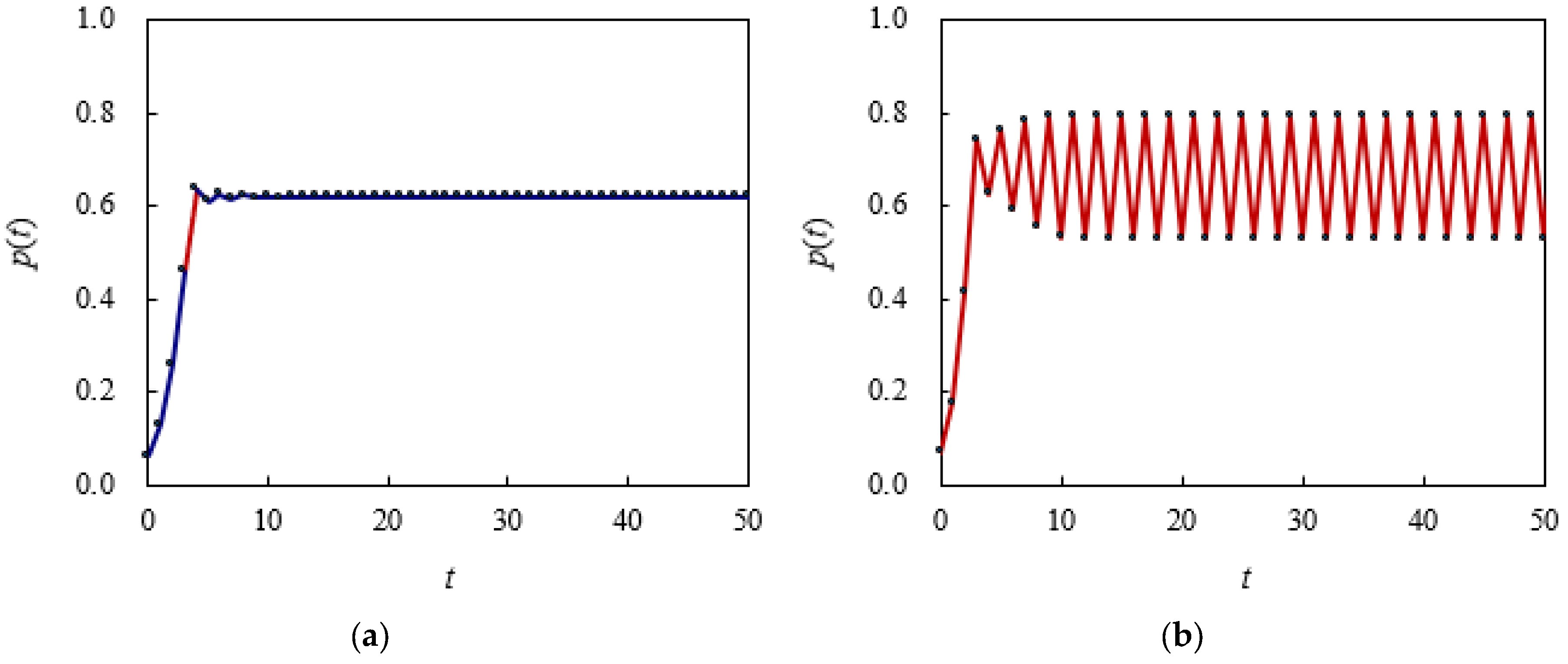

d are small, the replacement process displays a logistic curve (
Figure 5a). As the parameter values of
b and
d increase, the substitution process begins to fluctuate and periodic oscillation occurs (
Figure 5b). The higher the parameter values of
b and

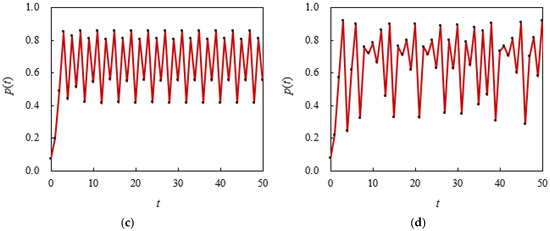

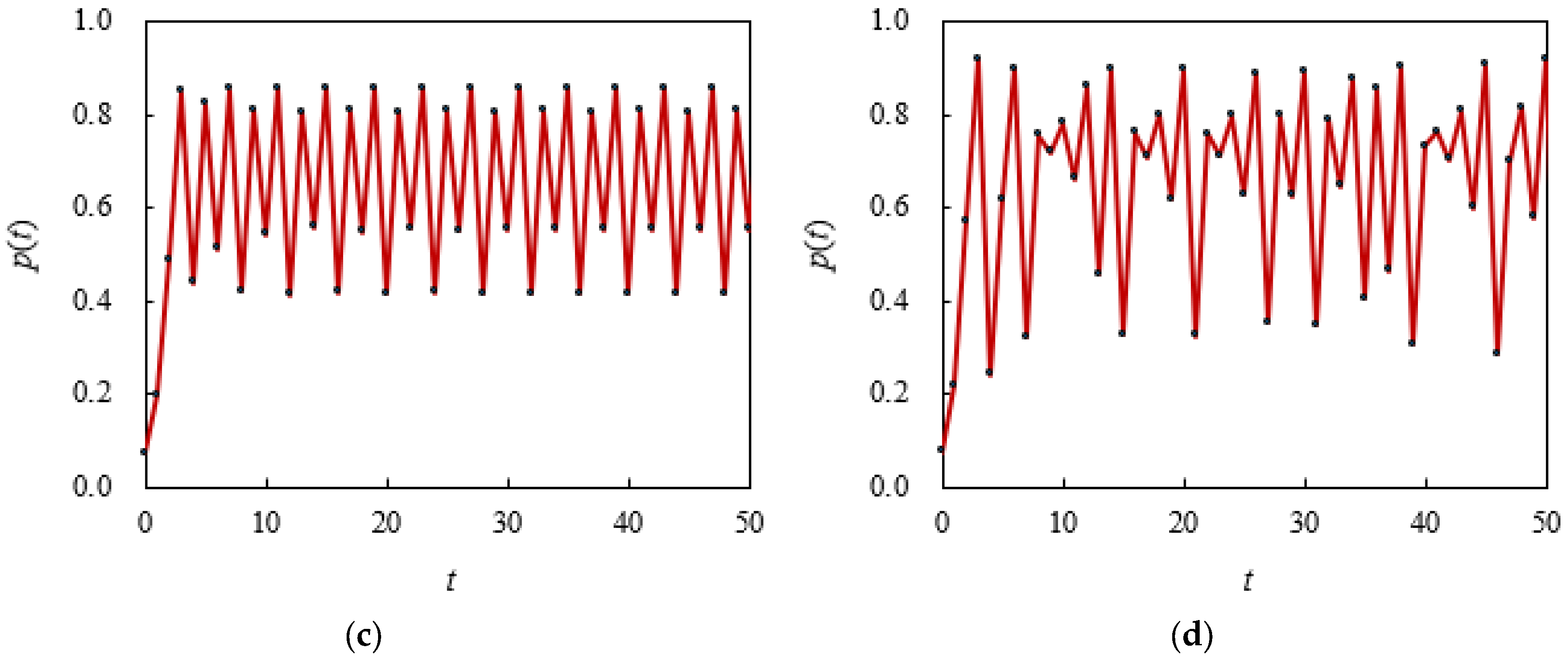

d, the more complicated the periodic oscillation becomes (
Figure 5c). When the parameter value exceeds a certain threshold, a complex oscillation without any period will emerge, and this phenomenon is called chaotic state (
Figure 5d). This means that if the replacement process is too fast, the evolution process will become unstable, and ultimately lead to uncertain evolution results. Chaos indicates disorder. If social evolution becomes out of order, unpredictable things will happen and adverse phenomena will appear. It is not surprising that the replacement of human and environmental spaces or the rapid replacement of urban and rural populations and culture leads to ikization.
There is always a time-lag relation between causes and effects in the evolution of complex systems. The past causes lead to the present and future effects, and the present causes lead to the future effects. Where there is time lag, there is nonlinearity; and where there is nonlinearity, there is complexity. Replacement dynamics involve time lag. The madness of men not only brings about the revenge of nature on human beings but also results in the fall of men themselves. The large-scale demolition of traditional urban communities and rural settlements in the process of fast urbanization suggests more adverse outcomes related with ikization in the future. It is necessary to protect the geographical environment against disruption, and to inherit and develop traditional culture in order to avoid ikization of a nationality. One of the important approaches to solving the problems caused by fast urbanization is to safeguard and reconstruct the geographical environment so that rural situations and culture will be naturally replaced by urban situations and culture. Fortunately, the Chinese government has realized the problems and taken positive measures to solve them.
