Article

Carbon Nanotube Paper-Based Electroanalytical Devices

1
FIT BEST Laboratory, Department of Chemical, Biological, and Bio Engineering, North Carolina A&T State University, Greensboro, NC 27411, USA
2
NSF-Engineering Research Center, North Carolina A&T State University, Greensboro, NC 27411, USA
3
Department of Chemical and Materials Engineering, University of Cincinnati, Cincinnati, OH 45221, USA
*
Author to whom correspondence should be addressed.
Micromachines 2016, 7(4), 72; https://doi.org/10.3390/mi7040072
Submission received: 2 February 2016 / Revised: 22 March 2016 / Accepted: 31 March 2016 / Published: 20 April 2016
(This article belongs to the Special Issue Paper-Based Microfluidic Devices for Point-of-Care Diagnostics)

Abstract

:
Here, we report on carbon nanotube paper-based electroanalytical devices. A highly aligned-carbon nanotube (HA-CNT) array, grown using chemical vapor deposition (CVD), was processed to form bi-layered paper with an integrated cellulose-based Origami-chip as the electroanalytical device. We used an inverse-ordered fabrication method from a thick carbon nanotube (CNT) sheet to a thin CNT sheet. A 200-layered HA-CNT sheet and a 100-layered HA-CNT sheet are explored as a working electrode. The device was fabricated using the following methods: (1) cellulose-based paper was patterned using a wax printer, (2) electrical connection was made using a silver ink-based circuit printer, and (3) three electrodes were stacked on a 2D Origami cell. Electrochemical behavior was evaluated using electrochemical impedance spectroscopy (EIS) and cyclic voltammetry (CV). We believe that this platform could attract a great deal of interest for use in various chemical and biomedical applications.

Graphical Abstract

1. Introduction

Paper-based analytical devices (PADs) have emerged as simple, yet powerful, platforms for performing low-cost, disposable, easy-to-use, and rapid analytical tests. They have been studied using various methods, including colorimetry [1,2,3,4], electrochemistry [5,6,7,8,9], chemiluminescence [10], electrochemiluminescence [11], and fluorescence [4,12], to detect analytes on paper-based platforms. Electrochemical detection has been explored in a paper-based platform due to its high accuracy and sensitivity [7,13,14,15,16]. PADs with integrated electrochemical detection are broadly explored. One technique involves directly printing electrodes onto paper. The paper is then placed onto a screen-printed electrode where various conductive inks such as Prussian blue, silver, and carbon are used [17,18,19]. These electrode materials combined with paper can play an important role on lowering detection limits and increasing sensitivity.
Carbon nanotubes (CNTs) are electrochemically inert materials, similar to other carbon-based materials used in electrochemistry, such as glassy carbon, graphite, and diamond. They also have good properties which include high surface area, high electrocatalytic effect, and fast electron transfer rate due to their unique sp2 electronic structure [20,21,22,23,24,25]. CNTs have become one of the most popular electrodes in the biosensor field [26,27,28,29]. Several studies have reported thorough proper control of their chemical and physical properties, as well as functionalization and immobilization, and multiple applications of this technology are possible. Some of these applications include use in glucose sensors [30]; biosensors for neurotransmitters/neurochemicals [31]; protein sensors for IgG [32] and IL-6 [33]; as well as DNA/RNA biomolecule sensors for the Influenza virus [34], Hepatitis C [35], and Hepatitis B [36].
Here, we present a new carbon nanotube (CNT) paper-based electroanalytical device using a highly aligned-CNT (HA-CNT) sheet integrated with cellulose paper. A free-standing HA-CNT sheet is fabricated in the form of a paper sheet with 200 layers that are inversely-ordered, where 100 of the layers play a role in the working electrode. The electrochemical system is integrated with an Origami cellulose paper. Furthermore, this paper evaluates the electrochemical properties of PADs using electrochemical impedance spectroscopy (EIS) and cyclic voltammetry (CV).

2. Materials and Methods

2.1. Materials

Phosphate buffered saline (1X PBS, without calcium and magnesium, pH 7.4, Cellgro, Manassas, VA, USA) solution containing 37 mM NaCl, 2.7 mM KCl, 10 mM Na2HPO4, 1.8 mM KH2PO4 and potassium ferricyanide (PF, 99+%, for analysis, ACROS OrganicsTM, Morris, NJ, USA) was purchased from Fisher Scientific. All chemicals were used as received without further purification. Silver foil (Alfa Aesar, Haverhill, MA, USA, 0.10 mm thickness, 99.998% pure, annealed) and platinum foil (Alfa Aesar, 0.127 mm thickness, 99.99%, Premion®) were used for reference and counter electrodes. Chromatographic cellulose filter paper (Whatman grade 1, 0.18 mm thickness, WhatmanTM, Florence, SC, USA) was used for the paper-based Origami cell construction. Circuit paper (AgIC International Corp., Tokyo, Japan) was used for printing the silver conductive pathway.

2.2. Preparation for Device Fabrication

CNT sheets. The free standing 200-layered HA-CNT sheet was drawn from a multi-wall carbon nanotube (MWCNT) array of 0.5 mm in height, grown using chemical vapor deposition (CVD), using our previously-reported method [23].
Inversed-ordered thin layer CNT sheets. In Figure 1, an electrode template was drawn using Silhouette Studio® software (Silhouette America, Lehi, UT, USA) and adhesive sheets were cut using CAMEO print (Silhouette America). The inner size (open window) is 2 mm in diameter and the outer size (adhesive sheet) is 4 mm in width × 20 mm in length. The prepared 200-layered HA-CNT sheet was cut into the same size as the outer size of the adhesive sheet. Adhesive templates were sandwich-adhered to a 200-layered HA-CNT sheet and then were pulled into two 100-layered CNT sheet substrates [37].
Paper-based electroanalytical device. Three different printing technologies were used to fabricate a paper-based electroanalytical device. Designs were created using AutoCAD (Figure 2). An Origami paper-based chip (layers 1, 2, 4, 5) was printed onto filter paper using a wax printer (Xerox ColorQube 8570, Xerox, Norwalk, CT, USA). The Origami paper-based chip was then placed onto a hot plate (Super-Nuova, Thermo Scientific, Waltham, MA, USA) set to 123 °C for 5 min. The melted wax that was printed onto the Origami paper formed 3D-hydrophobic layers. Next, the hydrophilic region (white in color, as pictured in Figure 2) in the electrochemical chip was removed (hollow structure). Silver conductive patterns were printed onto layer 3 using a circuit printer (Brother, AgIC International Corp.). An as-prepared reference electrode, the blue triangle, and counter electrode, the red triangle, were place on both of the silver conductive patterns (electrical wires in Figure 2). All layers were affixed using double-sided adhesive tape, drawn using Silhouette Studio® software, and were cut using the CAMEO Print & Cut. HA-CNT sheets as working electrodes were placed on the 5th layer of the Origami paper-based chip. A HA-CNT sheet was exposed as 2 mm in diameter through the holes in layers 1–4. Pressure was applied with a three-pound block that was placed a top of the assembled device, composed of a wax-printed Origami chip with a conductive pattern-printed layer, for 3 h.

2.3. Surface Morphology

The surface morphology and alignment of the multi-layered CNT sheet was characterized by field-emission scanning electron microscope (FE-SEM, Hitachi 8000, 5 kV, HITACHI, Atlanta, GA, USA).

2.4. Electrochemical Sensing Evaluation

The assembled paper-based electroanalytical device is composed of three electrodes embedded in a paper-based Origami cell. Electrochemical measurements of this device were performed where the HA-CNT sheet served as the working electrode, platinum served as the counter electrode, and silver served as the reference electrode. The three electrodes of this device were connected to a Reference 600TM potentiostat (Gamry Instrument, Warminster, PA, USA). The electrochemical impedance spectroscopy (EIS) was obtained by conducting AC impedance measurements at a frequency range of 1.0 MHz to 0.2 Hz with 1X PBS and 5 mM K3[Fe(CN)6] in 1X PBS solution. The cyclic voltammetry (CV) was performed in 5 mM K3[Fe(CN)6] in 1X PBS solution. These measurements were carried out at room temperature. We dropped 20 μL of analyte to the reaction region in the paper-based chip.

3. Results and Discussion

Figure 3 shows the HA-CNT sheet as a working electrode and the final assembled paper-based electroanalytical device. In Figure 3a, the 200-layered CNT sheet was produced from a CNT array (insert of Figure 3a) showing a free standing and stable sheet. As shown in the SEM image in Figure 3b, the CNT sheet has a highly-aligned structure. The 100-layered HA-CNT sheet was fabricated by the aforementioned inverse-ordered method (Figure 1) with a pre-patterned, printed, adhesive sheet, and a thicker 200-layered CNT sheet. The CNT sheet is positioned as a working electrode inside a paper-based electrochemical cell (layer 5 of Figure 2). The wax-printed Origami chip and insert layer, including the reference and counter electrodes, were assembled with HA-CNT sheet paper (Figure 3c). The electrical resistance was <5.5 Ω (black arrow) and <12.5 Ω (yellow arrow) for the 200-layer HA-CNT sheet, <8.0 Ω (black arrow) and <12.2 Ω (yellow arrow) for the 100-layer sheet. Resistance was measured using an end-to-end method for the 2-mm-in-diameter circle. The parallel aligned direction’s resistance (white arrow shown in Figure 3b) was measured from one black arrow to the other black arrow, as pictured in Figure 3c. Resistance was also measured in the perpendicular direction, as indicated by the yellow arrows, also pictured in Figure 3c. Electrical resistance in the parallel direction is lower than the resistance from the perpendicular direction. The 200-layered HA-CNT sheet electrode showed high conductivity; however, conductivities of the perpendicular direction of alignment were observed to be similar, regardless of the thickness of the working electrodes. The final device’s dimensions were 15 mm in width × 15 mm in length × 1.2 mm in thickness. The insert of Figure 3c shows the electrochemical reaction zone of the paper-based electroanalytical device. For the 200-layered HA-CNT sheet, the working electrode is on the 5th layer, and the silver reference electrode and the platinum counter electrode is positioned on the 3rd layer. The total useable loaded sample volume is 20 μL.
Figure 4 shows the impedance spectra (Nyquist and Bode plots) of the Origami chip integrated in the 200- and 100-layered HA-CNT sheets with electrolytes of 1X PBS (left) and 5 mM K3[Fe(CN)6] in 1X PBS solution (right). Figure 4d shows the equivalent circuit that consists of the following: Rs, the electrolyte resistance, (the equivalent series resistance, ESR), CPEL and RL, the capacitance and resistance of the 2 mm in diameter HA-CNT sheet working electrode, and CPEDL and RCT, the double-layer capacitance and charge-transfer resistances, respectively [28]. Warburg impedance, ZW, is related to the ionic diffusion into the HA-CNT sheet. The fitted data for all circuit parameters are shown in Table 1. In the paper-based electrochemical chip, electrolyte resistances (Rs) were similar, averaging 66 Ω (insert of Figure 4a). However, the resistance of the 200-layered HA-CNT sheet in the device was decreased in 5 mM K3[Fe(CN)6] as a redox probe in 1X PBS solution. The distinct semi-circle was not observed in the high-frequency region. Generally, it can be generated as the presence of an interface between the electrode, the current collector, and the electrical charge transfer in the electrode material. This shows that the HA-CNT sheet can act, either as a working electrode, or current collector inside the paper-based Origami electroanalytical chip for biosensors.
Figure 5 presents the cyclic voltammogram of paper-based electroanalytical devices that have two different layers of HA-CNT sheets as working electrodes. This analysis was performed to investigate the kinetics of the electrode reactions. The scan rate response of the electrode in the paper-based electroanalytical chip was carried out at different scan rates (10–100 mV/s) between +0.5 and −0.1 V in 5 mM K3[Fe(CN)6] in 1X PBS (pH 7.4) buffer. The results indicate oxidation and reduction peaks occur at 0.09 V and 0.2 V, respectively, with a linear equation of Ipa (μA) and Ipc (μA). Regardless of the number of layers (Figure 5a,b), the anodic potential shifts more towards the positive potential and the cathodic peak potential shifts in the reverse direction. The peak currents and the CV peak separation (∆Ep) of Fe(CN)63−/4− were increased with the scan rates (Table 2). The results show that the peak currents were increased and the CV peak separation (∆Ep) was decreased in the 200-layered HA-CNT device compared to that of the 100-layered device. The ratio of the reverse-to-forward peak currents, Ipa/Ipc, is almost equivalent for a redox couple. The diffusion coefficient for [Fe(CN)6]3− was calculated according to the Randles-Sevcik equation [38]:
  i p   =   0.4463 n F A C ( n F v D R T ) 1 / 2
where F is Faraday’s constant (96,485 C∙mol−1), R is the universal gas constant (8.314 J∙mol−1∙K−1), ip is the peak current in A, n is the number of electrons transferred, A is the electrode active surface area in cm2, D is the diffusion coefficient of the molecule in cm2∙s−1, v is the scan rate (V∙s−1), C is the concentration of the probe molecule, and T is temperature (K). The peak current was plotted against the square root of the scan rate (Figure 5 inserts). The slope of the linear fit (a = ip/v1/2) was used to determine the diffusion coefficient. The surface area of the HA-CNT sheet exposed as a working electrode was calculated (0.0314 cm2) based on the electrode’s geometry (Figure 1). The calculated diffusion coefficient was 9.0 × 10−7 cm2∙s−1 at the 100-layered HA-CNT sheet and 3.6 × 10−6 cm2∙s−1 at the 200-layered HA-CNT sheet, respectively. Redox of devices integrated within the two different layered working electrodes exhibited a high diffusion rate towards electrochemical oxidation. Current density (I) and potential separation (Eps) of devices composed of the 100-layered HA-CNT sheet as a working electrode also had a high sensitivity as noted from the CV results. For example, Taurino et al. reported a potential separation (Eps) 332.16 ± 0.02~446.26 ± 0.03 mV at 100 mV/s scan rate in 0.01 PBS containing 5 mM (K4Fe(CN)6) concentration [39]. Therefore, this paper-based electroanalytical device provides high peak-to-peak current (Ipa and Ipc) and small potential separation (Eps), as seen in Table 2, which demonstrated a high sensitivity and lower detection limit. Furthermore, this HA-CNT paper-electrode with integrated cellulose paper can be functionalized directly with moieties such as carboxylic groups and biomolecules to its defect sites through covalent bonding [40,41]. It can also be modified with certain enzymes, antibodies and nucleotides [42] for point-of-care diagnostics.

4. Conclusions

We introduced the paper-based electroanalytical device consisting of cellulose-based paper, electrical connection patterned paper, and CNT sheet paper. The two different electrodes of 200- and 100-layered HA-CNT sheets were used as working electrodes in the Origami paper-based chip for the electroanalytical sensor. The 200-layered HA-CNT working electrode had electrochemically high conductivity, providing high sensitivity compared to that of the 100-layered HA-CNT. EIS and CV analysis was used with a simulated body fluid (1X PBS) solution as an electrolyte. However, the device consisting of the 100-layered HA-CNT sheet also showed a high sensitivity, based on CV analysis. Additionally, a paper-based Origami chip can be printed and directly applied for electrochemical measurements with a small sample for analysis.

Acknowledgments

This research was supported by the NSF Engineering Research Center (ERC) for revolutionizing metallic biomaterials (NSF-0812348) and NIH NIGMS grant (1SC3GM113728-01) at North Carolina A & T State University. The NSF funding at the University of Cincinnati through grant SNM-1120382 is gratefully acknowledged. Special thanks to M. Paulette Foster for reading the manuscript.

Author Contributions

Youngmi Koo designed the device, performed the experiments, analyzed the data and wrote the paper. Vesselin N. Shanov provided the pristine CNT sheet. Yeoheung Yun advised for this research.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Martinez, A.W.; Phillips, S.T.; Butte, M.J.; Whitesides, G.M. Patterned paper as a platform for inexpensive, low-volume, portable bioassays. Angew. Chem. Int. Ed. 2007, 46, 1318–1320. [Google Scholar] [CrossRef] [PubMed]
  2. Klasner, S.A.; Price, A.K.; Hoeman, K.W.; Wilson, R.S.; Bell, K.J.; Culbertson, C.T. Paper-based microfluidic devices for analysis of clinically relevant analytes present in urine and saliva. Anal. Bioanal. Chem. 2010, 397, 1821–1829. [Google Scholar] [CrossRef] [PubMed]
  3. Songjaroen, T.; Dungchai, W.; Chailapakul, O.; Laiwattanapaisal, W. Novel, simple and low-cost alternative method for fabrication of paper-based microfluidics by wax dipping. Talanta 2011, 85, 2587–2593. [Google Scholar] [CrossRef] [PubMed]
  4. Koo, Y.; Sankar, J.; Yun, Y. High performance magnesium anode in paper-based microfluidic battery, powering on-chip fluorescence assay. Biomicrofluidics 2014, 8, 054104. [Google Scholar] [CrossRef] [PubMed]
  5. Zhao, C.; Thuo, M.M.; Liu, X. A microfluidic paper-based electrochemical biosensor array for multiplexed detection of metabolic biomarkers. Sci. Technol. Adv. Mater 2013, 14, 054402. [Google Scholar] [CrossRef]
  6. Noiphung, J.; Songjaroen, T.; Dungchai, W.; Henry, C.S.; Chailapakul, O.; Laiwattanapaisal, W. Electrochemical detection of glucose from whole blood using paper-based microfluidic devices. Anal. Chim. Acta 2013, 788, 39–45. [Google Scholar] [CrossRef] [PubMed]
  7. Dungchai, W.; Chailapakul, O.; Henry, C.S. Electrocheical detection for paper-based microfluidics. Analy. Chem. 2009, 81, 5821–5826. [Google Scholar] [CrossRef] [PubMed]
  8. Renault, C.; Anderson, M.J.; Crooks, R.M. Electrochmicstry in hollow-channel paper anlaytical devices. J. Am. Chem. Soc. 2014, 136, 4616–4623. [Google Scholar] [CrossRef] [PubMed]
  9. Lan, W.-J.; Maxwell, E.J.; Parolo, C.; Bwambok, D.; Subramaniam, A.; Whitesides, G.M. Paper-based electroanalytical devices with an integrted, stable reference electrode. Lab Chip 2013, 13, 4103–4108. [Google Scholar] [CrossRef] [PubMed]
  10. Yu, J.; Wang, S.; Ge, L.; Ge, S. A novel chemiluminescence paper microfluidic biosensor based on enzymatic reaction for uric acid determination. Biosens. Bioelectron. 2011, 26, 3284–3289. [Google Scholar] [CrossRef] [PubMed]
  11. Delaney, J.L.; Hogan, C.F.; Tian, J.; Shen, W. Electrogenerated chemiluminescence detection in paper-based microfluidic sensors. Anal. Chem. 2011, 83, 1300–1306. [Google Scholar] [CrossRef] [PubMed]
  12. Liu, H.; Crooks, R.M. Three-dimensional paper microfluidic devices assembled using the principles of Origami. J. Am. Chem. Soc. 2011, 133, 17564–17566. [Google Scholar] [CrossRef] [PubMed]
  13. Nie, Z.; Nijhuis, C.A.; Gong, J.; Chen, X.; Kumachev, A.; Martinez, A.W.; Narovlyansky, M.; Whitesides, G.M. Electrochemical sensing in paper-based microfluidic devices. Lab Chip 2010, 10, 477–483. [Google Scholar] [CrossRef] [PubMed]
  14. Zang, D.; Ge, L.; Yan, M.; Song, X.; Yu, J. Electrochemical immunoassay on a 3D microfluidic paper-based device. Chem. Commun. 2012, 48, 4683–4685. [Google Scholar] [CrossRef] [PubMed]
  15. Ge, S.; Ge, L.; Yan, M.; Song, X.; Yu, J.; Huang, J. A disposable paper-based electrochemical sensor with an addressable electrode array for cancer screening. Chem. Commun. 2012, 48, 9397–9399. [Google Scholar] [CrossRef] [PubMed]
  16. Zang, D.; Yan, M.; Ge, S.; Ge, L.; Yu, J. A disposable simultaneous electrochemical sensor array based on a molecularly imprinted film at a NH2-graphene modified screen-printed electrode for determination of psychotropic drugs. Analyst 2013, 138, 2704–2711. [Google Scholar] [CrossRef] [PubMed]
  17. Adkins, J.; Boehle, K.; Henry, C. Electrochemical paper-based microfluidic devices. Electrophoresis 2015, 36, 1811–1824. [Google Scholar] [CrossRef] [PubMed]
  18. Dossi, N.; Toniolo, R.; Terzi, F.; Impellizzieri, F.; Bontempelli, G. Pencil leads doped with electrochemically deposited Ag and AgCl for drawing reference electrodes on paper-based electrochemical devices. Electrochim. Acta 2014, 146, 518–524. [Google Scholar] [CrossRef]
  19. Shitanda, I.; Yamaguchi, T.; Hoshi, Y.; Itagaki, M. Fully screen-printed paper-based electrode chip for glucose detection. Chem. Lett. 2013, 42, 1369–1370. [Google Scholar] [CrossRef]
  20. Gao, C.; Guo, Z.; Liu, J.H.; Huang, X.J. The new age of carbon nanotubes: An updated review of functionalized carbon nanotubes in electrochemical sensors. Nanoscale 2012, 4, 1948–1963. [Google Scholar] [CrossRef] [PubMed]
  21. Vashist, S.K.; Zheng, D.; Al-Rubeaan, K.; Luong, J.H.T.; Sheu, F.S. Advances in carbon nanotube based electrochemical sensors for bioanalytical applications. Biotechnol. Adv. 2011, 29, 169–188. [Google Scholar] [CrossRef] [PubMed]
  22. Jacobs, C.B.; Peairs, M.J.; Venton, B.J. Review: Carbon nanotube based electrochemical sensors for biomolecules. Anal. Chim. Acta 2010, 662, 105–127. [Google Scholar] [CrossRef] [PubMed]
  23. Agüí, L.; Yáñez-Sedeño, P.; Pingarrón, J.M. Role of carbon nanotubes in electroanalytical chemistry: A review. Anal. Chim. Acta 2008, 622, 11–47. [Google Scholar] [CrossRef] [PubMed]
  24. Munaiah, Y.; Suresh, S.; Dheenadayalan, S.; Pillai, V.K.; Ragupathy, P. Comparative electrocatalytic performance of single-walled and multiwalled carbon nanotubes for Zinc Bromine redox flow batteries. J. Phys. Chem. C 2014, 118, 14795–14804. [Google Scholar] [CrossRef]
  25. Koo, Y.; Malik, R.; Alvarez, N.; White, L.; Shanov, V.N.; Schulz, M.; Collins, B.; Sankar, J.; Yun, Y. Aligned carbon nanotube/copper sheets: A new electrocatalyst for CO2 reduction to hydrocarbons. RSC Adv. 2014, 4, 16362–16367. [Google Scholar] [CrossRef]
  26. Wang, J. Carbon-nanotube based electrochemical biosensors: A review. Electroanalysis 2005, 17, 7–14. [Google Scholar] [CrossRef]
  27. Lawal, A.T. Synthesis and utilization of carbon nanotubes for fabrication of electrochemical biosensors. Mater. Res. Bull. 2016, 73, 308–350. [Google Scholar] [CrossRef]
  28. Li, F.; Peng, J.; Wang, J.; Tang, H.; Tan, L.; Xie, Q.; Yao, S. Carbon nanotube-based label-free electrochemical biosensor for sensitive detection of miRNA-24. Biosens. Bioelectron. 2014, 54, 158–164. [Google Scholar] [CrossRef] [PubMed]
  29. Pumera, M. Carbon Nanotube Biosensors Based on Electrochemical Detection. Carbon Nanotub. Methods Protoc. 2010, 625, 205–212. [Google Scholar]
  30. Jiang, L.C.; Zhang, W.D. A highly sensitive nonenzymatic glucose sensor based on CuO nanoparticles-modified carbon nanotube electrode. Biosens. Bioelectron. 2010, 25, 1402–1407. [Google Scholar] [CrossRef] [PubMed]
  31. Swamy, B.E.K.; Venton, B.J. Carbon nanotube-modified microelectrodes for simultaneous detection of dopamine and serotonin in vivo. Analyst 2007, 132, 876–884. [Google Scholar] [CrossRef] [PubMed]
  32. Villamizar, R.A.; Braun, J.; Gompf, B.; Dressel, M.; Rius, F.X. Morphological and electrical characteristics of biofunctionalized layers on carbon nanotubes. Biosens. Bioelectron. 2009, 25, 161–166. [Google Scholar] [CrossRef] [PubMed]
  33. Munge, B.S.; Krause, C.E.; Malhotra, R.; Patel, V.; Gutkind, J.S.; Rusling, J.F. Electrochemical immunosensors for interleukin-6. Comparison of carbon nanotube forest and gold nanoparticle platforms. Electrochem. Commun. 2009, 11, 1009–1012. [Google Scholar] [CrossRef] [PubMed]
  34. Tam, P.D.; Hieu, N.V.; Chien, N.D.; Le, A.T.; Tuan, M.A. DNA sensor development based on multi-wall carbon nanotubes for label-free influenza virus (type A) detection. J. Immunol. Methods 2009, 350, 118–124. [Google Scholar] [CrossRef] [PubMed]
  35. Dastagir, T.; Forzani, E.S.; Zhang, R.; Amlani, I.; Nagahara, L.A.; Tsui, R.; Tao, N. Electrical detection of hepatitis C virus RNA on single wall carbon nanotube-field effect transistors. Analyst 2007, 132, 738–740. [Google Scholar] [CrossRef] [PubMed]
  36. Niu, S.; Han, B.; Cao, W.; Zhang, S. Sensitive DNA biosensor improved by Lutolin copper(II) as indicator based on silver nanoparticles and carbon nanotubes modified electrode. Anal. Chim. Acta 2009, 651, 42–47. [Google Scholar] [CrossRef] [PubMed]
  37. Koo, Y.; Shanov, V.N.; Yarmolenko, S.; Schulz, M.; Sankar, J.; Yun, Y. Inverse-ordered fabrication of free-standing CNT sheets for supercatpcitor. Langmuir 2015, 31, 7616–7622. [Google Scholar] [CrossRef] [PubMed]
  38. Randles, J.E.B. A cathod ray polarogarph. Part II. The current-voltage curves. Trans. Faraday Soc. 1948, 44, 327–338. [Google Scholar] [CrossRef]
  39. Taurino, I.; Carrara, S.; Giorcelli, M.; Tagliaferro, A.; Micheli, G.D. Comparison of two different carbon nanotube-based surfaces with respect to potassium ferricyanide electrochemistry. Surf. Sci. 2012, 606, 156–160. [Google Scholar] [CrossRef]
  40. Banerjee, S.; Hemraj-Benny, T.; Wong, S.S. Covalent surface chemistry of single-walled carbon nanotubes. Adv. Mater. 2005, 17, 17–29. [Google Scholar] [CrossRef]
  41. Wang, Y.; Iqbal, Z.; Malhotra, S.V. Functionalization of carbon nanotubes with amines and enzymes. Chem. Phys. Lett. 2005, 402, 96–101. [Google Scholar] [CrossRef]
  42. Yun, Y.; Dong, Z.; Shanov, V.; Heineman, W.R.; Halsall, H.B.; Bhattacharya, A.; Conforti, L.; Narayan, R.K.; Ball, W.S.; Schulz, M.J. Nanotube electrodes and biosensors. Nano Today 2007, 2, 30–37. [Google Scholar] [CrossRef]

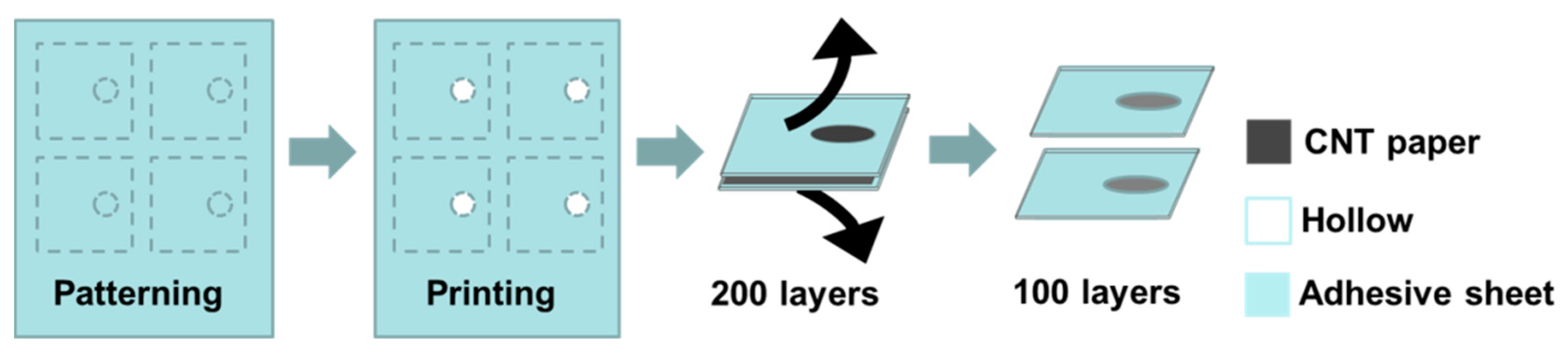

Figure 1. Inverse-ordered fabrication from 200-layered to 100-layered CNT sheet paper.
Figure 1. Inverse-ordered fabrication from 200-layered to 100-layered CNT sheet paper.
Micromachines 07 00072 g001

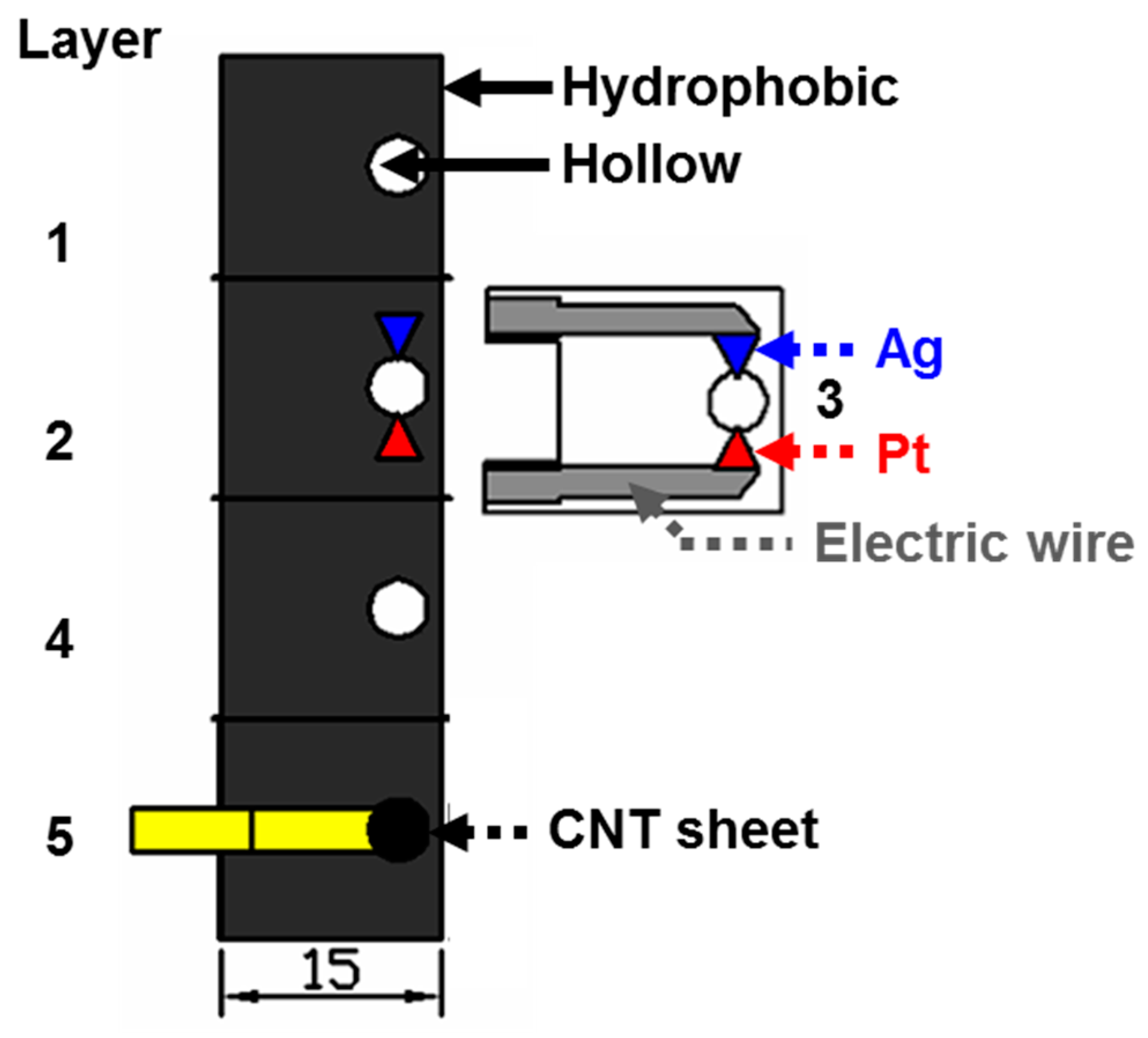

Figure 2. Basic design of the paper-based electroanalytical device.
Figure 2. Basic design of the paper-based electroanalytical device.
Micromachines 07 00072 g002

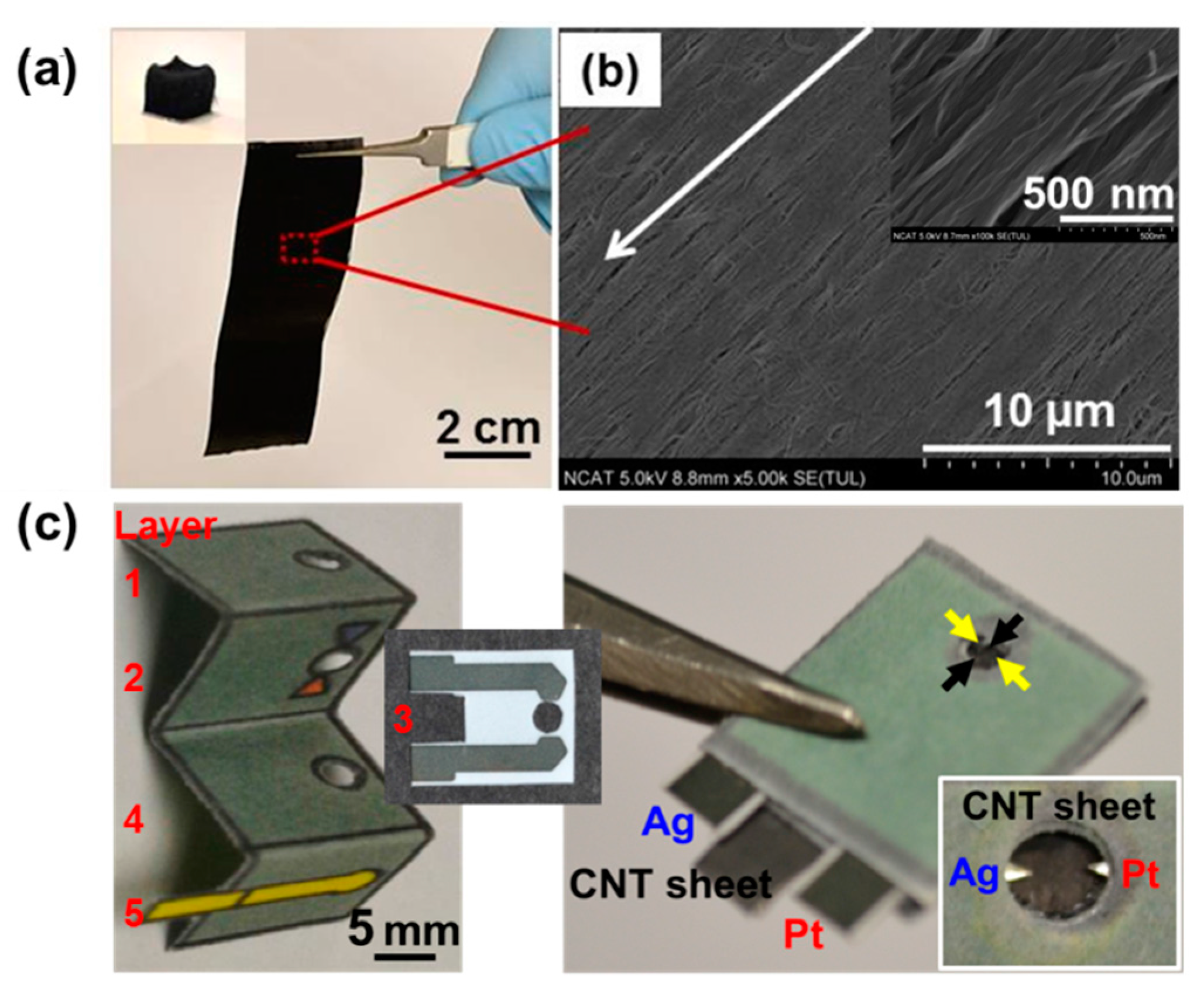

Figure 3. (a) Free standing HA-CNT sheet paper (insert: optical image of CNT array just before the CNT sheet is pulled out). (b) SEM image of the HA-CNT sheet paper (insert: enlarged SEM image). The white arrow demonstrates the alignment direction of the HA-CNT sheet paper and (c) optical images of the wax-printed Origami chip and conductive pattern-printed layer 3 and final assembled paper-based electroanalytical device (insert: the three electrodes).
Figure 3. (a) Free standing HA-CNT sheet paper (insert: optical image of CNT array just before the CNT sheet is pulled out). (b) SEM image of the HA-CNT sheet paper (insert: enlarged SEM image). The white arrow demonstrates the alignment direction of the HA-CNT sheet paper and (c) optical images of the wax-printed Origami chip and conductive pattern-printed layer 3 and final assembled paper-based electroanalytical device (insert: the three electrodes).
Micromachines 07 00072 g003

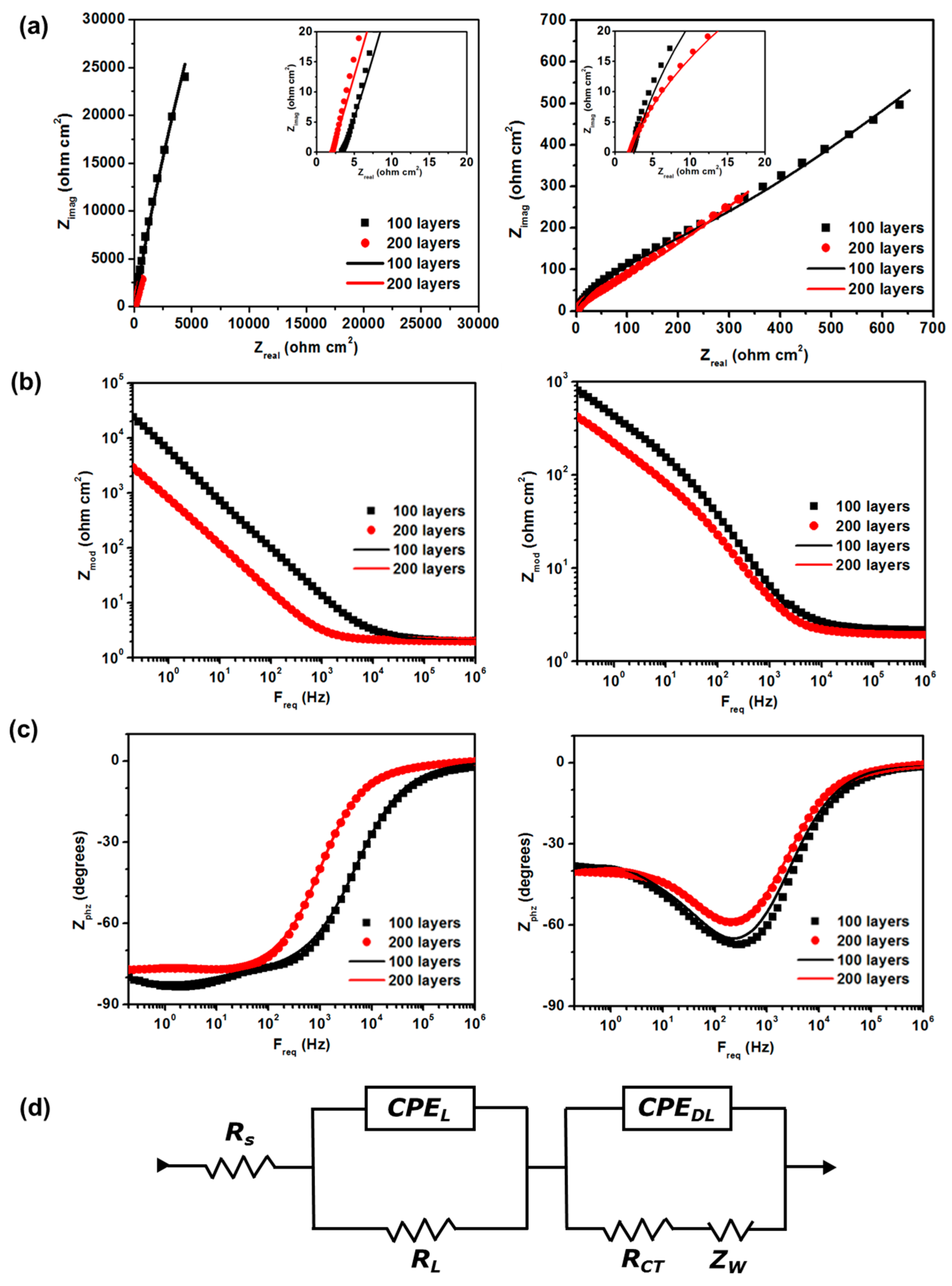

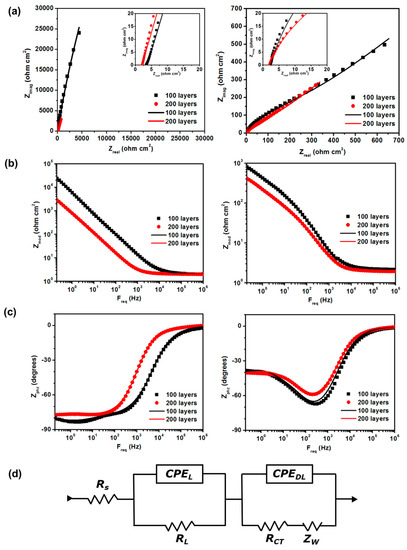

Figure 4. Impedance plots of paper-based electroanalytical device. (a) The Nyquist diagram, (b,c) Bode plots of the 200 and 100-layered HA-CNT sheet working electrodes between 1 MHz and 0.2 Hz frequency in 1X PBS (left) and 5 mM K3[Fe(CN)6] in 1X PBS solution (right) in an Origami paper-based chip. (d) Equivalent circuit for the impedance spectra of the paper-based electroanalytical device. The dots and lines noted in (a–c) represent experimental data and (d) a model of an equivalent circuit.
Figure 4. Impedance plots of paper-based electroanalytical device. (a) The Nyquist diagram, (b,c) Bode plots of the 200 and 100-layered HA-CNT sheet working electrodes between 1 MHz and 0.2 Hz frequency in 1X PBS (left) and 5 mM K3[Fe(CN)6] in 1X PBS solution (right) in an Origami paper-based chip. (d) Equivalent circuit for the impedance spectra of the paper-based electroanalytical device. The dots and lines noted in (a–c) represent experimental data and (d) a model of an equivalent circuit.
Micromachines 07 00072 g004

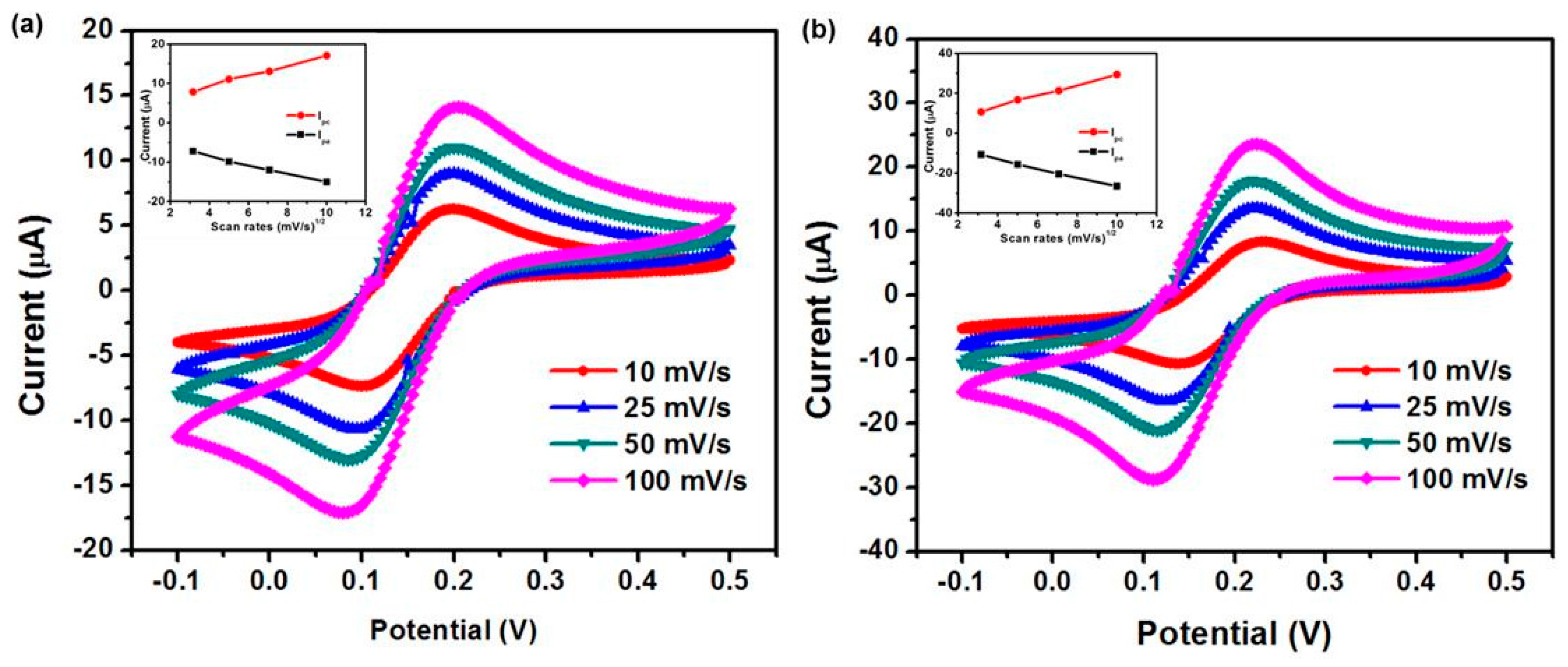

Figure 5. Cyclic voltamamograms on paper-based electroanalytical devices of the two working electrodes of different thicknesses in 5 mM K3[Fe(CN)6] as a redox probe in 1X PBS (pH 7.4) buffer at different scan rates. (a) 100-layered HA-CNT sheet, (b) 200-layered HA-CNT sheet. (Insert: shows plots of the redox peak currents vs. the square root of scan rate).
Figure 5. Cyclic voltamamograms on paper-based electroanalytical devices of the two working electrodes of different thicknesses in 5 mM K3[Fe(CN)6] as a redox probe in 1X PBS (pH 7.4) buffer at different scan rates. (a) 100-layered HA-CNT sheet, (b) 200-layered HA-CNT sheet. (Insert: shows plots of the redox peak currents vs. the square root of scan rate).
Micromachines 07 00072 g005
Table 1. Electrochemical parameters of equivalent circuits obtained from best fit to impedance data for paper-based electroanalytical devices.
Table 1. Electrochemical parameters of equivalent circuits obtained from best fit to impedance data for paper-based electroanalytical devices.
ElectrolyteLayersRs (Ω)CPEL (S·sn)n1RL (Ω)CPEDL (S·sn)n2RCT (Ω)ZW (S·s1/2)
1X PBS10067.61.7 × 10−56.7 × 10−13.1 × 1038.9 × 10−79.4 × 10−11.7 × 1051.4 × 10−7
20065.026.7 × 10−58.0 × 10−13.1 × 1038.1 × 10−68.8 × 10−13.7 × 1034.0 × 10−7
5 mM PF in 1X PBS10069.153.0 × 10−56.8 × 10−14.2 × 1031.7 × 10−61.0 × 1001.3 × 1033.9 × 10−5
20062.124.2 × 1038.1 × 10−19.9 × 1021.5 × 10−58.1 × 10−14.2 × 1036.6 × 10−5
Table 2. Electrochemical data for 100- and 200-layered paper-based electroanalytical device by cyclic voltammetry at different sweeping rates.
Table 2. Electrochemical data for 100- and 200-layered paper-based electroanalytical device by cyclic voltammetry at different sweeping rates.
Devicev (mV/s)Eps (mV)Ipa (μA)Ipc (μA)Ipa/Ipc
100-layered WE10967.197.850.92
251039.8311.10.89
501081213.10.92
1001191517.10.88
200-layered WE109510.710.71.00
259815.616.80.93
5010220.421.30.96
10011126.529.40.90
