The Modification of Pt/Graphene Composites with Oxophilic Metal Bi (Bi2O3) and Its Dual-Functional Electro-Photo Catalytic Performance

by
Yingli Wu
1,†,
Xiuyun Duan
1,†,
Zhongshui Li
1,2,
Shuhong Xu
1,
Yixin Xie
1,
Yufei Lai
1 and
Shen Lin
1,2,*
1
College of Chemistry & Materials Science, Fujian Normal University, Fuzhou 350007, China
2
Fujian Provincial Key Laboratory of Advanced Materials Oriented Chemical Engineering, Fuzhou 350007, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Catalysts 2018, 8(10), 465; https://doi.org/10.3390/catal8100465
Submission received: 16 August 2018 / Revised: 20 September 2018 / Accepted: 28 September 2018 / Published: 17 October 2018
(This article belongs to the Special Issue Recent Advances in Pt-Based Catalysts: Theoretical and Experimental Results)
Browse Figures
Versions Notes

Abstract

:
The Pt-Bi (Bi2O3)/GNs (PVP) composite was synthesized using aqueous solution synthesis and characterized by transmission electron microscopy (TEM), X-ray diffraction (XRD), X-ray photoelectron spectroscopy (XPS), inductively coupled plasma-atomic emission spectroscopy (ICP-AES) and Raman spectroscopy. It was found that the water-soluble polyvinyl pyrrolidone (PVP) helped to tune the particles’ morphology, resulting in a uniform distribution of Pt-Bi nanoclusters on the surface of graphene. Cyclic voltammetry, chronoamperometry and linear scanning voltammetry (LSV) were used to study the electrocatalytic properties towards a methanol oxidation reaction (MOR) and an oxygen reduction reaction (ORR). The results show that Pt-Bi (Bi2O3)/GNs (PVP) exhibits superior bifunctional electrocatalytic properties for both MOR and ORR, mainly due to the introduction of oxophilic Bi species and the better dispersion of the Pt-Bi nanoclusters. In particular, the electro-photo catalysis for both MOR and ORR occurred under simulated sunlight irradiation due to the existence of photo-responsive Bi species, which is helpful for converting solar energy into electric energy during a traditional electrocatalytic process.

1. Introduction

Fuel cells have a wide range of applications in our daily life because they can transform the chemical energy of fuel into electricity through electrochemical reactions directly. Platinum (Pt) is employed as the most effective major catalysts due to its distinct chemical and electronic properties up to present [1,2,3]. Nevertheless, it is still a long way to realize the wide application of Pt catalysts due to its high cost, rare source, and sluggish kinetics [4]. Therefore, it is necessary to find more cost-effective and efficient alternatives.
Many efforts have recently been focused on Pt-based bimetallic catalysts because they can improve their electrocatalytic activity via a bifunctional mechanism or an electronic effect [5] and effectively reduce the usage of noble platinum. For example, PtRu [6], PtPd [7], and PtAu [8] have their own high activity in catalyzing methanol electro-oxidation. However, the introduction of Ru, Pd, or Au can not strongly overcome the fatal disadvantage of a Pt-based catalysts’ high price. To this day, it has been reported that some cheap metals applied to a Pt-based catalyst can reduce the costs and increase the activity [9], such as Pt-Cu [10], Pt-Co [11], Pt-Fe [12], Pt-Ni [13,14], and Pt-Bi [15]. Ding [16] reported a core-shell Ni@Pt catalyst and found that the unique structure and the electronic effects of the various metals were responsible for its high electrocatalytic performances. Peng [17] presented a one-pot hydrothermal synthesis of a Pt-Cu catalyst, which exhibited an enhanced catalytic performance due to the appropriately modified electron structure of Pt by alloying with Cu. Kannan [18] prepared a FePt/RGO bifunctional catalyst towards ORR and MOR and the oxophilic Fe played an important role in its bifunctional catalytic performances. Qin [19] synthesized a Pt-Co nano-crystal catalyst, which presented enhanced catalytic properties for the formic acid oxidation reaction (FOR) and ORR. It can be inferred that the electronic effects between Pt and the second metal are one of the main driving forces for their enhanced performances. The tolerance to CO poisoning of the Pt-based catalysts can be improved by increasing the oxide species among Pt-M bimetals’ surface due to the oxophilic properties of the second cheap metal [20], which may be the other force for improving the performance.
Considering the favorable properties of the non-noble Bi in inhibiting CO poison effects [21] and the efficient photo-responsive properties of Bi oxide [22], Pt-Bi bimetals are expected to exhibit synergistic effects of photo- and electro-catalysis under light irradiation, which is similar to a Pt-semiconductor metal oxide such as TiO2 [22], SnO2 [23], or ZnO [24]. However, bismuth is easily lost during electrocatalysis and their morphologies are difficult to control due to the oxophilic property of the Bi species. Therefore, an appropriate support material, such as graphene nanosheets (GNs) and an effective morphology controlling agent, such as a water-soluble polymer are indispensable. We have previously reported an etched Pt-Bi (Bi2O3)/GNs (Etching) catalyst, which exhibited superior electrocatalysis than the commercial catalysts for catalyzing methanol oxidation [25]. However, the etching process removed most of the Bi species, which made Pt-Bi (Bi2O3)/GNs (Etching) lose the capacity of electro-photo synergistic catalysis under irradiation. So how to take advantage of the photo-responsive properties of Bi oxide in electrocatalysis is of significance and is interesting work.
In this work, a Pt-Bi (Bi2O3)/GNs (PVP) composite was synthesized using a facile wet chemical procedure, in which graphene nanosheets were used to support the Pt-Bi bimetal and their morphologies were controlled using an aqueous soluble polyvinyl pyrrolidone (PVP). As a result, Pt-Bi nanoparticles were uniformly distributed on the surface of the GNs and Pt-Bi (Bi2O3)/GNs (PVP) exhibited superior electrocatalytic properties towards the methanol oxidation reaction (MOR) and the oxygen reduction reaction (ORR). In particular, the Pt-Bi (Bi2O3)/GNs (PVP) composite had an electro-photo synergistic catalytic effect on catalyzing the MOR and the ORR under simulated sunlight irradiation due to the existence of the photosensitive species (Bi2O3), which harvests the simulator sunlight to assist electrocatalysts to convert chemical energy into electric energy.

2. Results and Discussion

2.1. Characterization

Figure 1A shows the X-ray diffraction (XRD) patterns of Pt-Bi (Bi2O3)/GNs (PVP) (curve a), Pt/GNs (PVP) (curve b) and Pt-Bi (Bi2O3)/GNs (curve c). The characteristic diffraction peaks located at 39.7°, 46.5° 67.5° and 81.4° originated from (111), (200), (220) and (311) crystal planes of face-centered cubic (fcc) Pt [26]. The additional diffraction peak at 2θ of about 28.4° corresponds to the (121) plane of Bi2O3 [27] (curve a, c), indicating that the bismuth species in the composite mainly exists in the form of Bi2O3. Furthermore, the peak at 24.0° in curve b was assigned to the (002) crystal plane of carbon in graphene [28].
The composite was further characterized by XPS. As can be seen from Figure 1B–D, the Pt 4f signal was fitted using a non-linear least-square regression method and Shirley-type background corrections and Gaussian–Lorentzian peak shapes were used. It seems that the Pt species existed in various states because the Pt 4f signal was composed of three pairs of doublets. The most intense doublet (71.40 eV and 74.52 eV) was ascribed to metallic Pt (0) [29,30]. The doublet (71.83 eV and 75.24 eV) can be attributed to the Pt (II) chemical state (PtO or Pt(OH)2) [30,31]. The weak doublet (72.51 eV and 76.42 eV) can be assigned to the Pt (IV) chemical state (PtO2) [30]. It was evident that the predominant species of Pt in the Pt-based catalysts above was metallic Pt. The fitted Bi 4f spectra of Pt-Bi (Bi2O3)/GNs (PVP) and Pt-Bi (Bi2O3)/GNs are shown in Figure 1E,F. The Bi 4f binding energies assigned to Bi (0) and Bi (III) were observed both in Pt-Bi (Bi2O3)/GNs (PVP) and Pt-Bi (Bi2O3)/GNs. After curve fitting, the peaks at 159.5 and 164.9 eV belong to the Bi (III) species (Bi2O3) and the peaks at 158.3 and 163.7 eV were due to the Bi (0) species [20,32]. It can be found from the peak intensity and the peak area that bismuth mainly existed in the form of Bi2O3, which may be because Bi (0) is easily oxidized during the synthetic process due to its oxophilic property [33,34].
The morphologies of Pt-Bi (Bi2O3)/GNs (PVP), Pt/GNs (PVP), and Pt-Bi (Bi2O3)/GNs were analyzed by TEM. As shown in Figure 2A,B, Pt-Bi nanoclusters in Pt-Bi (Bi2O3)/GNs (PVP) were uniformly distributed on the surface of graphene and no obvious aggregation was observed between the clusters. However, the Pt-Bi particles in Pt-Bi (Bi2O3)/GNs were unevenly distributed on the graphene layer (Figure 2G) and some particles aggregated into irregular clusters (Figure 2H). In contrast, it can be concluded that PVP played a role in tuning the morphology of the particles supported on graphene, which is also verified by Figure 2D,E. As shown in Figure 3D,E, the Pt particles in Pt/GNs (PVP) exhibited a uniform distribution on the surface of the graphene due to the introduction of PVP.
As indicated in the High-resolution transmission electron microscopy (HRTEM) images of Pt-Bi (Bi2O3)/GNs (PVP), Pt/GNs (PVP) and Pt-Bi (Bi2O3)/GNs (Figure 2C,F,I), lattice fringes with interplanar spacings of 0.227 nm corresponding to the (111) plane in the Pt fcc system were observed [35], which is in accordance with the XRD analysis. However, lattice fringes of Bi or Bi2O3 are not observed in Figure 2C,I, which may be because the Bi species in Pt-Bi (Bi2O3)/GNs (PVP) and Pt-Bi (Bi2O3)/GNs mainly exists in the form of Bi2O3 with poor crystallinity [25].
The HAADF-STEM of Pt-Bi (Bi2O3)/GNs (PVP) (Figure 3A) showed that the Pt-Bi nanoclusters were evenly distributed in the graphene layer and elemental mapping (Figure 3B–D) disclosed the homogeneous co-existence of Pt and Bi in the Pt-Bi nanoclusters. However, irregular Pt-Bi agglomerations were found in the HAADF-STEM of Pt-Bi (Bi2O3)/GNs (Figure 3E) and a similar co-existence of Pt and Bi was observed in elemental mappings (Figure 3F–H).
Figure 4 is a Raman spectrum of Pt-Bi (Bi2O3)/GNs (PVP), Pt/GNs (PVP) and Pt-Bi (Bi2O3)/GNs, which can be used to analyze the defects of the surface structure of the as-obtained GNs-based materials. As depicted in Figure 4, all samples exhibited two peaks at 1309 cm−1 and 1594 cm−1, which were attributed to the D band and G band respectively. The intensity ratio of the D band and G band (ID/IG) is usually used to evaluate the extent of defects in carbonaceous materials. By calculation, the ID/IG ratios of Pt-Bi (Bi2O3)/GNs (PVP) (curve a), Pt/GNs (PVP) (curve b) and Pt-Bi (Bi2O3)/GNs (curve c) were 1.11, 1.11 and 1.18 respectively, which are similar to each other. This indicates that the introduction of different components (Pt, Bi or PVP) into graphene hardly changes the structural characteristics of graphene [33,36], which is helpful for graphene to retain its good electron transfer performance and to allow graphene-based materials to have better catalytic properties.

2.2. Electrocatalysis

Figure 5 shows the cyclic voltammetry curves of Pt-Bi (Bi2O3)/GNs (PVP) (curve a), 30% Johnson Matthey PtRu/C catalyst (30% PtRu/C-JM) (curve b), Pt/GNs (PVP) (curve c) and Pt-Bi (Bi2O3)/GNs (curve d) in a 1.0 M CH3OH + 1.0 M NaOH solution. It can be clearly observed that the mass activities of Pt-Bi/GNs (PVP) (1501.69 mA mg−1) in the positive sweeps were 1.41 times, 2.88 times, and 11.01 times higher than those of commercial 30% PtRu/C-JM (1068.74 mA mg−1), Pt/GNs (PVP) (521.58 mA mg−1), and Pt-Bi (Bi2O3)/GNs (136.39 mA mg−1) respectively, demonstrating that Pt-Bi (Bi2O3)/GNs (PVP) had a significantly enhanced electrocatalytic activity for the MOR [33,37]. Furthermore, its mass activities were also higher than that of some reported Pt-based catalysts in an alkaline medium, such as spherical PtBi/glassy carbon electrode (GCE) catalyst (1400 mA mg−1) [21], Pt/3D-GNs (PANI) catalyst (1172 mA mg−1) [38] and Pt-Pd NPs/G catalyst (640 mA mg−1) [39].
The chronoamperometry curve carried out at 0.7 V for 2000 s was used to further explore the catalytic stability of the as-tested catalysts. It can be seen from Figure 6 that the Pt-Bi (Bi2O3)/GNs (PVP) had a relatively higher initial current density, a slower decrease and a higher steady-state current density, indicating better catalytic stability of Pt-Bi (Bi2O3)/GNs (PVP) for catalyzing methanol oxidation. In particular, the decay of the current density for Pt-Bi (Bi2O3)/GNs (PVP) was slightly slower than that of 30% PtRu/C-JM. The better catalytic performance of Pt-Bi (Bi2O3)/GNs (PVP) towards the MOR may be attributed to the following bifunctional mechanism: Firstly, the introduction of PVP can promote the uniform distribution of Pt and Bi particles on a graphene surface, as shown in Figure 2, which effectively improves its catalytic activity. Secondly, due to surface oxidation caused by oxophilic Bi, a large amount of OHads formed on the catalyst surface. OHads can react with intensively adsorbed species such as low potential CO, to release dissociative Pt active sites for further oxidizing methanol molecules. As for Pt-Bi (Bi2O3)/GNs, the poor dispersion of the Pt-Bi nanoparticles was responsible for its inferior performance.
Pt-Bi (Bi2O3)/GNs (PVP) and Pt-Bi (Bi2O3)/GNs were also investigated as potential electrocatalysts towards the oxygen reduction reaction (ORR). As for the ORR, cyclic voltammetry was firstly performed in a 1.0 M NaOH solution saturated with N2. It was obvious that there was a peak around 0.40 V versus the reversible hydrogen electrode (RHE) (in Figure 7A,D) in the backward scanning curves, which was associated with the presence of Bi [40]. After that, cyclic voltammetry was carried out in a 1.0 M NaOH solution saturated with O2. Among all of the tested catalysts, Pt-Bi (Bi2O3)/GNs (PVP) had a significant oxygen reduction peak current density with the value of −7.85 mA mg−1 in an oxygen saturated 1.0 M NaOH solution (curve a in Figure 7A), which was 1.03 times, 1.67 times, 1.30 times higher than that of 30% PtRu/C-JM (−7.63 mA mg−1), Pt/GNs (PVP) (−4.70 mA mg−1) and Pt-Bi (Bi2O3)/GNs (−6.02 mA mg−1) respectively. Furthermore, the reduction peak potential of Pt-Bi (Bi2O3)/GNs (PVP) was at 0.82 V versus RHE, which was more positive than that of commercial 30% PtRu/C-JM (0.78 V), Pt/GNs (PVP) (0.79 V) and Pt-Bi (Bi2O3)/GNs (0.71 V). Obviously, Pt-Bi (Bi2O3)/GNs (PVP) exhibited superior catalytic activities for the ORR, confirming that the introduction of Bi can improve the catalytic activity of oxygen reduction.
To further evaluate their catalytic properties towards the ORR, a linear sweep voltammetry test was conducted using a rotating disk electrode, which is shown in Figure 8. It was found that with an increase in the electrode rotational speed, the limited current density of the oxygen reduction reaction was augmented linearly. The corresponding slopes of the Koutecky-Levich plots obtained from the inverse current density (j−1) as a function of the inverse of the square root of the rotation rate (ω−1/2) at diverse potentials were used to calculate their electron transfer number on the basis of the following Koutecky-Levich equation [41].
1/j = 1/jL + 1/jK = 1/(Bω1/2) + 1/jK,
B = 0.62 nFC0(D0)2/3v−1/6.
It was calculated that the average electron transfer number during the catalysis of the ORR for the Pt-Bi (Bi2O3)/GNs (PVP) was 3.56, indicating that O2 on the surface of Pt-Bi (Bi2O3)/GNs (PVP) was substantially reduced by the four-electron-transfer pathway, which was close to that of 30% PtRu/C-JM. In contrast, the average electron transfer number of Pt/GNs (PVP) and Pt-Bi (Bi2O3)/GNs was 1.83 and 2.65, respectively, further confirming that Pt-Bi (Bi2O3)/GNs (PVP) was more selective for catalyzing the oxygen reduction reaction.
In view of the photo-responsive properties of Bi2O3, the electro-photo catalysis of the as-synthesized composites for the MOR and the ORR under simulated sunlight was investigated. As for the MOR, cyclic voltammetry measurements of different modified electrodes were carried out under simulated sunlight irradiation in a 1.0 M CH3OH + 1.0 M NaOH solution. The results in Figure 9 revealed that the Pt-Bi (Bi2O3)/GNs (PVP) composite exhibited a distinctly increasing mass activity with the value of 2129.18 mA mg−1 under the simulated sunlight irradiation, which was 1.42 times higher than that without irradiation. In contrast, Pt/GNs (PVP) and 30% PtRu/C-JM exhibited weak electro-photo catalytic activity. Hence, it is reasonable to conclude that the photosensitivity of the Bi species (especially Bi2O3) in Pt-Bi (Bi2O3)/GNs (PVP) resulted in a significant increase in activity for catalyzing the MOR. As for Pt-Bi (Bi2O3)/GNs, the poor distribution of the Pt-Bi agglomerations also resulted in an inferior electro-photo catalytic activity for the MOR.
Similarly, the effect of simulated sunlight irradiation on the ORR was examined. Figure 10A shows that Pt-Bi (Bi2O3)/GNs (PVP) exhibited a prominently increasing mass activity with the value of −13.08 mA mg−1 under simulated sunlight irradiation, which was 1.67 times higher than that without irradiation. Furthermore, its potential reduction peak positively shifted under light irradiation, changing from 0.82 V (without irradiation) to 0.83 V (under light irradiation). Nevertheless, only a slight increase in the mass activity occurred for the other samples.
Obviously, the electro-photo catalysis of Pt-Bi (Bi2O3)/GNs (PVP) for the MOR and the ORR was due to the existence of the photo-responsive Bi species (mainly Bi2O3) and a better dispersion of Pt-Bi (Bi2O3)/GNs (PVP) in response to the tuning role of PVP. As shown in Figure 11, when the external light irradiated onto the surface of Pt-Bi (Bi2O3)/GNs (PVP), electron-hole pairs were generated by the photo-excited Bi2O3 and the photo-generated electron transferred to the surface of Pt via the well-dispersed structure of graphene to refresh the Pt active sites ((PtOx + photo-generated e− → Pt during the MOR)) or to participate in catalyzing the reaction (O2 + photo-generated e− → 2O2− during the ORR) [42], so that the synergistic interaction between the electrocatalytic properties and the photocatalytic properties of Pt-Bi (Bi2O3)/GNs (PVP) for the MOR and the ORR can be achieved.

3. Experimental

3.1. Materials

Graphite powder (−325 mesh, 99.9995%) was purchased from the Alfa Aesar Company (Ward Hill, MA, USA); 5% Nafion 117 solution and 30% PtRu/C-JM catalyst were obtained from Johnson-Matthey (London, UK); Bi(NO3)3, NaBH4, Pt(NO3)2, PVP, methanol, ethanol, KMnO4, H2SO4, H2O2 (30%), P2O5, K2S2O8, acetone were all purchased from Sinopharm Chemical Reagent Co, Ltd. (Shanghai, China) and used without further purification. Ultrapure water for the laboratory was 18.25 MΩ cm deionized water, deoxygenated with nitrogen before use.

3.2. Synthesis of Pt-Bi (Bi2O3)/GNs (PVP)

Graphite oxide (GO) was synthesized from natural graphite powder using the modified Hummers’ method [43,44]. In general, graphite was oxidized with concentrated H2SO4 (98%), K2S2O4, P2O5, and KMnO4. After oxidation, H2O2 (30%) was added. The product was centrifuged and washed with 5% dilute HCl solution and deionized water several times. Then the GO suspension was dialyzed for one week with a BIOSHARP membrane (MW: 8000–1400) [42]. After centrifugation, the brown precipitate (GO) was lyophilized for the following utilization. The overall synthetic route of Pt-Bi (Bi2O3)/GNs (PVP) was as follows: 58.2 mg of Bi(NO3)3·5H2O was dissolved in 50 mL of water, then 40 mg of PVP powder was added to the mixture and stirred for 30 min. Meanwhile, 60 mg of GO was dispersed in 30 mL of distilled water by sonication for 30 min. Afterwards, the GO suspension was added to the above mixture and stirred for 15 min. After that, 5 mL NaBH4 (24 mM) was added to the solution via a deposition reaction for 1 h. The mixture was placed in an oil bath and heated to 80 °C to decompose the remaining NaBH4. Next, 2 mL of Pt(NO3)2 (10 mL/100 mL) was added into the solution above and stirred for another 30 min. Then, 2 mL HCOOH was put in and reacted at room temperature for 48 h to finally obtain a black precipitate. Subsequently, the black product was isolated using a high-speed centrifuge (12,000 rpm, 10 min) and deionized water washing cycles (five cycles). Ultimately, the purified precipitate was dried in a vacuum freeze dryer for 48 h. The counterparts Pt/GNs (PVP) and Pt-Bi (Bi2O3)/GNs were synthesized using a similar procedure. The contents of Pt and Bi in the Pt-Bi (Bi2O3)/GNs (PVP) and Pt-Bi (Bi2O3)/GNs composites were determined by ICP-AES. The actual contents of Pt and Bi were 20.67% and 23.07% and 19.75% and 28.41%, respectively. The Pt content of Pt/GNs (PVP) composite was 21.58%.

3.3. Characterization

High-resolution transmission electron microscopy (HRTEM, TECNAI G2, FEI Company, Hillsboro, OR, USA), was used to observe the morphology of composites; X-ray photoelectron spectroscopy (XPS, VG ESCALAB 250, Thermo Scientic, Pleasanton, CA, USA, Al-Kα radiation (1486.6 eV)) was used to analyze the surface components of the catalysts; the XRD patterns were carried out using X-ray diffraction (XRD, X’pert Pro, PANalytical B.V., Holland, The Netherlands, Cu-Ka radiation); the metal content in the composite was determined using an Inductively Coupled Plasma Atomic Emission Spectrometer (ICP-AES, ICAP6300, Thermo Scientic, Pleasanton, CA, USA); the structure of graphene in the composite was analyzed by Raman spectroscopy (Via-Reflex, Renishaw, London, UK).

3.4. Electrochemical Measurements

All electrochemical experiments were performed at room temperature using a standard three-electrode electrochemical workstation. Electrochemical tests were performed on electrochemical workstations (CH Instruments, Shanghai, China). A Calomel electrode (SCE, saturated KCl) and a platinum column were the reference electrode and the counter electrode respectively. The glassy carbon electrode was the working electrode, which was firstly hand-polished with 0.05 μm α-Al2O3 polishing powder and rinsed with deionized water, followed by sonication in ethanol and deionized water.
After pre-treatment, the working electrode was modified according to the following steps: 5 mg of the composite material was ultrasonically dispersed into 1 mL C2H5OH, next 5 μL of the composite solution was dropped onto the glassy carbon electrode and dried in air. Then, 7.5 μL of a Nafion (0.5%) solution was added. Cyclic voltammetry (CV) for the methanol oxidation reaction (MOR) was performed in a 1.0 M NaOH or 1.0 M NaOH + 1.0 M CH3OH solution at a scanning rate of 100 mV·s−1 at room temperature. Linear sweep cyclic voltammetry (LSV) for the oxygen oxidation reaction (ORR) was tested in a 1.0 M NaOH solution at a scanning rate of 5 mV·s−1 at room temperature.
For the electro-photo catalysis tests: A quartz window was introduced at the bottom of the electrochemical cell, facing towards the working electrode. A 15 W Xenon lamp (ZW3D15WZ105, Cnlight, Foshan, China) was used to provide UV light or visible light by changing the different optical filters. The irradiation light could penetrate through the quartz window and illuminate the surface of GCE. The lamp emitted simulated solar light of wavelengths ranging from 200 to 800 nm. The distance between the GCE and the lamp was 15 cm and the irradiation intensity was 0.3 mW cm2.

4. Conclusions

In summary, the Pt-Bi (Bi2O3)/GNs (PVP) composite was obtained by aqueous solution synthesis with the aid of the morphology tuning PVP. It was tested as a superior bifunctional electrocatalyst towards the MOR and the ORR. While catalyzing the MOR, the introduction of oxophilic Bi resulted in an increasing OHads species on the Pt surface, which was in favor for the further oxidation of COads. On the other hand, Pt-Bi (Bi2O3)/GNs (PVP) exhibited a more selective and effective catalytic activity for the oxygen reduction reaction using an approximately four-electron-transfer pathway. In particular, under simulated light irradiation, the photo-sensitivity of Bi2O3 led to a significant increase in the activity of Pt-Bi (Bi2O3)/GNs (PVP) for catalyzing both the MOR and the ORR. This study is beneficial to exploiting novel bifunctional catalysts with an excellent electro-photo catalytic activity for DMFCs application.

Author Contributions

Z.L. planned and designed the experiments; Y.W., X.D. and Y.L. performed the experimental work; Z.L., S.X. and Y.X. contributed to the data analysis; Y.W. and X.D. wrote the manuscript; Z.L. revised the manuscript; S.L. supervised the project and revised the manuscript; all authors discussed the results and approved of the final version of the manuscript.

Funding

This work was financially supported by the National Natural Science Foundation of China (Nos. 21171037 & 21571034) and the Research Foundation from Quangang Petrochemical Research Institute of Fujian Normal University (No. 2016YJY05).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhong, C.J.; Luo, J.; Fang, B.; Wanjala, B.N.; Njoki, P.N.; Loukrakpam, R.; Yin, J. Nanostructured catalysts in fuel cells. Nanotechnology 2010, 21, 062001. [Google Scholar] [CrossRef] [PubMed]
  2. Xiao, L.; Zhuang, L.; Liu, Y.; Lu, J.; Abruña, H.D. Activating pd by morphology tailoring for oxygen reduction. J. Am. Chem. Soc. 2009, 131, 602–608. [Google Scholar] [CrossRef] [PubMed]
  3. Guo, S.; Wang, E. Noble metal nanomaterials: Controllable synthesis and application in fuel cells and analytical sensors. Nano Today 2011, 6, 240–264. [Google Scholar] [CrossRef]
  4. He, L.L.; Zheng, J.N.; Pei, S.; Zhong, S.X.; Wang, A.J.; Chen, Z.; Feng, J.J. Facile synthesis of platinum–gold alloyed string-bead nanochain networks with the assistance of allantoin and their enhanced electrocatalytic performance for oxygen reduction and methanol oxidation reactions. J. Power Sources 2015, 276, 357–364. [Google Scholar] [CrossRef]
  5. Freitas, R.G.; Pereira, E.C. Giant multilayer electrocatalytic effect investigation on Pt/Bi/Pt nanostructured electrodes towards co and methanol electrooxidation. Electrochim. Acta 2010, 55, 7622–7627. [Google Scholar] [CrossRef]
  6. Bahrami, K.; Kamrani, S.N. Synthesis, characterization and application of graphene palladium porphyrin as a nanocatalyst for the coupling reactions such as: Suzuki-miyaura and mizoroki-heck: Synthesis, characterization and application of graphene palladium. Appl. Organomet. Chem. 2018, 32, e4102. [Google Scholar] [CrossRef]
  7. Xiao, Z.; Zhu, J.; Cai, W.; Xiao, M.; Liang, L.; Liu, C.; Wei, X. Pt–Pb hollow sphere networks: Self-sacrifice-templating method and enhanced activity for formic acid electrooxidation. Rsc Adv. 2013, 3, 1763–1767. [Google Scholar]
  8. Min, Y.; Huang, Y.; Lv, Q.; Liang, L.; Liao, J.; Liu, C.; Wei, X. Improved direct electrooxidation of formic acid by increasing au fraction on the surface of ptau alloy catalyst with heat treatment. Electrochim. Acta 2011, 58, 6–11. [Google Scholar]
  9. Chen, T.; Ge, C.; Zhang, Y.; Zhao, Q.; Hao, F.; Bao, N. Bimetallic platinum–bismuth nanoparticles prepared with silsesquioxane for enhanced electrooxidation of formic acid. Int. J. Hydrog. Energy 2015, 40, 4548–4557. [Google Scholar] [CrossRef]
  10. Cao, J.; Du, Y.; Dong, M.; Chen, Z.; Xu, J. Template-free synthesis of chain-like ptcu nanowires and their superior performance for oxygen reduction and methanol oxidation reaction. J. Alloy. Compd. 2018, 747, 124–130. [Google Scholar] [CrossRef]
  11. Liu, S.H.; Zheng, F.S.; Wu, J.R. Preparation of ordered mesoporous carbons containing well-dispersed and highly alloying pt–co bimetallic nanoparticles toward methanol-resistant oxygen reduction reaction. Appl. Catal. B Environ. 2011, 108, 81–89. [Google Scholar] [CrossRef]
  12. Chen, W.; Kim, J.; Sun, S.; Chen, S. Electro-oxidation of formic acid catalyzed by fept nanoparticles. Phys. Chem. Chem. Phys. 2006, 8, 2779–2786. [Google Scholar] [CrossRef] [PubMed]
  13. Habibi, B.; Delnavaz, N. Carbon–ceramic supported bimetallic Pt–Ni nanoparticles as an electrocatalyst for oxidation of formic acid. Int. J. Hydrog. Energy 2011, 36, 9581–9590. [Google Scholar] [CrossRef]
  14. Xu, C.; Hou, J.; Pang, X.; Li, X.; Zhu, M.; Tang, B. Nanoporous ptco and ptni alloy ribbons for methanol electrooxidation. Int. J. Hydrog. Energy 2012, 37, 10489–10498. [Google Scholar] [CrossRef]
  15. Roychowdhury, C.; Matsumoto, F.; Mutolo, P.F.; Abruna, H.D.; Disalvo, F.J. Synthesis, characterization, and electrocatalytic activity of PtBi nanoparticles prepared by the polyol process. Chem. Mater. 2005, 23, 5871–5876. [Google Scholar] [CrossRef]
  16. Ding, L.X.; Li, G.R.; Wang, Z.L.; Liu, Z.Q.; Liu, H.; Tong, Y.X. Porous Ni@Pt core-shell nanotube array electrocatalyst with high activity and stability for methanol oxidation. Chem. A Eur. J. 2012, 18, 8386–8391. [Google Scholar] [CrossRef] [PubMed]
  17. Peng, X.; Zhao, Y.; Chen, D.; Fan, Y.; Wang, X.; Wang, W.; Tian, J. One-pot synthesis of reduced graphene oxide supported ptcu y catalysts with enhanced electro-catalytic activity for the methanol oxidation reaction. Electrochim. Acta 2014, 136, 292–300. [Google Scholar] [CrossRef]
  18. Kannan, R.; Silva, A.A.; Cardoso, F.M.; Gupta, G.; Aslam, Z.; Sharma, S.; Steinbergerwilckens, R. Study of fept deposited reduced graphene oxide’s utility as a catalyst towards oxygen reduction and methanol oxidation reactions. Rsc Adv. 2015, 5, 36993–36998. [Google Scholar] [CrossRef]
  19. Qin, Y.; Zhang, X.; Dai, X.; Sun, H.; Yang, Y.; Li, X.; Shi, Q.; Gao, D.; Wang, H.; Yu, N.F. Graphene oxide-assisted synthesis of Pt-Co alloy nanocrystals with high-index facets and enhanced electrocatalytic properties. Angew. Chem. Int. Ed. 2015, 53, 12522–12527. [Google Scholar] [CrossRef] [PubMed]
  20. Huang, Y.; Cai, J.; Guo, Y. Facile synthesis of a Bi-modified PtRu catalyst for methanol and ethanol electro-oxidation in alkaline medium. Int. J. Hydrog. Energy 2013, 38, 3250–3256. [Google Scholar] [CrossRef]
  21. Yang, M. Catalytic activities of ptbi nanoparticles toward methanol electrooxidation in acid and alkaline media. J. Power Sources 2013, 229, 42–47. [Google Scholar] [CrossRef]
  22. Nuñez-Briones, A.G.; García-Cerda, L.A.; Aguilar-González, M.A.; Puente-Urbina, B.A.; Mendoza-Mendoza, E. Synthesis, structural characterization and photocatalytic activity of Bi-based nanoparticles. Int. J. Appl. Ceram. Technol. 2017, 15, 101–110. [Google Scholar] [CrossRef]
  23. Li, Z.; Ye, L.; Wang, Y.; Xu, S.; Lei, F.; Lin, S. Visible light assisted electro-photo synergistic catalysis of heterostructured Pd-Ag nps/graphene for methanol oxidation. Rsc Adv. 2016, 6, 79533–79541. [Google Scholar] [CrossRef]
  24. Li, Z.; Zhang, L.; Huang, X.; Ye, L.; Lin, S. Shape-controlled synthesis of Pt nanoparticles via integration of graphene and β-cyclodextrin and using as a noval electrocatalyst for methanol oxidation. Electrochim. Acta 2014, 121, 215–222. [Google Scholar] [CrossRef]
  25. Li, Z.; Xu, S.; Xie, Y.; Wang, Y.; Lin, S. Promotional effects of trace Bi on its highly catalytic activity for methanol oxidation of hollow pt/graphene catalyst. Electrochim. Acta 2018, 264, 53–60. [Google Scholar] [CrossRef]
  26. Li, S.S.; Lv, J.J.; Teng, L.N.; Wang, A.J.; Chen, J.R.; Feng, J.J. Facile synthesis of PdPt@Pt nanorings supported on reduced graphene oxide with enhanced electrocatalytic properties. Acs Appl. Mater. Interfaces 2014, 6, 10549–10555. [Google Scholar] [CrossRef] [PubMed]
  27. Cai, J.; Huang, Y.; Guo, Y. Bi-modified Pd/C catalyst via irreversible adsorption and its catalytic activity for ethanol oxidation in alkaline medium. Electrochim. Acta 2013, 99, 22–29. [Google Scholar] [CrossRef]
  28. Xie, Y.; Li, Z.; Wang, Y.; Xu, S.; Lin, S. Freezing synthesis of Pt/3D GNs (C) composites as efficient electrocatalysts for methanol oxidation. J. Appl. Electrochem. 2018, 48, 1–10. [Google Scholar] [CrossRef]
  29. You, H.; Zhang, F.; Liu, Z.; Fang, J. Free-standing Pt–Au hollow nanourchins with enhanced activity and stability for catalytic methanol oxidation. Acs Catal. 2014, 4, 2829–2835. [Google Scholar] [CrossRef]
  30. Lei, F.; Li, Z.; Zhang, L.; Wang, Y.; Xu, S.; Lin, S. Facile synthesis of Pt-Cu (Ni, Co)/GNs-CD and their enhanced electro-catalytic activity for methanol oxidation. J. Electrochem. Soc. 2016, 163, F913–F918. [Google Scholar] [CrossRef]
  31. Naterer, G.F.; Suppiah, S.; Stolberg, L.; Lewis, M.; Ferrandon, M.; Wang, Z.; Dincer, I.; Gabriel, K.; Rosen, M.A.; Secnik, E. Clean hydrogen production with the Cu–Cl cycle–progress of international consortium, i: Experimental unit operations. Int. J. Hydrog. Energy 2011, 36, 15472–15485. [Google Scholar] [CrossRef]
  32. Huang, Y.; Cai, J.; Liu, M.; Guo, Y. Fabrication of a novel PtPbBi/C catalyst for ethanol electro-oxidation in alkaline medium. Electrochim. Acta 2012, 83, 1–6. [Google Scholar] [CrossRef]
  33. Yu, X.; Pickup, P.G. Carbon supported PtBi catalysts for direct formic acid fuel cells. Electrochim. Acta 2011, 56, 4037–4043. [Google Scholar] [CrossRef]
  34. Neto, A.O.; Tusi, M.M.; Polanco, N.S.D.O.; Silva, S.G.D.; Santos, M.C.D.; Spinacé, E.V. PdBi/C electrocatalysts for ethanol electro-oxidation in alkaline medium. Int. J. Hydrog. Energy 2011, 36, 10522–10526. [Google Scholar] [CrossRef]
  35. Park, J.Y.; Kim, S. Preparation and electroactivity of polymer-functionalized graphene oxide-supported platinum nanoparticles catalysts. Int. J. Hydrog. Energy 2013, 38, 6275–6282. [Google Scholar] [CrossRef]
  36. Yang, J.; Ying, X.; Wang, R.; Jiang, B.; Tian, C.; Mu, G.; Jie, Y.; Bo, W.; Fu, H. Synergistic effect of tungsten carbide and palladium on graphene for promoted ethanol electrooxidation. Appl. Mater. Interfaces 2013, 5, 6571–6579. [Google Scholar] [CrossRef] [PubMed]
  37. Huang, Y.; Cai, J.; Guo, Y. A high-efficiency microwave approach to synthesis of Bi-modified Pt nanoparticle catalysts for ethanol electro-oxidation in alkaline medium. Appl. Catal. B Environ. 2013, 129, 549–555. [Google Scholar] [CrossRef]
  38. Wang, Y.; Li, Z.; Xu, S.; Xie, Y.; Lin, S. Highly dispersive platinum nanoparticles supporting on polyaniline modified three dimensional graphene and catalyzing methanol oxidation. Mater. Res. Bull. 2018, 102, 172–179. [Google Scholar] [CrossRef]
  39. Zhang, Y.; Chang, G.; Shu, H.; Oyama, M.; Liu, X.; He, Y. Synthesis of Pt–Pd bimetallic nanoparticles anchored on graphene for highly active methanol electro-oxidation. J. Power Sources 2014, 262, 279–285. [Google Scholar] [CrossRef]
  40. Yovanovich, M.; Piasentin, R.M.; Ayoub, J.M.S.; Nandenha, J.; Fontes, E.H.; Souza, R.F.B.D.; Buzzo, G.S.; Silva, J.C.M.; Spinacé, E.V.; Assumpção, M.H.M.T. PtBi/C electrocatalysts for formic acid electro-oxidation in acid and alkaline electrolyte. Int. J. Electrochem. Sci. 2015, 10, 4801–4811. [Google Scholar]
  41. Yang, Z.; Zhou, X.; Nie, H.; Yao, Z.; Huang, S. Facile construction of manganese oxide doped carbon nanotube catalysts with high activity for oxygen reduction reaction and investigations into the origin of their activity enhancement. ACS Appl. Mater. Interfaces 2011, 3, 2601–2606. [Google Scholar] [CrossRef] [PubMed]
  42. Li, Z.; Ye, L.; Lei, F.; Wang, Y.; Xu, S.; Lin, S. Enhanced electro-photo synergistic catalysis of Pt (Pd)/ZnO/graphene composite for methanol oxidation under visible light irradiation. Electrochim. Acta 2016, 188, 450–460. [Google Scholar] [CrossRef]
  43. Zeng, Q.; Cheng, J.; Tang, L.; Liu, X.; Liu, Y.; Li, J.; Jiang, J. Self-assembled graphene–enzyme hierarchical nanostructures for electrochemical biosensing. Adv. Funct. Mater. 2010, 20, 3366–3372. [Google Scholar] [CrossRef]
  44. Hummers, W.S., Jr.; Offeman, R.E. Preparation of graphitic oxide. J. Am. Chem. Soc. 1958, 80, 1339. [Google Scholar] [CrossRef]
Catalysts 08 00465 g001 550

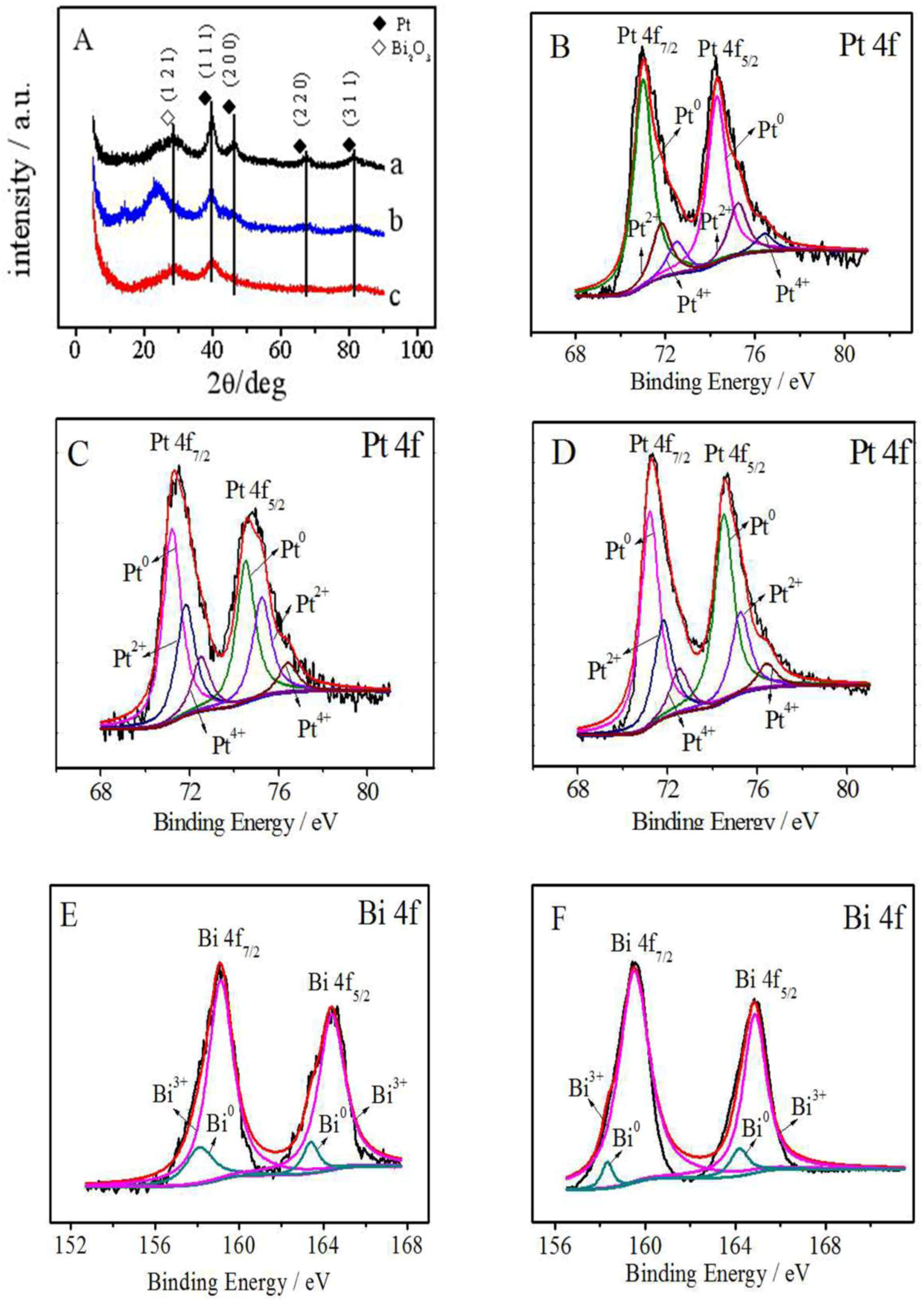

Figure 1. (A) X-ray diffraction (XRD) patterns: Pt-Bi (Bi2O3)/GNs (PVP) (a), Pt/GNs (PVP) (b), and Pt-Bi (Bi2O3)/GNs (c); (B) Pt 4f X-ray photoelectron spectroscopy (XPS) for Pt-Bi (Bi2O3)/GNs (PVP); (C) Pt 4f XPS for Pt/GNs (PVP); (D) Pt 4f XPS for Pt-Bi (Bi2O3)/GNs; (E) Bi 4f XPS for Pt-Bi (Bi2O3)/GNs (PVP); (F) Bi 4f XPS for Pt-Bi (Bi2O3)/GNs.
Figure 1. (A) X-ray diffraction (XRD) patterns: Pt-Bi (Bi2O3)/GNs (PVP) (a), Pt/GNs (PVP) (b), and Pt-Bi (Bi2O3)/GNs (c); (B) Pt 4f X-ray photoelectron spectroscopy (XPS) for Pt-Bi (Bi2O3)/GNs (PVP); (C) Pt 4f XPS for Pt/GNs (PVP); (D) Pt 4f XPS for Pt-Bi (Bi2O3)/GNs; (E) Bi 4f XPS for Pt-Bi (Bi2O3)/GNs (PVP); (F) Bi 4f XPS for Pt-Bi (Bi2O3)/GNs.
Catalysts 08 00465 g001
Catalysts 08 00465 g002 550
Figure 2. Transmission electron microscopy (TEM) images: Pt-Bi (Bi2O3)/GNs (PVP) (A,B), Pt/GNs (PVP) (D,E) and Pt-Bi (Bi2O3)/GNs (G,H); The inset in panel B is magnified TEM images of Pt-Bi (Bi2O3)/GNs (PVP); High-resolution transmission electron microscopy (HRTEM) images: Pt-Bi(Bi2O3)/GNs (PVP) (C), Pt/GNs (PVP) (F) and Pt-Bi (Bi2O3)/GNs (I).
Figure 2. Transmission electron microscopy (TEM) images: Pt-Bi (Bi2O3)/GNs (PVP) (A,B), Pt/GNs (PVP) (D,E) and Pt-Bi (Bi2O3)/GNs (G,H); The inset in panel B is magnified TEM images of Pt-Bi (Bi2O3)/GNs (PVP); High-resolution transmission electron microscopy (HRTEM) images: Pt-Bi(Bi2O3)/GNs (PVP) (C), Pt/GNs (PVP) (F) and Pt-Bi (Bi2O3)/GNs (I).
Catalysts 08 00465 g002
Catalysts 08 00465 g003 550

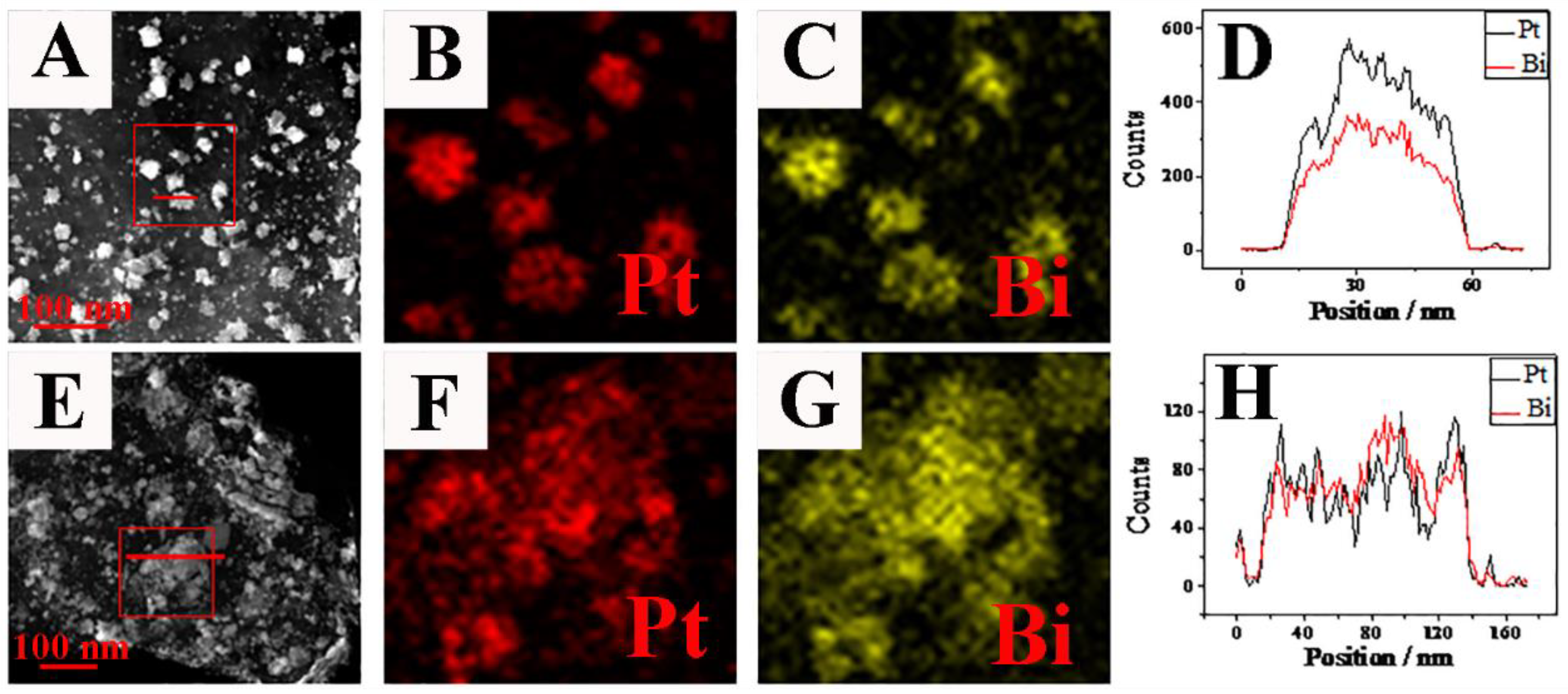

Figure 3. The high-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM) images: Pt-Bi (Bi2O3)/GNs (PVP) (A), Pt-Bi (Bi2O3)/GNs (E); Elemental mapping images: Pt (B) and Bi (C) for Pt-Bi (Bi2O3)/GNs (PVP), Pt (F) and Bi (G) for Pt-Bi (Bi2O3)/GNs; The distribution of Pt and Bi (D) and Pt and Bi (H) atoms along the corresponding cross-sectional line shown in (A,E) respectively.
Figure 3. The high-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM) images: Pt-Bi (Bi2O3)/GNs (PVP) (A), Pt-Bi (Bi2O3)/GNs (E); Elemental mapping images: Pt (B) and Bi (C) for Pt-Bi (Bi2O3)/GNs (PVP), Pt (F) and Bi (G) for Pt-Bi (Bi2O3)/GNs; The distribution of Pt and Bi (D) and Pt and Bi (H) atoms along the corresponding cross-sectional line shown in (A,E) respectively.
Catalysts 08 00465 g003
Catalysts 08 00465 g004 550

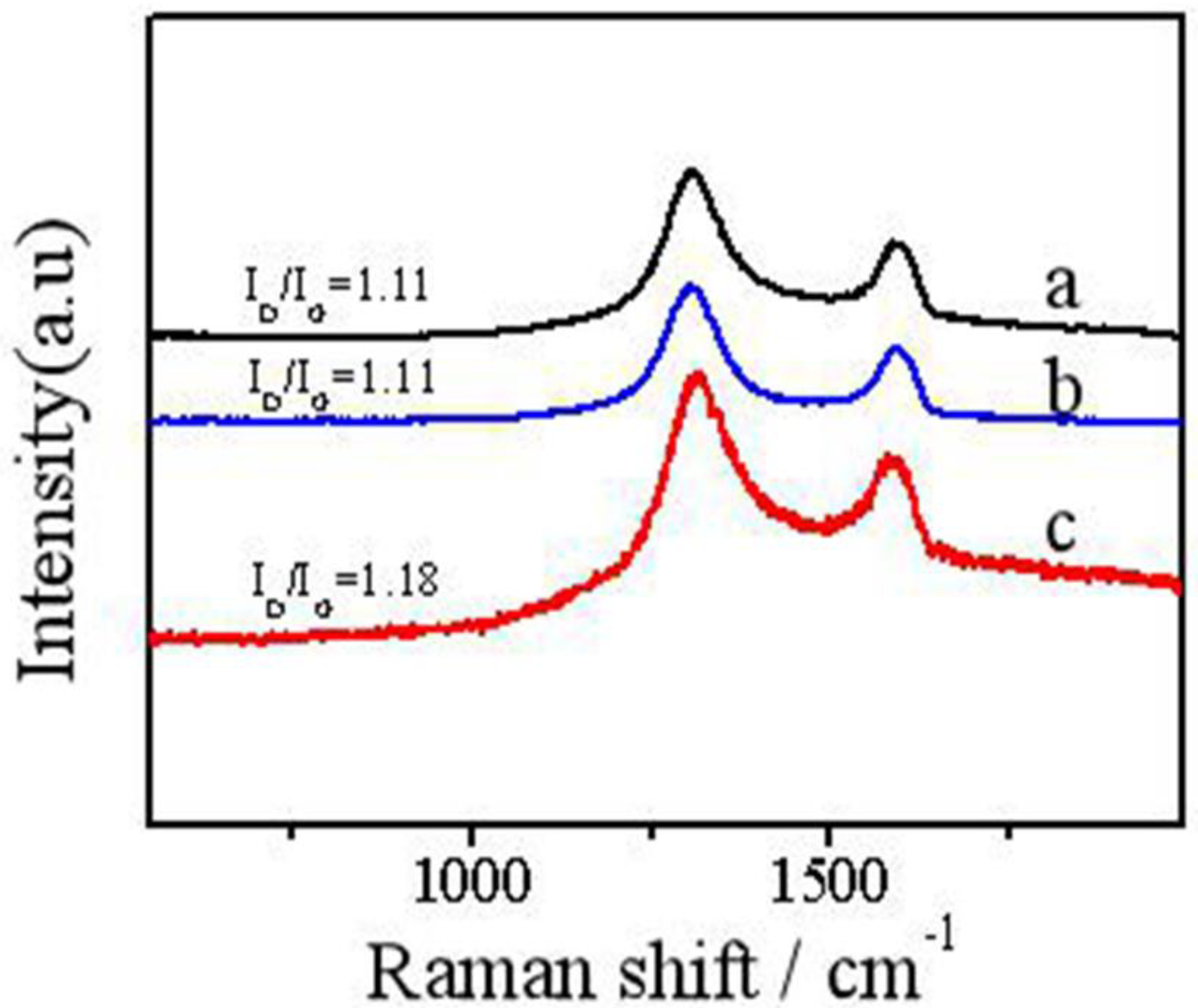

Figure 4. Raman spectra: Pt-Bi (Bi2O3)/GNs (PVP) (a), Pt/GNs (PVP) (b), Pt-Bi (Bi2O3)/GNs (c).
Figure 4. Raman spectra: Pt-Bi (Bi2O3)/GNs (PVP) (a), Pt/GNs (PVP) (b), Pt-Bi (Bi2O3)/GNs (c).
Catalysts 08 00465 g004
Catalysts 08 00465 g005 550

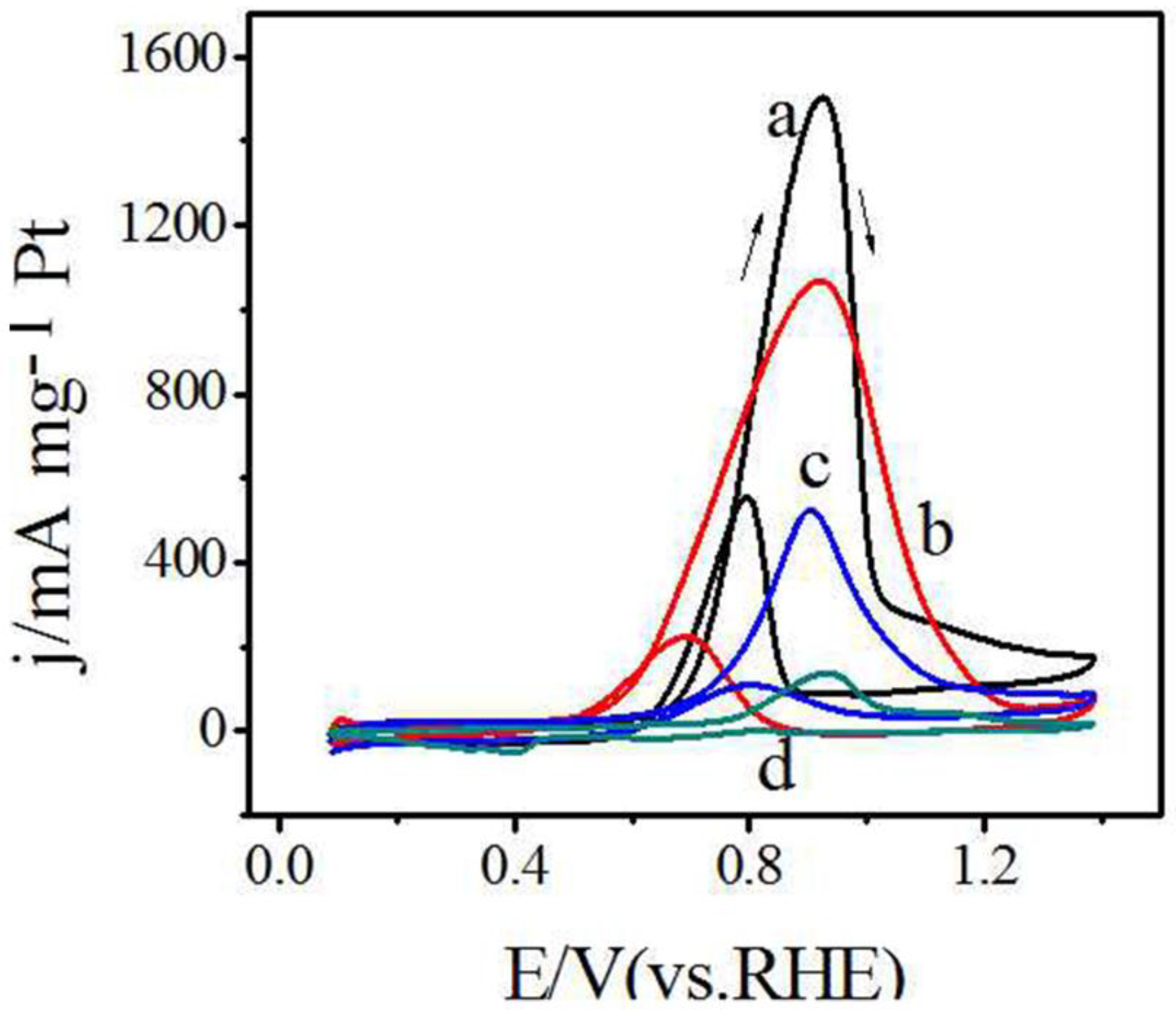

Figure 5. Cyclic voltammetry in 1.0 M CH3OH + 1.0 M NaOH: Pt-Bi (Bi2O3)/GNs (PVP) (a), 30% PtRu/C-JM (b), Pt/GNs (PVP) (c) and Pt-Bi (Bi2O3)/GNs (d), at 10 mV s−1.
Figure 5. Cyclic voltammetry in 1.0 M CH3OH + 1.0 M NaOH: Pt-Bi (Bi2O3)/GNs (PVP) (a), 30% PtRu/C-JM (b), Pt/GNs (PVP) (c) and Pt-Bi (Bi2O3)/GNs (d), at 10 mV s−1.
Catalysts 08 00465 g005
Catalysts 08 00465 g006 550

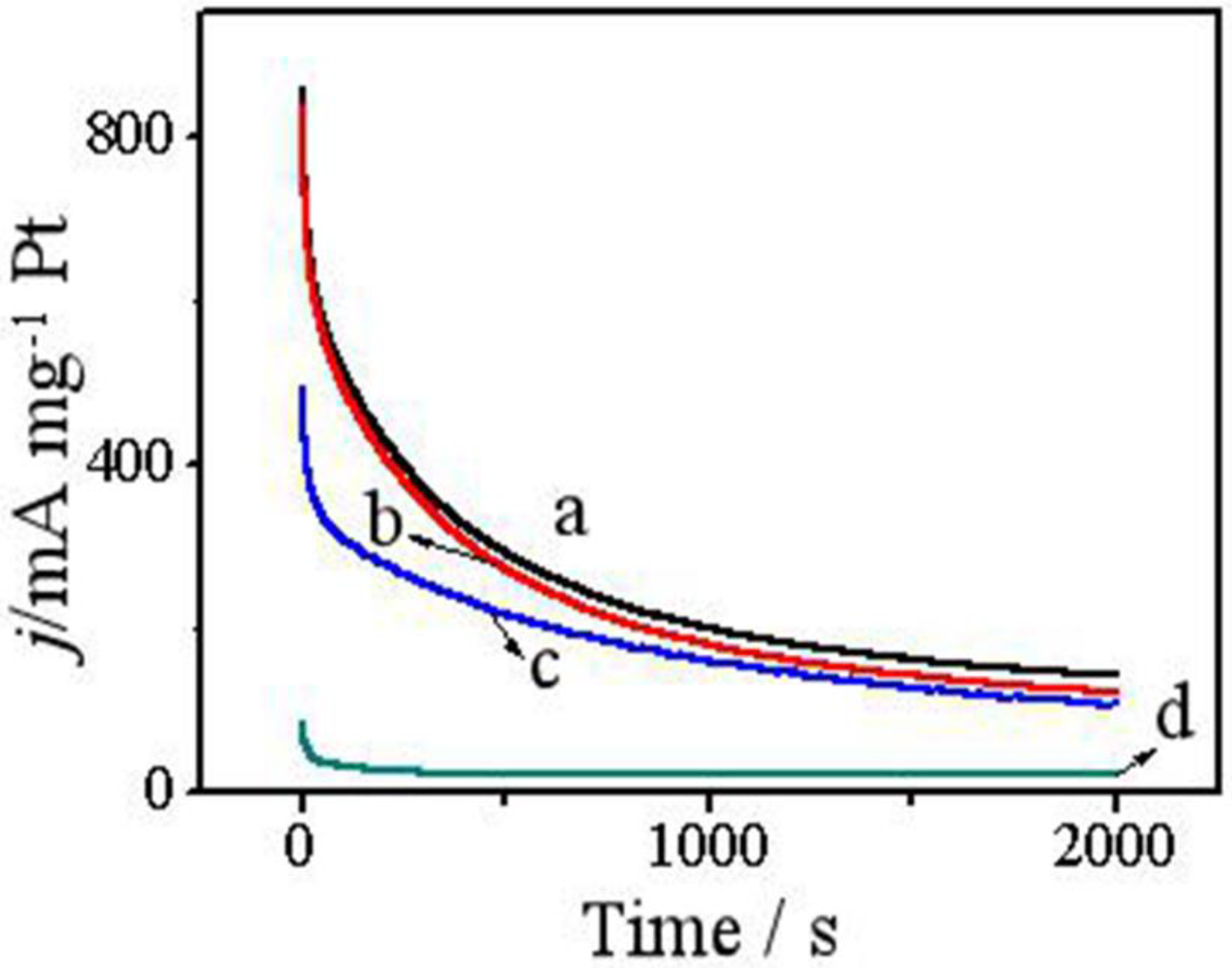

Figure 6. Chronoamperometric curves in 1.0 M CH3OH + 1.0 M NaOH: Pt-Bi (Bi2O3)/GNs (PVP) (a), 30% PtRu/C-JM (b), Pt/GNs (PVP) (c), and Pt-Bi (Bi2O3)/GNs (d), at 100 mV s−1.
Figure 6. Chronoamperometric curves in 1.0 M CH3OH + 1.0 M NaOH: Pt-Bi (Bi2O3)/GNs (PVP) (a), 30% PtRu/C-JM (b), Pt/GNs (PVP) (c), and Pt-Bi (Bi2O3)/GNs (d), at 100 mV s−1.
Catalysts 08 00465 g006
Catalysts 08 00465 g007 550

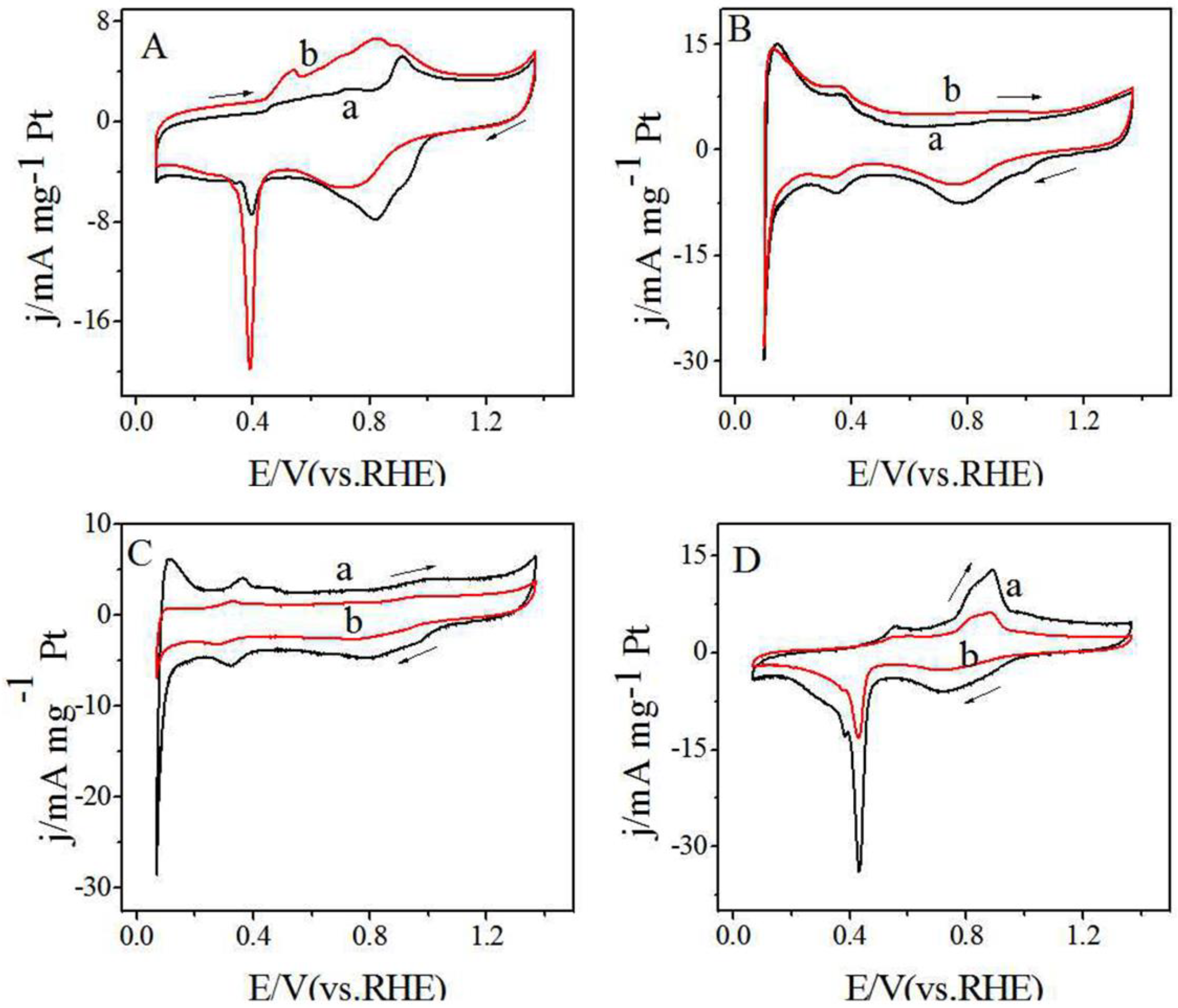

Figure 7. Cyclic voltammetry in 1.0 M NaOH: Pt-Bi (Bi2O3)/GNs (PVP) (A), 30% PtRu/C-JM (B), Pt/GNs (PVP) (C) and Pt-Bi (Bi2O3)/GNs (D), at 10 mV s−1, curve a: saturated with oxygen, curve b: saturated with nitrogen.
Figure 7. Cyclic voltammetry in 1.0 M NaOH: Pt-Bi (Bi2O3)/GNs (PVP) (A), 30% PtRu/C-JM (B), Pt/GNs (PVP) (C) and Pt-Bi (Bi2O3)/GNs (D), at 10 mV s−1, curve a: saturated with oxygen, curve b: saturated with nitrogen.
Catalysts 08 00465 g007
Catalysts 08 00465 g008 550

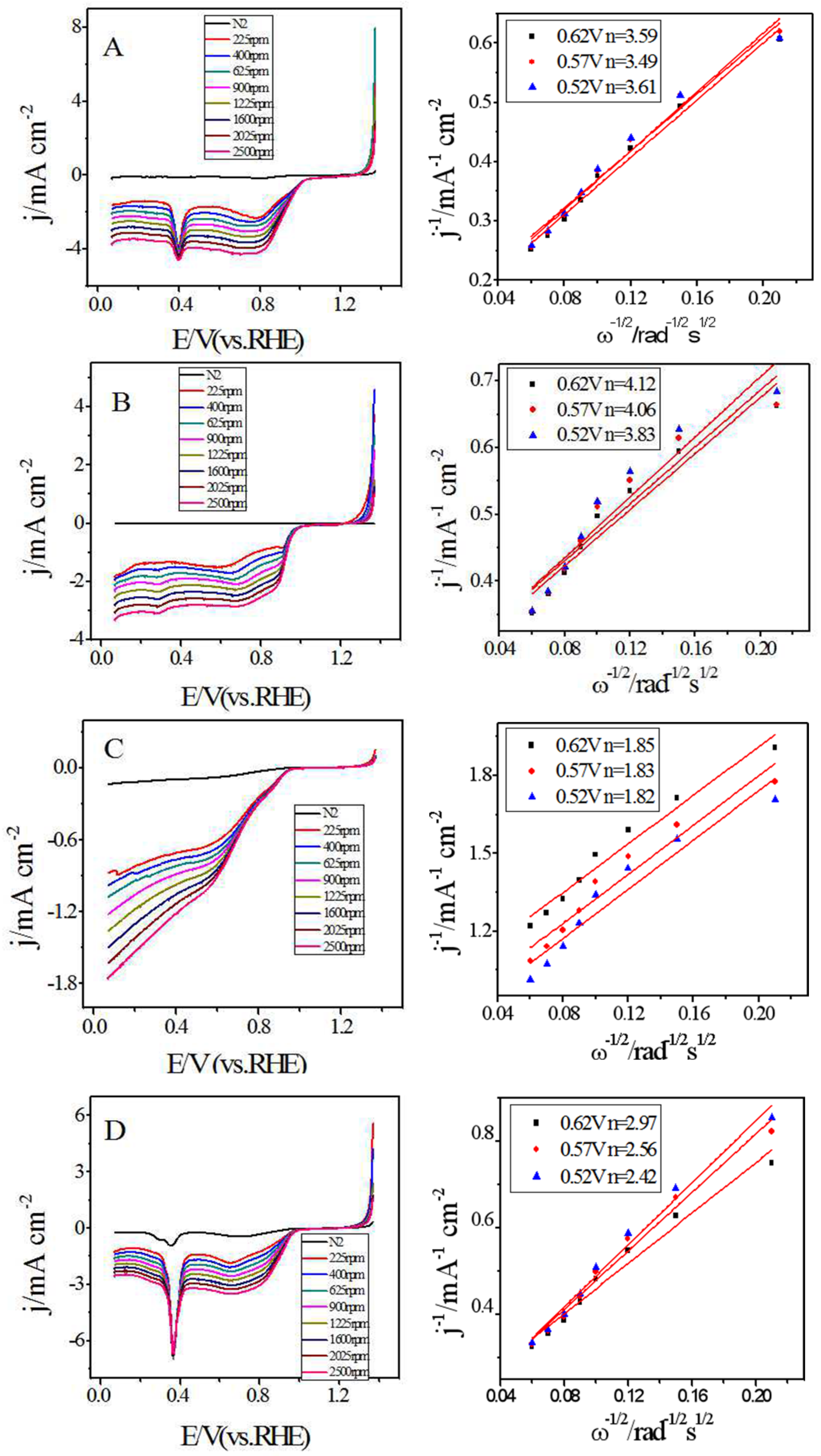

Figure 8. Linear scanning voltammetry (LSV) curves for the Pt-Bi (Bi2O3)/GNs (PVP) (A), 30% PtRu/C-JM (B), Pt/GNs (PVP) (C), Pt-Bi (Bi2O3)/GNs (D) in an O2 saturated 1.0 M NaOH solution at different rotation rates.
Figure 8. Linear scanning voltammetry (LSV) curves for the Pt-Bi (Bi2O3)/GNs (PVP) (A), 30% PtRu/C-JM (B), Pt/GNs (PVP) (C), Pt-Bi (Bi2O3)/GNs (D) in an O2 saturated 1.0 M NaOH solution at different rotation rates.
Catalysts 08 00465 g008
Catalysts 08 00465 g009 550

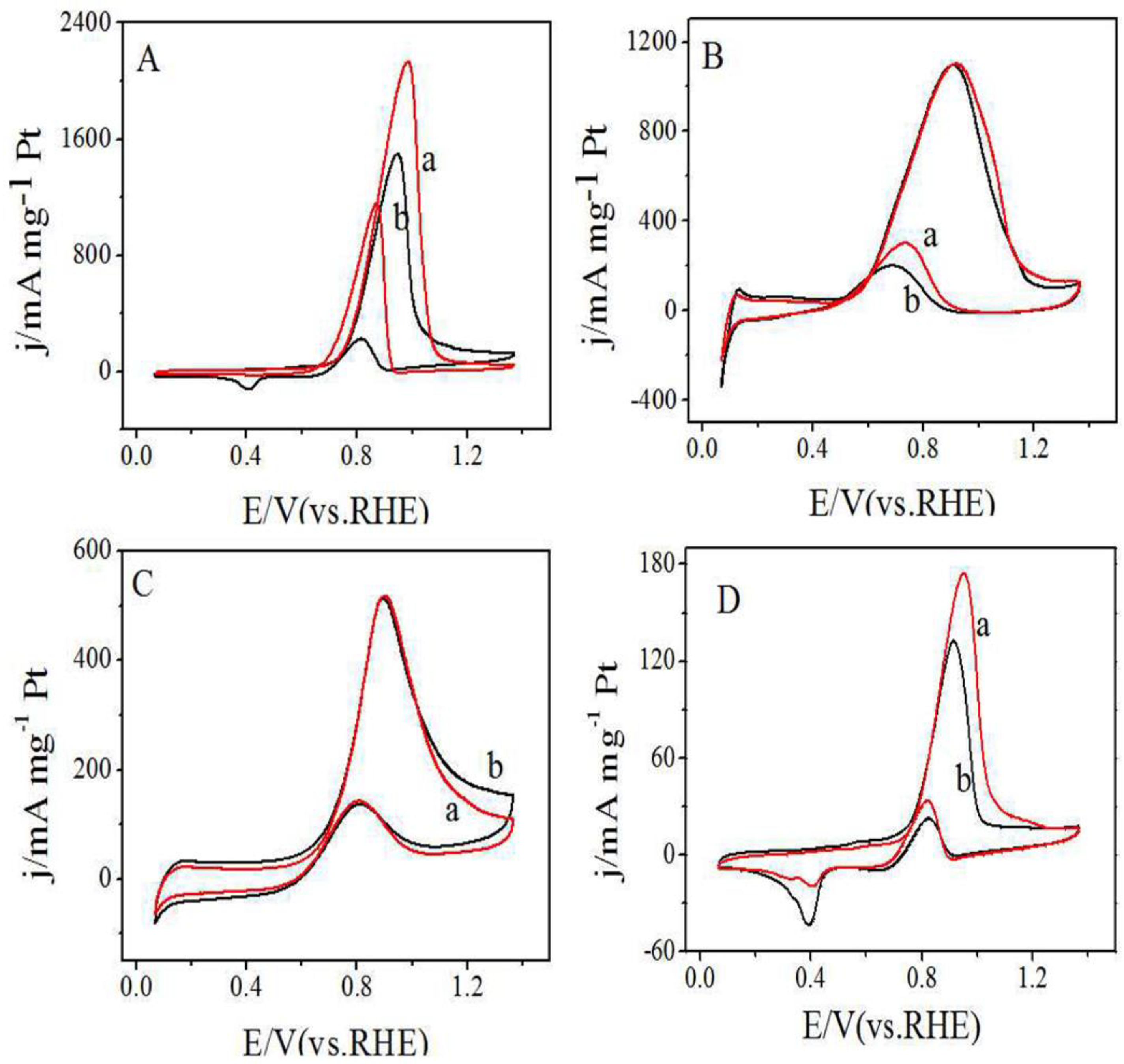

Figure 9. Cyclic voltammetry in 1.0 M CH3OH + 1.0 M NaOH: Pt-Bi (Bi2O3)/GNs (PVP) (A), 30% PtRu/C-JM (B), Pt/GNs (PVP) (C), Pt-Bi (Bi2O3)/GNs (D); curve a: with simulator sunlight irradiation, curve b: without irradiation.
Figure 9. Cyclic voltammetry in 1.0 M CH3OH + 1.0 M NaOH: Pt-Bi (Bi2O3)/GNs (PVP) (A), 30% PtRu/C-JM (B), Pt/GNs (PVP) (C), Pt-Bi (Bi2O3)/GNs (D); curve a: with simulator sunlight irradiation, curve b: without irradiation.
Catalysts 08 00465 g009
Catalysts 08 00465 g010 550

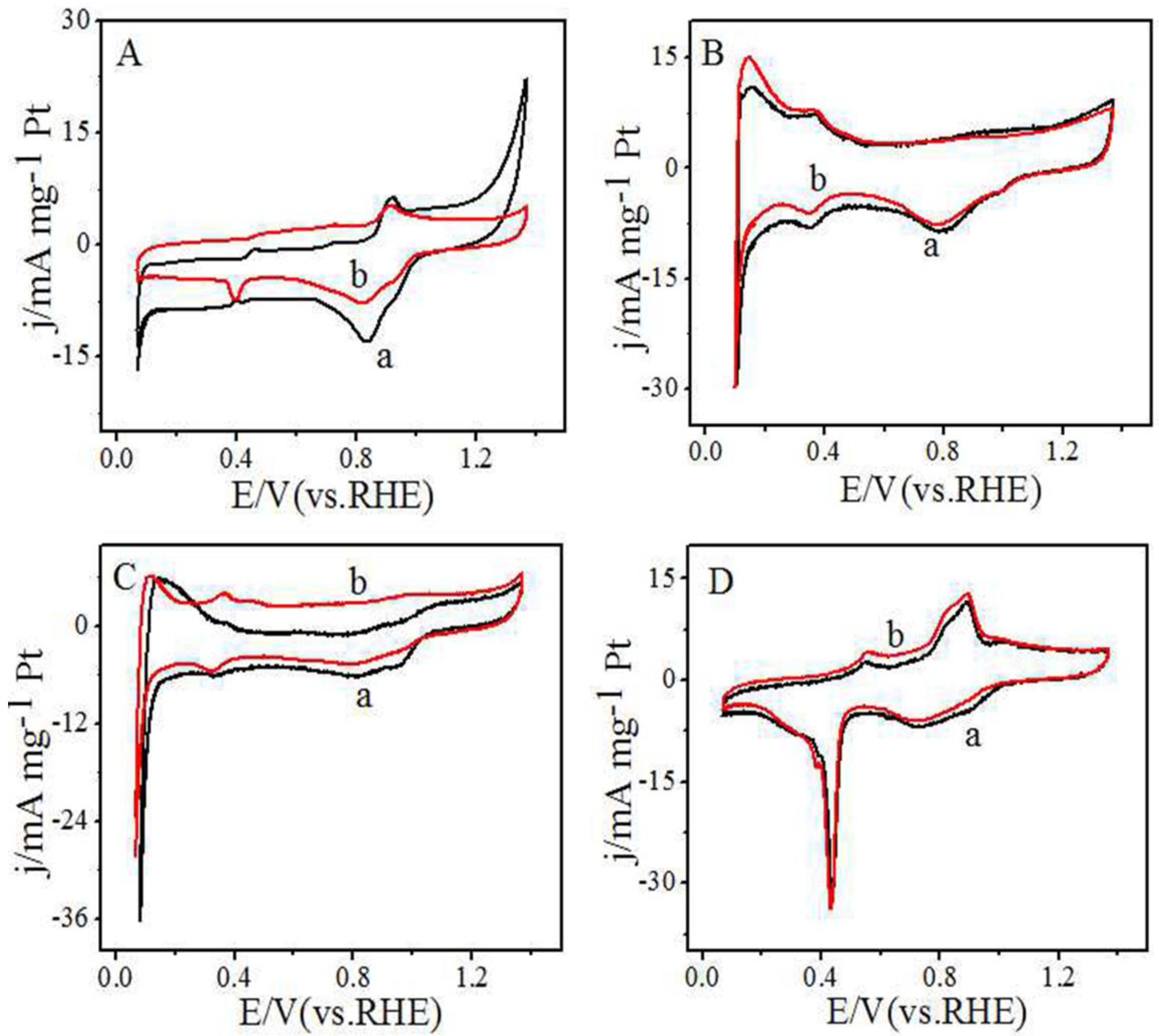

Figure 10. Cyclic voltammetry in 1.0 M NaOH saturated with oxygen: Pt-Bi (Bi2O3)/GNs (PVP) (A), 30% PtRu/C-JM (B), Pt/GNs (PVP) (C) and Pt-Bi (Bi2O3)/GNs (D), curve a: under simulated sunlight irradiation, curve b: without irradiation.
Figure 10. Cyclic voltammetry in 1.0 M NaOH saturated with oxygen: Pt-Bi (Bi2O3)/GNs (PVP) (A), 30% PtRu/C-JM (B), Pt/GNs (PVP) (C) and Pt-Bi (Bi2O3)/GNs (D), curve a: under simulated sunlight irradiation, curve b: without irradiation.
Catalysts 08 00465 g010
Catalysts 08 00465 g011 550

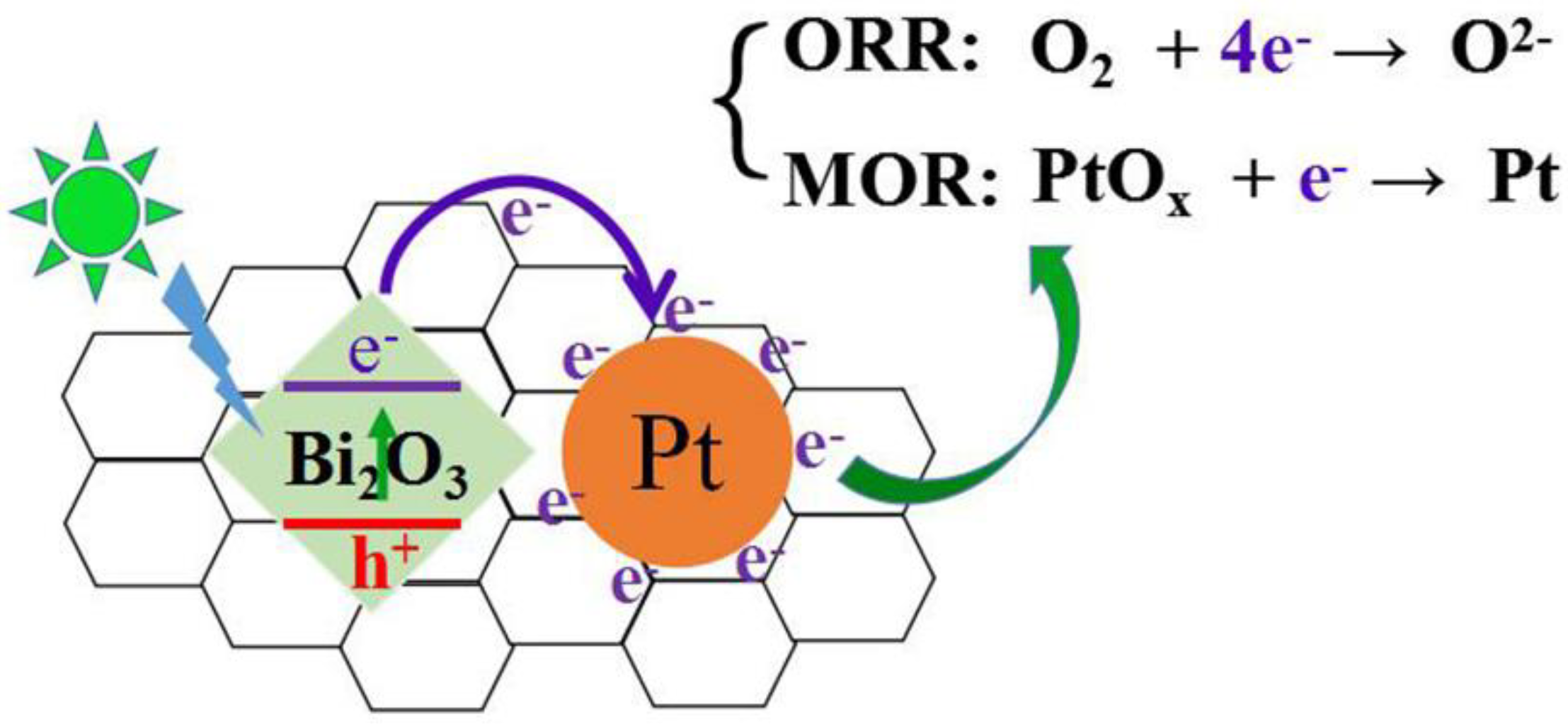

Figure 11. The electro-photo catalytic mechanism for the methanol oxidation reaction (MOR) and the oxygen reduction reaction (ORR).
Figure 11. The electro-photo catalytic mechanism for the methanol oxidation reaction (MOR) and the oxygen reduction reaction (ORR).
Catalysts 08 00465 g011
