Mass Transfer Performance of a String Film Reactor: A Bioreactor Design for Aerobic Methane Bioconversion

Abstract

The mass transfer performance of a string film reactor (SFR)—a bioreactor design for the aerobic bioconversion of methane—was investigated. The results showed that the SFR could achieve high mass transfer performance of gases, and the highest values of the mass transfer coefficients for oxygen and methane were 877.1 h⁻¹ and 408.0 h⁻¹, respectively. There were similar mass transfer coefficients for oxygen and methane in absorption experiments using air, methane, and air–methane mixed gas under the same liquid flow rate conditions, implying that each gas is delivered into the liquid without mutual interaction. The mass transfer performance of the SFR was significantly influenced by the liquid flow rate and the hydrophilicity of the string material, whereas the magnitude of the gas flow rate effect on the mass transfer performance depended on both the tested liquid flow rate and the gas flow rate. Furthermore, the mass transfer performance of the SFR was compared with those of other types of bioreactors.

1. Introduction

Natural gas conversion into liquid chemicals has become attractive [1] due to the rapid rise in natural gas production [2,3], the tremendous demand for liquid transportation fuel [2], and its compatibility with current vehicle engines and infrastructure [1,4]. However, the current conversion approach, which employs the Fischer–Tropsch process, still faces several obstacles preventing its commercialization owing to its high capital requirements and energy-intensive nature [1,4]. The aerobic bioconversion of methane—the main component of natural gas—by using methanotrophic microorganisms as biocatalysts has shown good potential as an alternative to the Fischer–Tropsch process due to its high selectivity, ambient operating temperature, one-step direct process, and reduced technological complexity [1,4,5,6,7]. Therefore, it can be applied to monetize small sources of natural gas, such as stranded and flared natural gas. Recently, microorganisms, as host strains for bio-based production, have been extensively engineered to make them efficient microbial cell factories that are compatible with currently available production and product purification processes by using alternative feedstocks to petroleum [8]. For example, based on these metabolic engineering strategies, Methylomicrobium alcaliphilum 20Z was successfully engineered to produce 2,3-butanediol from methane [9]. Even though host strains can be successfully developed to produce target products by performing metabolic engineering strategies, appropriate fermentation processes of these host strains should also be developed to realize the efficient production of target products by considering several factors to increase the efficiency of product formation. Thus, insufficient supply of methane and oxygen to the microbial catalysts because of low mass transfer rate and the solubility of the gas in the aqueous phase should be addressed in order to realize the commercialization of the aerobic bioconversion of methane, which has been limited by the low titer of the product, low productivity, and low production yields. These have resulted from slow process kinetics and low metabolic energy efficiency, among other factors [1].

A reactor design and process development deliberately reflecting microbial characteristics can help overcome the current limit on microbial catalyst performance, especially in fermentation using C1 gas as a carbon substrate. The hydrogen productivity of Thermococcus onnurineus NA1, an archaeal strain which has good potential to endure high pressure, was dramatically enhanced by developing a pressurizing bioreactor [10]. Thus, a well-developed reactor design is very significant for maximizing the activity potential of engineered microbial catalysts. To deal with poor characteristics of gas transfer, either the volumetric liquid-side mass transfer coefficient k_La or the concentration driving force [10], which are the two main factors affecting the mass transfer rate as in the following equation, should be improved.

$$\frac{dC}{dt}=k_{L}a\left(C^{\ast }-C\right)-Q_{C}x$$

(1)

The common approaches that are employed to improve the volumetric liquid-side mass transfer coefficient k_La involve the optimization of operating parameters and the modification of the bioreactor configuration. A number of approaches have been employed in various types of bioreactors, for example, by increasing the mechanical agitation rate [11,12], investigating several types of impeller configuration [12], and applying a spinning disk microbubble generator [13] in a stirred tank reactor; by testing various types of membrane material [11,14] and adding an external diffuser [15] to a hollow fiber membrane reactor; by modifying the geometry of the reactor [16], testing various gas distributor designs [16], and by applying vibration excitement [17] in a bubble column reactor [18]; by modifying the reactor configuration with the addition of a semipermeable membrane [19] and by optimizing the geometry of the reactor [20] in an air-lift reactor.

The improvement in the value of k_La was confirmed for various bioreactor types, but the bioreactors that were utilized have major drawbacks that can reduce their feasibility for aerobic methane bioconversion application in terms of their operability. These include their high mechanical burden and membrane fouling problems [21,22,23]. Most strategies have focused on the transfer of oxygen in aerobic cultures, where the main objective of gas transfer is to maintain the dissolved oxygen concentration at a desired level. Unlike aerobic fermentation with sugar, the goal of performing the bioconversion of methane is to produce bulk chemicals from low-priced raw materials efficiently and economically, and it is therefore important to achieve a low energy consumption and high conversion of feed gas. In this respect, the direct application of conventional cases requires careful consideration.

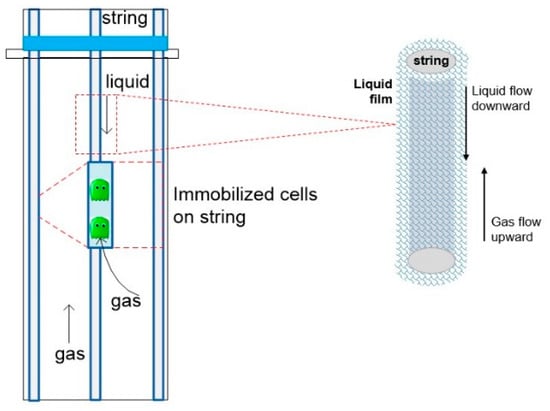

To develop a mass transfer system for methane bioconversion while addressing the obstacles of existing systems, a string film reactor (SFR) was designed and implemented in this study. An SFR is a column reactor in which the contact between liquid and gas takes place on the strings (Figure 1). The SFR was designed to tackle the drawbacks of existing bioreactors through the use of hydrophilic strings that are able to direct and to guide the flow of liquid in a desired manner, thereby preventing nonuniform liquid flow; the formation of a thin film on the surface of the strings, which can decrease the mass transfer resistance; and the use of cell immobilization on the strings as a biofilm to enable high-cell-density culture inside the reactor without causing fouling problems. Furthermore, the SFR can be easily scaled up or scaled down to the desired production volume by specifying the column size and the number of strings.

To assess the mass transfer performance of the SFR, this study explored the effects of the liquid flow rate, gas flow rate, and string materials on the k_La value of oxygen. In addition, because both methane and oxygen participate in the aerobic bioconversion of methane as limiting substrates, the mass transfer characteristics of each gas must be considered independently. In this study, considering the real environment of the system, we investigated the mass transfer behavior of the gases when methane, air, or a mixed gas composed of both methane and air were applied as feed.

2. Results

2.1. Effect of Liquid Flow Guidance by Strings on Mass Transfer Performance

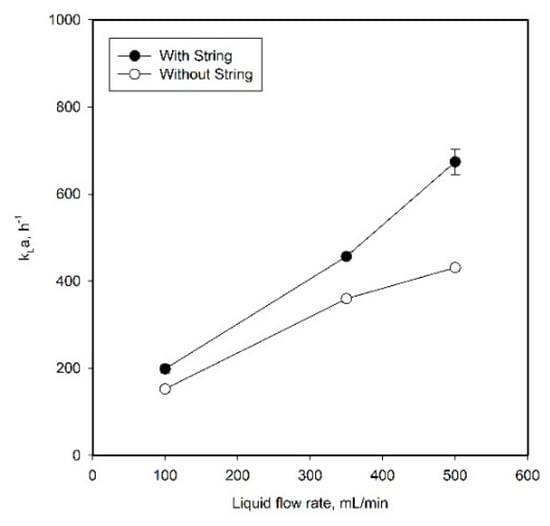

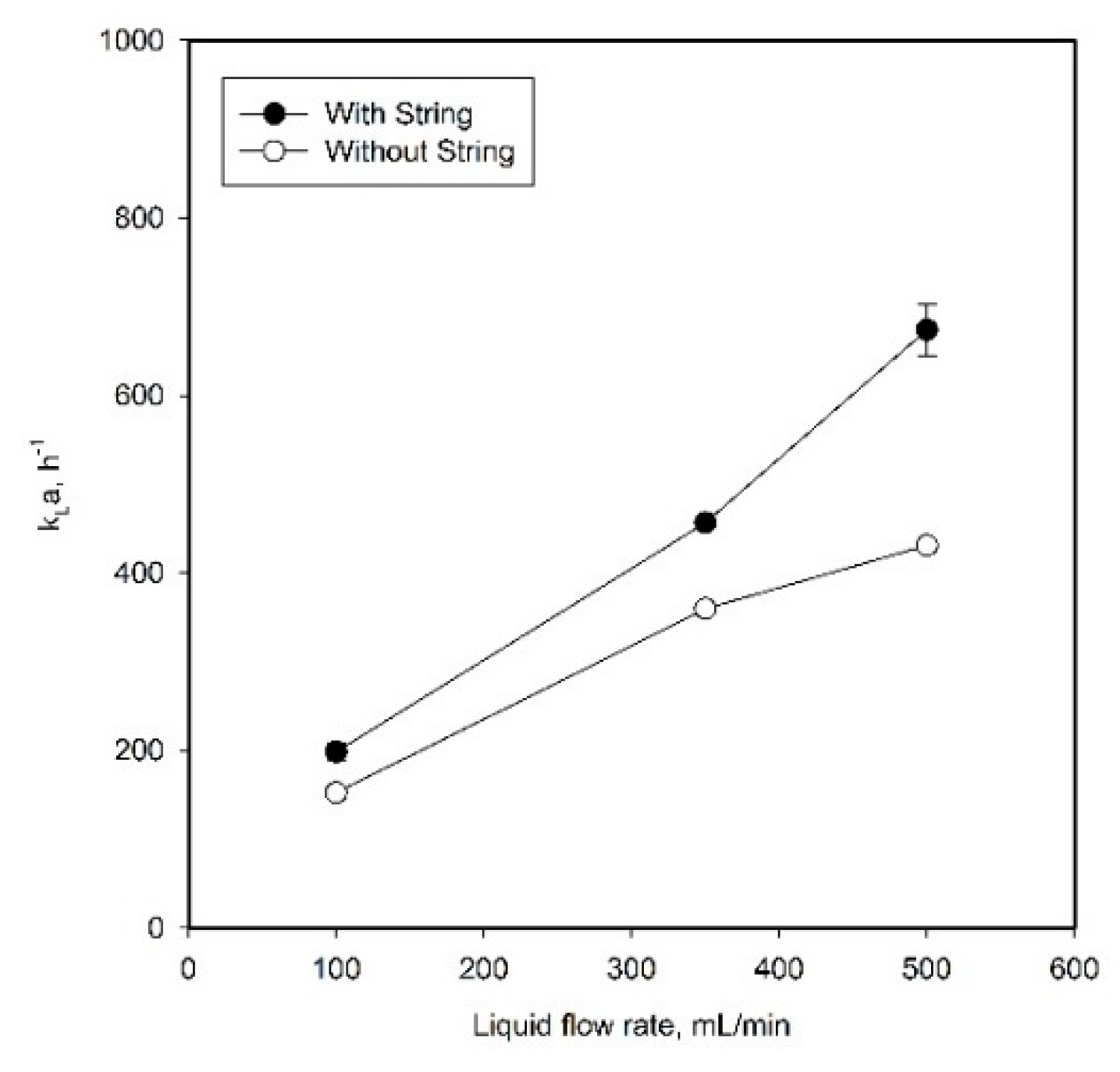

To investigate the effect of varying the liquid flow direction on the mass transfer efficiency, the mass transfer coefficients for oxygen were measured at various liquid flow rates with and without the string in the system. As shown in Figure 2, the mass transfer performance of the SFR was considerably influenced by the liquid flow rate. It was observed that k_La values increased by 3.39 times and 2.83 times with and without the string, respectively, when the liquid flow rate increased from 100 mL/min to 500 mL/min.

The presence of strings also influenced the mass transfer performance, and the mass transfer coefficients with strings increased significantly compared to the corresponding values without the string. At a gas flow rate of 350 mL/min, the DO (dissolved oxygen) value in the steady state without the string was only 60.5%, while it was 72.5% with strings, exhibiting enhanced oxygen transfer. As a result, the k_La value was 455.72 h⁻¹, which is 1.26 times larger than that obtained without the string.

2.2. Investigation of Mass Transfer Characteristics in SFR Using Methane–Air Mixed Gas

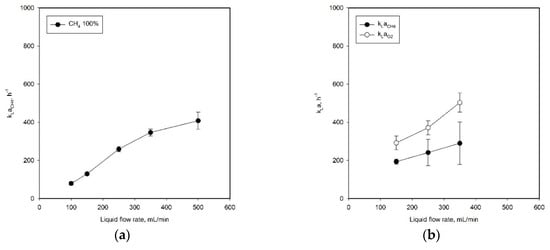

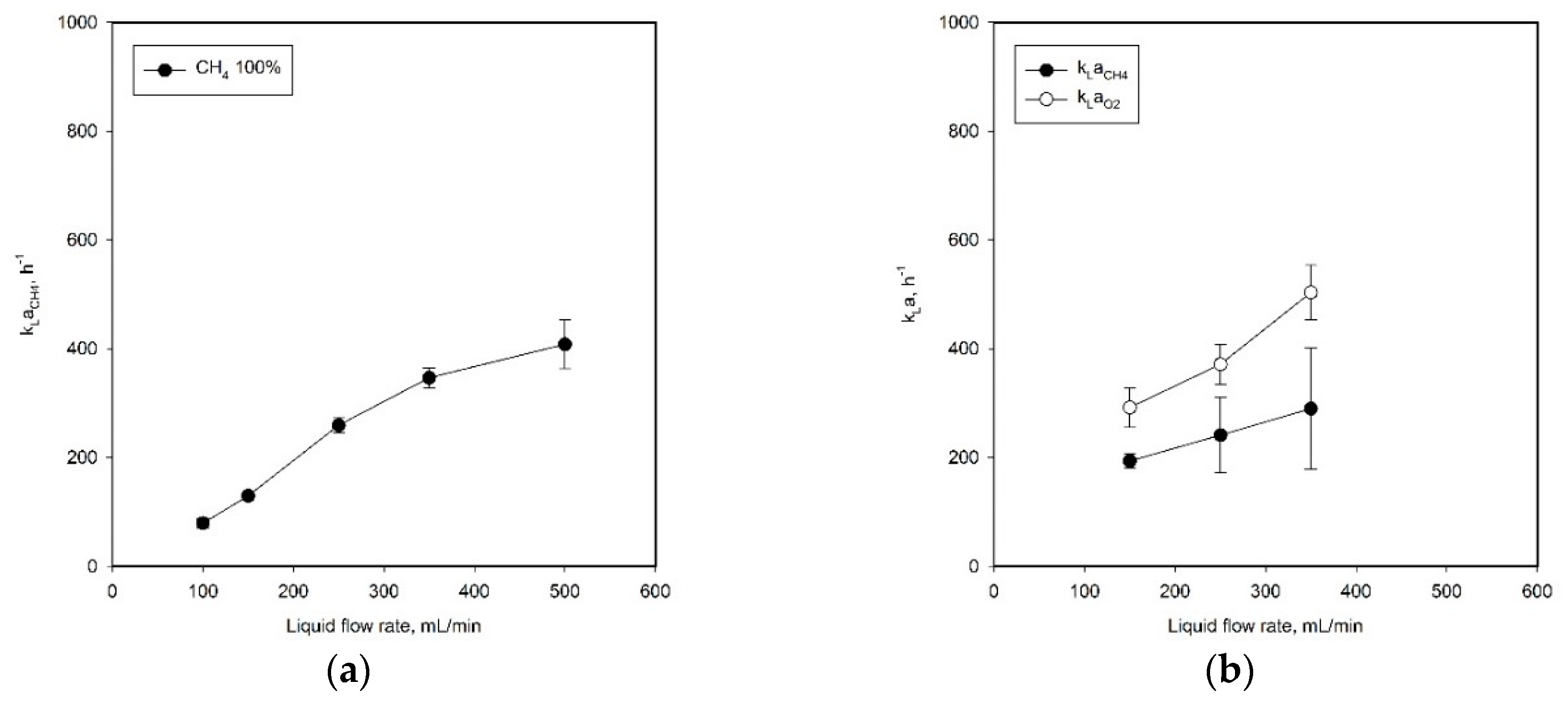

The mass transfer coefficients obtained for methane were measured at various liquid flow rates. As in the experiments with air, the mass transfer coefficients increased with the liquid flow rates (Figure 3a), but the extent of this increase was reduced with the liquid flow rates, while the variances of the k_La values under the same conditions increased. The mass transfer coefficient of methane at the liquid flow rate of 100 mL/min was 79.0 h⁻¹ and increased to 408.0 h⁻¹ at a liquid flow rate of 500 mL/min.

To evaluate the feasibility of the SFR system for methane conversion and to investigate the mass transfer characteristics of the system using the gas containing air and methane, the mass transfer coefficients for each gas were determined at various liquid flow rates. A mixed gas composed of 30% methane and 70% air, which is commonly used for the bioconversion of methane [5], was supplied to the system as feed gas. Although there were some fluctuations—possibly caused by a disturbance in the measurement of dissolved methane by the gas chromatography, owing to the presence of impurities including air in the sample tube (see Section 4.2 for the detailed method of measurement)—the k_La values were similar to those obtained in the cases using single-component gas (Figure 3b). When the liquid flow rate was 350 mL/min, the mass transfer coefficients of methane and oxygen were 289.7 h⁻¹ and 503.2 h⁻¹, respectively.

2.3. Improvement of Mass Transfer Performance by Using Hydrophilic Porous Strings

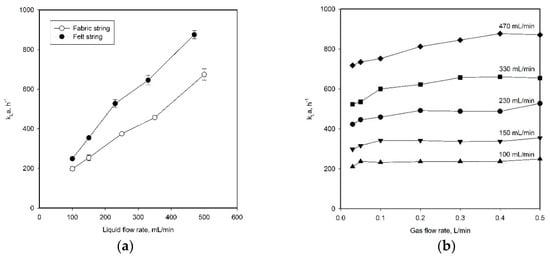

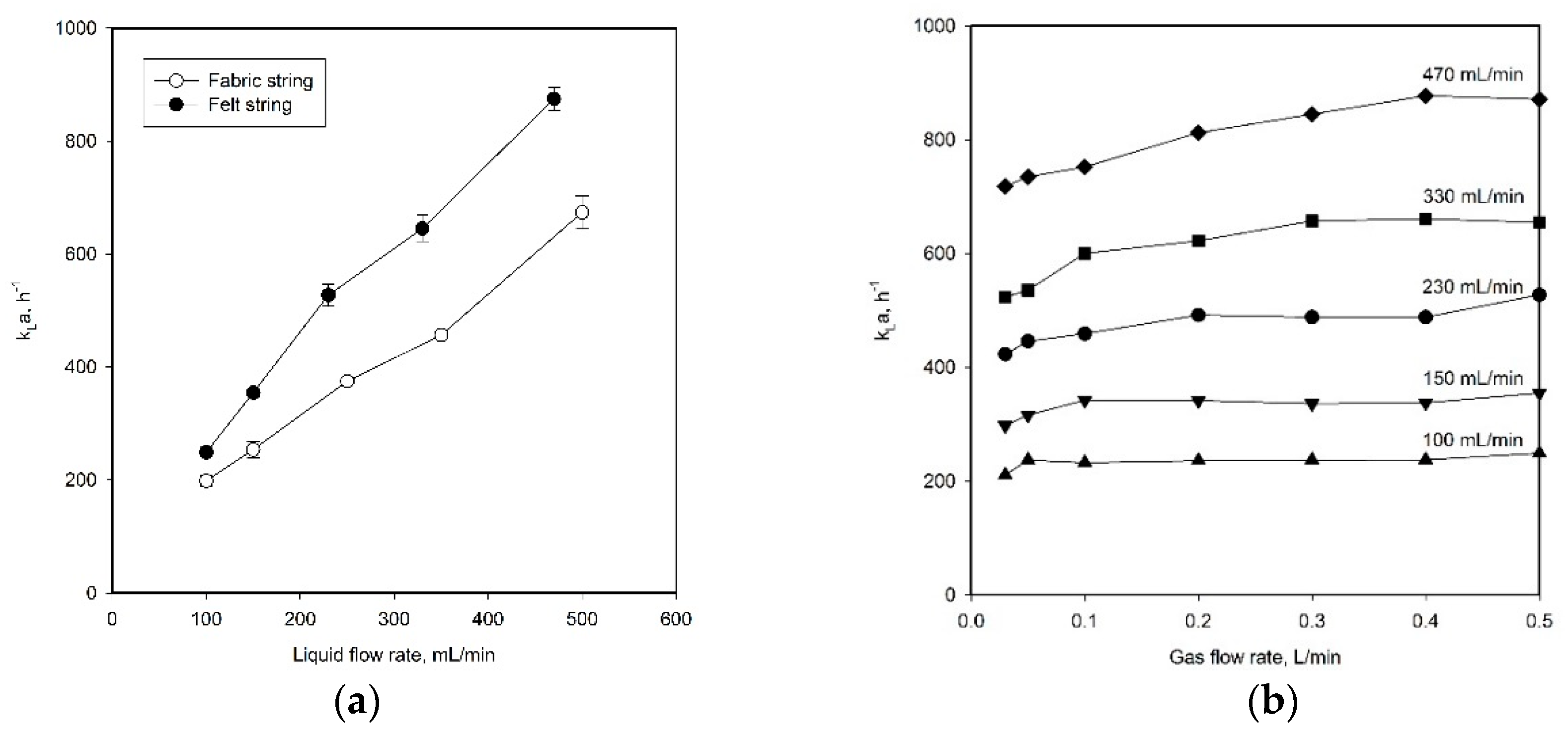

Absorption experiments for oxygen were conducted to investigate the effect of the hydrophilicity of the string on the mass transfer performance. Two types of string material were tested. One was of the fabric that was used in the previous sections and the other was of felt. Because hydrophilic behavior is correlated with the critical surface tension of the material [24], the felt material, which consists purely of cotton, should be more hydrophilic than the fabric material, which consists of a mixture of nylon and cotton, owing to the higher critical surface tension value of cotton (60–70 mN/m) [25] relative to that of nylon (30–44 mN/m) [26]. Also, the felt material used in this study was porous and was able to absorb larger amounts of water than the fabric material.

The hydrophilic property of the string material is in accordance with the hydrophilic behavior of the material that was observed in this experiment. The felt material was able to be perfectly wetted by the water and could maintain sufficient contact with water without forming droplets on its surfaces. However, for the case involving fabric strings, the liquid flow was not stable and the droplets were splashed on the wall surface of the system; this tendency became more severe with the increase of the liquid flow rate. The mass transfer performance of the SFR was affected by the hydrophilicity of the string material, as shown in Figure 4a. The felt material, which is more hydrophilic, achieved k_La values that were about 1.3 times higher than those of the fabric material.

The effects of the gas flow rates on k_La values were observed in the SFR using the felt string material. The experiments were conducted by gradually decreasing the gas flow rate while the liquid flow rate was kept constant. As shown in Figure 4b, the mass transfer performance of the SFR was not affected by the gas flow rate above 0.4 L/min for each tested liquid flow rate. However, at a gas flow rate below 0.4 L/min, the magnitude of the effects of the gas flow rate on the mass transfer performance depends on both of the liquid flow rate and the gas flow rate. It was also observed that the k_La value was independent of the gas flow rate after it reached a particular gas flow rate, which is defined as the critical gas flow rate. Therefore, it should be noted that it is important to operate the SFR at the critical gas flow rate in order to obtain the optimum value of k_La for low gas throughputs. For each tested liquid flow rate, the critical gas flow rates obtained in this study are presented in

Table 1. Critical gas flow rate at each tested liquid flow rate.

Liquid Flow Rate (mL/min)	Critical Gas Flow Rate (L/min)
100	0.05
150	0.10
250	0.20
350	0.30
500	0.40

.

3. Discussion

In this study, the SFR system aimed to increase the mass transfer rate by efficiently manipulating the contact between the gas and liquid. The experiment results obtained indicate that the liquid flow rate and the hydrophilicity of the string material are parameters that need to be considered for the design and operation of the SFR.

The positive effects of the liquid flow rates on k_La could be well explained by the physical concept behind Higbie’s model. According to Higbie’s model, there is a continual attachment wherein the liquid element is in contact with the gas for particular exposure time θ and absorbs the gas by molecular diffusion which increases rapidly initially and decreases with time [27]. At a high liquid flow rate, the periodic replacement of the liquid element at the gas–liquid interface is more frequent, and the rate of gas absorption therefore becomes higher.

The flow pattern of liquid on the surface of the strings is also very important with regards to realizing an improved mass transfer performance, as can be observed clearly from the comparison of k_La values for the cases with and without string, as well as for the cases with the strings having different hydrophilicities. When the direction of flow of the liquid was varied by the strings present in the SFR, the contact of gas and liquid at the interface was stabilized, thus allowing improved mass transfer performance. These effects were further enhanced when the hydrophilic porous string was used. This may be responsible for the increase in the interfacial area of the contact, as was also reported by Onda et al. [28] and Han et al. [29]. According to their results, a positive correlation between the hydrophilicity of the packing material and the contact area was observed in their mass transfer equation for a packed bed reactor.

The biological conversion of methane was carried out primarily in the aerobic condition, and both methane and oxygen should therefore be sufficiently supplied to the system. Most studies on the gas transfer systems that have been reported in the literature have been evaluated by studying the performance with oxygen, and very little empirical work has been done to investigate methane or methane–oxygen transfer.

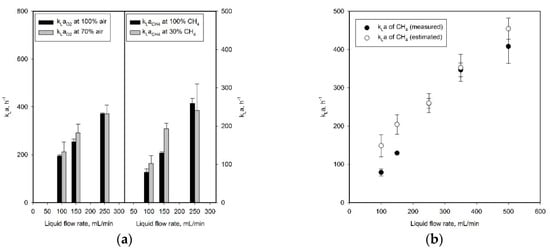

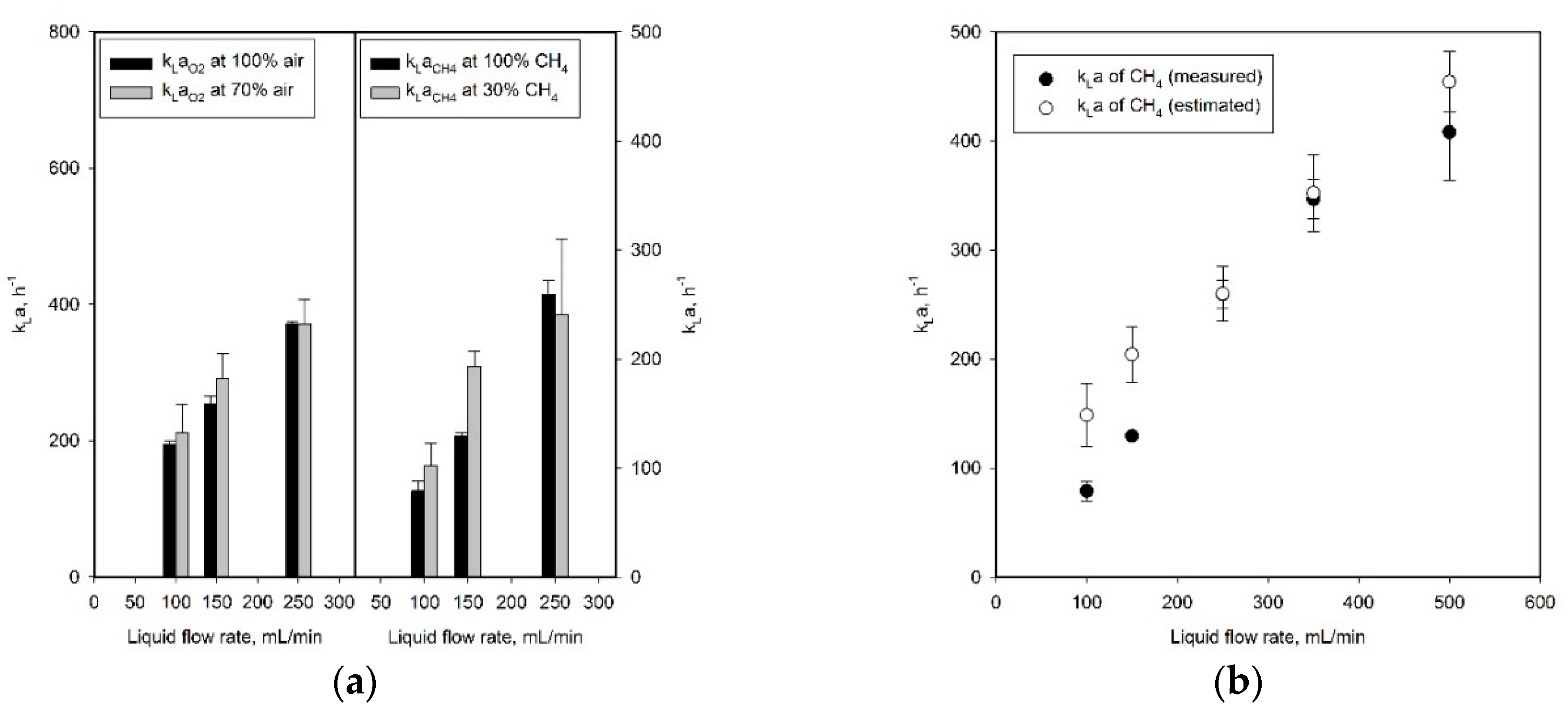

According to the results presented in this study, the k_La values for oxygen and methane in the system obtained from 100% air and 100% methane were similar to those of the mixed gas containing 30% methane (Figure 5a), implying that the k_La values obtained for oxygen and methane in the system are independent of the composition of the gas. However, the mass transfer coefficient values obtained for methane were lower than those for oxygen under the same conditions. A strategy to complement the low efficiency of methane transfer should be established. It is generally known that the k_La value of a gas is closely related to its diffusivity [30]. Based on the diffusivity of methane and oxygen [31], the k_La value for methane was estimated and compared with the measured values (Figure 5b). The mass transfer coefficients for methane at the liquid flow rates of 250 mL/min and 350 mL/min were about 70% of the corresponding values for oxygen, but values that were lower than 70% of the k_La value for oxygen were obtained at lower liquid flow rates, while higher values were obtained at higher flow rates. Further study is required to better understand the differences in the mass transfer coefficients for different gases.

To assess the mass transfer capability of the SFR, the highest k_La value obtained in this study for oxygen was compared with those obtained from other studies for various types of bioreactors. To enable an equivalent comparison among reactors, operating conditions, including the gas flow, liquid flow, and liquid volume, are presented. As can be seen in

Table 2. Mass transfer coefficients for oxygen for the SFR and other reactor types.

Reactor Type	Operating Condition					Highest kLa (h−1) Obtained for Oxygen	Reference
	Gas Flow Rate (mL/min)	Liquid Flow Rate (L/min)	Superficial Gas Velocity (cm/s)	Reactor Volume (L)	Liquid Volume (L)
String film (SFR)	500	0.4	0.36	0.486	0.06	874.67 L	This study
Stirred tank (900 rpm)	400	-	-	3.5	2.5	114 R	[11]
Stirred tank (1000 rpm)	5000	-	-	2.44	1.77	216 R	[12]
Bubble column	-	-	1.2	8.64	6.90	180 R	[17]
Bubble column	-	-	10.8	22	4.0	360 R	[16]
Bubble column	10,000	-	0.93	32	11	126 R	[32]
Air-lift	-	-	1.77–7.07	1.75	0.85	360 R	[20]
Packed bed–trickle flow	131	0.05	-	1.2	0.0081	421 L	[11]
Hollow fiber membrane	1000	0.4	-	-	0.018	1062 L	[11]

^R Reactor volume based; ^L Liquid volume based.

, the k_La value of the SFR was higher than that of the stirred tank reactor reported by Orgill et al. [11] and Karimi et al. [12], whereas the stirred tank reactor was operated at a high agitation speed of 900–1000 rpm. This confirmed that the SFR was able to efficiently transfer the gas to the liquid with lower energy consumption than the stirred tank reactor, owing to its capability. This could minimize mass transfer resistance by the formation of liquid film without relying on a high agitation speed as in the stirred tank reactor. In addition, the k_La value of the SFR was higher than that of the bubble column reactor reported by Lau et al. [15], Khrisna and Ellenberger [17], Bekassy et al. [20], and Budzynski et al. [32], despite the lower superficial gas velocity of the SFR. The packed bed–trickle flow reactor should be compared with the SFR at a comparable value of gas flow rate in order to have an equivalent comparison because the mass transfer of the packed bed–trickle flow reactor is significantly affected by the gas flow rate [11,27]. For a gas flow rate of around 0.1 L/min, the SFR outperformed the packed bed–trickle flow reactor, with k_La values of 752.0 h⁻¹ (not shown in Table 2) and 421 h⁻¹, respectively. The SFR exhibited lower performance compared with the hollow fiber membrane reactor. However, there is an advantage in terms of simplicity and operability.

To evaluate the SFR, it should be considered that the effective volume of liquids for gas absorption in the entire system is small. The reactor-volume-based k_La is reduced when the system volume is used as the basis of the calculation, while the liquid-volume-based k_La is very high. It is expected that many of the drawbacks resulting from a low effective volume can be addressed easily by increasing the number of strings in the system. Nevertheless, by comparing the performance of the SFR with a stirred tank, bubble column, or air-lift reactor that injects gas directly into the system, the required costs for system installation and energy consumption, as well as the mass transfer performance, should be assessed thoroughly.

4. Materials and Methods

4.1. Schematic of the String Film Reactor (SFR)

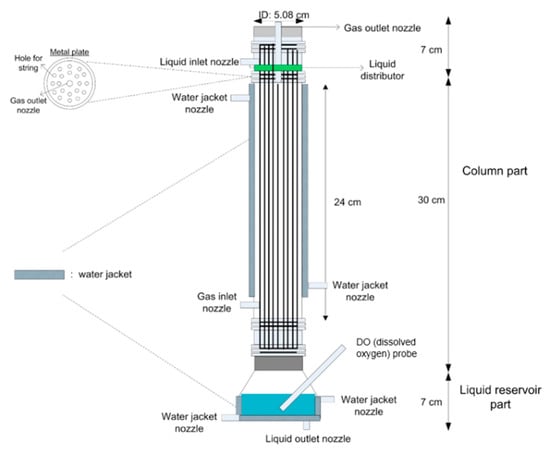

A schematic of the SFR is shown in Figure 6. The SFR was made of acrylic plastic with an inner diameter of 5.08 cm and a total height of 44 cm. It was equipped with a water jacket to maintain the temperature.

The SFR had two main parts, i.e., a column part and a liquid reservoir part. The column part, where the contact between liquid and gas took place, had a total volume of 486 mL with a void fraction of 0.92, and consisted of 20 strings with a diameter of 0.3175 cm and an effective length of 24 cm. The strings were held using a metal plate that was placed on the top and lower parts of the column part; the plate consisted of 20 holes with a diameter of 0.4 cm, as shown in Figure 6. The bottom of the SFR acted as a liquid reservoir for dissolved oxygen and dissolved methane measurements. The liquid distributor, which was made of hydrophilic natural pulp material, was placed on the metal plate.

4.2. Experimental Procedure for Gas–Liquid Contact Using the SFR System

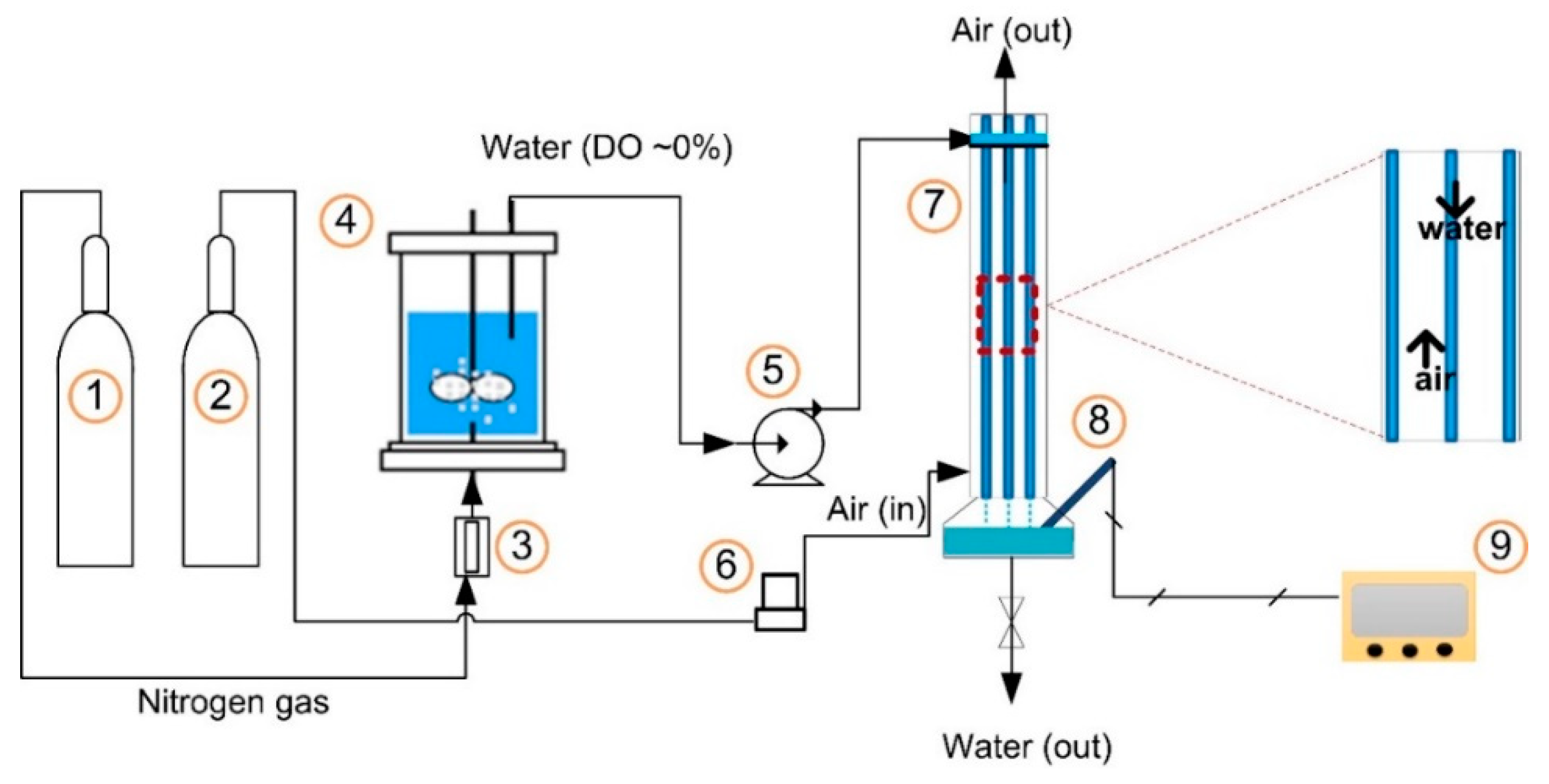

The mass transfer performance of the SFR was determined in the absence of microorganism cells. The experimental setup employed for measuring the mass transfer performance of the SFR is shown in Figure 7. The experiments were performed at 30 °C and atmospheric pressure, which is the process condition typically used in the aerobic bioconversion of methane. Double-distilled water from a water holding tank, which was initially purged using nitrogen to obtain a DO value close to 0%, was fed to the SFR using a peristaltic pump (BT301L, Lead Fluid, Baoding, China) at a desired flow rate. The air or air–methane from the gas tank was fed directly to the SFR by adjusting the flow rate using a mass flow controller. The SFR was operated in counter current mode. Various gas (0.03–0.5 L/min) and liquid (100–500 mL/min) flow rates were tested.

In the case of air, a DO probe (Oxyprobe D500, Broadly James, Irvine, CA, USA) was placed in the liquid reservoir and connected to a fermentor control unit (CNS, South Korea) for data acquisition. The DO values were observed and recorded every 30 s until the system reached steady state, which was determined when the DO value did not change within a 3 min period. In the case of methane, its dissolved concentration was measured using a collection tube (BD vacutainer^®, Becton Dickinson, Franklin Lakes, NJ, USA) and a gas chromatograph (6890N, Agilent, Santa Clara, CA, USA). When the system reached a steady state, a specific amount of the liquid in the reservoir was drawn by a BD vacutainer, which is a plastic test tube with a rubber stopper creating a vacuum seal inside of the tube. The amount of dissolved methane concentration was calculated by comparing using Gas Chromatography (GC) the gas composition before and after sampling. Runs were performed in triplicate for each test condition.

4.3. Determination of Volumetric Mass Transfer Performance

The mass transfer performance was determined by calculating the value of the volumetric liquid-side mass transfer coefficient k_La. The formula used to calculate the volumetric liquid-side mass transfer coefficient k_La was obtained by deriving the oxygen mass balance in the liquid, as described below.

$$\frac{dC}{dt}=k_{L}a\left(C^{\ast }-C\right)$$

(2)

Integrating each side of Equation (1), Equation (2) could be obtained as follows:

$$\ln \frac{C^{\ast }-C_0}{C^{\ast }-C_f}=k_{L}a\left(t_f-t_0\right)$$

(3)

where C₀ and C_f are the dissolved gas concentrations at the starting point and end point in the system, respectively. In the SFR, C_f does not change with time when it is in steady state, and $t_f$ denotes the residence time of liquid in the system; k_La can be derived using the liquid volume, the liquid flow rate, and the variation in the dissolved gas concentrations:

$$\therefore k_{L}a= \frac{Q_L}{V}\ln \frac{C^{\ast }-C_0}{C^{\ast }-C_s}$$

(4)

where $Q_L$ is the liquid flow rate and $C_s$ is the dissolved concentration of the gases in the steady state.

5. Conclusions

The SFR was able to perform gas transfer to the liquid with a simple configuration and achieved a large volumetric liquid-side mass transfer coefficient k_La. When comparing the mass transfer performance for the cases with air, methane, and air–methane mixed gas, the mass transfer coefficient did not change significantly, showing the independent transfer behavior of oxygen and methane.

The mass transfer of the SFR was determined using three main parameters:

• The liquid flow rate, which had a significant effect on the mass transfer performance;
• The gas flow rate, where the mass transfer performance increased with gas flow rate values below the critical gas flow rate, while it was almost constant above the critical rate. The value of the critical gas flow rate depends on the liquid flow rate;
• The hydrophilicity of the string material, where a more hydrophilic material could significantly improve the mass transfer performance.

Therefore, for either the operation or further development of the SFR, the above three parameters should be considered. Furthermore, the SFR exhibited good potential as an alternative to the existing types of bioreactor owing to its high mass transfer performance and simplicity.
