Synthesis of Mono- and Dithiols of Tetraethylene Glycol and Poly(ethylene glycol)s via Enzyme Catalysis

by
Prajakatta Mulay
1,
Gayatri Shrikhande
1 and
Judit E. Puskas
1,2,*
1
Department of Chemical and Biomolecular Engineering, The University of Akron, Akron, OH 44325, USA
2
Department of Food, Agricultural and Biological Engineering, The Ohio State University, Wooster, OH 44691, USA
*
Author to whom correspondence should be addressed.
Catalysts 2019, 9(3), 228; https://doi.org/10.3390/catal9030228
Submission received: 11 February 2019 / Revised: 26 February 2019 / Accepted: 26 February 2019 / Published: 2 March 2019
(This article belongs to the Special Issue Recent Advances in Biocatalysis and Metabolic Engineering for Biomanufacturing)
Browse Figures
Versions Notes

Abstract

:
This paper investigates the transesterification of methyl 3-mercaptopropionate (MP-SH) with tetraethylene glycol (TEG) and poly(ethylene glycol)s (PEG)s catalyzed by Candida antarctica Lipase B (CALB) without the use of solvent (in bulk). The progress of the reactions was monitored by 1H-NMR spectroscopy. We found that the reactions proceeded in a step-wise manner, first producing monothiols. TEG-monothiol was obtained in 15 min, while conversion to dithiol took 8 h. Monothiols from PEGs with Mn = 1000 and 2050 g/mol were obtained in 8 and 16 h, respectively. MALDI-ToF mass spectrometry verified the absence of dithiols. The synthesis of dithiols required additional fresh CALB and MP-SH. The structure of the products was confirmed by 1H-NMR and 13C-NMR spectroscopy. Enzyme catalysis was found to be a powerful tool to effectively synthesize thiol-functionalized TEGs and PEGs.

Graphical Abstract

1. Introduction

Poly(ethylene glycol) (PEG) is the most frequently used polymer for biomedical research and applications because it is soluble in organic as well as aqueous media [1], is not cytotoxic and immunogenic [2], and is easily excreted from living organisms [3]. Click chemistries and Michael addition reactions are often used for PEGylation of drugs to make them more water soluble [4]. Thiol-functionalized PEGs have an important role in these reactions [5,6,7,8,9,10] and can be used as a ‘Michael donor’ or in thiol-ene click reactions to synthesize conjugates for targeted drug delivery [7]. Other uses include the following: An anti-fouling biosensor coating [8], to stabilize gold nanorods used to test water for chemical pollutants [9], and to stabilize gold nanoparticles used as drug delivery vehicles [10]. Thiol-functionalized PEG is also a favorite to make self-assembling monolayers on gold surfaces [8]. Mahou et al. [11] reported the single synthetic strategy to obtain PEG-monothiol. They tosylated one hydroxyl end-group of the PEG-diol using p-toluenesulfonyl chloride in the presence of silver oxide and potassium iodide catalyst and toluene solvent. The tosylated PEG was then reduced with sodium hydrosulfide at 60 °C to yield PEG-monothiol with 84% yield. PEG-dithiols have been synthesized by various methods. In one method, the hydroxyl end groups were reacted with allyl bromide at 120 °C, followed by a radical-mediated addition of thioacetic acid and subsequent reduction to thiol using sodium hydroxide/sodium thiomethoxide, with a 56% yield [12,13,14]. Another route reported tosylation of the hydroxyl end groups, followed by a reaction with a xanthate and de-protection with an alkyl amine that gave 98% yield [15,16]. The simplest method used esterification of mercapto-acids in toluene at 120 °C using p-toluenesulfonic acid or sulfuric acid as catalysts: An example is shown in Figure 1 [17,18,19,20,21,22,23,24,25].
These methods employ acid catalysts; and hence are not “green”. Against this background, we investigated the synthesis of thiol-functionalized tetraethylene glycol (TEG) and PEGs by transesterification of methyl 3-mercaptopropionate (MP-SH) under solvent-less conditions using a heterogeneous catalyst, namely, Candida antarctica Lipase B (CALB). CALB-catalyzed functionalization of low molecular weight polymers was first reported by our research group yielding pure products with high efficiency [26,27,28,29,30,31,32]. For example, halogen-functionalized PEGs were made by the transesterification of halo-esters with PEG monomethyl ether under solvent-less conditions at 65 °C for 4 h under vacuum (70 milliTorr) [31]. Methacrylate, acrylate, and crotonate functionalization of PEGs was also achieved under solvent-less conditions within 4 h at 50 °C by reacting PEG with the corresponding vinyl esters (vinyl methacrylate, vinyl acrylate, and vinyl crotonate) in the presence of immobilized CALB [32].
Precise thiol-functionalization of TEG and PEGs by enzyme catalysis has not been reported previously in the literature. This study presents the first examples of precision synthesis of TEG and PEG monothiols and dithiols. In this study, two types of PEGs (Mn = 1000 g/mol and Mn = 2050 g/mol) were used to evaluate the effect of PEG chain length on the kinetics of the CALB-catalyzed transesterification reaction of methyl 3-mercaptopropionate (MP-SH) with PEGs at 50 °C, an optimum temperature for CALB-catalyzed reactions [33]. MP-SH was selected because of its low cost and the convenient removal of the methanol side product by vacuum. CALB supported on various carriers were reported to be more effective than the native enzyme [34,35,36] and depending on the specific conditions were shown to be recyclable four [37] or twenty times [36]. We have been using the only commercially available CALB (20 wt% immobilized on a macroporous acrylic resin, Novozyme® 435).

2. Results and Discussion

2.1. CALB-Catalyzed Transesterification of MP-SH with TEG

First, MP-SH was transesterified with TEG under solvent-less conditions using CALB as the catalyst. The catalytic triad for transesterification of CALB was shown to consist of serine (Ser105), histidine (His224), and aspartate (Asp187) [38]. Figure 2 illustrates our rendition of the mechanism of transesterification of MP-SH by TEG [33]. The top (dark shaded) portion of the enzyme is the so-called “carbonyl pocket” while the bottom (lighter shaded) is the “hydroxyl pocket”. First, the nucleophilic serine (Ser105) in the free enzyme interacts with the carbonyl group of the thioester, forming the first tetrahedral intermediate (THI-1) that is stabilized by the so-called oxyanion hole (three hydrogen bonds: One from glutamine (Gln106) and two from threonine (Thr40)) [38]. In the second step, the ester bond in THI-1 is cleaved to form an acyl-enzyme complex (AEC) that releases the first product, methanol in this case, which is removed due to the applied vacuum (420 Torr), making the reaction irreversible. In the third step, the HO- group of the diol positioned in the hydroxyl pocket interacts with the carbonyl group of the AEC, forming the second tetrahedral intermediate (THI-2), which is also stabilized by the oxyanion hole. In the last step, the enzyme is deacylated to form a TEG-monothiol that is released from the THI-2 and the enzyme is regenerated.
The second -OH group of the TEG-monothiol will then be converted to thiol in a second cycle in a similar manner as the first cycle as shown in Figure 3. However, the first and second cycle may proceed simultaneously in a competitive reaction between the hydroxyl groups of unreacted TEG and TEG-monothiol. Thus, we first studied the kinetics of CALB-catalyzed transesterification of MP-SH with TEG.

2.1.1. Kinetics of CALB-Catalyzed Transesterification of MP-SH with TEG

The progress of the reaction was monitored by 1H-NMR spectroscopy. At time 0, the protons from MP-SH (thiol proton triplet at 1.60 ppm (a), methylene protons—quartet at δ = 2.73 ppm (b) and triplet at δ = 2.61 ppm (c)) can be seen together with the proton signals of TEG (CH2 protons next to the -OH end group at δ = 3.57 ppm (e) and at δ = 3.64 ppm (f) and the internal CH2 protons of TEG at δ = 3.63 ppm (g)). The methyl protons of MP-SH (h) also appear in this region at δ = 3.66 ppm, overlapping with the methylene proton signals (f) of TEG. It can be observed from Figure 4 that the intensity of the signal at δ = 3.57 ppm (e) gradually decreases as the reaction time increases. The formation of the ester bond is demonstrated by the appearance of a new signal at δ = 4.23 ppm, corresponding to the methylene protons next to the carbonyl group in the product (e’, Figure 4). The proton signals (b) and (c) slightly shift to 2.75 ppm (b’) and δ = 2.64 ppm (c’). After 15 min of reaction time, the ratio of the internal CH2 protons of TEG at δ = 3.61 ppm (g) to (e’) in the product was 8:1.98, indicating the formation of TEG-monothiol. After the formation of TEG-monothiol, the reaction slowed down considerably. Complete conversion to dithiol took 450 min, and the relative integrals of (g): (e’) at 8:3.88 indicated the formation of TEG-dithiol (Figure 4).
We theorize that in the second cycle the carbonyl group of the free MP-SH competes with the carbonyl group of the TEG-monothiol for complexation in the carbonyl pocket of CALB, thereby slowing down the second cycle of the reaction. Another reason might be the deactivation of CALB by the methanol released in the reactions that is not completely removed in the vacuum. Thus, the reaction proceeds sequentially in a consecutive manner.

2.1.2. Synthesis of TEG-monothiol and TEG-dithiol

Figure S1 shows the 1H- and 13C-NMR spectra of TEG-monothiol synthesized with a reaction time of 15 min after filtering the enzyme and removing the excess thioester but without further purification (93% reaction yield because some material is lost with the enzyme). In the 1H-NMR spectrum of the monothiol (Figure S1A), the ratio of the integral of the methylene protons next to the SH group in the product at 2.75 ppm (b’) and δ = 2.64 ppm (c’) to the integral of the methylene protons next to the carbonyl group at δ = 4.23 ppm (e’) is 4.00:2.00, indicating the formation of the TEG-monothiol with 100% conversion. In the 13C-NMR spectrum of the monothiol (Figure S1B), signals corresponding to the carbons in the thiol end group (B, C, D, E’ and F’) and the carbons next to the -OH end group (E and F) appears distinctly, that demonstrates the formation of the TEG-monothiol.
Figure S2 shows the 1H- and 13C-NMR spectra of the TEG-dithiol that was synthesized with a reaction time of 7.5 h (88% reaction yield). The ratio of the integral values of signals (b’) + (c’) to (e’) are 8.00:3.88, indicating the formation of the TEG-dithiol. The 13C-NMR spectrum in Figure S2B shows only the signals corresponding to the thiol end groups, with only traces of signals corresponding to the carbons next to the -OH (E and F) at δ = 72.38 ppm and δ = 61.16 ppm, possibly from traces of residual TEG-monothiol, indicating 100% conversion of the -OH groups to the thiols.
In summary, CALB-catalyzed transesterification of MP-SH with TEG in bulk yielded TEG-monothiol in 15 min with 93% reaction yield, and TEG-dithiol in 7.5 h with 88% reaction yield and 100% conversion without purification, such as column chromatography.

2.2. CALB-Catalyzed Transesterification of MP-SH with PEGs

2.2.1. Kinetics of CALB-catalyzed transesterification of MP-SH with PEG

MP-SH was reacted with PEG1000 using enzyme catalysis, and the reaction was monitored over 24 h with 1H-NMR spectroscopy (see Figure 5). Because low molecular weight PEGs (<3000 g/mol) are liquid at the reaction temperature and are miscible with MP-SH, no solvent was necessary as a medium for the reaction. The main chain protons (g) and the methylene protons next to the –OH (e and f) and the thioester (f’) appear at δ = 3.61 ppm. For PEG1000-monothiol, the new methylene protons next to the carbonyl group (e’) appear at δ = 4.23 ppm, which makes the integral value of internal protons of PEG1000 (g, e, f, and f’): 88 − 2 = 86. Therefore, the integral value of the internal protons was set to 86 for calculating the extent of the reaction. Based on the integral ratio of (g, e, f, and f’): (e’), about 60% of the PEG1000 was converted to PEG1000-monothiol in 60 min (Figure 5). Then the reaction slowed down, and it took 8 h to convert all PEG1000 into monothiol. Dithiol was not detected even after 24 h. The mechanism presented in Figure 2 for TEG also applies for PEG. Thus, we theorize that in the second cycle the carbonyl group of the free MP-SH competes with the carbonyl group of the PEG-monothiol for complexation in the carbonyl pocket of CALB, thereby slowing down the second cycle of the reaction. In addition, the CALB may be deactivated by the methanol released in the reactions that is not completely removed by the vacuum.
MP-SH was also transesterified with PEG2050 and the reaction was monitored over 24 h by 1H-NMR spectroscopy (not shown). Similarly to the PEG1000, only monothiol was obtained. In addition, complete conversion to monothiol was achieved in 16 h, which suggests higher molecular weight required longer reaction time.

2.2.2. Synthesis of PEG1000-monothiol

The 1H-NMR of the PEG1000-monothiol is shown in Figure 6A. The integral ratio of (b’) + (c’) to the methylene protons in the new ester bond at δ = 4.23 ppm is 4:00:1.86, indicating the formation of PEG1000-monothiol. Figure 6B shows the 13C-NMR spectrum of PEG1000-monothiol. Signals corresponding to the carbons next to the thioester (E’ and F’) and –OH end groups (E and F) appear simultaneously, indicating the formation of monothiol.
The product was further analyzed by MALDI-ToF mass spectrometry and Figure 7 shows the spectrum. There are two major distributions of peaks (Figure 7A), each separated by 44 m/z units (Figure 7B). The peak at m/z 1097.63 corresponds to the Na complex of the 22-mer fraction of PEG1000 monothiol [1097.63 = 22 × 44.03 (C2H4O repeat unit) + 89.14 (HSC2H4CO- end group) + 17 (HO- end group) + 22.99 (Na+)]. The peak at m/z 560.31 corresponds to the doubly charged Na complex of the 22-mer fraction of PEG1000 monothiol [560.31 = [(1097.63 ([M + Na]+) + 22.99 (Na+)]/2]. The small distribution of peaks appearing under the doubly charged Na complex distribution corresponds to traces of unreacted PEG1000 from the reaction mixture (<5%) that could not be detected by NMR. Thus, based on the MALDI mass spectrometry data, over 95% conversion of one of the OH groups to thiol was achieved in 24 h. No traces of PEG-dithiol were found. Therefore, it can be concluded that the product was exclusively PEG1000-monothiol with no traces of dithiol, with 100% yield.

2.2.3. Synthesis of PEG1000-dithiol

PEG1000-dithiol was obtained by reacting PEG1000-monothiol with fresh MP-SH and CALB for 24 h under solvent-less conditions. Figure 8 shows the 13CNMR spectrum of the PEG1000-dithiol. The disappearance of the signals (F and E, Figure 6) at δ = 72.66 ppm and δ = 61.72 ppm, corresponding to the methylene protons next to the hydroxyl end-groups from the PEG1000-monothiol indicates full conversion to PEG1000-dithiol in 24 h with 85% reaction yield.
PEG2050 mono- and di-thiols were also synthesized as described in the Experimental section. The 1H-NMR spectra shown in Figure S3 verified the structure of the PEG2050 mono- and di-thiols that were obtained with 100% and 94% reaction yield.

3. Materials and Methods

3.1. Materials

Candida antarctica Lipase B (CALB, 33273 Da, 20 wt% immobilized on a macroporous acrylic resin Novozyme® 435) was obtained from Sigma Chemicals (St. Louis, MO, USA). Poly(ethylene glycol)s (PEG1000, M n ¯ = 1000 g/mol, Ð = 1.14; and PEG2050, M n ¯ = 2050 g/mol, Ð = 1.09), and methyl-3-mercaptopropionate (MP-SH, 98%) were obtained from Aldrich Chemicals (St. Louis, MO, USA). Tetraethylene glycol (TEG) and tetrahydrofuran (THF, ≥99%) were obtained from Sigma-Aldrich (St. Louis, MO, USA). Diethyl ether (95.8%) was obtained from Fisher Chemicals (Hampton, NH, USA). Deuterated chloroform (CDCl3, D 99.8%) was obtained from Cambridge Isotope Laboratories Inc.

3.2. Methods

3.2.1. CALB-catalyzed transesterification of MP-SH with TEG

  • Kinetic study
TEG (1.9782 g, 10.2 mmol) was dried under vacuum (Schlenk line) at 65 °C and 0.2 Torr until bubble formation ceased. It was then mixed with MP-SH (3.6204 g, 30.1 mmol) at 50 °C and 420 Torr in the presence of CALB (0.2549 g resin @ 20 wt% enzyme, 0.0015 mmol). After 1 min, the vacuum was removed, N2 gas was passed through the system and an aliquot was collected. The vacuum was reinstated, and the procedure was repeated to collect aliquots at 3, 5, 10, 15, 30, 60, 120, 240, 300, 390, and 450 min. 1H-NMR spectroscopy was used to check the extent of the reaction.
2.
Synthesis of TEG-monothiol
TEG (3.8805 g, 20 mmol) was dried under vacuum (Schlenk line) at 65 °C and 0.2 Torr until bubble formation ceased. It was then mixed with MP-SH (7.4007 g, 61.6 mmol) at 50 °C and 420 Torr in the presence of CALB (0.4912 g resin @ 20 wt% enzyme, 0.0029 mmol). After 15 min, the reaction mixture was diluted with 3 mL of dried THF, filtered over a Q5 filter paper and then dried under vacuum (Schlenk line) at 50 °C for two hours. The product was then dried in a vacuum oven for further analysis (4.1685 g, 93% reaction yield).
3.
Synthesis of TEG-dithiol
TEG (1.9782 g, 10.2 mmol) was dried under vacuum (Schlenk line) at 65 °C and 0.2 Torr until bubble formation ceased. It was then mixed with MP-SH (3.6204 g, 30.1 mmol) at 50 °C and 420 Torr in presence of CALB (0.2549 g resin @ 20 wt% enzyme, 0.0015 mmol). After 450 min, the reaction mixture was diluted with 3 mL of dried THF, filtered over a Q5 filter paper and then dried under vacuum (Schlenk line) at 50 °C for two hours. The product was then dried in a vacuum oven for further analysis (3.5327 g, 88% reaction yield).

3.2.2. CALB-catalyzed transesterification of MP-SH with PEG

  • Kinetic study
  • PEG1000
PEG1000 (3.9893 g, 4.04 mmol) was dried under vacuum (Schlenk line) at 65 °C and 0.2 Torr for 16 h. It was then mixed with MP-SH (1.4563 g, 12.11 mmol) and reacted at 50 °C and 420 Torr in the presence of CALB (0.0977 g resin @ 20 wt% enzyme, 0.00058 mmol). After 1 min, the vacuum was removed and N2 gas was passed through the system and an aliquot was collected. The vacuum was reinstated, and the procedure was repeated to collect aliquots at 3, 5, 10, 15, 30, 60, 120, 240, 360, 480, 600, 720, 960, and 1440 min. 1H-NMR spectroscopy was used to check the extent of the reaction.
  • PEG2050
PEG2050 (4.6117 g, 2.25 mmol) was dried under vacuum (Schlenk line) at 65 °C and 0.2 Torr for 16 h. It was then mixed with MP-SH (1.6550 g, 13.7 mmol) and reacted at 50 °C and 420 Torr in the presence of CALB (0.1134 g resin @ 20 wt% enzyme, 0.00068 mmol). After 1 min, the vacuum was removed and N2 gas was passed through the system and an aliquot was collected. The vacuum was reinstated, and the procedure was repeated to collect aliquots at 3, 5, 10, 15, 30, 60, 120, 240, 360, 480, 600, 720, 960, and 1440 min. 1H-NMR spectroscopy was used to check the extent of the reaction.
2.
Synthesis of PEG-monothiols
  • PEG1000-monothiol
PEG1000 (6.0882 g, 6.16 mmol) was dried under vacuum (Schlenk line) at 65 °C and 0.2 Torr for 16 h. It was then mixed with MP-SH (2.1793 g, 18.13 mmol) and reacted at 50 °C and 420 Torr in the presence of CALB (0.1501 g resin @ 20 wt% enzyme, 0.00090 mmol). After 24 h, the reaction mixture was diluted with 3 mL of dried THF, filtered over a Q5 filter paper and then dried under vacuum (Schlenk line) at 50 °C for 16 h. The product was then dried in a vacuum oven for further analysis (6.0967 g, ~100% reaction yield).
  • PEG2050-monothiol
PEG2050 (4.6117 g, 2.25 mmol) was dried under vacuum (Schlenk line) at 65 °C and 0.2 Torr for 16 h. It was then mixed with MP-SH (1.6550 g, 13.7 mmol) and reacted at 50 °C and 420 Torr in the presence of CALB (0.1134 g resin @ 20 wt% enzyme, 0.00068 mmol). After 24 h, the reaction mixture was diluted with 3 mL of dried THF, filtered over a Q5 filter paper and precipitated in 100 mL of diethyl ether. The precipitate was then dried in a vacuum oven for further analysis (4.2034 g, ~100% reaction yield).
3.
Synthesis of PEG-dithiols
  • PEG1000-dithiol
PEG1000-monothiol (2.1005 g, 1.95 mmol) was dried under vacuum (Schlenk line) at 65 °C and 0.2 Torr for 16 h. It was then mixed with MP-SH (3.1031 g, 25.8 mmol) at 50 °C and 420 Torr in presence of CALB (0.0940 g resin @ 20 wt% enzyme, 0.00056 mmol) for 24 h. After 24 h of reaction time, the reaction mixture was diluted with 3 mL of dried THF, filtered over a Q5 filter paper and then dried under vacuum (Schlenk line) at 50 °C for 16 h. The product was then dried in a vacuum oven for further analysis. (2.1461 g, 85% reaction yield).
  • PEG2050-dithiol
PEG2050-monothiol (4.000 g, 1.87 mmol) was dried under vacuum (Schlenk line) at 65 °C and 0.2 Torr for 16 h. It was then mixed with MP-SH (2.7125 g, 22.5 mmol) at 50 °C and 420 Torr in the presence of CALB (0.2274 g resin @ 20 wt% enzyme, 0.0013 mmol) for 24 h. After 24 h, the reaction mixture was diluted with 3 mL of dried THF, filtered over a Q5 filter paper and precipitated in 100 mL of diethyl ether. The precipitate was then dried in a vacuum oven for further analysis (3.7791 g, 94% reaction yield).

3.3. Characterization

3.3.1. Nuclear Magnetic Resonance (NMR) Spectroscopy

Varian Mercury 300 MHz and 500 MHz spectrometer (Palo Alto, CA, USA) was used to record the 1H-NMR and 13C-NMR spectra in CDCl3 at 20 mg/ml and 60 mg/ml respectively with the following parameters: 10 second relaxation time, 128 scans (5000 scans for 13C-NMR) and 90° angle. The internal reference for chloroform was δ = 7.26 ppm (1H-NMR) and δ = 77 ppm (13C-NMR).

3.3.2. Mass Spectrometry

Matrix-Assisted Laser Desorption Ionization Mass Spectrometry (MALDI-MS) experiments were performed on a Bruker UltraFlex III MALDI tandem time-of-flight (ToF/ToF) mass spectrometer (Bruker Daltonics, Billerica, MA, USA) equipped with a Nd:YAG laser emitting at 355 nm. Trans-2-[3-(4-tert-Butylphenyl)-2-methyl-2-propenylidene] malononitrile (98%; Sigma-Aldrich, St. Louis, MO, USA) and sodium trifluoroacetic acid (98%; Sigma-Aldrich, St. Louis, MO, USA) (NaTFA) served as a matrix and cationizing salt, respectively. Solutions of the matrix (20 mg/mL), cationizing salt (10 mg/mL), and the sample (10 mg/mL) were prepared in THF (Fisher, Fair Lawn, NJ, USA). The matrix/sample/cationizing agent solutions were mixed in the ratio 10:2:1 (vol/vol/vol), and 0.5–1.0 μL of the final mixture were applied to the MALDI sample target and allowed to dry at ambient conditions before spectral acquisition. This sample preparation protocol led to the formation of [M + Na]+ ions. Spectral acquisition was carried out at reflectron mode and ion source 1 (IS 1), ion source 2 (IS 2), source lens, reflectron 1, and reflectron 2 potentials were set at 25.03 kV, 21.72 kV, 9.65 kV, 26.32, and 13.73 kV, respectively.

4. Conclusions

In conclusion, we successfully prepared thiol-functionalized TEGs and PEGs via enzyme catalyzed transesterification of methyl 3-mercaptopropionate with TEG, and PEGs having Mn = 1000, and 2050 g/mol. These reactions were performed without using solvents (in bulk) and using Candida antartica Lipase B (CALB) as an enzyme catalyst. The progress of the reactions was monitored using 1H-NMR spectroscopy. The transesterification was found to be a step-wise consecutive reaction. TEG-monothiol was exclusively formed in 15 min, followed by a slower second cycle yielding TEG-dithiol in 7.5 h. PEG1000-monothiol was obtained within 8 h; however, dithiol formation was not observed even after 24 h of reaction. PEG1000-dithiol was obtained by reacting PEG1000-monothiol with fresh CALB and MP-SH for 24 h. PEG2050-monothiol was formed in 16 h, and dithiol formation required additional CALB and MP-SH. Based on our data, it can be concluded that enzyme catalyzed transesterification is a convenient and green method to effectively synthesize PEG mono- and di-thiols that are suitable candidates for thiol-ene click reactions and Michael addition type of reactions [4].

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/9/3/228/s1, Figure S1: (A) 1H-NMR and (B) 13C-NMR spectra of TEG-monothiol, Figure S2: (A) 1H-NMR and (B) 13C-NMR of TEG-dithiol, Figure S3: 1H-NMR spectrum of (A) PEG2050 monothiol and (B) PEG2050 dithiol.

Author Contributions

Conceptualization, J.E.P. and P.M.; methodology, P.M. and J.E.P.; validation, P.M., G.S., and J.E.P.; formal analysis, P.M. and J.E.P.; investigation, P.M.; resources, J.E.P.; data curation, J.E.P.; writing—original draft preparation, P.M.; writing—review and editing, P.M., G.S., and J.E.P.; visualization, P.M.; supervision, J.E.P.; project administration, J.E.P.; funding acquisition, J.E.P.

Funding

This research was funded by the BREAST CANCER INNOVATION FOUNDATION, Akron, OH. The NMR instrument used in this work was purchased from the funds provided by THE OHIO BOARD OF REGENTS, grant number CHE-0341701 and DMR-0414599.

Acknowledgments

The contribution to this work by Sanghamitra Sen is acknowledged and appreciated. Financial support by the Breast Cancer Innovation Foundation is greatly appreciated. The authors would also like to thank Chrys Wesdemiotis for helping with mass spectrometry analysis of the samples.

Conflicts of Interest

Puskas is the Chief Scientific Officer of Enzyme Catalyzed Polymers LLC, a start-up company that has exclusive license from the University of Akron for US Patents 8,710,156 (2014) and 9,885,070 (2018). The other authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Zalipsky, S.; Harris, J.M. Introduction to Chemistry and Biological Applications of Poly (Ethylene Glycol). In Poly(Ethylene Glycol) Chemistry and Biological Applications; Harris, J.M., Zalipsky, S., Eds.; American Chemical Society: Washington, DC, USA, 1997; Volume 680, ISBN 978–0841235373. [Google Scholar]
  2. Dreborg, S.; Akerblom, E.B. Immunotherapy with Monomethoxypolyethylene Glycol Modified Allergens. Crit. Rev. Ther. Drug Carr. Syst. 1989, 6, 315–365. [Google Scholar]
  3. Yamaoka, T.; Tabata, Y.; Ikada, Y. Distribution and Tissue Uptake of Poly(Ethylene Glycol) with Different Molecular Weights after Intravenous Administration to Mice. J. Pharm. Sci. 1994, 83, 601–606. [Google Scholar] [CrossRef] [PubMed]
  4. Puskas, J.E.; Castano, M.; Mulay, P.; Dudipala, V.; Wesdemiotis, C. Method for the Synthesis of γ-PEGylated Folic Acid and Its Fluorescein-Labeled Derivative. Macromolecules 2018, 51, 9069–9077. [Google Scholar] [CrossRef]
  5. Anseth, K.S.; Klok, H.A. Click Chemistry in Biomaterials, Nanomedicine, and Drug Delivery. Biomacromolecules 2016, 17, 1–3. [Google Scholar] [CrossRef] [PubMed]
  6. Mather, B.D.; Viswanathan, K.; Miller, K.M.; Long, T.E. Michael Addition Reactions in Macromolecular Design for Emerging Technologies. Prog. Polym. Sci. 2006, 31, 487–531. [Google Scholar] [CrossRef]
  7. Nair, D.P.; Podgorski, M.; Chatani, S.; Gong, T.; Xi, W.; Fenoli, C.R.; Bowman, C.N. The Thiol-Michael Addition Click Reaction: A Powerful and Widely used Tool in Materials Chemistry. Chem. Mater. 2014, 26, 724–744. [Google Scholar] [CrossRef]
  8. Oliverio, M.; Perotto, S.; Messina, G.C.; Lovato, L.; De Angelis, F. Chemical Functionalization of Plasmonic Surface Biosensors: A Tutorial Review on Issues, Strategies, and Costs. ACS Appl. Mater. Interfaces 2017, 9, 29394–29411. [Google Scholar] [CrossRef] [PubMed]
  9. Wang, C.; Yu, C. Detection of Chemical Pollutants in Water using Gold Nanoparticles as Sensors: A Review. Rev. Anal. Chem. 2013, 32, 1–14. [Google Scholar] [CrossRef]
  10. Manson, J.; Kumar, D.; Meenan, B.J.; Dixon, D. Polyethylene glycol Functionalized Gold Nanoparticles: The Influence of Capping Density on Stability in Various Media. Gold Bull. 2011, 44, 99–105. [Google Scholar] [CrossRef]
  11. Mahou, R.; Wandrey, C. Versatile Route to Synthesize Heterobifunctional Poly(Ethylene Glycol) of Variable Functionality for Subsequent PEGylation. Polymers 2012, 4, 561–589. [Google Scholar] [CrossRef]
  12. Goessl, A.; Tirelli, N.; Hubbell, J.A. A Hydrogel System for Stimulus-Responsive, Oxygen-Sensitive In Situ Gelation. J. Biomater. Sci. Polym. Ed. 2004, 15, 895–904. [Google Scholar] [CrossRef] [PubMed]
  13. Buwalda, S.J.; Dijkstra, P.J.; Feijen, J. In Situ Forming Poly(Ethylene Glycol)-Poly(L-Lactide) Hydrogels via Michael Addition: Mechanical Properties, Degradation, and Protein Release. Macromol. Chem. Phys. 2012, 213, 766–775. [Google Scholar] [CrossRef]
  14. Hiemstra, C.; van der Aa, L.J.; Zhong, Z.; Dijkstra, P.J.; Feijen, J. Novel In Situ Forming, Degradable Dextran Hydrogels by Michael Addition Chemistry: Synthesis, Rheology, and Degradation. Macromolecules 2007, 40, 1165–1173. [Google Scholar] [CrossRef]
  15. Yoshimoto, K.; Hirase, T.; Nemoto, S.; Hatta, T.; Nagasaki, Y. Facile Construction of Sulfanyl-Terminated Poly(Ethylene Glycol)-Brushed Layer on a Gold Surface for Protein Immobilization by the Combined use of Sulfanyl-Ended Telechelic and Semitelechelic Poly(Ethylene Glycol)s. Langmuir 2008, 24, 9623–9629. [Google Scholar] [CrossRef] [PubMed]
  16. Hirase, T.; Nagasaki, Y. Construction of Mercapto-Ended Poly(Ethylene Glycol) Tethered Chain Surface for High Performance Bioconjugation. In Proceedings of the AIChE Annual Meeting, San Francisco, CA, USA, 12–17 November 2006. [Google Scholar]
  17. Nie, T.; Baldwin, A.; Yamaguchi, N.; Kiick, K.L. Production of Heparin-Functionalized Hydrogels for the Development of Responsive and Controlled Growth Factor Delivery Systems. J. Control. Release 2007, 122, 287–296. [Google Scholar] [CrossRef] [PubMed]
  18. Belair, D.G.; Miller, M.J.; Wang, S.; Darjatmoko, S.R.; Binder, B.Y.; Sheibani, N.; Murphy, W.L. Differential Regulation of Angiogenesis using Degradable VEGF-Binding Microspheres. Biomaterials 2016, 93, 7–37. [Google Scholar] [CrossRef] [PubMed]
  19. Yu, H.; Feng, Z.G.; Zhang, A.Y.; Sun, L.G.; Qian, L. Synthesis and Characterization of Three-Dimensional Crosslinked Networks Based on Self-Assemly of α-Cyclodextrins with Thiolated 4-arm PEG using a Three-Step Oxidation. Soft Matter 2006, 2, 343–349. [Google Scholar] [CrossRef]
  20. Du, Y.J.; Brash, J.L. Synthesis and Characterization of thiol-terminated Poly(Ethylene Oxide) for Chemisorption to Gold Surface. J. Appl. Polym. Sci. 2003, 90, 594–607. [Google Scholar] [CrossRef]
  21. Wan, J.K.S.; Depew, M.C. Some Mechanistic Insights in the Behaviour of Thiol Containing Antioxidant Polymers in Lignin Oxidation Processes. Res. Chem. Intermed. 1996, 22, 241–253. [Google Scholar] [CrossRef]
  22. Yang, T.; Long, H.; Malkoch, M.; Kristofer Gamstedt, E.; Berglund, L.; Hult, A. Characterization of Well-Defined Poly(Ethylene Glycol) Hydrogels Prepared by Thiol-Ene Chemistry. J. Polym. Sci. Part A Polym. Chem. 2011, 49, 4044–4054. [Google Scholar] [CrossRef]
  23. Zhang, H.J.; Xin, Y.; Yan, Q.; Zhou, L.L.; Peng, L.; Yuan, J.Y. Facile and Efficient Fabrication of Photoresponsive Microgels via Thiol–Michael Addition. Macromol. Rapid Commun. 2012, 33, 1952–1957. [Google Scholar] [CrossRef] [PubMed]
  24. Zustiak, S.P.; Leach, J.B. Hydrolytically Degradable Poly(Ethylene Glycol) Hydrogel Scaffolds with Tunable Degradation and Mechanical Properties. Biomacromolecules 2010, 11, 1348–1357. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Zustiak, S.P. Hydrolytically Degradable Polyethylene Glycol (PEG) Hydrogel: Synthesis, Gel Formation, and Characterization. In Extracellular Matrix; Leach, J., Powell, E., Eds.; Humana Press: New York, NY, USA, 2015; Volume 93, ISBN 978–1–4939–2082–2. [Google Scholar]
  26. Puskas, J.E.; Sen, M. Process of Preparing Functionalized Polymers via Enzymatic Catalysis. U.S. Patents 8,710,156, 29 April 2014. [Google Scholar]
  27. Puskas, J.E.; Sen, M.Y.; Seo, K.S. Green Polymer Chemistry using Nature’s Catalysts, Enzymes. J. Polym. Sci. Part A Polym. Chem. 2009, 47, 2959–2976. [Google Scholar] [CrossRef]
  28. Castano, M.; Seo, K.S.; Guo, K.; Becker, M.L.; Wesdemiotis, C.; Puskas, J.E. Green Polymer Chemistry: Synthesis of Symmetric and Asymmetric Telechelic Ethylene Glycol Oligomers. Polym. Chem. 2015, 6, 1137–1142. [Google Scholar] [CrossRef]
  29. Puskas, J.E.; Sen, M.Y.; Kasper, J.R. Green Polymer Chemistry: Telechelic Poly(Ethylene Glycol)s via Enzymatic Catalysis. J. Polym. Sci. Part A Polym. Chem. 2008, 46, 3024–3028. [Google Scholar] [CrossRef]
  30. Puskas, J.E.; Seo, K.S.; Sen, M.Y. Green Polymer Chemistry: Precision Synthesis of Novel Multifunctional Poly(Ethylene Glycol)s using Enzymatic Catalysis. Eur. Polym. J. 2011, 47, 524–534. [Google Scholar] [CrossRef]
  31. Castano, M.; Seo, K.S.; Kim, E.H.; Becker, M.L.; Puskas, J.E. Green Polymer Chemistry VIII: Synthesis of Halo-Ester-Functionalized Poly(Ethylene Glycol)s via Enzymatic Catalysis. Macromol. Rapid Commun. 2013, 34, 1375–1380. [Google Scholar] [CrossRef] [PubMed]
  32. Puskas, J.E.; Seo, K.S.; Castano, M.; Casiano, M.; Wesdemiotis, C. Green Polymer Chemistry: Enzymatic Functionalization of Poly(ethylene glycol)s under solventless conditions. In Green Polymer Chemistry: Biocatalysis and Materials II; Cheng, H.N., Gross, R.A., Smith, P.B., Eds.; ACS Symposium Series; American Chemical Society: Washington, DC, USA, 2013; Volume 1144, ISBN 978–0–8412–2895–5. [Google Scholar]
  33. Sen, S.; Puskas, J.E. Green Polymer Chemistry: Enzyme Catalysis for Polymer Functionalization. Molecules 2015, 20, 9358–9379. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Zdarta, J.; Wysokowski, M.; Norman, M.; Kołodziejczak-Radzimska, A.; Moszyński, D.; Maciejewski, H.; Ehrlich, H.; Jesionowski, T. Candida antarctica Lipase B Immobilized onto Chitin Conjugated with POSS® Compounds: Useful Tool for Rapeseed Oil Conversion. Int. J. Mol. Sci. 2016, 17, 1581. [Google Scholar] [CrossRef] [PubMed]
  35. Jesionowski, T.; Zdarta, J.; Krajewska, B. Enzyme Immobilization by Adsorption: A Review. Adsorption 2014, 20, 801–821. [Google Scholar] [CrossRef]
  36. Zdarta, J.; Klapiszewski, L.; Jedrzak, A.; Nowicki, M.; Moszynski, D.; Jesionowski, T. Lipase B from Candida antarctica Immobilized on a Silica-Lignin Matrix as a Stable and Reusable Biocatalytic System. Catalyst 2017, 7, 14. [Google Scholar] [CrossRef]
  37. Wolfson, A.; Atyya, A.; Dlugy, C.; Tavor, D. Glycerol Triacetate as Solvent and Acyl Donor in the Production of Isoamyl Acetate with Candida antarctica Lipase B. Bioprocess Biosyst. Eng. 2010, 33, 363–366. [Google Scholar] [CrossRef] [PubMed]
  38. Uppenberg, J.; Oehrner, N.; Norin, M.; Hult, K.; Kleywegt, G.J.; Patkar, S.; Waagen, V.; Anthonsen, T.; Jones, T.A. Crystallographic and Molecular-Modeling Studies of Lipase B from Candida antarctica reveal a Stereospecificity Pocket for Secondary Alcohols. Biochemistry 1995, 34, 16838–16851. [Google Scholar] [CrossRef] [PubMed]
Catalysts 09 00228 g001 550

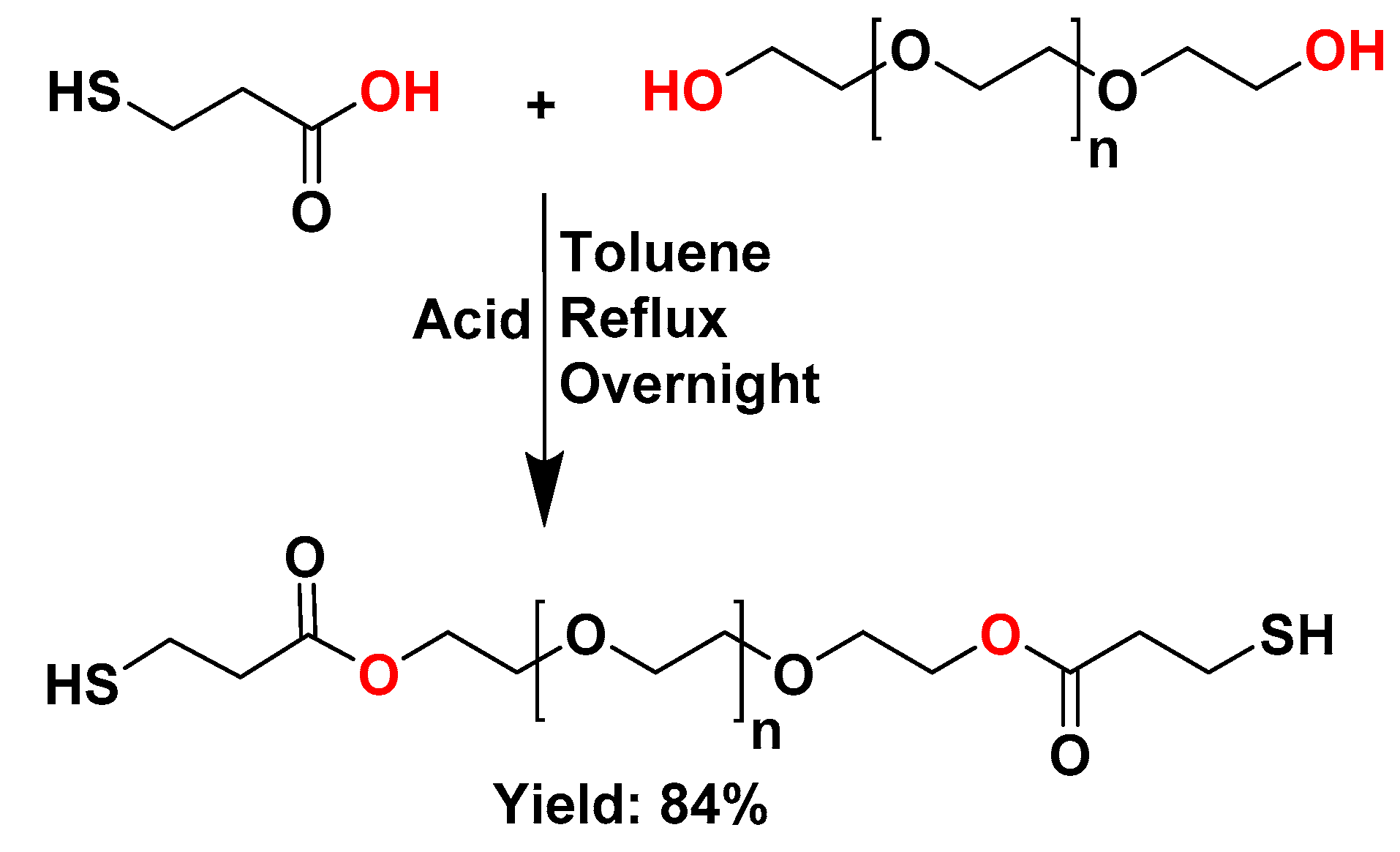

Figure 1. Synthesis of poly(ethylene glycol) (PEG)-dithiol [22].
Figure 1. Synthesis of poly(ethylene glycol) (PEG)-dithiol [22].
Catalysts 09 00228 g001
Catalysts 09 00228 g002 550

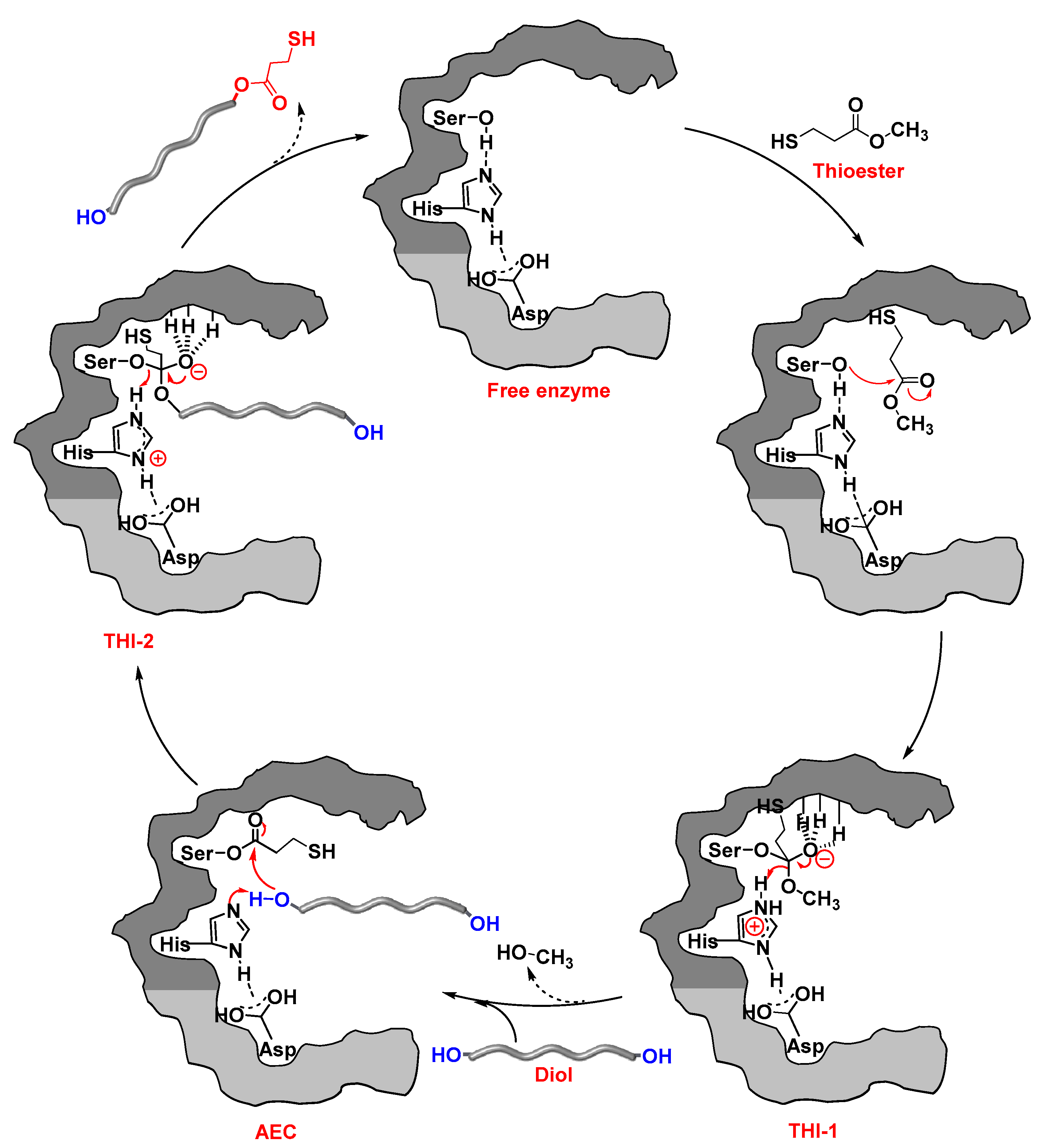

Figure 2. Reaction mechanism of Candida antarctica Lipase B (CALB)-catalyzed transesterification of methyl 3-mercaptopropionate (MP-SH) with tetraethylene glycol (TEG)—first cycle.
Figure 2. Reaction mechanism of Candida antarctica Lipase B (CALB)-catalyzed transesterification of methyl 3-mercaptopropionate (MP-SH) with tetraethylene glycol (TEG)—first cycle.
Catalysts 09 00228 g002
Catalysts 09 00228 g003 550

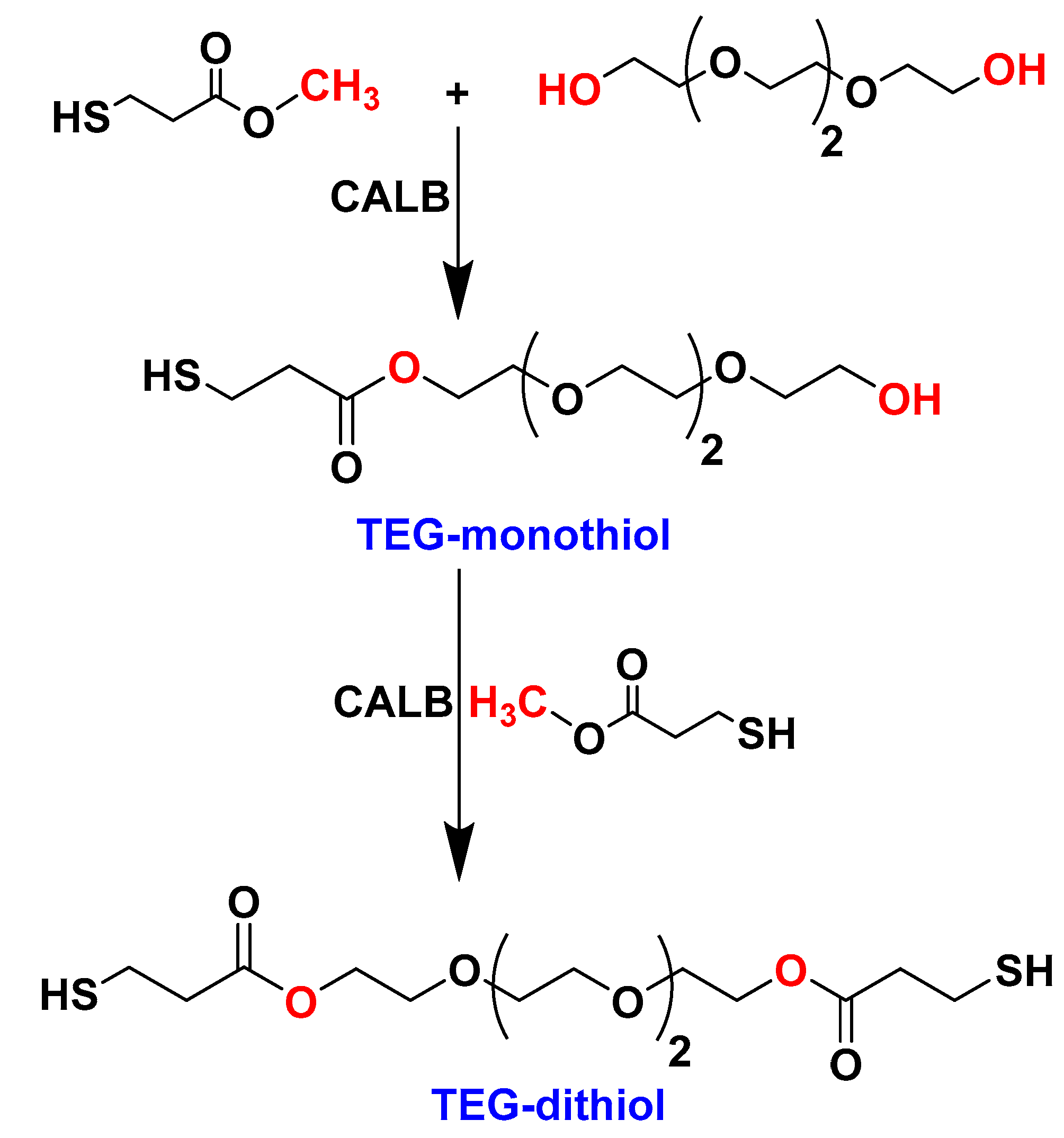

Figure 3. CALB-catalyzed transesterification of MP-SH with TEG.
Figure 3. CALB-catalyzed transesterification of MP-SH with TEG.
Catalysts 09 00228 g003
Catalysts 09 00228 g004 550
Figure 4. 1H-NMR monitoring of the kinetics of the transesterification of MP-SH with TEG [15 min: 1H-NMR (500 MHz, CDCl3): δ 4.23 (2H) 3.61(8H); 450 min: 1H-NMR (500 MHz, CDCl3): δ 4.23 (4H) 3.61 (8H)].
Figure 4. 1H-NMR monitoring of the kinetics of the transesterification of MP-SH with TEG [15 min: 1H-NMR (500 MHz, CDCl3): δ 4.23 (2H) 3.61(8H); 450 min: 1H-NMR (500 MHz, CDCl3): δ 4.23 (4H) 3.61 (8H)].
Catalysts 09 00228 g004
Catalysts 09 00228 g005 550
Figure 5. 1H-NMR monitoring of the kinetics of transesterification of MP-SH with PEG1000 [480 min: 1H-NMR (500 MHz, CDCl3): δ 4.23 (2H) 3.61(86H)].
Figure 5. 1H-NMR monitoring of the kinetics of transesterification of MP-SH with PEG1000 [480 min: 1H-NMR (500 MHz, CDCl3): δ 4.23 (2H) 3.61(86H)].
Catalysts 09 00228 g005
Catalysts 09 00228 g006 550
Figure 6. (A) 1H-NMR and (B) 13C-NMR of PEG1000-monothiol [1H-NMR (500 MHz, CDCl3): δ 4.21 (2H) 3.61(86H) 2.72 (2H) 2.63 (2H) 1.65 (1H); 13CNMR (500 MHz, CDCl3): δ 171.5, 72.66, 70.6, 69.1, 63.8, 61.72, 38.5, 19.7].
Figure 6. (A) 1H-NMR and (B) 13C-NMR of PEG1000-monothiol [1H-NMR (500 MHz, CDCl3): δ 4.21 (2H) 3.61(86H) 2.72 (2H) 2.63 (2H) 1.65 (1H); 13CNMR (500 MHz, CDCl3): δ 171.5, 72.66, 70.6, 69.1, 63.8, 61.72, 38.5, 19.7].
Catalysts 09 00228 g006
Catalysts 09 00228 g007 550

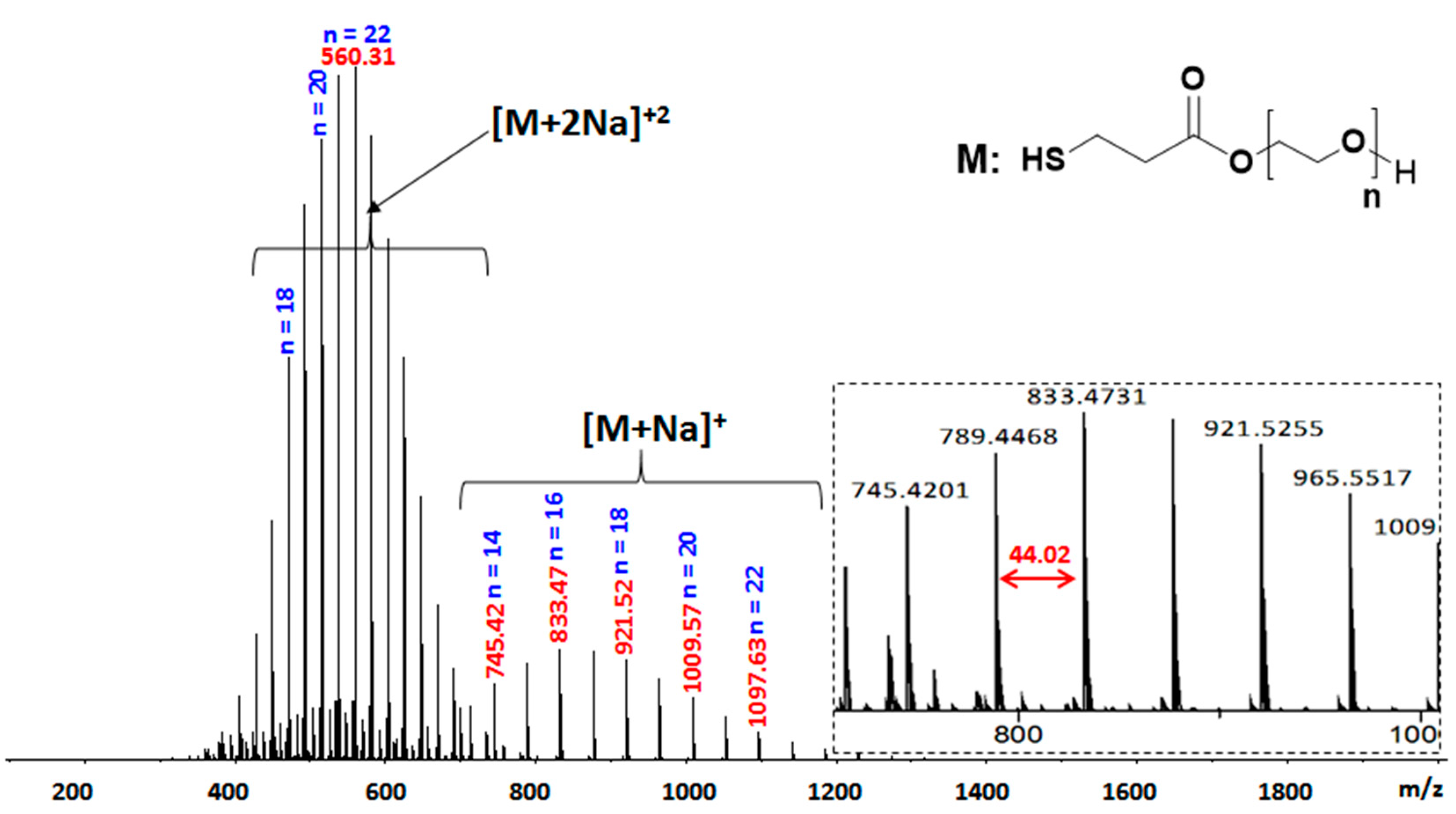

Figure 7. MALDI-ToF mass spectra of PEG1000 monothiol. Inset: The zoomed version of the 14- to 20-mer fractions, 44 m/z = PEG repeat unit.
Figure 7. MALDI-ToF mass spectra of PEG1000 monothiol. Inset: The zoomed version of the 14- to 20-mer fractions, 44 m/z = PEG repeat unit.
Catalysts 09 00228 g007
Catalysts 09 00228 g008 550
Figure 8. 13C-NMR of PEG1000 dithiol [13C-NMR (500 MHz, CDCl3): δ 171.3, 70.4, 68.9, 63.6, 38.3, 19.6].
Figure 8. 13C-NMR of PEG1000 dithiol [13C-NMR (500 MHz, CDCl3): δ 171.3, 70.4, 68.9, 63.6, 38.3, 19.6].
Catalysts 09 00228 g008
