Immobilization of Phospholipase D on Silica-Coated Magnetic Nanoparticles for the Synthesis of Functional Phosphatidylserine

by
Qingqing Han
1,†,
Haiyang Zhang
1,†,
Jianan Sun
1,*,
Zhen Liu
1,
Wen-can Huang
1,
Changhu Xue
1,2 and
Xiangzhao Mao
1,2,*
1
College of Food Science and Engineering, Ocean University of China, Qingdao 266003, China
2
Laboratory for Marine Drugs and Bioproducts of Qingdao National Laboratory for Marine Science and Technology, Qingdao 266237, China
*
Authors to whom correspondence should be addressed.
†
Qingqing Han and Haiyang Zhang contributed to the work equally and should be regarded as co-first authors.
Catalysts 2019, 9(4), 361; https://doi.org/10.3390/catal9040361
Submission received: 22 March 2019 / Revised: 7 April 2019 / Accepted: 7 April 2019 / Published: 15 April 2019
(This article belongs to the Special Issue Biocatalysis for Industrial Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
In this study, silica-coated magnetic nanoparticles (Fe3O4/SiO2) were synthesized and applied in the immobilization of phospholipase D (PLDa2) via physical adsorption and covalent attachment. The immobilized PLDa2 was applied in the synthesis of functional phosphatidylserine (PS) through a transphophatidylation reaction. The synthesis process and characterizations of the carriers were examined by scanning electron microscope (SEM), transmission electron microscope (TEM), and Fourier-transform infrared spectroscopy (FT-IR). The optimum immobilization conditions were evaluated, and the thermal and pH stability of immobilized and free PLDa2 were measured and compared. The tolerance to high temperature of immobilized PLDa2 increased remarkably by 10°C. Furthermore, the catalytic activity of the immobilized PLDa2 remained at 40% after eight recycles, which revealed that silica-coated magnetic nanoparticles have potential application for immobilization and catalytic reactions in a biphasic system.

Graphical Abstract

1. Introduction

Phospholipase D (PLD, EC 3.1.4.4) is a lipolytic enzyme which can be used to hydrolyze phospholipids (PLs), and it can also catalyze the transphosphatidylation reaction, in the presence of an alcohol [1]. To date, many works were done to better understand PLD, mainly focusing on the purification and characterization of PLD from various sources, such as plants [2,3] and bacteria [4,5]. The analysis of PLD genes helps explain the relations between phospholipase domains and enzyme characterizations at the molecular level [6,7]. The heterologous expression of various PLD genes was reported in many kinds of microorganisms, mainly in Escherichia coli [8,9] and Streptomyces sp. [10]. The transphosphatidylation reaction is used to synthesize rare natural functional phospholipids, such as phosphatidylglycerol [11], docosahexaenoic acid-containing phosphatidylserine (DHA-PS) [12], phosphatidyl-glucose [13], and so on. Phosphatidylserine (PS), a functional phospholipid, is known to exert important physiological roles in humans [14]; it is therapeutically beneficial to improve brain function and can be used as an effective nutrient supplement in the food and pharmaceutical industries. Meanwhile, as the main product of transphosphatidylation catalyzed by PLD, it attracted much focus on studying its transphosphatidylation process [15].
Although researchers made many efforts to make PLD more familiar to us, at present, the industrial application of the free enzyme is still limited due to instability and unrepeatability. With the increasing awareness of environmental protection, the application of enzyme immobilization technology is receiving more attention. Five immobilization techniques are mainly used, including covalent binding, adsorption, encapsulation, entrapment, and cross-linking [16,17,18]. As for the immobilization of PLD, some researchers reported binding PLD via adsorption to suitable supports, such as polyacrylamide gel, calcium gel, and macroporous resin [19,20,21]. PLD was also cross-linked to various carriers by glutaraldehyde [22,23]. Dittrich et al. immobilized PLD from Streptomyces sp. to aminopropyl-glass activated by glutaraldehyde and used it to produce phosphatidyglycerol [23]. Younus et al. [24] reported that a recombinant cabbage PLD was immobilized on cyanogen bromide (CNBr)-activated and antibody supports through covalent binding. However, it should be emphasized that there is no universal method for any particular enzyme in the industrial settings where simplicity and cost are required. Thus, it is necessary to search for and apply new materials and methods in the immobilization of PLD.
With the development of nanotechnology, nanomaterials became a new hot area in immobilization research, especially silica-coated magnetic nanoparticles (MNPs). Indeed, these materials have many important advantages such as superparamagnetism, low toxicity, large surface area, and easy separation from the reaction system [25]. In recent years, silica-coated magnetic nanoparticles were reported to immobilize dehydrogenase [26,27], protease [28,29], lipase [30,31,32], glucose oxidase [33], and other enzymes. The immobilization of enzyme on such magnetic solid materials often involves covalent coupling or non-specific adsorption techniques. Adsorption is mainly based on the hydrogen bonds and hydrophobic interactions, while covalent binding is based on the reaction between functional groups of the enzyme and the carriers, mainly via a carbodiimide linkage between enzymes and MNPs [18,27,34]. Yu et al. reported that Fe3O4-chitosan and Fe3O4-sodium alginate were used for the immobilization of PLA1 [35] and PLA2 [36], and the immobilized enzyme was applied to degum soybean oil.
Despite the fact that nanomaterials are widely used in enzyme immobilization, studies on the immobilization of PLD on such materials are surprisingly limited in the literature. In our previous work, we cloned and characterized PLDa2 from Acinetobacter radioresistens a2 [37], whereby the conversion rate and selectivity of PS and DHA-PS were all about 100%. However, the biphasic system made it difficult to recover the free enzyme; thus, in this study, we immobilized the PLDa2 on the surface of silica-coated magnetic nanoparticles to make better use of it. The optimum immobilization conditions and characterization of the immobilized PLDa2 were investigated. Operational and storage stability of the immobilized PLDa2 were evaluated as well. The results implied that the silica-coated magnetic nanoparticles could be used in the immobilization of PLDa2; thus, the immobilization method described herein deserves further attention.

2. Results and Discussion

2.1. Characterization of Silica-Coated Magnetic Nanoparticles

The morphology and particle size of the silica-coated magnetic nanoparticles (Fe3O4/SiO2) were observed by both scanning electron microscopy (SEM) and transmission electron microscopy (TEM). The SEM picture of Fe3O4/SiO2 particles is shown in Figure 1A, illustrating that the size of Fe3O4/SiO2 was smaller than 1 μm. After the reaction, the immobilized PLDa2 was separated from the reaction system using a magnet (Figure 1B).
TEM pictures of the Fe3O4 and Fe3O4/SiO2 particles are shown in Figure 2, the average sizes of Fe3O4 and Fe3O4/SiO2 particles were about 10–15 nm and 50–60 nm, respectively. This might be explained by the magnetic properties of the particles, whereby they tended to form aggregates. After the coating process, the size of the nanoparticles increased. In Figure 2B, the black Fe3O4 particles seemed to be covered by a layer of a distinct gray material, which illustrated that the silica-coated magnetic nanoparticles were successfully created [30].
Figure 3 shows the Fourier-transform infrared (FT-IR) spectra of the Fe3O4/SiO2 particles (a), nanoparticles with bound PLDa2 (b), and PLDa2 (c), which confirmed the binding of PLDa2 on the Fe3O4/SiO2 particles, through the main band differences in the material and enzyme. There are five main characteristic peaks of pure PLD: (i) CONH peptide linkage (around 1650 cm−1); (ii) CN stretching vibration of amines (around 1250 cm−1); (iii) CH bonds (around 2950 cm−1); (iv) COC groups (1100 cm−1); (v) OH and NH vibrations (around 3300 cm−1). As shown in Figure 3, there are strong bands at 1650 cm−1 due to CONH peptide linkage (PLDa2), as well as a broad peak around 1100 cm−1 attributed to COC groups (PLDa2) and SiO groups (Fe3O4/SiO2). The results showed that PLDa2 was successfully immobilized on the surface of silica-coated magnetic nanoparticles.

2.2. Immobilized Conditions of PLDa2

The optimum conditions for immobilization of PLDa2 were investigated in three aspects (the initial PLDa2 volume, the immobilization temperature, and the immobilization time), and the enzyme activity used for immobilization was 0. 25 IU/mg, while the enzyme concentration was 4.32 mg/mL. According to the immobilization of lipase on magnetic nanoparticles [30], 10 mg of Fe3O4/SiO2 particles was firstly dispersed in different volumes of PLDa2 liquid. As shown in Figure 4A, it was found that a combination of 1.0 mL of PLDa2 liquid with 10 mg Fe3O4/SiO2 particles obtained the highest enzyme activity. This might be due to the lower volume of PLDa2, resulting in less protein absorbed to the carriers. However, the surface area of the carrier was limited, and too much enzyme liquid led to the coverage of the catalytic sites, thus, more enzyme did not equate to higher activity [18].
The optimum temperature of immobilization was also determined by the final enzyme recovery rate and the relative enzyme activity. About 10 mg of Fe3O4/SiO2 particles was dispersed in 1.0 mL of PLDa2 liquid and shaken at different temperatures for 5 h. In this part, the optimum temperature proved to be 30°C, as shown in Figure 4B.
As shown in Figure 4C, by increasing the reaction time from 1 to 5 h, the enzyme recovery rate increased, with reaction conditions of 1.0 mL of the initial PLDa2 volume at a temperature of 30°C. The relative activity of immobilized PLD increased to maximum after 4 h. Compared to other methods, the immobilization time of this nanotechnology was shorter, as the covalent immobilization of PLD to VA-Epoxy Biosynth took 72 h [32] and it took 24 h to immobilize PLD on CNBr-activated supports [24].
Therefore, the immobilized PLDa2 under the optimum conditions was further characterized and applied in a subsequent study. The enzyme recovery rate reached 59.16% at optimum conditions for the immobilization of PLDa2. However, Ranjbakhsha et al. [30] reported the immobilization yield of lipase on such materials was 44.28% at optimum conditions.

2.3. Characterization of Immobilized PLDa2

2.3.1. Effect of Temperature on the Activity and Stability of Free and Immobilized PLDa2

The optimum temperatures of the free and immobilized PLDa2 are shown in Figure 5A. The optimum operational temperature of the immobilized PLDa2 (50 °C) was raised by 10 °C compared to the free PLDa2 (40°C) [37]. This might be explained by the protection effect of the carriers, which decrease the exposure of the immobilized PLDa2 to temperature. As the temperature ranged from 20 to 60°C, the immobilized PLDa2 showed less sensitivity to the change in temperature. This result is consistent with works described by Li et al. [38], where, after immobilizing PLD on non-porous nanoparticles, the optimum temperature (35°C) was raised by 5 °C compared to free PLD (30°C).
The thermal stability of the free and immobilized PLDa2 in the range of 20–60°C is shown in Figure 5B, the results demonstrate that the immobilized PLDa2 had better tolerance to high temperature and it was more stable than free PLDa2 at different temperatures. However, immobilization does not ensure the improvement of enzyme characterizations. Younus et al. [24] showed that binding recombinant cabbage PLD to the antibody supports rendered the enzyme labile at high temperature. The better thermal stability of immobilized PLDa2 may be due to the formation of multipoint interactions, since there are hydrogen, ionic, and hydrophobic interactions between the PLDa2 and nanoparticles, which may protect PLDa2 from deactivation [32].

2.3.2. Effect of pH on the Activity and Stability of Free and Immobilized PLDa2

The results in Figure 6A reveal the optimum pH of free and immobilized PLDa2, whereby both of them obtained the highest activity in acidic conditions. However, on the other hand, the immobilized PLDa2 performed better in alkaline conditions. A similar phenomenon was reported by Lambrecht et al. [20], where it was shown that immobilization of PLD on octyl-sepharose resulted in an enlarged pH optimum range. This is possibly due to the support surface affording protection for the enzyme or the catalytic sites, rendering it less effective as pH changes in the reaction system.
The pH stability of the free and immobilized PLDa2 was measured, and the results are shown in Figure 6B. It can be seen that, after being exposed to different pH for 12 h, the immobilized PLDa2 was more stable and the enzyme activity changed less sharply.

2.3.3. Operational and Storage Stability of Immobilized PLDa2

Reusability is a very important feature to evaluate the characteristics of immobilized PLD. There are two aspects to assess the operational stability of the immobilized PLDa2: hydrolysis activity and the transphosphatidylation activity. At the end of each batch, the immobilized PLDa2 was separated and recycled from the reaction system using a magnet. As shown in Figure 7, reusability presented a descending trend after seven times, whereby the hydrolysis activity remained higher than 40%, while the transphosphatidylation activity remained around 20%. The difference n results between these two measurement methods might be caused by the amount of immobilized PLDa2 and the different reaction conditions. More enzyme was added to catalyze the transphosphatidylation reaction in a biphasic system, and damage of the enzymes was induced by organic solvents.
Considering the production costs in industrial application, the reusability of an enzyme was proven to be a dominant characteristic of immobilization technology. The storage stability of immobilized PLDa2 is shown in Figure 8, the immobilized PLDa2 retained more than 60% of its initial activity after storage at 4°C for seven days. This indicated success in the immobilization of PLD on magnetic nanoparticles, in spite of a better effect on reusability and storage stability of the immobilized PLDa2 in other reports [20,30].

3. Materials and Methods

3.1. Materials

l-α-Phosphatidylcholine (95%) was purchased from Avanti (Alabama, USA); l-serine was purchased from Solarbio (Beijing, China); choline oxidase and peroxidase were purchased from Sigma-Aldrich (St. Louis, MO, USA). All other reagents used were of standard laboratory grade unless otherwise stated.
The strain A. radioresistens a2 was obtained from oil refineries, and the gene encoding for the PLDa2 was cloned and expressed in E. coli BL21(DE3) [37].

3.2. Production of Enzyme PLDa2

The strains were used as sources of recombinant E. coli, and PLDa2 was cloned from A. radioresistens a2. The E. coli strains were grown in Luria–Bertani (LB) medium, which comprised (w/v) 0.5% tryptone, 0.1% yeast extract, and 0.1% NaCl, at 37°C with 50 μg/mL kanamycin (Solarbio, Beijing, China). Overexpression of PLDa2 was induced by ZYP-5052 complete medium with kanamycin, incubating at 20°C for 48 h. The cells were sonicated in an ice bath and the PLDa2 was collected by centrifugation. The enzyme samples for immobilization were prepared through filtering the crude extracts using a 0.45-μm ultrafilter.

3.3. Preparation and Characterization of Silica-Coated Magnetic Nanoparticles

The silica-coated magnetic nanoparticles were prepared according to the modified method described by Ranjbakhsh et al. [30]. Briefly, the co-precipitation method was used to prepare magnetic iron-oxide nanoparticles, and the nanoparticles were coated with silica via a sol–gel reaction. The size and structure of the silica-coated magnetic nanoparticles were determined by transmission electron microscopy (TEM) and scanning electron microscopy (SEM). Fourier-transform infrared spectroscopy (FT-IR) was used to ensure the PLDa2 immobilized on the silica-coated magnetic nanoparticles.

3.4. Enzyme Immobilization on Silica-Coated Magnetic Nanoparticles

Firstly, 10 mg of silica-coated magnetic nanoparticles was taken for each sample, which was then dispersed in the enzyme liquid with various volumes (0.4 mL, 0.6 mL, 0.8 mL, 0.9 mL, 1.0 mL, and 1.1 mL). The mixture was shaken at different temperatures (10°C, 25°C, 28°C, 30°C, and 37°C) for 1–5 h. The immobilized PLDa2 was recovered via magnetic separation, and the resulting immobilized PLDa2 was washed with Tris-HCl buffer (20 mM, pH = 7.4) at least three times. Then, the activity of the immobilized PLDa2 was measured, and the optimum conditions were based on the enzyme activity of the immobilized PLDa2.

3.5. Characterization of Free and Immobilized Enzymes

To evaluate the effect of temperature on free and immobilized PLDa2, the reactions were conducted at different temperatures (20°C, 30°C, 40°C, 50°C, and 60°C) at pH 7.4, and the enzyme activity was measured with other conditions unchanged. To determine the temperature stability, free and immobilized PLDa2 samples were pre-incubated at 20–60°C with pH 7.4 for 4 h; then, the residual activity was measured under standard assay conditions.
As for the effect of pH on free and immobilized PLDa2, the procedure was similar to the temperature experiments above. However, the reactions were conducted in a pH range of 4.0–9.0. To determine the pH stability, free and immobilized PLDa2 samples were pre-incubated at 4°C at different pH (4.0–9.0) for 12 h; then, the residual activity was measured under standard assay conditions.

3.6. Operating Stability Assay

The operating stability of the immobilized PLDa2 was measured by quantifying its catalyst activity in consecutive cycles of repeated use. After each batch reaction, the immobilized PLDa2 was recovered by magnetic separation; then, the resulting immobilized PLDa2 was washed with Tris-HCl buffer (20 mM, pH = 7.4) at least three times before being used for the next batch reaction. Through adding fresh substrates, the immobilized PLDa2 was reused for a number of cycles. Both the hydrolysis activity and the transphosphatidylation activity of the immobilized PLDa2 were measured.

3.7. Storage Stability Assay

The storage stability of the immobilized PLDa2 was determined by its residual activity after incubation at 4 °C in Tris-HCl buffer (20 mM, pH = 7.4). The residual activity after different lengths of storage (one day, two days, three days, four days, five days, six days, and seven days) was assayed in conditions as described above.

3.8. Determination of Hydrolysis Activity

The enzyme activity of PLDa2 constituted two assays: hydrolysis activity and transphosphatidylation activity [4]. The hydrolysis activity was measured using the method developed by Imamura and Horiuti with modifications [39]. The reaction mixture was composed of 100 μL of 10 mg/mL PC, 10 μL of 0.1 M citric acid buffer (pH 6.0), 5 μL of 0.1M CaCl2, and 100 μL of the enzyme solution. The reaction was conducted at 37°C for 25 min, and stopped by adding 20 μL of 50 mM ethylenediaminetetraacetic acid (EDTA) in 1 M Tris-HCl buffer (pH 8.0). The resulting mixture was mixed with 200 μL of a solution of 0.5 U of choline oxidase, 0.2 U of peroxidase, 0.2 mg of 4-aminoantipyrine, 0.1 mg of phenol, and 2 mg of TritonX-100 in 1 M Tris-Hcl buffer (pH 8.0). After a 3-h reaction at 37°C, with the catalysis of choline oxidase and peroxidase, the intermediate products finally transformed to quinoneimine dye, whose absorbancy could be measured using an enzyme-linked colorimeter at 500 nm.

3.9. High-Performance Liquid Chromatography (HPLC) Assay

The transphosphatidylation reaction was performed in a biphasic system with PC and serine as substrates. The reaction mixture was composed of 1.0 mL of 0.2 M sodium acetate/acetic acid buffer (pH 6.2, including 1.0 M serine and 0.1 M CaCl2) and 1.0 mL of 20 mg/mL PC dissolved in ethyl ether. The reaction was conducted at 40°C for 12 h. The transphosphatidylation activity was determined from the PS conversion ratio, defined as 100 × PS/ (PC + PA + PS). The composition of the production after reaction was analyzed using an evaporative light scattering detector (ELSD) HPLC (Waters, USA). All HPLC experiments were conducted as follows: after nitrogen drying, the products obtained from the reaction mixture were dissolved in hexane/isopropanol (81.42:17, v/v), then filtered using a 0.22-μm ultrafiltrate membrane. Parameters were as follows: 250 mm × 4.5 mm YMC DIOL column with 5-μm particle diameter, nitrogen as the nebulizing gas at a pressure of 25 psi, with a power level of 60% and a temperature setting of 50°C. The elution program was a nonlinear gradient with buffer A (hexane:isopropanol:acetic acid:triethylamine = 81.42:17:1.5:0.08 (v/v/v/v)) and buffer B (isopropanol:water:acetic acid:triethylamine = 84.42:14:1.5:0.08 (v/v/v/v)). The flow rate was 1 mL/min, the injection volume was 10 μL, and the column was equilibrated at 55°C. In these conditions, the proposed method was able to separate the reaction products as PA, PC, and PS.

4. Conclusions

Herein, we described the preparation method of silica-coated magnetic nanoparticles (Fe3O4/SiO2) and their effective application for the immobilization of phospholipase D via physical adsorption and covalent attachment. FT-IR spectra proved the immobilization of PLD on the magnetic supports. The enzyme recovery rate reached 59.16% at optimum conditions (10 mg of silica-coated magnetic nanoparticles dispersed in 1.0 mL of enzyme liquid at 30°C for 4 h) for immobilization of PLDa2.
In addition, the immobilized PLDa2 had better tolerance to high temperature, and its optimum temperature was 10°C higher than that of free enzyme. Furthermore, the successful immobilization of PLD allowed its recovery and reuse in the synthesis of functional phosphatidylserine (PS). After reuse for the seventh time, the hydrolysis activity remained above 40%, while the transphosphatidylation activity remained around 20%. Therefore, silica-coated magnetic nanoparticles (Fe3O4/SiO2) may have a promising future as materials for various biocatalyst reactions, and such immobilization methods could be applied in more fields.

Author Contributions

Conceptualization, J.S. and X.M.; data curation, Q.H. and H.Z.; formal analysis, Q.H. and H.Z.; funding acquisition, J.S., C.X., and X.M.; investigation, W.-c.H.; methodology, Z.L.; project administration, J.S., C.X., and X.M.; resources, C.X.; supervision, Z.L., W.-c.H., and X.M.; writing—original draft, Q.H.; writing—review and editing, H.Z.

Funding

This work was supported by the National Natural Science Foundation of China (31501516), the Taishan Scholar Project of Shandong Province (NO. tsqn201812020), the Applied Basic Research Program of Qingdao (16-5-1-18-jch), the Major Special Science and Technology Projects in Shandong Province (2016YYSP016), and the Laboratory for Marine Drugs and Bioproducts of Qingdao National Laboratory for Marine Science and Technology (LMDBKF201705).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Waite, M. The PLD superfamily: Insights into catalysis. Biochim. Biophys. Acta 1999, 1439, 187–197. [Google Scholar] [CrossRef]
  2. Hanahan, D.J.; Chaikoff, I.L. A new phospholipide-splitting enzyme specific for the ester linkage between the nitrogenous base and the phosphoric acid grouping. J. Biol. Chem. 1947, 169, 699–705. [Google Scholar] [PubMed]
  3. Khatoon, H.; Mansfeld, J.; Schierhorn, A.; Ulbrich-Hofmann, R. Purification, sequencing and characterization of phospholipase D from Indian mustard seeds. Phytochemistry 2015, 117, 65–75. [Google Scholar] [CrossRef]
  4. Carrea, G.; D’Arrigo, P.; Piergianni, V.; Roncaglio, S.; Secundo, F.; Servi, S. Purification and properties of two phospholipases D from Streptomyces sp. Biochim. Biophys. Acta 1995, 1255, 273–279. [Google Scholar] [CrossRef]
  5. Simkhada, J.R.; Cho, S.S.; Hong, S.C.; Si, W.K.; Lee, H.C.; Sohng, J.K.; Jin, C.Y. A new thermolabile alkaline phospholipase D from Streptomyces sp. CS628. Biotechnol. Bioprocess 2010, 15, 595–602. [Google Scholar] [CrossRef]
  6. Nakazawa, Y.; Sato, H.; Uchino, M.; Takano, K. Purification, characterization and cloning of phospholipase D from peanut seeds. Protein J. 2006, 25, 212–223. [Google Scholar] [CrossRef]
  7. Yang, N.; Yue, X.L.; Chen, X.L.; Wu, G.F.; Zhang, T.G.; An, L.Z. Molecular cloning and partial characterization of a novel phospholipase D gene from Chorispora bungeana. Plant Cell Tiss. Org. 2012, 108, 201–212. [Google Scholar] [CrossRef]
  8. Yang, H.Y.; Roberts, M.F. Expression and characterization of a heterodimer of Streptomyces chromofuscus phospholipase D. Biochim. Biophys. Acta 2004, 1703, 43–51. [Google Scholar] [CrossRef] [PubMed]
  9. Zambonelli, C.; Morandi, P.; Vanoni, M.A.; Tedeschi, G.; Servic, S.; Curti, B. Cloning and expression in Escherichia coli of the gene encoding Streptomyces PMF PLD, a phospholipase D with high transphosphatidylation activity. Enzym. Microb. Technol. 2003, 33, 676–688. [Google Scholar] [CrossRef]
  10. Ogino, C.; Kanemasu, M.; Hayashi, Y.; Kondo, A.; Shimizu, N.; Tokuyama, S.; Tahara, Y.; Kuroda, S.; Tanizawa, K.; Fukuda, H. Over-expression system for secretory phospholipase D by Streptomyces lividans. J. Biotechnol. 2004, 64, 823–828. [Google Scholar] [CrossRef] [PubMed]
  11. Simkhada, J.R.; Lee, H.J.; Jang, S.Y.; Kim, J.H.; Lee, H.C.; Sohng, J.K.; Yoo, J.C. A novel low molecular weight phospholipase D from Streptomyces sp. CS684. Bioresour. Technol. 2009, 99, 1388–1393. [Google Scholar] [CrossRef]
  12. Hosokawa, M.; Shimatani, T.; Kanada, T.; Inoue, Y.; Takahashi, K. Conversion to docosahexaenoic acid-containing phosphatidylserine from squid skin lecithin by phospholipase D-mediated transphosphatidylation. J. Agric. Food Chem. 2000, 48, 4550–4554. [Google Scholar] [CrossRef]
  13. Song, S.; Cheong, L.Z.; Guo, Z.; Kristensen, K.; Glasius, M.; Jensen, H.M.; Bertelsen, K.; Tan, T.; Xu, X. Phospholipase D (PLD) catalyzed synthesis of phosphatidyl-glucose in biphasic reaction system. Food Chem. 2012, 135, 373–379. [Google Scholar] [CrossRef] [PubMed]
  14. Vance, J.E. Phosphatidylserine and phosphatidylethanolamine in mammalian cells: Two metabolically related aminophospholipids. J. Lipid Res. 2008, 49, 1377–1387. [Google Scholar] [CrossRef]
  15. D’Arrigo, P.; Cerioli, L.; Chiappe, C.; Panzeri, W.; Tessaro, D.; Mele, A. Improvements in the enzymatic synthesis of phosphatidylserine employing ionic liquids. J. Mol. Catal. B Enzym. 2012, 84, 132–135. [Google Scholar] [CrossRef]
  16. Jesionowski, T.; Zdarta, J.; Krajewska, B. Enzyme immobilization by adsorption: A review. Adsorption 2014, 20, 801–821. [Google Scholar] [CrossRef]
  17. Urszula, G.; Katarzyna, H.-K.; Danuta, W. Immobilization as a strategy for improving enzyme properties-application to oxidoreductases. Molecules 2014, 19, 8995–9018. [Google Scholar]
  18. Wang, W.; Guo, N.; Huang, W.; Zhang, Z.; Mao, X. Immobilization of chitosanases onto magnetic nanoparticles to enhance enzyme performance. Catalysts 2018, 8, 401. [Google Scholar] [CrossRef]
  19. Juneja, L.R.; Hibi, N.; Yamane, T.; Shimizu, S. Repeated batch and continuous operations for phosphatidylglycerol synthesis from phosphatidylcholine with immobilized phospholipase D. Appl. Microbiol. Biotechnol. 1987, 27, 146–151. [Google Scholar] [CrossRef]
  20. Lambrecht, R.; Ulbrich-Hofmann, R. The adsorptive immobilization of phospholipids D mediated by calcium ions. Biotechnol. Bioeng. 1993, 41, 833–836. [Google Scholar] [CrossRef]
  21. Yon, J.O.; Ji, S.L.; Bo, G.K.; Sang, D.K.; Nam, D.H. Immobilization of Streptomyces phospholipase D on a Dowex macroporous resin. Biotechnol. Bioprocess 2008, 13, 102–107. [Google Scholar] [CrossRef]
  22. Wang, X.G.; Qui, A.Y.; Tao, W.Y.; Shen, P.Y. Synthesis of phosphatidylglycerol from soybean lecithin with immobilized phospholipase D. J. Am. Oil Chem. Soc. 1997, 74, 87–91. [Google Scholar] [CrossRef]
  23. Dittrich, N.; Ulbrich-Hofmann, R. Transphosphatidylation by immobilized phospholipase D in aqueous media. Biotechnol. Appl. Biochem. 2001, 34, 189–194. [Google Scholar] [CrossRef]
  24. Younus, H.; Rajcani, J.; Ulbrich-Hofmann, R.; Saleemuddin, M. Behaviour of a recombinant cabbage (Brassica oleracea) phospholipase D immobilized on CNBr-activated and antibody supports. Biotechnol. Appl. Biochem. 2004, 40, 95–99. [Google Scholar] [PubMed]
  25. Xu, J.; Sun, J.; Wang, Y.; Sheng, J.; Wang, F.; Sun, M. Application of iron magnetic nanoparticles in protein immobilization. Molecules 2014, 19, 11465–11486. [Google Scholar] [CrossRef]
  26. Liao, M.H.; Chen, D.H. Immobilization of yeast alcohol dehydrogenase on magnetic nanoparticles for improving its stability. Biotechnol. Lett. 2001, 23, 1723–1727. [Google Scholar] [CrossRef]
  27. Johnson, A.K.; Zawadzka, A.M.; Deobald, L.A.; Crawford, R.L.; Paszczynski, A.J. Novel method for immobilization of enzymes to magnetic nanoparticles. J. Nanopart. Res. 2008, 10, 1009–1025. [Google Scholar] [CrossRef]
  28. Wang, T.H.; Lee, W.C. Immobilization of proteins on magnetic nanoparticles. Biotechnol. Bioprocess 2003, 8, 263–267. [Google Scholar] [CrossRef]
  29. Li, D.; Teoh, W.Y.; Gooding, J.J.; Selomulya, C.; Amal, R. Functionalization Strategies for Protease Immobilization on Magnetic Nanoparticles. Adv. Funct. Mater. 2010, 20, 1767–1777. [Google Scholar] [CrossRef]
  30. Ranjbakhsh, E.; Bordbar, A.K.; Abbasi, M.; Khosropour, A.R.; Shams, E. Enhancement of stability and catalytic activity of immobilized lipase on silica-coated modified magnetite nanoparticles. Chem. Eng. J. 2012, 179, 272–276. [Google Scholar] [CrossRef]
  31. Cui, J.; Cui, L.; Jia, S.; Su, Z.; Zhang, S. Hybrid cross-linked lipase aggregates with magnetic nanoparticles: A robust and recyclable biocatalysis for epoxidation of oleic acid. J. Agric. Food Chem. 2016, 64, 7179–7187. [Google Scholar] [CrossRef] [PubMed]
  32. Gao, J.; Kong, W.; Zhou, L.; He, Y.; Ma, L.; Wang, Y.; Yin, L.; Jiang, Y. Monodisperse core-shell magnetic organosilica nanoflowers with radial wrinkle for lipase immobilization. Chem. Eng. J. 2017, 309, 70–79. [Google Scholar] [CrossRef]
  33. Huang, J.; Zhao, R.; Wang, H.; Zhao, W.; Ding, L. Immobilization of glucose oxidase on Fe3O4/SiO2 magnetic nanoparticles. Biotechnol. Lett. 2010, 32, 817–821. [Google Scholar] [CrossRef] [PubMed]
  34. Zdarta, J.; Meyer, A.S.; Jesionowski, T.; Pinelo, M. Developments in support materials for immobilization of oxidoreductases: A comprehensive review. Adv. Colloid Interface 2018, 258, 1–20. [Google Scholar] [CrossRef] [PubMed]
  35. Yu, D.; Ma, Y.; Xue, S.J.; Jiang, L.; Shi, J. Characterization of immobilized phospholipase A1 on magnetic nanoparticles for oil degumming application. LWT Food Sci. Technol. 2013, 50, 519–525. [Google Scholar] [CrossRef]
  36. Qu, Y.; Sun, L.; Li, X.; Zhou, S.; Zhang, Q.; Sun, L.; Yu, D.; Jiang, L.; Tian, B. Enzymatic degumming of soybean oil with magnetic immobilized phospholipase A2. LWT Food Sci. Technol. 2016, 73, 290–295. [Google Scholar] [CrossRef]
  37. Mao, X.Z.; Liu, Q.Q.; Qiu, Y.Q.; Fan, X.Q.; Han, Q.Q.; Liu, Y.J.; Zhang, L.J.; Xue, C.H. Identification of a novel phospholipase D with high transphosphatidylation activity and its application in synthesis of phosphatidylserine and DHA-phosphatidylserine. J. Biotechnol. 2017, 249, 51–58. [Google Scholar] [CrossRef] [PubMed]
  38. Li, B.L.; Wang, J.; Zhang, X.L.; Zhao, B.X. An enzyme net coating the surface of nanoparticles: A simple and efficient method for the immobilization of phospholipase D. Ind. Eng. Chem. Res. 2016, 55, 10555–10565. [Google Scholar] [CrossRef]
  39. Imamura, S.; Horiuti, Y. Enzymatic determination of phospholipase D activity with choline oxidase. J. Biochem. 1978, 83, 677–680. [Google Scholar] [CrossRef] [PubMed]
Catalysts 09 00361 g001 550
Figure 1. (A) Scanning electron microscopy picture of Fe3O4/SiO2 particles. (B) Separation of immobilized PLDa2 from reaction products using a magnet.
Figure 1. (A) Scanning electron microscopy picture of Fe3O4/SiO2 particles. (B) Separation of immobilized PLDa2 from reaction products using a magnet.
Catalysts 09 00361 g001
Catalysts 09 00361 g002 550
Figure 2. Transmission electron microscopy pictures of Fe3O4 (A) and Fe3O4/SiO2 (B) particles.
Figure 2. Transmission electron microscopy pictures of Fe3O4 (A) and Fe3O4/SiO2 (B) particles.
Catalysts 09 00361 g002
Catalysts 09 00361 g003 550

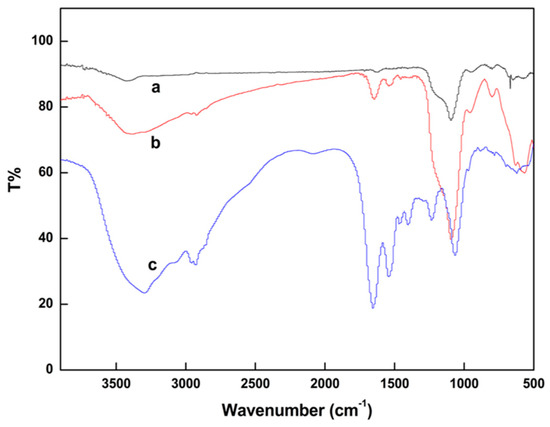

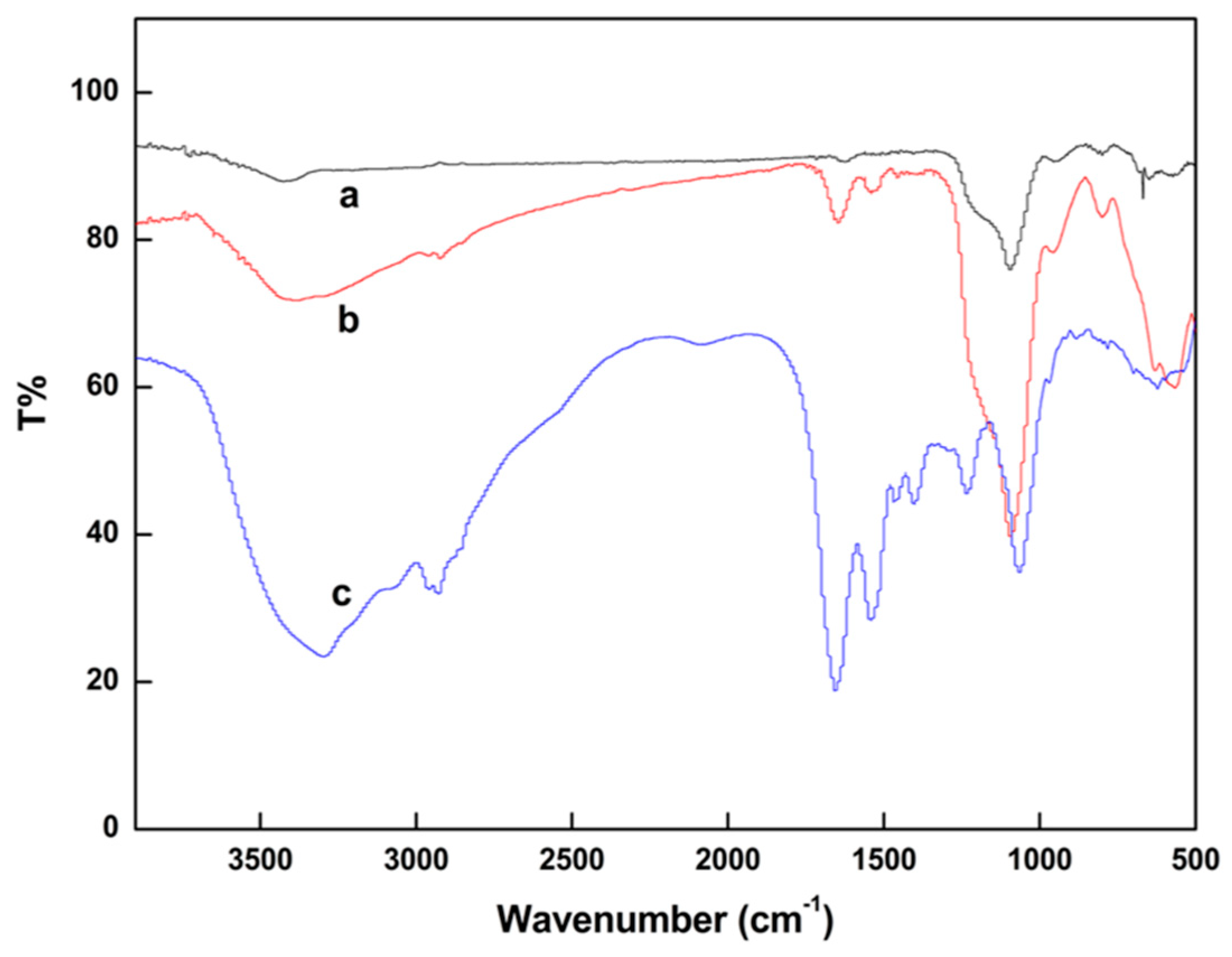

Figure 3. Fourier-transform infrared (FT-IR) spectra of Fe3O4/SiO2 particles (a), Fe3O4/SiO2 particles with bound PLDa2 (b), and PLDa2 (c).
Figure 3. Fourier-transform infrared (FT-IR) spectra of Fe3O4/SiO2 particles (a), Fe3O4/SiO2 particles with bound PLDa2 (b), and PLDa2 (c).
Catalysts 09 00361 g003
Catalysts 09 00361 g004 550

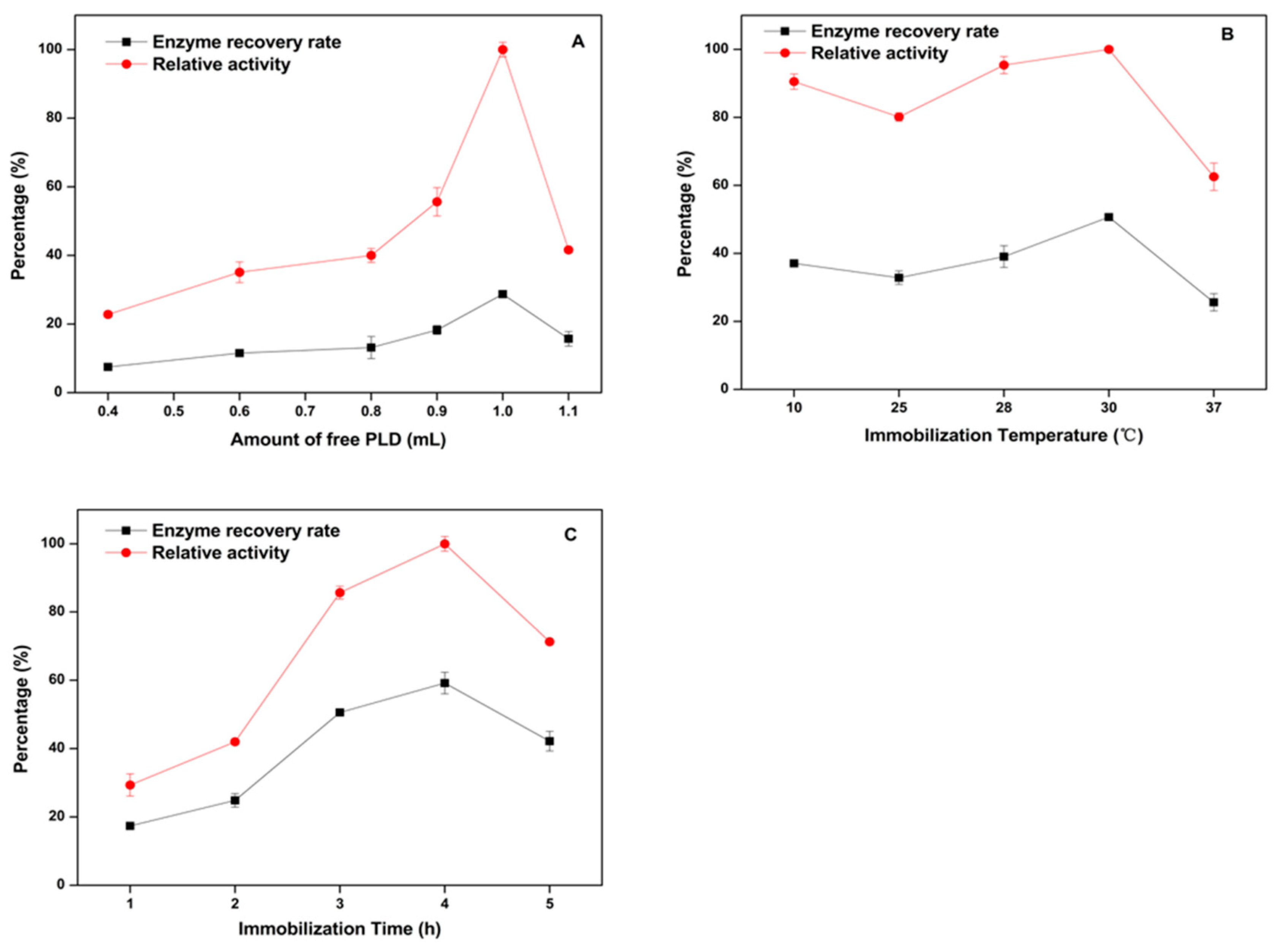

Figure 4. The effect of the initial PLDa2 volume(A), temperature (B), and reaction time(C) on the enzyme recovery rate and the relative activity.
Figure 4. The effect of the initial PLDa2 volume(A), temperature (B), and reaction time(C) on the enzyme recovery rate and the relative activity.
Catalysts 09 00361 g004
Catalysts 09 00361 g005 550

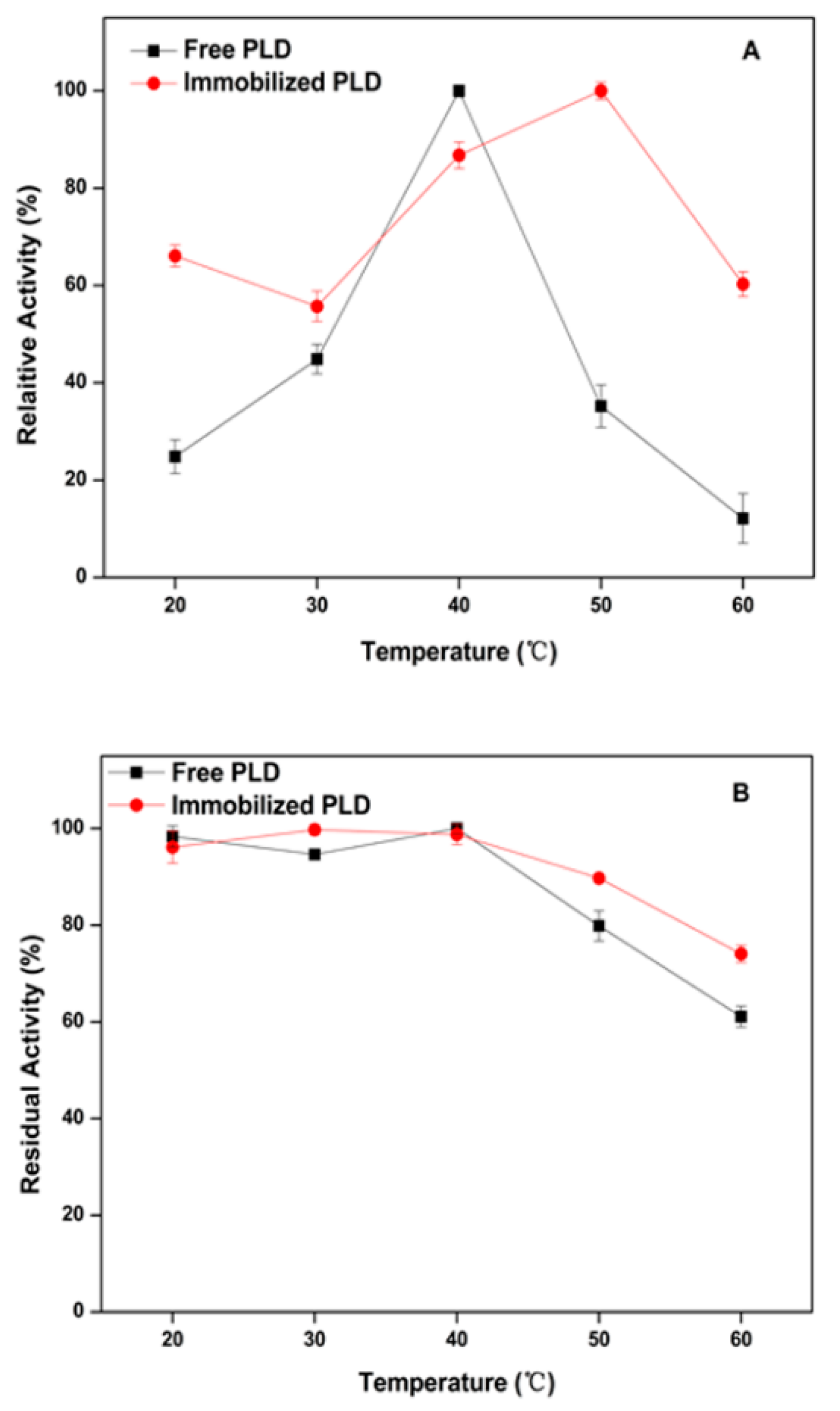

Figure 5. Effect of temperature on the enzyme activity (A) and stability (B) of the free and immobilized PLDa2.
Figure 5. Effect of temperature on the enzyme activity (A) and stability (B) of the free and immobilized PLDa2.
Catalysts 09 00361 g005
Catalysts 09 00361 g006 550

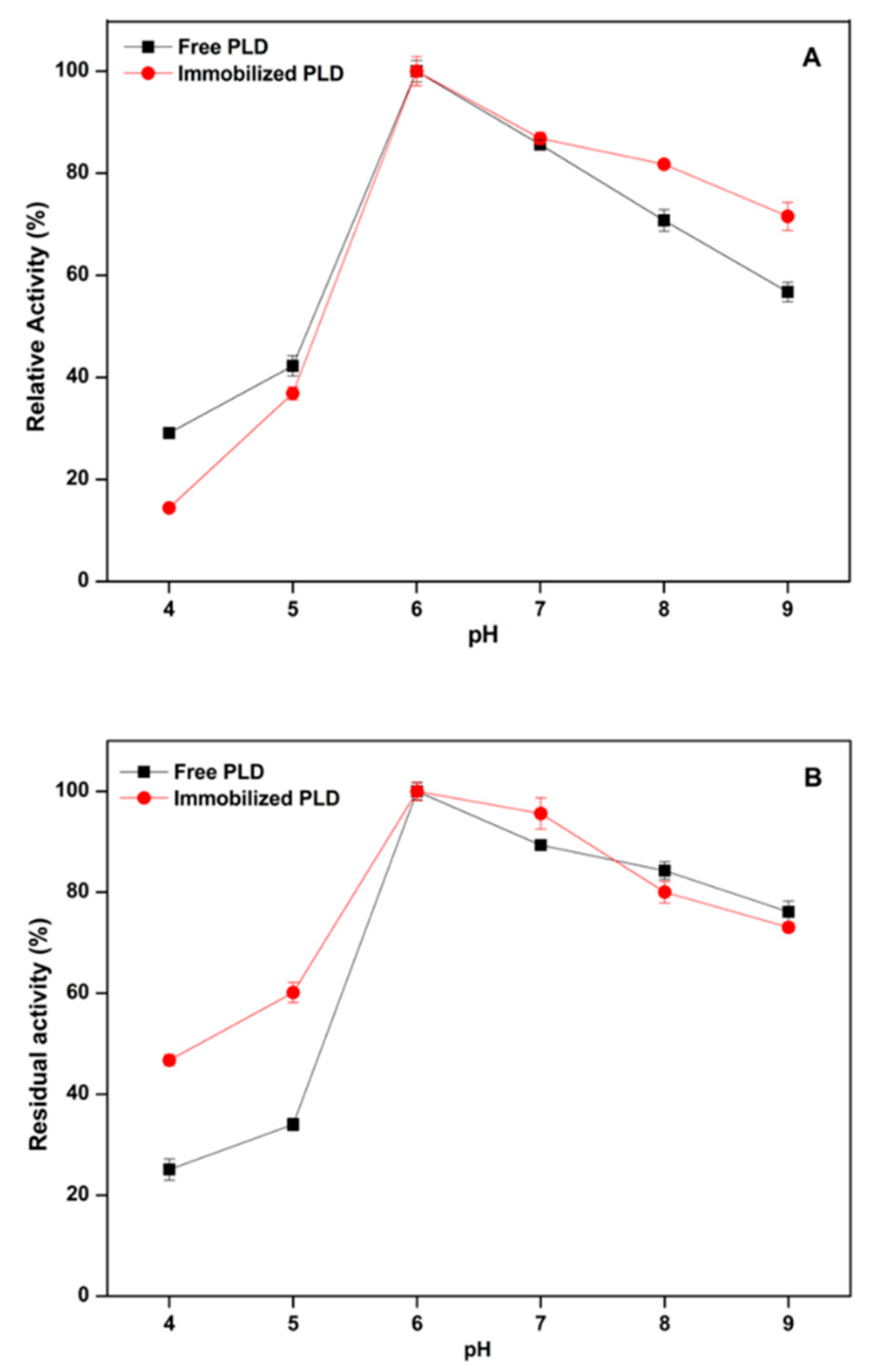

Figure 6. Effect of pH on the enzyme activity (A) and stability (B) of the free and immobilized PLDa2.
Figure 6. Effect of pH on the enzyme activity (A) and stability (B) of the free and immobilized PLDa2.
Catalysts 09 00361 g006
Catalysts 09 00361 g007 550

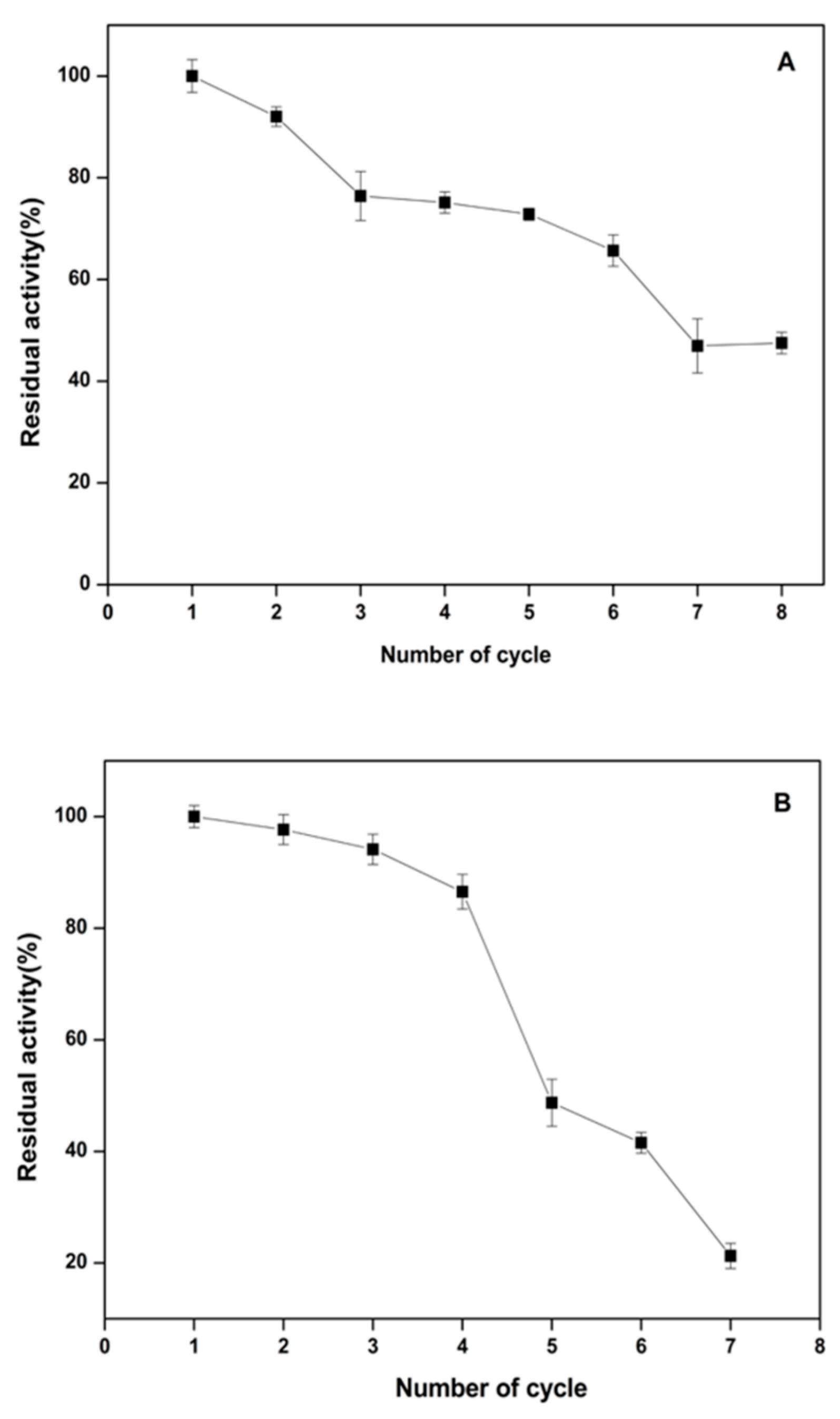

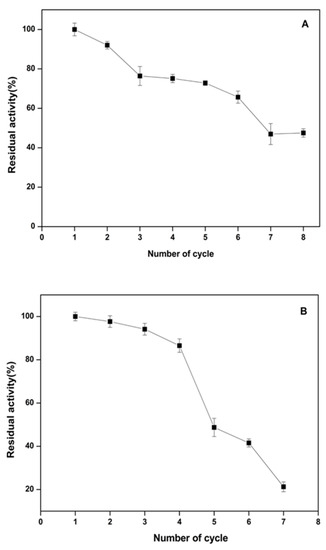

Figure 7. Operational stability of immobilized PLDa2 in subsequent cycles of hydrolysis activity (A) and transphophatidylation (B).
Figure 7. Operational stability of immobilized PLDa2 in subsequent cycles of hydrolysis activity (A) and transphophatidylation (B).
Catalysts 09 00361 g007
Catalysts 09 00361 g008 550

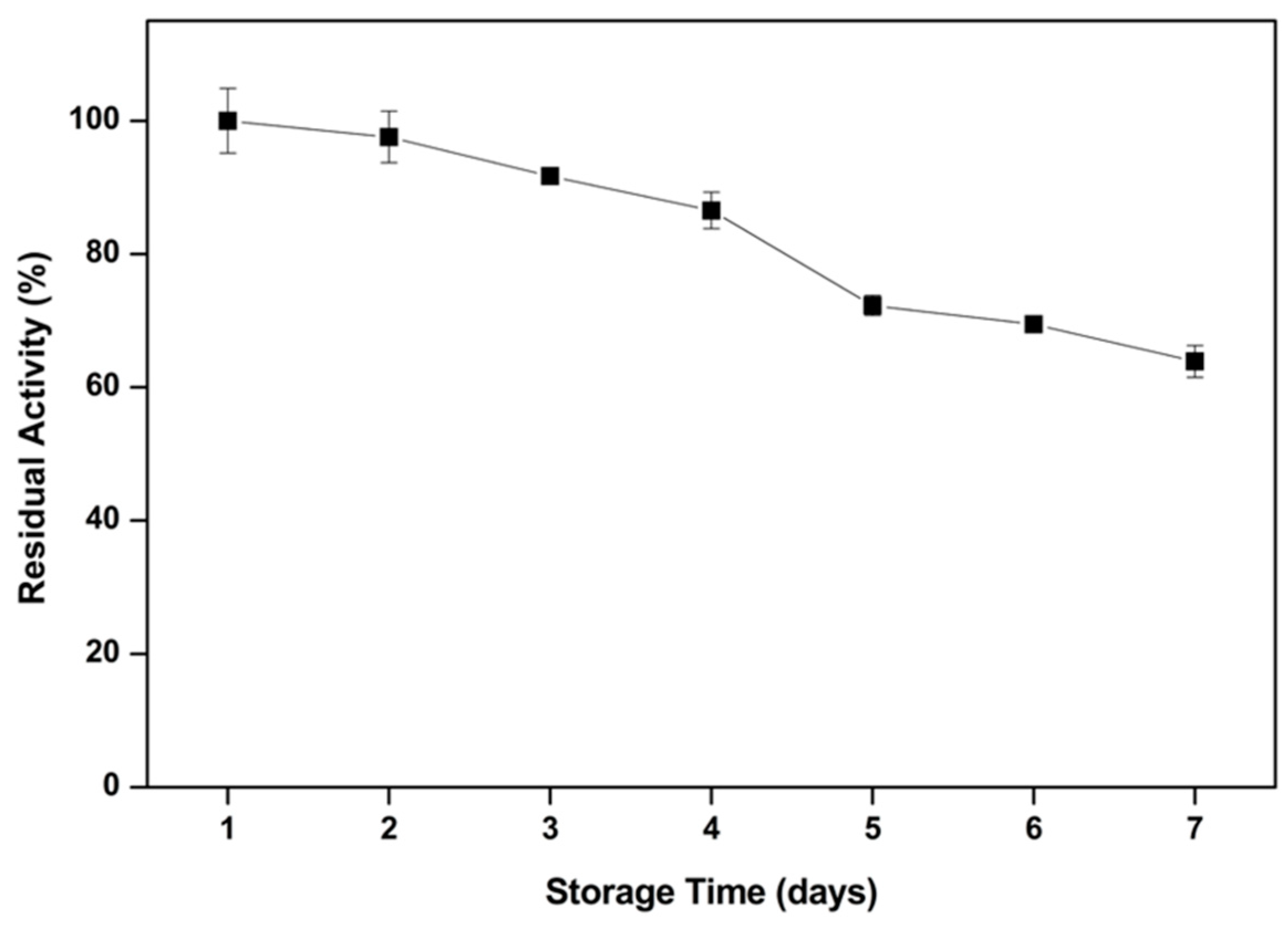

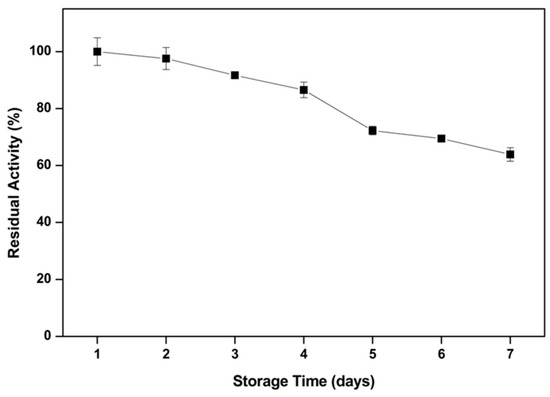

Figure 8. Storage stability of immobilized PLDa2. The immobilized PLDa2 was stored at 4°C for several days.
Figure 8. Storage stability of immobilized PLDa2. The immobilized PLDa2 was stored at 4°C for several days.
Catalysts 09 00361 g008
