Spectroscopic Properties of Pb2+-Doped BaF2 Crystals

by
Gabriel Buse
1,
Marius Stef
2,* and
Irina Nicoara
2
1
Institute for Advanced Environmental Research, West University of Timisoara (ICAM-WUT), Oituz Str., No. 4, 300086 Timisoara, Romania
2
Faculty of Physics, West University of Timisoara, 4 Bd.V. Parvan, 300223 Timisoara, Romania
*
Author to whom correspondence should be addressed.
Crystals 2023, 13(4), 659; https://doi.org/10.3390/cryst13040659
Submission received: 25 March 2023 / Revised: 5 April 2023 / Accepted: 8 April 2023 / Published: 11 April 2023
(This article belongs to the Special Issue Advances in Crystals for Optoelectronics)
Browse Figures
Versions Notes

Abstract

:
Various concentrations of PbF2-doped BaF2 crystals were grown by the Bridgman method using a shaped graphite heater. The room temperature optical absorption spectra showed two UV absorption bands (labeled A and D), characteristic of the Pb2+ ions. The structure of the bands was analyzed using the Gaussian multi-peak fitting. The distribution of the Pb2+ ions along the crystals and the effective segregation coefficient were studied using the optical absorption method. The obtained effective segregation coefficient was >1. The Pb2+ ions were not uniformly distributed along the samples. High intensity emission bands were observed in the near UV domain and the visible region.

1. Introduction

The alkaline earth fluorides MeF2 (Me = Ca, Sr, Ba) were used as lens and optical windows from the VUV to the IR domain as laser host materials and scintillators, etc. [1,2,3,4,5,6]. The fastest scintillator for elementary particle and γ-ray detection with a decay time of 600 ps at 220 nm was made from BaF2 crystals. It was attempted to eliminate the unwanted slow emission at 310 nm by doping the crystals with various ions. The influence of La, Nd, Ce, Eu, Gd, Tm, and Pr dopants on the slow component suppression was studied by Woody et al. [1]. BaF2 crystals that were exposed to radiations due to various dopants showed the formation of color centers that gave rise to unwanted optical absorption bands; radiation hardness may also have been affected [2]. The alkali halide crystals doped with ns2 electronic configuration ions, such as Tl+, In+, Sn2+, Bi3+, and Pb2+, were studied for their optical properties [7,8,9,10]. The properties of these ions in other hosts were investigated by [11,12,13,14,15,16,17,18,19,20]. The ns2 electronic configuration ions had similar optical behavior in different matrices; in general, four absorption bands in the UV domain were induced. Among the ions with the ns2 electronic configuration, the Pb2+ ion optical properties in the BaF2 crystal has been less studied. Bohum et al. [21] studied the absorption spectra in the VUV domain of CaF2 crystals doped with Pb and oxygen. They observed a doublet in the 200–210 nm domain. The 206 nm peak was attributed to O2−—VF− pairs and that at 202 nm to lead centers; the peak at 166 nm was unidentified; the 155 nm peak was assigned to the Pb centers; the 145 nm band was ascribed to excitons. The low PbF2 concentration (~1016 ions cm−3) doped CaF2 crystals were investigated by Arkhangelskaya et al. [22] in the VUV domain. The observed bands were denoted by A) the doublet at 215.9 nm and 202.4 nm, B) the peak at 165.3 nm, and C) the triplet at 157.9, 154.5, and 152.1 nm. A broad emission band, with maximum intensity at 222 nm, was obtained by excitations in all the absorption bands. Fockele et al. [23] investigated the emission of the X-ray-irradiated Pb-doped CaF2, SrF2, and BaF2 crystals. Intense infrared emission was observed. Laser action of the Pb+(1) center was expected. The absorption spectra of the unirradiated samples were not discussed. The optical absorption (in the VUV domain, 124–225 nm) and the emission of Pb2+ and Bi3+ centers in different alkaline earth fluorides were reported by Oboth et al. [24]. Using the same notations as in the reference [22], the observed peaks were 204.8 and 201.1 nm (the A band), 164.6 nm (the B band), 154 nm (the C band), and 127.8 nm (the D band). Excitation in the A band (204 nm) gave rise to emissions at 217 nm. For excitation in the C band, emissions at 175.4 nm and 217 nm were detected. The influence of the Pb2+ ion concentration on the spectroscopic properties of the PbF2-doped CaF2 crystals was studied by Nicoara et al. [25]. Four absorption bands in the UV domain that peaked at 195 nm, 206 nm, 243 nm, and 306 nm (labeled D, C, B, A) were observed. Characteristic for these broad bands was their structure; two or three components formed the absorption band. As the Pb2+ ion concentration increased, the intensity of the peaks increased. High intensity emission bands in the near UV domain at 322 nm and 341 nm were observed. The luminescence properties of ions with an ns2 electronic configuration in different hosts were investigated [14,16,17,18,26,27,28]. The luminescence of Pb2+ depended strongly on the host lattice and was quite diverse. Intense emission in the near UV and the visible domain was characteristic. The distribution of the dopant in crystals is an important subject because this can influence the physical properties of the crystals used for different devices. The effective segregation coefficient, keff, gives information about the dopant distribution along the crystals. Baldochi et al. [29] measured the distribution coefficient of Pb2+ ions in BaLiF3 by X-ray fluorescence analysis. The estimated distribution coefficient of three crystals grown from 0.1 to 1 mol% PbF2-doped BaLiF3 was 0.05. This means that the dopant had a tendency to be away from the growing interface, resulting in a small incorporation of Pb in the ingot. Abe et al. [30] studied the Tm3+ ion distribution along the BaF2:10% TmF3 crystal using the electron probe microanalysis (EPMA) method. The estimated keff for Tm3+ ions was 0.6. This meant that, in the central part of the ingot, the concentration of the Tm3+ ions was less than at the edge parts. The Yb3+ and Yb2+ ion distribution along the YbF3-doped BaF2 crystals was investigated by Stef et al. [31]. To estimate the effective segregation coefficient of both ions, the optical absorption method was used. As the YbF3 concentration in BaF2 increased, the difference in the Yb ion concentration between the bottom and the top of the crystal was higher. The calculated effective segregation coefficients of Yb3+ ranged from 0.7 to 0.84 and of Yb2+ ions from 0.66 to 0.82, depending on the YbF3 concentration. The Er3+ ion distribution along ErF3-doped BaF2 crystals was analyzed by Nicoara et al. [32]. For concentrations < 0.15 mol% ErF3, the C3v type ions were distributed approximately uniformly; the estimated segregation coefficient was around 0.9. The Pb2+ ion distribution in CaF2 crystals was studied by [33]. The dopant distribution showed an oscillatory behavior along the crystals. The obtained effective segregation coefficient increased as the dopant concentration increased. For 0.5 and 1 mol% PbF2, the keff was <1 (0.85, respectively 0.92); for concentration > 1 mol% PbF2, the segregation coefficient was >1, (1.002 and 1.15).
The goal of this work was to investigate the influence of Pb2+ ion concentration on the spectroscopic properties—the optical absorption and the emission—of PbF2-doped BaF2 crystals. The distribution of the Pb2+ ions along the crystals and the effective segregation coefficient were also determined. The spectroscopic properties of Pb2+ ions in a BaF2 host and their distribution along the crystals have not previously been reported.

2. Materials and Methods

The conventional Stockbarger–Bridgman technique was used in order to obtain the low concentration (0.05, 0.1, 0.25 and 0.5 mol%) PbF2-doped BaF2 crystals. As starting materials, BaF2 optical UV-VIS windows, provided by Crystran Ltd., Poole, UK, and suprapure grade (Merck) PbF2 were used. Four PbF2-doped BaF2 crystals were obtained, with the following amount of PbF2 added in the starting crushed optical windows: 0.01, 0.1, 0.25, and 0.5 mol% PbF2. The crystals were grown in our crystal research laboratory using our Bridgman setup [34]. The crystallization process took place in the desired temperature distribution in a shaped graphite furnace [34]. The temperature distribution along the heater before the growth process is shown in Figure 1a. A typical temperature distribution during the growth process, measured at the bottom of the crucible using an S-type thermocouple, is shown in Figure 1a. In the first hour of the growth process, the temperature gradient was G2 = 17 °C/cm. The temperature gradient measured before the growth process was G1 = 14 °C/cm. The used electrical powers (P) are also indicated in the figure. The crystals were obtained in a vacuum (~10−1 Pa), using a spectral pure graphite crucible, with a pulling rate of 4 mm/h. After the growth process was finished (~14–15 h), the crystal was cooled at room temperature over a period of 10 h. A thin floating graphite lid was put on the powder charge in the crucible along with a screwed cap in order to prevent the evaporation of the PbF2. Transparent colorless crystals ~5 cm in length and ~10 mm in diameter were obtained, with a good cleavage plane (111) (Figure 1b). In order to study the spectroscopic properties, the crystals were cleaved from the bottom to the top in 10–17 slices with a thickness of ~2 mm (Figure 1c).
To check the crystals’ quality, the dislocation density on the cleavage plane was studied using the chemical etching method. This method consisted of immersing the fresh cleaved sample in 2N HCl at 60 °C for 2 min. Small pits developed at the emergence points of the dislocations. The etch pits had hexagonal shapes (Figure 2). The obtained values of ~104 disl/cm2 (Table 1) for the dislocation density meant these crystals were good quality. The optical absorption spectra, at room temperature, of every slice and every crystal, were recorded in the 190–1000 nm range using a Shimadzu 1650 PC spectrophotometer. We used the automatic correction of the instrument for baseline correction; this also took into account the effect of setup noise and light scattering due to the undesired particles in the sample. The room temperature luminescence spectra in the UV-VIS domain were recorded using a LS55 Perkin Elmer fluorescence spectrometer.

3. Results

The alkaline earth fluoride MeF2 (Me = Ca, Sr, Ba) crystallized in the well-known fluorite structure. To better understand how the different dopants were incorporated in the lattice, the fluorite lattice could be regarded as a simple cubic lattice of F− ions, in which every other body center position was occupied by a Me2+ ion. When impurities (dopants) were introduced into the lattice, they usually replaced the Me2+ ions. If the dopant had the same valence as the Me2+ ion, no charge compensation process was needed. This was the case for the PbF2 dopant.

3.1. Optical Absorption Spectra

In order to identify the optical transitions of Pb2+ ion-doped BaF2 crystals, we compared the optical absorption spectra of the PbF2-doped CaF2 [33] with our doped BaF2 crystals (Figure 3a). The three absorption bands observed for the Pb2+ ion-doped BaF2 crystals are labeled A, D and E. The absorption bands, corresponding with the transitions from the 1S0 ground state to the excited states of the Pb2+ ions are marked in Figure 3a for both hosts: BaF2 and CaF2 (3P0, 3P1, 3P2 levels and the singlet 1P1 are shown in Figure 3b). Compared with the absorption spectrum of Pb2+:CaF2, in the case of the Pb2+:BaF2 crystals, the C band was missing and the A and D bands moved towards the shorter wavelengths. The unidentified E band was observed in both type of crystals. The A absorption band denoted by Oboth et al. [24] corresponded with our D band. The optical absorption bands were assigned to electronic transitions: A (1S0–3P1, spin orbit allowed), B (1S0–3P2 vibrationally allowed), and C (1S0–1P1 dipole allowed).
The optical absorption spectra of various concentrations of the Pb2+: BaF2 crystals revealed three absorption bands: A, D, and E (Figure 4a). The intensity of the E band varied with the PbF2 concentration. For a concentration > 0.05 mol% PbF2, this band overlapped with the components of the D band, resulting in a broad absorption band, denoted D + E (see Figure 4a). The Gaussian multi-peak fitting of the optical absorption spectra showed the components of the broad absorption bands (Figure 4b).
As the Pb2+ ion concentration increased, the A band conserved its shape but the shape of the D band modified (Figure 4b). For all concentrations, the A band was the strongest. In Figure 5a we show the Gaussian multi-peak fitting of the A band for two different PbF2-concentration BaF2 crystals. The absorption coefficient of the maximum of the A band (taken from the spectra) increased linearly as the Pb2+ ion concentration increased (Figure 5b). The Gaussian multi-peak fitting of this band revealed two components, labeled A1 and A2 (Figure 5a). The obtained results are summarized in Table 2.
The C band observed in the Pb2+:CaF2 crystals was assigned to symmetry and a spin-allowed 1S0—1P1 transition; this band was missing in our Pb2+:BaF2 crystals (Figure 3a and Figure 4a). The A, B, and C bands were due to the electronic excitation of the Pb2+ ions from the ground state to the 6s16p1 excited states. It is possible that another excitation transition corresponded with the D band. The origin of the D band is not yet understood.
In Figure 6a we show the Gaussian multi-peak fitting of the last band, (D + E), for two samples: BaF2:0.05 mol% PbF2 and BaF2:0.5 mol% PbF2. For the CaF2 crystal, the E band (194 nm) was clearly visible in the spectrum (Figure 3a and Figure 6c), while in the case of the BaF2 host, for a concentration > 0.05 mol% PbF2, the components of the D and E bands overlapped, giving rise to a broad band, (D + E) (Figure 4a and Figure 6a). For both hosts (BaF2 and CaF2), the components of the D band for the same PbF2 content are listed in Table 3.
The dependence of the intensity of the D band components on the PbF2 concentration is shown in Figure 6b. The Pb2+ ion concentration dependence of the D1 and D2 components was exponential rather than linear. As the Pb2+ ion concentration increased the D1 component increased more than the D2 component. These bands were probably due to a disturbed exciton or to the charge transfer from the ligand orbitals of the halogen to the orbitals of a vacant cation.

3.2. Distribution of the Pb2+ Ions along the Crystal

The segregation coefficient was defined by the relation k = CS/C0, where CS is the dopant concentration of the as-grown crystal and C0 is the dopant concentration in the initial melt. At a given growth rate, the effective distribution coefficient (keff) was defined as keff = CS(z)/C0, where CS(z) is the dopant concentration at the distance z from the tip of the as-grown crystal. The Scheill relation [35] gives information about the CS(z) value at the given position, (z), along the growth axis of the as-grown crystal:
CS(z) = C0 keff [1 − g] (keff−1)
where g = g(z) = V t/L = z/L is the crystallized fraction of the melt, V is the crystal growth rate, t is the growth time, Vt is the grown-crystal length, (z), at the moment t, and L is the crystal final length. If we can measure the CS(z) value, the keff can be obtained from this relation. The value of CS can be measured by various methods or estimated from optical absorption measurements [36,37,38]. In order to study the distribution of Pb2+ ion concentration along the crystal and to calculate the distribution coefficient, we chose the method described by [36]. The value of CS(z) was estimated from the optical absorption measurements. Taking into account the Beer–Lambert law, the absorption coefficient (α) was proportional with the concentration of the dopant (α = a CS, so CS(z) ~ α(z)), so the dopant distribution along the crystal could be estimated by studying the optical absorption spectrum of slices cut along the crystal. The Scheill relation could be written as: log α(z) = (keff − 1) log (1 − g) + log (a keff C0) [36]. The distribution coefficient, keff, was calculated from the slope of the fitting line of log α(z) versus log (1 − g). The solidification fraction, g = z/L, indicated the position of the slice in the ingot.
The crystals were cleaved from the bottom to the top into various numbers of slices (Figure 1) of ≈2 mm thickness. The optical absorption coefficient, α (z), of every slice was estimated from the optical absorption spectrum for the well-shaped and strong characteristic absorption band of the Pb2+ ions, A = 290 nm. We also used the D band (203 nm) for two crystals (0.05 mol% PbF2 and 0.1 mol% PbF2). The shape of the A peak (for a given PbF2 concentration) was the same for various slices cleaved along the crystal; only the absorption coefficient α(z) differed from slice to slice, as shown in Figure 7a and Figure 8a. This behavior was used to determine the effective segregation coefficient by the optical absorption method.
Figure 7a and Figure 8a,b show the absorption spectra of the slices cleaved from BaF2:0.05 mol% PbF2 and BaF2:0.1 mol% PbF2 crystals. Figure 7c shows the variation of the optical absorption coefficient of the peak at 290 nm along the 0.05 mol% PbF2-doped BaF2 crystal. This behavior also corresponded with the Pb2+ ion concentration distribution (characterized by the absorption coefficient, α,). As we observed, the distribution of the Pb2+ ions was not uniform and their concentration decreased toward the end of the crystal and the Pb2+ ions piled up at the bottom of the sample. For this reason, only the middle of the crystals could be used for different purposes.
In order to calculate the effective segregation coefficient, we used the slopes (m) of the fitting line of log α(z) vs. log (1−g), keff =1 + m. The obtained effective segregation coefficient for the studied samples is shown in Figure 7b and Figure 8c and Table 4. The effective segregation coefficient did not vary as the Pb2+ ion concentration increased.
The segregation coefficient could be k < 1 or >1, depending on the matrix, on the dopant concentration and on the dopant itself. The more that keff differed from unity, the larger the dopant concentration gradient along the crystal became and, hence, no homogeneous distribution of Pb2+ ions in the crystals could be obtained.
The study of Pb2+ ion distribution along BaF2 crystals and the determination of the effective segregation coefficient have not previously been reported.

3.3. Emission Spectra

The emission spectra of the studied samples were recorded at room temperature for excitation in three absorption bands: λexc = 290 nm, λexc = 206 nm, and λexc = 203 nm. In Figure 9a, the emission spectra under excitation in the A band of the absorption spectrum (λexc = 290 nm) are shown. Two high intensity bands were present, one in the near UV and one in the visible domain. The intense UV band had two peaks at 304 nm and 320 nm. The visible domain band also had two peaks at 610 nm and 640 nm. The influence of PbF2 concentration on the peak intensity is shown in Figure 9b. The emission intensity of the band in the visible domain band was twice as weak as the band in the UV domain.
The influence of the excitation wavelength on the emission spectra in the near UV domain is shown in Figure 10a. For all concentrations, the most intense emission was obtained for excitation in the A band (λexc = 290 nm). The influence of the PbF2 concentration on the emission intensity of the 303 nm and 320 nm peaks for two excitation wavelengths, λexc = 203 nm and 206 nm, is shown in Figure 10b. The emission of excitation at 203 nm was more intense than that of the excitation at 206 nm (Figure 10b). The influence of the excitation wavelength on the emission intensity in the visible domain is shown in Figure 11a for two concentration samples. The emission bands in the visible domain revealed two components for both excitation wavelengths (203 nm and 290 nm), as shown in Figure 11a. The Gaussian multi-peak fitting of the visible domain emission, for two samples, by excitation at 203 nm showed the two components of the emission band (see Figure 11b). Regardless of the sample PbF2 concentration or the excitation wavelength, the emission maxima appeared at about the same wavelength (~610 nm and ~640 nm); only the intensity of the maxima differed (Figure 11a,b).
In Figure 12a are shown the excitation spectrum monitored for the 320 nm emission peak (λmonitor = 320 nm), the A band optical absorption spectrum, and the emission spectrum under excitation at λexc = 290 nm (A band) for the BaF2:0.05 mol% PbF2 sample. The excitation spectrum and the optical absorption spectrum were quite similar. This meant that the emission upon excitation at 290 nm came from the A absorption band from the 3P1-excited state.
The excitation spectra of the two emission peaks (at 305 nm and 320 nm) are shown in Figure 12b for the BaF2:0.25 mol% PbF2 sample. The excitation spectra of both emission peaks were the same. The Gaussian multi-peak fitting of the excitation bands revealed two components, whose peaks slightly differed for different PbF2 concentrations (Figure 12c). Probably, at a PbF2 concentration > 0.5 mol%, the splitting of the excitation bands in two components should be clearly visible in the spectrum.
The luminescence of Pb2+ and other ns2 configuration ions was investigated in various hosts by [14,16,17,18,26,27,28], less so in that of BaF2. The UV emission band of the CaF2:0.5 mol% PbF2 sample also consisted of two components under excitation in the A band (307 nm), namely 320 nm and 341 nm [25], but the intensities of the peaks were three times stronger than those of the BaF2:0.5 mol% PbF2 under excitation in the A band (290 nm). The obtained spectroscopic properties of the PbF2-doped BaF2 crystals are summarized in Table 5.

4. Discussion

The main characteristics of the absorption bands of the Pb2+ ions in a BaF2 host (as well as of the ns2 electronic configuration ions) were: (1) the absorption bands were broad due to the interaction of the electronic states of the ions with the lattice vibrations; (2) simple approximate Gaussian bands rarely appeared; (3) the absorption bands were structured, having two or three components; (4) in addition to the absorption bands due to the electronic transitions, in the range of short wavelengths of the spectrum some absorption bands appeared, probably due to disturbed excitons.
The optical absorption spectra, in the investigated spectral domain (190–900 nm), of the PbF2-doped BaF2 crystals consisted of three absorption bands, denoted by A, D, and E bands (Figure 4). The intensity of the A band increased linearly as the PbF2 concentration increased (Figure 5b). The Gaussian multi-peak fitting of the observed absorption bands showed that the bands had a certain structure, that is, they consisted of several components (Figure 4b). The split of the broad optical absorption bands in various numbers of components was characteristic for alkali halides crystals doped with ions that had the ns2 electronic configuration [8].
The Pb2+ ion was part of the series of ions with the ns2 ground state configuration. The presence of a dopant of this type of configuration in various hosts induced optical absorption bands in the UV and VUV domains [8,10,24]. The fundamental state (the 1S0 level) of the Pb2+ ion was 6s2 and the first excited state was 6s6p. The excited states consisted of a triplet 3P0, 3P1, and 3P2 and a singlet 1P1 (Figure 3b). The 3P0 and 3P2 levels were metastable and only the 1S0—3P1 and 1S0—1P1 transitions were allowed. The optical absorption bands in the VUV domain of Pb2+ centers in the alkaline earth fluorides were studied by Oboth et al. [24] and in the UV domain of PbF2-doped CaF2 crystals by Nicoara et al. [25]. Four absorption bands in the UV domain peaking at 195 nm, 206 nm, 243 nm, and 306 nm (labeled D, C, B, A) were observed. Characteristic for these broad bands was their structure; two or three components were detected. The intensity of the peaks increased as the Pb2+ ion concentration increased. The A absorption band denoted by Oboth et al. [24] corresponded with the D band of PbF2-doped CaF2 crystals.
The A band components of PbF2-doped BaF2 crystals varied exponentially with Pb2+ ion concentration (the inset in Figure 5b). The A1 component intensity increased more than that of the A2 component. The A band was assigned to the 1S0—3P1 transition. This transition was partially allowed due to spin–orbit coupling of the triplet state mixed with the 1P1 singlet state [13,16]. The 3P1 level probably split into two close levels (Figure 3b) associated with isolated Pb2+ ions and with Pb2+—Fi− dipoles (Fi− was the interstitial fluorine ion) and the transitions to these levels gave rise to the A1 and A2 components.
For a concentration > 0.05 mol% PbF2, the components of the D and E bands overlapped, giving rise to a broad absorption band (D + E) (Figure 4a). The structure of this broad band was also analyzed using the Gaussian decomposition. The Figure 6a shows the Gaussian multi-peak fitting of the E + D band for the BaF2:0.05 mol% PbF2 and the BaF2:0.1 mol% PbF2 samples. The Pb2+ ion concentration dependence of the D1 and D2 components was exponential rather than linear (Figure 6b). The origin of the D band is not yet understood; it could be due to a perturbed exciton by the Pb2+ ion or due to a charge transfer [8,13,15,16]. The D band components were assigned by different authors [21,39] to exciton perturbed by various type of Pb2+ ion clusters and to pairs of ionized oxygen (O2−) and fluorine vacancy (VF−).
In order to use doped crystals for various purposes, homogeneous dopant distribution along the ingot was needed. The effective segregation coefficient, keff, gave information about the dopant distribution along the crystals. Using the optical absorption method [36,37,38], we studied the Pb2+ ion distribution along the crystals and calculated the effective segregation coefficient. For example, the distribution of the Pb2+ ions along the 0.05 mol% PbF2-doped BaF2 crystal is shown in Figure 7c. This plot was obtained using the values of the absorption coefficient, α, (at the 290 nm) of every cleaved sample.
For the investigated crystals with the PbF2 concentration range between 0.05 and 0.5 mol%, the distribution of the Pb2+ ions was not uniform and their concentration decreased toward the end of the crystal, where the Pb2+ ions piled up at the bottom of the sample. The calculated effective segregation coefficient was >1, having values around 1.3 (see Table 4). Only for the sample with 0.25 mol% PbF2 concentration did keff equal 2.4. The segregation coefficient, and consequently the crystal homogeneity, could be more or less controlled by the growth conditions (the temperature gradient in the crystallization zone and the pulling rate during the growth process) [40]. Probably, this crystal was grown in improper conditions and the dopant accumulated at the beginning of the crystal, determining such a high keff.
There have been few reported results regarding the Pb2+ ion distribution or regarding the segregation coefficient in various crystals [33,41]; rather, the behavior of RE ions has been investigated in the BaF2 host. The obtained results are mentioned in the introduction.
The emission spectra of all PbF2-doped BaF2 samples had the same behavior under excitation in the three optical absorption peaks, 290 nm, 206 nm, and 203 nm (Figure 9a, Figure 10a and Figure 11a). The emission in the near UV domain consisted of two peaks (at 305 nm and 320 nm). The emission in the visible domain also consisted of two components, ~610 nm and ~640 nm. The emission in the near UV domain was twice as intense than that in the visible domain. The emission intensity was high and slightly depended on the PbF2 concentration. The observed emissions were assigned to the 3P1—1S0-allowed electronic transition of the Pb2+ ions. The excitation spectra of both emission peaks (305 nm and 320 nm) were the same (Figure 12b). This indicated that the excited states from which the emissions appeared must have been associated.
The luminescence of Pb2+ and other ns2 electronic configuration ions was investigated in various hosts by [14,16,17,18,26,27,28], less so in that of BaF2. The spectroscopic properties of Pb2+ ions (the optical absorption and the emission) were studied rather in the VUV domain. Arkhangelskaya et al. [20] reported the spectroscopic properties of low concentration PbF2-doped CaF2 crystals in a 120–220 nm domain. A broad emission band, with maximum intensity at 222 nm at room temperature, was obtained under excitations in all absorption bands. The optical absorption and emission spectra of Pb2+ and Bi3+ ions in different alkali earth fluorides in a VUV domain (124–225 nm) were studied by Oboth et al. [22]. Excitations under all absorption bands in VUV gave rise to emissions at 217 nm (for A band) and at 175 nm and 217 nm (for C band). Emission at shorter wavelengths was not detected. The spectroscopic properties of X-ray-irradiated PbF2-doped CaF2, SrF2, and BaF2 crystals were investigated by Fockele et al. [23]. They observed intense infrared emissions due to the Pb+(1) centers. The luminescence properties of our PbF2-doped BaF2 crystals could be compared only with those of PbF2-doped CaF2 crystals reported by Nicoara et al. [25]. They studied the optical absorption and emission spectra of Pb2+ ions in a UV domain (190–340 nm). Four absorption bands, peaking at ~306 nm (A band), ~259 nm (B band), ~243 nm (C band), ~210 nm (D band), and ~195 nm (E band), were reported. Under excitation in the A band (307 nm) high-intensity emission spectra for all samples, peaks at 320 nm and 341 nm were detected. The PbF2-doped BaF2 crystals investigated in this work revealed only three broad peaks at ~290 nm (A band), ~203 nm (D band), and ~194 nm (E band). The emission spectra under excitation in three optical absorption peaks, 290 nm, 206 nm, and 203 nm, were characterized by two bands: one in the near UV domain, with peaks at 303 nm and 320 nm, and one in the visible domain, with maximum intensities at around 610 nm and 644 nm. The intensity of the emission peaks of the BaF2 host were three times weaker than those of the CaF2: PbF2 samples.

5. Conclusions

Various PbF2 concentration-doped BaF2 crystals were grown using the conventional Bridgman setup. The quality of the crystals was investigated by using the chemical etching method. In order to prevent the evaporation of the PbF2, a special procedure was adopted. The absorption spectra revealed the characteristic absorption bands of the Pb2+ ions. A concentration dependence of the absorption spectra was observed. Using the optical absorption method, the effective segregation coefficient of the Pb2+ ions in the BaF2 crystal was determined. The emission spectra of the studied samples under excitation in various absorption bands revealed two strong emissions components in the UV-VIS spectral region. Our luminescence experiments of Pb-doped BaF2 crystals pointed out strong emissions in the near UV domain. It has been proven that the use of radiation in the UV range is an efficient tool for medical purposes such as the treatment of tissues, such as psoriasis, vitiligo, or lymphoma. It is important to find a laser material with emissions in the near UV in order to design a miniature laser, easy to use by the patient themself. The pure BaF2 crystals can be used as a fast scintillator involving emissions in the UV domain. The absorption band in the UV can attenuate the fast component. The Pb ions can be in the raw material; during the crystal growth process, they are incorporated in the BaF2 crystals, changing the optical properties of the crystal. The influence of the lead ions on the optical properties, especially on the sensitivity to the radiation damage, need to be carefully investigated. This will be the next step in our investigations. In order to obtain more uniform Pb ion distribution along the crystal, further studies are necessary, maybe using different pulling rates.

Author Contributions

G.B.: formal analysis, investigation, and writing—review and editing; M.S.: formal analysis, investigation, and writing—review and editing I.N.: formal analysis, writing—review and editing, and supervision. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Woody, C.L.; Levy, P.W.; Kierstead, J.A. Slow Component Suppression and Radiation Damage in Doped Baf2 Crystals. IEEE Trans. Nucl. Sci. 1989, 36, 536–542. [Google Scholar] [CrossRef]
  2. Mu, G.; Chen, L.; Du, J.; Xiang, K.; Chen, G.; Ren, S.; Zhang, F. The Radiation Effect Mechanism of Some Rare Earth Doped BaF2 Crystal. Mater. Res. Soc. Proc. 1994, 348, 441–446. [Google Scholar] [CrossRef]
  3. Schotanus, P.; van Eijk, C.W.E.; Hollander, R.W.; Pijpelink, J. Development Study of a New Gamma Camera. IEEE Trans. Nucl. Sci. 1987, NS-32, 272. [Google Scholar] [CrossRef]
  4. Schotanus, P. A New Gamma Camera for Positron Emission Tomography. Ph.D. Thesis, Delft University, Delft, The Netherlands, 1988. [Google Scholar]
  5. Sastry, S.B.S.; Moses Kennedy, S.M. Luminescence Studies on γ-Irradiated BaF2:Pb Single Crystals. Phys. Status Solidi A 1996, 155, 263–269. [Google Scholar] [CrossRef]
  6. Sabharwal, S.C.; Sangeeta, H.P.; Chauhan, A.K. Effect of lattice oxygen on optical absorption, radiation hardness and thermally stimulated luminescence of BaF2 crystal. J. Cryst. Growth 2002, 240, 473–478. [Google Scholar] [CrossRef]
  7. Ranfagni, A.; Mugnai, P.; Bacci, M.; Viliani, G.; Fontana, M.P. The optical properties of thallium-like impurities in alkali-halide crystals. Adv. Phys. 1983, 32, 823–905. [Google Scholar] [CrossRef]
  8. Jacobs, P.W.M. Alkali halide crystals containing impurity ions with the ns2 ground-state electronic configuration. J. Phys. Chem. Solids 1991, 52, 35–67. [Google Scholar] [CrossRef]
  9. Tsuboi, T.; Nakai, Y.; Oyama, K.; Jacobs, P.W.M. Vibration-induced absorption (B band) of s2-configuration ions in alkali-halide crystals. Phys. Rev. B 1973, 8, 1698–1707. [Google Scholar] [CrossRef]
  10. Tsuboi, T.; Jacobs, P.W.M. Optical studies of s2-ion dimer centers in alkali halide crystals. J. Phys. Chem. Solids 1991, 52, 69–80. [Google Scholar] [CrossRef]
  11. Dryden, S.; Heydon, R.G. Ultraviolet A-band absorption in NaCl:Pb2+ and clustering of lattice defects. J. Phys. C Solid State Phys. 1983, 16, 5363–5373. [Google Scholar] [CrossRef]
  12. Missouri, M.; Scacco, A. Optical properties of Pb2+ ions in KMgF3 crystals. Solid State Commun. 1990, 76, 5–9. [Google Scholar] [CrossRef]
  13. Moine, B.; Pedrini, C.; Ghiordanescu, V. An emission and kinetic study of the impurity-trapped exciton in CdCl2:Pb2+. J. Phys. Condens. Matter 1994, 6, 4093–4098. [Google Scholar] [CrossRef]
  14. Folkerts, H.F.; Dijken, A.; Blasse, G. Two types of luminescence from Pb2+ in alkaline-earth fluorohalides with the PbFCl structure. J. Phys. Condens. Matter 1995, 7, 10049–10057. [Google Scholar] [CrossRef]
  15. Folkerts, H.F.; Blasse, G. Luminescence of Pb2+ in several calcium borates. J. Mater. Chem. 1995, 5, 273–276. [Google Scholar] [CrossRef]
  16. Folkerts, H.F.; Ghianni, F.; Blasse, G. Search for D-level emission of Pb2+ in alkaline-earth aluminates and gallates. J. Phys. Chem. Solids 1996, 57, 1659–1665. [Google Scholar] [CrossRef]
  17. Van Dijken, A.; Folkerts, H.F.; Blasse, G. Evidence for D-band emission from Pb2+ in alkaline-earth fluorohalides with the PbFCl structure. J. Lumin. 1997, 72–74, 660–661. [Google Scholar] [CrossRef]
  18. Mehnaoui, M.; Panczer, G.; Ternane, R.; Trabelsi-Ayedi, M.; Boulon, G. Structural and spectroscopic characterizations in Pb2+-doped calcium hydroxyapatites. Opt. Mater. 2008, 30, 1672–1676. [Google Scholar] [CrossRef]
  19. Pekgozlu, I.; Seyyidoglu, S.; Tascioglu, S. A Novel Blue-Emitting Phosphor: BaAl2B2O7:Pb2+. J. Lumin. 2008, 128, 1541–1543. [Google Scholar] [CrossRef]
  20. Jary, V.; Nikl, M.; Mihokova, E.; Bohacek, P.; Trunda, B.; Polak, K.; Studnicka, V.; Mucka, V. Photoluminescence of Pb2+-doped SrHfO3. Radiat. Meas. 2010, 45, 406–408. [Google Scholar] [CrossRef]
  21. Bohun, A.; Roskovcova, L.; Svantiner, M.; Foldvari, I. Absorption of CaF2 crystals containing lead and oxygen. Czechoslov. J. Phys. B 1978, 28, 795–797. [Google Scholar] [CrossRef]
  22. Arkhangelskaia, V.A.; Lushchik, N.E.; Reiterov, V.M.; Soovik, K.A.; Trofimova, L.M. Trofimova. Absorption and luminescence of Pb2+ ions in alkaline-earth fluoride crystals. Opt. Spectrosc. 1979, 47, 393–397. [Google Scholar]
  23. Fockele, M.; Lohse, F.; Spaeth, J.-M.; Bartram, R.T. Identification and optical properties of axial lead centres in alkaline-earth fluorides. J. Phys. Condens. Matter 1989, 1, 13–26. [Google Scholar] [CrossRef]
  24. Oboth, K.P.; Lohmeier, F.J.; Fischer, F. VUV and UV Spectroscopy of Pb2+ and Bi2+ Centres in Alkaline-Earth. Phys. Status Solidi B 1989, 154, 789–803. [Google Scholar] [CrossRef]
  25. Nicoara, I.; Paraschiva, M.; Stef, M.; Stef, F. Growth and spectroscopic characterization of Pb2+:CaF2 crystals. Eur. Phys. J. B 2012, 85, 292. [Google Scholar] [CrossRef]
  26. Hao, Z.; Yang, Y.; Yin, X.; Yu, B.; Guan, Z. The luminescence of mercury-like ions alkaline earth sulfides. J. Lumin. 1988, 40–41, 700–701. [Google Scholar] [CrossRef]
  27. Folkerts, H.F.; Hamstra, M.A.; Blasse, G. The luminescence of Pb2+ in alkaline earth sulfates. Chem. Phys. Lett. 1995, 246, 135–138. [Google Scholar] [CrossRef]
  28. Folkerts, H.F.; Zuidema, J.; Blasse, G. The luminescence of Pb2+ in lead compounds with one-dimensional chains. Solid State Commun. 1996, 99, 655–658. [Google Scholar] [CrossRef]
  29. Baldochi, S.L.; Gesland, J.-Y. Crystal growth of pure and lead doped barium-lithium fluoride. Mater. Res. Bull. 1992, 27, 891–900. [Google Scholar] [CrossRef]
  30. Abe, N.; Yokota, V.; Yanagida, V.; Pejchal, V.; Nara, V.; Kawaguchi, V.; Fukuda, V.; Nikl, V.; Yoshikawa, V. Crystal growth and luminescence properties of Tm:BaF2 single crystals. Jpn. J. Appl. Phys. 2010, 49, 022601. [Google Scholar] [CrossRef]
  31. Stef, M.; Nicoara, I.; Vizman, D. Distribution of Yb3+ and Yb2+ ions along YbF3-doped BaF2 crystals. Cryst. Res. Technol. 2018, 53, 1800186. [Google Scholar] [CrossRef]
  32. Nicoara, I.; Stef, M.; Buse, G.; Racu, A. Growth and characterization of ErF3 doped BaF2 crystals. J. Cryst. Growth 2020, 547, 125817. [Google Scholar] [CrossRef]
  33. Paraschiva, M.; Nicoara, I.; Stef, M.; Bunoiu, O. Distribution of Pb2+ Ions in PbF2-Doped CaF2 Crystals. Acta Phys. Pol. A 2010, 117, 466–470. [Google Scholar] [CrossRef]
  34. Nicoara, D.; Nicoara, I. An improved Bridgman-Stockbarger crystal growth system. Mater. Sci. Eng. A 1988, 102, L1–L5. [Google Scholar] [CrossRef]
  35. Hurle, D.T.J. Crystal Pulling from the Melt; Springer: Berlin/Heidelberg, Germany, 1993. [Google Scholar] [CrossRef]
  36. Sun, D.; Zhang, Q.; Wang, Z.; Su, J.; Gu, C.; Wang, A.; Yin, S. Concentration distribution of Nd3+ In Nd:Gd3Ga5O12 crystals studied by optical absorption method. Cryst. Res. Technol. 2005, 40, 698–702. [Google Scholar] [CrossRef]
  37. Shiroki, K.; Kwan, Y. An effective neodimium segregation coefficient in neodimiumdoped yttrium-aluminum-garnet crystal growth by pulling method. J. Chem. Soc. Jpn. 1978, 7, 940–944. [Google Scholar]
  38. Kuwano, Y. Effective distribution coefficient of neodynium in Nd:Gd3Ga5O12 crystals grown by the Czochralski method. J. Cryst. Growth 1982, 57, 353–361. [Google Scholar] [CrossRef]
  39. Gorlich, P.; Karras, H.; Lehmann, R. Über die optischen Eigenschaften der Erdalkalihalogenide vom Flußspat-Typ (I). Phys. Status Solidi 1961, 1, 389–440. [Google Scholar] [CrossRef]
  40. Keszei, B.; Paitz, J.; Vandlik, J.; Suveges, A. Control of Nd and Cr concentrations in Nd, Cr:Gd3Ga5O12 single crystals grown by Czochralski method. J. Cryst. Growth 2001, 226, 95–100. [Google Scholar] [CrossRef]
  41. Dmitriev, Y.; Bennett, P.R.; Cirignano, L.J.; Gupta, T.K.; Higgins, W.M.; Shah, K.S.; Wong, P. Doping impact on the electro-optical properties of a TlBr crystal. Nucl. Instrum. Methods Phys. Res. Sect. A 2007, 578, 510–514. [Google Scholar] [CrossRef]
Crystals 13 00659 g001 550

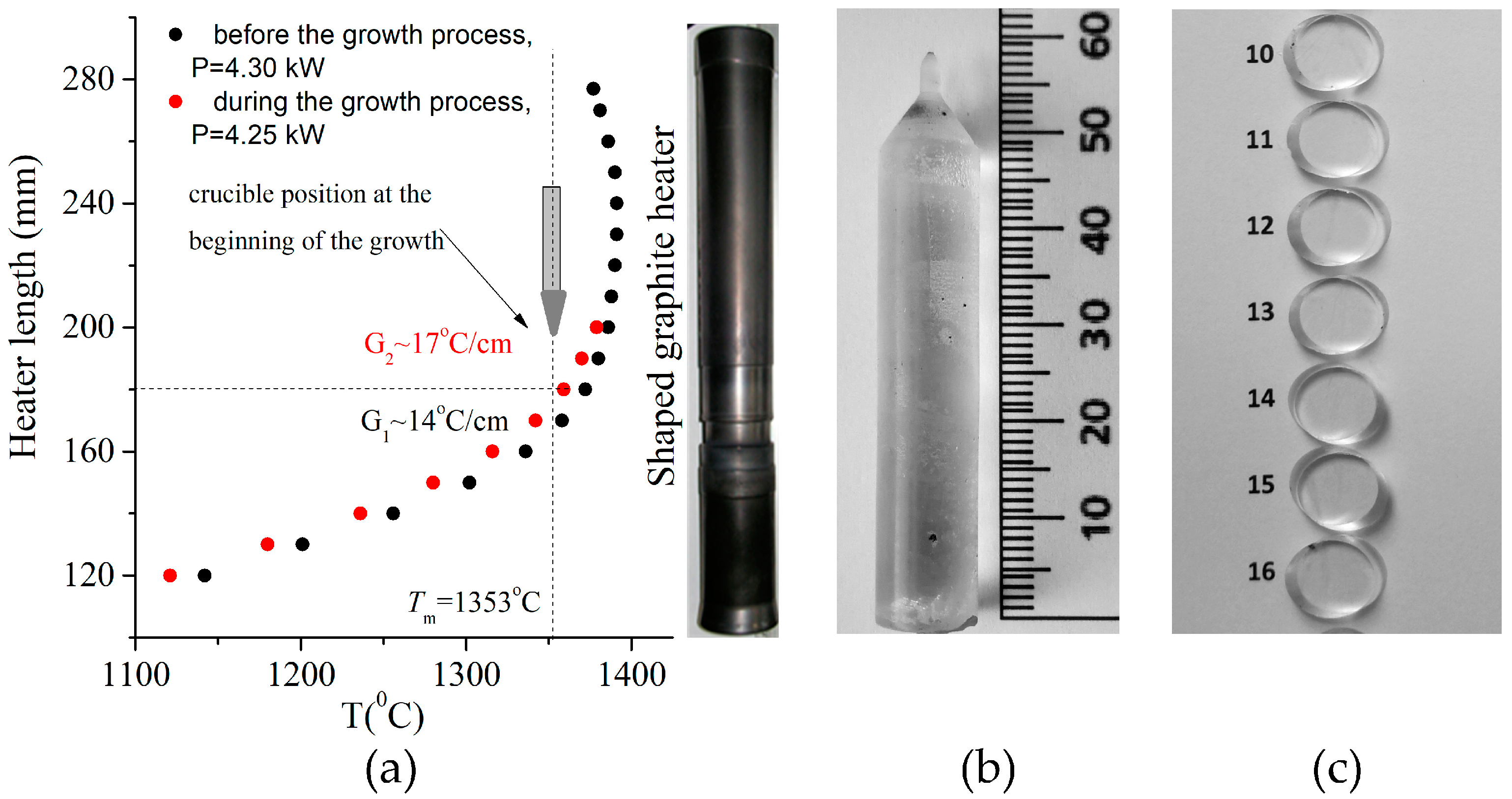

Figure 1. (a) Temperature distribution along the heater, measured before and during the crystal growth; (b) as-grown BaF2:0.5 mol% PbF2 crystal; (c) some cleaved samples.
Figure 1. (a) Temperature distribution along the heater, measured before and during the crystal growth; (b) as-grown BaF2:0.5 mol% PbF2 crystal; (c) some cleaved samples.
Crystals 13 00659 g001
Crystals 13 00659 g002 550

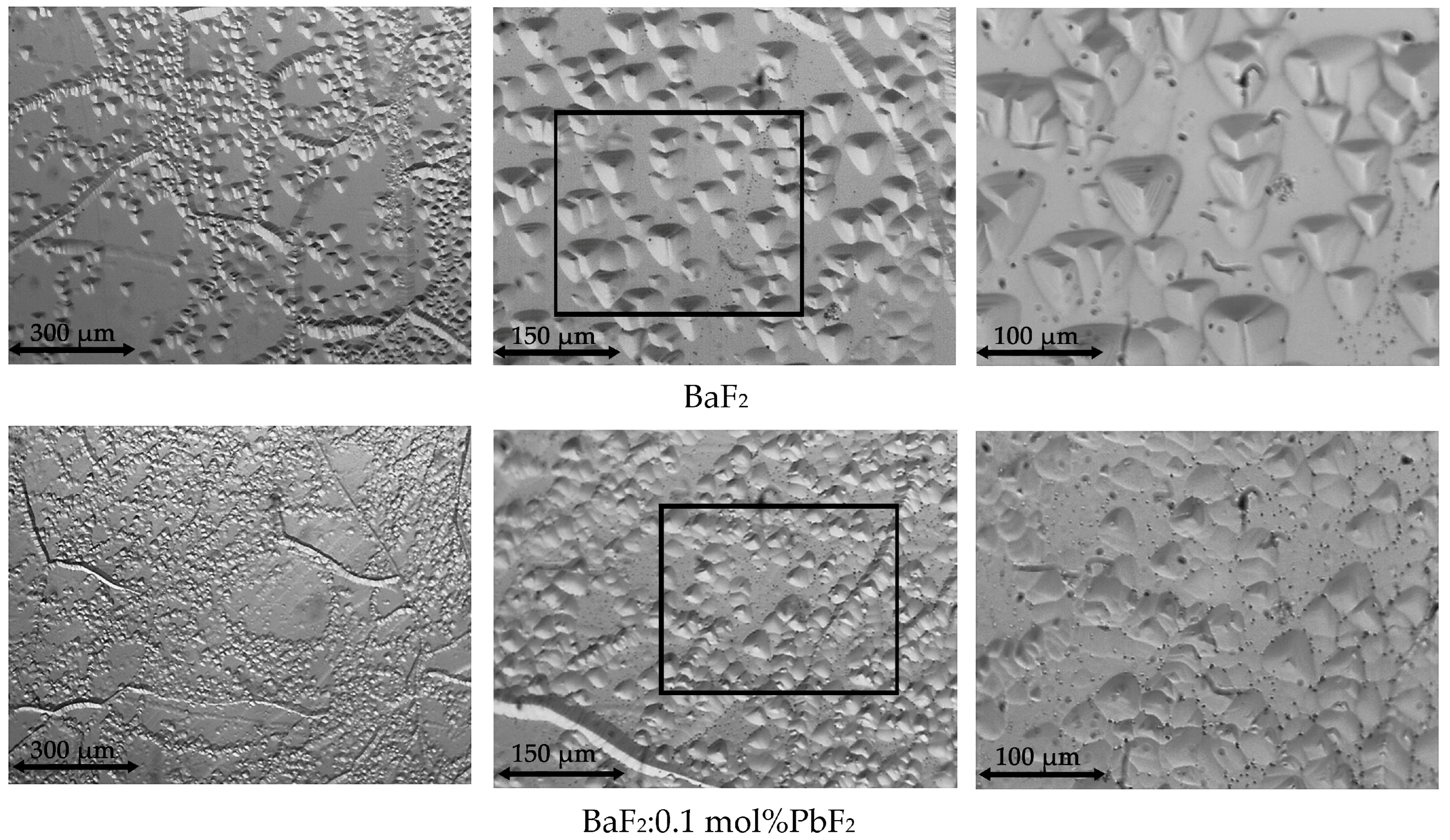

Figure 2. Dislocation etch pits on the (111) cleavage plane of BaF2 and BaF2:0.1 mol% PbF2 crystals.
Figure 2. Dislocation etch pits on the (111) cleavage plane of BaF2 and BaF2:0.1 mol% PbF2 crystals.
Crystals 13 00659 g002
Crystals 13 00659 g003 550

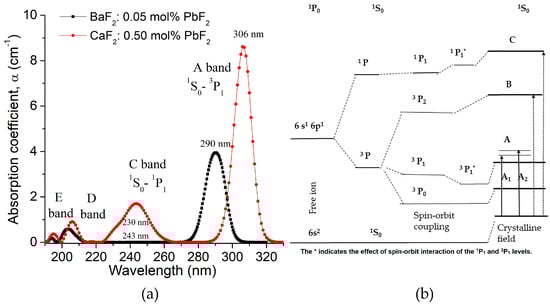

Figure 3. (a) Optical absorption spectra of BaF2: 0.05 mol% PbF2 and CaF2: 0.5 mol% PbF2 crystals; (b) energy level diagram of the Pb2+ ions (the * indicates the effect of spin-orbit interaction of the 1P1 and 3P1 levels).
Figure 3. (a) Optical absorption spectra of BaF2: 0.05 mol% PbF2 and CaF2: 0.5 mol% PbF2 crystals; (b) energy level diagram of the Pb2+ ions (the * indicates the effect of spin-orbit interaction of the 1P1 and 3P1 levels).
Crystals 13 00659 g003
Crystals 13 00659 g004 550

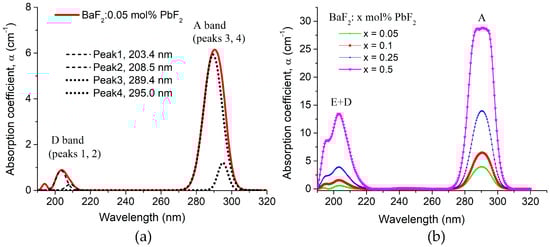

Figure 4. Optical absorption spectra. (a) Influence of PbF2 concentration on the absorption spectra; (b) Gaussian multi-peak fitting of the absorption spectrum of BaF2: 0.05 mol% PbF2 sample.
Figure 4. Optical absorption spectra. (a) Influence of PbF2 concentration on the absorption spectra; (b) Gaussian multi-peak fitting of the absorption spectrum of BaF2: 0.05 mol% PbF2 sample.
Crystals 13 00659 g004
Crystals 13 00659 g005 550

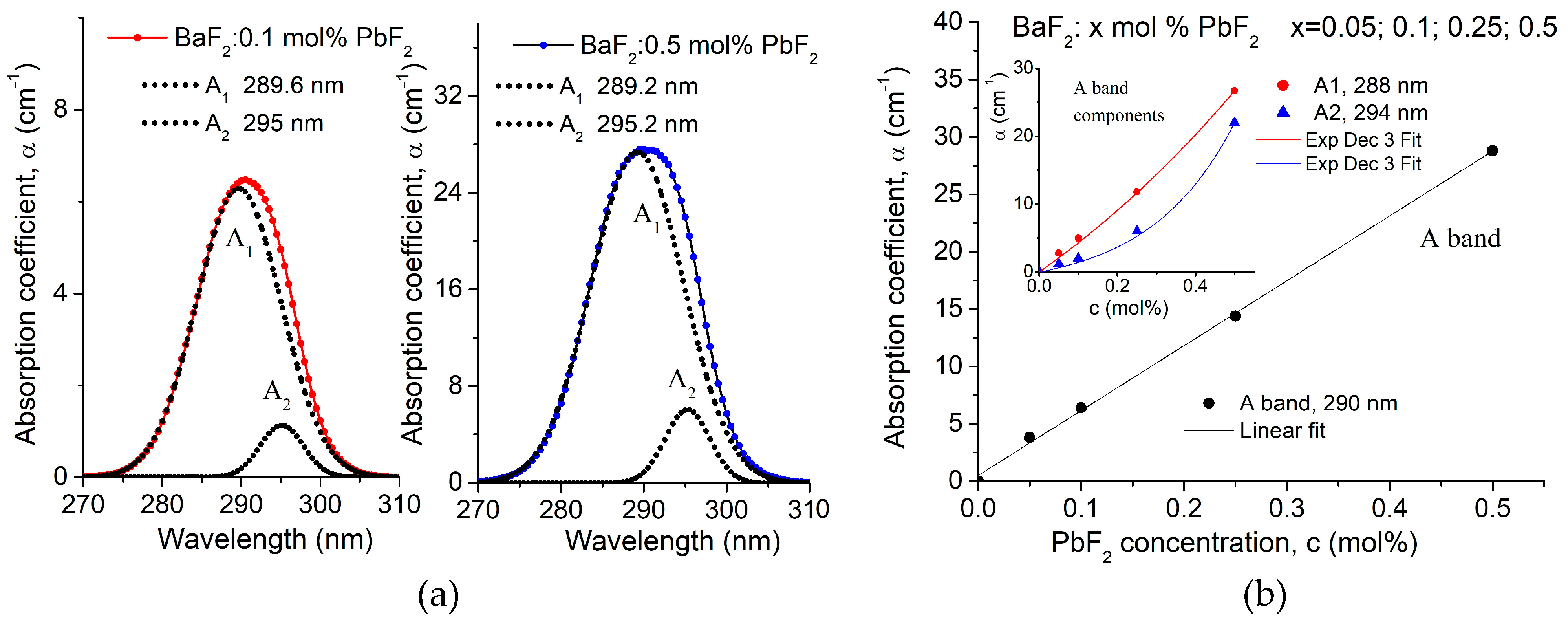

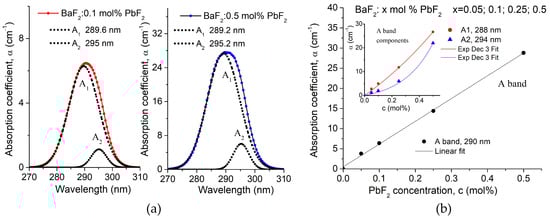

Figure 5. (a) Gaussian multi-peak fitting of the A band for two samples; (b) variation of intensity of the A band (290 nm) and of the components A1 and A2 (see the inset) on the PbF2 concentration.
Figure 5. (a) Gaussian multi-peak fitting of the A band for two samples; (b) variation of intensity of the A band (290 nm) and of the components A1 and A2 (see the inset) on the PbF2 concentration.
Crystals 13 00659 g005
Crystals 13 00659 g006 550

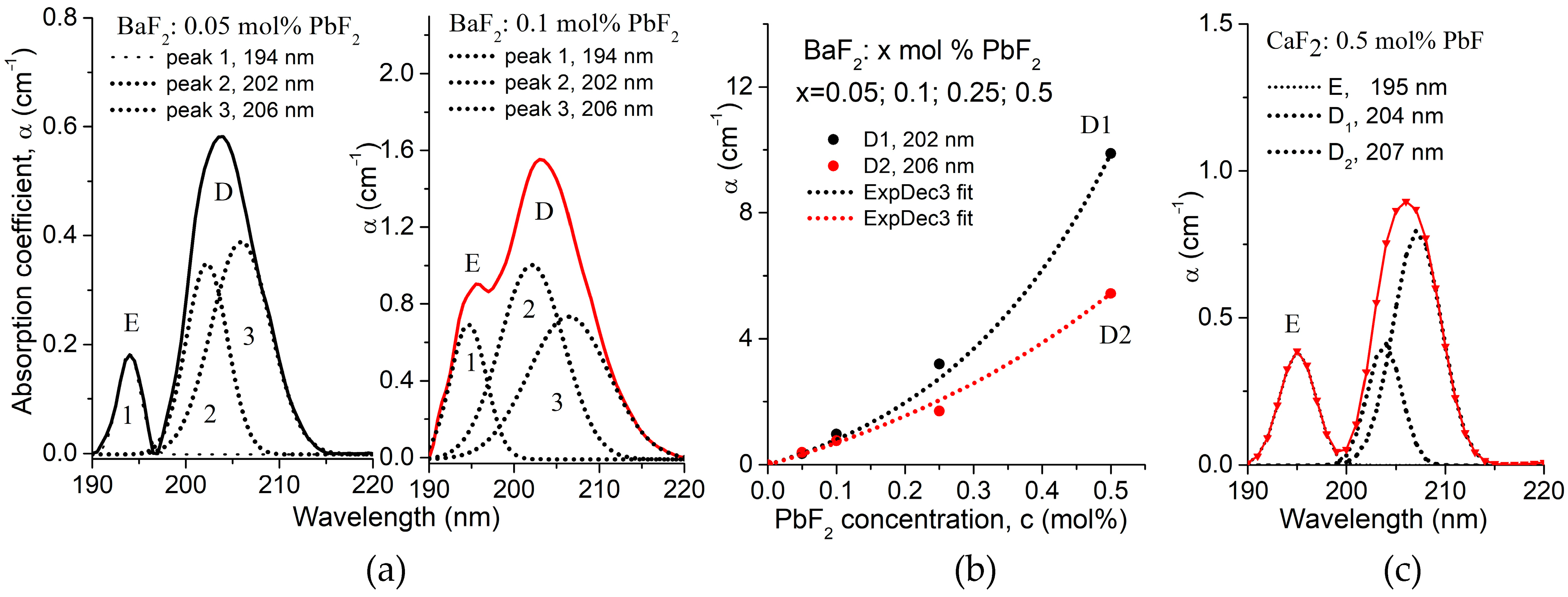

Figure 6. (a) Gaussian multi-peak fitting of the D band for two samples; (b) dependence of the D band component intensity on the PbF2 concentration; (c) the D and E bands decomposed by Gaussian multi-peak fitting of CaF2: 0.5 mol% PbF2.
Figure 6. (a) Gaussian multi-peak fitting of the D band for two samples; (b) dependence of the D band component intensity on the PbF2 concentration; (c) the D and E bands decomposed by Gaussian multi-peak fitting of CaF2: 0.5 mol% PbF2.
Crystals 13 00659 g006
Crystals 13 00659 g007 550

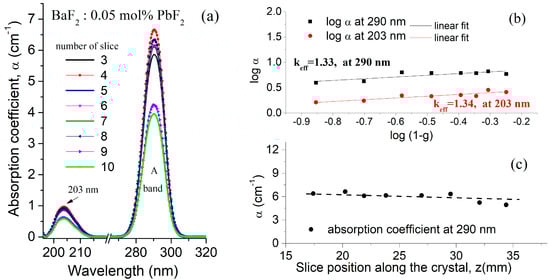

Figure 7. (a) Optical absorption spectra of various slices cleaved from 0.05 mol% PbF2-doped BaF2 crystal (the A and D bands); (b) fitting lines of log α(z) vs. log (1 − g) in order to calculate the effective distribution coefficient; (c) absorption coefficient of Pb2+ ions for various slice positions in the crystal (the Pb2+ ion concentration variation along the crystal).
Figure 7. (a) Optical absorption spectra of various slices cleaved from 0.05 mol% PbF2-doped BaF2 crystal (the A and D bands); (b) fitting lines of log α(z) vs. log (1 − g) in order to calculate the effective distribution coefficient; (c) absorption coefficient of Pb2+ ions for various slice positions in the crystal (the Pb2+ ion concentration variation along the crystal).
Crystals 13 00659 g007
Crystals 13 00659 g008 550

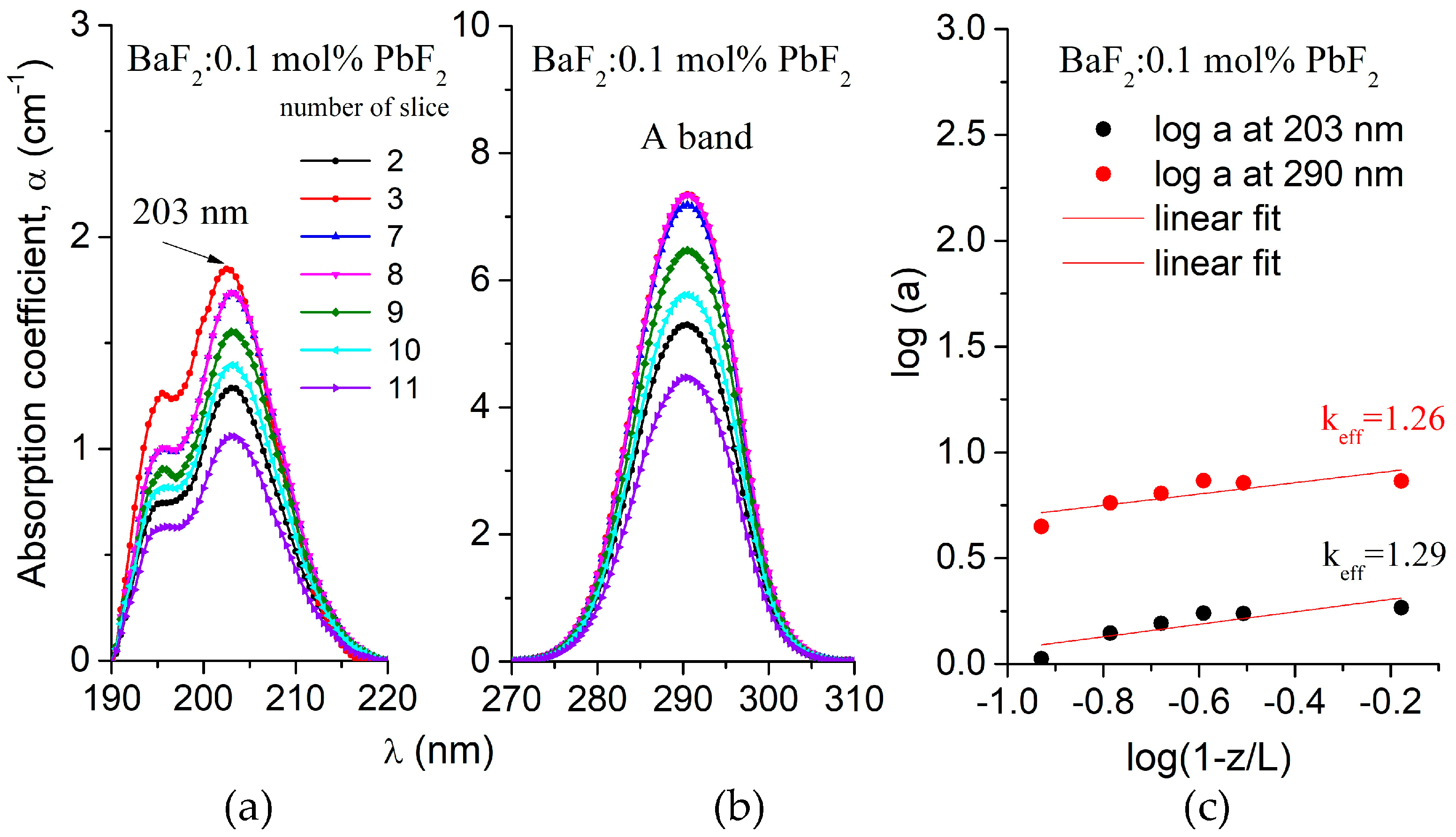

Figure 8. (a) Optical absorption spectra (D band) of various slices at different positions in the crystal defined by g = z/L; (b) a band of the slices cleaved from BaF2:0.1 mol% PbF2 crystal; (c) fitting lines of log α(z) vs. log (1 − g) in order to calculate the effective distribution coefficient.
Figure 8. (a) Optical absorption spectra (D band) of various slices at different positions in the crystal defined by g = z/L; (b) a band of the slices cleaved from BaF2:0.1 mol% PbF2 crystal; (c) fitting lines of log α(z) vs. log (1 − g) in order to calculate the effective distribution coefficient.
Crystals 13 00659 g008
Crystals 13 00659 g009 550

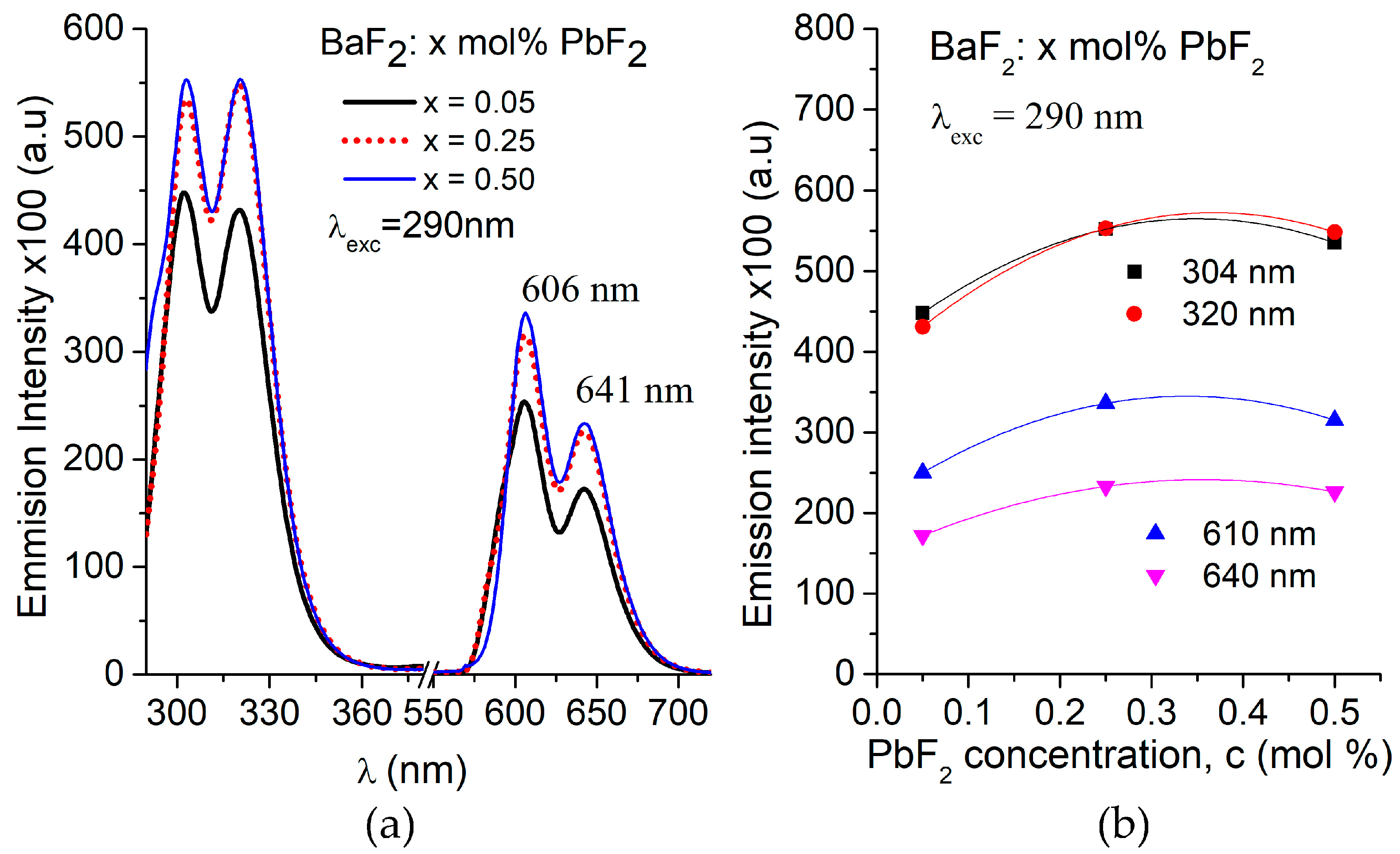

Figure 9. (a) Emission spectra of the studied samples under excitation in A band (290 nm); (b) dependence of the emission intensities on the PbF2 concentration for the emission in the UV domain and the visible domain.
Figure 9. (a) Emission spectra of the studied samples under excitation in A band (290 nm); (b) dependence of the emission intensities on the PbF2 concentration for the emission in the UV domain and the visible domain.
Crystals 13 00659 g009
Crystals 13 00659 g010 550

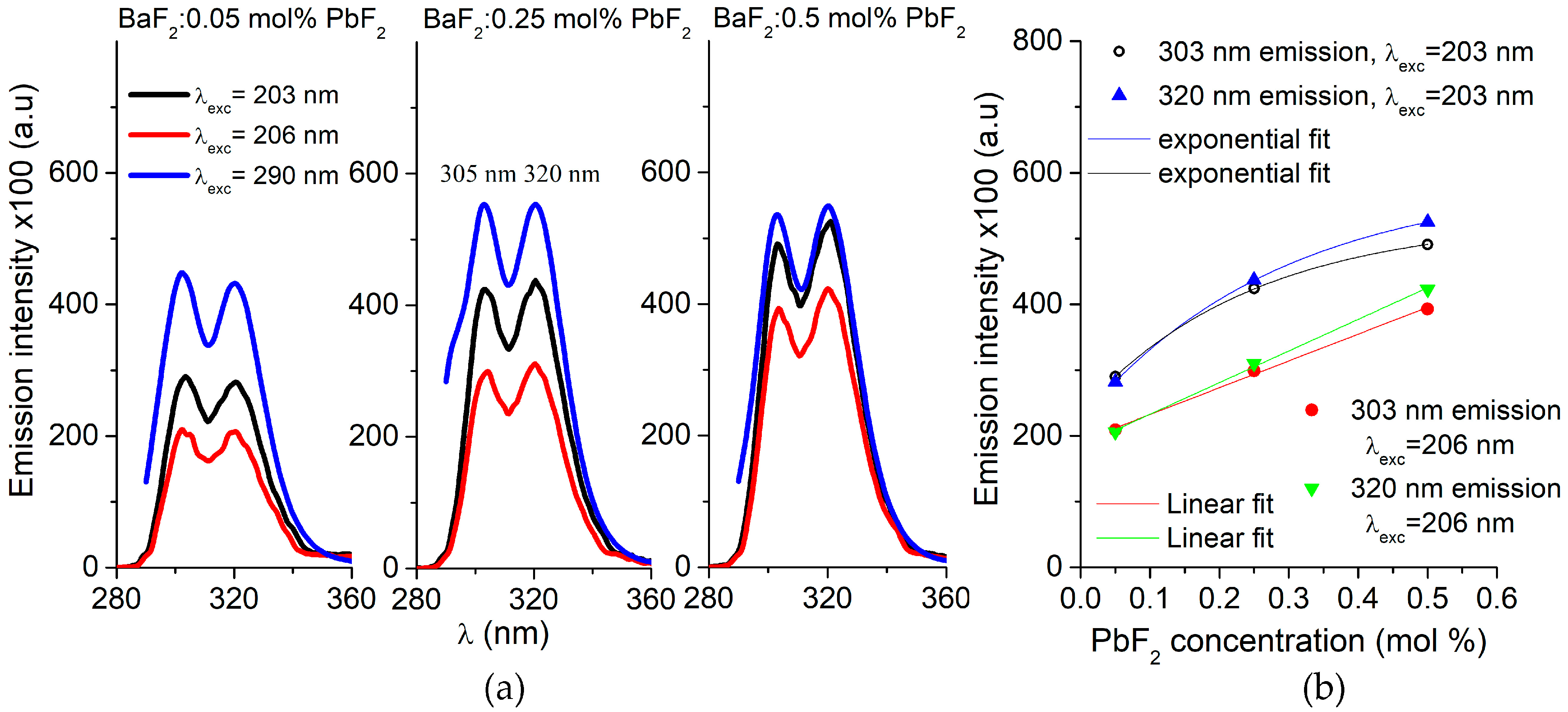

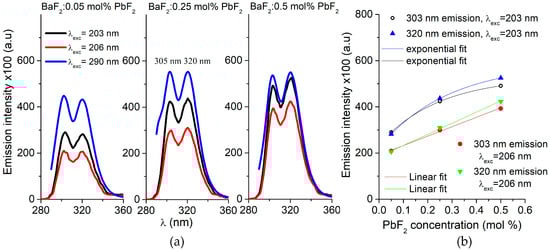

Figure 10. (a) Influence of the excitation wavelengths, λexc = 203, 206, 290 nm, on emission intensity for three PbF2 concentrations; (b) dependence of the emission intensity on the PbF2 concentration for two excitation wavelengths, λexc = 203, 206 nm.
Figure 10. (a) Influence of the excitation wavelengths, λexc = 203, 206, 290 nm, on emission intensity for three PbF2 concentrations; (b) dependence of the emission intensity on the PbF2 concentration for two excitation wavelengths, λexc = 203, 206 nm.
Crystals 13 00659 g010
Crystals 13 00659 g011 550

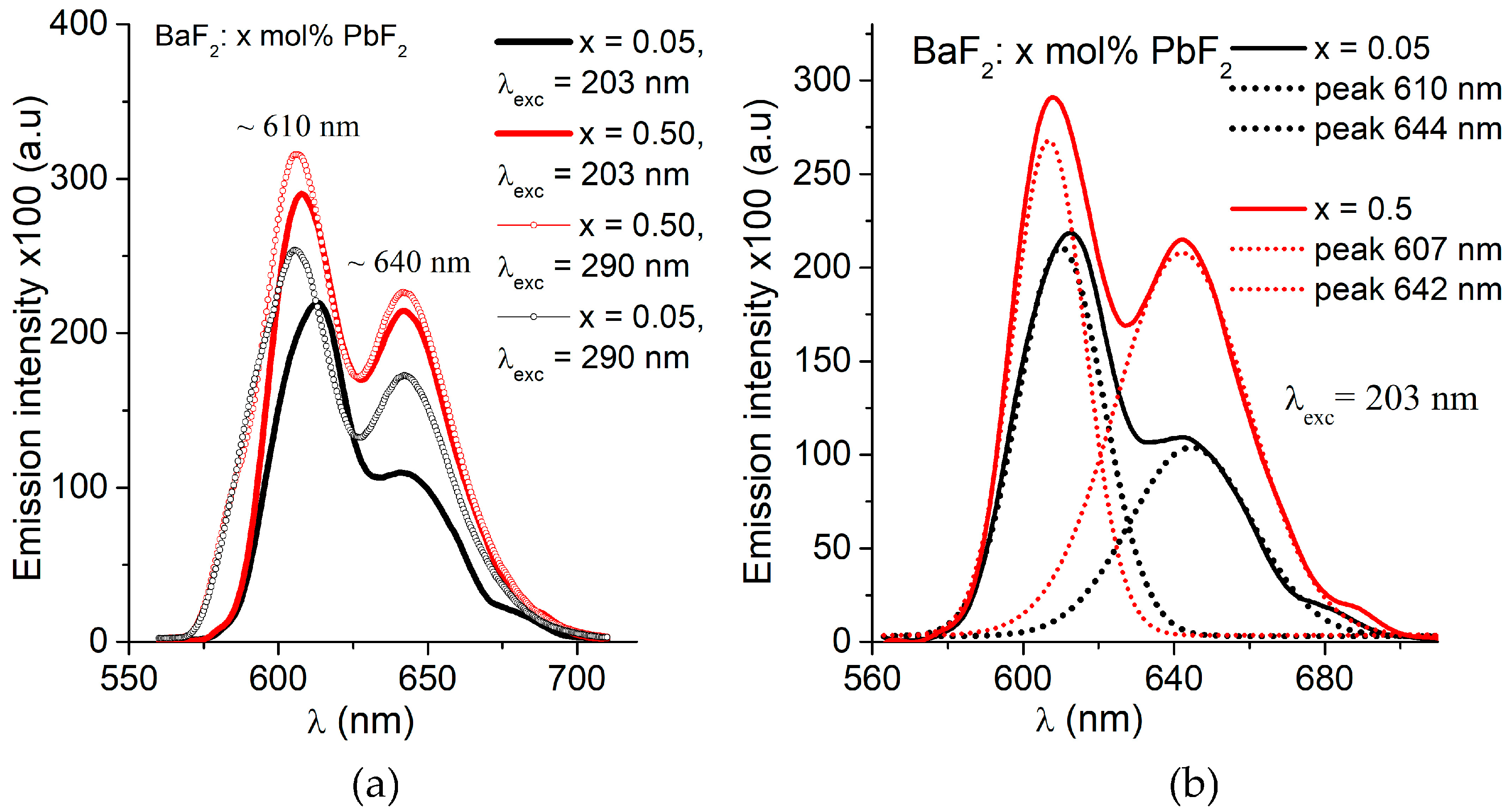

Figure 11. (a) Influence of the excitation wavelengths, λexc = 203 nm and 290 nm, on emission intensity in the visible domain for two PbF2 concentration samples; (b) Gaussian multi-peak fitting of the emission band in the visible domain, for two samples, by excitation at λexc = 203 nm.
Figure 11. (a) Influence of the excitation wavelengths, λexc = 203 nm and 290 nm, on emission intensity in the visible domain for two PbF2 concentration samples; (b) Gaussian multi-peak fitting of the emission band in the visible domain, for two samples, by excitation at λexc = 203 nm.
Crystals 13 00659 g011
Crystals 13 00659 g012 550

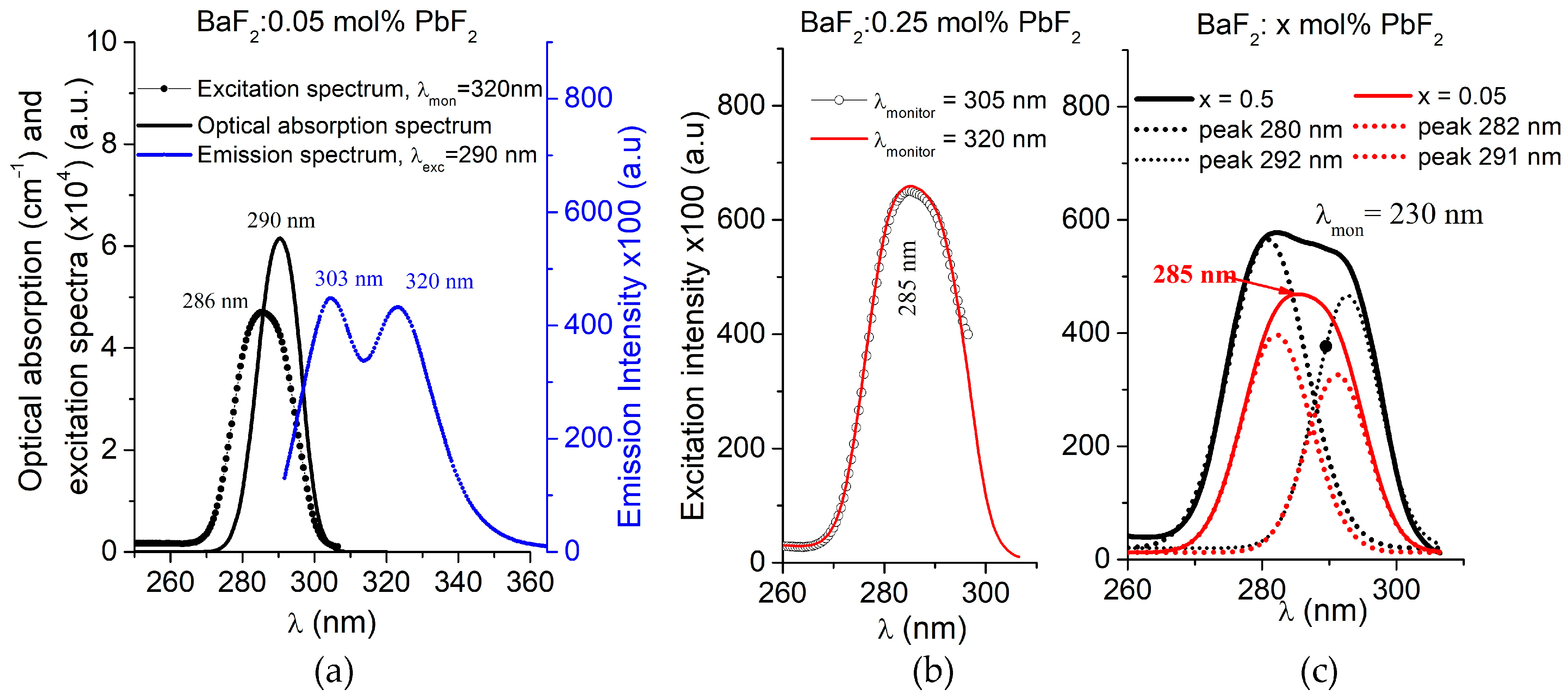

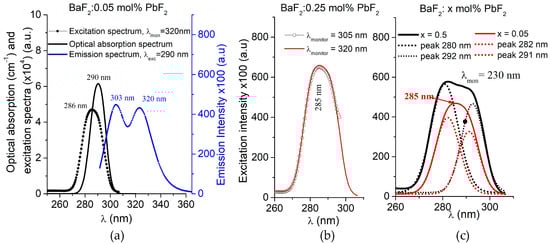

Figure 12. (a) Optical absorption spectrum, the excitation spectrum monitored for the 320 nm emission peak and the emission spectrum under excitation in the A band (290 nm) is also shown; (b) excitation spectra of BaF2:0.25 mol% PbF2 sample monitored for 305 nm and 320 nm emission peaks; (c) Gaussian multi-peak fitting of the excitation spectra (λmonitor = 320 nm) of two samples with different PbF2 content.
Figure 12. (a) Optical absorption spectrum, the excitation spectrum monitored for the 320 nm emission peak and the emission spectrum under excitation in the A band (290 nm) is also shown; (b) excitation spectra of BaF2:0.25 mol% PbF2 sample monitored for 305 nm and 320 nm emission peaks; (c) Gaussian multi-peak fitting of the excitation spectra (λmonitor = 320 nm) of two samples with different PbF2 content.
Crystals 13 00659 g012
Table
Table 1. Dislocation density.
Table 1. Dislocation density.
BaF2: x mol% PbF2BaF2x = 0.1x = 0.25x = 0.5
Dislocation density
(×104 disloc./cm2)		8.59.86.13.2
Table
Table 2. Maxima of the optical absorption bands of BaF2: x mol% PbF2 crystals as a result of the absorption spectra and by Gaussian multi-peak fitting *.
Table 2. Maxima of the optical absorption bands of BaF2: x mol% PbF2 crystals as a result of the absorption spectra and by Gaussian multi-peak fitting *.
BaF2: x
mol% PbF2		A Band (nm)
A1 A2		D Band (nm)
D1 D2		E Band
(nm)
x = 0.5290.5
(289.2; 295.2) *		203.2
(202; 207.4) *		194.5 *
x = 0.25290.5
(289.4; 295) *		203.1
(202; 207.3) *		194.5 *
x = 0.1290.5
(289.6; 295.1) *		203.1
(202.4; 207.8) *		194.6 *
x = 0.05290.3
(289.4; 295) *		203.6
(203.4; 208.4) *		194
Table
Table 3. Maxima of the optical absorption bands of CaF2:0.5 mol% PbF2 and BaF2:0.5 mol% PbF2 crystals as a result of the absorption spectra and by Gaussian multi-peak fitting *.
Table 3. Maxima of the optical absorption bands of CaF2:0.5 mol% PbF2 and BaF2:0.5 mol% PbF2 crystals as a result of the absorption spectra and by Gaussian multi-peak fitting *.
SampleA (nm)
Band		C (nm)
Band		D (nm)
Band		E (nm)
Band
CaF2:0.5
mol% PbF2		306.3
(305; 307) *		243.6
(243.5; 230.6) *		206.1
(203.8; 207) *		195
BaF2:0.5
mol% PbF2		290.5
(289.2; 295.2) *		 203.2
(202; 207.4) *		194.5 *
Table
Table 4. Calculated effective segregation coefficient of BaF2: x mol% PbF2 crystals.
Table 4. Calculated effective segregation coefficient of BaF2: x mol% PbF2 crystals.
Concentration of PbF2
(x mol%)		x = 0.05x = 0.1x = 0.25x = 0.5
290 nm203 nm290 nm203 nm290 nm
keff1.331.341.261.292.41.24
Crystal length, L (mm)39.546.3446.3455.95
The number of monitored slices8101215
Table
Table 5. The components of the optical absorption A band, the excitation A band components monitored for the 320 nm emission peak, and the UV emission under excitation in the A band (290 nm) 1.
Table 5. The components of the optical absorption A band, the excitation A band components monitored for the 320 nm emission peak, and the UV emission under excitation in the A band (290 nm) 1.
BaF2:
x mol PbF2		A Band AbsorptionA Band Excitation
(λmon = 320 nm)		A Band Emission
(λexc = 290 nm)		Stokes Shift
nmcm−1nmcm−1nmcm−1cm−1
x = 0.05289.434,554282.135,448302.233,0902358
29533,898291.134,352320.531,2013151
x = 0.1289.634,544282.935,34830233,1122236
295.133,891290.534,423320.231,2303193
x = 0.25289.434,554281.935,473303.132,9922481
29533,898291.934,258320.831,1723086
x = 0.5289.234,561280.835,612303.232,9812631
295.233889292.734164320.2312302934
1 Data are from Gaussian multi-peak fitting of the bands.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Buse, G.; Stef, M.; Nicoara, I. Spectroscopic Properties of Pb2+-Doped BaF2 Crystals. Crystals 2023, 13, 659. https://doi.org/10.3390/cryst13040659

AMA Style

Buse G, Stef M, Nicoara I. Spectroscopic Properties of Pb2+-Doped BaF2 Crystals. Crystals. 2023; 13(4):659. https://doi.org/10.3390/cryst13040659

Chicago/Turabian Style

Buse, Gabriel, Marius Stef, and Irina Nicoara. 2023. "Spectroscopic Properties of Pb2+-Doped BaF2 Crystals" Crystals 13, no. 4: 659. https://doi.org/10.3390/cryst13040659

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
