Synthesis, Crystal Structure of a Novel Mn Complex with Nicotinoyl-Glycine

Abstract

A novel manganese complex, C₁₆H₂₆MnN₄O₁₂, was synthesized by the reaction of nicotinoyl-glycine and NaOH in an ethanol/water solution and structurally characterized by elemental analysis, UV-vis spectrum, IR spectrum and single-crystal X-ray diffraction analysis. The crystal of the complex belongs to the triclinic space group P₁ with a = 7.8192(16) Å, b = 8.8800(18) Å, c = 9.0142(18) Å, α = 83.14(3)°, β = 65.27(3)°, γ = 81.67(3)°, V = 516.3(2) ų, Z = 1, Dx = 1.542 mg·m⁻³, μ = 0.66 mm⁻¹, F(000) = 271, and final R₁ = 0.0381, ωR₂ = 0.0964. The nicotinoyl-glycine ligand acts as a bridging ligand to connect the manganese ions by the hydrogen interactions; thus, the complex expands into a 3D supramolecular net structure.

1. Introduction

Coordination compounds, a class of newly developed porous inorganic-organic hybrid materials, have attracted much attention, due to their diverse and easily tailored structures [1,2,3,4,5], and their tremendous potential applications in nonlinear optics, catalysis, gas absorption, luminescence, magnetism and so on [6,7,8]. To obtain desired coordination compounds, hydrogen bonds, π-π interactions and Van der Waals interactions must be carefully considered [9]; also, the appropriate use of the well-designed multidentate nitrogen ligands and organic carboxylic acid ligands plays an important role in the synthesis of coordination compounds [10]. The hydrogen bond is an important element in coordination compounds. The strong and directional nature of hydrogen bonds is exploited in the organized self-assembly of molecules in solution and the solid state. Carboxylic acids and amides are two commonly used functional groups in crystal engineering because they generally form robust architectures via O–H…O and N–H…O hydrogen-bonded dimers [11].

In our experiment, we used nicotinoyl-glycine as a ligand. A manganese ion coordination polymer of this ligand was obtained and characterized by elemental analysis, IR, UV-vis and X-ray single-crystal diffraction analysis.

2. Results and Discussion

2.1. Elemental Analysis

The result of the elemental analysis showed that the symmetric unit of the Mn(II) coordination polymer is C₁₆H₂₆MnN₄O₁₂, indicating that the Mn(II) coordination compounds conform to a 1:2 metal-to-ligand stoichiometry.

2.2. Structural Description of C₁₆H₂₆MnN₄O₁₂ (1)

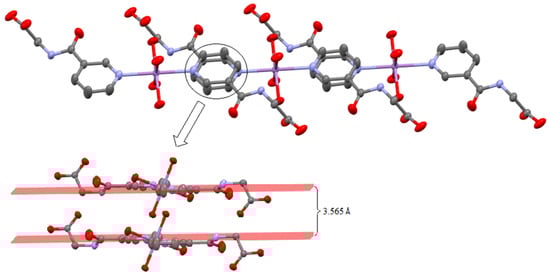

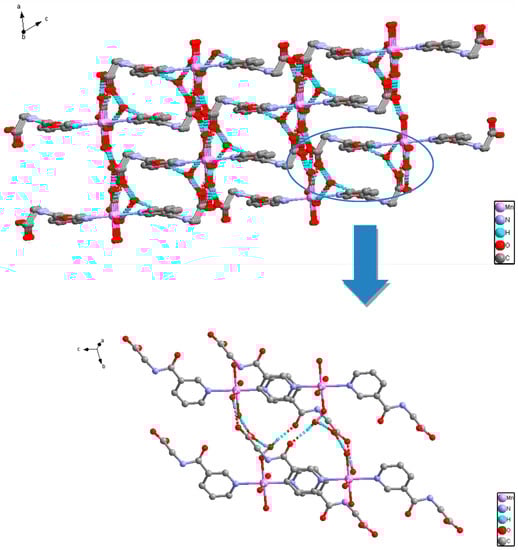

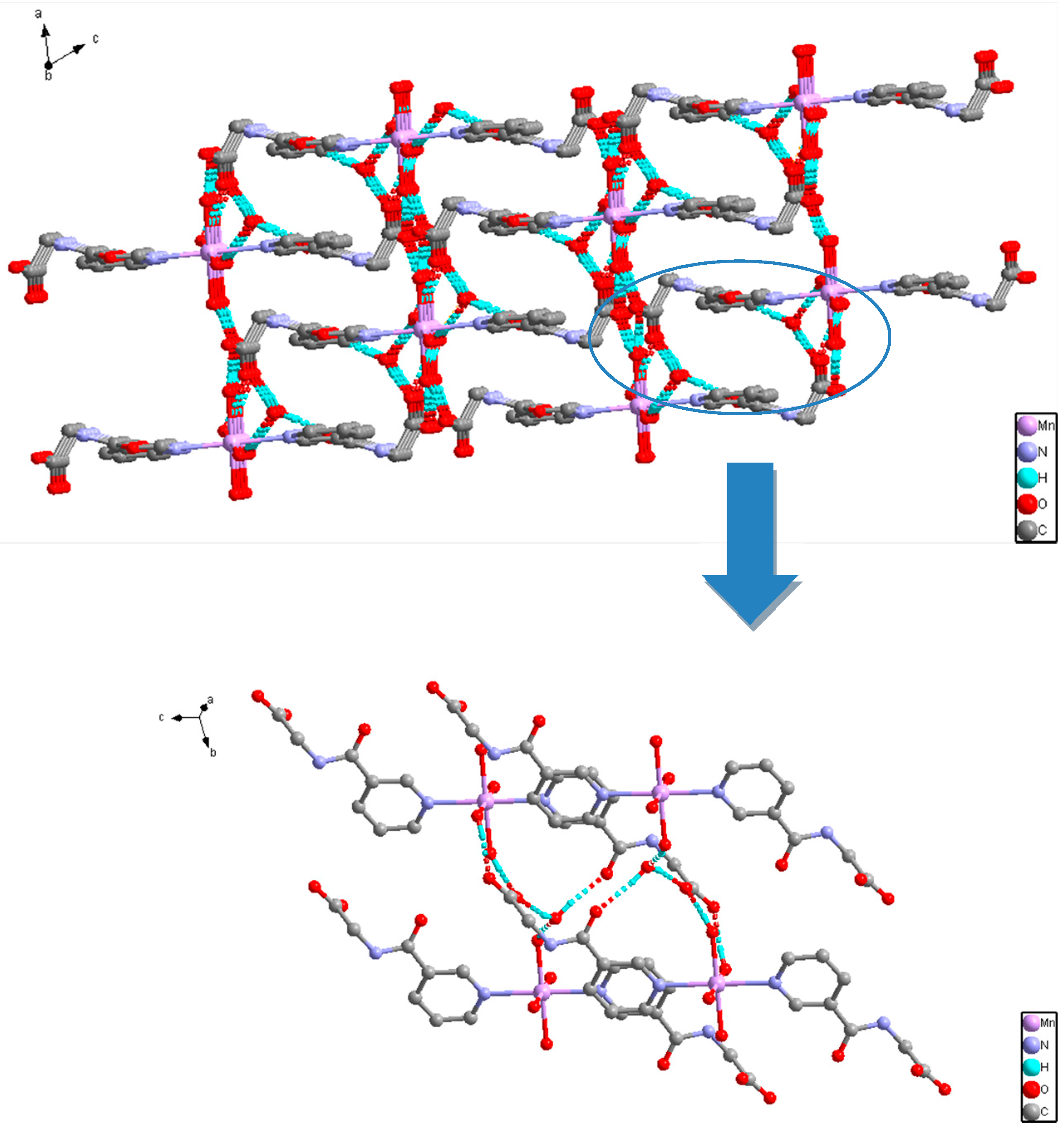

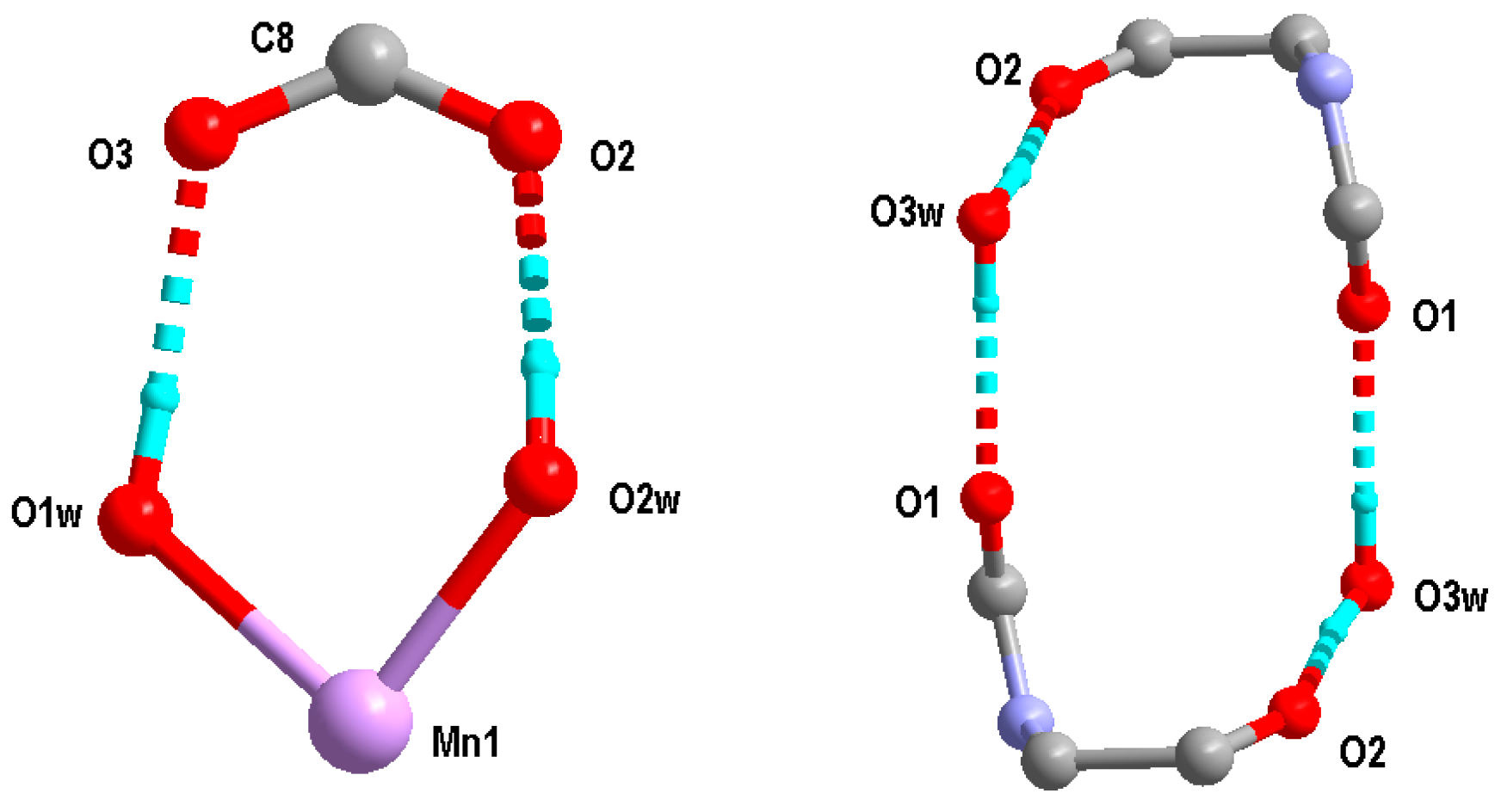

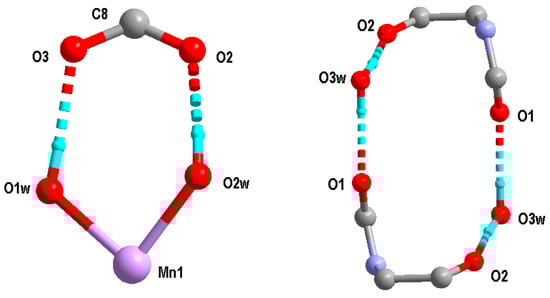

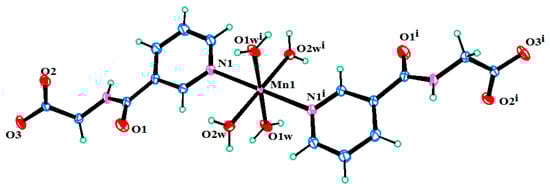

The result of the single-crystal X-ray diffraction revealed that complex 1 crystallizes in the triclinic space group P₁. The asymmetric unit consists of half a Mn(II) ion, one nicotinoyl-glycine ligand and two water molecules. The coordination environment of the manganese center is depicted in Figure 1. As shown in Figure 1, each manganese is octahedrally coordinated by two N atoms(N1, N1ⁱ) from two nicotinoyl-glycine ligands at the axial positions, and four O atoms(O1w, O1wⁱ, O2w, O2wⁱ) from four coordination water molecules in the equatorial plane. In complex 1, the nicotinoyl-glycine ligand acts as a bridge to connect two Mn (II) ions by hydrogen-bonding interactions. There are two kinds of element rings in the complex. The two oxygen atoms were linked by hydrogen-bonding interactions (O1w–H1wB…O3, O2w–H2wB…O2), and an element ring was formed. In addition, three oxygen atoms were linked by hydrogen-bonding interactions (O3w–H3wB…O2, O3w–H3wA…O1), and an element ring was formed as well. (Figure 2 shows the two kinds of element rings in the complex.) Furthermore, there are π-π stacking interactions (Figure 3) between the pyridine rings. The complex is extended to a 3D supramolecular net structure by the hydrogen-bond interactions and π-π stacking interactions. The 3D supramolecular net structure is shown in Figure 4. The main bond lengths (Å) and angles (°) for 1 are given in

Table 1. Selected bond lengths (Å) and angles (°) for 1.

Bond	Distance	Bond	Distance
Mn1–O1w	2.1309 (13)	O2–C8	1.241 (2)
Mn1–O1wi	2.1309 (13)	O3–C8	1.253 (2)
Mn1–O2w	2.1444 (13)	O3w–H3wB	0.851
Mn1–O2wi	2.1444 (13)	O3w–H3wA	0.8491
Mn1–N1	2.3489 (16)	N2–H2B	0.86
Mn1–N1i	2.3489 (16)	O1W–H1wB	0.8515
N1–C5	1.339 (2)	O1W–H1wA	0.8449
N1–C1	1.340 (3)	O1–C6	1.222 (2)
N2–C6	1.334 (2)	O2w–H2wA	0.8518
N2–C7	1.445 (2)	O2w–H2wB	0.8592
Angle		Angle
O1wi–Mn1–O2wi	90.01 (6)	O2w–Mn1–O2wi	180
O1w–Mn1–N1	90.58 (6)	O1wi–Mn1–N1	89.42 (6)
O2w–Mn1–N1	89.20 (6)	O2wi–Mn1–N1	90.80 (6)
O1w–Mn1–N1i	89.42 (6)	O1w–Mn1–N1i	90.58 (6)
O2w–Mn1–N1i	90.80 (6)	O2wi–Mn1–N1i	89.20 (6)
N1–Mn–N1i	180.00 (7)	O1–C6–N2	121.78 (16)
C5–N1–Mn1	121.76 (12)	O1–C6–C4	121.07 (16)
C1–N1–Mn1	121.05 (12)	N2–C6–C4	117.11 (15)
C6–N2–C7	121.44 (15)	N2–C7–C8	114.59 (14)
Mn1–O1w–H1wB	121.2	Mn1–O1w–H1wA	129.9

Symmetry code: (i) −x + 1, −y + 2, −z.

. The details of the hydrogen bond lengths and angles of the complex are given in

Table 2. Lengths (Å) and angles (°) of hydrogen bonds data for 1.

	Donor–H…Acceptor	D–H	H…A	D…A	∠D–H…A
1	O1w–H1wB…O3	0.85	1.82	2.6711 (5)	176
2	O1w–H1wA…O3	0.84	1.87	2.6882 (6)	163
3	O2w–H2wA…O3w	0.85	1.83	2.6718 (5)	169
4	O2w–H2wB…O2	0.86	1.81	2.6671 (6)	175
5	O3w–H3wB…O2	0.85	1.92	2.7589 (6)	167
6	O3w–H3wA…O1	0.85	1.89	2.7345 (6)	171
7	Intra C5–H5A…O1	0.93	2.50	2.8144 (6)	100

.

2.3. IR Spectrum

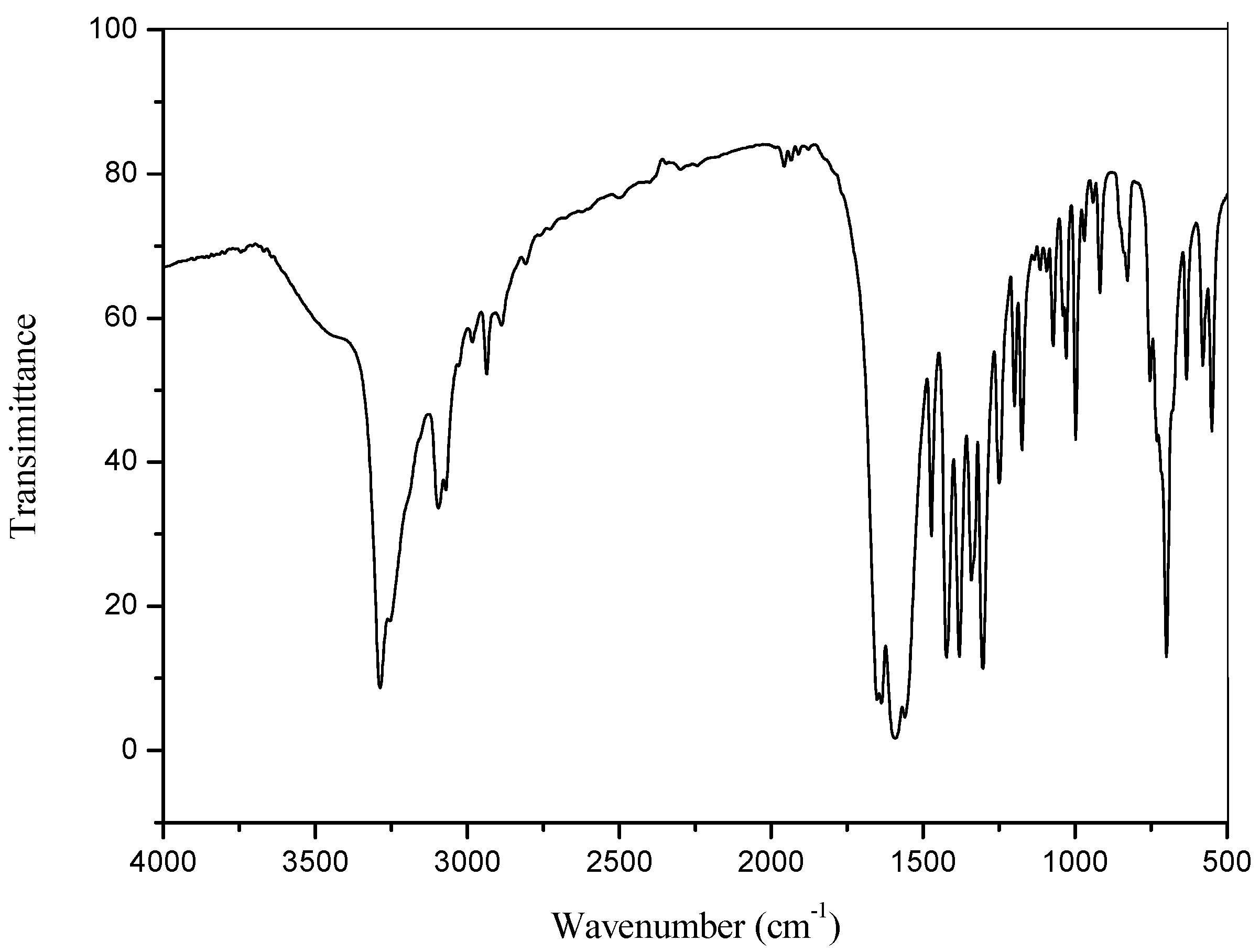

Figure 5 shows the IR spectrum of the Mn(II) complex. From Figure 5, the bond observed at 3250 cm⁻¹ is related to the N–H deformation stretching vibration [12,13,14], the asymmetrical stretching vibration and symmetrical stretching vibration of C–H in methylene at 2943 cm⁻¹ and 2882 cm⁻¹, respectively [15,16]. The symmetrical stretching vibration of C–N is at 1243 cm⁻¹. At 1297 cm⁻¹ is the characterized absorption peak of C–O [17,18]. In addition, 1601 cm⁻¹, 1553 cm⁻¹, 1547 cm⁻¹, 1466 cm⁻¹ are the characterized absorption peaks of pyridine [19,20,21]. The deformation stretching vibration of C=O is clearly seen at about 1650 cm⁻¹ in the IR spectrum of the complex which confirms the presence of an amidic moiety in the structure of the complex [22,23,24,25].

2.4. UV-Vis Spectrum

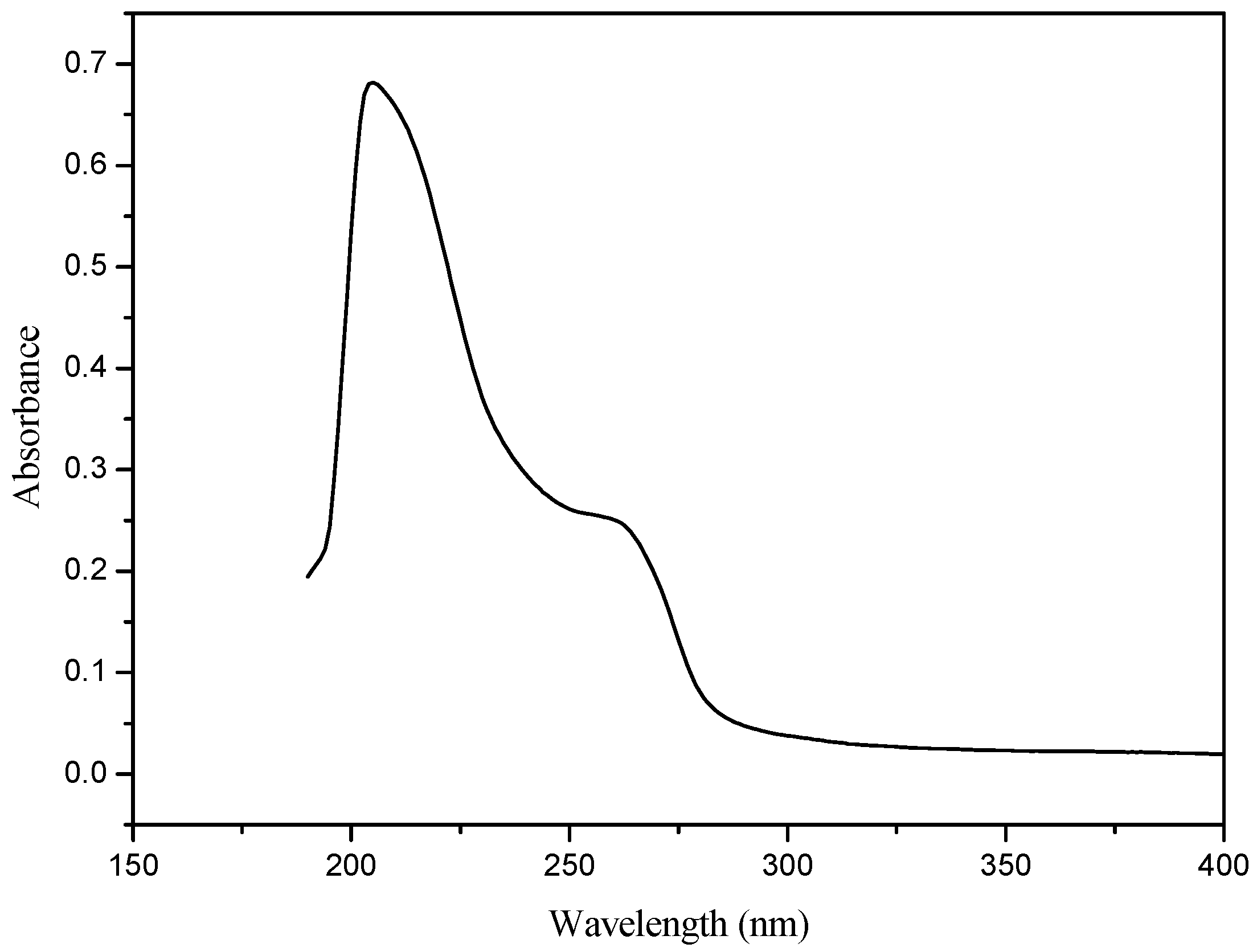

Figure 6 shows the UV-vis spectrum of the Mn(II) complex. From Figure 6, we can see the maximum absorption peak of the coordination compound at 201 nm. This indicates that there are large π-conjugated systems in the complex [26].

3. Experimental Section

3.1. Materials and Instrumentation

Nicotinoyl-glycine ligand, sodium hydroxide (NaOH) and solvents were purchased commercially and used without further purification. The IR spectrum was recorded in the range 4000–400 cm⁻¹ on a Infrared Spectrophotometer (Beijing Purkinje General Instrument, Beijing, China). Elemental analysis for carbon, hydrogen and nitrogen was performed on the Elementar Vario EL III elemental analyzer. UV-Vis spectrum was measured using UV-Visible Spectrophotometer (Beijing Purkinje General Instrument, Beijing, China). Single-crystal data of C₁₆H₂₆MnN₄O₁₂ were collected by a Bruker smart CCD diffractometer (Bruker, Billerica, MA, USA).

3.2. Synthesis of C₁₆H₂₆MnN₄O₁₂ (1)

A mixture of nicotinoyl-glycine ligand (180 mg, 1.0 mmol), and NaOH (40 mg, 1.0 mmol) were dissolved in 15 mL mixed solvents of water (H₂O):ethyl alcohol (CH₃CH₂OH) (v:v = 1:2). And the mixture was stirred for 6 h at 60 °C, then colorless crystals were collected and dried in the air.

3.3. Data Collection, Structural Determination, and Refinement

A colorless single crystal of the complex 1 with dimensions of 0.20 mm × 0.19 mm × 0.18 mm was selected and mounted on a glass fiber for data collection. The X-ray diffraction data were measured at 293(2) K on a Bruker smart CCD diffractometer with a graphite-monochromatized MoKα (λ = 0.71073 Å) radiation. The structure was solved by direct methods with SHELXL-97 [27] and refined on F² by full-matrix least-squares procedures with SHELXTL-97 [27]. The non-hydrogen atoms were located refined anisotropically, and hydrogen atoms were added according to theoretical models. The crystal data of 1 are given in

Table 3. Summary of crystal result for sodium complex.

Empirical Formula	C16H26MnN4O12
Temperature/K	293 (2)
Crystal system	Triclinic
Space group	P1
a/Å	7.8192 (16)
b/Å	8.8800 (18)
c/Å	9.0142 (18)
α/°	83.14 (3)
β/°	65.27 (3)
γ/°	81.67 (3)
Volume/Å3	561.3 (2)
Z	1
Dx (mg/m−3)	1.542
μ/mm−1	0.66
S	1.06
F(000)	271
Index ranges	−10 ≤ h ≤ 10
	−11 ≤ k ≤ 11
	−11 ≤ l ≤ 11
Reflections collected	5481
Reflections with I > 2σ(I)	2467
Independent reflections	2559 [R(int) = 0.027]
Data/restraints/parameters	2559/6/151
Goodness-of-fit on F2	1.061
Final R indexes [I ≥ 2σ(I)]	R1 = 0.0381, wR2 = 0.0964
Final R indexes [all data]	R1 = 0.0388, wR2 = 0.0969
Largest diff. peak/hole/e Å−3	0.41/−0.38

.

4. Conclusions

In this study, we successfully synthesized and structurally characterized the Mn(II) complex C₁₆H₂₆MnN₄O₁₂. The structural analyses show that the asymmetric unit of the mononuclear complex consists of half a manganese ion, one nicotinoyl-glycine ligand and two coordinated H₂O molecules. The nicotinoyl-glycine ligand is a bridging ligand that connects manganese ions by the hydrogen-bond interaction, so the complex expands to a 3D supramolecular net structure.
