Salts and Co-Crystalline Assemblies of Tetra(4-Pyridyl)Ethylene with Di-Carboxylic Acids

Abstract

Tetraarylethylene derivatives are emerging as an increasingly important family of supramolecular building blocks in both solution phase and the solid state. The utility of tetraarylethylenes stems from appealing structural features (rigidity and symmetry) and their propensity to exhibit aggregation induced emission (AIE). In an effort to investigate the luminescent sensing ability of heteroaromatic tetraarylethylenes, we previously prepared tetra(4-pyridyl)ethylene and characterized its solution phase AIE properties. We here report the successful incorporation of tetra(4-pyridyl)ethylene into three distinct salts and co-crystalline assemblies with three organic di-carboxylic acids (oxalic acid, malonic acid, and fumaric acid). Interactions between the tetra(pyridyl)ethylene and di-acid components were found to vary from conventional to charge-assisted hydrogen bonding according to the extent of proton transfer between the acid and pyridine groups. Notably, the formation of pyridinium-carboxylate adducts in the salts does not appear to be strongly correlated with acid pKa. Three distinct network topologies were observed, and all featured the bridging of two or three tetra(pyridyl)ethylene groups through di-acid linkers. Crystalline assemblies also retained the AIE activity of tetra(pyridyl)ethylene and were luminescent under UV light. As tetra(4-pyridyl)ethylene features four Lewis basic and potentially metal ligating pyridine rings in a relatively well-defined geometry, this compound represents an attractive building block for the design of additional crystalline organic and metal–organic functional materials.

1. Introduction

The design of functional crystalline materials has emerged as a principal objective of contemporary solid state supramolecular chemistry. It is envisioned that crystalline assemblies prepared from appropriate combinations of organic and/or metal–organic building blocks will afford functional materials that exhibit targeted bulk properties. Desirable bulk properties include inter alia porosity, catalysis, magnetism, conductivity, luminescence, and non-linear optical activity [1,2,3,4,5,6,7,8,9,10,11,12]. Of these targeted functions, the construction of porous crystalline materials has garnered considerable attention, in large part spurred by the desire to identify energy-related materials that can be potentially used for reversible gas storage [13,14,15].

A common strategy implemented in many crystal engineering approaches to functional materials aims to exploit well-defined elements of molecular recognition or metal ligating ability that are arranged in pre-defined patterns about rigid or semi-rigid organic building blocks to mediate supramolecular assembly. For example, aromatic polycarboxylic acids, such as terephthalic acid (1,4-benzene dicarboxylic acid), isophthalic acid (1,3-benzene dicarboxylic acid), and trimesic acid (1,3,5-benzene tricarboxylic acid), have provided a wealth of robust crystalline assemblies (both purely organic as well as metal–organic) with diverse properties [5,6,10]. Similarly, N-functionalized Lewis basic building blocks (such as bipyridine and related polypyridines) have proven to be valuable crystal engineering tools [16]. Benzene polycarboxylic acids, polypyridine derivatives, and related congeners offer predictable and geometrically defined supramolecular or metal ligating interactions. Consonant with this strategy, new rigid or semi-rigid organic architectures that can be decorated with hydrogen bonding and/or metal ligating moieties offer opportunities to expand the crystal engineering toolbox and further facilitate construction of additional functional materials.

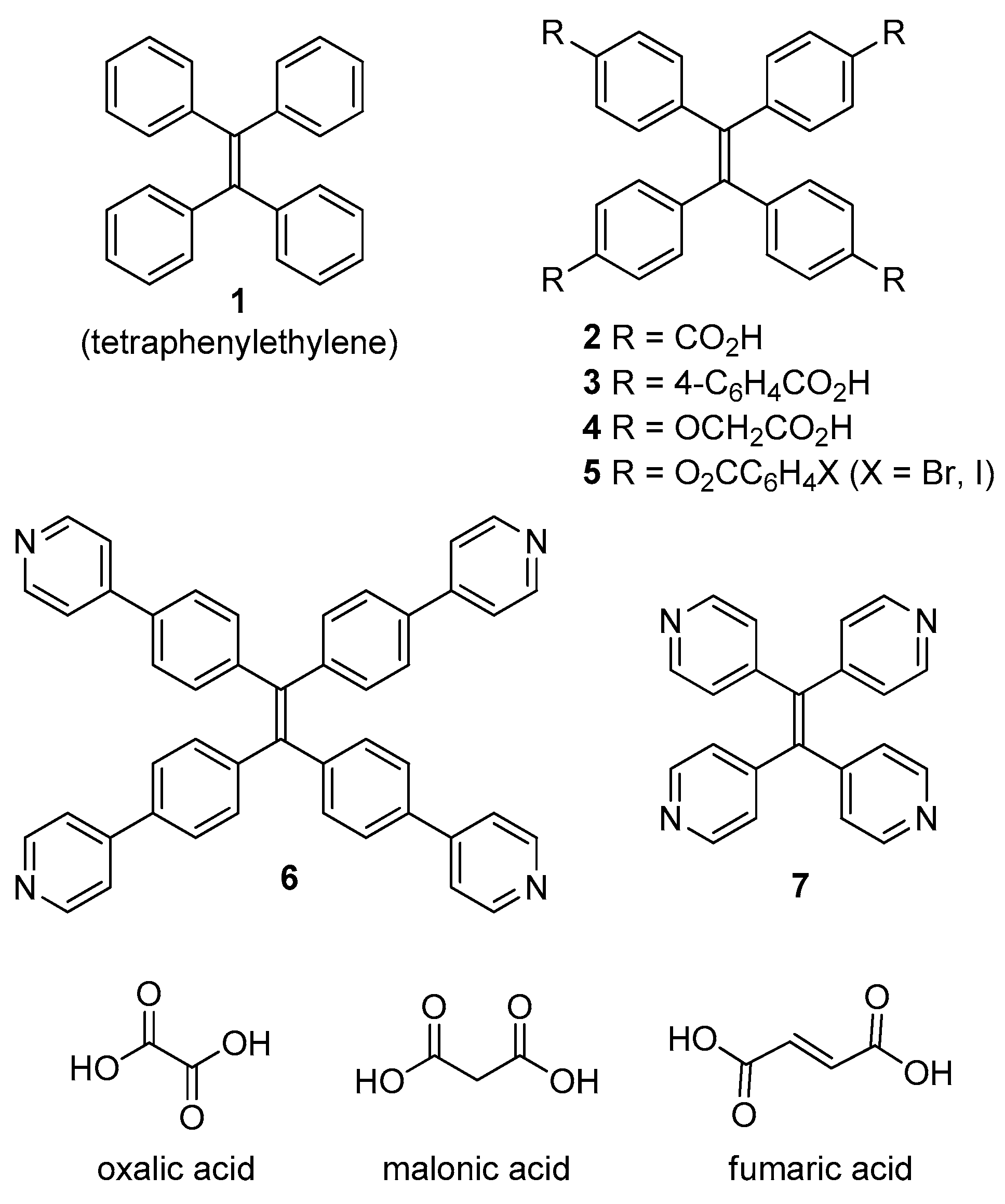

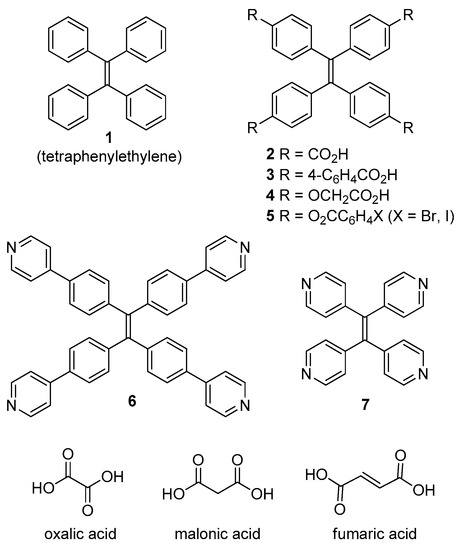

In this context, tetraarylethylenes represent an attractive platform for the construction of novel crystalline assemblies. The parent hydrocarbon tetraphenylethylene (1, Figure 1) and numerous substituted derivatives are known to exhibit the phenomenon of aggregation-induced emission (AIE) in which enhanced luminescence is observed upon the restriction of intramolecular bond rotations due to aggregation of tetraarylethylene molecules in solution (e.g., in the presence of poor solvents) or in the solid state [17,18]. This general property of tetraarylethylenes coupled with a geometrically appealing molecular structure has resulted in studies examining the utility of tetraarylethylene derivatives in solution phase and solid state supramolecular assembly processes, often with the aim of capitalizing on enhanced luminescence to deliver new optical or sensing materials [19,20]. Indeed, several crystalline luminescent metal organic frameworks (MOFs) have been prepared using the symmetrical tetraphenylethylene carboxylic acid (2) as well as the extended biphenylethylene analogue (3) as rigid metal ligating components [21,22,23,24,25,26,27,28,29,30,31,32,33,34,35]. Additionally, we have investigated the electrooptical properties of crystalline organic assemblies constructed from phenoxyacetic acid (4) and bis(pyridine) derivatives [36]. We have also characterized halogen bond-mediated self-assembly and luminescence in crystals of tetraphenylethylene halophenyl esters (5) [37]. The tetrapyridine derivative (6), featuring four pyridine units grafted onto the periphery of tetraphenylethylene [38], has also been utilized as a metal ligating component in several MOFs, as well as a ligand in dynamic solution phase metal–organic assemblies [39,40,41,42,43,44,45,46,47,48,49,50]. The solid state halogen bond accepting ability of 6 in combination with diiodoarene halogen bond donors has also been examined [51].

Recently, we have initiated research aimed at developing small-molecule sensors for select analytes based on the metal chelating ability of poly(pyridyl) tetraarylethylenes in which two or more phenyl rings in tetraphenylethylene have been replaced with pyridine groups [52,53,54]. During the course of these studies, we also prepared tetra(4-pyridyl)ethylene (7) and characterized its solution phase AIE luminescent properties [54]. This tetra(pyridine) derivative resembles its larger analogue 6 in that the four pyridine rings are oriented in more or less fixed positions about the central alkene linkage to provide geometrically well-defined Lewis basic sites that are available for intermolecular interactions. We envision that synthetic accessibility and desirable molecular features will render 7 a useful building block in a range of crystal engineering applications. In preliminary efforts to explore the solid state supramolecular chemistry of 7, we report here the structures of three crystalline networks between 7 and oxalic, malonic, and fumaric acids.

2. Materials and Methods

Tetra(pyridyl)ethylene (7) was synthesized as reported previously [54]. Co-crystals of 7 and the three dicarboxylic acids were obtained under similar conditions. A capped sample vial containing tetra(pyridine) 7 (33.6 mg, 0.1 mmol) and 0.2 mmol of the dicarboxylic acid in 6 mL of a 2:1 MeOH/acetone solution was heated in a 60 °C water bath for 1 h to obtain a homogeneous solution. The vial was then allowed to cool to room temperature. Slow evaporation of solvent under ambient conditions deposited X-ray quality single crystals. Diffraction data were collected on a Nonius Kappa CCD diffractometer (Bruker-Nonius, Delft, The Netherlands) equipped with Mo Kα radiation with λ = 0.71073 Å. Crystallographic data is shown in Table S1. Structures were solved by direct methods, and data were refined by full matrix least squares refinement of F² against all reflections. Supplementary crystallographic data for this paper can be found in CCDC 1590576-1590578. This data can be obtained free of charge from the Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/structures.

3. Results and Discussion

Tetra(pyridyl)ethylene (7) was prepared via double Suzuki coupling between 1,1-dibromo-2,2-bis(4-pyridyl)ethylene and 4-pyridyl boronic acid as described previously [54]. Initial attempts to prepare co-crystals involved mixing 7 with terephthalic or isophthalic acid in different solvents followed by slow evaporation, but crystalline materials were not deposited under these conditions. We speculate that the combined rigidity of 7 and the benzene dicarboxylic acids may not be compatible with efficient crystal nucleation and growth. Consequently, we selected linear acyclic dicarboxylic acids as crystallization partners with the expectation that the smaller size and greater flexibility of these acids may be conducive to co-crystallization with 7. Gratifyingly, slow evaporation of methanol/acetone solutions containing 2:1 ratios of di-acid/7 yielded crystalline salts or co-crystalline assemblies. Of the simple di-acids screened in this study, X-ray quality single crystals were obtained from 7 and oxalic, malonic, and fumaric acids, while microcrystalline powders unsuitable for X-ray analysis were obtained from succinic, glutaric, and adipic acids.

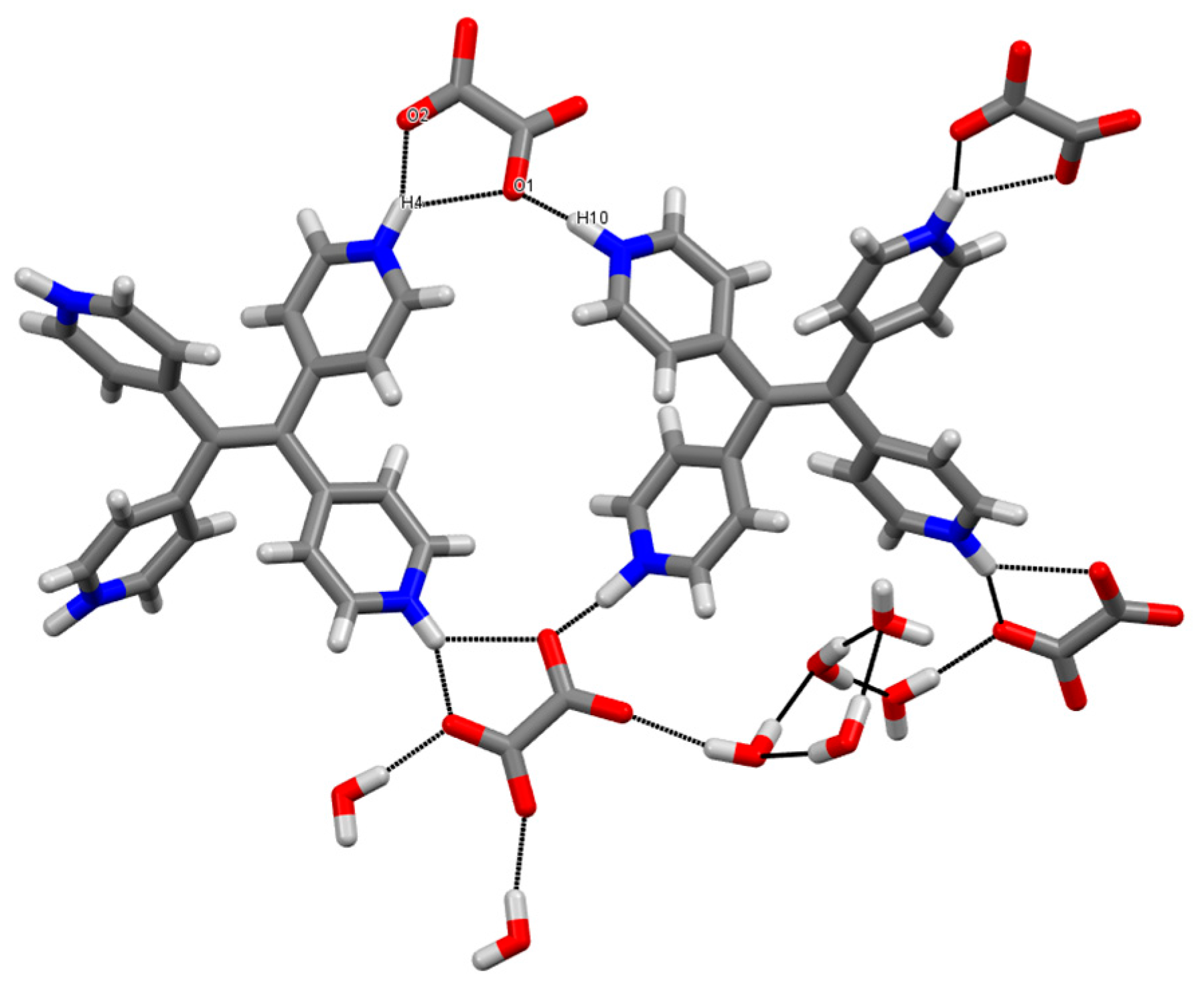

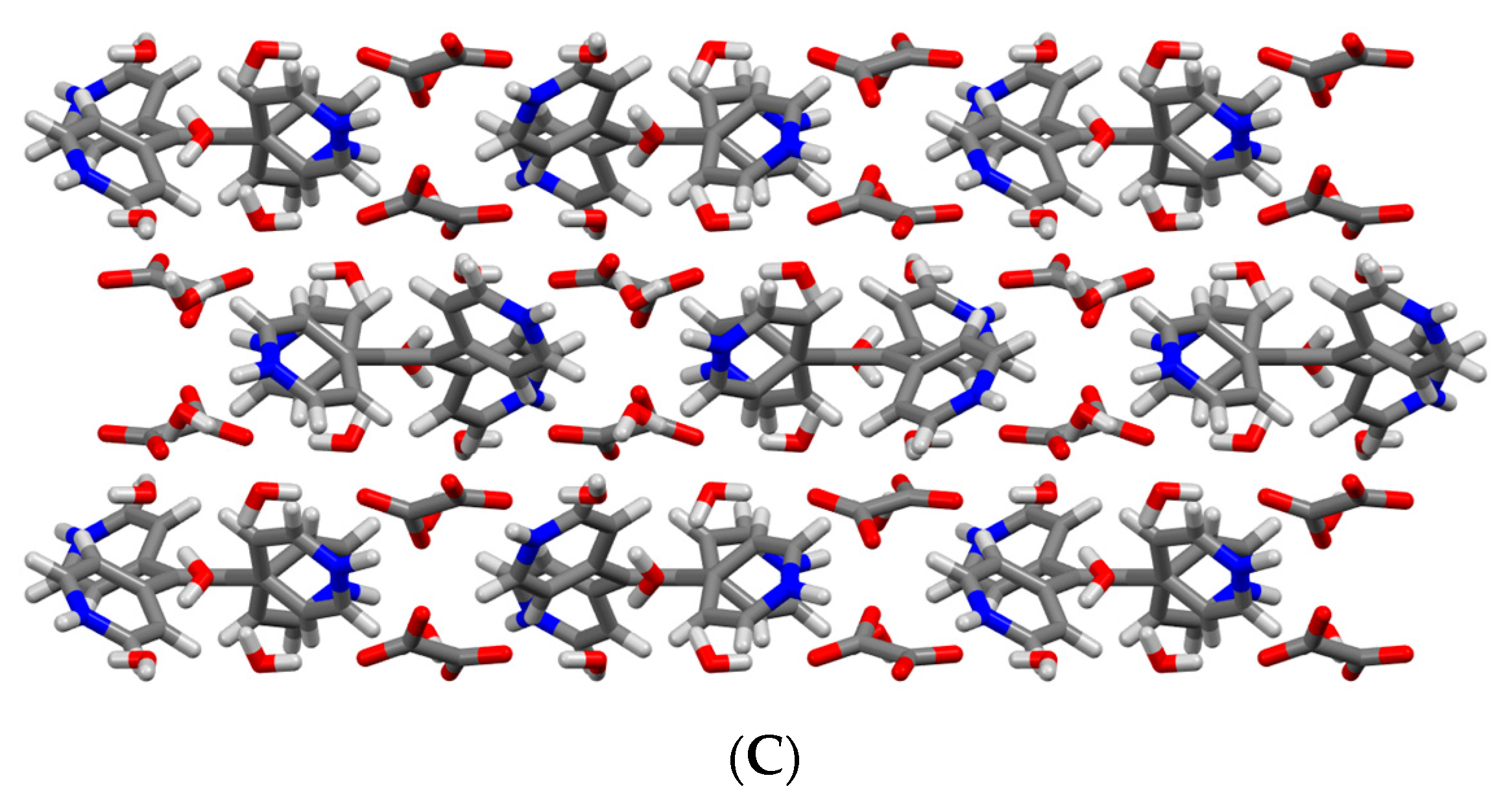

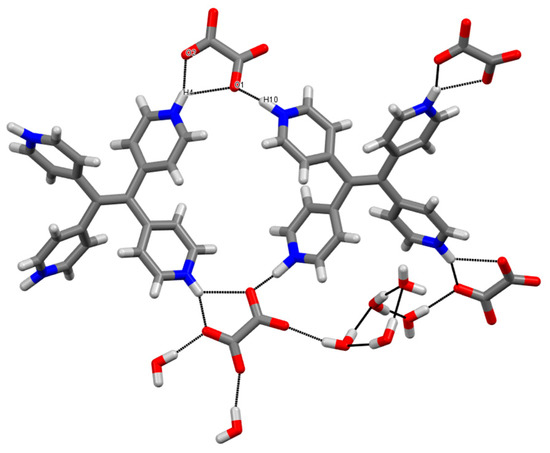

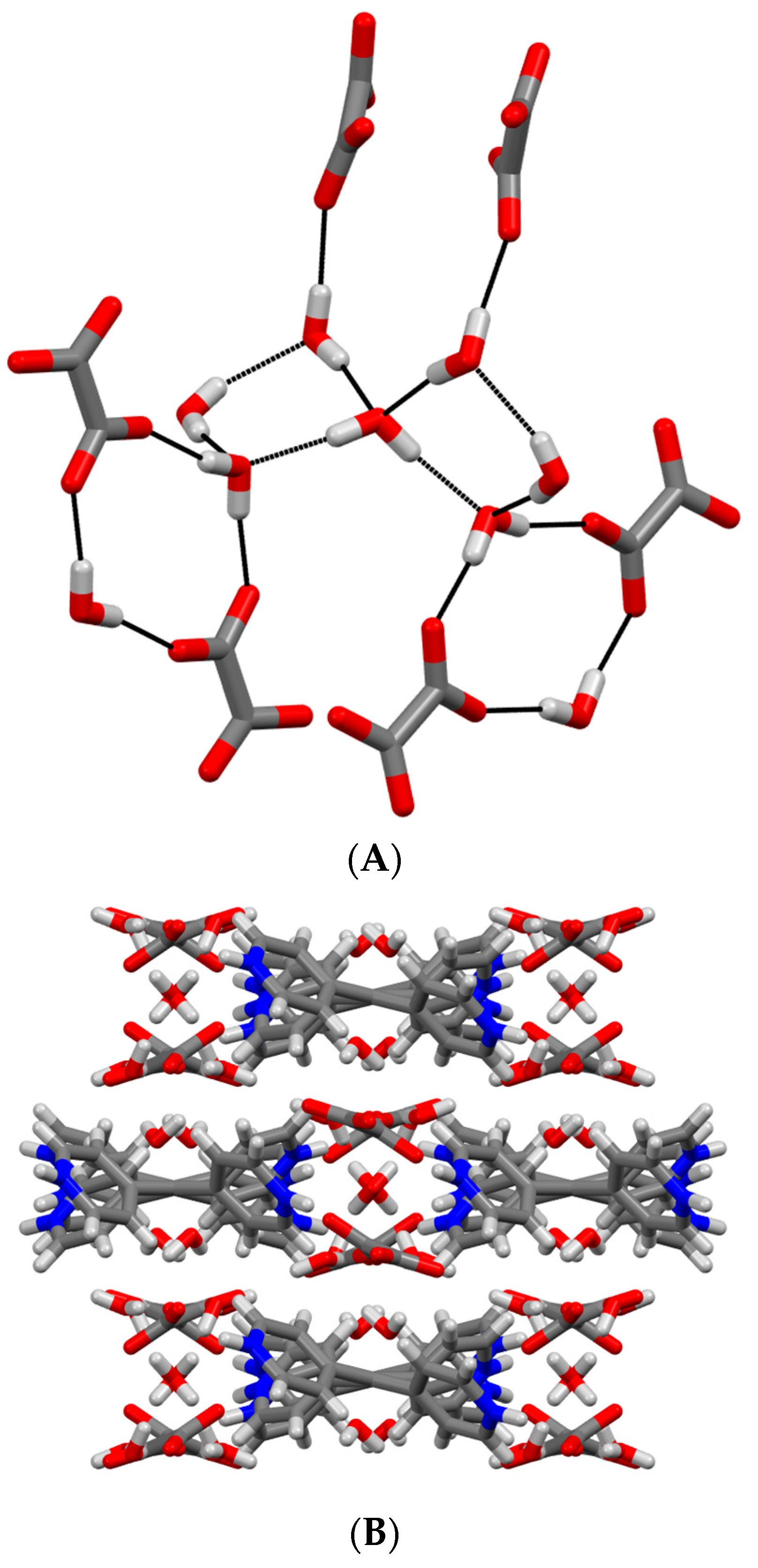

Crystals of 7 (oxalic acid)₂ were formed with a 2:1 ratio of oxalic acid/7 along with seven H₂O molecules of hydration. Crystallographic data is provided in Table S1. The asymmetric unit is comprised of one molecule of oxalic acid, 0.5 molecules of 7, and 3.5 H₂O molecules. The C–O bond lengths in the oxalic acid component are all comparable and range from 1.288 to 1.219 Å, indicative of doubly deprotonated oxalate(2-) anions. Each pyridine group has been converted to a protonated pyridinium cation as evidenced by intra-annular N–C–N angles of ~121°. These angles are significantly larger than comparable bond angles found in neutral pyridines (typically ~116°) [55]. Oxalate and pyridinium groups are connected through a network of charge-assisted hydrogen bonds as shown in Figure 2. One pyridinium group engages oxalate in a bifurcated H-bonding interaction, but the H4–O2 distance is much shorter than the H4–O1 distance (1.806 Å and 2.319 Å, respectively). The O1 oxygen of oxalate is also involved in a second strong H-bonding interaction with H10 of a neighboring molecule of 7 that serves to bridge two tetraarylethylenes (H10–O1 d = 1.474 Å). Individual molecules of 7 adopt a propeller-like conformation typical of tetraarylethylenes [17]. The oxalate ions are further linked through an extensive network of H-bonds emanating from discrete T4(1) water tetramers (Figure 3A) [56]. Hydrogen bond distances from H₂O to oxalate and among H₂O molecules range from 1.833 to 2.080 Å. Two views of the extended packing are illustrated in Figure 3B,C. Figure 3B shows the view down c in which offset stacked columns of alternating bridged tetra(pyridinium)ethylenes are separated by oxalate–water clusters, while Figure 3C depicts the packing down b.

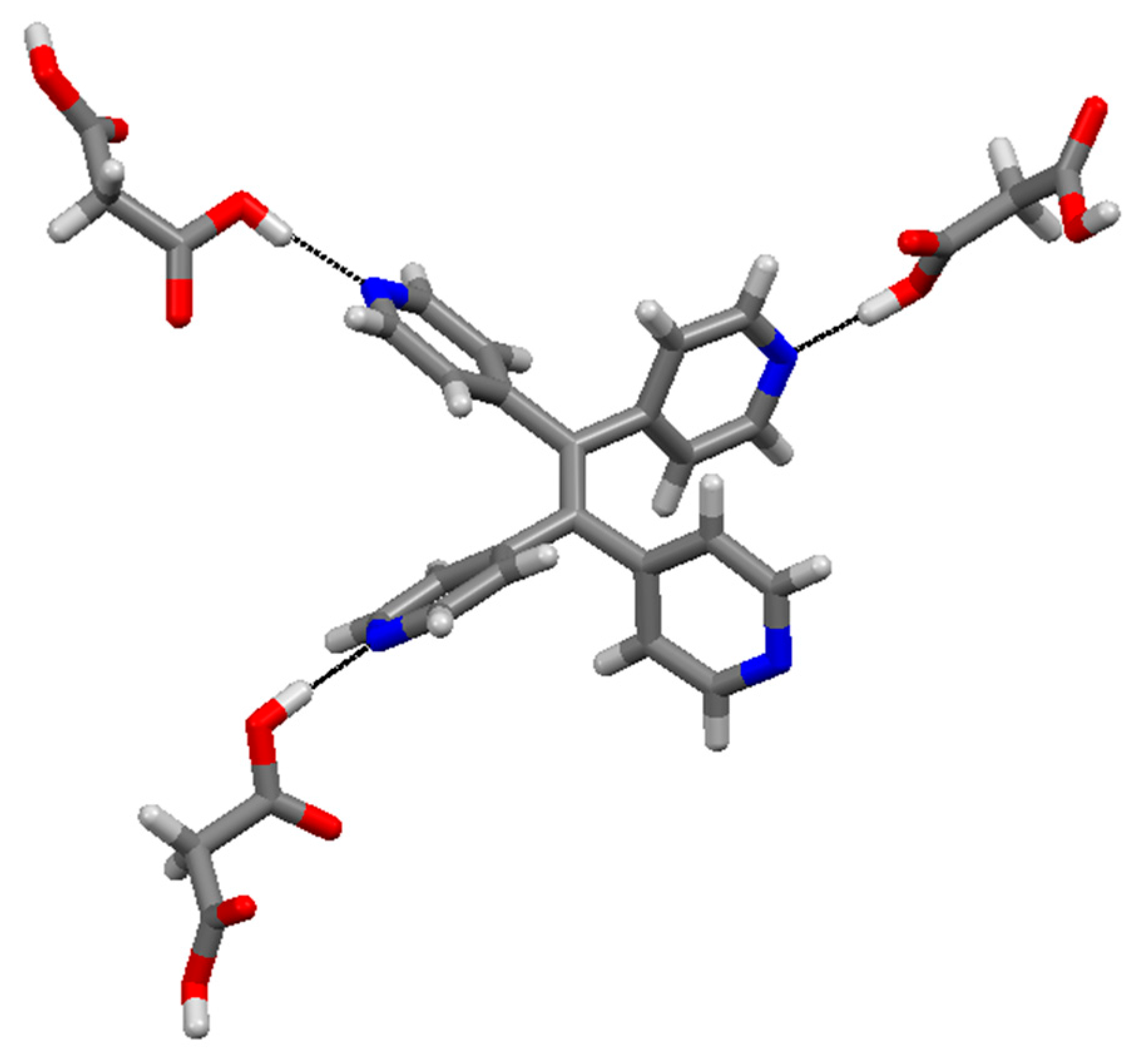

The structure of 7 (malonic acid)_1.5 exhibits significantly different features compared to the oxalic acid salt described above. First, solvate-free close-packed crystals were obtained in stoichiometry consisting of one molecule of 7 and 1.5 molecules of malonic acid (crystallographic data is provided in Table S1). The malonic acid groups are present as neutral carboxylic acids (rather than carboxylate anions as observed for oxalic acid). This is clearly evident by differences in the two C–O bond lengths in each carboxylic acid unit (1.202 + 1.309 Å; 1.203 + 1.314 Å; 1.202 + 1.306 Å). Each unique carboxylic acid residue engages a pyridine ring of 7 in a conventional (neutral) hydrogen bonding interaction (Figure 4, H–N distances range from 1.685 to 1.847 Å, O–N distances 2.655–2.680 Å). The fourth pyridine ring of 7, however, does not participate in any H-bonding interactions. Evidence that the pyridines are acting as H-bond acceptors (and not as pyridinium H-bond donors) is further provided by the intra-annular C–N–C angles (which range from 116.91 to 117.69°) [55]. These angles are similar to the angle found in the remaining non-H-bonded pyridine (115.93°) and are significantly smaller than the analogous angles found in tetra(pyridinium)ethylene described above.

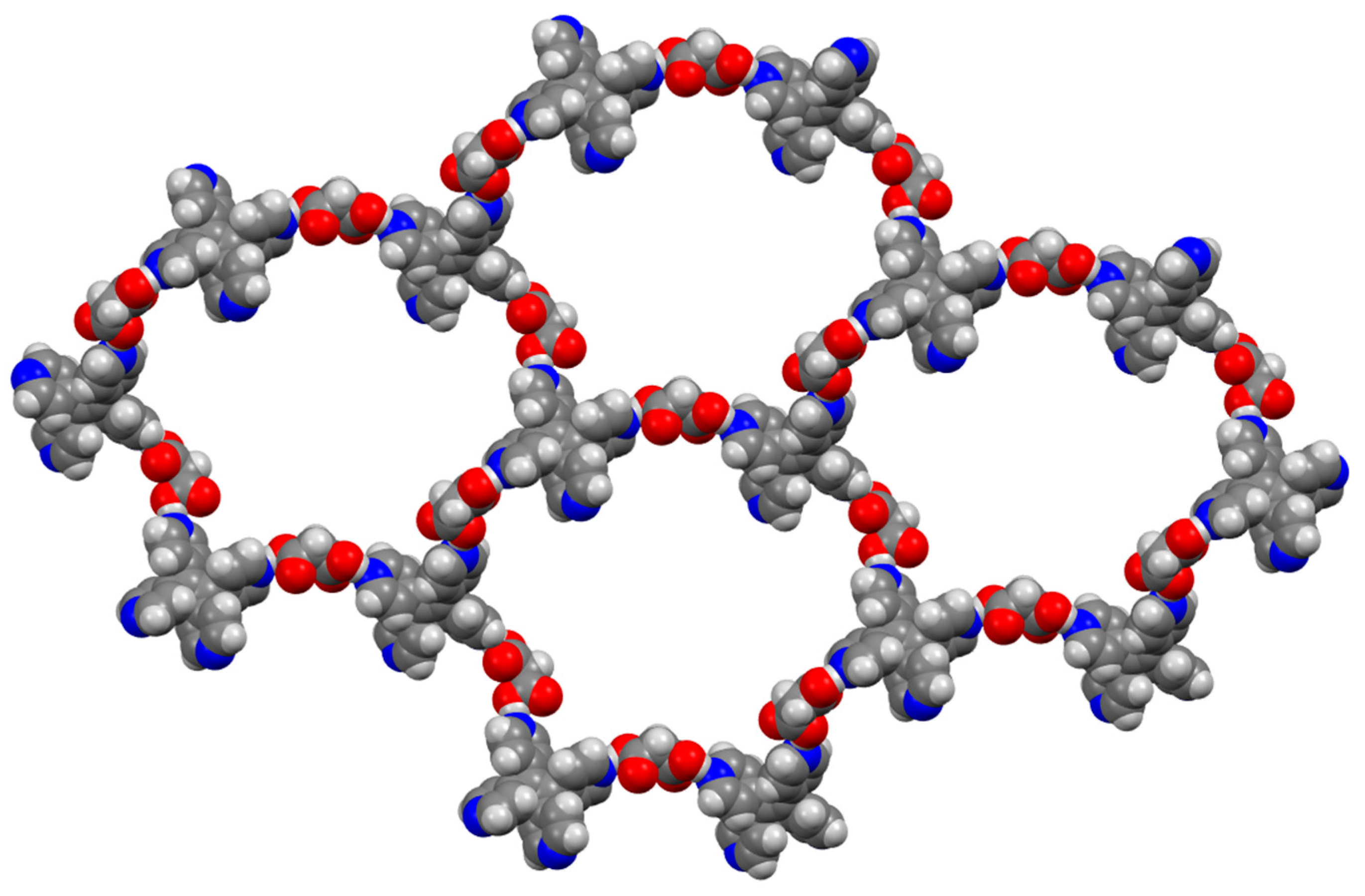

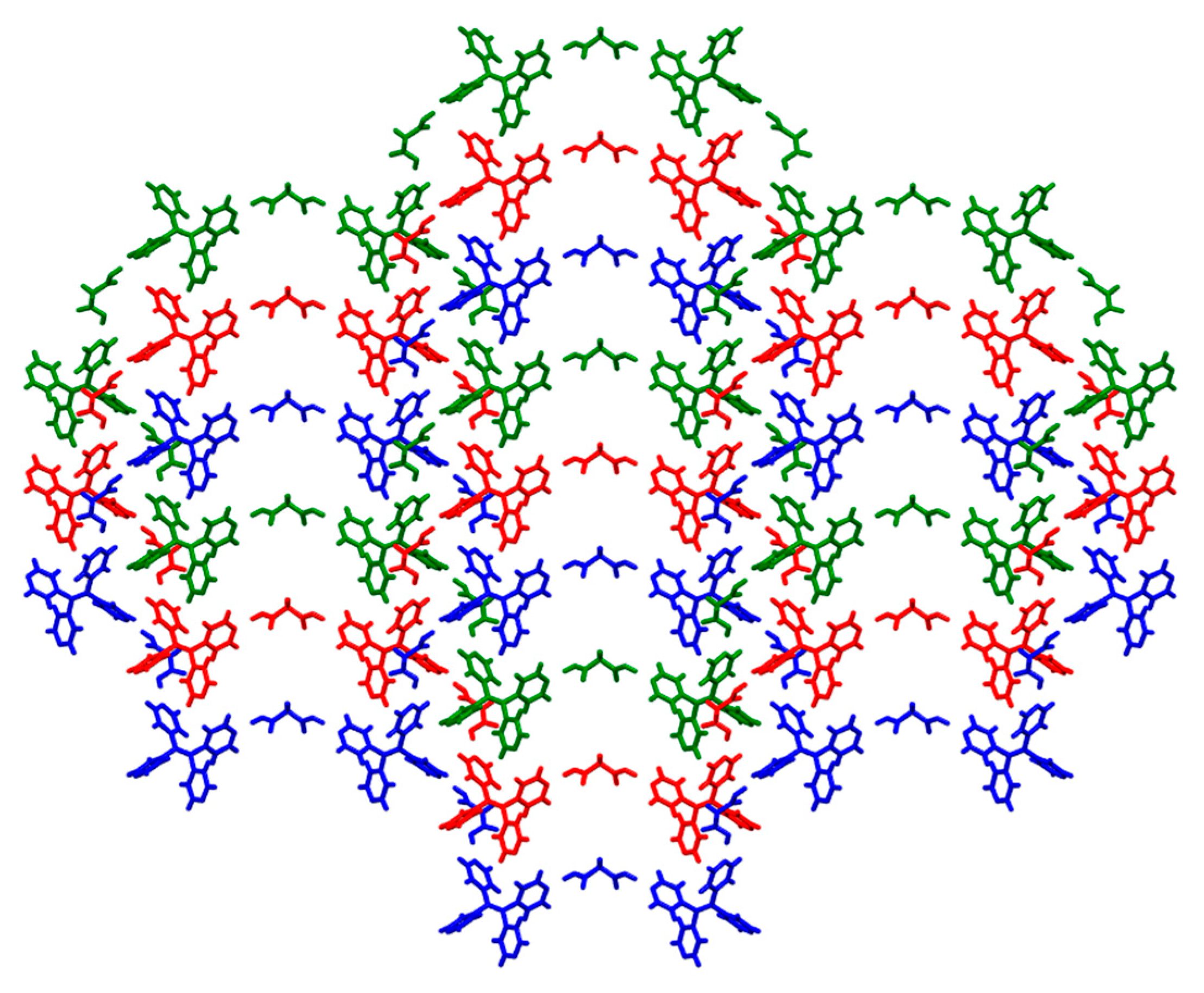

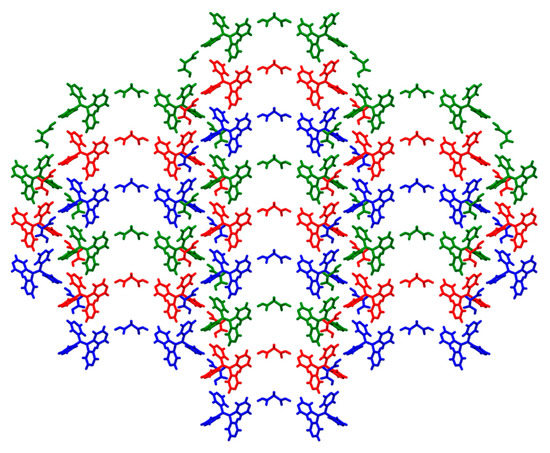

The structural topology observed in co-crystals of 7 (malonic acid)_1.5 can be described as a (6,3) net [57]. Each molecule of 7 functions as a three-connected node bridged by malonic acid linkers. Six malonic acid molecules and six molecules of 7 comprise a cyclic motif that share common edges with adjacent cyclic assemblies, affording two-dimensional layers shown in Figure 5. The large cavities evident in Figure 5 (cross-sectional dimensions of ~24 × 34 Å) are filled with two additional intertwined (6,3) nets as shown in Figure 6. Offset stacking of 2D layers then completes the structure.

Crystals of 7 and fumaric acid were also successfully grown. X-ray diffractometry revealed a close-packed structure of stoichiometry 7 (fumaric acid)₄ (crystallographic data is shown in Table S1). The asymmetric unit consists of a 0.5 tetra(pyridyl)ethylene molecule that features one neutral pyridine (N–C–N angle 117.93°) and one protonated pyridinium cation (N–C–N angle 122.54°). Additionally, two molecules of fumaric acid are present, one of which exists as a mono-anion as evidenced by similar C–O bond lengths at the anionic carboxylate terminus (1.240 and 1.262 Å) compared to distinctly shorter and longer C–O bond lengths at the carboxylic acid terminus (1.212 and 1.316 Å). The second fumaric acid molecule is present as a neutral dicarboxylic acid with C=O bond lengths of 1.202 and 1.211 Å and C–OH bond lengths of 1.322 and 1.312 Å. The protonated pyridinium cations in each full molecule of 7 are in a trans-1,2-orientation about the central ethylene bond. Each pyridinum moiety is engaged with the carboxylate terminus of a fumarate mono-anion to form a cyclic hydrogen bonded motif featuring a pyridinium-carboxylate charge-assisted hydrogen bond (NH⁺–O⁻ distance 2.008 Å, N–H–O angle 147.05°, C–O–H angle 126.54°) and a C–H⋯O hydrogen bond (pyCH–O distance 2.400 Å) [58]. In complementary fashion, the neutral pyridine rings in 7 each engage the neutral carboxylic acid terminus of fumarate mono-anion in a conventional hydrogen bonding interaction (OH–N distance 1.826 Å, O–H–N angle 169.26°). Thus, two fumarate mono-anions serve to bridge two bis(pyridyl)-bis(pyridinium) ethylenes, ultimately giving rise to two-dimensional hydrogen bonded chains, as shown in Figure 7.

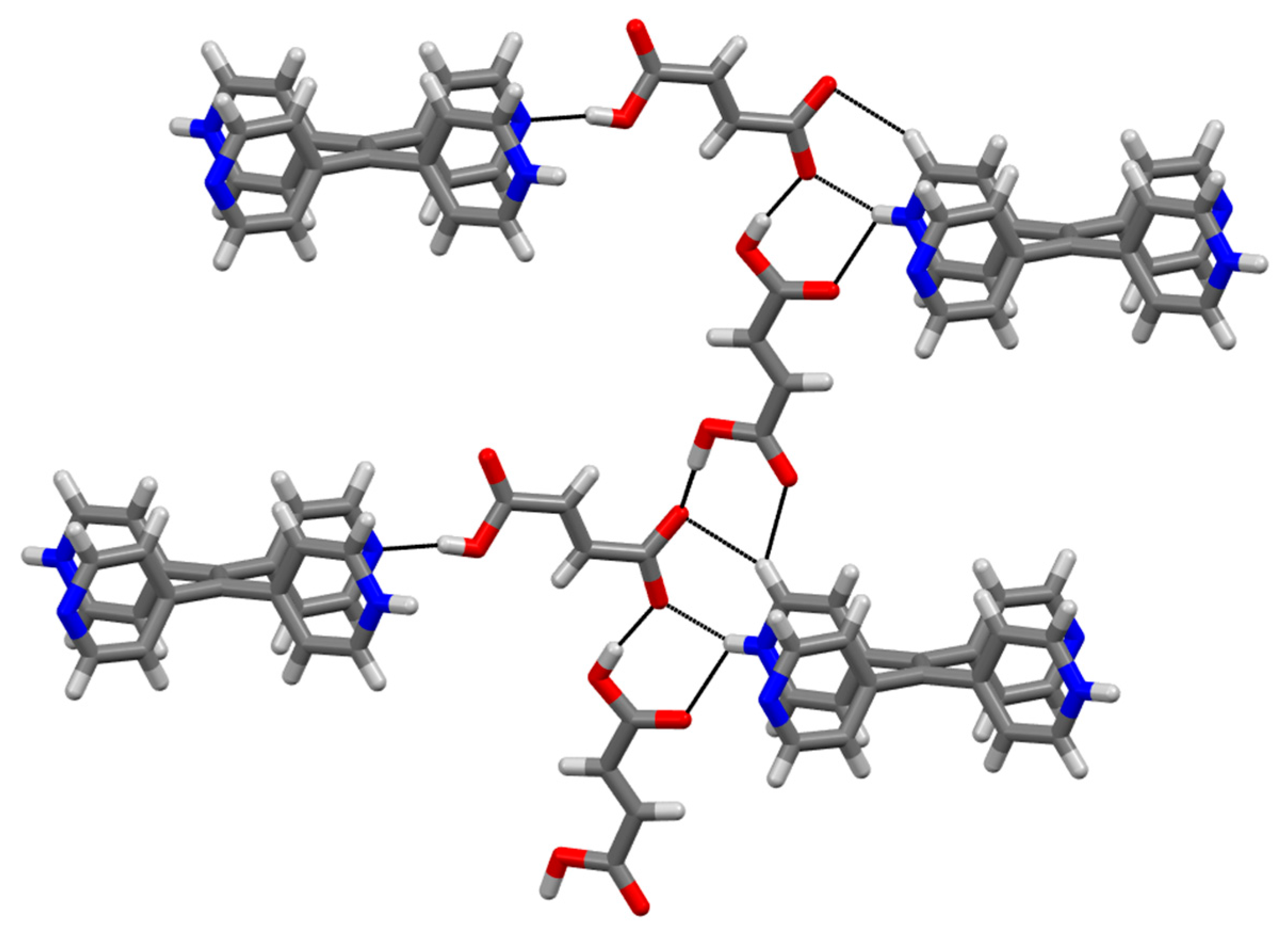

The neutral fumaric acid molecules are observed to support the charge-assisted carboxylate–pyridinium hydrogen bonding interactions as shown in Figure 8. A distorted hydrogen bonded trimer involving the carboxylate terminus of fumarate mono-anion, a carboxylic acid group of neutral fumaric acid, and a pyridinium residue orients fumaric acid groups perpendicular to the 2D hydrogen bonded chains described above. The remaining carboxylic acids of neutral fumaric acid groups are hydrogen bonded to carboxylate oxygen atoms of fumarate mono-anions found in adjacent H-bonded chains. Thus, the fumaric acid components serve to connect parallel chains of 7 fumarate hydrogen bonded polymers to form cross-linked sheets.

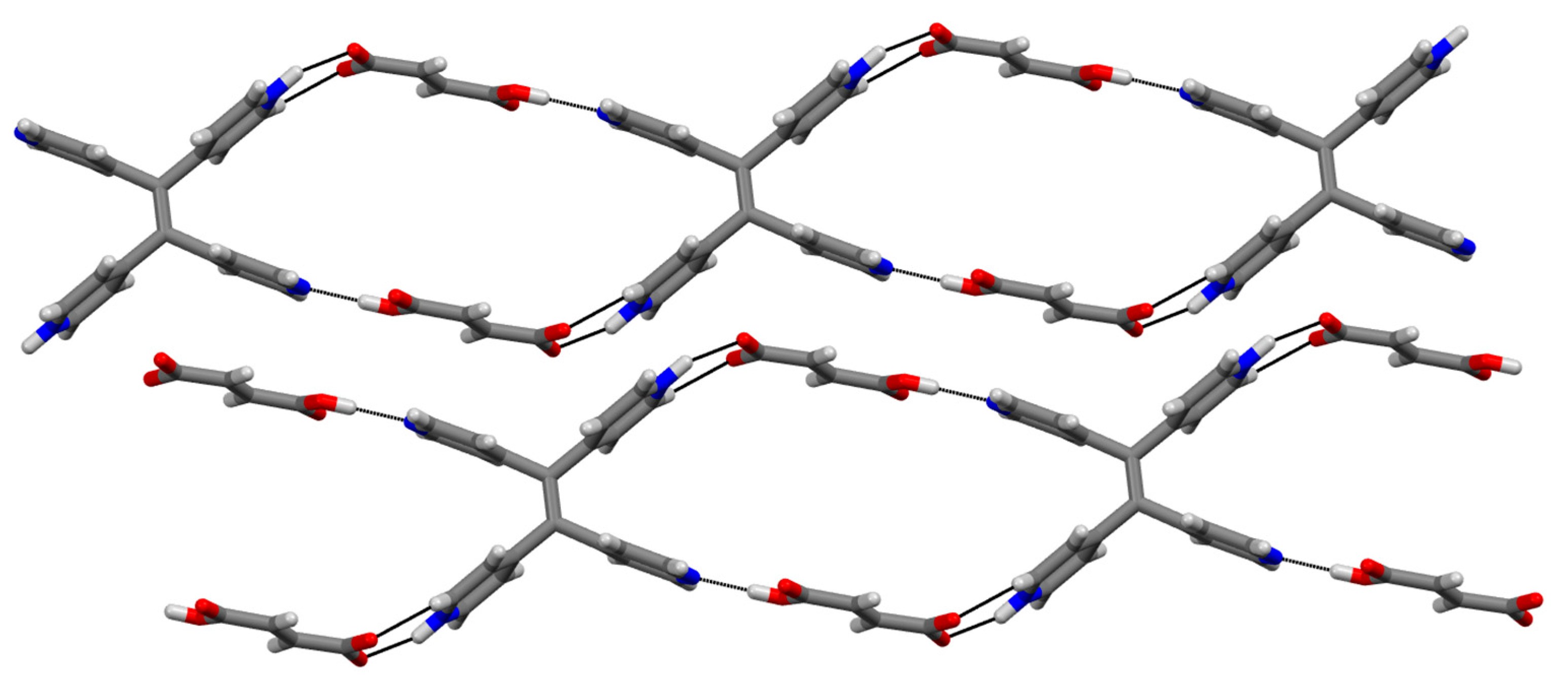

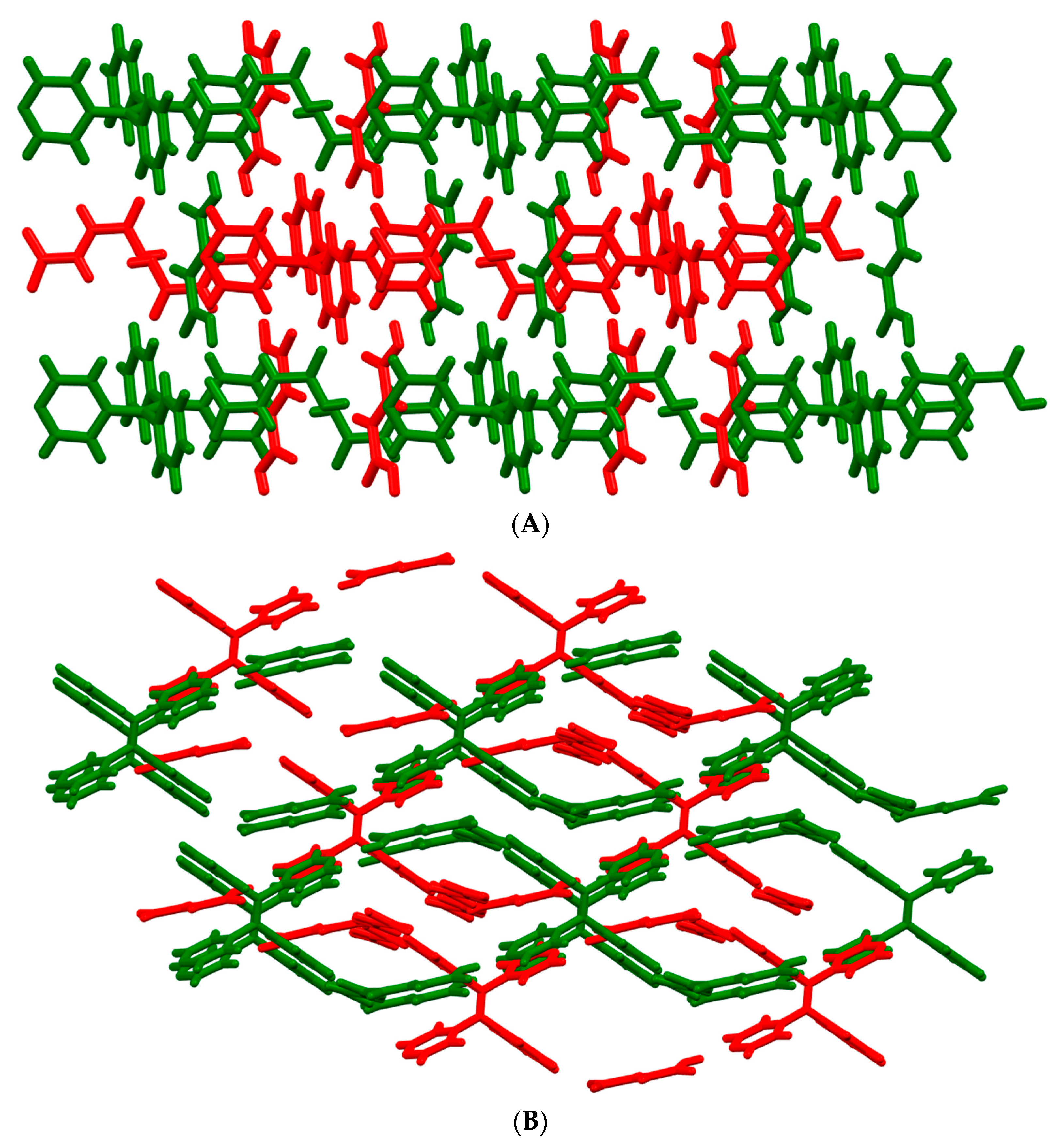

Interdigitation of a second network of fumaric acid-linked 7 fumarate chains gives rise to an alternating sheet-like structure with an ABAB stacking motif. The elliptical openings in the supramolecular macrocycles formed through fumarate–pyridine/pyridinium H-bonding in one sheet (see Figure 7) possess diagonal 2D cross-sections of ~1 nm (i.e., distance from pyridine to pyridine N atoms and pyridinium to pyridinium N atoms). These openings are occupied by two neutral fumaric acid molecules that support the charge-assisted carboxylate–pyridinium hydrogen bonding interactions connecting two adjacent offset parallel sheets. Two views of this packing arrangement are shown in Figure 9 with identical independent networks color coded green and red.

Three distinct crystalline organic composites have been obtained from tetra(4-pyridyl)ethylene 7 and three different linear dicarboxylic acids. Interestingly, the assemblies characterized in this study feature 7 in three different formal protonation states: a tetra-protonated tetracation in combination with oxalic acid, a di-protonated dication in the presence of fumaric acid, and a neutral tetra(pyridine) in the presence of malonic acid. Thus, it appears that the solid state basicity of 7 can respond to an acidic environment in a manner that facilitates the formation of stable crystalline networks. Although oxalic acid is the strongest dicarboxylic acid among the three utilized in this study (pKa values of 1.27 and 4.28), both malonic and fumaric acid possess comparable pKa₁ (2.85 and 3.02, respectively), and oxalic and fumaric acid possess comparable pKa₂ (4.28 and 4.39, respectively). It appears, then, that consideration of pKa alone is insufficient to explain the conversion of 7 to poly(pyridindium) cations, and the tendency of 7 to experience protonation in the solid state may be strongly influenced by self-assembly dynamics along with the size and shape of acidic additives.

4. Conclusions

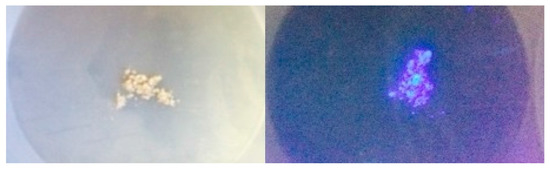

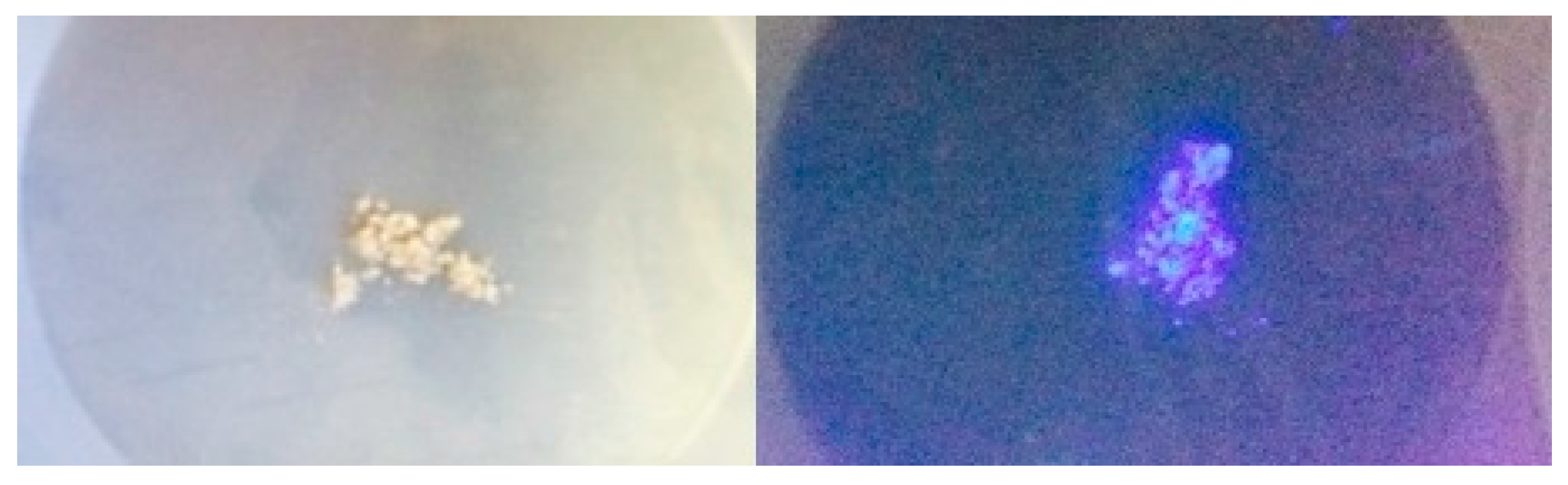

The results of this study demonstrate the capability of Lewis basic tetra(pyridyl)ethylene (7) to participate in co-crystal and salt formation with organic acids. The distinct topologies of the crystalline assemblies characterized in this work provide a glimpse of the varied architectures potentially accessible from small-molecule building blocks such as 7 and structurally related analogues. Additionally, insertion of metal ions into poly(pyridyl)ethylene–poly(acid) networks offer opportunities for construction of novel metal–organic frameworks that may exhibit topologies and properties distinct from those obtained using significantly larger tetraarylethylene components such as 6 (see Figure 1). Research along these lines is currently underway. Finally, a defining feature of tetraarylethylene assemblies is the luminescent properties that often emerge upon restriction of intramolecular bond rotation (i.e., AIE effects). The AIE activity of tetra(pyridyl)ethylene 7 previously established in solution phase studies is retained in the solid state assemblies prepared in this work. For example, the luminescence of 7 (fumaric acid)₄ is visible to the naked eye as shown in Figure 10. The other two crystalline assemblies displayed similar luminescence, as shown in Figures S1 and S2 (see Supplementary Materials).

Tetra(pyridyl)ethylene (7) is a promising supramolecular building block with appealing molecular and structural features. Moreover, 7 itself is easily prepared in good overall yield, and numerous additional structural analogues should become available via similar synthetic sequences. Additional applications of heteroarylethylenes in both organic and metal–organic crystal engineering are under investigation, and it is envisioned that these efforts will offer new approaches to a variety of functional crystalline materials.
