Se–Cl Interactions in Selenite Chlorides: A Theoretical Study

by
Sergey V. Krivovichev
1,2,* and
Liudmila A. Gorelova
2
1
Nanomaterials Research Centre, Kola Science Centre, Russian Academy of Sciences, Fersman str. 14, 184209 Apatity, Russia
2
Department of Crystallography, Institute of Earth Sciences, St. Petersburg State University, University Emb. 7/9, 199034 St. Petersburg, Russia
*
Author to whom correspondence should be addressed.
Crystals 2018, 8(5), 193; https://doi.org/10.3390/cryst8050193
Submission received: 29 March 2018 / Revised: 24 April 2018 / Accepted: 25 April 2018 / Published: 29 April 2018
(This article belongs to the Special Issue Crystal Structures of Compounds Containing Ions Selenite)
Browse Figures
Versions Notes

Abstract

:
The Se–Cl interactions in five selenite chlorides (α,β-Zn2(SeO3)Cl2 (sofiite and its polymorph), α,β-Cu5O2(SeO3)2Cl2 (georgbokiite and parageorgbokiite), and KCdCu7O2(SeO3)2Cl9 (burnsite)) have been investigated by means of the analysis of their theoretical electron density distributions. The analysis reveals the existence in the structures of two basic types of interactions: intermediate interactions with essential covalent contribution and closed-shell interactions. In Zn2(SeO3)Cl2 polymorphs and burnsite, all metal-oxide and metal-chloride interactions are of the first type, whereas in georgbokiite and parageorgbokiite, the Jahn–Teller distortion results in the elongation of some of the Cu–X bonds and their transition to the closed-shell type. All anion–anion interactions are of the closed-shell type. The energy of the closed-shell Se–Cl interactions can be estimated as 1.4–2.6 kcal.mol−1, which is comparable to weak hydrogen bonds. Despite their weakness, these interactions provide additional stabilization of structural architectures. The Se4+–Cl− configurations are localized inside framework channels or cavities, which can be therefore be viewed as regions of weak and soft interactions in the structure.

1. Introduction

According to the last version of the Inorganic Crystal Structure Database (ICSD) [1], there are about 130 structurally characterized inorganic compounds containing Se, O, and Cl, and more than 95 of them are selenite chlorides, i.e., the compounds containing both (Se4+O3)2− and Cl− anions. No selenate chlorides have been reported in the literature to the present date. The high affinity of selenite and chloride anions is obvious and requires a chemically reasonable explanation. The problem is also important from the viewpoint of interesting physical properties of transitional metal selenite chlorides [1,2,3,4,5,6,7,8,9,10,11] and their mineralogical occurrences [12,13,14,15,16,17,18,19,20,21,22,23]. Indeed, many transitional metal selenite chlorides display diverse magnetic properties, due to the presence in their structures of low-dimensional arrays of magnetic ions such as Cu2+, Ni2+, Co2+, and Fe2+ [11]. The eruption of Tolbachik volcano (Kamchatka peninsula, Russia) in 1975–1976 was followed by the extensive fumarolic activity, which was accompanied, in particular, by the formation of selenite chloride mineral associations dominated by Cu2+-containing species [12,14,15,16,18,19,20,22,23].
Johnsson et al. [24] noted that the tendency of lone-electron pair cations such as Se4+ and Te4+ to associate with halide ions results in the agglomeration of halides and lone pairs into separate regions in the crystal structure, which act as ‘chemical scissors’, subdiving the structure space into relatively hard and covalently bonded metal-oxide parts and relatively soft halide-lone-pair parts. However, the chemical nature of the halide-lone-pair association remained unclear. The aim of the present paper is to investigate interactions between Se4+ and Cl− ions in selenite chlorides from a theoretical point of view, using the ‘Atoms-in-Molecules’ (AIM) theory [25] in order to shed some light on the existence of these compounds and their abundance compared to selenate chlorides.

2. Materials and Methods

According to this approach, the presence of a (3, −1) bond critical point (bcp) along the interatomic line (bond path) in the electron-density distribution, ρ(r), unambiguously manifests the existence of a bonding interaction between the respective pair of atoms. The properties of the bcps provide a unique set of descriptors that can be used to understand the nature of interatomic interactions [26]. In particular, the following parameters are of importance: (1) electron density at the bcp, ρ(rc) (here and in the following rc is a radius vector of the bcp); (2) Laplacian of the electron density, ∇2ρ(rc); (3) electron energy density, H(rc), which is defined as a sum [G(rc) + V(rc)] of kinetic (G(rc)) and potential (V(rc)) energy densities. All chemical interactions can be classified into different groups according to the values of these or derivative parameters. Herein we adopt the classification proposed by Espinosa et al. [27], which is based on the signs of the ∇2ρ(rc) and H(rc) parameters. According to this approach, chemical interactions can be classified as: (1) shared interactions with ∇2ρ(rc) < 0 and H(rc) < 0; (2) closed-shell interactions with ∇2ρ(rc) > 0 and H(rc) > 0; (3) intermediate or transit interactions with ∇2ρ(rc) > 0 and H(rc) < 0. It should be noted, however, that this classification was originally suggested for F…H interactions, and its transfer to other interactions is rather conditional.
The laplacian is related to the electron energy densities through the following equation:
∇2ρ(rc) = 4 [2G(rc) + V(rc)],
which means that ∇2ρ(rc) < 0 only if |V(rc)|/G(rc) > 2, since G(rc) is always positive, whereas V(rc) is always negative. Consequently, |V(rc)|/G(rc) > 2 for shared interactions, 2 > |V(rc)|/G(rc) > 1 for intermediate interactions, and |V(rc)|/G(rc) < 1 for closed-shell interactions.
Espinosa et al. [27] and Gatti [26] proposed to use the H(rc)/ρ(rc) parameter or bond degree (BD) to measure the degree of covalency of a particular interaction. The lower the BD value, the higher is the covalency of an interaction. The BD value is negative for shared and intermediate interactions and positive for closed-shell interactions.
It has long been recognized that in some ionic crystals (such as LiI [28]), there exist specific anion–anion interactions that stabilize the structure. On the other hand, quantum-chemical calculations of some salts (such as AlX3 (X = F, Cl, OH) [29]) revealed the presence of bcps along the Al…Al lines, implying the existence of weak cation-cation Al…Al interactions. At first glance, the stabilizing role of such interactions contradicts a traditional crystal-chemical intuition [30], however, the presence of bcps unequivocally indicates that there is a bond path between the corresponding pairs of atoms [31]. Nelyubina et al. [32] and Gibbs et al. [33] provided useful reviews on the subject of anion–anion interactions in various chemical compounds. In particular, Gibbs et al. [33] analyzed the O–O interactions along the shared edges of cation coordination polyhedra in silicates and demonstrated that these weak bonds indeed stabilize the structure, though the stabilizing effect might be considered as marginal relative to the metal–oxygen interactions.
In a series of papers, Gibbs et al. [34,35,36] investigated secondary van der Waals bonding in inorganic molecular crystals such as As4Sn (n = 3, 4, 5) [36], arsenolite, As2O3 [34], and orpiment, As2S3 [35], and reported on the existence of intermolecular closed-shell As–X interactions (X = O, S). The As–X bonds are directed and are of the Lewis acid-base type, i.e., they link locally concentrated (nucleophilic, Lewis-base) electron density regions on the As atoms to locally depleted (electrophilic, Lewis-acid) electron density regions on the X atoms. In addition, in some structures, there are also As…As and O…O interactions.
For a long time, we have been interested in the crystal chemistry of inorganic oxysalts containing lone-electron-pair cations such as Pb2+ [37,38,39,40], Tl+ [41], and Se4+ [42,43]. In this report, we investigate a number of zinc and copper selenite chlorides from the viewpoint of the analysis of their electron density distributions that may provide novel ideas to understand the role that weak Se–Cl closed-shell interactions play in the structural organization of these compounds.
Table 1 provides crystallographic information on the compounds that will be considered in the following. Among the seven compounds, three are naturally occurring selenite chlorides first discovered in the fumaroles of the Tolbachik volcano, Kamchatka, Russia. For the purpose of structure comparison, three pairs of polymorphic modifications have been selected, namely, two modifications of Zn2(SeO3)Cl2, two modifications of Cu3(SeO3)2Cl2, and two modifications of Cu5O2(SeO3)2Cl2.
The CRYSTAL14 software package was used to perform the solid-state DFT calculations [49]. The Peintinger−Oliveira−Bredow split-valence triple-ζ (pob-TZVP) basis sets [50] were used for all atoms, except Cd in burnsite [51], along with the hybrid Becke-3−Lee−Yang−Parr (B3LYP) functional. The electron-density distribution function was calculated using experimentally observed geometries for each structure and analyzed using the TOPOND14 software [52,53] with respect to the properties of the bond critical points in electron density distributions and scalar fields of the electron-density Laplacian [53].

3. Results and Discussion

3.1. Zn2(SeO3)Cl2 Polymorphs

Sophiite, α-Zn2(SeO3)Cl2, was first discovered in fumaroles of the Tolbachik volcano, Kamchatka peninsula, Russia [12]. Its β-polymorph was synthesized by chemical transport reactions [45], which has repeatedly been used for simulation of fumarolic mineralization [54]. It is noteworthy that both polymorphs of Zn2(SeO3)Cl2 are highly hygroscopic. Their crystal structures are very close to each other and both are based upon the same type of electroneutral [Zn2(SeO3)Cl2]0 layers formed by (ZnO2Cl2) tetrahedra, (ZnO4Cl2) octahedra, and (SeO3) trigonal pyramids (Figure 1a). The (ZnO4Cl2) octahedra share common O corners to form chains running parallel to c in both polymorphs. Each octahedron shares one O–Cl edge with an adjacent (ZnO2Cl2) tetrahedron and one O–O edge with (SeO3) pyramid, which provide linkage of the chains into two-dimensional layers. The layers are parallel to (010) in sofiite (Figure 1b) and to (100) in the β-polymorph (Figure 1c). The structures of both modifications may be considered as polytypes, since they are based upon the same type of layers. According to the modern nomenclature, sofiite as α-Zn2(SeO3)Cl2 should be regarded as 2O-polytype (orthorhombic structure with two layers per unit cell), whereas β-Zn2(SeO3)Cl2 should be considered as 1M-polytype (monoclinic structure with one layer per unit cell). Since the layers in the structures of both polytypes are electroneutral, the linkage between the layers is achieved through the secondary bonds that involve Cl− anions and Se4+ cations (Figure 1).
The lists of bcps found for sofiite and β-Zn2(SeO3)Cl2 are given in Table 2 and Table 3, respectively. It can be clearly seen that the interatomic interactions in the two structures can be subdivided into two groups: interactions with H(rc) < 0 and interactions with H(rc) > 0. The first kind of interactions is observed for the Se–O, Zn–O, and Zn–Cl bonds. These interactions correspond to the intralayer bonding and can be characterized as belonging to the intermediate type (since ∇2ρ(rc) > 0 for all interactions in the two structures). According to the ρ(rc) values, these bonds can be separated into Se–O bonds (ρ(rc) = 0.18–0.20 a.u.) and Zn–X bonds (ρ(rc) = 0.02–0.08 a.u.).
The most interesting are the bcps, for which ∇2ρ(rc) > 0 and H(rc) > 0. These bond paths correspond to the Se–Cl, Cl–Cl, and O–O closed-shell interactions, which we shall analyse in more detail. The geometrical environments around the atoms participating in weak closed-shell interactions in sofiite are shown in Figure 2. There are three Se–Cl interactions (Figure 2a), from which two interactions (Se–Cl1 and Se–Cl2) are intralayer and one Se–Cl2 interaction is interlayer. The same situation is also observed in β-Zn2(SeO3)Cl2 (Figure 3a). In sofiite, the interlayer interaction corresponds to the shortest Se–Cl distance of 3.317 Å, whereas, in β-Zn2(SeO3)Cl2, the respective Se–Cl distance is the longest among three Se–Cl contacts with its length equal to 3.514 Å. Taking into account weak interactions, the coordination of Se atom in both polymorphs can be considered as a distorted trigonal (SeO3Cl3) prism with the O3 and Cl3 triangular bases. The Se–O interactions are more than one order stronger than the Se–Cl interactions. The number of Cl–Cl interactions in the two Zn2(SeO3)Cl2 is notably different, despite the fact that the number of symmetrically independent bcps is the same (Table 2 and Table 3). The point is that two Cl–Cl bcps in sofiite are located on the twofold axes, whereas similar bcps in β-Zn2(SeO3)Cl2 are in general positions. In general, the structure of β-Zn2(SeO3)Cl2 contains 12 Cl–Cl bcps per interlayer, whereas the structure of sofiite contains only 8. The difference results in different coordinations of the Cl atoms in the structures of the two polymorphs.
The Cl1 atom (Figure 2b) is linked to two Zn atoms and participates in three Cl–Cl and one Se–Cl interactions. The overall coordination of the Cl1 atom can be described as distorted octahedral. From four weak closed-shell interactions, only one Cl–Cl interaction has an interlayer character. In β-Zn2(SeO3)Cl2, the analogue of the Cl1 position in sofiite is the Cl2 site (Figure 3c). Its intralayer coordination (by two Zn, one Se, and two Cl atoms) is very similar to that observed in sofiite. However, there are two interlayer Cl–Cl interactions versus one in sofiite. Thus, the total coordination of the Cl2 site in the β-polymorph is sevenfold. The coordination of the Cl2 site in sofiite is shown in Figure 2c. There are two intralayer Cl–Zn bonds and one intralayer Cl–Se interaction. The interlayer interactions are characterized by one Cl–Se and one Cl–Cl bond paths. The situation in β-Zn2(SeO3)Cl2 is again different (Figure 3b). The number of intralayer interactions is the same as in sofiite, but there are three interlayer interactions, one Cl–Se and two Cl–Cl. In total, the coordination of the Cl1 site in the β-polymorph is sixfold versus fivefold in sofiite.
In both polymorphs, there is a bcp between the two O atoms located in the middle of the eight-membered atomic ring (Figure 2d). This bcp is located in the inversion center and corresponds to a very weak closed-shell interaction.
The higher relative number of bcps in β-Zn2(SeO3)Cl2 compared to sofiite might be related to the higher stability of the β-polymorph. Its physical density, 3.68 g.cm−3 is slightly higher than that of sofiite, 3.65 g.cm−3, which manifests the higher efficiency of layer packing, which, in turn, may lead to the formation of more interlayer interactions, thus stabilizing the β-polymorph. It is noteworthy that, among the closed-shell interactions in the two polymorphs, the Se–Cl interactions are stronger than others, pointing out their important role in the linkage of the [Zn2(SeO3)Cl2]0 in the structures. Nevertheless, the Cl–Cl interactions are also of importance, providing additional contributions to the structural stability.

3.2. Cu5O2(SeO3)2Cl2 Polymorphs

In fact, α-Cu5O2(SeO3)2Cl2 was the first selenite chloride reported by Galy et al. back in 1979 [55]. Its dark-brown crystals were prepared by the chemical vapor transport reactions method. In 1999, it was described by Vergasova et al. [16] as a natural mineral species from fumaroles of the Great fissure Tolbachik eruption (Kamchatka, Russia). In 2006, Vergasova et al. [20] described another natural polymorph of Cu5O2(SeO3)2Cl2, which was named parageorgbokiite in order to recognize its chemical similarity to georgbokiite. It is noteworthy that, in contrast to georgbokiite, the crystals of parageorgbokiite are green and thus the two polymorphs can easily be distinguished. The crystal structures of georgbokiite and parageorgbokiite are closely related and the best way to understand these relations are to describe them in terms of structural units based upon oxocentered tetrahedra formed around ‘additional’ O atoms not bonded to Se4+ cations. This approach was first proposed in 1968 [56] and recently developed into a coherent crystal chemical theory (see [57,58] for reviews and historical remarks). In general, description of certain crystal structures in terms of anion-centered coordination polyhedra became more popular over the years, in part due to the recent reports on interesting structural and physical properties and mineralogical importance of antiperovskites, i.e., materials with structures based upon anion-centered octahedra [59,60,61,62,63,64,65,66].
In the crystal structures of both polymorphs of Cu5O2(SeO3)2Cl2, there are additional O atoms not bonded to Se and tetrahedrally coordinated by four Cu atoms thus forming (OCu4) oxocentered tetrahedra. In both structures, (OCu4) tetrahedra share Cu–Cu edges and Cu corners to form [O2Cu5] chains shown in Figure 4a. The (SeO3) groups are attached to (OCu4) tetrahedra in a face-to-face fashion [67,68], which means that the triangular bases of both units are parallel to each other and have the same orientation. The complex 1-dimensional structural units with the composition {[O2Cu5](SeO3)2}2+ shown in Figure 4b are the basic structural modules for both polymorphs and it is the mode of their combination that generates the structural difference.

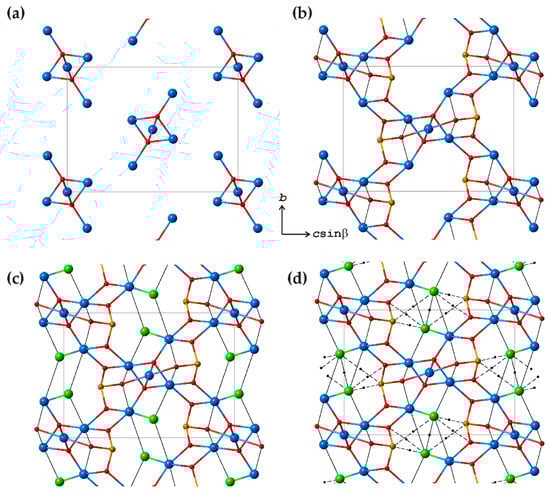

Figure 5 shows a successive (step-by-step) construction of the crystal structure of georgbokiite, α-Cu5O2(SeO3)2Cl2, if viewed in terms of anion-centered tetrahedra. The [O2Cu5] chains are running parallel to the c axis and grouped into layers parallel to the (100) plane (Figure 5a). The (SeO3) groups are attached to the chains and are also responsible for the linkage of the {[O2Cu5](SeO3)2}2+ in the (100) and (010) directions through the formation of the Cu–O bonds (Figure 5b). The metal-oxide bonding network based upon the Cu–O and Se–O bonds contains the strongest chemical bonds in the structure. It can be seen, however, that this network possesses 1-dimensional channels parallel to (001) (i.e., the direction of extension of the [O2Cu5] chains) and these channels are occupied by Cl− anions (Figure 5c). These channels are also remarkable by the fact that they provide spatial localization of the weak closed-shell interactions in the crystal structure (Figure 5d).
The mode of linkage of the basic structural modules in the structure of parageorgbokiite, β-Cu5O2(SeO3)2Cl2, is different, which is illustrated in Figure 6.
In contrast to georgbokiite, the [O2Cu5] chains in parageorgbokiite have different relative orientations (Figure 6a) and are parallel to the a axis. Their linkage through (SeO3) groups (attached to the (OCu4) tetrahedra in the face-to-face fashion) results in the formation of a 3-dimensional framework of relatively strong bonds (Figure 6b) with channels occupied by Cl− anions (Figure 6c) and hosting the bcps corresponding to weak closed-shell interactions (Figure 6d).
Table 4 and Table 5 provide lists of bcps found for georgbokiite and parageorgbokiite, respectively. According to their properties, all interatomic interactions in the two minerals can be classified into three groups:
(1)
the Cu–O, Cu–Cl and Se–O interactions with ∇2ρ(rc) > 0 and H(rc) < 0 (intermediate bonding interactions);
(2)
the Cu–O and Cu–Cl interactions with ∇2ρ(rc) > 0 and H(rc) > 0 (closed-shell interactions); the Cu3–Cl interaction (2.739 Å) deserves special attention as this interaction lies exactly on the border between intermediate and closed-shell interactions (H(rc) = 0);
(3)
the closed-shell Se–Cl, Cl–Cl, and Cl–O interactions with ∇2ρ(rc) > 0 and H(rc) > 0.
The appearance of the second group of interactions (which is absent in the Zn2(SeO3)Cl2 polymorphs) is due to the Jahn–Teller distortion of Cu2+ coordination [69], which results in the splitting of Cu–X interactions (X = O, Cl) into short and long bonds. It is noteworthy that the empirical bond-valence theory [70] would make no distinction between the different long Cu–X bonds, whereas the data given in Table 4 and Table 5 indicate that the AIM theory classifies them into closed-shell and intermediate interactions (taking into account the conditional character of the adopted classification (see Section 2)). In particular, for the Cu–Cl bonds, the border between the two types of interactions corresponds to the Cu–Cl distance of 2.739 Å. It is of interest that the ρ(rc) for the closed-shell Cu–X interactions is of the same order as for other closed-shell interactions in the two structures.
The configuration of closed-shell interactions inside the channels in the crystal structures of the Cu5O2(SeO3)2Cl2 polymorphs is shown in Figure 7. In georgbokiite (Figure 7a), the channels are more compact and have (SeO3) groups on one side and Cl− anions on another, each Se and each Cl atom participates in two Se–Cl interactions, and there are no Cl–Cl interactions. In contrast, in parageorgbokiite (Figure 7b), the channels are larger and have both (SeO3) groups and Cl− anions on both sides. Each Se atom participates in two Se–Cl interactions, whereas each Cl atom participates in two Se–Cl, two Cl–Cl and one Cl–O interactions. The structure of the channels in the two polymorphs is therefore remarkably different, which can be explained by the different arrangements of basic structural modules.
The more open character of the crystal structure of parageorgbokiite compared to that of georgbokiite is reflected in the values of physical densities, which are equal to 4.88 and 4.69 g.cm−3 for the α- and β-polymorphs, respectively. According to Krivovichev et al. [47], parageorgbokiite is most likely a high-temperature modification of Cu5O2(SeO3)2Cl2, however, the relative stabilities of the two minerals are unknown. It is of interest that, whereas georgbokiite can easily be synthesized by the chemical vapor transport reactions method [55,71], no synthetic analogue is known for parageorgbokiite.

3.3. Burnsite, KCdCu7O2(SeO3)2Cl9

Burnsite, KCdCu7O2(SeO3)2Cl9, was discovered in Tolbachik fumaroles in 2002 [18]. By analogy with Cu5O2(SeO3)2Cl2 polymorphs, its crystal structure contains additional O atoms tetrahedrally coordinated by four Cu atoms [48]. Two (OCu4) tetrahedra share a common Cu atom to form a [O2Cu7] dimer (Figure 8a) similar to those recently observed in the crystal structure of Na2Cu7O2(SeO3)4Cl4 [72,73].
In the crystal structure of burnsite, the [O2Cu7] dimers are surrounded by two (SeO3) groups each of them attached to the (OCu4) tetrahedra in a face-to-face fashion (Figure 8b). The resulting {[O2Cu7](SeO3)2} groups are linked via Cu–O bonds into an open three-dimensional framework (Figure 9a) with large cavities occupied by Cd2+, K+, and Cl− ions (Figure 9b).
Table 6 provides a list of bcps in the crystal structure of burnsite. It can be seen that most of the interatomic interactions can be described as belonging to the intermediate type with ∇2ρ(rc) > 0 and H(rc) < 0, except for the Se–Cl interactions that are of the closed-shell type (∇2ρ(rc) > 0 and H(rc) > 0). Figure 8c shows the atomic configuration inside the cavity occupied by two (SeO3) groups and three Cl− ions.
Each (SeO3) group forms participates in three Se–Cl interactions, so that the full coordination of Se4+ ions can be viewed as trigonal prismatic, similar to that observed in the crystal structures of the Zn2(SeO3)Cl2 polymorphs (see above). Each Cl2 atom participates in two Cl–Se closed-shell interactions.

4. Conclusions

The analysis of theoretical electron density distributions in selenite chlorides reveals the existence in their structures of two basic types of interactions: intermediate interactions with essential covalent contribution [∇2ρ(rc) > 0 and H(rc) < 0] and closed-shell interactions [∇2ρ(rc) > 0 and H(rc) > 0]. In the Zn2(SeO3)Cl2 polymorphs and burnsite, all Me–X interactions are of the first type, whereas, in georgbokiite and parageorgbokiite, the Jahn–Teller distortion of the Cu2+ coordination geometry results in the elongation of some of the Cu–X bonds and their transition to the closed-shell type. All anion-anion (Cl–Cl and O–O) interactions are of the closed-shell type as well, quite comparable with the previous observations of anion–anion bonding in inorganic salts [32].
The nature of the Se–Cl interactions deserves special attention. The analysis of the bond-critical points of the Laplacian of the electron-density distribution indicates that, at least in selenite chlorides under consideration, it is different from that of the halogen or chalcogen bonds [74,75,76], i.e., it is not of the electron donor/electron acceptor type. The regions with concentrated and depleted regions of electron density around Se4+ and Cl− ions do not correlate with each other and are not aligned with the Se–Cl bonding paths. However, the Se–Cl interaction corresponds to the overlap of van der Waals radii: the typical Se–Cl distance is selenite chlorides is in the range 3.30–3.55 Å, whereas the sum of the van der Waals radii (RW) is equal to RWSe + RWCl = 1.9 + 1.8 = 3.7 Å [77]. The energy of the Se–Cl closed-shell interactions, Eint, can be estimated using the equation proposed by Espinosa et al. [78]:
Eint = −313.754 V(rc),
where V(rc) is the potential electron energy density at bcp expressed in atomic units (a.u.). Taking into account that the V(rc) value in selenite chlorides analyzed above varies from −0.0083 to −0.0044 a.u., the energy of the Se–Cl closed-shell interactions can be estimated as 1.4–2.6 kcal.mol−1. This energy range is comparable to that observed for weak hydrogen bonds [79] or other weakly bonded configurations, e.g., weak I–O bonds in α-HIO3 [80], and anion–anion and cation–cation interactions [81,82]. Despite their weakness, these interactions provide additional stabilization of structural architectures. However, it should be noted that the Equation (2) was originally proposed for hydrogen-bonded interactions and its applicability to closed-shell interactions is not fully justified. It is also of interest that the presence of the Se–Cl bonding interactions may at least in part explain the bond-valence deficiency frequently observed for Cl− anions in natural selenite chlorides [22,42,47,48]. Our conclusion about the closed-shell nature of the Se–Cl interactions is also supported by the fact that the total net charges on Se atoms (calculated for sofiite and georgbokiite) are in the range of +6.05–6.07, which indicates that there is no correlation between these values and the number of Se–Cl interactions per Se4+ cation.
Thus, the existence of the large number of selenite chlorides and almost complete absence of selenate chlorides can be explained by the tendency of Se4+ cations possessing a lone electron pair to participate in attractive Se4+–Cl− interactions, which cannot be realized in Se6+ oxysalts. Though weak, these interactions seem to be of crucial importance for the stabilization of structural architectures with relatively hard intermediate metal–oxide interactions and relatively soft closed-shell interactions. The Se4+–Cl− configurations are localized inside framework channels or cavities, which can be therefore be viewed as regions of weak and soft interactions in the structure.

Author Contributions

Sergey V. Krivovichev conceived the idea of the manuscript; Sergey V. Krivovichev and Liudmila A. Gorelova performed the calculations and analyzed the data; Sergey V. Krivovichev wrote the paper.

Acknowledgments

We are grateful to three anonymous referees for very useful comments on the first version of this manuscript. This research was supported by the Russian Science Foundation (Grant 14–17-00071 to Sergey V. Krivovichev).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hellenbrandt, M. The Inorganic Crystal Structure Database (ICSD)—Present and future. Crystallogr. Rev. 2004, 10, 17–22. [Google Scholar] [CrossRef]
  2. Millet, P.; Bastide, B.; Pashchenko, V.; Gnatchenko, S.; Gapon, V.; Ksarid, Y.; Stepanov, A. Syntheses, crystal structures and magnetic properties of francisite compounds Cu3Bi(SeO3)2O2X (X = Cl, Br and I). J. Mater. Chem. 2001, 11, 1152–1157. [Google Scholar] [CrossRef]
  3. Shen, Y.-L.; Mao, J.-G.; Jiang, H.-L. Synthesis, crystal structure and magnetic property of a new nickel selenite chloride: Ni5(SeO3)4Cl2. J. Solid State Chem. 2005, 178, 2942–2946. [Google Scholar] [CrossRef]
  4. Becker, R.; Prester, M.; Berger, H.; Lin, P.H.; Johnsson, M.; Drobac, D.; Zivkovic, I. Crystal structure and magnetic properties of two new cobalt selenite halides: Co5(SeO3)4X2 (X = Cl, Br). J. Solid State Chem. 2007, 180, 1051–1059. [Google Scholar] [CrossRef]
  5. Zhang, D.; Berger, H.; Kremer, R.K.; Wulferding, D.; Lemmens, P.; Johnsson, M. Synthesis, crystal structure, and magnetic properties of the copper selenite chloride Cu5(SeO3)4Cl2. Inorg. Chem. 2010, 49, 9683–9688. [Google Scholar] [CrossRef] [PubMed]
  6. Berdonosov, P.S.; Janson, O.; Olenev, A.V.; Krivovichev, S.V.; Rosner, H.; Dolgikh, V.A.; Tsirlin, A.A. Crystal structures and variable magnetism of PbCu2(XO3)2Cl2 with X = Se, Te. Dalton Trans. 2013, 42, 9547–9554. [Google Scholar] [CrossRef] [PubMed]
  7. Berdonosov, P.S.; Kuznetsova, E.S.; Dolgikh, V.A.; Sobolev, A.V.; Presniakov, I.A.; Olenev, A.V.; Rahaman, B.; Saha-Dasgupta, T.; Zakharov, K.V.; Zvereva, E.A.; et al. Crystal structure, physical properties, and electronic and magnetic structure of the spin S = 5/2 zigzag chain compound Bi2Fe(SeO3)2OCl3. Inorg. Chem. 2014, 53, 5830–5838. [Google Scholar] [CrossRef] [PubMed]
  8. Zakharov, K.V.; Zvereva, E.A.; Berdonosov, P.S.; Kuznetsova, E.S.; Dolgikh, V.A.; Clark, L.; Black, C.; Lightfoot, P.; Kockelmann, W.; Pchelkina, Z.V.; et al. Thermodynamic properties, electron spin resonance, and underlying spin model in Cu3Y(SeO3)2O2Cl. Phys. Rev. B 2014, 90, 214417. [Google Scholar] [CrossRef]
  9. Markina, M.M.; Zakharov, K.V.; Zvereva, E.A.; Denisov, R.S.; Berdonosov, P.S.; Dolgikh, V.A.; Kuznetsova, E.S.; Olenev, A.V.; Vasiliev, A.N. Static and dynamic magnetic properties of two synthetic francisites Cu3La(SeO3)2O2X (X = Br and Cl). Phys. Chem. Miner. 2017, 44, 277–285. [Google Scholar] [CrossRef]
  10. Badrtdinov, D.I.; Kuznetsova, E.S.; Verchenko, V.Y.; Berdonosov, P.S.; Dolgikh, V.A.; Mazurenko, V.V.; Tsirlin, A.A. Magnetism of coupled spin tetrahedra in ilinskite-type KCu5O2(SeO3)2Cl3. Sci. Rep. 2018, 8, 2379. [Google Scholar] [CrossRef] [PubMed]
  11. Berdonosov, P.S.; Kuznetsova, E.S.; Dolgikh, V.A. Transition metal selenite halides: A fascinating family of magnetic compounds. Crystals 2018, 8, 159. [Google Scholar] [CrossRef]
  12. Vergasova, L.P.; Filatov, S.K.; Semenova, T.F.; Filosofova, T.M. Sofiite Zn2(SeO3)Cl2—A new mineral from volcanic sublimates. Zap. Vses. Mineral. Obshch. 1989, 118, 65–69. (In Russian) [Google Scholar]
  13. Pring, A.; Gatehouse, B.M.; Birch, W.D. Francisite, Cu3Bi(SeO3)2O2Cl, new mineral from Iron Monarch, South Australia: Description and crystal structure. Am. Mineral. 1990, 75, 1421–1425. [Google Scholar]
  14. Vergasova, L.P.; Semenova, T.F.; Shuvalov, R.R.; Filatov, S.K.; Anan’yev, V.V. Ilinskite NaCu5O2(SeO3)2Cl3—A new mineral of volcanic exhalations. Dokl. Akad. Nauk 1997, 353, 641–644. (In Russian) [Google Scholar]
  15. Vergasova, L.; Krivovichev, S.; Semenova, T.; Filatov, S.; Ananiev, V. Chloromenite, Cu9O2(SeO3)4Cl6, a new mineral from the Tolbachik volcano, Kamchatka, Russia. Eur. J. Mineral. 1999, 11, 119–123. [Google Scholar] [CrossRef]
  16. Vergasova, L.P.; Semenova, T.F.; Filatov, S.K.; Krivovichev, S.V.; Shuvalov, R.R.; Ananiev, V.V. Georgbokiite Cu5O2(SeO3)2Cl2—A new mineral from volcanic sublimates. Dokl. Akad. Nauk 1999, 364, 527–531. (In Russian) [Google Scholar]
  17. Campostrini, I.; Gramaccioli, C.M.; Demartin, F. Orlandiite, Pb3Cl4(SeO3)·H2O, a new mineral species, and an associated lead-copper selenite chloride from the Baccu Locci mine, Sardinia, Italy. Can. Mineral. 1999, 37, 1493–1498. [Google Scholar]
  18. Krivovichev, S.V.; Vergasova, L.P.; Starova, G.L.; Filatov, S.K.; Britvin, S.N.; Roberts, A.C.; Steele, I.M. Burnsite, KCdCu7O2(SeO3)2Cl9, a new mineral species from the Tolbachik Volcano, Kamchatka Peninsula, Russia. Can. Mineral. 2002, 40, 1171–1175. [Google Scholar] [CrossRef]
  19. Vergasova, L.P.; Krivovichev, S.V.; Britvin, S.N.; Filatov, S.K.; Burns, P.C.; Ananyev, V.V. Allochalcoselite, Cu+Cu2+5PbO2(SeO3)2Cl5—A new mineral from volcanic exhalations (Kamchatka, Russia). Zap. Ross. Mineral. Obshch. 2005, 134, 70–74. (In Russian) [Google Scholar]
  20. Vergasova, L.P.; Krivovichev, S.V.; Filatov, S.K.; Britvin, S.N.; Burns, P.C.; Ananyev, V.V. Parageorgbokiite, β-Cu5O2(SeO3)2Cl2—A new mineral from volcanic exhalations (Kamchatka peninsula, Russia). Zap. Ross. Mineral. Obshch. 2006, 135, 24–28. [Google Scholar] [CrossRef]
  21. Gemmi, M.; Campostrini, I.; Demartin, F.; Gorelik, T.E.; Gramaccioli, C.M. Structure of the new mineral sarrabusite, Pb5CuCl4(SeO3)4, solved by manual electron-diffraction tomography. Acta Crystallogr. 2012, B68, 15–23. [Google Scholar] [CrossRef] [PubMed]
  22. Shuvalov, R.R.; Vegasova, L.P.; Semenova, T.F.; Filatov, S.K.; Krivovichev, S.V.; Siidra, O.I.; Rudashevsky, N.S. Prewittite, KPb1.5Cu6Zn(SeO3)2O2Cl10, a new mineral from Tolbachik fumaroles, Kamchatka peninsula, Russia: Description and crystal structure. Am. Mineral. 2013, 98, 463–469. [Google Scholar] [CrossRef]
  23. Vergasova, L.P.; Semenova, T.F.; Krivovichev, S.V.; Filatov, S.K.; Zolotarev, A.A., Jr.; Ananiev, V.V. Nicksobolevite, Cu7(SeO3)2O2Cl6, a new complex copper oxoselenite chloride from Tolbachik fumaroles, Kamchatka peninsula, Russia. Eur. J. Mineral. 2014, 26, 439–449. [Google Scholar] [CrossRef]
  24. Johnsson, M.; Tornroos, K.W.; Lemmens, P.; Millet, P. Crystal structure and magnetic properties of a new two-dimensional S = 1 quantum system Ni5(TeO3)3X2 (X = Cl, Br). Chem. Mater. 2003, 15, 68–73. [Google Scholar] [CrossRef]
  25. Bader, R.F.W. Atoms in Molecules; Oxford Science Publications: Oxford, UK, 1990; ISBN 9780198558651. [Google Scholar]
  26. Gatti, C. Chemical bonding in crystals: New directions. Z. Kristallogr. 2005, 220, 399–457. [Google Scholar] [CrossRef]
  27. Espinosa, E.; Alkorta, I.; Elguero, J.; Molins, E. From weak to strong interactions: A comprehensive analysis of the topological and energetic properties of the electron density distribution involving X–H…F–Y systems. J. Chem. Phys. 2002, 117, 5529–5542. [Google Scholar] [CrossRef]
  28. Pendás, A.M.; Costales, A.; Luaña, V. Ions in crystals: The topology of the electron density in ionic materials. I. Fundamentals. Phys. Rev. B 1997, 55, 4275. [Google Scholar] [CrossRef]
  29. Vegas, A.; Santamaria-Perez, D.; Marques, M.; Florez, M.; Garcia-Baonza, V.; Recio, J.M. Anions in metallic matrices model: Application to the aluminium crystal chemistry. Acta Crystallogr. 2006, B62, 220–227. [Google Scholar] [CrossRef] [PubMed]
  30. Dunitz, J.D. Intermolecular atom-atom bonds in crystals? IUCrJ 2015, 2, 157–158. [Google Scholar] [CrossRef] [PubMed]
  31. Lecomte, C.; Espinosa, E.; Matta, C.F. On atom-atom ‘short contact’ bonding interactions in crystals. IUCrJ 2015, 2, 161–163. [Google Scholar] [CrossRef] [PubMed]
  32. Nelyubina, Y.V.; Antipin, M.Y.; Lyssenko, K.A. Anion–anion interactions: Their nature, energy and role in crystal formation. Russ. Chem. Rev. 2010, 79, 167–187. [Google Scholar] [CrossRef]
  33. Gibbs, G.V.; Downs, R.T.; Cox, D.F.; Ross, N.L.; Boisen, M.B., Jr.; Rosso, K.M. Shared and closed-shell O–O interactions in silicates. J. Phys. Chem. A 2008, 112, 3693–3699. [Google Scholar] [CrossRef] [PubMed]
  34. Gibbs, G.V.; Wallace, A.F.; Cox, D.F.; Dove, P.M.; Downs, R.T.; Ross, N.L.; Rosso, K.M. Role of directed van der Waals bonded interactions in the determination of the structures of molecular arsenate solids. J. Phys. Chem. A 2009, 113, 736–749. [Google Scholar] [CrossRef] [PubMed]
  35. Gibbs, G.V.; Wallace, A.F.; Zallen, R.; Downs, R.T.; Ross, N.L.; Cox, D.F.; Rosso, K.M. Bond paths and van der Waals interactions in orpiment, As2S3. J. Phys. Chem. A 2010, 114, 6550–6557. [Google Scholar] [CrossRef] [PubMed]
  36. Gibbs, G.V.; Wallace, A.F.; Downs, R.T.; Ross, N.L.; Cox, D.F.; Rosso, K.M. Thioarsenides: A case for long-range Lewis acid–base-directed van der Waals interactions. Phys. Chem. Miner. 2011, 38, 267–291. [Google Scholar] [CrossRef]
  37. Krivovichev, S.V.; Burns, P.C. Crystal chemistry of lead oxide chlorides. I. Crystal structures of synthetic mendipite, Pb3O2Cl2, and synthetic damaraite, Pb3O2(OH)Cl. Eur. J. Mineral. 2001, 13, 801–809. [Google Scholar] [CrossRef]
  38. Krivovichev, S.V.; Armbruster, T.; Depmeier, W. Crystal structures of Pb8O5(AsO4)2 and Pb5O4(CrO4), and review of PbO-related structural units in inorganic compounds. J. Solid State Chem. 2004, 177, 1321–1332. [Google Scholar] [CrossRef]
  39. Krivovichev, S.V.; Siidra, O.I.; Nazarchuk, E.V.; Burns, P.C.; Depmeier, W. Particular topological complexity of lead oxide blocks in Pb31O22X18 (X = Br, Cl). Inorg. Chem. 2006, 45, 3846–3848. [Google Scholar] [CrossRef] [PubMed]
  40. Krivovichev, S.V.; Armbruster, T.; Depmeier, W. One-dimensional lone electron pair micelles in the crystal structure of Pb5(SiO4)(VO4)2. Mater. Res. Bull. 2004, 39, 1717–1722. [Google Scholar] [CrossRef]
  41. Krivovichev, S.V.; Burns, P.C. Crystal chemistry of uranyl molybdates. VIII. Crystal structures of Na3Tl3[(UO2)(MoO4)4], Na13Tl3[(UO2)(MoO4)3]4(H2O)5, Na3Tl5[(UO2)(MoO4)3]2(H2O)3 and Na2[(UO2)(MoO4)2](H2O)4. Can. Mineral. 2003, 41, 707–719. [Google Scholar] [CrossRef]
  42. Krivovichev, S.V.; Filatov, S.K.; Burns, P.C.; Vergasova, L.P. The crystal structure of allochalcoselite, Cu+Cu2+5PbO2(SeO3)2Cl5, a mineral with well-defined Cu+ and Cu2+ positions. Can. Miner. 2006, 44, 507–514. [Google Scholar] [CrossRef]
  43. Krivovichev, S.V.; Filatov, S.K.; Vergasova, L.P. The crystal structure of ilinskite, NaCu5O2(SeO3)2Cl3, and review of mixed-ligand CuOmCln coordination geometries in minerals and inorganic compounds. Miner. Petrol. 2013, 107, 235–242. [Google Scholar] [CrossRef]
  44. Semenova, T.F.; Rozhdestvenskaya, I.V.; Filatov, S.K.; Vergasova, L.P. Crystal structure and physical properties of sophiite, Zn2(SeO3)Cl2, a new mineral. Mineral. Mag. 1992, 56, 241–245. [Google Scholar] [CrossRef]
  45. Johnsson, M.; Tornroos, K.W. Zinc selenium oxochloride, β-Zn2(SeO3)Cl2, a synthetic polymorph of the mineral sophiite. Acta Crystallogr. C 2007, 63, i34–i36. [Google Scholar] [CrossRef] [PubMed]
  46. Krivovichev, S.V.; Shuvalov, R.R.; Semenova, T.F.; Filatov, S.K. Crystal chemistry of inorganic compounds based on chains of oxocentered tetrahedra. III. Crystal structure of georgbokiite, Cu5O2(SeO3)2Cl2. Z. Kristallogr. 1999, 214, 135–138. [Google Scholar] [CrossRef]
  47. Krivovichev, S.V.; Filatov, S.K.; Burns, P.C.; Vergasova, L.P. The crystal structure of parageorgbokiite, β-Cu5O2(SeO3)2Cl2. Can. Mineral. 2007, 45, 929–934. [Google Scholar] [CrossRef]
  48. Burns, P.C.; Krivovichev, S.V.; Filatov, S.K. New Cu2+ coordination polyhedra in the crystal structure of burnsite, KCdCu7O2(SeO3)2Cl9. Can. Mineral. 2002, 40, 1587–1595. [Google Scholar] [CrossRef]
  49. Dovesi, R.; Orlando, R.; Erba, A.; Zicovich-Wilson, C.M.; Civalleri, B.; Casassa, S.; Maschio, L.; Ferrabone, M.; De La Pierre, M.; D’Arco, P.; et al. CRYSTAL14: A program for ab initio investigation of crystalline solids. Int. J. Quantum Chem. 2014, 114, 1287–1317. [Google Scholar] [CrossRef]
  50. Peintinger, M.F.; Oliveira, D.V.; Bredow, T. Consistent Gaussian basis sets of triple-zeta valence with polarization quality for solid-state calculations. J. Comput. Chem. 2013, 34, 451–459. [Google Scholar] [CrossRef] [PubMed]
  51. Dou, Y.; Egdell, R.G.; Law, D.S.L.; Harrison, N.M.; Searle, B.G. An experimental and theoretical investigation of the electronic structure of CdO. J. Phys. Condens. Matter 1998, 10, 8447–8458. [Google Scholar] [CrossRef]
  52. Gatti, C.; Casassa, S. TOPOND14. User's Manual; CNR-ISTM of Milano: Milano, Italy, 2013. [Google Scholar]
  53. Gatti, C.; Saunders, V.R.; Roetti, C. Crystal field effects on the topological properties of the electron density in molecular crystals. The case of urea. J. Chem. Phys. 1994, 101, 10686–10696. [Google Scholar] [CrossRef]
  54. Kovrugin, V.M.; Siidra, O.I.; Colmont, M.; Mentré, O.; Krivovichev, S.V. Emulating exhalative chemistry: Synthesis and structural characterization of ilinskite, Na[Cu5O2](SeO3)2Cl3, and its K-analogue. Miner. Petrol. 2015, 109, 421–430. [Google Scholar] [CrossRef]
  55. Galy, J.; Bonnet, J.J.; Andersson, S. The crystal structure of a new oxide chloride of copper(II) and selenium(IV) Cu5Se2O8Cl2. Acta Chem. Scand. 1979, A33, 383–389. [Google Scholar] [CrossRef]
  56. Bergerhoff, G.; Paeslack, J. Sauerstoff als Koordinationszentrum in Kristallstrukturen. Z. Kristallogr. 1968, 126, 112–123. [Google Scholar] [CrossRef]
  57. Krivovichev, S.V.; Mentré, O.; Siidra, O.I.; Colmont, M.; Filatov, S.K. Anion-centered tetrahedra in inorganic compounds. Chem. Rev. 2013, 113, 6459–6535. [Google Scholar] [CrossRef] [PubMed]
  58. Krivovichev, S.V. Structure description, interpretation and classification in mineralogical crystallography. Crystallogr. Rev. 2017, 23, 2–71. [Google Scholar] [CrossRef]
  59. Haas, H.; Jansen, M. Synthese und Charakterisierung von Na5AsO5. Z. Anorg. Allg. Chem. 2001, 627, 1013–1016. [Google Scholar] [CrossRef]
  60. Krivovichev, S.V. Minerals with antiperovskite structure: A review. Z. Kristallogr. 2008, 223, 109–113. [Google Scholar] [CrossRef]
  61. Reckeweg, O.; Blaschkowski, B.; Schleid, T. Li5OCl3 and Li3OCl: Two remarkably different lithium oxide chlorides. Z. Anorg. Allg. Chem. 2012, 638, 2081–2086. [Google Scholar] [CrossRef]
  62. Nuss, J.; Muehle, C.; Hayama, K.; Abdolazimi, V.; Takagi, H. Tilting structures in inverse perovskites, M3TtO (M = Ca, Sr, Ba, Eu; Tt = Si, Ge, Sn, Pb). Acta Crystallogr. 2015, B71, 300–312. [Google Scholar] [CrossRef]
  63. Galuskin, E.V.; Gfeller, F.; Armbruster, T.; Galuskina, I.O.; Vapnik, Y.; Murashko, M.; Włodyka, R.; Dzierżanowski, P. New minerals with a modular structure derived from hatrurite from the pyrometamorphic Hatrurim Complex. Part I. Nabimusaite, KCa12(SiO4)4(SO4)2O2F, from larnite rocks of Jabel Harmun, Palestinian Autonomy, Israel. Mineral. Mag. 2015, 79, 1061–1072. [Google Scholar] [CrossRef]
  64. Galuskin, E.V.; Gfeller, F.; Galuskina, I.O.; Pakhomova, A.; Armbruster, T.; Vapnik, Y.; Włodyka, R.; Dzierżanowski, P.; Murashko, M. New minerals with a modular structure derived from hatrurite from the pyrometamorphic Hatrurim Complex. Part II. Zadovite, BaCa6[(SiO4)(PO4)](PO4)2F and aradite, BaCa6[(SiO4)(VO4)](VO4)2F, from paralavas of the Hatrurim Basin, Negev Desert, Israel. Mineral. Mag. 2015, 79, 1073–1087. [Google Scholar] [CrossRef]
  65. Oudah, M.; Ikeda, A.; Hausmann, J.N.; Yonezawa, S.; Fukumoto, T.; Kobayashi, S.; Sato, M.; Maeno, Y. Superconductivity in the antiperovskite Dirac-metal oxide Sr3-xSnO. Nat. Commun. 2016, 12, 13617. [Google Scholar] [CrossRef] [PubMed]
  66. Lai, K.T.; Antonyshyn, I.; Prots, Y.; Valldor, M. Anti-perovskite Li-battery cathode materials. J. Am. Chem. Soc. 2017, 139, 9645–9649. [Google Scholar] [CrossRef] [PubMed]
  67. Krivovichev, S.V.; Starova, G.L.; Filatov, S.K. “Face-to-face” relationships between oxocentered tetrahedra and cation-centered tetrahedral oxyanions in crystal structures of minerals and inorganic compounds. Mineral. Mag. 1999, 63, 263–266. [Google Scholar] [CrossRef]
  68. Krivovichev, S.V.; Filatov, S.K. Structural principles for minerals and inorganic compounds containing anion-centered tetrahedra. Am. Mineral. 1999, 84, 1099–1106. [Google Scholar] [CrossRef]
  69. Jahn, H.A.; Teller, E. Stability of polyatomic molecules in degenerate electronic states. I. Orbital degeneracy. Proc. R. Soc. A 1937, A161, 220–235. [Google Scholar] [CrossRef]
  70. Brown, I.D. The Chemical Bond in Inorganic Chemistry. The Bond Valence Model, 2nd ed.; Oxford University Press: Oxford, UK, 2016; ISBN 9780198742951. [Google Scholar]
  71. Semenova, T.F.; Pankratova, O.Y.; Habanova, A.A.; Shuvalov, R.R. Synthesis of exhalation copper selenites analogues by chemical gas transport reactions method. Vestnik Sankt-Peterb. Univ. Ser. 4 Fiz. Khim. 2005, 2, 75–81. (In Russian) [Google Scholar]
  72. Kovrugin, V.M.; Colmont, M.; Mentré, O.; Siidra, O.I.; Krivovichev, S.V. Dimers of oxocentred [OCu4]6+ tetrahedra in two novel copper selenite chlorides, K[Cu3O](SeO3)2Cl and Na2[Cu7O2](SeO3)4Cl4, and related minerals and inorganic compounds. Mineral Mag. 2016, 80, 227–238. [Google Scholar] [CrossRef]
  73. Tang, Y.; Guo, W.; Zhang, S.; Xiang, H.; Cui, M.; He, Z. Na2Cu7(SeO3)4O2Cl4: A selenite chloride compound with Cu7 units showing spin-frustration and a magnetization plateau. Dalton Trans. 2016, 45, 8324–8326. [Google Scholar] [CrossRef] [PubMed]
  74. Cavallo, G.; Metrangolo, P.; Milani, R.; Pilati, T.; Priimagi, A.; Resnati, G.; Terraneo, G. The halogen bond. Chem. Rev. 2016, 116, 2478–2601. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  75. Benz, S.; Macchione, M.; Verolet, Q.; Mareda, J.; Sakai, N.; Matile, S. Anion transport with chalcogen bonds. J. Am. Chem. Soc. 2016, 138, 9093–9096. [Google Scholar] [CrossRef] [PubMed]
  76. Sánchez-Sanz, G.; Trujillo, C. Improvement of anion transport systems by modulation of chalcogen interactions: The influence of solvent. J. Phys. Chem. A 2018, 122, 1369–1377. [Google Scholar] [CrossRef] [PubMed]
  77. Batsanov, S.S. Van der Waals radii of elements. Inorg. Mater. 2001, 37, 871–885. [Google Scholar] [CrossRef]
  78. Espinosa, E.; Alkorta, I.; Rozas, I.; Elguero, J.; Molins, E. About the evaluation of the local kinetic, potential and total energy densities in closed-shell interactions. Chem. Phys. Lett. 2001, 336, 457–461. [Google Scholar] [CrossRef]
  79. Desiraju, G.; Steiner, T. The Weak Hydrogen Bond in Structural Chemistry and Biology; Oxford University Press: Oxford, UK, 2001; ISBN 9780198509707. [Google Scholar]
  80. Nelyubina, Y.V.; Antipin, M.Y.; Lyssenko, K.A. Extremely short halogen bond: The nature and energy of iodine–oxygen interactions in crystalline iodic acid. Mendeleev Commun. 2011, 21, 250–252. [Google Scholar] [CrossRef]
  81. Mata, I.; Alkorta, I.; Molins, E.; Espinosa, E. Electrostatics at the origin of the stability of phosphate-phosphate complexes locked by hydrogen bonds. ChemPhysChem 2012, 13, 1421–1424. [Google Scholar] [CrossRef] [PubMed]
  82. Weinhold, F.; Klein, R.A. Anti-electrostatic hydrogen bonds. Angew. Chem. Int. Ed. 2014, 53, 11214–11217. [Google Scholar] [CrossRef] [PubMed]
Crystals 08 00193 g001 550

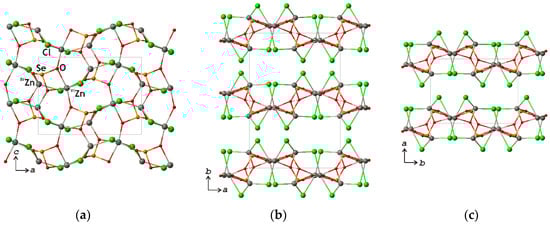

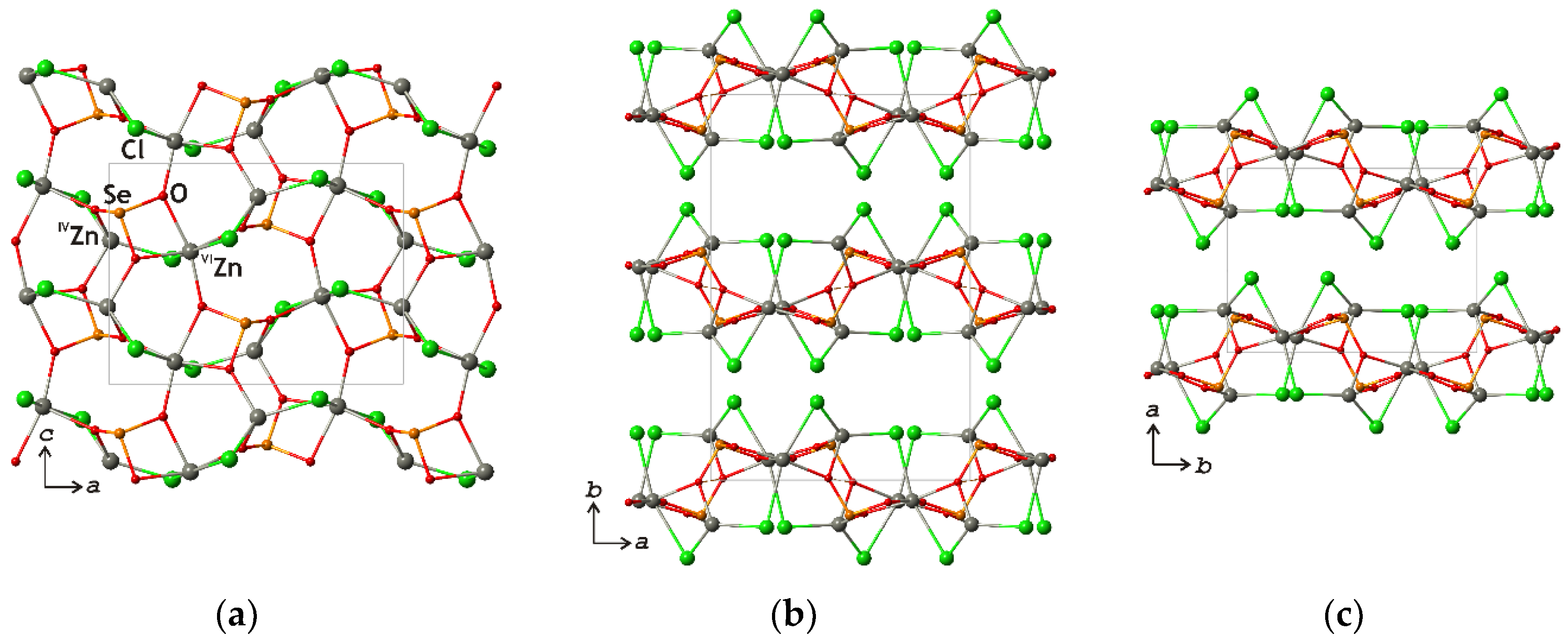

Figure 1. The crystal structures of the Zn2(SeO3)Cl2 polymorphs: (a) the structure of the [Zn2(SeO3)Cl2]0 layer in sofiite; (b) the projection of the structure of sofiite parallel to the c axis; (c) the projection of the structure of β-Zn2(SeO3)Cl2 parallel to the c axis. Legend: Zn, Se, Cl, and O atoms are shown as gray, orange, green, and red spheres, respectively.
Figure 1. The crystal structures of the Zn2(SeO3)Cl2 polymorphs: (a) the structure of the [Zn2(SeO3)Cl2]0 layer in sofiite; (b) the projection of the structure of sofiite parallel to the c axis; (c) the projection of the structure of β-Zn2(SeO3)Cl2 parallel to the c axis. Legend: Zn, Se, Cl, and O atoms are shown as gray, orange, green, and red spheres, respectively.
Crystals 08 00193 g001
Crystals 08 00193 g002 550

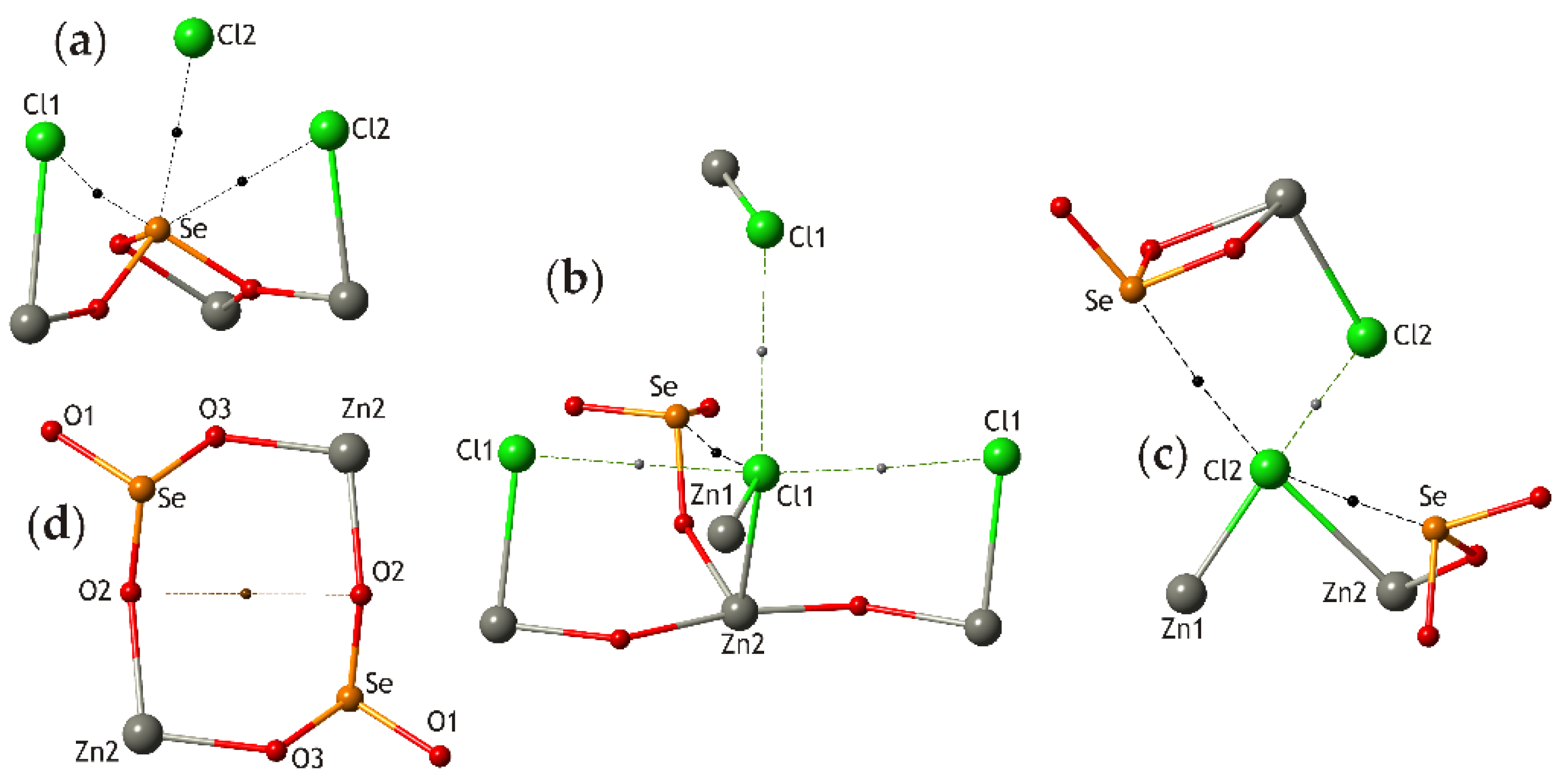

Figure 2. Geometrical environment of bond critical points of weak closed-shell interactions in sofiite, α-Zn2(SeO3)Cl2: (a) the bcps around the Se site; (b) the bcps around the Cl1 site; (c) the bcps around the Cl2 site; (d) bcp between the O2 and O2 atoms. Legend as in Figure 1.
Figure 2. Geometrical environment of bond critical points of weak closed-shell interactions in sofiite, α-Zn2(SeO3)Cl2: (a) the bcps around the Se site; (b) the bcps around the Cl1 site; (c) the bcps around the Cl2 site; (d) bcp between the O2 and O2 atoms. Legend as in Figure 1.
Crystals 08 00193 g002
Crystals 08 00193 g003 550

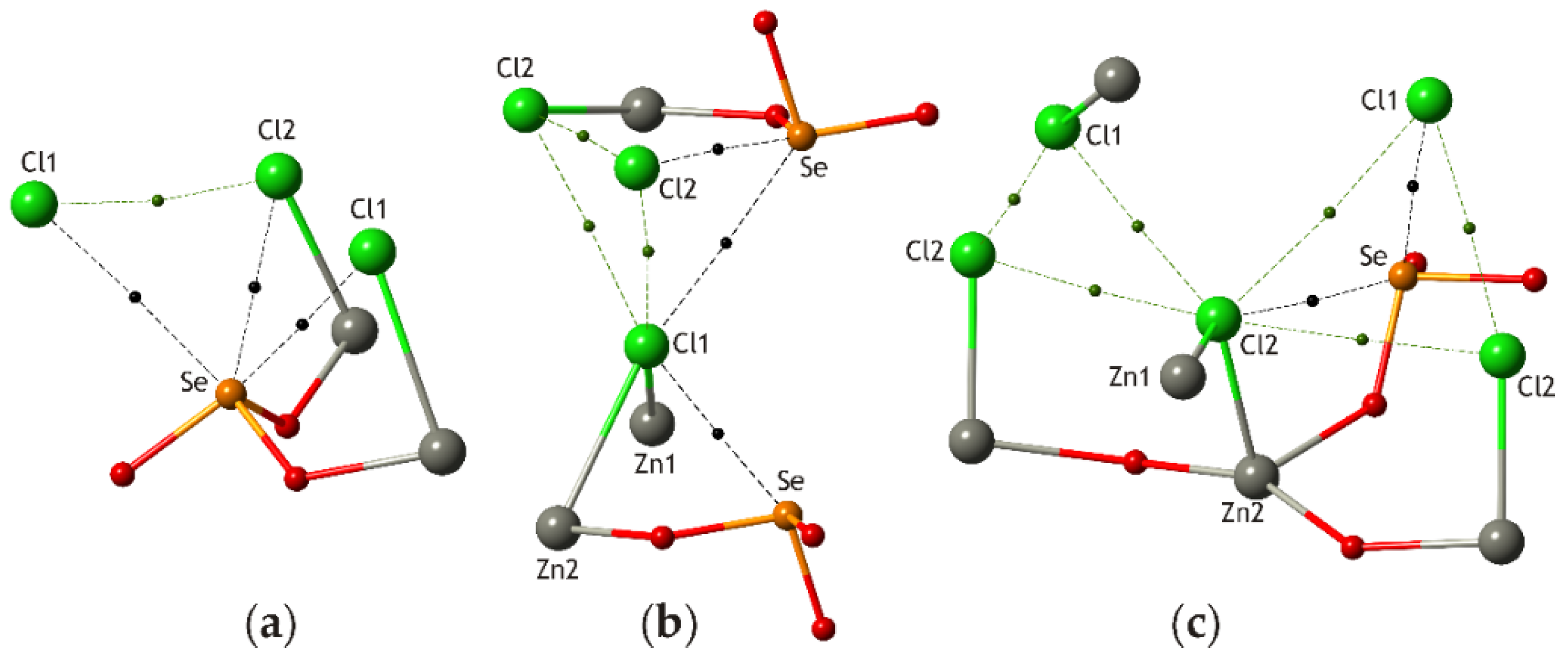

Figure 3. Geometrical environment of bond critical points of weak closed-shell interactions in β-Zn2(SeO3)Cl2: (a) The bcps around the Se site; (b) The bcps around the Cl1 site; (c) The bcps around the Cl2 site. Legend as in Figure 1.
Figure 3. Geometrical environment of bond critical points of weak closed-shell interactions in β-Zn2(SeO3)Cl2: (a) The bcps around the Se site; (b) The bcps around the Cl1 site; (c) The bcps around the Cl2 site. Legend as in Figure 1.
Crystals 08 00193 g003
Crystals 08 00193 g004 550

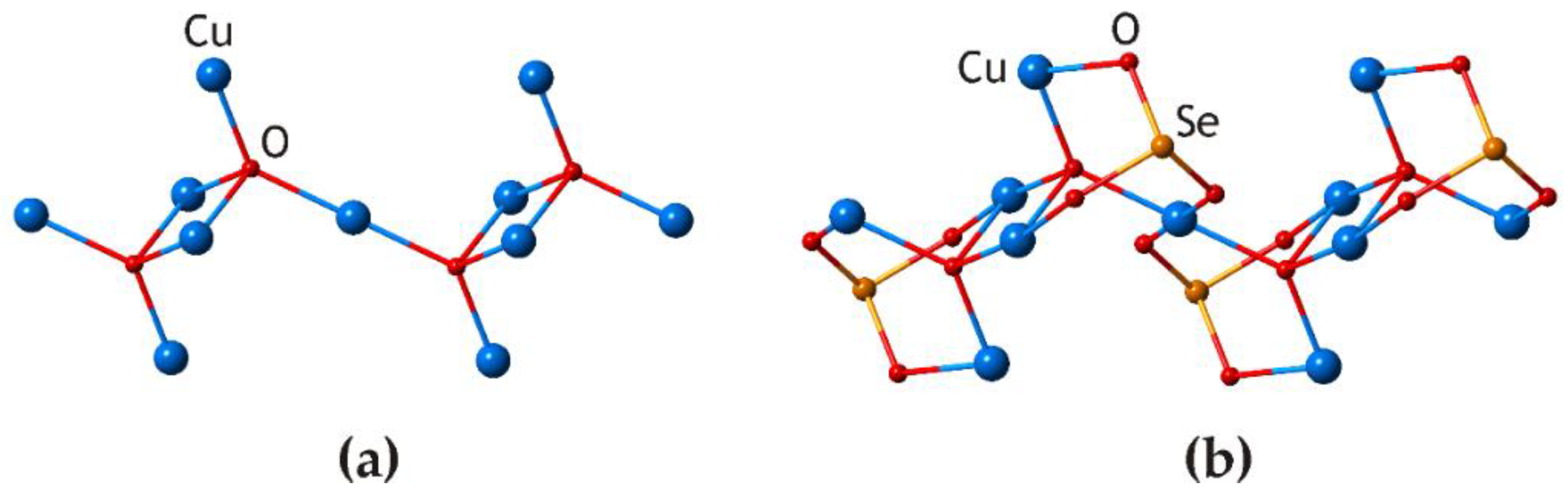

Figure 4. The basic structural module for the crystal structures of the Cu5O2(SeO3)2Cl2 polymorphs (georgbokiite and parageorgbokiite): (a) the [O2Cu5] chain formed by alternating edge- and corner-sharing (OCu4) tetrahedra; (b) the {[O2Cu5](SeO3)2} 1-dimensional module formed by the face-to-face attachment of (SeO3) groups to (OCu4) tetrahedra.
Figure 4. The basic structural module for the crystal structures of the Cu5O2(SeO3)2Cl2 polymorphs (georgbokiite and parageorgbokiite): (a) the [O2Cu5] chain formed by alternating edge- and corner-sharing (OCu4) tetrahedra; (b) the {[O2Cu5](SeO3)2} 1-dimensional module formed by the face-to-face attachment of (SeO3) groups to (OCu4) tetrahedra.
Crystals 08 00193 g004
Crystals 08 00193 g005 550
Figure 5. The scheme of successive (step-by-step) construction of the crystal structure of georgbokiite, α-Cu5O2(SeO3)2Cl2: (a) the arrangement of the [O2Cu5] chains of edge- and corner-sharing (OCu4) tetrahedra; (b) the metal-oxide bonding network of the Cu–O and Se–O bonds; (c) the structure projection showing the positions of the Cl atoms and the location of extended channels parallel to [001] (shown in gray); (d) the location of bcps corresponding to weak closed-shell interactions. See text for details. Legend: Cu, Se, O, and Cl atoms are shown as blue, orange, red, and green spheres, respectively. Small black spheres indicate the positions of bcps.
Figure 5. The scheme of successive (step-by-step) construction of the crystal structure of georgbokiite, α-Cu5O2(SeO3)2Cl2: (a) the arrangement of the [O2Cu5] chains of edge- and corner-sharing (OCu4) tetrahedra; (b) the metal-oxide bonding network of the Cu–O and Se–O bonds; (c) the structure projection showing the positions of the Cl atoms and the location of extended channels parallel to [001] (shown in gray); (d) the location of bcps corresponding to weak closed-shell interactions. See text for details. Legend: Cu, Se, O, and Cl atoms are shown as blue, orange, red, and green spheres, respectively. Small black spheres indicate the positions of bcps.
Crystals 08 00193 g005
Crystals 08 00193 g006 550

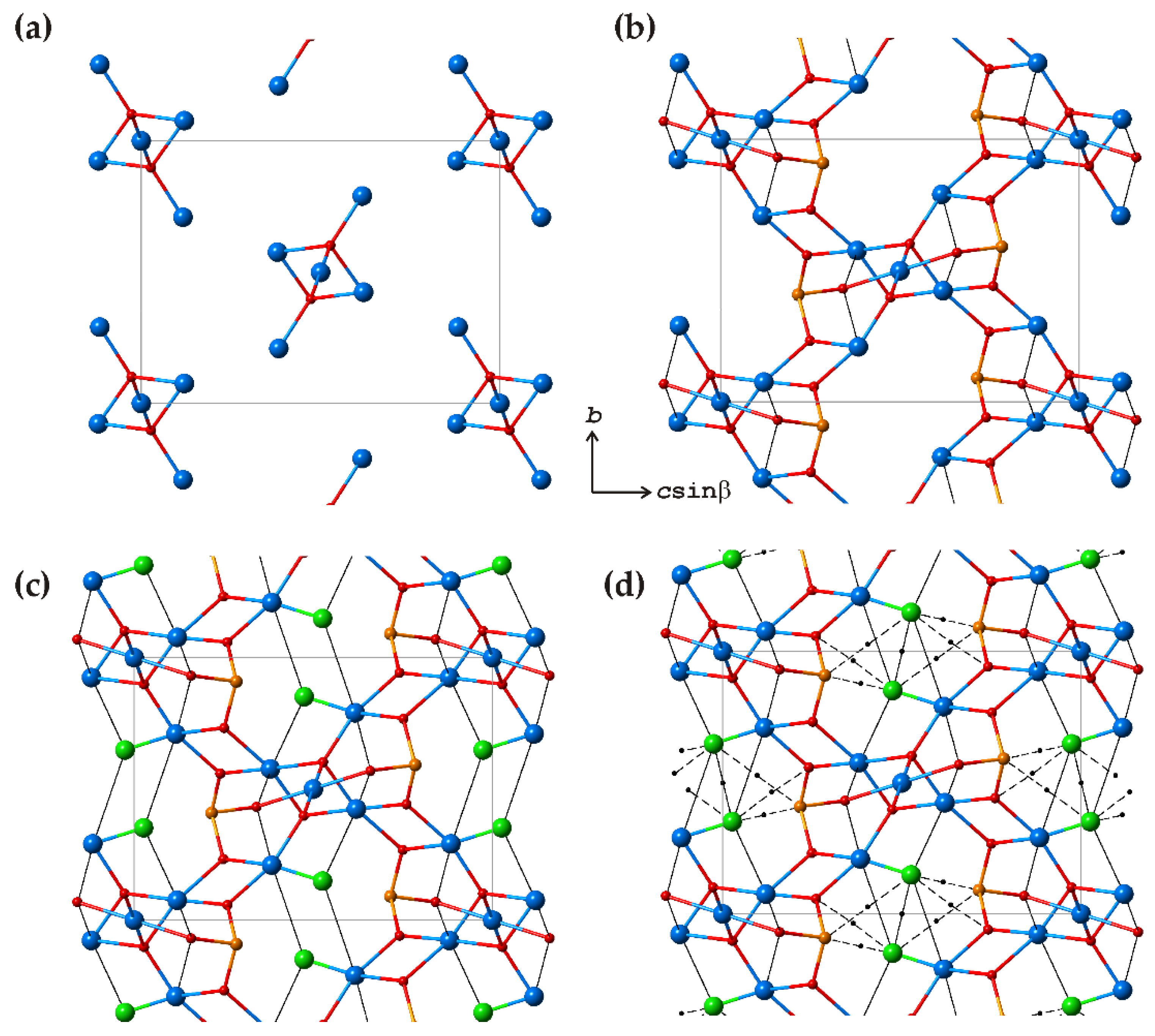

Figure 6. The scheme of successive (step-by-step) construction of the crystal structure of parageorgbokiite, β-Cu5O2(SeO3)2Cl2: (a) the arrangement of the [O2Cu5] chains of edge- and corner-sharing (OCu4) tetrahedra; (b) the metal-oxide bonding network of the Cu–O and Se–O bonds; (c) the structure projection showing the positions of the Cl atoms; (d) the location of bcps corresponding to weak closed-shell interactions. See text for details. Legend as in Figure 5.
Figure 6. The scheme of successive (step-by-step) construction of the crystal structure of parageorgbokiite, β-Cu5O2(SeO3)2Cl2: (a) the arrangement of the [O2Cu5] chains of edge- and corner-sharing (OCu4) tetrahedra; (b) the metal-oxide bonding network of the Cu–O and Se–O bonds; (c) the structure projection showing the positions of the Cl atoms; (d) the location of bcps corresponding to weak closed-shell interactions. See text for details. Legend as in Figure 5.
Crystals 08 00193 g006
Crystals 08 00193 g007 550

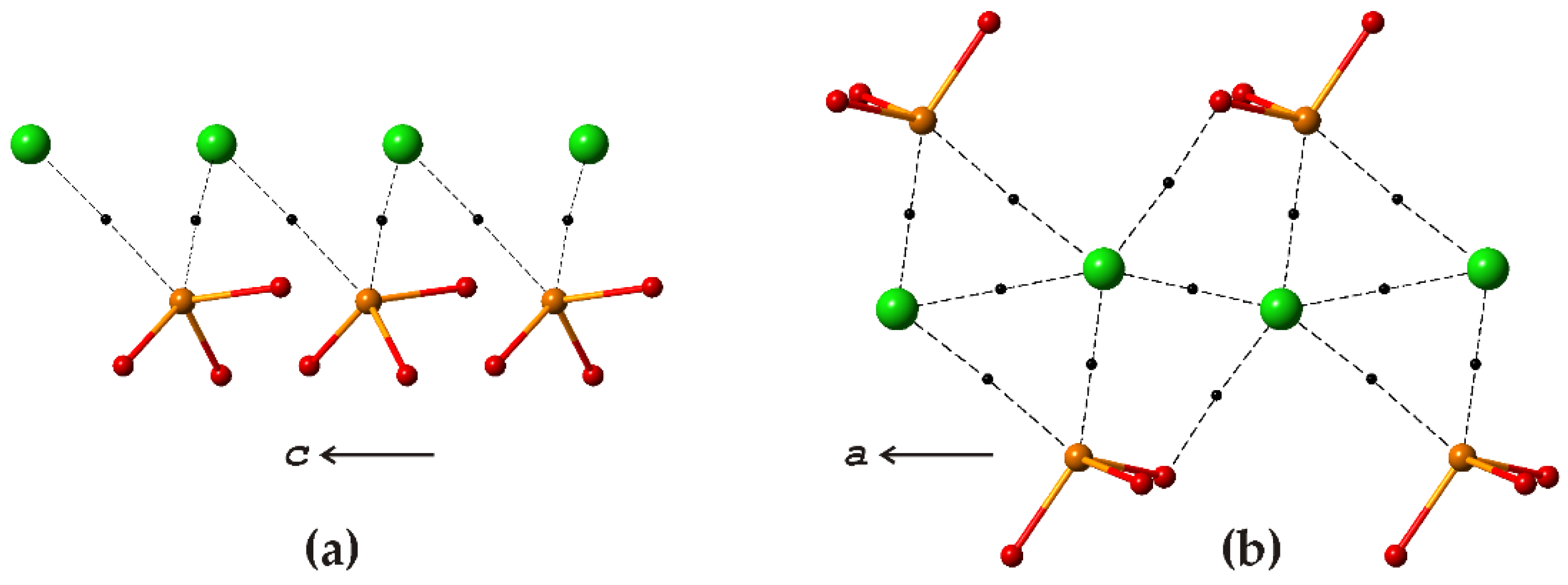

Figure 7. The arrangement of (SeO3) groups and Cl atoms in the channels in the crystal structures of georgbokiite (a) and parageorgbokiite (b). Dashed lines indicate bond paths that correspond to weak closed-shell interactions. Legend as in Figure 5.
Figure 7. The arrangement of (SeO3) groups and Cl atoms in the channels in the crystal structures of georgbokiite (a) and parageorgbokiite (b). Dashed lines indicate bond paths that correspond to weak closed-shell interactions. Legend as in Figure 5.
Crystals 08 00193 g007
Crystals 08 00193 g008 550

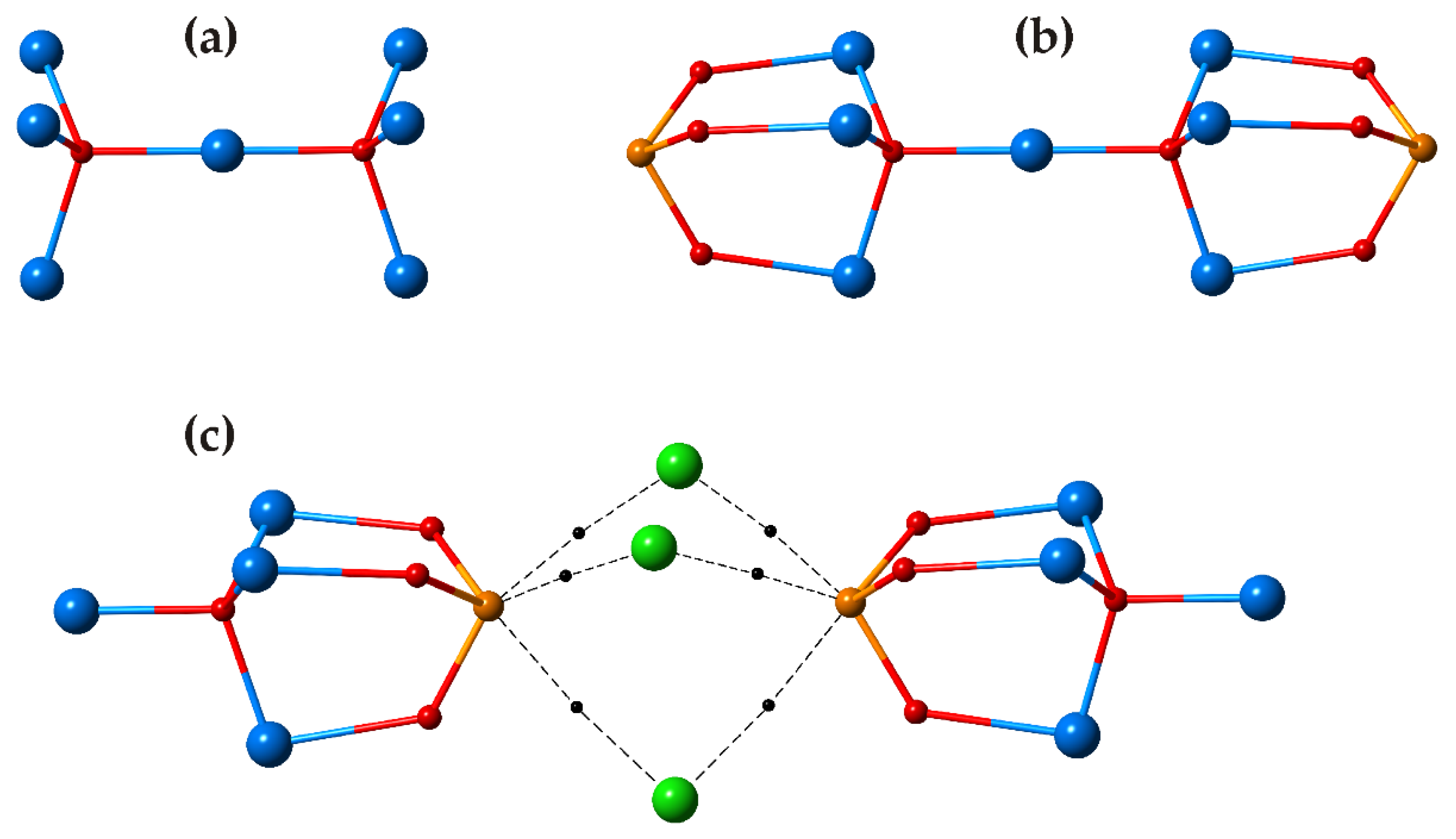

Figure 8. The [O2Cu7] dimer of two corner-sharing (OCu4) tetrahedra in the crystal structure of burnsite (a) and its coordination by two (SeO3) groups (b). The atomic configuration inside the metal-oxide framework cavity showing the orientation of Se–Cl closed-shell interactions. (c) Legend as in Figure 5.
Figure 8. The [O2Cu7] dimer of two corner-sharing (OCu4) tetrahedra in the crystal structure of burnsite (a) and its coordination by two (SeO3) groups (b). The atomic configuration inside the metal-oxide framework cavity showing the orientation of Se–Cl closed-shell interactions. (c) Legend as in Figure 5.
Crystals 08 00193 g008
Crystals 08 00193 g009 550

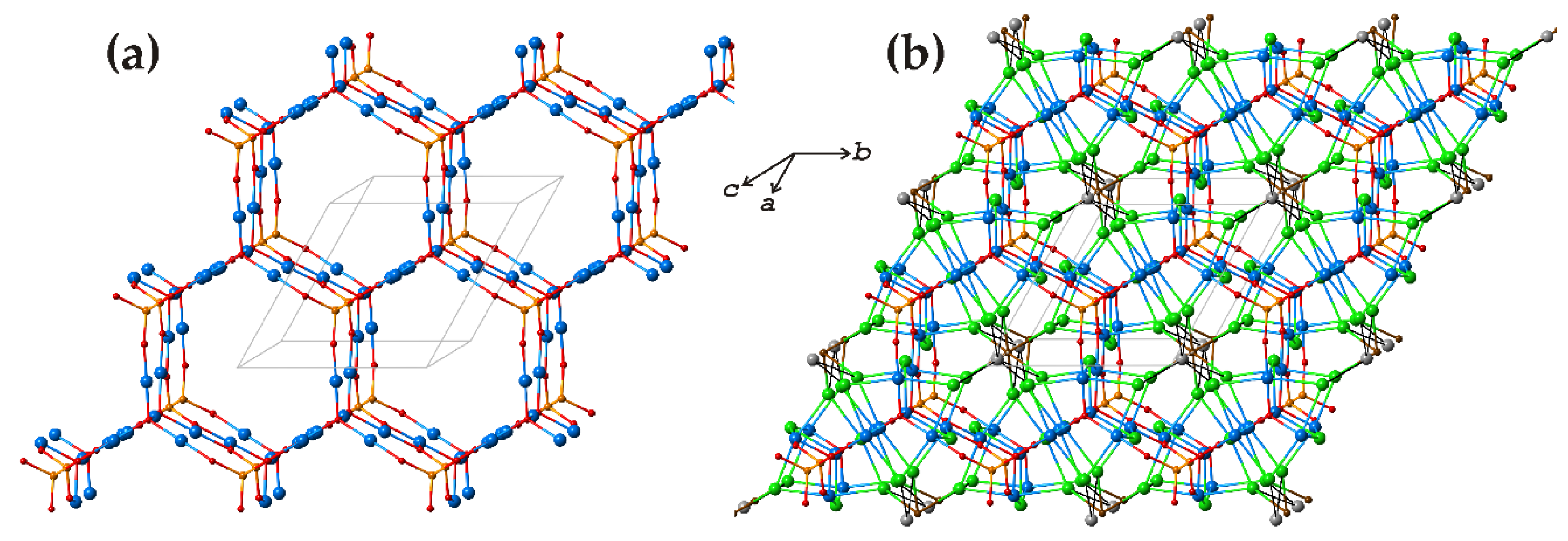

Figure 9. The open framework metal-oxide framework formed by [O2Cu7] dimers and (SeO3) groups in the crystal structure of burnsite (a) and the projection of the whole structure of burnsite featuring filling framework cavities by Cd2+, K+, and Cl− ions (b). Legend: Cu, Se, O, Cl, K, and Cd atoms are shown as blue, orange, red, green, gray, and brown spheres, respectively.
Figure 9. The open framework metal-oxide framework formed by [O2Cu7] dimers and (SeO3) groups in the crystal structure of burnsite (a) and the projection of the whole structure of burnsite featuring filling framework cavities by Cd2+, K+, and Cl− ions (b). Legend: Cu, Se, O, Cl, K, and Cd atoms are shown as blue, orange, red, green, gray, and brown spheres, respectively.
Crystals 08 00193 g009
Table
Table 1. Crystallographic data for selected selenite chlorides analyzed using the atoms-in-molecules (AIM) theory.
Table 1. Crystallographic data for selected selenite chlorides analyzed using the atoms-in-molecules (AIM) theory.
#Chemical FormulaMineral NameSpace Groupa, Å/α, Deg.b, Å/β, Deg.c, Å/γ, Deg.Ref.
1α-Zn2(SeO3)Cl2sofiitePccn10.251/9015.223/907.666/90[44]
2β-Zn2(SeO3)Cl2-P21/c7.670/9010.261/100.07.657/90[45]
3α-Cu5O2(SeO3)2Cl2georgbokiiteP21/c6.030/9013.744/95.85.562/90[46]
4β-Cu5O2(SeO3)2Cl2parageorgbokiiteP21/c5.398/908.054/99.311.128/90[47]
5KCdCu7O2(SeO3)2Cl9burnsiteP63/mmc8.781/908.781/9015.521/120[48]
Table
Table 2. Bond critical points in the crystal structure of sofiite, α-Zn2(SeO3)Cl2, and their properties.
Table 2. Bond critical points in the crystal structure of sofiite, α-Zn2(SeO3)Cl2, and their properties.
A1A2d [Å]ρ(rc)∇2ρ(rc)G(rc)V(rc)H(rc)BD
Se–O and Zn–X bonds (X = O, Cl)
SeO11.6880.19400.45910.2357−0.3566−0.1209−0.624
SeO31.6970.19220.41440.2247−0.3458−0.1211−0.630
SeO21.7010.18830.41080.2196−0.3364−0.1168−0.620
Zn1O11.9930.07580.39080.1109−0.1242−0.0133−0.175
Zn1O22.0570.06670.32320.0908−0.1007−0.0099−0.148
Zn1Cl22.2050.07840.26640.0849−0.1033−0.0184−0.235
Zn1Cl12.2440.07320.23460.0746−0.0905−0.0159−0.217
Zn2O11.9930.07810.39840.1144−0.1292−0.0148−0.190
Zn2O22.1150.05580.26670.0717−0.0766−0.0049−0.088
Zn2O31.9550.08370.43910.1267−0.1435−0.0168−0.201
Zn2O32.1470.05510.25110.0687−0.0747−0.0060−0.109
Zn2Cl22.6850.02980.07830.0220−0.0245−0.0025−0.084
Zn2Cl12.7530.02560.06520.0180−0.0197−0.0017−0.066
Se–Cl, Cl–Cl, and O–O interactions
SeCl23.3170.01210.03490.0078−0.00690.00090.074
SeCl23.4440.01030.03120.0069−0.00600.00090.087
SeCl13.5330.00800.02680.0057−0.00460.00110.138
Cl1Cl13.8980.00390.01430.0028−0.00210.00070.179
Cl1Cl13.9550.00290.01150.0022−0.00150.00070.241
Cl2Cl23.5670.00710.02080.0046−0.00410.00050.070
O2O23.3620.00550.01810.00380.00300.00080.145
Table
Table 3. Bond critical points in the crystal structure of β-Zn2(SeO3)Cl2 and their properties.
Table 3. Bond critical points in the crystal structure of β-Zn2(SeO3)Cl2 and their properties.
A1A2d [Å]ρ(rc)∇2ρ(rc)G(rc)V(rc)H(rc)BD
Se–O and Zn–X bonds (X = O, Cl)
Se1O31.7030.19010.38560.2163−0.3361−0.1198−0.630
Se1O11.7070.18790.37970.2123−0.3297−0.1174−0.625
Se1O21.7150.18360.37360.2065−0.3196−0.1131−0.616
Zn2O12.1260.05740.26720.0733−0.0798−0.0065−0.113
Zn1O11.9830.07790.40090.1147−0.1291−0.0144−0.185
Zn1O22.0310.07020.34920.0984−0.1096−0.0112−0.160
Zn1Cl12.2220.07610.25190.0801−0.0972−0.0171−0.225
Zn1Cl22.2260.07510.25190.0795−0.0961−0.0166−0.221
Zn2O32.0080.07370.37330.1056−0.1178−0.0122−0.166
Zn2O22.0490.06630.33040.0914−0.1002−0.0088−0.133
Zn2O32.1500.05460.24700.0676−0.0735−0.0059−0.108
Zn2Cl22.4300.04870.15550.0445−0.0501−0.0056−0.115
Zn2Cl12.7650.02500.06490.0179−0.0196−0.0017−0.068
Se–Cl, Cl–Cl, and O–O interactions
Se1Cl23.3820.01060.03430.0075−0.00640.00090.085
Se1Cl13.4820.00960.02970.0065−0.00550.00100.104
Se1Cl13.5140.00850.02520.0053−0.00440.00090.106
Cl1Cl23.5340.00790.02250.0051−0.00460.00050.063
Cl1Cl23.9560.00290.01130.0021−0.00140.00070.241
Cl2Cl23.8690.00410.01510.0030−0.00220.00080.195
O2O23.4700.00480.01550.0032−0.00260.00060.125
Table
Table 4. Bond critical points in the crystal structure of α-Cu5O2(SeO3)2Cl2 and their properties.
Table 4. Bond critical points in the crystal structure of α-Cu5O2(SeO3)2Cl2 and their properties.
A1A2d [Å]ρ(rc)∇2ρ(rc)G(rc)V(rc)H(rc)BD
Cu1O11.9230.09790.38120.1339−0.1725−0.0386−0.394
Cu1O41.9620.08550.35060.1189−0.1501−0.0312−0.365
Cu1O42.0460.06940.27660.0922−0.1153−0.0231−0.333
Cu1Cl2.2820.06820.17010.0658−0.0890−0.0232−0.340
Cu1Cl2.5700.03710.12480.0352−0.0392−0.0040−0.108
Cu2O21.9440.08770.37270.1248−0.1564−0.0316−0.360
Cu2O11.9710.08570.32840.1144−0.1467−0.0323−0.377
Cu2Cl2.9540.01640.06080.0138−0.01230.00150.091
Cu3O21.9890.07860.32540.1089−0.1364−0.0275−0.350
Cu3O11.9560.09110.34330.1214−0.1570−0.0356−0.391
Cu3O11.9520.09350.34640.1238−0.1611−0.0373−0.399
Cu3O32.0240.07230.29170.0973−0.1217−0.0244−0.337
Cu3O22.4300.02830.13140.0327−0.03260.00010.004
Cu3Cl2.7390.02540.09150.0229−0.02290.00000.000
SeO21.6740.19980.47410.2453−0.3721−0.1268−0.635
SeO31.7090.18700.37380.2105−0.3275−0.1170−0.626
SeO41.7240.18200.32760.1952−0.3084−0.1132−0.622
SeCl3.3100.01290.03780.0083−0.00720.00110.085
SeCl3.5440.00860.02440.0053−0.00450.00080.093
ClO23.2160.01130.03580.0082−0.00740.00080.071
O2O23.9720.00830.02970.0062−0.00500.00120.145
Table
Table 5. Bond critical points in the crystal structure of β-Cu5O2(SeO3)2Cl2 and their properties.
Table 5. Bond critical points in the crystal structure of β-Cu5O2(SeO3)2Cl2 and their properties.
A1A2d [Å]ρ(rc)∇2ρ(rc)G(rc)V(rc)H(rc)BD
Cu1O11.9190.09760.38900.1350−0.1727−0.0377−0.386
Cu1O21.9660.08240.35000.1164−0.1453−0.0289−0.351
Cu1O31.9690.08340.34060.1153−0.1455−0.0302−0.362
Cu1Cl2.2680.07060.17160.0676−0.0923−0.0247−0.350
Cu1O42.9440.00960.04250.0081−0.00560.00250.260
Cu1Cl3.1850.00960.03920.0079−0.00600.00190.198
Cu2O11.9290.09440.38150.1314−0.1675−0.0361−0.382
Cu2O41.9740.08230.33290.1128−0.1425−0.0297−0.361
Cu3O11.9450.09340.35850.1260−0.1625−0.0365−0.391
Cu3O21.9610.08320.35760.1187−0.1480−0.0293−0.352
Cu3O11.9750.08850.32370.1158−0.1506−0.0348−0.393
Cu3O32.0570.06720.26500.0881−0.1099−0.0218−0.324
Cu3O42.3990.03110.14090.0363−0.0374−0.0011−0.035
Cu3Cl2.7050.02830.09770.0254−0.0264−0.0010−0.035
SeO41.6750.20000.46100.2428−0.3704−0.1276−0.638
SeO31.7130.18500.36540.2061−0.3208−0.1147−0.620
SeO21.7240.18130.34060.1971−0.3091−0.1120−0.618
SeCl3.3000.01330.04080.0093−0.00830.00100.075
SeCl3.3270.01230.03570.0078−0.00670.00110.089
ClO23.3210.00970.02780.0065−0.00600.00050.052
ClCl3.5010.01040.02840.0068−0.00650.00030.029
ClCl3.8100.00460.01580.0032−0.00250.00070.152
Table
Table 6. Bond critical points in the crystal structure of burnsite, KCdCu7O2(SeO3)2Cl9, and their properties.
Table 6. Bond critical points in the crystal structure of burnsite, KCdCu7O2(SeO3)2Cl9, and their properties.
A1A2d [Å]ρ(rc)∇2ρ(rc)G(rc)V(rc)H(rc)BD
CdCl12.6140.04260.14200.0395−0.0436−0.0041−0.096
Cu1O11.8990.10160.42630.1447−0.1828−0.0381−0.375
Cu1O21.9160.09060.42150.1362−0.1670−0.0308−0.340
Cu1O22.1270.05800.23040.0736−0.0896−0.0160−0.276
Cu1Cl22.5550.03690.11520.0331−0.0374−0.0043−0.117
Cu1Cl12.6120.03310.11010.0300−0.0324−0.0024−0.073
Cu2O11.9140.09800.41690.1409−0.1776−0.0367−0.374
Cu2Cl22.4510.04840.14600.0464−0.0562−0.0098−0.202
SeO21.6870.19360.45910.2350−0.3553−0.1203−0.621
SeCl23.5320.00850.02700.0058−0.00480.00100.118

Share and Cite

MDPI and ACS Style

Krivovichev, S.V.; Gorelova, L.A. Se–Cl Interactions in Selenite Chlorides: A Theoretical Study. Crystals 2018, 8, 193. https://doi.org/10.3390/cryst8050193

AMA Style

Krivovichev SV, Gorelova LA. Se–Cl Interactions in Selenite Chlorides: A Theoretical Study. Crystals. 2018; 8(5):193. https://doi.org/10.3390/cryst8050193

Chicago/Turabian Style

Krivovichev, Sergey V., and Liudmila A. Gorelova. 2018. "Se–Cl Interactions in Selenite Chlorides: A Theoretical Study" Crystals 8, no. 5: 193. https://doi.org/10.3390/cryst8050193

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
