Article

Synthesis and Structural Characterization of a Series of One-Dimensional Heteronuclear Dirhodium-Silver Coordination Polymers

by
Paula Cruz
1,†,
Estefania Fernandez-Bartolome
1,†,
Miguel Cortijo
1,*,
Patricia Delgado-Martínez
2,
Rodrigo González-Prieto
1,
José L. Priego
1,*,
M. Rosario Torres
2 and
Reyes Jiménez-Aparicio
1,*
1
Departamento de Química Inorgánica, Facultad de Ciencias Químicas, Universidad Complutense de Madrid, Ciudad Universitaria, E-28040 Madrid, Spain
2
Centro de Asistencia a la Investigación Difracción de Rayos X, Facultad de Ciencias Químicas, Universidad Complutense de Madrid, E-28040 Madrid, Spain
*
Authors to whom correspondence should be addressed.
†
Both authors contributed equally to this work.
Polymers 2019, 11(1), 111; https://doi.org/10.3390/polym11010111
Submission received: 14 December 2018 / Revised: 4 January 2019 / Accepted: 6 January 2019 / Published: 10 January 2019
(This article belongs to the Special Issue Advances in Coordination Polymers)
Browse Figures
Versions Notes

Abstract

:
Herein, we describe the preparation of heteronuclear dirhodium-silver complexes by reaction between molecular Rh(II)-Rh(II) compounds [Rh2(μ-O2CR)4L2] (R = Me, Ph (1), CH2OEt (2); L = solvent molecules) with paddlewheel structure and PPh4[Ag(CN)2]. One-dimensional coordination polymers of (PPh4)n[Rh2(μ-O2CR)4Ag(CN)2]n (R = Me (3), Ph (4), CH2OEt (5)) formula have been obtained by replacement of the two labile molecules in the axial positions of the paddlewheel structures by a [Ag(CN)2]− bridging unit. The crystal structures of 3–5 display a similar arrangement, having anionic chains with a wavy structure and bulky (PPh4)+ cations placed between the chains. The presence of the (PPh4)+ cations hinders the existence of intermolecular Ag-Ag interactions although several C-H····π interactions have been observed. A similar reaction between [Rh2(μ-O2CCMe3)4(HO2CCMe3)2] and PPh4[Ag(CN)2] led to the molecular compound (PPh4)2{Rh2(μ-O2CCMe3)4[Ag(CN)2]2} (6) by replacement of the axial HO2CCMe3 ligands by two [Ag(CN)2]− units. The trimethylacetate ligand increases the solubility of the complex during the crystallization favouring the formation of discrete heteronuclear species.

Graphical Abstract

1. Introduction

In the chemistry of compounds with a direct metal-metal bond the dirhodium complexes play a prominent role because their properties span very different fields [1,2,3]. Many of the Rh2 complexes adopt the paddlewheel structure shown in Figure 1. The majority of these compounds contain a diamagnetic Rh24+ core with a σ2π4δ2δ*2π*4 electronic configuration leading to a net metal-metal bond order of one. Although dirhodium compounds have been extensively studied due to their potential applications in several fields such as catalysis [4,5,6,7] or biological or antitumoral activity [8,9,10,11,12], the variety of architectures in these type of complexes have also attracted a huge interest [13,14,15,16,17,18,19].
As the axial positions of the [Rh2(μ-O2CR)4] (R = alkyl or aryl) are usually occupied, a great amount of molecular complexes of the type [Rh2(μ-O2CR)4Lx] (L = monodentate donor ligand; x = 1, 2) have been described [1,2,3,20,21,22]. Nevertheless, the Rh24+ unit presents in the tetracarboxylatodirhodium(II) complexes has been used to achieve a large number of coordination polymers. One-dimensional polymers have also been obtained using bridging ligands between the dirhodium units [16,17,18,19].
Heterometallic one-dimensional compounds containing M2 units with direct metal-metal bonds and other transition metal complex are very useful as functional materials due to their versatile physical and chemical properties [23,24]. A very useful strategy to form heterometallic complexes has been developed by Petrukhina et al. [25] using the electrophilic tetrakis(trifluoroacetato)dirhodium(II) complex, [Rh2(μ-O2CCF3)4]. Thus, the reaction of [Rh2(μ-O2CCF3)4OCMe2]2 with the tetranuclear species [Cu4(O2CCF3)4] afforded a bidimensional coordination polymer of {[Rh2(μ-O2CCF3)4]·μ2-OCMe2·[Cu4(O2CCF3)4]} formula. In addition, several heterometallic Rh-Pt one-dimensional complexes have been described [26,27,28,29,30]. For example, {[Rh2]−[Pt2] −[Pt2]}n or [Rh2]−[Pt−Cu−Pt] polymers with dimetallic units joined by unbridged Pt-Rh metal-metal bonds have been obtained [26,27,28,29,30,31]. Moreover, a strategy to construct one-dimensional compounds from dirhodiumtetracarboxylato units, [Rh2(μ-O2CR)4]+ (R = Me, Et) using dicyanoaurate, [Au(CN)2]− groups as linker has been developed by our research group [32].
The negative charge of anionic one-dimensional chains based on dirhodium compounds is, usually, compensated by alkali cations [32]. However, the use of a non-innocent counterion as tetraphenylphosphonium could give other possibilities of arrangement. Thus, it is known that in compounds containing tetraphenylphosphonium or triphenylphosphane groups the phenyl-phenyl interactions can combine to give several attractive supramolecular motifs. For example sextuple, quadruple, or double phenyl embraces have been observed [33,34,35,36]. This multiple phenyl embrace can determine the arrangement of the compound in the solid state and is very important in the develop and design of supramolecular structures [37,38,39].
Following the antecedents described above, we have prepared dirhodium-silver anionic one-dimensional coordination polymers of (PPh4)n[Rh2(μ-O2CR)4Ag(CN)2]n (R = Me (3), Ph (4), CH2OEt (5)) formula by reaction between discrete dinuclear building blocks with two labile ligands in the axial positions, [Rh2(μ-O2CR)4L2] (R = Me, Ph (1), CH2OEt (2); L = solvent molecules) and PPh4[Ag(CN)2] (Figure 1). The same approach has also lead to a molecular compound of (PPh4)2{Rh2(μ-O2CCMe3)4[Ag(CN)2]2} (6) formula. The presence of intermolecular interactions including multiple phenyl embraces between the phenyl rings of the PPh4+ counterion have also been examined.

2. Materials and Methods

2.1. Materials

PPh4[Ag(CN)2] was prepared by mixing a solution of 0.2 mmol (0.04 g) of K[Ag(CN)2] in 4 mL of water with a solution of 0.2 mmol (0.08 g) of PPh4Br in 8 mL of water and stirring for 5 min in the absence of light. The white precipitate obtained was filtered off and washed with water (15 mL) and diethyl ether (10 mL). Yield: 0.08 g (80%). [Rh2(μ-O2CCMe3)4(HO2CCMe3)2] was prepared following a published procedure [40,41]. The rest of the reagents were purchased from commercial sources and used as received without further purification.

2.2. Physical Measurements

Elemental analyses were carried out by the Microanalytical Services of the Universidad Complutense de Madrid. FTIR spectra were measured using a Perkin–Elmer Spectrum 100 with a universal ATR accessory in the 4000–650 cm−1 spectral range. Mass spectrometry measurements were carried out by the Mass Spectrometry Services of the Universidad Complutense de Madrid. Electrospray ionization (ESI) mass spectra were recorded using an ion trap-Bruker Esquire-LC spectrometer. Matrix Assisted Laser Desorption Ionization-Time of Flight (MALDI-TOF) were carried out using a Bruker ULTRAFLEX spectrometer. NMR spectra were recorded at the NMR service of the Universidad Complutense de Madrid using a Bruker DPX 300 MHz-BACS-60 and a Bruker AV 500 MHz instrument.

2.3. Crystallography

Single crystal X-ray diffraction measurements were carried out at room temperature using a Bruker Smart-CCD diffractometer with a Mo Kα (λ = 0.71073 Å) radiation and a graphite monochromator. CCDC 1884924–1884932 contain the crystallographic data for the compounds described in this work. These data can be obtained free of charge from the Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/data_request/cif. A summary of some crystal and refinement data are shown in Table 1 and Table 2.

2.4. Synthesis

2.4.1. Synthesis of [Rh2(μ-O2CPh)4(OEt2)2] (1a) and [Rh2(μ-O2CPh)4(OCMe2)2] (1b)

Synthesis of [Rh2(μ-O2CPh)4(OEt2)2] (1a): A mixture of 0.90 mmol (0.40 g) of [Rh2( μ -O2CMe)4] and benzoic acid (5 g) was refluxed for 30 min under nitrogen atmosphere. After cooling the reaction mixture, a dark green solid was obtained at the bottom of the flask while the walls of the flask were covered by sublimated acid. The acid was manually removed and the dark green solid was collected, milled and profusely washed with Et2O/CCl4 (1:1). Yield: 0.42 g (56%). Anal. Calcd. (%) for 1a–1Et2O: C, 50.28; H, 3.96. Found (%): C, 50.02; H, 4.57. FT-IR (cm−1): 3069w, 2973w, 2878w, 1601s, 1563s, 1495w, 1443w, 1392s, 1159m, 1060m, 1028m, 934w, 912w, 845m, 831w, 811w, 787w, 716s, 691s. ESI+, m/z = 713, [Rh2(μ-O2CPh)4] + Na+. 1H-NMR: (500 MHz, acetone-d6, δ (ppm)): 7.57 (m, 20H), 3.40 (q, 8H), 1.11 (t, 12H).
Synthesis of [Rh2(μ-O2CPh)4(OCMe2)2] (1b): A few crystals suitable for single crystal X-ray diffraction were obtained by slow evaporation of a solution of 1a in acetone.

2.4.2. Synthesis of [Rh2(μ-O2CCH2OEt)4(HO2CCH2OEt)2] (2a) and [Rh2(μ-O2CCH2OEt)4(THF)2] (2b and 2b′)

Synthesis of [Rh2(μ-O2CCH2OEt)4(HO2CCH2OEt)2] (2a): 0.68 mmol (0.30 g) of [Rh2(μ-O2CMe)4] in 2.8 mL of ethoxyacetic acid were stirred and heated at 150 °C for three hours under nitrogen atmosphere. The green solution obtained was concentrated to one third of its volume and 6 mL of diethyl ether and 30 mL of petroleum ether were added. Single crystals suitable for X-ray diffraction were obtained after keeping the solution four days in the fridge. Yield: 0.34 g (60%). FT-IR (cm−1): 3450w, 2979w, 2874w, 1672w, 1600s, 1434m, 1410s, 1367m, 1326s, 1265m, 1235m, 1116s, 1030m, 1009m, 986w, 894w, 840m, 732s.
Synthesis of [Rh2(μ-O2CCH2OEt)4(THF)2] (2b and 2b′): 0.39 mmol (0.32 g) of compound 2a were dissolved in 4 mL of THF and 30 mL of petroleum ether. The resultant solution was kept in fridge for two days. Bluish green single crystals suitable for X-ray diffraction were obtained. Yield: 0.16 g (54%). Anal. Calcd (%) for 2b−2THF: C, 31.09; H, 4.57. Found (%): C, 30.04; H, 4.27. FT-IR (cm−1): 3450w, 2978w, 2876w, 1600s, 1436m, 1410s, 1367m, 1327s, 1266m, 1119s, 1082s, 1028m, 1010m, 928w, 895w, 840m, 733s. ESI−, m/z = 618, [Rh2(μ-O2CCH2OEt)4]− and ESI+, m/z = 1133, [Rh4(μ-O2CCH2OEt)7]+. 1H-NMR: (300 MHz, CDCl3, δ (ppm)): 3.96 (s, 8H), 3.44 (q, 8 H), 1.16 (t, 12 H). A careful observation of the crystals allows the distinction of two different crystallization habits: prisms (2b) and thin plates (2b′).

2.4.3. Synthesis of (PPh4)n[Rh2(μ-O2CMe)4Ag(CN)2]n (3a) and {(PPh4)[Rh2(μ-O2CMe)4Ag(CN)2]·2CH2Cl2}n (3b)

Synthesis of (PPh4)n[Rh2(μ-O2CMe)4Ag(CN)2]n (3a): A solution of 0.1 mmol (0.05 g) of PPh4[Ag(CN)2] in 8 mL of acetone was added to a solution of 0.1 mmol (0.044 g) of [Rh2(μ-O2CMe)4] in 10 mL of diethyl ether. The colour changes immediately from green to greyish blue. After 24 h of stirring in absence of light, the pale violet precipitate was separated by filtration. Yield: 0.06 g (64%). Slow evaporation of a MeOH/acetone solution (1:1) of 3a at room temperature yielded single crystals suitable for X-ray diffraction. Anal. Calcd. (%) for 3a: C, 43.38; H, 3.43; N, 2.98. Found (%): C, 42.50; H, 3.40; N, 3.04. FT-IR (cm−1): 3089w, 3064w, 3006w, 2972w, 2927w, 2157w, 1598s, 1484m, 1426s, 1410s, 1343m, 1192w, 1165w, 1108s, 1042m, 1024m, 997m, 759m, 721s, 689s. MALDI−, m/z = 601, [Rh2(O2CMe)4Ag(CN)2]−. 1H-NMR: (500 MHz, DMSO-d6, δ (ppm)): 7.57 (m, 20H), 2.08 (s, 12H).
Synthesis of {(PPh4)[Rh2(μ-O2CMe)4Ag(CN)2]·2CH2Cl2}n (3b): Slow diffusion of a 12 mL THF solution of [Rh2(μ-O2CMe)4] (0.16 mmol, 0.07 g) in a 8 mL solution of PPh4[Ag(CN)2] (0.16 mmol, 0.08 g) in dichloromethane yielded a few crystals suitable for X-ray diffraction after 1 day. Anal. Calcd. (%) for 3b–1CH2Cl2: C, 40.96; H, 3.34; N, 2.73. Found (%): C, 40.67; H, 3.51; N, 2.73.

2.4.4. Synthesis of (PPh4)n[Rh2(μ-O2CPh)4Ag(CN)2]n (4)

Compound 4 was obtained following a similar procedure to that employed to obtain 3a but using 0.1 mmol (0.084 g) of 1a instead of [Rh2(μ-O2CMe)4]. Yield: 0.11 g (92%). Slow evaporation of a Et2O/acetone solution (1:1) at room temperature of 4 yielded single crystals suitable for X-ray diffraction. Anal. Calcd. (%) for 4: C, 54.52; H, 3.39; N, 2.35. Found (%): C, 53.83; H, 3.43; N, 2.43. FT-IR (cm−1): 3062w, 2137w, 1603s, 1563s, 1493w, 1485w, 1438m, 1391s, 1173m, 1108s, 1070m, 1026m, 997m, 845m, 755m, 715s, 688s. ESI−, m/z = 716, [Rh2(μ-O2CPh)4CN]−; 851, [Rh2(μ-O2CPh)4Ag(CN)2]−; 1406, [Rh4(μ-O2CPh)8(CN)]−; 1H-NMR: (500 MHz, DMSO-d6, δ (ppm)): 7.65 (m, 40H).

2.4.5. Synthesis of (PPh4)n[Rh2(μ-O2CCH2OEt)4Ag(CN)2]n (5)

0.1 mmol (0.076 g) of 2b and 0.10 mmol (0.052 g) of PPh4[Ag(CN)2] were dissolved separately in 8 and 12 mL of THF, respectively. Both solutions were mixed and stirred at room temperature for 24 h giving a violet precipitate, which was filtered of and washed with THF. Yield: 0.07 g (63%). Single crystals of 5 suitable for X-ray diffraction were obtained by slow diffusion of diethyl ether over a solution of the compound in dichloromethane. Anal. Calcd. (%) for 5: C, 45.14; H, 4.33; N, 2.51. Found (%): C, 44.97; H, 4.21; N, 2.31. FT-IR (cm−1): 3075w, 2927m, 2972m, 2880m, 2154w, 1613s, 1485m, 1433s, 1408s, 1363m, 1320s, 1261m, 1163m, 1134s, 1107s, 1032m, 998m, 894w, 851s, 757m, 724s, 694s. ESI−, m/z = 619, [Rh2(μ-O2CCH2OEt)4]− and ESI+, m/z = 339, [PPh4]+. 1H-NMR: (300 MHz, CDCl3, δ (ppm)): 7.81 (m, 20H), 3.85 (s, 8H), 3.31 (q, 8H), 1.05 (t, 12H).

2.4.6. Synthesis of (PPh4)2{Rh2(μ-O2CCMe3)4[Ag(CN)2]2} (6)

The synthetic procedure to obtain 6 is analogous to that of 3 using [Rh2(μ-O2CCMe3)4(HO2CCMe3)2] (0.1 mmol, 0.08 g) instead of [Rh2(μ-O2CMe)4]. Yield: 0.065 g (81%). Single crystals suitable for X-ray diffraction were obtained by slow evaporation at room temperature of a solution of 6 in an acetone/THF (1:1) mixture. Anal. Calcd. (%) for 6: C, 53.75; H, 4.76; N, 3.48. Found (%): C, 52.86; H, 4.67; N, 3.41. FT-IR (cm−1): 2961w, 2928w, 2921w, 2866w, 2135w, 1584s, 1482m, 1437m, 1411s, 1360s, 1221s, 1163w, 1109s, 1029w, 997m, 893m, 801w, 781w, 765m, 755m, 721s, 688s. ESI−, m/z = 769, [Rh2(μ-O2CCMe3)4Ag(CN)2]−; 1246, [Rh4(μ-O2CCMe3)8CN]−. 1H-NMR: (500 MHz, DMSO-d6, δ (ppm)): 7,84 (m, 40H), 0.89 (s, 36H).

3. Results and Discussion

3.1. Synthesis and Spectroscopic Characterization

[Rh2(μ-O2CPh)4(OEt2)2)] (1a) was obtained by metathesis reaction of [Rh2(μ-O2CMe)4] using melted benzoic acid as solvent. The recrystallization of 1a in acetone led to crystals of [Rh2(μ-O2CPh)4(OCMe2)2] (1b). A similar reaction using ethoxyacetic acid led to [Rh2(μ-O2CCH2OEt)4(HO2CCH2OEt)2] (2a). This compound was dissolved in THF and the solution was layered with petroleum ether. Crystals of [Rh2(μ-O2CCH2OEt)4(THF)2] (2b and 2b′) were obtained from this solution.
The syntheses of the one-dimensional coordination polymers, (PPh4)n[Rh2(μ-O2CR)4Ag(CN)2]n (R = Me (3a), Ph (4), CH2OEt (5)) and the non-polymeric compound, (PPh4)2{[Rh2(μ-O2CCMe3)4[Ag(CN)2]2} (6) were carried out by stirring for 24 h a solution of the corresponding starting [Rh2(μ-O2CR)4L2] compound with 1 equivalent of PPh4[Ag(CN)2] at room temperature. An appropriate solvent or solvent mixture was employed depending on the solubility of the starting dirhodium complex. Thus, a diethyl ether solution of the dirhodium compound and an acetone solution of the silver complex were used in the synthesis of 3a, 4 and 6 while a THF solution of both reactants was used for 5. Layering a THF solution of [Rh2(μ-O2CMe)4] on top of a dichloromethane solution of PPh4[Ag(CN)2] led to the formation of {(PPh4)[Rh2(μ-O2CMe)4Ag(CN)2]·2CH2Cl2}n (3b). The same synthetic conditions employed to prepare 3a and 4 gave rise to 6, whose structure is not polymeric (see below).
Good elemental analyses were obtained for most of the complexes. However, in the case of compound 2a no satisfactory elemental analyses have been obtained and for compounds 2b and 3a a difference >0.5 between the calculated and experimental values is observed. The quick loss of the solvent molecules not strongly bonded to the axial positions or the presence of a small impurity of [Rh2(μ-O2CR)4(solvent)2] in 2a and 3a could explain these discrepancies. This hypothesis is compatible with the NMR spectra of these compounds that do not show additional bands due to impurities.
The IR spectra of 1–6 display bands corresponding to the symmetric and antisymmetric stretching modes of the carboxylate groups: ν(COO)a (1613–1584 cm−1) and ν(COO)s (1433–1391 cm−1). The C-H stretching bands of the aliphatic groups appear below 3000 cm−1 while those of the aromatic groups of the carboxylate ligands or the (PPh4)+ cations appear above 3000 cm−1. Moreover, a ν(C≡N) band is observed in the 2135–2157 cm−1 range in the spectra of 3–6.
The 1H-NMR spectrum of 1a measured in acetone-d6 shows a multiplet structure at 7.57 ppm because of the 20 aromatic protons of its four PhCO2− ligands. The spectrum also shows a triplet and a quartet signal at 1.11 and 3.40 ppm, respectively, corresponding to the signals of two Et2O molecules coordinated to the axial positions of the dirhodium units. The 1H-NMR spectrum of 4 measured in DMSO-d6 only displays a multiplet signal centred at 7.65 ppm corresponding to the 40 aromatic protons of the PhCO2− ligands and (PPh4)+ cations.
The 1H-NMR spectra of 2b and 5 measured in CDCl3 display a singlet (3.96 ppm for 2b and 3.85 ppm for 5), a quartet (3.44 for 2b and 3.31 ppm for 5) and a triplet (1.16 for 2b and 1.05 ppm for 5) due to the protons of the four EtOCH2CO2− ligands. The spectrum of 5 also displays a multiplet signal centred a 7.81 ppm corresponding to the aromatic signals of the (PPh4)+ cations.
The 1H-NMR spectra of 3 and 6 measured in DMSO-d6 display a singlet at 2.08 ppm and 0.89 ppm, respectively. These signals correspond to the protons of the methyl groups of the MeCO2− ligands of 3 and the Me3CCO2− ligands of 6. Both spectra also show a multiplet signal that corresponds to the aromatic protons of the (PPh4)+ cations. This multiplet is observed at 7.57 and 7.84 ppm for 3a and 6, respectively. The integration of these signals is consistent with the presence of one and two (PPh4)+ cations per formula for 3 and 6, respectively.

3.2. Crystal Structures

The crystal structures of complexes 1b, 2a, 2b, 2b′, 3a, 3b, 4, 5 and 6 have been determined using the data obtained by single crystal X-ray diffraction measurements. The structure of all the compounds contains two rhodium atoms bridged by four carboxylate ligands with a typical paddlewheel arrangement. The axial positions are occupied by solvent molecules in the case of 1–2 and [Ag(CN)2]− ions in the case of 3–6. The metal-metal distances are in the 2.381–2.413 Å range in complexes 1–6 and are typical values of a single Rh-Rh bond (2.35–2.45 Å) [2].
The analysis of the Rh-O distances in 1b, 2a, 2b and 2b′, shows that the Rh-Oequatorial bond (average distance of 2.038 Å) is considerably stronger than the Rh-Oaxial bond (average distance of 2.311 Å). Thus, these compounds are good starting materials to prepare coordination polymers because the solvent molecules placed in the axial positions can be easily replaced by bridging ligands connecting dirhodium units.
CH····π interactions and π-π stacking are observed in the structure of 1b (See Figure S1). However, no strong intermolecular interactions are observed in the crystal structures of 2a, 2b and 2b′. Additionally, intramolecular hydrogen bonds are observed between the hydrogen atom of the carboxylic acid of the EtOCH2CO2H ligands coordinated to the axial positions and the O4 of the EtOCH2CO2− ligands in the equatorial positions in the structure of 2a (Figure 2). The C-O distances in the carboxylic acid of the axial EtOCH2CO2H are 1.237 and 1.309 Å, corresponding to a double and single bond, respectively. This fact indicates that the axial ligands of 2a are protonated and that the oxidation state of this paddlewheel unit is Rh24+. The two axial EtOCH2CO2H molecules of 2a are easily replaced by two THF molecules by dissolving the compound in a THF/petroleum ether mixture. Interestingly, this compound crystallized giving two different crystal structures (2b and 2b′) (Table 1).
The crystal structure of 3a, 3b, 4 and 5 is formed by neutral dirhodium paddlewheel units that are coordinated to the nitrogen atom of [Ag(CN)2]− bridging units forming anionic one-dimensional coordination polymers. The Rh-N distances are very similar in these complexes being in the 2.200–2.233 Å range. These distances are also similar to those observed in analogous gold derivatives [32].
The Rh-Ag-Rh angles in the chains of compounds 3a and 3b are very similar, being 176.08° and 178.25°, respectively. However, the values of Rh-N-C angles show a greater difference being 175.91 and 177.45° for 3a and 171.33 and 170.60° for 3b (Figure 3 and Figure S2). The average O-Rh-Rh-O torsion angles are 1.10° and 0.95°, respectively. The chains are placed parallel to each other. Each chain is surrounded by four other chains in the structure of 3a while the structure of 3b is formed by pairs of chains being surrounded by four pairs of chains (Figure 4). The (PPh4)+ cations in the structure of 3a and the (PPh4)+ cations and dichloromethane molecules in the structure of 3b are placed between chains (Figures S3 and S4). The packing does not allow the existence of Ag-Ag interactions between chains. Thus, the closest interchain Ag-Ag distances are 8.681 and 8.169 Å in 3a and 8.976 Å in 3b.
Compounds 4 and 5 are also built by anionic chains that are formed by [Rh2(μ-O2CPh)4Ag(CN)2]− and [Rh2(μ-O2CCH2OEt)4Ag(CN)2]− monomers, respectively (Figure 5). The average O-Rh-Rh-O torsion angles are 1.00° and 2.17°, respectively. The Rh-Ag-Rh angle is 166.95° in complex 4 and 176.67° in complex 5 while the Rh-N-C angles are 165.29 and 172.97° in the case of 4 and 163.96 and 165.46° in the case of 5. As a result of these parameters, the wavy structure of these two polymers is more pronounced than that of 3a and 3b. The chains are packed in a parallel disposition in both cases (Figures S5 and S6) with the (PPh4)+ cations placed between chains (Figures S7 and S8) and the shortest intermolecular Ag-Ag distances are 10.687 Å in 4 and 8.459 Å in 5.
The analysis of the distances between the (PPh4)+ cations in the structures of 3a, 3b, 4 and 5 shows that there is no concerted multiple phenyl embraces similar to those described by Dance and Scudder [33]. Nevertheless, in 3a the shortest P···P distance is 8.284 Å and there are crossed C-H····π interactions (3.520 and 3.740 Å) between phenyl rings of the pair of (PPh4)+ cations (Figure S9, top). These pairs are situated at 8.788 Å giving pseudo-chains (Figure S9, bottom). Similar interactions have been observed in 3b and 5 (Figures S10 and S12) with P···P distances of 8.232 and 8.388 Å (for 3b) and 8.562 and 8.734 Å (for 5). The distances of the possible C-H····π interactions are at 3.194 Å for 3b and 3.160 Å for 5. Interestingly, the closest (PPh4)+ cations in 4 are at 10.387 Å with no significant interactions between them (Figure S11) but C-H····π interactions between (PPh4)+ cations and [Rh2(μ-O2CPh)4Ag(CN)2]− units have been found (Figure S14).
Significant cation-anion interactions have been found only in compound 4. In the other compounds, the interactions between the pair of cations are very important to determine their crystal structure.
The structure of 6 is formed by discrete {Rh2(μ-O2CCMe3)4[Ag(CN)2]2}2− (Figure 6) and (PPh4)+ units. This compound was prepared following the same synthetic conditions employed to prepare 3a and 4 whose structure is polymeric. One would expect that the formation of a coordination polymer should be more thermodynamically favourable. However, a polymer could not be obtained in this case despite of the efforts made. The formation of a molecular compound instead of a coordination polymer should be related with a more efficient packing than that of a potential coordination polymer made of the same building blocks. The analysis of the crystal structure of 6 did not reveal any strong dirhodium-(PPh4)+ interaction but C-H····π interactions are observed involving the closest (PPh4)+ cations in the structure. Particularly, this pair of cations displays two nearly vertex-to-face intermolecular interactions at 2.860 and 2.939 Å (Figure 7 and Figure S13). Moreover, we hypothesize that the higher solubility of the trimethylacetato derivative in acetone causes the complex to remain longer in the solution during the crystallization favouring the formation of 6 instead of a coordination polymer. A similar reasoning has been used to explain the molecular nature of [Ru2Cl(µ-O2CCMe3)4(OH2)] [42] and the polymeric structure found in [Ru2Cl(μ-O2CPh)4] and [Ru2Cl(μ-O2CMe)4] [43,44]. Interestingly, the ethoxyacetate ligand gives the polymeric 5 whereas in the diruthenium complexes, this ligand leads to [Ru2Cl(μ-O2CCH2OEt)4], which contains both polymeric and molecular fragments [45]. These data suggest a strong influence of the solvent and the nature of the equatorial ligand in the molecular or polymeric nature on the paddlewheel dinuclear complexes.
Taking into account the arrangement of these one-dimensional compounds in the solid state these complexes could exhibit functional properties such as gas occlusion or catalysis, similar to other three-dimensional compounds [46,47].

4. Conclusions

Anionic one-dimensional coordination polymers of the type (PPh4)n[Rh2(μ-O2CR)4Ag(CN)2]n (R = Me (3), Ph (4), CH2OEt (5)) can be obtained using neutral dirhodium compounds and PPh4[Ag(CN)2]. The branched trimethylacetate ligand, which favours the solubility of the starting dirhodium complex, leads to the discrete heteronuclear complex (PPh4)2{Rh2(μ-O2CCMe3)4[Ag(CN)2]2} (6). The presence of bulky (PPh4)+ cations prevents the existence of intermolecular Ag-Ag interactions. The existence of C-H····π interactions between pairs of (PPh4)+ cations in 3a, 3b, 5 and 6 and significant cation-anion interactions in 4 have an important influence on the packing in solid state of these complexes.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4360/11/1/111/s1: Figure S1: Intermolecular interactions found in the structure of 1b. Figure S2: View of the chains that form 3b along the c axis in a 2 × 2 × 2 cell packing. Figure S3: Representation of the structure of 3a along the a axis in a 2 × 2 × 2 cell packing. Figure S4: Representation of the structure of 3b along the c axis in a 2 × 2 × 2 cell packing. Figure S5: View of the chains that form 4 along the direction of the Rh-Rh bond. Figure S6: View of the chains that form 5 along the direction of the Rh-Rh bond. Figure S7: Representation of the structure of 4 along the a axis: Figure S8: Representation of the structure of 5 along the a axis. Figure S9: Interactions found between the closest (PPh4)+ cations in the structure of 3a. Figure S10: Interactions found between the closest (PPh4)+ cations in the structure of 3b. Figure S11: Closest (PPh4)+ cations in the structure of 4. Figure S12: Interactions found between the closest (PPh4)+ cations in the structure of 5. Figure S13: Representation of the structure of 6 along the c axis and view of the interactions between the closest (PPh4)+ cations. Figure S14: Interactions found between the closest cations and anionic chains in the structure of 4.

Author Contributions

R.J.-A. and J.-L.P. conceived and designed the experiments; P.C. and E.F.-B. performed the experiments; M.C., P.D.-M. and M.R.T. solved and analysed the crystal structures. M.C., R.G.-P. and R.J.-A. wrote the manuscript.

Funding

This work was financially supported by the Spanish Ministerio de Economía y Competitividad (project CTQ2015-63858-P, MINECO/FEDER) and Comunidad de Madrid (project B2017/BMD-3770-CM).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Cotton, F.A.; Walton, R.A. Multiple Bonds between Metal Atoms, 2nd ed.; Wiley: New York, NY, USA, 1982. [Google Scholar]
  2. Cotton, F.A.; Murillo, C.; Walton, R.A. Multiple Bonds between Metal Atoms, 3rd ed.; Springer: New York, NY, USA, 2005. [Google Scholar]
  3. Liddle, S.T. (Ed.) Molecular Metal-Metal Bonds: Compounds, Synthesis, Properties; Wiley-VCH: Weinheim, Germany, 2015. [Google Scholar]
  4. Liao, K.; Liu, W.; Niemeyer, Z.L.; Ren, Z.; Bacsa, J.; Musaev, D.G.; Sigman, M.S.; Davies, H.M.L. Site-Selective Carbene-Induced C–H Functionalization Catalyzed by DirhodiumTetrakis(triarylcyclopropanecarboxylate) Complexes. ACS Catal. 2018, 8, 678–682. [Google Scholar] [CrossRef]
  5. Adly, F.G. On the Structure of Chiral Dirhodium(II) Carboxylate Catalysts: Stereoselectivity Relevance and Insights. Catalysts 2017, 7, 347. [Google Scholar] [CrossRef]
  6. Berry, J.F. Metal–metal multiple bonded intermediates in catalysis. J. Chem. Sci. 2015, 127, 209–214. [Google Scholar] [CrossRef]
  7. Hansen, J.; Davies, H.M.L. High symmetry dirhodium(II) paddlewheel complexes as chiral catalysts. Coord. Chem. Rev. 2008, 252, 545–555. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Ohata, J.; Ball, T.Z. Rhodium at the chemistry–biology interface. Dalton Trans. 2018, 47, 14855–14860. [Google Scholar] [CrossRef] [PubMed]
  9. Jalilehvand, F.; Enriquez Garcia, A.; Niksirat, P. Reactions of Antitumor Active Dirhodium(II) Tetraacetate Rh2(CH3COO)4 with Cysteine and Its Derivatives. ACS Omega 2017, 2, 6174–6186. [Google Scholar] [CrossRef]
  10. Knoll, J.D.; Turro, C. Control and utilization of ruthenium and rhodium metal complex excited states for photoactivated cancer therapy. Coord. Chem. Rev. 2015, 282–283, 110–126. [Google Scholar] [CrossRef] [PubMed]
  11. Peña, B.; Barhoumi, R.; Burghardt, R.C.; Turro, C.; Dunbar, K.R. Confocal Fluorescence Microscopy Studies of a Fluorophore-Labeled Dirhodium Compound: Visualizing Metal–Metal Bonded Molecules in Lung Cancer (A549) Cells. J. Am. Chem. Soc. 2014, 136, 7861–7864. [Google Scholar] [CrossRef]
  12. Leung, C.-H.; Zhong, H.J.; Chan, D.S.H.; Ma, D.L. Bioactive iridium and rhodium complexes as therapeutic agents. Coord. Chem. Rev. 2013, 257, 1764–1776. [Google Scholar] [CrossRef]
  13. Sarkar, M.; Daw, P.; Ghatak, T.; Bera, J.K. Amide-Functionalized Naphthyridines on a RhII–RhII Platform: Effect of Steric Crowding, Hemilability, and Hydrogen-Bonding Interactions on the Structural Diversity and Catalytic Activity of Dirhodium(II) Complexes. Chem. Eur. J. 2014, 20, 16537–16549. [Google Scholar] [CrossRef]
  14. Amo-Ochoa, P.; Jiménez-Aparicio, R.; Perles, J.; Torres, M.R.; Gennari, M.; Zamora, F. Structural Diversity in Paddlewheel Dirhodium(II) Compounds through Ionic Interactions: Electronic and Redox Properties. Cryst. Growth Des. 2013, 13, 4977–4985. [Google Scholar] [CrossRef]
  15. Cotton, F.A.; Dikarev, E.V.; Petrukhina, M.A.; Schmitz, M.; Stang, P.J. Supramolecular Assemblies of Dimetal Complexes with Polydentate N-Donor Ligands: From a Discrete Pyramid to a 3D Channel Network. Inorg. Chem. 2002, 41, 2903–2908. [Google Scholar] [CrossRef]
  16. Kataoka, Y.; Yano, N.; Shimodaira, T.; Yan, Y.-N.; Yamasaki, M.; Tanaka, H.; Omata, K.; Kawamoto, T.; Handa, M. Paddlewheel-Type Dirhodium Tetrapivalate Based Coordination Polymer: Synthesis, Characterization, and Self-Assembly and Disassembly Transformation Properties. Eur. J. Inorg. Chem. 2016, 2810–2815. [Google Scholar] [CrossRef]
  17. Fritsch, N.; Wick, C.R.; Waidmann, T.; Dral, P.O.; Tucher, J.; Heinemann, F.W.; Shubina, T.E.; Clark, T.; Burzlaff, N. Multiply Bonded Metal(II) Acetate (Rhodium, Ruthenium, and Molybdenum) Complexes with the trans-1,2-Bis(N-methylimidazol-2-yl)ethylene Ligand. Inorg. Chem. 2014, 53, 12305–12314. [Google Scholar] [CrossRef] [PubMed]
  18. Dikarev, E.V.; Shpanchenko, R.V.; Andreini, K.W.; Block, E.; Jin, J.; Petrukhina, M.A. Powder Diffraction Study of a Coordination Polymer Comprised of Rigid Building Blocks: [Rh2(O2CCH3)4‚µ2-Se2C5H8-Se,Se′]∞. Inorg. Chem. 2004, 43, 5558–5563. [Google Scholar] [CrossRef]
  19. Kim, Y.; Kim, S.-J.; Lough, A.J. New dirhodium(II,II) carboxylates with 2,6-bis(N-1,2,4-triazolyl)pyridinato ligand (btp). Polyhedron 2001, 20, 3073–3078. [Google Scholar] [CrossRef]
  20. Gonzalez-Belman, O.F.; Yazmín Varela, Y.; Flores-Álamo, M.; Wrobel, K.; Gutierrez-Granados, S.; Peralta-Hernández, J.M.; Jiménez-Halla, J.O.C.; Serrano, O. Microwave-Assisted Synthesis and Characterization of [Rh2(OAc)4(L)2] Paddlewheel Complexes: A Joint Experimental and Computational Study. Int. J. Inorg. Chem. 2017, 2017, 5435436. [Google Scholar] [CrossRef]
  21. Ye, Q.-S.; Li, X.-N.; Jin, Y.; Yu, J.; Chang, Q.-W.; Jiang, J.; Yan, C.-X.; Li, J.; Liu, W.-P. Synthesis, crystal structures and catalytic activity of tetrakis(acetato)dirhodium(II) complexes with axial picoline ligands. Inorg. Chim. Acta 2015, 434, 113–120. [Google Scholar] [CrossRef]
  22. Cmoch, P.; Głaszczka, R.; Jaźwiński, J.; Kamieńskia, B.; Senkara, E. Adducts of nitrogenous ligands with rhodium(II) tetracarboxylates and tetraformamidinate: NMR spectroscopy and density functional theory calculations. Magn. Reson. Chem. 2014, 52, 61–68. [Google Scholar] [CrossRef]
  23. Heyduk, A.F.; Krodel, D.J.; Meyer, E.E.; Nocera, D.G. A Luminescent Heterometallic Dirhodium−Silver Chain. Inorg. Chem. 2002, 41, 634–636. [Google Scholar] [CrossRef]
  24. Uemura, K. One-dimensional complexes extended by unbridged metal–metal bonds based on a HOMO–LUMO interaction at the dz2 orbital between platinum and heterometal atoms. Dalton Trans. 2017, 46, 5474–5492. [Google Scholar] [CrossRef]
  25. Dikarev, E.V.; Andreini, K.W.; Petrukhina, M.A. On the Road to a Termolecular Complex with Acetone:  A Heterometallic Supramolecular Network {[Rh2(O2CCF3)4]·μ2-OCMe2·[Cu4(O2CCF3)4]}. Inorg. Chem. 2004, 43, 3219–3224. [Google Scholar] [CrossRef] [PubMed]
  26. Uemura, K.; Ebihara, M. One-Dimensionally Extended Paddlewheel Dirhodium Complexes from Metal–Metal Bonds with Diplatinum Complexes. Inorg. Chem. 2011, 50, 7919–7921. [Google Scholar] [CrossRef] [PubMed]
  27. Uemura, K.; Ebihara, M. Paramagnetic One-Dimensional Chains Comprised of Trinuclear Pt–Cu–Pt and Paddlewheel Dirhodium Complexes with Metal–Metal Bonds. Inorg. Chem. 2013, 52, 5535–5550. [Google Scholar] [CrossRef] [PubMed]
  28. Uemura, K.; Kanbara, T.; Ebihara, M. Two Types of Heterometallic One-Dimensional Alignment Composed of Acetamidate-Bridged Dirhodium and Pivalamidate-Bridged Diplatinum Complexes. Inorg. Chem. 2014, 53, 4621–4628. [Google Scholar] [CrossRef]
  29. Uemura, K.; Yamada, T.; Kanbara, T.; Ebihara, M. Acetamidate-bridged paddlewheel dirhodium complex sandwiched by mononuclear platinum complexes with axial metal–metal bonds affording neutral heterometallic one-dimensional alignments. Inorg. Chim. Acta 2015, 424, 194–201. [Google Scholar] [CrossRef]
  30. Yamada, T.; Ebihara, M.; Uemura, K. Heterometallic one-dimensional chain with tetradeca metal repetition constructed by amidate bridged dirhodium and pivalate bridged diplatinum complexes influenced by hydrogen bonding. Dalton Trans. 2016, 45, 12322–12328. [Google Scholar] [CrossRef]
  31. Uemura, K. Magnetic behavior in heterometallic one-dimensional chains or octanuclear complex regularly aligned with metal-metal bonds as –Rh-Rh-Pt-Cu-Pt. J. Mol. Struct. 2018, 1162, 31–36. [Google Scholar] [CrossRef]
  32. Amo-Ochoa, P.; Delgado, S.; Gallego, A.; Gómez-García, C.J.; Jiménez-Aparicio, R.; Martínez, G.; Perles, J.; Rosario Torres, M.R. Structure and Properties of One-Dimensional Heterobimetallic Polymers Containing Dicyanoaurate and Dirhodium(II) Fragments. Inorg. Chem. 2012, 51, 5844–5849. [Google Scholar] [CrossRef]
  33. Dance, I.; Scudder, M. Supramolecular Motifs: Concerted Multiple Phenyl Embraces between Ph4P+ Cations Are Attractive and Ubiquitous. Chem. Eur. J. 1996, 2, 481–486. [Google Scholar] [CrossRef]
  34. Dance, I.; Scudder, M. Concerted supromolecular motifs: Linear columns and zigzag chains of multiple phenyl embraces involving PPh4P+ cations in crystals. J. Chem. Soc. Dalton Trans. 1996, 19, 3755–3769. [Google Scholar] [CrossRef]
  35. Scudder, M.; Dance, I. Sixfold phenyl embraces with substituted phenyl in PPh3. J. Chem. Soc. Dalton Trans. 2000, 17, 2909–2915. [Google Scholar] [CrossRef]
  36. Dance, I.; Scudder, M. Crystal supramolecularity: Elaborate six-, eight- and twelve-fold concerted phenyl embraces in compounds [M(PPh3)3]z and [M(PPh3)4]z. New J. Chem. 1998, 22, 481–492. [Google Scholar] [CrossRef]
  37. Ali, B.; Dance, I.; Scudder, M.; Craig, D. Dimorphs of (Ph4P)2[Cd2(SPh)6]: Crystal Packing Analyses and the Interplay of Intermolecular and Intramolecular Energies. Cryst. Growth Des. 2002, 2, 601–607. [Google Scholar] [CrossRef]
  38. Janssen, F.F.B.J.; de Gelder, R.; Rowan, A.E. 2. The Multiple Phenyl Embrace as a Synthon in Cu(I)/PPh3/N-Donor Ligand Coordination Polymers. Cryst. Growth Des. 2011, 11, 4326–4333. [Google Scholar] [CrossRef]
  39. Zaręba, J.K.; Białek, M.J.; Janczak, J.; Zoń, J.; Dobosz, A. Extending the Family of Tetrahedral Tectons: Phenyl Embraces in Supramolecular Polymers of Tetraphenylmethane-based Tetraphosphonic Acid Templated by Organic Bases. Cryst. Growth Des. 2014, 14, 6143–6153. [Google Scholar] [CrossRef]
  40. Cotton, F.A.; Felthouse, T.R. Structural studies of three tetrakis(carboxylato)dirhodium(II) adducts in which carboxylate groups and axial ligands are varied. Inorg. Chem. 1980, 19, 323–328. [Google Scholar] [CrossRef]
  41. Mikuriya, M.; Yamamoto, J.; Ishida, H.; Yoshioka, D.; Handa, M. Preparation and Crystal Structure of Tetrakis(μ-pivalato-O,O′)bis[(pivalic acid-O)rhodium(II)]. X-Ray Struct. Anal. Online 2011, 27, 7–8. [Google Scholar] [CrossRef]
  42. Barral, M.C.; Jiménez-Aparicio, R.; Priego, J.L.; Royer, E.C.; Saucedo, M.J.; Urbanos, F.A.; Amador, U. Non-polymeric diruthenium(II,III) carboxylates. Crystal structures of [Ru2Cl(µ-O2CCMe3)4(H2O)] and [Ru2Cl(µ-O2CCHMe2)4(thf)] (thf = tetrahydrofuran). J. Chem. Soc. Dalton Trans. 1995, 13, 2183–2187. [Google Scholar] [CrossRef]
  43. Masaaki, A.; Yoichi, S.; Tadashi, Y.; Tasuku, I. X-Ray Structure, Ligand Substitution, and Other Properties of Trinuclear Ruthenium Complex, [Ru3(μ3-O)(μ-C6H5COO)6(py)3](PF6) (py = pyridine), and X-Ray Structure of Dinuclear Ruthenium Complex, [Ru2(μ-C6H5COO)4Cl]. Bull. Chem. Soc. Jpn. 1992, 65, 1585–1590. [Google Scholar] [CrossRef]
  44. Bino, A.; Cotton, F.A.; Felthouse, T.R. Structural studies of some multiply bonded dirutheniumtetracarboxylate compounds. Inorg. Chem. 1979, 18, 2599–2604. [Google Scholar] [CrossRef]
  45. Barral, M.C.; Jiménez-Aparicio, R.; Priego, J.L.; Royer, E.C.; Urbanos, F.A.; Amador, U. Diruthenium(II,III) Carboxylate Compounds: Existence of both Polymeric and Ionic Forms in Solution and Solid State. Inorg. Chem. 1998, 37, 1413–1416. [Google Scholar] [CrossRef] [PubMed]
  46. Naito, S.; Tanibe, T.; Saito, E.; Miyao, T.; Moriet, W. A Novel Reaction Pathway in Olefin-Deuterium Reaction inside the Microporous of Rh(II) Dicarboxylate Polymer Complexes. Chem. Lett. 2001, 30, 1178–1189. [Google Scholar] [CrossRef]
  47. Nukada, R.; Mori, W.; Takamizawa, S.; Mikuriya, M.; Handa, M.; Naono, H. Microporous Structure of a Chain Compound of Copper(II) Benzoate Bridged by Pyrazine. Chem. Lett. 1999, 28, 367–368. [Google Scholar] [CrossRef]
Polymers 11 00111 g001 550

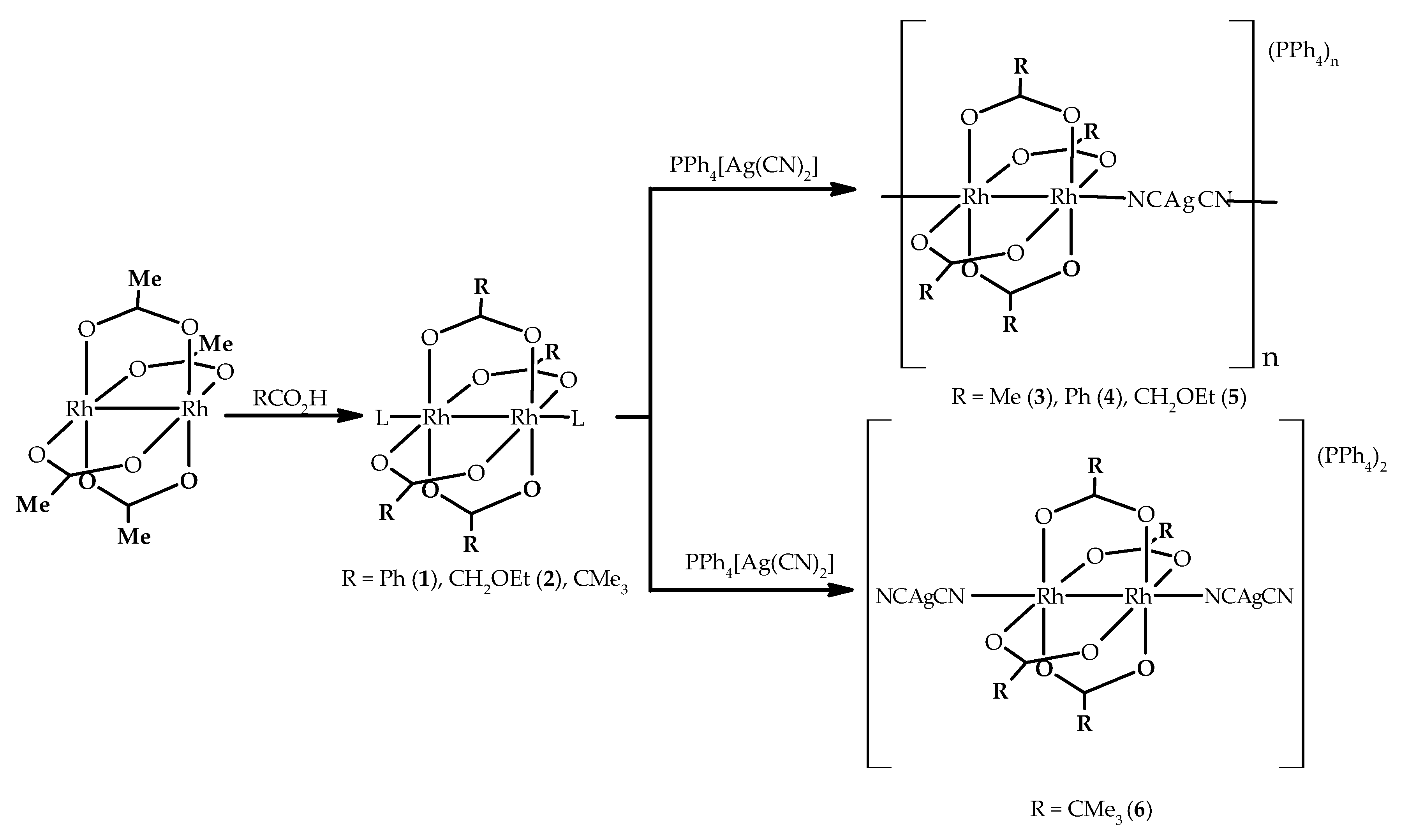

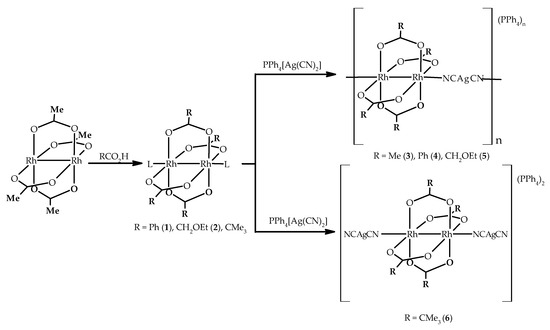

Figure 1. Synthetic approach employed to prepare 1–6.
Figure 1. Synthetic approach employed to prepare 1–6.
Polymers 11 00111 g001
Polymers 11 00111 g002 550
Figure 2. Representation of the paddlewheel unit of 2a (50% probability ellipsoids) showing the intramolecular hydrogen bonds (blue line) present in this compound. Rhodium: green; oxygen: red; carbon: grey; hydrogen: white.
Figure 2. Representation of the paddlewheel unit of 2a (50% probability ellipsoids) showing the intramolecular hydrogen bonds (blue line) present in this compound. Rhodium: green; oxygen: red; carbon: grey; hydrogen: white.
Polymers 11 00111 g002
Polymers 11 00111 g003 550

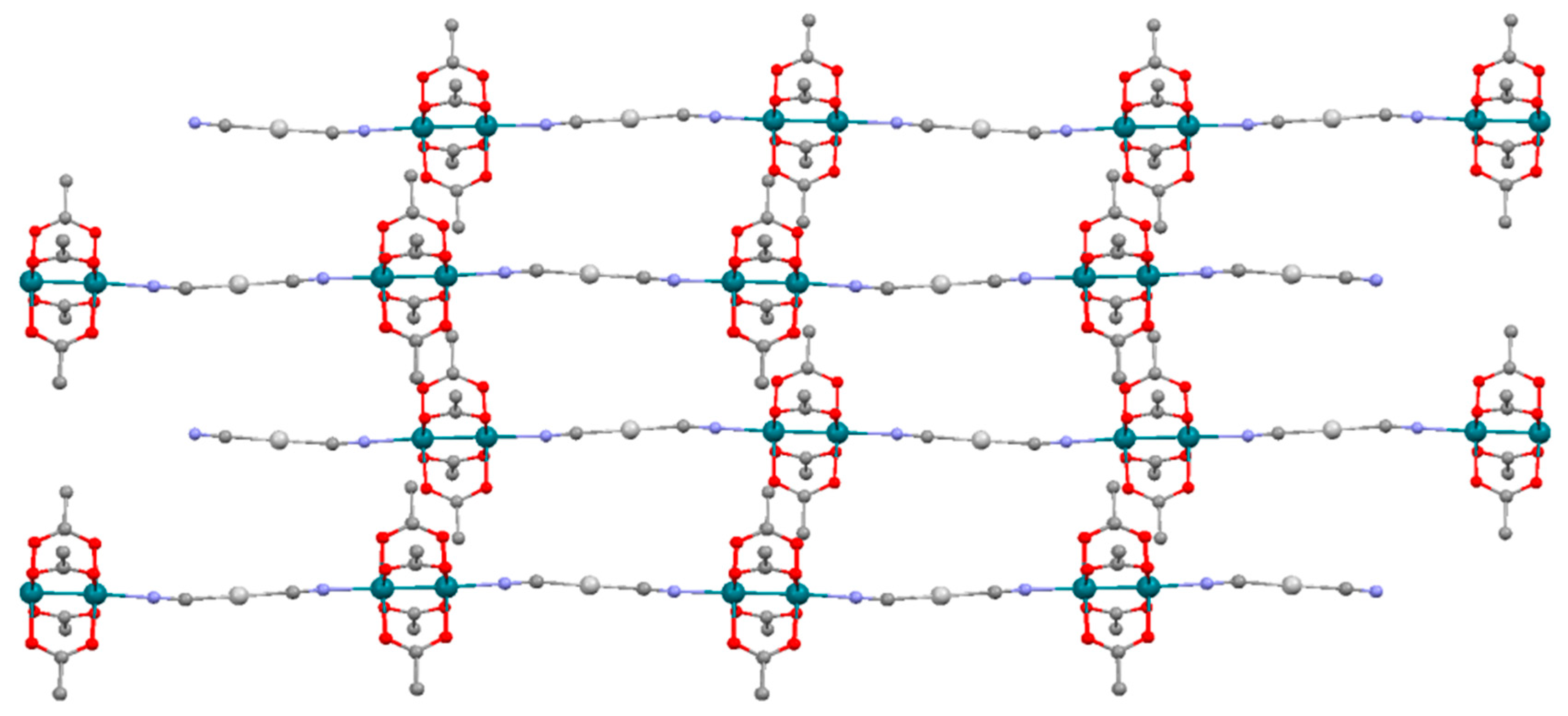

Figure 3. View of the chains that form 3a along the a axis in a 2 × 2 × 2 cell packing. Rhodium: green; oxygen: red; carbon: dark grey; nitrogen: purple; silver: pale grey. Hydrogen atoms are omitted for clarity.
Figure 3. View of the chains that form 3a along the a axis in a 2 × 2 × 2 cell packing. Rhodium: green; oxygen: red; carbon: dark grey; nitrogen: purple; silver: pale grey. Hydrogen atoms are omitted for clarity.
Polymers 11 00111 g003
Polymers 11 00111 g004 550

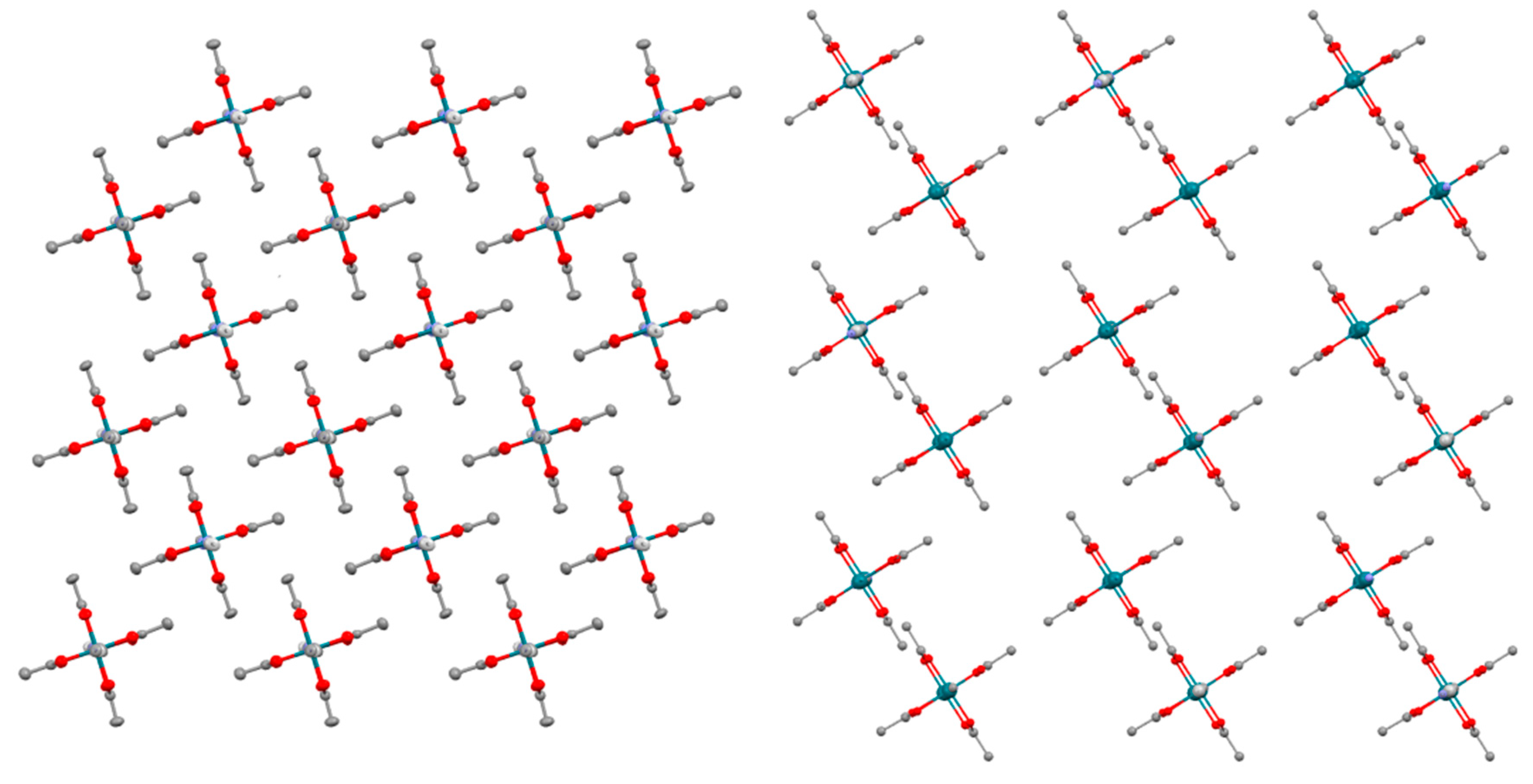

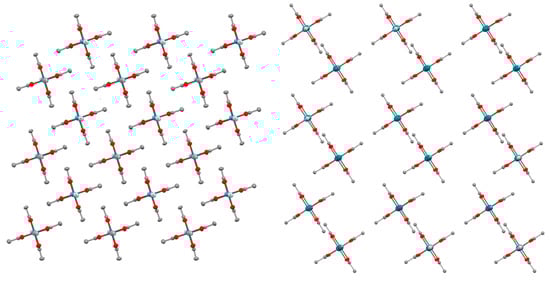

Figure 4. View of the chains that form 3a along the b axis in a 3 × 3 × 3 cell packing (left). View of the chains that form 3b along the a axis in a 3 × 3 × 3 cell packing (right). Hydrogen atoms are omitted for clarity.
Figure 4. View of the chains that form 3a along the b axis in a 3 × 3 × 3 cell packing (left). View of the chains that form 3b along the a axis in a 3 × 3 × 3 cell packing (right). Hydrogen atoms are omitted for clarity.
Polymers 11 00111 g004
Polymers 11 00111 g005 550

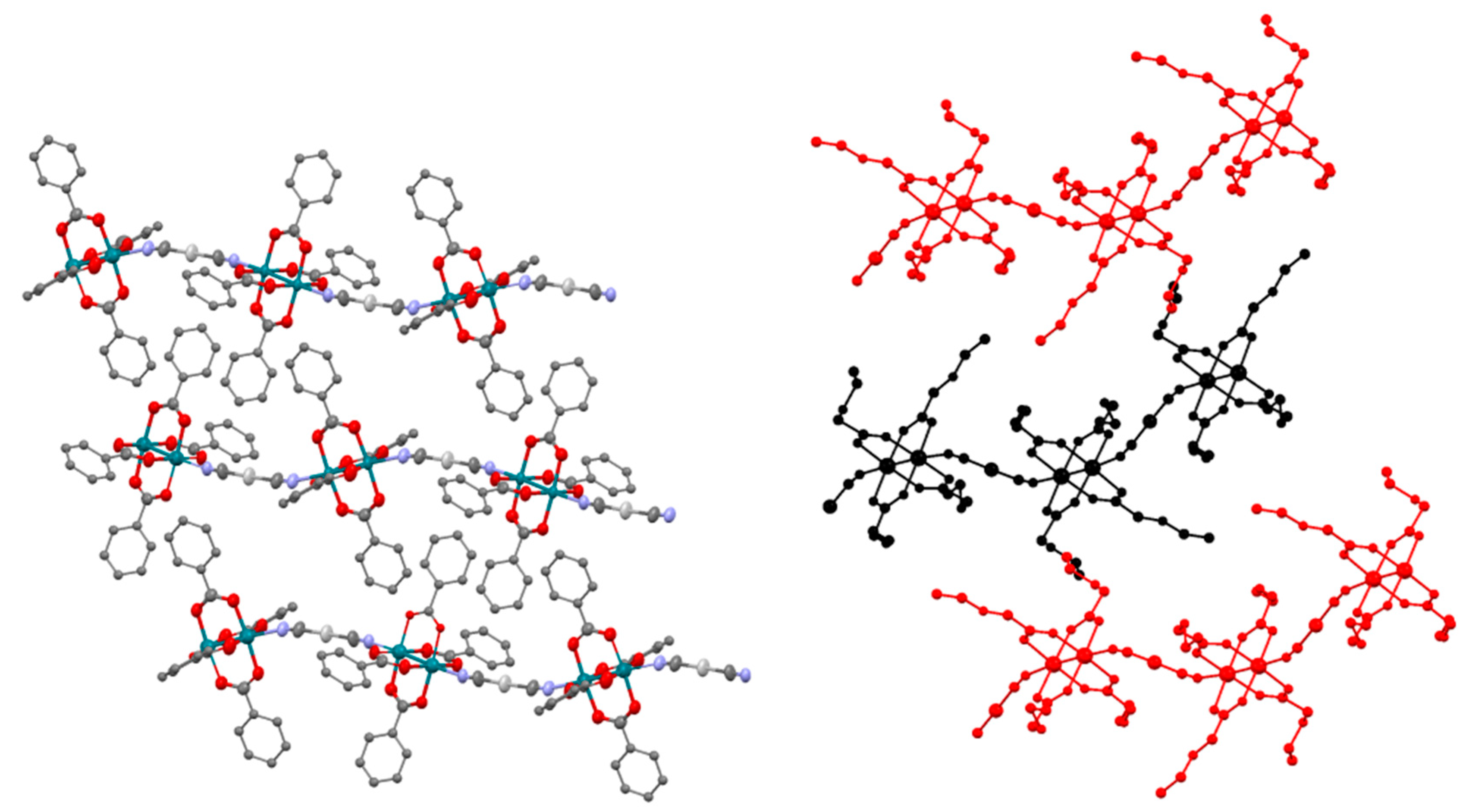

Figure 5. View of the chains that form 4 along the b axis (left). View of the chains that form 5 along the a axis. The chains are depicted in red and black colours for clarity (right). Hydrogen atoms are omitted for clarity.
Figure 5. View of the chains that form 4 along the b axis (left). View of the chains that form 5 along the a axis. The chains are depicted in red and black colours for clarity (right). Hydrogen atoms are omitted for clarity.
Polymers 11 00111 g005
Polymers 11 00111 g006 550

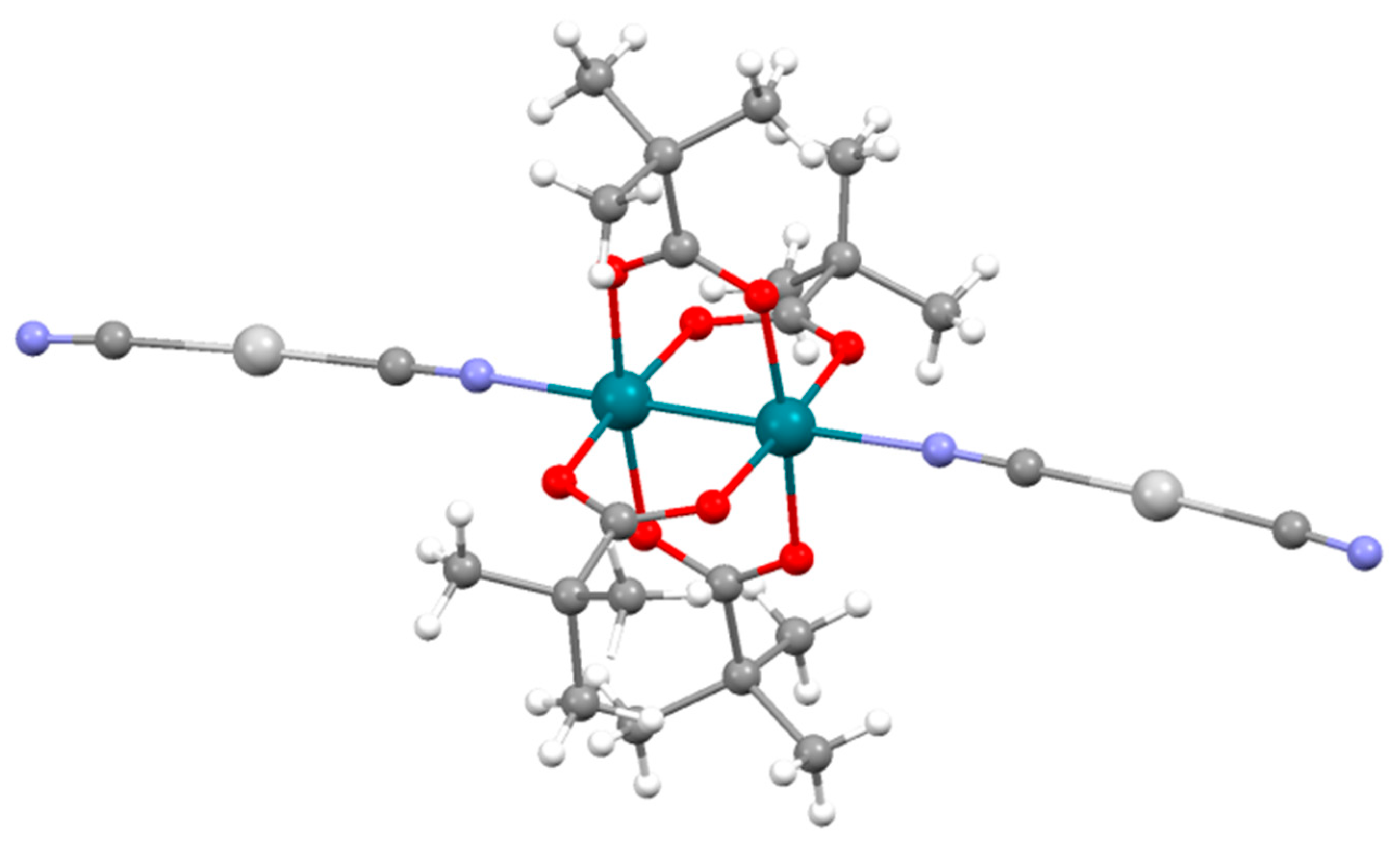

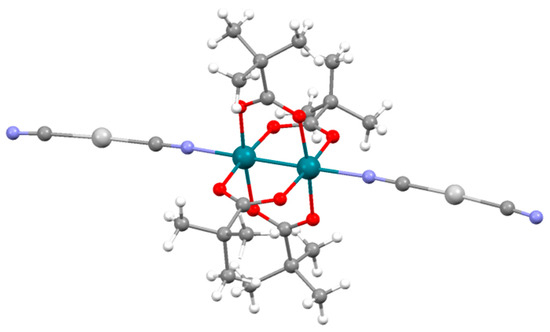

Figure 6. View of the {Rh2(μ-O2CCMe3)4[Ag(CN)2]2}2− units that form 6.
Figure 6. View of the {Rh2(μ-O2CCMe3)4[Ag(CN)2]2}2− units that form 6.
Polymers 11 00111 g006
Polymers 11 00111 g007 550
Figure 7. Interactions found between the closest (PPh4)+ cations in the structure of 6. Distances are shown in Å.
Figure 7. Interactions found between the closest (PPh4)+ cations in the structure of 6. Distances are shown in Å.
Polymers 11 00111 g007
Table
Table 1. Crystal and refinement data for 1–2 and 3a.
Table 1. Crystal and refinement data for 1–2 and 3a.
1b2a2b2b′3a
FormulaC34H32
O10Rh2		C24H42
O18Rh2		C24H44O14Rh2C34H32AgN2
O8PRh2
fw806.41824.40762.41941.28
Space groupC2/cP21/cP-1P21/cP21/n
a/Å18.873(3)8.1426(19)8.687(5)13.5323(13)11.7168(8)
b/Å15.669(3)24.685(6)13.558(5)15.0682(15)26.3945(17)
c/Å23.988(4)8.4475(19)14.312(5)8.0473(8)11.7290(8)
α/° 71.929(5)
β/°103.999(15)99.906(4)84.838(5)98.481(2)93.595(1)
α/° 86.272(5)
V/Å36883(2)1672.7(7)1594.8(12)1623.0(3)3620.2(4)
Z82224
d calc/g·cm−31.5561.6371.5881.5601.727
μ/mm−11.0131.0601.0961.0771.531
R indicesR1 = 0.0491
wR2 = 0.1590		R1 = 0.0402
wR2 = 0.1002		R1 = 0.0393
wR2 = 0.1093		R1 = 0.0335
wR2 = 0.0900		R1 = 0.0494
wR2 = 0.1687
GooF on F21.0310.9970.9980.9970.999
Table
Table 2. Crystal and refinement data for 3b and 4–6.
Table 2. Crystal and refinement data for 3b and 4–6.
3b456
FormulaC36H36AgCl4N2O8PRh2C54H40Ag N2O8PRh2C42H48Ag
N2O12PRh2		C72H75Ag2 N4O8P2Rh2
fw1111.131189.541117.481607.86
Space groupP-1P-1P21/cPnma
a/Å13.1180(12)12.2802(9)13.1982(13)22.016(4)
b/Å13.6197(13)13.3534(9)22.201(2)33.450(2)
c/Å13.6949(13)17.3652(12)16.9090(17)11.691(6)
α/°87.033(2)83.105(1)
β/°78.278(2)83.373(1)111.788(2)
α/°79.928(2)64.333(1)
V/Å32358.5(4)2541.6(3)4600.6(8)8610(5)
Z2244
d calc/g·cm−31.5651.5541.6131.240
μ/mm−11.4071.1091.2250.907
R indicesR1 = 0.0396
wR2 = 0.1187		R1 = 0.0587
wR2 = 0.1881		R1 = 0.0379
wR2 = 0.1040		R1 = 0.0686
wR2 = 0.1648
GooF on F20.9951.0081.0420.993

Share and Cite

MDPI and ACS Style

Cruz, P.; Fernandez-Bartolome, E.; Cortijo, M.; Delgado-Martínez, P.; González-Prieto, R.; Priego, J.L.; Torres, M.R.; Jiménez-Aparicio, R. Synthesis and Structural Characterization of a Series of One-Dimensional Heteronuclear Dirhodium-Silver Coordination Polymers. Polymers 2019, 11, 111. https://doi.org/10.3390/polym11010111

AMA Style

Cruz P, Fernandez-Bartolome E, Cortijo M, Delgado-Martínez P, González-Prieto R, Priego JL, Torres MR, Jiménez-Aparicio R. Synthesis and Structural Characterization of a Series of One-Dimensional Heteronuclear Dirhodium-Silver Coordination Polymers. Polymers. 2019; 11(1):111. https://doi.org/10.3390/polym11010111

Chicago/Turabian Style

Cruz, Paula, Estefania Fernandez-Bartolome, Miguel Cortijo, Patricia Delgado-Martínez, Rodrigo González-Prieto, José L. Priego, M. Rosario Torres, and Reyes Jiménez-Aparicio. 2019. "Synthesis and Structural Characterization of a Series of One-Dimensional Heteronuclear Dirhodium-Silver Coordination Polymers" Polymers 11, no. 1: 111. https://doi.org/10.3390/polym11010111

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
