Article

Temperature-Controlled Assembly/Reassembly of Two Dicarboxylate-Based Three-Dimensional Co(II) Coordination Polymers with an Antiferromagnetic Metallic Layer and a Ferromagnetic Metallic Chain

by
Hui-Chen Yu
,
Chin-Hsuan Lin
and
Chen-I Yang
*
Department of Chemistry, Tunghai University, Taichung 407, Taiwan
*
Author to whom correspondence should be addressed.
Polymers 2019, 11(5), 795; https://doi.org/10.3390/polym11050795
Submission received: 13 April 2019 / Revised: 28 April 2019 / Accepted: 30 April 2019 / Published: 2 May 2019
(This article belongs to the Special Issue Metallopolymer, supramolecular chemistry and materials)
Browse Figures
Review Reports Versions Notes

Abstract

:
Two new dicarboxylate-based three-dimensional cobalt coordination polymers, [Co(Me2mal)(bpe)0.5(H2O)]n (1) and [Co(Me2mal)(bpe)0.5]n (2), were synthesized from dimethylmalonic acid (H2-Me2mal) in temperature-controlled solvothermal reactions. Lower temperatures (60–80 °C) favored the formation of 1, while higher temperatures (120 °C) favored the production of 2. Compound 1 is comprised of Co(II) corrugated layers linked by syn–anti carboxylate bridges from the Me2mal2− ligands and pillared through bis-monodentate bpe groups. Compound 2 is comprised of a three-dimensional network involving one-dimensional Co–carboxylate chains bonded by antisymmetric µ4-Me2mal2− ligands and aligned parallel to the [001] direction. The solvothermal retreatment of crystalline samples of 1 in a DMF/H2O solvent at 120 °C allowed the structural reassembly, with complete conversion within 2 over 48 h. Magnetic analyses revealed that compound 1 exhibits both spin-orbital coupling and antiferromagnetic interactions through a syn–anti carboxylate (Me2mal2−) bridge exchange pathway [Co–Co separation of 5.478 Å] and compound 2 showed a ferromagnetic interaction resulting from the short Co–Co separation (3.150 Å) and the small Co–O–Co bridging angles (98.5° and 95.3°) exchange pathway which was provided by µ4-Me2mal2− bridging ligand.

Graphical Abstract

1. Introduction

Coordination polymers (CPs), hybrid crystalline materials comprised of organic and inorganic components whose structures are extended by coordination bonds, have attracted considerable interest in the field of condensed matter [1,2,3,4,5,6,7,8,9,10]. The beneficial features of these materials are attributed to the building blocks from which they are constructed, which have of both organic and inorganic parts, thus conferring hybrid properties. Consequently, they commonly possess novel and fascinating properties or functionalities, which originate from the hybridization of the inorganic-organic parts. Although CPs can have many other potentials and fascinating properties, including heterogeneous catalysis, gas storage, gas separation, and drug carriers [11,12,13,14,15,16,17,18], magnetism is also an important area of interest [19,20,21,22,23,24,25,26,27,28,29]. This is particularly true, when the paramagnetic metal centers are bridged by short ligands (such as azido anion, cyanide, and carboxylate groups) to produce extended structures, 1D chains, and 2D layers, which is the structural basis for transmitting significant magnetic interactions between spin carriers and the metal ions [30,31,32]. One main benefit of magnetic coordination polymers (MCPs) is they provide the possibility and opportunity for tuning the nature of magnetic interactions within the materials [33,34,35,36]. Magnetically coupled interactions, ferromagnetic (FO), or antiferromagnetic (AF), depend on the types of spin carriers and a detailed understanding of the coupling pathway between them. The system and topology of magnetic interactions through space can be further adjusted if the starting metal centers, short bridging ligands, building blocks, co-ligands, templates, and related structures are carefully selected and accurately assembled into CPs [37,38,39].
Moreover, some MCPs can exist in bistable states, which could result in their structures being altered in response to external stimulation such as exchanging counterions, guest molecules, an electric field, or pressure. While in this dynamic structural transformation, their magnetic properties may obviously change. It is well-known that structural transformations can be observed in single-crystal-to-single-crystal transformations [40,41,42,43,44], as well as in crystal reassembly [35]. It follows that studies of magnetic materials and structural transformations of network materials could open opportunities for gaining an improved understanding of the essential characteristics that affect crystal nucleation and growth and thus would be of benefit for exploiting multi-functional materials.
One of the important characteristics for a polycarboxylate bridging ligand with metal centers is that they can give rise to a wide variety of multinuclear cluster-based compounds ranging from discrete units to multidimensional systems. Dimethylmalonic acid (H2-Me2mal) is one such potential candidate for the synthesis of CPs with diverting magnetic behaviors, such as ferromagnetism and magnetic ordering, because they not only link the metal centers to the multi-dimensional network but also reduce the distance between the metal centers, which would lead to a significant magnetic interaction.
In attempt to control reaction temperatures in solvothermal processes, we report herein on the synthesis of two Co(II) coordination polymers, [Co(Me2mal)(bpe)0.5(H2O)]n (1) and [Co(Me2mal)(bpe)0.5]n (2), from the self-assembly of H2-Me2mal and trans-1,2-bis(4-pyridyl)ethylene (bpe) in DMF/H2O. The temperature-induced network reassembly from compound 1 to compound 2 was also observed. Magnetic studies showed that complex 1 exhibits both spin-orbital coupling and antiferromagnetic interactions through the syn–anti carboxylate (Me2mal2−) bridge exchange pathway with a long Co–Co separation. In contrast, complex 2 shows a ferromagnetic interaction that occurs by an exchange pathway with a short Co–Co separation (3.150 Å) and small Co–O–Co bridging angles (98.5° and 95.3°) provided by the antisymmetric µ4-Me2mal2− bridging ligand.

2. Experimental

2.1. Materials and Methods

All reagents and solvents were used as received without further purification, and aerobic conditions were performed for all reactions.

2.2. The Synthesis of [Co(Me2mal)(bpe)0.5(H2O)]n (1)

A mixture of the solution of Co(CH3COO)2·4H2O (12.5 mg, 0.05 mmol), H2-Me2mal (6.6 mg, 0.05 mmol), bpe (9.1 mg, 0.05 mmol) and DMF/H2O (1 mL/5 mL) was heated at 80 °C for two days. After the mixtures were slowly cooled to room temperature, purple crystals of compound 1 suitable for single crystal X-ray analysis were obtained. The purple crystals were washed with water and collected by suction filtration. The simulated powder X-ray diffraction pattern from the single-crystal data was compared well with the pattern of the bulk sample (vide infra). The yield was 41% based on Co. Elemental analysis calcd (%) for C11H13CoNO5 (1): C, 44.27; H, 4.36; N, 4.70. Found: C, 44.23; H, 4.18; N, 4.60. IR data (KBr disk, cm−1): 3420 (s), 2979 (m), 2931 (w), 1610 (vs), 1534 (vs), 1460 (m), 1428 (s), 1376 (m), 1350 (w), 1254 (w), 1219 (w), 1192 (w), 1101 (w), 1071 (w), 1015 (m), 977 (w), 911 (w), 846 (m), 832 (m), 791 (m), 742 (m), 688 (w), 603 (w), 553 (m).

2.3. The Synthesis of [Co(Me2mal)(bpe)0.5]n (2)

Method A: Co(CH3COO)2·4H2O (12.5 mg, 0.05 mmol), H2-Me2mal (6.8 mg, 0.11 mmol), dpe (9.1 mg, 0.05 mmol) and DMF/H2O (1 mL/5 mL) were mixed and placed in a Teflon reactor (25 mL). This mixture was heated to 120 °C at the heating rate of 14.3 °C/h, holding at 120 °C for 48 h, and then cooling to 30 °C at a rate of 1 °C/h. The red crystals of compound 2 suitable for single-crystal X-ray analysis were obtained. The crystals were washed a few times with water, collected by suction filtration and dried in air. The yield was 34% (based on Co). The simulated powder X-ray diffraction pattern from the single-crystal data was compared well with the pattern of the bulk sample (vide infra). Elemental analysis calcd (%) for C11H11CoNO4 (2): C, 47.12; H, 3.93; N, 5.00. Found: C, 47.25; H, 3.60; N, 5.04. IR data (KBr disk, cm−1): 3452 (s), 3071 (m), 2987 (m), 2957 (m), 2939 (m), 2864 (m), 1656 (vs), 1612 (vs), 1575 (vs), 1466 (m), 1433 (m), 1394 (vs), 1369 (s), 1345 (s), 1276 (s), 1196 (m), 1096 (w), 1078 (w), 1022 (m), 985 (m), 961 (w), 940 (w), 893 (m), 828 (m), 794 (w), 758 (w), 701 (m), 596 (m), 551 (m), 529 (w), 472 (w).
Method B: The crystalline samples of 1 (50.0 mg, 0.17 mmol) and DMF/H2O (1 mL/5 mL) were placed in a Teflon reactor (25 mL). The reactor was then heated to 120 °C at the heating rate of 14.3 °C/h, holding at 120 °C for 48 h, and then cooling to 30 °C at a rate of 1 °C/h. The red crystals were obtained, washed by water, dried in air, and collected by filtration. The yield was 77% (36.1 mg). The IR spectrum and powder X-ray diffraction pattern were identical to that of 2 prepared by method A. The elemental analysis calcd (%) for C11H11CoNO4 (2): C, 47.12; H, 3.93; N, 5.00. Found: C, 47.18; H, 3.69; N, 4.98.

2.4. X-ray Crystallography

For compounds 1 and 2, the diffraction intensity data were collected at 150 K on a Bruker APEXII CCD diffractometer (Bruker, Karlsruhe, Germany) with graphite-monochromated Mo Kα radiation (λ = 0.7107 Å). The program SADABS (Bruker, 2016) was used for absorption corrections [45]. Direct methods were used to solve the structure, and the SHELX2014 program [46] was used to refine the structure with the full-matrix least-squares method against F2. All non-hydrogen atoms were refined anisotropic thermal parameters, whereas the hydrogen atoms on their respective carbon atoms were placed in ideal, calculated positions, using the riding model with isotropic thermal parameters. For compounds 1 and 2, the experimental details for X-ray crystallographic data, and the refinements are summarized in Table 1, and the selected bond distances and angles are listed in Table 2 and Table 3.

2.5. Physical Measurements

The temperature dependence (dc) of the magnetic susceptibility measurements for compounds 1 and 2 were performed on microcrystalline samples, which were restrained in eicosane to prevent torquing, on a Quantum Design MPMS-7 SQUID (Quantum Design, San Diego, CA, USA) equipped with 7.0 T magnets and operated in the range of 2.0–300.0 K. The Pascal’s constants [47] were used to estimate the diamagnetic corrections of both compounds from the experimental magnetic susceptibilities to achieve the molar paramagnetic susceptibilities. Elemental analysis (carbon, hydrogen, and nitrogen) of compounds 1 and 2 were made using an Elemental vario EL III analyzer (PerkinElmer, Taipei, Taiwan). Thermogravimetric (TG) analyses of both compounds were collected using a Seiko Instrumental, Inc., (Chiba shi, Japan) EXSTAR 6200 TG/DTA analyzer, operating under a 5 °C/min heating rate and a nitrogen atmosphere. Powder X-ray diffraction data were collected using a Rigaku MiniFlex-II X-Ray diffractometer (Tokyo, Japan), operating on a step mode, with a step size of 0.02° in θ and a fixed time of 10 s at 40 kV, 30 mA for Cu–Kα (λ = 1.5406 Å). A Perkin-Elmer Spectrum RX1 FTIR spectrometer was used to collect the Fourier transform infrared (FTIR) spectra for both compounds (PerkinElmer, Taipei, Taiwan).

3. Results and Discussion

3.1. Synthesis and Characterization of Compounds 1 and 2

Compounds 1 and 2 were prepared via self-assembly processes by solvothermal reactions at different temperatures. The reaction of Co(OAc)2·4H2O (0.05 mmol) with H2-Me2mal (0.05 mmol) and bpe (0.05 mmol) in a DMF/H2O (1 mL/5 mL) mixed solution at 60 or 80 °C for 48 h yielded needle-shaped purple crystals of 1. No crystals of 1 were formed when the reaction was carried out at room temperature. When the above reaction was performed at 120 °C for 48 h, however, red crystals of thermodynamically stable products of compound 2 were obtained. When crystals of 1 in the same solvent system were allowed to stand at 120 °C for about 48 h, the purple colored crystals of 1 were converted into red colored crystals of 2, thus confirming that crystal reassembly has occurred. The synthesis and structural conversion of 1 to 2 are depicted in Scheme 1. However, except for 1, no new product was formed, as determined by the PXRD patterns, but if the reaction was carried out in the absence of H2O/DMF as the solvent, this indicated that reassembly from 1 to 2 would be simultaneously assisted by both thermal and solvent factors. In viewing the crystal structures of 1 and 2, the removal of coordinated water from the Co(II) center and the rearrangement of the carboxylate of Me2mal2− and bpe ligands would be expected to take place during the structural conversion process. We assume that the solvent molecules would provide intermolecular interactions, i.e., hydrogen bonding interactions that would be expected to stabilize the structure in the intermediate state and would benefit from the removal of the coordinated water molecules. Such solvent assisted structural transformations have been reported in the literature [48,49,50,51], and these findings can be compared to the reassembly of crystals from 1 to 2. In the reported literature, supramolecular interactions, such as layer-guest-layer hydrogen bonding interactions, stabilize the layer structure. As the temperature increased, the guest water molecules were removed and the structure was induced to transform into a 3D network. We, therefore, assume that the removal of coordination water molecules in 1 would be an important factor for the crystal reassembly to 2.
The phase purity for the bulk samples of 1, 2, and the products obtained by the crystal reassembly of 2 was confirmed by PXRD (Figures S1 and S2 in Supporting Information) and by elemental analysis. The thermal stabilities of compounds 1 and 2 were also examined by TG analysis (Figure S3). The TGA curve for compound 1 showed consecutive weight loss steps at temperatures above 120 °C, which corresponded to the gradual removal of one coordinated water molecule (found: 6.28%; calcd: 6.04%). At temperatures above 250 °C, the host framework underwent a rapid weight loss, which was attributed to the elimination of the organic ligands and the gradual decomposition of the compound. Compound 2 showed one large weight loss at temperatures above 300 °C, corresponding to the elimination of the organic ligands, followed by the decomposition of the host framework.

3.2. Description of the Structure

Crystal Structures of Compound 1

[Co(Me2mal)(bpe)0.5(H2O)]n (1). An X-ray structural analysis showed that compound 1 crystallized in the monoclinic space group P21/n and the asymmetric unit of 1 contains one crystallographically independent Co(II) center, one Me2mal2− anion, one-half of a bpe ligand, and one coordinated water molecule. As depicted in Figure 1, the geometry of the Co(II) center is a distorted octahedron with a CoO5N coordination sphere. The equatorial positions on the octahedron are occupied by four oxygen atoms (O2, O3, and their symmetrical equivalents) derived from three Me2mal2− ligands, while one nitrogen atom (N1) from one bpe ligand and one oxygen atom (O6) of a terminal water molecule occupied the axial positions. The Co–O bond lengths at the Co(II) vary from 2.0747(18)–2.124(19) Å and a Co–N bond length is 2.151(2) Å, which falls in the range of values for typical octahedral Co(II) complexes [52,53]. The two carboxylate groups of the Me2mal2− ligand adopt a syn–anti µ2:η1,η1-bridging mode (Scheme 2a), in which the Co(II) ion is chelated by each of one oxygen atoms (O2 and O3), and connects to two crystallographically equivalent Co(II) ions through each of the other two oxygen atoms (O1 and O4). Thus, each Co(II) center is linked to four neighbors via three Me2mal2− bridges and results in a corrugated Co-Me2mal layer that is located parallel to the ac crystal plane (Figure 2a). The two unique Co···Co distances in the layer spanned by the Me2mal2− ligands are 5.478(1) and 5.258(1) Å. The adjacent Co–Me2mal layers are further pillared through bis-monodentate bpe ligands leading to a pillared-layer 3D framework with 1D channels along the crystallographic c axis (Figure 2b). Similar structures have been reported in previous studies [54,55,56]. The bpe ligands are positioned alternately above and below the layers, in a trans array with the dimethyl groups of the Me2mal2− ligand. The bridging bpe ligands separate the Co(II) ions by 13.668(2) Å, where the shortest interlayer Co···Co distance is 9.911(2) Å. The shortest distance of the centroid–centroid between the adjacent pyridyl rings of the bpe is 7.496(2) Å, which rules out any π–π interaction in compound 1. The shortest centroid–centroid distance between the adjacent pyridyl rings of the bpe ligand in compound 1 is 7.496(2) Å, which are considerably higher than the limit for π–π interactions between pyridyl rings, thus indicating there are no π–π interactions in compound 1. The intralayer hydrogen bonds between the oxygen atoms of the Me2mal2- ligand and the coordinated water molecule in 1 (2.704(3) and 2.768(3) A° for O6···O2 and O6···O3 and 150.4(2) and 163.9(4)o for O6–H6A…O2 and O6–H6B···O4) donate to the stabilization of the structure.
Topological analysis of the 3D structure of compound 1 indicated that each Co(II) center with a CoNO5 coordination environment and µ3-Me2mal can be viewed as a six-connected node and a three-connected node, respectively, while each bpe ligand that is bonded to two Co(II) centers can be treated as a two-connector. Such connectivity repeats in infinity, thus producing the Co-Me2mal layer and the 3D framework of 1 as schematically represented in Figure 3. Analysis by the TOPOS software package showed that the framework of 1 could be explained as a binodal (3,4)-connected ins topology with the Schläfli symbol (63)(65.8) [57].
[Co(Me2mal)(bpe)0.5]n (2). A single-crystal X-ray diffraction analysis reveals that 2 is a three-dimensional framework consisting of well-isolated one-dimensional cobalt/oxygen chains bridged by a bpe ligand along with a Me2mal ligand. The asymmetric unit of compound 2 contains two Co(II) atoms at special positions, two Me2mal2− groups, and one bpe ligand (Figure 4). The Co1 shows a distorted octahedral with a CoO4N2 coordination sphere, where two oxygen atoms (O1, O1A) of the carboxylate from the two Me2mal2− ligands and two nitrogen atoms (N1, N1A) from the two bpe ligands make up the equatorial plane, and the two carboxylate oxygen atoms (O3, O3A) from two Me2mal2− ligands occupy the axial positions. The Co2 center adopts a CoO6 distorted octahedral geometry bonded to six carboxylate oxygen atoms from four different Me2mal2− ligands, where the four oxygen atoms (O1, O2, and their symmetric equivalents) occupy the equatorial plane and the two oxygen atoms, O3 and its symmetric equivalent, are coordinated to the axial positions. The Co−O bond distances (ranging from 1.992(2)–2.163(2) Å) and Co−N (2.067(3) Å) are all within the normal ranges for octahedral Co(II) complexes [42,43]. The Me2mal2− ligand acts as an asymmetrical µ4-bridging ligand (Scheme 2b). One of two carboxylates in a Me2mal2− adopt a anti, syn–syn, µ3:η2,η1-bridging mode with terminal bonding to the Co2A center through an O2 atom with the Co1 and Co2 centers bridged by the O2 atom, while the other one of two carboxylate groups show an anti,syn µ2:η2-bridging mode that connects the Co2 to Co1A centers through its one carboxylate oxygen atom (O3) with an uncoordinated oxygen atom (O4). Such an asymmetrical µ4-bridging structure was first obtained in the complex with malonate-related ligands. Therefore, the Co1 and Co2 centers are connected by one syn–syn carboxylate and two µ2-oxygen atoms derived from two carboxylate groups and lead to the formation of an edged-shared zigzag Co−Me2mal chain along the c axis (Figure 5a). The intrachain Co1−Co2 bond distance is 3.150 Å, and the Co1−O1−Co2 and Co1−O3−Co2 bond angles are 95.35° and 98.51°, respectively. The adjacent Co−Me2mal chains are further crosslinked through bis-monodentate bpe ligands leading to a 3D network structure with 3D channels (Figure 5b). In the crystal, the adjacent porous 3D framework is interpenetrated leading to a two-fold interpenetrated network, in which only the small 1D channels along the a axis can be observed (Figure S4). In the 3D interpenetrated framework, the bridging bpe ligands separate the Co(II) ions by 13.287(4) Å, where the shortest interchain Co···Co distance is 9.352(2) Å. The shortest centroid–centroid distance between adjacent pyridyl rings of bpe is 7.496(2) Å ruling out any π–π interactions in compound 2.

3.3. Magnetic Properties

Solid-state, temperature-dependence of magnetic susceptibility data of compounds 1 and 2 were measured in the 2.0–300 K range under a 1.0 kOe applied field.
The temperature dependence of χMT values of compound 1 is shown in Figure 6. The spin-only value at 300 K is 3.34 cm3 K mol–1, which is in agreement with that of the measured, calculated by a high-spin Co(II) ion with S = 3/2 with a strong spin-orbit coupling [58]. The χMT value of 1 continues to decrease with cooling of the temperature from 300 to 10 K, below 10 K the value of χMT decreases more rapidly to 1.40 cm3 K mol–1 at 2.0 K. The monotonic decrease in the χMT value with decreasing temperatures are characteristics of overall antiferromagnetic interactions and/or spin-orbital couplings in compound 1. Above 50 K, the magnetic susceptibility data obeyed the Curie–Weiss law with a Curie constant C = 3.58 cm3 mol–1 K and Weiss θ = −23.15 K (Figure S5). The negative θ value indicates that antiferromagnetic coupling and the spin-orbital coupling existed in compound 1.
A plot of the temperature dependence of the χMT value for compound 2 is shown in Figure 7. The χMT value is 3.13 cm3 K mol−1 at 300 K which is significantly greater than the spin-only value for a the high-spin Co(II) center, while it is in agreement with the values observed of the magnetic moment for high-spin Co(II) complexes in an octahedral environment with strong spin-orbital coupling. The χMT value decreases slowly to a minimum of 3.03 cm3 K mol−1 at 55 K. Below 55 K, the χMT value sharply increases to reach a maximum of 9.12 cm3 K mol−1 at 2.0 K, indicating the existence of the ferromagnetic interaction in compound 2. The data of the temperature dependence of magnetic susceptibilities above 50 K followed the Curie−Weiss law giving a θ = −2.90 K and a C = 3.21 cm3 K mol−1 (Figure S6). The Curie constant of 2 was larger than the theoretical spin-only value of the Co(II) ion, indicating that an orbital contribution existed in compound 2. Thereby, the weak and negative values of θ are unable to indicate the antiferromagnetic interaction between Co(II) centers in 2 because of the significant strong spin-orbital coupling of the octahedral Co(II) ions.
Because of the contribution of the spin-orbit coupling for Co(II) ions, it is not possible to find a suitable analytical expression that describes the temperature-dependent magnetic susceptibility for Co(II) centers of the layered and chained polymeric structures in compounds 1 and 2, respectively. However, Rueff et al. successfully proposed a phenomenological approach for a low-dimensional polymeric Co(II) compound that permits the magnitude of the magnetic coupling and the spin-orbit coupling effects. They assumed the phenomenological equation [59]:
χMT = A exp(−E1/kT) + B exp(−E2/kT)
where A + B are the Curie constants and the E1 and E2 are the activation energies, which correspond to the parameters of the spin–orbit coupling and the magnetic coupling interaction, respectively. The E2 is related to the constant of the magnetic coupling (J) according to the Ising chain approximation, χMT ∞ exp(+J/2kT). This equation sufficiently pronounces the spin-orbit coupling, which affects the splitting of the low-temperature divergence of the susceptibility between discrete levels and the exponential. Some reasonable values for magnetic interactions and interactions of spin–orbit coupling have been described in several studies on Co(II) coordination polymers with 1D and 2D structures [60,61,62].
The results obtained by the Rueff′s procedure are quite consistent with the experimental data. For compound 1, the data above 10 K was fitted and the parameters of the fitting are A + B = 3.72 cm3 K mol–1, practically close to the Curie constant found from the Curie–Weiss law, 3.58 cm3 K mol–1. The E1/k was +49.73 K which is in the same magnitude (the order of +100 K) to those reported for Co(II) compounds. Concerning the values obtained for antiferromagnetic exchange interactions, it is weak but significant (E2/k = 0.46 K, corresponding to J = −0.92 K), which is in agreement with the antiferromagnetic property of compound 1 and consistent with some other reported 2D Co(II) compounds [61,62]. As described in the crystallographic part, compound 1 is comprised of Co(II) ions connected by carboxylate groups in a syn–anti bridging mode thus giving a Co-Me2mal layer, which is further linked in a three-dimensional network by bpe ligands. Thus, the overall antiferromagnetic exchange interaction can be attributed to magnetic interaction within the Co–carboxylate layer. Magnetic exchanges through the syn–anti carboxylate bridges for Co(II) and Mn(II) ions are usually reported as antiferromagnetic due to the good overlap of magnetic orbitals [54,55,56]. For compound 2, the data above 30 K were fitted and the best fit parameters of the A + B value was 3.18 cm3 K mol–1, which is in good agreement with those reported in the literature for the Curie constant, E1/k, the effect of the distortion of coordination site and spin-orbit coupling, was +99.41 K and −E2/k was 4.07 K, corresponding to magnetic interactions of J = 8.14 K within the Ising chain approximation, which is consistent with values reported for several 1D Co(II) complexes [59,60,61]. These fitting results indicate that the distinct ferromagnetic exchange is dominated between Co(II) through one O−C−O and two µ2-O bridges. The intrachain Co1−O−Co2 angles and Co···Co distance are 98.5°, 95.3° and 3.150(1) Å, respectively. Nevertheless, the shortest Co···Co distance in the chain is 9.352 Å. The magnetic interactions of compounds 1 and 2 can be compared to those of Co(II) compounds containing similar structures in the literature [60,63], in which a weak antiferromagnetic interaction (J = −1.30 K) was dominated in a syn–anti carboxylate-bridged Co(II)-malonate layer and a weak ferromagnetic coupling (J = 3.72 K) was transmitted in a Co(II)-based chain with one O−C−O and two µ2-O bridges. This is in agreement with magneto-structural analyses: a small Co−O−Co angle resulting in a Co−Co ferromagnetic coupling and a large Co−O−Co angle resulting in a Co−Co antiferromagnetic interaction [63].
The ferromagnetic coupling of compound 2 was further estimated by isothermal magnetization data. As shown in Figure S7, the magnetization increased sharply and then reached a saturation plateau (2.53 Nβ at 7 T) with a fast saturation of the magnetization. The fast saturated magnetization confirms the existence of ferromagnetic interactions within 2 and the saturation value was consistent with the theoretical values (2−3 Nβ) expected for Co(II) compounds. Indeed, no magnetic hysteresis loop was detected indicating the absence of magnetic ordering in 2 above 2.0 K.

4. Conclusions

In summary, we report on the temperature-controlled synthesis and characterization of two new dicarboxylate-based 3D Co(II) coordination polymers. The formation of compound 1 was favored at lower temperatures of 60–80 °C, but a higher temperature of 120 °C was favored to yield compound 2. Indeed, a crystal reassembly from compound 1 to compound 2 was also observed by solvothermal treatment of 1 at 120 °C in DMF/H2O. The structure of compound 1 contains corrugated layers of Co(II) connected through syn–anti carboxylate bridges of Me2mal− ligands and bis-monodentate bpe pillars. Compound 2 shows a 3D porous framework involving one-dimensional Co–carboxylate chains connected by antisymmetric µ4-Me2mal2− and bis-monodentate bpe ligands. Magnetic measurements indicate that antiferromagnetic interactions through the syn–anti carboxylate bridges of the Me2mal2− ligands were dominated in compound 1, while compound 2 revealed ferromagnetic interactions resulting from the short Co–Co separation (3.150 Å) and small Co–O–Co bridging angles (98.5° and 95.3°) exchange pathway of the µ4-Me2mal2− bridges. The studies demonstrate that dimethylmalonic acid has great substantial for use in the preparation of coordination polymers with multipurpose structural topologies and unusual magnetic properties.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4360/11/5/795/s1, Figure S1: Simulated PXRD pattern (blue) and experimental PXRD pattern (red) of 1, Figure S2: (a) Simulated PXRD pattern (blue) and experimental PXRD pattern (red) of 2; (b) experimental PXRD patterns of 2 synthesized by method A (blue) and method B (red), Figure S3: Thermogravimetric (TG) analysis diagrams of 1 and 2, Figure S4: (a) The two-fold interpenetrated network of 2; (b) the 1D channels along the a axis of 2, Figure S5: Plot of χM−1 (cycle) vs. temperature for a microcrystalline sample of compound 1. The solid line represents the best fit χM−1 above 50 K with a Curie–Weiss law, Figure S6: Plot of χM−1 (cycle) vs. temperature for a microcrystalline sample of compound 2. The solid line represents the best fit χM−1 above 50 K with a Curie–Weiss law, Figure S7: Field dependence of magnetizations of compound 2 at 2.0 K.

Author Contributions

C.-I.Y. conceived, designed the experiments, and wrote the paper; S.-S.D. and C.-H.L. performed the experiments.

Acknowledgments

The authors gratefully acknowledge financial support for this work from the Tunghai University, and the Ministry of Science and Technology of Taiwan (MOST 106-2113-M-029-008). We also thank the instrumental supporting and measuring by Tsai Hui-lien and Min Kai Lee at the National Cheng Kung University.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Eddaoudi, M.; Kim, J.; Rosi, N.; Vodak, D.; Wachter, J.; O’Keeffe, M.; Yaghi, O.M. Systematic design of pore size and functionality in isoreticular MOFs and their application in methane storage. Science 2002, 295, 469–472. [Google Scholar] [CrossRef] [PubMed]
  2. Kitagawa, S.; Kitaura, R.; Noro, S. Functional porous coordination polymers. Angew. Chem. Int. Ed. 2004, 43, 2334–2375. [Google Scholar] [CrossRef]
  3. Ferey, G.; Mellot-Draznieks, C.; Serre, C.; Millange, F. Crystallized frameworks with giant pores: Are there limits to the possible? Acc. Chem. Res. 2005, 38, 217–225. [Google Scholar] [CrossRef] [PubMed]
  4. Xiang, S.; Wu, X.; Zhang, J.; Fu, R.; Hu, S.; Zhang, X. 3D Canted Antiferromagnetic Porous Metal−Organic Framework with Anatase Topology through Assembly of an Analogue of Polyoxometalate. J. Am. Chem. Soc. 2005, 127, 16352–16353. [Google Scholar] [CrossRef]
  5. Ockwig, N.W.; Delgado-Friedrichs, O.; O’Keeffe, M.; Yaghi, O.M. Reticular chemistry: Occurrence and taxonomy of nets and grammar for the design of frameworks. Acc. Chem. Res. 2005, 38, 176–182. [Google Scholar] [CrossRef] [PubMed]
  6. Ferey, G. Hybrid porous solids: Past, present, future. Chem. Soc. Rev. 2008, 37, 191–214. [Google Scholar] [CrossRef]
  7. Moulton, B.; Zaworotko, M.J. From Molecules to Crystal Engineering: Supramolecular Isomerism and Polymorphism in Network Solids. Chem. Rev. 2001, 101, 1629–1658. [Google Scholar] [CrossRef] [PubMed]
  8. Welte, L.; Calzolari, A.; Di Felice, R.; Zamora, F.; Gomez-Herrero, J. Highly conductive self-assembled nanoribbons of coordination polymers. Nat. Nanotechnol. 2010, 5, 110–115. [Google Scholar] [CrossRef] [PubMed]
  9. Barth, J.V.; Costantini, G.; Kern, K. Engineering atomic and molecular nanostructures at surfaces. Nature 2005, 437, 671–679. [Google Scholar] [CrossRef] [PubMed]
  10. Guijarro, A.; Castillo, O.; Welte, L.; Calzolari, A.; Miguel, P.J.S.; Gómez-García, C.J.; Olea, D.; di Felice, R.; Gómez-Herrero, J.; Zamora, F. Conductive Nanostructures of MMX Chains. Adv. Funct. Mater. 2010, 20, 1451–1457. [Google Scholar] [CrossRef]
  11. Coronado, E.; Minguez Espallargas, G. Dynamic magnetic MOFs. Chem. Soc. Rev. 2013, 42, 1525–1539. [Google Scholar] [CrossRef] [PubMed]
  12. Chaemchuen, S.; Kabir, N.A.; Zhou, K.; Verpoort, F. Metal–organic frameworks for upgrading biogas via CO2 adsorption to biogas green energy. Chem. Soc. Rev. 2013, 42, 9304. [Google Scholar] [CrossRef] [PubMed]
  13. Yoon, J.; Solomon, E.I. Electronic structures of exchange coupled trigonal trimeric Cu(II) complexes: Spin frustration, antisymmetric exchange, pseudo-A terms, and their relation to O2 activation in the multicopper oxidases. Coordin. Chem. Rev. 2007, 251, 379–400. [Google Scholar] [CrossRef]
  14. Zhang, Q.; Li, B.; Chen, L. First-Principles Study of Microporous Magnets M-MOF-74 (M = Ni, Co, Fe, Mn): The Role of Metal Centers. Inorg. Chem. 2013, 52, 9356–9362. [Google Scholar] [CrossRef] [PubMed]
  15. Saitoh, A.; Miyasaka, H.; Yamashita, M.; Clérac, R. Direct evidence of exchange interaction dependence of magnetization relaxation in a family of ferromagnetic-type single-chain magnets. J. Mater. Chem. 2007, 17, 2002–2012. [Google Scholar] [CrossRef]
  16. Dhakshinamoorthy, A.; Li, Z.; Garcia, H. Catalysis and photocatalysis by metal organic frameworks. Chem. Soc. Rev. 2018, 47, 8134–8172. [Google Scholar] [CrossRef]
  17. Dhakshinamoorthy, A.; Asiri, A.M.; Garcia, H. Formation of C–C and C–Heteroatom Bonds by C–H Activation by Metal Organic Frameworks as Catalysts or Supports. ACS Catal. 2018, 9, 1081–1102. [Google Scholar] [CrossRef]
  18. Dhakshinamoorthy, A.; Santiago-Portillo, A.; Asiri, A.M.; Garcia, H. Engineering UiO-66 Metal Organic Framework for Heterogeneous Catalysis. ChemCatChem 2019, 11, 899–923. [Google Scholar] [CrossRef]
  19. Kurmoo, M. Magnetic metal-organic frameworks. Chem. Soc. Rev. 2009, 38, 1353–1379. [Google Scholar] [CrossRef]
  20. Zeng, Y.F.; Hu, X.; Liu, F.C.; Bu, X.H. Azido-mediated systems showing different magnetic behaviors. Chem. Soc. Rev. 2009, 38, 469–480. [Google Scholar] [CrossRef]
  21. Gatteschi, D.; Kahn, O.; Miller, J.S.; Palacio, F. Magnetic Molecular Materials; Kluwer Academic: Dordrecht, The Netherlands, 1991. [Google Scholar]
  22. Willet, R.D.; Gatteschi, D.; Kahn, O. Magneto-Structural Correlations in Exchange Coupled Systems; Reidel Publishing: Dordrecht, The Netherlands, 1985. [Google Scholar]
  23. Weng, D.F.; Wang, Z.M.; Gao, S. Framework-structured weak ferromagnets. Chem. Soc. Rev. 2011, 40, 3157–3181. [Google Scholar] [CrossRef]
  24. Wang, X.P.; Chen, W.M.; Qi, H.; Li, X.Y.; Rajnak, C.; Feng, Z.Y.; Kurmoo, M.; Boca, R.; Jia, C.J.; Tung, C.H.; et al. Solvent-Controlled Phase Transition of a Co(II)-Organic Framework: From Achiral to Chiral and Two to Three Dimensions. Chemistry 2017, 23, 7990–7996. [Google Scholar] [CrossRef] [PubMed]
  25. Ma, R.; Chen, Z.; Cao, F.; Wang, S.; Huang, X.; Li, Y.; Lu, J.; Li, D.; Dou, J. Two 2-D multifunctional cobalt(ii) compounds: Field-induced single-ion magnetism and catalytic oxidation of benzylic C-H bonds. Dalton Trans. 2017, 46, 2137–2145. [Google Scholar] [CrossRef]
  26. Zheng, T.; Ren, M.; Bao, S.-S.; Zheng, L.-M. M2(pbtcH)(phen)2(H2O)2 [M(II)=Co, Ni]: Mixed-ligated metal phosphonates based on 5-phosphonatophenyl-1,2,4-tricarboxylic acid showing double chain structures. Chin. Chem. Lett. 2014, 25, 835–838. [Google Scholar] [CrossRef]
  27. Wang, S.; Cao, T.; Yan, H.; Li, Y.; Lu, J.; Ma, R.; Li, D.; Dou, J.; Bai, J. Functionalization of Microporous Lanthanide-Based Metal-Organic Frameworks by Dicarboxylate Ligands with Methyl-Substituted Thieno[2,3-b]thiophene Groups: Sensing Activities and Magnetic Properties. Inorg. Chem. 2016, 55, 5139–5151. [Google Scholar] [CrossRef]
  28. Liu, Y.N.; Su, H.F.; Li, Y.W.; Liu, Q.Y.; Jaglicic, Z.; Wang, W.G.; Tung, C.H.; Sun, D. Space Craft-like Octanuclear Co(II)-Silsesquioxane Nanocages: Synthesis, Structure, Magnetic Properties, Solution Behavior, and Catalytic Activity for Hydroboration of Ketones. Inorg Chem 2019, 58, 4574–4582. [Google Scholar] [CrossRef]
  29. Chen, Z.; Yin, L.; Mi, X.; Wang, S.; Cao, F.; Wang, Z.; Li, Y.; Lu, J.; Dou, J. Field-induced slow magnetic relaxation of two 1-D compounds containing six-coordinated cobalt(ii) ions: Influence of the coordination geometry. Inorg. Chem. Front. 2018, 5, 2314–2320. [Google Scholar] [CrossRef]
  30. De Munno, G.; Viterbo, D.; Caneschi, A.; Lloret, F.; Julve, M. A Giant Antiferromagnetic Interaction through the Bihydroxide Bridge (H3O2-). Inorg. Chem. 1994, 33, 1585–1586. [Google Scholar] [CrossRef]
  31. Kar, P.; Drew, M.G.; Gomez-Garcia, C.J.; Ghosh, A. Coordination polymers containing manganese(II)-azido layers connected by dipyridyl-tetrazine and 4,4’-azobis(pyridine) linkers. Inorg. Chem. 2013, 52, 1640–1649. [Google Scholar] [CrossRef]
  32. Cheng, X.N.; Xue, W.; Huang, J.H.; Chen, X.M. Spin canting and/or metamagnetic behaviours of four isostructural grid-type coordination networks. Dalton. Trans. 2009, 5701–5707. [Google Scholar] [CrossRef]
  33. De Munno, G.; Poerio, T.; Julve, M.; Lloret, F.; Faus, J.; Caneschi, A. Syntheses, crystal structures and magnetic properties of one-, two- and three-dimensional 2,2′-bipyrimidine-containing copper(II) complexes. J. Chem. Soc. Dalton Trans. 1998, 1679–1686. [Google Scholar] [CrossRef]
  34. Okawa, H.; Shigematsu, A.; Sadakiyo, M.; Miyagawa, T.; Yoneda, K.; Ohba, M.; Kitagawa, H. Oxalate-bridged bimetallic complexes {NH(prol)3}[MCr(ox)3] (M = Mn(II), Fe(II), Co(II); NH(prol)3(+) = tri(3-hydroxypropyl)ammonium) exhibiting coexistent ferromagnetism and proton conduction. J. Am. Chem. Soc. 2009, 131, 13516–13522. [Google Scholar] [CrossRef]
  35. Toma, L.M.; Ruiz-Perez, C.; Pasan, J.; Wernsdorfer, W.; Lloret, F.; Julve, M. Molecular engineering to control the magnetic interaction between single-chain magnets assembled in a two-dimensional network. J. Am. Chem. Soc. 2012, 134, 15265–15268. [Google Scholar] [CrossRef]
  36. Miyasaka, H. Control of charge transfer in donor/acceptor metal-organic frameworks. Acc. Chem. Res. 2013, 46, 248–257. [Google Scholar] [CrossRef]
  37. Yang, T.; Cui, H.; Zhang, C.; Zhang, L.; Su, C.Y. Porous metal-organic framework catalyzing the three-component coupling of sulfonyl azide, alkyne, and amine. Inorg. Chem. 2013, 52, 9053–9059. [Google Scholar] [CrossRef]
  38. Lin, R.B.; Chen, D.; Lin, Y.Y.; Zhang, J.P.; Chen, X.M. A zeolite-like zinc triazolate framework with high gas adsorption and separation performance. Inorg. Chem. 2012, 51, 9950–9955. [Google Scholar] [CrossRef]
  39. Wriedt, M.; Yakovenko, A.A.; Halder, G.J.; Prosvirin, A.V.; Dunbar, K.R.; Zhou, H.C. Reversible switching from antiferro- to ferromagnetic behavior by solvent-mediated, thermally-induced phase transitions in a trimorphic MOF-based magnetic sponge system. J. Am. Chem. Soc. 2013, 135, 4040–4050. [Google Scholar] [CrossRef]
  40. Zeng, M.H.; Feng, X.L.; Chen, X.M. Crystal-to-crystal transformations of a microporous metal-organic laminated framework triggered by guest exchange, dehydration and readsorption. Dalton Trans. 2004, 2217–2223. [Google Scholar] [CrossRef]
  41. Choi, H.J.; Suh, M.P. Dynamic and redox active pillared bilayer open framework: Single-crystal-to-single-crystal transformations upon guest removal, guest exchange, and framework oxidation. J. Am. Chem. Soc. 2004, 126, 15844–15851. [Google Scholar] [CrossRef]
  42. Chen, C.L.; Goforth, A.M.; Smith, M.D.; Su, C.Y.; zur Loye, H.C. [Co2(ppca)2(H2O)(V4O12)0.5]: A framework material exhibiting reversible shrinkage and expansion through a single-crystal-to-single-crystal transformation involving a change in the cobalt coordination environment. Angew. Chem. Int. Ed. 2005, 44, 6673–6677. [Google Scholar] [CrossRef] [PubMed]
  43. Hu, C.; Englert, U. Crystal-to-crystal transformation from a chain polymer to a two-dimensional network at low temperatures. Angew. Chem. Int. Ed. 2005, 44, 2281–2283. [Google Scholar] [CrossRef] [PubMed]
  44. Wang, P.; Moorefield, C.N.; Panzner, M.; Newkome, G.R. TerpyridineCuIIPolycarboxylate Crystal Reorganization to One- and Two-Dimensional Nanostructures:  Crystal Disassembly and Reassembly. Cryst. Growth Des. 2006, 6, 1563–1565. [Google Scholar] [CrossRef]
  45. Sheldrick, G.M. Program for the Refinement of Crystal Structures; University of Göttingen: Göttingen, Germany, 1993. [Google Scholar]
  46. Sheldrick, G.M. SHELXL2014; University of Goëttingen: Goëttingen, Germany, 2014. [Google Scholar]
  47. Mulay, L.N.; Boudreaux, E.A. Theory and Applications of Molecular Diamagnetism; Wiley-VCH: New York, NY, USA, 1976; pp. 491–494. [Google Scholar]
  48. Kang, X.M.; Wang, W.M.; Yao, L.H.; Ren, H.X.; Zhao, B. Solvent-dependent variations of both structure and catalytic performance in three manganese coordination polymers. Dalton Trans. 2018, 47, 6986–6994. [Google Scholar] [CrossRef] [PubMed]
  49. Tripathi, S.; Srirambalaji, R.; Patra, S.; Anantharaman, G. Anion triggered and solvent assisted structural diversity and reversible single-crystal-to-single-crystal (SCSC) transformation between 1D and 2D coordination polymers. CrystEngComm 2015, 17, 8876–8887. [Google Scholar] [CrossRef]
  50. Schneemann, A.; Bon, V.; Schwedler, I.; Senkovska, I.; Kaskel, S.; Fischer, R.A. Flexible metal-organic frameworks. Chem. Soc. Rev. 2014, 43, 6062–6096. [Google Scholar] [CrossRef]
  51. Liu, Y.-H.; Lee, S.-H.; Chiang, J.-C.; Chen, P.-C.; Chien, P.-H.; Yang, C.-I. Dehydration induced 2D-to-3D crystal-to-crystal network re-assembly and ferromagnetism tuning within two chiral copper(II)–tartrate coordination polymers. Dalton Trans. 2013, 42, 16857–16867. [Google Scholar] [CrossRef]
  52. Tsao, J.Y.; Tsai, J.D.; Yang, C.I. Azide-bridged Cu(ii), Mn(ii) and Co(ii) coordination polymers constructed with a bifunctional ligand of 6-(1H-tetrazol-5-yl)-2,2′-bipyridine. Dalton Trans. 2016, 45, 3388–3397. [Google Scholar] [CrossRef] [PubMed]
  53. Zhang, Z.-Z.; Chang, H.-T.; Kuo, Y.; Lee, G.-H.; Yang, C.-I. Two New Three-Dimensional Pillared-Layer Co(II) and Cu(II) Frameworks Involving a [M2(EO-N3)2] Motif from a Semi-Flexible N-Donor Ligand, 5,5′-Bipyrimidin: Syntheses, Structures and Magnetic Properties. Polymers 2018, 10, 229. [Google Scholar] [CrossRef] [PubMed]
  54. Nagaraja, C.M.; Haldar, R.; Maji, T.K.; Rao, C.N.R. Chiral Porous Metal–Organic Frameworks of Co(II) and Ni(II): Synthesis, Structure, Magnetic Properties, and CO2 Uptake. Inorg. Chem. 2012, 12, 975–981. [Google Scholar] [CrossRef]
  55. Rodríguez-Martín, Y.; Hernández-Molina, M.; Sanchiz, J.; Ruiz-Pérez, C.; Lloret, F.; Julve, M. Crystal structures and magnetic properties of two- and three-dimensional malonato-bridged manganese(ii) complexes. Dalton Trans. 2003, 2359–2365. [Google Scholar] [CrossRef]
  56. Déniz, M.; Hernández-Rodríguez, I.; Pasán, J.; Fabelo, O.; Cañadillas-Delgado, L.; Yuste, C.; Julve, M.; Lloret, F.; Ruiz-Pérez, C. Pillaring Role of 4,4′-Azobis(pyridine) in Substituted Malonate-Containing Manganese(II) Complexes: Syntheses, Crystal Structures, and Magnetic Properties. Cryst. Growth Des. 2012, 12, 4505–4518. [Google Scholar] [CrossRef]
  57. O’Keeffe, M.; Peskov, M.A.; Ramsden, S.J.; Yaghi, O.M. The Reticular Chemistry Structure Resource (RCSR) Database of, and Symbols for, Crystal Nets. Acc. Chem. Res. 2008, 41, 1782–1789. [Google Scholar] [CrossRef]
  58. Zeng, M.H.; Wu, M.C.; Liang, H.; Zhou, Y.L.; Chen, X.M.; Ng, S.W. 3D homometallic carboxylate ferrimagnet constructed from a manganese(II) succinate carboxylate layer motif pillared by isonicotinate spacers. Inorg. Chem. 2007, 46, 7241–7243. [Google Scholar] [CrossRef] [PubMed]
  59. Rueff, J.-M.; Masciocchi, N.; Rabu, P.; Sironi, A.; Skoulios, A. Synthesis, Structure and Magnetism of Homologous Series of Polycrystalline Cobalt Alkane Mono- and Dicarboxylate Soaps. Chem. Eur. J. 2002, 8. [Google Scholar] [CrossRef]
  60. Huang, F.-P.; Li, H.-Y.; Yu, Q.; Bian, H.-D.; Tian, J.-L.; Yan, S.-P.; Liao, D.-Z.; Cheng, P. Co(ii)/Ni(ii) coordination polymers incorporated with a bent connector: Crystal structures and magnetic properties. CrystEngComm 2012, 14, 4756–4766. [Google Scholar] [CrossRef]
  61. Beghidja, A.; Rogez, G.; Rabu, P.; Welter, R.; Drillon, M. An approach to chiral magnets using α-hydroxycarboxylates. J. Mater. Chem. 2006, 16, 2715–2728. [Google Scholar] [CrossRef]
  62. Boonmak, J.; Nakanob, M.; Youngme, S. Structural diversity and magnetic properties in 1D and 2D azido-bridged cobalt(II) complexes with 1,2-bis(2-pyridyl)ethylene. Dalton Trans. 2011, 40, 1254–1260. [Google Scholar] [CrossRef]
  63. Fabelo, O.; Canadillas-Delgado, L.; Pasan, J.; Delgado, F.S.; Lloret, F.; Cano, J.; Julve, M.; Ruiz-Perez, C. Study of the influence of the bridge on the magnetic coupling in cobalt(II) complexes. Inorg. Chem. 2009, 48, 11342–11351. [Google Scholar] [CrossRef]
Polymers 11 00795 sch001 550
Scheme 1. The Schematic representation of the temperature-controlled assembly/reassembly of compounds 1 and 2.
Scheme 1. The Schematic representation of the temperature-controlled assembly/reassembly of compounds 1 and 2.
Polymers 11 00795 sch001
Polymers 11 00795 sch002 550

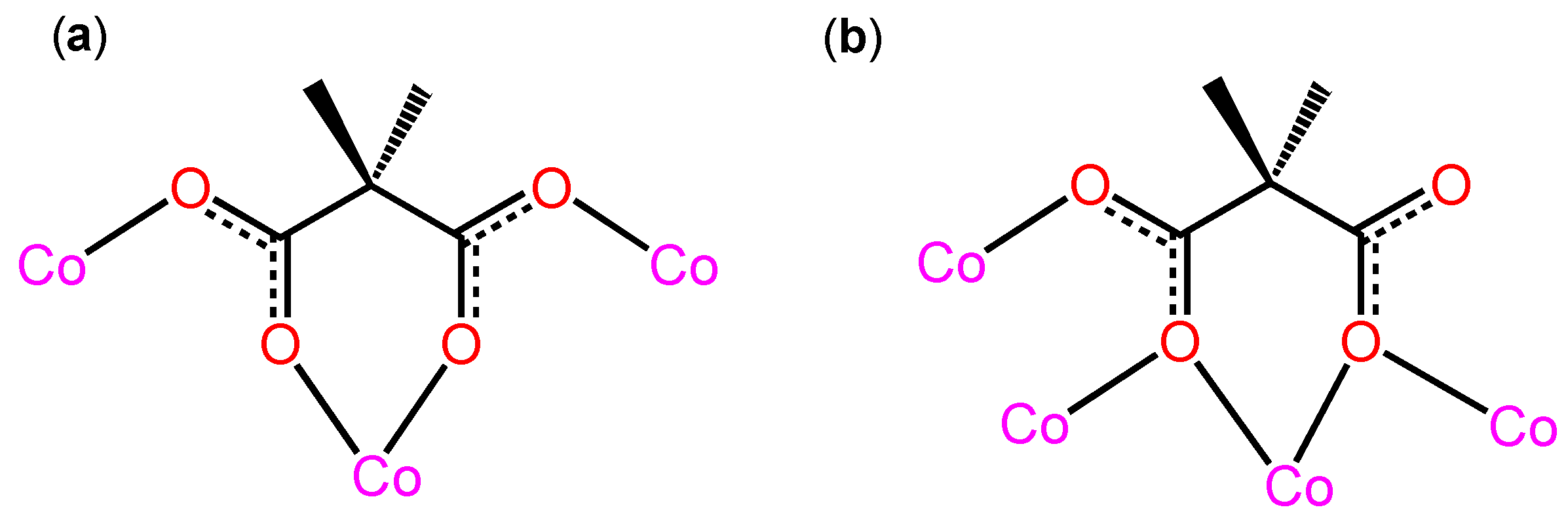

Scheme 2. The Schematic representations of (a) the symmetric µ3:η1,η1,η1,η1-bridging Me2mal2 ligand in compound 1, and (b) the antisymmetric µ4:η1,η2,η2-bridging Me2mal2− ligand in compound 2.
Scheme 2. The Schematic representations of (a) the symmetric µ3:η1,η1,η1,η1-bridging Me2mal2 ligand in compound 1, and (b) the antisymmetric µ4:η1,η2,η2-bridging Me2mal2− ligand in compound 2.
Polymers 11 00795 sch002
Polymers 11 00795 g001 550

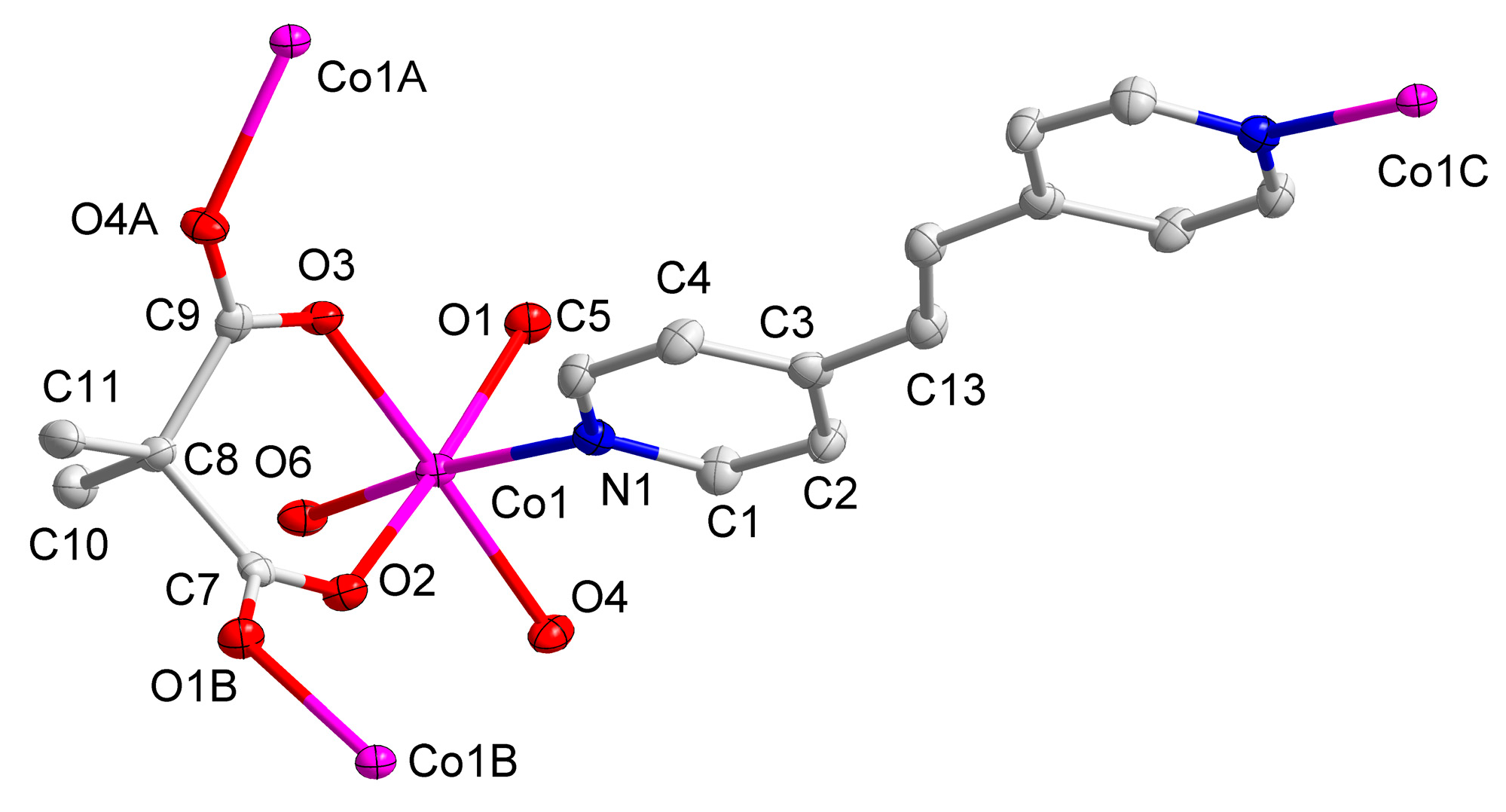

Figure 1. The metal coordination environments of compound 1. The H atoms have been omitted for clarity. [Symmetry code: (A) −0.5 + x, 1.5 − y, 0.5 + z; (B) 0.5 + x, 1.5 − y, 0.5 + z; (C) 1 − x, 2 − y, 3 − z].
Figure 1. The metal coordination environments of compound 1. The H atoms have been omitted for clarity. [Symmetry code: (A) −0.5 + x, 1.5 − y, 0.5 + z; (B) 0.5 + x, 1.5 − y, 0.5 + z; (C) 1 − x, 2 − y, 3 − z].
Polymers 11 00795 g001
Polymers 11 00795 g002 550
Figure 2. (a) View of the 2D layer of Co-(µ3-Me2mal) in the crystallographic ac plane, (b) view of the pillared-layer 3D structure of compound 1 with 1D channels along the c axis. The H atoms have been omitted for clarity.
Figure 2. (a) View of the 2D layer of Co-(µ3-Me2mal) in the crystallographic ac plane, (b) view of the pillared-layer 3D structure of compound 1 with 1D channels along the c axis. The H atoms have been omitted for clarity.
Polymers 11 00795 g002
Polymers 11 00795 g003 550

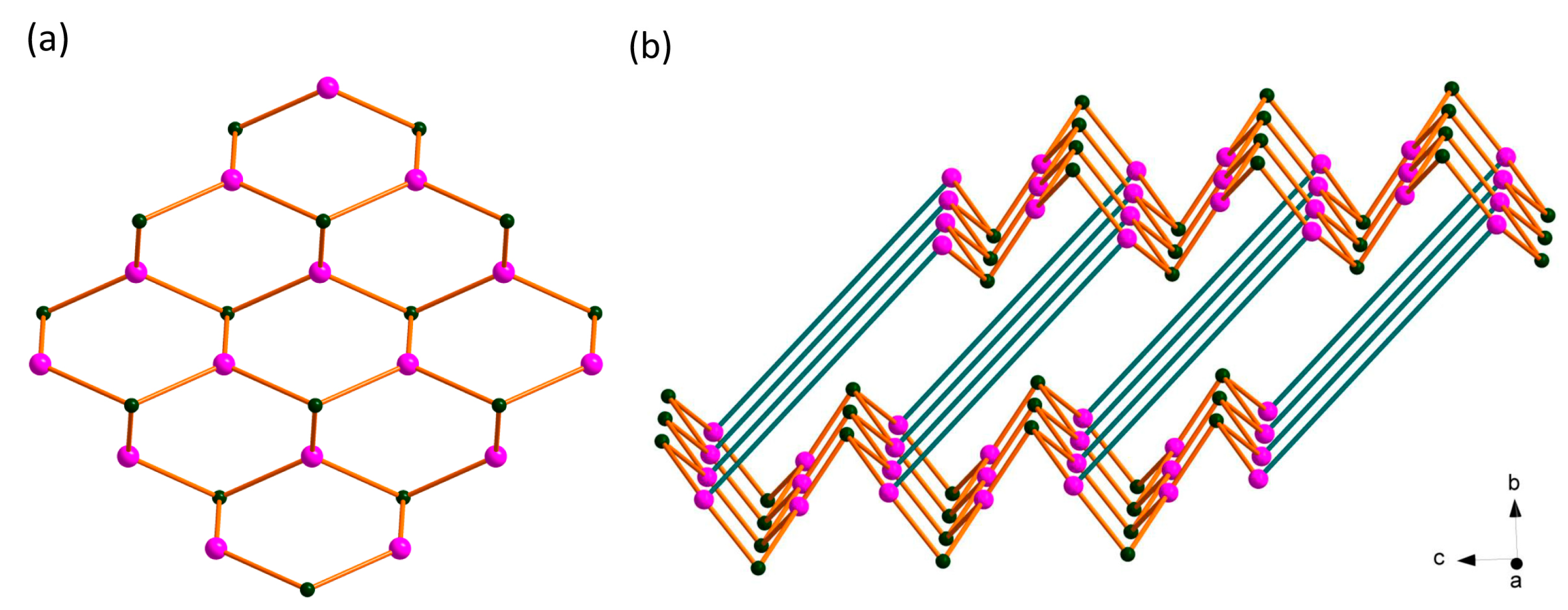

Figure 3. (a) View of the three-connected unimodal 2D net of the Co-Me2mal layer in 1 and (b) (3,4)-connected ins topology of compound 1.
Figure 3. (a) View of the three-connected unimodal 2D net of the Co-Me2mal layer in 1 and (b) (3,4)-connected ins topology of compound 1.
Polymers 11 00795 g003
Polymers 11 00795 g004 550

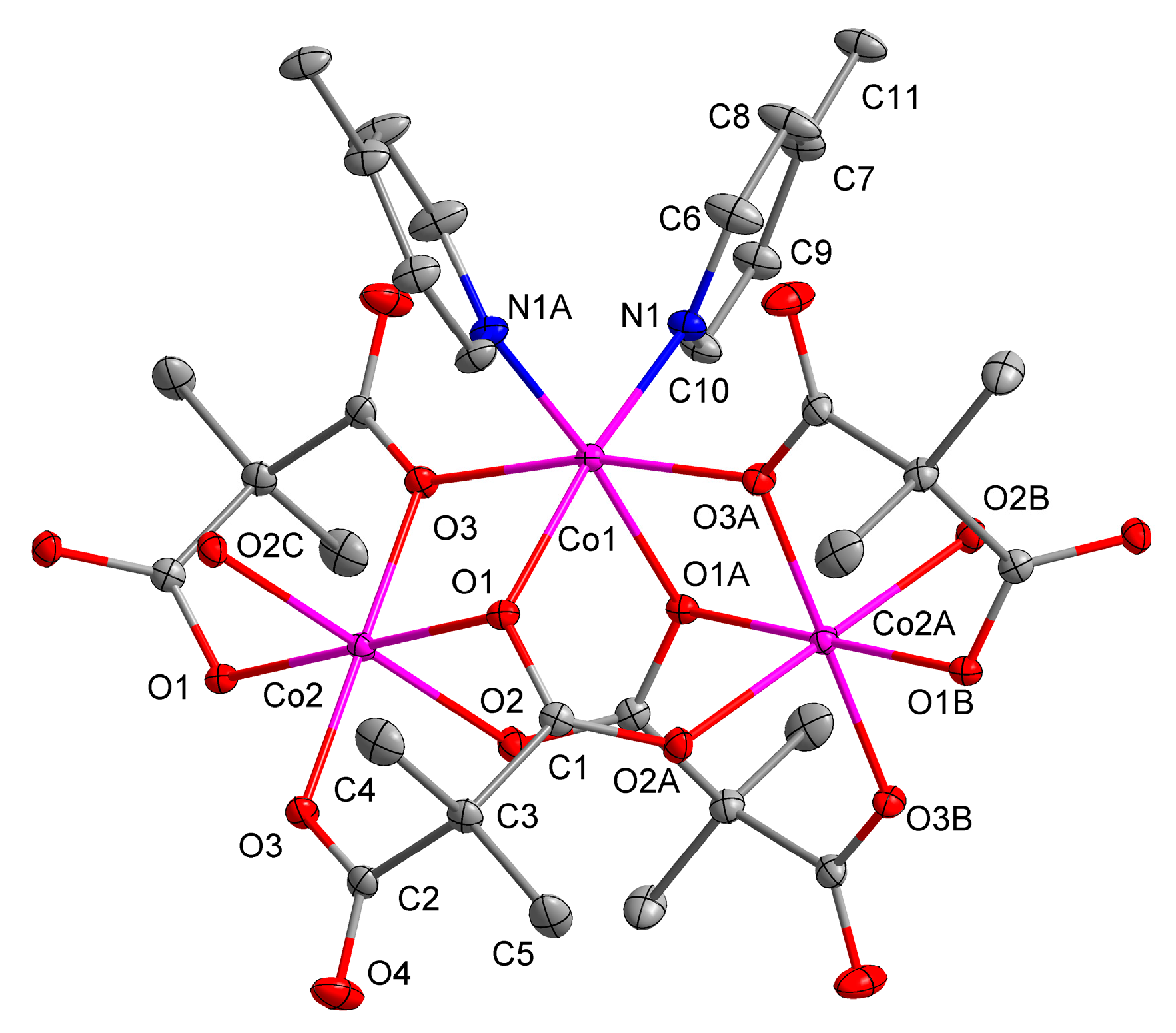

Figure 4. The metal coordination environments of compound 2. The H atoms have been omitted for clarity. [Symmetry code: (A) 1 − x, y, 1.5 − z; (B) x, 1 − y, −0.5 + z; (C) 1 − x, 1 − y, 2 − z].
Figure 4. The metal coordination environments of compound 2. The H atoms have been omitted for clarity. [Symmetry code: (A) 1 − x, y, 1.5 − z; (B) x, 1 − y, −0.5 + z; (C) 1 − x, 1 − y, 2 − z].
Polymers 11 00795 g004
Polymers 11 00795 g005 550

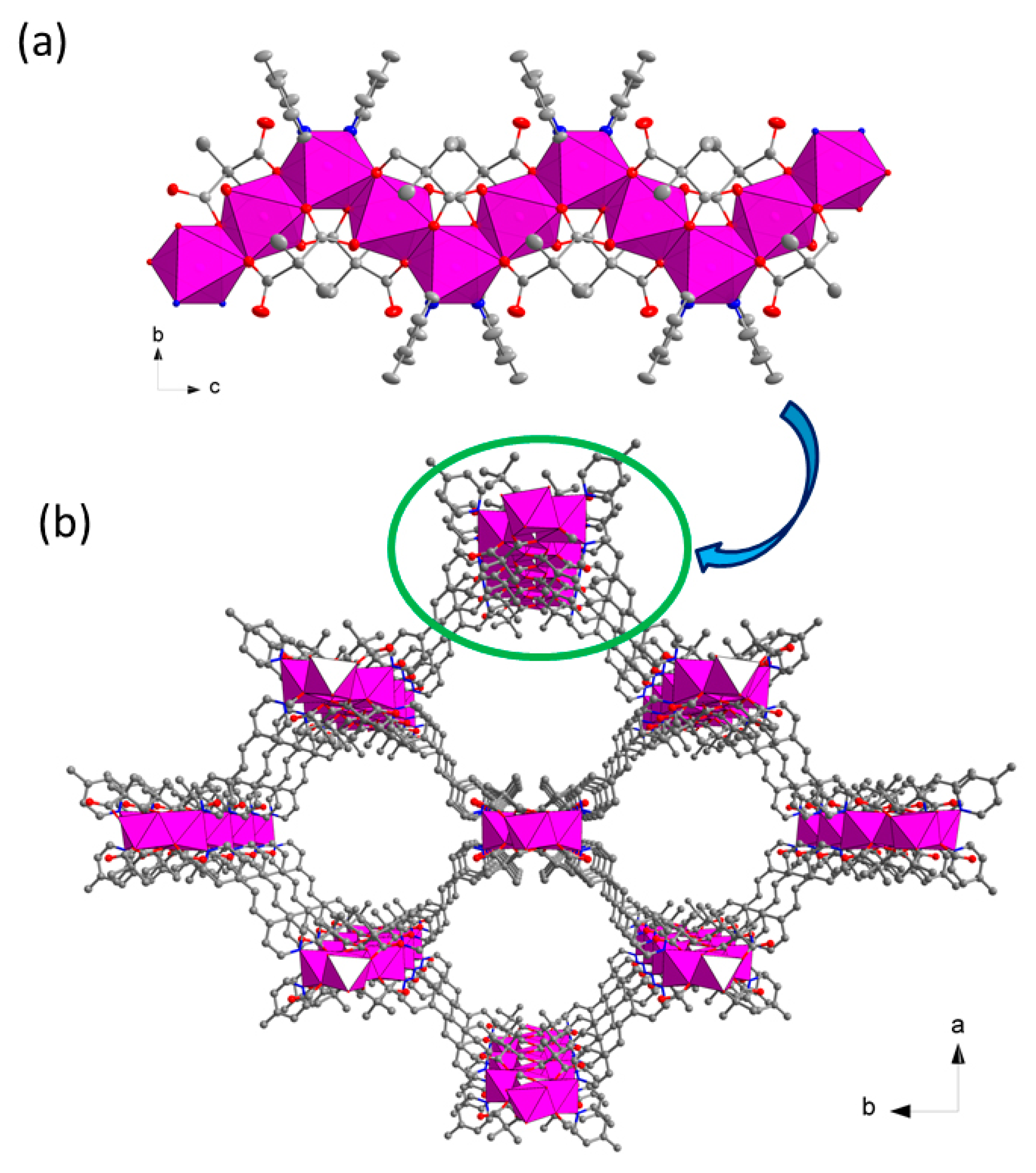

Figure 5. (a) View of the 1D edged-shared zigzag Co−Me2mal chain along the crystallographic c axis; (b) view of the 3D porous structure of compound 2. The H atoms have been omitted for clarity.
Figure 5. (a) View of the 1D edged-shared zigzag Co−Me2mal chain along the crystallographic c axis; (b) view of the 3D porous structure of compound 2. The H atoms have been omitted for clarity.
Polymers 11 00795 g005
Polymers 11 00795 g006 550

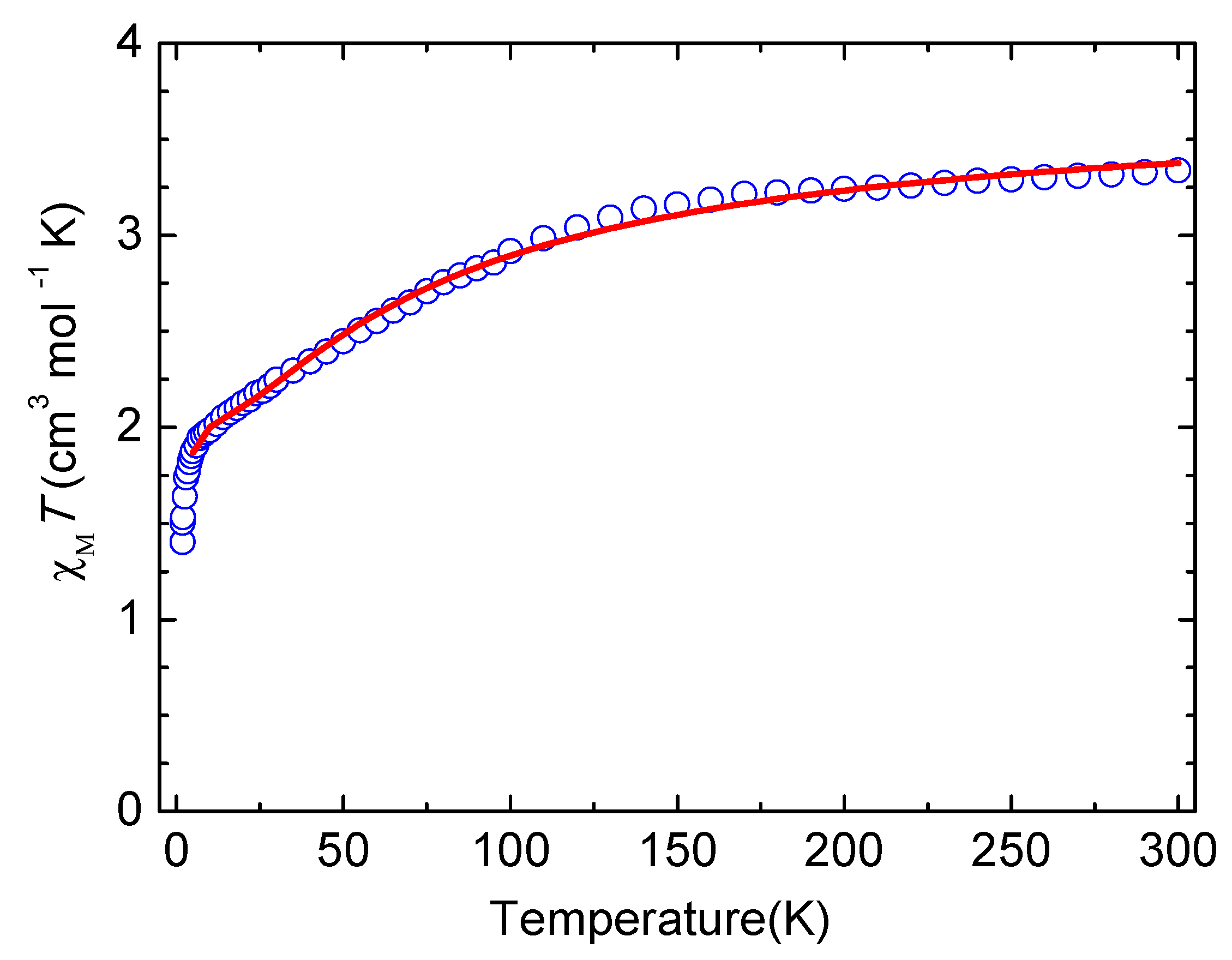

Figure 6. Plot of χMT vs. T of compound 1 in an applied field of 1 kOe from 2 to 300 K. The solid line represents the best fit.
Figure 6. Plot of χMT vs. T of compound 1 in an applied field of 1 kOe from 2 to 300 K. The solid line represents the best fit.
Polymers 11 00795 g006
Polymers 11 00795 g007 550

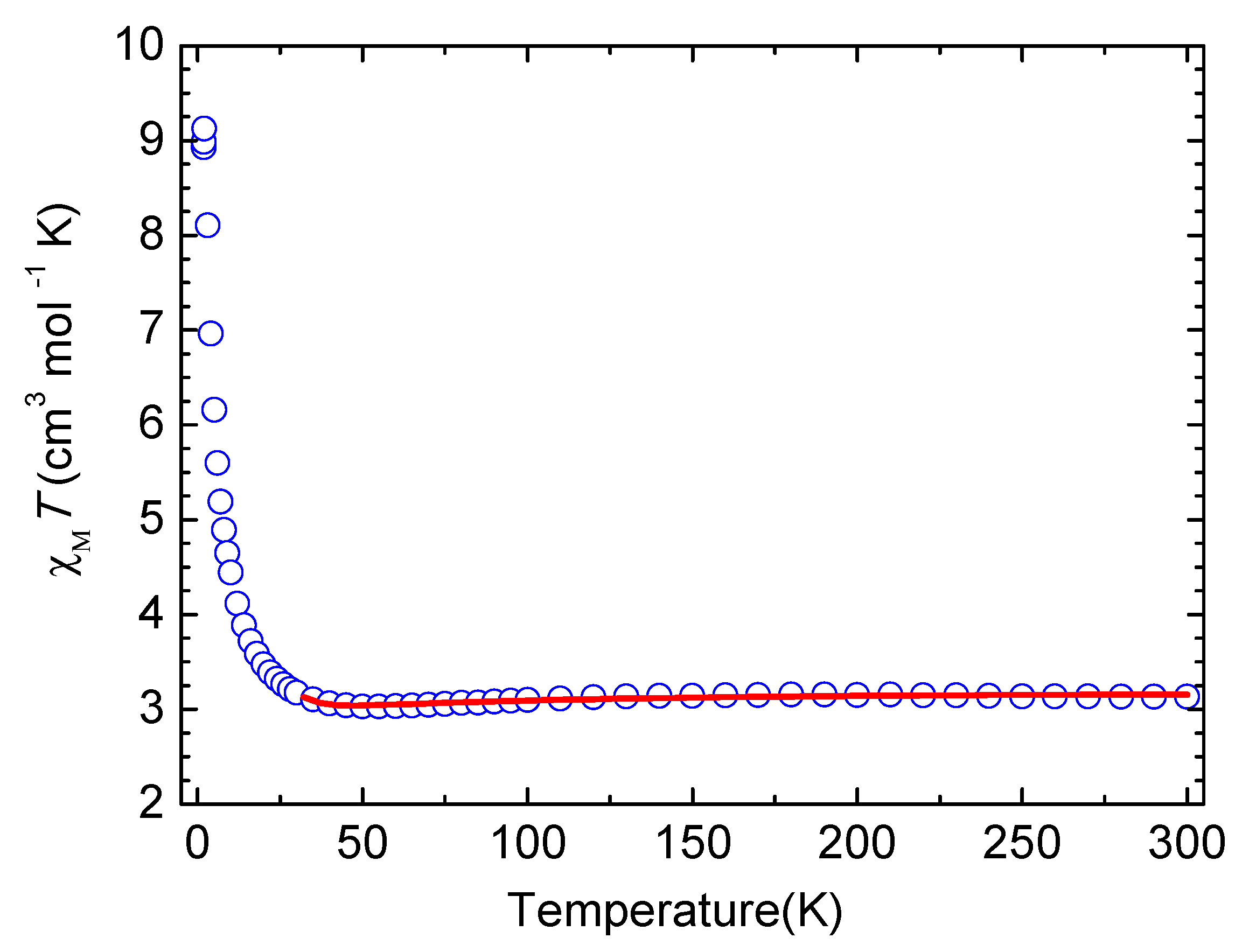

Figure 7. Plot of χMT vs. T of compound 2 in an applied field of 1 kOe from 2 to 300 K. The solid line represents the best fit.
Figure 7. Plot of χMT vs. T of compound 2 in an applied field of 1 kOe from 2 to 300 K. The solid line represents the best fit.
Polymers 11 00795 g007
Table
Table 1. The Crystallographic data for compounds 1 and 2.
Table 1. The Crystallographic data for compounds 1 and 2.
Compound12
FormulaC11H13CoNO5C11H11CoNO4
Fw298.15280.14
Crystal systemMonoclinicMonoclinic
Space groupP21/nP2/c
a/Å7.4005(18)9.352(4)
b/Å21.647(5)12.278(5)
c/Å7.4050(19)9.880(4)
α/°9090
β/°92.473(5)93.296(7)
γ/°9090
V/Å31185.2(5)1132.6(8)
Z44
T/K150(2)150(2)
Dc/g cm−31.6711.643
µ/mm−11.4601.516
(Δρ) max, min/e Å−30.400, −0.3930.602, −0.552
Measured/independent (Rint) reflections8905/2832(0.0602)7570/2549(0.0577)
Observed reflections [I > 2σ (I)] 28322549
Goodness-of-fits on F21.0091.000
R11, wR22 (all data)0.0636, 0.08700.0584, 0.0976
R11, wR22 (I > 2 σ (I))0.0396, 0.07750.0386, 0.0897
1R1 (Σ‖FO|−|FC‖) ⁄ Σ|FO|; 2wR2 = [Σw|FO2 – FC2 |2⁄Σw(FO4) ]1/2.
Table
Table 2. Selected bond distances (Å) and angles (°) for compound 1.
Table 2. Selected bond distances (Å) and angles (°) for compound 1.
Compound 1
Co(1)-O(2) 2.0747(18)Co(1)-O(4) 2.1147(19)
Co(1)-O(1) 2.0984(19)Co(1)-O(6) 2.1247(19)
Co(1)-O(3) 2.1026(18)Co(1)-N(1) 2.151(2)
O(2)-Co(1)-O(1)170.43(7)O(3)-Co(1)-O(6)96.72(8)
O(2)-Co(1)-O(3)84.76(7)O(4)-Co(1)-O(6)86.47(8)
O(1)-Co(1)-O(3)87.53(7)O(2)-Co(1)-N(1)88.50(8)
O(2)-Co(1)-O(4)89.85(7)O(1)-Co(1)-N(1)86.03(8)
O(1)-Co(1)-O(4)97.55(7)O(3)-Co(1)-N(1)91.42(8)
O(3)-Co(1)-O(4)173.96(8)O(4)-Co(1)-N(1)85.69(8)
O(2)-Co(1)-O(6)95.11(7)O(6)-Co(1)-N(1)171.36(8)
O(1)-Co(1)-O(6)91.41(8)
Table
Table 3. Selected bond distances (Å) and angles (°) for compound 2.
Table 3. Selected bond distances (Å) and angles (°) for compound 2.
Compound 2
Co(1)-N(1) 2.067(2)Co(2)-O(3) 1.9919(19)
Co(1)-N(1)#1 2.068(2)Co(2)-O(3)#2 1.9919(19)
Co(1)-O(1)#1 2.145(2)Co(2)-O(2)#2 2.104(2)
Co(1)-O(1) 2.145(2)Co(2)-O(2) 2.104(2)
Co(1)-O(3)#1 2.163(2)Co(2)-O(1) 2.1164(19)
Co(1)-O(3) 2.163(2)Co(2)-O(1)#2 2.1164(19)
N(1)-Co(1)-N(1)#198.11(14)O(3)-Co(2)-O(3)#2180.0
N(1)-Co(1)-O(1)#190.27(9)O(3)-Co(2)-O(2)#288.90(8)
N(1)#1-Co(1)-O(1)#1171.61(8)O(3)#2-Co(2)-O(2)#291.10(8)
N(1)-Co(1)-O(1)171.60(9)O(3)-Co(2)-O(2)91.10(8)
N(1)#1-Co(1)-O(1)90.27(9)O(3)#2-Co(2)-O(2)88.90(8)
O(1)#1-Co(1)-O(1)81.35(11)O(2)#2-Co(2)-O(2)180.0
N(1)-Co(1)-O(3)#188.63(9)O(3)-Co(2)-O(1)84.56(7)
N(1)#1-Co(1)-O(3)#199.80(9)O(3)#2-Co(2)-O(1)95.45(7)
O(1)#1-Co(1)-O(3)#179.86(7)O(2)#2-Co(2)-O(1)97.78(8)
O(1)-Co(1)-O(3)#190.37(7)O(2)-Co(2)-O(1)82.22(8)
N(1)-Co(1)-O(3)99.80(9)O(3)-Co(2)-O(1)#295.45(7)
N(1)#1-Co(1)-O(3)88.63(9)O(3)#2-Co(2)-O(1)#284.55(7)
O(1)#1-Co(1)-O(3)90.37(7)O(2)#2-Co(2)-O(1)#282.22(8)
O(1)-Co(1)-O(3)79.86(7)O(2)-Co(2)-O(1)#297.78(8)
O(3)#1-Co(1)-O(3)167.17(10)O(1)-Co(2)-O(1)#2180.0
Co(2)-O(3)-Co(1)98.52(8)Co(2)-O(1)-Co(1)95.34(8)
Symmetry transformations used to generate equivalent atoms: #1: –x + 1, y, −z + 3/2; #2: –x + 1, −y + 1, −z + 2; #3: −x, −y + 2, −z + 1.

Share and Cite

MDPI and ACS Style

Yu, H.-C.; Lin, C.-H.; Yang, C.-I. Temperature-Controlled Assembly/Reassembly of Two Dicarboxylate-Based Three-Dimensional Co(II) Coordination Polymers with an Antiferromagnetic Metallic Layer and a Ferromagnetic Metallic Chain. Polymers 2019, 11, 795. https://doi.org/10.3390/polym11050795

AMA Style

Yu H-C, Lin C-H, Yang C-I. Temperature-Controlled Assembly/Reassembly of Two Dicarboxylate-Based Three-Dimensional Co(II) Coordination Polymers with an Antiferromagnetic Metallic Layer and a Ferromagnetic Metallic Chain. Polymers. 2019; 11(5):795. https://doi.org/10.3390/polym11050795

Chicago/Turabian Style

Yu, Hui-Chen, Chin-Hsuan Lin, and Chen-I Yang. 2019. "Temperature-Controlled Assembly/Reassembly of Two Dicarboxylate-Based Three-Dimensional Co(II) Coordination Polymers with an Antiferromagnetic Metallic Layer and a Ferromagnetic Metallic Chain" Polymers 11, no. 5: 795. https://doi.org/10.3390/polym11050795

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
