Article

Synthesis of FeOOH-Loaded Aminated Polyacrylonitrile Fiber for Simultaneous Removal of Phenylphosphonic Acid and Phosphate from Aqueous Solution

1
Anhui Province Key Lab of Farmland Ecological Conservation and Pollution Prevention, Engineering and Technology Research Center of Intelligent Manufacture and Efficient Utilization of Green Phosphorus Fertilizer of Anhui Province, College of Resources and Environment, Anhui Agricultural University, Hefei 230036, China
2
Key Laboratory of JiangHuai Arable Land Resources Protection and Eco-Restoration, Ministry of Natural Resources, College of Resources and Environment, Anhui Agricultural University, Hefei 230036, China
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Polymers 2023, 15(8), 1918; https://doi.org/10.3390/polym15081918
Submission received: 26 March 2023 / Revised: 12 April 2023 / Accepted: 13 April 2023 / Published: 17 April 2023
(This article belongs to the Topic Green and Sustainable Chemistry)

Abstract

:
Phosphorus is one of the important metabolic elements for living organisms, but excess phosphorus in water can lead to eutrophication. At present, the removal of phosphorus in water bodies mainly focuses on inorganic phosphorus, while there is still a lack of research on the removal of organic phosphorus (OP). Therefore, the degradation of OP and synchronous recovery of the produced inorganic phosphorus has important significance for the reuse of OP resources and the prevention of water eutrophication. Herein, a novel FeOOH-loaded aminated polyacrylonitrile fiber (PANAF-FeOOH) was constructed to enhance the removal of OP and phosphate. Taking phenylphosphonic acid (PPOA) as an example, the results indicated that modification of the aminated fiber was beneficial to FeOOH fixation, and the PANAF-FeOOH prepared with 0.3 mol L−1 Fe(OH)3 colloid had the best performance for OP degradation. The PANAF-FeOOH efficiently activated peroxydisulfate (PDS) for the degradation of PPOA with a removal efficiency of 99%. Moreover, the PANAF-FeOOH maintained high removal capacity for OP over five cycles as well as strong anti-interference in a coexisting ion system. In addition, the removal mechanism of PPOA by the PANAF-FeOOH was mainly attributed to the enrichment effect of PPOA adsorption on the fiber surface’s special microenvironment, which was more conducive to contact with SO4 and •OH generated by PDS activation. Furthermore, the PANAF-FeOOH prepared with 0.2 mol L−1 Fe(OH)3 colloid possessed excellent phosphate removal capacity with a maximal adsorption quantity of 9.92 mg P g−1. The adsorption kinetics and isotherms of the PANAF-FeOOH for phosphate were best depicted by pseudo-quadratic kinetics and a Langmuir isotherm model, showing a monolayer chemisorption procedure. Additionally, the phosphate removal mechanism was mainly due to the strong binding force of iron and the electrostatic force of protonated amine on the PANAF-FeOOH. In conclusion, this study provides evidence for PANAF-FeOOH as a potential material for the degradation of OP and simultaneous recovery of phosphate.

Graphical Abstract

1. Introduction

Phosphorus (P) is one of the most important elements in the world. It exists in the cells of living organisms, maintains the growth of bones, and joins in almost all physiological and chemical conversions [1]. However, P emissions continue to increase with increasing industrial production and agricultural activities [2]. High concentrations of P (10 mg L−1) cause water eutrophication, leading to the excessive growth of algae and aquatic plants, reducing dissolved oxygen levels in the water, and even threatening human safety [3]. Currently, there are still many waters in China that are eutrophic; for example, Chaohu Lake shows an average total phosphorus concentration of 0.215 mg L−1 [4]. Moreover, about 65% of European Atlantic coastal waters are eutrophic [5]. Furthermore, P resources are not renewable, and the worldwide phosphorus crisis has gradually attracted people’s attention. Therefore, the removal and recovery of P from wastewater have important research significance.
At present, the recovery and utilization of P in wastewater mainly focus on inorganic phosphorus; however, few studies have reported on organic phosphorus (OP) resource recovery and utilization [6]. OP is one of the important forms of phosphorus in water and livestock wastewater is the major pollution source, accounting for about 10–65% of total phosphorus [7,8]. Furthermore, OP compounds are widely applied as pesticides, scale inhibitors, flame retardants, and plasticizers [9,10]. Ester organophosphorus is the main existing form of OP, which is often detected in water bodies and seriously threatens water safety and human health [11,12]. Hence, the recovery and recycling of OP from wastewater are of imminent importance. However, the direct recovery of organophosphorus in wastewater is difficult. Transforming OP into inorganic phosphorus is an effective way to achieve its recovery and utilization, which has become the focus of people’s attention.
Advanced oxidation processes (AOPs) are regarded as being the most valuable technologies for persistent organic pollutant degradation [13,14,15]. Among them, SO4 is more conducive to the degradation of organic pollutants due to its higher selectivity, longer life cycle, and wider pH adaptability [16,17]. However, the generation rate of SO4 from peroxydisulfate (PDS) or peroxymonosulfate (PMS) is relatively slow. Hence, various methods, including light, heat, bases, and transition metals [18,19], have been successfully used to activate persulfate. Among them, iron-based materials are widely selected due to their advantages of low cost, convenient source, and high catalytic activity. Recently, Fe0 [20], FeS [21], Fe2O3 [22], and FeOOH [23] have been used as potential catalysts for persulfate activation. Among them, FeOOH has been widely used in the water treatment field [23,24,25]. For example, Zhao et al. [23] prepared a ball-milled α-FeOOH/biochar composite to catalyze persulfate degradation of phenol with a high efficiency of 100%. Although important progress has been made in the degradation of organic pollutants in water by activating persulfate with FeOOH, FeOOH is difficult to recycle and easily causes secondary pollution. Different supports, such as silica gel, carbon material, MOF, etc., have been used to load FeOOH for solving the above problems with significant research progress [25,26,27]. However, some of these materials usually have deficits such as low modification degree, harsh preparation conditions, or high cost, which would restrict their actual application. As we all know, suitable support is a prerequisite for improving catalytic activity and stability [28]. Therefore, it is of great significance to exploit new support materials for the construction of a FeOOH-supported catalyst used to activate persulfate for catalytic degradation of OP.
Among all of the potential catalyst supports, fibers have attracted much attention due to their high stability, large specific surface area, prominent recyclability, and ease of surface modification and regulation [29]. Polyacrylonitrile fiber (PANF) is widely used in the textile industry, architecture, and people’s daily lives. Furthermore, PANF is rich in cyano and ester groups, which can be easily converted into various functional groups [30]. Our previous work successfully constructed different functionalized PANFs for organic catalysis [31,32], heavy metal removal [33,34] and phosphate purification [35,36,37]. It was found that a specific microenvironment was formed between the functional moieties and polymer segments, the cooperative effect of which could change the interaction strength, thus accelerating the catalytic or adsorption performance. Nevertheless, using functionalized PANF for the degradation and recovery OP has rarely been reported. In addition, FeOOH has the characteristics of simultaneously activating persulfate to degrade organic pollutants and adsorbing inorganic phosphorus, hence it is theoretically feasible and of great significance to prepare PANF-supported FeOOH for simultaneous OP degradation and inorganic phosphorus recovery.
In this work, a novel polyacrylonitrile fiber loaded with FeOOH (PANAF-FeOOH) was synthesized using the sol-gel method to activate PDS for PPOA degradation. Phenylphosphonic acid (PPOA), a typical OP compound used as an important industrial chemical, was selected as the model pollutant [11]. The PPOA degradation and phosphate adsorption abilities of PANAF-FeOOH were evaluated, and the main factors affecting the degradation of PPOA and phosphate removal were studied. Furthermore, the degradation of PPOA and phosphate purification mechanisms by PANAF-FeOOH are discussed. The stability and feasibility in practical application of the fiber were also evaluated by continuous flow tests and repeatability experiments.

2. Materials and Methods

2.1. Materials and Instruments

The polyacrylonitrile fiber (PANF, containing about 93% acrylonitrile) and the polyethylene imine (PEI, Mw = 10,000) were purchased from Fushun Petrochemical Co., Ltd.(Fushan, China) and Shanghai Dibo Biotechnology Co., Ltd. (Shanghai, China), respectively. Phenylphosphonic acid (98%) and ferric nitrate (Fe(NO3)3·9H2O) were obtained from Shanghai Aladdin Biochemical Technology Co., Ltd (Shanghai, China). and Shanghai Maclean Biochemical Co., Ltd (Shanghai, China), respectively. Additional reagents used in this study are detailed in Section S1 of the supporting information. The characterization methods for the materials prepared in this experiment are described in Section S2 of the supporting information.

2.2. Preparation of FeOOH-Supported Polyacrylonitrile Fiber (PANAF-FeOOH)

PANAF-FeOOH was synthesized mainly through a two-step process, as shown in Figure 1.
Step 1: PANF (1.0 g) and PEI (5.0 g) were dissolved in a reaction kettle containing 20 mL of H2O and then transferred to a reaction kettle at 140 °C for 6 h. After the reaction, the fiber was removed with tweezers and washed with H2O (70–80 °C) several times until the pH was neutral. The washed fiber was dried overnight in an oven at 60 °C to obtain aminated PANAF with a weight gain of about 38% (relative to PANF). In addition, PANAFs with different weight gains (3.58%, 7.99%, 15.09%, 20.99%, 24.39%, 28.39%, and 33.39%) were prepared by adding the substrate of PEI with different contents (0.5, 1, 1.5, 2, 2.5, 3, and 4 g), respectively.
Step 2: First, Fe(OH)3 colloid solution was prepared: Fe(NO3)3·9H2O (4.04 g) was dissolved in 10 mL of H2O, and then it was dropped into 40 mL of boiling deionized water using a drip funnel and stirred vigorously. After cooling at room temperature (25 °C), Fe(OH)3 colloid solution was obtained. Then, dried 100 mg PANAF was weighed and added to the colloidal solution of Fe(OH)3, and the mixture was stirred for 1 h. Finally, the fiber was filtered and placed in an oven at 105 °C for 6 h to obtain PANAF-FeOOH.

2.3. Batch Degradation Test of PPOA

Batch degradation tests were carried out in 100 mL glass bottles at 25 °C. The pH of 50 mL of mixed solution containing 5 mg L−1 PPOA and 0.5 mmol L−1 PDS was tuned to the target value with 0.1 mol L−1 H2SO4 and 0.1 mol L−1 NaOH. Subsequently, 30 mg of dried PANAF-FeOOH was weighed and placed in the above mixed solution for stirring. After regular sampling of 1 mL of the reaction solution, it was immediately filtered using a 0.22 μm needle filter membrane. To end the reaction, the filtrate was immediately mixed with 1 mL of methanol for quenching, and the concentration of the remaining PPOA was tested using high-performance liquid chromatography (HPLC, 1260 Infinity II, Agilent, CA, USA). Meanwhile, various parameters, including initial pH (3–9) and coexisting anions (Cl, SO42−, HCO3, and CO32−), influencing PPOA degradation were discussed. In addition, the stability and usefulness of PANAF-FeOOH were evaluated through five cycles.

2.4. Phosphate Adsorption on PANAF-FeOOH

Phosphate adsorption experiments used 20 mL glass bottles. The pH of KH2PO4 (20 mg P L−1) solution was tuned to the target value with 0.1 mol L−1 H2SO4 and 0.1 mol L−1 NaOH. Then, 10 mg of dried PANAF-FeOOH was weighed and stirred in the above solution (10 mL) until the adsorption equilibrium was obtained, and the remnant phosphate concentration was tested using a visible spectrophotometer (722G, INESA, Shanghai, China). Various influencing parameters, including initial pH value (3–9), different times (0–120 min), different temperatures, different phosphate concentrations (0–50 mg P L−1) and coexisting anions, were also studied. Finally, the stability and practical applicability of PANAF-FeOOH for phosphate removal were evaluated by continuous flow experiments and cyclic experiments.

2.5. Analysis and Calculation Methods

The PPOA concentration was determined by HPLC and the phosphate concentration was determined by molybdenum blue spectrophotometry. Detailed procedures and HPLC conditions are described in Section S3 of the supporting information. The % degradation, D (%), of PPOA by PANAF-FeOOH was calculated according to Equation (1):
D = ( C 1 C 2 ) C 1 × 100 %
where C1 and C2 are the initial concentration of PPOA and the residual concentration of PPOA after degradation, respectively.
The equilibrium adsorption capacity (qe, mg P g−1), adsorption capacity within a certain time (qt, mg P g−1), and removal efficiency R (%) of PANAF-FeOOH for phosphate were calculated using the following equations:
q e = C 0 C e × V m
q t = C 0 C t × V m
R = ( C 0 C e ) C 0 × 100 %
where C0, Ce, and Ct (mg P L−1) represent the initial concentration of phosphate, the equilibrium concentration of phosphate, and the phosphate concentration at a certain time, respectively. V (mL) is the solution volume and m (g) is the fiber mass.

3. Results and Discussion

3.1. Synthesis of PANAF-FeOOH

As revealed in Figure 1, the synthesis of aminated polyacrylonitrile fiber (PANAF) was based on our previous research [35]. Amines have strong hydrophilicity and are good metal ligands, so the grafting of PEI on PANF is conducive to the subsequent modification of iron oxides. The modification extent of PANAF was calculated by the weight gain. PANAF modified to different extents was prepared by regulating the substrate concentration. Then, PANAF-FeOOH was constructed using the sol-gel method [38]. Compared with PANF, the quality of the aminated fiber was significantly increased (3.58–38%), indicating that the amine functional component was successfully loaded on the surface of PANF.
To investigate the effect of the amination degree of PANAF on the synthesis of PANAF-FeOOH, the PPOA removal ability and purification of phosphate by PANAF-FeOOH synthesized from PANAF with different modification degrees were tested (Figure S1). It was found that with increasing weight gain of PANAF, the degradation efficiency of PANAF-FeOOH for PPOA gradually increased; when the weight gain of PANAF was more than 20%, the degradation efficiency was weakly increased (Figure S1a). In terms of phosphate removal, with increasing PANAF weight, the removal capacity for phosphate by the prepared PANAF-FeOOH gradually increased, and the best weight gain of PANAF was about 38% (Figure S1c). The above results showed that more PEI modification was conducive to the fixation of FeOOH on the fiber support, which improved the catalytic or adsorption capacity. Therefore, the optimal weight gain of PANAF was selected as 38%.
Furthermore, the PPOA degradation ability of PANAF-FeOOH prepared with different concentrations of Fe(OH)3 colloid is demonstrated in Figure S1b. At a concentration of Fe(OH)3 of 0.3 mol L−1, the degradation efficiency reached 90%, while the degradation efficiency decreased with the further increase in the concentration of Fe(OH)3 colloid. Figure S1d also shows the phosphate adsorption capacity of PANAF-FeOOH prepared with different concentrations of Fe(OH)3 colloid. Similar to organophosphorus degradation, the trend of phosphate removal by the fiber first increased and then decreased, with the maximum removal ability reached when the concentration of Fe(OH)3 colloid was 0.2 mol L−1. The above results indicated that the supporting of FeOOH was instrumental in improving the catalytic and adsorption capacities of the functionalized fiber. However, when the modification degree of FeOOH was too high, the application effect of PANAF-FeOOH decreased. The reason was that the increased FeOOH modification on the surface of PANAF within a certain range was conducive to increasing the number of effective active sites, but excessive FeOOH modification made it easier to form larger metal oxide particles [38], thus reducing the contact area between the active site and the substrate and thereby reducing its catalytic or adsorption ability. Hence, concentrations of 0.3 and 0.2 mol L−1 Fe(OH)3 colloid were selected to synthesize PANAF-FeOOH for organophosphorus degradation and phosphate adsorption, respectively.

3.2. Characterization of PANAF-FeOOH

SEM was used to characterize the surface appearance of the functionalized fiber, and the results are presented in Figure 2. Under low magnification (200 times), all of the samples were continuous and showed a complete fiber shape, indicating that the integrity of the fiber was well maintained and had not been damaged (Figure 2, trace a–f). In the SEM images under 2000 times magnification, the surface morphology of PANF was completely flat, and the diameters of PANAF and PANAF-FeOOH were significantly increased due to swelling in the chemical grafting reaction [35]. When the SEM images were enlarged 20,000 times, several fissures appeared on the fiber that increased the contact area between the fiber and the substrate, which was more conducive to catalysis and adsorption [33]. In addition, in the process of PANAF-FeOOH synthesis, an even distribution of iron oxides could be seen on the surface of the fiber when the colloidal concentration of Fe(OH)3 was lower than 0.3 mol L; however, when the concentration of Fe(OH)3 colloid was adjusted to 0.5 mol L−1, the iron oxide particles became larger and the uniformity was reduced.
To further demonstrate the successful synthesis of PANAF-FeOOH, energy dispersive spectroscopy (EDS), Fourier-transform infrared spectroscopy (FTIR), X-ray diffraction (XRD), and thermogravimetric analysis (TG) were used, as shown in Figure 3. It was found that compared with PANF and PANAF (Figure 3A, trace a,b), a new characteristic peak of the Fe element appeared in PANAF-FeOOH (Figure 3A, trace c) and the peak intensity of the O element increased, indicating that iron was primarily present in the form of hydroxide on the fiber surface [29]. Changes in the functional groups on the surface of the functionalized fiber were charactered by FTIR. In the spectrum of PANF (Figure 3B, trace a), the absorption peaks at 2242 cm−1 and 1732 cm−1 could be attributed to the stretching vibration of C≡N of the first monomer acrylonitrile and C=O of the second monomer methyl acrylate [39]. Meanwhile, PANAF showed a new stretching vibration peak at 1636 cm−1 (Figure 3B, trace b), which was caused by the formation of the amide bond and the C=O tensile vibration [40], indicating that PEI had been successfully loaded onto PANF. Furthermore, the FTIR spectrum of PANAF-FeOOH (Figure 3B, trace c) presented a new stretching vibration peak 671 cm−1, which was caused by the stretching vibration of Fe-OH [29], indicating that FeOOH had been successfully introduced into the fiber surface. In addition, the characteristic peak of 1383 cm−1 belonged to NO3 sourced from the starting Fe(NO3)3 [41], showing that some NO3 was adsorbed on the fiber surface during the formation of FeOOH. The internal crystal structure of the fiber was analyzed by XRD (Figure 3C). The two wide diffraction peaks concentrated at 17° and 29.5° corresponded to the (100) and (110) crystal planes of the hexagonal lattice in PANF [42] (Figure 3C, trace a). PANAF and PANAF-FeOOH (Figure 3C, traces b,c) had similar characteristic peaks as PANF, showing that the structure of the fiber was not destroyed after functionalization. What’s more, new diffraction peaks of PANAF-FeOOH were formed at 2θ = 55°, 65°, and 75°, respectively, which were similar to the characteristic peaks of FeOOH reported in the literature [43], further proving that FeOOH was truly loaded onto the fiber surface. The thermal stability of the fiber was reflected by TG (Figure 3D). PANF had no obvious quality loss up to 300 °C and still had 9.4% weight remaining at 800 °C (Figure 3D, trace a). After modification, the weight losses of PANAF and PANAF-FeOOH before 100 °C were mainly caused by water loss because the modified amino group had strong hydrophilicity [35]. The final residual weight of PANAF-FeOOH was 41.92%, which was significantly higher than that of PANF and PANAF, further illustrating the successful modification of FeOOH. The results showed that PANAF-FeOOH had good thermal stability and could adapt to an aqueous environment at various temperatures.

Elemental Analysis (EA)

The EA results of the fiber before and after modification are displayed in Table 1. Compared with PANF, the C and N contents of PANAF were significantly decreased and the H content was increased. This was because the molecular formula of PEI is (C2H5N)n; the proportion of C content in PEI (55.81%) was lower than that in PANF (66.17%), while the proportion of H content in PEI (11.63%) was higher than that in PANF (5.179%). The reason for the decrease in N content was that the amination process reduced the N content by converting the cyano groups in PANF to amides through hydrolysis, producing ammonia [44]. Furthermore, PANAF-FeOOH had lower C, N, and H contents than PANAF. The reason was that Fe and O elements were introduced into the PANAF surface, which led to a decrease in the proportion of other elements.

3.3. Batch Experiment of PPOA Degradation by PANAF-FeOOH

3.3.1. Conditional Optimization of PPOA Degradation Promoted by PANAF-FeOOH

The effects of pH, PANAF-FeOOH dosage, PDS concentration, and reaction time on the removal of PPOA were studied (Figure 4). It was found that the pH increased from 3 to 5 and the % removal reached 90.2%. With further increase in pH (>5), the % degradation of PPOA significantly decreased to 40.9% at pH of 9 (Figure 4A). This was because the negative charge on the surface of PANAF-FeOOH gradually increased with increasing pH, which increased repulsion with the PDS/PPOA anion, affecting the production of SO4 radicals [17]. Furthermore, PANAF-FeOOH dosage also improved the removal of PPOA. The % removal without the addition of PANAF-FeOOH was only 40.2%, while PPOA was nearly completely removed by increasing the mass of PANAF-FeOOH to 30 mg (Figure 4B). The concentration of PDS in the system showed that increasing the concentration of PDS had a positive effect on the removal of PPOA. This was because the increased PDS concentration increased the SO4 concentration, which strengthened the degradation effect, and the removal effect was optimal at a concentration of 0.5 mM. However, when the PDS concentration exceeded 0.5 mM, the % removal of PPOA decreased (Figure 4C), probably due to the quenching of SO4 with the high concentration of PDS, which caused a decrease in the % degradation of PPOA [45], Compared with cobalt–yttrium binary oxide [11], PANAF-FeOOH degraded PPOA with lower persulfate concentration. The effect of reaction time on the removal of PPOA at various temperatures was also explored (Figure 4D). The removal efficiency of PPOA gradually increased within 120 min, which could reach more than 90%. In addition, increasing temperature was conducive to the degradation reaction. This was because increasing temperature was beneficial to accelerating the reaction rate of catalytic PDS, thus increasing the generation of SO4 and improving the degradation efficiency of PPOA [46]. It is worth mentioning that the degradation of PPOA could be efficiently carried out at room temperature, showing high practical application value.

3.3.2. Influence of Coexisting Ions and Reusability of PANAF-FeOOH

The presence of coexisting anions in the aqueous environment becomes one of the important interfering factors in the activation of PDS [47]. As shown in Figure 5A, the effect of different coexisting ions on the degradation ability was investigated. While the introduction of Cl resulted in only 33.62% degradation of PPOA, this phenomenon was chiefly due to the simultaneous production of less active Cl•, Cl2, and HOCl products initiated by SO4 in the reaction process [48], which reduced the % degradation of PPOA. Positively, the coexisting anions of CO32−, SO42−, and HCO3 did not significantly affect the degradation process, Compared with Co3O4-La2O2CO3/C-derived MOF materials [17], PANAF-FeOOH was better adapted to complex ionic environments, indicating that PANAF-FeOOH had potential application value in actual water bodies. In addition, the recyclability of PANAF-FeOOH was explored (Figure 5B). The % removal of PPOA could reach 99% in the first three cycles, while the % removal in the fifth cycle was 78.23%, which may have been caused by the partial deactivation of the loaded catalyst and the loss of FeOOH during the degradation process [23]. The good reusability showed that PANAF-FeOOH had good stability and practicability.

3.4. Batch Experiment of Phosphate Adsorption by PANAF-FeOOH

3.4.1. Influence of pH

In actual wastewater, due to its complex composition, the applicable pH range of the adsorbent is an important aspect. Therefore, the adsorption capacity of PANAF-FeOOH for phosphate was measured under initial pH 3–9. As shown in Figure 6A, it was found that the phosphate removal by PANAF-FeOOH increased rapidly with increasing pH value from 3 to 7, and reached the maximum value when pH = 7. Under alkaline conditions (pH 8–9), the adsorption capacity for phosphate by PANAF-FeOOH slightly decreased. These results were similar to those of other Fe-based materials previously reported in the literature [49]. Additionally, this phenomenon may have been related to the dissociation equilibrium of phosphate. According to the relationship between the distribution of phosphate species and pH value, when pH = 2–3, phosphates mostly exist in the form of H3PO4, which could not be effectively adsorbed on the surface of PANAF-FeOOH through electrostatic interaction and would result in a relatively low phosphate adsorption capacity. When the pH is 3–7, H2PO4 and HPO42− are the main forms of phosphate, and these forms of phosphate were easily adsorbed by the iron site leached from the PANAF-FeOOH surface. There were two main reasons for the decreased phosphate adsorption at pH 8–9. First, under alkaline conditions, PANAF-FeOOH had too much negative charge on the surface, which led to the enhancement of electrostatic repulsion. Secondly, P and hydroxide ion (OH) competed for adsorption sites on the PANAF-FeOOH surface, resulting in a decrease in phosphate adsorption capacity [50].

3.4.2. Influence of Coexisting Ions

Due to the existence of various anions (Cl, NO3, CO32−, and SO42−) in wastewater, the removal ability of PANAF-FeOOH for phosphate may be affected. In order to verify the selectivity of PANAF-FeOOH for phosphate adsorption, the purification of phosphate by PANAF-FeOOH in the presence of coexisting ions was determined. As depicted in Figure 6B, the existence of Cl, NO3, and CO32− had little influence on phosphate adsorption by the fiber, while the presence of SO42− could significantly inhibit phosphate adsorption. The reason may have been the strong affinity between SO42− and Fe on the surface of PANAF-FeOOH, which would compete with phosphate for its adsorption site, thus inhibiting phosphate adsorption [50]. Despite these findings, PANAF-FeOOH still had a certain adsorption capacity for phosphate in the presence of SO42−. This indicated that PANAF-FeOOH could efficiently remove phosphate in actual water with multiple anions, showing strong practical application capability.

3.4.3. Adsorption Kinetics and Thermodynamics

The study of adsorption kinetics is a key method used to study the reaction path of adsorbents. As revealed in Figure 6C, the time-dependent adsorption capacity of PANAF-FeOOH for phosphate at 288, 298, and 308 K was studied. The trend of the three curves was roughly the same, with fast adsorption occurring in the first 20 min, followed by a slow adsorption rate, and reaching adsorption equilibrium after 30 min. The result demonstrated that at the beginning, the bulk of the active sites exposed on the fiber surface could quickly capture phosphate in water. With the passage of time, the adsorption process slowed down after the surface adsorption active sites of the adsorbent gradually reached saturation.
In order to better explore the adsorption mechanism of phosphate on PANAF-FeOOH, the data were fitted by pseudo first-order kinetics (5) and pseudo second-order kinetics (6), respectively. The formulas of the different dynamics are as follows:
q e = 1 e K 1 t
q e = K 2 q e 2 t 1 + K 2 q e t
where K1 and K2 are the pseudo first-order and pseudo second-order kinetics adsorption rate constants, respectively. The fitted figure and kinetic parameters are presented in Figure 6C and Table S1, respectively. The R2 values of the second-order kinetic model were all higher than those of the first-order kinetic model (Table S1), and the qe fitted by the pseudo second-order kinetics model was closer to the actual qe. The results illustrated that the adsorption process of phosphate by PANAF-FeOOH was more inclined to the pseudo second-order kinetics model, showing a chemical adsorption process.
High temperatures promote inter-molecular movement and thus have a certain influence on the adsorption process, as shown in Figure 6C. It was found that the removal ability of PANAF-FeOOH for phosphate increased with rising temperature, which showed that the adsorption process was an endothermic reaction. Furthermore, the thermodynamic parameters of ΔSo (standard entropy, J mol−1 K−1), ΔHo (standard enthalpy, kJ mol−1), and ΔGo (Gibbs free energy, kJ mol−1) were further used to reveal the relationship between temperature and phosphate adsorption, which were calculated using the following equations:
K c = q e C e
G o = R T l n K c
l n K c = S o R H o R T
where Kc was the distribution coefficient, R was the gas constant (8.314 J mol−1 k−1), and T was the temperature (K), respectively. The ΔSo and ΔHo could be calculated by plotting lnKc versus 1/T, and the relevant curves and calculated parameters are displayed in Figure S2 and Table S2, respectively. The ΔGo was negative, showing that the removal of phosphate by PANAF-FeOOH adsorbent was spontaneous. Furthermore, the absolute value of ΔGo increased with rising temperature, which meant that the higher the temperature, the more natural the reaction. ΔHo values were positive, suggesting that phosphate adsorption by PANAF-FeOOH is an endothermic reaction. In addition, a positive ΔSo value meant that the randomness of the solid/solution interface increased irregularly during phosphate adsorption.

3.4.4. Adsorption Isotherm

In order to reveal the adsorption capacity of PANAF-FeOOH for phosphate, isothermal adsorption experiments were carried out at room temperature with different initial phosphate concentrations. As shown in Figure 6D, the adsorption ability of PANAF-FeOOH for phosphate increased with the initial concentration of phosphate until the adsorption saturation was reached. This may have been due to the presence of more coordination sites for phosphorus at lower concentrations, and the active adsorption sites became saturated with increasing phosphorus concentrations. Moreover, Langmuir (10) and Freundlich (11) adsorption isotherm models were used to fit the adsorption data, the equations of which are as follows:
q e = K l q m C e 1 + K L C e
q e = K F C e 1 / n
where qm is the theoretical maximum adsorption estimated by the Langmuir model, KL is the Langmuir constant, and KF and n are the Freundlich constant and homogeneity coefficient, respectively. The graphs and related data obtained by fitting curves are located in Figure 6D and Table S3, respectively.
The result showed that the R2 values of the fitting curve of the Langmuir model were larger than those of the Freundlich model (Table S3), which indicated that the Langmuir model was more suitable for the adsorption of phosphate by PANAF-FeOOH. Therefore, the adsorption of phosphate by the fiber tended to be uniform monolayer adsorption. It is worth mentioning that the maximal adsorption amount calculated by Langmuir was 9.92 mg P g−1, which was higher than that reported in other literature for iron-modified composite phosphorus adsorbents such as solid carbon source/zero-valent iron composite (0.21 mg P g−1) [51], Fe-modified corn straw biochar (0.56 mg P g−1) [52], and iron-containing activated carbon (8.47 mg P g−1). Hence, PANAF-FeOOH showed great potential for phosphate removal from water.

3.4.5. Reusability and Continuous Flow Application of PANAF-FeOOH

To explore the regeneration capacity of PANAF-FeOOH as a phosphate removal adsorbent, PANAF-FeOOH saturated with phosphate was eluted with 0.05 mol L−1 NaOH for 1 h. As shown in Figure 6E, the % phosphate removal by PANAF-FeOOH tenuously decreased after 5 cycles, and the fiber still maintained a % phosphate removal of more than 88%. This result demonstrated that PANAF-FeOOH had excellent stability and reusability.
Furthermore, a continuous flow experiment was carried out to verify the practical application capability of PANAF-FeOOH. The continuous flow device is shown in Figure S3. Dried PANAF-FeOOH (300 mg) was placed in a silicone tube (length 100 mm, diameter 5.6 mm), Chaohu Lake water with an initial concentration of 1 mg P L−1 was injected at a flow rate of 1 mL min−1 using a peristaltic pump (the concentration of Chaohu Lake water was specially adjusted to 1 mg P L−1), and then the concentration of phosphate in the receiving solution was determined. The penetration curves of PANAF-FeOOH for phosphate removal were plotted (Figure 6F), and it was found that with increasing phosphate outflow liquid volume, its concentration gradually increased. When the volume of liquid was less than 280 mL, the % phosphate removal could be maintained above 95%. This result suggested that PANAF-FeOOH could effectively purify phosphate under continuous flow conditions. Repeating the fiber multiple times could be used as an important building material to enhance the mechanical strength of cement [53].

3.5. Mechanisms of PPOA Degradation and Phosphate Adsorption by PANAF-FeOOH

In this work, reactive oxygen species (ROS) were determined by electron paramagnetic resonance (EPR) to describe the key free radicals in the PPOA degradation process (Figure S4). The EPR results showed that the signal strength of SO4 and •OH catalyzed by PANAF-FeOOH was significantly improved when compared with the pure PDS system. Additionally, the peak intensity of SO4 was higher than that of •OH (Figure S4A), while the strength of singlet oxygen 1O2 had no obvious change (Figure S4B). The above phenomena explained that SO4 and •OH were the two dominant active species for PPOA degradation. The reason was that SO4 could be slowly generated by dissociation of the peroxide bond [54], and Fe3+ on the fiber catalyst could react with S2O82− to produce Fe2+ and the persulfate radical (S2O8•) [25]. The newly produced Fe2+ could activate persulfate to produce the sulfate radical [55], hence Fe2+ was continuously produced through the above electron transfer reaction, which improved the efficiency of SO4 generation. In the PPOA degradation system, SO4 was preferentially produced, then it reacted with H2O to produce •OH. In addition to ROS participating in the degradation of PPOA, the enrichment ability of PANAF-FeOOH for adsorption of PPOA was also an important factor for efficient catalysis. Relevant research shows that improving the affinity and adsorption capacity of the catalyst for the substrate is conducive to improving its catalytic capacity [56,57]. To verify this assumption, the adsorption capacity of PANAF-FeOOH for PPOA was studied (Figure S5). PANF had little enrichment capacity for PPOA adsorption; however, after amination and FeOOH modification, the % removal of PPOA by the functionalized fiber was obviously increased to 40% and 45%, respectively. Similar to our previous research [31], the above results showed that the functionalized modification of the fiber support created a microenvironment on the surface of the fiber that was conducive to the entry of PPOA, which made it easier to degrade by the ROS generated by the activated persulfate of PANAF-FeOOH. This was because the existence of the microenvironment effect shortened the diffusion distance of reactive oxygen radicals, thus accelerating the degradation of PPOA.
Under optimal degradation conditions, when the degradation reaction was over, the inorganic phosphorus and total phosphorus in the solution were determined by molybdenum blue colorimetry and ICP-OES (ICP-MS, Thermo scientific, Waltham, MA, USA), respectively. The results showed that there was a small amount of phosphate in the solution and the concentration of total phosphorus was about 10% of the original concentration, indicating that PANAF-FeOOH successfully degraded PPOA and simultaneously absorbed the degradation product of inorganic phosphorus. Hence, the phosphate adsorption mechanism of PANAF-FeOOH was further studied by X-ray photoelectron spectroscopy (XPS), as shown in Figure 7, and the atomic percentage of the fiber is presented in Table S4. As depicted in Figure 7A, similar to the results of EDS, a new peak of Fe emerged in the PANAF-FeOOH spectrum, indicating the successful grafting of FeOOH on the fiber (Figure 7A, trace c). After adsorption of phosphate, the high-resolution spectrum of PANAF-FeOOH-P possessed the characteristic peak of P 2p (Figure 7B), which was direct evidence of phosphate adsorption by PANAF-FeOOH.
The high-resolution spectrum of Fe 2p for PANAF-FeOOH was parsed into 2p1/2 at 724.4 eV and 2p3/2 at 712.4 eV (Figure 7C, trace a). The binding energies of Fe 2p for PANAF-FeOOH-P (Figure 7C, trace b) were weakly reduced to 724.3 and 712.1 eV, which was due to the formation of the Fe–O–P bond between phosphate and Fe modified on the fiber, resulting in the increased electron cloud density of the atom [58]. The results indicated that the iron modified on the fiber surface played an significant role in phosphate adsorption. Furthermore, the high-resolution spectrum of N 1s was decomposed into 401.6, 400.0, and 399.2 eV, which were the characteristic peaks of O≡C–N, –NH–/–NH2, and –NR2, respectively [33]. After adsorption of phosphate, the binding energies of the N1s spectrum slightly increased because the protonated amine group on the fiber surface combined with phosphate through electrostatic force [59]. Hence, the removal mechanism of phosphate by PANAF-FeOOH-P was mainly due to the strong binding force of iron and the electrostatic force of protonated amine.

3.6. Comparison of Different FeOOH Phosphate Adsorbents

The comparison of phosphate adsorption by the fiber was performed as follows. In this study, the adsorption capacity, cycling performance, and equilibrium time of PANAF-FeOOH were compared with other adsorbents for phosphate removal (Table S5). PANAF-FeOOH had a better phosphate adsorption capacity than other adsorbents (Table S5, entries 1 and 5), and the cycling performance of the fiber (5 times) was higher than that of other adsorbents. Furthermore, PANAF-FeOOH reached adsorption equilibrium (30 min) faster than the other adsorbent materials. Overall, PANAF-FeOOH showed high phosphate removal efficiency, good adsorption capacity, and excellent reusability.

3.7. Practical Application Capability Test of PANAF-FeOOH

This study also tested the practical application capability of PANAF-FeOOH to remove phosphorus in actual water and simulated wastewater, respectively. The total phosphorus concentration was adjusted to about 1 mg P L−1 (0.5 mg P L−1 PPOA + 0.5 mg P L−1 KH2PO4) in both real water (Chaohu Lake, China) and deionized water. Dried 50 mg of PANAF-FeOOH and 0.5 mmol L−1 of PDS were added to 20 mL of the above water samples, and the remaining total phosphorus concentration was measured after stirring for 1 h. The total phosphorus concentration in the water samples before and after fiber treatment were measured. The results showed that PANAF-FeOOH could effectively remove 83.6% of total phosphorus in the water sample of Chaohu Lake, while the % removal reached 90.4% in the simulated wastewater. The application capability of the fiber in real water bodies was slightly lower than that in simulated wastewater samples, possibly due to complex coexisting ion interference in real water bodies. Altogether, PANAF-FeOOH showed excellent application ability for phosphorus removal in real water.

4. Conclusions

In this work, a novel FeOOH-modified polyacrylonitrile fiber (PANAF-FeOOH) was intelligently synthesized for the simultaneous removal of organophosphorus and phosphate. PANAF with a weight gain of 38% and iron concentrations of 0.2 and 0.3 mol L−1 were the optimal synthesis conditions for organophosphorus degradation and phosphate adsorption, respectively, by the PANAF-FeOOH. The degradation conditions for phenylphosphonic acid (PPOA) were optimized, and the PANAF-FeOOH (30 mg) was able to activate PDS (0.5 mmol L−1) to remove more than 99% of PPOA (0.5 mg L−1, pH = 5) within 1.5 h. Positively, phosphate produced by the degradation process could be efficiently adsorbed by the PANAF-FeOOH. Hence, the phosphate adsorption by the PANAF-FeOOH was investigated. The fiber showed wide pH adaptability with a maximum removal capacity of 9.92 mg P g−1, which was higher than most reported iron-based functional materials. Furthermore, the PANAF-FeOOH possesses the advantages of anti-interference with coexisting ions, excellent recyclability (5 times), and continuous flow application. In addition, electron paramagnetic resonance and X-ray photoelectron spectroscopy were used to clarify the promotion mechanism of the fiber surface microenvironment. It was found that SO4 and •OH were the key radicals for PPOA degradation, and the strong enrichment ability of the functional moieties on the fiber surface also accelerated the removal of PPOA. In addition, the phosphate removal mechanism was chiefly attributed to the synergy of Fe and amine groups. This research provides new ideas for the simultaneous removal of organic and inorganic phosphorus, which is of great significance for pollution remediation and the reuse of organic phosphorus.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/polym15081918/s1, References [60,61,62,63,64,65] are cited in supplementary material. Figure S1: (a) The degradation effect of PPOA by 0.3 mol/L Fe(OH)3 combined with aminated fibers with different weight gains; (b) The degradation effect of PPOA by aminated fiber with a weight gain of 38% combined with different concentrations of Fe(OH)3 colloid; (c) Phosphate adsorption capacity of 0.2 mol/L Fe(OH)3 combined with aminated fibers with different weight gains; (d) Phosphate adsorption capacity of aminated fiber with a weight gain of 38% combined with different concentrations of Fe(OH)3 colloid. Figure S2: Fitting diagram of thermodynamics of phosphate. Figure S3: Simple diagram of continuous flow process device. Figure S4: (A) EPR spectrum of SO4• and •OH of PDS/PDS-PANAF-FeOOH catalytic system; (B) EPR spectrum of 1O2 of PDS/PDS-PANAF-FeOOH catalytic system. Figure S5: Adsorption capacity of PANAF-FeOOH for PPOA. Table S1: Kinetic parameters of phosphate adsorption by PANAF-FeOOH. Table S2: Thermodynamic parameters of phosphate adsorption by PANAF-FeOOH. Table S3: Isotherm parameters of phosphate adsorption by PANAF-FeOOH. Table S4: The mass and atomic percentage of the functionalized fiber obtained by XPS. Table S5. Comparison of different phosphate adsorbents.

Author Contributions

Conceptualization, G.X.; methodology, Q.X. and W.Z.; validation, R.Z. and W.X.; formal analysis, S.Z.; investigation, P.L.; resources, C.Z.; data curation, R.Z. and W.X.; writing—original draft preparation, R.Z. and W.X.; writing—review and editing, G.X.; visualization, W.Z.; supervision, X.Y.; project administration, G.X.; funding acquisition, G.X., C.Z. and Q.X. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the National Natural Science Foundation of China (Grant No. 22208003), Major Science and Technology Projects in Anhui Province (No. 202103a06020012), and the Opening Foundation of The Technology Center of Anhui Chaoyue Environmental Protection Technology Co., Ltd. (2022-KYJJ-3).

Institutional Review Board Statement

Not applicable.

Data Availability Statement

The data presented in this work are available upon request from the corresponding author.

Acknowledgments

Thank you to Longjin Jiang from The Technology Center of Anhui Chaoyue Environmental Protection Technology Co., Ltd. We sincerely thank him for his financial support and for his valuable comments during the revision and improvement of the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhao, Y.; Guo, L.; Shen, W.; An, Q.; Xiao, Z.; Wang, H.; Cai, W.; Zhai, S.; Li, Z. Function integrated chitosan-based beads with throughout sorption sites and inherent diffusion network for efficient phosphate removal. Carbohydr. Polym. 2020, 230, 115639. [Google Scholar] [CrossRef] [PubMed]
  2. Zong, E.; Huang, G.; Liu, X.; Lei, W.; Jiang, S.; Ma, Z.; Wang, J.; Song, P. A lignin-based nano-adsorbent for superfast and highly selective removal of phosphate. J. Mater. Chem. A 2018, 6, 9971–9983. [Google Scholar] [CrossRef]
  3. Zhang, J.; Tang, L.; Tang, W.; Zhong, Y.; Luo, K.; Duan, M.; Xing, W.; Liang, J. Removal and recovery of phosphorus from low-strength wastewaters by flow-electrode capacitive deionization. Sep. Purif. Technol. 2020, 237, 116322. [Google Scholar] [CrossRef]
  4. Yang, C.; Li, J.; Yin, H. Phosphorus internal loading and sediment diagenesis in a large eutrophic lake (Lake Chaohu, China). Environ. Pollut. 2022, 292, 118471. [Google Scholar] [CrossRef] [PubMed]
  5. Malone, T.C.; Newton, A. The Globalization of Cultural Eutrophication in the Coastal Ocean: Causes and Consequences. Front. Mar. Sci. 2020, 7, 670. [Google Scholar]
  6. Ni, Z.K.; Wang, S.R.; Zhang, B.T.; Wang, Y.M.; Li, H. Response of sediment organic phosphorus composition to lake trophic status in China. Sci. Total Environ. 2019, 652, 495–504. [Google Scholar] [CrossRef]
  7. Ajiboye, B.; Akinremi, O.O.; Racz, G.J. Laboratory characterization of phosphorus in fresh and oven-dried organic amendments. J. Environ. Qual. 2004, 33, 1062–1069. [Google Scholar] [CrossRef]
  8. Dou, Z.; Toth, J.D.; Galligan, D.T.; Ramberg, C.F.; Ferguson, J.D. Laboratory procedures for characterizing manure phosphorus. J. Environ. Qual. 2000, 29, 508–514. [Google Scholar] [CrossRef]
  9. Aimer, Y.; Benali, O.; Serrano, K.G. Study of the degradation of an organophosphorus pesticide using electrogenerated hydroxyl radicals or heat-activated persulfate. Sep. Purif. Technol. 2019, 208, 27–33. [Google Scholar] [CrossRef]
  10. Rott, E.; Steinmetz, H.; Metzger, J.W. Organophosphonates: A review on environmental relevance, biodegradability and removal in wastewater treatment plants. Sci. Total Environ. 2018, 615, 1176–1191. [Google Scholar] [CrossRef]
  11. Chen, C.; Pang, Y.Q.; Li, Y.X.; Li, W.; Lan, Y.Q.; Shen, W.B. Dual functional cobalt-yttrium binary oxide activation of peroxymonosulfate for degradation of phenylphosphonic acid and simultaneous adsorption of phosphate product. Chem. Eng. J. 2022, 429, 132185. [Google Scholar] [CrossRef]
  12. Li, G.; Wang, B.; Xu, W.Q.; Han, Y.; Sun, Q. Rapid TiO2/SBA-15 synthesis from ilmenite and use in photocatalytic degradation of dimethoate under simulated solar light. Dyes Pigment. 2018, 155, 265–275. [Google Scholar] [CrossRef]
  13. Feng, H.; Mao, W.; Li, Y.; Wang, X.; Chen, S. Characterization of dissolved organic matter during the O3-based advanced oxidation of mature landfill leachate with and without biological pre-treatment and operating cost analysis. Chemosphere 2021, 271, 129810. [Google Scholar] [CrossRef] [PubMed]
  14. Guan, R.P.; Yuan, X.Z.; Wu, Z.B.; Jiang, L.B.; Li, Y.F.; Zeng, G.M. Principle and application of hydrogen peroxide based advanced oxidation processes in activated sludge treatment: A review. Chem. Eng. J. 2018, 339, 519–530. [Google Scholar] [CrossRef]
  15. Lee, J.; von Gunten, U.; Kim, J.H. Persulfate-Based Advanced Oxidation: Critical Assessment of Opportunities and Roadblocks. Environ. Sci. Technol. 2020, 54, 3064–3081. [Google Scholar] [CrossRef]
  16. Lian, W.; Yi, X.; Huang, K.; Tang, T.; Wang, R.; Tao, X.; Zheng, Z.; Dang, Z.; Yin, H.; Lu, G. Degradation of tris(2-chloroethyl) phosphate (TCEP) in aqueous solution by using pyrite activating persulfate to produce radicals. Ecotoxicol. Environ. Saf. 2019, 174, 667–674. [Google Scholar] [CrossRef]
  17. Li, Y.X.; Liu, L.; Li, W.; Lan, Y.Q.; Chen, C. Simultaneously rapid degradation of phenylphosphonic acid and efficient adsorption of released phosphate in the system of peroxymonosulfate (PMS) and Co3O4-La2O2CO3/C derived from MOFs. J. Environ. Chem. Eng. 2021, 9, 106332. [Google Scholar] [CrossRef]
  18. Lominchar, M.A.; Rodriguez, S.; Lorenzo, D.; Santos, N.; Romero, A.; Santos, A. Phenol abatement using persulfate activated by nZVI, H2O2 and NaOH and development of a kinetic model for alkaline activation. Environ. Technol. Innov. 2018, 39, 35–43. [Google Scholar] [CrossRef]
  19. Lei, Y.; Chen, C.S.; Tu, Y.J.; Huang, Y.H.; Zhang, H. Heterogeneous Degradation of Organic Pollutants by Persulfate Activated by CuO-Fe3O4: Mechanism, Stability, and Effects of pH and Bicarbonate Ions. Environ. Sci. Technol. 2015, 49, 6838–6845. [Google Scholar] [CrossRef]
  20. Pan, Y.W.; Zhou, M.H.; Zhang, Y.; Cai, J.J.; Li, B.; Sheng, X.J. Enhanced degradation of Rhodamine B by pre-magnetized Fe0/PS process: Parameters optimization, mechanism and interferences of ions. Sep. Purif. Technol. 2018, 203, 66–74. [Google Scholar] [CrossRef]
  21. Li, H.J.; Fu, Y.H.; Mei, C.G.; Wang, M. Effective degradation of Direct Red 81 using FeS-activated persulfate process. J. Environ. Manag. 2022, 308, 114616. [Google Scholar] [CrossRef] [PubMed]
  22. Zheng, H.; Bao, J.G.; Huang, Y.; Xiang, L.J.; Faheem; Ren, B.X.; Du, J.K.; Nadagouda, M.N.; Dionysiou, D.D. Efficient degradation of atrazine with porous sulfurized Fe2O3 as catalyst for peroxymonosulfate activation. Appl. Catal. B 2019, 259, 118056. [Google Scholar] [CrossRef]
  23. Zhao, L.; Zhang, H.; Zhao, B.B.; Lyu, H.H. Activation of peroxydisulfate by ball-milled α-FeOOH/biochar composite for phenol removal: Component contribution and internal mechanisms. Environ. Pollut. 2022, 293, 118596. [Google Scholar] [CrossRef] [PubMed]
  24. Xu, J.; Zhang, X.L.; Sun, C.; Wan, J.Z.; He, H.; Wang, F.; Dai, Y.X.; Yang, S.G.; Lin, Y.S.; Zhan, X.H. Insights into removal of tetracycline by persulfate activation with peanut shell biochar coupled with amorphous Cu-doped FeOOH composite in aqueous solution. Environ. Sci. Pollut. Res. 2019, 26, 2820–2834. [Google Scholar] [CrossRef] [PubMed]
  25. Weng, H.; Yang, Y.; Zhang, C.; Cheng, M.; Wang, W.; Song, B.; Luo, H.; Qin, D.; Huang, C.; Qin, F.; et al. Insight into FeOOH-mediated advanced oxidation processes for the treatment of organic polluted wastewater. Chem. Eng. J. 2023, 453, 139812. [Google Scholar] [CrossRef]
  26. Shi, T.S.; Jiang, F.; Wang, P.; Yue, T.; Sun, W. Deep purification of As(V) in drinking water by silica gel loaded with FeOOH and MnO2. J. Cent. South Univ. 2021, 28, 1692–1706. [Google Scholar] [CrossRef]
  27. Chen, H.; Wang, J.L. MOF-derived Co3O4-C@FeOOH as an efficient catalyst for catalytic ozonation of norfloxacin. J. Hazard. Mater. 2021, 403, 123697. [Google Scholar] [CrossRef]
  28. Ding, S.; Wan, J.Q.; Ma, Y.W.; Wang, Y.; Pu, M.J.; Li, X.T.; Sun, J. Water stable SiO2-coated Fe-MOF-74 for aqueous dimethyl phthalate degradation in PS activated medium. J. Hazard. Mater. 2021, 411, 125194. [Google Scholar] [CrossRef]
  29. Ai, H.; Li, X.; Chen, C.; Xu, L.; Fu, M.-L.; Sun, W.; Yuan, B. Immobilization of β-FeOOH nanomaterials on the basalt fiber as a novel porous composite to effectively remove phosphate from aqueous solution. Colloids Surf. A Physicochem. Eng. Asp. 2022, 632, 127815. [Google Scholar] [CrossRef]
  30. Zhao, L.J.; Ma, N.; Tao, M.L.; Zhang, W.Q. Covalently functionalized polyacrylonitrile fibers for heterogeneous catalysis and pollutant adsorption: A review. Mater. Today Chem. 2022, 26, 101206. [Google Scholar] [CrossRef]
  31. Xu, G.; Wang, L.; Li, M.; Tao, M.; Zhang, W. Phosphorous acid functionalized polyacrylonitrile fibers with a polarity tunable surface micro-environment for one-pot C–C and C–N bond formation reactions. Green Chem. 2017, 19, 5818–5830. [Google Scholar] [CrossRef]
  32. Xu, G.; Jin, M.; Kalkhajeh, Y.K.; Wang, L.; Tao, M.; Zhang, W. Proton sponge functionalized polyacrylonitrile fibers as an efficient and recyclable superbasic catalyst for Knoevenagel condensation in Water. J. Clean. Prod. 2019, 231, 77–86. [Google Scholar] [CrossRef]
  33. Xu, G.; Wang, L.; Xie, Y.J.; Tao, M.L.; Zhang, W.Q. Highly selective and efficient adsorption of Hg2+ by a recyclable aminophosphonic acid functionalized polyacrylonitrile fiber. J. Hazard. Mater. 2018, 344, 679–688. [Google Scholar] [CrossRef] [PubMed]
  34. Xu, G.; Xie, Y.J.; Cao, J.; Tao, M.L.; Zhang, W.Q. Highly selective and efficient chelating fiber functionalized by bis(2-pyridylmethyl)amino group for heavy metal ions. Polym. Chem. 2016, 7, 3874–3883. [Google Scholar] [CrossRef]
  35. Xu, W.S.; Zheng, W.J.; Wang, F.J.; Xiong, Q.Z.; Shi, X.L.; Kalkhajeh, Y.K.; Xu, G.; Gao, H.J. Using iron ion-loaded aminated polyacrylonitrile fiber to efficiently remove wastewater phosphate. Chem. Eng. J. 2021, 403, 126349. [Google Scholar] [CrossRef]
  36. Zheng, W.J.; Wu, Q.W.; Xu, W.S.; Xiong, Q.Z.; Kalkhajeh, Y.K.; Zhang, C.C.; Xu, G.; Zhang, W.F.; Ye, X.X.; Gao, H.J. Efficient capture of phosphate from wastewater by a recyclable ionic liquid functionalized polyacrylonitrile fiber: A typical “release and catch” mechanism. Environ. Sci. Water Res. Technol. 2022, 8, 607–618. [Google Scholar] [CrossRef]
  37. Xu, G.; Xu, W.S.; Tian, S.; Zheng, W.J.; Yang, T.; Wu, Y.X.; Xiong, Q.Z.; Kalkhajeh, Y.K.; Gao, H.J. Enhanced phosphate removal from wastewater by recyclable fiber supported quaternary ammonium salts: Highlighting the role of surface polarity. Chem. Eng. J. 2021, 416, 127889. [Google Scholar] [CrossRef]
  38. Zhou, Q.; Wang, X.; Liu, J.; Zhang, L. Phosphorus removal from wastewater using nano-particulates of hydrated ferric oxide doped activated carbon fiber prepared by Sol–Gel method. Chem. Eng. J. 2012, 200–202, 619–626. [Google Scholar] [CrossRef]
  39. Xu, G.; Cao, J.; Zhao, Y.L.; Zheng, L.S.; Tao, M.L.; Zhang, W.Q. Phosphorylated Polyacrylonitrile Fibers as an Efficient and Greener Acetalization Catalyst. Chem. Asian J. 2017, 12, 2565–2575. [Google Scholar] [CrossRef]
  40. Zheng, L.S.; Li, P.Y.; Tao, M.L.; Zhang, W.Q. Regulation of polar microenvironment on the surface of tertiary amines functionalized polyacrylonitrile fiber and its effect on catalytic activity in Knoevenagel condensation. Catal. Commun. 2019, 118, 19–24. [Google Scholar] [CrossRef]
  41. Grzybek, J.; Gil, B.; Roth, W.J.; Skoczek, M.; Kowalczyk, A.; Chmielarz, L. Characterization of Co and Fe-MCM-56 catalysts for NH3-SCR and N2O decomposition: An in situ FTIR study. Spectrochim. Acta Part A 2018, 196, 281–288. [Google Scholar] [CrossRef] [PubMed]
  42. Zhang, G.; Fan, H.M.; Zhou, R.Y.; Yin, W.Y.; Wang, R.B.; Yang, M.; Xue, Z.Y.; Yang, Y.S.; Yu, J.X. Decorating UiO-66-NH2 crystals on recyclable fiber bearing polyamine and amidoxime bifunctional groups via cross-linking method with good stability for highly efficient capture of U(VI) from aqueous solution. J. Hazard. Mater. 2022, 424, 127273. [Google Scholar] [CrossRef] [PubMed]
  43. Lin, Z.; Yang, J.; Jia, X.H.; Li, Y.; Song, H.J. Polydopamine/FeOOH-modified interface in carbon cloth/polyimide composites for improved mechanical/tribological properties. Mater. Chem. Phys. 2020, 243, 122677. [Google Scholar] [CrossRef]
  44. Zhu, H.; Xu, G.; Du, H.M.; Zhang, C.L.; Ma, N.; Zhang, W.Q. Prolinamide functionalized polyacrylonitrile fiber with tunable linker length and surface microenvironment as efficient catalyst for Knoevenagel condensation and related multicomponent tandem reactions. J. Catal. 2019, 374, 217–229. [Google Scholar] [CrossRef]
  45. Guo, J.; Jiang, J.; Chen, Y.; Wen, X.; Chen, W.; Wang, Y.; Su, L.; Cao, J. Synthesis of nZVI-BC composite for persulfate activation to degrade pyrene: Performance, correlative mechanisms and degradation pathways. Process Saf. Environ. 2022, 162, 733–745. [Google Scholar] [CrossRef]
  46. Meddah, S.; El Hadi Samar, M.; Bououdina, M.; Khezami, L. Outstanding performance of electro-Fenton/ultra-violet/ultra-sound assisted-persulfate process for the complete degradation of hazardous pollutants in contaminated water. Process Saf. Environ. 2022, 165, 739–753. [Google Scholar] [CrossRef]
  47. Li, Y.; Zhao, X.; Yan, Y.; Yan, J.; Pan, Y.; Zhang, Y.; Lai, B. Enhanced sulfamethoxazole degradation by peroxymonosulfate activation with sulfide-modified microscale zero-valent iron (S-mFe0): Performance, mechanisms, and the role of sulfur species. Chem. Eng. J. 2019, 376, 121302. [Google Scholar] [CrossRef]
  48. Wang, B.; Li, Q.; Lv, Y.; Fu, H.; Liu, D.; Feng, Y.; Xie, H.; Qu, H. Insights into the mechanism of peroxydisulfate activated by magnetic spinel CuFe2O4/SBC as a heterogeneous catalyst for bisphenol S degradation. Chem. Eng. J. 2021, 416, 129162. [Google Scholar] [CrossRef]
  49. Yang, Q.; Wang, X.L.; Luo, W.; Sun, J.; Xu, Q.X.; Chen, F.; Zhao, J.W.; Wang, S.N.; Yao, F.B.; Wang, D.B.; et al. Effectiveness and mechanisms of phosphate adsorption on iron-modified biochars derived from waste activated sludge. Bioresour. Technol. 2018, 247, 537–544. [Google Scholar] [CrossRef]
  50. Zhang, Y.; Tang, Q.; Sun, Y.F.; Yao, C.X.; Yang, Z.; Yang, W.B. Improved utilization of active sites for phosphorus adsorption in FeOOH/anion exchanger nanocomposites via a glycol-solvothermal synthesis strategy. J. Environ. Sci. 2022, 111, 313–323. [Google Scholar] [CrossRef]
  51. Sun, H.M.; Zhou, Q.; Zhao, L.; Wu, W.Z. Enhanced simultaneous removal of nitrate and phosphate using novel solid carbon source/zero-valent iron composite. J. Clean. Prod. 2021, 289, 125757. [Google Scholar] [CrossRef]
  52. Liu, F.L.; Zuo, J.E.; Chi, T.; Wang, P.; Yang, B. Removing phosphorus from aqueous solutions by using iron-modified corn straw biochar. Front. Environ. Sci. Eng. 2015, 9, 1066–1075. [Google Scholar] [CrossRef]
  53. Brazão Farinha, C.; de Brito, J.; Veiga, R. Incorporation of high contents of textile, acrylic and glass waste fibres in cement-based mortars. Influence on mortars’ fresh, mechanical and deformability behaviour. Constr. Build. Mater. 2021, 303, 124424. [Google Scholar] [CrossRef]
  54. Liu, H.; Bruton, T.A.; Doyle, F.M.; Sedlak, D.L. In Situ Chemical Oxidation of Contaminated Groundwater by Persulfate: Decomposition by Fe(III)- and Mn(IV)-Containing Oxides and Aquifer Materials. Environ. Sci. Technol. 2014, 48, 10330–10336. [Google Scholar] [CrossRef] [PubMed]
  55. Wu, Y.; Prulho, R.; Brigante, M.; Dong, W.; Hanna, K.; Mailhot, G. Activation of persulfate by Fe(III) species: Implications for 4-tert-butylphenol degradation. J. Hazard. Mater. 2017, 322 Pt B, 380–386. [Google Scholar] [CrossRef]
  56. Ma, X.; Yuan, H.; Qiao, Q.; Zhang, S.; Tao, H. Enhanced catalysis for degradation of rhodamine B by amino-functionalized Fe-MOFs with high adsorption capacity. Colloids Surf. A Physicochem. Eng. Asp. 2023, 664, 131099. [Google Scholar] [CrossRef]
  57. Yang, T.-S.; Zhang, Y.; Cao, X.-Q.; Zhang, J.; Kan, Y.-J.; Wei, B.; Zhang, Y.-Z.; Wang, Z.-Z.; Jiao, Z.-Y.; Zhang, X.-X.; et al. Water caltrop-based carbon catalysts for cooperative adsorption and heterogeneous activation of peroxymonosulfate for tetracycline oxidation via electron transfer and non-radical pathway. Appl. Surf. Sci. 2022, 606, 154823. [Google Scholar] [CrossRef]
  58. Zhang, B.; Chen, N.; Feng, C.; Zhang, Z. Adsorption for phosphate by crosslinked/non-crosslinked-chitosan-Fe(III) complex sorbents: Characteristic and mechanism. Chem. Eng. J. 2018, 353, 361–372. [Google Scholar] [CrossRef]
  59. Zhang, S.; Zhang, Y.; Ding, J.; Zhang, Z.; Gao, C.; Halimi, M.; Demey, H.; Yang, Z.; Yang, W. High phosphate removal using La(OH)3 loaded chitosan based composites and mechanistic study. J. Environ. Sci. 2021, 106, 105–115. [Google Scholar] [CrossRef]
  60. Li, X.; Elgarhy, A.H.; Hassan, M.E.; Chen, Y.; Liu, G.; Elkorashey, R.M. Removal of inorganic and organic phosphorus compounds from aqueous solution by ferrihydrite decoration onto graphene. Environ. Monit. Assess. 2020, 192, 1–9. [Google Scholar] [CrossRef]
  61. Zhang, X.; Yao, H.; Lei, X.; Lian, Q.; Roy, A.; Doucet, D.; Yan, H.; Zappi, M.E.; Gang, D.D. A comparative study for phosphate adsorption on amorphous FeOOH and goethite (α-FeOOH): An investigation of relationship between the surface chemistry and structure. Environ. Res. 2021, 199, 111223. [Google Scholar] [CrossRef] [PubMed]
  62. Tao, R.; Qu, M.; Zhang, S.; Quan, F.; Zhang, M.; Shen, W.; Mei, Y. Preparation of FeOOH supported by melamine sponge and its application for efficient phosphate removal. J. Environ. Chem. Eng. 2022, 10. [Google Scholar] [CrossRef]
  63. Wu, Z.-Y.; Zhao, H.; Hu, X.; Yuan, B.; Fu, M.-L. Tunable porous ferric composite for effective removal of phosphate in water. Colloids Surfaces A: Physicochem. Eng. Asp. 2019, 582, 123854. [Google Scholar] [CrossRef]
  64. Harijan, D.K.; Chandra, V. Akaganeite nanorods decorated graphene oxide sheets for removal and recovery of aqueous phosphate. J. Water Process. Eng. 2017, 19, 120–125. [Google Scholar] [CrossRef]
  65. Zhang, X.; Gang, D.D.; Sun, P.; Lian, Q.; Yao, H. Goethite dispersed corn straw-derived biochar for phosphate recovery from synthetic urine and its potential as a slow-release fertilizer. Chemosphere 2020, 262, 127861. [Google Scholar] [CrossRef]
Figure 1. The preparation of FeOOH-loaded polyacrylonitrile fiber.
Figure 1. The preparation of FeOOH-loaded polyacrylonitrile fiber.
Polymers 15 01918 g001
Figure 2. The SEM photographs of (a) PANF, (b) PANAF, and (cf) PANAF-FeOOH prepared with Fe(OH)3 colloid at 0.05, 0.2, 0.3, and 0.5 mol L−1, respectively. Magnifications are 200, 2000, and 20,000 times.
Figure 2. The SEM photographs of (a) PANF, (b) PANAF, and (cf) PANAF-FeOOH prepared with Fe(OH)3 colloid at 0.05, 0.2, 0.3, and 0.5 mol L−1, respectively. Magnifications are 200, 2000, and 20,000 times.
Polymers 15 01918 g002

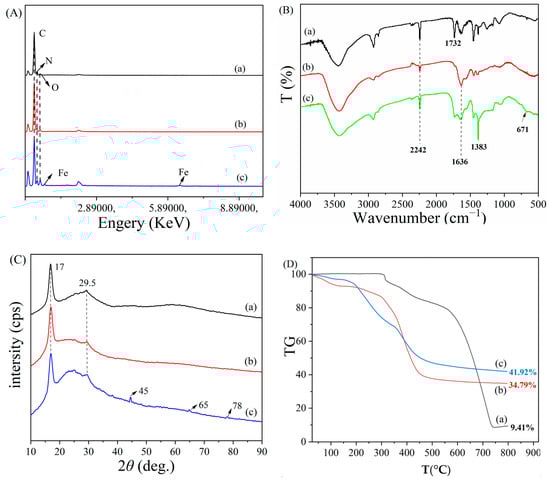

Figure 3. (A) The EDS spectra of (a) PANF, (b) PANAF, and (c) PANAF-FeOOH; (B) The FTIR spectra of (a) PANF, (b) PANAF, and (c) PANAF-FeOOH; (C) The XRD patterns and (D) TGA spectra of (a) PANF, (b) PANAF, and (c) PANAF-FeOOH.
Figure 3. (A) The EDS spectra of (a) PANF, (b) PANAF, and (c) PANAF-FeOOH; (B) The FTIR spectra of (a) PANF, (b) PANAF, and (c) PANAF-FeOOH; (C) The XRD patterns and (D) TGA spectra of (a) PANF, (b) PANAF, and (c) PANAF-FeOOH.
Polymers 15 01918 g003

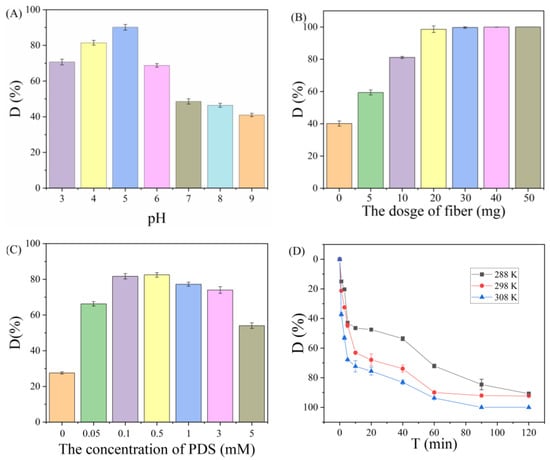

Figure 4. Influence of (A) pH, (B) fiber dosage, (C) PDS concentration, and (D) reaction time on PPOA degradation.
Figure 4. Influence of (A) pH, (B) fiber dosage, (C) PDS concentration, and (D) reaction time on PPOA degradation.
Polymers 15 01918 g004

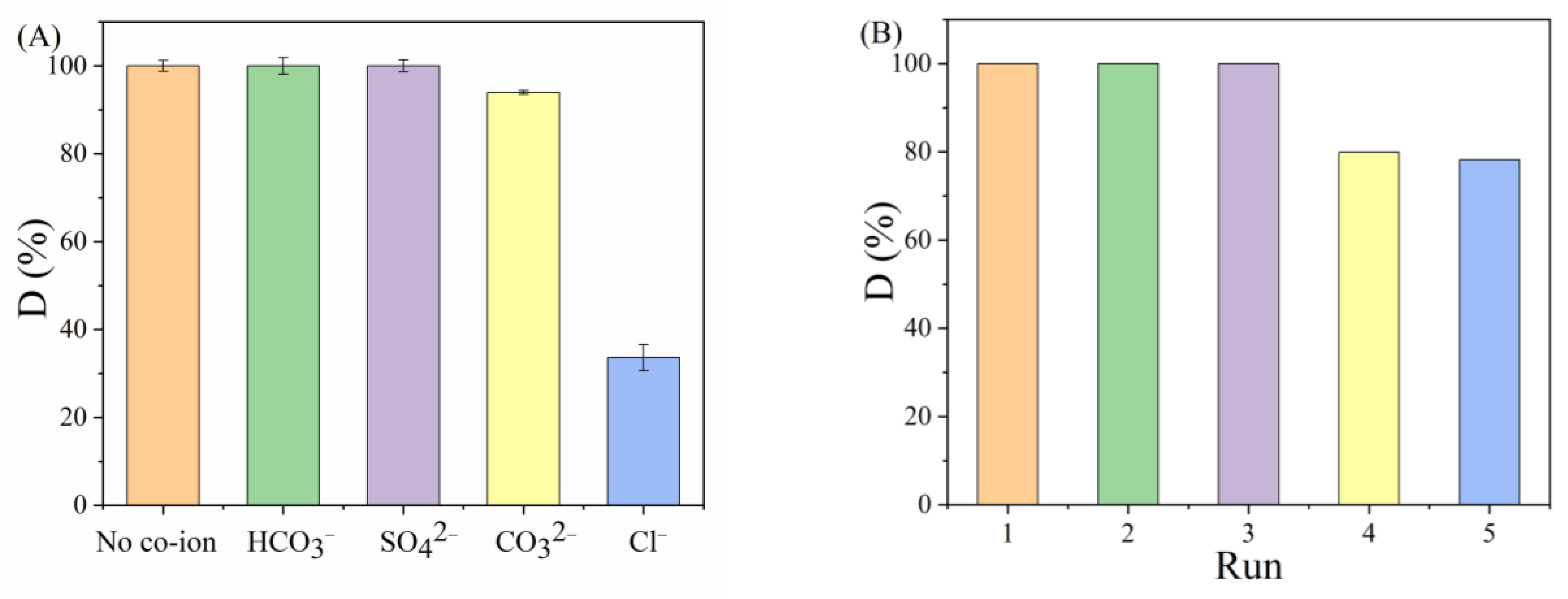

Figure 5. (A) The impact of coexisting ions on PPOA degradation; (B) renewability of PANAF-FeOOH for PPOA degradation.
Figure 5. (A) The impact of coexisting ions on PPOA degradation; (B) renewability of PANAF-FeOOH for PPOA degradation.
Polymers 15 01918 g005

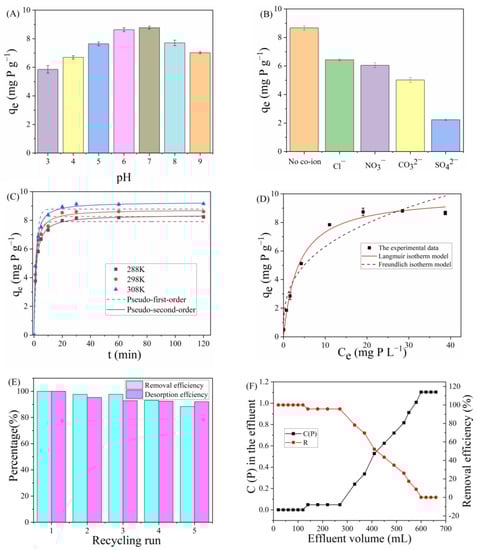

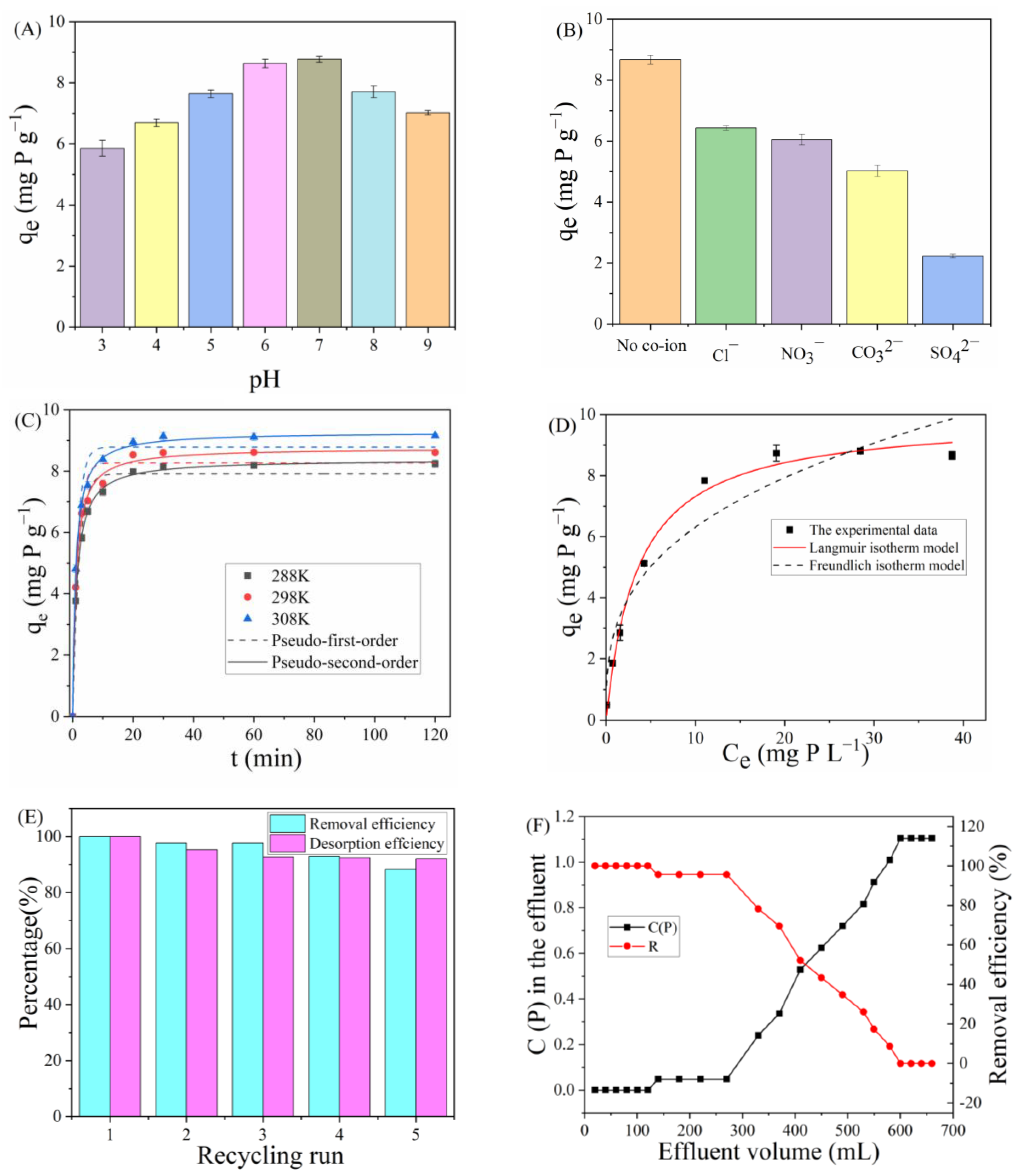

Figure 6. The influence of (A) pH, (B) coexisting anions, (C) contact time, and (D) initial phosphate concentration on phosphate removal by PANAF-FeOOH. (E) Reusability of PANAF-FeOOH for phosphate removal and (F) breakthrough curves of phosphate solutions in continuous flow conditions.
Figure 6. The influence of (A) pH, (B) coexisting anions, (C) contact time, and (D) initial phosphate concentration on phosphate removal by PANAF-FeOOH. (E) Reusability of PANAF-FeOOH for phosphate removal and (F) breakthrough curves of phosphate solutions in continuous flow conditions.
Polymers 15 01918 g006

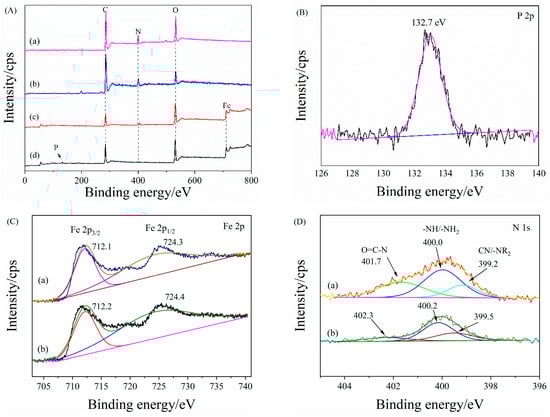

Figure 7. (A) XPS survey of (a) PANF, (b) PANAF, (c) PANAF-FeOOH, and (d) PANAF-FeOOH-P; (B) High-resolution spectrum of P 2p for PANAF-FeOOH-P; (C) High-resolution Fe 2p spectrum of (a) PANAF-FeOOH and (b) PANAF-FeOOH-P; (D) High-resolution N 1s spectrum of (a) PANAF-FeOOH and (b) PANAF-FeOOH-P.
Figure 7. (A) XPS survey of (a) PANF, (b) PANAF, (c) PANAF-FeOOH, and (d) PANAF-FeOOH-P; (B) High-resolution spectrum of P 2p for PANAF-FeOOH-P; (C) High-resolution Fe 2p spectrum of (a) PANAF-FeOOH and (b) PANAF-FeOOH-P; (D) High-resolution N 1s spectrum of (a) PANAF-FeOOH and (b) PANAF-FeOOH-P.
Polymers 15 01918 g007
Table 1. Elemental analysis data for PANF, PANAF, and PANAF-FeOOH.
Table 1. Elemental analysis data for PANF, PANAF, and PANAF-FeOOH.
EntrySampleC (%)N (%)H (%)
1PANF66.3724.865.18
2PANAF55.1420.156.57
3PANAF-FeOOH47.3218.334.59
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhou, R.; Xu, W.; Liu, P.; Zhao, S.; Xu, G.; Xiong, Q.; Zhang, W.; Zhang, C.; Ye, X. Synthesis of FeOOH-Loaded Aminated Polyacrylonitrile Fiber for Simultaneous Removal of Phenylphosphonic Acid and Phosphate from Aqueous Solution. Polymers 2023, 15, 1918. https://doi.org/10.3390/polym15081918

AMA Style

Zhou R, Xu W, Liu P, Zhao S, Xu G, Xiong Q, Zhang W, Zhang C, Ye X. Synthesis of FeOOH-Loaded Aminated Polyacrylonitrile Fiber for Simultaneous Removal of Phenylphosphonic Acid and Phosphate from Aqueous Solution. Polymers. 2023; 15(8):1918. https://doi.org/10.3390/polym15081918

Chicago/Turabian Style

Zhou, Rui, Wusong Xu, Peisen Liu, Shangyuan Zhao, Gang Xu, Qizhong Xiong, Weifeng Zhang, Chaochun Zhang, and Xinxin Ye. 2023. "Synthesis of FeOOH-Loaded Aminated Polyacrylonitrile Fiber for Simultaneous Removal of Phenylphosphonic Acid and Phosphate from Aqueous Solution" Polymers 15, no. 8: 1918. https://doi.org/10.3390/polym15081918

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
