Article

Cis-1,4-Polymerization of Isoprene by 1,3-Bis(oxazolinymethylidene)isoindoline-Ligated Rare-Earth Metal Dialkyl Complexes

Key Laboratory of Cluster Science of Ministry of Education, School of Chemistry and Chemical Engineering, Beijing Institute of Technology, 5 South Zhongguancun Street, Haidian District, Beijing 10081, China
*
Authors to whom correspondence should be addressed.
Polymers 2017, 9(10), 531; https://doi.org/10.3390/polym9100531
Submission received: 29 September 2017 / Revised: 17 October 2017 / Accepted: 18 October 2017 / Published: 20 October 2017
(This article belongs to the Special Issue Olefin Polymerization and Polyolefin)

Abstract

:
A series of novel chiral nonmetallocene pincer-type rare-earth metal dialkyl complexes bearing the chiral monoanionic tridentate C2-symmetric 1,3-bis(oxazolinymethylidene)isoindoline (BOXMI-H) ligand (BOXMI)Ln(CH2SiMe3)2 1–3 (1: Ln = Sc, yield = 57%; 2: Ln = Lu, yield = 55%; 3: Ln = Y, yield = 62%) have been prepared in moderate yields via the acid-base reaction between the BOXMI ligand and rare-earth metal tri(trimethylsilylmethyl) complexes. The X-ray diffractions show that both of the complexes 1 and 2 contain one BOXMI ligand and two trimethylsilylmethyl ligands, adopting a distorted trigonal bipyramidal configuration. In the presence of a cocatalyst such as borate and AlR3, these complexes 1–3 exhibit high activities of up to 6.8 × 104 (g of polymer)/(molLn h) and high cis-1,4 selectivities of up to 97% in the polymerization of isoprene in toluene, yielding the cis-1,4-polyisoprenes with heavy molecular weights (Mn of up to 710,000 g/mol) and bimodal molecular weight distributions (Mw/Mn = 2.0–4.5).

1. Introduction

The development of highly efficient and selective organometallic catalysts is a permanent topic for olefin polymerization, which brings new opportunities for the synthesis of high-performance (co)polymers with precisely controlled structures and excellent properties [1,2,3,4,5,6]. Recently, cis-1,4-polyisoprene (CPIP) has attracted much attention from the academia and industry in the view that it is the principal component of natural rubber and serves as a strategically important elastomer used for pneumatic tires [7,8,9,10,11]. In general, the practical and most common synthesis method of CPIP is the coordination–insertion polymerization of isoprene (IP) by using homogeneous organometallic catalysts based on rare-earth metals [12,13,14,15,16,17,18]. So far, a large number of the rare-earth metal catalyst precursors bearing a different chelating ligand have been reported for the cis-1,4-polymerization of IP [19,20,21,22,23,24,25,26,27]. Among these, the nonmetallocene pincer-type rare-earth metal complexes bearing the monoanionic tridentate C2-symmetric ligands usually exhibit both high activities and high cis-1,4 selectivities in the polymerization of IP [28,29,30] (Chart 1). In 2007, the rare-earth metal alkyl complexes bearing a bis(phosphinophenyl)amido (PNP) ligand were reported by Hou et al., showing high activities of up to 4.9 × 105 (g of polymer)/(molLn h) and high cis-1,4 selectivities of up to 99% in the living cis-1,4-polymerization of isoprene [31]. In 2008, the aryldiimine (NCN)-ligated rare-earth metal dichlorides were developed by Cui and co-workers. These complexes can serve as catalyst precursors in the cis-1,4-polymerization of isoprene with high activities of up to 4.1 × 105 (g of polymer)/(molLn h) and high cis-1,4 selectivities of around 98.8% [32]. Subsequently, Cui also reported the cis-1,4-polymerization of isoprene by using the bis(carbene)phenyl (CCC) rare-earth metal dibromides (activities of up to 1.3 × 105 (g of polymer)/(molLn h) and cis-1,4 selectivities of up to 99.6%) [33], the bis(phosphino)carbazolide (PNP)-chelated rare-earth metal complexes (activities of up to 8.2 × 105 (g of polymer)/(molLn h) and cis-1,4 selectivities of up to 99%) [34], and the bis(pyrrolidin-1-yl)pyrrolyl or bis(piperidino)methylene) pyrrolyl [NNN]-ligated rare-earth metal complexes (activities ca. 2.7 × 104 (g of polymer)/(molLn h) and cis-1,4 selectivities ca. 94.1%) [35]. In 2013, Lu and coworkers described the cis-1,4-polymerization of isoprene by use of the bis(oxazolinyl)phenyl (NCN)-ligated rare-earth metal dichlorides with activities of up to 4.1 × 105 (g of polymer)/(molLn h) and cis-1,4 selectivities of up to 99.5% [36]. By contrast, the rare-earth metal complexes bearing the pincer-type NNN ligand exhibited unsatisfactory activity (<105 (g of polymer)/(molLn h)) and cis-1,4 selectivity (<94%) in the polymerization of IP [37]. Therefore, it is of great interest to develop higher-efficiency and selective NNN-chelated rare-earth metal complexes for the cis-1,4-polymerization of IP.
Recently, we have paid attention to the synthesis of the NNN-ligated rare-earth metal dialkyl complexes and their applications in IP polymerization. In 2013, we reported the synthesis of a series of chiral (S,S)-bis(oxazolinylphenyl)amine ((S,S)-BOPA)-ligated rare-earth metal dialkyl complexes [(S,S)-BOPA]Ln(CH2SiMe3)2 (1–2; 1: Ln = Sc; 2: Ln = Lu). In the presence of an activator with or without a small amount of AliBu3, the dialkyl complexes 1 and 2 exhibited very high activities of up to 6.8 × 105 (g of polymer)/(molLn h) and trans-1,4 selectivities of up to 100% in the quasi-living polymerization of isoprene, yielding trans-1,4-PIPs with moderate molecular weights (Mn = (0.2–1.0) × 105 g/mol) and narrow molecular weight distributions (Mw/Mn = 1.02–2.66) [38]. Recently, we also reported that the 1,3-bis(2-pyridylimino)isoindoline-ligated rare-earth metal dialkyl complexes showed very high activities of up to 1.9 × 106 (g of polymer)/(molLn h) and high cis-1,4 selectivities of >99% in the polymerization of isoprene in the presence of an activator and AlR3, affording CPIP with heavy molecular weights (Mn up to 610,000 g/mol) and narrow to moderate molecular weight distributions (Mw/Mn = 1.26–2.08) [39]. These results demonstrated that the effective adjustment of the skeleton of the pincer-type NNN ligand have an important impact on the catalyst performance of these rare-earth metal complexes in IP polymerization, which rouses our interests to explore more NNN-ligated rare-earth metal dialkyl complexes and to detect their catalytic performance in the selective polymerization of IP. 1,3-Bis(oxazolinymethylidene)isoindoline (BOXMI-H) ligand, which has structural characteristics of both the (S,S)-bis(oxazolinylphenyl)amine and 1,3-bis(2-pyridylimino)isoindoline ligands, is an interesting chiral tridentate C2-symmetric NNN ligand for the organometallic complex based on transition metals for the asymmetric reaction [40,41,42,43]. Until now, the BOXMI-H-ligated rare-earth metal complexes have never been reported, and their applications for the coordination–insertion polymerization of olefin have never been investigated, as far as we are aware. Herein, we report the synthesis of three pincer-type BOXMI-H-ligated rare-earth metal dialkyl complexes (BOXMI)Ln(CH2SiMe3)2 1–3 (1: Ln = Sc; 2: Ln = Lu; 3: Ln = Y) via the acid–base reaction between the BOXMI-H ligand and rare-earth metal trialkyl complexes. These complexes 1–3 exhibited high activities of up to 6.8 × 104 (g of polymer)/(molLn h) and high cis-1,4 selectivities of up to 97% in the IP polymerization in toluene, affording cis-1,4-polyisoprenes with heavy molecular weights (Mn of up to 710,000 g/mol) and bimodal molecular weight distributions (Mw/Mn = 2.0–4.5).

2. Experiment

2.1. Materials and Method

All catalysts and the polymerization procedure were carried out in a nitrogen-filled MBraun glovebox. [Ph3C][B(C6F5)4], [PhMe2NH][B(C6F5)4], and B(C6F5)3 were purchased from J&K Chemical (Beijing, China). LiCH2SiMe3 (1.0 M solution in pentane) and LnCl3 were purchased from Aldrich (St. Louis, MO, USA). AliBu3 (1.1 M solution in hexane), AlMe3 (1.0 M solution in Toluene), AlEt3 (0.6 M solution in heptane), Phthalimides, (Carbethoxymethylene)triphenylphosphorane, (S)-amino alcohol, NaH, PPh3, Et3N, CCl4, Na2SO4, CaH2, dichloromethane, petroleum ether, and methanol were obtained from Energy Chemistry (Shanghai, China). BOXMI-H ligand [40] and Ln(CH2SiMe3)3(THF)2 [44] were prepared according to the literature. Isoprene was purchased from J&K Chemical (Beijing, China), and dried through CaH2. Toluene, THF, and hexane were purified by a solvent purification system (SPS-800, Mbraun, Shanghai, China) and dried over Na in the glovebox. The deuterated solvents C6D6 (99.6 atom% D) and CDCl3 (99.8 atom% D) were purchased from Cambridge Isotope.
Elemental analyses, 1H NMR and 13C NMR, of rare-earth metal complexes were performed according to the literature [38]. Polyisoprene samples of gel permeation chromatography (GPC) and differential scanning calorimetry (DSC) measurements were conducted according to the literature [38].
The test method of crystals of complexes 1 and 2 was performed according to the literature [38].
Crystallographic data of complexes 1 and 2 (excluding structure factors) have been deposited to the Cambridge Crystallographic Data Centre as supplementary publication nos. CCDC-1539945 (1) and 1536645 (2), containing the supplementary crystallographic data for this paper. These data can be obtained free of charge via https://www.ccdc.cam.ac.uk/structures/ from the Cambridge Crystallographic Data Centre.

2.2. Synthesis of Chiral BOXMI-H-Ligated Rare-Earth Metal Dialkyl Complexes

Here we outline the synthesis of the BOXMI-H-ligated rare-earth metal dialkyl complex (BOXMI)Sc(CH2SiMe3)2 (1). To a colorless toluene solution (8.0 mL) of Sc(CH2SiMe3)3(THF)2 (208 mg, 0.461 mmol) was added a solution of the BOXMI-H ligand (200 mg, 0.461 mmol) in toluene (10.0 mL) at room temperature. The reaction mixture was stirred at room temperature for 4 h. After removal of the solution in vacuo, the resulting solid was recrystallized from hexane/toluene at −30 °C to give 1 (171 mg, yield ca. 57%). 1H NMR (400 MHz, C6D6) δ: 7.25–7.23 (m, 6H), 7.18–7.14 (m, 4H), 7.11–7.09 (m, 2H), 5.79 (s, 2H), 5.56 (dd, 2H, J = 4 Hz, 8 Hz), 4.27 (t, 2H, J = 8 Hz), 3.91 (dd, 2H, J = 4 Hz, 8 Hz), 0.17 (d, 2H, J = 12 Hz), 0.02 (s, 18H, CH2Si(CH3)3), and −0.54 (d, 2H, J = 12 Hz,). 13C NMR (100 MHz, C6D6) δ: 173.71, 162.61, 142.62, 138.31, 130.10, 129.41, 128.63, 127.93, 121.10, 82.76, 75.81, 69.71 and 3.46. Anal. Calcd (%) for C36H44N3O2ScSi2: C, 60.33; H, 6.80; N, 6.45. Found: C, 60.31; H, 6.78; N, 6.46.
The following outlines the synthesis of BOXMI-H-ligated rare-earth metal dialkyl complex (BOXMI)Lu(CH2SiMe3)2 (2). To a colorless toluene solution (5.0 mL) of Lu(CH2SiMe3)3(THF)2 (268 mg, 0.461 mmol) was added a solution of the BOXMI-H ligand (200 mg, 0.461 mmol) in toluene (10.0 mL) at room temperature. The reaction mixture was stirred at room temperature for 4 h. After removal of the solution in vacuo, the resulting solid was recrystallized from hexane/toluene at −30 °C to give 2 (198 mg, yield ca. 55%). 1H NMR (400 MHz, C6D6) δ: 7.17–7.12 (m, 10H), 7.09–7.07 (m, 2H), 6.92–6.90 (m, 2H), 5.72 (s, 2H), 5.41 (dd, 2H, J = 4 Hz, 8 Hz), 4.19 (t, 2H, J = 8 Hz), 3.84 (dd, 2H, J = 4 Hz, 8 Hz), 0.05 (s, 18H), −0.62 (d, 2H, J = 12 Hz), and −1.44 (d, 2H, J = 12 Hz). 13C NMR (100 MHz, C6D6) δ: 170.81, 163.41, 141.92, 138.85, 130.06, 129.48, 128.81, 127.97, 121.08, 82.50, 75.65, 68.91, 43.56, and 4.00. Anal. Calcd (%) for C36H44N3O2LuSi2: C, 55.30; H, 5.67; N, 5.37. Found: C, 55.32; H, 5.71; N, 5.41.
The following outlines the synthesis of BOXMI-H-ligated rare-earth metal dialkyl complex (BOXMI)Y(CH2SiMe3)2 (3). To a colorless toluene solution (5.0 mL) of Y(CH2SiMe3)3(THF)2 (228 mg, 0.461 mmol) was added a solution of the BOXMI-H ligand (200 mg, 0.461 mmol) in toluene (10.0 mL) at room temperature. The reaction mixture was stirred at room temperature for 4 h. After removal of the solution in vacuo, the resulting solid was recrystallized from hexane/toluene at −30 °C to give 3 (199 mg, yield ca. 62%). 1H NMR (400 MHz, C6D6) δ: 7.18–7.12 (m, 12H), 7.09–7.07 (m, 2H), 6.92–6.89 (m, 2H), 5.72 (s, 2H), 5.40 (dd, 2H, J = 4 Hz, 8 Hz), 4.17 (t, 2H, J = 8 Hz), 3.81 (dd, 2H, J = 4 Hz, 8 Hz), 0.05 (s, 18H), −0.41 (d, 2H, J = 12 Hz), and −1.30 (d, 2H, J = 12 Hz). 13C NMR (100 MHz, C6D6) δ: 170.80, 163.13, 141.73, 138.9, 129.97, 129.56, 127.97, 121.00, 82.26, 75.35, 68.85, 37.29, 37.08, and 3.88. Anal. Calcd (%) for C36H44N3O2YSi2: C, 62.14; H, 6.37; N, 6.04. Found: C, 62.10; H, 6.35; N, 6.01.

2.3. A Typical Procedure for Isoprene (IP) Polymerization

A detailed polymerization procedure of isoprene is described here as a typical example. In a glovebox at 25 °C, to a toluene solution (8 mL) of AliBu3 (181 μL, 1.1 M, 200 μmol) was added a toluene solution (8 mL) of complex 1 (0.013 g, 20 μmol), a toluene solution (2.5 mL) of [Ph3C][B(C6F5)4] (0.018 g, 20 μmol), and isoprene (0.27 g, 4 mmol) in succession. In a 50 mL round bottom flask, the reaction mixture then became viscous rapidly. The flask was taken outside after 0.5 h, and then the solution was added to ethanol (50 mL, containing 5% butylhydroxytoluene (BHT) as a stabilizing agent) to quench the reaction mixture. The obtained polymer was washed three times by ethanol and dried under vacuum at 40 °C to a constant weight (0.23 g, yield ca. 85%). The resulting polymer was soluble in THF and chloroform at room temperature. The isomer contents of the polyisoprene products were calculated from the 1H and 13C NMR spectra according to the literature [45].

3. Results and Discussion

3.1. Synthesis and Structural Characterization of BOXMI-Ligated Rare-Earth Metal Dialkyl Complexes 13

The acid–base reactions of the rare-earth metal trialkyl complexes Ln(CH2SiMe3)3(THF)2 and 1 equiv. of 1,3-bis(oxazolinymethylidene)isoindoline ligand (BOXMI-H) straightforwardly yielded the pincer-type NNN-ligated rare-earth metal dialkyl complexes (BOXMI)Ln(CH2SiMe3)2 1–3 (1: Ln = Sc, yield of 57%; 2: Ln = Lu, yield of 55%; 3: Ln = Y, yield of 62%) with moderate yields (Scheme 1).
These complexes 1–3 have good solubilities in common organic solvents such as hexane, toluene, and THF. In the 1H NMR spectra of the complexes 1–3 in C6D6, all of the proton signals attributed to the NNN ligand except for the proton signal assigned to the N−H group were observed, suggesting the generation of a monoanionic NNN-chelating ligand in these complexes. The molar ratio of the integral areas of the signals for the NNN ligand and trimethylsilylmethyl ligand was 1:2 in each case. No THF molecule was detected in either case. Similarly to the rigid (S,S)-bis(oxazolinylphenyl)amine-ligated rare-earth metal dialkyl complexes, all of the methylene protons of the Ln–CH2SiMe3 groups showed two doublets at a high field for 1 of 0.16 (d, 2H) and −0.56 ppm (d, 2H), for 2 at −0.62 (d, 2H) and −1.44 ppm (d, 2H), and for 3 at −0.41 (d, 2H) and −1.30 ppm (d, 2H) with a germinal H–H coupling constant of 12 Hz, respectively. These results may suggest that these complexes also have a rigid structure and the CH2SiMe3 groups in these complexes are fixed to some extent at the NMR time scale.

3.2. Single Crystals of Complexes 1 and 2

In the glovebox, single crystals of the complexes 1 and 2 suitable for an X-ray determination were grown from a mixed hexane/toluene solution at −30 °C. The ORTEP (Oak Ridge Thermal Ellipsoid Plot) drawings of the complexes 1–2 are shown in Figure 1. The selected bond distances and angles of these complexes 1 and 2 are summarized in Table 1. The X-ray diffraction study revealed that the dialkyl complexes 1 and 2 are isomorphous and isostructural. Both of these complexes contain one C2-symmetric monoanionic tridentate NNN ligand and two trimethylsilylmethyl groups, adopting a distorted trigonal bipyramidal geometry. The bond distances of the chelating Ln−N(1), Ln−N(2), Ln−N(3), and Ln−C(29) as well as the Ln−C(33) bond increase in the order of 1 < 2 because of the ionic radius of the metal center in a trend of Sc (0.89 Å) < Lu (1.00 Å). The Ln−N(2) bonds of complexes 1 and 2 divide the angles of N(1)−Ln−N(3) (161.8(1)°–166.9(1)°) into two almost equal parts, N(1)−Ln−N(2) and N(2)−Ln−N(3) (81.1(1)°–83.9(1)°), implying the N(1), N(2), N(3), and Ln atoms are almost planar.

3.3. Cis-1,4-Polymerization of Isoprene by the Complexes 1–3/Activator/AlR3 Catalytic Systems

The neutral complexes 1–3 alone and the complexes 1–3/AlR3 binary systems were inactive for the IP polymerization, while the complexes 1–3/activator (such as [Ph3C][B(C6F5)4] (A), [PhMe2NH][B(C6F5)4] (B) and B(C6F5)3 (C)) binary systems showed very low activities in the polymerization of IP. In the presence of both an activator and AlR3, the complexes 1–3 could promote the cis-1,4-polymerization of IP similarly to the 1,3-bis(2-pyridylimino)isoindoline-ligated rare-earth metal dialkyl complexes [39], affording the cis-1,4-polyisoprenes (CPIPs) with heavy molecular weights (Mn of up to 710,000 g/mol) and moderate molecular weight distributions (Mw/Mn = 2.0–4.5). Some representative results are summarized in Table 2. As an activator, the trityl borate A and the anilinium borate B generally exhibited similar activities and cis-1,4 selectivities in the IP polymerization, while the neutral borane C was inert under the same conditions (Table 2, entries 1–5 and 7–10). For the Sc complex 1, the cis-1,4-PIPs obtained by borate A had heavier molecular weights and narrower molecular weight distributions (Table 2, entries 1–2 and 4–5), while for the Lu and Y complexes 2 and 3, the cis-1,4-PIPs obtained by borate A also had a heavier molecular weight but a broader molecular weight distribution (Table 2, entries 7–10). Similarly to the complex 1/activator/AliBu3 systems, the complex 1/activator/AlEt3 and the complex 1/activator/AlMe3 systems also showed moderate activities of around 3 × 103 (g of polymer)/(molLn h) and cis-1,4 selectivities of around 88% in the IP polymerization, affording the cis-1,4-PIPs with lower molecular weights and broader molecular weight distributions (Table 2, entries 1–6). When the IP polymerization catalyzed by the complex 3/A/AliBu3 system was carried out at −20 °C, a PIP with higher cis-1,4 selectivity (>95%), a heavier molecular weight (Mn = 350,000 g/mol), and a narrower molecular weight distribution (Mw/Mn = 1.83) could be obtained, as shown by the 1H and 13C NMR analysis (Table 2, entry 12). It is noteworthy that the complex 3 exhibited high activities of up to 6.8 × 104 (g of polymer)/(molLn h) when the temperature increased to 70 °C (Table 2, entry 14). Only 0.5 h was needed to completely convert 500 equiv of monomer, producing a moderate molecular weight for CPIP (cis-1,4 selectivity of 85%, Mn = 200,000 g/mol) with a moderate molecular weight distribution (Mw/Mn = 3.31).
The resulting PIPs all showed good solubilities in THF and CHCl3. The 1H NMR spectra of the PIPs obtained by the complex 1–3/activator/AlR3 systems in CDCl3 indicated the main 1,4-microstructure and a trace amount of a 3,4-microstructure. The 13C NMR spectra showed diagnostic signals for a main cis-1,4 configuration (δ of 23.4, 26.4, 32.2, 125.0 and 135.2 ppm; cis-1,4-PIP selectivity of >90%) and a small amount of 3,4-configuration (δ of 18.6, 26.4, 32.2, 125.0 and 135.2 ppm) with or without a trace amount of trans-1,4-configuration (δ of 15.9, 26.4, 32.2, 125.0 and 135.2 ppm; Figure 2). GPC curves revealed that these PIPs had moderate to heavy molecular weights in the range of 77,000–710,000 g/mol and bimodal molecular weight distributions (Mw/Mn = 2.0–4.5) similar to natural rubber. The DSC curves of the resulting cis-1,4-PIPs showed the glass transition temperature in the range of −58 to −65 °C, consistent with the thermoplastic character of the CPIP (see Supplementary Materials).

4. Conclusions

In summary, the three pincer-type monoanionic tridentate C2-symmetric BOXMI-H-ligated rare-earth metal dialkyl complexes 1–3 have been easily synthesized in moderate yields via one-pot acid–base reaction by using the rare-earth metal tris(trimethylsilylmethyl) complexes with the readily available BOXMI-H ligand. The X-ray diffractions demonstrated that the complexes 1 and 2 are isomorphous and isostructural and that each of them adopt a distorted trigonal bipyramidal configuration. Activated by the activators ([Ph3C][B(C6F5)4] (A), [PhMe2NH][B(C6F5)4] (B) and B(C6F5)3 (C)) and AlR3 (R = Me, Et and iBu) in toluene, these pincer-type BOXMI-ligated complexes 1–3 exhibited high activities of up to 6.8 × 104 (g of polymer)/(molLn h) and high cis-1,4 selectivities of up to 97% in the polymerization of isoprene, affording cis-1,4-PIPs with heavy molecular weights (Mn of up to 710,000 g/mol) and bimodal molecular weight distributions (Mw/Mn = 2.0–4.5). In comparison with the trans-1,4-PIPs obtained by the (S,S)-bis(oxazolinylphenyl)amine-ligated rare-earth metal dialkyl complexes [38] and the cis-1,4-PIPs obtained by the 1,3-bis(2-pyridylimino)isoindoline-ligated rare-earth metal dialkyl complexes [39], such results demonstrate that the main body skeleton of the chelating ligand has a more important impact on the catalytic performance of these pincer-type rare-earth metal dialkyl complexes in the IP polymerization. Moreover, the rare-earth metal dialkyl complexes bearing the pincer-type chelating ligand with the rigid skeleton and the bulky substituents are not good for the cis-1,4-polymerization of IP. These findings will benefit the design of the high-efficiency and selective catalysts, as well as the rapid and precise synthesis of natural rubber. Further studies will be focused on the modification of the chelating ligand to improve the selectivity and/or activity of the rare-earth metal catalytic system in the cis-1,4-polymerization of isoprene.

Supplementary Materials

The following are available online at www.mdpi.com/2073-4360/9/10/531/s1, Figure S1: 1H NMR spectrum of ligand 6; Figure S2: 1H NMR spectrum of ligand 5; Figure S3: 1H NMR spectrum of ligand 4; Figure S4: 1H NMR spectrum of the complex of 1; Figure S5: 13C NMR spectrum of the complex of 1; Figure S6: 1H NMR spectrum of the complex of 2; Figure S7: 13C NMR spectrum of the complex of 2; Figure S8: 1H NMR spectrum of the complex of 3; Figure S9: 13C NMR spectrum of the complex of 3; Figure S10. 1H NMR spectra of the PIPs by complexes 1-3/AlR3/Borate systems in Table 2; Figure S11: 13C NMR spectra of the PIPs by complexes 1-3/AlR3/Borate systems in Table 2; Figure S12: GPC profiles of the PIPs by complexes 1/AliBu3/[Ph3C][B(C6F5)4] systems in Table 2, entry1; Figure S13: GPC profiles of the PIPs by complexes 1/AliBu3/[PhMe2NH][B(C6F5)4] systems in Table 2, entry 2; Figure S14: GPC profiles of the PIPs by complexes 1/AlEt3/[Ph3C][B(C6F5)4] systems in Table 2, entry 4; Figure S15: GPC profiles of the PIPs by complexes 1/AlEt3/[PhMe2NH][B(C6F5)4] systems in Table 2, entry 5; Figure S16: GPC profiles of the PIPs by complexes 1/AlMe3/[Ph3C][B(C6F5)4] systems in Table 2, entry 6; Figure S17: GPC profiles of the PIPs by complexes 2/AliBu3/[Ph3C][B(C6F5)4] systems in Table 2, entry 7; Figure S18: GPC profiles of the PIPs by complexes 2/AliBu3/[PhMe2NH][B(C6F5)4] systems in Table 2, entry 8; Figure S19: GPC profiles of the PIPs by complexes 3/AliBu3/[Ph3C][B(C6F5)4] systems in Table 2, entry 9; Figure S20. GPC profiles of the PIPs by complexes 3/AliBu3/[PhMe2NH][B(C6F5)4] systems in Table 2, entry 10; Figure S21: GPC profiles of the PIPs by complexes 3/AliBu3/[Ph3C][B(C6F5)4] systems at 0 °C in Table 2, entry11; Figure S22: GPC profiles of the PIPs by complexes 3/AliBu3/[Ph3C] [B(C6F5)4] systems at –20 °C in Table 2, entry 12 Figure S23: GPC profiles of the PIPs by complexes 3/AliBu3/[Ph3C][B(C6F5)4] systems at 50 °C in Table 2, entry13; Figure S24: GPC profiles of the PIPs by complexes 3/AliBu3/[Ph3C][B(C6F5)4] systems at 70 °C in Table 2, entry 14; Figure S25: DSC charts of the PIPs by complexes 1/AliBu3/[Ph3C][B(C6F5)4] systems in Table 2, entry 1; Figure S26: DSC charts of the PIPs by complexes 2/AliBu3/[PhMe2NH][B(C6F5)4] systems in Table 2, entry 2; Figure S27: DSC charts of the PIPs by the 2/AlEt3/[Ph3C][B(C6F5)4] systems in Table 2, entry 4; Figure S28: DSC charts of the PIPs by the 2/AlEt3/[PhMe2NH][B(C6F5)4] systems in Table 2, entry 5; Figure S29: DSC charts of the PIPs by the 3/AliBu3/[Ph3C][B(C6F5)4] systems at 0 °C in Table 2, entry 11; Figure S30. DSC charts of the PIPs by the 3/AliBu3/[PhMe2NH][B(C6F5)4] systems at –20 °C in Table 2, entry 12; Table S1: Crystal data, data collection and processing parameters for complexes 1 and 2.

Acknowledgments

This study was partially supported by the National Natural Science Foundation of China (nos. 20974014, 21274012, 21322401, and 21774014) and by the 111 project (B07012).

Author Contributions

Xiaofang Li conceived and designed the experiments; Chao Yu and Dahai Zhou performed the experiments and analyzed the data; Fei Gao, Xiangqian Yan, Li Zhang and Shaowen Zhang contributed reagents/materials/analysis tools; Chao Yu and Xiaofang Li wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Li, T.S.; Jenter, J.; Roesky, P.W. Rare Earth Metal Postmetallocene Catalysts with Chelating Amido Ligands. Struct. Bond. 2010, 137, 165–228. [Google Scholar]
  2. Piers, W.E.; Emslie, D.J.H. Non-cyclopentadienyl ancillaries in organogroup 3 metal chemistry: A fine balance in ligand design. Coord. Chem. Rev. 2002, 233, 131–155. [Google Scholar] [CrossRef]
  3. Gromada, J.; Carpentier, J.-F.; Mortreux, A. Group 3 metal catalysts for ethylene and α-olefin polymerization. Coord. Chem. Rev. 2004, 248, 397–410. [Google Scholar] [CrossRef]
  4. Kirillov, E.; Saillard, J.-Y.; Carpentier, J.-F. Groups 2 and 3 metal complexes incorporating fluorenyl ligands. Coord. Chem. Rev. 2005, 249, 1221–1248. [Google Scholar] [CrossRef]
  5. Zeimentz, P.M.; Arndt, S.; Elvidge, B.R.; Okuda, J. Cationic Organometallic Complexes of Scandium, Yttrium, and the Lanthanoids. Chem. Rev. 2006, 106, 2404–2433. [Google Scholar] [CrossRef] [PubMed]
  6. Edelmann, F.T. Lanthanide amidinates and guanidinates in catalysis and materials science: A continuing success story. Chem. Soc. Rev. 2012, 41, 7657–7672. [Google Scholar] [CrossRef] [PubMed]
  7. Nishiura, M.; Guo, F.; Hou, Z. Half-Sandwich rare earth catalyzed olefin polymerization, carbometalation, and hydroarylation. Acc. Chem. Res. 2015, 48, 2209–2220. [Google Scholar] [CrossRef] [PubMed]
  8. Edelmann, F.T. Lanthanides and actinides: Annual survey of their organometallic chemistry covering the year 2014. Coord. Chem. Rev. 2016, 306, 346–419. [Google Scholar] [CrossRef]
  9. Edelmann, F.T. Lanthanides and actinides: Annual survey of their organometallic chemistry covering the year 2015. Coord. Chem. Rev. 2016, 318, 29–130. [Google Scholar] [CrossRef]
  10. Edelmann, F.T. Lanthanides and actinides: Annual survey of their organometallic chemistry covering the year 2016. Coord. Chem. Rev. 2017, 338, 27–140. [Google Scholar] [CrossRef]
  11. Nishiura, M.; Hou, Z. Novel polymerization catalysts and hydride clusters from rare earth metal dialkyls. Nat. Chem. 2010, 2, 257–268. [Google Scholar] [CrossRef] [PubMed]
  12. Shen, Z.; Ouyang, J.; Wang, F.; Hu, Z.; Yu, F.; Qian, B.J. The characteristics of lanthanide coordination catalysts and the cis-polydienes prepared therewith. J. Polym. Sci. Polym. Chem. Ed. 1980, 18, 3345–3357. [Google Scholar]
  13. Kwag, G.; Lee, H.; Kim, S. First in-Situ Observation of Pseudoliving Character and Active Site of Nd-Based Catalyst for 1,3-Butadiene Polymerization Using Synchrotron X-ray Absorption and UV-Visible Spectroscopies. Macromolecules 2001, 34, 5367–5369. [Google Scholar] [CrossRef]
  14. Evans, W.J.; Giarikos, D.G.; Ziller, J.W. Lanthanide Carboxylate Precursors for Diene Polymerization Catalysis: Syntheses, Structures, and Reactivity with Et2AlCl. Organometallics 2001, 20, 5751–5758. [Google Scholar] [CrossRef]
  15. Evans, W.J.; Giarikos, D.G. Chloride Effects in Lanthanide Carboxylate Based Isoprene Polymerization. Macromolecules 2004, 37, 5130–5132. [Google Scholar] [CrossRef]
  16. Fischbach, A.; Klimpel, M.G.; Widenmeyer, M.; Herdtweck, E.; Scherer, W.; Anwander, R. Stereospecific polymerization of isoprene with molecular and MCM-48-grafted lanthanide(III) tetraalkylaluminates. Angew. Chem. Int. Ed. 2004, 43, 2234–2239. [Google Scholar] [CrossRef] [PubMed]
  17. Arndt, S.; Beckerle, K.; Zeimentz, P.M.; Spaniol, T.P.; Okuda, J. Cationic yttrium methyl complexes as functional models for polymerization catalysts of 1,3-dienes. Angew. Chem. Int. Ed. 2005, 44, 7473–7477. [Google Scholar] [CrossRef] [PubMed]
  18. Ajellal, N.; Furlan, L.; Thomas, C.M.; Casagrande, O.L.; Carpentier, J.-F. Mixed Aluminum-Magnesium-Rare Earth Allyl Catalysts for Controlled Isoprene Polymerization: Modulation of Stereocontrol. Macromol. Rapid Commun. 2006, 27, 338–343. [Google Scholar] [CrossRef]
  19. Fischbach, A.; Perdih, F.; Herdtweck, E.; Anwander, R. Structure-Reactivity Relationships in Rare-Earth Metal Carboxylate-Based Binary Ziegler-Type Catalysts. Organometallics 2006, 25, 1626–1642. [Google Scholar] [CrossRef]
  20. Meermann, C.; Tornroos, K.W.; Nerdal, W.; Anwander, R. Rare-earth metal mixed chloro/methyl compounds: heterogeneous-homogeneous borderline catalysts in 1,3-diene polymerization. Angew. Chem. Int. Ed. 2007, 46, 6508–6513. [Google Scholar] [CrossRef] [PubMed]
  21. Zhang, L.; Nishiura, M.; Yuki, M.; Luo, Y.; Hou, Z. Isoprene polymerization with yttrium amidinate catalysts: switching the regio- and stereoselectivity by addition of AlMe3. Angew. Chem. Int. Ed. 2008, 47, 2642–2645. [Google Scholar] [CrossRef] [PubMed]
  22. Jian, Z.; Cui, D.; Hou, Z.; Li, X. Living catalyzed-chain-growth polymerization and block copolymerization of isoprene by rare earth metal allyl precursors bearing a constrained-geometry-conformation ligand. Chem. Commun. 2010, 46, 3022–3024. [Google Scholar] [CrossRef] [PubMed]
  23. Li, L.; Wu, C.; Liu, D.; Li, S.; Cui, D. Binuclear Rare-Earth-Metal Alkyl Complexes Ligated by Phenylene-Bridged β-Diketiminate Ligands: Synthesis, Characterization, and Catalysis toward Isoprene Polymerization. Organometallics 2013, 32, 3203–3209. [Google Scholar] [CrossRef]
  24. Zhang, J.; Hao, Z.; Gao, W.; Xin, L.; Zhang, L.; Mu, Y. Y, Lu, and Gd complexes of NCO/NCS pincer ligands: synthesis, characterization, and catalysis in the cis-1,4-selective polymerization of isoprene. Chem. Asian J. 2013, 8, 2079–2087. [Google Scholar] [CrossRef] [PubMed]
  25. Zhang, G.; Wang, S.; Zhou, S.; Wei, Y.; Guo, L.; Zhu, X.; Zhang, L.; Gu, X.; Mu, X. Synthesis and Reactivity of Rare-Earth-Metal Monoalkyl Complexes Supported by Bidentate Indolyl Ligands and Their High Performance in Isoprene 1,4-cis Polymerization. Organometallics 2015, 34, 4251–4261. [Google Scholar] [CrossRef]
  26. Zhang, G.; Wei, Y.; Guo, L.; Zhu, X.; Wang, S.; Zhou, S.; Mu, X. Dinuclear rare-earth metal alkyl complexes supported by indolyl ligands in μ-η211 hapticities and their high catalytic activity for isoprene 1,4-cis-polymerization. Chem. Eur. J. 2015, 21, 2519–2526. [Google Scholar] [CrossRef] [PubMed]
  27. Zhang, G.; Deng, B.; Wang, S.; Wei, Y.; Zhou, S.; Zhu, X.; Huang, Z.; Mu, X. Di and trinuclear rare-earth metal complexes supported by 3-amido appended indolyl ligands: synthesis, characterization and catalytic activity towards isoprene 1,4-cis polymerization. Dalton Trans. 2016, 45, 15445–15456. [Google Scholar] [CrossRef] [PubMed]
  28. Trifonov, A.A.; Lyubov, D.M. A quarter-century long story of bis(alkyl) rare-earth (III) complexes. Coord. Chem. Rev. 2017, 340, 10–61. [Google Scholar] [CrossRef]
  29. Peng, D.; Yan, X.; Yu, C.; Zhang, S.; Li, X. Transition metal complexes bearing tridentate ligands for precise olefin polymerization. Polym. Chem. 2016, 7, 2601–2634. [Google Scholar] [CrossRef]
  30. Dagorne, S.; Fliedel, C. Modern Organoaluminium Reagents. Top. Organomet. Chem. 2013, 41, 125–172. [Google Scholar]
  31. Zhang, L.; Suzuki, T.; Luo, Y.; Nishiura, M.; Hou, Z. Cationic alkyl rare earth metal complexes bearing an ancillary bis(phosphinophenyl)amido ligand: A catalytic system for living cis-1,4-polymerization and copolymerization of isoprene and butadiene. Angew. Chem. Int. Ed. 2007, 46, 1909–1913. [Google Scholar] [CrossRef] [PubMed]
  32. Gao, W.; Cui, D. Highly cis-1,4 Selective Polymerization of Dienes with Homogeneous Ziegler-Natta Catalysts Based on NCN-Pincer Rare Earth Metal Dichloride Precursors. J. Am. Chem. Soc. 2008, 130, 4984–4991. [Google Scholar] [CrossRef] [PubMed]
  33. Lv, K.; Cui, D. CCC-Pincer Bis(carbene) Lanthanide Dibromides. Catalysis on Highly cis-1,4-Selective Polymerization of Isoprene and Active Species. Organometallics 2010, 29, 2987–2993. [Google Scholar] [CrossRef]
  34. Wang, L.; Cui, D.; Hou, Z.; Li, W.; Li, Y. Highly Cis-1,4-Selective Living Polymerization of 1,3-Conjugated Dienes and Copolymerization with ε-Caprolactone by Bis(phosphino)carbazolide Rare-Earth-Metal Complexes. Organometallics 2011, 30, 760–767. [Google Scholar] [CrossRef]
  35. Wang, L.; Liu, D.; Cui, D. NNN-Tridentate Pyrrolyl Rare-Earth Metal Complexes: Structure and Catalysis on Specific Selective Living Polymerization of Isoprene. Organometallics 2012, 31, 6014–6021. [Google Scholar] [CrossRef]
  36. Pan, Y.; Xu, T.; Yang, G.W.; Jin, K.; Lu, X.B. Bis(oxazolinyl)phenyl-ligated rare-earth-metal complexes: highly regioselective catalysts for cis-1,4-polymerization of isoprene. Inorg. Chem. 2013, 52, 2802–2808. [Google Scholar] [CrossRef] [PubMed]
  37. Yang, Y.; Li, S.; Cui, D.; Chen, X.; Jing, X. Pyrrolide-Ligated Organoyttrium Complexes. Synthesis, Characterization, and Lactide Polymerization Behavior. Organometallics 2007, 26, 671–678. [Google Scholar] [CrossRef]
  38. Liu, H.; He, J.; Liu, Z.; Lin, Z.; Du, G.; Zhang, S.; Li, X. Quasi-Living trans-1,4-Polymerization of Isoprene by Cationic Rare Earth Metal Alkyl Species Bearing a Chiral (S,S)-Bis(oxazolinylphenyl)amido Ligand. Macromolecules 2013, 46, 3257–3265. [Google Scholar] [CrossRef]
  39. Zhang, P.; Liao, H.; Wang, H.; Li, X.; Yang, F.; Zhang, S. Cis-1,4-Polymerization of Isoprene Catalyzed by 1,3-Bis(2-pyridylimino)isoindoline-Ligated Rare-Earth-Metal Dialkyl Complexes. Organometallics 2017, 36, 2446–2451. [Google Scholar] [CrossRef]
  40. Deng, Q.H.; Wadepohl, H.; Gade, L.H. The Synthesis of a New Class of Chiral Pincer Ligands and Their Applications in Enantioselective Catalytic Fluorinations and the Nozaki–Hiyama–Kishi Reaction. Chem. Eur. J. 2011, 17, 14922–14928. [Google Scholar] [CrossRef] [PubMed]
  41. Deng, Q.H.; Wadepohl, H.; Gade, L.H. Highly enantioselective copper-catalyzed alkylation of beta-ketoesters and subsequent cyclization to spirolactones/bi-spirolactones. J. Am. Chem. Soc. 2012, 134, 2946–2949. [Google Scholar] [CrossRef] [PubMed]
  42. Deng, Q.H.; Bleith, T.; Wadepohl, H.; Gade, L.H. Enantioselective iron-catalyzed azidation of beta-keto esters and oxindoles. J. Am. Chem. Soc. 2013, 135, 5356–5359. [Google Scholar] [CrossRef] [PubMed]
  43. Bleith, T.; Wadepohl, H.; Gade, L.H. Iron Achieves Noble Metal Reactivity and Selectivity: Highly Reactive and Enantioselective Iron Complexesas Catalysts in the Hydrosilylation of Ketones. J. Am. Chem. Soc. 2015, 137, 2456–2459. [Google Scholar] [CrossRef] [PubMed]
  44. Li, X.; Nishiura, M.; Hu, L.; Mori, k.; Hou, Z. Alternating and Random Copolymerization of Isoprene and Ethylene Catalyzed by Cationic Half-Sandwich Scandium Alkyls. J. Am. Chem. Soc. 2009, 131, 13870–13882. [Google Scholar] [CrossRef] [PubMed]
  45. Du, G.; Wei, Y.; Ai, L.; Chen, Y.; Xu, Q.; Liu, X.; Zhang, S.; Hou, Z.; Li, X. Living 3,4-Polymerization of Isoprene by Cationic Rare Earth Metal Alkyl Complexes Bearing Iminoamido Ligands. Organometallics 2011, 30, 160–170. [Google Scholar] [CrossRef]

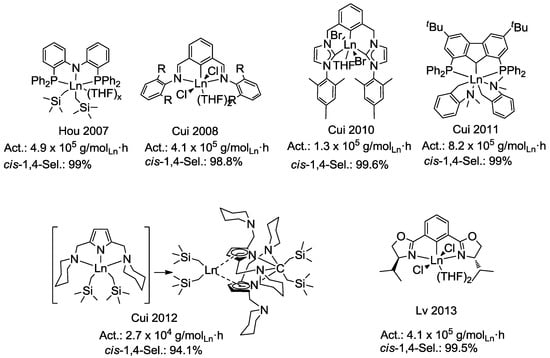

Chart 1. The previous pincer-type rare-earth metal catalysts bearing tridentate C2-symmetric chelating ligand.
Chart 1. The previous pincer-type rare-earth metal catalysts bearing tridentate C2-symmetric chelating ligand.
Polymers 09 00531 ch001

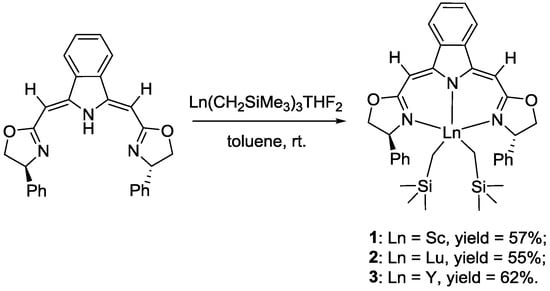

Scheme 1. Synthesis of BOXMI-H-ligated rare-earth metal dialkyl complexes 1–3. BOXMI: 1,3-bis(oxazolinymethylidene)isoindoline.
Scheme 1. Synthesis of BOXMI-H-ligated rare-earth metal dialkyl complexes 1–3. BOXMI: 1,3-bis(oxazolinymethylidene)isoindoline.
Polymers 09 00531 sch001

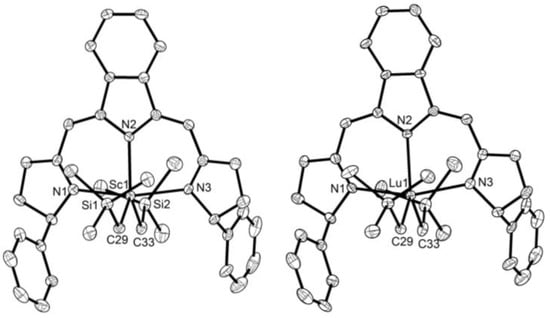

Figure 1. ORTEP drawings of complexes 1 and 2 with thermal ellipsoids of a 30% probability. Hydrogen atoms are omitted for clarity. ORTEP: Oak Ridge Thermal Ellipsoid Plot.
Figure 1. ORTEP drawings of complexes 1 and 2 with thermal ellipsoids of a 30% probability. Hydrogen atoms are omitted for clarity. ORTEP: Oak Ridge Thermal Ellipsoid Plot.
Polymers 09 00531 g001

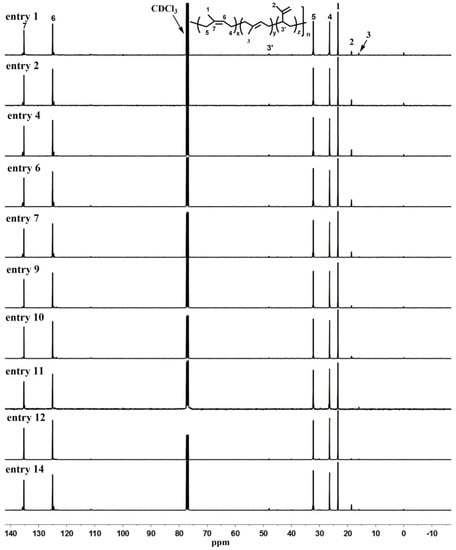

Figure 2. 13C NMR spectra of the polyisoprenes by complexes 1–3/AlR3/borate systems in Table 2.
Figure 2. 13C NMR spectra of the polyisoprenes by complexes 1–3/AlR3/borate systems in Table 2.
Polymers 09 00531 g002
Table 1. Selected bond distances (Å) and angles (deg) of complexes 1 and 2.
Table 1. Selected bond distances (Å) and angles (deg) of complexes 1 and 2.
Bond Lengths and Bond Angles12
Ln−N12.272(4)2.345(4)
Ln−N22.228(3)2.313(4)
Ln−N32.274(4)2.351(4)
Ln−C292.235(4)2.329(5)
Ln−C332.241(4)2.333(5)
N1−Ln−N3166.9(1)161.8(1)
N2−Ln−N183.8(1)81.1(1)
N2−Ln−N383.9(1)81.4(1)
N2−Ln−C29118.9(1)118.9(1)
N2−Ln−C33126.3(2)126.3(4)
C29−Ln−N198.3(2)100.5(2)
C29−Ln−N391.6(2)92.2(3)
C29−Ln−C33114.8(2)114.7(2)
C33−Ln−N188.3(1)89.1(2)
C33−Ln−N395.4(1)97.4(8)
Table 2. cis-1,4-Polymerization of isoprene by complexes 1–3/activator/AlR3 ternary systems. a
Table 2. cis-1,4-Polymerization of isoprene by complexes 1–3/activator/AlR3 ternary systems. a
Polymers 09 00531 i001
EntryComp.Borate bAlR3t
(h)
T
(°C)
Y
(%)
A cMicrostructure (%) dMn e
(104)
Mw/Mn eTg f
(°C)
c-1,4-t-1,4-3,4-
11AAliBu30.525852387211712.00−58
21BAliBu342596387013322.75−60
31CAliBu31225
41AAlEt342593388012163.18−59
51BAlEt342586388012133.21−62
61AAlMe36259228911084.31−58
72AAliBu342593387013113.72−59
82BAliBu34258538801284.51
93AAliBu32259269307161.87−63
103BAliBu342585390010103.36−61
113AAliBu3208269505252.32−62
123AAliBu32−208059712351.83−65
133AAliBu30.550932587013162.87−61
143AAliBu30.570996885213203.31−59
a Conditions unless specified otherwise: 20 μmol of Ln complex, 20 μmol of activator, 10 equiv. of AlR3, 4 mmol of isoprene, and 8 mL of toluene. b Activator: A = [Ph3C][B(C6F5)4]; B = [PhNHMe2][B(C6F5)4]; C = B(C6F5)3. c Activity in (kg of polymer)/(molLn h). d Determined by 1H and 13C NMR spectrum: c-1,4, cis-1.4 selectivity; t-1,4, trans-1.4 selectivity; 3,4, 3,4 selectivity. e Determined by gel permeation chromatography (GPC) in THF at 40 °C against polystyrene standard. f Measured by differential scanning calorimetry (DSC). g 10 mmol of isoprene.
