Thermally Stable Bulk Heterojunction Prepared by Sequential Deposition of Nanostructured Polymer and Fullerene
Abstract

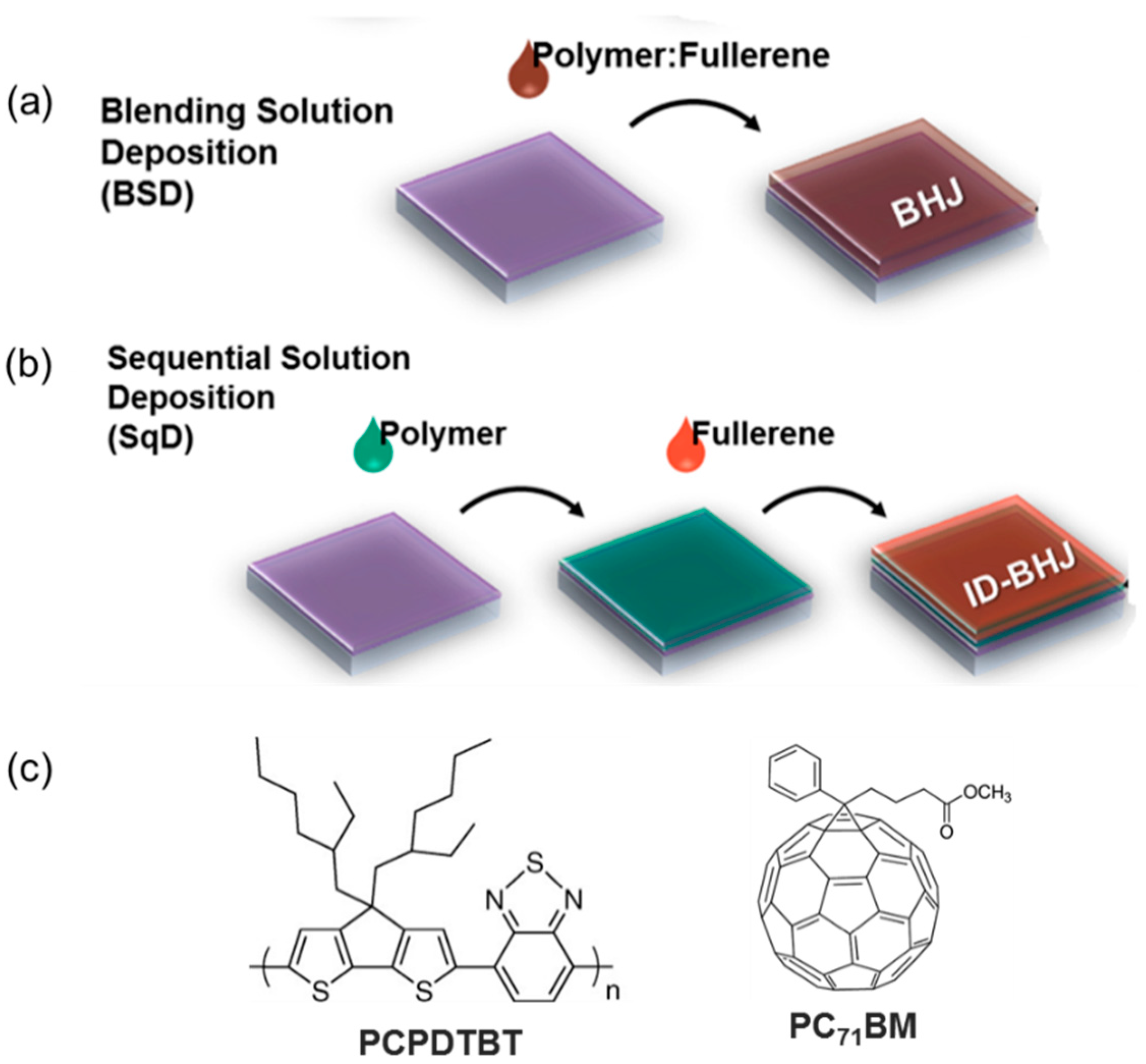

:1. Introduction
2. Experimental Section
2.1. Device Fabrication
2.2. Film Characterization
2.3. Device Characterization

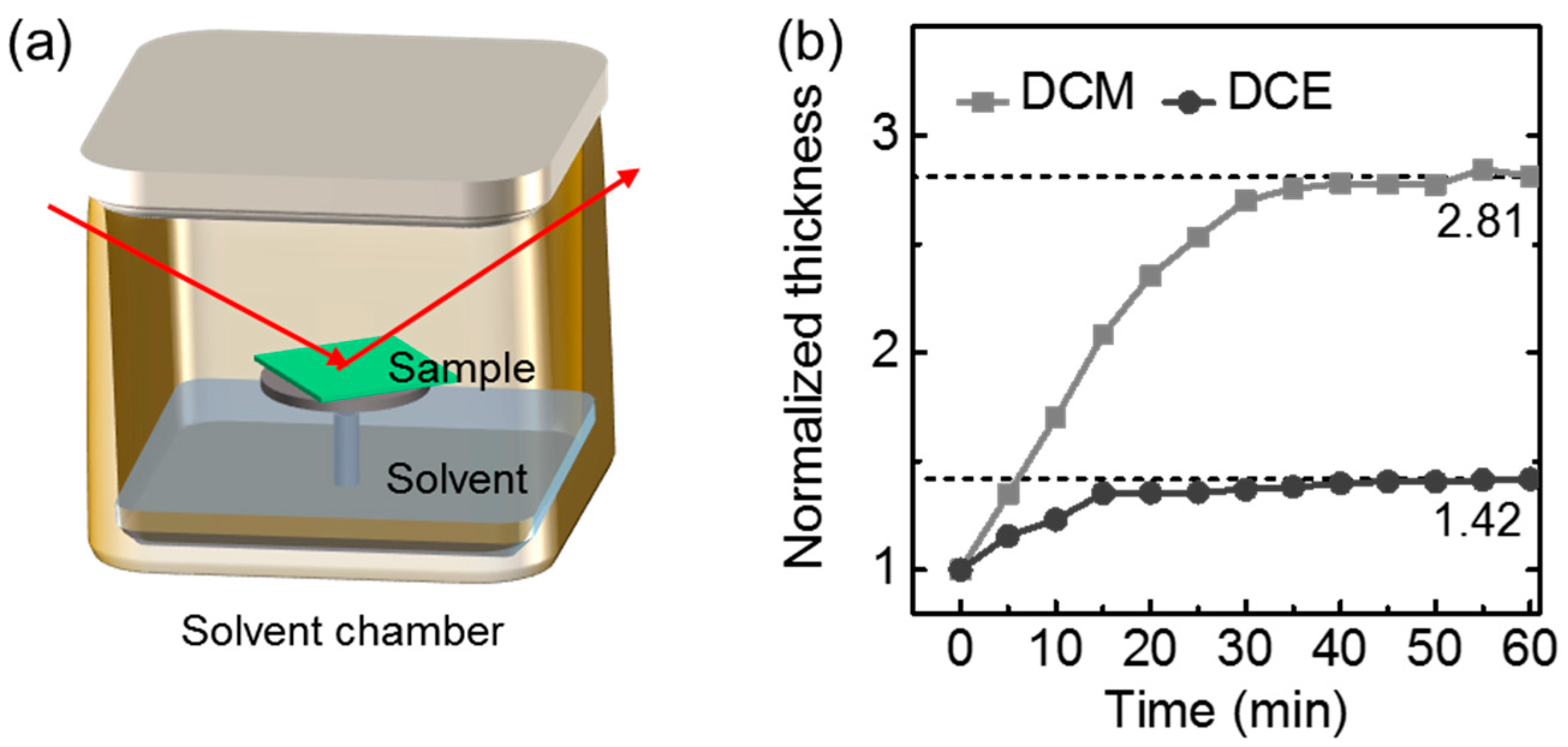

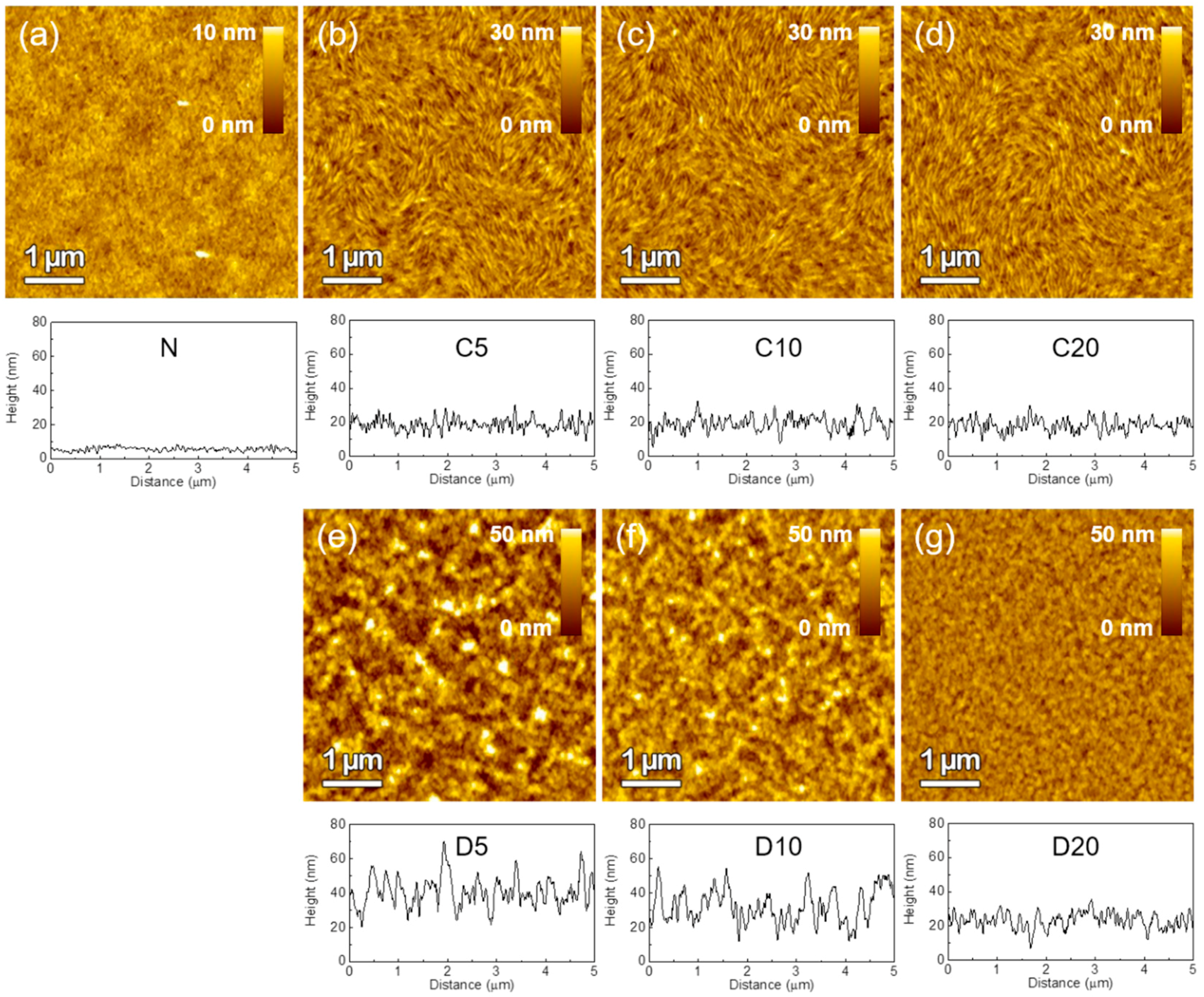

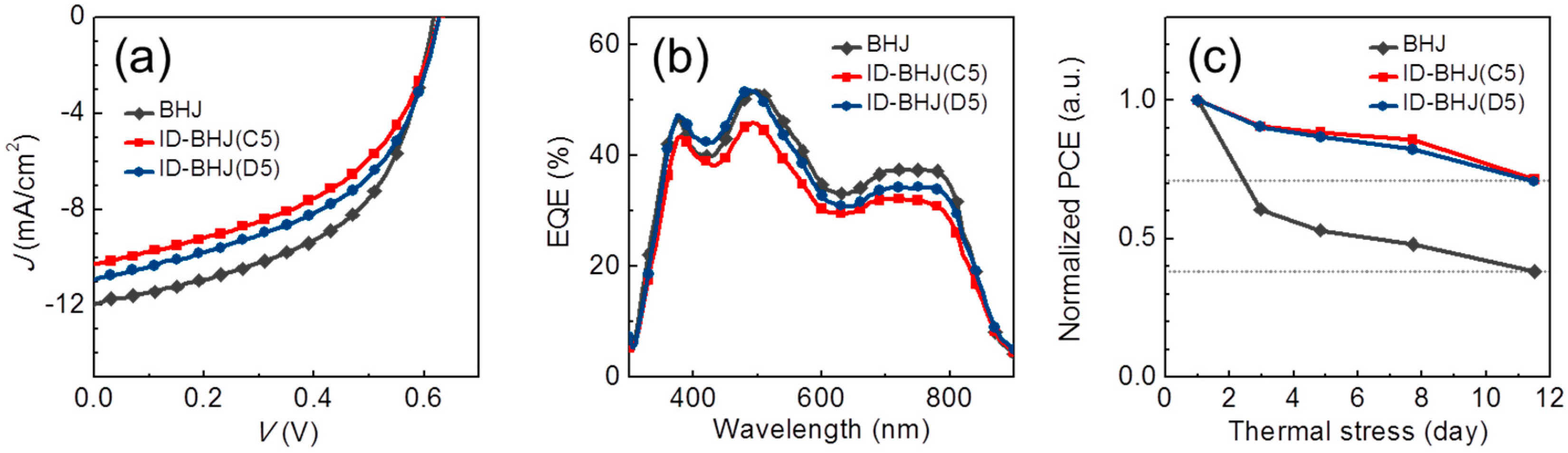

3. Results and Discussion
4. Conclusions
Supplementary Materials
Acknowledgments
Author Contributions
Conflicts of Interest
Abbreviations
AFM | atomic force microscopy |
BHJ | bulk heterojunction |
BSD | blended solution deposition |
CB | chlorobenzene |
CN | 1-chloronaphthalene |
DCE | 1,2-dichloroethane |
DCM | dichloromethane |
DIM | diiodomethane |
DIO | 1,8-diiodooctane |
DPE | diphenyl ether |
EQE | external quantum efficiency |
GIWAXS | grazing-incidence wide-angle X-ray scattering |
ID-BHJ | inter-diffused bilayer |
IP | in-plane |
IPCE | incident photon-to-current efficiency |
ITO | indium tin oxide |
OA | ordering agent |
OOP | out-of-plane |
OPV | organic photovoltaics |
PC71BM | phenyl-C71-butyric-acid-methyl ester |
PCE | power conversion efficiency |
PCPDTBT | poly[2,6-(4,4-bis-(2-ethylhexyl)-4H-cyclopenta [2,1-b;3,4-b′]dithiophene)-alt-4,7(2,1,3-benzothiadiazole)] |
PEDOT:PSS | poly(3,4-ethylenedioxythiophene) doped with poly(styrene sulfonate) |
PVDF | polyvinylidene fluoride |
SCLC | space-charge-limited current |
SqD | sequential deposition |
References
