Impact of Tumour Hypoxia on Evofosfamide Sensitivity in Head and Neck Squamous Cell Carcinoma Patient-Derived Xenograft Models

by
Julia K. Harms
1,
Tet-Woo Lee
1,2,
Tao Wang
1,
Amy Lai
1,3,
Dennis Kee
4,
John M. Chaplin
5,
Nick P. McIvor
5,
Francis W. Hunter
1,2,
Andrew M. J. Macann
6,
William R. Wilson
1,2 and
Stephen M.F. Jamieson
1,2,3,*
1
Auckland Cancer Society Research Centre, University of Auckland, Auckland 1023, New Zealand
2
Maurice Wilkins Centre for Molecular Biodiscovery, University of Auckland, Auckland 1010, New Zealand
3
Department of Pharmacology and Clinical Pharmacology, University of Auckland, Auckland 1023, New Zealand
4
LabPLUS, Auckland City Hospital, Auckland 1023, New Zealand
5
Department of Otolaryngology–Head and Neck Surgery, Auckland City Hospital, Auckland 1023, New Zealand
6
Department of Radiation Oncology, Auckland City Hospital, Auckland 1023, New Zealand
*
Author to whom correspondence should be addressed.
Cells 2019, 8(7), 717; https://doi.org/10.3390/cells8070717
Submission received: 20 June 2019 / Revised: 11 July 2019 / Accepted: 11 July 2019 / Published: 13 July 2019
(This article belongs to the Special Issue Patient-Derived Cancer Models from Basic Study to Clinical Application)
Browse Figures
Versions Notes

Abstract

:
Tumour hypoxia is a marker of poor prognosis and failure of chemoradiotherapy in head and neck squamous cell carcinoma (HNSCC), providing a strategy for therapeutic intervention in this setting. To evaluate the utility of the hypoxia-activated prodrug evofosfamide (TH-302) in HNSCC, we established ten early passage patient-derived xenograft (PDX) models of HNSCC that were characterised by their histopathology, hypoxia status, gene expression, and sensitivity to evofosfamide. All PDX models closely resembled the histology of the patient tumours they were derived from. Pimonidazole-positive tumour hypoxic fractions ranged from 1.7–7.9% in line with reported HNSCC clinical values, while mRNA expression of the Toustrup hypoxia gene signature showed close correlations between PDX and matched patient tumours, together suggesting the PDX models may accurately model clinical tumour hypoxia. Evofosfamide as a single agent (50 mg/kg IP, qd × 5 for three weeks) demonstrated antitumour efficacy that was variable across the PDX models, ranging from complete regressions in one p16-positive PDX model to lack of significant activity in the three most resistant models. Despite all PDX models showing evidence of tumour hypoxia, and hypoxia being essential for activation of evofosfamide, the antitumour activity of evofosfamide only weakly correlated with tumour hypoxia status determined by pimonidazole immunohistochemistry. Other candidate evofosfamide sensitivity genes—MKI67, POR, and SLFN11—did not strongly influence evofosfamide sensitivity in univariate analyses, although a weak significant relationship with MKI67 was observed, while SLFN11 expression was lost in PDX tumours. Overall, these data confirm that evofosfamide has antitumour activity in clinically-relevant PDX tumour models of HNSCC and support further clinical evaluation of this drug in HNSCC patients. Further research is required to identify those factors that, alongside hypoxia, can influence sensitivity to evofosfamide and could act as predictive biomarkers to support its use in precision medicine therapy of HNSCC.

1. Introduction

Hypoxia, a deficiency in oxygen in tissues, arises selectively in tumours through inefficient blood flow and oxygen delivery as a result of the irregular and dysfunctional vasculature that forms as tumours grow [1,2,3], as well as through oxygen consumption in tumours [4,5] and adaptations to survive under severe hypoxia [6]. Tumour hypoxia promotes cancer progression through hypoxia-induced factor (HIF)-dependent signalling [7], the unfolded protein response [8] and epigenetic regulation [9,10] leading to cell survival, invasiveness and metastasis [11]. Hypoxic cells are resistant to radiotherapy, which requires oxygen to induce DNA double-strand breaks [1] and to many chemotherapy drugs through multiple mechanisms including cell cycle arrest [12], protection from apoptosis [13,14], and limited penetration into hypoxic regions of tumours [15,16]. Hypoxia can also limit the activity of immunotherapy drugs by activating immune checkpoints [17], recruiting regulatory T cells [18], and suppressing T-cell function [19].
The evidence supporting hypoxia as an oncology target is strongest in head and neck squamous cell carcinoma (HNSCC), where hypoxia is a marker of poor prognosis and failure of chemoradiotherapy [20,21,22,23,24]. HNSCC comprises >90% of primary tumours within the head and neck region [25], which collectively are the 7th most common cancer presentations and cause of cancer-related deaths worldwide [26]. Major risk factors for HNSCC include human papilloma virus (HPV) infection [27] and smoking and alcohol use [28,29]. HPV-positive disease generally has a favourable prognosis. However, for HPV-negative disease, patient survival has not markedly improved in recent decades and is limited by locoregional failure, metastases, and resistance to therapy.
Multiple strategies have been developed to target tumour hypoxia, including the use of hypoxia-activated prodrugs (HAPs) that are designed to selectively target tumours over healthy tissues [11]. HAPs are activated by enzymatic reduction in the absence of oxygen to selectively release cytotoxins [30,31,32,33,34] or molecularly-targeted agents [35,36,37] within hypoxic regions of tumours that can potentially diffuse out to act on neighbouring oxygenated tumour cells to provide a bystander effect [38]. Evofosfamide (TH-302) is the most clinically-evaluated HAP and has demonstrated evidence of antitumour activity in preclinical models [39,40,41,42,43,44,45], and in patients [46,47,48], including in HNSCC [49].
Hypoxia is a well-characterised determinant of sensitivity for HAPs [11,50]. Evofosfamide requires the presence of hypoxia to be converted to its active effectors: the potent DNA-crosslinker bromo-iso-phosphoramide mustard (Br-IPM) and its chloro-displacement product chloro-iso-phosphoramide mustard [51,52], as under aerobic conditions the initial nitro radical intermediate in this reduction pathway is rapidly oxidised back to the inactive prodrug. Additional markers of sensitivity to evofosfamide have been proposed. These include: POR (NADPH:cytochrome P450 oxidoreductase), which has been reported to catalyse the one-electron reduction of evofosfamide selectively under hypoxia to form Br-IPM [51,52,53]; proliferation markers, since a proliferation metagene can predict evofosfamide sensitivity in HNSCC cell lines in vitro [49] and DNA damage response and mitochondrial electron transport genes (e.g., SLFN11, YME1L1), identified as evofosfamide sensitivity genes through functional genomic screens [54].
We have previously demonstrated antitumour activity of evofosfamide in a small number of cell line xenograft and patient-derived xenograft (PDX) models of HNSCC in combination with radiotherapy and to a lesser extent as a single agent [49]. Here we establish additional PDX models of HNSCC and evaluate them for their hypoxia status and evofosfamide antitumour efficacy to determine the extent to which tumour hypoxia controls sensitivity to evofosfamide in HNSCC. Furthermore, we evaluate the expression of candidate evofosfamide sensitivity genes, POR, SLFN11 and the proliferation marker and metagene constituent MKI67 for their impact on evofosfamide sensitivity on our HNSCC PDX models.

2. Materials and Methods

2.1. Animals

Six to eight-week-old female NOD scid gamma (NSG; NOD.Cg-Prkdcscid Il2rγtm1Wjl/SzJ; Jackson Laboratories), NOD scid (NOD.CB17- Prkdcscid/NCrCrl; Charles River) or NIH-III (NIH-Lystbg-J Foxn1nu Btkxid; Charles River) mice were used as hosts for the generation of PDX models. All animals had ad libitum access to food and water in microisolator cages and were maintained on a 12 h light/dark cycle. Animal health and welfare was monitored regularly with animals culled if their condition deteriorated or if they lost in excess of 20% of their pre-manipulation bodyweight. Tumour volume was recorded by electronic callipers using the formula π/6 × width × length2. All animal experiments followed procedures approved by the University of Auckland Animal Ethics Committee (approvals: #001190 and #001781).

2.2. PDX Models

The collection of patient tumour specimens for PDX engraftment was approved by the New Zealand Health and Disability Ethics Committee (approval: 14/NTB/122) and the Auckland District Health Board. Tumour specimens from consenting patients undergoing surgery at Auckland City Hospital were histologically confirmed to be HNSCC via tumour biopsy with HPV status inferred by p16 immunohistochemistry, as described previously [55]. For PDX model generation, p16-negative tumours were preferred. Tumours were collected in Hanks Balanced Salt Solution (Thermo Fisher Scientific, Auckland, New Zealand) supplemented with 10% foetal calf serum (Moregate Biotech, Hamilton, New Zealand) and 100 units/mL penicillin/100 µg/mL streptomycin (Thermo Fisher Scientific) and cut into small fragments (<20 mm3) for immediate engraftment into mice. NSG or NOD scid mice were anaesthetised with 100 mg/kg ketamine (Ceva Animal Health, Glenorie, New South Wales, Australia) and 10 mg/kg xylazine (Phoenix Pharm, Auckland, New Zealand) IP and subcutaneously engrafted with six tumour fragments immersed in matrigel (Corning Inc., New York, NY, USA) through 3–5 mm incisions on bilateral flanks (three fragments per flank). Once these first-passage (P1) tumours reached approx. 1500 mm3, they were collected and fragmented for further engraftment or for cryopreservation in the collection media described above supplemented with 10% DMSO (Sigma-Aldrich, Auckland, New Zealand). Second generation (P2) PDX tumours were generated by subcutaneous bilateral engraftment of fresh or thawed P1 fragments into an additional cohort of NSG or NOD scid mice. The P2 tumours were grown to approx. 1500 mm3 at which point the mice were treated IP with 60 mg/kg pimonidazole and the tumours were removed 2 h later. The P2 tumours were cut into small fragments for engraftment into NOD scid or NIH-III mice to generate P3 PDX tumours for evaluation of evofosfamide anticancer efficacy. Additionally, a whole tissue slice (approx. 1–2 mm thick) was collected and placed in 10% neutral buffered formalin for 24–48 h. The remainder of the tumour was snap frozen in liquid nitrogen. For antitumour efficacy, NOD scid mice bearing P3 PDX tumours were randomised to receive control vehicle (saline) or 50 mg/kg evofosfamide (provided by Threshold Pharmaceuticals, Inc., San Francisco, CA, USA) by IP injection qd × 5 for three weeks once tumours reached approx. 200 mm3. Tumours were measured two to three times a week by electronic callipers until they reached endpoint (tumour volume = 2000 mm3).

2.3. Pimonidazole Immunostaining and Histology

Clinical tumour specimens and P2 PDX tumours were fixed in 10% neutral buffered formalin for 24–48 h, prior to long-term storage in 70% ethanol. Formalin-fixed tumour fragments were embedded in paraffin wax, cut on a microtome into 10 µM sections and mounted onto glass slides. The slides were deparaffinised and rehydrated by heating at 58 °C for 60 min and rinsing in xylene, ethanol and distilled water. Sections were stained with haematoxylin and eosin (Sigma-Aldrich) and visualised using a Zeiss Axiostar microscope and AxioVision 4.9.1 software (Carl Zeiss Microscopy, Oberkochen, Germany).
Slides with P2 PDX tumour sections from mice treated with pimonidazole were submerged in 10 mM citrate buffer (pH = 6.0) and placed in an Antigen Retriever 2100 pressure cooker (Aptum Biologics, Southampton, UK) for 2.5 h, followed by washing in Tris-buffered saline (TBS) and TBS with 0.1% Tween-20 (TBST). Sections were blocked for 1 h at 4 °C in 10% normal goat serum in TBST and stained overnight at 4 °C with pimonidazole-FITC antibody (mouse monoclonal antibody 4.3 11.3, NPI Inc., Burlington, MA, USA) diluted 1:50 in 5% normal goat serum in TBST. Sections were rinsed in TBST and counterstained with the nuclear marker Hoechst 33258 (Thermo Fisher Scientific). After further washing in TBST and TBS, slides were mounted with coverslips and imaged using a Zeiss Axio Imager Z2 microscope with a VSlide scanner (MetaSystems, Altlussheim, Germany). Two- to six-hundred images were taken at 20x magnification at 365 nm (Hoechst 33258) and 470 nm (FITC) using Metafer software 3.12.9 (MetaSystems) and stitched together using VSlide software 1.1.121 (MetaSystems) to create an image of a complete tumour slice. The pimonidazole-positive fraction was quantitated using ImageJ (v1.52e) by determining the immunostained area as a fraction of the viable tumour area, where necrotic regions were excluded. Necrosis was identified as a lack of Hoechst 33258 staining and was confirmed by histopathological examination of slides following de-coverslipping and staining for haematoxylin and eosin.

2.4. Gene Expression

Snap-frozen tumour tissues were pulverised into powder using a BioPulveriser (Biospec Products Inc., Bartlesville, OK, USA) under liquid nitrogen. RNA was extracted from the powder using the Aurum Total RNA Fatty and Fibrous Tissue Kit and PureZOL RNA isolation agent (Bio-Rad Laboratories Inc., Auckland, New Zealand), according to the manufacturer instructions. RNA sample quality was assessed by Nanodrop ND-1000 (Thermo Fisher Scientific) and quantitation by Qubit BR RNA kit on a Qubit 3.0 fluorometer (Thermo Fisher Scientific). The mRNA expression of 18 human genes was assessed alongside three housekeeping genes (RPS13, RPLP0 and OAZ1 [56]) by NanoString PlexSet assay on an nCounter FLEX (NanoString Technologies Inc., Seattle, WA, USA). Oligonucleotide probe pairs for each gene (Table S1) were purchased from Integrated DNA Technologies (Coralville, IA, USA). Optimal sample input for NanoString analysis was determined using an nCounter PlexSet Titration Kit. Samples were hybridised to pooled probe pairs in the presence of Master Mix, and run on an nCounter FLEX alongside a reference calibration sample as per the manufacturer’s instructions. Quality control was confirmed by geNorm analysis and count normalisation carried out on nSolver 4.0 software (NanoString Technologies Inc.) using the geometric mean of the housekeeping genes.

2.5. Toustrup Hypoxia Gene Signature

The normalised counts from the NanoString PlexSet assay were used to determine the median expression across all PDX tumours for each of the 15 Toustrup hypoxia signature genes. Each PDX tumour sample was attributed scores of +1 for expression above the median and −1 for expression below the median for each of the 15 genes. These individual gene scores were summed to give a Toustrup hypoxia score between 15 (most hypoxic) and −15 (least hypoxic) for each tumour, an approach analogous to that reported recently for the Buffa hypoxia signature [57,58].

2.6. Statistics

Tumour growth inhibition by evofosfamide was determined in each model by comparing average tumour volume in treatment mice vs. controls at the completion of treatment, or earlier if animals reached endpoint, by Student’s T-test. The time taken for tumours to quadruple in size (relative tumour volume × 4; RTV4) was used as a survival endpoint, with differences in the median value between controls and treatment assessed by log-rank test. Pearson correlation coefficients were determined for correlation analyses. All statistical analyses were carried out using GraphPad Prism v8.00 (San Diego, CA, USA).

3. Results

3.1. Establishment of PDX Models of HNSCC

Eighteen HNSCC tumour specimens were collected for PDX engraftment into NSG and NOD scid mice from patients undergoing surgery in Auckland City Hospital between December 2014 and November 2018. Eleven of the tumour specimens grew as first generation (P1) PDX tumours in mice, for a take rate of 61%. These were subsequently passaged into P2 mice for characterisation and P3 mice for evofosfamide therapy studies. Ten PDX models showed good growth characteristics as P2 and P3 tumours. These PDX tumours were derived from clinical specimens from a range of sites within the head and neck region at a moderate or advanced stage and were either primary or recurrent (Table 1). One of the ten patient specimens was p16-positive and therefore likely to be HPV-positive. The histopathology of all ten tumour models closely resembled clinical HNSCC disease with cellular heterogeneity and abundant regions of keratinous tumour cells (Figure 1; Figure S1).

3.2. Anticancer Efficacy of Evofosfamide

The anticancer efficacy of evofosfamide as a single agent was determined in all ten PDX models to evaluate its ability to inhibit HNSCC tumour growth when administered at a multiple dose schedule of 50 mg/kg qd × 5 for three weeks. Evofosfamide had variable single-agent anticancer activity across the ten tumour models with the greatest activity observed in the p16-positive PDX model ACS-HN11, where all eight mice treated with evofosfamide had no tumours remaining within two weeks of treatment, while minimal single-agent activity was observed in other models (e.g., ACS-HN04; Figure 2A). Waterfall plots were generated by comparing each treated tumour to the control average for that tumour model at the completion of treatment (day 18) or the time point prior where a full dataset was available (day 9, ACS-HN12; day 14, ACS-HN13; day 16, ACS-HN04, ACS-HN07 and ACS-HN14). Evofosfamide significantly delayed tumour growth compared to controls in five PDX models (ACS-HN06, ACS-HN09, ACS-HN11, ACS-HN12 and ACS-HN14) by the end of treatment (Figure 2B; Figure S2). Additionally, tumours were allowed to grow beyond treatment completion until they reached 4× starting size (RTV4). The median time for tumours to reach RTV4 was significantly prolonged compared to controls in five PDX models (ACS-HN06, ACS-HN09, ACS-HN10, ACS-HN11, and ACS-HN14; Figure S3). Evofosfamide was well tolerated in all but two PDX models, with no clinical signs of toxicity and no or minor loss of bodyweight relative to controls (Figure 2C). Considerable weight loss was observed in the ACS-HN12 PDX model regardless of treatment, requiring most animals to be culled prior to study endpoint, with only 4/10 control tumours and 2/9 treated tumours reaching RTV4 for this model. ACS-HN07 was the only tumour model grown in NIH-III mice. The tumours grew very slowly and two mice (one control, one treatment) had to be culled due to abdominal bleeding; therefore, NOD scid mice were the preferred host for subsequent efficacy studies.

3.3. Hypoxia Status of PDX Models

The hypoxia status of the ten PDX models was determined by pimonidazole immunohistochemistry to determine if the tumour models that were most sensitive to evofosfamide were highly hypoxic. The presence of pimonidazole adducts as a hypoxia marker was observed in all PDX tumours (Figure 3A), frequently surrounding necrotic (absence of Hoechst 33258 nuclear staining) or keratinous areas as confirmed by examination after haematoxylin and eosin staining, although the extent of staining appeared greater in some models than others. Quantitation of the hypoxic fraction revealed this variability in staining, with hypoxic fraction values ranging from 7.9 ± 0.7% (ACS-HN11) to 1.7 ± 0.4% (ACS-HN09) (Figure 3B). Inter-tumour variation in hypoxic fraction was also present for some models. The quantitated hypoxic fraction for each of the ten PDX models was compared to the average change in tumour growth induced by evofosfamide treatment, revealing a weak but significant correlation between pimonidazole staining and evofosfamide anticancer efficacy across the HNSCC PDX models (r = −0.652, P = 0.04; Figure 3C).
An orthogonal approach was used to determine the hypoxia status of the PDX tumours, by evaluating the mRNA expression of genes known to be regulated by hypoxia in HNSCC, using the Toustrup hypoxia gene signature. The mRNA expression of the 15 Toustrup hypoxia signature genes was determined by NanoString in nine PDX models, revealing differences in expression of hypoxia signature genes between different models, and in some instances (particularly ACS-HN04) between tumours of the same PDX model (Figure 4A). Toustrup gene expression was also determined in the clinical specimens (P0 tumours) for eight of the nine PDX models where P0 tissue was available. A significant correlation in Toustrup gene expression was observed between P0 and P2 tumours in all tumour models, with five models in particular showing strong correlations (r values > 0.85 and log-log slopes between 0.97 and 1.00) (Figure 4B). In a manner analogous to analysis of other hypoxia gene signatures [57,58], a Toustrup score was generated for each tumour based on whether the expression of each individual gene was above or below the median expression across all PDX tumours. Comparison of each tumour’s Toustrup score to its hypoxic fraction as determined by pimonidazole staining, revealed no correlation (r = 0.272, P = 0.21, Figure 4C). Similarly, there was no correlation between average Toustrup score and evofosfamide antitumour efficacy across the nine PDX models (r = −0.415, P = 0.27, Figure 4D).

3.4. MKI67, POR and SLFN11 Expression in PDX Tumours

Next, we investigated three candidate evofosfamide sensitivity genes in our PDX models: the one electron reductase POR [59] that can convert evofosfamide into its active form [53], the endoribonuclease SLFN11, which plays a major role in sensitivity to DNA damaging agents [60,61,62], and a marker of proliferation, MKI67. There was moderate expression of MKI67 and POR across the PDX tumour models, but low expression of SLFN11 (Figure 5A). Interestingly, there was a significant correlation for MKI67 (r = 0.904, P = 0.002) and POR (r = 0.932, P = 0.0008) expression between P0 and P2 tumours across the different tumour models, but a poor correlation for SLFN11 expression (r = 0.526, P = 0.18), with P2 tumours from all nine PDX models having lower SLFN11 expression than their corresponding P0 tumours (Figure 5B). Across all PDX models, there was a 5.2-fold reduction in SLFN11 expression in P2 tumours vs. P0 tumours, with the greatest difference (a 19.8-fold reduction) observed in ACS-HN04 (Figure 5C). There was a weak but significant correlation between evofosfamide efficacy and MKI67 expression (r = −0.682, P = 0.04; Figure 5D), but not between evofosfamide efficacy and POR (r = −0.558, P = 0.12) or SLFN11 (r = −0.481, P = 0.19), with the highest expression for each gene observed in ACS-HN11, the tumour model that was most sensitive to evofosfamide.

4. Discussion

We established ten PDX models of HNSCC that had suitable growth characteristics for passaging into second and third generation cohorts of mice for characterisation and evaluation of drug sensitivity, respectively. Our PDX models showed histopathology characteristic of HNSCC that closely matched the original tumours they were derived from. Furthermore, to the best of our knowledge, we have shown for the first time a close correlation in the expression of a hypoxia gene signature between PDX tumours and surgical specimens, while the pimonidazole-positive hypoxic fraction was in a similar range to that reported for clinical HNSCC tumours [63,64,65], in contrast to some cell line xenograft models which can over-predict clinical tumour hypoxia and thus over-predict HAP activity [11]. Combined, these data support our PDX models as appropriate models of HNSCC for evaluating the efficacy of anticancer agents whose activity is influenced by the hypoxic tumour microenvironment, such as the HAP evofosfamide.
Since tumour hypoxia promotes poor prognosis and failure of chemoradiotherapy in HNSCC, targeting of hypoxia provides a therapeutic opportunity in this setting. Expanding on our earlier findings [49], we found that evofosfamide had single-agent antitumour activity in several clinically-relevant PDX models of HNSCC, providing further evidence for clinical testing of evofosfamide in this setting. Evofosfamide has been evaluated in 27 completed or ongoing clinical trials, but not yet in HNSCC, other than in five patients in a phase II expansion cohort to the initial phase I trial (NCT00495144), all of whom showed disease control (two with confirmed partial responses, three with stable disease) [49]. However, it has become evident that for HAPs such as evofosfamide to be successful in the clinic they need to be co-developed with additional biomarker support to identify the tumours most likely to be sensitive to HAP therapy [50,66].
To that end, we investigated whether tumour hypoxia status could determine sensitivity to evofosfamide in our HNSCC PDX models and act as a predictive biomarker. Despite hypoxia being essential for the activation of evofosfamide [49,52,53,67], we found that tumour hypoxia status, determined by both pimonidazole staining and by the Toustrup gene signature, had at best a weak correlation with the antitumour efficacy of evofosfamide in our HNSCC models. This suggests that using hypoxia for patient selection, as has been proposed [50,66], may not be sufficient on its own for predicting evofosfamide activity and that additional biomarkers may be required, consistent with the complex mechanism of action of this prodrug. However, it should be noted that there was not a large range in variation in the antitumour efficacy of evofosfamide nor the pimonidazole-positive hypoxic fraction across our PDX models, which reduced the statistical power to identify positive correlations. Furthermore, the contribution of the murine microenvironment was not specifically investigated in this study and whether or not it could influence hypoxic fraction or evofosfamide sensitivity. Therefore, although the data suggest it is unlikely that hypoxia alone determines sensitivity to evofosfamide and that other factors also contribute, a larger number of models with wider variance in tumour hypoxia and evofosfamide sensitivity and with defined murine microenvironment contributions is required in order to robustly assess the performance of tumour hypoxia on evofosfamide activity.
Unexpectedly, there was a lack of correlation between the pimonidazole-positive hypoxic fraction and the Toustrup hypoxia score of the PDX tumours. This may be due to the Toustrup genes being largely HIF-target genes that are upregulated under different conditions than required for the formation of pimonidazole protein adducts which require one-electron reductase enzymes to generate active hydroxylamine intermediates [68,69]. In addition, binding of 2-nitroimidazole probes such as pimonidazole requires more extreme hypoxia than does stabilisation of HIF-1 [11], which may also contribute to the discordance between the two endpoints. Alternatively, the lack of correlation may reflect the low variability in hypoxic fraction between models or experimental differences between the two assays; for instance, hypoxic cells within necrotic areas contributed to gene expression profiles but were excluded from pimonidazole quantitation. ACS-HN06 and ACS-HN10 tumours, which had high Toustrup scores but moderate to low pimonidazole-positive hypoxic fractions, were highly necrotic. Furthermore, Toustrup gene expression was determined from a small sample from each tumour that may not reflect the average hypoxic fraction of the tumour, due to intratumoural heterogeneity [70], nor may it reflect the average gene expression across the tumour, due to the heterogeneous expression of hypoxia-related genes in HNSCC [71]. Additionally, with no reference dataset available, the Toustrup scores are relative across tumours from the nine PDX models, meaning that those with the highest score are not necessarily highly hypoxic but rather more hypoxic than the other PDX tumours, while those with the lowest score are not necessarily mildly hypoxic, but rather less hypoxic than the other PDX tumours. Activation of evofosfamide can occur under mild hypoxia, which makes an important contribution to the drug’s antitumour efficacy because of its lack of a bystander effect [52,72] and this may help explain why it was still active in tumour models with low levels of hypoxia (e.g., ACS-HN09).
We evaluated MKI67, POR and SLFN11 expression as other potential candidate predictive biomarkers of evofosfamide sensitivity [49,53,54]. Of these genes, only MKI67 showed evidence of a correlation with the antitumour efficacy of evofosfamide, consistent with our previous finding that evofosfamide is more potent in highly proliferative HNSCC cell lines [49]. However, this result should be viewed with caution due to the large dependence of this correlation on the ACS-HN11 tumour model. Evofosfamide showed striking antitumour activity in ACS-HN11 with all tumours showing complete regression within two weeks of treatment. The ACS-HN11 tumour model had the highest pimonidazole-positive hypoxic fraction as well as the highest MKI67, POR and SLFN11 expression, but was also p16-positive, thus an ~85–90% likelihood of being HPV-positive, and originated from a tumour that was recurrent post chemoradiotherapy. As the only p16-positive tumour model in our collection, it is not clear whether the hypoxia or genetic biomarkers individually or collectively contributed to the notable sensitivity of this model, or whether this sensitivity reflects a different feature of HPV-positive HNSCC (which is known to be chemosensitive relative to HPV-negative disease [73]) or of recurrent tumours, since evofosfamide was also active in recurrent ACS-HN06 and ACS-HN10 tumours. Further testing is therefore required in additional HPV-positive and recurrent HNSCC tumour models to confirm this sensitivity of evofosfamide.
SLFN11 expression was reduced in all P2 PDX models relative to the original P0 clinical specimen. SLFN11 encodes an endoribonuclease that regulates DNA repair. It is epigenetically regulated by methylation, with hypermethylation likely responsible for the decreased expression in PDX tumours, as seen previously in cancer cell lines [74,75]. Since SLFN11 promotes sensitivity to DNA damaging agents that interfere with DNA replication fork progression [60,61,62], possibly including evofosfamide [54], reduced expression of SLFN11 in PDX tumours relative to clinical tumours suggests the PDX tumours could potentially under-predict the clinical activity of evofosfamide in HNSCC.
In summary, we have established 10 PDX models of HNSCC with similar histology and a close correlation in mRNA expression of the Toustrup hypoxia gene signature to the clinical tumours they were derived from, providing evidence that they are useful models for examining the anticancer efficacy of therapies that are influenced by tumour hypoxia. Using these clinically-relevant PDX models, we have demonstrated antitumour efficacy of evofosfamide in HNSCC, which supports clinical evaluation of the drug in this setting. Our data suggest that evofosfamide sensitivity cannot be robustly predicted by hypoxia, MKI67, POR, or SLFN11 expression on their own, but rather is likely to be multifactorial, incorporating tumour hypoxia and other genes that influence the activation and mechanism of action of evofosfamide. However, a larger number of models with wider variance in biomarker expression and evofosfamide sensitivity is required in order to confirm these findings and to identify predictive biomarkers in support of precision medicine therapy of evofosfamide in HNSCC.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4409/8/7/717/s1, Figure S1: Histopathology of ten PDX models at P0; Figure S2: Tumour growth in control mice relative to the average control value at the end of treatment (or endpoint if earlier); Figure S3: Antitumour efficacy of evofosfamide in ten HNSCC PDX models determined as the time taken for tumours to quadruple in size (RTV4, relative tumour volume × 4). Table S1: Oligonucleotide probes for NanoString gene analysis.

Author Contributions

Conceptualisation, F.W.H., W.R.W. and S.M.F.J.; methodology, J.K.H., T.W. and S.M.F.J.; formal analysis, J.K.H., T.-W.L., D.K., and S.M.F.J.; investigation, J.K.H., T.-W.L., T.W., A.L. and S.M.F.J.; resources, D.K., J.M.C., N.P.M., A.M.J.M. and S.M.F.J.; data curation, J.K.H., T.-W.L., and S.M.F.J.; writing—original draft preparation, S.M.F.J.; writing—review and editing, J.K.H., T.-W.L., T.W., F.W.H., A.M.J.M., W.R.W. and S.M.F.J.; visualisation, S.M.F.J.; supervision, S.M.F.J.; project administration, S.M.F.J.; funding acquisition, W.R.W. and S.M.F.J.

Funding

This research was funded by the Health Research Council of New Zealand (programme grant: 14/538), the University of Auckland (Strategic Research Initiative: Genomics into Medicine) and the Cancer Society Auckland and Northland Division.

Acknowledgments

The authors would like to thank the patients and their families who kindly donated tissue, Kate Parker and Ben Lawrence for assistance with patient ethics approvals, Alice Rykers for patient consenting and tumour specimen collection, Emma Wrightson and Avik Shome for assistance with establishment of PDX models and evofosfamide antitumour efficacy studies and Jason Copedo for conducting NanoString assays.

Conflicts of Interest

F.W.H. is an employee and shareholder of Janssen: Pharmaceutical Companies of Johnson & Johnson and has received honoraria from Threshold Pharmaceuticals, Inc. W.R.W. and S.M.F.J. are named as inventors on a patent (US9101632B2) relating to the clinical-stage hypoxia-targeting prodrug tarloxotinib bromide. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Brown, J.M.; Wilson, W.R. Exploiting tumor hypoxia in cancer treatment. Nat. Rev. Cancer 2004, 4, 437–447. [Google Scholar] [CrossRef] [PubMed]
  2. Jubb, A.M.; Buffa, F.M.; Harris, A.L. Assessment of tumour hypoxia for prediction of response to therapy and cancer prognosis. J. Cell. Mol. Med. 2010, 14, 18–29. [Google Scholar] [CrossRef] [PubMed]
  3. Vaupel, P.; Hockel, M.; Mayer, A. Detection and characterization of tumor hypoxia using pO2 histography. Antioxid. Redox. Signal. 2007, 9, 1221–1235. [Google Scholar] [CrossRef] [PubMed]
  4. Chen, Y.; Cairns, R.; Papandreou, I.; Koong, A.; Denko, N.C. Oxygen consumption can regulate the growth of tumors, a new perspective on the Warburg effect. PLoS ONE 2009, 4, e7033. [Google Scholar] [CrossRef] [PubMed]
  5. Secomb, T.W.; Hsu, R.; Ong, E.T.; Gross, J.F.; Dewhirst, M.W. Analysis of the effects of oxygen supply and demand on hypoxic fraction in tumors. Acta Oncol. 1995, 34, 313–316. [Google Scholar] [CrossRef]
  6. Hockel, M.; Vaupel, P. Tumor hypoxia: Definitions and current clinical, biologic, and molecular aspects. J. Natl. Cancer Inst. 2001, 93, 266–276. [Google Scholar] [CrossRef]
  7. Semenza, G.L. Defining the role of hypoxia-inducible factor 1 in cancer biology and therapeutics. Oncogene 2010, 29, 625–634. [Google Scholar] [CrossRef] [PubMed]
  8. Wouters, B.G.; Koritzinsky, M. Hypoxia signalling through mTOR and the unfolded protein response in cancer. Nat. Rev. Cancer 2008, 8, 851–864. [Google Scholar] [CrossRef]
  9. Thienpont, B.; Steinbacher, J.; Zhao, H.; D’Anna, F.; Kuchnio, A.; Ploumakis, A.; Ghesquiere, B.; Van, D.L.; Boeckx, B.; Schoonjans, L.; et al. Tumour hypoxia causes DNA hypermethylation by reducing TET activity. Nature 2016, 537, 63–68. [Google Scholar] [CrossRef]
  10. van den Beucken, T.; Koch, E.; Chu, K.; Rupaimoole, R.; Prickaerts, P.; Adriaens, M.; Voncken, J.W.; Harris, A.L.; Buffa, F.M.; Haider, S.; et al. Hypoxia promotes stem cell phenotypes and poor prognosis through epigenetic regulation of DICER. Nat. Commun. 2014, 5, 5203. [Google Scholar] [CrossRef]
  11. Wilson, W.R.; Hay, M.P. Targeting hypoxia in cancer therapy. Nat. Rev. Cancer 2011, 11, 393–410. [Google Scholar] [CrossRef] [PubMed]
  12. Yoshiba, S.; Ito, D.; Nagumo, T.; Shirota, T.; Hatori, M.; Shintani, S. Hypoxia induces resistance to 5-fluorouracil in oral cancer cells via G(1) phase cell cycle arrest. Oral Oncol. 2009, 45, 109–115. [Google Scholar] [CrossRef] [PubMed]
  13. Erler, J.T.; Cawthorne, C.J.; Williams, K.J.; Koritzinsky, M.; Wouters, B.G.; Wilson, C.; Miller, C.; Demonacos, C.; Stratford, I.J.; Dive, C. Hypoxia-mediated down-regulation of Bid and Bax in tumors occurs via hypoxia-inducible factor 1-dependent and -independent mechanisms and contributes to drug resistance. Mol. Cell Biol. 2004, 24, 2875–2889. [Google Scholar] [CrossRef] [PubMed]
  14. Graeber, T.G.; Osmanian, C.; Jacks, T.; Housman, D.E.; Koch, C.J.; Lowe, S.W.; Giaccia, A.J. Hypoxia-mediated selection of cells with diminished apoptotic potential in solid tumours. Nature 1996, 379, 88–91. [Google Scholar] [CrossRef] [PubMed]
  15. Hicks, K.O.; Pruijn, F.B.; Secomb, T.W.; Hay, M.P.; Hsu, R.; Brown, J.M.; Denny, W.A.; Dewhirst, M.W.; Wilson, W.R. Use of three-dimensional tissue cultures to model extravascular transport and predict in vivo activity of hypoxia-targeted anticancer drugs. J. Natl. Cancer Inst. 2006, 98, 1118–1128. [Google Scholar] [CrossRef] [PubMed]
  16. Minchinton, A.I.; Tannock, I.F. Drug penetration in solid tumours. Nat. Rev. Cancer 2006, 6, 583–592. [Google Scholar] [CrossRef] [PubMed]
  17. Noman, M.Z.; Desantis, G.; Janji, B.; Hasmim, M.; Karray, S.; Dessen, P.; Bronte, V.; Chouaib, S. PD-L1 is a novel direct target of HIF-1alpha, and its blockade under hypoxia enhanced MDSC-mediated T cell activation. J. Exp. Med. 2014, 211, 781–790. [Google Scholar] [CrossRef] [PubMed]
  18. Facciabene, A.; Peng, X.; Hagemann, I.S.; Balint, K.; Barchetti, A.; Wang, L.P.; Gimotty, P.A.; Gilks, C.B.; Lal, P.; Zhang, L.; et al. Tumour hypoxia promotes tolerance and angiogenesis via CCL28 and T(reg) cells. Nature 2011, 475, 226–230. [Google Scholar] [CrossRef]
  19. Ohta, A. A Metabolic immune checkpoint: Adenosine in tumor microenvironment. Front. Immunol. 2016, 7, 109. [Google Scholar] [CrossRef]
  20. Brizel, D.M.; Sibley, G.S.; Prosnitz, L.R.; Scher, R.L.; Dewhirst, M.W. Tumor hypoxia adversely affects the prognosis of carcinoma of the head and neck. Int. J. Radiat. Oncol. Biol. Phys. 1997, 38, 285–289. [Google Scholar] [CrossRef]
  21. Nordsmark, M.; Bentzen, S.M.; Rudat, V.; Brizel, D.; Lartigau, E.; Stadler, P.; Becker, A.; Adam, M.; Molls, M.; Dunst, J.; et al. Prognostic value of tumor oxygenation in 397 head and neck tumors after primary radiation therapy. An international multi-center study. Radiother. Oncol. 2005, 77, 18–24. [Google Scholar] [CrossRef] [PubMed]
  22. Overgaard, J. Hypoxic modification of radiotherapy in squamous cell carcinoma of the head and neck--a systematic review and meta-analysis. Radiother. Oncol. 2011, 100, 22–32. [Google Scholar] [CrossRef] [PubMed]
  23. Toustrup, K.; Sorensen, B.S.; Nordsmark, M.; Busk, M.; Wiuf, C.; Alsner, J.; Overgaard, J. Development of a hypoxia gene expression classifier with predictive impact for hypoxic modification of radiotherapy in head and neck cancer. Cancer Res. 2011, 71, 5923–5931. [Google Scholar] [CrossRef] [PubMed]
  24. Linge, A.; Lock, S.; Gudziol, V.; Nowak, A.; Lohaus, F.; von, N.C.; Jutz, M.; Abdollahi, A.; Debus, J.; Tinhofer, I.; et al. Low cancer stem cell marker expression and low hypoxia identify good prognosis subgroups in HPV(-) HNSCC after postoperative radiochemotherapy: A multicenter study of the DKTK-ROG. Clin. Cancer Res. 2016, 22, 2639–2649. [Google Scholar] [CrossRef] [PubMed]
  25. Sanderson, R.J.; Ironside, J.A. Squamous cell carcinomas of the head and neck. BMJ. 2002, 325, 822–827. [Google Scholar] [CrossRef] [PubMed]
  26. Bray, F.; Ferlay, J.; Soerjomataram, I.; Siegel, R.L.; Torre, L.A.; Jemal, A. Global cancer statistics 2018: GLOBOCAN estimates of incidence and mortality worldwide for 36 cancers in 185 countries. A Cancer J. Clin. 2018. [Google Scholar] [CrossRef] [PubMed]
  27. Gillison, M.L.; Koch, W.M.; Capone, R.B.; Spafford, M.; Westra, W.H.; Wu, L.; Zahurak, M.L.; Daniel, R.W.; Viglione, M.; Symer, D.E.; et al. Evidence for a causal association between human papillomavirus and a subset of head and neck cancers. J. Natl. Cancer Inst. 2000, 92, 709–720. [Google Scholar] [CrossRef]
  28. Hashibe, M.; Brennan, P.; Chuang, S.C.; Boccia, S.; Castellsague, X.; Chen, C.; Curado, M.P.; Dal, M.L.; Daudt, A.W.; Fabianova, E.; et al. Interaction between tobacco and alcohol use and the risk of head and neck cancer: Pooled analysis in the International Head and Neck Cancer Epidemiology Consortium. Cancer Epidemiol. Biomarkers Prev. 2009, 18, 541–550. [Google Scholar] [CrossRef]
  29. Pelucchi, C.; Gallus, S.; Garavello, W.; Bosetti, C.; La, V.C. Alcohol and tobacco use, and cancer risk for upper aerodigestive tract and liver. Eur. J. Cancer Prev. 2008, 17, 340–344. [Google Scholar] [CrossRef]
  30. Hicks, K.O.; Siim, B.G.; Jaiswal, J.K.; Pruijn, F.B.; Fraser, A.M.; Patel, R.; Hogg, A.; Liyanage, H.D.S.; Dorie, M.J.; Brown, J.M.; et al. Pharmacokinetic/pharmacodynamic modeling identifies SN30000 and SN29751 as tirapazamine analogues with improved tissue penetration and hypoxic cell killing in tumors. Clin. Cancer Res. 2010, 16, 4946–4957. [Google Scholar] [CrossRef]
  31. Patterson, A.V.; Ferry, D.M.; Edmunds, S.J.; Gu, Y.; Singleton, R.S.; Patel, K.; Pullen, S.M.; Hicks, K.O.; Syddall, S.P.; Atwell, G.J.; et al. Mechanism of action and preclinical antitumor activity of the novel hypoxia-activated DNA crosslinking agent PR-104. Clin. Cancer Res. 2007, 13, 3922–3932. [Google Scholar] [CrossRef] [PubMed]
  32. Patterson, L.H. Bioreductively activated antitumor N-oxides: The case of AQ4N, a unique approach to hypoxia-activated cancer chemotherapy. Drug Metab. Rev. 2002, 34, 581–592. [Google Scholar] [CrossRef] [PubMed]
  33. Rischin, D.; Peters, L.J.; O’Sullivan, B.; Giralt, J.; Fisher, R.; Yuen, K.; Trotti, A.; Bernier, J.; Bourhis, J.; Ringash, J.; et al. Tirapazamine, cisplatin, and radiation versus cisplatin and radiation for advanced squamous cell carcinoma of the head and neck (TROG 02.02, HeadSTART): A phase III trial of the Trans-Tasman Radiation Oncology Group. J. Clin. Oncol. 2010, 28, 2989–2995. [Google Scholar] [CrossRef] [PubMed]
  34. Tercel, M.; Atwell, G.J.; Yang, S.; Ashoorzadeh, A.; Stevenson, R.J.; Botting, K.J.; Gu, Y.; Mehta, S.Y.; Denny, W.A.; Wilson, W.R.; et al. Selective treatment of hypoxic tumor cells in vivo: Phosphate pre-prodrugs of nitro analogues of the duocarmycins. Angew. Chem. Int. Ed. Engl. 2011, 50, 2606–2609. [Google Scholar] [CrossRef] [PubMed]
  35. Cazares-Korner, C.; Pires, I.M.; Swallow, I.D.; Grayer, S.C.; O’Connor, L.J.; Olcina, M.M.; Christlieb, M.; Conway, S.J.; Hammond, E.M. CH-01 is a hypoxia-activated prodrug that sensitizes cells to hypoxia/reoxygenation through inhibition of Chk1 and Aurora A. ACS Chem. Biol. 2013, 8, 1451–1459. [Google Scholar] [CrossRef] [PubMed]
  36. Dickson, B.D.; Wong, W.W.; Wilson, W.R.; Hay, M.P. Studies towards hypoxia-activated prodrugs of PARP inhibitors. Molecules 2019, 24, 1559. [Google Scholar] [CrossRef] [PubMed]
  37. Karnthaler-Benbakka, C.; Groza, D.; Kryeziu, K.; Pichler, V.; Roller, A.; Berger, W.; Heffeter, P.; Kowol, C.R. Tumor-targeting of EGFR Inhibitors by hypoxia-mediated activation. Angew. Chem. Int. Ed. Engl. 2014, 53, 1–7. [Google Scholar] [CrossRef]
  38. Wilson, W.R.; Hicks, K.O.; Pullen, S.M.; Ferry, D.M.; Helsby, N.A.; Patterson, A.V. Bystander effects of bioreductive drugs: Potential for exploiting pathological tumor hypoxia with dinitrobenzamide mustards. Radiat. Res. 2007, 167, 625–636. [Google Scholar] [CrossRef]
  39. Hu, J.; Van Valckenborgh, E.; Xu, D.; Menu, E.; De, R.H.; De, B.E.; Xu, S.; Van Camp, B.; Handisides, D.; Hart, C.P.; et al. Synergistic induction of apoptosis in multiple myeloma cells by bortezomib and hypoxia-activated prodrug TH-302, in vivo and in vitro. Mol. Cancer Ther. 2013, 12, 1763–1773. [Google Scholar] [CrossRef]
  40. Liu, Q.; Sun, J.D.; Wang, J.; Ahluwalia, D.; Baker, A.F.; Cranmer, L.D.; Ferraro, D.; Wang, Y.; Duan, J.X.; Ammons, W.S.; et al. TH-302, a hypoxia-activated prodrug with broad in vivo preclinical combination therapy efficacy: Optimization of dosing regimens and schedules. Cancer Chemother. Pharmacol. 2012, 69, 1487–1498. [Google Scholar] [CrossRef]
  41. Peeters, S.G.; Zegers, C.M.; Biemans, R.; Lieuwes, N.G.; van Stiphout, R.G.; Yaromina, A.; Sun, J.D.; Hart, C.P.; Windhorst, A.D.; van, E.W.; et al. TH-302 in combination with radiotherapy enhances the therapeutic outcome and is associated with pretreatment [18F]HX4 hypoxia PET imaging. Clin. Cancer Res. 2015, 21, 2984–2992. [Google Scholar] [CrossRef] [PubMed]
  42. Portwood, S.; Lal, D.; Hsu, Y.C.; Vargas, R.; Johnson, M.K.; Wetzler, M.; Hart, C.P.; Wang, E.S. Activity of the hypoxia-activated prodrug, TH-302, in preclinical human acute myeloid leukemia (AML) models. Clin. Cancer Res. 2013, 19, 6506–6519. [Google Scholar] [CrossRef] [PubMed]
  43. Sun, J.D.; Liu, Q.; Wang, J.; Ahluwalia, D.; Ferraro, D.; Wang, Y.; Duan, J.X.; Ammons, W.S.; Curd, J.G.; Matteucci, M.D.; et al. Selective tumor hypoxia targeting by hypoxia-activated prodrug TH-302 inhibits tumor growth in preclinical models of cancer. Clin. Cancer Res. 2012, 18, 758–770. [Google Scholar] [CrossRef] [PubMed]
  44. Duran, R.; Mirpour, S.; Pekurovsky, V.; Ganapathy-Kanniappan, S.; Brayton, C.F.; Cornish, T.C.; Gorodetski, B.; Reyes, J.; Chapiro, J.; Schernthaner, R.E.; et al. Preclinical benefit of hypoxia-activated intra-arterial therapy with evofosfamide in liver cancer. Clin. Cancer Res. 2017, 23, 536–548. [Google Scholar] [CrossRef] [PubMed]
  45. Lohse, I.; Rasowski, J.; Cao, P.; Pintilie, M.; Do, T.; Tsao, M.S.; Hill, R.P.; Hedley, D.W. Targeting hypoxic microenvironment of pancreatic xenografts with the hypoxia-activated prodrug TH-302. Oncotarget 2016, 7, 33571–33580. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Borad, M.J.; Reddy, S.G.; Bahary, N.; Uronis, H.E.; Sigal, D.; Cohn, A.L.; Schelman, W.R.; Stephenson, J., Jr.; Chiorean, E.G.; Rosen, P.J.; et al. Randomized phase II trial of gemcitabine plus TH-302 versus gemcitabine in patients with advanced pancreatic cancer. J. Clin. Oncol. 2015, 33, 1475–1481. [Google Scholar] [CrossRef] [PubMed]
  47. Chawla, S.P.; Cranmer, L.D.; Van Tine, B.A.; Reed, D.R.; Okuno, S.H.; Butrynski, J.E.; Adkins, D.R.; Hendifar, A.E.; Kroll, S.; Ganjoo, K.N. Phase II study of the safety and antitumor activity of the hypoxia-activated prodrug TH-302 in combination with doxorubicin in patients with advanced soft tissue sarcoma. J. Clin. Oncol. 2014, 32, 3299–3306. [Google Scholar] [CrossRef]
  48. Weiss, G.J.; Infante, J.R.; Chiorean, E.G.; Borad, M.J.; Bendell, J.C.; Molina, J.R.; Tibes, R.; Ramanathan, R.K.; Lewandowski, K.; Jones, S.F.; et al. Phase 1 study of the safety, tolerability and pharmacokinetics of TH-302, a hypoxia-activated prodrug, in patients with advanced solid malignancies. Clin. Cancer Res. 2011, 17, 2997–3004. [Google Scholar] [CrossRef]
  49. Jamieson, S.M.; Tsai, P.; Kondratyev, M.K.; Budhani, P.; Liu, A.; Senzer, N.N.; Chiorean, E.G.; Jalal, S.I.; Nemunaitis, J.J.; Kee, D.; et al. Evofosfamide for the treatment of human papillomavirus-negative head and neck squamous cell carcinoma. JCI Insight 2018, 3, e122204. [Google Scholar] [CrossRef]
  50. Hunter, F.W.; Wouters, B.G.; Wilson, W.R. Hypoxia-activated prodrugs: Paths forward in the era of personalised medicine. Br. J. Cancer 2016, 114, 1071–1077. [Google Scholar] [CrossRef]
  51. Duan, J.X.; Jiao, H.; Kaizerman, J.; Stanton, T.; Evans, J.W.; Lan, L.; Lorente, G.; Banica, M.; Jung, D.; Wang, J.; et al. Potent and highly selective hypoxia-activated achiral phosphoramidate mustards as anticancer drugs. J. Med. Chem. 2008, 51, 2412–2420. [Google Scholar] [CrossRef] [PubMed]
  52. Hong, C.R.; Dickson, B.D.; Jaiswal, J.K.; Pruijn, F.B.; Hunter, F.W.; Hay, M.P.; Hicks, K.O.; Wilson, W.R. Cellular pharmacology of evofosfamide (TH-302): A critical re-evaluation of its bystander effects. Biochem. Pharmacol. 2018, 156, 265–280. [Google Scholar] [CrossRef] [PubMed]
  53. Meng, F.; Evans, J.W.; Bhupathi, D.; Banica, M.; Lan, L.; Lorente, G.; Duan, J.X.; Cai, X.; Mowday, A.M.; Guise, C.P.; et al. Molecular and cellular pharmacology of the hypoxia-activated prodrug TH-302. Mol. Cancer Ther. 2012, 11, 740–751. [Google Scholar] [CrossRef] [PubMed]
  54. Hunter, F.W.; Devaux, J.B.L.; Meng, F.; Hong, C.R.; Khan, A.; Tsai, P.; Ketela, T.W.; Sharma, I.; Kakadia, P.M.; Marastoni, S.; et al. Functional CRISPR and shRNA screens identify involvement of mitochondrial electron transport in the activation of evofosfamide. Mol. Pharmacol. 2019, 95, 638–651. [Google Scholar] [CrossRef] [PubMed]
  55. Ou, P.; Gear, K.; Rahnama, F.; Thomas, S.; Nagappan, R.; Kee, D.; Waldvogel-Thurlow, S.; Jain, R.; McIvor, N.; Izzard, M.; et al. Human papillomavirus and oropharyngeal squamous cell carcinoma: A New Zealand cohort study. ANZ. J. Surg. 2018, 88, E278–E283. [Google Scholar] [CrossRef] [PubMed]
  56. de Jonge, H.J.; Fehrmann, R.S.; de Bont, E.S.; Hofstra, R.M.; Gerbens, F.; Kamps, W.A.; de Vries, E.G.; van der Zee, A.G.; Te Meerman, G.J.; Ter, E.A. Evidence based selection of housekeeping genes. PLoS ONE 2007, 2, e898. [Google Scholar] [CrossRef]
  57. Bhandari, V.; Hoey, C.; Liu, L.Y.; Lalonde, E.; Ray, J.; Livingstone, J.; Lesurf, R.; Shiah, Y.J.; Vujcic, T.; Huang, X.; et al. Molecular landmarks of tumor hypoxia across cancer types. Nat. Genet. 2019, 51, 308–318. [Google Scholar] [CrossRef]
  58. Lee, T.W.; Wong, W.W.; Dickson, B.D.; Lipert, B.; Hunter, F.W.; Hay, M.P.; Wilson, W.R. Radiosensitization of head and neck squamous cell carcinoma lines by DNA-PK inhibitors is more effective than PARP-1 inhibition and is enhanced by SLFN11 and hypoxia. Int. J. Radiat. Biol. 2019. submitted. [Google Scholar]
  59. Hunter, F.W.; Young, R.J.; Shalev, Z.; Vellanki, R.N.; Wang, J.; Gu, Y.; Joshi, N.; Sreebavan, S.; Weinreb, I.; Goldstein, D.P.; et al. Identification of P450 oxidoreductase as a major determinant of sensitivity to hypoxia-activated prodrugs. Cancer Res. 2015, 75, 4211–4223. [Google Scholar] [CrossRef]
  60. Li, M.; Kao, E.; Malone, D.; Gao, X.; Wang, J.Y.J.; David, M. DNA damage-induced cell death relies on SLFN11-dependent cleavage of distinct type II tRNAs. Nat. Struct. Mol. Biol. 2018, 25, 1047–1058. [Google Scholar] [CrossRef]
  61. Murai, J.; Tang, S.W.; Leo, E.; Baechler, S.A.; Redon, C.E.; Zhang, H.; Al, A.M.; Rajapakse, V.N.; Nakamura, E.; Jenkins, L.M.M.; et al. SLFN11 blocks stressed replication forks independently of ATR. Mol. Cell 2018, 69, 371–384. [Google Scholar] [CrossRef] [PubMed]
  62. Zoppoli, G.; Regairaz, M.; Leo, E.; Reinhold, W.C.; Varma, S.; Ballestrero, A.; Doroshow, J.H.; Pommier, Y. Putative DNA/RNA helicase Schlafen-11 (SLFN11) sensitizes cancer cells to DNA-damaging agents. Proc. Natl. Acad. Sci. USA 2012, 109, 15030–15035. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Hoogsteen, I.J.; Marres, H.A.; van den Hoogen, F.J.; Rijken, P.F.; Lok, J.; Bussink, J.; Kaanders, J.H. Expression of EGFR under tumor hypoxia: Identification of a subpopulation of tumor cells responsible for aggressiveness and treatment resistance. Int. J. Radiat. Oncol. Biol. Phys. 2012, 84, 807–814. [Google Scholar] [CrossRef] [PubMed]
  64. Kaanders, J.H.; Wijffels, K.I.; Marres, H.A.; Ljungkvist, A.S.; Pop, L.A.; van den Hoogen, F.J.; de Wilde, P.C.; Bussink, J.; Raleigh, J.A.; van der Kogel, A.J. Pimonidazole binding and tumor vascularity predict for treatment outcome in head and neck cancer. Cancer Res. 2002, 62, 7066–7074. [Google Scholar] [PubMed]
  65. Wijffels, K.I.; Marres, H.A.; Peters, J.P.; Rijken, P.F.; van der Kogel, A.J.; Kaanders, J.H. Tumour cell proliferation under hypoxic conditions in human head and neck squamous cell carcinomas. Oral Oncol. 2008, 44, 335–344. [Google Scholar] [CrossRef] [PubMed]
  66. Spiegelberg, L.; Houben, R.; Niemans, R.; De, R.D.; Yaromina, A.; Theys, J.; Guise, C.P.; Smaill, J.B.; Patterson, A.V.; Lambin, P.; et al. Hypoxia-activated prodrugs and (lack of) clinical progress: The need for hypoxia-based biomarker patient selection in phase III clinical trials. Clin. Transl. Radiat. Oncol. 2019, 15, 62–69. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  67. Hunter, F.W.; Hsu, H.L.; Su, J.; Pullen, S.M.; Wilson, W.R.; Wang, J. Dual targeting of hypoxia and homologous recombination repair dysfunction in triple-negative breast cancer. Mol. Cancer Ther. 2014, 13, 2501–2514. [Google Scholar] [CrossRef]
  68. Nunn, A.; Linder, K.; Strauss, H.W. Nitroimidazoles and imaging hypoxia. Eur. J. Nucl. Med. 1995, 22, 265–280. [Google Scholar] [CrossRef]
  69. Rademakers, S.E.; Lok, J.; van der Kogel, A.J.; Bussink, J.; Kaanders, J.H. Metabolic markers in relation to hypoxia; staining patterns and colocalization of pimonidazole, HIF-1alpha, CAIX, LDH-5, GLUT-1, MCT1 and MCT4. BMC Cancer 2011, 11, 167. [Google Scholar] [CrossRef]
  70. Dhani, N.C.; Serra, S.; Pintilie, M.; Schwock, J.; Xu, J.; Gallinger, S.; Hill, R.P.; Hedley, D.W. Analysis of the intra- and intertumoral heterogeneity of hypoxia in pancreatic cancer patients receiving the nitroimidazole tracer pimonidazole. Br. J. Cancer 2015, 113, 864–871. [Google Scholar] [CrossRef] [Green Version]
  71. Puram, S.V.; Tirosh, I.; Parikh, A.S.; Patel, A.P.; Yizhak, K.; Gillespie, S.; Rodman, C.; Luo, C.L.; Mroz, E.A.; Emerick, K.S.; et al. Single-cell transcriptomic analysis of primary and metastatic tumor ecosystems in head and neck cancer. Cell 2017, 171, 1611–1624. [Google Scholar] [CrossRef] [PubMed]
  72. Hong, C.R.; Wilson, W.R.; Hicks, K.O. An intratumor pharmacokinetic/pharmacodynamic model for the hypoxia-activated prodrug evofosfamide (TH-302): Monotherapy activity is not dependent on a bystander effect. Neoplasia 2019, 21, 159–171. [Google Scholar] [CrossRef] [PubMed]
  73. Dayyani, F.; Etzel, C.J.; Liu, M.; Ho, C.H.; Lippman, S.M.; Tsao, A.S. Meta-analysis of the impact of human papillomavirus (HPV) on cancer risk and overall survival in head and neck squamous cell carcinomas (HNSCC). Head Neck Oncol. 2010, 2, 15. [Google Scholar] [CrossRef] [PubMed]
  74. Nogales, V.; Reinhold, W.C.; Varma, S.; Martinez-Cardus, A.; Moutinho, C.; Moran, S.; Heyn, H.; Sebio, A.; Barnadas, A.; Pommier, Y.; et al. Epigenetic inactivation of the putative DNA/RNA helicase SLFN11 in human cancer confers resistance to platinum drugs. Oncotarget 2016, 7, 3084–3097. [Google Scholar] [CrossRef] [PubMed]
  75. Tang, S.W.; Thomas, A.; Murai, J.; Trepel, J.B.; Bates, S.E.; Rajapakse, V.N.; Pommier, Y. Overcoming resistance to DNA-targeted agents by epigenetic activation of schlafen 11 (SLFN11) expression with class I histone deacetylase inhibitors. Clin. Cancer Res. 2018, 24, 1944–1953. [Google Scholar] [CrossRef] [PubMed]
Cells 08 00717 g001 550
Figure 1. Histopathology of ten PDX models at second passage (P2). Scale bar = 50 µm.
Figure 1. Histopathology of ten PDX models at second passage (P2). Scale bar = 50 µm.
Cells 08 00717 g001
Cells 08 00717 g002 550

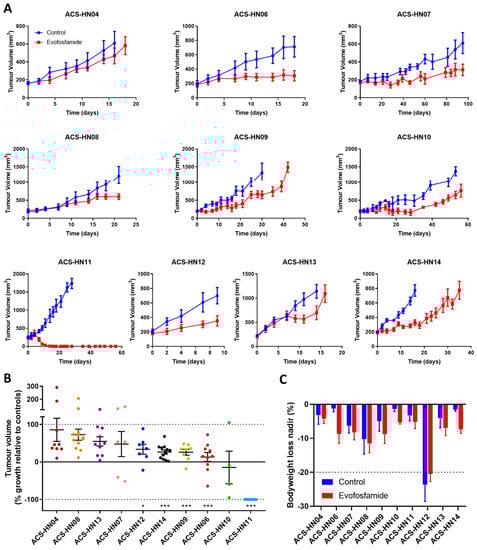

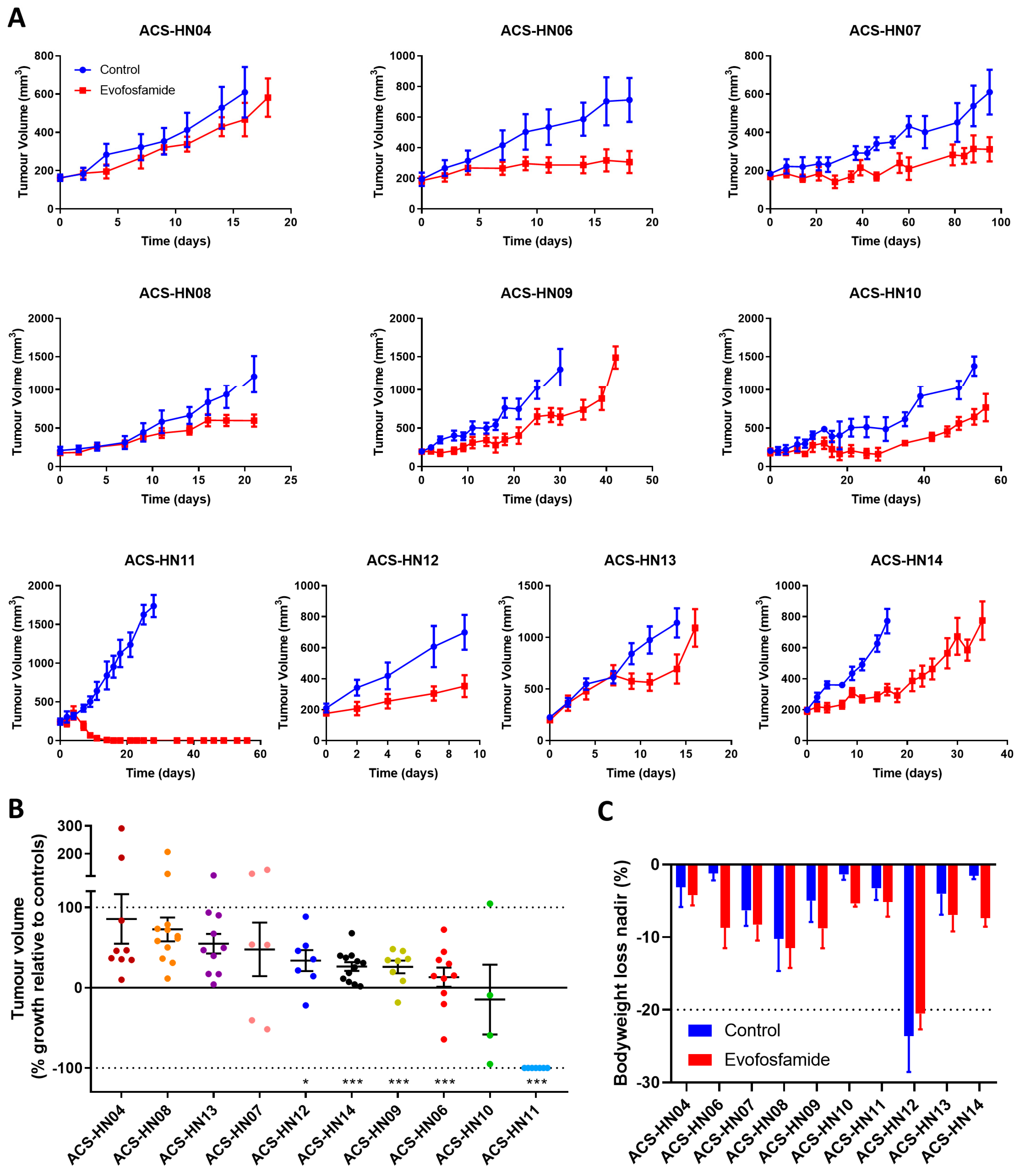

Figure 2. Anticancer efficacy of evofosfamide in ten head and neck squamous cell carcinoma (HNSCC) PDX models. NOD scid or NIH-III mice with P3 PDX tumours were treated with 50 mg/kg evofosfamide by IP injection qd × 5 for three weeks or control vehicle. (A) Average tumour growth. (B) Waterfall plot of tumour growth in evofosfamide-treated mice presented as change in tumour volume from starting size relative to the average control value at the end of treatment (or endpoint if earlier). The dotted line at 100% represents equal growth to controls, the dotted line at −100% represents complete regression and the line at 0% represents starting tumour size prior to treatment. * P < 0.05; *** P < 0.001 compared to controls by student’s T-test. (C) Bodyweight loss nadir in mice over the duration of the study. The dotted line at −20% indicates weightloss endpoint. Data in each plot represent either individual values or the mean ± SEM for n = 7–12 tumours (except ACS-HN10: n = 3–4).
Figure 2. Anticancer efficacy of evofosfamide in ten head and neck squamous cell carcinoma (HNSCC) PDX models. NOD scid or NIH-III mice with P3 PDX tumours were treated with 50 mg/kg evofosfamide by IP injection qd × 5 for three weeks or control vehicle. (A) Average tumour growth. (B) Waterfall plot of tumour growth in evofosfamide-treated mice presented as change in tumour volume from starting size relative to the average control value at the end of treatment (or endpoint if earlier). The dotted line at 100% represents equal growth to controls, the dotted line at −100% represents complete regression and the line at 0% represents starting tumour size prior to treatment. * P < 0.05; *** P < 0.001 compared to controls by student’s T-test. (C) Bodyweight loss nadir in mice over the duration of the study. The dotted line at −20% indicates weightloss endpoint. Data in each plot represent either individual values or the mean ± SEM for n = 7–12 tumours (except ACS-HN10: n = 3–4).
Cells 08 00717 g002
Cells 08 00717 g003 550

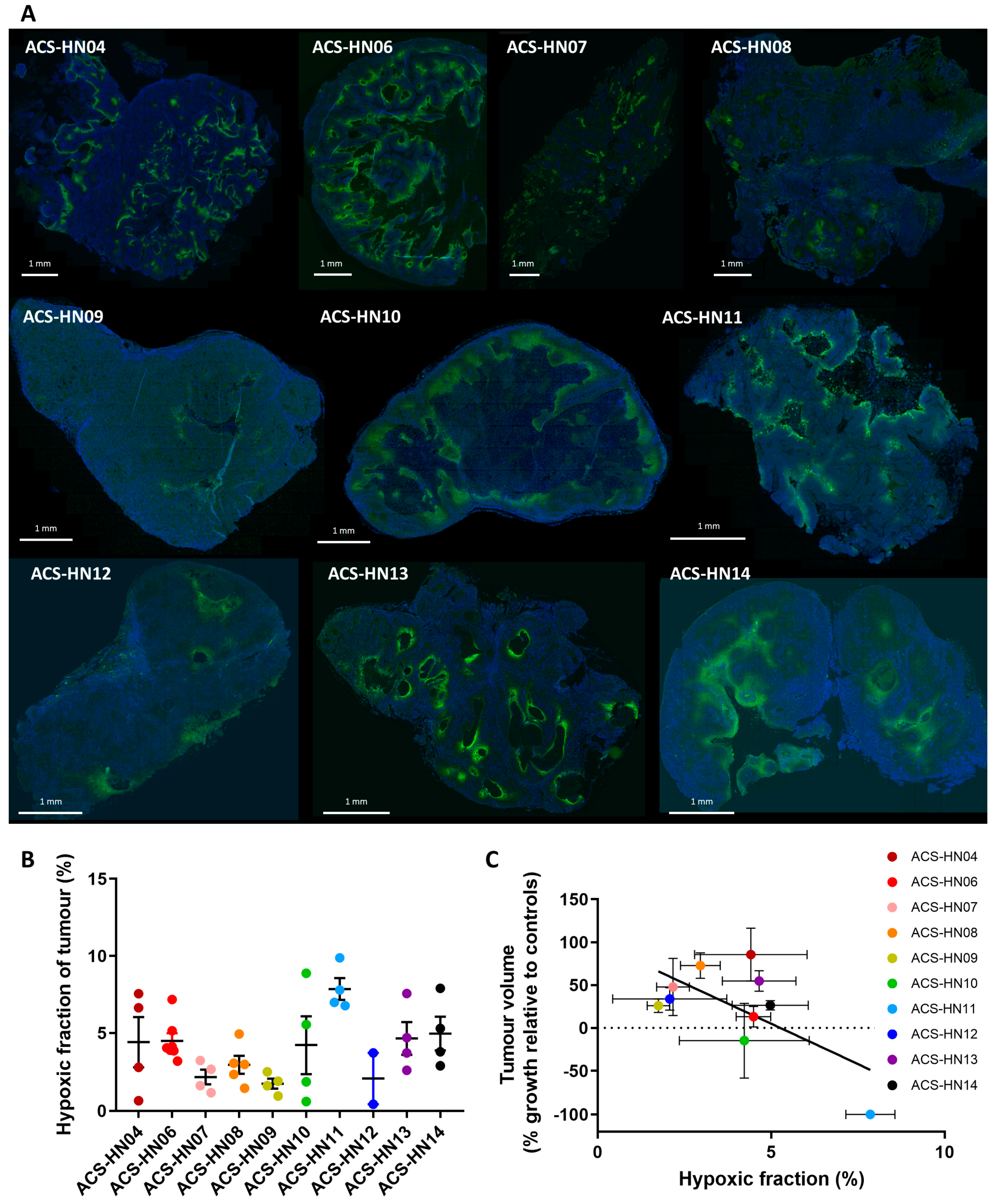

Figure 3. Hypoxic fraction of HNSCC PDX models by pimonidazole immunohistochemistry. (A) Representative whole tumour immunostains for each PDX model. Green, pimonidazole; blue, Hoechst 33258. (B) Hypoxic fraction determined as the pimonidazole-positive fraction of the viable tumour. Symbols represent individual tumours and mean ± SEM for n = 2–7 tumours. Data for ACS-HN06, ACS-HN07, and ACS-HN08 comes from [49]. (C) Comparison of evofosfamide antitumour efficacy (tumour growth in evofosfamide-treated mice relative to controls) to the pimonidazole-positive hypoxic fraction. Data represent mean ± SEM for n = 2–12 tumours.
Figure 3. Hypoxic fraction of HNSCC PDX models by pimonidazole immunohistochemistry. (A) Representative whole tumour immunostains for each PDX model. Green, pimonidazole; blue, Hoechst 33258. (B) Hypoxic fraction determined as the pimonidazole-positive fraction of the viable tumour. Symbols represent individual tumours and mean ± SEM for n = 2–7 tumours. Data for ACS-HN06, ACS-HN07, and ACS-HN08 comes from [49]. (C) Comparison of evofosfamide antitumour efficacy (tumour growth in evofosfamide-treated mice relative to controls) to the pimonidazole-positive hypoxic fraction. Data represent mean ± SEM for n = 2–12 tumours.
Cells 08 00717 g003
Cells 08 00717 g004 550

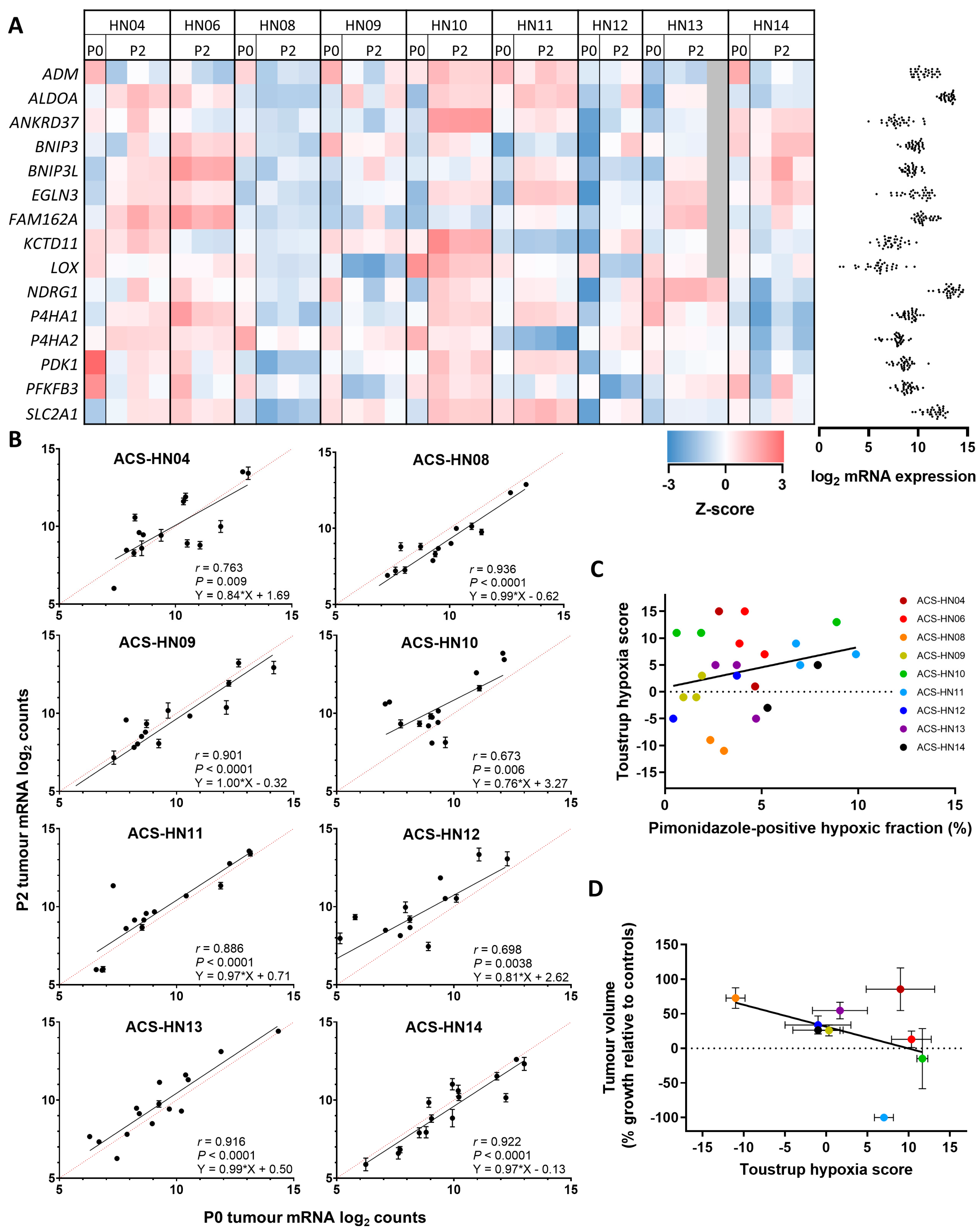

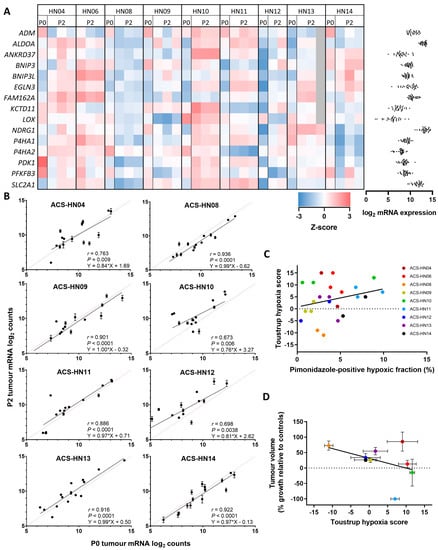

Figure 4. Hypoxia status of HNSCC PDX tumours by Toustrup hypoxia gene signature analysed by NanoString. (A) Heatmap of mRNA expression of 15 Toustrup signature genes in P0 and P2 PDX tumours determined as z-score relative to other PDX tumour samples. Red indicates high expression, blue indicates low expression, grey indicates not determined. Gene expression determined as log2 counts normalised to positive control and three housekeeping genes. Individual counts shown on the right. (B) Comparison of mRNA expression of 15 Toustrup genes in P0 (n = 1) and P2 (n = 2–3) PDX tumours. Symbols represent mean ± SEM. Dotted lines represent equal expression. (C) Comparison of hypoxic fraction assessed by Toustrup hypoxia score and pimonidazole staining. Symbols represent individual tumours. (D) Comparison between evofosfamide anticancer efficacy (tumour growth in evofosfamide-treated mice relative to controls at end of treatment or endpoint) and Toustrup hypoxia score. Symbols represent mean ± SEM for n = 2–12 tumours.
Figure 4. Hypoxia status of HNSCC PDX tumours by Toustrup hypoxia gene signature analysed by NanoString. (A) Heatmap of mRNA expression of 15 Toustrup signature genes in P0 and P2 PDX tumours determined as z-score relative to other PDX tumour samples. Red indicates high expression, blue indicates low expression, grey indicates not determined. Gene expression determined as log2 counts normalised to positive control and three housekeeping genes. Individual counts shown on the right. (B) Comparison of mRNA expression of 15 Toustrup genes in P0 (n = 1) and P2 (n = 2–3) PDX tumours. Symbols represent mean ± SEM. Dotted lines represent equal expression. (C) Comparison of hypoxic fraction assessed by Toustrup hypoxia score and pimonidazole staining. Symbols represent individual tumours. (D) Comparison between evofosfamide anticancer efficacy (tumour growth in evofosfamide-treated mice relative to controls at end of treatment or endpoint) and Toustrup hypoxia score. Symbols represent mean ± SEM for n = 2–12 tumours.
Cells 08 00717 g004
Cells 08 00717 g005 550

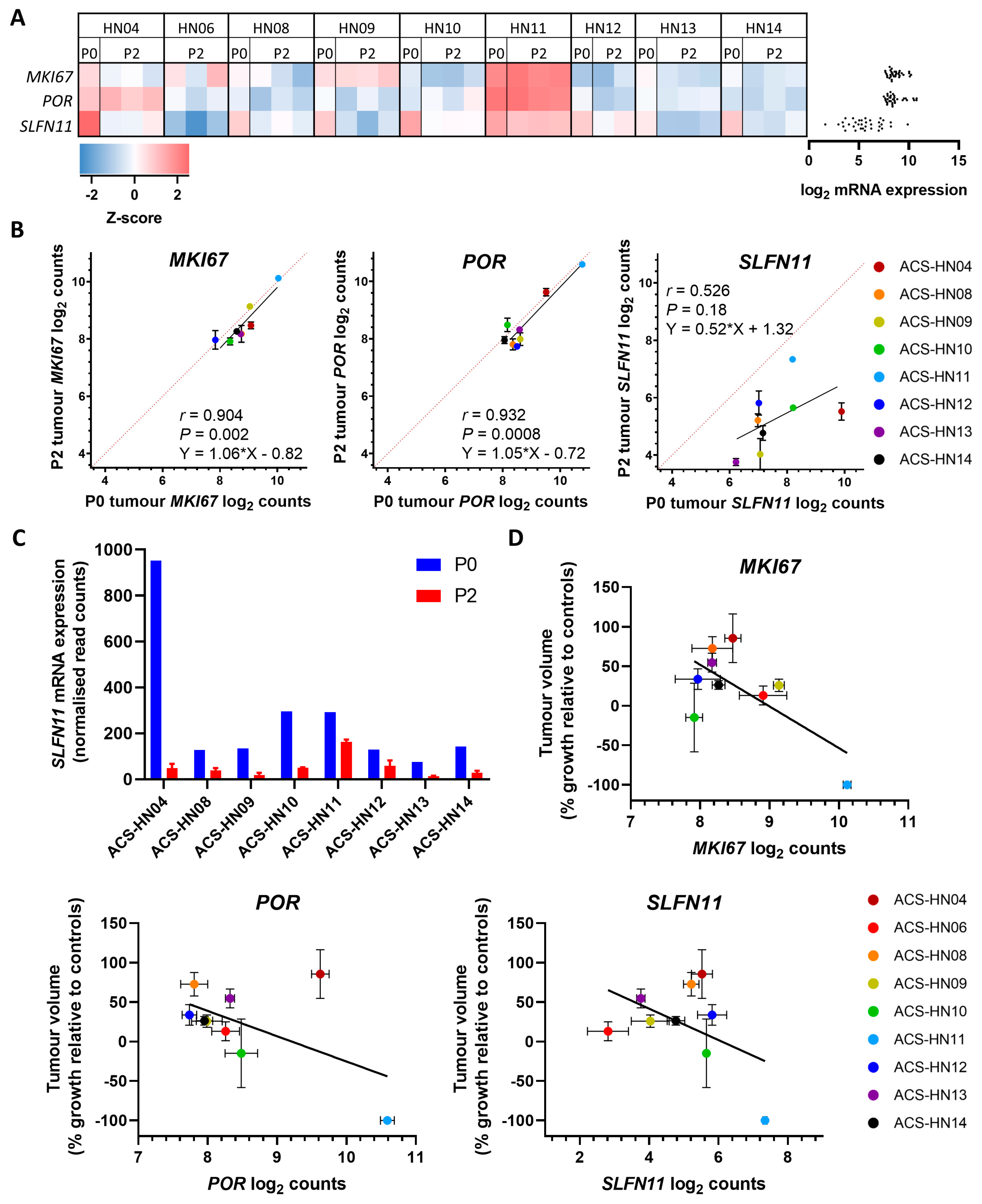

Figure 5. Expression of MKI67, POR, and SLFN11 in HNSCC PDX models. (A) Heatmap of mRNA expression of MKI67, POR, and SLFN11 genes in P0 and P2 PDX tumours determined as z-score relative to other PDX tumour samples. Red indicates high expression, blue indicates low expression. Gene expression determined as log2 counts normalised to positive control and three housekeeping genes. Individual counts shown on right. (B) Comparison of MKI67, POR and SLFN11 mRNA expression in P0 (n = 1) and P2 (n = 2–3) tumours across eight PDX models. Symbols represent mean ± SEM. Dotted lines represent equal expression. (C) SLFN11 expression in P0 and P2 tumours for eight PDX models. Bars represent individual values (P0) or the mean ± SEM for n = 2–3 tumours (P2). (D) Comparison between evofosfamide anticancer efficacy (tumour growth in evofosfamide-treated mice relative to controls at end of treatment or endpoint) and MKI67, POR and SLFN11 expression in HNSCC PDX models. Symbols represent mean ± SEM for n = 2–12 tumours.
Figure 5. Expression of MKI67, POR, and SLFN11 in HNSCC PDX models. (A) Heatmap of mRNA expression of MKI67, POR, and SLFN11 genes in P0 and P2 PDX tumours determined as z-score relative to other PDX tumour samples. Red indicates high expression, blue indicates low expression. Gene expression determined as log2 counts normalised to positive control and three housekeeping genes. Individual counts shown on right. (B) Comparison of MKI67, POR and SLFN11 mRNA expression in P0 (n = 1) and P2 (n = 2–3) tumours across eight PDX models. Symbols represent mean ± SEM. Dotted lines represent equal expression. (C) SLFN11 expression in P0 and P2 tumours for eight PDX models. Bars represent individual values (P0) or the mean ± SEM for n = 2–3 tumours (P2). (D) Comparison between evofosfamide anticancer efficacy (tumour growth in evofosfamide-treated mice relative to controls at end of treatment or endpoint) and MKI67, POR and SLFN11 expression in HNSCC PDX models. Symbols represent mean ± SEM for n = 2–12 tumours.
Cells 08 00717 g005
Table
Table 1. Characteristics of patient-derived xenograft (PDX) models.
Table 1. Characteristics of patient-derived xenograft (PDX) models.
ModelSiteDerivationStagep16 Status
ACS-HN04TonguePrimarypT2 N1 MxNegative
ACS-HN06OropharynxRecurrentT4a N2b M0Negative
ACS-HN07TongueRecurrentT3 N0 M0Negative
ACS-HN08TonguePrimarypT4a N2b M0Negative
ACS-HN09TonguePrimarypT2 N2b M0Negative
ACS-HN10MaxillaRecurrentT2 N0 M0Negative
ACS-HN11TongueRecurrentT2 N0 M0Positive
ACS-HN12TonguePrimarypT2 N0 MxNegative
ACS-HN13Hypopharynx pyriform sinusPrimarypT4a N3b M0Negative
ACS-HN14Buccal mucosaPrimarypT4a N2 MxNegative

Share and Cite

MDPI and ACS Style

Harms, J.K.; Lee, T.-W.; Wang, T.; Lai, A.; Kee, D.; Chaplin, J.M.; McIvor, N.P.; Hunter, F.W.; Macann, A.M.J.; Wilson, W.R.; et al. Impact of Tumour Hypoxia on Evofosfamide Sensitivity in Head and Neck Squamous Cell Carcinoma Patient-Derived Xenograft Models. Cells 2019, 8, 717. https://doi.org/10.3390/cells8070717

AMA Style

Harms JK, Lee T-W, Wang T, Lai A, Kee D, Chaplin JM, McIvor NP, Hunter FW, Macann AMJ, Wilson WR, et al. Impact of Tumour Hypoxia on Evofosfamide Sensitivity in Head and Neck Squamous Cell Carcinoma Patient-Derived Xenograft Models. Cells. 2019; 8(7):717. https://doi.org/10.3390/cells8070717

Chicago/Turabian Style

Harms, Julia K., Tet-Woo Lee, Tao Wang, Amy Lai, Dennis Kee, John M. Chaplin, Nick P. McIvor, Francis W. Hunter, Andrew M. J. Macann, William R. Wilson, and et al. 2019. "Impact of Tumour Hypoxia on Evofosfamide Sensitivity in Head and Neck Squamous Cell Carcinoma Patient-Derived Xenograft Models" Cells 8, no. 7: 717. https://doi.org/10.3390/cells8070717

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
