PM2.5 Pollution in Xingtai, China: Chemical Characteristics, Source Apportionment, and Emission Control Measures

Abstract

Beijing-Tianjin-Hebei (BTH) and its surrounding areas are one of the most polluted regions in China. Xingtai, as a heavy industrial city of BTH and its surrounding areas, has been experiencing a severe PM_2.5 pollution in recent years, characterized by extremely high concentrations of PM_2.5. In 2014, PM_2.5 mass concentrations monitored by online instruments in urban areas of Xingtai were 116, 77, 128, and 200 µg m⁻³ in spring, summer, autumn and winter, respectively, with annually average concentrations of 130 µg m⁻³ exhibiting 3.7 times higher than National Ambient Air Quality Standard (NAAQS) value for PM_2.5 (35 µg m⁻³). To identify PM_2.5 emission sources, ambient PM_2.5 samples were collected during both cold and warm periods in 2014 in urban areas of Xingtai. Organic carbon (OC), sulfate, nitrate, ammonium and elemental carbon (EC) were the dominant components of PM_2.5, accounting for 13%, 11%, 12%, 11% and 8% in the cold period, respectively, and 11%, 12%, 9%, 6%, and 5% in the warm period, respectively. Source apportionment results indicated that coal combustion (24.4%) was the largest PM_2.5 emission source, followed by secondary sulfate (22.2%), secondary nitrate (18.4%), vehicle exhaust dust (12.4%), fugitive dust (9.7%), construction dust (5.5%), soil dust (3.4%) and metallurgy dust (1.6%). Based on PM_2.5 source apportionment results, some emission control measures, such as replacing bulk coal with clean energy sources, controlling coal consumption by coal-fired boiler upgrades, halting operations of unlicensed small polluters, and controlling fugitive and VOCs emission, were proposed to be implemented in order to improve Xingtai’s ambient air quality.

1. Introduction

Atmospheric particulate matter (PM) pollution has become a serious environmental problem in China, especially PM_2.5 (particle matter with an aerodynamic diameter of less than or equal to 2.5 μm). PM_2.5 is a complex mixture including both primary emissions and secondary formation, which mainly consist of organic carbon (OC) and elemental carbon (EC), sulphate, nitrate, ammonium, mineral dust, trace element and water etc. PM_2.5 not only deteriorate regional and urban air quality [1,2,3], but also do harm to human health [4]. High concentrations of PM_2.5 have a negative impact on public health and happiness. Exposure to high concentrations of PM_2.5 has been recognized as a leading health risk factor in China [5] and across the world [6] in relation to cardiopulmonary morbidity and mortality. Increasing evidence suggests that chemical compositions in PM_2.5 from different sources are responsible for adverse health effects. PM_2.5 may be of natural or anthropogenic origin or both, which can be emitted directly into the atmosphere, or formed in the atmosphere by gaseous precursors, that is, PM_2.5 is a mixture that can arise from multiple and complex sources. A clear understanding of major PM_2.5 sources is the basis for formulating emission control measures [7].

Xingtai, located in the mid-southern area of the Beijing-Tianjin-Hebei (BTH) region, is an industrial city and is impacted by a combination of local and regional PM_2.5 sources including coal-fired power plants, integrated steel plants, non-ferrous metals smelting, coking plants, manufacturing, motor vehicles, and secondary aerosols, etc. Along with rapid economic development and urbanization, PM_2.5 pollution in urban area of Xingtai is rapidly increasing. Since 2005, coal consumption in Xingtai has increased dramatically and accounted for 16.6% of Hebei’s total coal consumption in 2012, contributing to emissions of both primary PM_2.5 and gaseous precursors of secondary PM_2.5. In 2012, the Ministry of Environmental Protection (MEP) enacted the new National Ambient Air Quality Standards (NAAQS), which set PM_2.5 guidelines for the first time of 75 and 35 µg m⁻³ for daily and annual average values, respectively [2,8]. Since 2013, MEP began to report the top ten polluted cities in China. According to this report, in 2013 Xingtai ranked first in the top ten polluted cities [9]. In 2014, it ranked second [10]. In 2015, it still ranked second. Thus, it can be seen that Xingtai’s air quality suffered from the worst PM_2.5 pollution, which has been a tough environmental problem for local governments.

In 2013, MEP accelerates PM_2.5 source apportionment to support policy making for air pollution prevention and control in China. MEP recommended two methods (i.e., source-oriented model and receptor model) to guild PM_2.5 source apportionment and the combination of these two methods are encouraged to avoid the shortage of each method. Receptor models are generally used to quantitatively estimate pollutant levels contributed by different sources through statistical interpretation of ambient measurements. Among receptor models, chemical mass balance (CMB) is a source apportionment method to assess particle source contributions successfully, and has been widely applied in many different places around the world [11,12,13,14]. In 2014, Hebei’s Environmental Protection Department (EPD) required all the 11 prefectural-level cities to perform PM_2.5 source apportionment. Accordingly, Xingtai’s Environmental Protection Bureau (EPB) started the project of PM_2.5 source apportionment in order to effectively protect public health and implement emission reduction measures.

In this study, to obtain a better understanding of the chemical composition of Xingtai’s PM_2.5, identify emission sources of Xingtai’s PM_2.5, and formulate subsequent emission control measures, we carried out a comprehensive investigation about mass concentrations of PM_2.5 (both on-line and off-line data), and the chemical composition of PM_2.5 (OC and EC, water-soluble ions, and trace elements) for both cold and warm periods in 2014 in Xingtai. Furthermore, major emission sources of Xingtai’s PM_2.5 were identified and quantified by the CMB model. Based on source apportionment results, corresponding emission control measures were also proposed for improving Xingtai’s air quality.

2. Experimental Section

2.1. Sampling Site Description

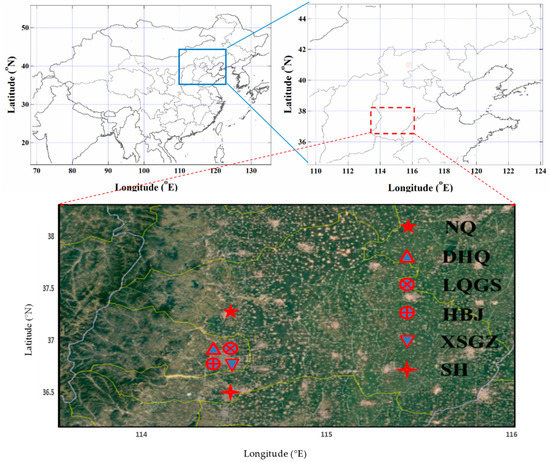

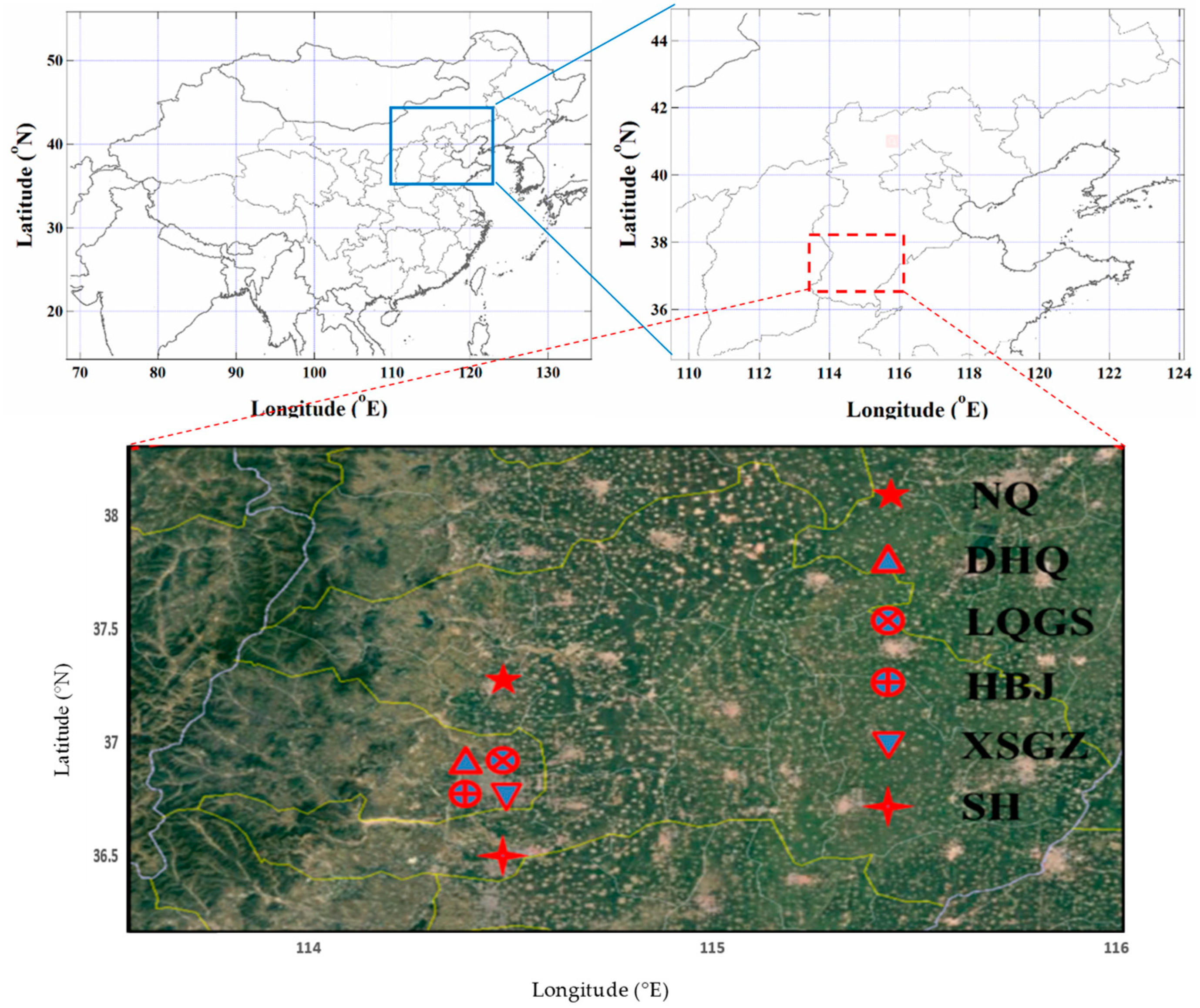

Xingtai is a medium-sized industrial city with some heavy industrial factories and is located on the mid-southern part of the Beijing-Tianjin-Hebei (BTH) Region, surrounded by Taihang Mountains in the west. The urban area is more than 162 km², with a population of nearly 0.86 million. The prevailing wind is from the north and west during winter, and south during summer. The annual average wind speed is ~1.5 m s⁻¹. The average wind speed is ~1.2 m s⁻¹, and ~1.5 m s⁻¹ in winter and summer, respectively. The annual average static wind frequency is 15%. Ambient PM_2.5 samples were collected at six sites (NQ, DHQ, LQGS, HBJ, XSGZ, and SH) in Xingtai, as shown in Figure 1. The NQ site (37°16′ N, 114°30′ E, 78 m) and SH site (36°51′ N, 114°30′ E, 64 m) are located in north and south of urban areas, while the DHQ site (37°05′ N, 114°28′ E, 71 m), LQGS site (37°05′ N, 114°31′ E, 64 m), HBJ site (37°04′ N, 114°28′ E, 80 m) and XSGZ site (37°02′ N, 114°30′ E, 67 m) are situated at urban areas of Xingtai. The six sampling sites are set on the rooftops of buildings that are approximately 9–15 m above ground level.

2.2. Sample Collection

2.2.1. Ambient Sample Collection

PM_2.5 ambient sampling was performed simultaneously at six sites of Xingtai City. The sampling time covered the cold (January and February) and warm (July and August) periods of 2014. Each sampling period was conducted continuously from 10 am to 9 am the next day. A four-channel sampler for PM (TH-16a, Tianhong Instruments Co., Ltd., China) with a flow rate of 16.7 L min⁻¹ was employed to collect PM_2.5. Teflon filters (47 mm in diameter) were used to collect samples for ion and elemental analysis and quartz filters (47 mm in diameter) were used to collect samples for organic carbon (OC) and elemental carbon (EC) analysis, respectively. A total of 236 and 240 valid ambient PM_2.5 samples were collected in the cold and warm periods, respectively. Before and after sampling, Teflon-membrane filters were conditioned for 24 h at about 40% RH and 25 °C in an air-conditioned room and weighed on a microbalance with a resolution of 10 μg. Prior to sampling, the quartz filters were baked at 450 °C for 4 h to reduce blank carbon levels. OC and EC were determined by a thermal/optical carbon analyzer (DRI, Model 2001) using the IMPROVE protocol. The calibration of the analyzer was done before and after sample analysis every day. The background contamination was regularly monitored by blank tests, which were used to validate and correct the corresponding data. Blanks and duplicate sample analyses were conducted for nearly 10% of the samples. Certified reference materials (CRMs, produced by National Research Center for Certified Reference Materials, China) were used for quality control.

2.2.2. Source Sample Collection

Due to the lack of local source profiles of major source types in Xingtai, such as coal combustion dust, typical industrial source, soil dust and road dust, some non-local source profiles were used in PM_2.5 source apportionment work [14]. Based on the actual investigation of sources and the air pollution emission inventory from the official reports, major sources were identified, including representative industry dust such as chemical industry and metallurgical industry, coal combustion dust, construction dust, soil dust, road dust, fugitive dust, vehicle exhaust dust and secondary ionic particles. Samples of PM_2.5 sources including chemical industry dust, metallurgical industry dust, coal combustion dust, construction dust, soil dust, road dust, fugitive dust were collected in Xingtai.

Representative industry dust and coal combustion dust were collected from particulate pollution control devices (electrostatic precipitators, fabric filters or wet scrubbers). Construction dust was collected from construction site and from production lines of nearby cement factories. Soil dust was collected from bare croplands or exposed land. Road dust was collected in the middle and on both sides of the road. Fugitive dust refers to dust that is continually raised into the surrounding atmosphere by natural forces or human activities, after being initially deposited in urban areas. The fugitive dust was collected on roofs of 20 m building using brooms or brushes. A total of 73 source samples were collected.

Following this, the collected dust samples were dried in a dark room with ventilation devices and sieved through 150 mesh sieves. The sieved material was then suspended in a resuspension chamber and sampled through size-selective inlets onto Teflon filters and quartz filters to obtain the PM_2.5 samples used for analyses. This resuspension method has been used in pervious researches [15,16,17]. In addition, the source profile of vehicle exhaust was established from the source profile database of Environmental Protection Agency (SPECIATE 43). The chemical profiles of secondary sulfate and secondary nitrate were established according to the composition of pure (NH₄)₂SO₄ and NH₄NO₃.

2.2.3. Other Pollutants

The concentrations of gas pollutants, including NO₂, SO₂, PM_2.5 and PM₁₀, were recorded at one-hour intervals by the air quality monitoring stations located at the sampling sites belonging to the Ministry of Environmental Protection in China.

2.3. Chemical Analysis

Prior to extraction and digestion, each Teflon-membrane filter was cut into two equal halves with ceramic scissors. One half was subjected to Milli-Q water extraction for ionic measurement and the other half to acid digestion for elemental measurement. For acid digestion, the polypropylene support O-ring on half of each filter sample was carefully removed with a ceramic knife to avoid contamination. The filter samples were digested with an acid mixture by using an ultrahigh throughout microwave digestion system (MARSXpress, CEM, Matthews, NC). A blank reagent and two filter blanks were prepared in each run following the same procedure used for the samples. All the acids used in this study were of ultra-pure grade (Merck, Germany). The detailed digestion method has been published elsewhere [18]. Another half of all filter samples were used for extraction with 20 mL Milli-Q purified water (specific resistivity = 18.2 MΩ cm⁻¹; Millipore, Massachusetts, USA) for 1 h. The detailed extraction procedures have been described in Hsu et al. [19,20].

Water-soluble ions (NO₃⁻, SO₄²⁻, Cl⁻, NH₄⁺, K⁺, Ca²⁺, Na⁺, Mg²⁺) were analyzed by ion chromatography (Met-820, Metrohm). In general, the method detection limits (MDLs) were within the range of 0.01 to 0.04 μg m⁻³ for cations and 0.03 to 0.07 μg m⁻³ for anions [19]. One half of each Teflon-membrane filter was put into a glass tube and deionized water was used to extract. The extraction procedure was conducted for at least three times so that the water-soluble ions of samples were extracted adequately into the solution. Before ions detection, standard solutions were prepared and were detected for over three times, and low relative standard deviations were observed.

A range of elements (Na, K, Si, Ca, Mg, Al, Ti, V, Cr, Mn, Fe, Ni, Cu, Pb, Ba, Sn, Cd, Se, As and Zn) were analyzed by inductively coupled plasma–mass spectrometry (ICP-MS) (XSeries 2, Thermo Fisher) [21,22]. Before being measured by ICP-MS, the other half of each Teflon-membrane filter was cut into fragments and placed into a conical flask. Acid solutions (15 mL of HNO₃ and 5 mL of HClO₄) were added into the flask and the flask was heated by electric stove. The solution was evaporated until about 3 mL residual was left. After being cooled and filtered, the solution was decanted into a test tube and diluted to 15 mL with deionized water. An alkali solution was used for measuring the concentrations of silicon. For quality assurance and quality control (QA/QC), standard reference materials were pre-treated and analyzed with the same procedure, with the recovered values for all the target elements falling into the range or within 5% of certified values.

A punch of 0.526 cm² from each quartz filter was heated stepwise by a thermal/optical carbon analyzer (DRI 2001, Atmoslytic, US) in a pure helium atmosphere at 140 °C (OC1), 280 °C (OC2), 480 °C (OC3), and 580 °C (OC4), and then in 2% O₂ and 98% He atmosphere at 580 °C (EC1), 740 °C (EC2), and 840 °C (EC3) to convert any particulate carbon on the filter to CO₂. After being catalyzed by MnO₂, CO₂ was reduced to CH₄, which was then directly measured. Mass concentrations of OC and EC were obtained according to the IMPROVE protocol [23] (OC = OC1 + OC2 + OC3 + OC4 + OP; EC = EC1 + EC2 + EC3-OP, where OP is the optical pyrolyzed OC). Detailed descriptions can be found in Zhang et al. [24].

2.4. CMB Analysis and Source Identification

The CMB is a single-sample receptor model that can be stated in terms of the contribution from p independent sources to all chemical species as follows:

$$x_{ij}={\displaystyle \sum }_{k=1}^p{g}_{ik}{f}_{kj}+e_{ij}$$

(1)

where $x_{ij}$ is the measured concentration of species j in sample i, $f_{kj}$ is the concentration of species j in the emissions of source k, $g_{ik}$ is the contribution of source k to sample i, and $e_{ij}$ is the model residual. This model considers a prior knowledge of the source profiles and that the components of the source emissions do not undergo changes during their transport from the source to the receptor. CMB provides an effective variance-weighted least-squares solution to the overdetermined set of mass balance equations. CMB takes into account the known uncertainties in the ambient measurements and the source emission data to minimize the chi-square (x²) goodness-of-fit parameter for each sample i:

$$x^2={\displaystyle \sum }_{j=1}^m\left[x_j-{\displaystyle \sum }_{k=1}^p{g}_{jk}{f}_k/{\sigma }_{x_j}^2+{\displaystyle \sum }_{k=1}^p{\sigma }_{g_{jk}}{f}_k\right]$$

(2)

where ${\sigma }_{x_j}$ is the standard deviation of the concentration of species j, ${\sigma }_{g_{jk}}$ is the standard deviation of the $g_{jk}$, and m is the total number of species. The US EPA-CMB8.2 software has been successfully used to apportion source contributions to ambient PM_2.5 [25,26,27,28,29,30] and was also used in the current study. More details about CMB can be found elsewhere [12,31].

Eight source categories were identified, including construction dust, coal combustion, metallurgical dust, road dust, fugitive dust, soil dust, vehicle exhaust dust, secondary sulfate and secondary nitrate. Since CMB does not distinguish secondary sources, “pure” sulfate (contains only 72.7% sulfate ion in (NH₄)₂SO₄) and “pure” nitrate (contains only 77.5% nitrate ion in NH₄NO₃) are assumed as secondary sources in the source profile. As a result, the method identifies the contribution of gas-to-particle formation [32]. In total, 476 samples consist of 8 water-soluble ions, 16 chemical elements, OC and EC were used in the source apportionment.

It should be noted that source profiles of fugitive dust and soil dust shared similar major components, as shown in Section 3.3. However, traditional CMB model is sensitive to collinearity problem among source profiles, which may result in unreliable information. As a kind of mixed source, fugitive dust is composed of a mixture from each single dust source. Therefore, fugitive dust can be considered as the source of PM_2.5 in the ambient air and can be regarded as the receptor of PM_2.5 of each single dust source. Thus, according to the principle of chemical mass balance, the CMB model can be used to calculate the contribution of each single dust source to fugitive dust. In this research, fugitive dust was calculated both as source and as receiver to improve the CMB model.

First of all, the CMB model was used to calculate the contribution of each individual primary source. Secondly, the fugitive dust was considered as a receptor and the contribution of each individual primary source to fugitive dust was calculated. Thirdly, the contribution of fugitive dust to ambient PM_2.5 was calculated. Finally, by incorporating the results from this three-stage modeling approach, the collinearity-controlled net contribution from each source was obtained. Further details about the improved CMB model have been previously described [17].

3. Results and Discussions

3.1. Levels of PM_2.5 Mass Concentrations in Xingtai

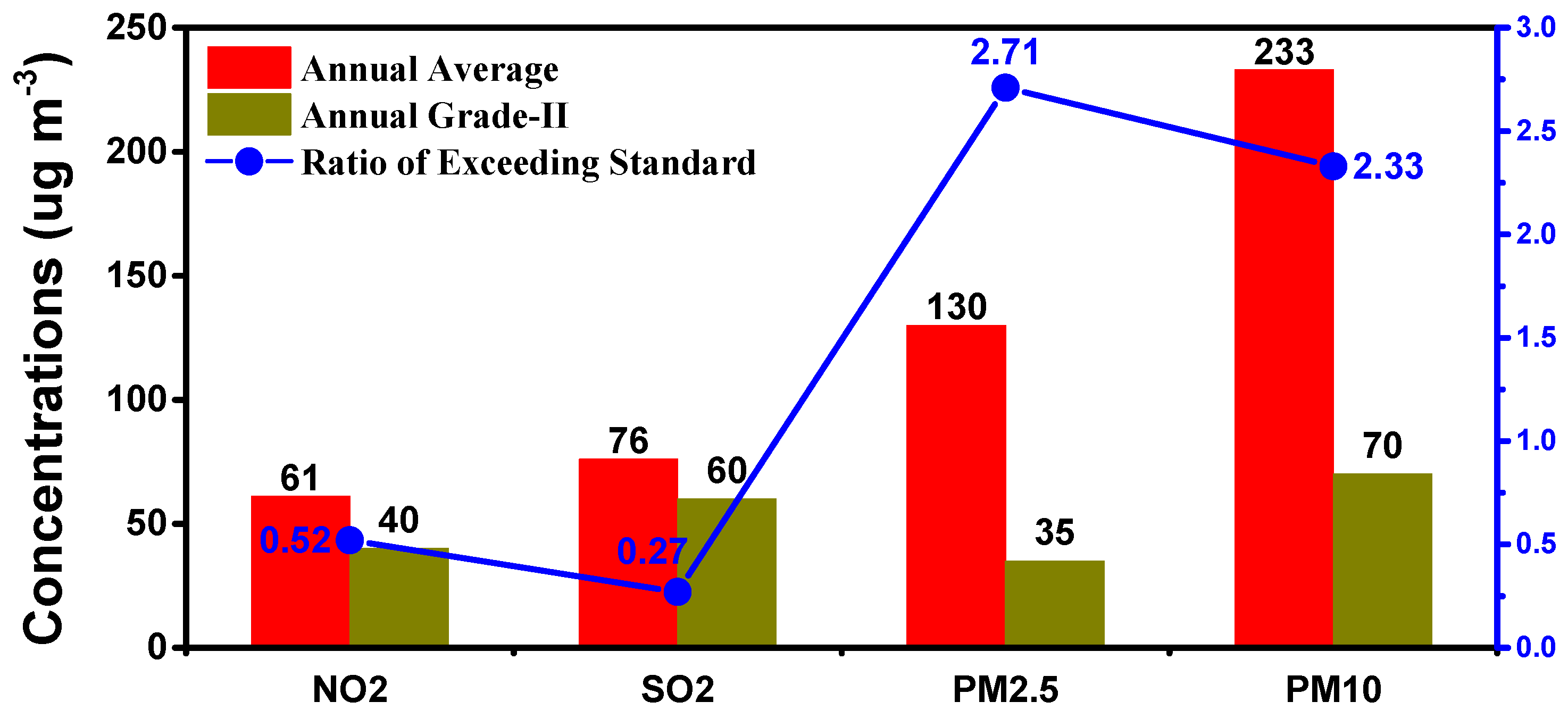

NO₂ and SO₂—gaseous precursors of secondary PM_2.5—were the main contributors for ambient PM_2.5 formation. Annual average concentrations of NO₂, SO₂, PM_2.5 and PM₁₀ and the ratio of exceeding Chinese NAAQS guidelines in Xingtai are shown in Figure 2. Annual average levels of NO₂, SO₂, PM_2.5 and PM₁₀ were 61, 76, 130, and 233 µg m⁻³, respectively. It can be seen from Figure 2 that PM_2.5 had exceeded by 2.71 times the Chinese NAAQS values of 35 µg m⁻³ for PM_2.5, and PM₁₀ had exceeded by 2.33 times the Chinese NAAQS values of 70 µg m⁻³ for PM₁₀, respectively. Thus, it can be ascertained that PM_2.5 was the first primary pollutant in Xingtai because the ratio by which it exceeded guideline levels of PM_2.5 was the highest. In 2014, in addition to Baoding (162 µg m⁻³), Xingtai ranked second in PM_2.5 levels in Hebei Province, which was slightly higher than Shijiazhuang (124 µg m⁻³) [10]. Therefore, Xingtai’s PM_2.5 pollution has been an extremely serious environmental problem, which placed tremendous stress on local governments.

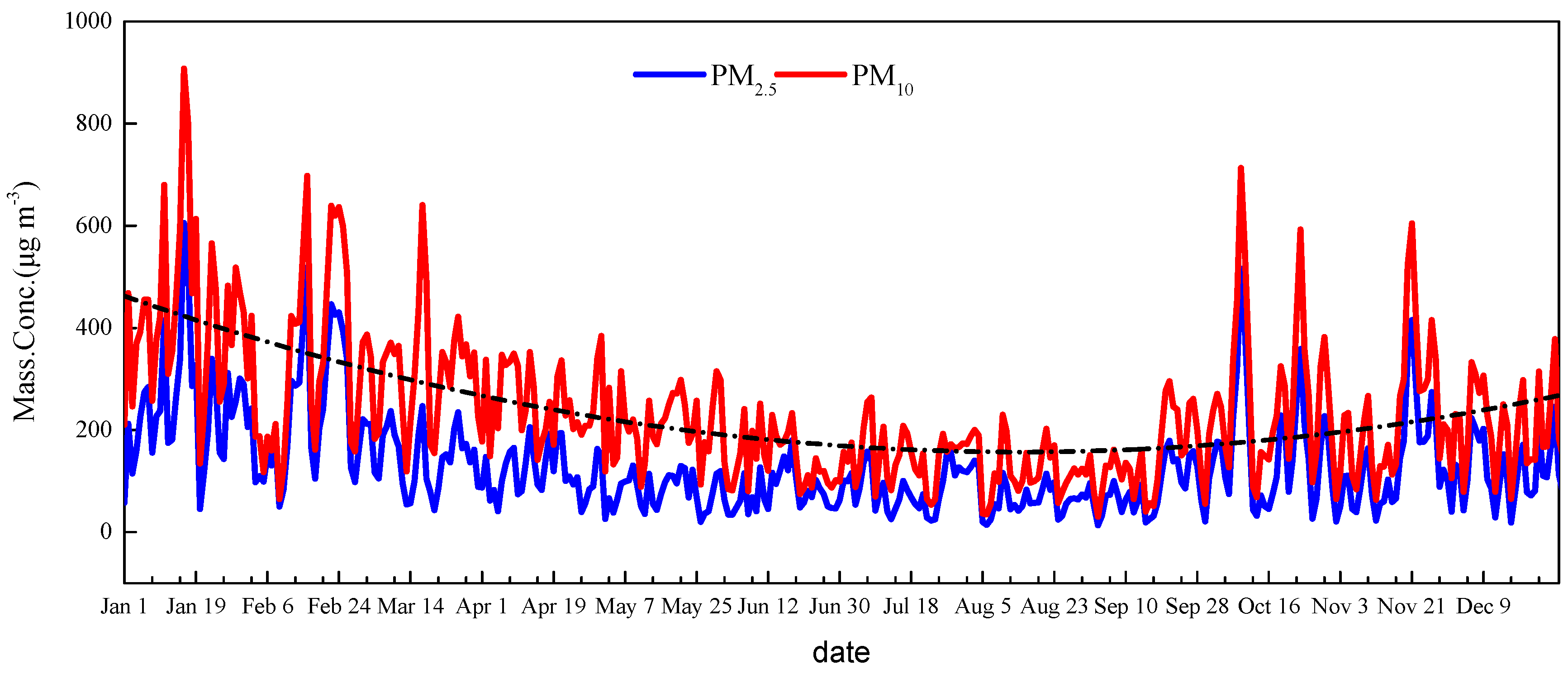

Xingtai’s PM_2.5 and PM₁₀ mass concentrations from January 2014 until December 2014 were monitored by on-line instruments and are shown in Figure 3. Clear seasonal variation in PM_2.5 mass concentrations can be observed, with a high concentration of 200 µg m⁻³ in winter (December–February) and a low concentration of 77 µg m⁻³ in summer (June–August), respectively. PM₁₀ had the same seasonal characteristics as PM_2.5, with a high concentration of 325 µg m⁻³ in winter and a low concentration of 138 µg m⁻³ in summer. High PM_2.5 mass concentrations in winter might be closely related to both lots of continued local pollutant emissions and adverse meteorological condition (such as high RH and temperature inversion). Low PM_2.5 mass concentrations in summer were partly due to frequent precipitation events and favorable atmospheric diffusion, which led to efficient removal of particles from the atmosphere. In China, heavy pollution episodes often happen in autumn and winter and can be classified into two types: (1) An explosive growth of PM_2.5 within a few hours; (2) and a continuous increase of PM_2.5 in several days [2]. For instance, from January 12 to January 16, PM_2.5 mass concentrations in Xingtai showed a continuous increase and the peaking concentrations were 606 µg m⁻³, which were 8 times higher than that (75 µg m⁻³ for PM_2.5) of Chinese NAAQS.

3.2. Chemical Composition of PM_2.5

In total, 236 and 240 valid ambient PM_2.5 samples were collected in cold and warm periods, respectively. PM_2.5 mass concentrations (off-line data, filter-based), and organic carbon (OC), elemental carbon (EC), water-soluble inorganic ions (WSIIs), and trace elements for both cold and warm periods in Xingtai are listed in

Table 1. Mass concentrations of PM_2.5 and levels of OC, EC, ions, and trace elements for all sites in the cold and warm periods (off-line data, data derived from filter membrane sampling analysis).

Species	Cold Period (μg m−3) (n = 236)		Warm Period (μg m−3) (n = 240)
	Ave.	SD	Ave.	SD
PM2.5	214.53	87.46	81.43	35.08
EC	16.18	9.53	4.40	2.32
OC	27.32	17.82	9.13	2.60
SO42−	24.12	16.16	9.72	7.61
NO3−	24.84	15.98	7.18	6.76
Cl−	5.82	3.04	2.08	1.56
NH4+	24.15	16.40	5.22	4.89
Ca2+	1.63	0.73	1.45	0.61
K+	1.20	0.80	1.19	0.61
Mg2+	0.24	0.09	0.23	0.15
Na+	0.86	0.46	0.64	0.32
Si	13.38	6.02	6.29	5.49
Al	5.04	2.22	1.78	2.21
K	2.36	0.99	1.66	0.69
Fe	1.18	0.37	1.04	0.29
Pb	0.33	0.29	0.23	0.16
Ba	0.04	0.02	0.03	0.03
Sn	0.01	0.01	-	-
Cd	0.01	-	-	-
Se	0.01	0.01	0.01	0.01
As	0.02	0.01	0.01	0.01
Zn	0.42	0.29	0.24	0.15
Cu	0.03	0.02	0.02	0.01
Ni	0.01	0.01	0.01	0.01
Mn	0.07	0.02	0.06	0.03
Cr	0.02	0.02	0.02	0.03
Ti	0.07	0.03	0.05	0.03

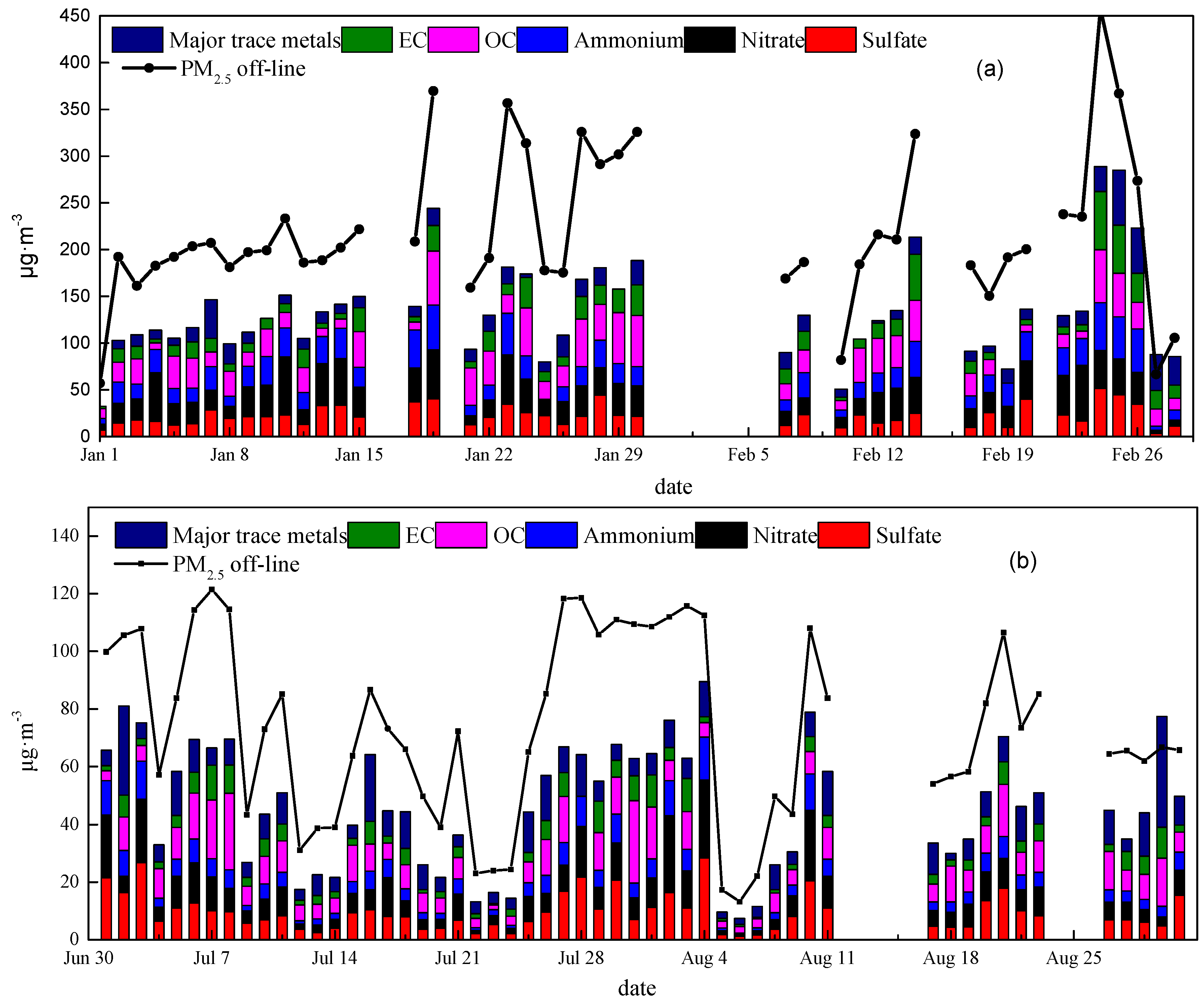

. The time series of major PM_2.5 components for cold and warm periods are shown in Figure 4a,b, respectively. PM_2.5 mass concentrations in Xingtai ranged from 66.73 to 458.48 μg m⁻³ with an average of 214.53 ± 87.46 μg m⁻³ in the cold period, and changed from 13.19 to 121.38 μg m⁻³ with an average of 81.43 ± 35.08 μg m⁻³ in the warm period. The average concentrations were over 6 and 2 times higher than Chinese NAAQS values for PM_2.5 (35 μg m⁻³), respectively. It can be seen in Table 1 that the PM_2.5 level for the cold period was approximately 3 times higher than that of the warm period in Xingtai.

The average OC and EC concentrations were 27.32 ± 17.82 and 16.18 ± 9.53 μg m⁻³ for the cold period and 9.13 ± 2.60 and 4.40 ± 2.32 μg m⁻³ for the warm period, respectively. The average WSII concentrations were 82.86 and 27.72 μg m⁻³ for the cold and warm periods, respectively. Sulfate (SO₄²⁻), nitrate (NO₃⁻), and ammonium (NH₄⁺) (denoted by SNA) were the major contributors to WSIIs, accounting for 88.2% and 79.8% for the cold and warm periods, respectively. SNA are mainly formed from gaseous precursors (SO₂, NOx, and NH₃) through complicated gas- and aqueous-phase chemical reactions. The concentrations of SNA were higher for the cold period than the warm period. The possible explanation for this result may be extra coal combustion for resident heating, or synthetic action of between SO₂, NOx and NH₃ emissions and heterogeneous reactions, or unfavorable meteorological conditions. It can be seen in Table 1 that OC, EC, SO₄²⁻, NO₃⁻, and NH₄⁺ were the dominant components, accounting for 59% of PM_2.5 for the cold period and 39% of PM_2.5 for the warm period. Trace elements play an important role in emission source estimation and are associated with coal combustion, industrial process, traffic, and residential activities. For instance, crustal elements, such as Si, Al, Mg, Ca, and Ti, are associated with fugitive dust [33]. Pb is discharged from the smelting and coal combustion processes [34], and Cd, Mo, Cu, and Ba are generated by motor vehicle emissions [35]. For trace elements, the relatively high concentrations of trace elements are in the order of Si > Al > K > Fe > Zn > Pb > Mn > Ti, with 99.3% and 99.1% of total element mass contributions for the cold and warm period, respectively.

The sum of the chemical components accounted for 69.6% and 64.7% of PM_2.5 in the cold and warm periods, respectively. The mass closure gaps was found to exceed 40% in a previous study [36]. Tolocka et al. explained that the mass discrepancy was uncertainties stemming from analytic measurements [37]. To discuss the discrepancy, mass concentration was reconstructed based on measurements of the individual PM_2.5 components. For the OC multiplier, a value of 1.4 was used in most mass balance studies [38]. The crustal PM_2.5 was estimated using the sum of oxides algorithm [39,40]. The reconstructed results were 190.74 and 70.78 μg m⁻³, and the mass closure gaps were 11.1% and 11.8% in cold and warm periods, respectively. The reasons for the discrepancy might be explained as the uncertainty in measurements of chemical composition and PM_2.5 mass, the use of an incorrect OC multiplication factor, and inaccuracies in estimates for the crustal component of PM_2.5 mass.

3.3. Source Profiles of PM_2.5

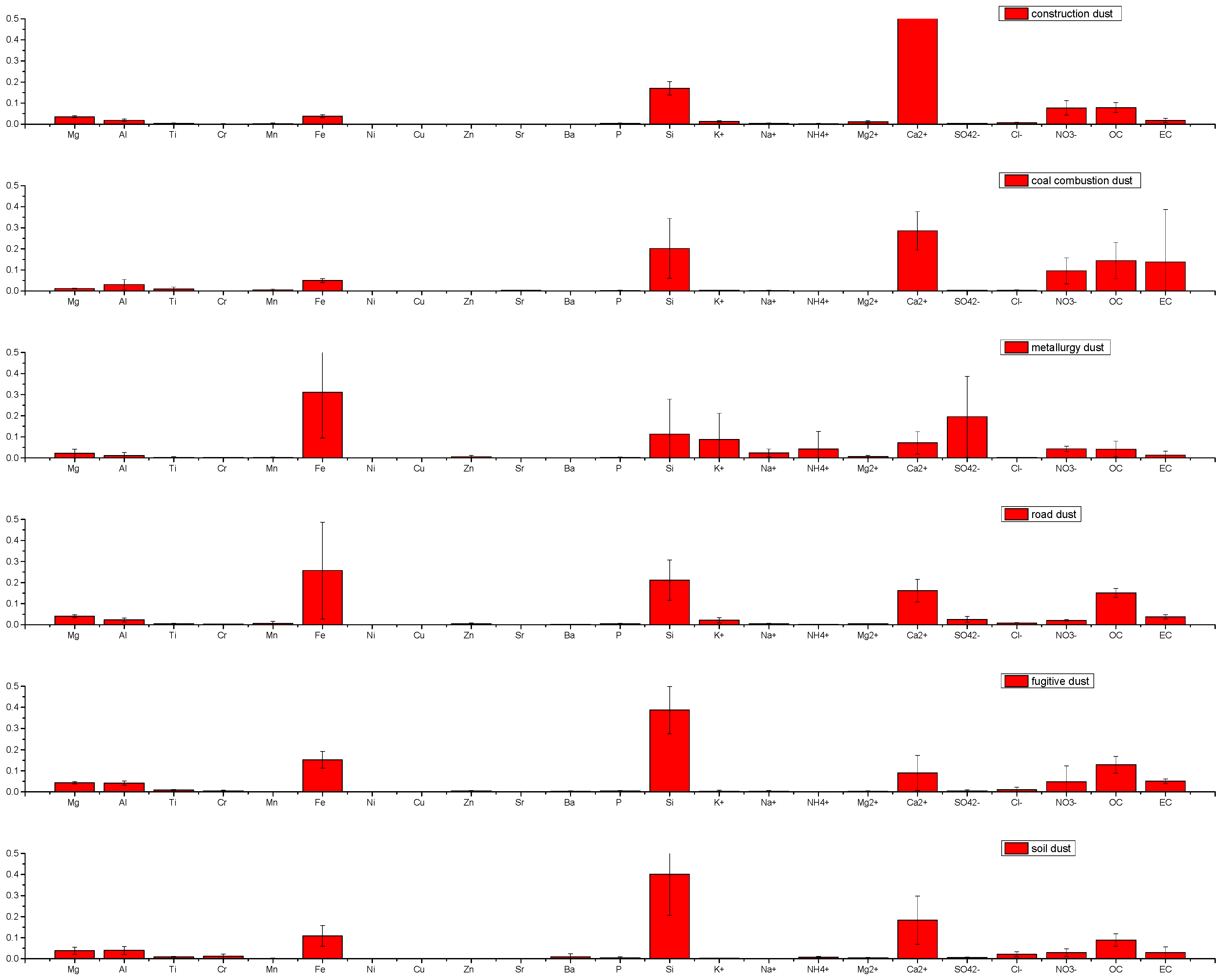

The PM_2.5 source profile is referred to as the mass fraction of chemical components to particulate matter from a specific primary source [41]. A total of six PM_2.5 source samples, including construction dust, coal combustion dust, metallurgical dust, road dust, fugitive dust and soil dust, were collected in Xingtai, as shown in Figure 5. Source profiles provide information about typical source tracers for source identification and quantification. The soil dust and fugitive dust share similar major components, Si, Ca and Fe account for 60% and 63% in soil dust and fugitive dust, respectively. For road dust, Si, Ca, Fe and OC, accounting for 78%, are considered the typical tracers. For metallurgical dust, Fe plays the most important role, accounting for 31%, followed by SO₄²⁻ (20%) and Si (11%). Si, Ca, OC, and EC are four important tracers for coal combustion. Ca accounts for the most in construction dust, about 26%, which is significantly higher than others.

3.4. Source Apportionment of PM_2.5

The contribution of emission sources to ambient PM_2.5 in Xingtai during the cold and warm periods, as well as the overall average, are shown in

Table 2. Chemical mass balance source apportionment of ambient PM_2.5 in Xingtai in the cold and warm period, and the overall average values.

Source	Cold Period		Warm Period		Average
	(%)	μg m−3	(%)	μg m−3	(%)	μg m−3
Fugitive dust	6.7%	14.4 ± 4.3	10.6%	8.6 ± 3.1	9.7%	14.3 ± 5.3
Soil dust	2.8%	6.0 ± 2.1	3.6%	2.9 ± 1.1	3.4%	5.0 ± 2.4
Metallurgy dust	0.7%	1.6 ± 2.7	2.3%	1.9 ± 1.3	1.6%	2.3 ± 2.4
Coal combustion dust	28.4%	60.9 ± 25.9	17.4%	14.1 ± 6.2	24.4%	36.1 ± 14.7
Construction dust	5.0%	10.7 ± 4.8	4.9%	4.0 ± 1.7	5.5%	8.1 ± 2.9
Secondary sulfate	20.8%	44.6 ± 19.6	22.5%	18.2 ± 9.3	22.2%	32.9 ± 18.3
Secondary nitrate	21.9%	46.9 ± 18.3	17.0%	13.8 ± 6.7	18.4%	27.2 ± 16.1
Vehicle exhaust dust	11.8%	25.4 ± 10.8	14.8%	12.0 ± 5.9	12.4%	18.3 ± 12.2
Unknown source	1.8%	-	6.9%	-	2.6%	-

. Source apportionment results demonstrated that the major sources of PM_2.5 were coal combustion dust, secondary sulfate, secondary nitrate and vehicle exhaust dust. The contribution of coal combustion dust varied from 17.4% to 28.4%, secondary sulfate ranged from 20.8% to 22.5%, secondary nitrate from 17.0% to 21.9% and the contribution of vehicle exhaust ranged from 11.8% to 14.8%. The contribution of coal combustion played an important role in the formation of PM_2.5; the control of coal combustion is the primary task of the control of PM_2.5 in Xingtai. The contribution of secondary sulfate and secondary nitrate accounted for a large proportion. According to the principle of secondary particle generation, coal combustion, industrial activities and vehicle exhaust not only contribute a large number of primary PM_2.5, but also produce a large number of gaseous precursors such as sulfur dioxide and nitrogen oxides. These gaseous pollutants undergo a photochemical reaction in the atmosphere, generating a large amount of secondary sulfate and secondary nitrate. Thus, controlling sulfur dioxide and nitrogen oxides emissions is the key to reducing secondary PM_2.5. Additionally, fugitive dust, soil dust and construction dust accounted for 9.7%, 3.4%, and 1.6% in PM_2.5 source contribution, respectively.

There were differences in source apportionment of ambient PM_2.5 during different periods. The contribution of coal combustion dust for PM_2.5 in cold period was higher than in warm period. It was indicated that coal combustion must be controlled, especially in cold period. Additionally, the contributions of fugitive dust and vehicle exhaust for PM_2.5 in the cold period were lower than in the warm period. It was indicated that fugitive dust and vehicle exhaust must be controlled in the warm period.

Several source apportionment studies have been performed on PM_2.5 in the Beijing-Tianjin-Hebei region. Huang et al. [42] demonstrated that secondary inorganic aerosol was the largest PM_2.5 source in this region, accounting for 29.2%, 36.4%, 40.5%, and 45.1% of the PM_2.5 mass in Tianjin Shijiazhuang, Beijing and Xinglong, respectively. This result was similar with that in Xingtai (40.6%). It was different in the second largest PM_2.5 source: The second-largest PM_2.5 source was motor vehicle exhaust in Beijing, Tianjin and Shijiazhuang, whereas coal combustion was the second largest source in Xingtai (24.4%), especially for the cold period. It should be noted that the coal combustion source contributed significantly higher than the three cities in Xingtai.

In conclusion, it can be observed that contributions of coal combustion to ambient PM_2.5 were much higher compared to other sources, which was probably attributable to more industrial activities, as well as the presence coal-fired power plants in Xingtai. Furthermore, bulk coal combustion, as a residential energy in winter, was an essential contributor. Correspondingly, it can be concluded that the emissions of ambient PM_2.5 sources are relatively higher during the winter than other seasons. It was worth noting that regional transport also influenced haze pollution in the Beijing-Tianjin-Hebei region [42], and in this study due to the lower wind speed, particularly in the cold period, the slow and near-ground air masses originating from Shijiazhuang and Handan could have resulted in stagnant conditions, under which precursors from local emissions and those transported in could constitute a significant contribution to Xingtai’s ambient PM_2.5.

3.5. Emission Control Measures

PM_2.5 pollution in Xingtai was still among in the top ten polluted cities in China. Source apportionment results, summarized above, have provided scientific evidence for formulating effective emission control measures of Xingtai’s PM_2.5. Based on source apportionment results, emission reductions in coal combustion, secondary inorganic aerosol, vehicle exhaust and fugitive dust can help achieve PM_2.5 reduction targets and diminishing environmental, economic and health costs of PM_2.5 pollution. PM_2.5 emission control measures in Xingtai should predominantly focus on reducing coal consumption, which not merely lead to emission reduction of primary PM_2.5, but also decrease gaseous precursors emissions of secondary PM_2.5 (such as SO₂, NOx, NH_3, and VOCs). Some control measures of coal combustion should be adopted by local policy makers and implemented by local governments in order to improve Xingtai’s ambient air quality. For instance, coal-fired power plant should be introduced with ultra-low emissions, industrial coal-fired boilers should be upgraded, bulk coals should be replaced with clean energy sources in the countryside, and industrial emission standards of pollutants should be tightened. Moreover, based on the principle of “classification treatment and collaborative control”, the following control measures are expected to reduce emissions of both primary and secondary PM_2.5. For example, (1) controlling fugitive (road, construction and soil dust) emissions with actions such as sprinkling the roads regularly, covering all vehicles which transporting muck, and increasing urban green areas; (2) halting operations of heavy polluters; (3) punishing vehicles that violate emission standards; and (4) upscaling fuel quality.

In recent years, the importance of VOCs to secondary PM_2.5 pollution has been recognized in autumn and winter, but the corresponding emission control measures about VOCs are not yet well defined. In order to improve Xingtai’s urban air quality, stringent controls on VOCs emissions from coal combustion, industrial production and vehicle emissions should be considered by local policy makers. Other cities in Hebei Province, for example, Shijiazhuang, Tangshan, and Handan, etc., are also experiencing severe PM_2.5 pollution. Based on current status of PM_2.5 pollution in Hebei Province, regional transport is demonstrated to be another important contributor to the formation of PM_2.5 [43]. Similar emission control measures can be considered to be implemented by other local government, which is imperative for cleaning the air in Beijing-Tianjin-Hebei (BTH) and its surrounding areas.

4. Conclusions

In 2014, annual PM_2.5 mass concentrations in Xingtai were 130 µg m⁻³, which was 3.7 times higher than Chinese NAAQS value for PM_2.5 (35 µg m⁻³). During cold and warm periods, Xingtai’s PM_2.5 mass concentrations (off-line data) were 214.53 and 81.43 μg m⁻³, respectively, whose chemical components were mainly dominated by OC, EC, SO₄²⁻, NO₃⁻, and NH₄⁺. Eight major source categories of ambient PM_2.5 were identified by the CMB model. As a result, coal combustion was the biggest contributor, followed by secondary sulfate, secondary nitrate, vehicle exhaust dust, fugitive dust, construction dust soil dust and metallurgy dust. Based on source apportionment results, emission control measures in coal combustion, industrial production, motor vehicle and fugitive dust were proposed, such as ultra-low emissions in coal-fired power plants and industrial boilers, controlling fugitive emissions, tightening emission standards of pollutants and upscaling fuel quality. The implementation of emission control measures presented in this study was expected to help achieve positive benefits on improving Xingtai’s air quality.
