Impact of Modern Vehicular Technologies and Emission Regulations on Improving Global Air Quality
Abstract
:1. Introduction

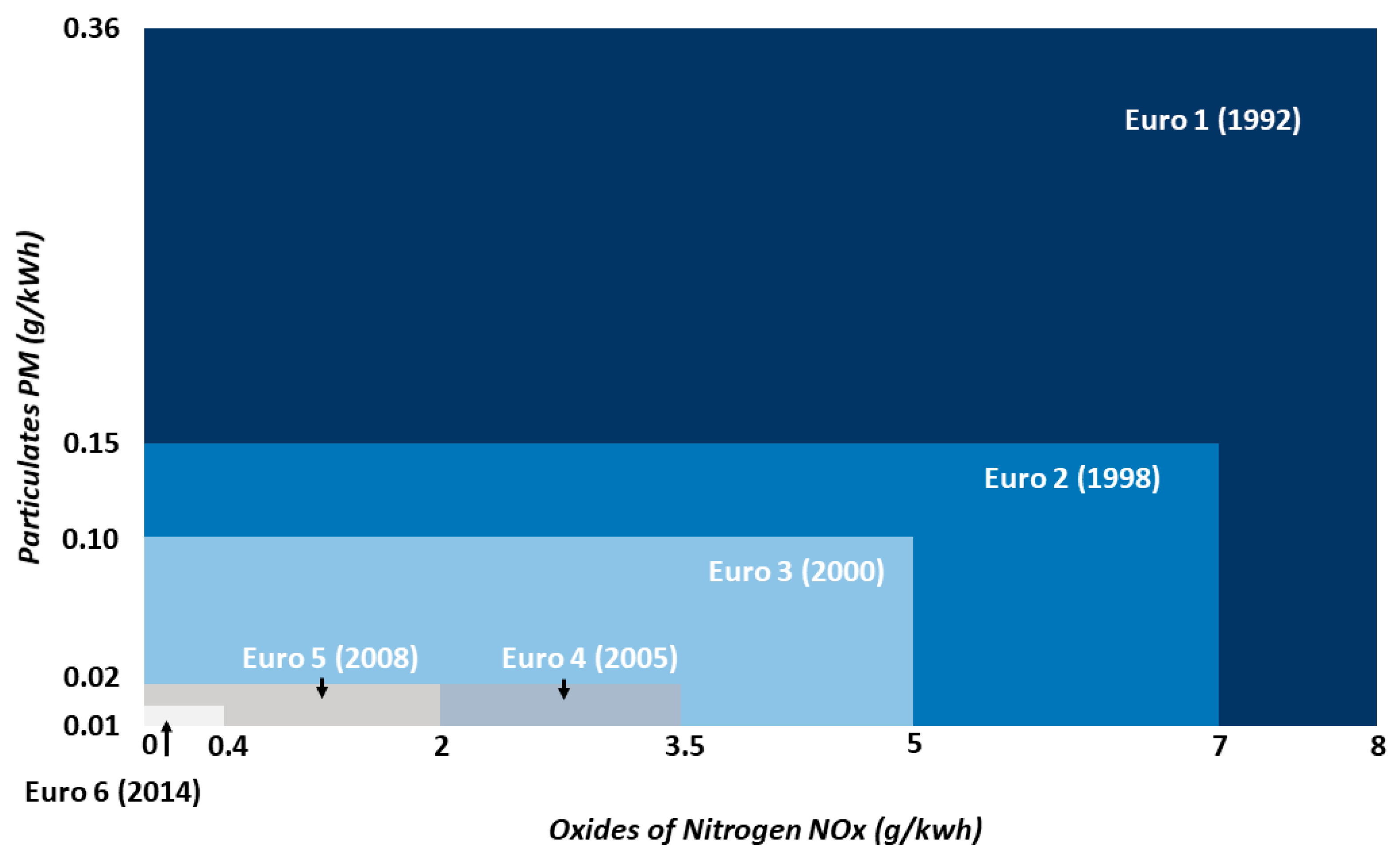

2. Emissions Regulations
2.1. Current Emission Limits
Stage | Year | CO | THC | NOx (Diesel) | NOx (Gasoline) | PM | NMHC |
---|---|---|---|---|---|---|---|
g/km | g/km | g/km | g/km | g/km | g/km | ||
Tier 1 (50,000 miles/5 years) | 1991 | 2.11 | 0.25 | 0.62 | 0.25 | 0.05 * | 0.16 |
Tier 1 (100,000 miles/10 years) | 1991 | 2.61 | - | 0.78 | 0.37 | 0.06 | 0.19 |
Tier 2 | 1999 | 1.3 | 0.06 | 0.04 | 0.04 | 0.01 | 0.06 |
Tier 3 | 2014 | 0.62 | 0.0342 | 0.018 | 0.018 | 0.003 | 0.024 |
Stage | Category | 50,000 m/5 Years | 100,000 m/10 Years | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
NMOGa g/mi | CO g/mi | NOx g/mi | PM g/mi | HCHO mg/mi | NMOGa g/mi | CO g/mi | NOx g/mi | PM g/mi | HCHO mg/mi | ||
LEV I | Tier 1 | 0.25 | 3.4 | 0.4 | 0.08 | - | 0.31 | 4.2 | 0.6 | - | - |
TLEV | 0.125 | 3.4 | 0.4 | - | 0.015 | 0.156 | 4.2 | 0.6 | 0.08 | 0.018 | |
LEV | 0.075 | 3.4 | 0.2 | - | 0.015 | 0.09 | 4.2 | 0.3 | 0.08 | 0.018 | |
ULEV | 0.04 | 1.7 | 0.2 | - | 0.008 | 0.055 | 2.1 | 0.3 | 0.04 | 0.011 | |
LEV II | LEV | 0.075 | 3.4 | 0.05 | - | 0.015 | 0.09 | 4.2 | 0.07 | 0.01 | 0.018 |
ULEV | 0.04 | 1.7 | 0.05 | - | 0.008 | 0.055 | 2.1 | 0.07 | 0.01 | 0.011 | |
SULEV | - | - | - | - | - | 0.01 | 1 | 0.02 | 0.01 | 0.004 |
Stage | Emission Category | NMOG + NOx | CO | HCHO | PM |
---|---|---|---|---|---|
g/mi | g/mi | mg/mi | g/mi | ||
LEV III | LEV160 | 0.16 | 4.2 | 4 | 0.01 |
ULEV125 | 0.125 | 2.1 | 4 | 0.01 | |
ULEV70 | 0.07 | 1.7 | 4 | 0.01 | |
ULEV50 | 0.05 | 1.7 | 4 | 0.01 | |
SULEV30 | 0.03 | 1 | 4 | 0.01 | |
SULEV20 | 0.02 | 1 | 4 | 0.01 | |
ULEV125 | 0.125/0.160 | 4.2 | 0.01 | ||
LEV IV | ULEV70 | 0.070/0.105 | 2.1 | ||
ULEV60 | 0.060/0.090 | 1.7 | |||
ULEV50 | 0.050/0.070 | 1.7 | |||
ULEV40 | 0.040/0.060 | 1.7 | |||
SULEV30 | 0.030/0.050 | 1 | |||
SULEV25 | 0.025/0.050 | 1 | |||
SULEV20 | 0.020/0.030 | 1 | |||
SULEV15 | 0.015/0.030 | 1 |
2.2. Comments on the Proposed Euro 7 Regulations
3. Development of ICE Technologies for Emissions Mitigation

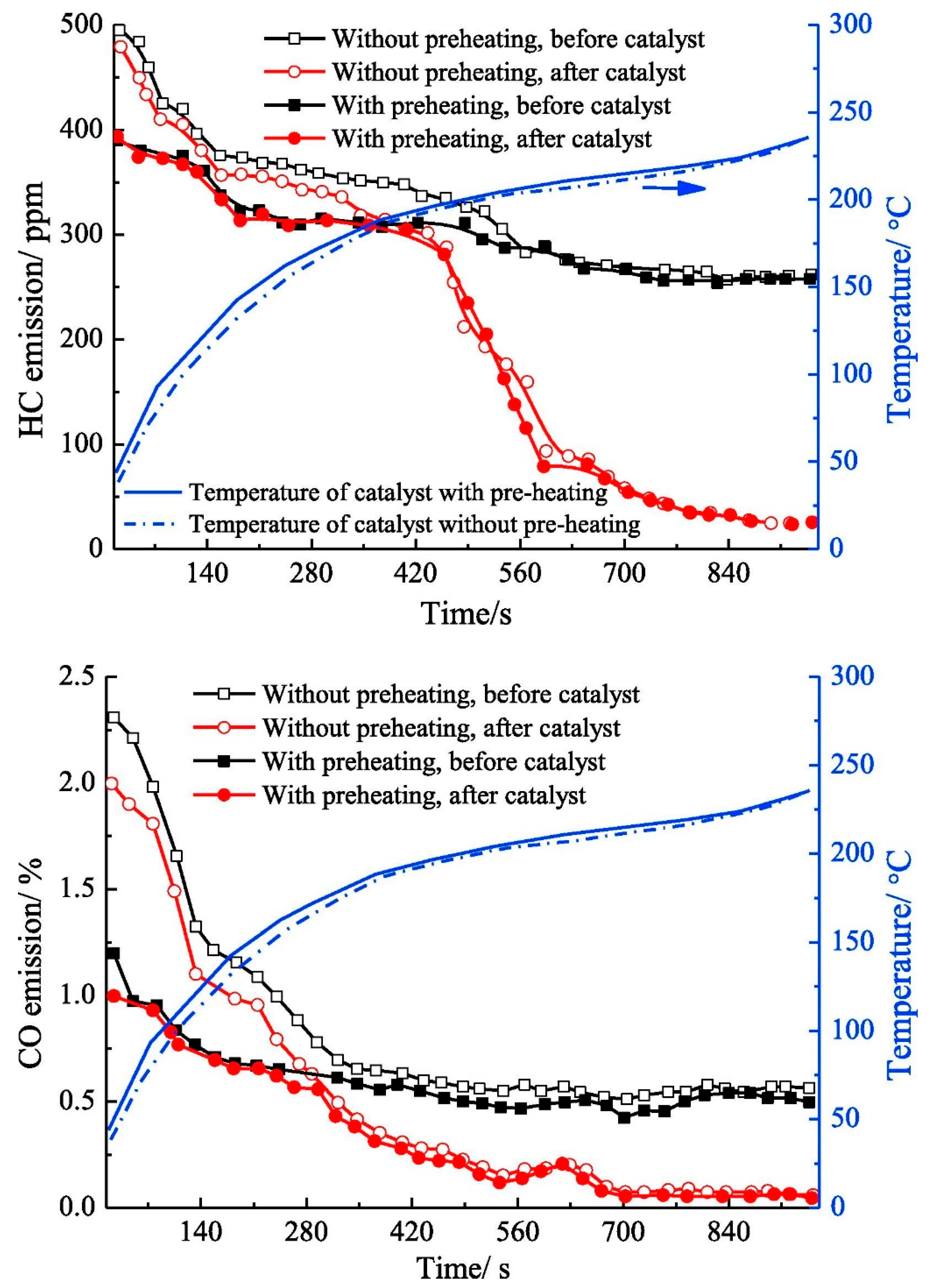

3.1. Three-Way Catalytic Converters with Gasoline Engines
3.2. Engine Downsizing
3.2.1. Downsizing in Spark Ignition Engines
3.2.2. Downsizing in Compression Ignition Engines

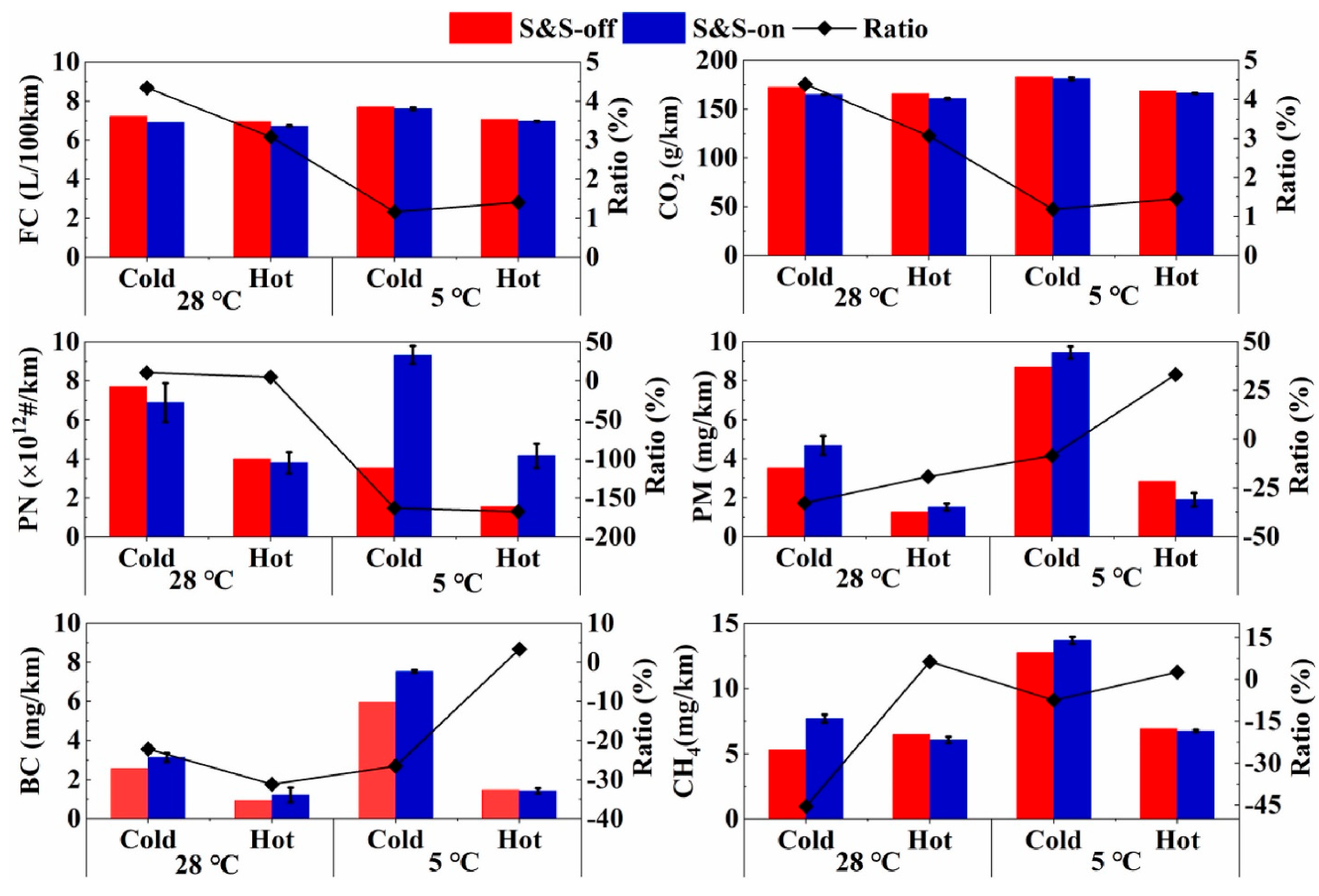

3.3. Engine Start-Stop Systems
3.4. Improvements with Injection Technologies
3.5. Hybridization of the Powertrain

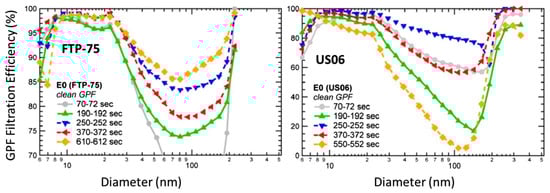

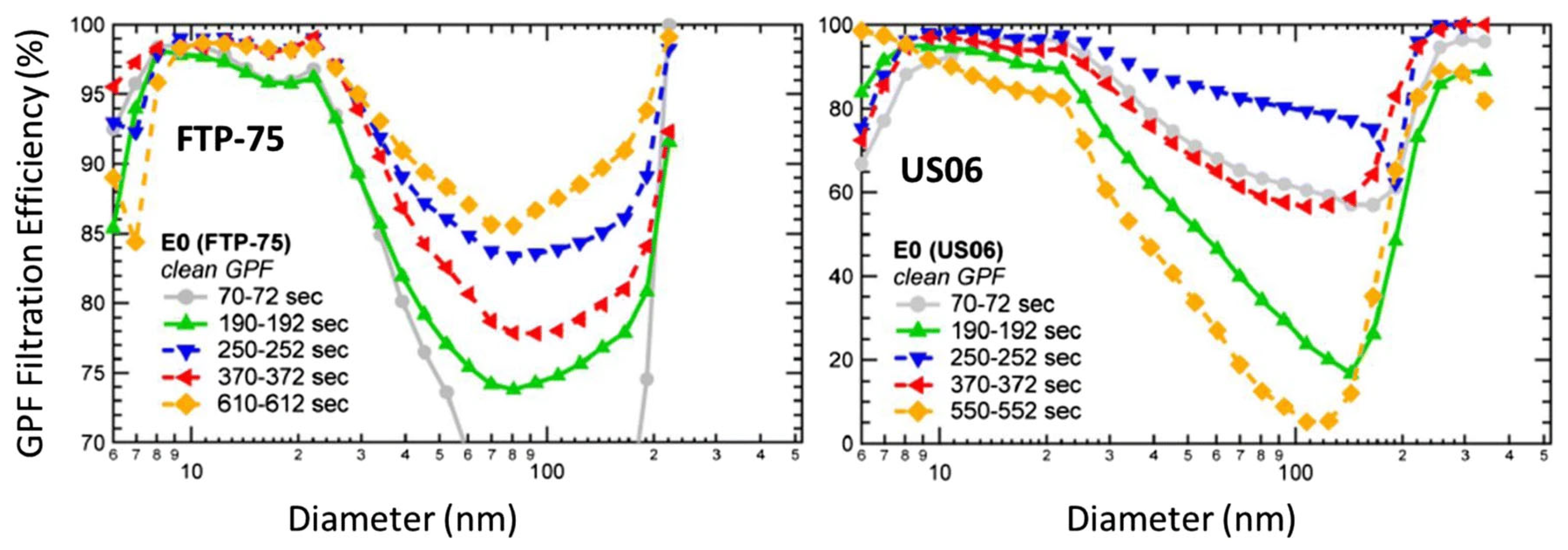

3.6. Particulate Filters
3.7. Advanced Combustion Regimes
4. Recommendations and Future Directions
5. Conclusions
Author Contributions
Funding
Conflicts of Interest
Abbreviations
AES | Auxiliary Emission System |
CAFE | Corporate Average Fuel Economy |
CARB | Californian Air Resource Board |
CNG | Compressed Natural Gas |
CO | Carbon monoxide |
DPF | Diesel Particulate Filter |
EPA | Environmental Protection Agency |
EU | European Union |
FCM | Fuel Consumption Meter |
GHGs | Greenhouse gases |
HC | Hydrocarbons |
ICE | Internal Combustion Engine |
LDVs | Light Duty Vehicles |
LEV | Low Emission Vehicles |
MY | Model Year |
NEDC | New European Driving Cycle |
NHTSA | National Highway Traffic Safety Administration |
NOx | Oxides of Nitrogen |
OBFCM | On-board Fuel Consumption Monitor |
PMP | Particle Measurement Program |
PM | Particulate Matter |
PN | Particulate Number |
RDE | Real Driving Emissions |
SCR | Selective Catalytic Reduction |
SULEV | Super Ultra Low Emission Vehicle |
TWC | Three-way Catalytic converters |
ULEV | Ultra Low Emission Vehicle |
WLTC | Worldwide harmonized Light vehicles Test Cycles |
WLTP | Worldwide Harmonized Light Vehicles Test Procedure |
