Extreme Wave Analysis by Integrating Model and Wave Buoy Data

Abstract

Estimating the extreme values of significant wave height (H_S), generally described by the H_S return period T_R function H_S(T_R) and by its confidence intervals, is a necessity in many branches of coastal science and engineering. The availability of indirect wave data generated by global and regional wind and wave model chains have brought radical changes to the estimation procedures of such probability distribution—weather and wave modeling systems are routinely run all over the world, and H_S time series for each grid point are produced and published after assimilation (analysis) of the ground truth. However, while the sources of such indirect data are numerous, and generally of good quality, many aspects of their procedures are hidden to the users, who cannot evaluate the reliability and the limits of the H_S(T_R) deriving from such data. In order to provide a simple engineering tool to evaluate the probability of extreme sea-states as well as the quality of such estimates, we propose here a procedure based on integrating H_S time series generated by model chains with those recorded by wave buoys in the same area.

1. Introduction

The analysis of extremes arises in many branches of science and engineering. Hurricane winds for suspension bridge design and storm surge heights for coastal and offshore works are well-known examples in civil engineering. Extreme value analysis (EVA) is a branch of statistics dealing with the extreme deviations from the median of probability distributions. Knowledge of the value of an extreme event for a given return period T_R is the result of the EVA.

In particular, in ocean and coastal engineering, extreme events are described in terms of the function H_S(T_R), which links the significant wave height (in the following: SWH, or H_S) of a sea state with different return periods T_R [1,2].

The traditional—and probably also the best—sources of data for such analyses are the historical in-situ (in the following: “direct” or “experimental”) wave measurements provided by wave buoy recorders. Buoys measure the motion of the sea surface, and modern buoys also measure slope and lateral motion [3]. Properly analysed [4,5], these data allow an estimate of sea wave properties in terms of wave spectrum or, more simply, in terms of the main sea state parameters such as significant wave height H_S, mean and peak period T_m, T_p and mean direction θ_m.

However, the number of wave buoys is necessarily limited. For example, the entire Italian Data Buoy Network (in the following Rete Ondametrica Nazionale, RON), operational from 1989 until 2014, consisted of only 15 stations positioned along the more than 7000 km of Italian coasts [6,7].

As a consequence, it has become a common practice [8,9] to use data (in the following indicated as “indirect data” or “model data”) originated from global or regional wave models, which are in turn driven by meteorological wind models. Global and regional wave data are readily available and this favours their extensive use by ocean engineers and researchers. The wave part of the model chain implicitly takes into account the geographical and morphological aspects of the wave formation and propagation, such as the water depth (when applicable) and the variability of fetch, while the meteorological part includes all the information related both to large scale air circulation as well as to “regional” (in a meteorological sense) orography.

However, substantial differences can be found when performing an EVA that considers directly observed and model wave data [10,11,12,13,14]. This difference is primarily due to the obvious fact that direct data, even though affected by errors—like any experiment—are still a more reliable estimate of the true values, compared to a model chain that, despite all the efforts and the care taken, is the result of enormously complicated calculations. The numerical diffusion [13] present in all the models tends to smoothen the results and thus to decrease the peak values, particularly in areas with strong spatial horizontal gradients. Besides, most of the time the wave model results are only calibrated (“assimilated”) using of data from altimeter satellites, whose timing and location is uncorrelated with the weather or the sea state, so the calibration is biased against extreme weather or sea states.

It must also be noted here [14] that the scatter of results for wind velocity is always larger than for waves: this implies that the atmospheric variability [15] is the basic reason for the differences between model and experimental extreme data.

Another important aspect is the bias in the evaluation of extremes present in all sources of data whenever the sampling of the relevant parameter (SWH in our case) is carried out with too long a time interval compared with the inherent time constant of the phenomenon. The results shown for instance in [10,16], prove that use of data with a low time resolution (such as a 3 or 6 h) causes a considerable undervaluation of the extreme SWH values for a given return time T_R. The following Figure 1 [16] illustrates this point—by degrading the original buoy data from a sampling rate of 30′ (full data set) to a sampling rate of 6 h, there is an important reduction of the estimated H_S(T_R). This raises the problem of deciding what would be the “right” interval to choose in order to compute the H_S(T_R) curves. Current engineering practice is oriented towards 30′ or 1 h intervals, mostly because that is the commonly available sampling rate for buoy data, but also because what is normally important is not the extreme single wave, but some kind of average wave height; after all, this is the reason for adopting the concept of “significant wave height”. The opportunity of this choice seems to be confirmed by the apparent convergence of the curves (1 h curve in blue is very close to the 30′ curve in red).

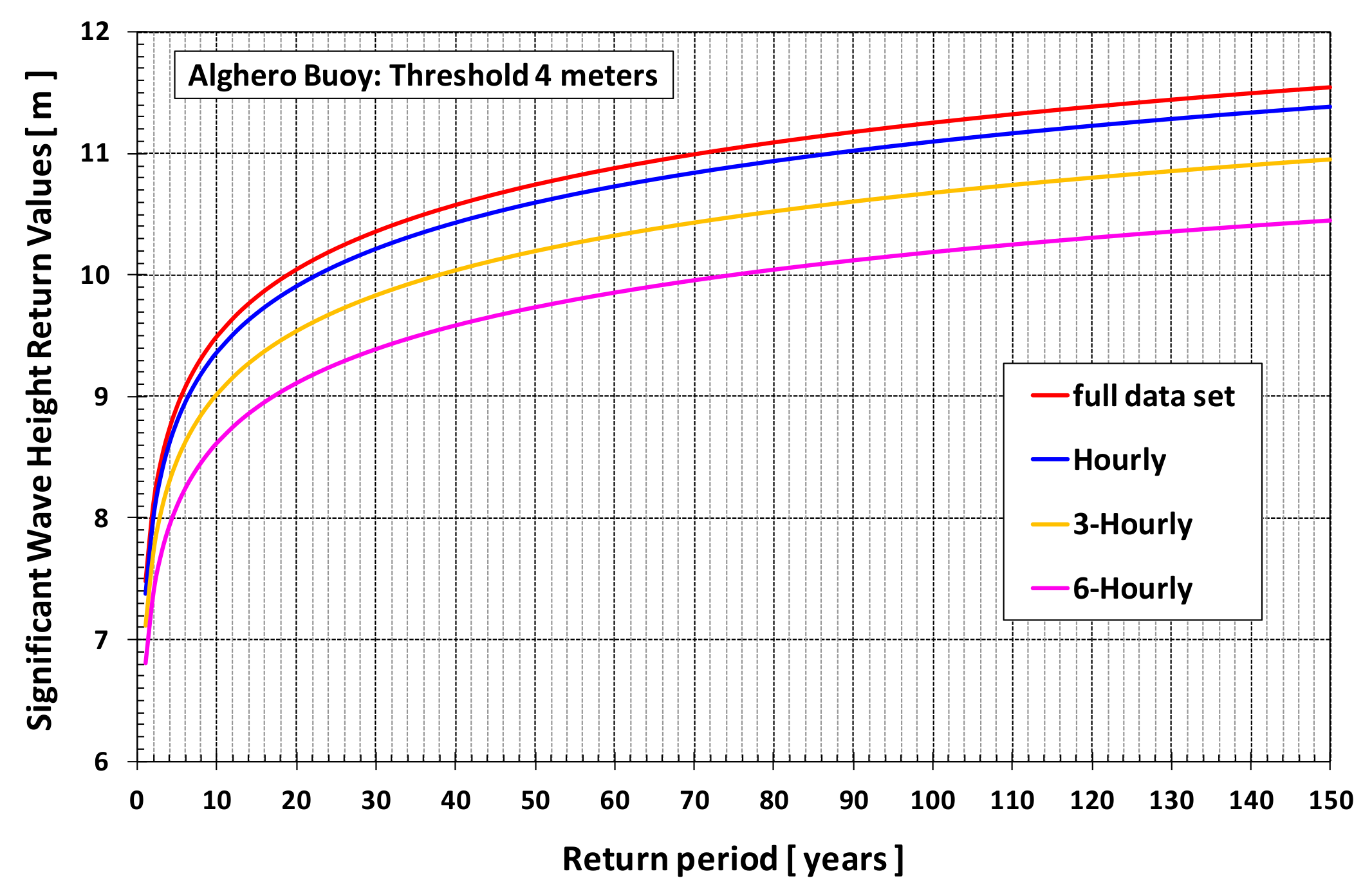

Investigating the use of even shorter sampling rates would lead to a different problem, i.e., the determination of the probability of single extreme waves: an issue which also has relevance, but seems to be not yet clarified, see for instance [17].

As a consequence of all this, the main problem in ocean and coastal engineering is that while long series of model data are available practically everywhere, the quality of such data is inadequate for the purpose of evaluating extreme SWHs; on the other hand, measurements taken at buoy wave meters provide reliable data, but for a limited number of sites.

The objective of this work is to propose a procedure by which model data can be integrated with experimental data in order to provide a better estimate of extreme SWH values. This is done by considering model-derived data at a given location as estimators—in a statistical sense—of the true values; and, in order to improve the estimate as well as to evaluate the error, information on their statistical distribution is obtained by analyzing the wave buoy data series in the area.

In the following such a procedure is discussed and applied to three different sea areas:

• South Mediterranean Italian coast;
• North Atlantic Spanish coast;
• Gulf of Mexico.

Global or regional wave datasets are provided by different organizations, i.e., ECMWF (European Centre for Medium-Range Weather Forecasts) and NOAA (National Oceanic and Atmospheric Administration).

The NOAA National Center for Environmental Prediction (NCEP) developed the Climate Forecast System (CFS), a fully coupled model representing the interaction between the Earth’s atmosphere, oceans, land and sea ice. A reanalysis of the sea and atmosphere state for the period of 1979–2009 has been conducted, resulting in the CFS Reanalysis (CFSR) dataset. Using the CFSR dataset, the NOAA Marine Modelling and Analysis Branch (MMAB) has produced a wave hindcast for the same period. The wave hindcast dataset has been generated using the WAVEWATCH III (WW3) model (v3.14) (NOAA/National Weather Service, College Park, MD, U.S.A.) and is suitable for use in climate studies. The wave model resolves 50 wave frequencies (from 0.035 to 0.963 Hz) and 36 wave directions (directional resolution of 10°). Data are given at a three-hourly time resolution and are available both on a global grid (spatial resolution of 0.5° × 0.5°) and on 16 different regional nested grids with a variable spatial resolution.

The ECMWF produces the ERA-Interim dataset, another global atmospheric reanalysis dataset starting from 1979 and continuously updated. It also models oceanographic variables, including waves. The wave model used by ECMWF is based on the WAM (WAve Model) approach [18], resolving 30 wave frequencies and 24 wave directions. Furthermore, the wave model contains corrections for treating unresolved bathymetry effects and a reformulation of the dissipation source term. ERA-Interim produces four analysis data per day (at 00:00, 06:00, 12:00 and 18:00 UTC) and two 10-day forecast data per day, initialized from analysis at 00:00 and 12:00 UTC. Both wave products are distributed on a global 1.0° × 1.0° latitude/longitude grid.

Many commercial companies provide a model series with smaller sampling intervals, and often with a finer spatial resolution; however only NOAA and ECMWW provide well-tested and public reanalysis data, so in the following only those two sources have been considered.

2. Considered Datasets

Six-hour ECMWF ERA-Interim re-analysis data were used throughout the work. However, since in two locations (South Mediterranean Italian coasts and Gulf of Mexico) NOAA data with adequate resolution are also available, these have been added to provide additional elements.

2.1. South Mediterranean Italian Coasts

Direct data for this area are from the six Italian Data Buoy Network (RON) buoys reported in Figure 2.

More specific details about RON can be found in [6].

Table 1. South Mediterranean Italian coast: position, data sampling and dataset time extension for the different data sources considered.

Data Source	Latitude	Longitude	From	To	Sample	Grid
Alghero buoy	40°32′55″ N	08°06′25″ E	1 July 1989	31 December 2007	30 min.	-
Catania buoy	37°26′24″ N	15°08′48″ E	1 July 1989	30 September 2006	30 min.	-
Cetraro buoy	39°27′12″ N	15°55′06″ E	1 February 1999	31 December 2007	30 min.	-
Crotone buoy	39°01′25″ N	17°13′12″ E	1 July 1989	31 July 2007	30 min.	-
Mazara buoy	37°31′05″ N	12°32′00″ E	1 July 1989	31 December 2007	30 min.	-
Ponza buoy	40°52′00″ N	12°57′00″ E	1 July 1989	31 December 2007	30 min.	-
ECMWF Global	36° N–42° N	7° E–20° E	1 January 1979	31 December 2007	6 h	1° × 1°
NOOA med_10m	30° S–48° N	7° W–43° E	1 January 1979	31 December 2007	3 h	10′ × 10′

reports the exact location and dataset time extension for the six considered buoys.

For indirect data, both the global six-hour analysis ECMWF ERA-Interim and the Mediterranean (med_10m) nested grid three-hourly NOAA-MMAB products were used. The former, provided on a 1° × 1° latitude/longitude grid, were acquired for an area between 36° N–42° N of latitude and 7° E–20° E of longitude; the latter, on a 10′ × 10′ (about 0.167° × 0.167°) latitude/longitude grid, cover an area between 30° S–48° N of latitude and 7° W–43° E of longitude (see Table 1).

2.2. North Atlantic Spanish Coast

For this area, direct data were sampled from the five buoys reported in Figure 3. The exact buoy location and relative dataset time extension are reported in

Table 2. North Atlantic Spanish coast: position, data sampling and dataset time extension for the different data sources considered.

Data Source	Latitude	Longitude	From	To	Sample	Grid
Bilbao buoy	43°38′24″ N	03°05′24″ W	1 January 2002	30 November 2010	1 h	-
C. De Penhas buoy	43°45′00″ N	06°09′36″ W	1 January 1998	30 November 2010	1 h	-
C. Silleiro buoy	42°07′12″ N	09°25′48″ W	1 July 1998	30 November 2010	1 h	-
Estaca Bares buoy	44°07′12″ N	07°40′12″ W	1 January 1998	31 August 2010	1 h	-
Villano Sisar. buoy	43°30′00″ N	09°12′36″ W	12 May 1998	30 November 2010	1 h	-
ECMWF Global	40° N–46° N	12° W–2° W	1 January 1998	31 December 2010	6 h	1° × 1°

.

ECMWF ERA-Interim (global four analyses per day) indirect data were used. They are provided on a 1° × 1° latitude/longitude grid and were acquired for an area between 40° N–46° N and 12° W–2° W of longitude (see Table 2).

2.3. Gulf of Mexico

Direct data were collected at seven National Data Buoy Center (NDBC) buoys whose locations are shown in Figure 4 and

Table 3. Gulf of Mexico: position, data sampling and dataset time extension for the different data sources considered.

Data Source	Latitude	Longitude	From	To	Sample	Grid
42001 buoy	25°53′48″ N	89°40′06″ W	1 March 1979	31 December 2007	1 h	-
42003 buoy	26°00′25″ N	85°38′54″ W	1 January 1979	31 December 2007	1 h	-
42019 buoy	27°54′24″ N	95°21′09″ W	1 May 1990	31 December 2007	1 h	-
42020 buoy	26°58′04″ N	96°41′39″ W	1 May 1990	31 December 2007	1 h	-
42036 buoy	28°30′03″ N	84°30′56″ W	1 January 1994	31 December 2007	1 h	-
42039 buoy	28°47′18″ N	86°00′31″ W	1 December 1995	31 December 2007	1 h	-
42040 buoy	29°12′30″ N	88°13′33″ W	1 December 1995	31 December 2007	1 h	-
ECMWF Global	24° N–32° N	100° W–80° W	1 January 1979	31 December 2007	6 h	1° × 1°
NOOA ecg_10m	0° N–55° N	100° W–50° W	1 January 1979	31 December 2007	3 h	10′ × 10′

. Table 3 also reports the dataset time span for each buoy.

ECMWF ERA-Interim were considered as well as NOAA-MMAB. The former were acquired for an area between 24° N–32° N of latitude and 100° W–80° W of longitude on a grid of 1° × 1°, the latter, in particular, were acquired from the Gulf of Mexico and NW Atlantic (ecg_10m) nested grid that covers an area between 0° N–55° N of latitude and 100° W–50° W of longitude with a 10′ × 10′ (about 0.167° × 0.167°) spatial resolution.

3. Methods

As stated above, substantial differences can be found when performing an EVA considering directly observed and indirect wave data. Therefore, for practical coastal engineering purposes a procedure is necessary to correct and to evaluate the reliability of H_S(T_R) curves derived from model data for any location at sea. In the following, one such procedure is proposed and tested and shown to be reliable in areas where an adequate number of in situ wave buoys are available. Unlike most calibration or validation procedures currently being performed, all our elaborations were carried out on the H_S(T_R) functions rather than on the single raw extreme recorded significant wave heights H_S. The basic concept is that the parameters of any H_S(T_R) function are themselves randomly distributed, and that the distribution of such parameters can be estimated by analyzing in situ data for any given area, thus providing a regional assessment of the error associated with such an estimate.

It is worth noting that the wave part of the model chain takes care of physical marine aspects such as fetch and depth, so that the difference between the data from the buoy and the data from the relevant model grid point depends partly on the meteorological uncertainty (i.e., the error of the wind part of the chain) and partly from the inherent error of the wave part of the model.

This approach is similar to what is done in many fields where distributed data (from a model or from a remote sensor) need to be assimilated and corrected with field data. In hydrology, for example, regional models for hydro-meteorological variables, such as extreme or annual rainfall, are often obtained by coupling a deterministic indicator, based on models, with a spatial model of the residuals measured at gauged sites [19,20,21,22]. A similar approach is also used for extracting the estimated rainfall rate at ground through meteorological radars and rain gauge measurements [23,24]. Several methods have been introduced to this purpose [23,24,25,26,27]. In all such procedures, a regional assessment of statistical uncertainty is carried out by making use of spatial estimates of the error distributions.

For SWH extremes, the limited information coming from the historical data can be largely compensated by the available indirect model archive data. In order to do so, in this work the model data are used as indicators, and the buoy data are used for the correction of biases and the evaluation of uncertainties.

Extreme SWH values HM(T_R) derived from model (indirect) time series are thus integrated with extreme SWH values HD(T_R) derived from whatever wave buoy (direct) time series available in the same geographical area. This provides a tool to derive an estimated function H_S(T_R) for any point in the area, as well as an assessment of the quality of the whole model chain.

There are many possible alternatives which can be selected for this purpose—a first important decision to be taken is whether the observation period upon which the parameters are estimated should be the same for both the model and the wave buoy, or should encompass the whole length of the available period of observed or modeled data. On the one hand, for the sake of consistency, the time spans of the observation should coincide; on the other hand, since the final scope of the work is to provide a reliable tool, it would instead make sense to compare all the available in situ data with all the available model data (normally, the simulated data series are much longer than the experimental ones). As stated above, in the present paper, since the objective is to illustrate a procedure in the simplest possible way, the first alternative has been pursued so the series considered for each location overlap as much as possible.

A further choice is the actual threshold value to adopt if a POT (peak over threshold) procedure is used to compute the HD(T_R) and HM(T_R) functions. In this work, among the various possible alternatives, the thresholds were chosen by making sure that the number N_T of extreme events considered would be roughly equal for all the samples. Obviously, N_T increases by decreasing the threshold because more events are taken into account; on the other hand, if the threshold is too low the quality of the estimate is compromised, since the events will no longer be statistically independent. A compromise has to be found, and a measure of such compromise is given by the value of the parameter λ = N_T/n, n being the number of available observation years. This procedure is normally adopted in coastal engineering activities [28] and is meant to provide a higher number of extremes, compared with annual maxima.

In any case, since the present paper is not aimed at evaluating, discussing or recommending one particular form of H_S(T_R), or any particular procedure to estimate its parameters, the only requirement is that such a form and procedure should be uniform throughout the whole analysis.

In the following, the peak over threshold (POT) method in the form described for instance in [29,30,31,32,33] was followed to produce a set of extreme significant wave height values. There is here a choice to be made as to which extreme value distribution should be fitted to the data. For instance [34,35] suggest that a GPD (generalized Pareto distribution) should be employed for EVA. However, according to current ocean engineering practice [28,36], the Weibull distribution was adopted (Equation (1)):

F(H_S) = 1 − exp{−[(H_S − B)/A]^k},

(1)

where A, B and k are known respectively as scale, position and shape parameters. Once the distribution parameters are known, the H_S return value for a given return period T_R (in years) is computed by making use of Equation (2):

H_S(T_R) = B + A[ln(λT_R)]^1/k.

(2)

The λT_R term derives from the POT techniques, where λ extreme values are considered on average for each observation year.

The same operation is carried out with both historical experimental direct datasets HD(T_R) and indirect data HM(T_R) at the same locations—naturally most of the time the positions do not exactly coincide with model grid points, so a spatial bi-linear interpolation (co-location) as described in [37] (pp. 10–11) has to be carried out. As shown in Figure 5, for the four model grid points (black crosses) around each buoy location (filled red circle), a linear interpolation (red circles) between each pair of grid points has been computed. These two, in either the latitudinal or longitudinal direction, have then been used for linear interpolation to the requested boy location (filled red circle).

Since wave buoy time series are often incomplete, the experimental and model data series cannot be made to coincide exactly; some care must thus be taken to make sure that the extent of time they refer to are not too far apart. The mean rate values λ for the indirect data has been kept close enough to the λ value of the in-situ data, which generally means adopting a lower threshold.

Once the experimental HD(T_R) and the model-derived HM(T_R) curves have been computed, no matter how good the data or how careful their elaboration is, they will certainly differ for the reasons stated above.

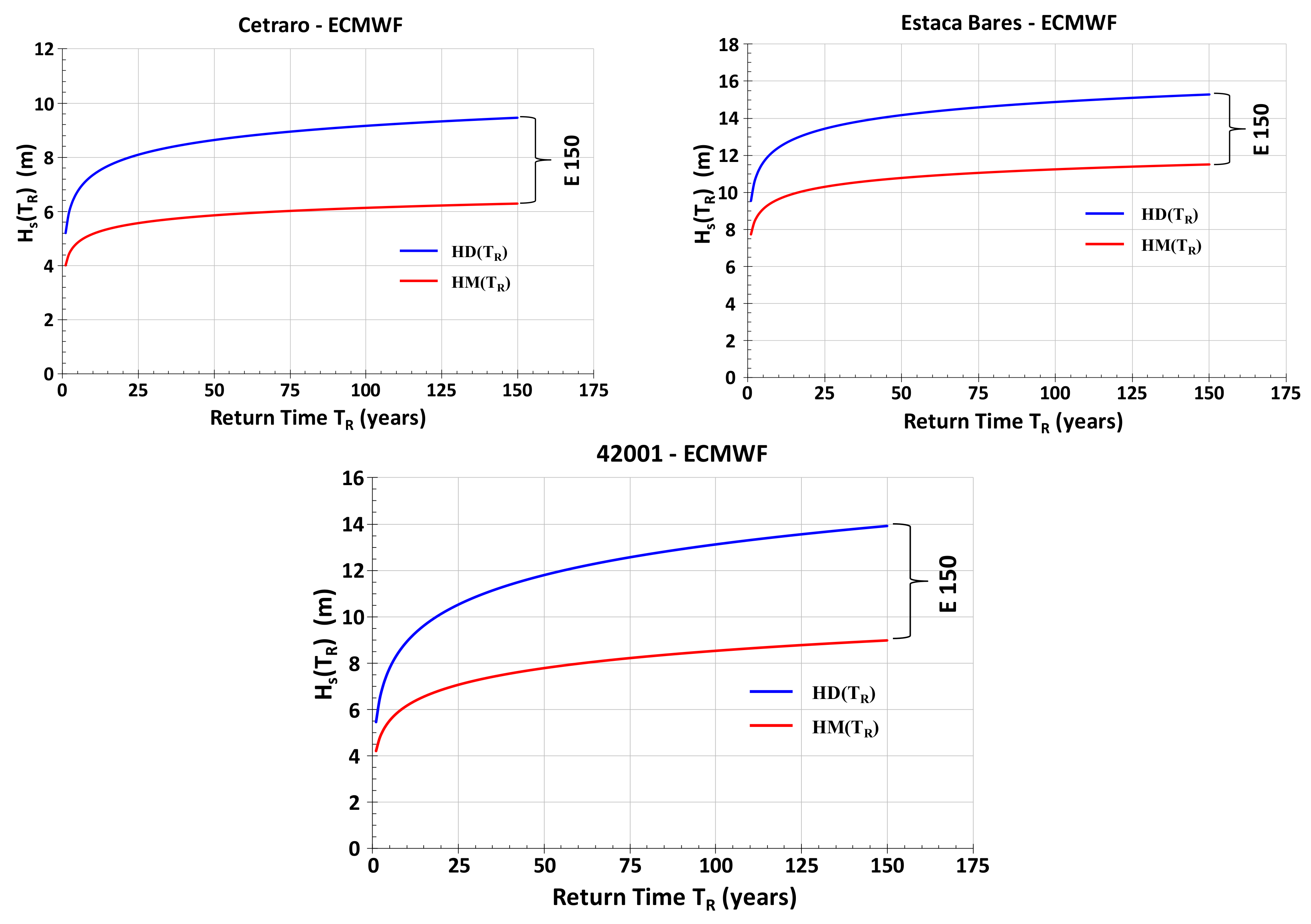

In the following Figure 6, the results are shown for a test carried out in the three sea regions.

Models generally underestimate extreme values compared to experimental data, partly due to the inevitable smoothing of the results due to the numerical interpolation, and partly due to inherent limitations of the model chain, as it was shown quantitatively in [13,14,15,16]. As a consequence, it is to be expected for a given return time T_R that the corresponding significant wave height return value computed with the indirect data HM(T_R) is lower than the value obtained by making use of direct data HD(T_R).

The HM(T_R) values are then assumed to be indicators of the unknown true values, and a statistical correlation must thus be found between HM(T_R) and HD(T_R) in order to provide a reliable estimator H_S(T_R). We have then [22]:

H_S(T_R) = HM(T_R) + HM(T_R)∙e(μ,σ),

(3)

e(μ,σ) being the relative error distribution.

Following Equation (3), the expected values H_S for each T_R are:

H_S(T_R) = HM(T_R) + μ∙HM(T_R)

(4)

and its upper and lower bounds of the 95% confidence intervals, corresponding at the 97.5% an 2.5% percentiles, are respectively:

H_S(T_R) = HM(T_R) + μ(T_R)∙HM(T_R) ± 2σ(T_R)∙HM(T_R),

(5)

e(μ,σ) represents the error caused by many reasons: meteorological uncertainty, model inaccuracy, and, as often happens, the different sampling rate between the experimental and the model data. The value of the parameters μ and σ can be evaluated by making use of a spatial analysis, i.e., by comparing the model result HM_i(T_R) with the experimental HD_i(T_R) values at the buoy location i of the m buoys available in the area. The relative error e_i(T_R) at location i is then given by Equation (6):

e_i(T_R) = [HD_i(T_R) − HM_i(T_R)]/HM_i(T_R).

(6)

Its expected value μ(T_R) can be estimated as:

$$\mathsf{\mu }\left({\mathrm{T}}_{\mathrm{R}}\right)=\frac{1}{\mathrm{m}}{\displaystyle \sum _{\mathrm{i}=1}^{\mathrm{m}}{\mathrm{e}}_{\mathrm{i}}}$$

(7)

and its root mean square σ(T_R) as

$$\mathsf{\sigma }\left({\mathrm{T}}_{\mathrm{R}}\right)=\sqrt{\frac{1}{\mathrm{m}-1}{\displaystyle \sum _{\mathrm{i}=1}^{\mathrm{m}}{({\mathrm{e}}_{\mathrm{i}}-\mathsf{\mu })}^2}}$$

(8)

the sums over the index i being extended to the m wave buoys in the region.

These estimates can be used to quantify the accuracy of the model chain, as well as to provide a way to compute H_S(T_R) curves for geographical locations not coinciding with wave buoys by making use of Equation (4), and of the standard deviation σ(T_R) given by Equation (8).

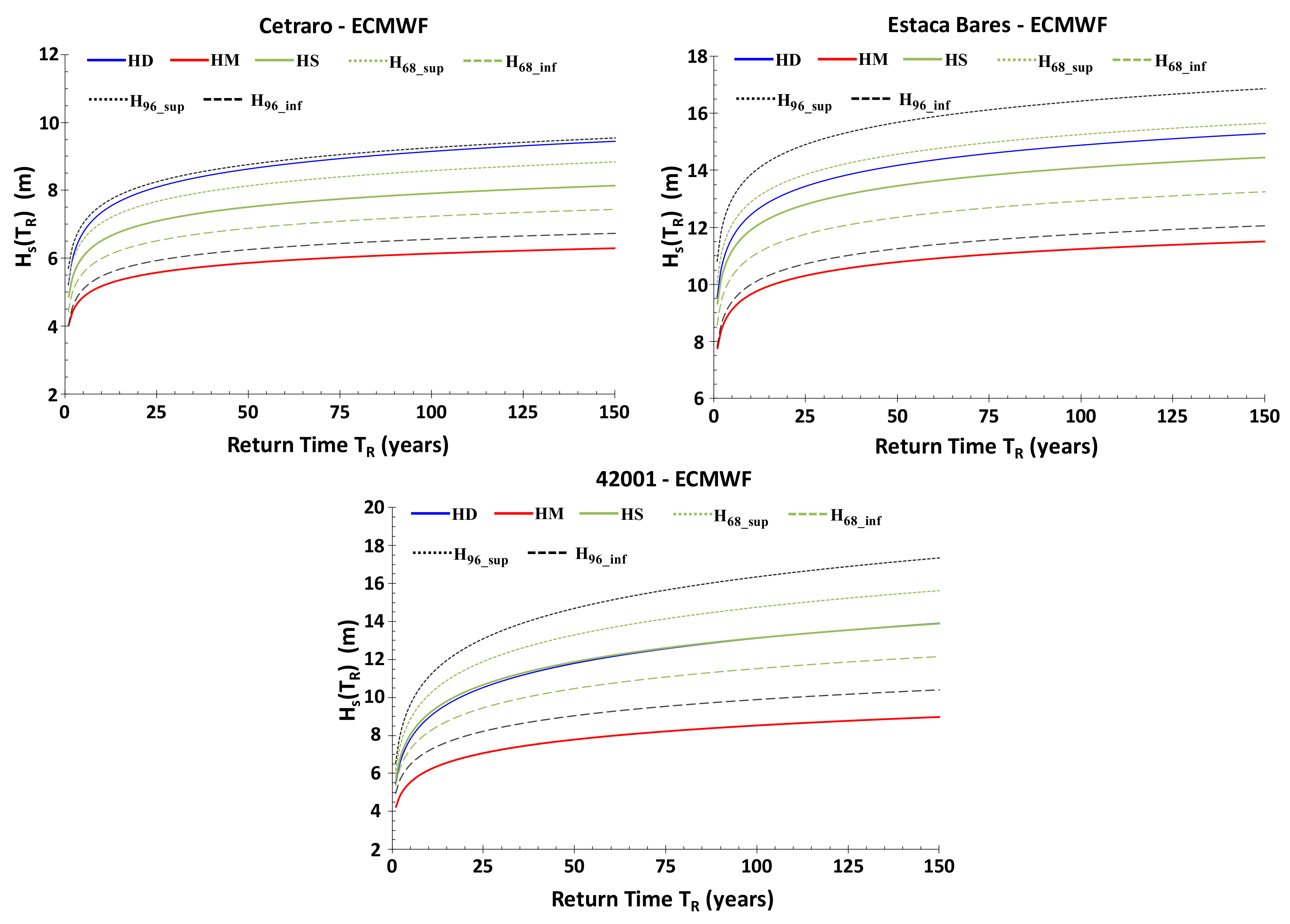

Figure 7 reports some examples. Curves H_S(T_R) are shown together with the σ₆₈ and σ₉₆ confidence interval curves respectively equal to:

H₆₈ = H_S(T_R) ± σ(T_R)∙H_S(T_R)

(9)

H₉₆ = H_S(T_R) ± 2σ(T_R)∙H_S(T_R)

(10)

Similar analyses have been carried out for the three regions, and the results are reported in the following section.

4. Results

The computations were separately carried out as described above for all the buoys in each of the three regions. The buoys in each region are close enough to be considered similar from a meteorological point of view; it is also worth noting that in one of the regions (Southern Italian coast) the position of each of the buoys with respect to the coast are very different from each other.

4.1. South Mediterranean Italian Coasts

The dataset extension, threshold and mean rate values both for direct and indirect data relative to each location are reported in

Table 4. South Mediterranean Italian coast: data relevant to each location for direct (buoy) and the corresponding co-located indirect (model) datasets.

Source	Location	From	To	Sample	Threshold (m)	Nt	Years (n)	λ
Buoy	Alghero	1 July 1989	31 December 2007	30′	5.00	143	16.92	8.45
	Catania	1 July 1989	30 September 2006	30′	2.50	83	14.90	5.57
	Cetraro	1 February 1999	31 December 2007	30′	3.00	52	7.58	6.86
	Crotone	1 July 1989	31 July 2007	30′	3.00	105	16.34	6.43
	Mazara	1 July 1989	31 December 2007	30′	3.50	109	15.55	7.01
	Ponza	1 July 1989	31 December 2007	30′	3.50	94	15.95	5.89
ECMWF	Alghero	1 July 1989	31 December 2007	6 h	4.00	117	18.5	6.32
	Catania	1 July 1989	30 September 2006	6 h	3.00	81	17.25	4.70
	Cetraro	1 February 1999	31 December 2007	6 h	3.00	39	8.92	4.37
	Crotone	1 July 1989	31 July 2007	6 h	3.00	91	18.08	5.03
	Mazara	1 July 1989	31 December 2007	6 h	3.00	116	18.5	6.27
	Ponza	1 July 1989	31 December 2007	6 h	3.00	82	18.5	4.43
NOAA	Alghero	1 July 1989	31 December 2007	3 h	4.50	106	18.5	5.73
	Catania	1 July 1989	30 September 2006	3 h	2.00	68	17.25	3.94
	Cetraro	1 February 1999	31 December 2007	3 h	3.00	47	8.92	5.27
	Crotone	1 July 1989	31 July 2007	3 h	3.00	76	18.08	4.20
	Mazara	1 July 1989	31 December 2007	3 h	3.50	105	18.5	5.68
	Ponza	1 July 1989	31 December 2007	3 h	3.00	114	18.5	6.16

. The NOAA model data are included only as a comparison and were not used in the estimation procedure.

Results are shown in

Table 5. South Mediterranean Italian coast: comparison between buoy (HD), ECMWF model (HM) and estimated (H_S) significant wave height for various values of the return period T_R.

TR and Related σ Values	TR = 25 Years			TR = 50 Years			TR = 75 Years			TR = 100 Years
	σ = 0.1043			σ = 0.1070			σ = 0.1087			σ = 0.1100
Location	HD	HM	HS	HD	HM	HS	HD	HM	HS	HD	HM	HS
Alghero	9.9	7.2	9.2	10.3	7.5	9.7	10.6	7.7	9.9	10.8	7.9	10.1
Catania	6.3	5.3	6.8	6.7	5.6	7.1	6.9	5.7	7.4	7.1	5.8	7.5
Cetraro	8.1	5.6	7.1	8.6	5.9	7.5	8.9	6.0	7.7	9.2	6.1	7.9
Crotone	6.5	5.3	6.8	6.8	5.6	7.1	7.0	5.7	7.3	7.1	5.8	7.5
Mazara	7.0	6.0	7.6	7.3	6.3	8.0	7.5	6.4	8.2	7.6	6.5	8.4
Ponza	6.9	5.5	7.0	7.3	5.8	7.5	7.5	6.0	7.7	7.7	6.1	7.9

and

Table 6. South Mediterranean Italian coast: comparison between buoy (HD), NOAA model (HM) and estimated (H_S) significant wave height for various values of the return period T_R.

TR and Related σ Values	TR = 25 Years			TR = 50 Years			TR = 75 Years			TR = 100 Years
	σ = 0.0867			σ = 0.0893			σ = 0.0908			σ = 0.0918
Location	HD	HM	HS	HD	HM	HS	HD	HM	HS	HD	HM	HS
Alghero	9.9	7.4	8.9	10.3	7.7	9.3	10.6	7.9	9.5	10.8	8.0	9.6
Catania	6.3	5.1	6.1	6.7	5.4	6.5	6.9	5.6	6.8	7.1	5.8	6.9
Cetraro	8.1	6.6	7.9	8.6	7.0	8.4	8.9	7.2	8.7	9.2	7.4	8.9
Crotone	6.5	6.2	7.4	6.8	6.5	7.8	7.0	6.7	8.1	7.1	6.8	8.2
Mazara	7.0	6.1	7.3	7.3	6.3	7.6	7.5	6.5	7.8	7.6	6.6	7.9
Ponza	6.9	5.8	6.9	7.3	6.1	7.3	7.5	6.2	7.5	7.7	6.4	7.6

(respectively for the ECMWF and NOAA model data), which report the various parameters of the curves for all the buoy locations in the area.

4.2. North Atlantic Spanish Coast

The dataset extension, threshold and mean rate values λ both for direct and indirect data relative to each location are reported in

Table 7. North Atlantic Spanish coast: data relevant to each location for direct (buoy) and the corresponding co-located indirect (model) datasets.

Source	Location	From	To	Sample	Threshold (m)	Nt	Years (n)	λ
Buoy	Bilbao	1 January 2002	30 November 2010	1 h	5.50	60	7.30	8.22
	C. De Penhas	1 January 1998	30 November 2010	1 h	5.00	89	10.17	8.75
	C. Silleiro	1 July 1998	30 November 2010	1 h	6.00	82	10.38	7.90
	Estaca Bares	1 January 1998	31 August 2010	1 h	6.00	68	8.68	7.83
	Villano Sisar	12 May 1998	30 November 2010	1 h	6.00	70	9.34	7.49
ECMWF	Bilbao	1 January 2002	30 November 2010	6 h	4.50	61	8.92	6.84
	C. De Penhas	1 January 1998	30 November 2010	6 h	4.50	102	12.92	7.90
	C. Silleiro	1 July 1998	30 November 2010	6 h	5.00	84	12.42	6.77
	Estaca Bares	1 January 1998	31 August 2010	6 h	5.50	81	12.67	6.39
	Villano Sisar.	1 May 1998	30 November 2010	6 h	6.00	73	12.58	5.80

.

Results are shown in

Table 8. North Atlantic Spanish coast: comparison between buoy (HD), ECMWF model (HM) and estimated (H_S) significant wave height for various values of the return period T_R.

TR and Related σ Values	TR = 25 Years			TR = 50 Years			TR = 75 Years			TR = 100 Years
	σ = 0.0741			σ = 0.0753			σ = 0.0760			σ = 0.0765
Location	HD	HM	HS	HD	HM	HS	HD	HM	HS	HD	HM	HS
Bilbao	14.0	10.2	12.7	14.8	10.8	13.5	15.3	11.1	14.0	15.6	11.4	14.3
C. De Penhas	11.2	9.8	12.1	11.8	10.3	12.8	12.2	10.5	13.2	12.4	10.7	13.5
C. Silleiro	12.5	9.5	11.8	13.1	9.9	12.4	13.5	10.2	12.7	13.8	10.3	13.0
Estaca Bares	13.4	10.3	12.8	14.2	10.8	13.5	14.6	11.0	13.8	14.9	11.2	14.1
Villano Sisar.	13.7	11.0	13.6	14.4	11.5	14.3	14.8	11.8	14.7	15.1	12.0	15.0

, which reports the various parameters of the curves for all the buoy locations in the area.

4.3. Gulf of Mexico

Data relevant to each location for direct and indirect data are reported in the following

Table 9. Gulf of Mexico: data relevant to each location for direct (buoy) and the corresponding co-located indirect (model) datasets.

Source	Location	From	To	Sample	Threshold (m)	Nt	Years (n)	λ
Buoy	42001	1 March 1979	31 December 2007	1 h	3.50	187	26.28	7.12
	42003	1 January 1979	31 December 2007	1 h	3.50	158	24.50	6.45
	42019	1 May 1990	31 December 2007	1 h	3.50	119	14.83	8.02
	42020	1 May 1990	31 December 2007	1 h	3.50	116	14.49	8.01
	42036	1 January 1994	31 December 2007	1 h	3.50	81	11.83	6.85
	42039	1 December 1995	31 December 2007	1 h	3.50	87	11.51	7.56
	42040	1 December 1995	31 December 2007	1 h	3.50	66	11.51	5.73
ECMWF	42001	1 March 1979	31 December 2007	6 h	3.00	200	28.83	6.94
	42003	1 January 1979	31 December 2007	6 h	3.00	179	29.00	6.17
	42019	1 May 1990	31 December 2007	6 h	3.00	60	17.67	3.40
	42020	1 May 1990	31 December 2007	6 h	3.00	100	17.67	5.66
	42036	1 January 1994	31 December 2007	6 h	3.00	77	14.00	5.50
	42039	1 December 1995	31 December 2007	6 h	3.00	53	12.08	4.39
	42040	1 December 1995	31 December 2007	6 h	3.00	49	12.08	4.06
NOAA	42001	1 March 1979	31 December 2007	3 h	3.50	215	27.92	7.70
	42003	1 January 1979	31 December 2007	3 h	3.50	171	28.08	6.09
	42019	1 May 1990	31 December 2007	3 h	3.00	132	17.33	7.62
	42020	1 May 1990	31 December 2007	3 h	3.00	92	17.33	5.31
	42036	1 January 1994	31 December 2007	3 h	3.00	81	13.67	5.93
	42039	1 December 1995	31 December 2007	3 h	3.00	95	12.00	7.92
	42040	1 December 1995	31 December 2007	3 h	3.00	80	12.00	6.67

. NOAA model data are included only as a comparison and have not been used in the estimation procedure.

Results are shown in

Table 10. Gulf of Mexico: comparison between buoy (HD), ECMWF model (HM) and estimated (H_S) significant wave height for various values of the return period T_R.

TR and Related σ Values	TR = 25 Years			TR = 50 Years			TR = 75 Years			TR = 100 Years
	σ =0.1722			σ = 0.1815			σ = 0.1862			σ = 0.1893
Location	HD	HM	HS	HD	HM	HS	HD	HM	HS	HD	HM	HS
42001	10.5	7.1	10.7	11.8	7.8	11.9	12.6	8.2	12.6	13.1	8.5	13.1
42003	10.9	7.6	11.5	12.3	8.5	12.9	13.1	9.0	13.8	13.7	9.4	14.4
42019	6.9	4.8	7.2	7.5	5.1	7.8	7.8	5.4	8.2	8.0	5.5	8.5
42020	8.0	5.2	7.8	8.8	5.5	8.4	9.2	5.8	8.9	9.6	6.0	9.2
42036	9.2	7.3	11.1	10.1	8.1	12.4	10.7	8.6	13.2	11.2	9.0	13.8
42039	12.3	8.0	12.1	13.9	9.1	13.8	14.8	9.7	14.8	15.5	10.1	15.6
42040	16.9	9.0	13.6	19.5	10.3	15.7	21.2	11.1	17.0	22.4	11.6	17.9

and

Table 11. Gulf of Mexico: comparison between buoy (HD), NOAA model (HM) and estimated (H_S) significant wave height for various values of the return period T_R.

TR and Related σ Values	TR = 25 Years			TR = 50 Years			TR = 75 Years			TR = 100 Years
	σ = 0.1071			σ = 0.1145			σ = 0.1184			σ = 0.1210
Location	HD	HM	HS	HD	HM	HS	HD	HM	HS	HD	HM	HS
42001	10.5	8.3	10.6	11.8	9.2	11.7	12.6	9.7	12.4	13.1	10.0	12.9
42003	10.9	9.1	11.5	12.3	10.1	12.9	13.1	10.7	13.8	13.7	11.2	14.4
42019	6.9	5.5	7.0	7.5	5.9	7.6	7.8	6.2	7.9	8.0	6.4	8.2
42020	8.0	5.9	7.5	8.8	6.5	8.3	9.2	6.8	8.7	9.6	7.0	9.1
42036	9.2	8.3	10.6	10.1	9.3	11.9	10.7	9.8	12.7	11.2	10.3	13.2
42039	12.3	9.8	12.5	13.9	11.1	14.2	14.8	11.8	15.2	15.5	12.3	15.9
42040	16.9	11.5	14.6	19.5	13.1	16.7	21.2	14.0	18.1	22.4	14.7	19.0

(respectively for the ECMWF and NOAA model data), which report the various parameters of the curves for all the buoy locations in the area.

5. Discussion

The first—if perhaps expected—result of the work is that the difference between the model derived curve HM(T_R) and the experimental curve is always negative, i.e., the model results present a consistent negative bias in the estimation of extreme events. There are of course various reasons why this is the case—in the first place the already mentioned limitations due to the model’s inherent limits [38,39,40]; a further practical reason is the effect, also discussed above, caused by the longer sampling time of the model data in comparison with the high data sampling of modern wave buoys (30′), which also coincide with the standard engineering practice.

Once the bias curve for a given area is computed, H_S(T_R) can easily be obtained by adding the bias to the model values HM(T_R). H_S(T_R) always presents a marked improvement in comparison with the simple model data HM(T_R), so it always make sense to correct model derived data with an estimate of the error distribution in the local buoy wave meters.

Another important aspect is the information gained on the uncertainty of the model-derived extreme value curves by considering the variation of statistical parameters over a given area (spatial analysis). Confidence intervals have been provided for 68% (±1σ) and 95% (±2σ), and it was found that most of the HD(T_R) curves derived from real data at the buoy locations fall well within the ±1σ interval of the estimated H_S(T_R), all of them however being actually within the ±2σ curves. Given the relatively small number of buoys in each sea region, this behavior it is coherent with what could have been expected. More importantly, perhaps, H_S(T_R) always showed a marked improvement in comparison with the simple model data HM(T_R). This also holds for the particular case of the Southern Italian buoys, which are all located in the same area, but face different directions due to the complex coast morphology. The fact that the results are not much different from those in the other directions, seems to confirm that the wave models are accurate enough to take the wave generation into account, and that most of the uncertainty derives from the wind modelling part of the chain.

6. Conclusions

The paper shows that a probabilistic estimate H_S(T_R) of the significant wave height H_S as a function of the return time T_R is possible by comparing wave buoy (direct) and model (indirect) data in a given area. H_S(T_R) functions obtained from historical buoy data have been compared with similar curves derived from indirect data from both ECMWF and NOAA archives for three distinct areas: the Gulf of Mexico, the North Atlantic waters along the Spanish coasts and part of the Mediterranean Sea surrounding Italy. The comparison shows a systematic negative bias, thus proving that model curves always underrate experimental ones. The error distribution of the model of the data was studied on a geographical basis, so that a H_S(T_R) curve and its confidence values can be evaluated for any model grid point in the area. Widely diffused, freely available and reliable model data archives such as ECMWF and NOAA analysis and reanalysis data can thus be used for engineering purposes.

While the objective of the work is not to suggest a particular extreme value distribution or estimation methodology, a general procedure has been provided to improve the reliability of model data for EVA; such a procedure, already in the present form, can also be used to evaluate the suitability of a given model data archive to the estimation of the probability of extreme sea states.

Further development should include testing the procedure with some of the new commercially available model data sets which present a higher spatial and temporal resolution. This would allow an independent assessment of their quality as well as—possibly—a better estimate of the extreme value SWH.
