Prey Survival and Vulnerability of Juvenile Rhynchocypris oxycephalus in Juvenile Fish Shelters under Predation by Korean Native Piscivorous Fish (Coreoperca herzi)

by
Saeromi Lee
1,
Chang Hyuk Ahn
1,
Ho Myeon Song
1,
Jae Roh Park
1,* and
Jin Chul Joo
2,*
1
Environmental and Plant Engineering Research Institute, Korea Institute of Civil Engineering and Building Technology, Goyang 10223, Korea
2
Department of Civil and Environmental Engineering, Hanbat National University, Daejeon 34158, Korea
*
Authors to whom correspondence should be addressed.
Water 2017, 9(1), 36; https://doi.org/10.3390/w9010036
Submission received: 10 June 2016 / Revised: 28 December 2016 / Accepted: 29 December 2016 / Published: 9 January 2017
Browse Figures
Versions Notes

Abstract

:
The aim of this study was to evaluate the newly-developed juvenile fish shelter (JFS) for its ability to increase prey survival and to improve species diversity in a freshwater ecosystem. An experiment was performed in an outdoor large-scale mesocosm three times from 2011 to 2012 by comparing the responses to adjustment as a function of the volume of JFS in the control and experimental groups. Analysis results of the environmental monitoring over three periods indicated only minor differences in the physicochemical characteristics of the water quality and phyto- and zoo-plankton biomass, thereby enabling a comparative analysis of the feeding ecology. However, the water temperature exhibited large fluctuations, ranging from 16.4 to 27.6 °C, and high water temperature conditions (Period 1, 25.6 ± 2.0 °C) enhanced the predation activity of the piscivorous fish Coreoperca herzi (C. herzi, size 89 ± 4 mm). Statistically, the survival rates of the prey fish, Rhynchocypris oxycephalus (R. oxycephalus, size 29 ± 1 mm), with JFSs were greater by 35.9%–46.7%, and improved as the patch volume of JFS increased. Based on both experimental observations and statistical analysis, the JFS developed in this study could reduce the chances of predator–prey encounters, minimize prey vulnerability, and thereby increase prey survival rates.

1. Introduction

Fish are generally considered as a major component of the food chain, and maintain the balance of aquatic ecosystems [1]. As a valuable aquatic resource, juvenile fish are important to improve biodiversity and to maintain a healthy aquaculture environment [2]. However, most juvenile fish encounter various predators during their growth. The stage at which juvenile fish grow into adult fish is an important period of their life since most juvenile fish are easily preyed upon during the early stage of their life [3,4].
Due to this vulnerability to predation of juvenile fish, juvenile fish have acquired various behaviors to avoid predators: (1) switching habitats; (2) reducing exposure time; (3) increasing vigilance; and (4) shifting activity times. To minimize predator encounters, most juvenile fish switch habitats to the edges of the water body [3,4]. However, due to the lack of food and the presence of the inter-species competition in such densely populated habitats, juvenile fish often exhibit retarded growth rates [4]. In addition, starving individuals may forage in open waters, but most of these juvenile fish are eaten by predators [5,6,7].
Although population balance among different species is generally conserved by complex feeding predator–prey relationships in natural habitats, feeding relationships within simple food chains in artificial habitats (e.g., artificial rivers and lakes) can make certain species extinct [8]. And, high levels of exploitation by both commercial and recreational fisheries over the world make many juvenile fish species under continuous survival pressure, demanding that cautious approaches to protect various juvenile fish species are required for future sustainability. Furthermore, exotic species such as bluegills and bass were reported to disturb the ecosystem and to make many native fish species extinct in Republic of Korea [9,10]. Thus, the protection of native juvenile fish is extremely important to sustain the ecosystem services, considering juvenile fish serve as passive links between aquatic ecosystem and among other food webs [8]. Since both survival rates and abundances of juvenile fish are critical factors influencing the variability in abundances of adult fish in rivers and lakes with environmental changes, there is a need to provide suitable habitats for both survival and protection of juvenile fish for future sustainability [11,12].
According to previous studies, various habitats are utilized by aquatic organisms [13,14]. For example, the use of river bed materials [15,16], plants in the littoral zone [17], fish reefs [18,19], and floating boxes [20] has been observed, and these habitats have been evaluated with respect to enhancement of survival rates for fish (especially juvenile) and/or crustaceans [21]. Moreover, an increase in the structural complexity (e.g., dense plants, wood, shade, etc.) of these habitats positively affects predator avoidance [22]. Thus, juvenile fish prefer structurally-complex habitats [23,24]. However, structurally-complex habitats are not entirely safe because predators can occasionally enter these habitats or attack by ambush. Nevertheless, juvenile fish have been found to prefer various moving habitats on the edges of the water body [25], because structurally-complex habitats on the edges of the water body are more beneficial for survival than open waters.
In this study, rectangular cube [0.5 m (W) × 0.5 m (L) × 0.3 m (H)] juvenile fish shelter (JFS) was developed, and evaluated as a suitable habitat in large-scale mesocosm experiment on three occasions from 2011 to 2012. The specific objectives of this study were: (1) to investigate the feasibility of the developed JFS as a suitable habitat to improve the survival rates of native juvenile fish under the predation by piscivorous fish in a freshwater ecosystem; and (2) to quantitatively evaluate the performance of the developed JFS installed in a large-scale mesocosm experiment. The results of this study can be utilized to optimize several factors for the design of JFS and to improve the survival rates of juvenile fish in various aquatic ecosystems.

2. Materials and Methods

2.1. Installation of Experimental Equipment

A large-scale mesocosm experiment was performed at the River Experiment Center (REC) of the Korea Institute of Civil Engineering and Building Technology (KICT) in the Nakdong river basin of the Republic of Korea. The specifications of the large-scale mesocosm experiment are provided in Figure 1. An outdoor water channel [2.0 m (W) × 5.0 m (L) × 1.2 m (H)] made of concrete was divided into four sections where the experimental equipment was installed. The isolated experimental sections were covered with fine-mesh nylon nets (2 × 2 mm) to minimize the external interference. Similar to the previous study [26], shading net with 30% light penetration was installed to make predator fish feed more actively based on the nocturnal activities of piscivorous fish. In addition, the installed shading net prevents the predation of fish from mammalian and avian predators. The newly-developed JFSs were installed with different numbers: Control (no JFS), T1 (one JFS), T2 (two JFSs), and T3 (four JFSs).
As shown in Figure 2, each JFS was a rectangular cube that was hollow inside, and allowed juvenile fish to pass through the entrances [47 cm (W) × 1.5 cm (H)] located on all sides of JFS. The installed JFSs were covered with fiber nets to increase the periphyton biomass for prey’s food source. Six-week large-scale mesocosm experiment with different numbers of JFSs was performed three times (Periods 1–3) between August 2011 and May 2012 (see Table 1).

2.2. Water Quality Analysis

Raw water from the Nakdong river mainstream was utilized as the supply water with a continuous flow of 5 L·min−1 in each experimental water channel. As displayed in Figure 2, the depth, electric conductivity (EC), dissolved oxygen (DO), pH, and temperature of water were measured hourly on site with portable water quality instruments (i.e., YSI 550A and YSI 63). Samples for the water quality analysis were collected in 2-L polyethylene bottles, transported to the laboratory, and analyzed using standard methods [27]. SS (gravimetric method), BOD (BOD electrode method), TN (UV absorption spectrophotometry), NH4+ (indophenol method), NO3− (cadmium reduction method), TP (ascorbic reduction method), and PO43− (ascorbic reduction method) were analyzed in the laboratory based on the standard methods [27].
Because both phytoplankton and zooplankton served as the prey’s food source, concentration changes in both phytoplankton and zooplankton were also investigated during the experiment. Both phytoplankton and zooplankton were collected from each experimental site using a plankton net (mesh size: 64 μm). The specimens were fixed in a 5% formalin solution, and microscopically examined on an S–R grid slide glass using an optical microscope (Zeiss Axioplan, Jena, Germany).

2.3. Experimental Fish

The native fish raised from an aquaculture farm in the Nakdong river basin were used as the experimental fish to simulate the natural fish communities of the Nakdong river and to control both size and density of prey and predator fish. Though JFS can be utilized for a variety of juvenile fish (or small size fish), the function of JFS for the conservation of local prey fish that inhabit in the Nakdong river was primarily evaluated in this study.
Based on a clear predator–prey relationship in local fish communities, two fish species were used in this experiment: Coreoperca herzi (C. herzi) as the predator and Rhynchocypris oxycephalus (R. oxycephalus) as the prey. R. oxycephalus belongs to the subfamily Cyprininae, which is mainly distributed in Republic of Korea, China, and Japan [28]. R. oxycephalus individuals generally become approximately 100 mm long at three years of maturity, and have long and cylindrical bodies. The staple diet of R. oxycephalus consists of algae, zooplankton, and mosquito larvae [29]. R. oxycephalus is widely dispersed in the Republic of Korea, inhabiting mountainous streams and rivers with various flow rates (i.e., 0.1–1.2 m·s−1). C. herzi is a native piscivorous fish of the family Centropomidae. A three-year-old mature fish becomes approximately 100 mm long, and the adults can grow up to 250 mm long [30]. The main habitats for C. herzi are the middle and upstream regions with boulders and cobbles. C. herzi is an agile biting fish that is known for its aggression and its propensity to defend its territory within a radius of several meters [31].
To evaluate the feasibility of the JFS as an effective shelter and habitat for juvenile fish, 500 individuals of R. oxycephalus were released into each experimental site along with 20 individuals of C. herzi predators (see Figure 2). Both initial size and weight of prey (i.e., R. oxycephalus) and predator (i.e., C. herzi) are summarized in Table 1.
The fish were monitored using a catch per unit effort (CPUE) method in all large-scale mesocosm experiments every week during the experimental period. As shown in Figure 2, fish were collected in the corner by adjusting the nylon net of each mesocosm and using scoop net after shifting of the JFS. After the identification and counting the fish, both body size and weight of R. oxycephalus and C. herzi were measured in separate tank with supplied oxygen. Finally, fish were returned to each mesocosm with different time intervals. No death or damages of collected fish was observed during these fishing gear and monitoring performance.

2.4. Quantification of the Predation Sequence

The predation sequence described by Fuiman and Magurran [32] is divided into three stages of encounter, attack, and capture, with each stage consisting of subsections with different characteristics. Vulnerability is defined as the probability of prey being consumed by certain predator, and the final vulnerability is determined based on the whole predation sequence [33]. Thus, the relationship between predator and prey can be described by Equation (1).
V = PE·PA·PC
where V (vulnerability) is the probability of prey being consumed by predator, PE (encounter rate) is the probability of encounter between predator and prey, PA (attack rate) is the probability of attack by the predator, and PC (capture success) is the probability of capture [32].
Since both vulnerability and prey survival are important variables to evaluate the performance of certain habitat (shelter) from predator [32,33], both vulnerability and prey survival for newely-developed JFSs were determined in a large-scale mesocosm experiment. Similar to other studies [32,33], the vulnerability of R. oxycephalus was directly estimated by monitoring consecutive feeding value of R. oxycephalus after being consumed by C. herzi every week. On the other hand, the prey survival of R. oxycephalus was estimated by monitoring the remaining number of R. oxycephalus.
Although both vulnerability and prey survival are based on the population changes in R. oxycephalus, vulnerability indicates the population changes directly consumed by predator, whereas prey survival indicates the population changes from all cases of death (e.g., disease, starvation etc.) including the consumption by predator. In this study, the attack probability of C. herzi against R. oxycephalus was assumed to be 100% [PA (attack) = 1] because satiation conditions for predator fish rarely occur in a large-scale mesocosm experiment with no additional food sources [32,34].

2.5. Statistical Analysis

To establish a statistical evaluation of both prey survival and vulnerability with respect to both seasonal and shelter effects, a randomized complete block design (RCBD) was applied to prevent large differences in experimental units from making differences between treatment factor levels [35,36]. Since RCRD assumes that a population of experimental units can be divided into a number of relatively homogeneous blocks (i.e., elapsed time in this study), blocks generally represent sources of variation that are not related to the treatments (i.e., different experimental season and different numbers of JFS). Considering that experiment was replicated in a variety of conditions in different seasons, the variability needs to be removed so the actual effects of treatment (i.e., both seasonal and shelter effects) can be detected. Thus, the treatment effects can be split into three terms, and models for RCBD can be drawn as follows:
yijk = μ+ αi + βi + (αβ)ij + bk + εijk, i = 1–4, j = 1–3, k = 1–5
where yijk is the response of the treatment, μ is the overall mean, αi is the shelter effect, βi is the seasonal effect, (αβ)ij is the interaction effect of shelter and season, bk is the block effect, and εijk is independent error.
In this study, multiple-way ANOVA with RCBD was performed with the Duncan option in PROC GLM (SAS® 9. 4, SAS Institute Inc., Cary, NC, USA) to determine the main effects of contributions from independent variables (i.e., different experimental season and different numbers of JFS), and to identify significant interactions among the independent variables. From the statistical analysis, both prey survival and vulnerability in relation to each experimental condition with different season and patch volume of JFSs were compared to determine the main effect of each independent variable.

3. Results and Discussion

3.1. Changes in the Water Quality

Water quality measurements were performed three times for each experimental period. As summarized in Table 2, there were no significant seasonal variations in most water quality parameters through the whole study, and relatively constant values except for the water temperature were observed. The changes in average water temperature were mainly attributed to the seasonal effect, and no, if any, significant seasonal variances in pH, DO, EC, SS, and BOD were noted for each experimental period.
Since the growth of phytoplankton has been reported to be significantly dependent upon changes in both concentration and chemical form of the nutrients [37,38], both the concentration and chemical form of nutrients were also observed. No significant seasonal variances in TN and TP were observed. However, the average phytoplankton densities significantly changed, and were measured to be 908 cells mL−1, 526 cells mL−1, and 712 cells mL−1 during Periods 1, 2, and 3, respectively. During the whole study, Bacillariophyceae was found to be dominant, accounting for 76.2% of total phytoplankton cells, and to be served as an abundant food for R. oxycephalus.
Similarly, the average zooplankton densities significantly changed, and were measured to be 5.3 ind L−1, 2.8 ind L−1, and 1.5 ind L−1 during Periods 1, 2, and 3, respectively. The average zooplankton densities became greater as the water temperature increased. During the whole study, rotifer density was found to be dominant, with a few cladocerans and copepods, and can be served as a major food for R. oxycephalus. In this study, both phyto- and zoo-plankton served as the only natural food for R. oxycephalus, and no other plankton feed was provided.

3.2. Changes in Body Size and Weight

Over the entire study, the average body size and weight of R. oxycephalus ranged from 27.4 to 32.1 mm, and from 0.36 to 0.45 g, respectively, whereas the average body size and weight of C. herzi ranged from 84.5 to 95.3 mm, and from 14.9 to 23.5 g (see Table 3). These observations displayed that the body size of R. oxycephalus increased by 2.0%–8.0%, and its weight increased by 6.8%–12.2%. In contrast, the body size of C. herzi increased by 1.2%–3.1%, and its weight increased by 2.7%–12.4%.
In the case of C. herzi, the growth rate (i.e., 12.2%) of the body weight was greater in the control groups during Period 1. Due to the higher water temperature during Period 1, the predatory activity was expected to be greater. Since JFSs for juvenile fish were not installed in the control groups, both enhanced predation activity and absence of JFS may have facilitated the growth of C. herzi.
Since the survival of the prey was found to correlate significantly with the mouth gape size of the predators in predator–prey relationships, the mouth gape size of the predators is known to be an important factor in determining prey vulnerability [39]. From the previous study regarding the vulnerability of juvenile fish (Clupea pallasii, size 8–32 mm), the vulnerability was highest at a size of 20 mm, and decreased as the juvenile fish grew in size [32]. This correlation stems from the fact that the predator’s gape size played an important role in determining prey vulnerability. Thus, prey fish have been reported to grow rapidly as a defense mechanism [40,41]. However, the rapid growth of juvenile fish as a defense mechanism was not clearly observed in this study.

3.3. Prey Survival Results

During the experiment, the population of prey fish (R. oxycephalus) decreased with time, as shown in Figure 3. In the control group with no JFS, the population of prey fish decreased significantly. Since six weeks is not enough time for prey fish to die naturally, the decrease in the population of prey fish was mainly attributed to the predation by predator fish (C. herzi). The experimental results obtained during three periods of this study indicated that the prey survival of R. oxycephalus consistently increased as the patch volume of JFS increased, regardless of the experimental period (see Figure 4). In the control group with no JFS, the average prey survival ranged from 19.6% to 36.9%. Using a patch volume of 0.08 m3 (T1), the average prey survival ranged from 35.2% to 54.6%. The average prey survival was 47.2%–64.2% for a patch volume of 0.15 m3 (T2) and 66.3%–72.8% for a patch volume of 0.30 m3 (T3), respectively, indicating a positive correlation between prey survival and patch volume was obtained.
The seasonal maximum prey survival was 66.3% ± 17.1% for the summer (Period 1), 73.1% ± 11.7% for the autumn (Period 2), and 72.8% ± 14.3% for the spring (Period 3). Prey survival displayed seasonal differences due to both different aquatic environmental factors (i.e., changes in water quality and biological communities) and different behavior of the experimental fish with various water temperatures. The water temperature significantly varied by season, with values of 25.6 ± 2.0 °C in summer, 16.0 ± 2.5 °C in autumn, and 19.7 ± 3.3 °C in spring. These differences may have directly affected the fish behavior, since fish are very sensitive to water temperature [42], and low temperatures inhibit their growth rates and feeding activities [43,44]. Considering C. herzi is active during the summer [31] and R. oxycephalus prefers to relatively colder water temperatures, the feeding of C. herzi was more active and the prey survival was lower during the summer. In contrast, during autumn, when the water temperatures were relatively lower, the feeding activity of C. herzi decreased whereas that of R. oxycephalus increased, leading to increased predator avoidance and enhanced prey survival.

3.4. Statistical Analysis Results

As summarized in Table 4, two main effects were statistically significant (p < 0.05) for both prey survival and vulnerability, indicating that both prey survival and vulnerability were significantly affected by both seasonal and shelter variations. Statistically, the JFS developed in this study was revealed to improve the survival rate of juvenile fish, and to decrease the vulnerability of juvenile fish in a freshwater ecosystem. In addition, both prey survival and vulnerability displayed seasonal differences due to both different aquatic environmental factors (i.e., changes in water quality and biological communities) and different behavior of the experimental fish with various water temperatures. However, the interaction between two treatments (i.e., shelter and season) for both prey survival and vulnerability was negligible (p = 0.089) at significance level of 0.05, indicating that the combined effect of seasonal and shelter variations on both prey survival and vulnerability was not statistically significant.

3.5. Performance Evaluation of the Developed JFS in Terms of Vulnerability

Predation decreases prey density, and impacts the survival rate of the prey due to interspecies competition and avoidance behaviors among prey [45]. Thus, prey fish require an effective method (e.g., shift in habitats and change in activity time) to decrease the probability of encounter with piscivorous predator fish [46,47,48]. Considering capture process is a complex function of the sensory and motor systems of fish [33,49,50], PC in Equation (1) could not be readily estimated.
In the case of Eurasian perch (Perca fluviatilis), which is closely related to C. herzi, 60%–100% capture probability was estimated for conditions similar to this study (i.e., predator size, 66–157 mm; prey size, 30 mm) with a stalking approach within a proximity of 2–5 cm [51]. Thus, the capture probability of C. herzi was assumed to be around 80% [PC (capture success) = 0.8] in this study. Finally, the probability of encounter (PE) was calculated based on Equation (1) after the vulnerability (V) of R. oxycephalus was directly estimated by monitoring the consumed number of R. oxycephalus by C. herzi.
As displayed in Figure 4, the vulnerability was highest in the control conditions with no JFS during Periods 1 to 3, resulting in a greater predation danger for the prey. As is also evident in Figure 4, the vulnerability presented an exponential decay with high values of correlation coefficient (R2 = 0.46–0.76) as the patch volume of JFS increased. In addition, seasonal effects were found in the JFS with maximum patch volume condition, where a higher predation activity was observed during the summer (14.8% ± 3.7%) compared with the predation activity during the autumn (9.5% ± 2.2%) or spring (11.6% ± 4.8%).
As also displayed in Figure 4, the correlation between prey survival and patch volume yielded significant relationships with R2 = 0.30–0.60 (p < 0.05). By contrast, the level of vulnerability exponentially decreased as the JFS volume increased (p < 0.05). The average values of vulnerability ranged from 40.0% to 49.7% under control conditions with no JFS, but they decreased from 9.9% to 14.8% with JFS volumes of 0.3 m3. Based on these results, the JFS developed in this study was found to improve the survival rates of juvenile fish in a freshwater ecosystem, although many other environmental factors may also affect the survival rates of juvenile fish. Similar to this study, other studies have also shown that the risk of being preyed upon was found to be low with artificial shelters [22], and the survival rates of juvenile fish improved with the increase in the structural complexity of the habitats [22,52,53,54].
Considering that an increased patch volume of JFS creates more shelter for juvenile fish under the significant predatory pressure, juvenile fish switched habitats to JFS, leading to increased survival and lower vulnerability. From these results, the increase in patch volume of JFS had a direct effect on the survival of the juvenile fish, which is presumably attributed to the decrease in the number of predator encounters [55]. Although the vulnerability is a complex function of encounter, attack, and capture processes, the increase in patch volume of JFS definitely provide hiding spots for juvenile fish; hence, the possibility of direct encounter between predator and prey can be reduced when the JFS is present.

3.6. Correlation of Vulnerability and Prey Survival

As displayed in Figure 5, the relationship between vulnerability and prey survival exhibited an exponential decay with R2 = 0.56 (p < 0.0001). Aforementioned above, the change in vulnerability was mainly attributed to the decreased number of encounters; therefore, the presence of JFS directly affected the prey survival. Under natural conditions, prey fish take refuge in structurally complex environments, such as dense plants or reefs within the littoral region, to reduce their encounters with predators [52,53,54]. Therefore, juvenile fish need to sufficiently utilize the structural complexity of their habitats to avoid predators [56]. However, predators also adapt certain strategies to their current living conditions such as the ambushing behaviors of Micropterus salmoides or Esox lucius [25,57]. Considering that most prey (i.e., juvenile fish) simply engage in shoaling or form schools [58] in open waters without shelters to suppress encounters with predators, JFSs developed in this study can be used to attract more juvenile fish, to suppress encounters with predators, and finally to increase the survival rates of juvenile fish. Therefore, the deployment of JFSs can be a practical alternative for effective fishery resources management to improve species diversity and to conserve fish communities in a freshwater ecosystem.

4. Conclusions

To investigate the feasibility of the developed juvenile fish shelter (JFS) to improve the survival rates of juvenile fish under predation by Korean native piscivorous fish, the evaluation of the developed JFS using a large-scale mesocosm experiment was performed for two years. Through the whole study, there was no significant seasonal variations in most water quality parameters, and relatively constant values except for the water temperature were observed. From the experimental results, the prey survival of R. oxycephalus consistently increased as the patch volume of JFS increased, regardless of the experimental period. Statistically, the JFS developed in this study was found to improve the survival rate of juvenile fish in a freshwater ecosystem, although many other environmental factors may also affect the survival rate of juvenile fish. In addition, both prey survival and vulnerability were statistically related to both seasonal and shelter variations. Thus, JFSs developed in this study can be used to attract more juvenile fish, to suppress encounters with predators, and finally to increase the survival rate of juvenile fish. Although further study are required for natural rivers and lakes with different physicochemical conditions, the deployment of JFSs can be a practical alternative for effective fishery resources management to improve species diversity and to conserve fish communities in a freshwater ecosystem.

Acknowledgments

This research was supported by a grant from the River Restoration Program for Developing Coexistence between Nature and Humans (Green River) (12 technological innovation C02) funded by the Korea Institute of Construction & Transportation Technology Evaluation and Planning.

Author Contributions

Ho Myeon Song and Jae Roh Park conceived and designed the experiments; Chang Hyuk Ahn performed the experiments; Chang Hyuk Ahn, Saeromi Lee and Jin Chul Joo analyzed the data and wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bailey, K.M.; Duffy-Anderson, J.T. Fish predation and mortality. In Elements of Physical Oceanography: A Derivative of the Encyclopedia of Ocean Sciences; Steele, J.H., Thorpe, S.A., Turekian, K.K., Eds.; Elsevier Ltd.: London, UK, 2009; pp. 322–329. [Google Scholar]
  2. Grorud-Colvert, K.; Sponaugle, S. Larval supply and juvenile recruitment of coral reef fishes to marine reserves and non-reserves of the upper Florida Keys, USA. Mar. Biol. 2009, 156, 277–288. [Google Scholar] [CrossRef]
  3. Michael, J.H.; Hickford, M.C.; David, R.S. Predation, vegetation and habitat-specific survival of terrestrial eggs of a diadromous fish, Galaxias maculatus (Jenyns, 1842). J. Exp. Mar. Biol. Ecol. 2010, 385, 66–72. [Google Scholar]
  4. Sogard, S.M. Size-selective mortality in the juvenile stage of teleost fishes: A review. Bull. Mar. Sci. 1997, 60, 1129–1157. [Google Scholar]
  5. Damsgard, B.; Dill, L. Risk-taking behavior in weight-compensating coho salmon, Oncorhynchus kisutch. Behav. Ecol. 1998, 9, 26–32. [Google Scholar] [CrossRef]
  6. Magnhagen, C. Predation risk and foraging in juvenile pink (Oncorhynchus gorbusha) and chum salmon (O. keta). Can. J. Fish. Aquat. Sci. 1988, 45, 592–596. [Google Scholar] [CrossRef]
  7. Pettersson, L.B.; Brönmark, C. Trading off safety against food: State dependent habitat choice and foraging in crucian carp. Oecologia 1993, 95, 353–357. [Google Scholar] [CrossRef]
  8. Holmlund, C.M.; Hammer, M. Ecosystem services generated by fish populations. Ecol. Econ. 1999, 29, 253–268. [Google Scholar] [CrossRef]
  9. Choi, J.; Kumar, H.K.; Han, J.; An, K. The development of a regional multimetric fish model based on biological integrity in lotic ecosystems and some factors influencing the stream hearth. Water Air Soil Pollut. 2011, 271, 3–24. [Google Scholar] [CrossRef]
  10. Han, J.; Paek, W.K.; An, K. Exotic species, Micropterus salmoides as a key bioindicator influencing the reservoir health and fish community structure. J. Asia-Pac. Biodivers. 2016, 9, 403–411. [Google Scholar] [CrossRef]
  11. MacRae, P.S.D.; Jackson, D.A. The influence of smallmouth bass (Micropterus dolomieu) predation and habitat complexity on the structure of littoral zone fish assemblages. Can. J. Fish. Aquat. Sci. 2001, 58, 342–351. [Google Scholar] [CrossRef]
  12. Garcia-Berthou, E.; Moreno-Amich, R. Introduction of exotic fish into a mediterranean lake over a 90-year period. Arch. Hydrobiol. 2000, 149, 271–284. [Google Scholar]
  13. Suttle, K.B.; Power, M.E.; Levine, J.M.; McNeely, C. How fine sediment in riverbed impairs growth and survival of juvenile salmonids. Ecol. Appl. 2004, 14, 969–974. [Google Scholar] [CrossRef]
  14. Finstad, A.G.; Einum, S.; Forseth, T.; Ugedal, O. Shelter availability affects behaviour, size-dependent and mean growth of juvenile Atlantic salmon. Freshw. Biol. 2007, 52, 1710–1718. [Google Scholar] [CrossRef]
  15. Fischer, P. An experimental test of metabolic and behavioural responses of benthic fish species to different types of substrate. Can. J. Fish. Aquat. Sci. 2000, 57, 2336–2344. [Google Scholar] [CrossRef]
  16. Matsuzaki, S.S.; Sakamoto, M.; Kawabe, K.; Takamura, N. A laboratory study of the effects of shelter availability and invasive crayfish on the growth of native stream fish. Freshw. Biol. 2012, 57, 874–882. [Google Scholar] [CrossRef]
  17. Kieffer, J.D.; Colgan, P.W. Differences in learning by foraging juvenile pumpkinseed and bluegill sunfish in a structured habitat. Environ. Biol. Fish. 1992, 33, 359–366. [Google Scholar] [CrossRef]
  18. Layman, C.A.; Carmen, G.M.; Jacob, E.A. Linking fish colonization rates and water level change in littoral habitats of a Venezuelan floodplain river. Aquat. Ecol. 2010, 44, 269–273. [Google Scholar] [CrossRef]
  19. D'Anna, G.; Giacalone, V.M.; Fernádez, T.V.; Vaccaro, A.M.; Pipitone, C.; Mirto, S.; Mazzola, S.; Badalamenti, F. Effects of predator and shelter conditioning on hatchery-reared white seabream Diplodus sargus (L., 1758) released at sea. Aquaculture 2012, 356, 91–97. [Google Scholar] [CrossRef]
  20. Moriniére, E.C.; Nagelkerken, I.; Meij, H.; Velde, G. What attracts juvenile coral reef fish to mangroves: Habitat complexity or shade? Mar. Biol. 2004, 144, 139–145. [Google Scholar] [CrossRef]
  21. Ferter, K.; Meyer-Rochow, V.B. Turning night into day: Effects of stress on the self-feeding behavior of the eurasian perch Perca fluviatilis. Zool. Stud. 2010, 49, 176–181. [Google Scholar]
  22. Fraser, D.F.; Cerri, R.D. Experimental evaluation of predator–prey relationships in a patchy environment: Consequences for habitat use patterns in minnows. Ecology 1982, 63, 307–313. [Google Scholar] [CrossRef]
  23. Mittelbach, G.G. Predator-mediated habitat use: Some consequences for species interactions. Environ. Biol. Fish. 1986, 7, 159–170. [Google Scholar] [CrossRef]
  24. Werner, E.E.; Mittlebach, G.G.; Hall, D.J.; Gilliam, J.F. Experimental tests of optimal habitat use in fish: The role of relative habitat profitability. Ecology 1983, 64, 1525–1539. [Google Scholar] [CrossRef]
  25. Savino, J.F.; Stein, R.A. Behavioural interactions between fish predators and their prey: Effects of plant density. Anim. Behav. 1989, 37, 311–321. [Google Scholar] [CrossRef]
  26. Richmond, H.E.; Hrabik, T.R.; Mensinger, A.F. Light intensity, prey detection and foraging mechanisms of age 0 year yellow perch. J. Fish. Biol. 2004, 65, 195–205. [Google Scholar] [CrossRef]
  27. American Public Health Association (APHA). Standard Methods for the Examination of Water and Wastewater, 21th ed.; APHA: Washington, DC, USA, 2005; pp. 9–72. [Google Scholar]
  28. Yu, D.; Chen, M.; Zhou, Z.; Eric, R.; Tang, Q.; Liu, H. Global climate change will severely decrease potential distribution of the East Asian coldwater fish Rhynchocypris oxycephalus (Actinopterygii, Cyprinidae). Hydrobiologia 2013, 700, 23–32. [Google Scholar] [CrossRef]
  29. Kim, H.C.; Kim, M.S.; Yu, H.S. Biological control of vector mosquitoes by the use of fish predators, Moroco oxycephalus and Misgurnus anguillicaudatus in the laboratory and semi–field rice paddy. Korean J. Entomol. 1994, 24, 269–284. [Google Scholar]
  30. Jang, S.H.; Ryu, H.S.; Lee, J.H. A study on the stock assessment and management implications of the Korean aucha perch (Coreoperca herzi) in freshwater: (1) estimation of population ecological characteristics of Coreoperca herzi in the mid–upper system of the Seomjin River. Korean J. Limnol. 2003, 43, 82–90. [Google Scholar]
  31. Gye, M.C. Spermatogenesis of Coreoperca herzi (Perciformes; Percichthyidae). Korean J. Limnol. 2002, 35, 232–236. [Google Scholar]
  32. Fuiman, L.A.; Magurran, A.E. Development of predator defences in fishes. Rev. Fish. Biol. Fish. 1994, 4, 145–183. [Google Scholar] [CrossRef]
  33. Fuiman, L.A. Vulnerability of Atlantic herring larvae to predation by yearling herring. Mar. Ecol. Prog. Ser. 1989, 51, 291–299. [Google Scholar] [CrossRef]
  34. Scharf, F.S.; Buckel, J.A.; McGinn, P.A.; Juanes, F. Vulnerability of marine forage fishes to piscivory: Effects of prey behavior on susceptibility to attack and capture. J. Exp. Mar. Biol. Ecol. 2003, 294, 41–59. [Google Scholar] [CrossRef]
  35. Gates, C.E. What really is experimental error in block designs? Am. Stat. 1995, 49, 362–363. [Google Scholar] [CrossRef]
  36. Bailey, R.A. Design of Comparative Experiments; Cambridge University Press: Cambridge, UK, 2008; pp. 53–71. [Google Scholar]
  37. Xu, H.; Paerl, H.W.; Qin, B.; Zhu, G.; Gao, G. Nitrogen and phosphorus inputs control phytoplankton growth in eutrophic lake Taihu, China. Limnol. Oceanogr. 2010, 55, 420–432. [Google Scholar] [CrossRef]
  38. Donald, D.B.; Bogard, M.J.; Finlay, K.; Bunting, L.; Leavitt, P.R. Phytoplankton-specific response to enrichment of phosphorus-rich surface waters with ammonium, nitrate, and urea. PLoS ONE 2013, 8, e53277. [Google Scholar] [CrossRef] [PubMed]
  39. Lazzaro, X. A review of planktivorous fishes: Their evolution, feeding behaviours, selectivities, and impacts. Hydrobiologia 1987, 146, 97–167. [Google Scholar] [CrossRef]
  40. Tonn, W.M.; Paszkowski, C.A.; Holopainen, I.J. Piscivory and recruitment: Mechanisms structuring prey populations in small lakes. Ecology 1992, 73, 951–958. [Google Scholar] [CrossRef]
  41. Van Wassenbergh, S.; De Rechter, D. Piscivorous cyprinid fish modulates suction feeding kinematics to capture elusive prey. Zoology 2011, 114, 46–52. [Google Scholar] [CrossRef] [PubMed]
  42. Eby, L.A.; Rudstam, L.G.; Kitchell, J.F. Predator responses to prey population dynamics: An empirical analysis based on lake trout growth rates. Can. J. Fish. Aquat. Sci. 1995, 52, 1564–1571. [Google Scholar] [CrossRef]
  43. Sullivan, M.G. Handbook of Fish Biology and Fisheries. Volume 1: Fish Biology. Volume 2: Fisheries. Fish and Fisheries; Blackwell Science Ltd.: Oxford, UK, 2004; pp. 1–96. [Google Scholar]
  44. Stefan, H.G.; Fang, X.; Eaton, J.G. Simulated fish habitat changes in North American lakes in response to projected climate warming. Trans. Am. Fish. Soc. 2001, 130, 459–477. [Google Scholar] [CrossRef]
  45. Olson, M.H. Ontogenetic shifts in largemouth bass: Variability and consequences for first-year growth. Ecology 1996, 77, 179–190. [Google Scholar] [CrossRef]
  46. Buijse, A.D.; Houthuijzen, R.P. Piscivory, growth, and size-selective mortality of age 0 pikeperch (Stizostedion lucioperca). Can. J. Fish. Aquat. Sci. 1992, 49, 894–902. [Google Scholar] [CrossRef]
  47. Kerfoot, W.C.; Sih, A. Predation: Direct and Indirect Impacts on Aquatic Communities; University Press of New England: Hanover, NH, USA, 1987; pp. 1–386. [Google Scholar]
  48. Resetarits, W.J. Ecological interactions among predators in experimental stream communities. Ecology 1991, 72, 1782–1793. [Google Scholar] [CrossRef]
  49. Werner, E.E.; Gilliam, J.F.; Hall, D.J.; Mittelbach, G.M. An experimental test of the effects of predation risk on habitat use in fish. Ecology 1983, 64, 1540–1548. [Google Scholar] [CrossRef]
  50. Sih, A. Foraging strategies and the avoidance of predation by an aquatic insect, Notonecta hoffmanni. Ecology 1982, 63, 786–796. [Google Scholar] [CrossRef]
  51. Lundvall, D.; Svanbäk, R.; Persson, L.; Byström, P. Size-dependent predation in piscivores: Interactions between predator foraging and prey avoidance abilities. Can. J. Fish. Aquat. Sci. 1999, 56, 1285–1292. [Google Scholar] [CrossRef]
  52. Hershey, A.E. Effects of predatory sculpin on the chironomid communities in an arctic lake. Ecology 1985, 66, 1131–1138. [Google Scholar] [CrossRef]
  53. Coull, B.C.; Wells, J.B.J. Refuges from fish predation: Experiments with phytal meiofauna from the New Zealand rocky intertidal. Ecology 1983, 64, 1599–1609. [Google Scholar] [CrossRef]
  54. Savino, J.F.; Stein, R.A. Predator-prey interaction between largemouth bass and bluegills as influenced by simulated, submerged vegetation. Trans. Am. Fish. Soc. 1982, 111, 255–266. [Google Scholar] [CrossRef]
  55. Laurel, B.J.; Gregory, R.S.; Brown, J.A. Predator distribution and habitat patch area determine predation rates on Age-0 juvenile cod Gadus spp. Mar. Ecol. Prog. Ser. 2003, 251, 245–254. [Google Scholar] [CrossRef]
  56. Main, K.L. Predator avoidance in seagrass meadows: Prey behavior, microhabitat selection, and cryptic coloration. Ecology 1987, 68, 170–180. [Google Scholar] [CrossRef]
  57. Savino, J.F.; Stein, R.A. Behavior of fish predators and their prey: Habitat choice between open water and dense vegetation. Environ. Biol. Fish. 1989, 24, 287–293. [Google Scholar] [CrossRef]
  58. Magurran, A.E. The adaptive significance of schooling as an anti-predator defense in fish. Ann. Zool. Fenni. 1990, 27, 51–66. [Google Scholar]
Water 09 00036 g001 550
Figure 1. Pictorial view of large-scale mesocosm experiments with different number of JFSs.
Figure 1. Pictorial view of large-scale mesocosm experiments with different number of JFSs.
Water 09 00036 g001
Water 09 00036 g002 550
Figure 2. Experimental design of a juvenile fish shelter (JFS), and fish sampling method utilized in this study.
Figure 2. Experimental design of a juvenile fish shelter (JFS), and fish sampling method utilized in this study.
Water 09 00036 g002
Water 09 00036 g003 550
Figure 3. Variation in population of prey fish over six weeks: (a) Period 1; (b) Period 2; and (c) Period 3.
Figure 3. Variation in population of prey fish over six weeks: (a) Period 1; (b) Period 2; and (c) Period 3.
Water 09 00036 g003
Water 09 00036 g004 550

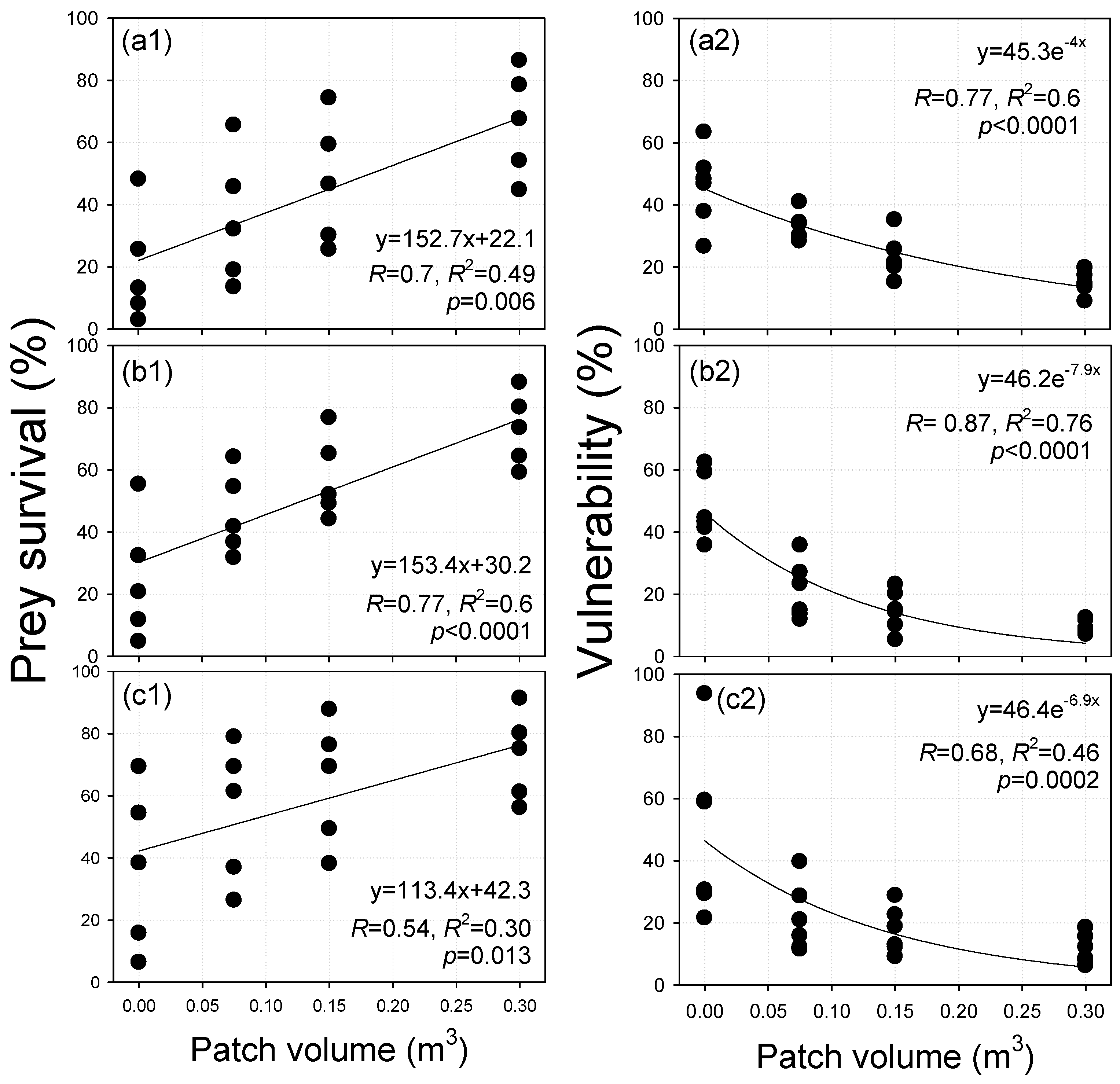

Figure 4. (1) Changes in prey survival with various patch volumes of JFS; and (2) changes in vulnerability with various patch volumes of JFS: (a) Period 1; (b) Period 2; and (c) Period 3.
Figure 4. (1) Changes in prey survival with various patch volumes of JFS; and (2) changes in vulnerability with various patch volumes of JFS: (a) Period 1; (b) Period 2; and (c) Period 3.
Water 09 00036 g004
Water 09 00036 g005 550

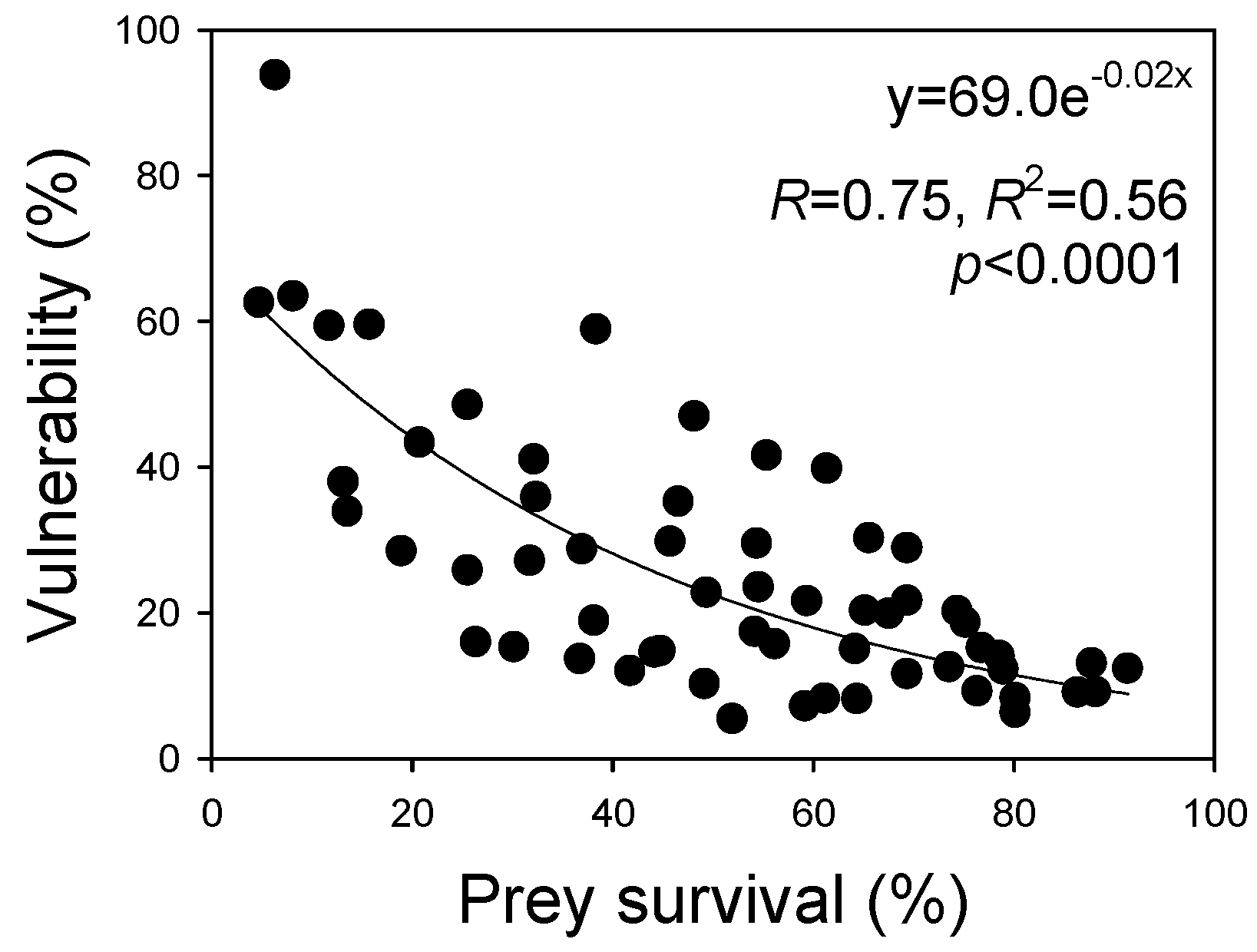

Figure 5. Correlation of vulnerability and prey survival drawn in this study.
Figure 5. Correlation of vulnerability and prey survival drawn in this study.
Water 09 00036 g005
Table
Table 1. Experimental design and operating conditions of large-scale mesocosm experiments between August 2011 and May 2012 a.
Table 1. Experimental design and operating conditions of large-scale mesocosm experiments between August 2011 and May 2012 a.
DescriptionControlT1T2T3
Test bed
Physical condition		Water volume (m3)8.08.08.08.0
Water depth (cm)80808080
Input & output flow rate (L·min−1)5.05.05.05.0
Net size (mm)2222
Light transmissivity (%)30303030
Fish shelterNumber of patches (JFS)0124
Patch volume (m3)00.080.150.30
Patch area (m2)00.250.501.00
Experimental fishNumber of prey fish (individual) b500500500500
Size of prey fish (mm) b28.9 ± 1.029.3 ± 0.929.2 ± 0.929.3 ± 0.9
Number of predator fish (individual) c20202020
Size of predator fish (mm) c88.9 ± 2.088.8 ± 1.588.6 ± 1.388.8 ± 2.1
Notes: a Experiment was conducted three times; Period 1: 5 August to 16 September 2011; Period 2: 30 September to 4 November 2011; Period 3: 6 April to 11 May 2012; b R. oxycephalus; c C. herzi.
Table
Table 2. Water quality changes in the large-scale mesocosm during the experimental periods.
Table 2. Water quality changes in the large-scale mesocosm during the experimental periods.
DescriptionPeriod 1 cPeriod 2 dPeriod 3 e
Rainfall (mm)10846098
Water depth (cm) a84 ± 485 ± 584 ± 3
Water temperature (°C) a25.6 ± 2.016.0 ± 2.519.7 ± 3.3
pH a8.7 ± 0.69.2 ± 0.39.1 ± 0.3
DO (mg O2 L−1) a11.4 ± 1.313.5 ± 1.712.7 ± 0.5
EC (μS·cm−1) a155 ± 17187 ± 10163 ± 11
SS (mg·L−1) b1.0 ± 0.20.9 ± 0.11.7 ± 0.6
BOD (mg O2 L−1) b1.3 ± 0.11.1 ± 0.11.1 ± 0.1
TN (mg N L−1) b1.590 ± 0.0901.510 ± 0.0801.520 ± 0.050
NH4+ (mg N L−1) b0.114 ± 0.0120.119 ± 0.0090.131 ± 0.010
NO3− (mg N L−1) b1.390 ± 0.0211.403 ± 0.0401.419 ± 0.008
TP (mg P L−1) b0.050 ± 0.0040.049 ± 0.0050.056 ± 0.001
PO43− (mg P L−1) b0.026 ± 0.0010.023 ± 0.0010.024 ± 0.002
Phytoplankton (cells mL−1) b908 ± 184526 ± 159712 ± 63
Zooplankton (ind L−1) b5.3 ± 2.82.8 ± 2.21.5 ± 0.6
Notes: a One hour interval data of water quality sensor (XLM6000, YSI) (n = 1090); b Laboratory analysis data determined by standard methods for Period 1 to 3; c Period 1: 5 August, 26 August, and 16 September 2011 (n = 3); d Period 2: 30 September, 21 October, and November 4, 2011 (n = 3); e Period 3: 6 April, 27 April, and 11 May 2012 (n = 3).
Table
Table 3. Changes in body size and weight of both prey (R. oxycephalus) and predator (C. herzi) fish during each experimental period.
Table 3. Changes in body size and weight of both prey (R. oxycephalus) and predator (C. herzi) fish during each experimental period.
DescriptionR. oxycephalusC. herzi
IBS a (mm)FBS b (mm)GR c (%)IBW d (g)FBW e (g)GR c (%)IBS a (mm)FBS b (mm)GR c (%)IBW d (g)FBW e (g)GR c (%)
Period 1Control28.5 ± 1.029.3 ± 0.72.60.39 ± 0.010.44 ± 0.0110.488.7 ± 2.090.8 ± 2.82.418.5 ± 0.521.2 ± 1.712.4
T128.7 ± 0.929.9 ± 0.73.90.39 ± 0.010.44 ± 0.0110.089.2 ± 1.791.5 ± 2.22.618.7 ± 0.420.8 ± 1.29.8
T228.6 ± 1.030.1 ± 0.65.10.39 ± 0.010.44 ± 0.0110.189.0 ± 1.690.8 ± 2.02.018.3 ± 0.420.6 ± 1.311.0
T328.6 ± 0.930.2 ± 0.75.10.39 ± 0.010.45 ± 0.0112.288.9 ± 2.390.7 ± 2.22.018.5 ± 0.620.3 ± 1.58.9
Period 2Control30.7 ± 1.031.3 ± 0.92.00.40 ± 0.010.45 ± 0.0110.893.4 ± 1.894.5 ± 2.31.222.1 ± 0.923.5 ± 1.56.1
T130.5 ± 0.931.5 ± 0.93.20.40 ± 0.010.45 ± 0.0111.292.7 ± 1.494.9 ± 1.72.222.2 ± 0.823.4 ± 0.95.0
T230.5 ± 0.732.1 ± 0.85.00.40 ± 0.010.45 ± 0.0110.792.1 ± 1.694.8 ± 2.12.922.0 ± 1.023.3 ± 1.35.7
T330.7 ± 0.931.7 ± 0.73.40.40 ± 0.010.45 ± 0.0110.592.3 ± 2.095.3 ± 2.13.122.2 ± 0.623.4 ± 1.05.0
Period 3Control27.4 ± 1.028.0 ± 0.82.20.36 ± 0.010.39 ± 0.017.684.7 ± 3.087.4 ± 2.23.115.0 ± 0.515.9 ± 0.65.5
T128.7 ± 0.929.9 ± 0.73.90.37 ± 0.010.40 ± 0.016.884.5 ± 1.586.9 ± 1.22.814.9 ± 0.415.8 ± 0.65.2
T228.6 ± 1.030.1 ± 0.65.10.37 ± 0.010.41 ± 0.018.184.8 ± 0.787.2 ± 1.32.715.1 ± 0.415.7 ± 0.53.6
T328.6 ± 0.931.1 ± 0.88.00.37 ± 0.010.41 ± 0.018.685.1 ± 2.087.2 ± 1.82.415.2 ± 0.615.6 ± 0.62.7
Notes: a IBS: Initial body size; b FBS: Final body size; c GR: Growth rate; d IBW: Initial body weight; e FBW: Final body weight.
Table
Table 4. ANOVA table for randomized complete block design (RCBD) in terms of prey survival and vulnerability.
Table 4. ANOVA table for randomized complete block design (RCBD) in terms of prey survival and vulnerability.
Sources of VariationPrey SurvivalVulnerability
dfMSFPr > FdfMSFPr > F
Seasonal effects25069.8181.04<0.000123050.942.95<0.0001
Shelter effects31134.740.52<0.00013390.75.500.0074
Interaction655.41.980.089629.50.420.8645
Elapsed time43836.6137.01<0.00014185.22.610.0484
Error4428.0 4471.0
Total59 59
Notes: Acronyms used: df = degree of freedom, MS = mean square, F = F-statistic value, Pr = p-value.

Share and Cite

MDPI and ACS Style

Lee, S.; Ahn, C.H.; Song, H.M.; Park, J.R.; Joo, J.C. Prey Survival and Vulnerability of Juvenile Rhynchocypris oxycephalus in Juvenile Fish Shelters under Predation by Korean Native Piscivorous Fish (Coreoperca herzi). Water 2017, 9, 36. https://doi.org/10.3390/w9010036

AMA Style

Lee S, Ahn CH, Song HM, Park JR, Joo JC. Prey Survival and Vulnerability of Juvenile Rhynchocypris oxycephalus in Juvenile Fish Shelters under Predation by Korean Native Piscivorous Fish (Coreoperca herzi). Water. 2017; 9(1):36. https://doi.org/10.3390/w9010036

Chicago/Turabian Style

Lee, Saeromi, Chang Hyuk Ahn, Ho Myeon Song, Jae Roh Park, and Jin Chul Joo. 2017. "Prey Survival and Vulnerability of Juvenile Rhynchocypris oxycephalus in Juvenile Fish Shelters under Predation by Korean Native Piscivorous Fish (Coreoperca herzi)" Water 9, no. 1: 36. https://doi.org/10.3390/w9010036

APA Style

Lee, S., Ahn, C. H., Song, H. M., Park, J. R., & Joo, J. C. (2017). Prey Survival and Vulnerability of Juvenile Rhynchocypris oxycephalus in Juvenile Fish Shelters under Predation by Korean Native Piscivorous Fish (Coreoperca herzi). Water, 9(1), 36. https://doi.org/10.3390/w9010036

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
