Quantification of Carotid Intraplaque Hemorrhage: Comparison between Manual Segmentation and Semi-Automatic Segmentation on Magnetization-Prepared Rapid Acquisition with Gradient-Echo Sequences

1
Department of Radiology of Chonbuk National University Hospital, Jeon-ju 54907, Korea
2
Radiology and Research Institute of Clinical Medicine of Chonbuk National University-Biomedical Research Institute of Chonbuk National University Hospital, Jeon-ju 54907, Korea
3
Department of Statistics (Institute of Applied Statistics), Chonbuk National University, Jeon-ju 54907, Korea
*
Author to whom correspondence should be addressed.
Diagnostics 2019, 9(4), 184; https://doi.org/10.3390/diagnostics9040184
Submission received: 22 October 2019 / Revised: 8 November 2019 / Accepted: 8 November 2019 / Published: 11 November 2019
(This article belongs to the Section Medical Imaging and Theranostics)

Abstract

:
Purpose: Carotid intraplaque hemorrhage (IPH) increases risk of territorial cerebral ischemic events, but different sequences or criteria have been used to diagnose or quantify carotid IPH. The purpose of this study was to compare manual segmentation and semi-automatic segmentation for quantification of carotid IPH on magnetization-prepared rapid acquisition with gradient-echo (MPRAGE) sequences. Methods: Forty patients with 16–79% carotid stenosis and IPH on MPRAGE sequences were reviewed by two trained radiologists with more than five years of specialized experience in carotid plaque characterization with carotid plaque MRI. Initially, the radiologists manually viewed the IPH based on the MPRAGE sequence. IPH volume was then measured by three different semi-automatic methods, with high signal intensity 150%, 175%, and 200%, respectively, above that of adjacent muscle on the MPRAGE sequence. Agreement on measurements between manual segmentation and semi-automatic segmentation was assessed using the intraclass correlation coefficient (ICC). Results: There was near-perfect agreement between manual segmentation and the 150% and 175% criteria for semi-automatic segmentation in quantification of IPH volume. The ICC of each semi-automatic segmentation were as follows: 150% criteria: 0.861, 175% criteria: 0.809, 200% criteria: 0.491. The ICC value of manual vs. 150% criteria and manual vs. 175% criteria were significantly better than the manual vs. 200% criteria (p < 0.001). Conclusions: The ICC of 150% and 175% criteria for semi-automatic segmentation are more reliable for quantification of IPH volume. Semi-automatic classification tools may be beneficial in large-scale multicenter studies by reducing image analysis time and avoiding bias between human reviewers.

1. Introduction

Intraplaque hemorrhage (IPH) is considered to have an important role in the progression of atherosclerosis [1,2]. It has been known to be a critical marker of plaque progression and destabilization created by proinflammatory response and cholesterol-rich erythrocyte membrane accumulation [1,3,4]. IPH can also lead to a higher risk of cerebrovascular events [5]. Therefore, it is important to detect and quantify IPH in order to prevent atherosclerotic diseases such as territorial cerebral ischemic events.
Magnetic resonance (MR) sequences of carotid plaques are widely used for detecting and quantifying carotid IPH, using histologic analysis as the gold standard [6,7,8,9]. T1-weighted MR sequences have been commonly used to detect IPH, which shows as a high signal intensity on T1-weighted images due to T1 shortening. This is caused by hemoglobin degrading into methemoglobin in the intraplaque hemorrhage. T1-weighted sequences, such as two-dimensional fast spin-echo, three-dimensional time-of-flight (TOF), and three-dimensional magnetization-prepared rapid acquisition gradient-echo (MPRAGE) sequences, are used to detect and quantify IPH [6,9,10,11,12]. Our study used an MPRAGE sequence due to its superior diagnostic capability for detecting and quantifying IPH compared to fast spin-echo and TOF sequences [12]. MPRAGE imaging expedites signal suppression from background tissues by using a nonselective inversion pulse and spectrally selective water excitation or fat suppression [13,14].
MR-depicted IPH is mostly defined as high plaque signal intensity exceeding the intensity of adjacent muscle [12,15]. In previous studies, manual segmentation of plaque components was performed by delineating the lumen and outer wall for hyperintense areas on T1-weighted sequences [15,16]. We thought that manual segmentation for analysis of the plaque component can be time-consuming and contains bias between human reviewers due to different levels of experience especially in large-scale multicenter studies. To solve these problems related to manual segmentation, automatic segmentation algorithms have been used to assess IPH volume [17]. According to recent studies, automated plaque component analysis software can be as accurate as manual analysis [18,19]. Automatic analysis commonly defines IPH as high signal intensity on MPRAGE imaging that is greater than 200% of the intensity of adjacent muscle in at least two consecutive slices. This method has been histologically validated using a 3.0 T MRI machine [12]. However, different sequences or criteria were used to diagnose and quantify carotid IPH.
This study compared manual segmentation and semi-automatic segmentation for quantification of carotid IPH on widely available magnetization-prepared rapid acquisition with gradient-echo (MPRAGE) sequences. We aimed to achieve an optimized hyperintensity threshold for semi-automatic carotid IPH quantification on MPRAGE sequences.

2. Materials and Methods

2.1. Study Subjects

This study was approved by the institutional review board of our institution (Chonbuk National University; 2016-07-037), and informed consent was waived by our Institutional Review Board. We included 40 consecutive patients with 16–79% carotid stenosis and IPH on MPRAGE sequences that underwent carotid MR imaging to evaluate plaque components between January 2016 and October 2018.

2.2. Carotid MRI Protocol

Carotid plaque MR examination was performed on an Achieva 3.0-T scanner (Philips Medical System, Best, the Netherlands) with a 16-channel head coil. The carotid artery with the dominant plaque was used to center the MR scan, and this image was used in the image analysis. Our protocol for carotid plaque MR imaging included carotid MPRAGE imaging, and sequences were centered at the bifurcation of the carotid artery with plaque. The MPRAGE sequence was as follows: TR/TE = 13.2 ms/3.2 ms, flip angle = 15°, in plan spatial resolution = 0.63 mm × 0.63 mm, reconstructed resolution = 0.31 mm × 0.31 mm, slice thickness = 1 mm, number of excitation = 2, TI = 304 ms, TR with respect to the nonselective inversion = 568 ms, acquisition time = 3 min 50 s. Fat suppression was achieved by water selective excitation.

2.3. Image Analysis

Manual review: Carotid plaques were defined when the carotid artery’s wall thickness was greater than 2 mm in at least two consecutive slices on MPRAGE imaging. Interpretation of MPRAGE images for IPH detection of carotid plaque was done using plaque analysis software (MRI-PlaqueView, VP Diagnostics, Seattle, WA, USA). Data was then analyzed by researchers who were trained in the evaluation of carotid plaque MRI and blinded to study goals. Initially, the radiologists manually read the IPH based on the MPRAGE sequence but were blinded to all clinical variables. IPH segmentation was performed with a piecewise smooth regional level set method (Figure 1).
Semi-automatic review: Semi-automatic analysis of IPH volume was performed by one reader using the three-dimensional image solution program (Rapidia, Infinite, Seoul, Korea). IPH on MPRAGE images was defined as the presence of hyperintense plaque of signal intensity of the adjacent muscle for at least two consecutive sections. Initially, we measured the signal intensity of three points in the sternocleidomastoid muscle (SCM) and calculated the mean signal intensity of SCM (Figure 2a). IPH detection and volume were measured by the area that showed signal intensity of >150%, >175%, and >200% of the mean intensity of the SCM (Figure 2b–d). We analyzed the total IPH volume, maximal axial IPH volume, and length of IPH with each signal intensity on MPRAGE images.

2.4. Statistical Analysis

All statistical analyses were performed in the R language ver. 3.3.2 (R Foundation for Statistical Computing, Vienna, Austria). Agreement on measurements between manual segmentation and the three criteria of semi-automatic segmentation was assessed using the intraclass correlation coefficient (ICC). The ICC value was interpreted as poor (0), slight (0.01–0.20), fair (0.21–0.40), moderate (0.41–0.60), substantial (0.61–0.80), and almost perfect (0.81–1.00). Comparison of ICC value between manual and semi-automatic segmentation was performed with the Fisher’s test with Bonferroni correction. Statistical significance was defined as a p value less than 0.05.

3. Results

The ICC between manual segmentation and the three criteria of semi-automatic segmentation for quantification of IPH volume is shown in Table 1. The ICC of each semi-automatic segmentation compared with manual segmentation was as follows: 150% criteria = 0.861, 175% criteria = 0.809, 200% criteria = 0.491. There was almost perfect agreement between manual segmentation and the 150% criteria and 175% criteria of semi-automatic segmentation for quantification of IPH volume (Table 1 and Table 2). The ICC between manual and the 200% criteria appeared to have moderate agreement.
The ICC value of manual vs. 150% criteria and manual vs. 175% criteria were significantly better than that of manual vs. 200% criteria (p < 0.001) (Figure 3).

4. Discussion

In previous studies, IPH was manually characterized as high signal intensity by visual examination or using an arbitrary threshold of 1.5 to 2.0 compared to the signal intensity of adjacent muscle or normal arterial wall on MPRAGE sequences [12,20,21,22,23]. But manual IPH detection can be time-consuming and has lower repeatability and poor interobserver reproducibility compared to semi-automatic methods due to less distinguished outlines of IPH and subjective criteria. Ota et al. [12] manually identified IPH using MPRAGE sequences on 20 patients that were planned for carotid endarterectomy and assessed the performance based on histologic analysis. Liu et al. [24] used the semi-automatic median technique and achieved better IPH area correlation with histology than Ota et al. [12]. Touze et al. [25] reported that the intra-observer and inter-observer reproducibility on manual IPH area quantification were suboptimal (ICC = 0.70 and 0.60, respectively). As such, semi-automatic IPH segmentation can provide more accuracy and efficiency compared to manual segmentation, especially in large-scale multicenter studies.
Carotid IPH is known to have an association with cerebral ischemic events [5,26,27,28]. A meta-analysis demonstrated by Hosseini et al. [28] featured a strong association between the presence of carotid IPH and recurrent cerebral ischemic events in symptomatic carotid artery stenosis (OR 12.1, 95% CI 5.5–27.1, p < 0.001), which suggests IPH is a strong predictor of future cerebrovascular events in patients with carotid artery stenosis. Another meta-analysis according to Saam T et al. [5], showed that the presence of IPH was related to a ~6-fold higher risk for events (hazard ratio 5.69) in 8 studies with 689 patients, and the annualized event rate in subjects with detectable IPH was 17.7% compared with 2.4% in patients without IPH. Furthermore, previous studies suggest that carotid IPH may lead to macrophage accumulation and fibrous cap degradation, which stimulates plaque progression [29,30,31]. Thereby, early detection of IPH is of great importance for preventing future cerebral ischemic events and plaque progression. This study facilitates the detection and quantification of IPH that are prone to prompt strokes in the future.
Various MR sequence techniques have been used to reliably identify carotid IPH in T1-weighted images, such as fast spin echo, time-of-flight (TOF) MR angiography (MRA), and MPRAGE sequences. According to Saito et al. [32], carotid IPH signal differences showed similar accuracies between fast spin echo, TOF by 1.5-T MR, and MPRAGE sequences for identifying plaque components, based on histopathological confirmation. In contrast, Ota et al. [12] reported that MPRAGE sequences demonstrated superior diagnostic capability for detecting and quantifying IPH compared to fast spin echo and TOF sequences, using histologic analysis as the standard of reference. Although small IPHs or heavily calcified IPHs were excluded, MPRAGE sequences showed higher sensitivity (80%) and specificity (97%) than TOF imaging. Consequently, our study used MPRAGE sequences for the MR protocol to detect and quantify early carotid IPH, which can take up to 3–4 min to acquire.
Visual assessment of atherosclerotic carotid plaque has been used to determine plaque components with adjacent neck muscle as a standard reference. On TOF source images, IPH was defined as a presence of high signal intensity within the carotid plaque that is greater than 150% of the signal intensity of the adjacent neck muscle [10]. In MPRAGE imaging, plaque is thought to be “MPRAGE positive” if the signal intensity is greater than 200% of the intensity of the adjacent sternocleidomastoid muscle in at least two consecutive slices [33]. This method has been previously validated with histologic confirmation using a 3.0 T MRI [12]. However, there is no known standard reference to define IPH on MPRAGE imaging.
A recent study by Liu et al. [24] evaluated semi-automatic IPH characterization using three tissue references: (1) the mean signal intensity of sternocleidomastoid muscle (SCM); (2) the mean signal intensity of adjacent muscle; (3) the median signal intensity within the 4 cm circular region of interest (ROI) which has been used as a reference in previous studies for signal normalization in automatic plaque segmentation. As a result, using an optimized intensity threshold of 1.6 times the adjacent muscle showed good performance on IPH detection and quantification in MPRAGE sequences whereas using the SCM intensity as a reference was not recommended without coil sensitivity correction when surface coils were used. Similarly, our study focused on comparing manual segmentation and semi-automatic segmentation of IPH using the criteria of high signal intensity on MPRAGE imaging that is greater than 150%, 175%, and 200% of the intensity of adjacent muscle but included a larger number of patients. Our result shows that the ICC of the 150% and 175% criteria were significantly better than that of the 200% criteria, and this resembles Liu et al.’s [24] optimized intensity threshold of 1.6 times the adjacent muscle. To our knowledge, not a lot of studies are known for determining the optimal objective criteria for IPH detection and quantification using MPRAGE images. Therefore our study can help develop optimal semi-automatic segmentation criteria for a more accurate diagnosis of IPH.
There were a few limitations in this study. First of all, there was no histological confirmation since our study did not include patients who underwent carotid endarterectomy. Therefore we did not have histologic validation of the presence, absence, and size of IPHs identified on MRI images. Secondly, a relatively small number of patients were included in our study.

5. Conclusions

The ICC value of manual vs. 150% criteria and manual vs. 175% criteria are more reliable for quantification of IPH volume than that of manual vs. 200% criteria. Semi-automatic classification tools may be beneficial in large-scale multicenter studies to reduce image analysis time and avoid bias between human reviewers.

Author Contributions

Y.J.S. and H.S.K.; writing—original draft preparation, G.H.C.; writing—review and editing, S.J.; statistical analysis, H.S.K.; funding acquisition.

Funding

This research was supported by Basic Science Research Program through the National Research Foundation of Korea (NRF) funded by the Ministry of Education: NRF-2017R1D1A3B03032390.

Ethical Approval

All procedures performed in the studies involving human participants were in accordance with the ethical standards of the institutional and/or national research committee and with the 1964 Helsinki Declaration and its later amendments or comparable ethical standards.

Informed Consent

The requirement for patient informed consent was waived for review of patient records and images.

Conflicts of Interest

The authors declare that they have no conflict of interest.

References

  1. Kolodgie, F.D.; Gold, H.K.; Burke, A.P.; Fowler, D.R.; Kruth, H.S.; Weber, D.K.; Farb, A.; Guerrero, L.J.; Hayase, M.; Kutys, R.; et al. Intraplaque hemorrhage and progression of coronary atheroma. N. Engl. J. Med. 2003, 349, 2316–2325. [Google Scholar] [CrossRef] [PubMed]
  2. Carr, S.; Farb, A.; Pearce, W.H.; Virmani, R.; Yao, J.S. Atherosclerotic plaque rupture in symptomatic carotid artery stenosis. J. Vasc. Surg. 1996, 23, 755–765. [Google Scholar] [CrossRef]
  3. Underhill, H.R.; Yuan, C.; Yarnykh, V.L.; Chu, B.; Oikawa, M.; Dong, L.; Polissar, N.L.; Garden, G.A.; Cramer, S.C.; Hatsukami, T.S. Predictors of surface disruption with MR imaging in asymptomatic carotid artery stenosis. AJNR Am. J. Neuroradiol. 2010, 31, 487–493. [Google Scholar] [CrossRef] [PubMed]
  4. Michel, J.B.; Virmani, R.; Arbustini, E.; Pasterkamp, G. Intraplaque haemorrhages as the trigger of plaque vulnerability. Eur. Heart J. 2011, 32, 1977–1985. [Google Scholar] [CrossRef] [PubMed]
  5. Saam, T.; Hetterich, H.; Hoffmann, V.; Yuan, C.; Dichgans, M.; Poppert, H.; Koeppel, T.; Hoffmann, U.; Reiser, M.F.; Bamberg, F. Meta-analysis and systematic review of the predictive value of carotid plaque hemorrhage on cerebrovascular events by magnetic resonance imaging. J. Am. Coll. Cardiol. 2013, 62, 1081–1091. [Google Scholar] [CrossRef] [PubMed]
  6. Saam, T.; Ferguson, M.S.; Yarnykh, V.L.; Takaya, N.; Xu, D.; Polissar, N.L.; Hatsukami, T.S.; Yuan, C. Quantitative evaluation of carotid plaque composition by in vivo MRI. Arterioscler. Thromb. Vasc. Biol. 2005, 25, 234–239. [Google Scholar] [CrossRef] [PubMed]
  7. Yoshimura, S.; Yamada, K.; Kawasaki, M.; Asano, T.; Kanematsu, M.; Takamatsu, M.; Hara, A.; Iwama, T. High-intensity signal on time-of-flight magnetic resonance angiography indicates carotid plaques at high risk for cerebral embolism during stenting. Stroke 2011, 42, 3132–3137. [Google Scholar] [CrossRef] [PubMed]
  8. Qiao, Y.; Etesami, M.; Malhotra, S.; Astor, B.C.; Virmani, R.; Kolodgie, F.D.; Trout, H.H., 3rd; Wasserman, B.A. Identification of intraplaque hemorrhage on MR angiography images: A comparison of contrast-enhanced mask and time-of-flight techniques. AJNR Am. J. Neuroradiol. 2011, 32, 454–459. [Google Scholar] [CrossRef] [PubMed]
  9. Yamada, K.; Song, Y.; Hippe, D.S.; Sun, J.; Dong, L.; Xu, D.; Ferguson, M.S.; Chu, B.; Hatsukami, T.S.; Chen, M.; et al. Quantitative evaluation of high intensity signal on MIP images of carotid atherosclerotic plaques from routine TOF-MRA reveals elevated volumes of intraplaque hemorrhage and lipid rich necrotic core. J. Cardiovasc. Magn. Reson. 2012, 14, 81. [Google Scholar] [CrossRef] [PubMed]
  10. Yoon, W.; Kim, S.K.; Park, M.S.; Chae, H.J.; Kang, H.K. Safety of protected carotid artery stenting in patients with severe carotid artery stenosis and carotid intraplaque hemorrhage. AJNR Am. J. Neuroradiol. 2012, 33, 1027–1031. [Google Scholar] [CrossRef] [PubMed]
  11. Van den Bouwhuijsen, Q.J.; Selwaness, M.; Tang, H.; Niessen, W.J.; Hofman, A.; Franco, O.H.; van der Lugt, A.; Vernooij, M.W. Change in Carotid Intraplaque Hemorrhage in Community-dwelling Subjects: A Follow-up Study Using Serial MR Imaging. Radiology 2017, 282, 526–533. [Google Scholar] [CrossRef] [PubMed]
  12. Ota, H.; Yarnykh, V.L.; Ferguson, M.S.; Underhill, H.R.; Demarco, J.K.; Zhu, D.C.; Oikawa, M.; Dong, L.; Zhao, X.; Collar, A.; et al. Carotid intraplaque hemorrhage imaging at 3.0-T MR imaging: Comparison of the diagnostic performance of three T1-weighted sequences. Radiology 2010, 254, 551–563. [Google Scholar] [CrossRef] [PubMed]
  13. Moody, A.R.; Murphy, R.E.; Morgan, P.S.; Martel, A.L.; Delay, G.S.; Allder, S.; MacSweeney, S.T.; Tennant, W.G.; Gladman, J.; Lowe, J.; et al. Characterization of complicated carotid plaque with magnetic resonance direct thrombus imaging in patients with cerebral ischemia. Circulation 2003, 107, 3047–3052. [Google Scholar] [CrossRef] [PubMed]
  14. Vandamme, H.; Limet, R. Analysis of pooled data from the randomized controlled trials of endarterectomy for symptomatic carotid stenosis. Rev. Med. Liege 2005, 60, 737–740. [Google Scholar] [PubMed]
  15. Singh, N.; Moody, A.R.; Gladstone, D.J.; Leung, G.; Ravikumar, R.; Zhan, J.; Maggisano, R. Moderate carotid artery stenosis: MR imaging-depicted intraplaque hemorrhage predicts risk of cerebrovascular ischemic events in asymptomatic men. Radiology 2009, 252, 502–508. [Google Scholar] [CrossRef] [PubMed]
  16. Smits, L.P.; van Wijk, D.F.; Duivenvoorden, R.; Xu, D.; Yuan, C.; Stroes, E.S.; Nederveen, A.J. Manual versus Automated Carotid Artery Plaque Component Segmentation in High and Lower Quality 3.0 Tesla MRI Scans. PLoS ONE 2016, 11, e0164267. [Google Scholar] [CrossRef] [PubMed]
  17. Yoneyama, T.; Sun, J.; Hippe, D.S.; Balu, N.; Xu, D.; Kerwin, W.S.; Hatsukami, T.S.; Yuan, C. In vivo semi-automatic segmentation of multicontrast cardiovascular magnetic resonance for prospective cohort studies on plaque tissue composition: Initial experience. Int. J. Cardiovasc. Imaging 2016, 32, 73–81. [Google Scholar] [CrossRef] [PubMed]
  18. Kerwin, W.; Xu, D.; Liu, F.; Saam, T.; Underhill, H.; Takaya, N.; Chu, B.; Hatsukami, T.; Yuan, C. Magnetic resonance imaging of carotid atherosclerosis: Plaque analysis. Top Magn. Reson. Imaging 2007, 18, 371–378. [Google Scholar] [CrossRef] [PubMed]
  19. Liu, F.; Xu, D.; Ferguson, M.S.; Chu, B.; Saam, T.; Takaya, N.; Hatsukami, T.S.; Yuan, C.; Kerwin, W.S. Automated in vivo segmentation of carotid plaque MRI with Morphology-Enhanced probability maps. Magn. Reson. Med. 2006, 55, 659–668. [Google Scholar] [CrossRef] [PubMed]
  20. Altaf, N.; Daniels, L.; Morgan, P.S.; Auer, D.; MacSweeney, S.T.; Moody, A.R.; Gladman, J.R. Detection of intraplaque hemorrhage by magnetic resonance imaging in symptomatic patients with mild to moderate carotid stenosis predicts recurrent neurological events. J. Vasc. Surg. 2008, 47, 337–342. [Google Scholar] [CrossRef] [PubMed]
  21. Hishikawa, T.; Iihara, K.; Yamada, N.; Ishibashi-Ueda, H.; Miyamoto, S. Assessment of necrotic core with intraplaque hemorrhage in atherosclerotic carotid artery plaque by MR imaging with 3D gradient-echo sequence in patients with high-grade stenosis. Clinical article. J. Neurosurg. 2010, 113, 890–896. [Google Scholar] [CrossRef] [PubMed]
  22. Yamada, N.; Higashi, M.; Otsubo, R.; Sakuma, T.; Oyama, N.; Tanaka, R.; Iihara, K.; Naritomi, H.; Minematsu, K.; Naito, H. Association between signal hyperintensity on T1-weighted MR imaging of carotid plaques and ipsilateral ischemic events. AJNR Am. J. Neuroradiol. 2007, 28, 287–292. [Google Scholar] [PubMed]
  23. Mendes, J.; Parker, D.L.; Kim, S.E.; Treiman, G.S. Reduced blood flow artifact in intraplaque hemorrhage imaging using CineMPRAGE. Magn. Reson. Med. 2013, 69, 1276–1284. [Google Scholar] [CrossRef] [PubMed]
  24. Liu, J.; Balu, N.; Hippe, D.S.; Ferguson, M.S.; Martinez-Malo, V.; DeMarco, J.K.; Zhu, D.C.; Ota, H.; Sun, J.; Xu, D.; et al. Semi-automatic carotid intraplaque hemorrhage detection and quantification on Magnetization-Prepared Rapid Acquisition Gradient-Echo (MP-RAGE) with optimized threshold selection. J. Cardiovasc. Magn. Reson. 2016, 18, 41. [Google Scholar] [CrossRef] [PubMed]
  25. Touze, E.; Toussaint, J.F.; Coste, J.; Schmitt, E.; Bonneville, F.; Vandermarcq, P.; Gauvrit, J.Y.; Douvrin, F.; Meder, J.F.; Mas, J.L.; et al. Reproducibility of high-resolution MRI for the identification and the quantification of carotid atherosclerotic plaque components: Consequences for prognosis studies and therapeutic trials. Stroke 2007, 38, 1812–1819. [Google Scholar] [CrossRef] [PubMed]
  26. Takaya, N.; Yuan, C.; Chu, B.; Saam, T.; Underhill, H.; Cai, J.; Tran, N.; Polissar, N.L.; Isaac, C.; Ferguson, M.S.; et al. Association between carotid plaque characteristics and subsequent ischemic cerebrovascular events: A prospective assessment with MRI--initial results. Stroke 2006, 37, 818–823. [Google Scholar] [CrossRef] [PubMed]
  27. Kurosaki, Y.; Yoshida, K.; Endo, H.; Chin, M.; Yamagata, S. Association between carotid atherosclerosis plaque with high signal intensity on T1-weighted imaging and subsequent ipsilateral ischemic events. Neurosurgery 2011, 68, 62–67. [Google Scholar] [CrossRef] [PubMed]
  28. Hosseini, A.A.; Kandiyil, N.; Macsweeney, S.T.; Altaf, N.; Auer, D.P. Carotid plaque hemorrhage on magnetic resonance imaging strongly predicts recurrent ischemia and stroke. Ann. Neurol. 2013, 73, 774–784. [Google Scholar] [CrossRef] [PubMed]
  29. Sun, J.; Underhill, H.R.; Hippe, D.S.; Xue, Y.; Yuan, C.; Hatsukami, T.S. Sustained acceleration in carotid atherosclerotic plaque progression with intraplaque hemorrhage: A long-term time course study. JACC Cardiovasc. Imaging 2012, 5, 798–804. [Google Scholar] [CrossRef] [PubMed]
  30. Noguchi, T.; Tanaka, A.; Kawasaki, T.; Goto, Y.; Morita, Y.; Asaumi, Y.; Nakao, K.; Fujiwara, R.; Nishimura, K.; Miyamoto, Y.; et al. Effect of Intensive Statin Therapy on Coronary High-Intensity Plaques Detected by Noncontrast T1-Weighted Imaging: The AQUAMARINE Pilot Study. J. Am. Coll. Cardiol. 2015, 66, 245–256. [Google Scholar] [CrossRef] [PubMed]
  31. Simpson, R.J.; Akwei, S.; Hosseini, A.A.; MacSweeney, S.T.; Auer, D.P.; Altaf, N. MR imaging-detected carotid plaque hemorrhage is stable for 2 years and a marker for stenosis progression. AJNR Am. J. Neuroradiol. 2015, 36, 1171–1175. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Saito, A.; Sasaki, M.; Ogasawara, K.; Kobayashi, M.; Hitomi, J.; Narumi, S.; Ohba, H.; Yamaguchi, M.; Kudo, K.; Terayama, Y. Carotid plaque signal differences among four kinds of T1-weighted magnetic resonance imaging techniques: A histopathological correlation study. Neuroradiology 2012, 54, 1187–1194. [Google Scholar] [CrossRef] [PubMed]
  33. Scott McNally, J.; Yoon, H.C.; Kim, S.E.; Narra, K.K.; McLaughlin, M.S.; Parker, D.L.; Treiman, G.S. Carotid MRI Detection of Intraplaque Hemorrhage at 3T and 1.5T. J. Neuroimaging Off. J. Am. Soc. Neuroimaging 2015, 25, 390–396. [Google Scholar] [CrossRef] [PubMed] [Green Version]

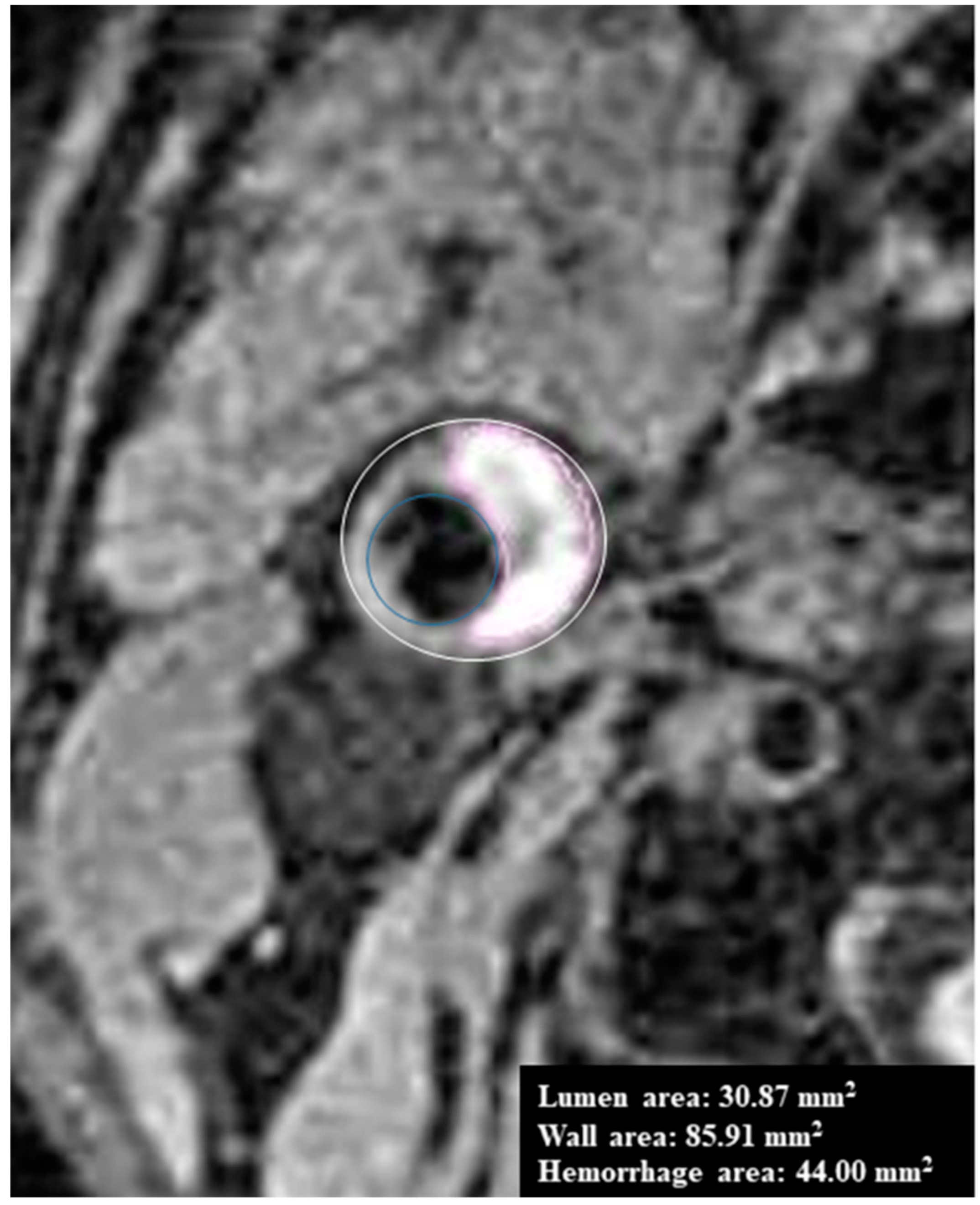

Figure 1. Intraplaque hemorrhage (IPH) manual segmentation using MRI-PlaqueView.
Figure 1. Intraplaque hemorrhage (IPH) manual segmentation using MRI-PlaqueView.
Diagnostics 09 00184 g001

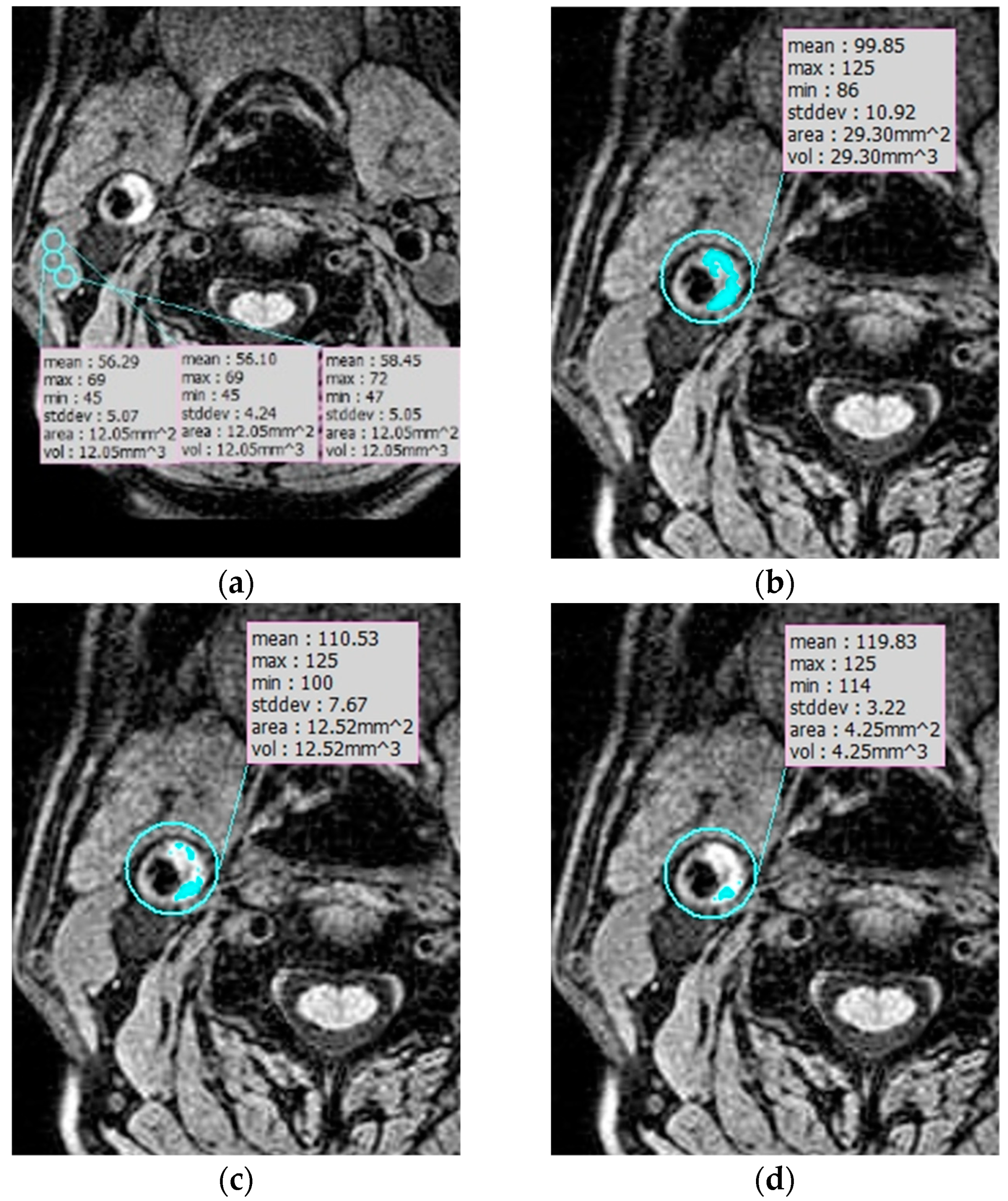

Figure 2. IPH semiautomatic segmentation. (a) Measuring the signal intensity of three points in the sternocleidomastoid muscle (SCM) to calculate the mean signal intensity of SCM. (bd) IPH detection and volume were measured by the area that showed signal intensity of >150% (b), >175% (c), and >200% (d) of the mean intensity of the SCM.
Figure 2. IPH semiautomatic segmentation. (a) Measuring the signal intensity of three points in the sternocleidomastoid muscle (SCM) to calculate the mean signal intensity of SCM. (bd) IPH detection and volume were measured by the area that showed signal intensity of >150% (b), >175% (c), and >200% (d) of the mean intensity of the SCM.
Diagnostics 09 00184 g002

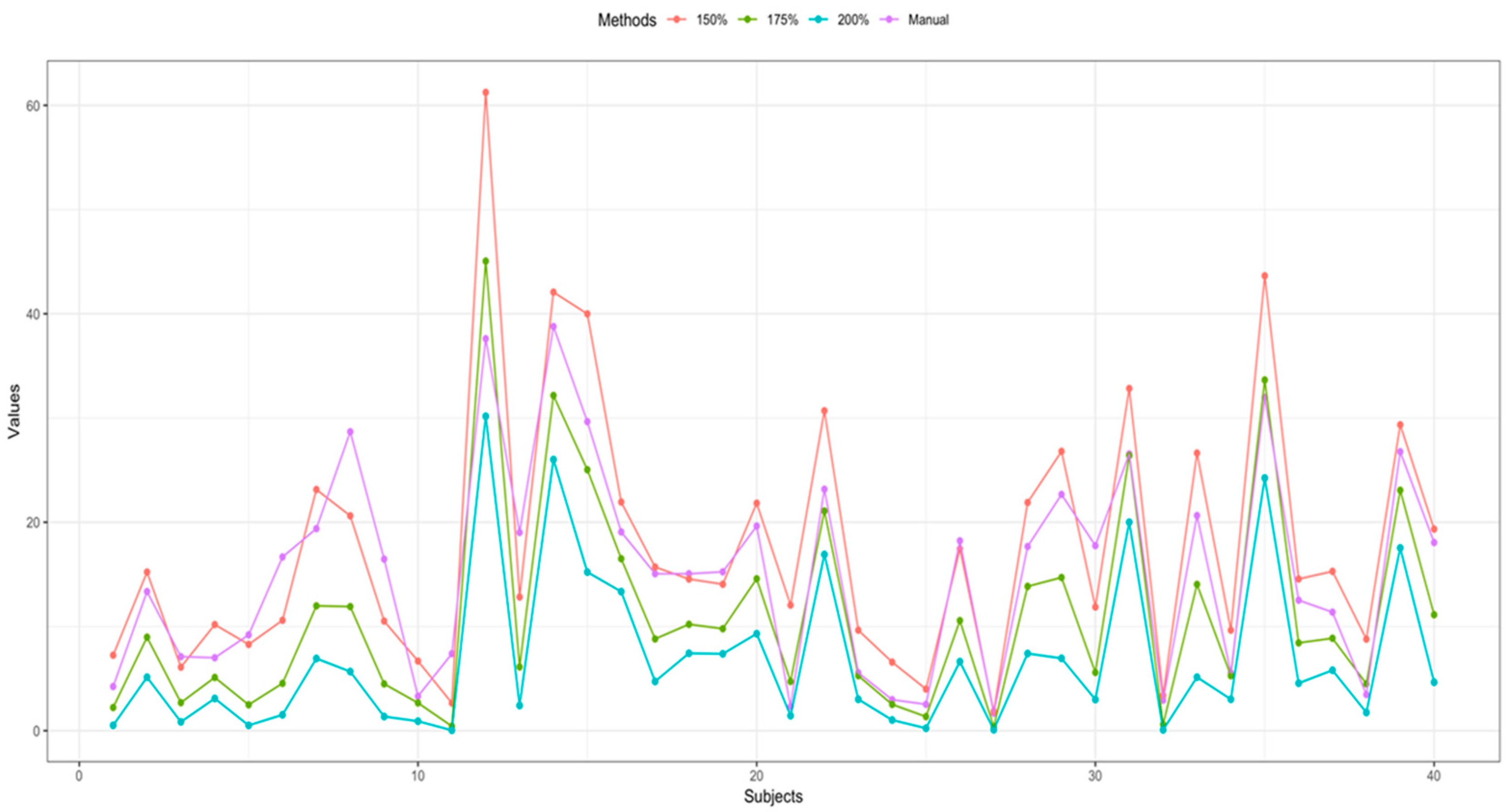

Figure 3. Comparison of IPH volume between manual segmentation and semiautomatic segmentation of each patient.
Figure 3. Comparison of IPH volume between manual segmentation and semiautomatic segmentation of each patient.
Diagnostics 09 00184 g003
Table 1. Intraclass correlation coefficient between manual segmentation and semiautomatic segmentation for detection of intraplaque hemorrhage.
Table 1. Intraclass correlation coefficient between manual segmentation and semiautomatic segmentation for detection of intraplaque hemorrhage.
ICC95% CI
Manual—150% ( ρ 1 )0.861(0.754, 0.924)
Manual—175% ( ρ 2 )0.809(0.669, 0.894)
Manual—200% ( ρ 3 )0.491(0.218, 0.693)
Note. ICC = intraclass correlation coefficient, CI = confidence interval.
Table 2. Statistical analysis of intraclass correlation coefficient between manual segmentation and semiautomatic segmentation for detection of intraplaque hemorrhage.
Table 2. Statistical analysis of intraclass correlation coefficient between manual segmentation and semiautomatic segmentation for detection of intraplaque hemorrhage.
HypothesisFisher’s Test StatisticAdj. p-Value (Bonferroni)
H 0 :   ρ 1 = ρ 3   v s   H A :   ρ 1 >   ρ 3 4.46860
H 0 :   ρ 2 = ρ 3   v s   H A :   ρ 2 >   ρ 3 3.37550.0012
