Mechanical Properties of a Structural Component Processed in High-Pressure Die Casting (HPDC) with a Non-Heat-Treated Aluminum Alloy

Abstract

This industrial research focuses on the implementation and development of a productive process for an automotive structural component (Shock tower) manufactured by a high-pressure die casting (HPDC) process made of aluminum alloy Aural^TM-5. This aluminum alloy has been considered in diverse automotive and aerospace components that do not require heat treatment due to its mechanical properties as cast material (F temper). On the other hand, Aural^TM-5 has been designed for processing as HPDC because it is an alloy with good fluidity, making it ideal for large castings with thin-wall thicknesses, like safety structural components such as rails, supports, rocker panels, suspension crossmembers, and shock towers. The mechanical properties that were evaluated for the evaluated components were yield strength, ultimate tensile strength, and elongation. Eight samples were taken from different areas of each produced shock tower for evaluating and verifying the homogeneity of each casting. The samples were evaluated from the first hours after they were manufactured by casting until eight weeks after being produced. This was performed to understand the behavior of the alloy during its natural aging process. Two groups of samples were obtained. One set of components was heat-treated by a water quench process after the castings’ extraction and the other set of components was not quenched. Results demonstrated that both sets of components, quenched and not quenched, achieved the expected values for the Aural^TM-5 of yield strength ≥ 110 MPa, ultimate tensile strength ≥ 240 MPa, and elongation ≥ 8%. Additionally, this is very important for industry since by not treating the structural components by quenching, there are savings in terms of infrastructure and energy consumption, together with benefits in the environmental aspect by avoiding CO₂ emissions and being sustainable.

1. Introduction

The automotive industry has been evolving towards the application of new materials that could improve the performance and processability of components and parts. There is a lightweighting trend driven by performance, cost, and sustainability that generates a tremendous demand for lightweight materials and conceptual designs considering these. These conceptual designs are being considered and assessed as part of the modern circular economy solutions for transportation and mobility [1].

Additionally, in recent years, with the increasing environmental issues (waste and pollution) and energy crisis, the automotive industry has been exploring and developing alternatives to steel products and characteristics, searching for novel materials possessing good compatibility, being lighter, and offering higher performance that can provide good mechanical strength in casted structural components in an environmentally friendly aspect as well. It must be mentioned that this race has reached many industrial sectors not only associated with transportation or vehicles industry, but more broadly with manufacturing and civil infrastructure and clean energy technologies [1].

Automotive lightweight materials have been an ambitious competitor to steel and iron products. The selection and application of aluminum alloys have been the first choice due to significant advantages such as good corrosion resistance, high strength to weight ratio, relative low cost, good manufacturability, handling, and storage characteristics, among others [2,3]. Relevant data demonstrate how aluminum alloys are a suitable material that can provide a weight reduction in a vehicle of 60%, reduced fuel consumption by 20%, and a reduction of up to 10% in CO₂ emission discharges. Therefore, vehicle lightweighting is the most economical way to minimize energy consumption and mitigate environmental hazards or damage [4,5].

Novel aluminum alloys are being extensively studied and developed to produce complex casting components, which makes them a possible solution to this critical challenge. These materials are typically applied in structural components in a vehicle, and they have the capability of satisfying the current demands of being economically sustainable and the mandatory requirement of having more efficient mechanical performance, therefore reducing the vehicle’s weight and fuel consumption, and contributing to the reduction in CO₂ emissions, not only in their products but also during their manufacturing processing [6,7,8]. This is a reason why these aluminum alloys began to be widely applied in automotive structural components besides their superb mechanical and physical characteristics such as good rigidity, strength to weight ratio, and corrosion resistance performance [9]. However, most of these material alloys require a heat treatment process to obtain the desired characteristics and attributes suitable for specific applications [10], particularly mechanical performance. On the other hand, novel casting technologies for manufacturing larger components, such as high-pressure die casting (HPDC), have emerged with improved material properties and characteristics that allow aluminum alloys to meet strict industrial requirements and substantially reduce the weight of automotive parts or components [11]. Furthermore, high-pressure die casting is considered one of the most profitable and productive processes in casting components [9], due to its ability to enable the mass production of a wide variety of components [12]. Generally, it is a process with great repeatability, where molten aluminum can be injected into a steel die under high pressures at a high speed. It is also a process with a short cycle time due to the quick solidification of the part [13].

HPDC parts for structural and non-structural products and applications are gradually replacing steel-based components within the vehicle structure; these hybrid body structural vehicles are becoming one of the most effective solutions to achieve lightweighting [14]. Another benefit of this process is that it has great dimensional accuracy and shape precision [15], particularly for complex components with thin-wall thickness. However, HPDC has the disadvantage of being a process with ease of gas trapping, which is one of its main limitations [16]. It is a highly turbulent process that results in porosity due to entrapped air. In addition, porosities may also happen due to hydrogen released from the reaction of water vapor or lubricant remnants, or due to shrinkage that happens due to volume contraction during solidification and oxide inclusions formed during the cavity filling, as mentioned before, due to the high turbulence inside the die, making the metal fronts collide, forming oxide films [12]. These are some of the most common defects in this casting process, which affects the quality and significantly reduces mechanical properties such as the elongation and tensile strength of the produced components. The defect in the part increases the stress concentration, promoting the formation of cracks and early damage in the components [12]. As a result of these porosities in the parts manufactured in high-pressure die casting, technologies such as vacuum-assisted systems have successfully achieved the capability of producing casted components with minimum gas porosities, enabling the further strengthening of the as-cast parts [16]. There are two main types of vacuum systems for HPDC; one is a complete vacuum system where the whole die casting system is sealed and evacuated from the furnace when the molten metal is transferred to the injection chamber via a vacuum tube. The other system is a simpler one that is a stand-alone system, where a vacuum valve or chill block is incorporated into a die to evacuate the entrapped air in the cavity [17]. This second type of system is the one that was used for this research.

Non-heat-treated (NHT) aluminum alloys are a novel type of lightweight material that has emerged in recent years. These alloys are highly used in all industrial markets for flat-rolled products. Packaging, transportation, and construction sectors represent the largest usage of NHT sheets since the late 20th century. The attribute of this type of alloy is that the produced components do not need to experience those high-temperature solution treatments or artificial aging processes; only conventional natural aging of these lightweight alloys can achieve the high strengths and high plasticity performance to satisfy the stringent performance and characteristic requirements for aerospace and automotive components [18]. Novel or improved lightweight alloy developments have been pursued based on the need for better appearance, increased efficiency, and obtaining high structural performance of products and productivity of the components manufacturing process. The availability of highly competitive materials and resources has driven the need to keep the aluminum alloy components’ costs as low as possible. After searching for research and literature about NHT aluminum alloys, just a few research reports were found [19,20].

The development of aluminum alloys such as Aural^TM-5 and others that can achieve physical and mechanical properties without heat treatment to manufacture products, and at the same time can produce savings in terms of infrastructure and processing due to the environmental benefits of avoiding CO₂ emissions produced during post-processing and energy consumption in the heat treatment ovens, is aligned to the needs of the automotive industry.

In this work, evaluations were carried out using Aural^TM-5 to develop a structural automotive component (Shock tower) to validate the mechanical properties of the alloy without the effect of thermal treatment by HPDC process. Evaluations were carried out to determine the mechanical characteristics of the alloy: UTS, yield strength, and elongation. The evaluations were divided into two stages. Half of the samples were quenched in water after extraction while the other half were not quenched in water after casting extraction. Both tests were evaluated in the same way after the casting process and were evaluated at the same time intervals. Three different metal temperatures were evaluated in the casted products.

2. Materials and Methods

Aural thermal aluminum alloys have been developed as a solution for heat treatment temperatures around 500 °C, and can be combined with water quenching, and partial solution heat treatment at a slightly lower temperature, followed by rapid air cooling [20,21]. This alloy is designed to achieve greater ductility in F and T5 tempers. This improvement in the ductility of the alloy is associated with the lower silicon content, since in the Al-Si-Mg system, the eutectic phase of silicon is brittle and limits the ductility of the material. With its lower silicon content, the Aural^TM-5 microstructure contains a small volume fraction of the damaging eutectic phase, reaching the maximum resistance at 210 °C [17]. The advantage of Aural^TM-5 compared to other aluminum alloys used for structural components in HPDC is the elongation percentage that can be obtained without the application of heat treatment, even within the same families of Aural alloys, as shown in

Table 1. Typical measured mechanical properties of Aural^TM-5 alloy.

Alloy/Temper	RP0.2 YS [MPa]	RM UTS [MPa]	A5 Elongation [%]
Aural-5TM/F	110–135	240–270	8–12

.

However, the quantity of silicon added to the aluminum alloy depends on the casting process; in the case of HPDC, due to the high solidification rate, it is required to have a percentage between 8 and 12%, since it increases the melt fluidity and decreases the coefficient of thermal expansion, facilitating the casting and improving mechanical properties [22]. The lower silicon content reduces the melt fluidity, which is critical for the injection process. The main disadvantage of this alloy is that it has 7–8% silicon, which is a low percentage for the process of HPDC, due to its solidification range. These alloys with a low range of solidification are known as the short freezing range, becoming complicated for the injection process due to their high liquidus point. Due to this, it was ensured during the research to improve the fluidity of the molten metal, focusing on maintaining the temperature of it by avoiding temperature losses during the metal dosing before the start of injection. The Aural^TM-5 chemical composition used for this project is shown in Table 2.

During the test, composition samples were obtained from an ingot and analyzed in SPECTROLAB LAVM12 (Ametek, Hamburg, Germany) equipment under the ASTM-E716 [23] and ASTM-E3 [24] standards. Elements of Si, Cu Fe, Mn, Mg, Ti, and Sr were kept within the specification of the Rio Tinto Group range. Sample results of the analysis are in Table 3. Samples were obtained as well for every occasion that the dosing furnace was filled to ensure alloy elements were on range.

Table 2. Aural-5^TM composition wt.% [9].

Variants	Al	Si	Fe	Cu	Mn	Mg	Zn	Ti	Sr
Aural 2TM	Remaining	10.3	0.16	<0.01	0.52	0.31	<0.01	0.05	-
Aural 3TM	Remaining	10.1	0.18	<0.01	0.49	0.55	<0.01	0.06	0.012
Aural 5TM	Remaining	7.4	0.17	<0.01	0.49	0.20	<0.01	0.08	0.018

Table 2. Aural-5^TM composition wt.% [9].

Variants	Al	Si	Fe	Cu	Mn	Mg	Zn	Ti	Sr
Aural 2TM	Remaining	10.3	0.16	<0.01	0.52	0.31	<0.01	0.05	-
Aural 3TM	Remaining	10.1	0.18	<0.01	0.49	0.55	<0.01	0.06	0.012
Aural 5TM	Remaining	7.4	0.17	<0.01	0.49	0.20	<0.01	0.08	0.018

Table 3. Sampling of the alloy elements.

Si%	Cu%	Fe%	Mn%	Mg%	Zn%	Ti%	Sr PPM
7.62	0.02	0.18	0.5	0.23	0.00	0.01	240.71

Table 3. Sampling of the alloy elements.

Si%	Cu%	Fe%	Mn%	Mg%	Zn%	Ti%	Sr PPM
7.62	0.02	0.18	0.5	0.23	0.00	0.01	240.71

The die casting machine used for the test was a 2700-ton cold chamber with high vacuum-assist equipment. The vacuum system on the test consisted of three chill blocks on the die, and each channel maintained a vacuum of 110 mbar ± 20 mbar. The die set used for manufacturing the castings was productively the die of H13, heated with water thermoregulation units at a temperature of 175 °C for the main cavity in cover and mobile side for having a consisted temperature on the die of 205 °C after die spraying, which was constantly monitoring. The shot sleeve was heated with a water thermoregulation unit at 160 °C. The metal temperature in the sleeve was controlled at 655 °C ± 5 °C, measured with a K-type thermocouple using datalogger equipment for constant reading. A dosing furnace was used during the test with a closed ceramic launder, to avoid temperature loss due to convection while dosing the metal into the shot sleeve. The dosing furnace was set at 715 °C − 10 °C with constant nitrogen degassing inside of it to avoid inclusions in the samples made, which helps reduce the variation in mechanical properties due to oxide films.

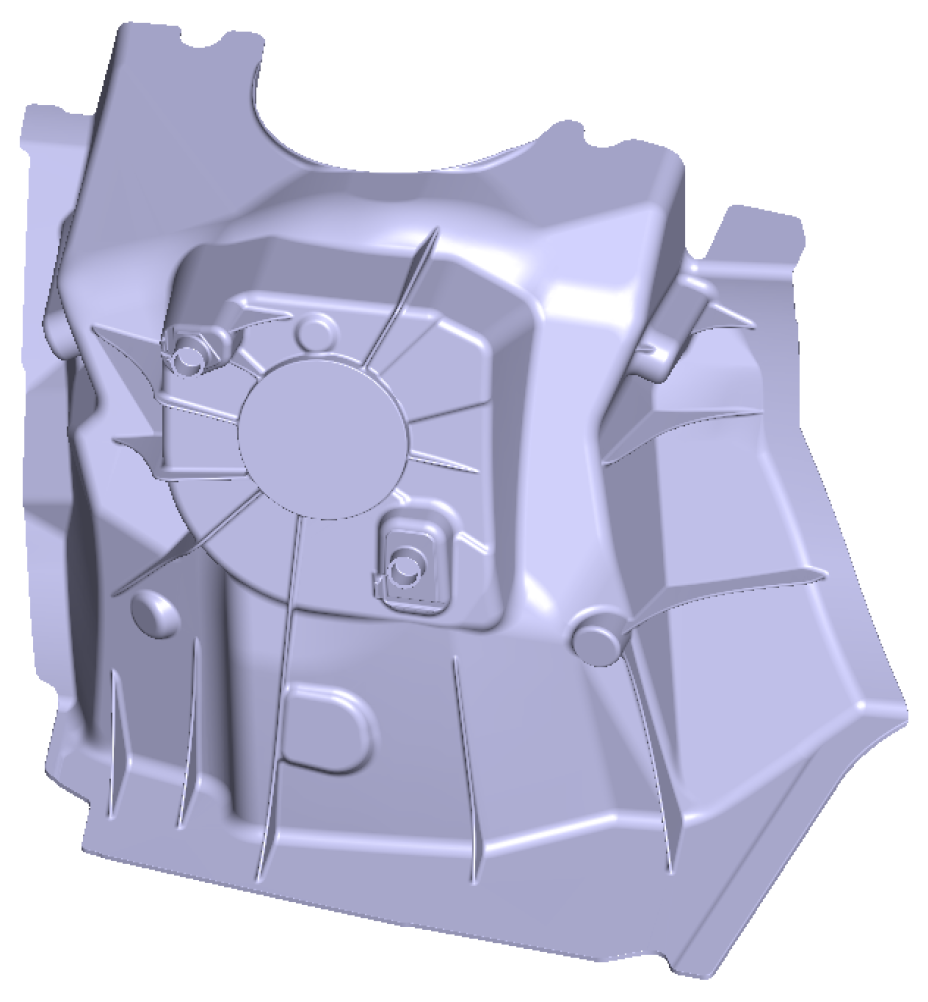

The die used was a single cavity component, so during the evaluations only one shock tower (Figure 1) component was produced per shot. The shock tower used for the test had an area of 1960 cm² and a volume of 1631 cm³ with a wall thickness from 4.5 to 5.0 mm. After the mold extraction, these components were quenched in water at a constant temperature of 25 °C for three seconds. Some of the components were quenched, while others were not quenched, to evaluate and analyze the mechanical properties of the alloy and compare the difference between quench and no-quench treatment parts. All shock towers were evaluated after being out of the die casting machine as F temper for both cases with quench and without quench. Some samples remained untested and were kept at ambient condition for the purpose of evaluating the behavior of the mechanical properties of the Aural^TM-5 over different periods of time, and thus understanding its behavior due to its natural aging process. The first samples were evaluated within the first 24 h and were subsequently evaluated every week until reaching the eighth week to analyze the mechanical properties with natural aging of the F temper parts.

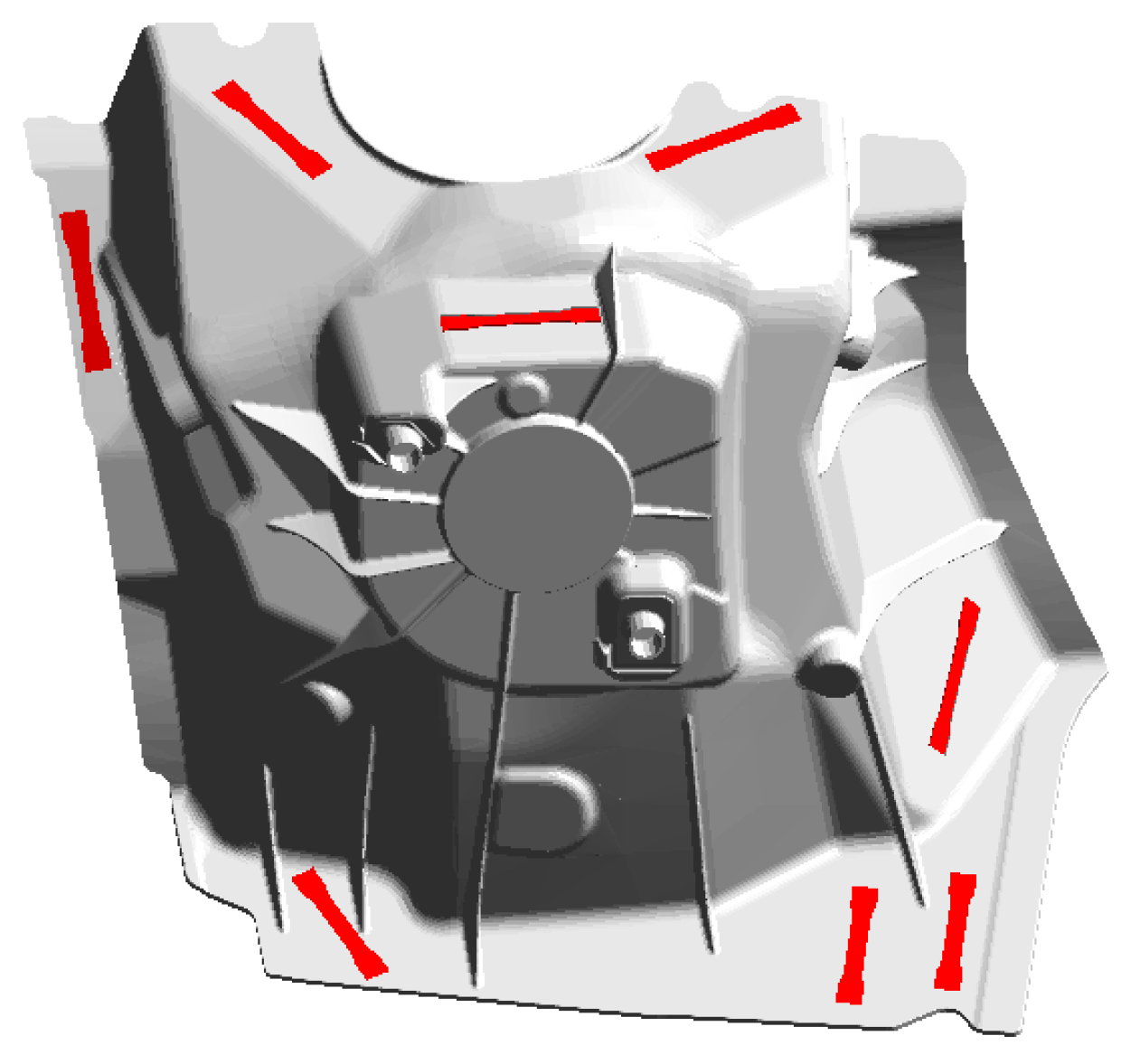

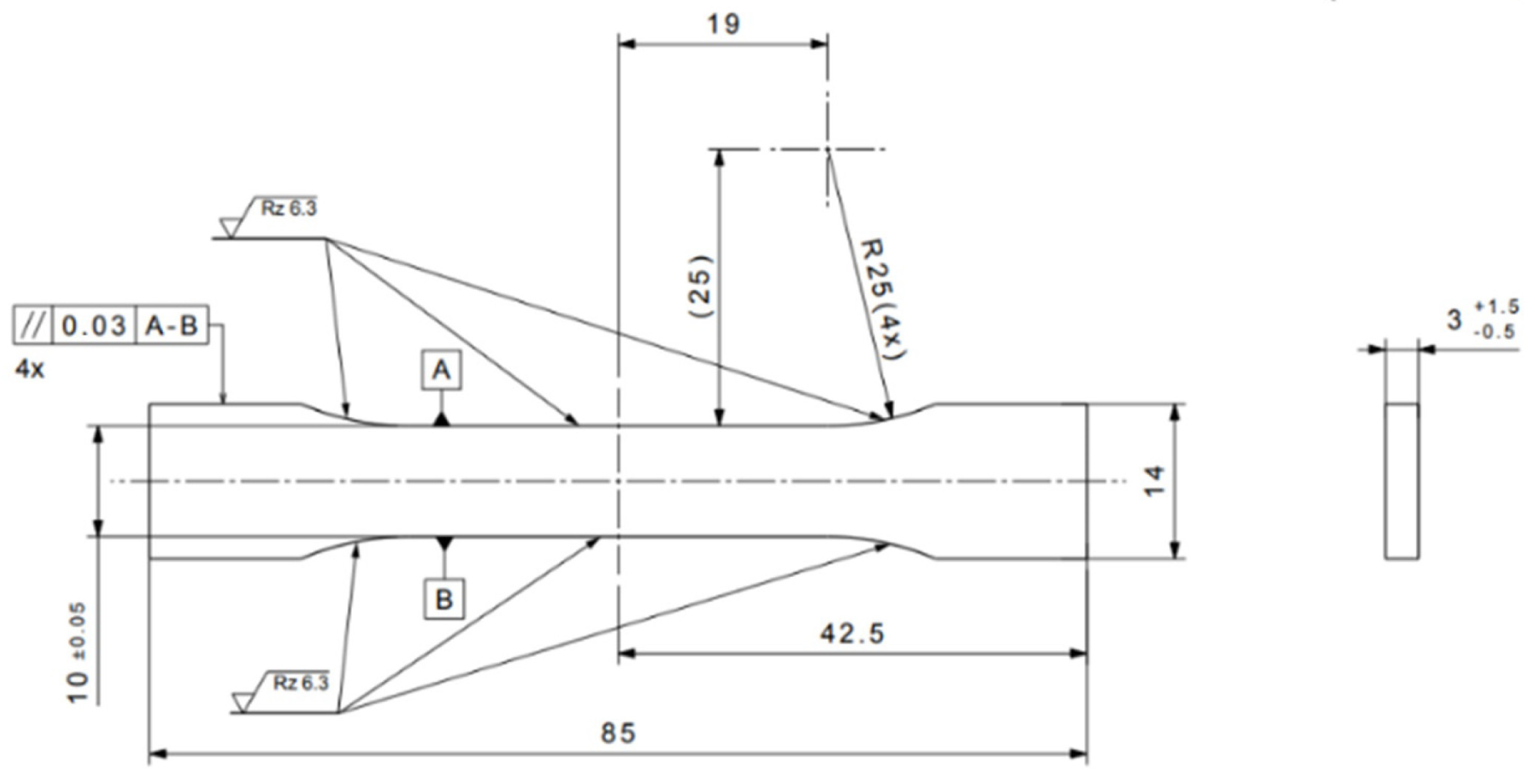

Flat specimens were machined from the shock towers as shown in Figure 2. All samples were evaluated on a Zwick/Roell universal tension machine (Zwick, Ulm, Germany) at room temperature to evaluate yield stress, ultimate tensile strength, and elongation under ISO 6892-1 [25] and ASTM-E8 [26] standards. For each shock tower, eight samples were taken in different locations to evaluate the homogeneity of the component properties. This process was for all the casting to be completed. From every period of time, five shock towers were taken. As previously mentioned, the first shock tower was tested after 24 h of aging and then five samples were evaluated every week, until reaching eight weeks after the casting was obtained. The specimen locations were taken from different areas in the shock tower and different angle positions as shown in Figure 3. Three samples were at 90°, two samples were at 45°, the other two samples were taken at 135°, and one was tested as a transversal sample. The purpose of testing on different angles and locations was to verify the homogeneity of the casting and the different values of mechanical properties in the part due to variation caused by defects.

The defects from the fracture surfaces in the specimens were characterized and analyzed in a Nikon SMZ800N stereoscope (Nikon, Feasterville, PA, USA) and ECLIPSE MA200 microscope (Nikon, Scottsdale, AZ, USA). Besides the defect characterization in the surface fracture validation in the specimens, the shock towers were tested in a blister oven at a temperature of 520 °C for 90 min, to observe the air trapped in the parts, and thus detect the areas of major air trapping and the locations of the areas that could affect the results of mechanical properties with Aural^TM-5 alloy. The mechanical properties of the casted components are adversely affected by the presence of gas porosity; these pores, which are specifically located at the component surface, may grow in size during the application of heat treatment, therefore causing blisters [27,28]. The purpose of performing the blister tests, although no heat treatment was applied in this investigation, was to identify entrapped gas problems that can cause variation in mechanical properties.

3. Results

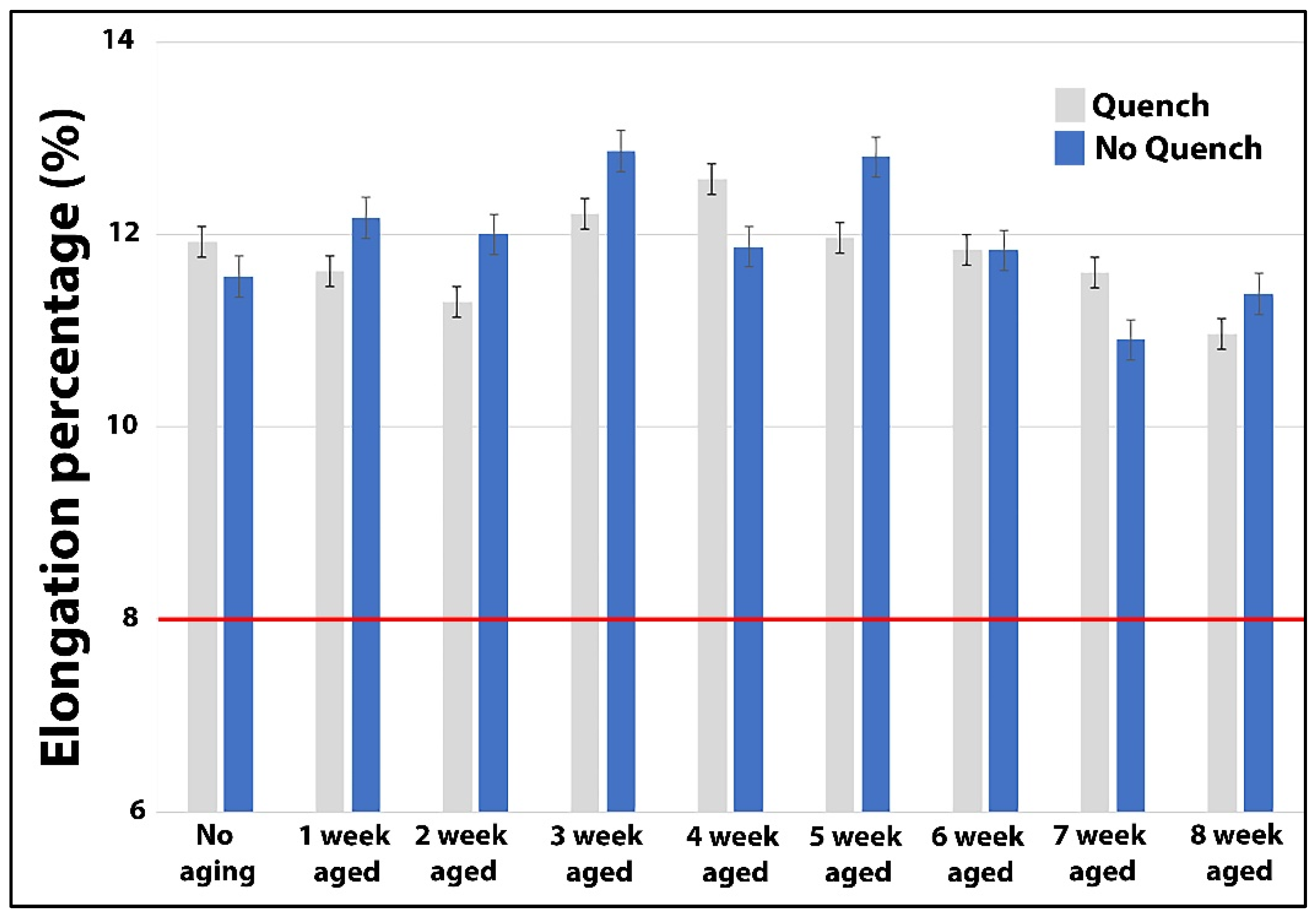

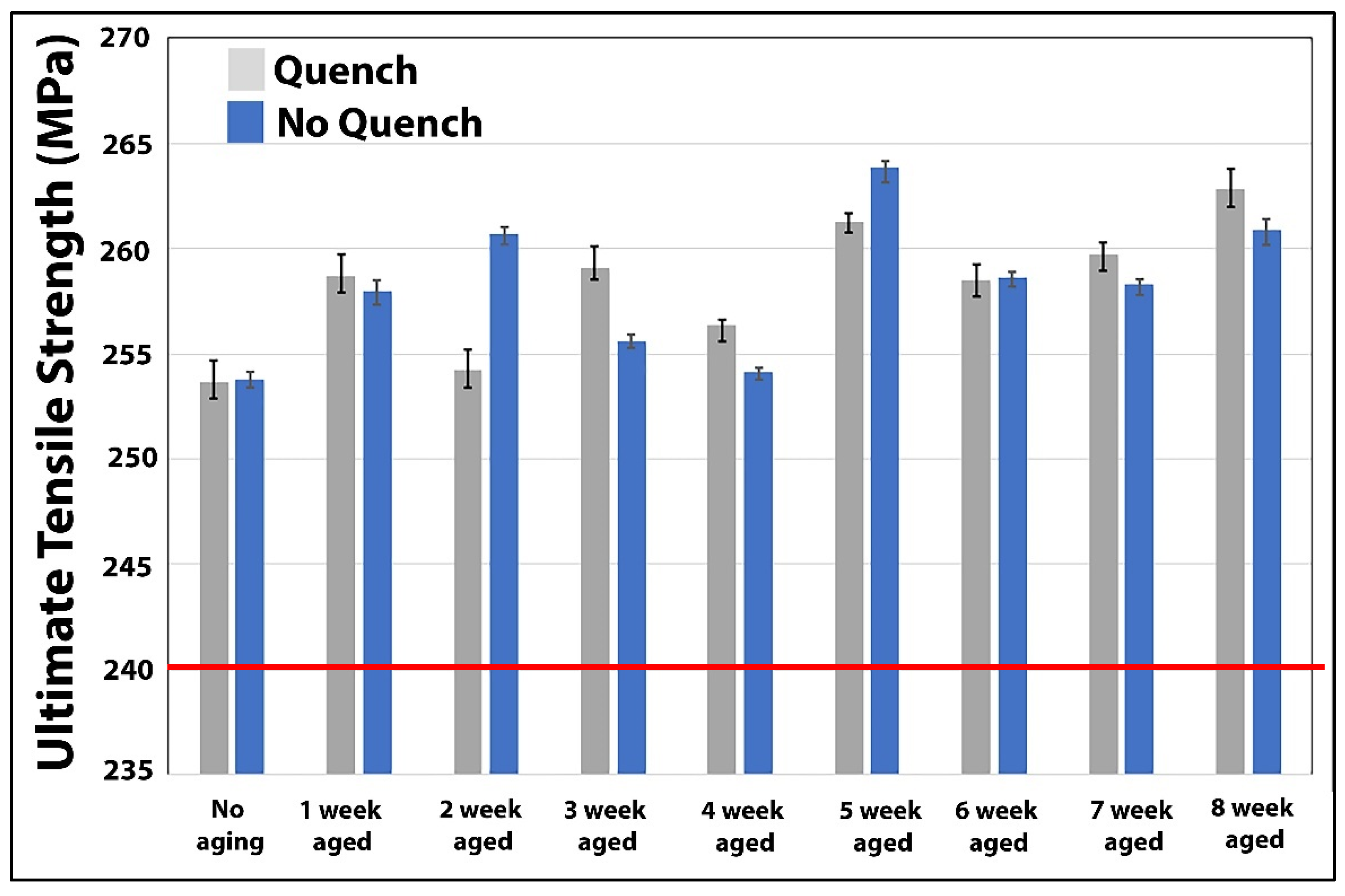

The as-cast shock towers with no aging met the theorical specifications of Aural^TM-5 of yield strength ≥ 110 MPa, ultimate tensile strength ≥ 240 MPa, and elongation ≥ 8%. For both subsequent cases with quench and without quench treatment, the shock towers achieved values on the mechanical properties above the minimum Aural-5^TM specifications. As is shown in Figure 4, the result of aging on the elongation characteristic for the samples with no quench through the weeks was above 11% on average. In general, there was a slight increase in this attribute when comparing quenched versus not quenched components (5%).

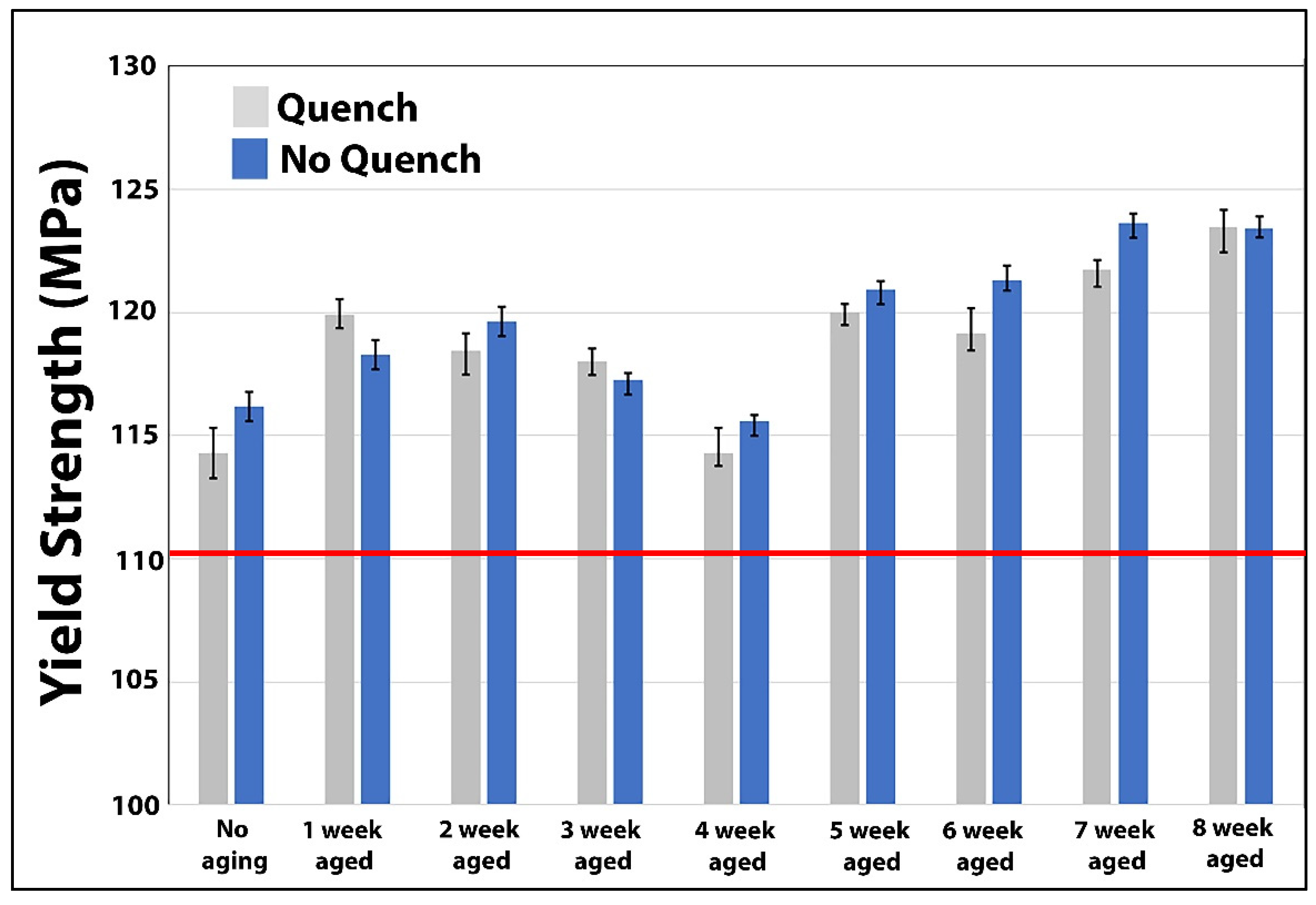

Analyzing the yield strength results (Figure 5), it is observed that as aging time is increased, there is a tendency for the average yield strength to increase as well, which is due to the natural aging effects on the alloy. We can observe a slight increase of up to 3% in this characteristic when we compare quenched versus not quenched components. Finally, the ultimate tensile strength results are depicted in Figure 6. Here, we can observe that in general, the quenched components showed higher values as compared to the not quenched components. The average values of tensile strength continue to increase due to the natural aging effect on the water-quenched shock towers, having results that go over 250 MPa. For both cases, tensile strength and yield strength have more stable values with the shock towers that were water quenched. These components’ mechanical behavior was also observed by Niu et al. [29]; in their research, an extra-large thin-wall casting was evaluated. Overall, the yield strength range was from 120 to 129 MPa and the UTS was from 243 to 260 MPa. On the other hand, a significant variation was shown by the elongation, ranging from 7 to 12.5%.

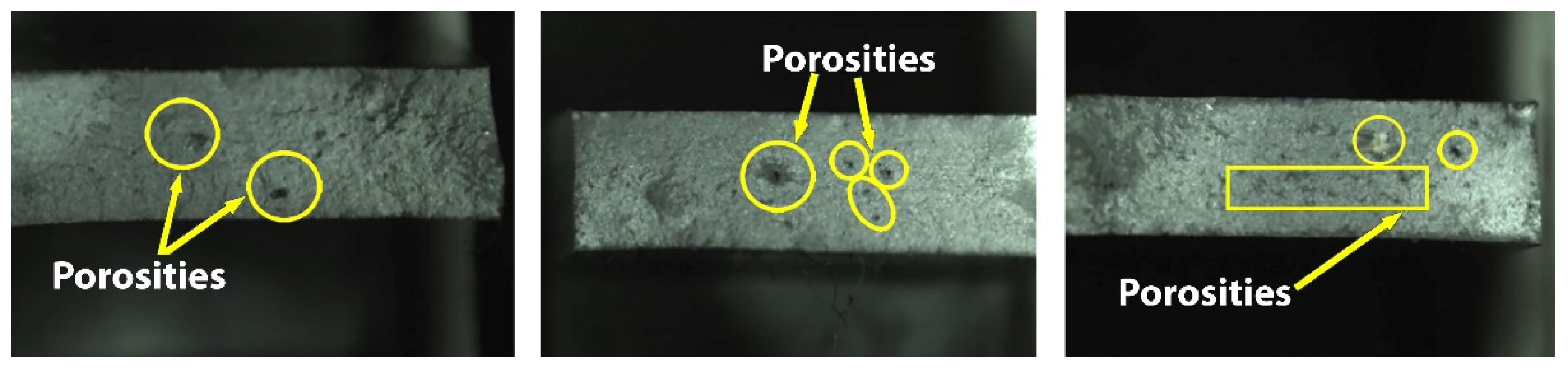

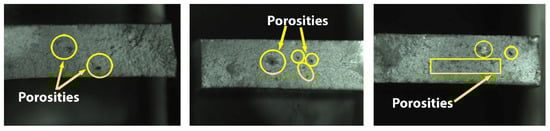

The specimens analyzed for mechanical properties had results above 11% elongation in the presence of minimum defects in the fracture surface. Nevertheless, some defects were observed; the main defect found in the surface was porosities characterized as gas porosities due to trapped gas from the first phase of the injection process. The analyzed porosities in the specimens were below 10 µm diameter in size, as shown in Figure 7. The porosities that appeared in the samples were not related to the aluminum alloy Aural^TM-5; these small porosities are commonly formed during the first stage of the casting process, when the shot rod moves towards the molten metal inside the injection sleeve to the gate.

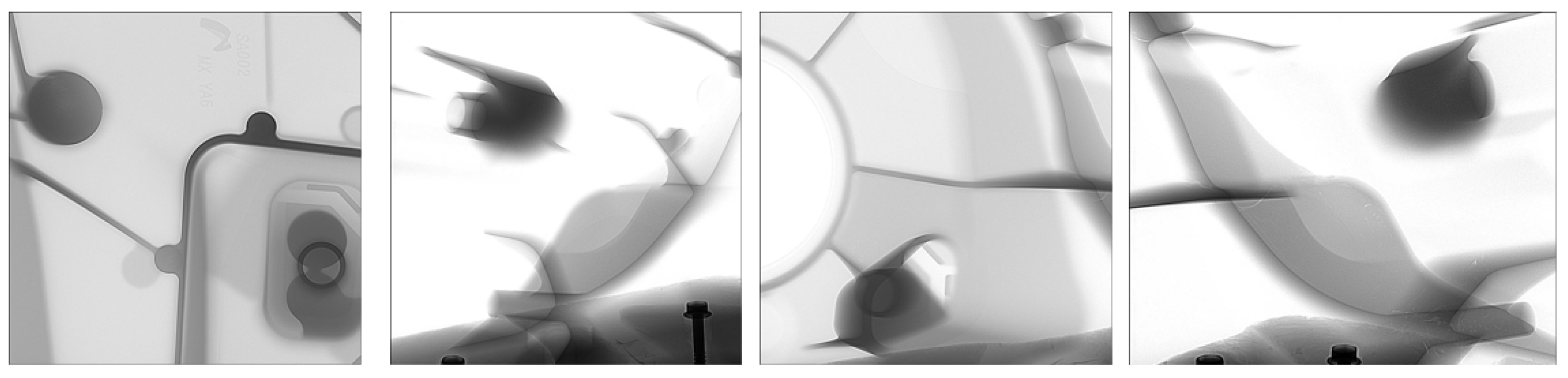

Additionally, the shock towers were analyzed with X-ray radiography equipment YXLON (MG325, Hamburg, Germany) to verify if there could be other types of defects found in the parts as shrinkage, and to validate the internal integrity of the shock towers. The parts that were analyzed did not show any concern of porosity or shrinkage due to Aural^TM-5 alloy or due to the process. Figure 8 shows the area of the shock tower with more mass, where it can be observed that there are no significant defects in these areas.

As previously mentioned, the structural components were evaluated in a blister test oven for analyzing if there was any air entrapment during the filling that would affect the mechanical properties and evaluating the process in which the shock towers were manufactured with Aural^TM-5. Parts were tested at a temperature of 520 °C for 90 min. The sample was taken every week from both sets of experiments (the components with and without water-quenched treatment); for both cases, none of the samples showed blister signs. We can conclude that there should not be a variation problem in the results of the mechanical properties shown above.

4. Discussion

The advantage of Aural^TM-5 compared to other aluminum alloys used for structural components on HPDC is the high values of elongation that can be obtained without the use of any heat treatment, due to the low percentage of silicon. On the other hand, this affects the fluidity and the short-range solidification, which promotes filling defects or the risk of poor filling in the part. During the evaluations, the metal was set at a temperature of 703 °C in the dosing furnace, and to ensure a high temperature during dosing the molten metal into the shot sleeve and avoiding fluidity problems and pre-solidification defects made especially during the first phase of injection. A close funnel was used for maintaining a more controlled temperature loss while the molten alloy was dosing into the sleeve chamber, which prevented heat loss caused by the interaction of ambient temperature with the alloy.

The shock towers did not show any defects caused by pre-solidification or shrinkage porosity, which are mainly caused by high temperature differences in solidification; this was a main concern due to the low percentage of silicon and the high temperature set up at the dosing furnace, as shown in Figure 8 and Figure 9. The main defects detected in the mechanical property’s samples were small porosities generated due to the process [20,21,22,27,28,29,30,31].

Another important observation during the evaluations, from the manufacturing perspective, was the metal temperature inside the shot sleeve. The aluminum alloy temperature while it was dosed inside the shot sleeve was considered a critical parameter for the process; in the first attempts of filling the die cavity, the molten metal was below the liquidus point in the shot sleeve, making the injection process complicated, and not filling the cavity properly; so, for a correct cavity filling and having the component filled completely, it is recommended to maintain a temperature above 650 °C for Aural^TM-5 inside the shot sleeve. A temperature above 650 °C prevents the alloy from pre-solidifying. Additionally, a close funnel is recommended to avoid temperature loss while dosing the molten metal into the shot sleeve.

It is recommended to water-quench structural components made with Aural^TM-5, to avoid deformation in the casting after part extraction for avoiding trimming problems; it was observed during the test that the shock towers without quench were easily deformed by the trimming press. Although both tests analyzed the mechanical property values above the theoretical specification, it is still recommended for the production process to water quench the parts for dimensional consistency.

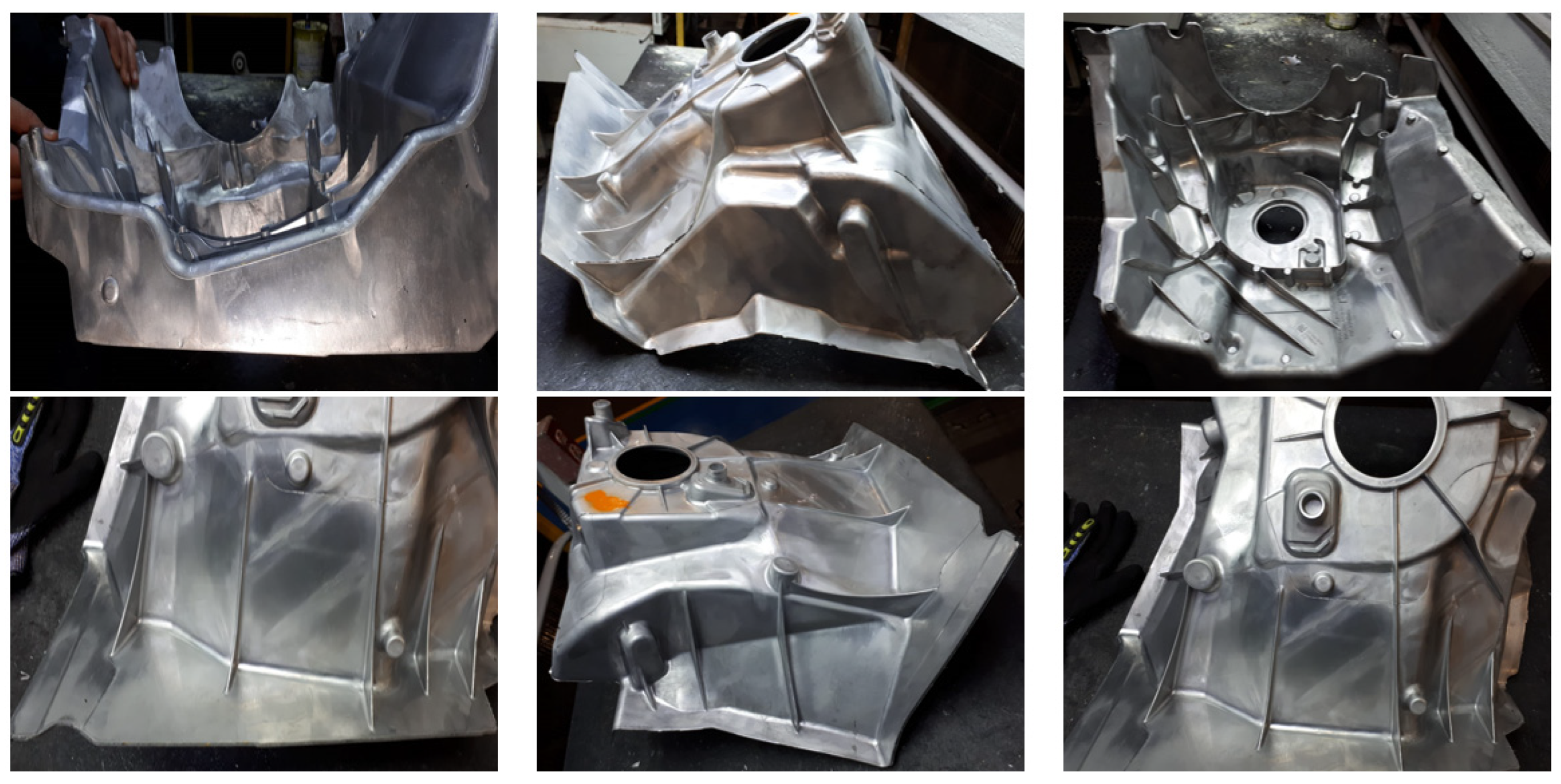

Figure 9. Results of blister test, none of the casting had an air trap.

Figure 9. Results of blister test, none of the casting had an air trap.

5. Conclusions

Aural^TM-5 alloy can achieve good values within the range of its theoretical specification. The obtained results in this evaluation were the yield strength ≥ 110 MPa, ultimate tensile strength ≥ 245 MPa, and elongation ≥10%, for both studied cases (components with and without water quench treatment). However, there is a slight difference between both studied sets, since the components without quenching presented higher variation in their behavior over time, particularly the tensile strength and yield strength. The shock towers that were quenched had more consistent performance on their mechanical behavior during the eight weeks of the analysis. Additionally, the quenched components had more stable mechanical properties (average values) throughout the analyzed aging time. Natural aging of Aural^TM-5 favors the enhancement of the yield and ultimate tensile strengths. Therefore, Aural^TM-5 natural aging does not particularly decrease these mechanical properties below the specification limits of this alloy; on the contrary, it promotes the stabilization of mechanical behavior over time.

Finally, for thin-wall sections of components, it is recommended to apply a water quench treatment to prevent high-dimensional deformation, which occurred in certain pieces that were not quenched. This could have been caused by the cutting or trimming process since the temperature of the part was higher and, at the time of trimming, the shock tower could have deformed. In the meantime, another important point analyzed during this research is that for a productive process, the parts without quenching can damage the trim blades prematurely; due to the aluminum’s rubbery behavior, it was stuck in the trimming blades. The main downtime when performing shock towers without quenching was due to the consistent cleaning of the trim blades. In addition, the aural alloy shock tower that was not water-quenched deformed easily with the movements of the extraction robot, apart from what was mentioned above; they can also be deformed by the trim press due to the shock towers still having a high temperature.
