Devolatilization Kinetics of Different Types of Bio-Coals Using Thermogravimetric Analysis

Abstract

The interest of the steel industry in utilizing bio-coal (pre-treated biomass) as CO₂-neutral carbon in iron-making is increasing due to the need to reduce fossil CO₂ emission. In order to select a suitable bio-coal to be contained in agglomerates with iron oxide, the current study aims at investigating the thermal devolatilization of different bio-coals. A thermogravimetric analyzer (TGA) equipped with a quadrupole mass spectrometer (QMS) was used to monitor the weight loss and off-gases during non-isothermal tests with bio-coals having different contents of volatile matter. The samples were heated in an inert atmosphere to 1200 °C at three different heating rates: 5, 10, and 15 °C/min. H₂, CO, and hydrocarbons that may contribute to the reduction of iron oxide if contained in the self-reducing composite were detected by QMS. To explore the devolatilization behavior for different materials, the thermogravimetric data were evaluated by using the Kissinger– Akahira–Sonuse (KAS) iso-conversional model. The activation energy was determined as a function of the conversion degree. Bio-coals with both low and high volatile content could produce reducing gases that can contribute to the reduction of iron oxide in bio-agglomerates and hot metal quality in the sustained blast furnace process. However, bio-coals containing significant amounts of CaO and K₂O enhanced the devolatilization and released the volatiles at lower temperature.

1. Introduction

The blast furnace (BF) is the most widely used technology for producing hot metal for steelmaking. In the BF, iron oxide is reduced to metallic iron by fossil carbon resources (coke, coal, oil, natural gas, etc.). The reducing conditions in the furnace are created by top-charged (coke) and tuyere-injected (pulverized coal, oil, etc.) reducing agents [1]. The total consumption of coke is about 300 kg/t hot metal [1,2] depending on the amount of auxiliary reducing agents [3]. The steel industry aims to reduce coke consumption and minimize CO₂ emissions by improving the energy efficiency of the process and by investigating the use of carbon-neutral materials such as bio-coal (pre-treated biomass) to substitute part of the fossil sources. CO₂ emitted for every ton of steel produced was on average 1.83 tons in 2017. According to the World Steel Association, the iron and steel industry accounts for approximately 7–9% of total world CO₂ emission [4]. The European Union (EU) has set a target to cut 20% of the CO₂ emissions, to achieve a 20% improvement in energy efficiency, and to increase the renewable energy by 20% by 2020; by 2050 the aim is to cut 80% of the CO₂ emissions [5]. Several studies report the decrease in fossil CO₂ emissions by using biomass [6,7]. Use of biomass resources is a possible alternative in Sweden, as forestland amounts to about 28.1 million hectares [8].

The use of raw biomass as a reducing agent in a BF is not possible because of the high moisture content, low content of fixed carbon (C_fix), as well as high contents of volatile matter (VM) and oxygen [9,10]. Different technologies can be applied to pre-treat biomass into products with properties suitable for the metallurgical industry. Pre-treatment methods like pyrolysis [11], torrefaction [12], etc., result in higher content of C_fix, lower VM and oxygen, and improved grindability, properties which, overall, correspond to a product whose quality resembles that of coal [12].

Top-charging of self-reducing composites constituted of iron ore and bio-coal into the BF is one way to introduce bio-coal and partially replace fossil carbon. Furthermore, this approach has the potential to lower the thermal reserve zone temperature of the BF as a result of the direct reduction of iron oxide in the agglomerates. The indirect reduction of FeO with CO at a lower temperature shifts towards the formation of more metallic iron at a specific partial pressure of CO. This results in higher gas efficiency of the BF, and the CO₂ emission is decreased. However, to achieve the maximum positive effect, the VM present in bio-coals contained in the composites should contribute to the reduction and not be released and lost with the BF top gas.

One of the features of biomass is the presence of considerable amounts of metal oxides of potassium, calcium, and magnesium [13] in the ash. The ash content is often less than 1% in woody bio-mass but may vary up to 15% in some herbaceous biomass and forestry residues [13,14]. The effect of inorganics on the thermal degradation of biomass has been extensively studied [15,16,17]. In general, inorganics retained in char during pyrolysis act as catalysts for char forming and fragmentation reactions [13,16,18].

There are several available methods for analyzing the kinetic data of devolatilization reactions [19]. These methods may be classified according to the experimental conditions selected and the mathematical analysis performed. Experimentally, either isothermal or non-isothermal methods are employed. The main mathematical approaches employed can be divided into model-fitting and iso-conversional methods [19]. The devolatilization of solid materials, such as biomass, is classified as a heterogeneous chemical reaction. The reaction kinetics of a heterogeneous reaction can be affected by, for example, the breakage and redistribution of chemical bonds, changing reaction geometry, and the interfacial diffusion of reactants and products [20]. Iso-conversional methods are considered an appropriate means of estimating the apparent activation energy, E_a, of heterogeneous reactions.

There are numerous studies on biomass pyrolysis using thermal analysis [21,22,23,24,25,26,27,28,29]. The effects of important parameters such as particle size and heating rate have been studied by Mani et al. [26] and Biagini et al. [27]. The devolatilization kinetics of main components of raw biomass and its dependence on lignin, cellulose, and hemicellulose under different conditions (inert or oxidizing) [21,22,23,24,25] have been investigated using the iso-conversional method. Tharaka et al. [28] applied the iso-conversional model on the devolatilization of raw and torrefied eucalyptus at different heating rates (5 °C/min to 20 °C/min) with temperatures ranging from 150 to 700 °C. The kinetic analysis showed that torrefied eucalyptus has higher E_a values than raw eucalyptus. Tran et al. [29] studied the pyrolysis of torrefied stump materials using the Distributed Activation Energy Model (DAEM) as well as a model involving the three components lignin, cellulose, and hemicellulose. It was observed that the torrefied stump has a higher activation energy than the raw stump. Up to now, there is limited information in the literature about the relation between devolatilization kinetics of bio-coals and their properties for use in self-reducing bio-agglomerates.

The purpose of this work was to investigate the devolatilization behavior and the related kinetics of different types of bio-coals when used in self-reducing composites. In the BF, the temperature of the top-charged material will increase rather quickly during the descent in the upper part. Ideally, all the carbon and hydrogen contained in the top-charged bio-coal should contribute to the reduction. The characterization of the devolatilization of the bio-coal is thus important to understand the behavior of bio-coal included in iron ore composites charged into a BF.

2. Kinetic Theory

The devolatilization of lignocellulosic biomass is complex, as several reactions occur simultaneously during its thermal decomposition. Predicting the exact reaction mechanism is difficult, but the kinetic parameters of biomass devolatilization can be calculated by assuming a simplified single-step reaction mechanism. This reaction can be described by the rate equation, as presented in Equation (1) [30]:

$$\frac{d\alpha }{dt}=k\left(T\right)f\left(\alpha \right)$$

(1)

The dependency of the rate constant on temperature can be expressed as:

$$\mathrm{k}\left(\mathrm{T}\right)=A{\mathrm{e}}^{\left(-\frac{{\mathrm{E}}_{\mathsf{\alpha }}}{\mathrm{RT}}\right)}$$

(2)

By combining Equation (1) and Equation (2), Equation (3) will be:

$$\frac{d\alpha }{dt}=A{e}^{\left(-E_{\alpha }/\mathrm{R}T\right)}f\left(\alpha \right)$$

(3)

where $\alpha , \mathrm{R}, A, E_{\alpha }, \mathrm{and} f\left(\alpha \right)$ denote the extent of conversion, gas constant, pre-exponential factor, activation energy, and reaction function, respectively. The reaction model can be expressed by using different mathematical forms that are tabulated elsewhere [30] and known as model fitting.

The conversion degree (α) is defined as follows:

$$\mathsf{\alpha }=\frac{m_i-m_a}{m_i-m_f}$$

(4)

where $m_i$ is the initial mass of the sample, $m_a$ is the actual mass at a specific time, and $m_f$ is the mass after finalized devolatilization.

For devolatilization experiments performed non-isothermally at a constant heating rate (${\beta }_I$), the temperature (T) changes linearly with time (t) as in Equation (5):

$${\beta }_I=\frac{dT}{dt}$$

(5)

where the index I denotes different heating rates.

For a constant heating rate, Equation (3) can be modified to Equation (6):

$$\frac{d\alpha }{dT}=\frac{A}{\beta }{e}^{\left(-E_{\alpha }/RT\right)} f\left(\alpha \right)$$

(6)

Equation (6) can be written in an integral form to give Equation (7):

$$g\left(\alpha \right)=\underset{0}{\overset{\alpha }{{\displaystyle \int }}}\frac{d\alpha }{f\left(\alpha \right)}=\frac{A}{\beta }\underset{0}{\overset{T}{{\displaystyle \int }}}{e}^{\left(-E/RT\right)}dT$$

(7)

where $g\left(\alpha \right)={{\displaystyle \int }}_0^{\alpha }{[f\left(\alpha \right)]}^{-1}d\alpha$ is the integral form of the reaction model [30]. The drawbacks of model-fitting to determine a reliable kinetic triplet of A, E, and f(α) or g(α) can be resolved by using iso-conversional methods.

The iso-conversional principle states that the reaction rate [${\left(\frac{d\alpha }{dt}\right)}_{\alpha ,I}$] at a specific extent of conversion is a function of temperature only, and $f\left(\alpha \right)$ does not depend on T [31]. Assuming that $f\left(\alpha \right)$ at a given conversion degree is independent of temperature, the kinetic parameters can be obtained from a set of runs from the relation between reaction rate versus temperature (differential method) or from that between weight loss versus temperature (integral method). The drawback of differential methods compared to integral methods is that the former are sensitive to inaccuracies in the experimentally determined reaction rate; therefore, integral methods are often preferred [32].

Among the integral methods, the Kissinger–Akahira–Sunose (KAS) iso-conversional model is common because of its relatively higher accuracy in estimated kinetic [33]. The KAS model is represented by a linear Equation (8) [22], in which the apparent $E_{\alpha }$ can be obtained by plotting $ln\frac{{\beta }_I}{T_{\alpha I}^2}$ versus $\frac{1000}{T_{\alpha I}}$ for a given value of conversion, α, where the slope is equal to $\frac{-E_a}{\mathrm{R}}$.

$$ln\frac{{\beta }_I}{T_{\alpha I}^2}=ln\left(\frac{A_{\alpha }\mathrm{R}}{E_{\alpha }{g}_{\alpha }}\right)-\frac{E_{\alpha }}{\mathrm{R}{T}_{\alpha I}}$$

(8)

3. Materials and Methods

3.1. Materials and Characterization

The seven different types of bio-coals selected for this study are presented in

Table 1. Selected bio-coals with preparation temperatures and times.

Bio-Coal Type	Bio-Coal	Origin	Temperature, °C	Time, min	Abbreviation
Highly volatile bio-coals	Torrefied forest residue	Top and branches pine /spruce	286	6	TFR
	Torrefied saw dust	Spruce	297	6	TSD
	Torrefied willow	Willow	330	6	TW
Lowly volatile bio-coals	High-temperature torrefied	50 % Pine/50% spruce	350	8	HTT
	Pine A	Pine	350	14	PA
	Pine B	Pine	400	14	PB
	Charcoal	Mixture of pine, birch, alder, aspen	550	-	CC

. The bio-coals were pulverized and, by sieving, the fraction of 75–150 µm to be used in TGA was obtained. After drying, the pulverized materials were stored in a desiccator. The proximate and ultimate analyses of each bio-coal analyzed by ALS Scandinavia AB using standard methods are given in

Table 2. Proximate and ultimate values of the used bio-coals materials (dry basis).

Bio-Coals	Proximate Analysis (wt %)			Ultimate Analysis (wt %)
	Cfix	VM	Ash	Ctot	H	N	S	O
TFR	23.6	73.2	3.2	52.0	5.9	0.57	0.035	35.2
TSD	24.0	75.6	0.45	57.1	5.9	0.12	0.004	36.4
TW	24.7	73.3	2.0	52.7	5.8	0.30	0.021	39.2
HTT	60.8	38.2	1.0	75.3	4.9	0.10	0.008	18.8
PA	70.3	28.7	1.0	78.6	4.4	0.23	<0.01	15.8
PB	79.1	19.7	1.2	85.0	3.8	0.30	<0.01	9.70
CC	80.7	18.6	0.70	87.0	3.4	0.25	<0.004	8.30

C_Fix: Fixed carbon; VM: volatile matter; C_tot: Total carbon; H: hydrogen; N: nitrogen; S: sulphur; O: oxygen.

. Bio-coals (TFR, TW, and TSD) prepared at low temperature had high content of VM % and less C_fix %. The opposite was seen for bio-coals (HTT, PA, PB, and CC) prepared at high temperature.

The contents of metal oxides in bio-coals are presented in

Table 3. Metal oxides in bio-coals (Wt %, dry basis).

Bio-coals	Al2O3	CaO	SiO2	Fe2O3	K2O	MgO	MnO	Na2O	P2O5	TiO2
TFR	0.047	0.872	0.618	0.044	0.238	0.124	0.062	0.014	0.151	0.004
TSD	0.003	0.122	0.033	0.011	0.051	0.046	0.013	0.003	0.008	0.000
TW	0.004	0.494	0.019	0.003	0.230	0.076	0.004	0.005	0.142	0.000
HTT	0.024	0.310	0.305	0.079	0.145	0.061	0.040	0.023	0.032	0.001
PA	0.032	0.270	0.235	0.007	0.148	0.074	0.035	0.010	0.021	0.001
PB	0.013	0.339	0.067	0.006	0.167	0.096	0.043	0.004	0.024	0.000
CC	0.006	0.317	0.028	0.009	<0.002	0.112	0.044	<0.009	0.006	0.001

. Higher content of the metal oxides K₂O, CaO, and MgO were present in TFR and TW than in TSD.

3.2. Experimental Method

The experiments were performed using a TGA, Netzsch STA 409 instrument (sensitivity ±1 μg) (Netzsch, Selb, Germany) attached to a Quadrupole Mass Spectroscopy (QMS, Netzsch, Selb, Germany) to monitor the mass loss and off-gases, respectively. The TGA used in this study is described in detail in reference [34]. In the mass spectrometer, compounds are ionized and separated on the basis of the mass/charge (m/z) ratio number. During the devolatilization experiments, 50–53 mg of sample was placed in an alumina crucible and heated from room temperature up to 1200 °C at the pre-specified heating rates of 5, 10, and 15 °C/min under argon gas (99.999%), with a flow rate of 200 mL/min. The samples were then cooled down at a rate of 20 °C/min. To eliminate errors from the buoyancy effect, correction measurements were carried out. Repeated devolatilization tests in the TGA showed consistent results without any significant variation.

4. Results and Discussion

4.1. Thermogravimetric Analysis

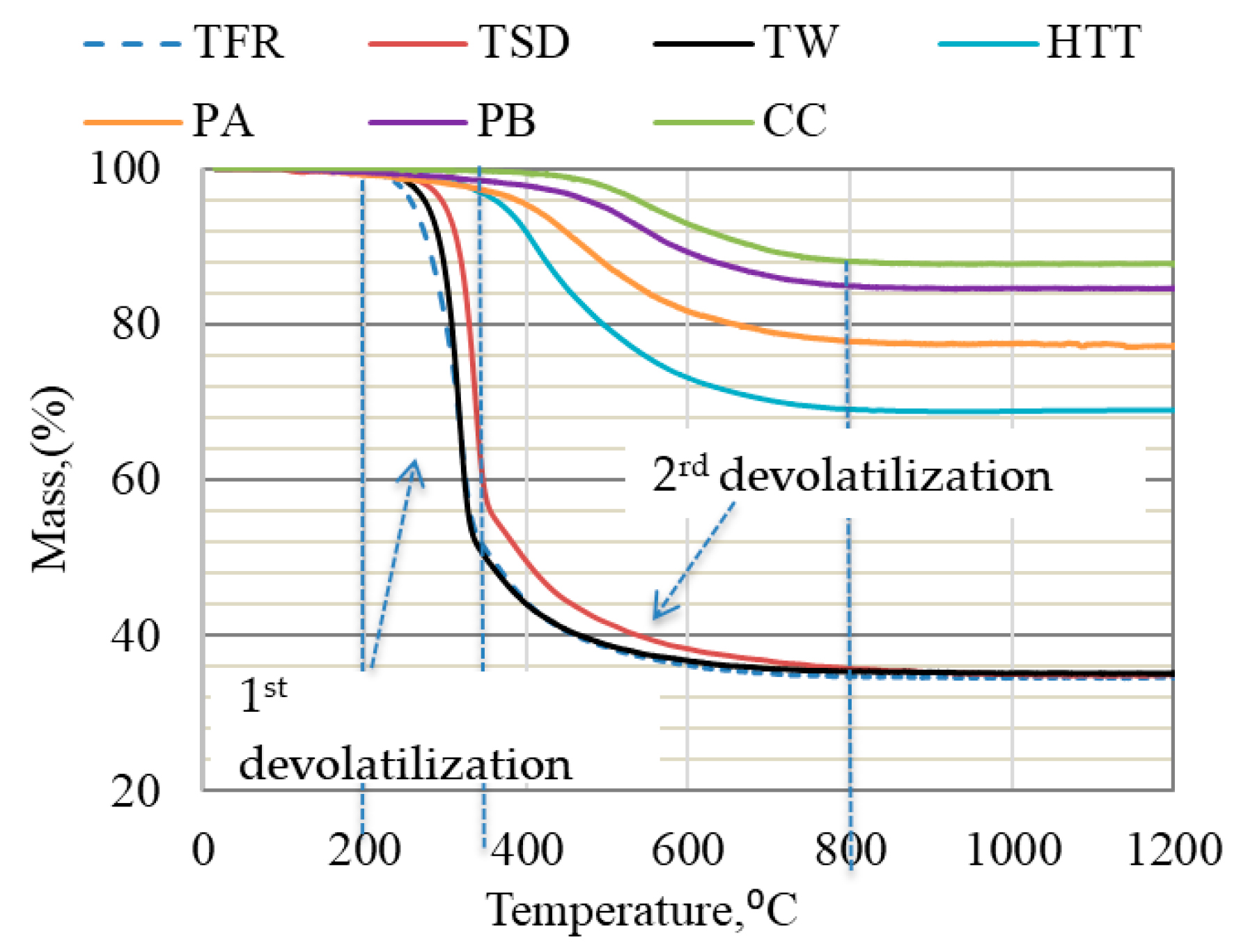

Figure 1 shows the TG curves for bio-coals at the heating rate of 5 °C/min. As seen from the plots, the weight loss for TFR, TW, and TSD began at ~200 °C and proceeded rapidly up to 800 °C, while the weight loss of HTT and PA started at ~300 °C, and that of PB and CC started at ~450 °C. As expected, the pre-treatment temperature affected the starting temperature of devolatilization.

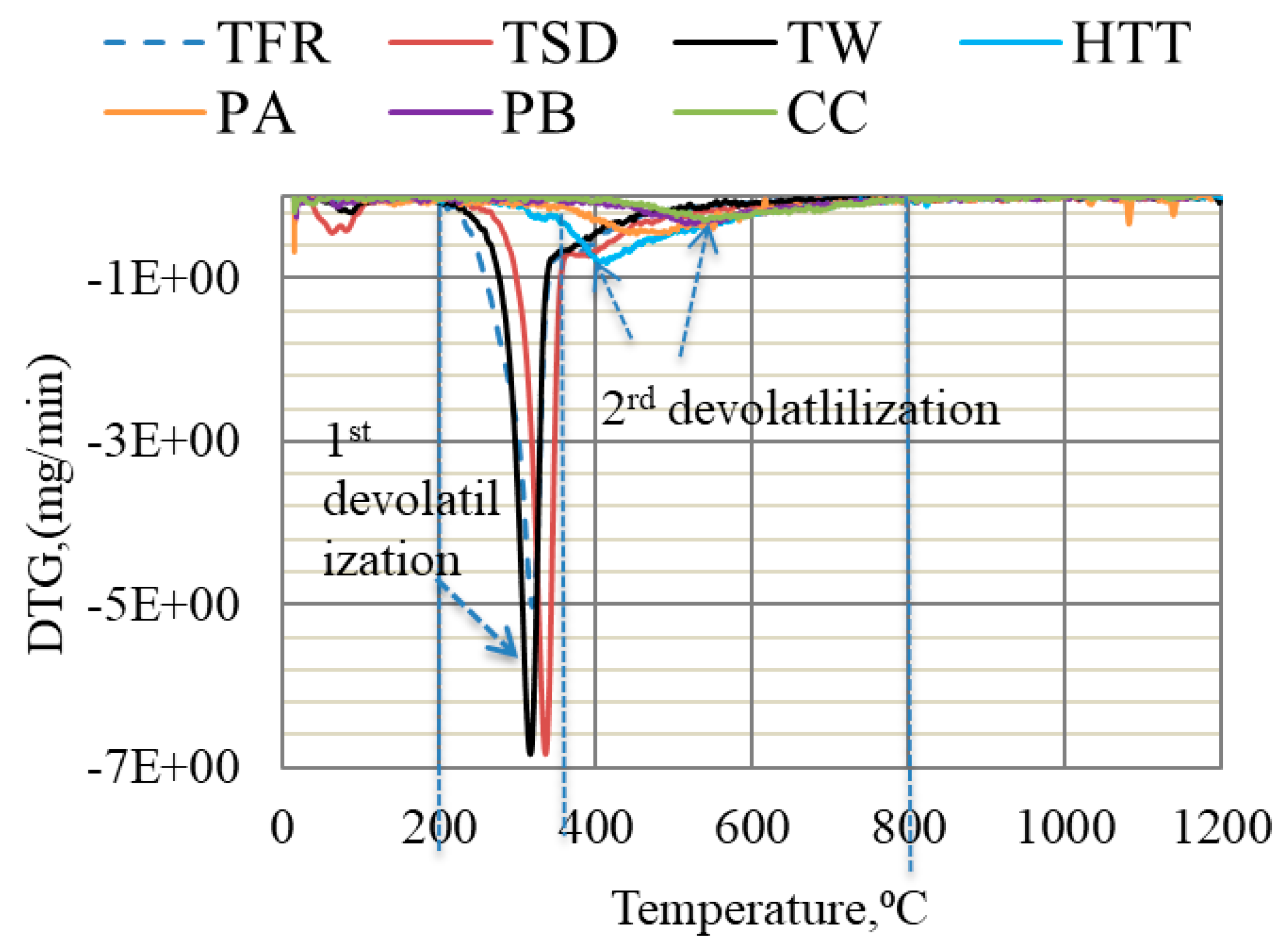

The devolatilization of bio-coal is linked to the presence of three main biomass components: hemicellulose, cellulose, and lignin [35]. The main DTG (derivative thermogravimetry) peak is, according to Marion et al. [36], attributed to cellulose decomposition, accompanied by a shoulder at the lower temperature, which is related to hemicellulose decomposition, and a flat tail at high temperature corresponding to lignin decomposition. The DTG curves deduced for TFR, TW, and TSD indicated two devolatilization steps, as can be seen in Figure 2. The first step of devolatilization started at ~200 °C and continued until 350 °C, and the second step started at 350 °C and continued until 800 °C. These two steps of devolatilization are in agreement with findings by other researchers [35,37]. On the basis of findings by Marion et al. [36], the higher peak in the first devolatilization step for TFR, TW, and TSD can be likely attributed to the presence of cellulose residues. On the other hand, the devolatilization of HTT, PA, and PB occurred in one step, starting from 300 °C and continuing until 800 °C. Similarly, CC only had one step of devolatilization, which started at ~450 °C. The main peak and flat tailing section for HTT, PA, PB, and CC shifted to a higher temperature, compared to highly volatile bio-coals. This was likely due to the decomposition of lignin which, according to the literature, occurs slowly over a broad temperature range (160–900 °C) [35].

4.2. Off-Gas Analysis during the Thermal Decomposition of Bio-Coals

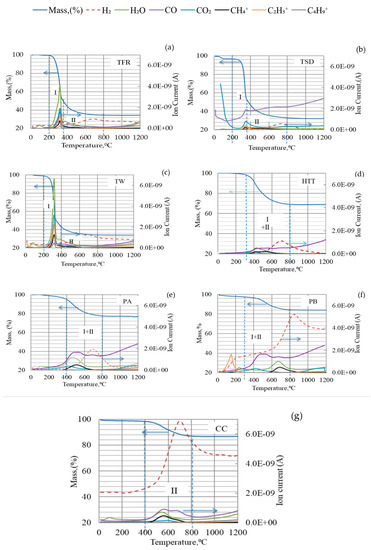

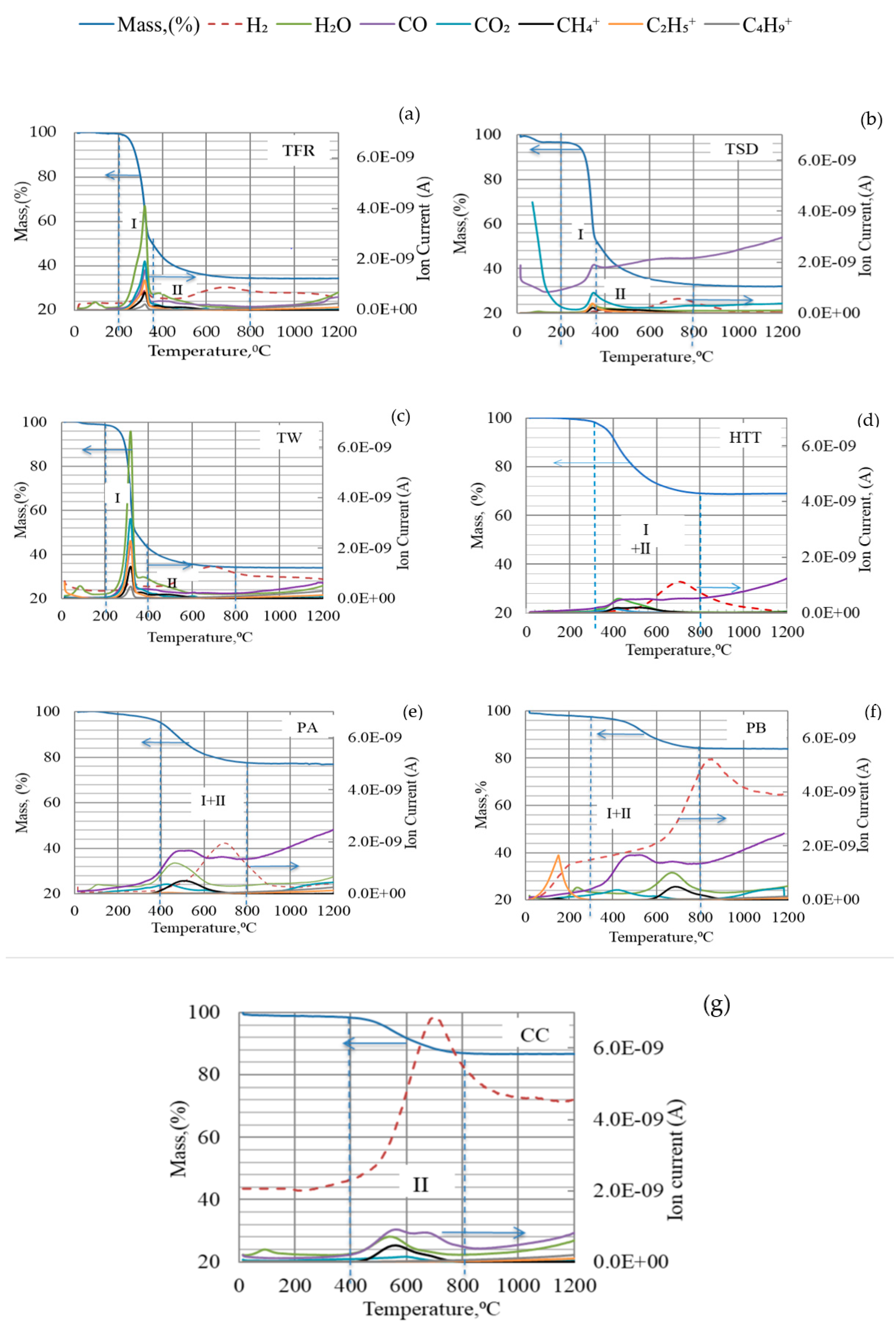

The thermal decomposition of bio-coals is caused by breaks of chemical bonds and release of VM as temperature increases. When and how this occurs influences the possible contribution of volatiles to reduction. It is important to note at which temperature interval different bio-coals will release the volatile matter. Gases (CO, CO₂, and H₂) and ionized hydrocarbons with one to four carbon atoms per molecule (C₁–C₄) were detected during devolatilization, as shown in Figure 3. However, the lengths of the carbon chains in the released hydrocarbons were probably initially longer before thermal decomposition and excitation in the QMS. The release of hydrocarbon chains in the low-temperature region was especially pronounced for TW but also evident for TFR. The release of H₂ and CO was not pronounced in the low-temperature region. Off-gas analysis of HTT, PA, PB, and CC showed less intensity of ionized hydrocarbons like CH₄⁺, C₂H₅⁺, C₄H₉⁺ (see Figure 3d–g). H₂ and CO were detected at 500–800 °C for high-temperature pre-treated bio-coals. According to Yang [35,38], this is likely caused by cracking of residual lignin, which contains aromatic rings.

It has earlier been found that the reduction rate of iron oxide was higher when charcoal containing 18% volatiles was used in agglomerates compared to when only coke was used [39]. It has also been reported that H₂ gas released up to 500 °C can at least partly be utilized in the reduction of iron ore [40,41]. H₂ gas released at higher temperatures is known to improve the reduction efficiency and thus can reduce carbon consumption [42].

5. Kinetic Analysis

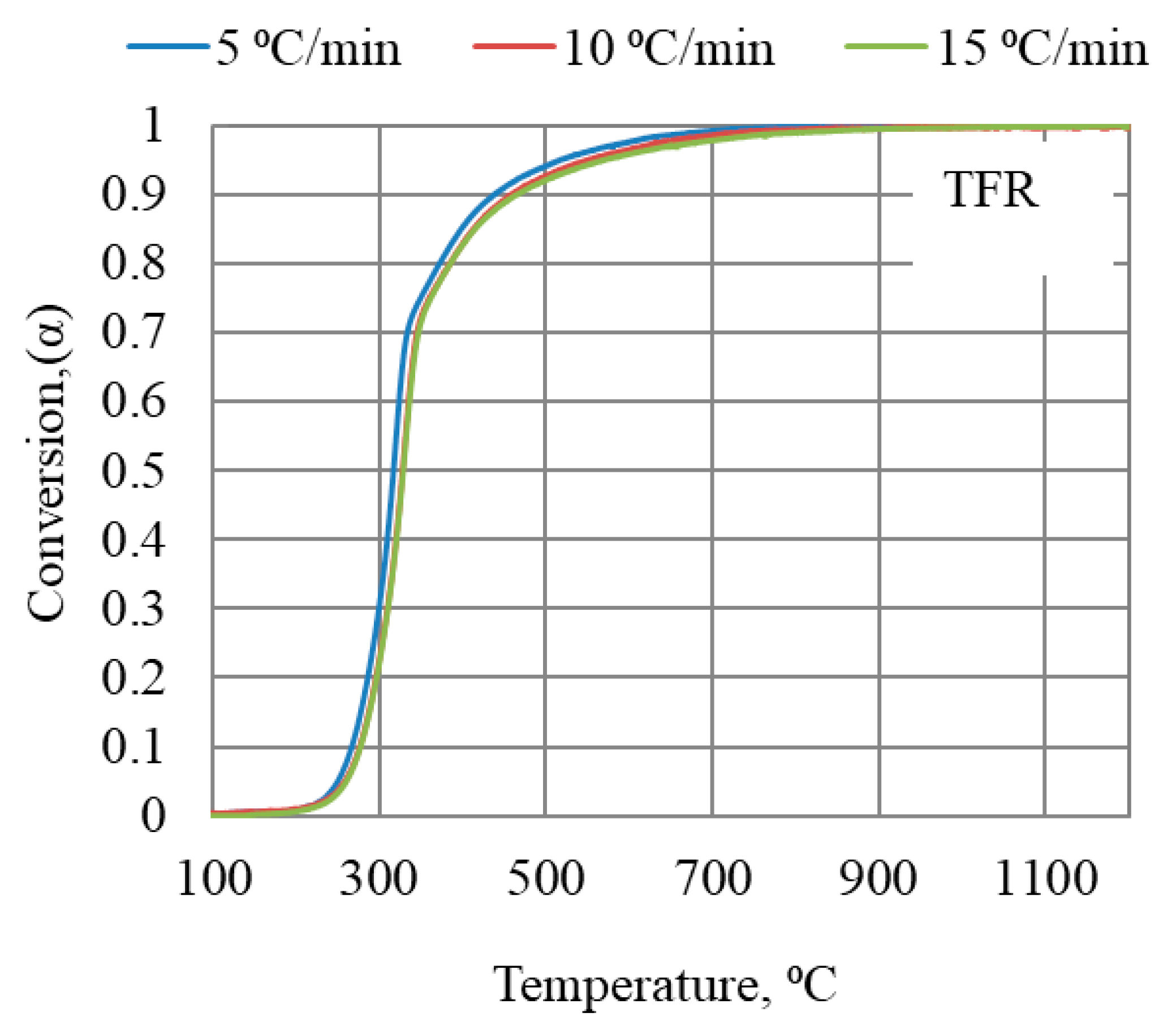

The mass loss at three heating rates (5, 10, and 15 °C/min) was recorded for each of the bio-coal materials; data recorded for TFR are shown in Figure 4. The extent of conversion degree, α, was calculated according to Equation (4) for all bio-coals tested.

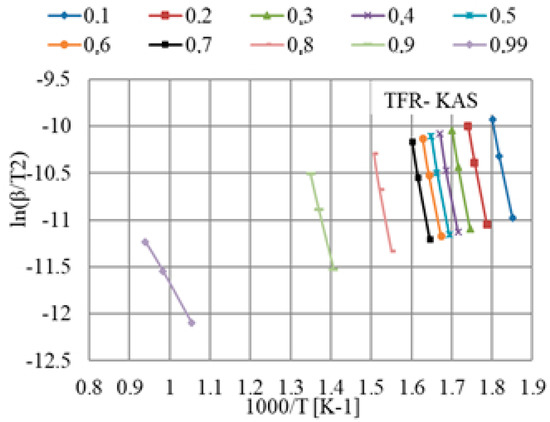

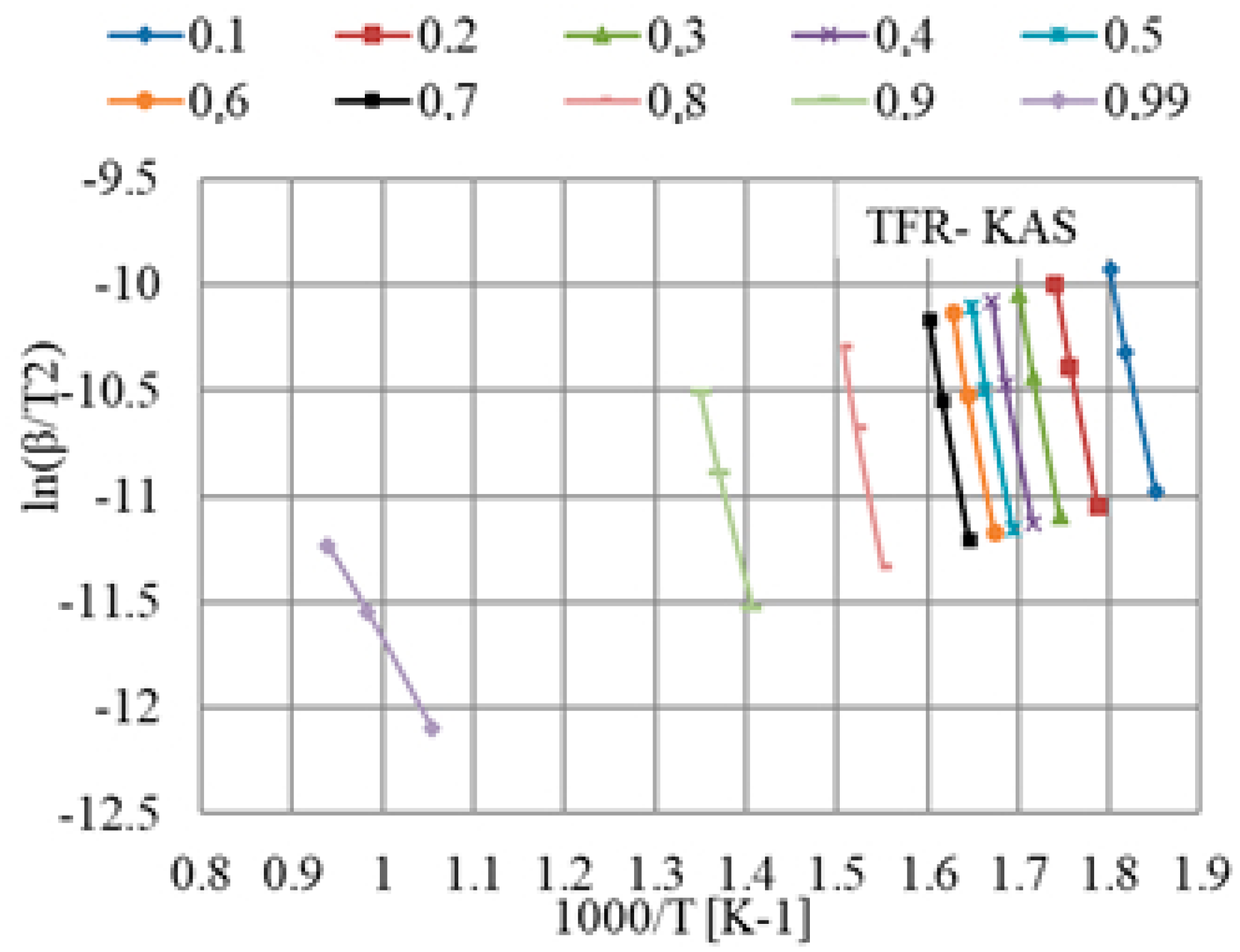

The results obtained from TGA were elaborated according to the iso-conversional KAS model to calculate the kinetic parameters according to Equation (8) for a given value of conversion, α, in the range from 0.1 to 0.99 for all different heating rates. The KAS plot of $ln\frac{{\beta }_I}{T_{\alpha I}^2}$ versus $\frac{1000}{T_{\alpha I}}$ K⁻¹ for different values of conversion is shown in Figure 5. The apparent activation energies were obtained from the slope, and the correlation coefficients, R², are given in

Table 4. Kinetic parameters obtained from the KAS model for different bio-coals, E_a, activiation energy in kJ/mol. R², correlation coefficients.

Conversion, α	TFR		TSD		TW		HTT		PA		PB		CC
	Ea	R2	Ea	R2	Ea	R2	Ea	R2	Ea	R2	Ea	R2	Ea	R2
0.1	169	0.999	149	0.998	111	1.000	361	0.981	145	1.000	449	0.996	297	0.999
0.2	179	1.000	158	0.997	120	0.999	278	1.000	189	1.000	411	0.996	271	1.000
0.3	185	0.998	162	0.997	123	0.999	246	0.999	222	0.997	272	1.000	271	1.000
0.4	191	0.997	158	0.999	124	1.00	238	0.997	232	1.000	225	0.999	249	1.000
0.5	185	0.998	159	0.997	124	0.999	274	1.000	269	1.000	215	1.000	260	0.997
0.6	186	0.999	191	1.000	123	0.999	263	1.000	235	0.999	204	1.000	215	0.998
0.7	192	0.998	269	1.000	124	0.999	161	1.000	250	0.999	202	0.999	195	0.998
0.8	194	0.997	385	0.999	124	0.999	135	1.000	243	1.000	158	1.000	194	0.997
0.9	143	1.000	252	1.000	90	0.999	99	0.999	221	0.997	139	1.000	139	0.999
0,99	61	0.999	285	0.997	78	0.999	58	1.000	122	0.996	77	1.000	38	1.000
Average value	169	-	217	-	114	-	211	-	213	-	235	-	213	-

. The correlation coefficients corresponding to linear fittings were in the range from 0.996 to 1.000.

As can be seen in Table 4, the highly volatile bio-coals TFR and TW had quite stable values of E_a up to the conversion degree of 0.8, while TSD showed an increasing trend in E_a from 0.5, reaching a maximum at the conversion of 0.8. Both TFR and TW had low E_a at a high conversion degree. HTT, PB, and CC showed a similar behavior, with a high E_a value at a low conversion degree, decreasing with the increase of the conversion degree, whereas PA behaved differently. However, the general levels of E_a at an intermediate conversion degree were quite similar for all four lowly volatile bio-coals. In general, these also had comparably high E_a at the initial conversion degrees due to volatiles with weak bonds already being removed during torrefaction or pyrolysis. For highly volatile bio-coals, TW differed from TFR and TSD by having, in general, lower E_a values. Variations in E_a with the conversion degree for a bio-coal are likely due to different reactions occurring in parallel.

The KAS model assumes the same reaction occurring at a specific conversion degree. For complex materials like bio-coals, it is difficult to make detailed comparisons between materials, as different reactions may occur at the same conversion degree at different temperatures. Furthermore, there are overlapping reactions occurring at a given conversion degree and temperature. Differences in the conversion degree for different heating rates are in general not very large, as can be seen in Figure 4. Thus, measurement errors can have a significant influence on the calculated E_a values. Further parameters influencing the reaction rate parameter are the origin of wood used in the actual processing of the bio-coal as well as the presence of catalyzing elements in the ash.

Among the tested materials, the content of catalyzing components such as CaO and K₂O varied as did the content of acid components like SiO_2. This was especially significant for TW, which contains substantial amounts of CaO and K₂O and very low amounts of SiO₂. TSD has comparably low contents of oxides, including CaO and K₂O. This might be one reason for the lowest E_a estimate for TW in comparison to other bio-coals with higher volatile content, which is in agreement with reference [18].

One important property when selecting a bio-coal for bio-agglomerates is the release of volatiles at temperatures at which they can be used for reduction. TW is likely not the best selection, because of the ease of volatilization at low temperature; with high contents of K₂O and P₂O_5, the use of both TW and TFR will be restricted from a process and product quality point of view, respectively. Both TSD and CC are suitable for BF applications because of their low contents of K₂O and P₂O₅. In addition, CC is devolatilized at a higher temperature, forming H₂ and CO that will contribute to the reduction reactions. On the basis of their devolatilization behavior, bio-coals pretreated at high temperature are considered suitable for use in agglomerates, provided the ash chemistry is suitable for the BF. Although TSD is a highly volatile bio-coal, its higher E_a indicates that the release of VM might be slightly delayed and may contribute to the reduction at higher temperature. An additional advantage of TSD is a comparably high yield when produced from raw biomass; in addition, TSD is available in sufficient amounts for upscaling studies.

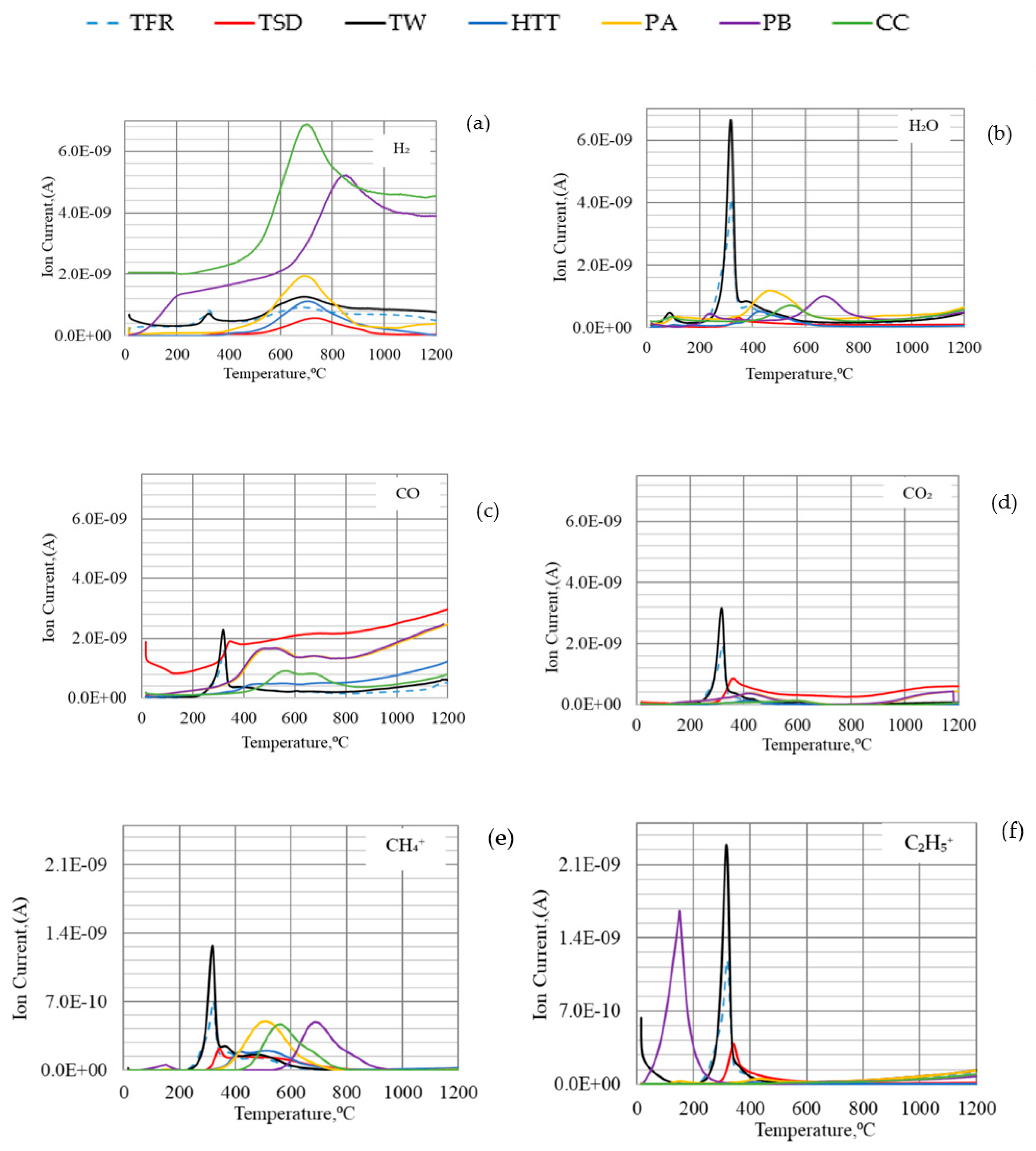

The QMS analysis, summarized in Figure 6, indicated that CH₄ formed at lower temperatures reacted with CO₂, forming CO and H₂, while hydrocarbons released at higher temperatures reacted with H₂O, forming H₂ and some CO. CO formed also at low temperatures may contribute to the reduction of hematite already in the shaft, whereas H₂ formed at higher temperatures will contribute to the reduction of lower iron oxides.

6. Conclusions

It was found that devolatilization is affected by the bio-coal properties that are linked to volatile contents and ash components.

Bio-coal with a low volatile content will release the volatiles at a comparatively high temperature, ensuring that the generated reducing gases can contribute to the reduction in the agglomerates with iron oxide. However, bio-coals with high K₂O and P₂O₅ should be avoided because of their effect on process and product quality.

Bio-coals with a high volatile content and, at the same time, a high content of the ash component catalyzing the devolatilization, should be avoided, as the volatile will be released at low temperature when the contribution to the reduction is limited.

Bio-coasl with a high volatile content and a low content of catalyzing components will release their volatiles later, and it is possible that this will occur at the temperature at which the formed CO can reduce higher iron oxides. When used in the BF, this material has the advantage of high yield from raw biomass.

High volatile content and high content of K₂O and CaO in bio-coal result in low E_a for devolatilization. Bio-coals with low content of volatiles have in general high E_a for devolatilization, as volatiles with weak bonds are already released during torrefaction or pyrolysis.

Among the tested materials, TSD appears to be the most suitable material to be utilized in bio-agglomerates in the BF, in addition to CC. Both of these materials have low contents of the catalyzing ash components and P₂O₅.
