Article

Novel Zeolitic Imidazolate Frameworks Based on Magnetic Multiwalled Carbon Nanotubes for Magnetic Solid-Phase Extraction of Organochlorine Pesticides from Agricultural Irrigation Water Samples

by
Xiaodong Huang
1,
Guangyang Liu
2,
Donghui Xu
2,
Xiaomin Xu
2,
Lingyun Li
2,
Shuning Zheng
2,
Huan Lin
2 and
Haixiang Gao
1,*
1
Department of Applied Chemistry, China Agricultural University, Beijing 100193, China
2
Institute of Vegetables and Flowers, Chinese Academy of Agricultural Sciences, Key Laboratory of Vegetables Quality and Safety Control, Ministry of Agriculture and Rural Affairs of China, Beijing 100081, China
*
Author to whom correspondence should be addressed.
Appl. Sci. 2018, 8(6), 959; https://doi.org/10.3390/app8060959
Submission received: 18 May 2018 / Revised: 1 June 2018 / Accepted: 5 June 2018 / Published: 12 June 2018
(This article belongs to the Special Issue Multi-Walled Carbon Nanotubes)
Browse Figures
Versions Notes

Abstract

:
Magnetic solid-phase extraction is an effective and convenient sample pretreatment technique that has received considerable interest in recent years. A lot of research indicated that magnetic nanocarbon-material-based composites have good application prospects as adsorbents for magnetic solid-phase extraction of pesticides. Herein, a novel zeolitic imidazolate framework based on magnetic multiwalled carbon nanotubes (M-M-ZIF-67) has been prepared as an adsorbent for magnetic solid-phase extraction of nine organochlorine pesticides from agricultural irrigation water samples. The obtained M-M-ZIF-67 material possessed porous surfaces and super-paramagnetism due to the utilization of magnetic multiwalled carbon nanotubes as the magnetic kernel and support. To evaluate the extraction performance of the M-M-ZIF-67, the main parameters that affected the extraction efficiency were researched. Under the optimal conditions, a good linearity for the nine organochlorine pesticides was achieved with the determination coefficients (R2) higher than 0.9916. The limits of detection (signal/noise = 3:1) were in the range 0.07–1.03 µg L−1. The recoveries of all analytes for the method at spiked levels of 10 and 100 µg L−1 were 74.9–116.3% and 75.1–112.7%, respectively. The developed M-M-ZIF-67 based magnetic solid-phase extraction method has a potential application prospect for the monitoring of trace level of organochlorine pesticides in environmental water samples.

Graphical Abstract

1. Introduction

Sample pretreatment is a crucial step in analysis of trace or ultra-trace amounts analytes in complex matrices. Solid-phase extraction (SPE) is a type of widely used pretreatment for effective concentration of analytes in complex matrices before instrumental analysis [1]. A variety of pretreatment methods has been developed based on this technique, including solid-phase microextraction (SPME) [2], micro-SPE (µ-SPE) [3], and stir-bar sorptive extraction (SBSE) [4].
Magnetic solid-phase extraction (MSPE), as a new type of SPE, is a pretreatment method that has received considerable interest in recent years. In this technique, magnetic adsorbents are directly dispersed into sample solutions, and this dispersive extraction mode can enhance the contact area between adsorbents and analytes [5]. Notably, magnetic adsorbents can be separated from the sample solutions under an external magnetic field without the need of traditional centrifugation or filtration, thereby simplifying the extraction process. Furthermore, magnetic adsorbents can be recycled and reused easily, which is cost effective and environmentally friendly [6]. Therefore, the MSPE technique shows comprehensive advantages of simplicity, time, reagent and labor savings, and excellent extraction efficiency, which meet the principles of green analytical chemistry [7]. The diversity of the materials used in MSPE is the main factor that has led to extensive development of this technique in recent decades [8]. Multiple magnetic sorbents have been synthesized by embedding magnetic cores in different organic or inorganic materials, such as chitosan [9], ionic liquids [10], polymers [11], silica [12], metallic oxides [13], molecularly imprinted polymers [14], and carbon nanomaterials [15,16].
Multiwalled carbon nanotubes (MWCNTs) are formed by seamless rolling up of several layers of graphite sheets. Because of their excellent properties, such as high surface area and inner volume, stability, mechanical strength, ability to establish π–π interactions, and capacity for functionalization, MWCNTs have the possibility of acting as good sorbents [17]. MWCNTs have recently attracted considerable interest as adsorbents in MSPE for extracting different analytes, such as antibiotics [18], estrogens [19], mycotoxins [20], metal ions [21], environmental pollutants [22], and pesticides [23,24]. The use of magnetic MWCNTs combined with other materials has attracted great interest.
Metal–organic frameworks (MOFs) are microporous inorganic–organic crystalline structure materials. They are formed by self-assembly of metal ions (clusters or secondary building units) and organic ligands (linkers) by coordination bonds, and they have a highly ordered and three-dimensional structure [25]. MOFs are promising sorbent materials, and using them for extraction could have the advantages of enhanced selectivity and stability, permeable channels and coordination nanospace, framework flexibility and dynamics, easy tunability, and modification [26]. However, application of MOFs is limited in certain cases owing to the lack of water and thermal stability, for example, MOF-199 and MOF-5 lose their extraction efficiency when they are exposed to moisture for a long time [27].
Zeolitic imidazolate frameworks (ZIFs) are a subclass of MOFs that are composed of tetrahedral transition metal ions (e.g., Zn and Co) and imidazolate-type organic linkers, and they exhibit high water stability in aqueous media [28]. Owing to their features of microporosity, uniform structured cavities, and a high surface area, ZIFs have many applications, such as chemical pollutant removal [29,30], chromatographic separation [31,32], and drug delivery [33]. ZIF-67 is a recently developed ZIF compound that has the formula Co(Hmim)2 (mim = 2-methylimidazole) with a sodalite-related zeolite type structure [34]. Because of the low coordination of the Co cation, ZIF-67 has three times higher adsorption capacity for dye from aqueous solutions than ZIF-8 [35]. Owing to the hydrogen bonding and π–π electron donor–acceptor interactions between the adsorbent and analytes, Fe3O4–MWCNTs–OH@poly-ZIF67 shows good selective extraction of aromatic acids [36]. This research indicates that magnetic nanocarbon-material-based ZIFs have good application prospects for adsorbing pesticides because of their good adsorptive properties derived from the magnetic carbon nanocomposite.
Organochlorine pesticides (OCPs) are ubiquitous in the environment due to their extensive application and persistent organic pollutants characteristics, which pose great risks to human health and ecosystems [37]. On account of their bioaccumulation, degradation resistance and carcinogenesis, tetratogenesis, and mutagenesis to human, 15 OCPs, including hexachlorocyclohexane (HCHs) and dichlorodiphenyltrichloroethane (DDTs), were banned with the issue of the Stockholm Convention in 2004. However, the current study showed that the concentration level of OCPs in aqueous environment around Beijing were ranged from 9.81 to 32.1 ng L−1 (average 15.1 ± 7.78 ng L−1) [38]. Therefore, it is necessary to develop sensitive and accuracy analytical methods for continuous monitoring trace level of the OCPs in water samples.
Inspired by the abovementioned studies, a novel magnetic Co-based ZIF composite was synthesized by organic–inorganic coordination. The obtained M-M-ZIF-67 composite possessed porous surfaces and super-paramagnetism due to the utilization of Fe3O4–MWCNTs as the magnetic kernel and support. In addition, due to the large surface area and excellent adsorption capacity of MWCNTs, the prepared hybrid material could be good adsorbent for MSPE of OCPs. In the end, an M-M-ZIF-67 based MSPE method was established and applied for the extraction of OCPs from agricultural irrigation water samples prior to gas chromatography–tandem triple quadrupole mass spectrometry (GC–MS/MS).

2. Materials and Methods

2.1. Reagents and Materials

The standard liquid pesticides α-HCH (CAS number: 319-84-6), β-HCH (CAS number: 319-85-7), γ-HCH (CAS number: 58-89-9), δ-HCH (CAS number: 319-86-8), p,p′-DDD (CAS number: 72-54-8), o,p-DDE (CAS number: 3424-82-6), p,p′-DDE (CAS number: 72-55-9), o,p-DDT (CAS number: 789-02-6), and p,p′-DDT (CAS number: 50-29-3) were obtained from the Agro-Environmental Protection Institute, Ministry of Agriculture (Tianjin, China) at concentrations of 1000 mg L−1. A standard mixture containing 20 mg L−1 of each of the nine OCPs was prepared in methanol and stored at −20 °C in the dark. High-performance liquid chromatography grade acetonitrile, methanol, and n-hexane were purchased from Sigma-Aldrich (St. Louis, MO, USA). Anhydrous sodium sulfate was supplied by Agilent (CA, California, USA). The MWCNTs (8–15 nm inner diameter (id), 10–30 µm long, 95% purity), analytical grade ferric chloride hexahydrate (FeCl3•6H2O), ferrous chloride tetrahydrate (FeCl2•4H2O), 2-methylimidazole, cobalt nitrate hexahydrate (Co(NO3)2•6H2O), and ammonium hydroxide (mass fraction 28%) were provided by Aladdin Co. (Shanghai, China). Ethanol and all of the other reagents were of analytical grade and acquired from the Beijing Chemical Reagents Co. (Beijing, China).

2.2. Preparation of Fe3O4–MWCNTs–ZIF-67

2.2.1. Synthesis of Fe3O4–MWCNTs

The Fe3O4–MWCNTs were prepared according to the authors’ previously reported method with slight modification [39]. In brief, MWCNT powder (0.2 g) was suspended in ultrapure water (240 mL) by sonication for 1 h and then transferred to a three-necked flask. After a solution of FeCl3•6H2O (1.8 g) and FeCl2•4H2O (0.8 g) dissolved in ultrapure water (25 mL) was added to the flask, the mixture was vigorously stirred with a mechanical stirrer (THZ-82A, Youlian instrument research institute, Jintan, China) under protection of N2 at 150 rpm and 80 °C conditions for 30 min. Ammonium hydroxide (28%, 10 mL) was then added and the mixture was vigorously stirred for another 30 min. After cooling to room temperature, the sediments were collected by magnetic separation and washed three times with ethanol and ultrapure water to eliminate unreacted chemicals. The obtained Fe3O4–MWCNT nanoparticles were dried in a vacuum oven at 60 °C for 24 h.

2.2.2. Synthesis of ZIF-67 and M-M-ZIF-67

The ZIF-67 material was fabricated following a reported method [40]. The preparation procedure for M-M-ZIF-67 was as follows. First, the Fe3O4–MWCNTs were dispersed in ultrapure water (20 mL) and mixed with 3 mL of an aqueous solution of Co(NO3)2•6H2O (0.45 g) with consistent stirring for 30 min under 150 rpm condition. An aqueous solution of 2-methylimidazole (20 mL, 0.45 g) was then added to the solution and the solution was stirred for 6 h. All of these synthetic processes were performed at room temperature. Finally, the M-M-ZIF-67 product was obtained by magnetic separation and washed three times with ethanol and ultrapure water. The synthesized material was dried in a vacuum oven at 60 °C for 24 h.

2.3. MSPE Procedure

The workflow of MSPE using M-M-ZIF-67 is shown in Figure 1. First, M-M-ZIF-67 (6 mg) was placed in a 10 mL centrifuge tube containing 5.0 mL of the aqueous standard solution or sample solution and shaken for 20 min for extraction. With aggregation of the adsorbent in the tube, the supernatant was discarded with the aid of an external ferrite magnet. Acetonitrile (2 mL) was then added into the tube, and ultrasonic elution of the analytes from the magnetic materials was performed for 5 min. After the M-M-ZIF-67 composite was collected, the supernatant desorption solution was transferred to another centrifuge tube. The same desorption procedures were performed one more time. Finally, the combined desorbed elution was evaporated to dryness under a gentle stream of nitrogen at 40 °C. The residue was redissolved in 0.5 mL acetone, and 1 μL of it was injected into the GC-MS/MS for analysis.

2.4. Sample Preparation

The river water sample was collected from the Liangshui River, Beijing, China. The tap water sample was obtained from the tap in the laboratory; and the underground water sample was obtained from Langfang City, Hebei Province, China. All of the samples were filtered through a 0.45 µm polytetrafluoroethylene membrane filter and stored at 4 °C in amber dark glass bottles.

2.5. Apparatus and Gas Chromatography–Tandem Triple Quadrupole Mass Spectrometry Conditions

The surface morphologies and particle sizes of the as-synthesized nanoparticles were observed by scanning electron microscopy (SEM, JSM-6300, JEOL, Tokyo, Japan) and transmission electron microscopy (TEM, JEM-200CX, JEOL, Tokyo, Japan). The powder X-ray diffraction (XRD) patterns of the as-synthesized nanoparticles were obtained with an X-ray powder diffractometer (D8 Advance, Bruker, Karlsruhe, Germany). The Fourier-transform infrared (FT-IR) spectra of the as-synthesized nanoparticles were obtained with an FT-IR-8400 spectrometer (Shimadzu, Kyoto, Japan). A vibrating sample magnetometer (VSM, Lake Shore 7410, Columbus, OH, USA) was used to investigate the magnetic properties of all of the synthetic materials.
Gas chromatography–tandem triple quadrupole mass spectrometry (GC–MS/MS) analysis was performed with a Shimadzu GC-2010 plus gas chromatograph coupled with an AOC-20s autosampler, a Shimadzu TQ8040 triple-quadrupole MS. The pesticides were separated on an Rtx-5MS capillary column purchased from RESTEK (Bellefonte, PA, USA) (0.25 mm (id) × 30 m, 0.25 μm film thickness). Helium gas was used as the carrier gas at a constant flow rate of 1 mL min−1. The column temperature was programmed as follows: the initial temperature of 40 °C was maintained for 4 min, the temperature was increased to 125 °C at 25 °C min−1, the temperature was ramped to 300 °C at 10 °C min−1, and the temperature was maintained at 300 °C for 6 min. The total run time was 30.9 min. The injector temperature was 250 °C, and the injection volume was 1.0 μL in splitless mode. The specific multiple reaction monitoring (MRM) transitions for all the nine OCPs and the other parameters are given in Table 1.

2.6. Quality Control and Quality Assurance

Quality control and quality assurance (QA/QC) experiments, including a blank sample test, recovery test, repeatability test, and limits of detection (LOD) experiment were performed to evaluate the feasibility of the method. In addition, 5 L ultrapure water served as the water sample for the blank test, while the water samples for the recovery test and repeatability test were made by spiking 50 μL 20 mg L−1 working solution into 100 mL ultrapure water. The LOD experiment was undertaken following the USA Environmental Protection Agency method.

3. Results

3.1. Characterization of M-M-ZIF-67

The micro-morphologies of the Fe3O4–MWCNTs and M-M-ZIF-67 were observed by SEM and TEM. As shown in Figure 2A, the Fe3O4 nanoparticles are attached to the MWCNT surface. The SEM image of M-M-ZIF-67 in Figure 2B shows that the composite has a rough surface, indicating that the material has good potential as an adsorbent [27].
VSM was performed to investigate the magnetic behavior of the magnetic materials, and the results are shown in Figure 3A. The magnetic hysteresis loops show that both the remanence and coercivity values of the three types of magnetic materials are zero, which indicates that they have typical supermagnetic properties and could be separated using an external magnet. The saturation magnetization values of Fe3O4, Fe3O4–MWCNTs, and M-M-ZIF-67 are 66.8, 59.6, and 53.1 emu g−1, respectively. As shown in the insert of Figure 3A, well-dispersed M-M-ZIF-67 particles exist in the absence of an external magnet, and they are rapidly attracted to the walls of the vial in a short time (about 20 s) with application of a magnet. The powder XRD patterns of Fe3O4, Fe3O4–MWCNTs, and M-M-ZIF-67 are shown in Figure 3B. The diffraction patterns of M-M-ZIF-67 are in very close agreement with the materials of Fe3O4 and Fe3O4–MWCNTs. This indicates that Fe3O4 is well retained in the Fe3O4–MWCNTs and M-M-ZIF-67. The FT-IR spectra are shown in Figure 3C. For M-M-ZIF-67, the adsorption band at 577 cm−1 corresponds to the stretching vibrations of Fe–O, and the band at 1566 cm−1 corresponds to in-plane bending of CH2 of the MWCNTs. This suggests that M-M-ZIF-67 is composed of Fe3O4 and MWCNTs. The bands in the region 673 to 1454 cm−1 are attributed to complete ring stretching or bending vibration of 2-methylimidazole, and the main adsorption bands are preserved in the spectrum of the composite, which indicates that ZIF-67 is successfully synthesized on the surface of M-M-ZIF-67.

3.2. Optimization of the MSPE Parameters

The MSPE parameters affect extraction of the OCPs and the desorption performance. The amount of M-M-ZIF-67, extraction time, type of desorption solvent, desorption time, and frequency of desorption were investigated by single-factor experiments following a step by step procedure at a spiked level of 50 µg L−1.

3.2.1. Optimization of the Extraction Process

The present study aims to achieve satisfactory extraction performance for analytes in water samples. The effect of the amount of M-M-ZIF-67 on extraction was investigated using different amounts of the sorbent ranging from 2 to 10 mg. The experimental results (Figure 4A) show that the extraction recoveries of the OCPs rapidly increase when the amount of M-M-ZIF-67 is increased from 2 to 6 mg, and the recoveries then slightly decrease when the amount of sorbent is increased from 6 to 10 mg. Based on these results, 6 mg of M-M-ZIF-67 was chosen for the following experiments.
The extraction time is an important factor for MSPE because it influences the adsorption equilibrium of the analytes between the sample solution and adsorbent. Therefore, the extraction time was varied in the range 5–90 min to investigate its influence on the extraction efficiency. As shown in Figure 4B, the recoveries of the target OCPs increase with increasing extraction time from 5 to 20 min, and they then remain almost constant until 30 min. The extraction recoveries for most of the analytes then decrease with a further increase of the extraction time. This is probably because of desorption of the analytes from the adsorbent, especially when the adsorption equilibrium is reached. Thus, 20 min was chosen as the extraction time for the following experiments.

3.2.2. Optimization of the Desorption Process

The desorption solvent is crucial and it can significantly affect the MSPE efficiency. Three different solvents were investigated as desorption solvents to investigate their effect on the extraction efficiency: acetonitrile, acetone, and n-hexane. Figure 5A shows that the extraction recoveries of the target analytes eluted by acetonitrile are better than those with the other solvents. Therefore, acetonitrile was used as the desorption solvent for the following experiments.
The desorption time is another important factor that influences the efficiency of the MSPE process. To investigate the influence of the desorption time on the MSPE efficiency, experiments were performed with ultrasonic desorption times of 2, 5, 10, and 15 min. As shown in Figure 5B, the extraction recoveries of the analytes are satisfactory when the sample solution is ultrasonicated for 5 and 10 min. Considering the efficiency, an ultrasonic desorption time of 5 min was chosen for the subsequent experiments.
To investigate the effect of the frequency of desorption, ultrasonic desorption of the nine OCPs was performed one to four times using 2 mL of the desorption solvent and a desorption time of 5 min. The results are shown in Figure 5C. The optimum recoveries are obtained when the analytes are eluted two times. Thus, the frequency of desorption was set to two for the following experiments.

3.3. Method Characterization

A series of experiments was performed under the optimized conditions (Table 2) and the analytical characteristics, such as the linear ranges (LRs), LOD, and relative standard deviations (RSDs), were determined to validate the developed method. Working solutions containing the target analytes at concentrations of 1, 2, 5, 10, 20, 50, 100, and 200 µg L−1 were prepared to construct the working curves. Good linearities for the nine OCPs were achieved with determination coefficients (R2) ranging from 0.9916 to 0.9989. The LOD for all of the analytes were calculated at signal/noise (S/N) ratios of 3. The LODs range from 0.07 to 1.03 µg L−1. The repeatability of the method was evaluated by performing six replicate analyses of spiked samples with 10 µg L−1 of each of the OCPs, and the RSDs are in the range 1.0–8.5%. All of these results indicate that the proposed method has high sensitivity and good repeatability.

3.4. Comparison

To investigate the extraction performance of the prepared materials, 4 mg of Fe3O4–MWCNTs and 6 mg of M-M-ZIF-67, which was synthesized based on the same amount of the former material, were applied to extraction of the nine OCPs using the proposed method. The results are shown in Figure 6 based on three replicate analyses (n = 3). The peak areas of all of the analytes for M-M-ZIF-67 are 2.7–3.0 times higher than those for Fe3O4–MWCNTs, indicating that ZIF-67 plays a greater role in the extraction process.
The performance of the current method was compared with some recently reported methods used for analysis of OCPs in water. The comparison data (Table 3) show that the proposed method based on the M-M-ZIF-67 adsorbent exhibits good sensitivity (as the LOD), less use of sample and adsorbent. However, the Fe3O4–MWCNTs based adsorbent can make the phase separation process easier and faster without additional centrifugation or filtration procedures, and also can avoid the time-consuming column passing operations encountered in SPE. Therefore, the developed M-M-ZIF-67 based magnetic solid-phase extraction method showed agreement in accordance with the principles of green analytical chemistry [41].

3.5. Real Sample Analysis

The proposed MSPE method was applied to determination of OCPs in real agricultural irrigation water samples, including tap water, river water, and underground water. The results are summarized in Table 4 and the total ion chromatograms (TICs) of the analytes acquired from the tap water samples are shown in Figure 7. There are no OCPs in the selected water samples and the recovery results indicate that the developed method has good utility for analysis of OCPs in real water samples.

4. Conclusions

Magnetic composites containing Fe3O4, MWCNTs, and ZIF-67 have been synthesized. The synthesized materials have porous surfaces and exhibit super-paramagnetism. They were used as sorbents for MSPE to extract nine OCPs from agricultural irrigation water samples. For M-M-ZIF-67, the OCP adsorption capacities are nearly three times higher than those for Fe3O4–MWCNTs. The developed method achieves high extraction efficiencies, good linearities, low detection limits, and good accuracies and precision. The results suggest that M-M-ZIF-67 is a simple and effective potential adsorbent for removal of OCPs from environmental water samples.

Author Contributions

X.H. and G.L. conceived and designed the experiments; X.X. and L.L. performed the experiments; X.H. and S.Z. analyzed the data; D.X. and H.L. contributed reagents and materials; X.H. and H.G. wrote the paper. Authorship must be limited to those who have contributed substantially to the work reported.

Acknowledgments

This work was supported by the National Key Research Development Program of China (Grant No. 2016YFD0200200), the National Natural Science Foundation of China (Grant No. 31701695) and the project of risk assessment on vegetable products (Grant No. GJFP2018002).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Płotka-Wasylka, J.; Szczepańska, N.; de la Guardia, M.; Namieśnik, J. Modern trends in solid phase extraction: New sorbent media. Trends Anal. Chem. 2016, 77, 23–43. [Google Scholar] [CrossRef]
  2. Arthur, C.L.; Pawliszyn, J. Solid phase microextraction with thermal desorption using fused silica optical fibers. Anal. Chem. 1990, 62, 2145–2148. [Google Scholar] [CrossRef]
  3. Basheer, C.; Alnedhary, A.A.; Rao, B.S.M.; Valliyaveettil, S.; Lee, H.K. Development and application of porous membrane-protected carbon nanotube micro-solid-phase extraction combined with gas chromatography/mass spectrometry. Anal. Chem. 2006, 78, 2853–2858. [Google Scholar] [CrossRef] [PubMed]
  4. Sandra, P.; Tienpont, B.; David, F. Multi-residue screening of pesticides in vegetables, fruits and baby food by stir bar sorptive extraction-thermal desorption-capillary gas chromatography-mass spectrometry. J. Chromatogr. A 2003, 1000, 299–309. [Google Scholar] [CrossRef]
  5. Maya, F.; Palomino Cabello, C.; Frizzarin, R.M.; Estela, J.M.; Turnes Palomino, G.; Cerdà, V. Magnetic solid-phase extraction using metal-organic frameworks (MOFs) and their derived carbons. Trend. Anal. Chem. 2017, 90, 142–152. [Google Scholar] [CrossRef]
  6. Li, N.; Jiang, H.-L.; Wang, X.; Wang, X.; Xu, G.; Zhang, B.; Wang, L.; Zhao, R.-S.; Lin, J.-M. Recent advances in graphene-based magnetic composites for magnetic solid-phase extraction. Trend. Anal. Chem. 2018, 102, 60–74. [Google Scholar] [CrossRef]
  7. Gałuszka, A.; Migaszewski, Z.M.; Konieczka, P.; Namieśnik, J. Analytical eco-scale for assessing the greenness of analytical procedures. Trend. Anal. Chem. 2012, 37, 61–72. [Google Scholar] [CrossRef]
  8. Herrero-Latorre, C.; Barciela-García, J.; García-Martín, S.; Peña-Crecente, R.M.; Otárola-Jiménez, J. Magnetic solid-phase extraction using carbon nanotubes as sorbents: A review. Anal. Chim. Acta 2015, 892, 10–26. [Google Scholar] [CrossRef] [PubMed]
  9. Guo, H.; Xue, L.; Yao, S.; Cai, X.; Qian, J. Rhein functionalized magnetic chitosan as a selective solid phase extraction for determination isoflavones in soymilk. Carbohydr. Polym. 2017, 165, 96–102. [Google Scholar] [CrossRef] [PubMed]
  10. Shi, Y.; Wu, H.; Wang, C.; Guo, X.; Du, J.; Du, L. Determination of polycyclic aromatic hydrocarbons in coffee and tea samples by magnetic solid-phase extraction coupled with HPLC-FLD. Food Chem. 2016, 199, 75–80. [Google Scholar] [CrossRef] [PubMed]
  11. Yilmaz, E.; Alosmanov, R.M.; Soylak, M. Magnetic solid phase extraction of lead(ii) and cadmium(ii) on a magnetic phosphorus-containing polymer (M-PhCP) for their microsampling flame atomic absorption spectrometric determinations. RSC Adv. 2015, 5, 33801–33808. [Google Scholar] [CrossRef]
  12. Ma, S.; He, M.; Chen, B.; Deng, W.; Zheng, Q.; Hu, B. Magnetic solid phase extraction coupled with inductively coupled plasma mass spectrometry for the speciation of mercury in environmental water and human hair samples. Talanta 2016, 146, 93–99. [Google Scholar] [CrossRef] [PubMed]
  13. Habila, M.A.; Alothman, Z.A.; El-Toni, A.M.; Labis, J.P.; Soylak, M. Synthesis and application of Fe3O4@SiO2@TiO2 for photocatalytic decomposition of organic matrix simultaneously with magnetic solid phase extraction of heavy metals prior to ICP-MS analysis. Talanta 2016, 154, 539–547. [Google Scholar] [CrossRef] [PubMed]
  14. Su, X.; Li, X.; Li, J.; Liu, M.; Lei, F.; Tan, X.; Li, P.; Luo, W. Synthesis and characterization of core-shell magnetic molecularly imprinted polymers for solid-phase extraction and determination of Rhodamine B in food. Food Chem. 2015, 171, 292–297. [Google Scholar] [CrossRef] [PubMed]
  15. Reis, L.C.; Vidal, L.; Canals, A. Graphene oxide/Fe3O4 as sorbent for magnetic solid-phase extraction coupled with liquid chromatography to determine 2, 4, 6-trinitrotoluene in water samples. Anal. Bioanal. Chem. 2017, 409, 2665–2674. [Google Scholar] [CrossRef] [PubMed]
  16. Liu, X.; Xie, S.; Ni, T.; Chen, D.; Wang, X.; Pan, Y.; Wang, Y.; Huang, L.; Cheng, G.; Qu, W.; et al. Magnetic solid-phase extraction based on carbon nanotubes for the determination of polyether antibiotic and s-triazine drug residues in animal food with LC-MS/MS. J. Sep. Sci. 2017, 40, 2416–2430. [Google Scholar] [CrossRef] [PubMed]
  17. Zhang, B.-T.; Zheng, X.; Li, H.-F.; Lin, J.-M. Application of carbon-based nanomaterials in sample preparation: A review. Anal. Chim. Acta 2013, 784, 1–17. [Google Scholar] [CrossRef] [PubMed]
  18. Xu, Y.; Ding, J.; Chen, H.; Zhao, Q.; Hou, J.; Yan, J.; Wang, H.; Ding, L.; Ren, N. Fast determination of sulfonamides from egg samples using magnetic multiwalled carbon nanotubes as adsorbents followed by liquid chromatography-tandem mass spectrometry. Food Chem. 2013, 140, 83–90. [Google Scholar] [CrossRef] [PubMed]
  19. Ding, J.; Gao, Q.; Li, X.-S.; Huang, W.; Shi, Z.-G.; Feng, Y.-Q. Magnetic solid-phase extraction based on magnetic carbon nanotube for the determination of estrogens in milk. J. Sep. Sci. 2011, 34, 2498–2504. [Google Scholar] [CrossRef] [PubMed]
  20. Moreno, V.; Zougagh, M.; Ríos, Á. Hybrid nanoparticles based on magnetic multiwalled carbon nanotube-nanoC18SiO2 composites for solid phase extraction of mycotoxins prior to their determination by LC-MS. Microchim. Acta 2016, 183, 871–880. [Google Scholar] [CrossRef]
  21. Khan, M.; Yilmaz, E.; Soylak, M. Vortex assisted magnetic solid phase extraction of lead (ii) and cobalt (ii) on silica coated magnetic multiwalled carbon nanotubes impregnated with 1-(2-pyridylazo)-2-naphthol. J. Mol. Liq. 2016, 224, 639–647. [Google Scholar] [CrossRef]
  22. Zhao, Q.; Wei, F.; Luo, Y.-B.; Ding, J.; Xiao, N.; Feng, Y.-Q. Rapid magnetic solid-phase extraction based on magnetic multiwalled carbon nanotubes for the determination of polycyclic aromatic hydrocarbons in edible oils. J. Agric. Food Chem. 2011, 59, 12794–12800. [Google Scholar] [CrossRef] [PubMed]
  23. Deng, X.; Guo, Q.; Chen, X.; Xue, T.; Wang, H.; Yao, P. Rapid and effective sample clean-up based on magnetic multiwalled carbon nanotubes for the determination of pesticide residues in tea by gas chromatography–mass spectrometry. Food Chem. 2014, 145, 853–858. [Google Scholar] [CrossRef] [PubMed]
  24. Ma, J.; Jiang, L.; Wu, G.; Xia, Y.; Lu, W.; Li, J.; Chen, L. Determination of six sulfonylurea herbicides in environmental water samples by magnetic solid-phase extraction using multi-walled carbon nanotubes as adsorbents coupled with high-performance liquid chromatography. J. Chromatogr. A 2016, 1466, 12–20. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Rocío-Bautista, P.; González-Hernández, P.; Pino, V.; Pasán, J.; Afonso, A.M. Metal-organic frameworks as novel sorbents in dispersive-based microextraction approaches. Trend. Anal. Chem. 2017, 90, 114–134. [Google Scholar] [CrossRef]
  26. Rocío-Bautista, P.; Pacheco-Fernández, I.; Pasán, J.; Pino, V. Are metal-organic frameworks able to provide a new generation of solid-phase microextraction coatings?—A review. Anal. Chim. Acta 2016, 939, 26–41. [Google Scholar] [CrossRef] [PubMed]
  27. Hashemi, B.; Zohrabi, P.; Raza, N.; Kim, K.-H. Metal-organic frameworks as advanced sorbents for the extraction and determination of pollutants from environmental, biological, and food media. Trend. Anal. Chem. 2017, 97, 65–82. [Google Scholar] [CrossRef]
  28. Zhao, M.; Xie, Y.; Chen, H.; Deng, C. Efficient extraction of low-abundance peptides from digested proteins and simultaneous exclusion of large-sized proteins with novel hydrophilic magnetic zeolitic imidazolate frameworks. Talanta 2017, 167, 392–397. [Google Scholar] [CrossRef] [PubMed]
  29. Jiao, C.; Li, M.; Ma, R.; Wang, C.; Wu, Q.; Wang, Z. Preparation of a Co-doped hierarchically porous carbon from Co/Zn-ZIF: An efficient adsorbent for the extraction of trizine herbicides from environment water and white gourd samples. Talanta 2016, 152, 321–328. [Google Scholar] [CrossRef] [PubMed]
  30. Zhang, S.; Yao, W.; Ying, J.; Zhao, H. Polydopamine-reinforced magnetization of zeolitic imidazolate framework ZIF-7 for magnetic solid-phase extraction of polycyclic aromatic hydrocarbons from the air-water environment. J. Chromatogr. A 2016, 1452, 18–26. [Google Scholar] [CrossRef] [PubMed]
  31. Fu, Y.Y.; Yang, C.X.; Yan, X.P. Fabrication of ZIF-8@SiO2 core-shell microspheres as the stationary phase for high-performance liquid chromatography. Chem-Eur. J. 2013, 19, 13484–13491. [Google Scholar] [CrossRef] [PubMed]
  32. Srivastava, M.; Roy, P.K.; Ramanan, A. Hydrolytically stable ZIF-8@PDMS core–shell microspheres for gas-solid chromatographic separation. RSC Adv. 2016, 6, 13426–13432. [Google Scholar] [CrossRef]
  33. Fang, J.; Yang, Y.; Xiao, W.; Zheng, B.; Lv, Y.-B.; Liu, X.-L.; Ding, J. Extremely low frequency alternating magnetic field–triggered and MRI–traced drug delivery by optimized magnetic zeolitic imidazolate framework-90 nanoparticles. Nanoscale 2016, 8, 3259–3263. [Google Scholar] [CrossRef] [PubMed]
  34. Zhou, Q.; Zhu, L.; Xia, X.; Tang, H. The water-resistant zeolite imidazolate framework 67 is a viable solid phase sorbent for fluoroquinolones while efficiently excluding macromolecules. Microchim. Acta 2016, 183, 1839–1846. [Google Scholar] [CrossRef]
  35. Kang, X.-Z.; Song, Z.-W.; Shi, Q.; Dong, J.-X. Utilization of zeolite imidazolate framework as an adsorbent for the removal of dye from aqueous solution. Asian J. Chem. 2013, 25, 8324–8328. [Google Scholar]
  36. Li, W.-K.; Chen, J.; Zhang, H.-X.; Shi, Y.-P. Selective determination of aromatic acids by new magnetic hydroxylated MWCNTs and MOFs based composite. Talanta 2017, 168, 136–145. [Google Scholar] [CrossRef] [PubMed]
  37. Rani, M.; Shanker, U.; Jassal, V. Recent strategies for removal and degradation of persistent & toxic organochlorine pesticides using nanoparticles: A review. J. Environ. Manag. 2017, 190, 208–222. [Google Scholar]
  38. Shao, Y.; Han, S.; Ouyang, J.; Yang, G.; Liu, W.; Ma, L.; Luo, M.; Xu, D. Organochlorine pesticides and polychlorinated biphenyls in surface water around Beijing. Environ. Sci. Pollut. Res. 2016, 23, 24824–24833. [Google Scholar] [CrossRef] [PubMed]
  39. Liu, G.; Li, L.; Xu, D.; Huang, X.; Xu, X.; Zheng, S.; Zhang, Y.; Lin, H. Metal-organic framework preparation using magnetic graphene oxide-β-cyclodextrin for neonicotinoid pesticide adsorption and removal. Carbohydr. Polym. 2017, 175, 584–591. [Google Scholar] [CrossRef] [PubMed]
  40. Liu, X.; Wang, C.; Wu, Q.; Wang, Z. Metal-organic framework-templated synthesis of magnetic nanoporous carbon as an efficient absorbent for enrichment of phenylurea herbicides. Anal. Chim. Acta 2015, 870, 67–74. [Google Scholar] [CrossRef] [PubMed]
  41. Płotka-Wasylka, J. A new tool for the evaluation of the analytical procedure: Green analytical procedure index. Talanta 2018, 181, 204–209. [Google Scholar] [CrossRef] [PubMed]
  42. Liu, Y.; Gao, Z.; Wu, R.; Wang, Z.; Chen, X.; Chan, T.W.D. Magnetic porous carbon derived from a bimetallic metal-organic framework for magnetic solid-phase extraction of organochlorine pesticides from drinking and environmental water samples. J. Chromatogr. A 2017, 1479, 55–61. [Google Scholar] [CrossRef] [PubMed]
  43. Sajid, M.; Basheer, C.; Mansha, M. Membrane protected micro-solid-phase extraction of organochlorine pesticides in milk samples using zinc oxide incorporated carbon foam as sorbent. J. Chromatogr. A 2016, 1475, 110–115. [Google Scholar] [CrossRef] [PubMed]
  44. Yang, C.; Lv, T.; Yan, H.; Wu, G.; Li, H. Glyoxal-urea-formaldehyde molecularly imprinted resin as pipette tip solid-phase extraction adsorbent for selective screening of organochlorine pesticides in spinach. J. Agric. Food Chem. 2015, 63, 9650–9656. [Google Scholar] [CrossRef] [PubMed]
  45. Mehdinia, A.; Rouhani, S.; Mozaffari, S. Microwave-assisted synthesis of reduced graphene oxide decorated with magnetite and gold nanoparticles, and its application to solid-phase extraction of organochlorine pesticides. Microchim. Acta 2016, 183, 1177–1185. [Google Scholar] [CrossRef]
  46. Mehdinia, A.; Einollahi, S.; Jabbari, A. Magnetite nanoparticles surface-modified with a zinc (ii)-carboxylate schiff base ligand as a sorbent for solid-phase extraction of organochlorine pesticides from seawater. Microchim. Acta 2016, 183, 2615–2622. [Google Scholar] [CrossRef]
  47. Darvishnejad, M.; Ebrahimzadeh, H. Halloysite nanotubes functionalized with a nanocomposite prepared from reduced graphene oxide and polythiophene as a viable sorbent for the preconcentration of six organochlorine pesticides prior to their quantitation by GC/MS. Microchim. Acta 2017, 184, 3603–3612. [Google Scholar] [CrossRef]
  48. Huang, Z.; Lee, H.K. Micro-solid-phase extraction of organochlorine pesticides using porous metal-organic framework mil-101 as sorbent. J. Chromatogr. A 2015, 1401, 9–16. [Google Scholar] [CrossRef] [PubMed]
  49. Mahpishanian, S.; Sereshti, H. One-step green synthesis of β-cyclodextrin/iron oxide-reduced graphene oxide nanocomposite with high supramolecular recognition capability: Application for vortex-assisted magnetic solid phase extraction of organochlorine pesticides residue from honey samples. J. Chromatogr. A 2017, 1485, 32–43. [Google Scholar] [PubMed]
Applsci 08 00959 g001 550

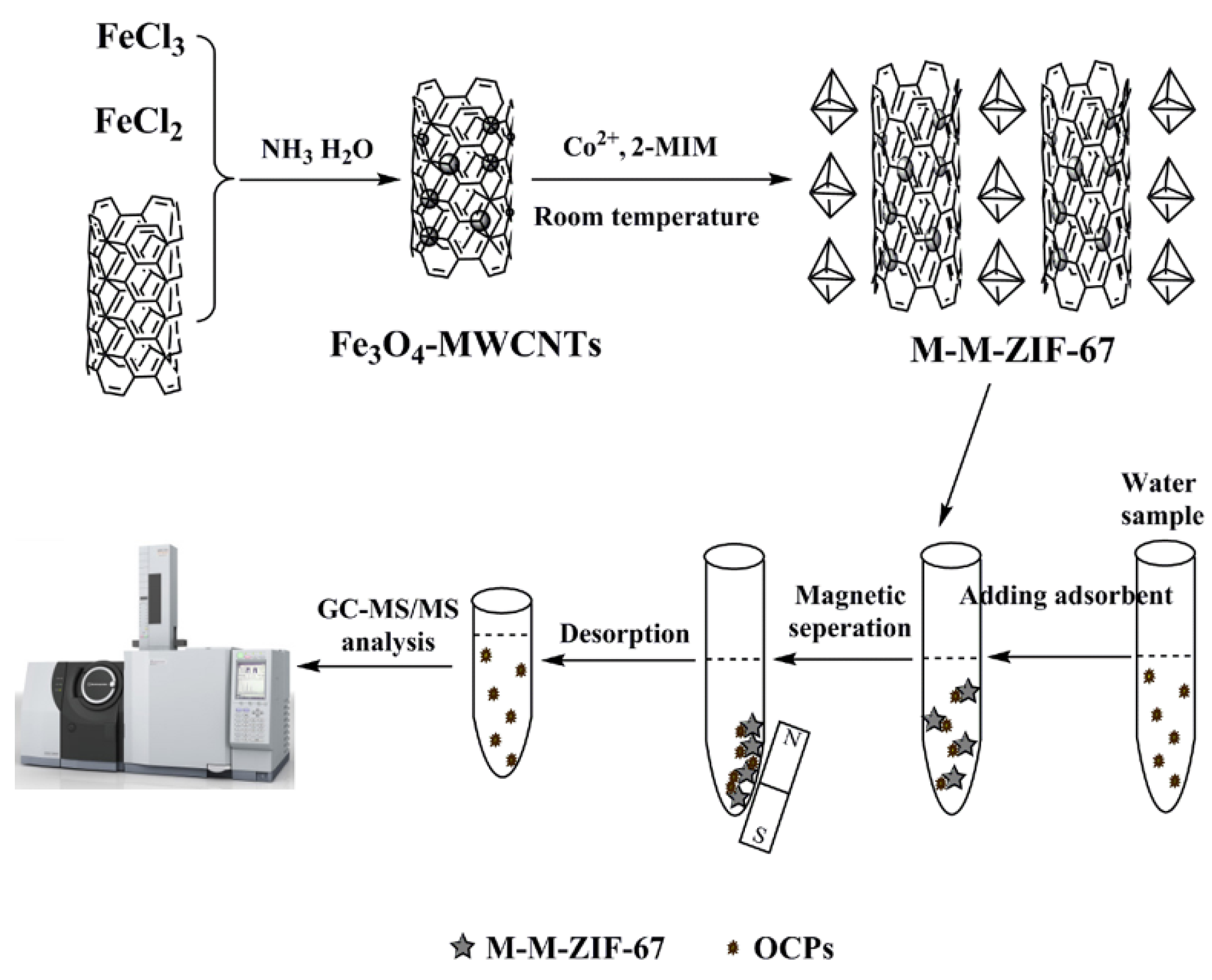

Figure 1. Schematic illustration of the synthetic route to prepare zeolitic imidazolate framework based on magnetic multiwalled carbon nanotubes and the magnetic solid-phase extraction steps for organochlorine pesticides analysis.
Figure 1. Schematic illustration of the synthetic route to prepare zeolitic imidazolate framework based on magnetic multiwalled carbon nanotubes and the magnetic solid-phase extraction steps for organochlorine pesticides analysis.
Applsci 08 00959 g001
Applsci 08 00959 g002 550
Figure 2. (A) transmission electron microscopy image of magnetic multiwalled carbon nanotubes and (B) scanning electron microscopy image of zeolitic imidazolate framework based on magnetic multiwalled carbon nanotubes.
Figure 2. (A) transmission electron microscopy image of magnetic multiwalled carbon nanotubes and (B) scanning electron microscopy image of zeolitic imidazolate framework based on magnetic multiwalled carbon nanotubes.
Applsci 08 00959 g002
Applsci 08 00959 g003 550

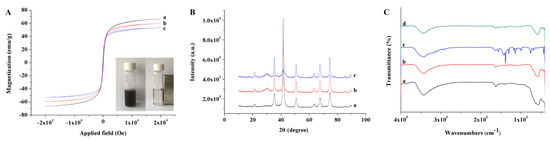

Figure 3. (A) magnetic hysteresis loops for (a) Fe3O4; (b) magnetic multiwalled carbon nanotubes; and c) zeolitic imidazolate framework based on magnetic multiwalled carbon nanotubes. The insert shows magnetic separation and dispersion of zeolitic imidazolate framework based on magnetic multiwalled carbon nanotubes; (B) X-ray diffraction patterns of (a) Fe3O4; (b) magnetic multiwalled carbon nanotubes; and c) zeolitic imidazolate framework based on magnetic multiwalled carbon nanotubes; (C) Fourier-transform infrared spectra of (a) Fe3O4; (b) magnetic multiwalled carbon nanotubes; (c) zeolitic imidazolate framework-67; and (d) zeolitic imidazolate framework based on magnetic multiwalled carbon nanotubes.
Figure 3. (A) magnetic hysteresis loops for (a) Fe3O4; (b) magnetic multiwalled carbon nanotubes; and c) zeolitic imidazolate framework based on magnetic multiwalled carbon nanotubes. The insert shows magnetic separation and dispersion of zeolitic imidazolate framework based on magnetic multiwalled carbon nanotubes; (B) X-ray diffraction patterns of (a) Fe3O4; (b) magnetic multiwalled carbon nanotubes; and c) zeolitic imidazolate framework based on magnetic multiwalled carbon nanotubes; (C) Fourier-transform infrared spectra of (a) Fe3O4; (b) magnetic multiwalled carbon nanotubes; (c) zeolitic imidazolate framework-67; and (d) zeolitic imidazolate framework based on magnetic multiwalled carbon nanotubes.
Applsci 08 00959 g003
Applsci 08 00959 g004 550

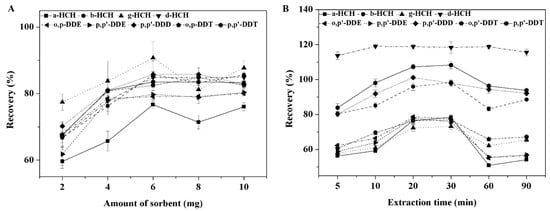

Figure 4. Optimization of the extraction process for 50 µg L−1 organochlorine pesticides using zeolitic imidazolate framework based on magnetic multiwalled carbon nanotubes: (A) amount of sorbent and (B) extraction time. Desorption conditions: 2 mL of acetonitrile; ultrasonication time, 5 min; and ultrasonication performed one more time. The error bars show the standard deviation of the mean (n = 3).
Figure 4. Optimization of the extraction process for 50 µg L−1 organochlorine pesticides using zeolitic imidazolate framework based on magnetic multiwalled carbon nanotubes: (A) amount of sorbent and (B) extraction time. Desorption conditions: 2 mL of acetonitrile; ultrasonication time, 5 min; and ultrasonication performed one more time. The error bars show the standard deviation of the mean (n = 3).
Applsci 08 00959 g004
Applsci 08 00959 g005 550

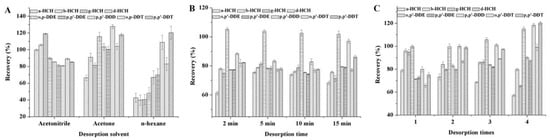

Figure 5. Optimization of the desorption process for 50 µg L−1 organochlorine pesticides using zeolitic imidazolate framework based on magnetic multiwalled carbon nanotubes: (A) desorption solvent; (B) desorption time; and (C) frequency of desorption. Extraction conditions: sample volume, 5 mL; amount of sorbent, 6 mg; and extraction time, 20 min. The error bars show the standard deviation of the mean (n = 3).
Figure 5. Optimization of the desorption process for 50 µg L−1 organochlorine pesticides using zeolitic imidazolate framework based on magnetic multiwalled carbon nanotubes: (A) desorption solvent; (B) desorption time; and (C) frequency of desorption. Extraction conditions: sample volume, 5 mL; amount of sorbent, 6 mg; and extraction time, 20 min. The error bars show the standard deviation of the mean (n = 3).
Applsci 08 00959 g005
Applsci 08 00959 g006 550

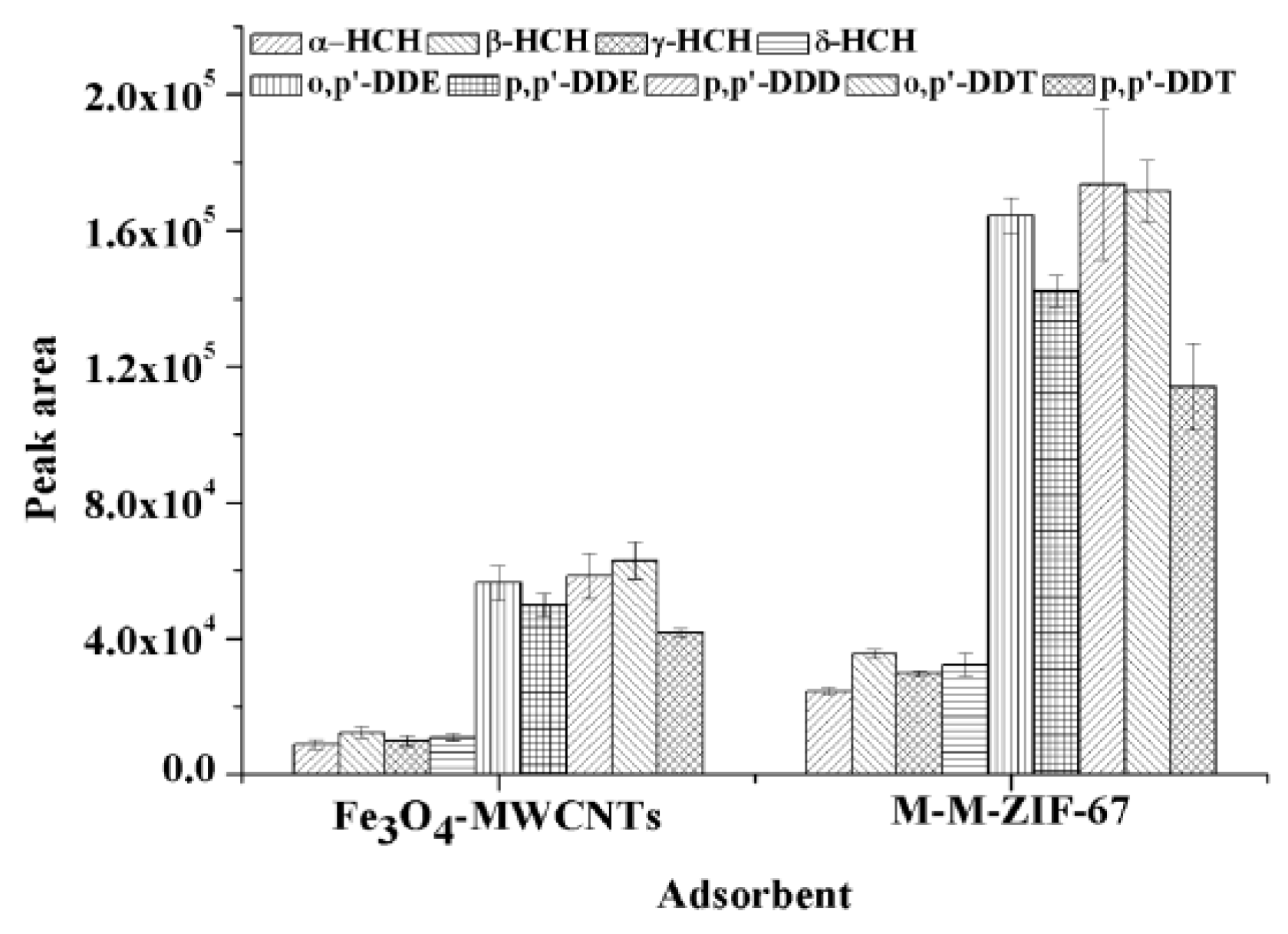

Figure 6. Effect of the sorbent on the adsorption capacities for the nine organochlorine pesticides. Extraction conditions: sample volume, 5 mL; amount of sorbent, 6 mg zeolitic imidazolate framework based on magnetic multiwalled carbon nanotubes and 4 mg magnetic multiwalled carbon nanotubes; and extraction time, 20 min. Desorption conditions: 2 mL of acetonitrile; ultrasonication time, 5 min, and ultrasonication performed one more time. The error bars show the standard deviation of the mean (n = 3).
Figure 6. Effect of the sorbent on the adsorption capacities for the nine organochlorine pesticides. Extraction conditions: sample volume, 5 mL; amount of sorbent, 6 mg zeolitic imidazolate framework based on magnetic multiwalled carbon nanotubes and 4 mg magnetic multiwalled carbon nanotubes; and extraction time, 20 min. Desorption conditions: 2 mL of acetonitrile; ultrasonication time, 5 min, and ultrasonication performed one more time. The error bars show the standard deviation of the mean (n = 3).
Applsci 08 00959 g006
Applsci 08 00959 g007 550
Figure 7. Total ion chromatograms of the nine organochlorine pesticides in water samples obtained by gas chromatography–tandem triple quadrupole mass spectrometry: (a) tap water; (b) river water; (c) underground water; (d) tap water spiked at 10 µg L−1; and (e) tap water spiked at 100 µg L−1.
Figure 7. Total ion chromatograms of the nine organochlorine pesticides in water samples obtained by gas chromatography–tandem triple quadrupole mass spectrometry: (a) tap water; (b) river water; (c) underground water; (d) tap water spiked at 10 µg L−1; and (e) tap water spiked at 100 µg L−1.
Applsci 08 00959 g007
Table
Table 1. Acquisition and chromatographic parameters of the nine organochlorine pesticides.
Table 1. Acquisition and chromatographic parameters of the nine organochlorine pesticides.
PesticidesRetention Time (min)MRM1 a (m/z)CE1 b (eV)MRM2 (m/z)CE2 (eV)
α-HCH c15.32218.90 > 182.908218.90 > 144.9020
β-HCH15.87218.90 > 182.908218.90 > 144.9020
γ-HCH16.01218.90 > 182.908218.90 > 144.9020
δ-HCH16.59218.90 > 182.9010218.90 >144.9020
o,p′-DDE d19.47246.00 > 176.0030246.00 > 211.0022
p,p′-DDE20.09246.00 > 176.0030246.00 > 211.0022
p,p′-DDD e20.90235.00 > 165.0024235.00 > 199.0014
o,p′-DDT f20.95235.00 > 165.0024235.00 > 199.0016
p,p′-DDT21.61235.00 > 165.0024235.00 > 199.0016
a MRM means multiple reaction monitoring transitions; b CE means collision energy; c HCH means hexachlorocyclohexane; d DDE means 1,1-dichloro-2,2-bis(p-chlorophenyl)ethylene; e DDD means [1,1-dichloro-2,2-bis(p-chlorophenyl)ethylene; f DDT means 1,1,1-trichloro-2,2-bis(p-chlorophenyl)ethylene.
Table
Table 2. Analytical parameters of zeolitic imidazolate framework based on magnetic multiwalled carbon nanotubes as an adsorbent for magnetic solid-phase extraction of nine organochlorine pesticides in an ultrapure water sample.
Table 2. Analytical parameters of zeolitic imidazolate framework based on magnetic multiwalled carbon nanotubes as an adsorbent for magnetic solid-phase extraction of nine organochlorine pesticides in an ultrapure water sample.
OCPsLinear Range (µg L−1)Determination CoefficientsLOD a (µg L−1)RSD b (%) (n = 6)
α-HCH2–2000.99530.128.5
β-HCH1–2000.99460.131.0
γ-HCH1–2000.99190.156.2
δ-HCH1–2000.99470.074.0
o,p′-DDE1–2000.99510.171.5
p,p′-DDE1–2000.99890.451.3
p,p′-DDD2–2000.99340.413.1
o,p′-DDT2–2000.99320.743.9
p,p′-DDT2–2000.99161.033.1
a LOD means limit of determination; b RSDs means relative standard deviations, and were determined by performing six replicate analyses of the spiked samples with 10 µg L−1 of each of the organochlorine pesticides.
Table
Table 3. Comparison of different methods for analysis of organochlorine pesticides.
Table 3. Comparison of different methods for analysis of organochlorine pesticides.
MethodSorbentSample Amount (mL)Number of OCPsVolume of Elution SolventSorbent Amount (mg)Extraction Time (min)LODRSD (%)Spiked LevelRef.
MSPE-GC-MS/MS aBMZIF-derived carbon b108Dichloromethane, 2.00 mL6100.39–0.70 ng L−15.5–9.15–500 ng L−1[42]
µ-SPE-GC-MS cZnO-CF d1015Toluene, 0.30 mL15300.19–1.64 µg L−12.3–10.21–50 µg L−1[43]
PT-SPE-GC-ECDeGUF-MIR f13Cyclohexane-ethyl acetate (9:1, v/v), 0.60 mL5-0.24–0.66 ng g−13.5–6.72.2–220 ng g−1[44]
MSPE-GC-ECDRGO/Fe3O4@Au g106Acetonitrile, 0.25 mL20100.4–4.1 µg L−11.7–7.3100 µg L−1[45]
MSPE-GC-µECDFe3O4@MAA@IBL h205Acetonitrile, 0.20 mL20101.0–1.9 ng L−16.2–8.3100 µg L−1[46]
d-μSPE i-GC-MSrGO-amino-HNT@PT j106Acetonitrile, 0.50 mL552–13 ng L−16.1–9.75–70 µg L−1[47]
µ-SPE-GC-MSMIL-101 k105Ethyl acetate, 0.20 mL4402.5–16 ng L−14.2–11.010 µg L−1[48]
MSPE-GC/ECDβ-CD/MRGO l5016acetonitrile-dichloromethane (4:1, v/v), 1.00 mL1530.5–3.2 ng Kg−13.3–7.850 ng kg−1[49]
MSPE-GC-MS/MSM-M-ZIF-67 m59Acetonitrile, 4.00 mL6200.07–1.03 µg L−11.0–8.510 µg L−1This work
a magnetic solid-phase extraction followed by gas chromatography–tandem triple quadrupole mass spectrometry determination; b micro solid-phase extraction followed by gas chromatography–mass spectrometry determination; c Bimetallic MOF; d Zinc oxide nanoparticles incorporated in carbon foam; e Miniaturized pipette tip solid-phase extraction followed by gas chromatography combination with electronic capture detector determination; f Glyoxal–urea–formaldehyde molecularly imprinted resin; g Reduced graphene oxide/Fe3O4@gold nanocomposite; h Fe3O4@mercaptoacetic acid@imine-based ligand; i dispersive micro solid-phase extraction; j Reduced graphene oxide–amino-halloysite nanotubes@polythiophene; k metal-organic framework; l β-Cyclodextrin/iron oxide-reduced graphene oxide hybrid nanostructure; m zeolitic imidazolate framework based on magnetic multiwalled carbon nanotubes.
Table
Table 4. Analytical results for determination of organochlorine pesticides in real water samples.
Table 4. Analytical results for determination of organochlorine pesticides in real water samples.
MatrixAnalyteSpiked Concentration (µg L−1, n = 3)
010100
FoundRecovery (%)RSD (%)Recovery (%)RSD (%)
Tap waterα-HCH<LOD83.47.484.70.7
β-HCH<LOD92.59.6103.70.6
γ-HCH<LOD93.35.591.90.4
δ-HCH<LOD94.66.6111.11.0
o,p′-DDE<LOD85.43.499.65.3
p,p′-DDE<LOD78.11.5107.53.1
p,p′-DDD<LOD76.02.597.02.5
o,p′-DDT<LOD83.15.489.22.1
p,p′-DDT<LOD93.72.1105.71.6
River waterα-HCH<LOD76.85.780.52.4
β-HCH<LOD91.33.1102.50.8
γ-HCH<LOD84.18.591.23.5
δ-HCH<LOD74.95.9112.72.6
o,p′-DDE<LOD110.84.794.30.1
p,p′-DDE<LOD102.54.8100.91.2
p,p′-DDD<LOD101.93.492.20.7
o,p′-DDT<LOD108.64.386.91.2
p,p′-DDT<LOD110.83.5100.90.8
Underground waterα-HCH<LOD81.08.780.33.3
β-HCH<LOD83.97.897.22.1
γ-HCH<LOD90.17.580.45.2
δ-HCH<LOD79.515.3112.72.0
o,p′-DDE<LOD101.58.482.91.9
p,p′-DDE<LOD95.37.681.01.4
p,p′-DDD<LOD92.88.975.12.2
o,p′-DDT<LOD111.16.4110.33.2
p,p′-DDT<LOD116.33.790.52.3

Share and Cite

MDPI and ACS Style

Huang, X.; Liu, G.; Xu, D.; Xu, X.; Li, L.; Zheng, S.; Lin, H.; Gao, H. Novel Zeolitic Imidazolate Frameworks Based on Magnetic Multiwalled Carbon Nanotubes for Magnetic Solid-Phase Extraction of Organochlorine Pesticides from Agricultural Irrigation Water Samples. Appl. Sci. 2018, 8, 959. https://doi.org/10.3390/app8060959

AMA Style

Huang X, Liu G, Xu D, Xu X, Li L, Zheng S, Lin H, Gao H. Novel Zeolitic Imidazolate Frameworks Based on Magnetic Multiwalled Carbon Nanotubes for Magnetic Solid-Phase Extraction of Organochlorine Pesticides from Agricultural Irrigation Water Samples. Applied Sciences. 2018; 8(6):959. https://doi.org/10.3390/app8060959

Chicago/Turabian Style

Huang, Xiaodong, Guangyang Liu, Donghui Xu, Xiaomin Xu, Lingyun Li, Shuning Zheng, Huan Lin, and Haixiang Gao. 2018. "Novel Zeolitic Imidazolate Frameworks Based on Magnetic Multiwalled Carbon Nanotubes for Magnetic Solid-Phase Extraction of Organochlorine Pesticides from Agricultural Irrigation Water Samples" Applied Sciences 8, no. 6: 959. https://doi.org/10.3390/app8060959

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
