Toward Better PV Panel’s Output Power Prediction; a Module Based on Nonlinear Autoregressive Neural Network with Exogenous Inputs

Abstract

Much work has been carried out for modeling the output power of photovoltaic panels. Using artificial neural networks (ANN_S), one could efficiently model the output power of heterogeneous photovoltaic (HPV) panels. However, due to the existing different types of artificial neural network implementations, it has become hard to choose the best approach to use for a specific application. This raises the need for studies that develop models using the different neural networks types and compare the efficiency of these different types for that specific application. In this work, two neural network types, namely, the nonlinear autoregressive network with exogenous inputs (NARX) and the deep feed-forward (DFF) neural network, have been developed and compared for modeling the maximum output power of HPV panels. Both neural networks have four exogenous inputs and two outputs. Matlab/Simulink is used in evaluating the proposed two models under a variety of atmospheric conditions. A comprehensive evaluation, including a Diebold-Mariano (DM) test, is applied to verify the ability of the proposed networks. Moreover, the work further investigates the two developed neural networks using their actual implementation on a low-cost microcontroller. Both neural networks have performed very well; however, the NARX model performance is much better compared with DFF. Using the NARX network, a prediction of PV output power could be obtained, with half the execution time required to obtain the same prediction with the DFF neural network, and with accuracy of ±0.18 W.

1. Introduction

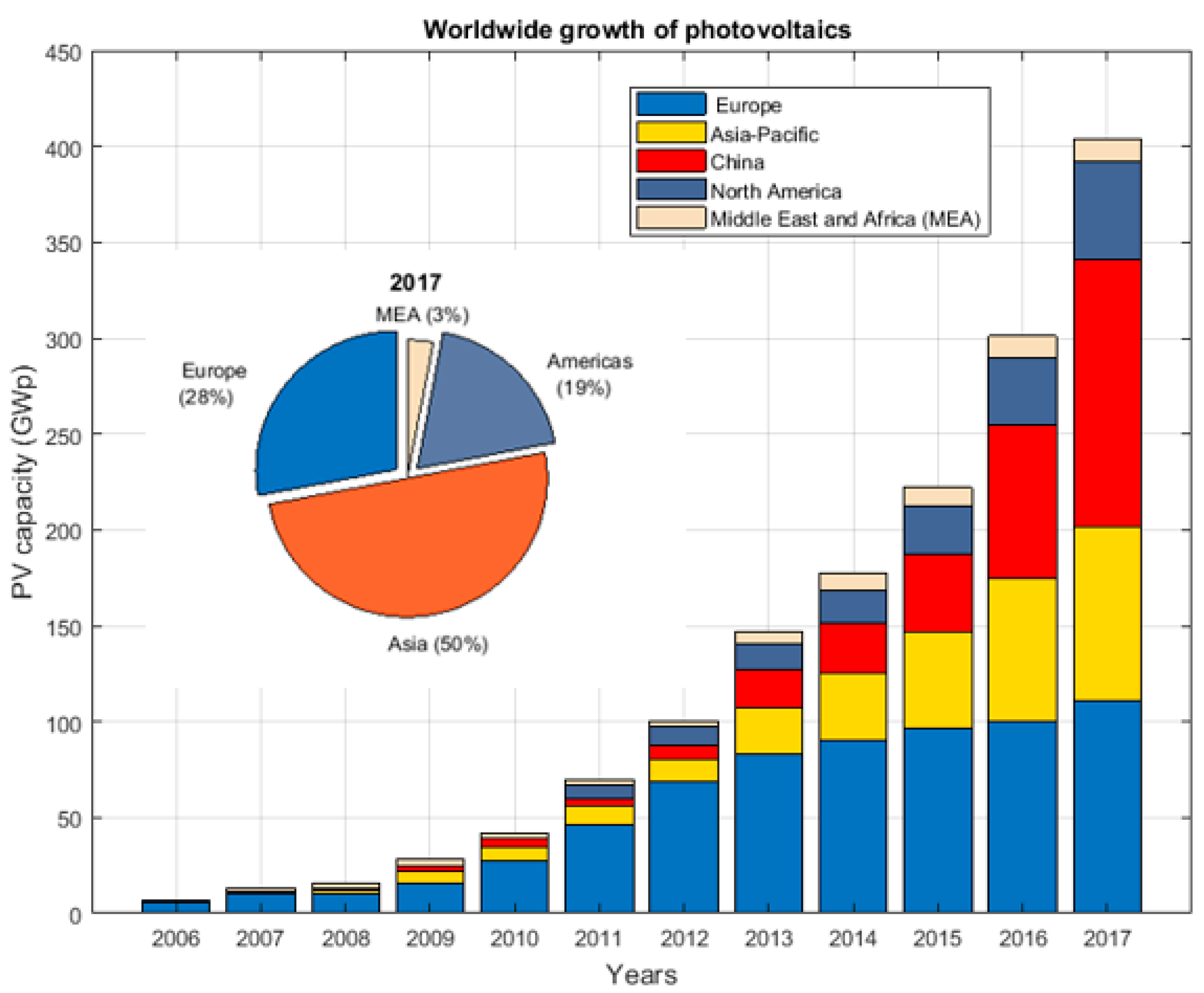

In the last decade, solar energy has been of great interest to investors, governments, energy operators, and international organizations. This is because of its multiple environmental and economic benefits. To generate electricity from solar energy, one can either use solar thermal or photovoltaic (PV) panels. However, the PV panel’s systems have gained global acceptance and are now playing an important part in providing sustainable clean energy [1]. Consequently, over the past few years, there have been tremendous growths in the PV panel’s usage all over the globe. This can be clearly induced from Figure 1, in which the x-axis characterizes the year, and where the y-axis characterizes the amount of power produced from PV panels in Gigawatts (GW). As illustrated in Figure 1, the global capacity of power produced from PV panel’s installations increased in two years (2006–2008) from 6.7 GW to 16.0 GW and increase continuously to reach 100.5 GW in the next four years (2008–2012). In total, the installed PV panels’ capacity has increased all over the globe from 6.7 GW to 404 GW in the last 12 years. This continuous growth is anticipated to progress at a similar or even at a higher rate in the forthcoming years. This can be related to the technological benefit of the PV panels. In summary; from the year 2006 to 2017, we see an exponential increase in the amount of power produced from the PV panels [2]. This exponential growth of the PV panel’s power production, all over the globe, is proportional to the exponential increase in the number of PV panels used to produce such power.

However, the power generated from a PV panel depends on a number of uncertain meteorological aspects such as atmospheric temperature, PV panel temperature, and solar irradiance. Thus, the accurate prediction of PV panel’s output power production is highly difficult. The unforeseen PV panel’s power output creates different negative effects on the quality, the stability, and the reliability of an electrical grid system. These negative effects hinder any possibility for effective distribution scheduling and/or management of the generated power [3,4]. On the other hand, precise forecasting of the PV panel’s output power production can improve the reliability of the system. This could be carried out to keep an effective schedule that would maintain the power quality and stabilization with a grid with secure operation [5].

As a result, a precise prediction of PV power production is of great importance and imposes a rich research area with many challenges. This can be clearly induced by the amount of research that has been carried out to forecast solar power and PV panel’s output power through different perspectives. Various methods have been implemented, including numerical weather prediction [2,6,7,8], statistical [2,9,10,11], and artificial neural networks (ANN_S) [2,12,13,14,15,16]. Several studies have illustrated that ANN_S are more appropriate when compared to other techniques; especially when a complicated and non-linear connection occurs between the data without any prior presumption [17,18,19].

In addition, because of the excellent outcomes achieved in actual applications [20,21,22,23], ANNs are chosen to be of the most popular models. One great benefit of the ANN model is its ability to model non-linear data associations. The authors in [24,25] employed a neural network to energy consumption approximation. Deb et al. [26] discussed a procedure to predict the energy consumption of day time load of cooling institutional buildings. Paoli et al. [27] developed a multi-layer perceptron for solar radiation forecasting. Mandal et al. [16] presented a PV system power output one-hour-ahead forecasting by combining radial basis and wavelet transform function neural network. Saberian et al. [28] used both the feed-forward neural network (FFNN) and the general regression neural network (GRNN) to forecast the power output of photovoltaic cells. They concluded that FFNN outperformed GRNN.

All previously cited studies [12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28] modeled the output power of photovoltaic panels using static neural networks techniques (e.g., FFNN). In actual life applications, there are many non-linear systems, such as the PV panels, whose behavior varies according to their contemporary state. Therefore, in the past few years, researchers have developed new dynamic forecasting techniques that improve the accuracy and stability of model prediction [29]. Among these techniques are the dynamic recurrent neural network (RNN) and the nonlinear autoregressive network with exogenous inputs (NARX) [30,31]. Wunsch et al. [32] applied the NARX to obtain groundwater level forecasts for several wells in southwest Germany. In [33], convolutional neural network combined with a recurrent neural network (RNN) is used for automatic lip-reading recognition. Ahmad et al. [34] used an autoregressive RNN with exogenous inputs and weather variables to provide a day-ahead forecast of hourly solar irradiance in New Zealand. In [35], RNN combined with a wavelet neural network (forming a diagonal recurrent wavelet neural network) is presented to perform day-ahead solar irradiance forecasting. As opposed to recurrent networks, NARX have a lower number of feedback connections, which comes only from the output neuron rather than from hidden states. Hence, NARX has lower implementation complexity compared with RNN, especially when it comes to hardware implementation. Moreover, there are not many studies showing the effect of using such techniques in the PV output power forecasting field.

Nevertheless, the field of PV panel’s output power prediction is an open field and much work is required toward obtaining better and more accurate techniques. In the field of PV panel’s and solar energy, the area of ANN_S has yet many benefits to offer. Due to many ANN_S models and variations, one needs to explore the different kinds of ANN_S and their customization to reveal the benefits ANN_S can offer to accommodate different criteria. Among these criteria, we can point out, finding small size ANN_S to fit a low-cost embedded system, providing for more accuracy, and the support for heterogeneity in terms of different geolocation also manufacturing characteristics.

Hence, this study focuses on the output power modeling of heterogeneous PV panels using the NARX neural network. Moreover, a neural network module based on deep feed-forward (static network) is developed for comparison and investigation purposes of the proposed network. The deep feed-forward (DFF) has gained a lot of attention in recent years due to flexibility and accuracy in different application. In the end, the work presents a comparison between the running time of both networks implementations ona low-cost microcontroller. This implementation allows the proposed work to be used as a submodule in real-time PV panel’s monitoring system.

2. Artificial Neural Networks Topology

In this work, two promising neural network architectures have been developed for modeling the output power of HPV. The first model is the DFF neural network, and the second is the NARX neural network. The two models developed to tackle different manufactured PV panels. The following subsections describe the topology and the training algorithm used to implement these models.

2.1. DFF Neural Network

A DFF network, also called a Multilayer Perceptron (MLP), is a neural network structure that is used in many applications. It is applied to both discrete and discontinuous problems [36,37].

MLPs consist of neurons, which are structured into layers. The input layer and the output layer are the first layer and the last layer, respectively. The hidden layers are the ones in between the first layer and the last layer.

There is a specific function for each layer in the MLP. The input signals are accepted through the input layer and redistributed to all the hidden layer neurons. The hidden layer stimulus patterns are propagated to the output layer, which produces the entire network output pattern. The hidden layer neurons detect the input patterns’ hidden features. The output layer uses these features to calculate the final output. Figure 2 shows the topology of the developed DFF neural network.

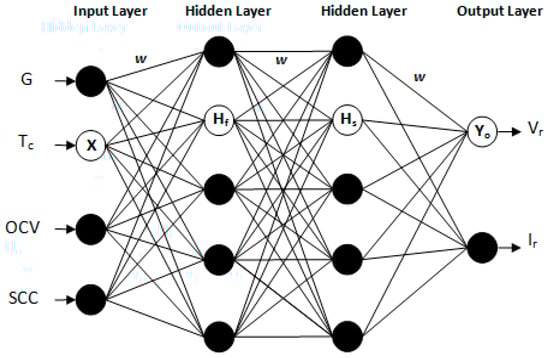

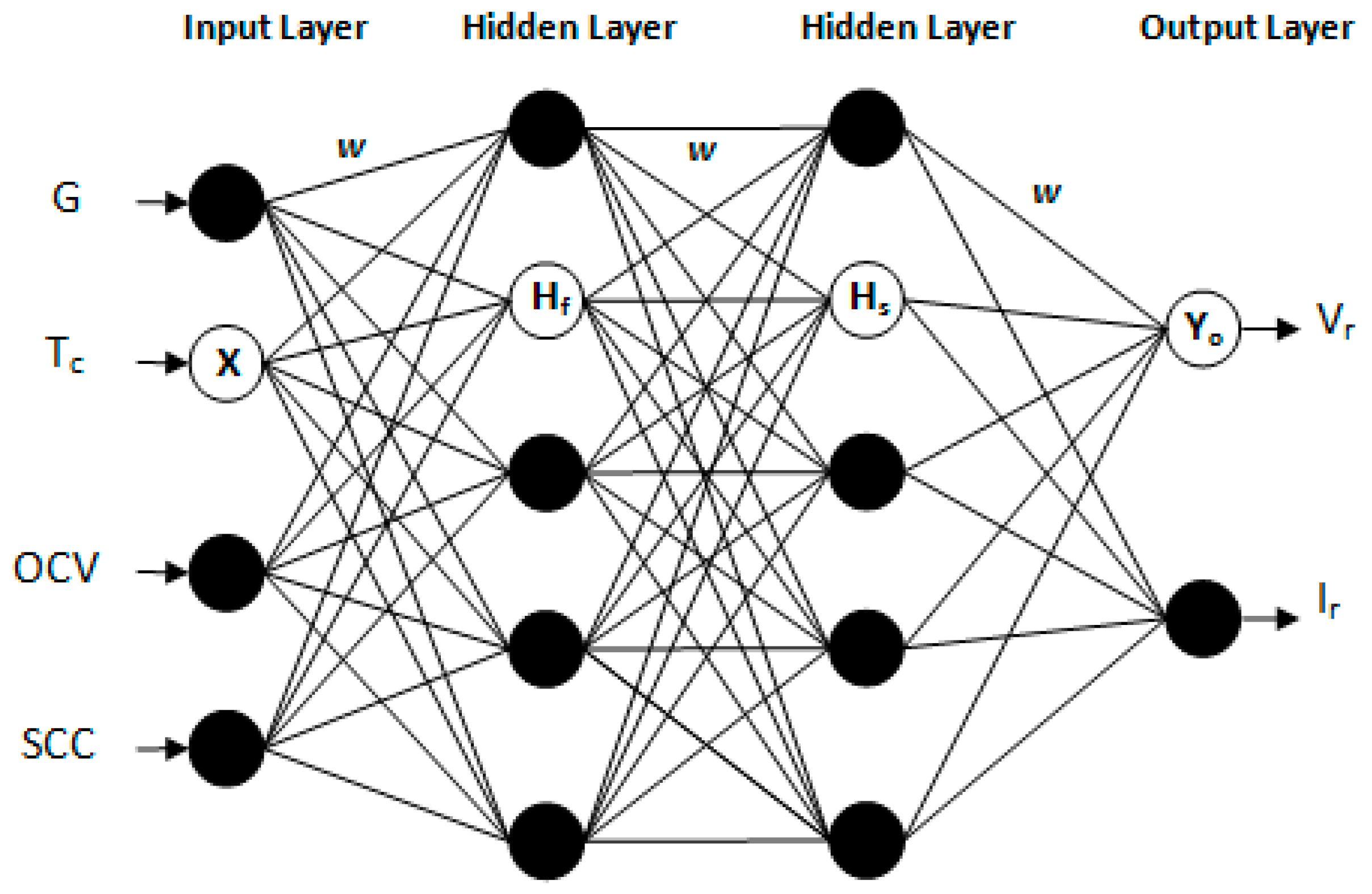

As illustrated in Figure 2, the developed DFF model is composed of four layers. The input layer accepts the panel’s temperature, the solar radiation, and the panel’s Short Circuit Current (SCC) and Open Circuit Voltage (OCV) at 1 kW/m² and 25 °C. Each layer of the two hidden layers is composed of five neurons. Each of these neurons uses an activation function, which is the hyperbolic tangent sigmoid transfer function. The output layer consists of two nodes, which calculate the optimum operating voltage and the optimum current that correspond to the inputs at the input layer. Nodes of the output layer use a linear activation function.

Thus, the actual output of the neurons in the computational layers can be represented as in Equations (1)–(3):

$$H{f}_j=\frac{2}{1+e^{-2\left({\displaystyle \sum _{i=1}^4{x}_i{w}_{ij}-{\theta }_j}\right)}}-1$$

(1)

$$H{s}_k=\frac{2}{1+e^{-2\left({\displaystyle \sum _{j=1}^{5}H{f}_j{w}_{jk}-{\theta }_k}\right)}}-1$$

(2)

$$Y{o}_l={\displaystyle \sum _{k=1}^{5}H{s}_k{w}_{kl}-{\theta }_l}$$

(3)

where Hf_j is the jth node output in the first hidden layer,$\theta$_j is the threshold applied to the neuron j, w_ij is attained through the neural network training stage and it represents the weight between ith node in the input layer and the jth node in the first hidden layer, x_i is the value of input I, Hs_k is the kth node output in the second hidden layer, $\theta$_k is the threshold applied to the neuron k, w_jk is obtained during the training phase of the neural network and it represents the weight between the jth node in the first hidden layer and kth node in the second hidden layer, Yo_l is the lth node output in the output layer, $\theta$_l is the threshold applied to the neuron l, and w_kl is obtained during the training phase of the neural network and it represents the weight between the kth node in the second hidden layer and lth node in the output layer.

2.2. NARX Neural Network

NARX is a neural network with recurrent dynamic behavior [38,39,40] that has been effectively used for time series problems estimation. The main difference between MLP and NARX is that NARX allows a weighted feedback connection between layers of neurons. This allows the NARX models to consider lagged (past period) values of variables, which make them suitable for time series analysis. Alternatively, although in the literature, there are many approaches for time series analysis, such as the autoregressive integrated moving average approach and the autoregressive moving average approach; these approaches cannot cope with nonlinear problems [41,42]. NARX, however, can efficiently be used for modelling time series with non-linear behavior.

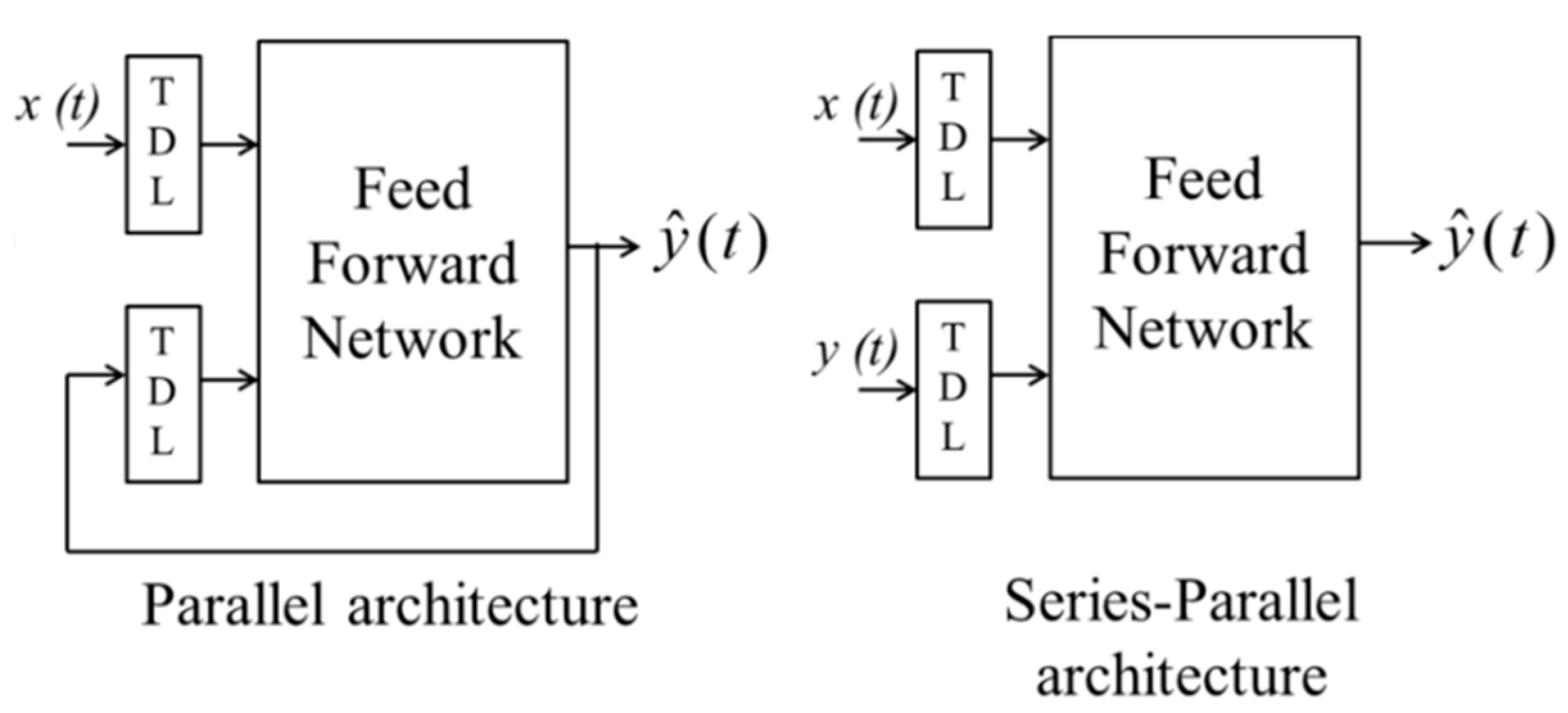

The NARX neural network can be constructed into one of two architectures [31], the parallel architecture (namely close-loop architecture), and the series-parallel architecture (namely, open-loop architecture), see Figure 3.

This study uses the open-loop architecture. This is because of the pure feed-forward network architecture and the past accurate values availability of the time series. The NARX network behavior, in compliance with the time series forecast, can be mathematically modeled by the equation shown in Equation (4) [31]:

$$y(t)=f(y(t-1),y(t-2),\dots y(t-n_y),x(t-1),x(t-2),\dots ,x(t-n_x))$$

(4)

This equation defines in what way a NARX network is used to forecast a data series y(t) value. The equation makes use of the previous values of the y series and another external series x. The f() unknown function is a mapping function, and it is the purpose of the training phase of the network to find an approximation of this mapping function. This is done through an optimization process of the neuron bias and the network weights.

As mentioned above, the NARX is a model with non-linear behavior that has the ability to approximate forthcoming values of time series using its former calculated values and some exterior data. In the presented work, NARX is used to estimate the values of the optimum operating voltage and current. As inputs, the NARX uses four inputs with exterior data at time t − 1. In addition, the NARX uses two time-series inputs that represent its previous outputs of the estimated optimum operating voltage and current at time t − 1. Figure 4 shows the developed NARX network discussed in this work.

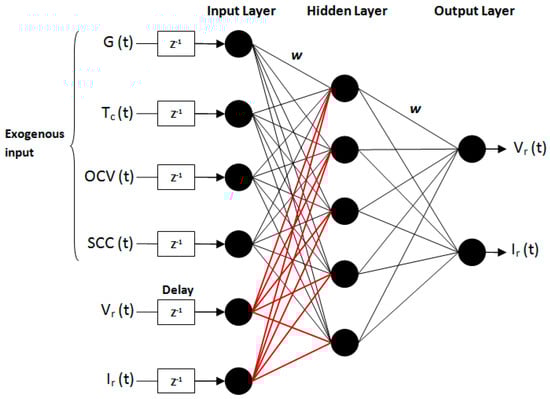

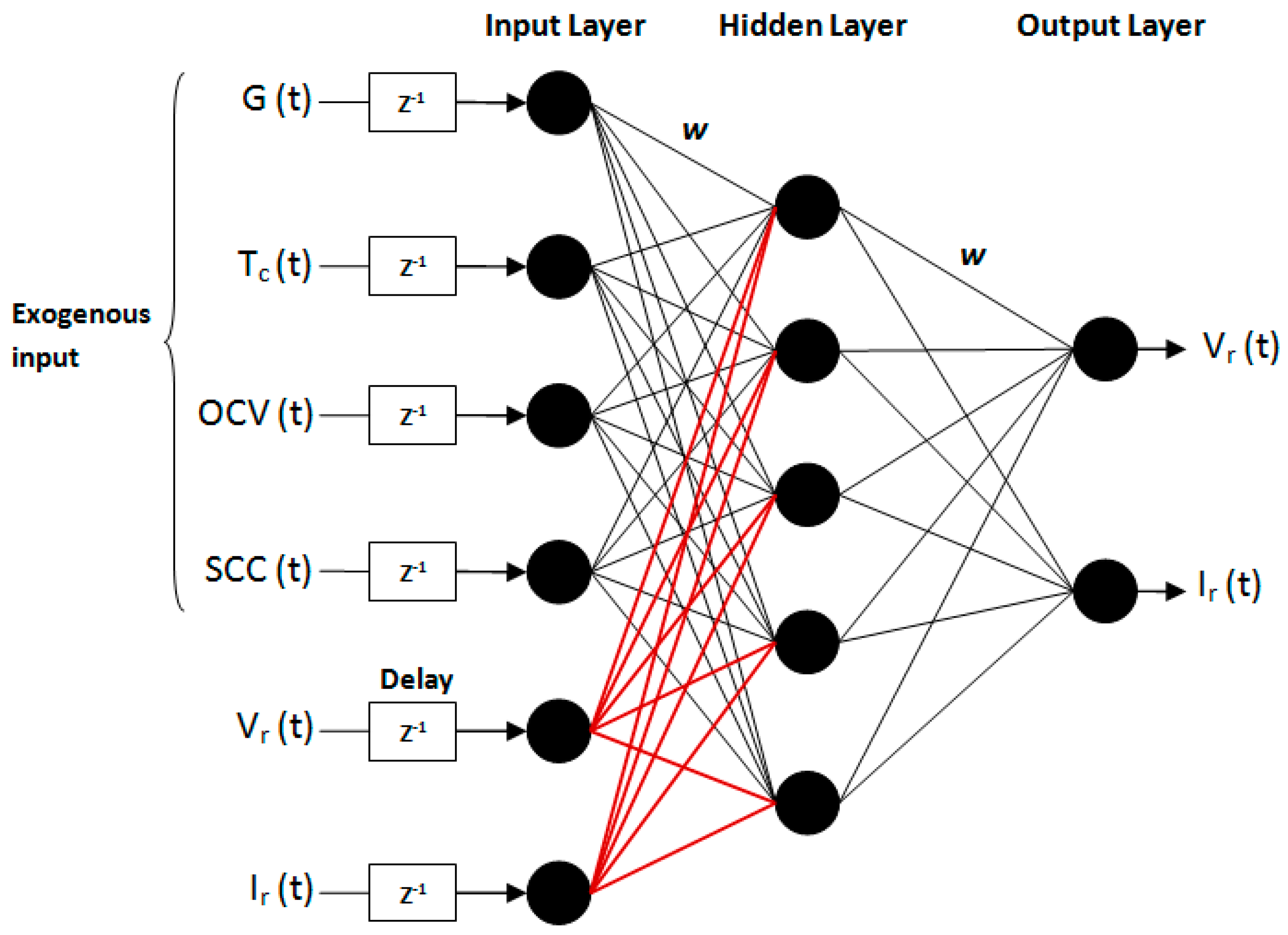

As illustrated in Figure 4, the first layer has six nodes of inputs. These are the panel temperature, the solar radiation, the panel OCV, the panel SCC, and the two output values previously attained from the time series. In the middle (hidden) layer there are five nodes with hyperbolic tangent sigmoid transfer activation function. The last layer consists of two nodes, which calculate the two outputs of the network. These are the optimum operating current and voltage. A linear activation function is used in the nodes of the last layer.

2.3. Training Algorithm

Many training methods have been developed for neural networks [43,44]; these include the Gradient Descent training approach, the Resilient Back-propagation training approach, the Levenberg-Marquardt (LM) approach, and the Gauss-Newton training approach. The LM training approach has been selected for training both of the developed topologies (see Figure 3 and Figure 4). The LM training method is less sensitive to local converges, and therefore, it provides a better learning training approach. Moreover, it provides a balanced tradeoff between the stability and training speed [43].

The LM training approach was developed to estimate the derivative of the second-order without the particular Hessian matrix computation requirement. Instead, it only requires the Jacobian matrix, also the gradient vector.

Equation (5) is used to calculate the loss function gradient vector when the performance function resembles the mean squared error (MSE). Using the Jacobian matrix we can estimate the Hessian matrix as shown in Equation (6) [43]:

$$\nabla f=J^{T}e$$

(5)

$$H\approx J^{T}J+\mu I$$

(6)

In Equations (5) and (6), e denotes the error vector, I represents the identity matrix, the combination coefficient μ is always greater than zero, and the Jacobian matrix J can be defined as in Equation (7):

$$J_{i,j}=\frac{\partial e_i}{\partial w_j},wherej=1,\dots ,mandi=1,\dots ,n$$

(7)

Equations (5) and (6) can be combined to form the update rule ∆w shown in Equation (8) [43]:

$$\Delta w={(J{J}^T+\mu I)}^{-1}{J}^{T}e$$

(8)

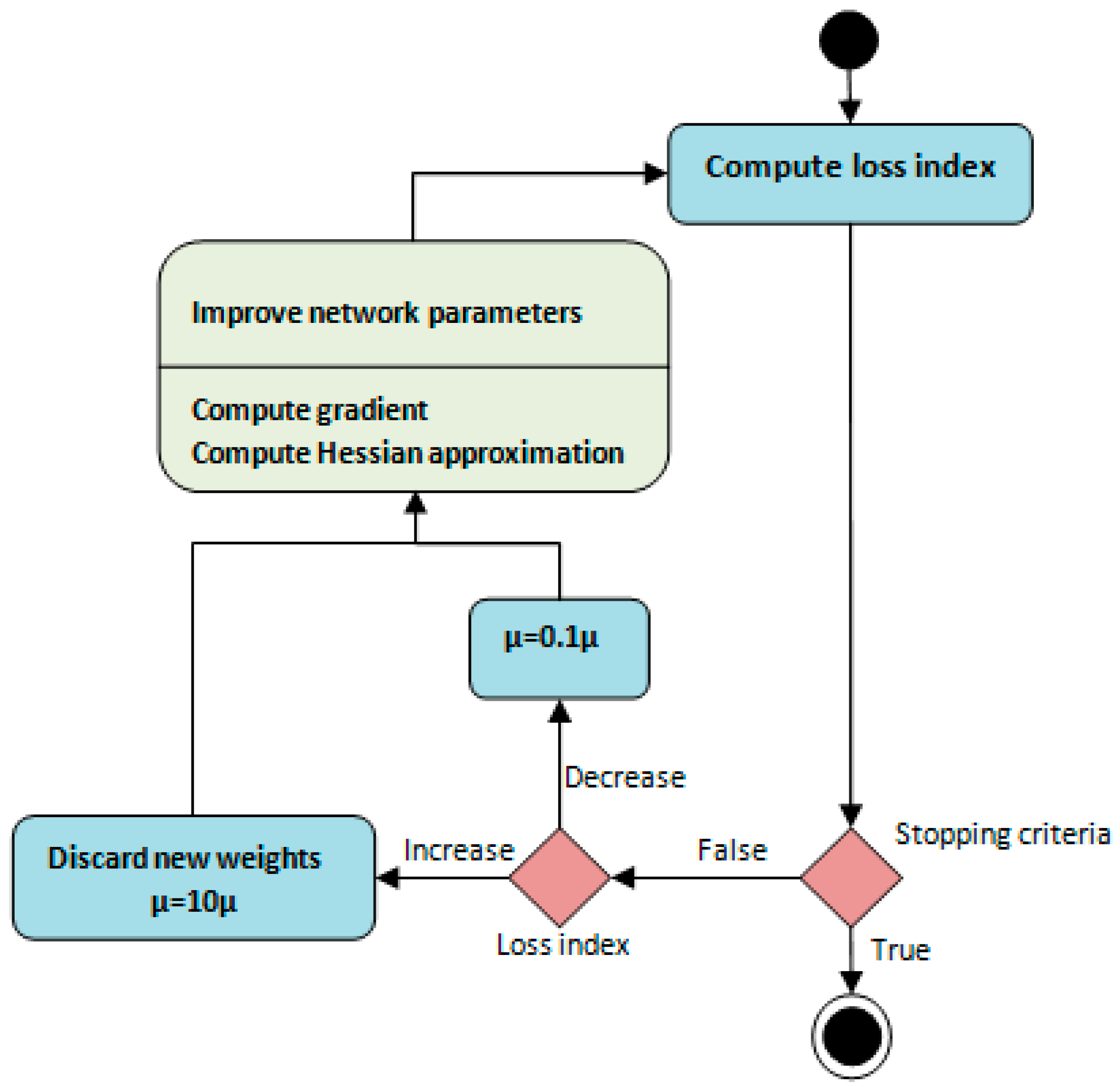

The state diagram for the training algorithm is shown in Figure 5. The training process begins by calculating the loss (MSE), the Hessian approximation, and the gradient. The training objective is to minimize the loss (MSE) as much as possible. This is done by tuning the parameter (µ) of the learning rate as follows:

• µ is multiplied by 10 when the current epoch MSE exceeds the previous value.
• µ is multiplied by 0.1 when the MSE is equal or less to the previous one.

2.4. Dataset Collection

Meteorological data consisting of solar irradiance and temperature were gathered in real-time from An-Najah Energy Research Center (ERC) [45]. The equipment used to collect the dataset consists of a temperature sensor to measure the PV panel body temperature (namely, the sensor WE710 with ±0.25 °C precision), and a high accuracy solar radiation sensor (namely, the sensor WE300 with ±1% precision).

Despite the precision of the used sensors, the data captured are sometimes unreliable, noisy, or incomplete. This is primarily due to a sensor error percentage or noise in connections. Hence, to overcome the noise in the obtained data, a moving average filter [46] was used, see Figure 6. The meteorological data were collected on an hourly based manner in the period from February 2018 to July 2018. Anomalies in data due to a broken or unfunctional device/sensor were eliminated.

The targeted output voltage (Vr) and current (Ir) are collected by running a MATLAB code that analyses the validated PV model output characteristics [47,48,49,50]. The dynamic behaviour of the proposed PV model has been validated previously by the author for different types of PV modules under variety of solar radiation and temperature conditions. High agreement between the outcomes of the model and the experimental data was achieved. Results and validation of the module can be found in the author previous work published in [50].

Three different photovoltaic panels were used to obtain data; these are the Astronergy-CHSM6610P panel, the Sharp’s-NUS0E3E panel, and Lorentz mono-crystalline panel. Standard testing conditions used when recording the PV panel’s manufacturer specifications.

Table 1. The used PV panel’s manufacturer specifications.

	Astronergy-CHSM6610P	Sharp’s NUS0E3E	Lorentz Mono-Crystalline
Max power (Pm)	225 W	180 W	75 W
Voltage when power at max	29.76 V	23.7 V	16.5 V
Current when power at max	7.55 A	7.6 A	4.6 A
Voltage at Open circuit	36.88 V	30 V	21.0 V
Current at Short circuit	8.27 A	8.37 A	5.4 A
OCV Temp coefficient	−0.129 V/°C	−104 mV/°C	−60.8 mV/°C
SCC Temp coefficient	+0.052%/°C	+0.053%/°C	3.0 mA/°C

shows the used PV panel’s manufacturer specifications.

For the proposed neural networks to be modeled, the collected data were separated into three parts: testing (25%), training (60%), and validation (15%). To have the same range of values, a normalization process [49] is done on all data to be in the range(−1 to +1) using Equation (9):

$$A=\left(B-B_{\min }\right)\left[\frac{A_{\max }-A_{\min }}{B_{\max }-B_{\min }}\right]+A_{\min }$$

(9)

where the normalized value is denoted by A, and B denotes the non-normalized value. When the result is obtained, it becomes normal after using Equation (10).

Table 2. Typical random examples of the training sets.

	1st Pattern		2ed Pattern		3ed Pattern		4th Pattern		5th Pattern		6th Pattern
	NDP	DP	NDP	DP	NDP	DP	NDP	DP	NDP	DP	NDP	DP
G (W/m2)	−0.0315	485	−0.1859	410	0.1256	565	−0.3467	330	0.01507	510	0.21608	610
TC (°C)	0.0	20	−0.3333	15	0.3333	25	−0.6666	10	0.0	20	0.6666	30
OCV a	1.0	36.88	1.0	36.88	0.1335	30	0.1335	30	−1.0	21	−1.0	21
SCC a	0.9326	8.27	0.9326	8.27	1.0	8.37	1.0	8.37	−1.0	5.4	−1.0	5.4
Vr (V)	0.7510	30.44	0.8092	31.35	0.3538	23.615	0.4941	25.89	−0.0319	16.79	−0.0999	15.88
Ir (A)	−0.1131	3.56	−0.2573	2.99	0.0447	4.21	−0.4686	2.15	−0.4699	2.16	−0.3361	2.65

^a These input parameters allow the proposed networks to tackles different types of PV panel’s.

shows typical examples of the used datasets.

$$B=\left(A-A_{\min }\right)\left[\frac{B_{\max }-B_{\min }}{A_{\max }-A_{\min }}\right]+B_{\min }$$

(10)

3. Results and Discussion

3.1. Neural Network Structure

Several trials have been performed to determine the neural network configuration.

Table 3. Attributes of the proposed neural network model’sstructures. MSE: mean squared error.

NARX Structure		DFF Structure
Attribute	Choice	Attribute	Choice
Number of hidden layers	1	Num.of hidden layers	2
Normalization interval of dataset	[−1,1]	Normalization Interval of dataset	[−1,1]
Tapped delay line (TDL)	1 b	TDL	0
Error	MSE	Error	MSE
Training approach	Levenberg-Marquardt	Training approach	Levenberg-Marquardt

^b One input delay and one output delay.

presents some important parameters for the selected configurations. The decisions have been made based on two imperatives attributes which are: the number of nodes in hidden layers, and the choice of each layer activation function.

Choosing each layer activation function is proven to be an important issue. Moreover, previous studies showed that multilayer network with linear output neurons and sigmoid hidden neurons are arbitrarily well-fitted to map multi-dimensional problems [36,49]. Hence, in this study, the activation function of the hyperbolic tangent is implemented for the hidden layers, also the linear activation function is implemented for the output layer. There is an advantage, especially when using the Levenberg-Marquardt training approach, to use the hyperbolic tangent function. The fact that this function is derivable, gives the advantage for easier neural network weights tuning.

The last important parameter, which must be studied to complete the structures of the neural networks, is the number of nodes in each hidden layer.

Table 4. Best-obtained results vs.the hidden layer’snumber of neurons.

NARX Model			DFF Model
Number of Nodes/Neurons	MSE Train	MSE Test	Number of Nodes/Neurons	MSE Train	MSE Test
2	0.0365	0.0465	2 × 2	1.5618	2.9642
3	0.0131	0.0315	3 × 3	0.7764	0.8642
4	0.00964	0.010065	4 × 4	0.5831	0.6945
5	0.007589	0.006415	4 × 5	0.4816	0.4951
6	0.010832	0.009921	5 × 5	0.4167	0.4283
7	0.009412	0.007052	5 × 6	0.4576	0.4891
8	0.008641	0.007731	6 × 5	0.4317	0.5172

compares the best MSE results to various hidden layer’s number of neurons for both NARX and DFF network.

As shown in Table 4 the best-obtained structure of the DFF model is when having five neurons in each hidden layer. The MSE for both training and testing with this structure are 0.4167 and 0.4283, respectively. However, using the NARX model the results were much better. Result shows that when having five neurons in one hidden layer, the MSE for both testing and training are 0.006415 and 0.007589, respectively.

3.2. Evaluation of the Proposed Network Models

Before starting the simulation, the dataset was divided into three parts: testing (1680 cases), validation (840 cases), and training (5880 cases). The training and validation sets are used during the training stage. The training dataset part is used to find the neural network bias and weights. The over fitting was minimized using the validation set. Figure 7, shows the results throughout the training and validation stages.

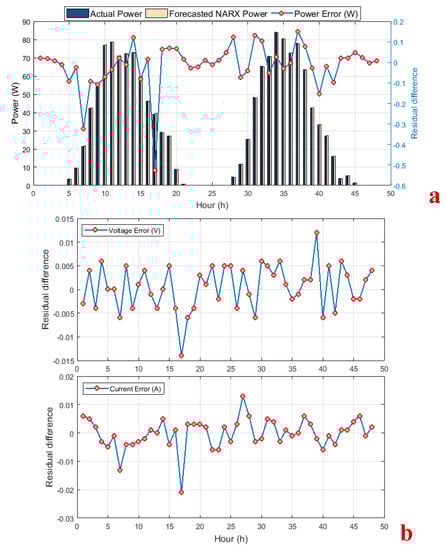

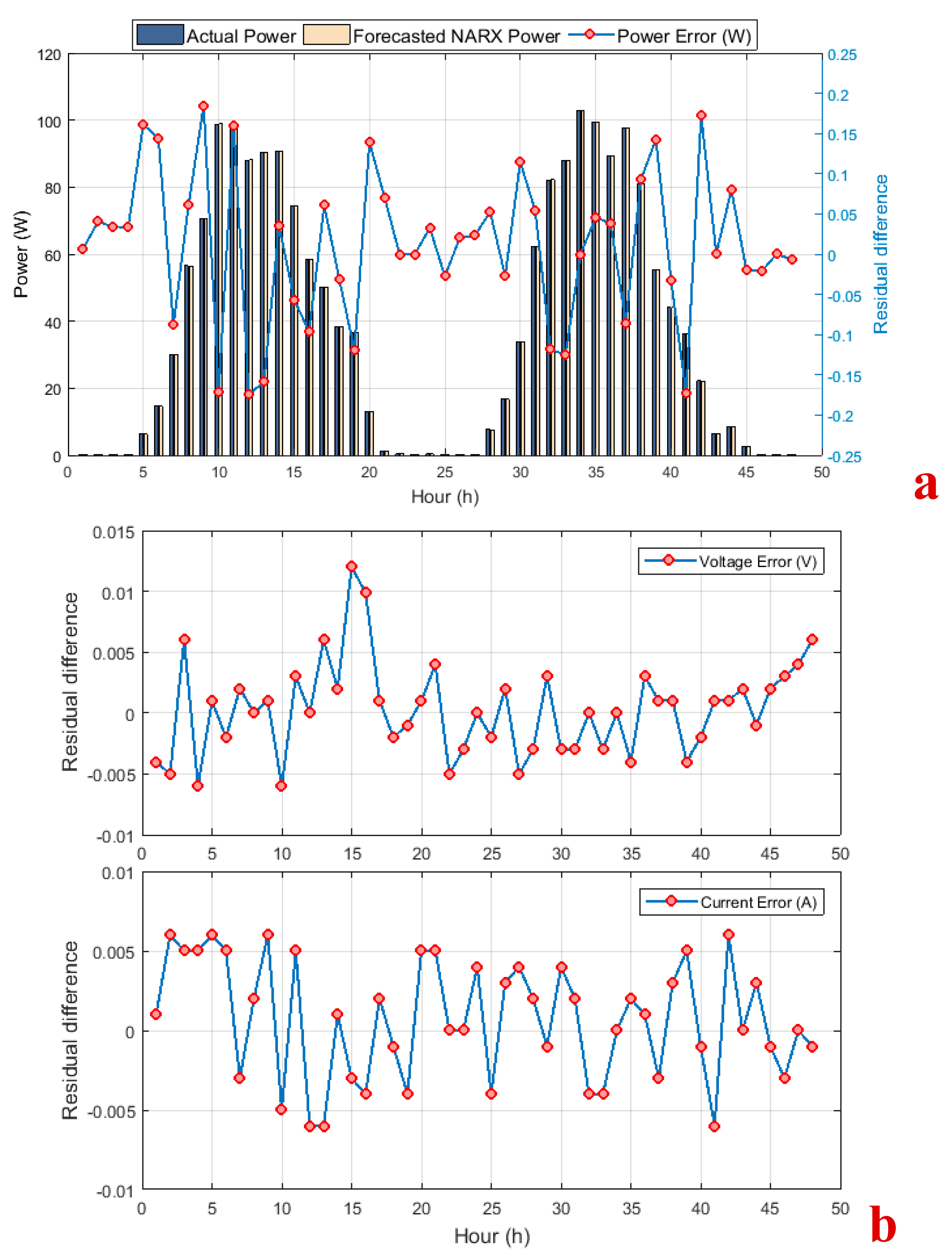

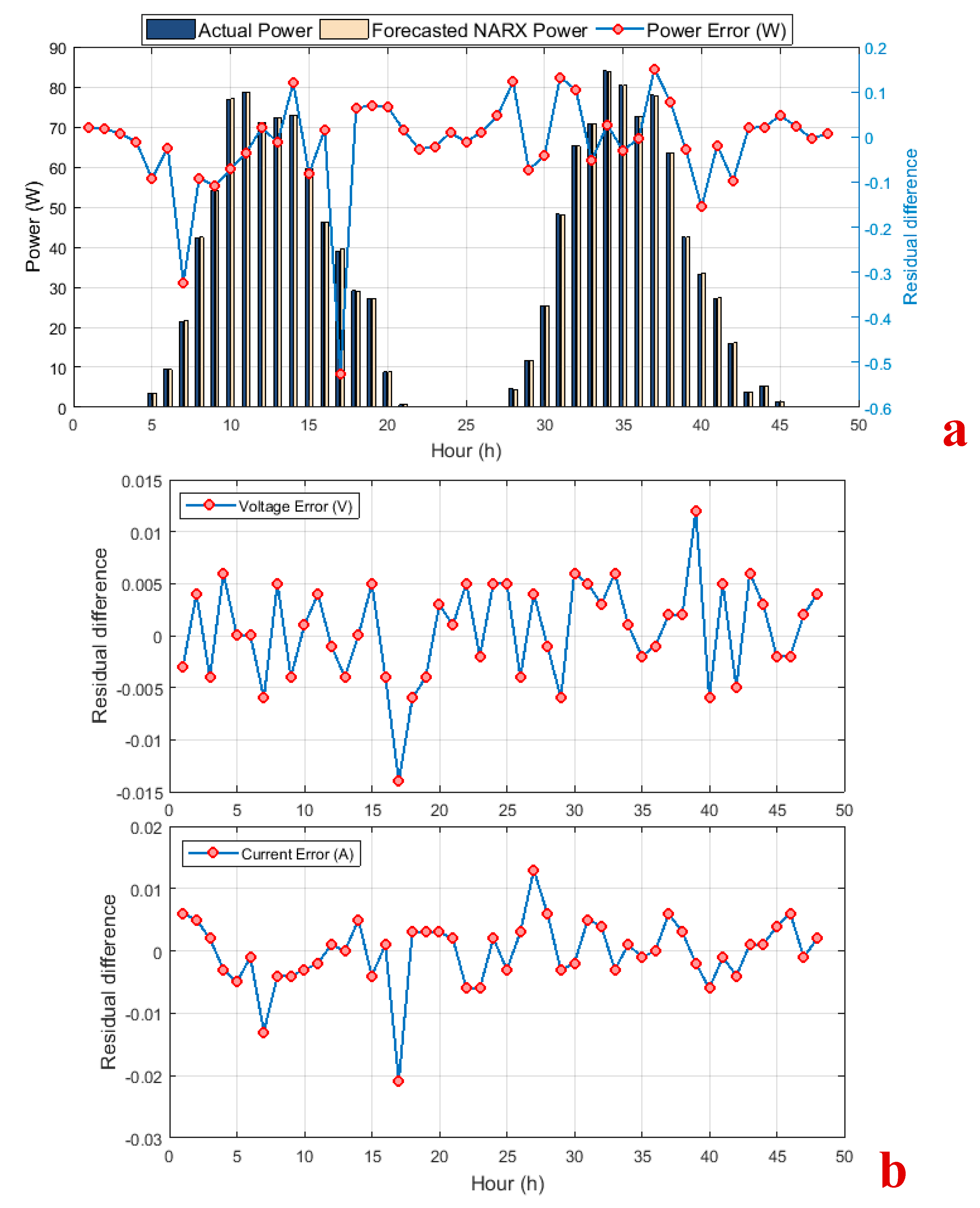

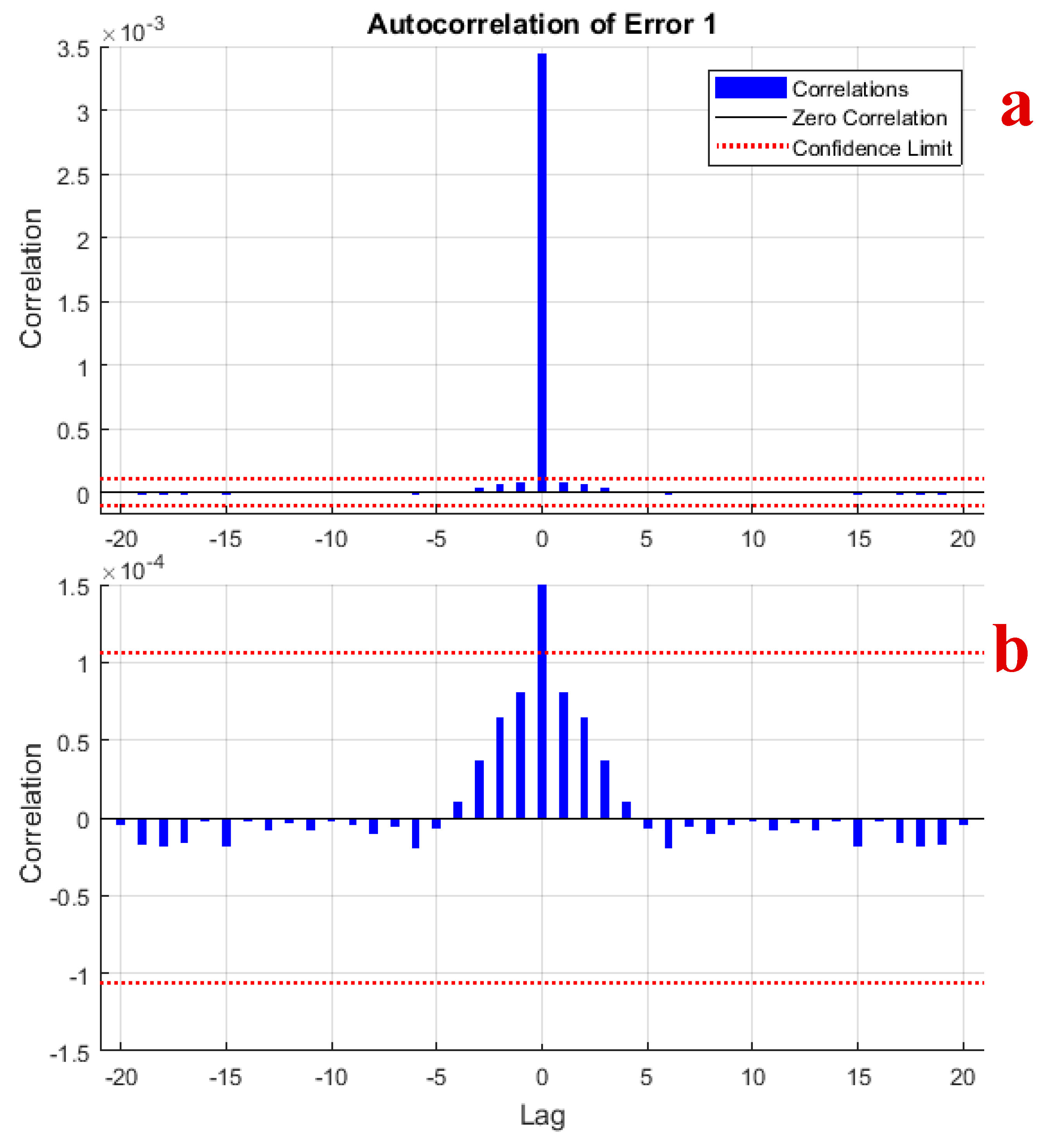

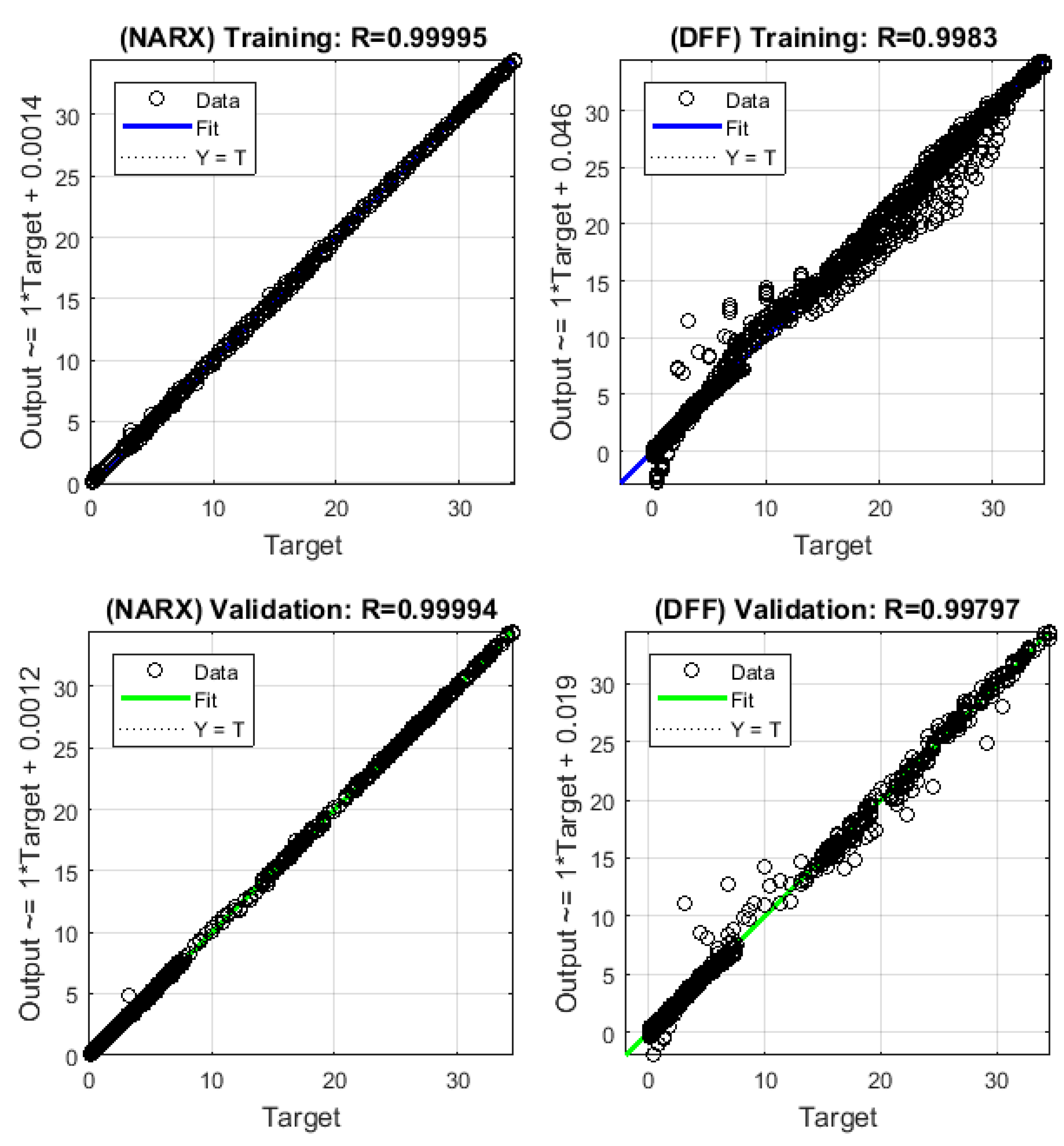

As shown in Figure 7, the measured error with the NARX model is much lower compared with the DFF model. Moreover, Figure 8 illustrates the function of error autocorrelation (for the NARX network) which describes the time correlation of the prediction errors. It can be seen from Figure 8 that there were significant prediction errors correlation, the only autocorrelation value outside the interval occurs at lag 0.

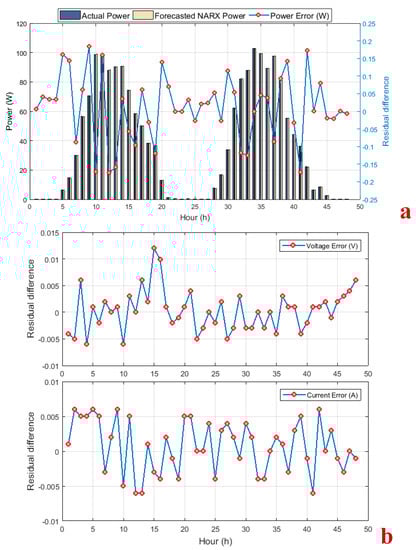

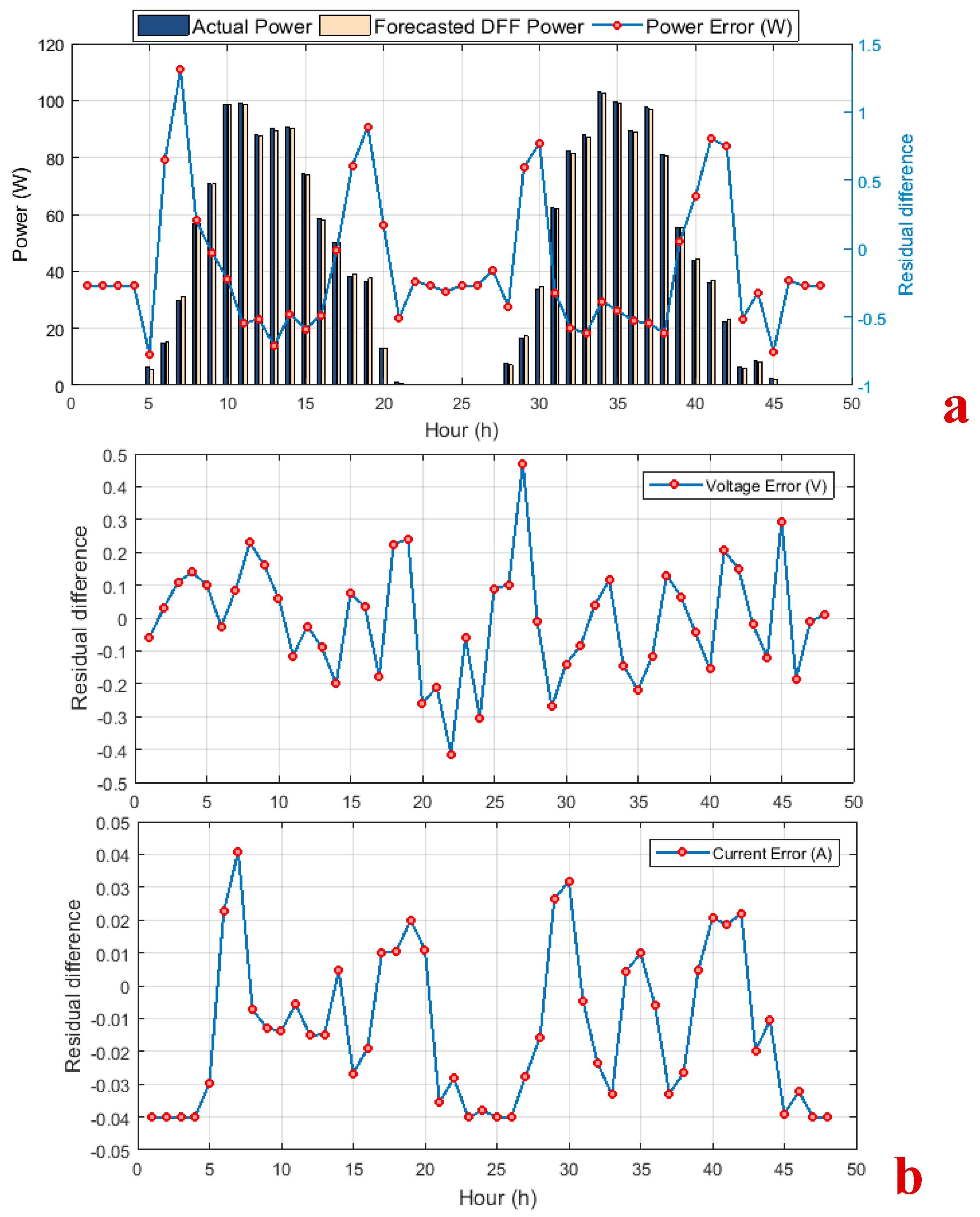

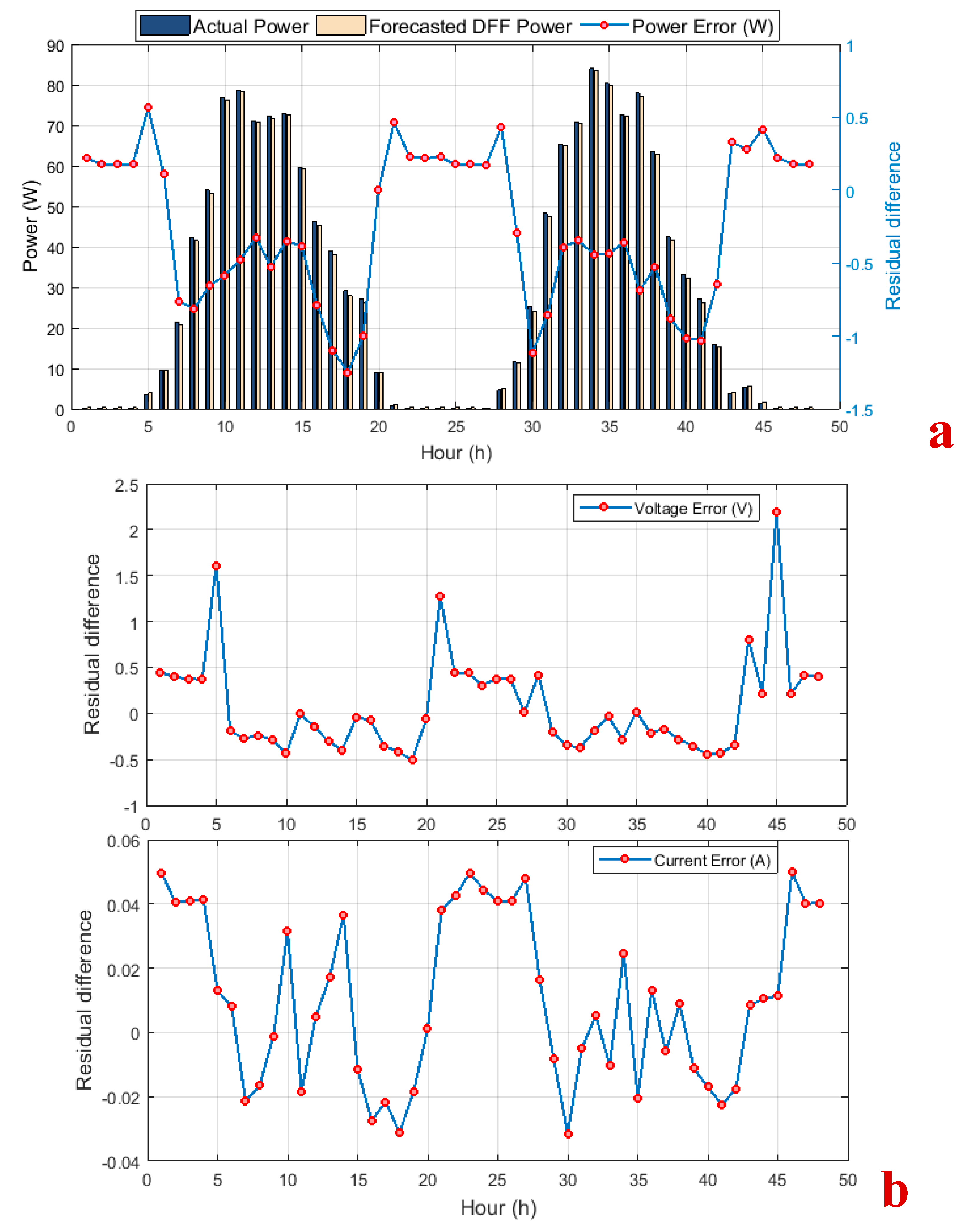

After the training stage is done, the testing dataset part is used to evaluate the model and test its performance. Figure 9, Figure 10, Figure 11 and Figure 12, shows real time comparison between the real data of the networks models and the simulated results for two different manufacturing PV panels.

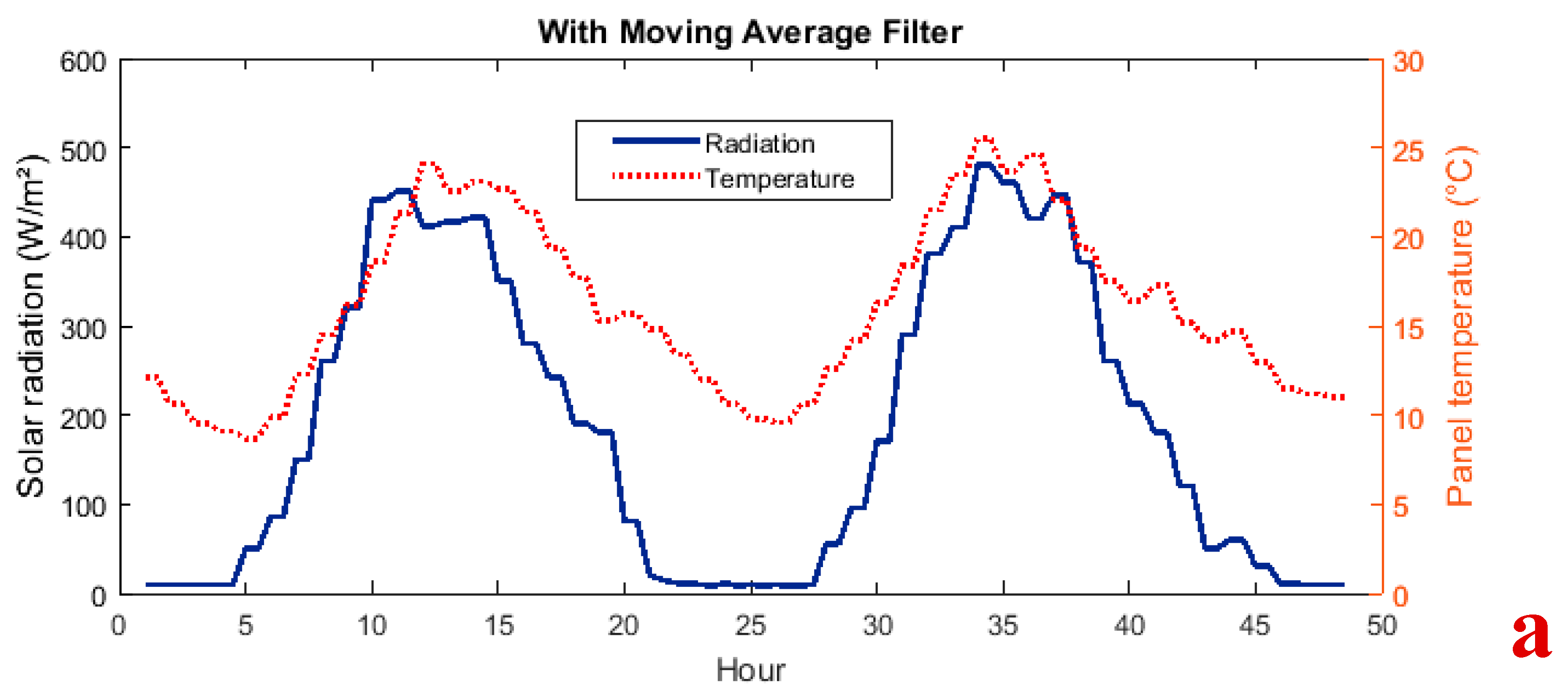

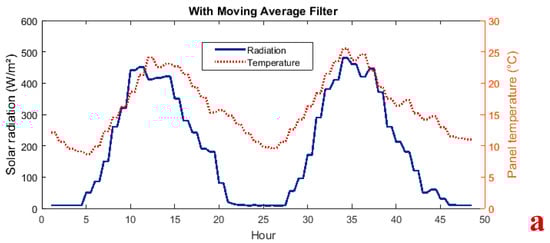

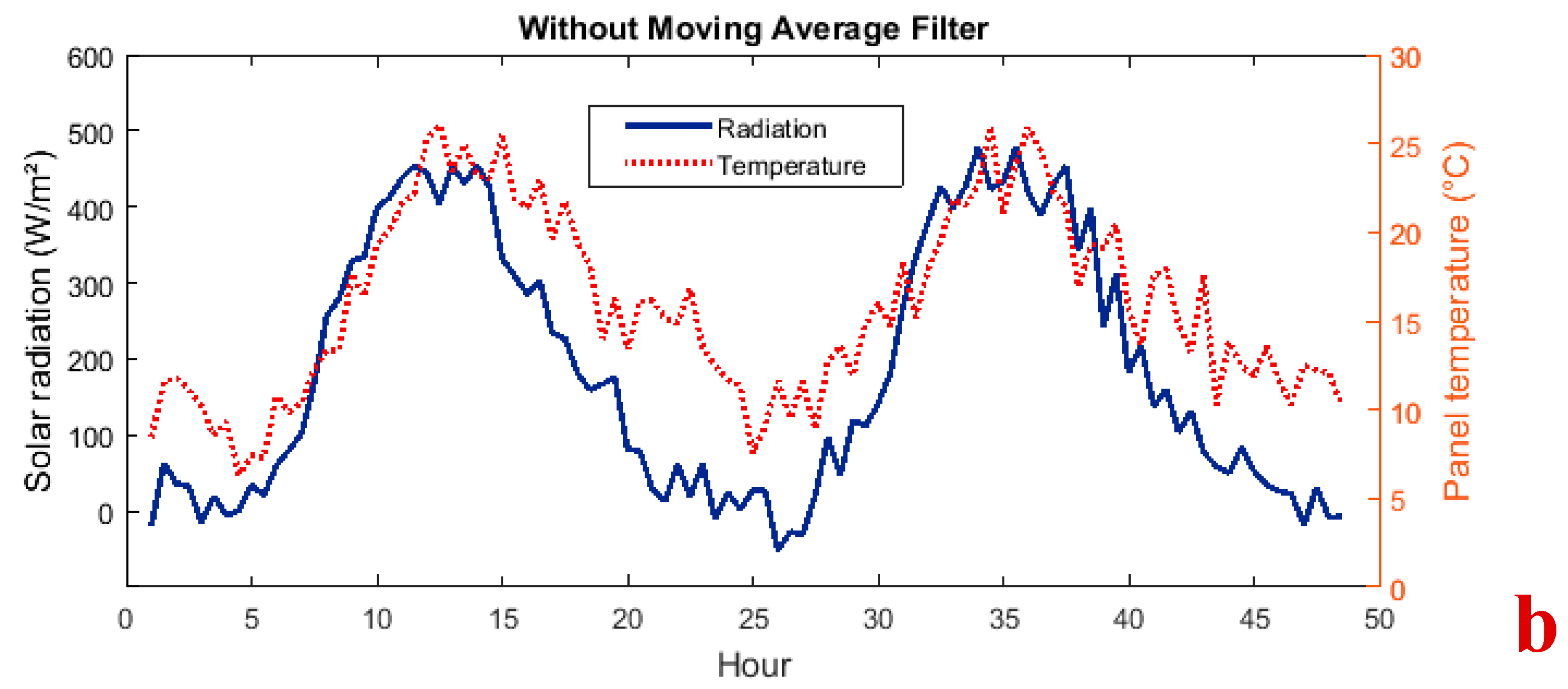

The results of these figures are obtained from the average hourly solar radiation and temperature distributions during April 2018 (see Figure 6). The comparison of NARX and DFF results demonstrate that NARX is more efficiently track the real time data compared with DFF.

To further verify the effectiveness and significance of the proposed models, we employed the Diebold-Mariano (DM) statistic [51]. The DM compares the forecast accuracy of two models. The MSE is adopted as the loss function to build the loss differential. The DM test results are exhibited in the following

Table 5. Results of the Diebold-Mariano (DM) test.

Average Value
	First Test-Sample Window (406)	Second Test-Sample Window (912)	Third Test-Sample Window (1680)
DM-test c	1.6873	1.3783	−6.5539
p-value	0.0915	0.1681	<0.00001

^c Significance level is 5%.

.

According to the DM test results presented in Table 5, the first two sample windows indicates that there is no significant different between the two forecasting models (p-value > 0.05); however, in the third test-sample window, the forecasting performance of the NARX model is better than the DFF model (p-value < 0.05).

3.3. Implementing the Two Networks on A Low-Cost Microcontroller

The aim of this work is to find an accurate forecasting neural network that is suitable for using as sub-module in PV monitoring, PV fault detection, or any PV system that requires PV output power prediction. To further investigate the two developed networks, both trained ANNs are loaded on the same hardware, namely the ATmega2560 8-bit low cost microcontroller. Both networks were implemented using the topologies shown in Figure 2 and Figure 4. Equations (1)–(3) were used for implementing the neurons with weights (w_ij, w_jk, and w_kl) obtained from the training phase of the neural networks. The same data set is used as input on both implementations and each neural network output is recorded along with the execution time, see

Table 6. Execution time and accuracy results from DFF and NARX networks hardware implementations on low cost microcontroller.

#	Input				Matlabsimulation		DFF Hardware Implementation		NARX Hardware Implementation
#	G	Tc	OCV	SCC	DFF Output Power	NARX Output Power	Output Power	Execution Time in Ms	Output Power	Execution Time in Ms
1	100	5	36.88	8.27	18.5462685	19.80749509	19.9485	13.328	19.4607	7.632
2	135	5	36.88	8.27	27.45394878	28.74701286	29.3508	13.312	28.557	7.584
3	195	10	36.88	8.27	41.66625045	42.9396561	43.0836	13.264	42.9358	7.68
4	315	15	36.88	8.27	69.91714602	71.1672504	69.7662	13.168	71.185	7.712
5	430	20	36.88	8.27	95.0832446	96.29310936	94.5768	13.232	96.5568	7.616
6	100	5	30	8.37	12.25372005	13.14547358	11.8704	13.408	13.4136	7.504
7	135	5	30	8.37	18.60995015	19.53232499	18.0553	13.408	19.6812	7.552
8	195	10	30	8.37	30.05208908	30.98741522	29.1856	13.616	30.8238	7.648
9	315	15	30	8.37	52.92692456	53.88320892	52.269	13.568	53.664	7.648
10	430	20	30	8.37	74.6095383	75.55625954	74.2356	13.44	75.831	7.44
11	100	5	21	5.4	2.53894176	2.79904892	2.3448	12.64	2.6946	7.184
12	135	5	21	5.4	4.6246709	4.97279076	4.68	12.704	5.1604	7.168
13	195	10	21	5.4	9.40729383	9.839436255	9.654	12.88	10.0772	7.424
14	315	15	21	5.4	19.81514307	20.26637574	19.9056	12.848	20.2059	7.392
15	430	20	21	5.4	29.38812465	29.82476539	29.232	12.592	30.082	7.408

. As shown in Table 6, there is a difference between values obtained from MATLAB simulation and hardware implementation. This is because the hardware implementation on low cost microcontroller requires some rounding in values and requires some tradeoff between memory and value precision. However, we notice that the NARX network showed better performance in term of execution time, also better accuracy over the DFF network compared to the results obtained in simulation. Using NARX network an output power value is obtained with a higher accuracy of ±0.18 W and with half the execution time compared to the DFF network. Using the DFF network the same output power value calculation requires double the execution time of the NARX network and with lower accuracy of ±0.59 W.

4. Conclusions

This paper discusses a novel and a more accurate heterogeneous photovoltaic (HPV) output power modeling topology using nonlinear autoregressive network with exogenous inputs (NARX). The work compares the proposed NARX neural network structure with the commonly used deep feed-forward neural network (DFF) structure. Both structures have been used to model the maximum output power of HPV panels.

The training phases of the neural networks are performed periodically. Several simulations are carried out with different evaluation criteria. Both of neural networks have decent modeling performance; nevertheless, NARX has outperformed DFF with mean square error of 0.007589.

Both models are further investigated by implementing them on real hardware for performance and execution time evaluation. The nonlinear autoregressive network with exogenous inputs outperform the deep feed-forward neural network with both accuracy and performance. Using the NARX neural network, a prediction of PV output power could be obtained with half the execution time required to obtain the same prediction with the deep feed-forward neural network and with an accuracy of ±0.18 W.

On the other hand, future research will need to be carried out on using this network model in PV fault detection. The NARX model has the ability to capture the nonlinear association of patterns between predictors, such as irradiance and temperature, to determine accurate MPP.
