Review

Musculoskeletal Biomaterials: Stimulated and Synergized with Low Intensity Pulsed Ultrasound

by
Wanru Jia
1,
Zifei Zhou
2,* and
Weiwei Zhan
1,*
1
Department of Ultrasound, Ruijin Hospital, Shanghai Jiao Tong University School of Medicine, Shanghai 200025, China
2
Department of Orthopedics, Shanghai Tenth People’s Hospital, Tongji University School of Medicine, Shanghai 200072, China
*
Authors to whom correspondence should be addressed.
J. Funct. Biomater. 2023, 14(10), 504; https://doi.org/10.3390/jfb14100504
Submission received: 11 August 2023 / Revised: 10 September 2023 / Accepted: 21 September 2023 / Published: 9 October 2023
(This article belongs to the Special Issue Feature Papers in Bone Biomaterials)
Browse Figures
Versions Notes

Abstract

:
Clinical biophysical stimulating strategies, which have significant effects on improving the function of organs or treating diseases by causing the salutary response of body, have shown many advantages, such as non-invasiveness, few side effects, and controllable treatment process. As a critical technique for stimulation, the low intensity pulsed ultrasound (LIPUS) has been explored in regulating osteogenesis, which has presented great promise in bone repair by delivering a combined effect with biomaterials. This review summarizes the musculoskeletal biomaterials that can be synergized with LIPUS for enhanced biomedical application, including bone regeneration, spinal fusion, osteonecrosis/osteolysis, cartilage repair, and nerve regeneration. Different types of biomaterials are categorized for summary and evaluation. In each subtype, the verified biological mechanisms are listed in a table or graphs to prove how LIPUS was effective in improving musculoskeletal tissue regeneration. Meanwhile, the acoustic excitation parameters of LIPUS that were promising to be effective for further musculoskeletal tissue engineering are discussed, as well as their limitations and some perspectives for future research. Overall, coupled with biomimetic scaffolds and platforms, LIPUS may be a powerful therapeutic approach to accelerate musculoskeletal tissue repair and even in other regenerative medicine applications.

1. Introduction

Designers of musculoskeletal materials commonly try to recreate hierarchical structures or to offer bone components such as bioactive proteins, minerals, and cells to facilitate and assist the formation of new bone tissue and restore its function [1,2,3]. In addition, the typical fracture healing process inspires novel approaches for bone tissue repair. The majority of bone scaffolds are fabricated by bioceramic, polymer, metal, or hybrid, which typically serve as a mechanical support and a 3D environment for cell adhesion, proliferation, and ingrowth [2,4,5,6]. Musculoskeletal biomaterials include not only transitional bone tissue engineering scaffolds for bone healing, but also biomaterials for spine fusion, bone–tendon, bone–ligament, and cartilage repair. Notably, neurogenesis and neovascularization are also crucial factors which indirectly benefit bone repair [7,8,9,10].
Although it is of potential value to incorporate biological components into bone tissue engineering strategies, the costs of such components limit their further application. Material-only approaches, which exclude biological components and instead rely on the body’s own cells to promote bone regeneration, are highly beneficial for preclinical research and clinical translation [2]. Biophysical stimulating techniques, such as low intensity pulsed ultrasound (LIPUS) stimulation, have shown promise by delivering a combined effect with bioactive materials at a lower cost and a shorter cycle time [11,12]. Generally, LIPUS is a specific type of ultrasound with a frequency of 0.045–3 MHz and intensity of 0.02–l W/cm2 [13,14,15,16,17]. The widely used parameters are 1.5 MHz frequency, 30 mW/cm2 intensity, 200 μs pulse duration, and 20 min/d exposure time [15,18]. LIPUS has been proven to promote cellular viability, proliferation, differentiation, and migration [13,19,20]. Moreover, LIPUS has shown favorable outcomes in promoting bone fracture healing by inducing molecular, biological, and biomechanical alterations in the fracture vicinity. In addition, LIPUS has been scientifically validated to accelerate bone regeneration in cases of fresh fractures, delayed unions, non-unions, distraction osteogenesis, and musculoskeletal soft tissue injuries [17,18,21,22,23,24,25,26].
According to a meta-analysis of randomized clinical trials, LIPUS therapy may shorten the overall treatment period (mean difference = −15.236 d/cm, 95% confidence interval = −19.902 to −10.569 d/cm) for tibial distraction osteogenesis [27]. Several studies have been conducted in order to improve the growth of osteogenic cells utilizing LIPUS and osteoconductive materials [11,28,29,30]. In certain studies, LIPUS has been shown to improve bone growth and local blood flow in an animal model of fracture repair [31,32]. Meanwhile, it could also contribute to cell spreading, either seeding cells into the scaffold system before implantation or recruiting from graft-surrounded native tissue after implantation in vivo [33,34]. These findings accelerate the development of a clinically applicable LIPUS therapy for bone defects, allowing for the transdermal application of mechanical stress to bone defects without physically destabilizing the defect site.
The mechanisms of ultrasound (US)-responsive nanomaterials include cavitation, acoustic radiation force, acoustic droplet vaporization, hyperthermia, and free radical generation. At least one of these mechanisms can be employed by the nanomaterials [35,36,37,38,39,40]. Acoustic cavitation refers to formation of gas bubbles, pockets, caused by interaction between ultrasonicated materials with acoustic waves [39,41]. Acoustic radiation force is defined as a mechanical force generated by transferring momentum from the ultrasound wave to the medium [38]. Any particles suspended in the fluid will drift, form clusters, and attract or repel one another due to the radiation force [35]. Acoustic droplet vaporization is a process that converts superheated liquid droplets of micron-sized to gaseous microbubbles 5–6 times larger [37]. When focused US beams are targeted at certain tissue, local hyperthermia will occur by absorbing the acoustic energy [40]. Moreover, when US interacts with certain components in a water-based medium, free radical molecules are created for both therapeutic and diagnostic purposes [36,42]. In summary, all these mechanisms may lead to either positive or negative impacts on living tissues.
In this review, an overview of the enhanced or synergistic effects of LIPUS with musculoskeletal biomaterials will be provided. First, the materials that are designed to promote LIPUS-enhanced regeneration for musculoskeletal injuries are described, including bone, spinal fusion, cartilage, bone–tendon, bone–ligament, and nerve (Figure 1). Furthermore, the most promising LIPUS stimulation techniques will be discussed, including their conducting parameters during stimulus delivery. Finally, a new perspective for LIPUS application in musculoskeletal tissue engineering in the future will be proposed.

2. Bone Regeneration

Many researchers focused on the investigation of the effects of LIPUS on bone healing. Osteo-inductive biomaterials are prone to promoting bone regeneration when coupled and modulated with LIPUS appropriately. In this part, we discuss the combined effect of LIPUS with several kinds of biomaterials in promoting bone repair (Table 1).

2.1. Bioceramics

Bioceramic materials are intriguing for the fabrication of bone scaffold, since they are desirable alternatives to autogenous or heterogeneous bone grafts. Bioceramics-based scaffolds are good for osteoinduction, osteoconduction, osseointegration, and vascularization [43,44,45,46,47]. In a 1.5 cm rabbit ulna defect model, 20 min of LIPUS stimulation with β-tricalcium phosphate (β-TCP) bone graft increased bone formation at 4 and 12 weeks. Statistically significant differences were found in bone mineral density at 4 weeks, and in new woven bone formation at 4 and 12 weeks. VEGF expression was increased with LIPUS treatment at 4 weeks and remained elevated at 12 weeks compared with controls, while RUNX2 expression levels were elevated with LIPUS treatment at both time points [48]. Wang et al. tried to study the concordant effect of cell/scaffold and LIPUS. Rat bone mesenchymal stem cells (BMSCs) were co-cultured with β-TCP for 2 weeks to form a composite, and then such composite was subcutaneously implanted into rats for further LIPUS treatment [49]. Tests of harvested composites at 5, 10, 25, 50 days showed elevated compressive strength, increased numbers of the vessels, and upregulated expression of CD31 and OCN, denoting that LIPUS stimulation could promote osteogenesis and angiogenesis in the rat BMSCs/TCP composites [49].
The application of LIPUS did not weaken the mechanical property of porous ceramic in vitro. In vivo rabbit experiments revealed that LIPUS treatment for 2 weeks significantly increased osteoblast numbers and bone area, while LIPUS for 3 weeks significantly increased mineralized tissue volume and mineral content in the porous HA ceramic. LIPUS application increased cell migration of MC3T3-E1. It may be a good choice to fill large bone defects in a preclinical model by combining a porous inorganic scaffold with LIPUS [50].
Nagasaki et al. tried to investigate the potential synergistic effects of LIPUS and nanohydroxyapatite in the osteogenic differentiation of human adipose-derived stem cells (hADSCs) [51]. ADSCs isolated from human extirpated buccal fat pad (BFP) were mixed with porcine atelocollagen, with or without nanohydroxyapatite. Then, the mixture was transplanted into the bone defects area of mice calvarium. Experiments in vitro and in vivo revealed the combinational effects of LIPUS and nanocrystalline hydroxyapatite (nHA) in inducing the osteogenic differentiation of ADSCs into osteoblasts, and bone regeneration. The new bone formation only occurred in the defect margin, which can be explained by the heterogeneous sources of cells and organic scaffolds; however, this research provided a novel strategy in autologous sources of ADSCs in combined application with LIPUS [51]. Using stereolithography 3D printer, PEGDA-RGDS-nHA scaffolds (polyethylene glycol diacrylate bioinks containing RGDS peptide and nHA) were fabricated, which could greatly promote hBMSC proliferation rate, filopodia growth, ALP activity, and calcium deposition under LIPUS stimulation [52].
LIPUS has been demonstrated to facilitate the cellular ingrowth in a silicon carbide porous ceramic scaffold, and enhance the proliferation and early osteogenic differentiation of MC3T3-E1 cells [53]. Another study used commercial OsteoBoneTM scaffold to find the potential osteogenic capacity of dental follicle cells (DFCs) after LIPUS application. The expression of osteoblast gene markers and formation of mineralized nodules and blood vessels of the DFCs/OsteoBone/LIPUS group increased in vivo. However, the subcutaneous transplantation mouse model limited the observation of potential osteogenesis effect in vivo [29].

2.2. Metals

It has been demonstrated that more bone formation was induced in a rabbit nasal bone defect model by porous titanium mesh with high density (10 holes/cm2) than that with low density (5 holes/cm2), and the application of LIPUS with high density titanium mesh induced a significant augmentation of new bone formation than titanium mesh only [54]. Moreover, the osseointegration of titanium implants in the rabbit metaphyseal area occurred earlier and more adequately in the LIPUS-treated group than in the control group [55]. LIPUS could also promote cell proliferation and migration on a pure titanium plate. In a rabbit study, it accelerated blood flow and maturation of type I collagen around titanium screws, and then promoted bone formation [56].
Electron beam melting (EBM)–microarc oxidation (MAO)-modified porous titanium-6aluminum-4vanadium (Ti6Al4V) scaffolds facilitated cellular filopodia/lamellipodia of MG63 cells, indicated good spreading ability. It was found in vitro that cell proliferation, attachment, and osteogenesis differentiation cultured on these scaffolds were also improved by LIPUS [33]. LIPUS also promoted ALP activity and osteocalcin levels of MC3T3-E1 cultured on porous Ti6Al4V alloy scaffolds, with neither inhibited nor stimulated effect on proliferation or attaching. Moreover, bone ingrowth, bone formation, and maturity were also enhanced in a bony defect model of rabbit mandibles [57,58].
Barium titanate (BaTiO3)-coated Ti6Al4V scaffold (BaTiO3/Ti6Al4V) improved the surface hydrophilicity and roughness, and showed better cellular attachment, proliferation, and osteoblast differentiation of rabbit BMSCs (rbBMSCs), which could be caused by the LIPUS-triggered piezoelectric effect of BaTiO3. Enhanced osteoinduction and osseointegration were found in rabbit radius defects after scaffold implantation and LIPUS application for 6 and 12 weeks [59]. Another study of BaTiO3/Ti6Al4V + LIPUS using rat BMSCs (raBMSCs) and sheep femur bone defect model verified such osteogenesis and osseointegration property [60]. However, no experiment was conducted to detect the potential current induced by LIPUS on BaTiO3 in these two studies. Another study found that an induced current of 10–17.5 μA was generated by application of LIPUS on BaTiO3/Ti6Al4V scaffold. The microcurrent could activate mitochondria, which might be the reason for this piezoelectric effect on cell behaviors, including better viability and adhesion. LIPUS on day 1 caused little damage to cell survival, but the piezodynamic effect weakened the damaged apoptosis and promoted cell proliferation after 4 days’ application. Interestingly, continuous electric cues could be observed even 24 h after intermittent LIPUS stimulation. Thus, there was adequate current to upregulate the expression of osteogenic-related genes [28]. In a subcutaneous implantation rat model, tissues surrounding the poled BaTiO3/Ti6Al4V scaffolds showed a high proportion of CD68+ CD206+ M2 macrophages under LIPUS stimulation. Improvements in macrophage M2 polarization and bone repair were also observed in a sheep cervical corpectomy model. The piezoelectric poled BaTiO3/Ti6Al4V scaffold can regulate the immune microenvironment to enhance bone regeneration. This is achieved by inhibiting the inflammatory MAPK/JNK signal pathway and activating oxidative phosphorylation and adenosine triphosphate synthesis in macrophages (Figure 2) [61]. In conclusion, LIPUS might induce electrical signal on electroactive material. Uniform nanosphere-shaped BaTiO3 piezoelectric ceramic was coated on the surface of a TC4 titanium alloy to synthesize a BaTiO3/TC4 material. Microcurrent (≈10 μA/cm2) could be detected when LIPUS was applied on the BaTiO3/TC4 disks. Meanwhile, the concentration of intracellular calcium ion and the CaV1.2 protein expression increased. All these mechanisms could introduce synergies of accelerating cell behaviors, cell attachment, migration, proliferation, and osteoblastic differentiation [34].

2.3. Sponge- or Hydrogel-Based Composites

Hydrogel or sponge type scaffolds were used as a platform for tissue regeneration. Collagen, especially type I collagen, is the most widely used substrate for 3D cell culture [62,63,64]. Hydrogel or sponge scaffolds made of collagen were widely checked for further application in LIPUS-enhanced bone regeneration [65,66,67]. With the help of atelocollagen sponge, LIPUS alone or simvastatin alone can promote bone regeneration; however, the combination of LIPUS and simvastatin does not induce acceleration in bone formation than LIPUS alone or simvastatin alone [65]. In rat femoral segmental defects, LIPUS enhanced radiographic healing and increased bone volume of rhBMP-2 loaded absorbable collagen sponges. Lower doses (1.2 and 6 μg) of rhBMP-2 delivery induced bone formation, while higher dose (12 μg) induced callus maturation [66]. In addition, LIPUS exposure of seeded hMSCs on magnesium-HA/collagen I hybrid could improve cell colonization and osteogenic differentiation [67].
The treatment of LIPUS showed no influence on cell proliferation within collagen I hydrogel. The elevated gene expression of ALP and osteocalcin denoted that the application of LIPUS could enhance the osteogenetic differentiation of collagen I-encapsulated MC3T3 preosteoblasts. After the BMSCs were localized in type I collagen hydrogels, LIPUS could induce undifferentiated BMSCs to the osteoblastic lineage, and also in vivo fracture healing [68]. Notwithstanding, stiffer collagen I hydrogels could reduce or reverse such osteoblastic response [69]. Either encapsulating cells within a flexible hydrogel or LIPUS exposure could induce high cyclooxygenase 2 (COX-2) and prostaglandin E2 (PGE2) expression. The cumulative higher expression of COX-2 and PGE2 could be observed after combining the two distinct conditions [70].
Moreover, the positive synergistic effect of LIPUS and RGD on the enhancement of proliferation and differentiation of hMSCs was observed. With the hybrid use of LIPUS with RGD, a significant increase was obtained in cell numbers, ALP activity, and mineralized nodule formation assay. With LIPUS, RGD-grafted oxidized sodium alginate/N-succinyl chitosan (RGD–OSA/NSC) hydrogel presented good biological properties in the attachment, proliferation, and osteogenic differentiation of human BMSCs (hBMSCs), suggesting that by combining RGD modification with LIPUS, a high level of bone formation and vascularization would be achieved [71].

2.4. GBR/GTR and Xenograft

Guided tissue regeneration (GTR) and guided bone regeneration (GBR) procedures were initially applied to regenerate periodontal tissue, and further used in bone tissue engineering. Generally, GTR and GBR adopted scaffolds or membranes to prevent growth of epithelial and connective tissues into the bone defect, so as to facilitate bone reconstruction. It has been found that LIPUS + collagen barrier membranes can facilitate the osteoblastic differentiation of dog periodontal ligament cells in vitro and promote new alveolar bone formation in vivo [72]. New bone maturation can be accelerated by LIPUS after the implantation of polytetrafluoro ethylene membranes on the surface of a bone defect [73]. The asymmetrically porous membrane was another choice for guided bone regeneration. The cross section of asymmetrically porous polycaprolactone/pluronic F127 membrane showed a column-shaped pore structure. The exterior surface had nanosized pores (≈100 nm) to prevent the infiltration of dense connective tissue but benefit from the permeation of nutrients, while the interior surface had microsized pores (≈100 µm) to improve ingrowth of new bone tissue. The selective permeability, hydrophilicity, and osteoconductivity allowed this membrane to achieve a favorable induction of osteogenesis [74]. In addition, metal membranes showed better induction of new bone than polymer membranes. In vivo, combined with LIPUS, more new bone was observed in rat calvarium defects with a cover of titanium membranes than in those with a cover of GC membrane [75]. LIPUS promoted the repair of periodontal bone defects in beagle dogs, where the bone defect was transplanted with Bio Gide® collagen membrane + autogenous bone graft [76].
Before implantation of a cell-seeded scaffold, pre-treatment of such scaffold with LIPUS could probably facilitate cell ingrowth and thus accelerate fracture healing and tissue regeneration. For MC3T3 cells in 3D trabecular bone scaffold, LIPUS treatment yielded enhanced calcific deposition, but reduced proliferation [77].

2.5. Polymers or Microbubbles

The mechanical effects of LIPUS could be amplified by adding microbubbles into cell culture, such as local shear forces and controllable mechanical stress in cells. Yao et al. reported cyclic arginine-glycine-aspartic acid-modified nanobubbles (cRGD-NBs), which could target BMSCs mediated by integrin receptors. LIPUS/cRGD-NBs could promote the osteogenic differentiation of BMSCs induced by polymerization of actin microfilaments, TRPM7 regulation (Figure 3), and extracellular Ca2+ influx [78]. Microbubbles coated by a monolayer of lipids have been approved by the FDA for contrast-enhanced ultrasound imaging [79]. Integrating LIPUS and lipid mixture-coated microbubbles was proven to be effective in boosting cell proliferation and osteogenic differentiation of hBMSCs which were cultured on 3D printed porous poly(lactic acid) scaffolds. The microbubbles could maintain stable structure during LIPUS exposure. Sustained oscillations by LIPUS demonstrably contributed to the transmission of ultrasound energy toward surrounding cells of microbubbles [80]. Specific three-dimensional architectures of 3D-printed scaffolds are good for the acoustic wave transmission of LIPUS. Cells attached on the 3D-printed scaffolds receive more sonic stimulation, and thus tend to exhibit active cellular activity.
Huang demonstrated the ability of poly-L-lactic acid (PLLA) electrospun nanofibrous membrane coupled with LIPUS in enhancing the development of nascent bone using the rabbit tibia defect model [81]. Moreover, combining LIPUS with lipid microbubbles on poly (lactic-glycolic acid copolymer) (PLGA)/α-tricalcium phosphate (TCP) 3D-printed scaffolds can also enhance the growth and osteogenesis of BMSCs [82]. Ramie-based carboxymethyl cellulose (CMC) displayed cytocompatity of MC3T3-E1 cells, and synergistic effects caused by LIPUS and CMC further promoted cellular proliferation and osteogenic differentiation [83].
Table 1. LIPUS + biomaterials for bone repair.
Table 1. LIPUS + biomaterials for bone repair.
NoBiomaterialsConstituentEvidence In VitroEvidence In VivoRef.
CellProlifAdhesMigraOsteog
Differ		 AnimalOsteo-indOsteo-condOsseo-intAngio-ge
1BioceramicsTCP//////Rabbit+//+[48]
2BioceramicsHydroxyapatiteMC3T3-E1//++/Rabbit++//[50]
3MetalsTitanium//////Rabbit//+/[55]
4PolymersePTFE//////Dog+///[73]
5MetalsTitanium//////Rat+///[75]
6PolymersPCL/F127//////Rat++//[74]
7MetalsTitaniumMG63++/+/Rabbit+/+/[56]
8CompositesBio Gide®/autogenous bone graft//////Dog+///[76]
9CompositesraBMSCs/TCP//////Rat+//+[49]
10CompositesSim@ACS//////Rabbit+///[65]
11HydrogelRGD–OSA/NSChBMSCs++/+Vascul/////[71]
12CompositesrhBMP-2@ACS//////Rat+///[66]
13CompositesAtelocollagen/nanohydroxyapatitehADSCs///+/Mouse+///[51]
14BioceramicsSilicon carbideMC3T3-E1++++//////[53]
15CompositesPEGDA-RGDS-nHAhBMSCs++/+//////[52]
16HydrogelCollagen IMC3T3-//+//////[69]
17MetalsTitanium//////Rabbit+///[54]
18CompositesMgHA/Col IhMSCs+//+//////[67]
19MetalsTi6Al4VMC3T3-E1--/+/Rabbit++//[57]
20PolymerPLLA//////Rabbit+///[81]
21BioceramicsOsteoBoneTMDFCs/+/+/Mouse///+[29]
22Xenograft Trabecular boneMC3T3-//+//////[77]
23CompositesCollagendPDLCS///+/Dog+///[72]
24CompositesLMBs + PLAhBMSCs+//+//////[80]
25MetalsTi6Al4VMG63++/+//////[33]
26MetalsTi6Al4VMC3T3-E1-//+/Rabbit++//[58]
27MetalsBaTiO3/Ti6Al4VrbBMSCs++/+/Rabbit+/+/[59]
28MetalsBaTiO3/Ti6Al4VraBMSCs///+/Sheep+++/[60]
29MetalsBaTiO3/Ti6Al4VraBMSCs++/+//////[28]
30MetalsBaTiO3/TC4MC3T3-E1++++//////[34]
31MetalsBaTiO3/Ti6Al4VRAW264.7
MC-3T3		//++PolariRat
Sheep		+++/[61]
32CompositesCarboxymethyl cellulose MC3T3-E1+/++//////[83]
33CompositescRGD-NBsmBMSCs///+//////[78]
34CompositesPLGA/TCPraBMSCs++/+//////[82]
35HydrogelCollagen I//////Rat+///[68]
Prolif: proliferation, Adhes: adhesion, Migra: migration, Osteog Differ: osteogenic differentiation, Vascul: vascularization, Polari: polarization, Osteoind: osteoinduction, Osteocond: osteoconduction, Osseoint: osseointegration, Angioge: angiogenesis. hBMSCs: human bone mesenchymal stem cells, hADSCs: human adipose-derived stem cells, DFCs: dental follicle cells, dPDLCS: dog periodontal ligament cells, rbBMSCs: rabbit bone mesenchymal stem cells, raBMSCs: rat bone mesenchymal stem cells. TCP: tricalcium phosphate, ePTFE: expanded polytetrafluoro ethylene, PCL/F127: polycaprolactone/pluronic F127, Sim@ACS: simvastatin loaded atelocollagen sponge, RGD: arginine-glycine-aspartic acid, RGD–OSA/NSC: RGD-grafted oxidized sodium alginate/N-succinyl chitosan, rhBMP-2@ACS: rhBMP-2 loaded absorbable collagen sponges, PEGDA: polyethylene (glycol) diacrylate, nHA: nanocrystalline hydroxyapatite, MgHA/Col I: magnesium-HA/collagen I, Ti6Al4V: titanium-6aluminum-4vanadium, PLLA: poly(L-lactic acid), DFBA: demineralized freeze-dried bone allograft, LMBs + PLA: lipid-coated microbubbles + poly(lactic acid) porous scaffolds, cRGD-NBs: cyclic arginine-glycine-aspartic acid-modified nanobubbles, PLGA/TCP: poly(lactic-glycolic acid copolymer)/α-tricalcium phosphate. +: Positive, -: Invalid or negative, /: not tested.

3. Spinal Fusion

In addition to the effective promotion of fracture repair, including new fractures, the method may also be of use in delayed union or nonunion and bone defects [84,85,86,87]. Meanwhile, LIPUS therapy may be a useful means to ensure successful spine fusion (Table 2). Several studies focused on spinal fusion using LIPUS and autologous bone graft. LIPUS treatment improved the lumber fusion rate of autologous iliac bone graft after 12 weeks of implantation. The ABG + LIPUS group achieved 100% fusion rate, both in radiographic and histologic fusion, while the ABG group achieved 78% radiographic fusion and 44% histologic fusion [88]. Another study verified the conclusion in a rabbit model of posterolateral intertransverse process spine arthrodesis using muscle-pediculated bone grafts [89]. In a rabbit lumbar posterolateral fusion model, augmented by LIPUS, stiffer fusion mass and an analogous fusion rate can be achieved by laminectomy chip bone graft (LCBG) than those of an AIBG [90]. In nicotine-administrated rabbit, LIPUS could not promote fusion rate without any implantation, and remained at 0% in the control group with no implantation and LIPUS. However, LIPUS could increase the fusion rate from 29% to 57% in the AIBG-implanted rabbits [91].
Hui et al. established a posterior spinal fusion model in New Zealand white rabbit, to evaluate the synergistic effects of LIPUS by implanting porous TCP bioceramic scaffolds and mesenchymal stem cells (MSCs) [92]. They found that LIPUS could enhance endochondral ossification at the fusion site and bone formation with porous TCP scaffold which was impregnated with MSCs. Thus, it was LIPUS that could achieve better osseointegration between the host bone and implanted composites [92]. LIPUS can increase rabbit spinal posterolateral fusion, bone density, trabecular bone formation, and accelerate bone in-growth into hydroxyapatite ceramics [93]. Interestingly, in a rabbit model of posterolateral lumbar fusion, there was no significant difference in the number of chondrocytes and relative gray-scale between the hydroxyapatite and the AIBG [94].
Generally, demineralized freeze-dried bone allograft (DFDBA) was usually used for studies on LIPUS-accelerated spinal fusion. Stimulated by LIPUS, a number of type H vessels could be observed in the fusion mass of rat spinal fusion model, and more osteoblasts were located on the bone callus of the allograft and were enclosed by type H vessels (Figure 4) [95]. Further study indicated that LIPUS could promote not only osteoblast differentiation but also cell migration of osteoblast-like MG63 cells, which contributed to DFDBA-induced spinal fusion. The upregulated sonic hedgehog (Shh) signal pathway was involved in those cell behaviors. In contrast, inhibited Shh signaling reduced the migratory and proliferative ability of MG63 cells and impeded the efficacy of LIPUS treatment [96]. Cell experiments of Raw264.7 cells and bone marrow-derived macrophages (BMDM) indicated that the polarization changes of macrophages were found from inflammatory type M1 to resident type M2 after LIPUS application. The authors deemed that the macrophages’ earlier polarization transition might be one cause of the confirmed effect of DFDBA + LIPUS on spinal fusion [97]. Overall, multiple factors, including vessel formation, Shh signaling, and polarization transition, may be involved in the LIPUS-enhanced spinal fusion of DFDBA.
During callus formation or bone remodeling, calcitonin gene-related peptide (CGRP)-positive sensory nerve fibers proliferated rapidly and may play an important role in bone repair [98,99]. However, sensory innervation decreased or even disappeared when the delayed fracture or non-union existed [100,101]. The rhBMP-4-loaded porous poly-D, L-lactic acid blocks were implanted in the rabbit under bilateral posterolateral intertransverse process fusion. After LIPUS treatment, the number and density of CGRP-positive nerve fibers were higher in newly formed cartilage and bone tissue. Thus, LIPUS promoted the growth of CGRP sensory nerves into heterotopic bone, thereby contributing to the promotion of LIPUS on ectopic ossification [102]. Another study from a rat spinal fusion model confirmed that CGRP innervation located closely surrounding the demineralized freeze-dried bone allograft and newly formed cartilage [103].
Table 2. LIPUS + biomaterials for spinal fusion.
Table 2. LIPUS + biomaterials for spinal fusion.
NoBiomaterialsConstituentEvidence In VitroEvidence In VivoRef.
CellProlifMigraPolariAnimalCGRP InnervOsteo-indOsteo-condOsseo-intAngio-ge
1AutograftAIBG////Dog/+///[88]
2AutograftMPBG////Rabbit/+///[89]
3BioceramicsHA////Rabbit/++//[93]
4CompositesBMP4/PDLA////Rabbit++///[102]
5CompositesDFDBA////Rat++///[103]
6BioceramicsTCP////Rabbit/+++/[92]
7AutograftLCBG////Rabbit/+///[90]
8AutograftAIBG////Rabbit/+///[94]
9AutograftAIBG////Rabbit #/+///[91]
10AllograftDFDBA////Rat/+//+[95]
11AllograftDFDBAMG63++/Rat/+///[96]
12AllograftDFDBARaw264.7, BMDM//+Rat/+///[97]
Prolif: proliferation, Adhes: adhesion, Migra: migration, Chondr Differ: chondrogenic differentiation, Polari: polarization, Innerv: innervation, Chondrogen: chondrogenesis, Vascul: vascularization, CGRP: calcitonin gene-related peptide, Osteoind: osteoinduction, Osteocond: osteoconduction, Osseoint: osseointegration, Angioge: angiogenesis. AIBG: autologous iliac bone graft, MPBG: muscle-pediculated bone grafts, HA: hydroxyapatite, BMP4/PDLA: BMP4-loaded poly-D,L-lactic acid, DFDBA: demineralized freeze-dried bone allograft, TCP: tricalcium phosphate, LCBG: laminectomy chip bone graft. +: Positive, /: not tested, #: nicotine-administered.

4. Osteonecrosis/Osteolysis

Non-medical LIPUS has been used in common musculoskeletal disorders, including osteoporosis, osteonecrosis, and osteolysis [104,105]. By increasing bone formation and decreasing bone resorption, LIPUS was found to counteract the bone loss effects induced by spinal cord injury. The osteogenic effects of LIPUS lay in partially restoring endochondral ossification during callus formation, which would finally result in newly formed tissue with enhanced microarchitecture and mechanical integrity [106].
In a steroid-associated osteonecrosis rabbit model, LIPUS was proven to promote bone regeneration by increasing osteogenesis and neovascularization [32]. The potential biomechanical mechanism of LIPUS in the treatment of disuse osteoporosis may be the mechanical micro-environment improvement of trabecular bone and osteoblasts [107]. Pilot studies have been conducted regarding the combined effect of biomaterials and LIPUS (Figure 5) [108,109].
Periprosthetic osteolysis was the leading cause of polyethylene artificial joint invalidation [110,111]. Yan et al. reported that LIPUS could prevent or delay the polyethylene debris-caused osteolysis. The changes of shear strength, bone mineral density (BMD) and histopathology indicated that LIPUS-induced bone growth reversed the polyethylene-caused periprosthetic osteolysis [108], and the underlying mechanism may lie in the stimulation of bone tissue growth and inhibition of fibroblast growth. Further studies are needed to determine whether osteoclasts played an essential role in the LIPUS treatment of periprosthetic osteolysis [108].
Corticosteroid use is one of the major risks of osteonecrotic lesions; LIPUS treatment alone was validated to contribute to the alleviation of osteonecrosis [112,113], so it was a promising strategy to take advantage of the biomaterials-enhanced effect after LIPUS intervention. In another steroid-induced osteonecrosis model, bone morphogenetic protein-2 (BMP-2)-loaded poly-L-lactic acid/polylactic-co-glycolic acid/poly-ε-caprolactone (PLLA/PLGA/PCL) composite scaffolds stimulated by LIPUS could facilitate osteoblast differentiation, vascularization, and bone formation [109].

5. Cartilage Repair

Chen et al. designed a four-layer scaffold, including layer 1: for cartilage repair, layer 2: for cartilage calcification, layer 3: for spatial distribution restriction of cells, and layer 4: for bone repair [114]. The hybrid use of multiple growth factors and LIPUS treatment exhibited good potential in facilitating vascularization and osteochondral repair [114] (Table 3).
In rabbit articular cartilage defects, LIPUS promoted the hyaline chondroid tissue formation after transplantation of allogeneic chondrocytes–calcium alginate gel composite (C-CAG). The smooth surface and integration degree optimized such effect in the LIPUS/C-CAG group. In line with the gross appearance, histological observation found that the collagen II positive area in the LIPUS/C-CAG group was larger than that in the model group and C-CAG group [115].
Combined with LIPUS, liposome-encapsulated rapamycin (L-rapa) not only increased proteoglycan production in human normal chondrocytes, but also improved type II collagen production. Moreover, in human osteoarthritis (OA) chondrocytes (HOACs), L-rapa + LIPUS upregulated mRNA expression or synthesis of aggrecan, type II collagen, and proteoglycan, while inhibiting the expression of MMP-13 and IL-6. Immunohistochemical findings from spontaneous OA Dunkin-Hartley guinea pig models proved significant enhancement of glycosaminoglycans and type II collagen in articular cartilage in the L-rapa + LIPUS group. Moreover, decreased expression of MMP-13 was principally consistent with those found in HOACs in vitro. The verified results in vitro and in vivo evidently ascertained that the L-rapa combined with LIPUS showed promising anabolic and anti-catabolic activities against OA [116].
However, one study reported that LIPUS had limited potential in stimulating the synthesis of sulphated glycosaminoglycan from bovine articular chondrocytes which were cultured in monolayer or agarose constructs [117]. Composites of bovine chondrocyte-fibrinogen exhibited no significant difference in neocartilage formation between LIPUS-treated and sham-treated groups [118]. Subcutaneously implanted composites in the backs of nude mice might account for the similar cartilage maturation and regeneration stability.
The eradication of reactive oxidative stress (ROS) could relieve chondrocyte apoptosis and extracellular matrix (ECM) degradation, which were pathological changes in cartilage suffering from osteoarthritis. Prussian blue nanoparticles (PBNPs) + LIPUS application drastically reversed lipopolysaccharide (LPS)-induced cellular ROS level and apoptosis rate by activating the PI3K/Akt/mTOR pathway. Meanwhile, PBNPs/LIPUS combination treatment resulted in the inhibition of IL-1β and MMPs by the suppression of JNK/c-Jun signal pathway in LPS-incubated chondrocytes. The anterior cruciate ligament was transected to construct a knee osteoarthritis rabbit model. Consistent with the result from chondrocytes, PBNPs + LIPUS application could activate the PI3K/Akt/mTOR signaling and suppress the JNK/c-Jun axis, leading to reverse cellular apoptosis and ECM degradation, which in turn provided an exciting repair of femoral condylar cartilage (Figure 6) [119].
Microbubbles, one kind of clinically approved agent for contrast-enhanced ultrasound imaging, could be combined with LIPUS for further application in bone tissue engineering. Along with LIPUS, lipid-coated, perfluorobutane-filled microbubbles could boost the proliferation properties and chondrogenic differentiation of human mesenchymal stem cells (hMSCs) which were cultured on 3D printed poly-(ethylene glycol)-diacrylate (PEG-DA) hydrogel scaffold (LPM + PEG-DA). The hMSCs produced more glycosaminoglycan (GAG) of 17% and type II collagen of 78% in the LIPUS+ microbubbles + LPM + PEG-DA group, whereas in the LIPUS group, they were 5% and 44% [120].
Table 3. LIPUS + biomaterials for chondral/osteochondral repair.
Table 3. LIPUS + biomaterials for chondral/osteochondral repair.
NoBiomaterialsConstituentEvidence In VitroEvidence In VivoRef.
CellProlifChondr DifferAnimalChondrogenOsteo-indAngio-ge
1CompositesC-CAG///Rabbit+/+[115]
2CompositesLPMBs + PEG-DAhMSCs++////[120]
3CompositesFour-layers scaffold///Rabbit+++[114]
4CompositesL-rapaHuman Chondrocyte-+Pig+//[116]
5NanoparticlesPBNPsRabbit Chondrocyte#/Rabbit+//[119]
Prolif: proliferation, Chondr Differ: chondrogenic differentiation, Chondrogen: chondrogenesis, Osteo-ind: osteoinduction, Angio-ge: angiogenesis. hMSCs: human mesenchymal stem cells. C-CAG: chondrocytes-calcium alginate gel, LPMBs + PEG-DA: lipid-coated, perfluorobutane-filled microbubbles and poly-(ethylene glycol)-diacrylate (PEG-DA) hydrogel scaffold, Four-layers scaffold: first layer: hydrogel of oxidized sodium alginate and N-succinyl chitosan (OSA/NSC) loaded with FGF-2, BMP-2, and TGF-1; second layer: hydrogel of OSA/NSC loaded with micro hydroxyapatite (μHA) and wnt/β-catenin; third layer: PCL/PEG electrospun fiber membrane; fourth layer: porous composite of SA/nano HA/BMP-2-loaded coaxial short fibers, L-rapa: liposome-encapsulated rapamycin, PBNPs: Prussian blue nanoparticles. +: Positive, -: Invalid or negative, /: not tested, #: Reverse LPS-induced apoptosis.

6. Bone–Ligament or Bone–Tendon Repair

Although artificial ligament grafts were a viable strategy for replacing autologous grafts, single artificial ligament grafts frequently resulted in poor integration. It was vital to design a strategy that was both effective and quickly useful for promoting graft-bone healing of artificial ligaments (Table 4). Liu et al. recently organized a study to investigate the effects of LIPUS on polyethylene terephthalate (PET) artificial ligament concerning cell behaviors in vitro and osseointegration in the extra-articular graft-bone healing model (Figure 7) [121]. LIPUS promoted the cell proliferation, adherence, and osteoblastic differentiation of MC3T3-E1 preosteoblasts seeded on PET sheets. Meanwhile, in vivo study of rabbits confirmed the promoting effect of LIPUS on bone formation, and enhanced effect on graft-bone healing, such as less fibrous tissue, narrower interface, direct contact and higher ultimate failure load [121].
LIPUS treatment appeared to accelerate bone–tendon interface healing after liposomal clodronate or liposomes injection. Additionally, liposomes + LIPUS exhibited significantly more fibrocartilage than liposomal clodronate + LIPUS. Biomechanical tests of mouse supraspinatus muscle–supraspinatus tendon–humerus structure was in line with the histological results [122].
LIPUS could facilitate the osteogenesis and microvascular formation of periodontal ligament stem cells [123,124]. Stimulated by LIPUS, autologous ADSC transplantation with fibrin can lead to superior bone–tendon healing quality in the patella–patellar tendon junctions when compared with LIPUS or ADSCs alone. Compared with other groups at postoperative 8 and 16 weeks, the LIPUS + ADSCs group showed more regeneration and maturity both in fibrocartilage layer and new bone histologically, and significantly higher ultimate failure load and stiffness biomechanically [125].
Table 4. LIPUS + biomaterials for bone–ligament/bone–tendon repair.
Table 4. LIPUS + biomaterials for bone–ligament/bone–tendon repair.
No BiomaterialsConstituentEvidence In VitroEvidence In VivoRef.
CellProlifAdhesOsteog
Differ		AnimalOsteoindBone RemInterf
Heal
1Bone-LigamentPolymerPETMC3T3-E1+++Rabbit+/+[121]
2Bone-TendonLipidosomeLipo clodro, Lipo,////Mouse+/+[122]
3Bone-TendonFibrinADSCs@Fib////Rabbit+++[125]
Prolif: proliferation, Adhes: adhesion, Osteog Differ: osteogenic differentiation, Osteoind: osteoinduction, Bone Rem: bone remodeling, Interf heal: interface healing. PET: polyethylene terephthalate, Lipo clodro: liposomal clodronate, ADSCs@Fib: adipose-derived stromal cells loaded fibrin. +: Positive, /: not tested.

7. Nerve Repair

LIPUS affected the proliferation and myelinating activity of Schwann cells, in a both time- and duty ratio-dependent manner. Thus, LIPUS can be used to repair peripheral nerve injury and peripheral neuropathies [126,127]. The current knowledge about the influence of LIPUS on animal and human models revealed that LIPUS may have an impact on nerve regeneration and axonal alterations in the situation of carpal tunnel syndrome, transected nerve, dementia, and neurogenic erectile dysfunction [128,129]. Meanwhile, a growing number of studies are being conducted to investigate the function of LIPUS in materials-induced neuron regeneration (Table 5). LIPUS could accelerate autografting the sciatic nerve, and low-intensity US (250 mW/cm2) showed faster regeneration than higher intensity (500 and 750 mW/cm2) [130]. Notably, several studies reported that LIPUS could induce CGRP innervation, and then indirectly promote bone formation and spinal fusion [98,99,102,103].
Other studies focused on the potential accelerated effect of LIPUS on nerve conduit. L-ornithine was coated in the internal wall of PLGA conduits to promote cell adherence of the Schwann cells. In vitro, such conduit combined with LIPUS could promote cell proliferation of Schwann cells [131]. In vivo, the LIPUS stimulated the seeded Schwann cells to form regenerated nerves while inducing retarded axon regeneration in the silicone conduit [131,132].
After being blended with Matrigel solution, induced pluripotent stem cell-derived neural crest stem cells (iPSCs-NCSCs) were filled into the center of PLLA nanofiber nerve conduit, which acted as a scaffold in the rat transected sciatic nerve model. After LIPUS treatment, the neurophysiological parameters of the rat sciatic nerve were significantly improved. Staining of tissue sections revealed increased new blood vessels and neurofilaments, and increased expression of the neural marker Tuj1. Above all, the combination of LIPUS and iPSCs-NCSCs/PLLA promoted the regeneration and reconstruction of the rat sciatic nerve [133]. The activation of FAK-ERK1/2 signaling in iPSCs-NCSCs might contribute to the promotion effect of LIPUS on nerve regrowth. Based on this finding, this team fabricated an allogeneic decellularized nerve conduit containing iPSCs-NCSCs, perfluorotributylamine (PFTBA), and growth differentiation factor 5 (GDF5). The addition of PFTBA and GDF5 could provide an advantageous microenvironment for nerve regeneration, because PFTBA could supply enough oxygen and the addition of GDF5 could promote neural differentiation. This conduit showed rather good influence on the repair of rat transected sciatic nerves (Figure 8) [134].
Polycaprolactone/Pluronic F127 membrane (PCL/F127) was used to conduct a nerve guide conduit (NGC). The favorable permeability, hydrophilicity, and structural stability of PCL/F127 was good for the permeation of nutrients from the whole surroundings, whereas no nutrition could permeate the hydrophobic PLGA tube. Thus, this PCL/F127 conduit could favor nerve regeneration in the rat sciatic nerve defect model [135]. A further study used nerve growth factor (NGF) and LIPUS as double biophysical stimulation; by combining them, the NGF@PCL/F127 + LIPUS system could provide a synergetic effect on peripheral nerve repair, potentially for the repair of delayed and malfunctioned peripheral nerve [136].
Table 5. LIPUS + biomaterials for nerve repair.
Table 5. LIPUS + biomaterials for nerve repair.
NoBiomaterialsConstituentEvidence In VitroEvidence In VivoRef.
CellProliferationAnimalNerve
Regeneration		Angiogenesis
1CompositesiPSCs-NCSCs@PLLA//Rat++[133]
2AutograftAutograft Nerve//Rat+/[130]
3CompositesiPSCs-NCSCs/PFTBA/GDF5A@ADNC//Rat+/[134]
4CompositesPCL/F127//Rat+/[135]
5CompositesNGF@PCL/F127//Rat+/[136]
6CompositesSC@PLGA//Rat+/[132]
7CompositesSC@PLGASchwann+Rat+/[131]
iPSCs-NCSCs@PLLA: induced pluripotent stem cell-derived neural crest stem cells loaded poly(L-lactic acid), iPSCs-NCSCs/PFTBA/GDF5A@ADNC: allogeneic decellularized nerve conduit containing iPSCs-NCSCs, perfluorotributylamine (PFTBA), and growth differentiation factor 5 (GDF5), PCL/F127: Polycaprolactone/Pluronic F127 membrane, NGF@PCL/F127: nerve growth factor loaded PCL/F127 membrane, SC@PLGA: Schwann cells seeded poly(DL-lactic acid-co-glycolic acid) (PLGA). +: Positive, /: not tested.

8. LIPUS Parameters

When compared with other energies, ultrasound has a specific ability to deeply propagate within the human body. Furthermore, it is highly focused, making it an excellent source with high energy for clinical therapy. Based on the parameters and the type of tissue, there are both thermal and non-thermal effects after ultrasonic waves are penetrated into the body [137]. The US frequencies ranged from 1 to 15 MHz in medical application, with 1 MHz frequencies being used for therapeutic applications and 2.5 to 15 MHz frequencies for diagnostic procedures, depending on the depth and tissue type and the mechanics of mechanical wave propagation (Table 6) [38,138].
It is a challenging process to determine optimal LIPUS parameters because of the wide range of biomaterials that have been used. Thus, few studies have been conducted on LIPUS parameters that could interact with biomaterials on cells or in animal models. One study systematically investigated the acoustic excitation parameters, including intensity, frequency, duty cycle, and excitation duration. The most often used parameters were as follows: 30 mW/cm2 intensity, 1.5 MHz frequency, and 20% duty cycle, but no differences were observed for excitation durations of 1, 3, and 5 min [120]. After 5 days of LIPUS stimulation, the rBMSC cultured on tissue culture plates could express the highest ALP activity in the group of 30 mW/cm2 compared to the groups of 2 and 15 mW/cm2. However, the highest mineralization was observed in the group with 2 mW/cm2 after 17 days of LIPUS stimulation [139]. Zhou et al. proposed that the LIPUS intensity of 150 mW/cm2 from the tissue culture plate be used for further study using 3D printed scaffolds, since maximum proliferation of hBMSCs was observed at 150 mW/cm2 among five intensities (20, 50, 75, 150, and 300 mW/cm2) [52].
In the porous Ti6Al4V scaffolds, a LIPUS intensity of 30 mW/cm2 induced improved osteoblast differentiation when compared with 0, 10, and 60 mW/cm2 [57]. However, no significant differences on MC3T3-E1 cells cultured on Ti6Al4V scaffolds were noted between the 1 and 3.2 MHz frequencies, both in vitro and in vivo [58]. Mouse preosteoblast MC3T3-E1 cells encapsulated in type I collagen hydrogels induced higher COX-2 and PGE2 expression after LIPUS application in the 30 and 150 mW/cm2 group than in the 0 mW/cm2 group, and the expression of these two markers was even higher in the 30 mW/cm2 US intensity group than the 150 mW/cm2 group. However, COX-2 was an inducer of the expression of PGE2, both of them leading to the aggravation of tissue inflammation [70]. Hsu et al. determined that pulsed ultrasound was more effective in increasing ALP activity and cell proliferation than continuous ultrasound [56].
During the initial inflammatory phase of 2 postoperative weeks, the bone–tendon junction healed more quickly in the LIPUS group than the control group. The prominent relieving effect of LIPUS on local inflammation was validated by decreased mRNA expression of proinflammatory cytokines and increased anti-inflammatory cytokines of patella–patellar tendon complexes [140,141,142]. Additionally, further study showed that LIPUS initiated during postoperative week 1 had a more noticeable effect on bone–tendon healing compared to immediate postoperative healing and postoperative week 2 [143]. The ultrasonic intensity of 30 mW/cm2 was insufficient to promote axonal regeneration following nerve injury, as compared to the control and sham groups. It was recommended that the intensity of ultrasound should be adjusted to 200–300 mW/cm2 for clinical examinations [144]. Domenici et al. identified that a specific range of the exposure energy density (6.3–10.8 J/cm2) could modulate keratinocytes membrane trafficking with negligible biological damage [145]. After exposure to LIPUS (1 MHz, 65 mW/cm2) for 1 h, a significant transient deregulation of IL-6 expression and secretion was observed in keratinocytes. High LIPUS intensity could alter membrane permeability and further reduce cell viability [146].
Above all, LIPUS parameters varied with different biomaterials platforms, cell types, initiating exposure time, stimulate duration, and cell culturing techniques. Further systematic studies should be designed in order to confirm the optimal parameters for musculoskeletal tissue engineering. Generally, biomaterial-specific parameters or ranges of effective parameters might be promising solutions.

9. Conclusions and Future Perspective

LIPUS is a safe biophysiotherapy which is effective in the repair of musculoskeletal systems. However, there are several issues that need to be noted in the clinical translation of LIPUS with biomaterials on musculoskeletal tissue repair. Firstly, although the intensity of 30mW/cm2 is commonly used in most articles [147,148], the optimal LIPUS parameters may differ depending on the biological materials. However, there are few articles that have systematically explored material-specific LIPUS parameters. Secondly, to develop novel LIPUS-responsive biomaterials, a thorough understanding of the mechanisms of LIPUS is required because it could affect the regenerative microenvironments, including various cells, bioactive molecules, and implanted biomaterials. Even though the mechanism of LIPUS alone on cells has been studied in some papers, there are few studies focusing on the synergistic mechanisms between LIPUS and biomaterials. Thirdly, in addition to bone tissue engineering, researchers should focus on other challenging areas, such as LIPUS on tendon–bone healing, cartilage healing, and skeletal muscle regeneration [149,150].
Combining LIPUS and biomaterials that are approved for bone tissue engineering applications could result in an easier transition to the clinic. However, further exploration is needed in the area of integrating LIPUS with new types of biomaterials. Recently, an emerging trend could be observed of the application of metamaterials in bone repair. Metamaterials could be used to design a patient-specific implant for improving load transfer, or to design a printable tunable stiffness scaffold for bone healing [151,152]. However, there is still a lack of studies on the combination of LIPUS and metamaterials. In order to avoid redundant and meaningless work among peers, it is encouraged to report negative results in the research. LIPUS is recommended for various steps of musculoskeletal tissue engineering, such as the preparation of tissue engineering scaffolds, cell pretreatment, bone remodeling, and other processes. Soft tissues, including muscle, fat, and skin, cover the surface of the musculoskeletal system, but the thickness of the soft tissue varies among the different parts. It is a difficult challenge to convey LIPUS to deeper musculoskeletal tissue [23]. Thus, identifying the optimal LIPUS parameters for specific locations and materials will be crucial to improve the use of LIPUS for musculoskeletal tissue engineering.
Tissue regeneration is a dynamic process involving a bi-directional interaction between cells and the matrix surrounding them. This dynamic reciprocity may be enhanced by exogenous LIPUS stimuli, which could provide more signaling to the microenvironments of bone regeneration. Various changes within cells resulting from LIPUS may explain their alteration in response to local biological signals. In order to achieve new functionalities, specific or extensive strategies could be employed to exploit the physical effects of LIPUS on biomaterials, biological molecules, or cells. Further development also needs to be done on novel biomaterials with adaptable and responsive properties, whether they are stimulated by LIPUS or not.

Author Contributions

Conceptualization, Z.Z. and W.Z.; writing—original draft preparation, W.J.; writing—review and editing, Z.Z. and W.Z.; figures and tables, W.J. and Z.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This article has been supported by National Natural Science Foundation of China (No. 81901892, 82071923).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

All the authors declare that there are no conflict of interest.

References

  1. Dukle, A.; Murugan, D.; Nathanael, A.J.; Rangasamy, L.; Oh, T.-H. Can 3D-Printed Bioactive Glasses Be the Future of Bone Tissue Engineering? Polymers 2022, 14, 1627. [Google Scholar] [CrossRef] [PubMed]
  2. Bose, S.; Sarkar, N. Natural medicinal compounds in bone tissue engineering. Trends Biotechnol. 2020, 38, 404–417. [Google Scholar] [CrossRef] [PubMed]
  3. Koons, G.L.; Diba, M.; Mikos, A.G. Materials design for bone-tissue engineering. Nat. Rev. Mater. 2020, 5, 584–603. [Google Scholar] [CrossRef]
  4. Zhang, K.; Fan, Y.; Dunne, N.; Li, X. Effect of microporosity on scaffolds for bone tissue engineering. Regen. Biomater. 2018, 5, 115–124. [Google Scholar] [CrossRef]
  5. Xue, X.; Hu, Y.; Wang, S.; Chen, X.; Jiang, Y.; Su, J. Fabrication of physical and chemical crosslinked hydrogels for bone tissue engineering. Bioact. Mater. 2021, 12, 327–339. [Google Scholar] [CrossRef]
  6. Hao, Z.; Song, Z.; Huang, J.; Huang, K.; Panetta, A.; Gu, Z.; Wu, J. The scaffold microenvironment for stem cell based bone tissue engineering. Biomater. Sci. 2017, 5, 1382–1392. [Google Scholar] [CrossRef]
  7. Liu, Z.; Li, Y.; Yang, J.; Huang, J.; Luo, C.; Zhang, J.; Yan, W.; Ao, Y. Bone morphogenetic protein 9 enhances osteogenic and angiogenic responses of human amniotic mesenchymal stem cells cocultured with umbilical vein endothelial cells through the PI3K/AKT/m-TOR signaling pathway. Aging 2021, 13, 24829. [Google Scholar] [CrossRef]
  8. Wang, X.-D.; Li, S.-Y.; Zhang, S.-J.; Gupta, A.; Zhang, C.-P.; Wang, L. The neural system regulates bone homeostasis via mesenchymal stem cells: A translational approach. Theranostics 2020, 10, 4839. [Google Scholar] [CrossRef]
  9. Sun, S.; Diggins, N.H.; Gunderson, Z.J.; Fehrenbacher, J.C.; White, F.A.; Kacena, M.A. No pain, no gain? The effects of pain-promoting neuropeptides and neurotrophins on fracture healing. Bone 2020, 131, 115109. [Google Scholar] [CrossRef]
  10. D’Alessandro, D.; Ricci, C.; Milazzo, M.; Strangis, G.; Forli, F.; Buda, G.; Petrini, M.; Berrettini, S.; Uddin, M.J.; Danti, S. Piezoelectric Signals in Vascularized Bone Regeneration. Biomolecules 2021, 11, 1731. [Google Scholar] [CrossRef]
  11. Massari, L.; Benazzo, F.; Falez, F.; Perugia, D.; Pietrogrande, L.; Setti, S.; Osti, R.; Vaienti, E.; Ruosi, C.; Cadossi, R. Biophysical stimulation of bone and cartilage: State of the art and future perspectives. Int. Orthop. 2019, 43, 539–551. [Google Scholar] [CrossRef] [PubMed]
  12. Fontana, F.; Iberite, F.; Cafarelli, A.; Aliperta, A.; Baldi, G.; Gabusi, E.; Dolzani, P.; Cristino, S.; Lisignoli, G.; Pratellesi, T. Development and validation of low-intensity pulsed ultrasound systems for highly controlled in vitro cell stimulation. Ultrasonics 2021, 116, 106495. [Google Scholar] [CrossRef] [PubMed]
  13. Xia, P.; Shi, Y.; Wang, X.; Li, X. Advances in the application of low-intensity pulsed ultrasound to mesenchymal stem cells. Stem Cell Res. Ther. 2022, 13, 214. [Google Scholar] [CrossRef]
  14. Harrison, A.; Lin, S.; Pounder, N.; Mikuni-Takagaki, Y. Mode & mechanism of low intensity pulsed ultrasound (LIPUS) in fracture repair. Ultrasonics 2016, 71, 45–52. [Google Scholar]
  15. Jiang, X.; Savchenko, O.; Li, Y.; Qi, S.; Yang, T.; Zhang, W.; Chen, J. A review of low-intensity pulsed ultrasound for therapeutic applications. IEEE Trans. Biomed. Eng. 2018, 66, 2704–2718. [Google Scholar] [CrossRef]
  16. Padilla, F.; Puts, R.; Vico, L.; Raum, K. Stimulation of bone repair with ultrasound: A review of the possible mechanic effects. Ultrasonics 2014, 54, 1125–1145. [Google Scholar] [CrossRef]
  17. Li, Y.; Li, W.; Liu, X.; Liu, X.; Zhu, B.; Guo, S.; Wang, C.; Wang, D.; Li, S.; Zhang, Z. Effects of Low-Intensity Pulsed Ultrasound in Tendon Injuries. J. Ultrasound Med. Off. J. Am. Inst. Ultrasound Med. 2023, 42, 1923–1939. [Google Scholar] [CrossRef]
  18. Pereira, L.F.; Fontes-Pereira, A.J.; de Albuquerque Pereira, W.C. Influence of Low-Intensity Pulsed Ultrasound Parameters on the Bone Mineral Density in Rat Model: A Systematic Review. Ultrasound Med. Biol. 2023, 49, 1687–1698. [Google Scholar] [CrossRef]
  19. Takase, K.; Fukui, T.; Oe, K.; Sawauchi, K.; Yoshikawa, R.; Yamamoto, Y.; Hayashi, S.; Matsumoto, T.; Kuroda, R.; Niikura, T. Effect of low-intensity pulsed ultrasound on osteogenic differentiation of human induced membrane-derived cells in Masquelet technique. Injury 2023, 54, 1444–1450. [Google Scholar] [CrossRef]
  20. Cheng, H.; Chiu, W.; Lai, Y.; Truong, T.; Lee, P.; Huang, C. High-frequency noncontact low-intensity pulsed ultrasound modulates Ca-dependent transcription factors contributing to cell migration. Ultrasonics 2023, 127, 106852. [Google Scholar] [CrossRef]
  21. Fu, S.; Lan, Y.; Wang, G.; Bao, D.; Qin, B.; Zheng, Q.; Liu, H.; Wong, V. External stimulation: A potential therapeutic strategy for tendon-bone healing. Front. Bioeng. Biotechnol. 2023, 11, 1150290. [Google Scholar] [CrossRef] [PubMed]
  22. Tang, L.; Guo, H.; Wang, K.; Zhou, Y.; Wu, T.; Fan, X.; Guo, J.; Sun, L.; Ta, D. Low-intensity pulsed ultrasound enhances the positive effects of high-intensity treadmill exercise on bone in rats. J. Bone Miner. Metab. 2023, 41, 592–605. [Google Scholar] [CrossRef] [PubMed]
  23. Palanisamy, P.; Alam, M.; Li, S.; Chow, S.; Zheng, Y. Low-Intensity Pulsed Ultrasound Stimulation for Bone Fractures Healing: A Review. J. Ultrasound Med. Off. J. Am. Inst. Ultrasound Med. 2022, 41, 547–563. [Google Scholar] [CrossRef] [PubMed]
  24. Zhou, X.; Sun, S.; Chen, Y.; Liu, C.; Li, D.; Cheng, Q.; He, M.; Li, Y.; Xu, K.; Ta, D. Pulsed frequency modulated ultrasound promotes therapeutic effects of osteoporosis induced by ovarian failure in mice. Ultrasonics 2023, 132, 106973. [Google Scholar] [CrossRef] [PubMed]
  25. Xu, Z.; Li, S.; Wan, L.; Hu, J.; Lu, H.; Zhang, T. Role of low-intensity pulsed ultrasound in regulating macrophage polarization to accelerate tendon-bone interface repair. J. Orthop. Res. Off. Publ. Orthop. Res. Soc. 2023, 41, 919–929. [Google Scholar] [CrossRef]
  26. Qin, H.; Du, L.; Luo, Z.; He, Z.; Wang, Q.; Chen, S.; Zhu, Y. The therapeutic effects of low-intensity pulsed ultrasound in musculoskeletal soft tissue injuries: Focusing on the molecular mechanism. Front. Bioeng. Biotechnol. 2022, 10, 1080430. [Google Scholar] [CrossRef]
  27. Raza, H.; Saltaji, H.; Kaur, H.; Flores-Mir, C.; El-Bialy, T. Effect of Low-Intensity Pulsed Ultrasound on Distraction Osteogenesis Treatment Time: A Meta-analysis of Randomized Clinical Trials. J. Ultrasound Med. 2016, 35, 349–358. [Google Scholar] [CrossRef]
  28. Chen, J.; Li, S.; Jiao, Y.; Li, J.; Li, Y.; Hao, Y.-l.; Zuo, Y. In Vitro Study on the Piezodynamic Therapy with a BaTiO3-Coating Titanium Scaffold under Low-Intensity Pulsed Ultrasound Stimulation. ACS Appl. Mater. Interfaces 2021, 13, 49542–49555. [Google Scholar] [CrossRef]
  29. Kuang, Y.; Hu, B.; Xia, Y.; Jiang, D.; Huang, H.; Song, J. Low-intensity pulsed ultrasound promotes tissue regeneration in rat dental follicle cells in a porous ceramic scaffold. Braz. Oral Res. 2019, 33, e0045. [Google Scholar] [CrossRef]
  30. Liang, C.; Liu, X.; Yan, Y.; Sun, R.; Li, J.; Geng, W. Effectiveness and Mechanisms of Low-Intensity Pulsed Ultrasound on Osseointegration of Dental Implants and Biological Functions of Bone Marrow Mesenchymal Stem Cells. Stem Cells Int. 2022, 2022, 7397335. [Google Scholar] [CrossRef]
  31. Mishima, H.; Sugaya, H.; Yoshioka, T.; Wada, H.; Aoto, K.; Hyodo, K.; Tomaru, Y.; Kumagai, H.; Akaogi, H.; Ochiai, N. The Effect of Combined Therapy, Percutaneous Autologous Concentrated Bone Marrow Grafting and Low-Intensity Pulsed Ultrasound (LIPUS), on the Treatment of Non-Unions. J. Orthop. Trauma 2016, 30, S2. [Google Scholar] [CrossRef] [PubMed]
  32. Zhu, H.; Cai, X.; Lin, T.; Shi, Z.; Yan, S. Low-intensity pulsed ultrasound enhances bone repair in a rabbit model of steroid-associated osteonecrosis. Clin. Orthop. Relat. Res. 2015, 473, 1830–1839. [Google Scholar] [CrossRef] [PubMed]
  33. Chen, J.; Li, J.; Hu, F.; Zou, Q.; Mei, Q.; Li, S.; Hao, Y.; Hou, W.; Li, J.; Li, Y. Effect of microarc oxidation-treated Ti6Al4V scaffold following low-intensity pulsed ultrasound stimulation on osteogenic cells in vitro. ACS Biomater. Sci. Eng. 2019, 5, 572–581. [Google Scholar] [CrossRef] [PubMed]
  34. Cai, K.; Jiao, Y.; Quan, Q.; Hao, Y.; Liu, J.; Wu, L. Improved activity of MC3T3-E1 cells by the exciting piezoelectric BaTiO3/TC4 using low-intensity pulsed ultrasound. Bioact. Mater. 2021, 6, 4073–4082. [Google Scholar] [CrossRef]
  35. Doinikov, A.A. Acoustic radiation forces: Classical theory and recent advances. Recent Res. Dev. Acoust. 2003, 1, 39–67. [Google Scholar]
  36. Ninomiya, K.; Noda, K.; Ogino, C.; Kuroda, S.-i.; Shimizu, N. Enhanced OH radical generation by dual-frequency ultrasound with TiO2 nanoparticles: Its application to targeted sonodynamic therapy. Ultrason. Sonochem. 2014, 21, 289–294. [Google Scholar] [CrossRef]
  37. Fan, C.-H.; Lee, Y.-H.; Ho, Y.-J.; Wang, C.-H.; Kang, S.-T.; Yeh, C.-K. Macrophages as drug delivery carriers for acoustic phase-change droplets. Ultrasound Med. Biol. 2018, 44, 1468–1481. [Google Scholar] [CrossRef]
  38. O’Brien, W.D., Jr. Ultrasound–biophysics mechanisms. Prog. Biophys. Mol. Biol. 2007, 93, 212–255. [Google Scholar] [CrossRef]
  39. Wu, J.; Nyborg, W.L. Ultrasound, cavitation bubbles and their interaction with cells. Adv. Drug Deliv. Rev. 2008, 60, 1103–1116. [Google Scholar] [CrossRef]
  40. Ahmed, S.E.; Martins, A.M.; Husseini, G.A. The use of ultrasound to release chemotherapeutic drugs from micelles and liposomes. J. Drug Target. 2015, 23, 16–42. [Google Scholar] [CrossRef]
  41. Kimmel, E. Cavitation bioeffects. Crit. Rev.™ Biomed. Eng. 2006, 34, 105–161. [Google Scholar] [CrossRef] [PubMed]
  42. Jin, Z.; Wen, Y.; Hu, Y.; Chen, W.; Zheng, X.; Guo, W.; Wang, T.; Qian, Z.; Su, B.-L.; He, Q. MRI-guided and ultrasound-triggered release of NO by advanced nanomedicine. Nanoscale 2017, 9, 3637–3645. [Google Scholar] [CrossRef] [PubMed]
  43. Dong, X.; Li, H.; Lingling, E.; Cao, J.; Guo, B. Bioceramic akermanite enhanced vascularization and osteogenic differentiation of human induced pluripotent stem cells in 3D scaffolds in vitro and vivo. RSC Adv. 2019, 9, 25462–25470. [Google Scholar] [CrossRef] [PubMed]
  44. Vallet-Regí, M.; Ruiz-Hernández, E. Bioceramics: From bone regeneration to cancer nanomedicine. Adv. Mater. 2011, 23, 5177–5218. [Google Scholar] [CrossRef] [PubMed]
  45. Jin, F.; Cai, Q.; Wang, W.; Fan, X.; Lu, X.; He, N.; Ding, J. The Effect of Stromal-Derived Factor 1α on Osteoinduction Properties of Porous β-Tricalcium Phosphate Bioceramics. BioMed Res. Int. 2021, 2021, 8882355. [Google Scholar] [CrossRef]
  46. Brunello, G.; Panda, S.; Schiavon, L.; Sivolella, S.; Biasetto, L.; Del Fabbro, M. The impact of bioceramic scaffolds on bone regeneration in preclinical in vivo studies: A systematic review. Materials 2020, 13, 1500. [Google Scholar] [CrossRef]
  47. Wang, J.; Wang, C.; Jin, K.; Yang, X.; Gao, L.; Yao, C.; Dai, X.; He, J.; Gao, C.; Ye, J. Simultaneous enhancement of vascularization and contact-active antibacterial activity in diopside-based ceramic orbital implants. Mater. Sci. Eng. C 2019, 105, 110036. [Google Scholar] [CrossRef]
  48. Walsh, W.R.; Langdown, A.J.; Auld, J.W.; Stephens, P.; Yu, Y.; Vizesi, F.; Bruce, W.J.; Pounder, N. Effect of low intensity pulsed ultrasound on healing of an ulna defect filled with a bone graft substitute. J. Biomed. Mater. Res. Part B Appl. Biomater. Off. J. Soc. Biomater. Jpn. Soc. Biomater. Aust. Soc. Biomater. Korean Soc. Biomater. 2008, 86, 74–81. [Google Scholar] [CrossRef]
  49. Wang, J.; Wang, J.; Asou, Y.; Paul, F.; Shen, H.; Chen, J.; Sotome, S. Low-intensity pulsed ultrasound prompts tissue-engineered bone formation after implantation surgery. Chin. Med. J. 2014, 127, 669–674. [Google Scholar]
  50. Iwai, T.; Harada, Y.; Imura, K.; Iwabuchi, S.; Murai, J.; Hiramatsu, K.; Myoui, A.; Yoshikawa, H.; Tsumaki, N. Low-intensity pulsed ultrasound increases bone ingrowth into porous hydroxyapatite ceramic. J. Bone Miner. Metab. 2007, 25, 392–399. [Google Scholar] [CrossRef]
  51. Nagasaki, R.; Mukudai, Y.; Yoshizawa, Y.; Nagasaki, M.; Shiogama, S.; Suzuki, M.; Kondo, S.; Shintani, S.; Shirota, T. A combination of low-intensity pulsed ultrasound and nanohydroxyapatite concordantly enhances osteogenesis of adipose-derived stem cells from buccal fat pad. Cell Med. 2015, 7, 123–131. [Google Scholar] [CrossRef] [PubMed]
  52. Zhou, X.; Castro, N.J.; Zhu, W.; Cui, H.; Aliabouzar, M.; Sarkar, K.; Zhang, L.G. Improved human bone marrow mesenchymal stem cell osteogenesis in 3D bioprinted tissue scaffolds with low intensity pulsed ultrasound stimulation. Sci. Rep. 2016, 6, 32876. [Google Scholar] [CrossRef] [PubMed]
  53. Wu, L.; Lin, L.; Qin, Y.-X. Low-Intensity Pulsed Ultrasound on Osteogenesison Porous Titanium Alloy Scaffolds, and early differentiation in a three-dimensional silicon carbide scaffold using low-intensity pulsed ultrasound. Tissue Eng. Part A 2015, 21, 53–61. [Google Scholar] [CrossRef]
  54. Higuchi, M.; Moroi, A.; Yoshizawa, K.; Kosaka, A.; Ikawa, H.; Iguchi, R.; Saida, Y.; Hotta, A.; Tsutsui, T.; Ueki, K. Comparison between various densities of pore titanium meshes and e-polytetrafluoroethylene (ePTFE) membrane regarding bone regeneration induced by low intensity pulsed ultrasound (LIPUS) in rabbit nasal bone. J. Cranio-Maxillofac. Surg. 2016, 44, 1152–1161. [Google Scholar] [CrossRef]
  55. Liu, Q.; Liu, X.; Liu, B.; Hu, K.; Zhou, X.; Ding, Y. The effect of low-intensity pulsed ultrasound on the osseointegration of titanium dental implants. Br. J. Oral Maxillofac. Surg. 2012, 50, 244–250. [Google Scholar] [CrossRef] [PubMed]
  56. Hsu, S.-K.; Huang, W.-T.; Liu, B.-S.; Li, S.-M.; Chen, H.-T.; Chang, C.-J. Effects of near-field ultrasound stimulation on new bone formation and osseointegration of dental titanium implants in vitro and in vivo. Ultrasound Med. Biol. 2011, 37, 403–416. [Google Scholar] [CrossRef]
  57. Cao, H.; Feng, L.; Wu, Z.; Hou, W.; Li, S.; Hao, Y.; Wu, L. Effect of low-intensity pulsed ultrasound on the biological behavior of osteoblasts on porous titanium alloy scaffolds: An in vitro and in vivo study. Mater. Sci. Eng. C 2017, 80, 7–17. [Google Scholar] [CrossRef]
  58. Feng, L.; Liu, X.; Cao, H.; Qin, L.; Hou, W.; Wu, L. A comparison of 1-and 3.2-MHz low-intensity pulsed ultrasound on osteogenesis on porous titanium alloy scaffolds: An in vitro and in vivo study. J. Ultrasound Med. 2019, 38, 191–202. [Google Scholar] [CrossRef]
  59. Fan, B.; Guo, Z.; Li, X.; Li, S.; Gao, P.; Xiao, X.; Wu, J.; Shen, C.; Jiao, Y.; Hou, W. Electroactive barium titanate coated titanium scaffold improves osteogenesis and osseointegration with low-intensity pulsed ultrasound for large segmental bone defects. Bioact. Mater. 2020, 5, 1087–1101. [Google Scholar] [CrossRef]
  60. Liu, W.; Yang, D.; Wei, X.; Guo, S.; Wang, N.; Tang, Z.; Lu, Y.; Shen, S.; Shi, L.; Li, X. Fabrication of piezoelectric porous BaTiO3 scaffold to repair large segmental bone defect in sheep. J. Biomater. Appl. 2020, 35, 544–552. [Google Scholar] [CrossRef]
  61. Wu, H.; Dong, H.; Tang, Z.; Chen, Y.; Liu, Y.; Wang, M.; Wei, X.; Wang, N.; Bao, S.; Yu, D.; et al. Electrical stimulation of piezoelectric BaTiO3 coated Ti6Al4V scaffolds promotes anti-inflammatory polarization of macrophages and bone repair via MAPK/JNK inhibition and OXPHOS activation. Biomaterials 2023, 293, 121990. [Google Scholar] [CrossRef] [PubMed]
  62. Qin, D.; Wang, N.; You, X.-G.; Zhang, A.-D.; Chen, X.-G.; Liu, Y. Collagen-based biocomposites inspired by bone hierarchical structures for advanced bone regeneration: Ongoing research and perspectives. Biomater. Sci. 2022, 10, 318–353. [Google Scholar] [CrossRef] [PubMed]
  63. Hu, T.; Lo, A.C. Collagen–Alginate Composite Hydrogel: Application in Tissue Engineering and Biomedical Sciences. Polymers 2021, 13, 1852. [Google Scholar] [CrossRef] [PubMed]
  64. Benayahu, D.; Benayahu, Y. A Unique Marine-Derived Collagen: Its Characterization towards Biocompatibility Applications for Tissue Regeneration. Mar. Drugs 2021, 19, 419. [Google Scholar] [CrossRef]
  65. Ishihara, Y.; Ueki, K.; Sotobori, M.; Marukawa, K.; Moroi, A. Bone regeneration by statin and low-intensity pulsed ultrasound (LIPUS) in rabbit nasal bone. J. Cranio-Maxillofac. Surg. 2014, 42, 185–193. [Google Scholar] [CrossRef]
  66. Angle, S.R.; Sena, K.; Sumner, D.R.; Virkus, W.W.; Virdi, A.S. Combined use of low intensity pulsed ultrasound and rhBMP-2 to enhance bone formation in a rat model of critical-size defect. J. Orthop. Trauma 2014, 28, 605. [Google Scholar] [CrossRef]
  67. Carina, V.; Costa, V.; Raimondi, L.; Pagani, S.; Sartori, M.; Figallo, E.; Setti, S.; Alessandro, R.; Fini, M.; Giavaresi, G. Effect of low-intensity pulsed ultrasound on osteogenic human mesenchymal stem cells commitment in a new bone scaffold. J. Appl. Biomater. Funct. Mater. 2017, 15, 215–222. [Google Scholar] [CrossRef]
  68. Assanah, F.; Grassie, K.; Anderson, H.; Xin, X.; Rowe, D.; Khan, Y. Ultrasound-derived mechanical stimulation of cell-laden collagen hydrogels for bone repair. J. Biomed. Mater. Res. Part A 2023, 111, 1200–1215. [Google Scholar] [CrossRef]
  69. Veronick, J.; Assanah, F.; Nair, L.S.; Vyas, V.; Huey, B.; Khan, Y. The effect of acoustic radiation force on osteoblasts in cell/hydrogel constructs for bone repair. Exp. Biol. Med. 2016, 241, 1149–1156. [Google Scholar] [CrossRef]
  70. Veronick, J.A.; Assanah, F.; Piscopo, N.; Kutes, Y.; Vyas, V.; Nair, L.S.; Huey, B.D.; Khan, Y. Mechanically loading cell/hydrogel constructs with low-intensity pulsed ultrasound for bone repair. Tissue Eng. Part A 2018, 24, 254–263. [Google Scholar] [CrossRef]
  71. Wang, Y.; Peng, W.; Liu, X.; Zhu, M.; Sun, T.; Peng, Q.; Zeng, Y.; Feng, B.; Zhi, W.; Weng, J. Study of bilineage differentiation of human-bone-marrow-derived mesenchymal stem cells in oxidized sodium alginate/N-succinyl chitosan hydrogels and synergistic effects of RGD modification and low-intensity pulsed ultrasound. Acta Biomater. 2014, 10, 2518–2528. [Google Scholar] [CrossRef] [PubMed]
  72. Wang, Y.; Qiu, Y.; Li, J.; Zhao, C.; Song, J. Low-intensity pulsed ultrasound promotes alveolar bone regeneration in a periodontal injury model. Ultrasonics 2018, 90, 166–172. [Google Scholar] [CrossRef] [PubMed]
  73. Zheng, H.; Lu, L.; Song, J.; Gao, X.; Deng, F.; Wang, Z. Low intensity pulsed ultrasound combined with guided tissue regeneration for promoting the repair of defect at canines periodontal fenestration in Beagle dogs. Zhonghua Kou Qiang Yi Xue Za Zhi Zhonghua Kouqiang Yixue Zazhi Chin. J. Stomatol. 2011, 46, 431–436. [Google Scholar]
  74. Oh, S.H.; Kim, T.H.; Chun, S.Y.; Park, E.K.; Lee, J.H. Enhanced guided bone regeneration by asymmetrically porous PCL/pluronic F127 membrane and ultrasound stimulation. J. Biomater. Sci. Polym. Ed. 2012, 23, 1673–1686. [Google Scholar] [CrossRef]
  75. Hasuike, A.; Sato, S.; Makino, N.; Tsunori, K.; Oginuma, T.; Ito, K. The potency of low-intensity pulsed ultrasound in a rat calvarial guided bone-regeneration model. J. Hard Tissue Biol. 2011, 20, 217–224. [Google Scholar] [CrossRef]
  76. Xinyi, J.; Ji, Y.; Zhaowu, C.; Jinlin, S.; Feng, D.; Zhibiao, W. Low intensity pulsed ultrasound irradiating combined with guided bone regeneration for promoting the repair effect of periodontal bone defect. West China J. Stomatol. 2012, 30, 487–492. [Google Scholar]
  77. Moonga, S.S.; Qin, Y.-X. MC3T3 infiltration and proliferation in bovine trabecular scaffold regulated by dynamic flow bioreactor and augmented by low-intensity pulsed ultrasound. J. Orthop. Transl. 2018, 14, 16–22. [Google Scholar] [CrossRef]
  78. Yao, H.; Zhang, L.; Yan, S.; He, Y.; Zhu, H.; Li, Y.; Wang, D.; Yang, K. Low-intensity pulsed ultrasound/nanomechanical force generators enhance osteogenesis of BMSCs through microfilaments and TRPM7. J. Nanobiotechnol. 2022, 20, 378. [Google Scholar] [CrossRef]
  79. Sirsi, S.; Borden, M. Microbubble compositions, properties and biomedical applications. Bubble Sci. Eng. Technol. 2009, 1, 3–17. [Google Scholar] [CrossRef]
  80. Osborn, J.; Aliabouzar, M.; Zhou, X.; Rao, R.; Zhang, L.G.; Sarkar, K. Enhanced osteogenic differentiation of human mesenchymal stem cells using microbubbles and low intensity pulsed ultrasound on 3D printed scaffolds. Adv. Biosyst. 2019, 3, 1800257. [Google Scholar] [CrossRef]
  81. Huang, L.; Cai, Y.; Hu, H.; Guo, P.; Xin, Z. Enhanced regeneration of large cortical bone defects with electrospun nanofibrous membranes and low-intensity pulsed ultrasound. Exp. Ther. Med. 2017, 14, 525–530. [Google Scholar] [CrossRef] [PubMed]
  82. Jin, L.; Shan, J.; Hao, Y.; Wang, Y.; Liu, L. Enhanced bone regeneration by low-intensity pulsed ultrasound and lipid microbubbles on PLGA/TCP 3D-printed scaffolds. BMC Biotechnol. 2023, 23, 13. [Google Scholar] [CrossRef] [PubMed]
  83. Tang, L.; Wu, T.; Zhou, Y.; Zhong, Y.; Sun, L.; Guo, J.; Fan, X.; Ta, D. Study on synergistic effects of carboxymethyl cellulose and LIPUS for bone tissue engineering. Carbohydr. Polym. 2022, 286, 119278. [Google Scholar] [CrossRef] [PubMed]
  84. Elmajee, M.; Munasinghe, C.; Nasser, A.; Nagappa, S.; Mahmood, A. The perceptions of clinicians using low-intensity pulsed ultrasound (LIPUS) for orthopaedic pathology: A national qualitative study. Injury 2022, 53, 3214–3219. [Google Scholar] [CrossRef]
  85. Wada, K.; Kawano, M.; Hemmi, Y.; Suzuki, R.; Kunoki, K.; Sakagami, H.; Kawazu, H.; Yokose, S. Effect of Low-intensity Pulsed Ultrasound on Healing of Bone Defects in Rat Tibia as Measured by Reconstructed Three-dimensional Analysis of Micro CT Images. In Vivo 2022, 36, 643–648. [Google Scholar] [CrossRef]
  86. Sawauchi, K.; Fukui, T.; Oe, K.; Kumabe, Y.; Oda, T.; Yoshikawa, R.; Takase, K.; Matsushita, T.; Matsumoto, T.; Hayashi, S. Low-Intensity Pulsed Ultrasound Promotes Osteogenic Differentiation of Reamer-Irrigator-Aspirator Graft-Derived Cells in Vitro. Ultrasound Med. Biol. 2022, 48, 313–322. [Google Scholar] [CrossRef]
  87. Majeed, H.; Karim, T.; Davenport, J.; Karski, M.; Smith, R.; Clough, T.M. Clinical and patient-reported outcomes following Low Intensity Pulsed Ultrasound (LIPUS, Exogen) for established post-traumatic and post-surgical nonunion in the foot and ankle. Foot Ankle Surg. 2020, 26, 405–411. [Google Scholar] [CrossRef]
  88. Cook, S.D.; Salkeld, S.L.; Patron, L.P.; Ryaby, J.P.; Whitecloud III, T.S. Low-intensity pulsed ultrasound improves spinal fusion. Spine J. 2001, 1, 246–254. [Google Scholar] [CrossRef]
  89. Aynaci, O.; Önder, Ç.; Piskin, A.; Özoran, Y. The effect of ultrasound on the healing of muscle-pediculated bone graft in spinal fusion. Spine 2002, 27, 1531–1535. [Google Scholar] [CrossRef]
  90. Chen, L.-H.; Liao, J.-C.; Chen, W.-J.; Lai, P.-L.; Keorochana, G. Low-intensity pulsed ultrasound enhances healing of laminectomy chip bone grafts on spinal fusion: A model of posterolateral intertransverse fusion in rabbits. J. Trauma Acute Care Surg. 2011, 70, 863–869. [Google Scholar] [CrossRef]
  91. Liao, J.-C.; Chen, W.-J.; Niu, C.-C.; Chen, L.-H. Effects of Low-Intensity Pulsed Ultrasound on Spinal Pseudarthrosis Created by Nicotine Administration: A Model of Lumbar Posterolateral Pseudarthrosis in Rabbits. J. Ultrasound Med. 2015, 34, 1043–1050. [Google Scholar] [CrossRef] [PubMed]
  92. Hui, C.F.F.; Chan, C.W.; Yeung, H.Y.; Lee, K.M.; Qin, L.; Li, G.; Leung, K.S.; Hu, Y.Y.; Cheng, J.C.Y. Low-intensity pulsed ultrasound enhances posterior spinal fusion implanted with mesenchymal stem cells-calcium phosphate composite without bone grafting. Spine 2011, 36, 1010–1016. [Google Scholar] [CrossRef] [PubMed]
  93. Zhuo, X.-L.; Lü, H.-B.; Xu, D.-Q.; Bin, L.; Wang, X.-Y.; Zhang, Y.; Hu, J.-Z. Effects of low-intensity pulsed ultrasound stimulation on porous hydroxyapatite blocks for posterolateral fusion of lumbar spine in rabbits. Trans. Nonferrous Met. Soc. China 2010, 20, 1921–1927. [Google Scholar] [CrossRef]
  94. Wang, J.; Li, J.-W.; Chen, L. Effect of low–intensity pulsed ultrasound on posterolateral lumbar fusion of rabbit. Asian Pac. J. Trop. Med. 2015, 8, 68–72. [Google Scholar] [CrossRef] [PubMed]
  95. Xu, X.; Wang, F.; Yang, Y.; Zhou, X.; Cheng, Y.; Wei, X.; Li, M. LIPUS promotes spinal fusion coupling proliferation of type H microvessels in bone. Sci. Rep. 2016, 6, 20116. [Google Scholar] [CrossRef] [PubMed]
  96. Zhou, X.-Y.; Xu, X.-M.; Wu, S.-Y.; Zhang, Z.-C.; Wang, F.; Yang, Y.-L.; Li, M.; Wei, X.-Z. Low-intensity pulsed ultrasound promotes spinal fusion and enhances migration and proliferation of MG63s through sonic hedgehog signaling pathway. Bone 2018, 110, 47–57. [Google Scholar] [CrossRef]
  97. Zhang, Z.-C.; Yang, Y.-L.; Li, B.; Hu, X.-C.; Xu, S.; Wang, F.; Li, M.; Zhou, X.-Y.; Wei, X.-Z. Low-intensity pulsed ultrasound promotes spinal fusion by regulating macrophage polarization. Biomed. Pharmacother. 2019, 120, 109499. [Google Scholar] [CrossRef]
  98. Zaidi, M.; Chambers, T.; Das, R.G.; Morris, H.; MacIntyre, I. A direct action of human calcitonin gene-related peptide on isolated osteoclasts. J. Endocrinol. 1987, 115, 511–518. [Google Scholar] [CrossRef]
  99. Hukkanen, M.; Konttinen, Y.; Santavirta, S.; Paavolainen, P.; Gu, X.-H.; Terenghi, G.; Polak, J. Rapid proliferation of calcitonin gene-related peptide-immunoreactive nerves during healing of rat tibial fracture suggests neural involvement in bone growth and remodelling. Neuroscience 1993, 54, 969–979. [Google Scholar] [CrossRef]
  100. Aro, H.; Eerola, E.; Aho, A. Development of nonunions in the rat fibula after removal of periosteal neural mechanoreceptors. Clin. Orthop. Relat. Res. 1985, 199, 292–299. [Google Scholar] [CrossRef]
  101. Santavirta, S.; Konttinen, Y.T.; Nordström, D.; Mäkelä, A.; Sorsa, T.; Hukkanen, M.; Rokkanen, P. Immunologic studies of nonunited fractures. Acta Orthop. Scand. 1992, 63, 579–586. [Google Scholar] [CrossRef] [PubMed]
  102. Wang, X.-Y.; Guo, X.; Cheng, J.C.-Y.; Mi, Y.-L.; Lai, P.Y.-M. Involvement of calcitonin gene-related peptide innervation in the promoting effect of low-intensity pulsed ultrasound on spinal fusion without decortication. Spine 2010, 35, E1539–E1545. [Google Scholar] [CrossRef] [PubMed]
  103. Zhou, X.-Y.; Xu, X.-M.; Wu, S.-Y.; Wang, F.; Zhang, Z.-C.; Yang, Y.-L.; Li, M.; Wei, X.-Z. Low-intensity pulsed ultrasound-induced spinal fusion is coupled with enhanced calcitonin gene-related peptide expression in rat model. Ultrasound Med. Biol. 2017, 43, 1486–1493. [Google Scholar] [CrossRef] [PubMed]
  104. Saadi, S.B.; Ranjbarzadeh, R.; Amirabadi, A.; Ghoushchi, S.J.; Kazemi, O.; Azadikhah, S.; Bendechache, M. Osteolysis: A Literature Review of Basic Science and Potential Computer-Based Image Processing Detection Methods. Comput. Intell. Neurosci. 2021, 2021, 4196241. [Google Scholar] [CrossRef]
  105. Yadollahpour, A.; Rashidi, S. Therapeutic applications of low-intensity pulsed ultrasound in osteoporosis. Asian J. Pharm. 2017, 11, S1–S6. [Google Scholar]
  106. Zamarioli, A.; Butezloff, M.; Ximenez, J.; Volpon, J. Low-intensity pulsed ultrasound partially reversed the deleterious effects of a severe spinal cord injury-induced bone loss and osteoporotic fracture healing in paraplegic rats. Spinal Cord 2023, 61, 145–153. [Google Scholar] [CrossRef]
  107. Tian, C.; Liu, H.; Zhao, C.; Zhang, C.; Wang, W. A Numerical Study on Mechanical Effects of Low-Intensity Pulsed Ultrasound on Trabecular Bone and Osteoblasts. J. Biomech. Eng. 2023, 145, 051010. [Google Scholar] [CrossRef]
  108. Zhao, X.; Cai, X.-Z.; Shi, Z.-L.; Zhu, F.-B.; Zhao, G.-S.; Yan, S.-G. Low-intensity pulsed ultrasound (LIPUS) may prevent polyethylene induced periprosthetic osteolysis in vivo. Ultrasound Med. Biol. 2012, 38, 238–246. [Google Scholar] [CrossRef]
  109. Zhu, H.; Shi, Z.; Cai, X.; Yang, X.; Zhou, C. The combination of PLLA/PLGA/PCL composite scaffolds integrated with BMP-2-loaded microspheres and low-intensity pulsed ultrasound alleviates steroid-induced osteonecrosis of the femoral head. Exp. Ther. Med. 2020, 20, 126. [Google Scholar] [CrossRef]
  110. Matsumae, G.; Shimizu, T.; Tian, Y.; Takahashi, D.; Ebata, T.; Alhasan, H.; Yokota, S.; Kadoya, K.; Terkawi, M.A.; Iwasaki, N. Targeting thymidine phosphorylase as a potential therapy for bone loss associated with periprosthetic osteolysis. Bioeng. Transl. Med. 2021, 6, e10232. [Google Scholar] [CrossRef]
  111. Tian, Y.; Terkawi, M.A.; Onodera, T.; Alhasan, H.; Matsumae, G.; Takahashi, D.; Hamasaki, M.; Ebata, T.; Aly, M.K.; Kida, H. Blockade of XCL1/lymphotactin ameliorates severity of periprosthetic osteolysis triggered by polyethylene-particles. Front. Immunol. 2020, 11, 1720. [Google Scholar] [CrossRef] [PubMed]
  112. Kubo, Y.; Drescher, W.; Fragoulis, A.; Tohidnezhad, M.; Jahr, H.; Gatz, M.; Driessen, A.; Eschweiler, J.; Tingart, M.; Wruck, C.J. Adverse effects of oxidative stress on bone and vasculature in corticosteroid-associated osteonecrosis: Potential role of nuclear factor erythroid 2-related factor 2 in cytoprotection. Antioxid. Redox Signal. 2021, 35, 357–376. [Google Scholar] [CrossRef] [PubMed]
  113. Liu, L.-H.; Zhang, Q.-Y.; Sun, W.; Li, Z.-R.; Gao, F.-Q. Corticosteroid-induced osteonecrosis of the femoral head: Detection, diagnosis, and treatment in earlier stages. Chin. Med. J. 2017, 130, 2601–2607. [Google Scholar] [CrossRef] [PubMed]
  114. Chen, T.; Bai, J.; Tian, J.; Huang, P.; Zheng, H.; Wang, J. A single integrated osteochondral in situ composite scaffold with a multi-layered functional structure. Colloids Surf. B Biointerfaces 2018, 167, 354–363. [Google Scholar] [CrossRef]
  115. Guo, Y.; Ma, Y.; Dong, R.; Liu, S.; Tu, J. Effect of allogeneic chondrocytes-calcium alginate gel composite under intervention of low intensive pulsed ultrasound for repairing rabbit knee articular cartilage defect. Zhongguo Xiu Fu Chong Jian Wai Ke Za Zhi Zhongguo Xiufu Chongjian Waike Zazhi Chin. J. Reparative Reconstr. Surg. 2013, 27, 928–934. [Google Scholar]
  116. Chen, C.-H.; Kuo, S.M.; Tien, Y.-C.; Shen, P.-C.; Kuo, Y.-W.; Huang, H.H. Steady augmentation of anti-osteoarthritic actions of rapamycin by liposome-encapsulation in collaboration with low-intensity pulsed ultrasound. Int. J. Nanomed. 2020, 15, 3771. [Google Scholar] [CrossRef]
  117. Vaughan, N.M.; Grainger, J.; Bader, D.L.; Knight, M.M. The potential of pulsed low intensity ultrasound to stimulate chondrocytes matrix synthesis in agarose and monolayer cultures. Med. Biol. Eng. Comput. 2010, 48, 1215–1222. [Google Scholar] [CrossRef]
  118. Duda, G.N.; Kliche, A.; Kleemann, R.; Hoffmann, J.E.; Sittinger, M.; Haisch, A. Does low-intensity pulsed ultrasound stimulate maturation of tissue-engineered cartilage? J. Biomed. Mater. Res. Part B Appl. Biomater. Off. J. Soc. Biomater. Jpn. Soc. Biomater. Aust. Soc. Biomater. Korean Soc. Biomater. 2004, 68, 21–28. [Google Scholar] [CrossRef]
  119. Zuo, D.; Tan, B.; Jia, G.; Wu, D.; Yu, L.; Jia, L. A treatment combined prussian blue nanoparticles with low-intensity pulsed ultrasound alleviates cartilage damage in knee osteoarthritis by initiating PI3K/Akt/mTOR pathway. Am. J. Transl. Res. 2021, 13, 3987. [Google Scholar]
  120. Aliabouzar, M.; Zhang, L.G.; Sarkar, K. Lipid coated microbubbles and low intensity pulsed ultrasound enhance chondrogenesis of human mesenchymal stem cells in 3D printed scaffolds. Sci. Rep. 2016, 6, 37728. [Google Scholar] [CrossRef]
  121. Liu, X.; Sun, K.; Xu, P.; Yu, Z.; Lei, Z.; Zhou, H.; Li, J.; Li, X.; Zhu, Z.; Wang, H. Effect of Low-Intensity Pulsed Ultrasound on the Graft-Bone Healing of Artificial Ligaments: An In Vitro and In Vivo Study. Am. J. Sports Med. 2022, 50, 801–813. [Google Scholar] [CrossRef] [PubMed]
  122. Li, S.; Xu, Z.; Wang, Z.; Xiang, J.; Zhang, T.; Lu, H. Acceleration of Bone-Tendon Interface Healing by Low-Intensity Pulsed Ultrasound Is Mediated by Macrophages. Phys. Ther. 2021, 101, pzab055. [Google Scholar] [CrossRef] [PubMed]
  123. Hu, R.; Yang, Z.; Li, Y.; Zhou, Z. LIPUS Promotes Endothelial Differentiation and Angiogenesis of Periodontal Ligament Stem Cells by Activating Piezo1. Int. J. Stem Cells 2022, 15, 372–383. [Google Scholar] [CrossRef]
  124. Lin, H.; Wang, Q.; Quan, C.; Ren, Q.; He, W.; Xiao, H. Low-intensity pulsed ultrasound enhances immunomodulation and facilitates osteogenesis of human periodontal ligament stem cells by inhibiting the NF-κB pathway. Cell Tissue Bank. 2023, 24, 45–58. [Google Scholar] [CrossRef]
  125. Chen, C.; Zhang, T.; Liu, F.; Qu, J.; Chen, Y.; Fan, S.; Chen, H.; Sun, L.; Zhao, C.; Hu, J. Effect of low-intensity pulsed ultrasound after autologous adipose-derived stromal cell transplantation for bone-tendon healing in a rabbit model. Am. J. Sports Med. 2019, 47, 942–953. [Google Scholar] [CrossRef] [PubMed]
  126. Fontana, F.; Iacoponi, F.; Orlando, F.; Pratellesi, T.; Cafarelli, A.; Ricotti, L. Low-intensity pulsed ultrasound increases neurotrophic factors secretion and suppresses inflammation inmodels of peripheral neuropathies. J. Neural Eng. 2023, 20, 026033. [Google Scholar] [CrossRef]
  127. Huang, B.; Jiang, Y.; Zhang, L.; Yang, B.; Guo, Y.; Yang, X.; Gong, P. Low-intensity pulsed ultrasound promotes proliferation and myelinating genes expression of Schwann cells through NRG1/ErbB signaling pathway. Tissue Cell 2023, 80, 101985. [Google Scholar] [CrossRef]
  128. Ye, K.; Li, Z.; Yin, Y.; Zhou, J.; Li, D.; Gan, Y.; Peng, D.; Xiao, M.; Zhao, L.; Dai, Y.; et al. LIPUS-SCs-Exo promotes peripheral nerve regeneration in cavernous nerve crush injury-induced ED rats via PI3K/Akt/FoxO signaling pathway. CNS Neurosci. Ther. 2023. [Google Scholar] [CrossRef]
  129. Song, D.; Chen, X.; Zhou, N.; Yuan, Y.; Geng, S.; Zhang, C.; Zhao, Z.; Wang, X.; Bao, X.; Lan, X.; et al. Low-intensity pulsed ultrasound triggers a beneficial neuromodulation in dementia mice with chronic cerebral hypoperfusion via activation of hippocampal Fndc5/irisin signaling. J. Transl. Med. 2023, 21, 139. [Google Scholar] [CrossRef]
  130. Jiang, W.; Wang, Y.; Tang, J.; Peng, J.; Wang, Y.; Guo, Q.; Guo, Z.; Li, P.; Xiao, B.; Zhang, J. Low-intensity pulsed ultrasound treatment improved the rate of autograft peripheral nerve regeneration in rat. Sci. Rep. 2016, 6, 22773. [Google Scholar] [CrossRef]
  131. Chang, C.J.; Hsu, S.h.; Lin, F.t.; Chang, H.; Chang, C.S. Low-intensity-ultrasound–accelerated nerve regeneration using cell-seeded poly (D, L-lactic acid-co-glycolic acid) conduits: An in vivo and in vitro study. J. Biomed. Mater. Res. Part B Appl. Biomater. Off. J. Soc. Biomater. Jpn. Soc. Biomater. Aust. Soc. Biomater. Korean Soc. Biomater. 2005, 75, 99–107. [Google Scholar] [CrossRef] [PubMed]
  132. Chang, C.-J.; Hsu, S.-H. The effects of low-intensity ultrasound on peripheral nerve regeneration in poly (DL-lactic acid-co-glycolic acid) conduits seeded with Schwann cells. Ultrasound Med. Biol. 2004, 30, 1079–1084. [Google Scholar] [CrossRef] [PubMed]
  133. Lv, Y.; Nan, P.; Chen, G.; Sha, Y.; Xia, B.; Yang, L. In vivo repair of rat transected sciatic nerve by low-intensity pulsed ultrasound and induced pluripotent stem cells-derived neural crest stem cells. Biotechnol. Lett. 2015, 37, 2497–2506. [Google Scholar] [CrossRef]
  134. Xia, B.; Chen, G.; Zou, Y.; Yang, L.; Pan, J.; Lv, Y. Low-intensity pulsed ultrasound combination with induced pluripotent stem cells-derived neural crest stem cells and growth differentiation factor 5 promotes sciatic nerve regeneration and functional recovery. J. Tissue Eng. Regen. Med. 2019, 13, 625–636. [Google Scholar] [CrossRef]
  135. Park, S.C.; Oh, S.H.; Seo, T.B.; Namgung, U.; Kim, J.M.; Lee, J.H. Ultrasound-stimulated peripheral nerve regeneration within asymmetrically porous PLGA/Pluronic F127 nerve guide conduit. J. Biomed. Mater. Res. Part B Appl. Biomater. 2010, 94, 359–366. [Google Scholar] [CrossRef] [PubMed]
  136. Kim, J.R.; Oh, S.H.; Kwon, G.B.; Namgung, U.; Song, K.S.; Jeon, B.H.; Lee, J.H. Acceleration of peripheral nerve regeneration through asymmetrically porous nerve guide conduit applied with biological/physical stimulation. Tissue Eng. Part A 2013, 19, 2674–2685. [Google Scholar] [CrossRef]
  137. Paris, J.L.; Manzano, M.; Cabañas, M.V.; Vallet-Regí, M. Mesoporous silica nanoparticles engineered for ultrasound-induced uptake by cancer cells. Nanoscale 2018, 10, 6402–6408. [Google Scholar] [CrossRef]
  138. Fateh, S.T.; Moradi, L.; Kohan, E.; Hamblin, M.R.; Dezfuli, A.S. Comprehensive review on ultrasound-responsive theranostic nanomaterials: Mechanisms, structures and medical applications. Beilstein J. Nanotechnol. 2021, 12, 808–862. [Google Scholar] [CrossRef]
  139. Angle, S.; Sena, K.; Sumner, D.; Virdi, A. Osteogenic differentiation of rat bone marrow stromal cells by various intensities of low-intensity pulsed ultrasound. Ultrasonics 2011, 51, 281–288. [Google Scholar] [CrossRef]
  140. Lu, H.; Liu, F.; Chen, H.; Chen, C.; Qu, J.; Xu, D.; Zhang, T.; Zhou, J.; Hu, J. The effect of low-intensity pulsed ultrasound on bone-tendon junction healing: Initiating after inflammation stage. J. Orthop. Res. 2016, 34, 1697–1706. [Google Scholar] [CrossRef]
  141. Li, X.; Zhong, Y.; Zhou, W.; Song, Y.; Li, W.; Jin, Q.; Gao, T.; Zhang, L.; Xie, M. Low-intensity pulsed ultrasound (LIPUS) enhances the anti-inflammatory effects of bone marrow mesenchymal stem cells (BMSCs)-derived extracellular vesicles. Cell. Mol. Biol. Lett. 2023, 28, 9. [Google Scholar] [CrossRef]
  142. Li, X.; Zhong, Y.; Zhang, L.; Xie, M. Recent advances in the molecular mechanisms of low-intensity pulsed ultrasound against inflammation. J. Mol. Med. 2023, 101, 361–374. [Google Scholar] [CrossRef]
  143. Lu, H.; Chen, C.; Qu, J.; Chen, H.; Chen, Y.; Zheng, C.; Wang, Z.; Xu, D.; Zhou, J.; Zhang, T. Initiation timing of low-intensity pulsed ultrasound stimulation for tendon-bone healing in a rabbit model. Am. J. Sports Med. 2016, 44, 2706–2715. [Google Scholar] [CrossRef] [PubMed]
  144. Daeschler, S.C.; Harhaus, L.; Bergmeister, K.D.; Boecker, A.; Hoener, B.; Kneser, U.; Schoenle, P. Clinically available low intensity ultrasound devices do not promote axonal regeneration after peripheral nerve surgery—A preclinical investigation of an FDA-approved device. Front. Neurol. 2018, 9, 1057. [Google Scholar] [CrossRef] [PubMed]
  145. Domenici, F.; Brasili, F.; Giantulli, S.; Cerroni, B.; Bedini, A.; Giliberti, C.; Palomba, R.; Silvestri, I.; Morrone, S.; Paradossi, G. Differential effects on membrane permeability and viability of human keratinocyte cells undergoing very low intensity megasonic fields. Sci. Rep. 2017, 7, 16536. [Google Scholar] [CrossRef] [PubMed]
  146. Giantulli, S.; Tortorella, E.; Brasili, F.; Scarpa, S.; Cerroni, B.; Paradossi, G.; Bedini, A.; Morrone, S.; Silvestri, I.; Domenici, F. Effect of 1-MHz ultrasound on the proinflammatory interleukin-6 secretion in human keratinocytes. Sci. Rep. 2021, 11, 19033. [Google Scholar] [CrossRef]
  147. Lou, S.; Lv, H.; Li, Z.; Tang, P.; Wang, Y. Effect of low-intensity pulsed ultrasound on distraction osteogenesis: A systematic review and meta-analysis of randomized controlled trials. J. Orthop. Surg. Res. 2018, 13, 205. [Google Scholar] [CrossRef]
  148. McCarthy, C.; Camci-Unal, G. Low Intensity Pulsed Ultrasound for Bone Tissue Engineering. Micromachines 2021, 12, 1488. [Google Scholar] [CrossRef]
  149. Chen, Y.; Yang, H.; Wang, Z.; Zhu, R.; Cheng, L.; Cheng, Q. Low-intensity pulsed ultrasound promotes mesenchymal stem cell transplantation-based articular cartilage regeneration via inhibiting the TNF signaling pathway. Stem Cell Res. Ther. 2023, 14, 93. [Google Scholar] [CrossRef]
  150. Qin, H.; Luo, Z.; Sun, Y.; He, Z.; Qi, B.; Chen, Y.; Wang, J.; Li, C.; Lin, W.; Han, Z.; et al. Low-intensity pulsed ultrasound promotes skeletal muscle regeneration via modulating the inflammatory immune microenvironment. Int. J. Biol. Sci. 2023, 19, 1123–1145. [Google Scholar] [CrossRef]
  151. Hashemi, M.S.; Mccrary, A.; Kraus, K.H.; Sheidaei, A. A novel design of printable tunable stiffness metamaterial for bone healing. J. Mech. Behav. Biomed. Mater. 2021, 116, 104345. [Google Scholar] [CrossRef] [PubMed]
  152. Singh, A.P.; Rana, M.; Pal, B.; Datta, P.; Majumder, S.; Roychowdhury, A. Patient-specific femoral implant design using metamaterials for improving load transfer at proximal-lateral region of the femur. Med. Eng. Phys. 2023, 113, 103959. [Google Scholar] [CrossRef] [PubMed]
Jfb 14 00504 g001

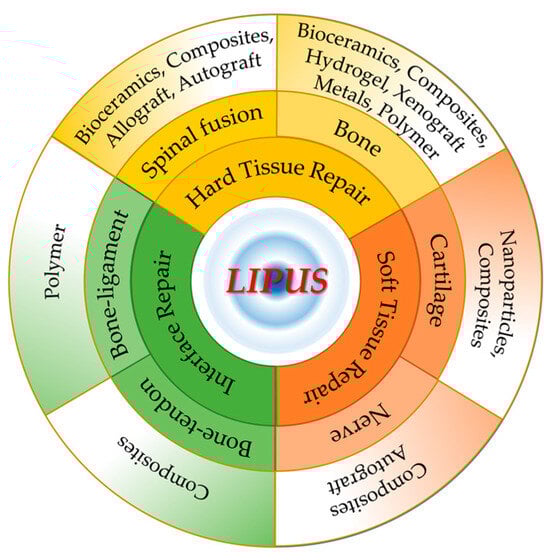

Figure 1. The application of different biomaterials in hard tissue, soft tissue, and interface repair synergized with LIPUS.
Figure 1. The application of different biomaterials in hard tissue, soft tissue, and interface repair synergized with LIPUS.
Jfb 14 00504 g001
Jfb 14 00504 g002

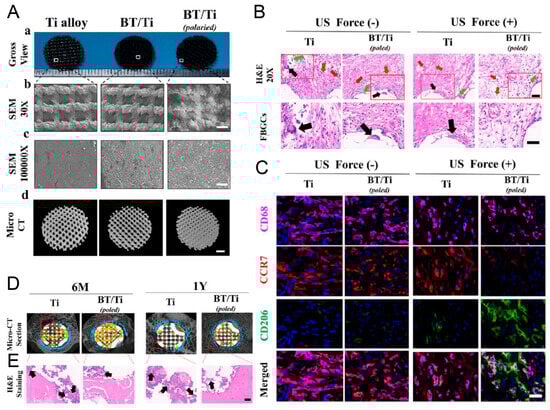

Figure 2. Morphologic views (A) and surface observation by SEM (B,C), and micro-CT 3D reconstruction (D,E). (B) Representative H&E staining images of tissues and FBGCs around scaffolds after subcutaneous implantation for 14 days. (C) Representative immunofluorescence images of CD68+ macrophages (purple), CCR7+ M1 (red), and CD206+ M2 (green) macrophages in the tissues after subcutaneous implantation for 14 days. (D) Micro-CT section of the osteointegration around the artificial scaffolds. (E) Representative H&E staining images of FBGCs in bone tissues around artificial vertebral scaffolds. Reprinted with permission from Ref. [61]. Copyright 2023 Elsevier.
Figure 2. Morphologic views (A) and surface observation by SEM (B,C), and micro-CT 3D reconstruction (D,E). (B) Representative H&E staining images of tissues and FBGCs around scaffolds after subcutaneous implantation for 14 days. (C) Representative immunofluorescence images of CD68+ macrophages (purple), CCR7+ M1 (red), and CD206+ M2 (green) macrophages in the tissues after subcutaneous implantation for 14 days. (D) Micro-CT section of the osteointegration around the artificial scaffolds. (E) Representative H&E staining images of FBGCs in bone tissues around artificial vertebral scaffolds. Reprinted with permission from Ref. [61]. Copyright 2023 Elsevier.
Jfb 14 00504 g002
Jfb 14 00504 g003

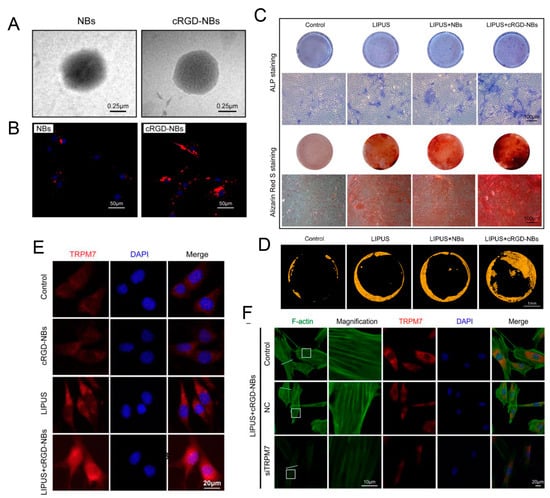

Figure 3. (A) Representative TEM images of NBs and cRGD-NBs. (B) Representative images of BMSCs co-incubated with Dil-labeled NBs and cRGD-NBs. (C) Alkaline phosphatase staining on day 7 and Alizarin Red S staining on day 21. (D) Micro-CT images of mouse calvarial bone regeneration after 4 weeks of treatment. (E) Representative immunofluorescence images of BMSCs co-incubated with cRGD-NBs and LIPUS, TRPM7 (red), and DAPI (blue). (F) Representative immunofluorescence images of BMSCs co-incubated with cRGD-NBs and LIPUS treatment for 4 h, TRPM7 (red), F-actin (green), and DAPI (blue). Reprinted from Ref. [78].
Figure 3. (A) Representative TEM images of NBs and cRGD-NBs. (B) Representative images of BMSCs co-incubated with Dil-labeled NBs and cRGD-NBs. (C) Alkaline phosphatase staining on day 7 and Alizarin Red S staining on day 21. (D) Micro-CT images of mouse calvarial bone regeneration after 4 weeks of treatment. (E) Representative immunofluorescence images of BMSCs co-incubated with cRGD-NBs and LIPUS, TRPM7 (red), and DAPI (blue). (F) Representative immunofluorescence images of BMSCs co-incubated with cRGD-NBs and LIPUS treatment for 4 h, TRPM7 (red), F-actin (green), and DAPI (blue). Reprinted from Ref. [78].
Jfb 14 00504 g003
Jfb 14 00504 g004

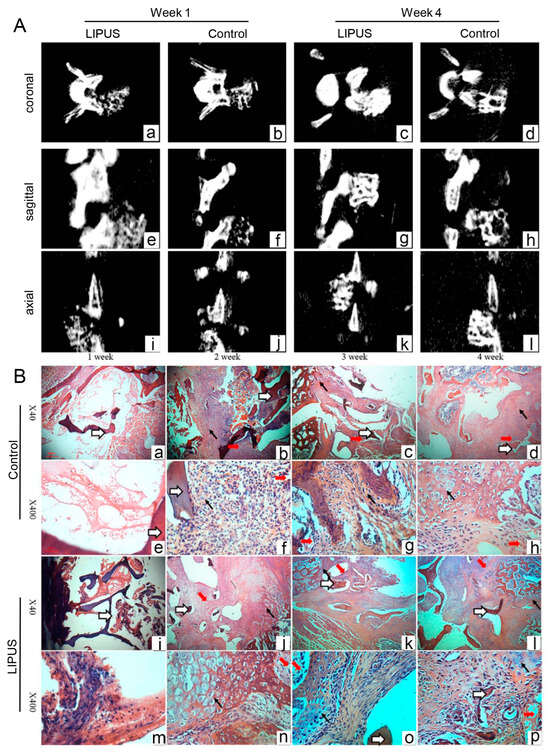

Figure 4. (A) Micro-CT scan views at 1 and 4 weeks post-surgery in the LIPUS group and control group. (B) H&E photomicrographs of the fusion mass in control and LIPUS-treated rats at 1–4 weeks. White arrows denotes allografts. Fat red arrows denotes microvessels. Thin red arrows denotes chondrocytes. Reprinted from Ref. [95].
Figure 4. (A) Micro-CT scan views at 1 and 4 weeks post-surgery in the LIPUS group and control group. (B) H&E photomicrographs of the fusion mass in control and LIPUS-treated rats at 1–4 weeks. White arrows denotes allografts. Fat red arrows denotes microvessels. Thin red arrows denotes chondrocytes. Reprinted from Ref. [95].
Jfb 14 00504 g004
Jfb 14 00504 g005

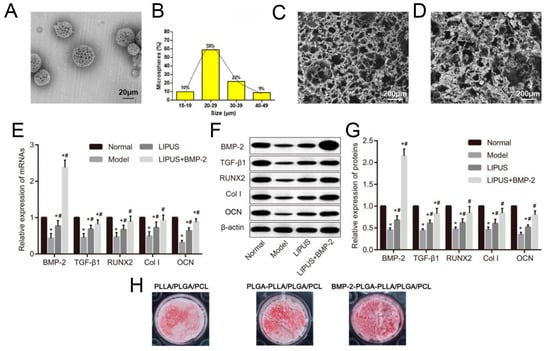

Figure 5. (A) TEM images of BMP-2-loaded PLGA microspheres. (B) Particle size distribution of BMP-2-loaded PLGA nanoparticles. (C) Surface morphology of the PLLA/PLGA/PCL scaffold. (D) Morphology of the BMP-2-loaded PLGA-PLLA/PLGA/PCL composite scaffold. (E) Measurement of BMP 2, TGF β1, RUNX 2, and Col I and OCN mRNA expression in tissues by RT-PCR. (F,G) Measurement of BMP 2, TGF β1, RUNX 2, Col I, and OCN protein expression in tissues by Western blotting. * denotes p < 0.05 compared with Normal group. # denotes p < 0.05 compared with Model group. (H) Measurement of calcium deposition by alizarin red staining in MC3T3 E1 cell lines. Reprinted from Ref. [109].
Figure 5. (A) TEM images of BMP-2-loaded PLGA microspheres. (B) Particle size distribution of BMP-2-loaded PLGA nanoparticles. (C) Surface morphology of the PLLA/PLGA/PCL scaffold. (D) Morphology of the BMP-2-loaded PLGA-PLLA/PLGA/PCL composite scaffold. (E) Measurement of BMP 2, TGF β1, RUNX 2, and Col I and OCN mRNA expression in tissues by RT-PCR. (F,G) Measurement of BMP 2, TGF β1, RUNX 2, Col I, and OCN protein expression in tissues by Western blotting. * denotes p < 0.05 compared with Normal group. # denotes p < 0.05 compared with Model group. (H) Measurement of calcium deposition by alizarin red staining in MC3T3 E1 cell lines. Reprinted from Ref. [109].
Jfb 14 00504 g005
Jfb 14 00504 g006

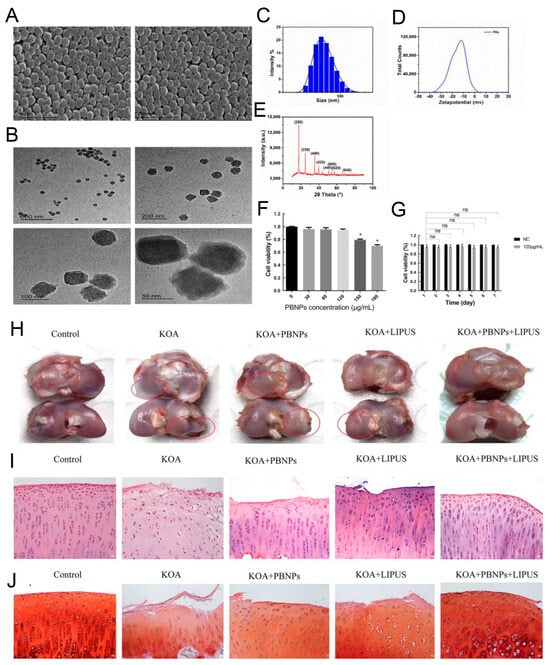

Figure 6. SEM image (A), TEM image (B), size distribution profiles (C), Zeta potential (D), and X-ray diffractometer result (E) of PBNPs. (F) Cell viability of various PBNP concentrations. (G) Effect of PBNPs (120 μg/mL) on cells viability for 7 d. Macroscopic observation (H) and H&E staining (I) and Safranin O staining (J) of effects of PBNPs/LIPUS on repair of the femoral condylar cartilage. * p < 0.05 vs. 0 μg/mL PBNPs group. ns: no significance. Reprinted from Ref. [119].
Figure 6. SEM image (A), TEM image (B), size distribution profiles (C), Zeta potential (D), and X-ray diffractometer result (E) of PBNPs. (F) Cell viability of various PBNP concentrations. (G) Effect of PBNPs (120 μg/mL) on cells viability for 7 d. Macroscopic observation (H) and H&E staining (I) and Safranin O staining (J) of effects of PBNPs/LIPUS on repair of the femoral condylar cartilage. * p < 0.05 vs. 0 μg/mL PBNPs group. ns: no significance. Reprinted from Ref. [119].
Jfb 14 00504 g006
Jfb 14 00504 g007

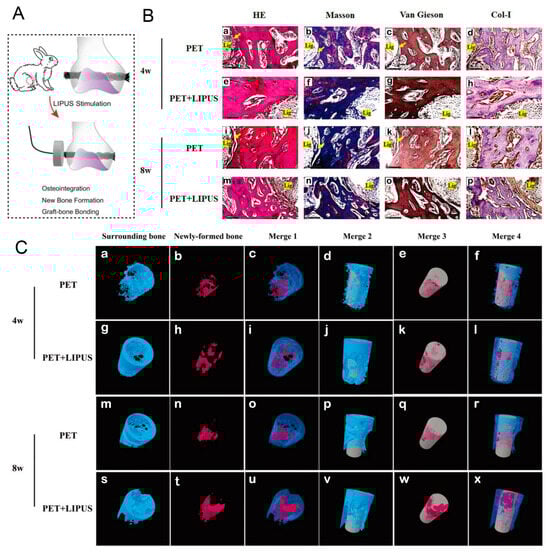

Figure 7. (A) Schematic illustration for the in vivo evaluation of LIPUS on the graft-bone healing of PET artificial ligaments. (B) HE, Masson, and van Gieson staining and Col-I immunohistochemical staining for the surrounding bone at 4 and 8 weeks postoperatively. Fibrous tissue (yellow arrow), Col-I (red arrow). (C) Micro-CT analysis of the surrounding bone and newly formed bone at 4 weeks and 8 weeks postoperatively. Blue, surrounding bone. Red, newly formed bone. Gray, PET graft. Reprinted with permission from Ref. [121]. Copyright 2022 American Orthopaedic Society for Sports Medicine.
Figure 7. (A) Schematic illustration for the in vivo evaluation of LIPUS on the graft-bone healing of PET artificial ligaments. (B) HE, Masson, and van Gieson staining and Col-I immunohistochemical staining for the surrounding bone at 4 and 8 weeks postoperatively. Fibrous tissue (yellow arrow), Col-I (red arrow). (C) Micro-CT analysis of the surrounding bone and newly formed bone at 4 weeks and 8 weeks postoperatively. Blue, surrounding bone. Red, newly formed bone. Gray, PET graft. Reprinted with permission from Ref. [121]. Copyright 2022 American Orthopaedic Society for Sports Medicine.
Jfb 14 00504 g007
Jfb 14 00504 g008

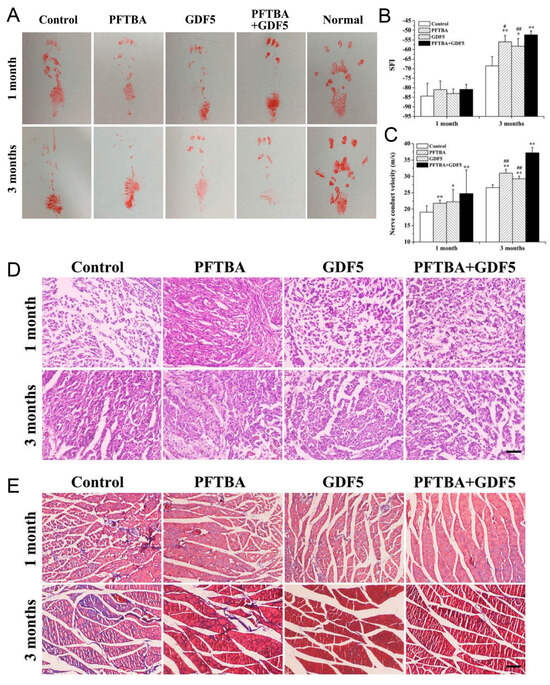

Figure 8. Promotion of LIPUS with allogeneic decellularized nerve conduit containing PFTBA and GDF5 on the repair of rat sciatic nerve injury. The footprint images (A), the SFI (B), and NCV (C) at 1 and 3 months post operation. * denotes p < 0.05 and ** denotes p < 0.01 vs. control group. # denotes p < 0.05 and ## denotes p < 0.01 vs. PFTBA+GDF5 group. Representative images of H&E staining (D) and Masson’s trichrome staining (E) on rat gastrocnemius muscle section at 1 and 3 months post operation. Reprinted with permission from Ref. [134]. Copyright 2019 Wiley.
Figure 8. Promotion of LIPUS with allogeneic decellularized nerve conduit containing PFTBA and GDF5 on the repair of rat sciatic nerve injury. The footprint images (A), the SFI (B), and NCV (C) at 1 and 3 months post operation. * denotes p < 0.05 and ** denotes p < 0.01 vs. control group. # denotes p < 0.05 and ## denotes p < 0.01 vs. PFTBA+GDF5 group. Representative images of H&E staining (D) and Masson’s trichrome staining (E) on rat gastrocnemius muscle section at 1 and 3 months post operation. Reprinted with permission from Ref. [134]. Copyright 2019 Wiley.
Jfb 14 00504 g008
Table 6. Representative parameters for LIPUS + biomaterials.
Table 6. Representative parameters for LIPUS + biomaterials.
ApplicationIntensity
(mW/cm2)		Frequency
(MHz)		Repetition Rate
(kHz)		Pulse Burst
(μs)		Duty Cycle
(%)		Application
(min/d)		ConstituentEquipmentRef.
Bone regeneration30 1.0 0.1 1000 NG20 BaTiO3/TC4Sonicator 740[34]
Bone regeneration30 1.5 1.0 20 20 BaTiO3/Ti6Al4V Ronghai [28]
Bone regeneration100 3.0 NGNG50 10 cRGD-NBs2776 [78]
Bone regeneration300 1.0 NGNGNG20 Collagen IAgilent[68]
Spinal fusion30 ± 30%1.5 ± 5%1.0 ± 10%200 ± 10%20 20 DFDBAExogen[97]
Spinal fusion30 1.5 1.0 200 NG20 AIBGExogen[91]
Cartilage repair601.5 1.0 NG20 20 PBNPsOsteotron IV[119]
Cartilage repair5001.0 NGNG20 20 L-rapaIntelect[116]
Bone-Ligament or -Tendon repair30 ± 51.5 1.0 200 NG20 LiposomesNG[122]
Bone-Ligament or -Tendon repair301.0 NGNGNG20 PETOsteotron IV[121]
Nerve repair250–7501.0 NGNG20 5 Autograft NerveCustomized device[130]
Nerve repair300–5001.0 0.1 NG20 45,214 iPSCs-NCSCs /PFTBA/GDF5A@ADNCUS10[134]
NG: Not given, Ti6Al4V: titanium-6aluminum-4vanadium, cRGD-NBs: cyclic arginine-glycine-aspartic acid-modified nanobubbles, DFDBA: demineralized freeze-dried bone allograft, AIBG: autologous iliac bone graft, PBNPs: Prussian blue nanoparticles, L-rapa: liposome-encapsulated rapamycin, PET: polyethylene terephthalate, iPSCs-NCSCs/PFTBA/GDF5A@ADNC: allogeneic decellularized nerve conduit containing iPSCs-NCSCs.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Jia, W.; Zhou, Z.; Zhan, W. Musculoskeletal Biomaterials: Stimulated and Synergized with Low Intensity Pulsed Ultrasound. J. Funct. Biomater. 2023, 14, 504. https://doi.org/10.3390/jfb14100504

AMA Style

Jia W, Zhou Z, Zhan W. Musculoskeletal Biomaterials: Stimulated and Synergized with Low Intensity Pulsed Ultrasound. Journal of Functional Biomaterials. 2023; 14(10):504. https://doi.org/10.3390/jfb14100504

Chicago/Turabian Style

Jia, Wanru, Zifei Zhou, and Weiwei Zhan. 2023. "Musculoskeletal Biomaterials: Stimulated and Synergized with Low Intensity Pulsed Ultrasound" Journal of Functional Biomaterials 14, no. 10: 504. https://doi.org/10.3390/jfb14100504

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
