Comparison of the Level and Mechanisms of Toxicity of Carbon Nanotubes, Carbon Nanofibers, and Silicon Nanotubes in Bioassay with Four Marine Microalgae

1
Far Eastern Federal University, Sukhanova 8, 690950 Vladivostok, Russian
2
National Scientific Center of Marine Biology, Far Eastern Branch, Russian Academy of Sciences, Palchevsky 17, 690041 Vladivostok, Russian
3
Boreskov Institute of Catalysis SB RAS, Lavrentiev Ave. 5, 630090 Novosibirsk, Russian
4
Tambov State University named after G.R. Derzhavin, Internatsionalnaya 33, 392000 Tambov, Russian
5
National University of Science and Technology «MISIS», Leninskiy prospekt 4, 119049 Moscow, Russian
6
Inha University, 100 Inharo, Nam-gu, Incheon 22212, Korea
7
Pacific Geographical Institute, Far Eastern Branch of the Russian Academy of Sciences, Radio 7, 690041 Vladivostok, Russian
8
Vavilov All-Russian Institute of Plant Genetic Resources, B.Morskaya 42-44, 190000 Saint-Petersburg, Russian
*
Author to whom correspondence should be addressed.
Nanomaterials 2020, 10(3), 485; https://doi.org/10.3390/nano10030485
Submission received: 12 February 2020 / Revised: 2 March 2020 / Accepted: 6 March 2020 / Published: 8 March 2020
(This article belongs to the Special Issue Frontiers in Nanotoxicology)

Abstract

:
Nanoparticles (NPs) have various applications in medicine, cosmetics, optics, catalysis, environmental purification, and other areas nowadays. With an increasing annual production of NPs, the risks of their harmful influence to the environment and human health is rising. Currently, our knowledge about the mechanisms of interaction between NPs and living organisms is limited. Additionally, poor understanding of how physical and chemical characteristic and different conditions influence the toxicity of NPs restrict our attempts to develop the standards and regulations which might allow us to maintain safe living conditions. The marine species and their habitat environment are under continuous stress due to anthropogenic activities which result in the appearance of NPs in the aquatic environment. Our study aimed to evaluate and compare biochemical effects caused by the influence of different types of carbon nanotubes, carbon nanofibers, and silica nanotubes on four marine microalgae species. We evaluated the changes in growth-rate, esterase activity, membrane polarization, and size changes of microalgae cells using flow cytometry method. Our results demonstrated that toxic effects caused by the carbon nanotubes strongly correlated with the content of heavy metal impurities in the NPs. More hydrophobic carbon NPs with less ordered structure had a higher impact on the red microalgae P. purpureum because of higher adherence between the particles and mucous covering of the algae. Silica NPs caused significant inhibition of microalgae growth-rate predominantly produced by mechanical influence.

1. Introduction

The growing industry of nanotechnology inevitably results in an increase of risks associated with the nanomaterials (NMs) and nanoparticles (NPs) to affect living organisms including humans. Carbon- and silica-based NPs could be highlighted among the variety of engineered NPs [1,2]. Due to its unique properties [3,4], carbon nanotubes and nanofibers are one of the most promising classes of NMs, which currently are in the growth phase of large-scale bulk production [5]. Carbon nanotubes were successfully used in electronics [6], catalysis [7,8], environmental purification [9,10], biomedicine [11,12], and other fields. Carbon nanofibers have an application in energy storage [13,14], electronics [15], catalysis [16,17], biosensing [18], etc. Silica NPs are mostly valued by their mesoporous properties [19]. Silica nanotubes, in particular, are widely used in drug delivery [20,21], catalysis [22,23,24], and biosensing [25].
The consumer products, large-scale manufacturers producing NMs, synthesizing, and research laboratories could be highlighted among the main sources leading to the release of NPs in the environment [26,27]. Despite intense interest in the problem of interaction between NPs and organisms and a relatively big amount of experimental data, the mechanisms of toxic action for NPs are still not fully clear [28,29,30]. Hence, the risk evaluation of nano-bio interaction, regulation, and development of the standards for safe production and utilization of NMs and NPs has become one of the high-priority problems in nanotechnology and nanotoxicology [31,32].
The difficulty of risk assessment in nanotoxicology is complicated by the variety of factors that could significantly change the properties and, therefore, the toxicity of NPs. Moreover, much uncertainty still exists about the relation between different parameters such as size, form, surface area, zeta potential of NPs, protein corona formation, and transformation of NPs inside of organisms and in the environment or combinations of these parameters and toxic properties of NPs [28,33,34,35]. NPs appear in the aquatic environment by surface wash, atmospheric sedimentation, and direct spills occurring during their synthesis, application, and utilization. The entrance of synthetic nanofibers, NPs, and NMs to water bodies has been reported in earlier studies [36,37,38,39]. Aquatic organisms such as microalgae species are known as reliable research objects in toxicology, and they are one of the most commonly used organisms in aquatic toxicity assessment of NPs [40,41,42,43]. Previous research has established that carbon nanotubes could cause changes in biochemical composition of microalgae [44], could attach to or penetrate algal cells [45], and the NPs may become involved in the transfer between the levels of food chain [46]. In contrast to carbon nanotubes, there is much less information about effects of carbon nanofibers and silica nanotubes on microalgae [41].
The aim of this study was to evaluate and compare the toxic level and biochemical effects caused by the influence of different types of carbon nanotubes, carbon nanofibers, and silica nanotubes on four marine microalgae species, namely Attheya ussuriensis (Bacillariophyceae), Chaetoceros muelleri (Bacillariophyceae), Heterosigma akashiwo (Raphidophyceae), and Porphyridium purpureum (Rhodophyceae).

2. Materials and Methods

2.1. Nanoparticles

In this research, we used two types of multiwalled carbon nanotubes (CNT-1, CNT-2) [47], two types of carbon nanofibers (CNF-1, CNF-2) [47], and two types of silica nanotubes (SNT-1, SNT-2) [48].
Carbon nanotubes and nanofibers were synthesized and characterized in the Boreskov Institute of Catalysis (Novosibirsk, Russia) [47]. The structural features of carbon NPs ware assessed by Raman spectroscopy in our earlier report [41]. The length of carbon nanotubes was hundreds of times larger than the diameter and in water suspension; the particles could cohere into the spheres up to tens of micrometers in diameter. The toxicity of these NP samples was previously evaluated on mice [49], rats [50,51], human cell lines [52], and microalgae Heterosigma akashiwo [41].
Silicon nanotubes were kindly provided by the Department of Chemistry, Inha University Republic of Korea [48]. The samples had a significantly lower ratio of length to diameter compared to carbon nanotubes.
Characteristics of NPs used in this research are represented in Table 1.

2.2. Microalgae Cultures

Microalgal cultures were provided by The Resource Collection Marine biobank of the National Scientific Center of Marine Biology, Far Eastern Branch of the Russian Academy of Sciences (NSCMB FEB RAS). The toxicity bioassay of NPs was carried out on four marine microalgae: two types of diatom species Attheya ussuriensis [53] and Chaetoceros muelleri [54], a raphidophyte Heterosigma akashiwo [55], and a red algae Porphyridium purpureum [56]. Culturing of microalgae and toxicity test conditions were maintained in accordance with the OECD Guidelines for the Testing of Chemicals, STest No.201 [57] with minor modifications as previously described [58,59].
The microalgae species were selected based on its abundance among the microalgae of the Sea of Japan [60], and its suitability as test objects in ecotoxicology [59,61,62,63]. Earlier, we confirmed the sensitivity of used microalgae species as test organisms with common reference toxicant potassium dichromate [58].

2.3. Bioassay

The samples of NPs were added to filtered seawater to obtain the working suspensions with a concentration of 1000 mg/L. Before each series of bioassays, the working suspensions of NPs were sonicated with ultrasound homogenizer Bandelin Sonopuls GM 3100 (Bandelin Electronic GmbH & Co. KG, Berlin, Germany) using maximal intensity for 30 min.
The exposition of microalgae cells to the suspensions of NPs was carried out in 24-well plates. Each well was filled with 2 mL of microalgae cell aliquot and the corresponding volume of the working suspension to obtain the final concentrations 1, 10, and 100 mg/L. The filtered seawater without NPs was added to the control group. The exposure of each used concentration and control group was performed in four biological replicates.

2.4. Flow Cytometry

Microalgae cell counting and registration of morphological and biochemical changes during the experiment were carried out with flow cytometer CytoFLEX (Beckman Coulter, Indianapolis, IN, USA) with the software package CytExpert v.2.0. The changes of microalgae cells after exposure to NPs were evaluated using specific fluorescent dyes. Microalgae growth-rate inhibition was determined by staining with propidium iodide (PI) according to the standard bioassay protocol [64]. Esterase activity of microalgae exposed to the NPs was evaluated using non-fluorescent lipophilic dye fluorescein diacetate (FDA) [65,66]. Membrane potential of microalgae cells was assessed by a lipophilic, positively charged fluorescent dye 3,3′-dihexyloxacarbocyanine iodide (DiOC6) [67,68]. To determine the size of microalgae cells, a size calibration kit, batch F13838 (Molecular probes, Eugene, OR, USA) with the certified size distribution of 1, 2, 4, 6, 10, 15 μm was used for the forward scatter emission channel. The emission channels were selected according to the maximum emission of the dyes, provided by the manufacturer (Molecular Probes, Eugene, OR, USA). The blue laser (488 nm) of the CytoFLEX flow cytometer was chosen as a source of excitation light. The endpoints of toxicity used in this work and the parameters of their registration are listed in Table 2. Each sample was measured at a flow rate of 100 μL/min for 30 s.
Prior to the assessment of growth-inhibition, esterase activity, and membrane potential of each microalgae species, we made a series of preliminary measurements to determine the optimal concentration of fluorescent dyes and the optimal duration of staining as described in our previous report [59]. The registration time for used endpoints was selected according to the standard methods commonly used to assess toxicity of a test substance in an aqueous system with microalgae model organisms [69,70,71,72].
Growth-rate inhibition and changes in the size of microalgae cells should be estimated as a benchmark of direct cytotoxic effects or as an indicator of mortality. The 96 h and 7 days half maximal effective concentration (EC50) are one of the most common values used for evaluation cytotoxic effects in macroalgae bioassay [63,73].
Esterase activity and membrane potential changes can indicate either the preliminary stage of toxic action or display the adaptational ability of organisms to influence toxic substances [74,75]. Changes of microalgae esterase activity are mostly caused by the deficiency of enzyme action or by disruption of membrane integrity, and it can be evaluated as a sensitive endpoint of algal sublethal toxicity [65,66]. The 3 h and 24 h registration points were chosen to detect possible early metabolic response of the algae over short exposure periods and dynamic change of that response, respectfully [71]. Reduction of membrane potential (depolarization) can be accompanied by changes of membrane elasticity, loss of lipid microdomains, and changes of ion permeability [76]. Integrity and normal operation of membranes are vital parameters for organisms as they provide barriers and transportation functions. The 6 h and 24 h registration points were chosen to detect changes in membrane potential of microalgae cells [72].

2.5. Microscopy

Morphological changes of microalgae cells were observed and captured by optical microscope Axio Observer A1 (Carl Zeiss, Oberkochen, Germany).

2.6. Statistical Analysis

Statistical analyses were performed using the software package GraphPad Prism 7.04 (GraphPad Software, San Diego, CA, USA). The one-way ANOVA test was used for analysis. A value of p ≤ 0.05 was considered statistically significant.

3. Results

For all the samples of NPs, we calculated EC50 concentrations of microalgae growth-rate, FDA fluorescence intensity (esterase activity), and DiOC6 (membrane potential) fluorescence intensity compared to control. The calculated mean EC50 concentrations and 95% confidence limits are given in Table 3.
For visualization of calculated data (Table 3) and analysis of dynamic changes of microalgae cells, we created a heatmap (Figure 1).
Silica nanotubes SNT-1 and SNT-2 demonstrated the most pronounced influence on the microalgae growth rate. The level of toxicity increased for all microalgae species after seven days of exposure except for the samples SNT-1 and SNT-2 after 96 h of the treatment affected growth-rate only for C. muelleri and P. purpureum.
Carbon nanotubes CNT-1 and CNT-2 had almost no influence on the growth rate of A. ussuriensis, C. muelleri, and H. akashiwo both after 96 h (acute toxicity) and seven days (chronic toxicity) of the treatment. Carbon nanofibers CNF-1 and CNF-2 also did not reveal any significant influence on the growth rate of these three species in acute toxicity assessment but chronic toxicity and growth-rate inhibition was detected for A. ussuriensis and H. akashiwo. Moreover, all the carbon NPs caused significant inhibition of esterase activity and depolarization of membranes for A. ussuriensis, H. akashiwo, and C. muelleri. However, the nanofiber sample CNF-2 did not affect the esterase activity of diatomic algae A. ussuriensis and stimulated esterase activity of diatomic algae C. muelleri.
The toxicological profile of the red algae P. purpureum significantly differed from three other microalgae species. P. purpureum was the only species responded by growth-rate inhibition to the influence of carbon NPs. At the same time, the red algae had the lowest changes in esterase activity and membrane potential.
The data of flow cytometry analysis indicated the changes in the size of microalgae cells after the treatment of NPs as demonstrated in Figure 2.
A decrease in the cell size was detected for diatomic algae A. ussuriensis after the treatment with the samples CNT-1 and CNT-2 at the concentration of 100 mg/L and after the treatment with silica nanotubes at the concentrations of 10 and 100 mg/L (Figure 2a). The carbon nanofibers CNF-1 caused enlargement of the cells of A. ussuriensis at the concentrations of 100 mg/L. The cells of H. akashiwo responded with a decreased cell size after of the interaction with all tested types of NPs (Figure 2b). The cell sizes of C. muelleri and P. purpureum slightly decreased after the treatment with the sample CNT-1 (Figure 2c,d).

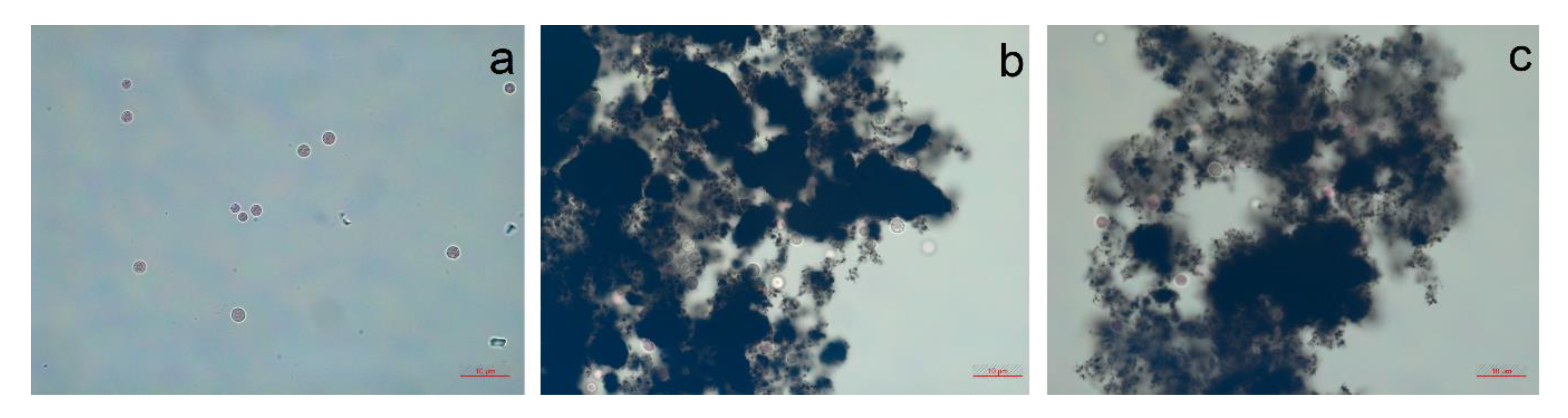

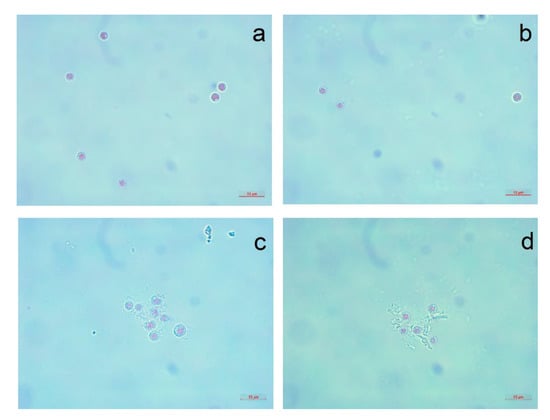

The visual observation of P. purpureum after seven days of exposure to the NPs is presented in Figure 3 and Figure 4.
It should be noted that despite a visible dissimilarity in the sensitivity and responses of different microalgae cells to the treatment of the NPs, we highlighted general mechanisms of action for assessed samples. In the next section, we discuss the principal findings of this investigation.

4. Discussion

4.1. Carbon Nanotubes and Nanofibers

One of the most peculiar observations that we can highlight from experimental data is a relatively high sensitivity of the red microalgae P. purpureum to the samples of carbon NPs and a lower sensitivity to the silica nanotubes, although the other three microalgae species had diametrically opposite responses (Table 3, Figure 1). The probable reason for such differences is a highly hydrophobic surface of the cells of P. purpureum caused by the presence of mucous covering around the cells of the red algae [77]. It was shown that carbon NPs can bind to membranes of microorganisms by hydrophobic interaction and hydrogen bonding formed between surfaces of cells and defect areas of NPs [78]. Hence, the hydrophobic surface of cells might have facilitated adhesion of more hydrophobic carbon NPs to microalgae (Figure 3b,c). Therefore, it could be stated that the red algae P. purpureum received higher influence from the samples of carbon NPs.
The current statement correlated with the results of the structural and surface analysis of the samples of carbon NPs (Table 1). It was shown (Figure 1) that the carbon nanotubes sample CNT-2 having the most ordered structure had a lower influence on the growth-rate of P. purpureum as compared to the other carbon NPs having unordered structure and a relatively higher hydrophobicity. Therefore, based on inhibition of growth-rate of P. purpureum and low influence of carbon NPs (except CNT-2) on esterase activity and membrane potential, we can conclude that the main mechanism of toxic action of these samples on the red microalgae was a physical damage caused by adhesion of clusters of NPs with extracellular mucopolysaccharides of P. purpureum [79].
Almost no effect of carbon NPs on growth-rate of A. ussuriensis, H. akashiwo, and C. muelleri was probably caused by the lower mechanical interaction between microalgae cells and the NPs. However, observed esterase activity inhibition, membrane depolarization, and size changes of microalgae cells might be produced by the influence of metal impurities containing in carbon NPs (Table 1). Prior research demonstrated similar effects of metal ions on esterase activity, membranes, and size of microalgae cells [80,81,82].
In general, nanofibers reveal a lower influence on esterase activity and membrane polarization compared to carbon nanotubes. Such a difference is probably caused by the unequal physical accessibility of toxic impurities from different types of NPs to microalgae cells [83].

4.2. Silica Nanotubes

The influence of silica nanotubes caused a significant growth-rate inhibition for all species but almost did not change esterase activity, membrane polarization (Table 3, Figure 1), size (Figure 2), and shape of microalgae cells (Figure 4). According to the experimental data and the absence of impurities in the composition of SNT-1 and SNT-2 samples (Table 1), we can conclude that the main toxic mechanism for silica nanotubes was mechanical damage of microalgae cells.
Hydrophilic surface of silica NPs allows them to easily move in the water body [84]. Such properties increase the possibility of NPs to have contact with microalgae cells. Thus, a planktonic species i.e., C. muelleri, more frequently had a contact with silica nanotubes and experienced more severe mechanical damage (Figure 1c) compared to benthic laying on the bottom A. ussuriensis (Figure 1a), placed near the water surface H. akashiwo (Figure 1b), and had defense mucous covering P. purpureum (Figure 1d).
Interestingly, the toxic influence of silica nanotubes was reduced with time for all microalgae species except small planktonic algae C. muelleri. At the same time, the sample SNT-2 with a larger diameter of nanotubes had higher influence on growth-rate of two microalgae species with larger cells i.e., A. ussuriensis and H. akashiwo. Previous works showed that the toxicity from the silica nanotubes increases with the increase of microalgae cell diameter [85]. The other research described an increase in the phytotoxic action for silica NPs with an increase of particle size [86]. For C. muelleri and P. purpureum, which are the algae species having smaller cell sizes, both types of silica nanotubes demonstrated a comparable level of toxicity, though the minor predominance could be seen for the sample SNT-1 (Table 3, Figure 1) with a smaller diameter of nanotubes but a more developed surface area.
In the bioassay on common microalgae Raphidocelis subcapitata, the authors claimed the increase of silica nanotubes toxicity with increase of its surface area [84]. Hence, our results were in a good correlation with previous research, and we can conclude that the toxicity of silica NPs strongly depends on their size, surface area, and other surface properties.
However, the cell size changes observed for diatomic algae A. ussuriensis under the treatment of silica nanotubes were unexpected and it was in contradiction to the conclusion made for carbon NPs that the size of microalgae changed by the influence of metal ions from particle impurities. Nevertheless, the size of A. ussuriensis cells was reduced in the presence of silica nanotubes having no impurities (Table 1, Figure 3a).
Probably, the observed effect could be related to diatomic algae reproduction peculiarities. It is a known fact that the size of the diatomic algae population becomes smaller through the series of cell divisions, and the initial cell size can be kept only by sexual reproduction [87]. Therefore, cell size reduction for A. ussuriensis might be caused by a disorder in the reproduction processes. The reason for such disorder is a matter for further investigation and discussion. Moreover, the samples of silica nanotubes did not reveal any influence on the size of the other three microalgae species (Figure 3b–d).
Another interesting observation was the increase in microalgae membrane polarization under the influence of silica NPs (Table 3, Figure 1). Therefore, the mechanisms of toxic action for silica nanotubes cannot depend only on particle diameter and surface area, and future investigations should be focused on the searching of the parameters and their combinations which could influence the toxicity of NPs.

5. Conclusions

In this study, the aim was to assess the level of toxicity and the mechanisms of toxic action of carbon nanotubes, carbon nanofibers, and silica nanotubes using four microalgae species as the objects of aquatic toxicity bioassay. The results of this investigation show that (1) carbon nanotubes samples CNT-1 and CNT-2 had non-significant toxic effect on the growth rate of all four microalgae species but caused a high inhibition of esterase activity and depolarization of cell membranes, which was most probably caused by heavy metal impurities in NPs; (2) more hydrophobic carbon NPs with less ordered structure had a higher impact on the red microalgae P. purpureum because of higher adherence between the particles and mucous covering of the red algae cells; (3) silica NPs did not affect the esterase activity and membrane potential of the cells of all four microalgae species even at higher concentrations but caused significant inhibition of growth-rate, which indicated predominance of mechanical damage as a mechanism of toxicity for used samples of silica nanotubes.
The findings of this research provide insights for the formation of the principles of safe design, production, and utilization of NPs [88]. We believe that safety ensuring in nanotechnology would be provided only by international cooperation and large-scale nanotoxicology research, including the approaches of bioinformatics, system biology, and other methods of modeling, prediction, and maintaining the handling and interpretation the growing body of research data.

Author Contributions

Conceptualization and design of the experiments, K.P., A.Z. and V.C.; methodology of microalgae bioassay, Z.M.; nanoparticle characterization and general consultation, A.V., V.K. and S.P.; writing—original draft preparation, K.P.; writing—review and editing, K.P., A.Z., V.C. and A.G.; supervision, K.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by RFBR, project number 19-05-50010.

Acknowledgments

The authors would like to thank the staff team of Far Eastern Federal University Center of Collective Use Interdepartmental Center for Analytical Control of the Environment for their dedicated involvement in this study. Muhammad Amjad Nawaz (Education and Scientific Center of Nanotechnology, Far Eastern Federal University, Vladivostok, Russian Federation) copy-edited this manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Patil, S.S.; Lekhakb, U.M. Chapter 12—Toxic effects of engineered carbon nanoparticles on environment. In Carbon Nanomaterials for Agri-food and Environmental Applications; Elsevier: Amsterdam, The Netherlands, 2020; pp. 237–260. [Google Scholar]
  2. Feng, L.; Ning, R.; Liu, J.; Liang, S.; Xu, Q.; Liu, Y.; Liu, W.; Duan, J.; Sun, Z. Silica nanoparticles induce JNK-mediated inflammation and myocardial contractile dysfunction. J. Hazard. Mater. 2020, 395, 122206. [Google Scholar] [CrossRef] [PubMed]
  3. Tasis, D.; Tagmatarchis, N.; Bianco, A.; Prato, M. Chemistry of carbon nanotubes. Chem. Rev. 2006, 106, 1105–1136. [Google Scholar] [CrossRef] [PubMed]
  4. Usrey, M.; Heller, D.; Tour, J.; Collier, C.; Freitag, M.; Dyke, C.; Doorn, S.; Mann, D.; Chae, H.; Liu, J.; et al. Carbon Nanotubes: Properties and Applications; CRC Press: Boca Raton, FL, USA, 2006. [Google Scholar] [CrossRef]
  5. De Volder, M.F.; Tawfick, S.H.; Baughman, R.H.; Hart, A.J. Carbon nanotubes: Present and future commercial applications. Science 2013, 339, 535–539. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Marani, R.; Perri, A.G. A review on electrochemical sensors based on carbon nanotubes. i-Manager’s J. Electron. Eng. 2019, 10, 29. [Google Scholar]
  7. Luo, Y.; Yang, H.; Ma, P.; Luo, S.; Zhao, Z.; Ma, J. Fe3O4/CoO interfacial nanostructure supported on carbon nanotubes as a highly efficient electrocatalyst for Oxygen Evolution Reaction. ACS Sustain. Chem. Eng. 2020, 8, 3336–3346. [Google Scholar] [CrossRef]
  8. Sun, J.; Xu, J.; Jiang, H.; Zhang, X.; Niu, D.F. Roles of oxygen functional groups in carbon nanotubes-supported Ag catalysts for electrochemical conversion of CO2 to CO. ChemElectroChem 2020. [Google Scholar] [CrossRef]
  9. Selvaraj, M.; Hai, A.; Banat, F.; Haija, M.A. Application and prospects of carbon nanostructured materials in water treatment: A review. J. Water Process Eng. 2020, 33, 100996. [Google Scholar] [CrossRef]
  10. Quan, X.; Sun, Z.; Xu, J.; Liu, S.; Han, Y.; Xu, Y.; Meng, H.; Wu, J.; Zhang, X. Construction of an aminated MIL-53 (Al)-functionalized carbon nanotube for the efficient removal of bisphenol AF and metribuzin. Inorg. Chem. 2020, 59, 2667–2679. [Google Scholar] [CrossRef]
  11. Prajapati, S.K.; Malaiya, A.; Kesharwani, P.; Soni, D.; Jain, A. Biomedical applications and toxicities of carbon nanotubes. Drug Chem. Toxicol. 2020. [Google Scholar] [CrossRef]
  12. Hassan, A.; Saeed, A.; Afzal, S.; Shahid, M.; Amin, I.; Idrees, M. Applications and hazards associated with carbon nanotubes in biomedical sciences. Inorg. Nano-Met. Chem. 2020. [Google Scholar] [CrossRef]
  13. Kim, J.; Heo, Y.J.; Hong, J.Y.; Kim, S.K. Preparation of porous carbon nanofibers with tailored porosity for electrochemical capacitor electrodes. Materials 2020, 13, 729. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Chen, S.; Qiu, L.; Cheng, H.M. Carbon-based fibers for advanced electrochemical energy storage devices. Chem. Rev. 2020. [Google Scholar] [CrossRef] [PubMed]
  15. Torres, D.; Pérez-Rodríguez, S.; Sebastián, D.; Pinilla, J.L.; Lázaro, M.J.; Suelves, I. Graphene oxide nanofibers: A nanocarbon material with tuneable electrochemical properties. Appl. Surf. Sci. 2019, 509, 144774. [Google Scholar] [CrossRef]
  16. Ji, D.; Sun, J.; Tian, L.; Chinnappan, A.; Zhang, T.; Jayathilaka, W.A.D.M.; Gosh, R.; Baskar, C.; Zhang, Q.; Ramakrishna, S. Engineering of the heterointerface of porous carbon nanofiber–supported nickel and manganese oxide nanoparticle for highly efficient bifunctional oxygen catalysis. Adv. Funct. Mater. 2020. [Google Scholar] [CrossRef]
  17. Jiménez, V.; Sánchez, P.; Panagiotopoulou, P.; Valverde, J.L.; Romero, A. Methanation of CO, CO2 and selective methanation of CO, in mixtures of CO and CO2, over ruthenium carbon nanofibers catalysts. Appl. Catal. A 2010, 390, 35–44. [Google Scholar] [CrossRef]
  18. Liao, L.; Xing, Y.; Xiong, X.; Gan, L.; Hu, L.; Zhao, F.; Tong, Y.; Deng, S. An electrochemical biosensor for hypoxanthine detection in vitreous humor: A potential tool for estimating the post-mortem interval in forensic cases. Microchem. J. 2020. [Google Scholar] [CrossRef]
  19. Bharti, C.; Nagaich, U.; Pal, A.K.; Gulati, N. Mesoporous silica nanoparticles in target drug delivery system: A review. Int. J. Pharm. Investig. 2015, 5, 124. [Google Scholar] [CrossRef] [Green Version]
  20. Huang, S.; Wei, Y.; Cheng, Z.; Liu, B.; Deng, X.; Xie, Z.; Xing, B.; Lin, J. Controllable synthesis of hollow porous silica nanotubes/CuS nanoplatform for targeted chemo-photothermal therapy. Sci. China Mater. 2020. [Google Scholar] [CrossRef] [Green Version]
  21. Deng, C.; Zhang, Q.; Fu, C.; Zhou, F.; Yang, W.; Yi, D.; Wang, X.; Tang, Y.; Caruso, F.; Wang, Y. Template-free synthesis of chemically asymmetric silica nanotubes for selective cargo loading and sustained drug release. Chem. Mater. 2019, 31, 4291–4298. [Google Scholar] [CrossRef]
  22. Lin, Y.; Qiao, Y.; Wang, Y.; Yan, Y.; Huang, J. Self-assembled laminated nanoribbon-directed synthesis of noble metallic nanoparticle-decorated silica nanotubes and their catalytic applications. J. Mater. Chem. 2012, 22, 18314–18320. [Google Scholar] [CrossRef]
  23. Wei, A.; Shen, L.; Chen, S.; Guo, L.; Chen, W. Facile synthesis of novel cage-like porous Ag-decorated silica nanotubes with enhanced catalytic activity. J. Phys. Chem. Solids 2019, 135, 109106. [Google Scholar] [CrossRef]
  24. Liu, J.; Hao, J.; Hu, C.; He, B.; Xi, J.; Xiao, J.; Wang, S.; Bai, Z. Palladium nanoparticles anchored on amine-functionalized silica nanotubes as a highly effective catalyst. J. Phys. Chem 2018, 122, 2696–2703. [Google Scholar] [CrossRef]
  25. Viter, R.; Starodub, N.; Smyntyna, V.; Tereschenko, A.; Kusevitch, A.; Sitnik, J.; Buk, J.; Macak, J. Immune biosensor based on silica nanotube hydrogels for rapid biochemical diagnostics of bovine retroviral leukemia. Procedia Eng. 2011, 25, 948–951. [Google Scholar] [CrossRef] [Green Version]
  26. Bicho, R.C.; Roelofs, D.; Marien, J.; Scott-Fordsmand, J.J.; Amorim, M.J.B. Epigenetic effects of (nano)materials in environmental species—Cu case study in Enchytraeus crypticus. Environ. Int. 2020, 136, 105447. [Google Scholar] [CrossRef]
  27. Zhao, S.; Su, X.; Wang, Y.; Yang, X.; Bi, M.; He, Q.; Chen, Y. Copper oxide nanoparticles inhibited denitrifying enzymes and electron transport system activities to influence soil denitrification and N2O emission. Chemosphere 2019, 245, 125394. [Google Scholar] [CrossRef]
  28. Qin, M.M.; Zhang, J.; Li, M.H.; Yang, D.; Liu, D.C.; Song, S.Y.; Fu, J.J.; Zhang, H.; Dai, W.B.; Wang, X.Q.; et al. Proteomic analysis of intracellular protein corona of nanoparticles elucidates nano-trafficking network and nano-bio interactions. Theranostics 2020, 10, 1213–1229. [Google Scholar] [CrossRef]
  29. Shang, L.; Nienhaus, K.; Nienhaus, G.U. Engineered nanoparticles interacting with cells: Size matters. J. Nanobiotechnol. 2014, 12, 5. [Google Scholar] [CrossRef] [Green Version]
  30. Juganson, K.; Ivask, A.; Blinova, I.; Mortimer, M.; Kahru, A. NanoE-Tox: New and in-depth database concerning ecotoxicity of nanomaterials. Beilstein J. Nanotechnol. 2015, 6, 1788–1804. [Google Scholar] [CrossRef]
  31. Pikula, K.; Zakharenko, A.; Chaika, V.; Kirichenko, K.; Tsatsakis, A.; Golokhvast, K. Risk assessments in nanotoxicology: Bioinformatics and computational approaches. Curr. Opin. Toxl. 2020, 19, 1–6. [Google Scholar] [CrossRef]
  32. Jeevanandam, J.; Barhoum, A.; Chan, Y.S.; Dufresne, A.; Danquah, M.K. Review on nanoparticles and nanostructured materials: History, sources, toxicity and regulations. Beilstein J. Nanotechnol. 2018, 9, 1050–1074. [Google Scholar] [CrossRef] [Green Version]
  33. Ma, Q.; Yilihamu, A.; Ming, Z.; Yang, S.N.; Shi, M.Y.; Ouyang, B.W.; Zhang, Q.Q.; Guan, X.; Yang, S.T. Biotransformation of pristine and oxidized carbon nanotubes by the white rot fungus Phanerochaete chrysosporium. Nanomaterials 2019, 9, 1340. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Raja, I.S.; Song, S.J.; Kang, M.S.; Lee, Y.B.; Kim, B.; Hong, S.W.; Jeong, S.J.; Lee, J.C.; Han, D.W. Toxicity of Zero- and One-Dimensional Carbon Nanomaterials. Nanomaterials 2019, 9, 1214. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Tenzer, S.; Docter, D.; Rosfa, S.; Wlodarski, A.; Kuharev, J.; Rekik, A.; Knauer, S.K.; Bantz, C.; Nawroth, T.; Bier, C.; et al. Nanoparticle size is a critical physicochemical determinant of the human blood plasma corona: A Comprehensive Quantitative Proteomic Analysis. ACS Nano 2011, 5, 7155–7167. [Google Scholar] [CrossRef] [PubMed]
  36. Mouneyrac, C.; Syberg, K.; Selck, H.; Amiard-Triquet, C.; Amiard, J.-C. Chapter 17—Ecotoxicological Risk of Nanomaterials. In Aquatic Ecotoxicology; Academic Press: London, UK, 2015; pp. 417–440. [Google Scholar]
  37. Krug, H.F. The uncertainty with nanosafety: Validity and reliability of published data. Colloids Surf. B 2018, 172, 113–117. [Google Scholar] [CrossRef] [PubMed]
  38. Davarpanah, E.; Guilhermino, L. Are gold nanoparticles and microplastics mixtures more toxic to the marine microalgae Tetraselmis chuii than the substances individually? Ecotoxicol. Environ. Saf. 2019, 181, 60–68. [Google Scholar] [CrossRef] [PubMed]
  39. Minetto, D.; Ghirardini, A.V.; Libralato, G. Saltwater ecotoxicology of Ag, Au, CuO, TiO2, ZnO and C-60 engineered nanoparticles: An overview. Environ. Int. 2016, 92–93, 189–201. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Zhao, J.; Cao, X.; Wang, Z.; Dai, Y.; Xing, B. Mechanistic understanding toward the toxicity of graphene-family materials to freshwater algae. Water Res. 2017, 111, 18–27. [Google Scholar] [CrossRef] [Green Version]
  41. Pikula, K.S.; Zakharenko, A.M.; Chaika, V.V.; Vedyagin, A.A.; Orlova, T.Y.; Mishakov, I.V.; Kuznetsov, V.L.; Park, S.; Renieri, E.A.; Kahru, A.; et al. Effects of carbon and silicon nanotubes and carbon nanofibers on marine microalgae Heterosigma akashiwo. Environ. Res. 2018, 166, 473–480. [Google Scholar] [CrossRef]
  42. Wei, C.X.; Zhang, Y.B.; Guo, J.; Han, B.; Yang, X.; Yuan, J.L. Effects of silica nanoparticles on growth and photosynthetic pigment contents of Scenedesmus obliquus. J. Environ. Sci. 2010, 22, 155–160. [Google Scholar] [CrossRef]
  43. Deniel, M.; Errien, N.; Daniel, P.; Caruso, A.; Lagarde, F. Current methods to monitor microalgae-nanoparticle interaction and associated effects. Aquat. Toxicol. 2019, 217. [Google Scholar] [CrossRef]
  44. Jia, K.; Sun, C.; Wang, Y.; Li, X.; Mu, W.; Fan, Y. Effect of TiO2 nanoparticles and multiwall carbon nanotubes on the freshwater diatom Nitzschia frustulum: Evaluation of growth, cellular components and morphology. Chem. Ecol. 2019, 35, 69–85. [Google Scholar] [CrossRef]
  45. Long, Z.; Ji, J.; Yang, K.; Lin, D.; Wu, F. Systematic and quantitative investigation of the mechanism of carbon nanotubes’ toxicity toward algae. Environ. Sci. Technol. 2012, 46, 8458–8466. [Google Scholar] [CrossRef] [PubMed]
  46. Rhiem, S.; Riding, M.J.; Baumgartner, W.; Martin, F.L.; Semple, K.T.; Jones, K.C.; Schäffer, A.; Maes, H.M. Interactions of multiwalled carbon nanotubes with algal cells: Quantification of association, visualization of uptake, and measurement of alterations in the composition of cells. Environ. Pollut. 2015, 196, 431–439. [Google Scholar] [CrossRef] [PubMed]
  47. Kuznetsov, V.L.; Elumeeva, K.V.; Ishchenko, A.V.; Beylina, N.Y.; Stepashkin, A.A.; Moseenkov, S.I.; Plyasova, L.M.; Molina, I.Y.; Romanenko, A.I.; Anikeeva, O.B.; et al. Multi-walled carbon nanotubes with ppm level of impurities. Phys. Status Solidi B 2010, 247, 2695–2699. [Google Scholar] [CrossRef]
  48. Han, S.C.; Park, S.E. Synthesis and characterization of silica nanotube by glycyldodecylamide as a template. Bull. Korean Chem. Soc. 2010, 31, 3519–3520. [Google Scholar] [CrossRef] [Green Version]
  49. Golokhvast, K.S.; Chaika, V.V.; Kuznetsov, L.V.; Elumeeva, K.V.; Kusaikin, M.I.; Zakharenko, A.M.; Kiselev, N.N.; Panichev, A.M.; Reva, G.V.; Usov, V.V.; et al. Effects of multiwalled carbon nanotubes received orally during 6 days on the gastrointestinal tract. Bull. Exp. Biol. Med. 2013, 155, 788–792. [Google Scholar] [CrossRef]
  50. Sayapina, N.V.; Batalova, T.A.; Chaika, V.V.; Kuznetsov, V.L.; Sergievich, A.A.; Kolosov, V.P.; Perel’man, Y.M.; Golokhvast, K.S. Multi-walled carbon nanotubes increase anxiety levels in rats and reduce exploratory activity in the open field test. Dokl. Biol. Sci. 2015, 464, 223–225. [Google Scholar] [CrossRef]
  51. Sayapina, N.V.; Sergievich, A.A.; Kuznetsov, V.L.; Chaika, V.V.; Lisitskaya, I.G.; Khoroshikh, P.P.; Batalova, T.A.; Tsarouhas, K.; Spandidos, D.; Tsatsakis, A.M.; et al. Influence of multi-walled carbon nanotubes on the cognitive abilities of Wistar rats. Exp. Ther. Med. 2016, 12, 1311–1318. [Google Scholar] [CrossRef] [Green Version]
  52. Vitkina, T.I.; Yankova, V.I.; Gvozdenko, T.A.; Kuznetsov, V.L.; Krasnikov, D.V.; Nazarenko, A.V.; Chaika, V.V.; Smagin, S.V.; Tsatsakis, A.M.; Engin, A.B.; et al. The impact of multi-walled carbon nanotubes with different amount of metallic impurities on immunometabolic parameters in healthy volunteers. Food Chem. Toxicol. 2016, 87, 138–147. [Google Scholar] [CrossRef]
  53. Stonik, I.V.; Orlova, T.Y.; Crawford, R.M. Attheya ussurensis sp nov (Bacillariophyta)—A new marine diatom from the coastal waters of the Sea of Japan and a reappraisal of the genus. Phycologia 2006, 45, 141–147. [Google Scholar] [CrossRef]
  54. Lemmermann, E. Der grosse Waterneverstorfer Binnensee: Eine biologische Studie; Dr. Otto Zacharias: Stuttgart, Germany, 1896; pp. 166–205. [Google Scholar]
  55. Hara, Y.; Chihara, M. Morphology, ultrastructure and taxonomy of the raphidophycean alga Heterosigma-akashiwo. Bot. Mag. (Tokyo) 1987, 100, 151–163. [Google Scholar] [CrossRef]
  56. Drew, K.; Ross, R. Some generic names in the Bangiophycidae. Taxon 1965, 93–99. [Google Scholar] [CrossRef]
  57. OECD. Test No. 201: Freshwater Alga and Cyanobacteria, Growth Inhibition Test; OECD Publishing: Paris, France, 2011. [Google Scholar] [CrossRef] [Green Version]
  58. Pikula, K.S.; Zakharenko, A.M.; Chaika, V.V.; Stratidakis, A.K.; Kokkinakis, M.; Waissi, G.; Rakitskii, V.N.; Sarigiannis, D.A.; Hayes, A.W.; Coleman, M.D.; et al. Toxicity bioassay of waste cooking oil-based biodiesel on marine microalgae. Toxicol. Rep. 2019, 6, 111–117. [Google Scholar] [CrossRef] [PubMed]
  59. Pikula, K.S.; Chernyshev, V.V.; Zakharenko, A.M.; Chaika, V.V.; Waissi, G.; Hai, L.H.; Hien, T.T.; Tsatsakis, A.M.; Golokhvast, K.S. Toxicity assessment of particulate matter emitted from different types of vehicles on marine microalgae. Environ. Res. 2019, 179, 108785. [Google Scholar] [CrossRef] [PubMed]
  60. Orlova, T.Y.; Stonik, I.V.; Shevchenko, O.G. Flora of planktonic microalgae of Amursky Bay, Sea of Japan. Russ. J. Mar. Biol. 2009, 35, 60–78. [Google Scholar] [CrossRef]
  61. Othman, H.B.; Leboulanger, C.; Le Floc’h, E.; Mabrouk, H.H.; Hlaili, A.S. Toxicity of benz (a) anthracene and fluoranthene to marine phytoplankton in culture: Does cell size really matter? J. Hazard. Mater. 2012, 243, 204–211. [Google Scholar] [CrossRef]
  62. Özhan, K.; Bargu, S. Responses of sympatric Karenia brevis, Prorocentrum minimum, and Heterosigma akashiwo to the exposure of crude oil. Ecotoxicology 2014, 23, 1387–1398. [Google Scholar] [CrossRef]
  63. Zhao, Q.; Chen, A.N.; Hu, S.X.; Liu, Q.; Chen, M.; Liu, L.; Shao, C.L.; Tang, X.X.; Wang, C.Y. Microalgal microscale model for microalgal growth inhibition evaluation of marine natural products. Sci. Rep. 2018, 8, 1–10. [Google Scholar] [CrossRef] [Green Version]
  64. Ostrander, G.K. Techniques in Aquatic Toxicology; CRC Press: Boca Raton, FL, USA, 2005; Volume 2. [Google Scholar]
  65. Hadjoudja, S.; Vignoles, C.; Deluchat, V.; Lenain, J.F.; Le Jeune, A.H.; Baudu, M. Short term copper toxicity on Microcystis aeruginosa and Chlorella vulgaris using flow cytometry. Aquat. Toxicol. 2009, 94, 255–264. [Google Scholar] [CrossRef]
  66. Wang, R.; Hua, M.; Yu, Y.; Zhang, M.; Xian, Q.M.; Yin, D.Q. Evaluating the effects of allelochemical ferulic acid on Microcystis aeruginosa by pulse-amplitude-modulated (PAM) fluorometry and flow cytometry. Chemosphere 2016, 147, 264–271. [Google Scholar] [CrossRef]
  67. Grégori, G.; Denis, M.; Lefèvre, D.; Beker, B. A flow cytometric approach to assess phytoplankton respiration. In Advanced Flow Cytometry: Applications in Biological Research; Springer: Dordrecht, The Netherlands, 2003; pp. 99–106. [Google Scholar]
  68. Sabnis, R.W.; Deligeorgiev, T.G.; Jachak, M.N.; Dalvi, T.S. DiOC(6)(3): A useful dye for staining the endoplasmic reticulum. Biotech. Histochem. 1997, 72, 253–258. [Google Scholar] [CrossRef] [PubMed]
  69. Gao, J.; Wang, Y.; Folta, K.M.; Krishna, V.; Bai, W.; Indeglia, P.; Georgieva, A.; Nakamura, H.; Koopman, B.; Moudgil, B. Polyhydroxy fullerenes (fullerols or fullerenols): Beneficial effects on growth and lifespan in diverse biological models. PLoS ONE 2011, 6, e19976. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  70. Prado, R.; Rioboo, C.; Herrero, C.; Cid, Á. Screening acute cytotoxicity biomarkers using a microalga as test organism. Ecotoxicol. Environ. Saf. 2012, 86, 219–226. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  71. Franklin, N.M.; Stauber, J.L.; Lim, R.P. Development of flow cytometry-based algal bioassays for assessing toxicity of copper in natural waters. Environ. Toxicol. Chem. 2001, 20, 160–170. [Google Scholar] [CrossRef]
  72. Perry, S.W.; Norman, J.P.; Barbieri, J.; Brown, E.B.; Gelbard, H.A. Mitochondrial membrane potential probes and the proton gradient: A practical usage guide. Biotechniques 2011, 50, 98–115. [Google Scholar] [CrossRef]
  73. Nikitin, O.V.; Kuzmin, N.B.; Nasyrova, E.I.; Gliakina, M.V.; Stepanova, N.Y. The effects of barley straw extract on the microalgae growth. IOP Conf. Ser. Earth Environ. Sci. 2019, 315, 042051. [Google Scholar] [CrossRef]
  74. Li, J.; Ou, D.Y.; Zheng, L.L.; Gan, N.Q.; Song, L.R. Applicability of the fluorescein diacetate assay for metabolic activity measurement of Microcystis aeruginosa (Chroococcales, Cyanobacteria). Phycol. Res. 2011, 59, 200–207. [Google Scholar] [CrossRef]
  75. Melegari, S.P.; Perreault, F.; Costa, R.H.R.; Popovic, R.; Matias, W.G. Evaluation of toxicity and oxidative stress induced by copper oxide nanoparticles in the green alga Chlamydomonas reinhardtii. Aquat. Toxicol. 2013, 142, 431–440. [Google Scholar] [CrossRef]
  76. Kochian, L.V. Cellular mechanisms of aluminum toxicity and resistance in plants. Annu. Rev. Plant Physiol. Plant Mol. Biol. 1995, 46, 237–260. [Google Scholar] [CrossRef]
  77. Oakley, B.R.; Dodge, J.D. The ultrastructure and cytochemistry of microbodies in Porphyridium. Protoplasma 1974, 80, 233–244. [Google Scholar] [CrossRef]
  78. Schwab, F.; Bucheli, T.D.; Lukhele, L.P.; Magrez, A.; Nowack, B.; Sigg, L.; Knauer, K. Are carbon nanotube effects on green algae caused by shading and agglomeration? Environ. Sci. Technol. 2011, 45, 6136–6144. [Google Scholar] [CrossRef] [PubMed]
  79. Rwehumbiza, V.M.; Vennapusa, R.R.; Gavara, P.R.; Fernandez-Lahore, H.M.; Al-Karablieh, N.; Ullrich, M.S.; Thomsen, C. Potential of fibrous adsorbents for the binding and characterization of Porphyridium purpureum bioactive polysaccharides. J. Chem. Technol. Biotechnol. 2014, 89, 65–72. [Google Scholar] [CrossRef]
  80. Aldieri, E.; Fenoglio, I.; Cesano, F.; Gazzano, E.; Gulino, G.; Scarano, D.; Attanasio, A.; Mazzucco, G.; Ghigo, D.; Fubini, B. The role of iron impurities in the toxic effects exerted by short multiwalled carbon nanotubes (MWCNT) in murine alveolar macrophages. J. Toxicol. Environ. Health A 2013, 76, 1056–1071. [Google Scholar] [CrossRef] [PubMed]
  81. Pereira, M.M.; Mouton, L.; Yepremian, C.; Coute, A.; Lo, J.; Marconcini, J.M.; Ladeira, L.O.; Raposo, N.R.B.; Brandao, H.M.; Brayner, R. Ecotoxicological effects of carbon nanotubes and cellulose nanofibers in Chlorella vulgaris. J. Nanobiotechnol. 2014, 12, 13. [Google Scholar] [CrossRef] [Green Version]
  82. Franklin, N.M.; Adams, M.S.; Stauber, J.L.; Lim, R.P. Development of an improved rapid enzyme inhibition bioassay with marine and freshwater microalgae using flow cytometry. Arch. Environ. Contam. Toxicol. 2001, 40, 469–480. [Google Scholar]
  83. Hull, M.S.; Kennedy, A.J.; Steevens, J.A.; Bednar, A.J.; Weiss, C.A.; Vikesland, P.J. Release of metal impurities from carbon nanomaterials influences aquatic toxicity. Environ. Sci. Technol. 2009, 43, 4169–4174. [Google Scholar] [CrossRef]
  84. Van Hoecke, K.; De Schamphelaere, K.A.C.; Van der Meeren, P.; Lucas, S.; Janssen, C.R. Ecotoxicity of silica nanoparticles to the green alga Pseudokirchneriella subcapitata: Importance of surface area. Environ. Toxicol. Chem. 2008, 27, 1948–1957. [Google Scholar] [CrossRef]
  85. Casado, M.P.; Macken, A.; Byrne, H.J. Ecotoxicological assessment of silica and polystyrene nanoparticles assessed by a multitrophic test battery. Environ. Int. 2013, 51, 97–105. [Google Scholar] [CrossRef]
  86. Silva, G.H.; Monteiro, R.T.R. Toxicity assessment of silica nanoparticles on Allium cepa. Ecotoxicol. Environ. Contam. 2017, 12, 25–31. [Google Scholar] [CrossRef]
  87. Vyverman, W. Experimental studies on sexual reproduction in diatoms. Int. Rev. Cytol. 2004, 237, 91. [Google Scholar]
  88. Singh, A.V.; Laux, P.; Luch, A.; Sudrik, C.; Wiehr, S.; Wild, A.M.; Santomauro, G.; Bill, J.; Sitti, M. Review of emerging concepts in nanotoxicology: Opportunities and challenges for safer nanomaterial design. Toxicol. Mech. Methods 2019, 29, 378–387. [Google Scholar] [CrossRef] [PubMed] [Green Version]

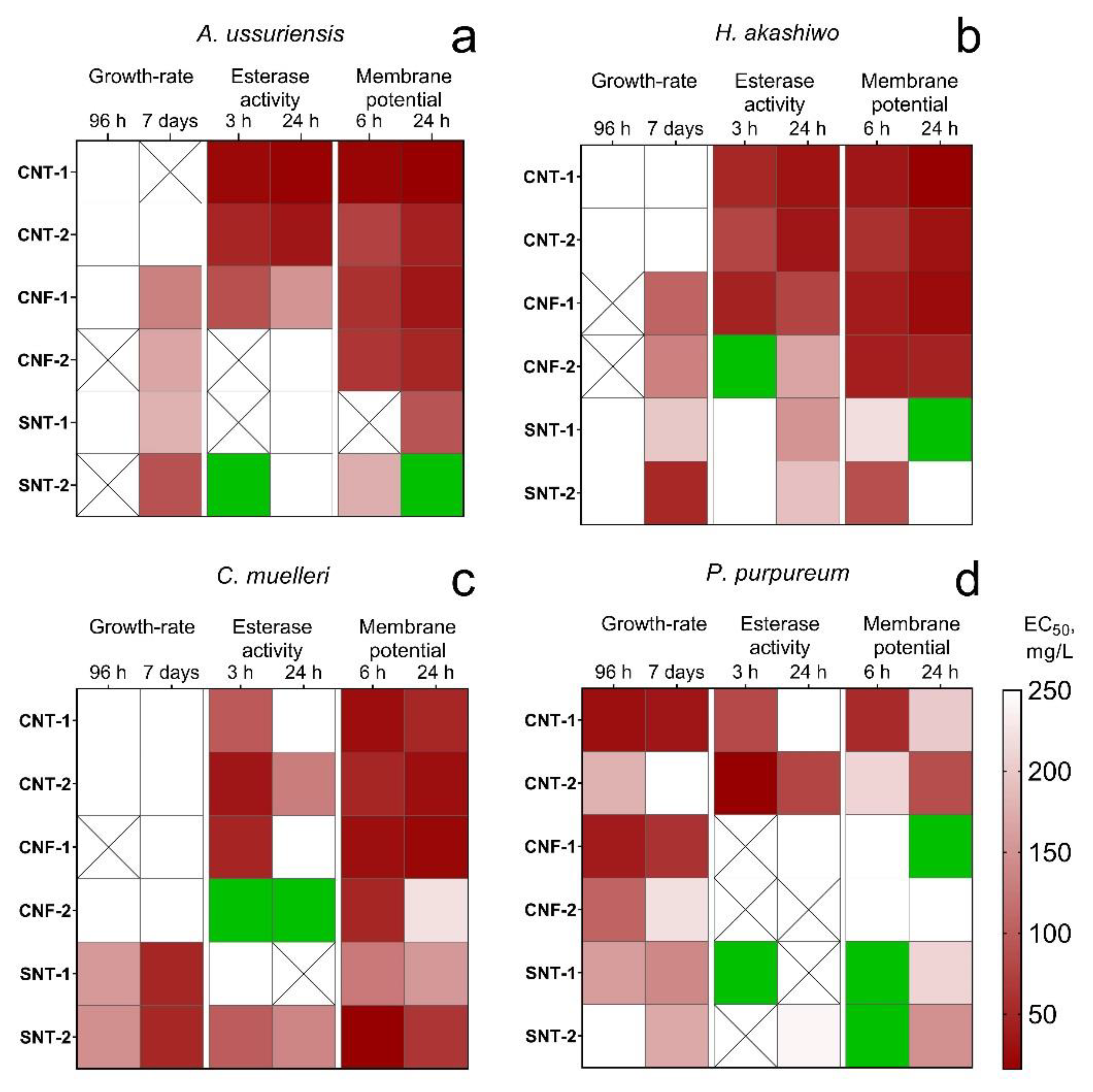

Figure 1. The heatmap of changes in microalgae state after the treatment with the NPs: (a) A. ussuriensis; (b) H. akashiwo; (c) C. muelleri; (d) P. purpureum; white square, the calculated EC50 was higher than 250 mg/L; crossed square, measured endpoint was not observed; green square, the influence of the NPs caused the stimulation of the measured endpoint.
Figure 1. The heatmap of changes in microalgae state after the treatment with the NPs: (a) A. ussuriensis; (b) H. akashiwo; (c) C. muelleri; (d) P. purpureum; white square, the calculated EC50 was higher than 250 mg/L; crossed square, measured endpoint was not observed; green square, the influence of the NPs caused the stimulation of the measured endpoint.
Nanomaterials 10 00485 g001

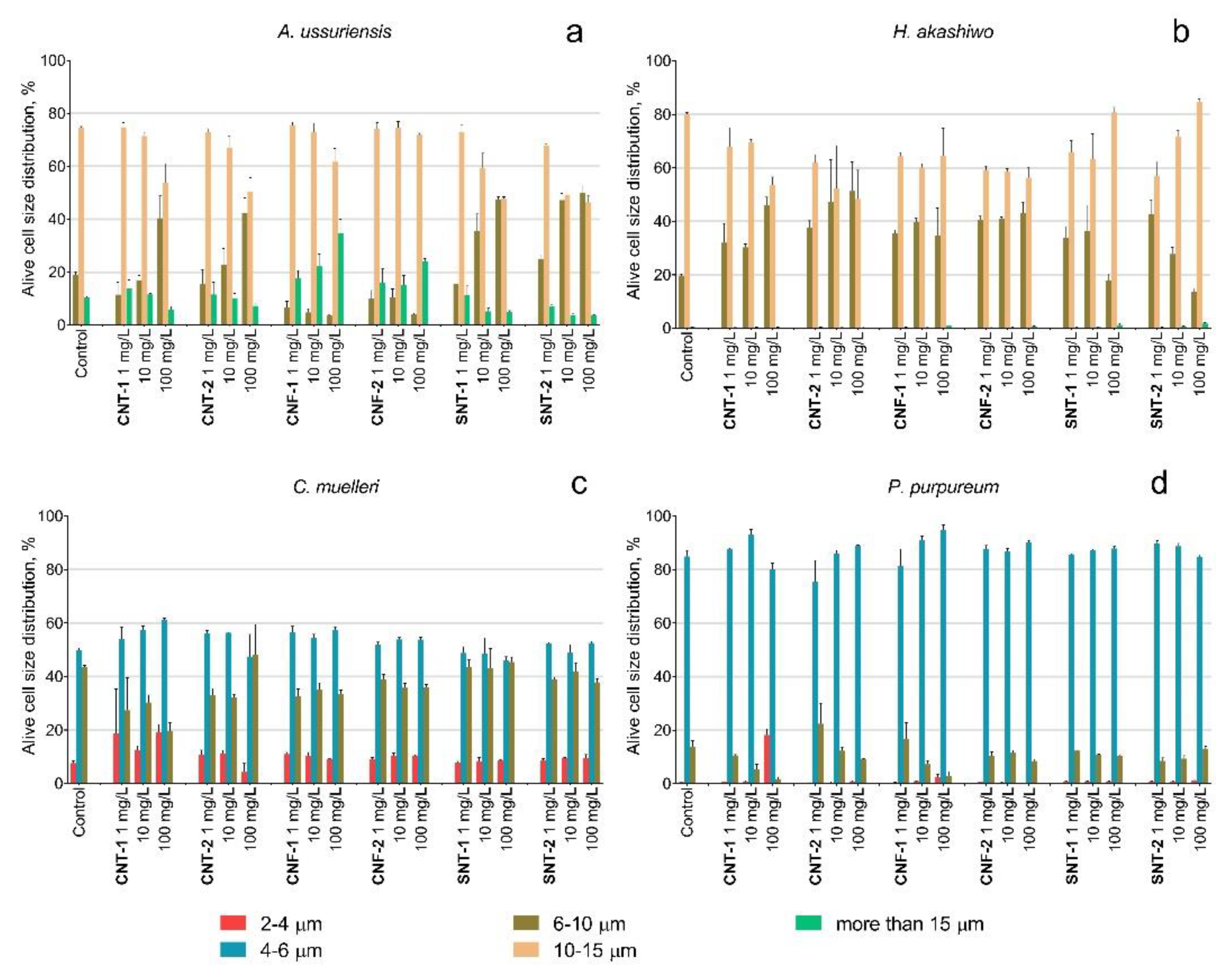

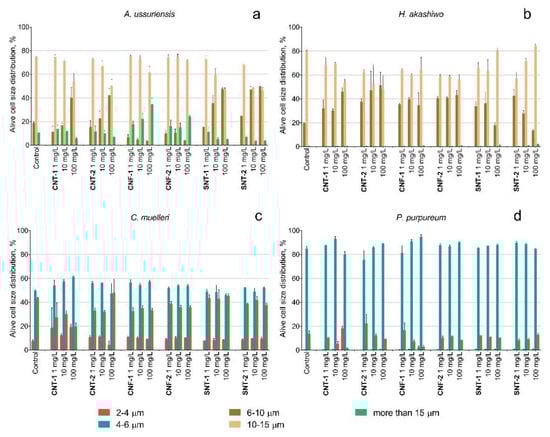

Figure 2. The changes of size distribution of microalgae cells after 96 h of exposure to NPs: (a) A. ussuriensis; (b) H. akashiwo; (c) C. muelleri; (d) P. purpureum.
Figure 2. The changes of size distribution of microalgae cells after 96 h of exposure to NPs: (a) A. ussuriensis; (b) H. akashiwo; (c) C. muelleri; (d) P. purpureum.
Nanomaterials 10 00485 g002
Figure 3. The red algae P. purpureum after 96 h of treatment with carbon nanotubes at concentration of 100 mg/L: (a) control; (b) CNT-1; (c) CNT-2.
Figure 3. The red algae P. purpureum after 96 h of treatment with carbon nanotubes at concentration of 100 mg/L: (a) control; (b) CNT-1; (c) CNT-2.
Nanomaterials 10 00485 g003
Figure 4. The red algae P. purpureum after 96 h of treatment with carbon nanofibers and silica nanotubes at concentration of 100 mg/L: (a) CNF-1; (b) CNF-2; (c) SNT-1; (d) SNT-2.
Figure 4. The red algae P. purpureum after 96 h of treatment with carbon nanofibers and silica nanotubes at concentration of 100 mg/L: (a) CNF-1; (b) CNF-2; (c) SNT-1; (d) SNT-2.
Nanomaterials 10 00485 g004
Table 1. Characteristics of the nanoparticles used in this study.
Table 1. Characteristics of the nanoparticles used in this study.
SampleDiameter, nm Impurities, % Structure Features
CNT-118–20Fe—0.6; Co—0.3; Al—0.9Many particles with unordered structure, defect areas with opened ends of a carbon nanotubes
CNT-2Fe—0.2; Co—0.12; Ca—0.004; Cl—0.08Ordered structure
CNF-190–120Al2O3—0.4Unordered structure, defect areas, the presence of amorphous carbon
CNF-2Al2O3—0.4; Ni—3.6Unordered structure, defect areas
SNT-13–4
SNT-245
* The characteristics given in the table are as given in earlier studies i.e., diameter [47,48], impurities [47], and structural features [41].
Table 2. Toxicity assessment criteria and conditions of their registration.
Table 2. Toxicity assessment criteria and conditions of their registration.
EndpointRegistration TimeBiomarkerCytoFLEX Emission Channel, nm
Growth-rate inhibition96 h, 7 daysPIECD, 610
Esterase activity3 h, 24 hFDAFITC, 525
Membrane potential6 h, 24 hDIOC6FITC, 525
Size96 h, 7 daysForward scatter intensityFSC
Table 3. The calculated EC50 concentration of growth-rate inhibition, esterase activity inhibition, and membrane depolarization, mg/L.
Table 3. The calculated EC50 concentration of growth-rate inhibition, esterase activity inhibition, and membrane depolarization, mg/L.
SampleGrowth-rateEsterase ActivityMembrane Potential
96 h7 days3 h24 h6 h24 h
A. ussuriensis
CNT-1360.0n/a29.8 (29.3–30.3)24.3 (23.9–24.6)27.4 (26.9–27.8)23.4 (23.2–23.7)
CNT-2344.0560.056.2 (54.2–58.3)42.1 (41.6–52.8)81.4 (78.2–84.7)52.7 (51.4–54.1)
CNF-1>1000137.6 (135.0–140.2)94.3 (91.2–97.6)154.4 (150.3–158.7)65.4 (62.1–68.8)41.7 (40.2–43.2)
CNF-2n/a170.0 (168.9–171.2)n/a297.8 (294.0–301.6)70.1 (67.4–72.9)55.5 (55.0–56.1)
SNT-1>1000180.1 (173.2–189.1)n/a839.0n/a97.4. (85.2–111.7)
SNT-2n/a95.3 (94.7–95.9)stimulation 13%–22%*403.0176.4 (169.3–183.9)stimulation 5%–25%*
H. akashiwo
CNT-1>10001000.055.1 (53.4–56.4)38.4 (38.7–40.1)39.6 (38.9–40.4)21.6 (21.4–21.7)
CNT-2>1000855.083.0 (78.9–87.3)40.9 (40.3–41.5)65.2 (63.1–67.5)37.4 (36.4–38.3)
CNF-1n/a110.6 (107.5–113.8)51.2 (50.3–52.0)82.5 (82.0–83.1)46.0 (44.4–47.7)31.4 (30.5–32.2)
CNF-2n/a135.8 (133.5–138.2)stimulation 20%–25%*168.1 (164.1–172.2)48.0 (47.0–49.1)51.9 (51.3–52.4)
SNT-1>1000199.1 (190.6–208.2)532.0153.9 (148.6–159.5)256.6 (245.4–268.6)stimulation 9%–15%*
SNT-2577.057.3 (56.7–57.9)>1000193.1 (181.8–205.5)92.2 (88.6–96.0)>1000
C. muelleri
CNT-1313.0318.0105.8 (100.5–111.6)733.038.8 (38.0–39.7)60.9 (58.8–63.1)
CNT-2>1000680.045.8 (45.1–46.6)136.5 (131.7–141.5)60.4 (60.0–60.8)39.6 (38.9–40.4)
CNF-1n/a830.059.3 (58.5–60.1)>100039.83 (39.0–40.7)33.8 (33.2–34.5)
CNF-2601.0428.0stimulation 15%–18%*stimulation 10%–25%*60.2 (59.0–61.3)223.2 (222.5–223.9)
SNT-1161.4 (158.6–164.3)59.8 (58.3–61.4)>1000n/a132.6 (127.4–138.1)159.7 (157.6–161.8)
SNT-2151.8 (147.9–155.9)61.1 (58.3–64.1)107.7 (104.7–110.9)142.3 (140.8–143.8)27.9 (27.7–28.2)74.11 (73.4–74.9)
P. purpureum
CNT-128.7 (28.1–29.3)36.1 (35.2–37)82.7 (80.9–84.6)423.053.9 (53.4–54.5)208.6 (202.9–214.5)
CNT-2178.3 (175.8–180.9)415.016.5 (16.1–16.8)78.6 (75.7–81.5)213.2 (209.7–216.8)86.8 (84.6–89.1)
CNF-139.5 (38.3–40.7)61.5 (60.2–62.8)n/a654.0359.0stimulation 20%–35%*
CNF-2106.1 (104.9–107.3)246.4 (234.7–259.0)n/an/a692.0479.0
SNT-1160.4 (189.7–161.1)140.5 (137.5––143.7)stimulation 10%–22%*n/astimulation 42%–45%*231.4 (229.7–233.1)
SNT-2285.2 (279.2–291.4)170.3 (166.8–173.8)n/a280.9 (280.2–281.7)stimulation 82%–90%*148.0 (110.4–156.1)
95% confidence limits presented in the parentheses; n/a, measured effect was not observed even at the highest concentrations of the sample; *In the cases when influence of NPs caused stimulation of the registered endpoint, the data were represented for concentration of 100 mg/L compared to control.

Share and Cite

MDPI and ACS Style

Pikula, K.; Chaika, V.; Zakharenko, A.; Markina, Z.; Vedyagin, A.; Kuznetsov, V.; Gusev, A.; Park, S.; Golokhvast, K. Comparison of the Level and Mechanisms of Toxicity of Carbon Nanotubes, Carbon Nanofibers, and Silicon Nanotubes in Bioassay with Four Marine Microalgae. Nanomaterials 2020, 10, 485. https://doi.org/10.3390/nano10030485

AMA Style

Pikula K, Chaika V, Zakharenko A, Markina Z, Vedyagin A, Kuznetsov V, Gusev A, Park S, Golokhvast K. Comparison of the Level and Mechanisms of Toxicity of Carbon Nanotubes, Carbon Nanofibers, and Silicon Nanotubes in Bioassay with Four Marine Microalgae. Nanomaterials. 2020; 10(3):485. https://doi.org/10.3390/nano10030485

Chicago/Turabian Style

Pikula, Konstantin, Vladimir Chaika, Alexander Zakharenko, Zhanna Markina, Aleksey Vedyagin, Vladimir Kuznetsov, Alexander Gusev, Soojin Park, and Kirill Golokhvast. 2020. "Comparison of the Level and Mechanisms of Toxicity of Carbon Nanotubes, Carbon Nanofibers, and Silicon Nanotubes in Bioassay with Four Marine Microalgae" Nanomaterials 10, no. 3: 485. https://doi.org/10.3390/nano10030485

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
