Controlled Sputtering Pressure on High-Quality Sb₂Se₃ Thin Film for Substrate Configurated Solar Cells

Abstract

Magnetron sputtering has become an effective method in Sb₂Se₃ thin film photovoltaic. Research found that post-selenization treatments are essential to produce stoichiometric thin films with desired crystallinity and orientation for the sputtered Sb₂Se₃. However, the influence of the sputtering process on Sb₂Se₃ device performance has rarely been explored. In this work, the working pressure effect was thoroughly studied for the sputtered Sb₂Se₃ thin film solar cells. High-quality Sb₂Se₃ thin film was obtained when a bilayer structure was applied by sputtering the film at a high (1.5 Pa) and a low working pressure (1.0 Pa) subsequently. Such bilayer structure was found to be beneficial for both crystallization and preferred orientation of the Sb₂Se₃ thin film. Lastly, an interesting power conversion efficiency (PCE) of 5.5% was obtained for the champion device.

1. Introduction

Antimony selenide (Sb₂Se₃) has become a promising material for new-generation thin film solar cells as power conversion efficiency (PCE) of the device increased from 1.9% to 9.2% in only a few years [1,2,3,4]. Compared with traditional thin film solar cells such as CIGS, CdTe, CZTS, and perovskite, Sb₂Se₃ possesses some intrinsic advantages. First of all, the material has excellent optoelectronic properties, for instance, an ideal optical band gap (1.1–1.3 eV), outstanding absorption coefficient (>10⁵ cm⁻¹), decent carrier mobility (~10 cm²V⁻¹s⁻¹), and long carrier lifetime (~60 ns), making it as a suitable light absorption layer for efficient thin film solar cells [3,4,5]. Second, unlike multielement compound thin film solar cells such as CGIS and CZTS, Sb₂Se₃ gets rid of complex composition control and unwanted impurity phases during the deposition and crystallization procedures, as the material has only one single phase of orthorhombic structure. Further, another major distinct advantage of Sb₂Se₃ over the most well-developed thin film solar cells, i.e., CIGS and CdTe, is the material is low-cost and environment-friendly since both Sb and Se are earth-abundant and low-toxicity elements. Hence, it is reasonable to suppose that Sb₂Se₃ technology will become a strong candidate for the mass production of thin film photovoltaic modules.

As being one of the most competitive absorber candidates for the next-generation thin film photovoltaic, Sb₂Se₃ has attracted much attention and thereby various deposition techniques; thus, electrochemical [6], solution [7,8,9], thermal evaporation [1,2,5,10], vapor transport deposition (VTD) [3,11,12,13], close-spaced sublimation (CSS) [4,14], and sputtering [15,16,17,18,19] have been thoroughly explored to enhance the PCE of the devices. Among these deposition approaches, magnetron sputtering is a straightforward technique that is widely used in conventional thin-film photovoltaic technologies such as CIGS and CZTS [20,21]. The method is well-known for its merits of good uniformity, full-vacuum operation, and excellent composition transfer of the target materials, although to date, for Sb₂Se₃ photovoltaic, devices with the highest PCEs have been fabricated via VTD and CSS [3,4]. Magnetron sputtering has been proven as an effective method to produce highly efficient Sb₂Se₃ solar cells by our group as well. Liang reported a decent PCE of 3.35% for sputtered Sb₂Se₃ followed by a in situ heating treatment [16]. Chen presented an efficient quasi-homojunction Sb₂Se₃ thin-film prepared using the sputtering method [17]. Very recently, a competitive PCE of 6.06% was achieved by selenizing sputtered amorphous Sb₂Se₃ thin-film by our group [22], suggesting a huge potential of the magnetron sputtering technique for producing efficient Sb₂Se₃ thin film solar cells.

It has to be pointed out that in previous works where Sb₂Se₃ devices were fabricated using magnetron sputtering, efforts were mainly focused on investigations of heat treatment processes. However, the influences of sputtering parameters, for instance, sputtering power, working pressure, target-to-substrate distance, etc., on the photovoltaic performance of the devices were seldom reported. Working pressure was discovered to be an essential factor for both metal and semiconductor sputtering in thin-film solar cell fabrications [23,24]. Severe problems such as pinholes, blistering, and even delamination occur once an improper working pressure is applied. In this work, the effect of working pressure on Sb₂Se₃ thin-film solar cells has been thoroughly studied. By tuning the working pressure during the deposition process, an interesting PCE of 5.52% has been obtained for the champion device in substrate configuration of glass/Mo/Sb₂Se₃/CdS/ITO/Ag.

2. Experimental Details

2.1. Deposition of Sb₂Se₃ Thin Film

Sb₂Se₃ powder with high purity (>99.99%) was ball milled and sintered to prepare a dense Sb₂Se₃ sputtering target first. Mo-coated glass substrates were subsequently cleaned in an ultrasonic bath using detergent, ethanol, and deionized water, prior to sputtering deposition. The background pressure of the sputtering vacuum chamber was evacuated below 7.0 × 10⁻⁴ Pa after sample loading. The sputtering power and duration were fixed at 35 W and 90 min, respectively, for all samples. The working pressure was adjusted from 0.1 Pa to 2.0 Pa to investigate the effect of working pressure on device performance. Homogeneous amorphous Sb₂Se₃ films were obtained once the sputtering process was finished. The as-deposited samples were then transferred into a vacuum tubular furnace for post selenization treatment. A graphite container with 0.15 g of selenium powder in it was utilized to store the amorphous Sb₂Se₃ films. The tubular furnace was evacuated to a relatively low background pressure prior to the selenization; after that, high-purity Ar (>99.999%) was pumped into the furnace and the working pressure was kept at 5 × 10⁴ Pa during the whole annealing process. The furnace temperature was then ramped up to 350 °C at a heating rate of 20 °C/min. The selenization duration was fixed at 15 min for each sample. The furnace was naturally cooled down to room temperature after the heating program was finished.

2.2. Device Fabrication

CdS buffer layer was deposited onto the crystallized Sb₂Se₃ films using chemical bath deposition (CBD). Magnetron sputtered ITO was deposited for 40 min with a DC power of 60 W onto the CdS layer. The device surface was scribed into small squares with identical area by knife, and Ag electrodes were deposited onto the ITO surface via thermal evaporation to form metallic contact (the active area of each device is 0.15 cm²). A substrate configuration of glass/Mo/Sb₂Se₃/CdS/ITO/Ag was assembled for our Sb₂Se₃ solar cells.

2.3. Characterization of the Sb₂Se₃ Films and Devices

The surface and cross-sectional microstructures of the Sb₂Se₃ films were characterized using a scanning electron microscope (SEM, SUPRA 55, Zeiss, Oberkochen, Germany). X-ray diffraction (XRD, Ultima-iv, Rigaku, Tokyo, Japan, CuK_α radiation under operation conditions of 40 kV and 40 mA from 10° to 60°) was utilized to investigate the crystal orientation of the Sb₂Se₃ films. The current density–voltage (J–V) curves of the Sb₂Se₃ devices were measured under 100 mW/cm² AM 1.5 G light illumination using a class AAA solar simulator at room temperature. The external quantum efficiency (EQE) spectra were measured using a Zolix SCS101 system (Zolix Instruments, Beijing, China) and a Keithley 2400 source meter (Keithley Instruments, Solon, OH, USA).

3. Results and Discussions

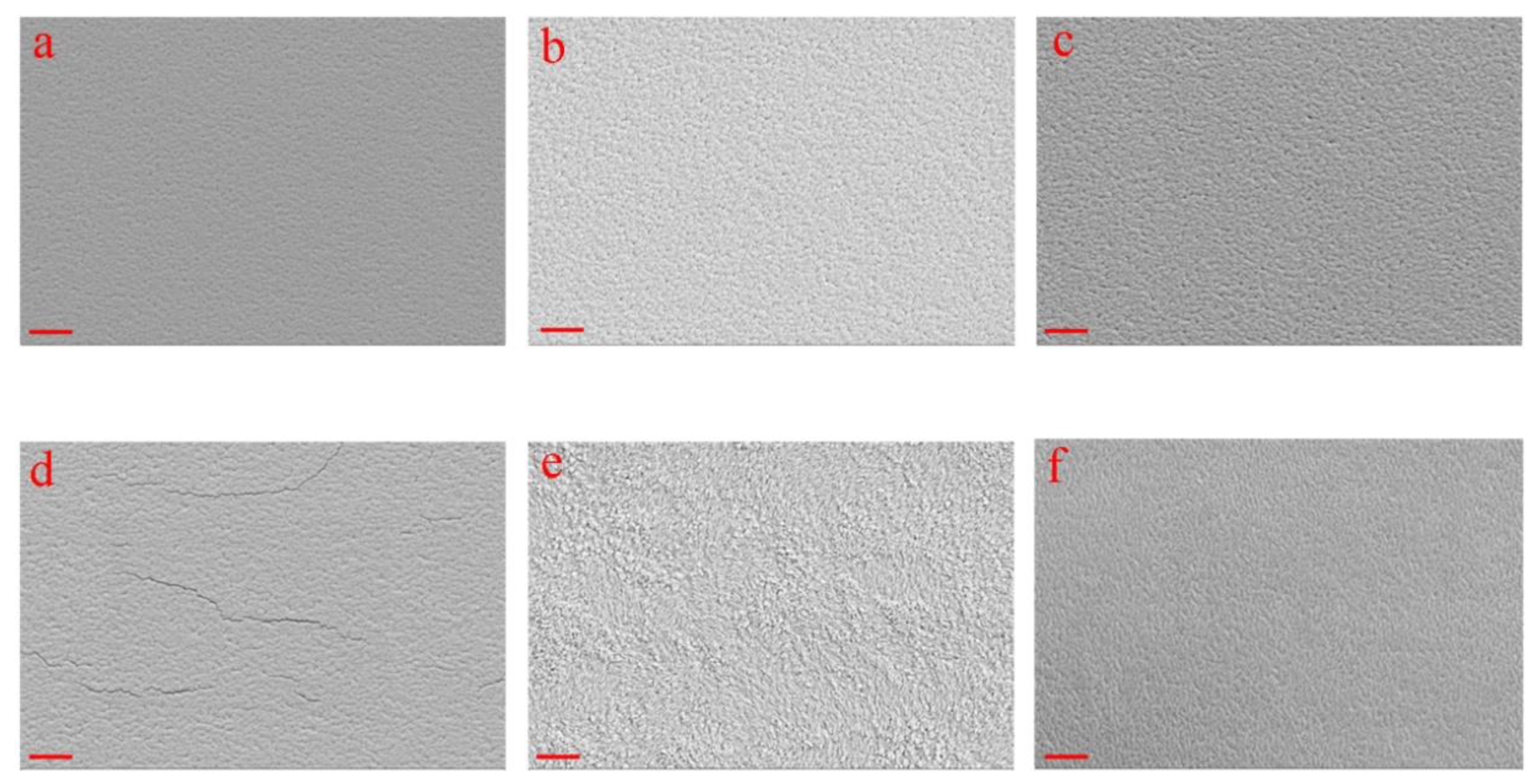

Sb₂Se₃ thin films sputtered under various working pressures were denoted as 2.0-Sb₂Se₃, 1.5-Sb₂Se₃, 1.0-Sb₂Se₃, 0.5-Sb₂Se₃, and 0.1-Sb₂Se₃, respectively. Bilayer deposition using a mixture of two different working pressures is a common technique utilized in Mo sputtering to produce conductive Mo back contact with good adhesion [25]. Herein, in order to study the effect of mixed working pressure, a working pressure of 1.5 Pa was firstly applied for 20 min to sputter the bottom layer, then the working pressure was decreased to 1.0 Pa and the sputtering process was further carried out for 70 min to deposit the top layer. The sample was denoted as mixed-Sb₂Se₃ accordingly. The thicknesses of the as-deposited thin films were measured as 260 nm, 480 nm, 660 nm, 690 nm, 810 nm and 630 nm for the 2.0-Sb₂Se₃, 1.5-Sb₂Se₃, 1.0-Sb₂Se₃, 0.5-Sb₂Se₃, 0.1-Sb₂Se₃, and mixed-Sb₂Se₃, respectively, by using a stylus profilometer. SEM top-view images of the as-deposited and annealed Sb₂Se₃ thin films via various working pressures are displayed in Figure 1 and Figure 2, respectively. As can be seen from the figures, the as-deposited 2.0-Sb₂Se₃, 1.5-Sb₂Se₃, 1.0-Sb₂Se₃, and mixed-Sb₂Se₃ thin films showed very similar surface morphologies. No distinct crystal grain could be observed on the surfaces of these samples. However, cracks appeared on the surface of the 0.5-Sb₂Se₃ sample (Figure 1d). When the working pressure was low, the number of argon atoms decreased and, as a result, the probability of collision between the sputtered Sb₂Se₃ molecules and argon atoms decreased too, thereby leading to an excessive rate of the thin film deposition. Such rapid deposition might enhance the defect density and stress within the as-deposited Sb₂Se₃ thin films, which might induce crack formation within the bulk film. Once the working pressure was too low, i.e., 0.1 Pa, a slightly different surface morphology could be observed for the 0.1-Sb₂Se₃ sample in Figure 1e where the thin film surface seemed to be getting rougher and irregular, possibly due to partial crystallization of the deposited film caused by the ultrahigh energy.

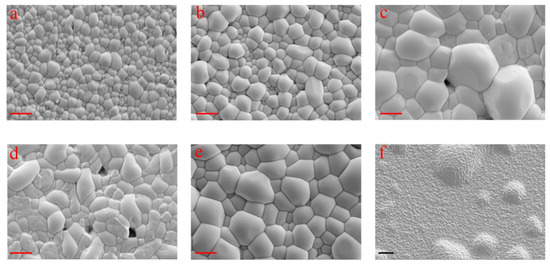

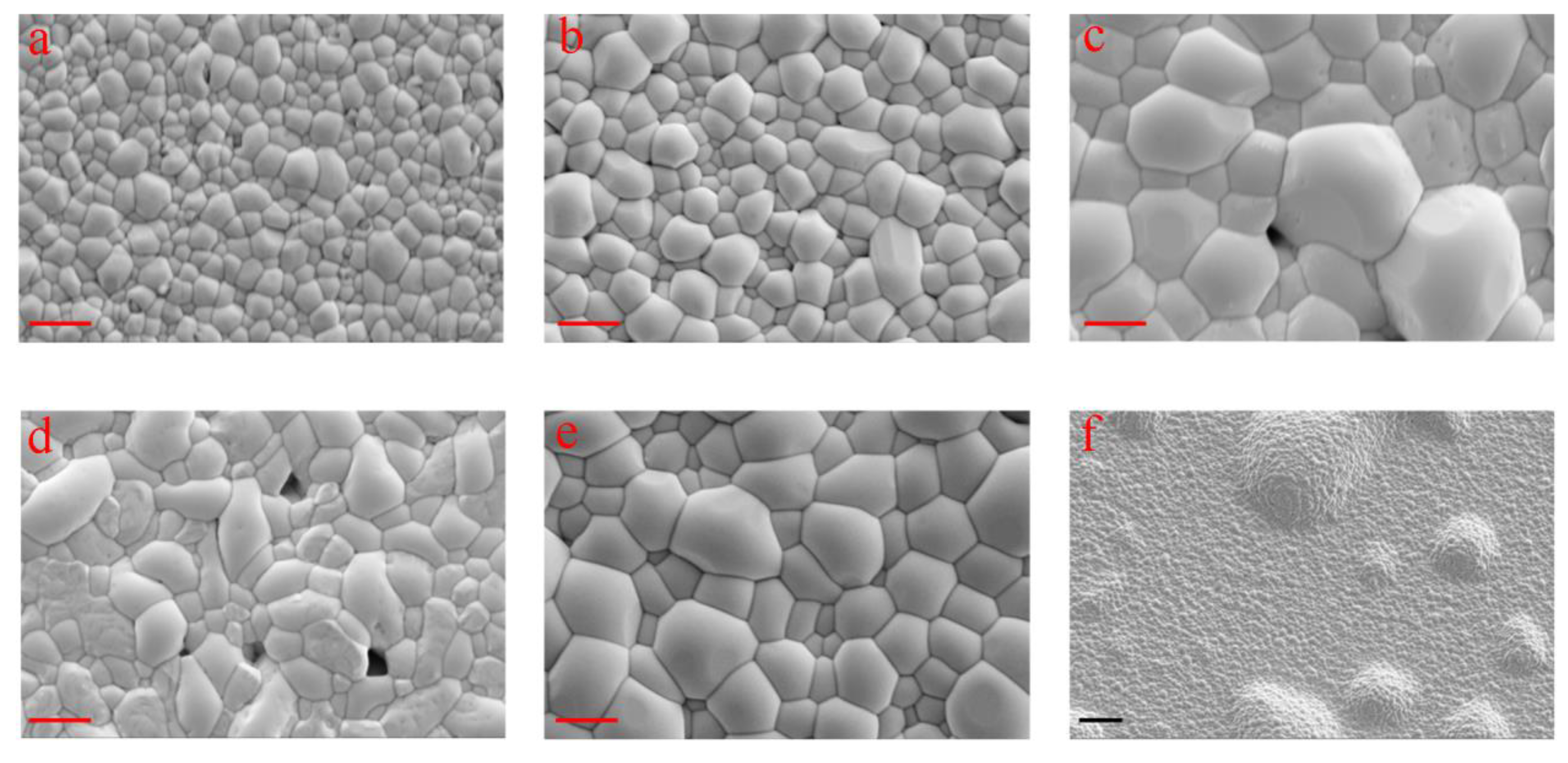

For the annealed samples, it is apparent that the grain size of the Sb₂Se₃ thin film increased when the working pressure was decreased from 2.0 Pa to 1.0 Pa, as shown in Figure 2a–c. The change could be attributed to the elevated energies of the sputtered Sb₂Se₃ molecules under low working pressures, which would facilitate the crystallization of the thin films. Pinholes appeared on the surfaces of the 1.0-Sb₂Se₃ and 0.5-Sb₂Se₃ samples (Figure 2c,d), which is probably due to the higher defect density and stresses within the amorphous films caused by overly high deposition rates. Significant blistering was clearly observed for the 0.1-Sb₂Se₃ sample (Figure 2f), possibly owing to the sudden release of the excessive compressive stress during the selenization process. Interestingly, a pinhole-free surface consisted of large crystal grains could be seen for the mixed-Sb₂Se₃ sample, as shown in Figure 2e. We attribute this optimal morphology to the bilayer structure of the sample, where the lattice mismatch between the Mo substrate and the Sb₂Se₃ thin film could be suppressed by the Sb₂Se₃ bottom layer sputtered at 1.5 Pa, whilst the Sb₂Se₃ top layer sputtered at 1.0 Pa contributed to the crystallization promotion.

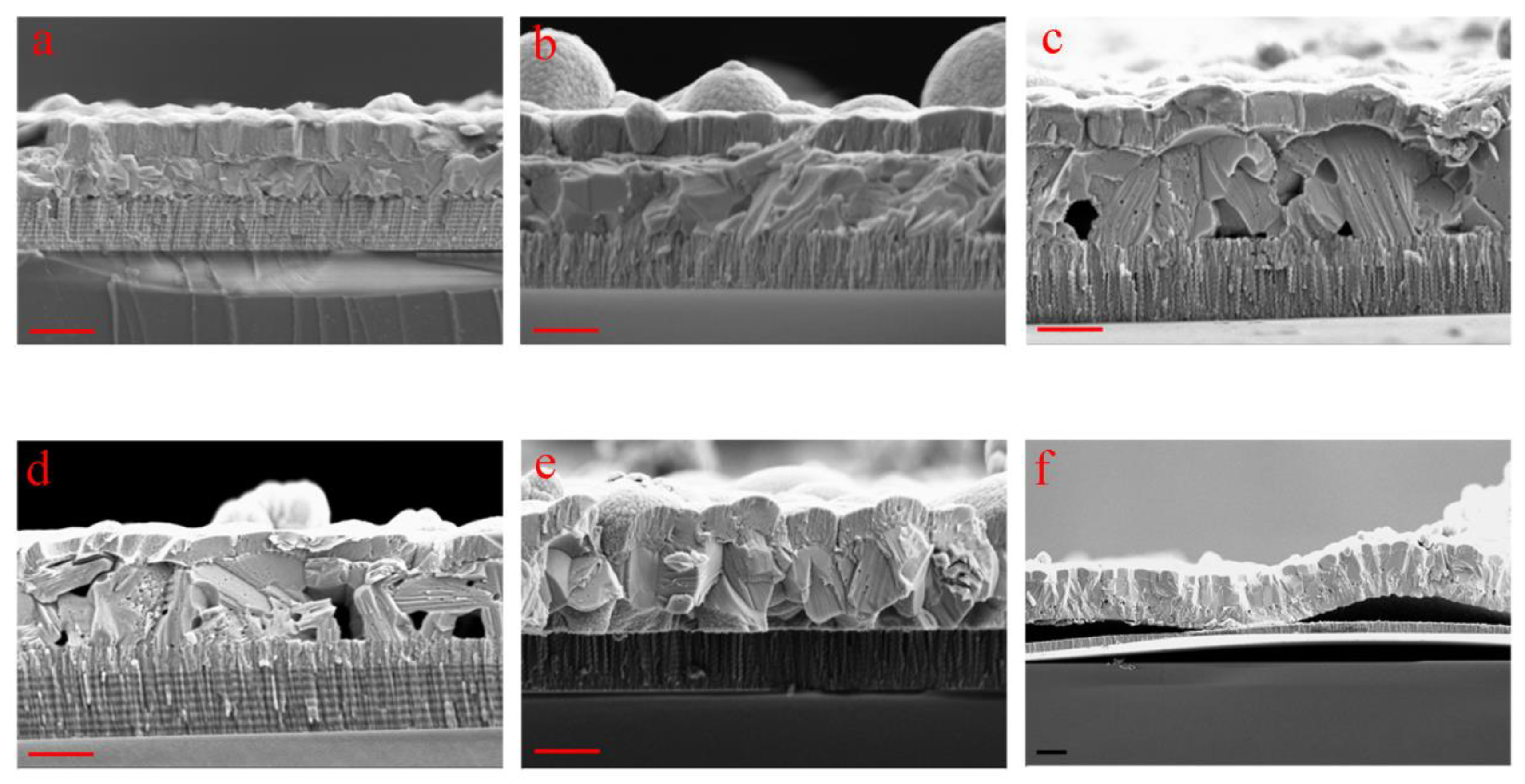

Figure 3 demonstrates the cross-sectional morphologies of the Sb₂Se₃ devices sputtered under different working pressures. As can be seen from the figures, sputtering the Sb₂Se₃ thin films at high working pressures, e.g., 2.0 Pa and 1.5 Pa, would produce compact crystal grains for the samples. On the other hand, the thin film thicknesses were hindered owing to slow deposition rates at high working pressures, restricting the sizes of the Sb₂Se₃ grains. Pinholes at the Sb₂Se₃/Mo junction are clearly seen for those samples sputtered at 1.0 Pa and 0.5 Pa, consistent with the SEM top-view images. It is also noted that an overly thick MoSe₂ interfacial layer could be clearly observed between the Mo substrate and the Sb₂Se₃ thin film for these two samples. We speculate that the pinholes within these samples would act as tunnels to accelerate the diffusion of Se vapor towards the Sb₂Se₃/Mo interface, inducing the formation of the thick MoSe₂ interfacial layer during the selenization treatment. Large vertically-oriented Sb₂Se₃ grains without visible pinholes are observed for the annealed mixed-Sb₂Se₃ sample. No apparent bilayer structure could be seen within the bulk film, suggesting excellent grain continuity across the whole film after crystallization. Figure 3f displays the cross-sectional image of the 0.1-Sb₂Se₃ sample. Complete delamination between the Sb₂Se₃ absorber layer and the Mo back contact is clearly observed due to the blistering effect, which would definitely lead to device failure.

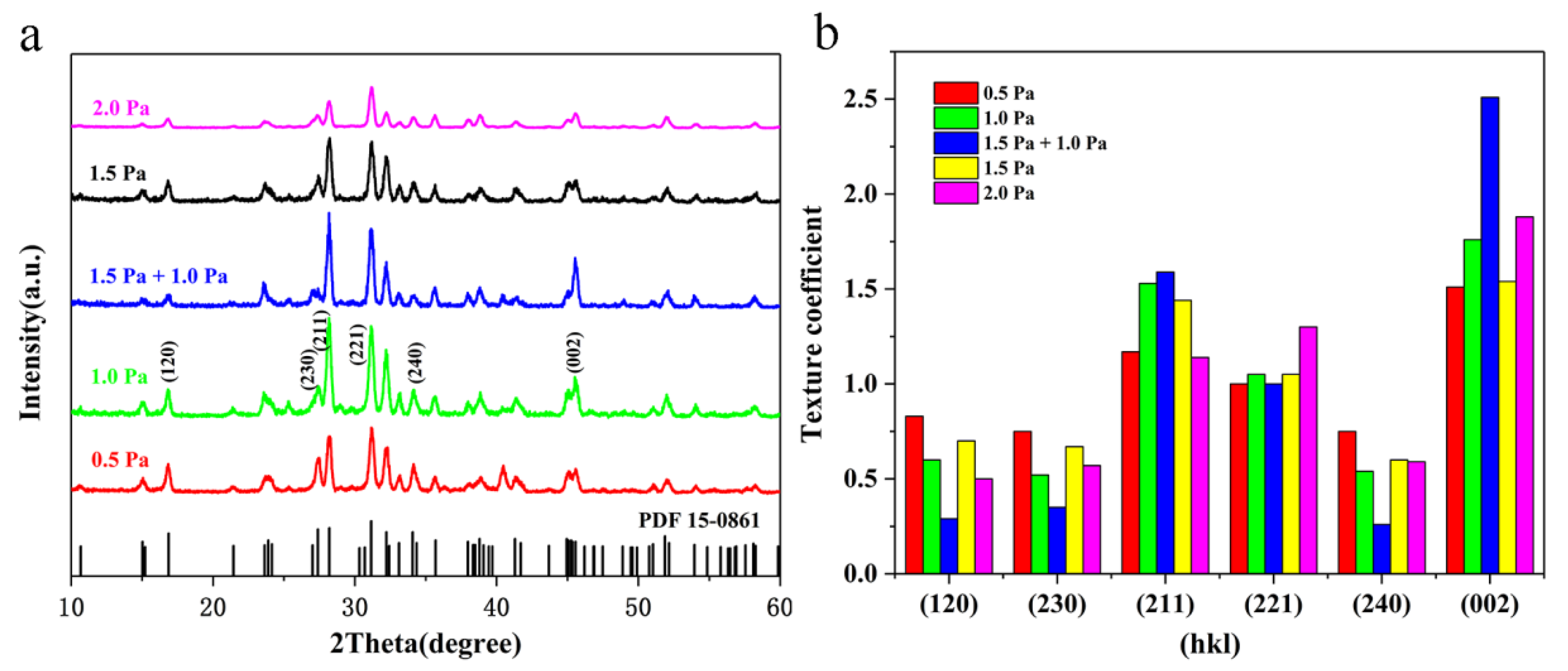

It is well known that film orientation plays as an essential role in the photovoltaic performance of Sb₂Se₃ thin film solar cells. Reports have shown that transport of photogenerated carriers would be facilitated within the bulk film once the Sb₂Se₃ grains are in vertical orientations, as the carriers could travel readily within the covalently bonded ribbons in this case. On the other hand, the photogenerated carriers would have to hop between the Sb₂Se₃ ribbons held together by van der Walls forces when the Sb₂Se₃ grains are in improper orientations (hk0), making the carrier transport difficult [2,3,4,5]. Therefore, it is vital to optimize the film orientation in order to obtain better device performance. XRD results of the annealed Sb₂Se₃ thin films at various working pressures are illustrated in Figure 4a. All the samples demonstrate vertical orientations, as evidenced by the prominent diffraction peaks of (211) and (221). Texture coefficients (TC) of the diffraction peaks were calculated using the equation below to quantitatively investigate the orientation preference (Figure 4b) [26]:

$$TChkl=\frac{I(hkl)}{I0(hkl)}/(\frac{1}{N}{\displaystyle \sum _{i=1}^N\frac{I(h_i{k}_i{l}_i)}{I0(h_i{k}_i{l}_i)}})$$

(1)

where I_(hkl) and I_0(hkl) are the diffraction peak intensities of (hkl) planes in the measured and standard XRD pattern of Sb₂Se₃ (JCPDS 15-0861), respectively. Large TC value of a diffraction peak indicates preferred orientation along this particular direction [26]. As can be seen from the figure, the mixed-Sb₂Se₃ sample shows the highest overall TC values for the (hkl, l≠0) planes and the lowest TC values for the (hk0) planes among all the samples, indicating the optimal growth orientation of the film. Such preferential vertically oriented Sb₂Se₃ grains significantly improved carrier transport within the film and thus enhance the device performance. In contrast, the TC values of the (hk0) planes, namely, (120), (230), and (240), were much larger for the other samples, leading to device deterioration due to high series resistance [2].

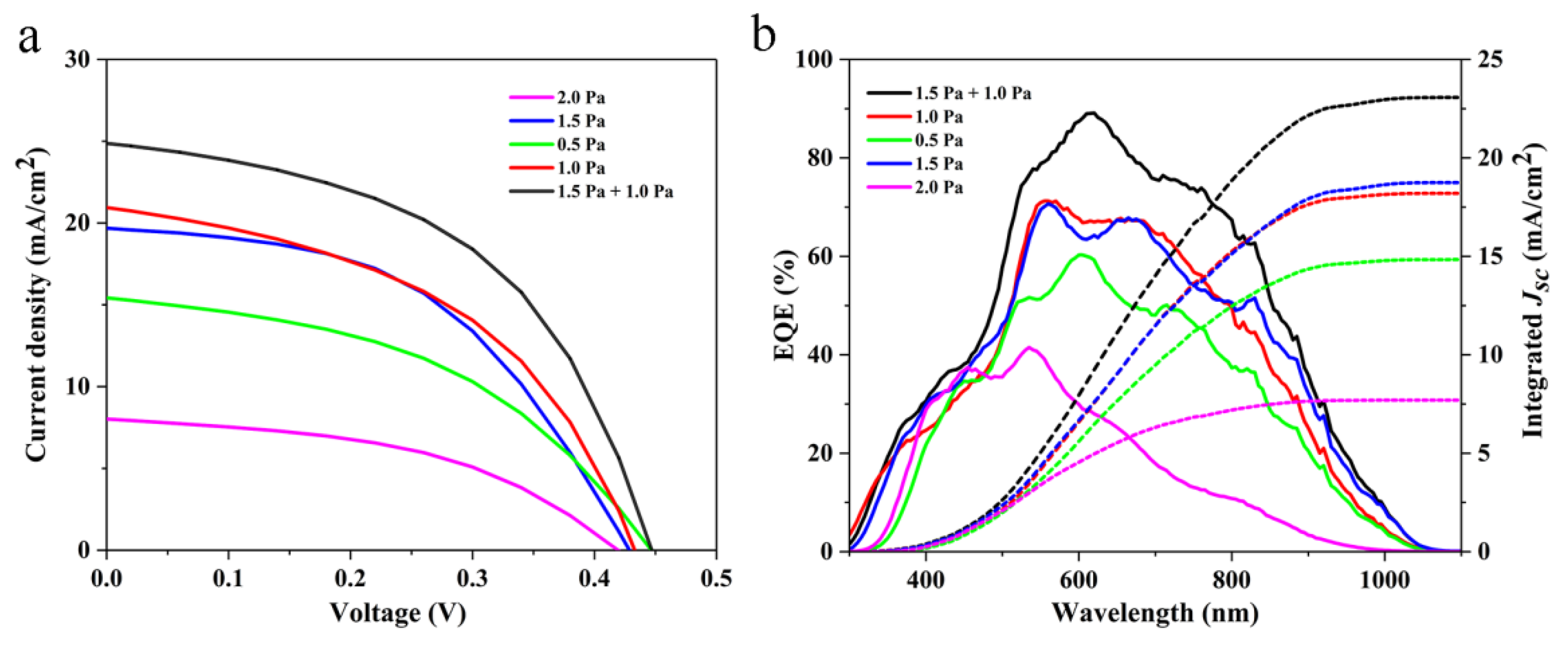

The current density–voltage (J–V) curves, external quantum efficiency (EQE), and detailed performance parameters of the Sb₂Se₃ devices prepared at various working pressures are summarized in Figure 5 and

Table 1. Device performance parameters of the Sb₂Se₃ devices prepared at various working pressures.

Samples	Voc (mV)	Jsc (mA/cm2)	FF (%)	Eff (%)
2.0-Sb2Se3	408	8.76	43.1	1.51
1.5-Sb2Se3	430	19.64	49.7	4.10
1.0-Sb2Se3	434	21.01	48.4	4.22
0.5-Sb2Se3	448	15.44	45.7	3.10
mixed-Sb2Se3	448	24.95	53.2	5.52

. The champion mixed-Sb₂Se₃ device offered a short-circuit current density (J_SC) of 24.95 mA/cm², an open circuit voltage (V_OC) of 448 mV, and a fill factor (FF) of 53.2%, thus achieving an interesting PCE of 5.5%. It can be seen that although other devices presented decent V_OC values, the final PCEs of these devices were restricted by the low FF and especially the poor J_SC, which were far inferior to that of the champion mixed-Sb₂Se₃ device. We attribute the unsatisfied J_SC of the devices sputtered at low working pressures (below 1 Pa) to the shunt paths caused by the pinholes within the films, whilst the low J_SC of the devices sputtered at elevated working pressures (above 1.5 Pa) could be attributed to the insufficiently thick absorber layer at such high working pressures, as shown in SEM images. In addition, the undesired grain orientations of other films (as already demonstrated quantitatively by the XRD results) prepared under improper working pressures would increase the series resistance of the devices and thus lead to poor FF and J_SC [2]. In order to analyze the photoresponses of the devices fabricated under various working pressures, EQE spectra were measured for all the devices. Apparently, the EQE curve of the mixed-Sb₂Se₃ device was much higher than that of the other samples in the wavelength region from 500 nm to 850 nm, suggesting less recombination losses of photogenerated carriers not only within the bulk film but also at the Sb₂Se₃/CdS heterojunction [3].

4. Conclusions

In summary, the influence of working pressure on the device performance of sputtered Sb₂Se₃ thin film solar cells has been investigated in this work. High-quality Sb₂Se₃ thin film was obtained when a bilayer structure was applied by sputtering the film at a high (1.5 Pa) and a low working pressure (1.0 Pa) subsequently. Such bilayer structure was found to be beneficial for both crystallization and preferred orientation of the Sb₂Se₃ thin film. Further, shunt leakages induced by pinholes within the bulk film could be effectively hindered by using the bilayer structure. Finally, an interesting PCE of 5.5% was obtained for the champion device.
