Role of Zirconia in Oxide-Zeolite Composite for Thiolation of Methanol with Hydrogen Sulfide to Methanethiol

by
Tinglong Yang
1,2,
Mengqin Yao
1,2,
Jun Ma
1,2,
Peng Chen
1,2,
Tianxiang Zhao
1,2,
Chunliang Yang
1,2,
Fei Liu
1,2,* and
Jianxin Cao
1,2,*
1
Department of Chemical Engineering, School of Chemistry and Chemical Engineering, Guizhou University, Guiyang 550025, China
2
Guizhou Key Laboratory for Green Chemical and Clean Energy Technology, Guiyang 550025, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2022, 12(11), 1803; https://doi.org/10.3390/nano12111803
Submission received: 26 April 2022 / Revised: 19 May 2022 / Accepted: 23 May 2022 / Published: 25 May 2022
(This article belongs to the Special Issue Nanostructured Mesoporous and Zeolite-Based Materials)
Browse Figures
Review Reports Versions Notes

Abstract

:
In this paper, the molecular sieve NaZSM-5 was modified with zirconium dioxide (ZrO2) by a hydrothermal coating process and other methods. By comparing the effects of the crystal phase structure of ZrO2 and the compositing method on the physicochemical properties and catalytic performance of the obtained composites, the structure–performance relationship of these composite catalysts was revealed. The results indicate that in the hydrothermal system used for the preparation of NaZSM-5, Zr4+ is more likely to dissolve from m-ZrO2 than from t-ZrO2, which can subsequently enter the molecular sieve, causing a greater degree of desiliconization of the framework. The larger specific surface area (360 m2/g) and pore volume (0.52 cm3/g) of the m-ZrO2/NaZSM-5 composite catalyst increase the exposure of its abundant acidic (0.078 mmol/g) and basic (0.081 mmol/g) active centers compared with other composites. Therefore, this catalyst exhibits a shorter induction period and better catalytic performance. Furthermore, compared with the impregnation method and mechanochemical method, the hydrothermal coating method produces a greater variety of acid–base active centers in the composite catalyst due to the hydrothermal modifying effect.

Graphical Abstract

1. Introduction

As an important organic intermediate in the fields of pesticides, medicine, and animal feed, the most important application of methanethiol (CH3SH) is the production of methionine, an essential amino acid for humans and animals [1,2,3,4,5,6]. Based on the used raw materials and synthesis routes, the production process of CH3SH can be divided into the methanol–hydrogen sulfide method, methyl chloride–alkali sulfide method, alkali sulfide–dimethyl sulfate method, thiourea–dimethyl sulfate method, methanol–carbon disulfide method, high-sulfur syngas method, and other methods [7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25]. Among these, the methanol–hydrogen sulfide method has attracted considerable attention due to its higher conversion efficiency and product selectivity [26,27,28].
For the methanol–hydrogen sulfide synthesis process of CH3SH, catalyst research has mainly focused on the preparation and modification of molecular sieves and/or metal oxides. The effects of different modifying elements (alkali metals, alkaline earth metals, Cd, Zn, Ni, Co, Nb.) on the structural properties and catalytic performance of molecular sieves (NaY, NaX, MCM-41, ZSM-5, SBA-15, SAPO-18.) have been investigated [29,30,31,32,33,34]. In addition, the effects of different modifying elements (alkali metals, alkaline earth metals, Mo, Nb, Si, Zn, W, La.) on the structural properties and catalytic performance of metal oxides (ZrO2, MgO, Al2O3, TiO2, CeO2, Nb2O5, SiO2.) have been studied [26,27,35]. The methanol-hydrogen sulfide synthesis route follows a bimolecular acid–base catalysis mechanism [36,37,38]. The acidic centers of the catalyst are favorable for methanol conversion and the generation of dimethyl sulfide (CH3SCH3) as a by-product, while the basic centers catalyze the dissociative adsorption of hydrogen sulfide and the selective production of CH3SH. Methanol is first adsorbed on the acid centers and dissociated to form active methoxy, and then methoxy can react with hydrogen sulfide molecule or dissociated sulfhydryl groups (-SH) to form CH3SH (Figure S1) [28]. The formation of -SH contributes to the enhancement of CH3SH selectivity. Therefore, effective regulation of the acid–base property of the catalyst contributes significantly to high product selectivity.
To control the catalytic acid–base properties, our group has, in previous studies, proposed the design of composites based on oxides and molecular sieves and prepared a ZrO2/NaZSM-5 composite catalyst [37,38]. The construction of various acid–base active centers and a hierarchical mesopore–micropore structure has significantly enhanced the catalytic performance of the material. While the NaZSM-5 molecular sieve has been widely applied because of its various and adjustable active centers and characteristic microporous structure, adjusting the Si/Al ratio of the NaZSM-5 framework and constructing hierarchical porous structures has been pursued to create suitable active centers, strengthen molecular diffusion, and enhance the reactivity and selectivity while simultaneously inhibiting catalyst deactivation. Among the previous modification strategies, the common route involves impregnation and desiliconization/dealumination in acidic or basic environments [39,40,41,42,43,44]. ZrO2 is a transition metal oxide with both acidic and basic properties [45,46,47,48,49], in which its monoclinic (m) and tetragonal (t) crystalline phases can be used as catalysts or carriers. Moreover, studies indicate that the surface/interface properties of ZrO2 are closely related to the crystal structure [45,50,51]. The effect of compositing ZrO2 and NaZSM-5 on the catalytic reaction needs to be further clarified. Therefore, the present paper focuses on the design and preparation of ZrO2/NaZSM-5 composite catalysts, and, with emphasis on the ZrO2 component, discusses in-depth the effects of the crystal phase structure of ZrO2 and the compositing method on the physicochemical properties and catalytic performance of the obtained composite catalysts. The study reveals the structure–performance relationship of the ZrO2/NaZSM-5 composite catalysts, which contributes to the fundamental understanding of the structural design of catalysts with a composite phase structure.

2. Materials and Methods

2.1. Preparation of Catalysts

2.1.1. Preparation of NaZSM-5 Molecular Sieve

NaZSM-5 molecular sieve was synthesized via a hydrothermal method. Typically, 0.03 g NaAlO2 (AR, Chengdu Gracia Company, Chengdu, China), 6.5 mL tetrapropylammonium hydroxide (TPAOH, AR, Shanghai Aladdin Company, Shanghai, China) and 15 mL of tetraethoxysilane (TEOS, AR, Shanghai Aladdin Company, Shanghai, China) were dissolved in deionized water to obtain 144 mL of a mixed solution according to the molar ratio of the raw materials TEOS:NaAlO2:TPAOH:H2O of 180:1:19:8077. After continuous stirring for 30 min, the solution was transferred into an autoclave and then reacted at 180 °C for 48 h under stirring at 120 r/min. Then, the mixture was cooled and centrifuged. The obtained solid was washed three times with deionized water and absolute ethanol. The product was dried at 105 °C for 10 h and calcined in air at 550 °C for 3 h. Finally, 2.5 g NaZSM-5 molecular sieve was obtained.

2.1.2. Preparation of ZrO2

Monoclinic zirconia (m-ZrO2) was prepared by a liquid-phase precipitation method. Under stirring at room temperature, 13.28 g sodium dodecyl sulfonate (SDS, Tianjin Comeo, AR, Tianjin, China) and 20 g Zr(NO3)4·5H2O (Shanghai McLean Biochemical Technology Co., Ltd., AR, Shanghai, China) were dissolved in 25 mL ethanol–water solution (1:1, v/v). To this solution, a 0.5 M solution of NaHCO3 (Shanghai Aladdin Company, AR, Shanghai, China) was slowly added at 80 °C until a pH of 9 was reached. Stirring continued for 6 h, and the mixture aged for a further 12 h. After cooling to room temperature, the suspension was centrifuged. The solid product was washed three times with deionized water and absolute ethanol, dried at 105 °C for 10 h, and calcined in air at 550 °C for 3 h to obtain m-ZrO2.
For the preparation of tetragonal zirconia (t-ZrO2), 4.68 g SDS and 13.93 g Zr(NO3)4·5H2O were dissolved in 480 mL ethanol–water solution (1:1, v/v). Otherwise, the synthesis followed the process described for the preparation of m-ZrO2.

2.1.3. Preparation of Composite Catalysts

An m-ZrO2/NaZSM-5-HC composite catalyst was prepared via a hydrothermal coating method. A certain amount of 200-mesh m-ZrO2 powder was added to the above-mentioned NaZSM-5 precursor solution; the mixture was stirred and transferred into an autoclave. After reaction at 180 °C under stirring at 120 r/min for 48 h, the system was cooled, centrifuged, and separated. After washing three times with deionized water and absolute ethanol, the product was dried at 105 °C for 10 h and calcined in air at 550 °C for 3 h to obtain m-ZrO2/NaZSM-5-HC composite catalyst after cooling to room temperature. Unless otherwise specified, the content of m-ZrO2 in the composite catalyst was 50 wt.%.
Similarly, a t-ZrO2/NaZSM-5-HC composite catalyst was prepared by the same hydrothermal coating method. According to a t-ZrO2 content of 50 wt.%, 2.5 g 200-mesh t-ZrO2 powder was added to 144 mL NaZSM-5 precursor solution obtained as described in 2.1.1. The subsequent synthesis steps were the same as for the preparation of m-ZrO2/NaZSM-5-HC.
An m-ZrO2/NaZSM-5-PB composite catalyst with an m-ZrO2 content of 50 wt.% was prepared by physical blending of 2.5 g 200-mesh NaZSM-5 and 2.5 g of 200-mesh m-ZrO2.
An m-ZrO2/NaZSM-5-IM composite catalyst was prepared using the equal-volume impregnation method. Typically, according to an m-ZrO2 content of 50 wt.%, the corresponding Zr(NO3)4·5H2O amount was dissolved in a volume of water equal to that adsorbed by a certain amount of 200-mesh NaZSM-5 at room temperature. After adding the Zr solution, NaZSM-5 was impregnated for 12 h. The product was dried at 105 °C for 10 h and calcined at 550 °C for 3 h.
The composite m-ZrO2/NaZSM-5-MC with an m-ZrO2 content of 50 wt.% was prepared by a mechanochemical method. Typically, 2.5 g of 200-mesh NaZSM-5 and 2.5 g of 200-mesh m-ZrO2 were poured into the ball-milling jar, and then put into the planetary ball mill (FP4, Shandong Xinhai Group, Shandong, China for grinding at 300 rpm for 10 min (zirconia ball diameter 20 mm).

2.2. Test of Catalysts

The catalytic performance for methanol thiolation was evaluated in a high-pressure fixed-bed reactor using a catalyst amount of 1 g. After a 3 h pre-sulfiding process with hydrogen sulfide, the catalytic reaction was conducted under the following conditions: a hydrogen sulfide/methanol molar ratio of 2:1, a space velocity of 1.5 h−1, an N2 flow rate of 90 mL/min, a reaction pressure of 0.7 MPa, and a reaction temperature of 370 °C. The contents of reactants and products during the reaction were detected online and analyzed with a GC9790II gas chromatograph (Zhejiang Fuli Analytical Instrument Co., Ltd., Zhejiang, China) using a Porapak.Q 1.5 m × 3 mm column with an FID detector and a KB-PLOTQ 30 m × 0.53 mm × 40.00 μm column with an FPD detector. From the obtained data, methanol conversion rate and selectivity and yield of CH3SH were calculated.

2.3. Characterization of Catalysts

Phase compositions of the obtained catalysts were characterized by a D8-type X-ray diffractometer (XRD, Bruker, Karlsruhe, Germany) using a Cu target at a voltage of 40 kV, a current of 40 mA, a scanning rate of 5°·min−1, and a 2θ scanning range of 5–90°. The chemical environment of the catalyst surface elements was analyzed with a K-Alpha Plus X-ray photoelectron spectrometer (XPS, Thermo Fisher, Waltham, MA, USA) using Al-Kα radiation (1486.6 eV), a step size of 0.05 eV, and a power of 150 W. A Zetium multifunctional X-ray fluorescence spectrometer (XRF, Malvern Panalytical Company, Malvern, UK) was used with a power of 4 kW to qualitatively and quantitatively detect the bulk-phase chemical element composition of the catalysts. 29Si NMR spectra of samples were characterized and analyzed using an Advance III HD instrument (Bruker, Karlsruhe, German) at a frequency of 119.2 MHz. The catalyst framework structure was characterized by an IS50 infrared spectrometer (FT-IR, Thermo Fisher Scientific, Waltham, MA, USA) using KBr (99.99%) for background calibration. KBr disks were prepared with a mass ratio of sample to KBr of 1:100, and the spectral range was 4000–400 cm−1. Specific surface areas and pore structure parameters of the catalysts were analyzed and characterized using an ASAP 2020 (M) physical adsorption instrument (Micromeritics Company, Atlanta, GA, USA). After degassing at 250 °C for 3 h, N2 adsorption was performed at 77 K. The BET equation was used to calculate the specific surface area of the sample, and the t-plot method was employed to determine the specific surface areas of the micropores (Smic) and mesopores (Smes). The t-plot method and BJH equation were used to calculate the micropore volume (Vmic) and mesopore volume (Vmes), and the total pore volume was calculated when P/P0 = 0.995. Acid–base properties of the catalyst surfaces were detected and analyzed by an AutoChem II 2920 automatic chemical adsorption analyzer (Micromeritics, Atlanta, GA, USA) under the following conditions: sample amount of 80 mg; under N2 flow (30 mL/min), the sample was activated at 300 °C for 1 h and then cooled to 45 °C for continuous adsorption of NH3-He (10 vol% NH3) or CO2-He (10 vol% CO2) mixed gas for 0.5 h; then, the temperature was increased to 700 °C (10 °C/min) for desorption.

3. Results

3.1. Effects of ZrO2 Crystal Phase Structure

Figure 1 shows the catalytic performances of m-ZrO2/NaZSM-5-HC and t-ZrO2/NaZSM-5-HC composite catalysts prepared by the hydrothermal coating method. Methanol conversion and CH3SH selectivity of m-ZrO2/NaZSM-5-HC were significantly higher than those of t-ZrO2/NaZSM-5-HC. In addition, the reaction induction time of m-ZrO2/NaZSM-5-HC is significantly shorter, indicating that this catalyst possesses higher initial reactivity and catalytic performance. The variation in the catalytic performance is related to different physicochemical properties of these composite catalysts caused by the different crystal phase structures of the component ZrO2.
In the XRD patterns of different samples (Figure 2), the diffraction peaks can be assigned to NaZSM-5, m-ZrO2, and t-ZrO2 according to PDF No.47-0638, PDF No.83-0944, and PDF No.50-1089, indicating that the samples consist of the respective pure phases. While the characteristic diffraction peaks of the two-phase structure, NaZSM-5 and t-ZrO2, can be identified in the XRD pattern of t-ZrO2/NaZSM-5-HC, careful comparison reveals that the diffraction peaks of NaZSM-5 tend to shift to larger angles. This shift indicates that the inter-planar spacing of NaZSM-5 decreases after the compositing process, which suggests that Zr ions in the t-ZrO2 phase partly dissolve and enter the framework of the molecular sieve. It should be pointed out that in the diffraction pattern of m-ZrO2/NaZSM-5-HC, the diffraction peaks of the NaZSM-5 crystal phase decrease in intensity and show a more pronounced shift to larger angles. This may be related to the dissolution of more Zr ions from m-ZrO2 phase into the framework of NaZSM-5 molecular sieve during hydrothermal synthesis, indicating that the compositing interaction between the two phases has been further strengthened (Figure S2). This analysis result can also be confirmed by the XPS spectra of different composite catalysts (Figure S3). Compared with pure NaZSM-5, the binding energy of Si element in the composite catalysts decreases, and m-ZrO2/NaZSM-5-HC demonstrates a more significant reduction in Si binding energy, indicating a strengthened interaction between the two phases in this composite catalyst.
To further clarify the mechanism influencing the framework of NaZSM-5, the elemental composition of the bulk phase was determined by XRF before and after the compositing process, and the results are listed in Table 1. Interestingly, compared with pure NaZSM-5, the bulk-phase Si/Al ratios of composite catalysts decrease to different degrees; m-ZrO2/NaZSM-5-HC exhibits a more significant decrease in Si/Al ratio than t-ZrO2/NaZSM-5-HC and also shows the highest bulk-phase Zr/Si ratio. It is assumed that more Zr ions in this sample have been incorporated into the framework of the molecular sieve and caused the decrease in Si/Al ratio.
To further investigate the changes in the chemical environment of Si in the zeolite framework, solid-state 29Si NMR measurements were conducted on m-ZrO2/NaZSM-5-HC and m-ZrO2/NaZSM-5-PB. The results are shown in Figure 3. The Si/Al ratio on the framework of m-ZrO2/NaZSM-5-HC is only 113, which is lower than that of m-ZrO2/NaZSM-5-PB (164). This trend corroborates the above-mentioned assumption. Zr ions dissolved from m-ZrO2 in a specific hydrothermal environment enter the framework of the molecular sieve, which is the direct reason for the lower Si/Al ratio.
Specific surface areas and pore structure parameters of different catalysts are listed in Table 2 and Figure S4. It can be seen that pure NaZSM-5 and ZrO2 mainly exhibit structural characteristics of micropores and mesopores, respectively, while pure m-ZrO2 show a micro-mesoporous composite structure. The NaZSM-5 molecular sieve has the highest specific surface area (365 m2/g); the introduction of mesoporous ZrO2 results in a meso-microporous structure of two composite catalysts, but the m-ZrO2/NaZSM-5-HC composite catalyst has a larger specific surface area (360 m2/g) and pore volume (0.52 cm3/g) than t-ZrO2/NaZSM-5-HC. Its specific surface area approaches, and its pore volume even exceeds, that of pure NaZSM-5 molecular sieve, which provides the possibility for the composite catalyst to expose more active sites.
NH3/CO2-TPD spectra of different catalysts are shown in Figure 4. Peaks in the temperature range of 50–600 °C, are expressed by the concentrations of weak (<200 °C), medium-strong (200–400 °C) and strong (400–600 °C) acid or base sites. In Figure 4a, the pure NaZSM-5 molecular sieve has the largest total acid content but only weak acid centers. The total acid content of the composite catalysts ranges between that of ZrO2 and that of NaZSM-5, and both weak and medium-strong acid centers are present. Interestingly, the composite catalysts have both weak and medium-strong base centers, and their total base content far exceeds those of pure ZrO2 and NaZSM-5 (Figure 4b). The large increase in total base content of the composite catalysts is related to the reduction in the framework Si/Al ratio caused by the desiliconization of NaZSM-5 [52,53]. As can be seen from Table S1, no strong acid/base centers are observed in all catalysts. Moreover, the amount of medium strong acid/base of the composite catalysts are basically the same as that of weak acid/base.
It should be pointed out that the total acid content and base content of m-ZrO2/NaZSM-5-HC are both higher than those of t-ZrO2/NaZSM-5-HC, which is related to a greater change in Si/Al ratio during the preparation of these composite catalysts. The distribution of generous base centers in m-ZrO2/NaZSM-5-HC contributes significantly to the highly selective production of CH3SH.
In addition, the O 1s XPS spectra of the composite catalysts (Figure 5) indicate different degrees of oxygen vacancy defects in these catalysts. Combined with the 29Si NMR analysis result, it is speculated that the formation of oxygen vacancies is caused by the combination of active protons of the silanol groups (Si-OH) generated by the removal of Si from the framework and the hydroxyl groups present on the ZrO2 component [42,54,55,56,57]. However, m-ZrO2/NaZSM-5-HC contains more oxygen vacancies as defects, which is closely related to the change in Si/Al ratio of the framework of the molecular sieve in the composite catalyst. Considering the acid–base catalysis mechanism of the methanol-hydrogen sulfide reaction to produce CH3SH, in addition to the Brønsted (B) acid sites of the molecular sieve, oxygen vacancies as a special Lewis (L) acid are also important for the adsorption and dissociation of methanol molecules. The synergistic B-L acid active centers constructed by the compositing effect facilitate the dissociation and transformation of methanol molecules under milder conditions [36,37,38].
In conclusion, the higher initial reactivity and catalytic performance of m-ZrO2/NaZSM-5-HC can be attributed to the exposure of more active sites due to its large specific surface area, the construction of a characteristic meso-microporous structure, and its different acid-base centers.

3.2. Effect of the m-ZrO2 Compositing Method

To further investigate the effects of the m-ZrO2 compositing method on the compositing effect, we compared and analyzed the effect of the hydrothermal coating method (m-ZrO2/NaZSM-5-HC), the impregnation method (m-ZrO2/NaZSM-5-IM), the mechanochemical method (m-ZrO2/NaZSM-5-MC), and the physical blending method (m-ZrO2/NaZSM-5-PB) on the physicochemical properties and catalytic performance of these composite catalysts.
XRD patterns of different composite catalysts are shown in Figure 6. The characteristic diffraction peaks of the two-phase structure, NaZSM-5 and m-ZrO2, can be observed in all composite catalysts. However, compared with those of m-ZrO2/NaZSM-5-PB, the diffraction peaks of NaZSM-5 in the other composite catalyst samples exhibited lower intensity and a shift to larger angles to different extents, indicating that all three preparation methods promote the dissolution of a certain amount of Zr ions from the m-ZrO2 phase and their incorporation into the framework of the molecular sieve. Peak intensity and degree of peak shifting decrease in the order m-ZrO2/NaZSM-5-HC > m-ZrO2/NaZSM-5-IM > m-ZrO2/NaZSM-5-MC, which is consistent with the trend of the change in Si/Al ratio of the molecular sieve for different composite samples (Table 3). The results indicate that the m-ZrO2/NaZSM-5-HC sample prepared by the hydrothermal coating method exhibits a more prominent compositing effect, followed by the impregnation method and the mechanochemical method. The physical blending method only produces a macroscopic mixture of two phases, which exist independently and exhibit the weakest interaction between them among the compared composites.
This trend has been further verified by the trend in binding energies in the XPS data of Si and Zr elements in composite samples (Figure S5). Compared with m-ZrO2/NaZSM-5-PB, the binding energies of Si in the other composite samples decrease and those of Zr increase by varying degrees; the trends are consistent with those of XRD and XRF data, indicating that the composite catalyst sample obtained by the hydrothermal coating method exhibit significantly enhanced interactions.
Interestingly, m-ZrO2/NaZSM-5-PB has the smallest total acid and total base content, while the trend in the change of acid–base content of other composite samples is consistent with their trends of Si binding energy, that is, m-ZrO2/NaZSM-5-HC has the highest acid–base content (Figure 7). The result is related to the different degrees of desiliconization caused by different compositing methods. The hydrothermal coating modification process changes the Si/Al ratio of the NaZSM-5 framework to the greatest extent, resulting in the modification of the framework structure. The characteristic FT-IR peaks (Figure S6) of the framework of the molecular sieve at 545 cm−1 and 778 cm−1 gradually decrease in intensity, while the absorption peak at 1212 cm−1 becomes obvious gradually. It is noted that m-ZrO2/NaZSM-5-PB has only weak acid and weak base centers, which is attributed to the fact that pure NaZSM-5 and pure m-ZrO2 also only possess weak acid and weak base centers (Figure 4). The m-ZrO2/NaZSM-5-MC and m-ZrO2/NaZSM-5-IM have similar active sites as m-ZrO2/NaZSM-5-PB (Table S2). As mentioned above, although the composite approach of impregnation and mechanochemical methods can also permit small amounts of Zr ions in m-ZrO2 to enter the molecular sieve skeleton, this slight structural change does not seem to be enough to change the type of active centers. However, since m-ZrO2/NaZSM-5-HC features weak acid, medium-strong acid, weak base, and medium-strong base centers, the hydrothermal coating process can apparently modify the type of acid-base centers in the composite catalyst.
In addition, the specific surface area of m-ZrO2/NaZSM-5-IM is slightly higher than that of m-ZrO2/NaZSM-5-PB (Table 3 and Figure S7). As a possible explanation, the impregnation process might lead to the desiliconization of the molecular sieve and then form a new pore system. Interestingly, compared with m-ZrO2/NaZSM-5-PB, both specific surface area and pore volume of m-ZrO2/NaZSM-5-MC decrease. Based on further analysis, this decrease was mainly caused by the significant reduction in specific surface area and pore volume of mesopores, which indicates that, although the mechanochemical method changes the Si/Al ratio of NaZSM-5 molecular sieve, the mesoporous structure has been partly destroyed by the ball–milling process. In contrast, m-ZrO2/NaZSM-5-HC prepared via the hydrothermal coating method has a lower specific surface area of micropores due to the desiliconization of the microporous framework of the molecular sieve, while the specific surface area of mesopores increases considerably, resulting in a significant increase in both total specific surface area and pore volume.
It can be observed from Figure 8 that the change trend of catalytic performance of composite samples is consistent with that of acid-base properties. Further, m-ZrO2/NaZSM-5-HC prepared by hydrothermal coating has medium strong acid-base center, which is the key to greatly improve the catalytic performance. In addition, the structural characteristics of the catalysts also have an important impact on the catalytic performance. The composite m-ZrO2/NaZSM-5-PB shows the worst catalytic performance since it is only a physical mixture of NaZSM-5 and m-ZrO2, without a special modification of the molecular sieve. For m-ZrO2/NaZSM-5-MC, the mechanochemical process modifies the Si/Al ratio of the framework of the molecular sieve to a certain extent, but the accompanying damage to the mesoporous system results in a decrease in both specific surface area and pore volume of the composite catalyst, which renders the enhancement of its catalytic performance insignificant. For m-ZrO2/NaZSM-5-IM, the impregnation process increases the modification of the framework structure of the molecular sieve, resulting in slightly enhanced catalytic performance. Nevertheless, the catalytic performance of all composite catalysts is higher than that of NaZSM-5.
In conclusion, by applying mesoporous ZrO2 in the modification of the molecular sieve, a part of the Zr4+ ions dissolves and enters NaZSM-5 molecular sieve under hydrothermal conditions to cause desiliconization of its framework, thereby enlarging the specific surface area of the composite catalyst and increasing the total acid–base content. Additionally, the hydrothermal modification effect also produces different types of active centers; therefore, m-ZrO2/NaZSM-5-HC exhibits the best catalytic performance. Under the reaction conditions of a hydrogen sulfide/methanol molar ratio of 2:1, a space velocity of 1.5 h−1, an N2 flow rate of 90 mL/min, a reaction pressure of 0.7 MPa, a reaction temperature of 370 °C, a methanol conversion rate of 92%, a CH3SH selectivity of 95%, and a CH3SH yield of 87.4% can be achieved.

4. Conclusions

Based on the design idea of using a metal oxide in the modification of a molecular sieve, this paper focuses on the preparation of ZrO2/NaZSM-5 composite catalysts. In combination with the methanol–hydrogen sulfide reaction to produce CH3SH following a bimolecular acid–base catalysis mechanism, this paper investigates the effects of crystal phase structure and compositing method of ZrO2 on the physicochemical properties and catalytic performance of composite catalysts. By comparing the structure–performance relationships of different composite catalysts, it is concluded that in the composite prepared by a hydrothermal coating method, Zr4+ ions are more like to dissolve from m-ZrO2 than from t-ZrO2, which then enter the molecular sieve, resulting in a higher degree of desiliconization of the NaZSM-5 framework. Consequently, the obtained m-ZrO2/NaZSM-5 composite catalyst demonstrates the best catalytic performance due to its largest specific surface area, pore volume, and acid–base contents. In addition, compared with the compositing effect of the impregnation and mechanochemical methods, the hydrothermal coating method also produces several types of acid–base active centers in the composite catalyst due to the hydrothermal modification. Regarding catalytic performance, these above-mentioned modifications are favorable for methanol thiolation. In view of the adjustable characteristics of NaZSM-5 molecular sieves, this study focuses on the modification strategy based on the hydrothermal coating process to enhance catalytic efficiency and reveals the mechanism of compositing and modifying molecular sieves with ZrO2, which enriches the modification methods for molecular sieves.

Supplementary Materials

The following figures are available online at https://www.mdpi.com/article/10.3390/nano12111803/s1. Figure S1: Schematic reaction Mechanism for the formation of methoxy groups; Figure S2: SEM image of the catalyst; (a) Pure NaZSM-5, (b) Pure m-ZrO2, (c) m-ZrO2/NaZSM-5-HC; Figure S3: XPS spectra of NaZSM-5, t-ZrO2/NaZSM-5-HC and m-ZrO2/NaZSM-5-HC. (a) Si2p spectra and (b) Zr3d spectra; Figure S4: N2 adsorption-desorption isotherms and pore size distribution of different catalysts; Table S1: The amount of acid and base of different catalysts; Figure S5: XPS spectra of different composite catalysts. (a) Si2p spectra and (b) Zr3d spectra; Figure S6: FT-IR spectra of Pure NaZSM-5, Pure m-ZrO2 and different composite catalysts; Table S2: The amount of acid and base of different catalysts; Figure S7: N2 adsorption-desorption isotherms and pore size distribution of different composite catalysts.

Author Contributions

T.Y.: investigation, methodology, writing—original draft, formal analysis, data curation. F.L.: supervision, resources, writing—review & editing, project administration, funding acquisition. P.C.: data curation. T.Z.: methodology. M.Y.: data curation. J.M.: writing—review & editing. C.Y.: formal analysis. J.C.: conceptualization, funding acquisition. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by Innovation Group Project of Education Department in Guizhou Province (NO. 2021010), One Hundred Person Project of Guizhou Province (NO. 20165655), Excellent Young Scientific and Technological Talent Program of Guizhou Province (NO. 20195645) and Zunyi City Innovative Talent Team Project (NO. 20209), Natural Science Special Foundation of Guizhou University (Grant NO. X2021073 Special Post D), The cultivation project of Guizhou University (Grant NO. [2020]38), Natural Science Basic Research Program of Guizhou Province (Grant NO. ZK[2022]088).

Data Availability Statement

The data that support the findings of this study are available upon reasonable request.

Acknowledgments

Thanks for the contribution of Fei Liu, Mengqin Yao, Jun Ma, Chunliang Yang, Peng Chen, Tianxiang Zhao, Jianxin Cao and Xiaodan Wang authors, including purchase of materials and conduct of the relative experiments.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gomes, J.; Kumar, D. Production of l-methionine by submerged fermentation: A review. Enzym. Microb. Technol. 2005, 37, 3–18. [Google Scholar] [CrossRef]
  2. Leuchtenberger, W.; Huthmacher, K.; Drauz, K. Biotechnological production of amino acids and derivatives: Current status and prospects. Appl. Microbiol. Biotechnol. 2005, 69, 1–8. [Google Scholar] [CrossRef] [PubMed]
  3. Taifan, W.; Arvidsson, A.A.; Nelson, E.; Hellman, A.; Baltrusaitis, J. CH4 and H2S reforming to CH3SH and H2 catalyzed by metal-promoted Mo6S8 clusters: A first-principles micro-kinetic study. Catal. Sci. Technol. 2017, 7, 3546–3554. [Google Scholar] [CrossRef]
  4. Taifan, W.; Baltrusaitis, J. CH4 conversion to value added products: Potential, limitations and extensions of a single step heterogeneous catalysis. Appl. Catal. B Environ. 2016, 198, 525–547. [Google Scholar] [CrossRef]
  5. Willke, T. Methionine production-a critical review. Appl. Microbiol. Biotechnol. 2014, 98, 9893–9914. [Google Scholar] [CrossRef]
  6. Zhang, Y.; Chen, S.; Wu, M.; Fang, W.; Yang, Y. Promoting effect of SiO2 on the K2WO4/Al2O3 catalysts for methanethiol synthesis from methanol and H2S. Catal. Commun. 2012, 22, 48–51. [Google Scholar] [CrossRef]
  7. Wang, W.; Li, J.; He, Q.; Peng, S.; Yang, Y.; Li, M. Synthesis of Methanethiol from Methanol and Carbon Disulfide over CoKW/Al2O3 Catalysts: The Possible Reaction Network and Reaction Mechanism. ChemistrySelect 2018, 3, 9663–9671. [Google Scholar] [CrossRef]
  8. Wang, W.; Li, Y.; Zhang, X.; Fang, W.; Yang, Y. Catalytic synthesis of methanethiol from methanol and carbon disulfide over KW/Al2O3 catalysts. Catal. Commun. 2015, 69, 104–108. [Google Scholar] [CrossRef]
  9. Chen, S.; Wang, W.; Zhang, Y.; Wei, Y.; Fang, W.; Yang, Y. Thiolation of dimethyl sulfide to methanethiol over WO3/ZrO2 catalysts. J. Mol. Catal. A Chem. 2012, 365, 60–65. [Google Scholar] [CrossRef]
  10. Chen, S.; Zhang, Y.; Wu, M.; Fang, W.; Yang, Y. Study on methanethiol synthesis from H2S and dimethyl sulfide over Al2O3 catalysts promoted with phosphorus. Appl. Catal. A Gen. 2012, 431–432, 151–156. [Google Scholar] [CrossRef]
  11. Koshelev, S.N.; Mashkina, A.V.; Paukshtis, E.A. Stability of catalysts in dimethyl sulfide conversion in the presence of H2S. React. Kinet. Catal. Lett. 1991, 44, 367–373. [Google Scholar] [CrossRef]
  12. Andersson, R.; Boutonnet, M.; Järås, S. Higher alcohols from syngas using a K/Ni/MoS2 catalyst: Trace sulfur in the product and effect of H2S-containing feed. Fuel 2014, 115, 544–550. [Google Scholar] [CrossRef]
  13. Zhang, B.; Taylor, S.H.; Hutchings, G.J. Synthesis of methyl mercaptan and thiophene from CO/H2/H2S using α-Al2O3. Catal. Lett. 2003, 91, 3–4. [Google Scholar] [CrossRef]
  14. Chen, A.; Wang, Q.; Hao, Y.; Fang, W.; Yang, Y. The Promoting Effect of Tellurium on K2MoO4/SiO2 Catalyst for Methanethiol Synthesis from High H2S-Containing Syngas. Catal. Lett. 2007, 118, 295–299. [Google Scholar] [CrossRef] [Green Version]
  15. Cordova, A.; Blanchard, P.; Lancelot, C.; Frémy, G.; Lamonier, C. Probing the Nature of the Active Phase of Molybdenum-Supported Catalysts for the Direct Synthesis of Methylmercaptan from Syngas and H2S. ACS Catal. 2015, 5, 2966–2981. [Google Scholar] [CrossRef]
  16. Cordova, A.; Blanchard, P.; Salembier, H.; Lancelot, C.; Frémy, G.; Lamonier, C. Direct synthesis of methyl mercaptan from H2/CO/H2S using tungsten based supported catalysts: Investigation of the active phase. Catal. Today 2017, 292, 143–153. [Google Scholar] [CrossRef]
  17. Hao, Y.; Zhang, Y.; Chen, A.; Fang, W.; Yang, Y. Study on Methanethiol Synthesis from H2S-Rich Syngas Over K2MoO4 Catalyst Supported on Electrolessly Ni-Plated SiO2. Catal. Lett. 2009, 129, 486–492. [Google Scholar] [CrossRef] [Green Version]
  18. Lu, J.; Liu, P.; Xu, Z.; He, S.; Luo, Y. Investigation of the reaction pathway for synthesizing methyl mercaptan (CH3SH) from H2S-containing syngas over K-Mo-type materials. RSC Adv. 2018, 8, 21340–21353. [Google Scholar] [CrossRef] [Green Version]
  19. Lu, J.; Luo, Y.; He, D.; Xu, Z.; He, S.; Xie, D.; Mei, Y. An exploration into potassium (K) containing MoS2 active phases and its transformation process over MoS2 based materials for producing methanethiol. Catal. Today 2020, 339, 93–104. [Google Scholar] [CrossRef]
  20. Zhang, B.; Taylor, S.H.; Hutchings, G.J. Catalytic synthesis of methanethiol from CO/H2/H2S mixtures using α-Al2O3. New J. Chem. 2004, 28, 471–476. [Google Scholar] [CrossRef]
  21. Gilman, H.; Beaber, N.J. The alkylation of mercaptans by means of sulfonic esters. J. Am. Chem. Soc. 1925, 47, 1449–1451. [Google Scholar] [CrossRef]
  22. Hauser, C.R.; Kantor, S.W.; Brasen, W.R. Rearrangement of benzyl sulfides to mercaptans and of sulfonium ions to sulfides involving the aromatic ring by alkali amides1,2. J. Am. Chem. Soc. 1953, 75, 2660–2663. [Google Scholar] [CrossRef]
  23. Raghunath, M.; Viswanathan, C.L. Benzimidazole-2-carbamic acid as a privileged scaffold for antifungal, anthelmintic and antitumor activity: A Review. Int. J. Pharm. Sci. 2014, 6, 17–25. [Google Scholar]
  24. Scott, C.B.; Dorsey, W.S.; Huffman, H.C. Pilot plant methyl mercaptan from methyl chloride. Ind. Eng. Chem. 1955, 47, 876–877. [Google Scholar] [CrossRef]
  25. Takagi, K. Synthesis of aromatic thiols from aryl iodides and thiourea by means of nickel catalyst. Chem. Lett. 1985, 14, 1307–1308. [Google Scholar] [CrossRef] [Green Version]
  26. Bermejo-Deval, R.; Walter, R.M.H.; Gutiérrez, O.Y.; Lercher, J.A. On the role of the alkali cations on methanol thiolation. Catal. Sci. Technol. 2017, 7, 4437–4443. [Google Scholar] [CrossRef]
  27. Pashigreva, A.V.; Kondratieva, E.; Bermejo-Deval, R.; Gutiérrez, O.Y.; Lercher, J.A. Methanol thiolation over Al2O3 and WS2 catalysts modified with cesium. J. Catal. 2017, 345, 308–318. [Google Scholar] [CrossRef]
  28. Weber-Stockbauer, M.; Gutiérrez, O.Y.; Bermejo-Deval, R.; Lercher, J.A. Cesium induced changes in the acid-base properties of metal oxides and the consequences for methanol thiolation. ACS Catal. 2019, 9, 9245–9252. [Google Scholar] [CrossRef]
  29. Maugé, F.; Sahibed-Dine, A.; Gaillard, M.; Ziolek, M. Modification of the acidic properties of NaY zeolite by H2S adsorption-an infrared study. J. Catal. 2002, 207, 353–360. [Google Scholar] [CrossRef]
  30. Plaisance, C.P.; Dooley, K.M. Zeolite and metal oxide catalysts for the production of dimethyl sulfide and methanethiol. Catal. Lett. 2009, 128, 449–458. [Google Scholar] [CrossRef] [Green Version]
  31. Rep, M.; Palomares, A.E.; Eder-Mirth, G.; van Ommen, J.G.; Rösch, N.; Lercher, J.A. Interaction of methanol with alkali metal exchanged molecular sieves. 1. IR spectroscopic study. J. Phys. Chem. B 2000, 104, 8624–8630. [Google Scholar] [CrossRef]
  32. Trejda, M.; Kujawa, J.; Ziolek, M. Iron modified MCM-41 materials characterised by methanol oxidation and sulphurisation reactions. Catal. Lett. 2006, 108, 141–146. [Google Scholar] [CrossRef]
  33. Trejda, M.; Tuel, A.; Kujawa, J.; Kilos, B.; Ziolek, M. Niobium rich SBA-15 materials–preparation, characterisation and catalytic activity. Microporous Mesoporous Mater. 2008, 110, 271–278. [Google Scholar] [CrossRef]
  34. Trejda, M.; Wojtaszek, A.; Ziolek, M.; Kujawa, J. Various hexagonally ordered mesoporous silicas as supports for chromium species-The effect of support on surface properties. Appl. Catal. A Gen. 2009, 365, 135–140. [Google Scholar] [CrossRef]
  35. Ziolek, M.; Kujawa, J.; Czyzniewska, J.; Nowak, I.; Aboulayt, A.; Saur, O.; Lavalley, J.C. Effect on the reaction between methanol and hydrogen sulphide of Na or Mo doping on zirconia and alumina. Appl. Catal. A Gen. 1998, 171, 109–115. [Google Scholar] [CrossRef]
  36. Huang, F.; Cao, J.; Wang, L.; Wang, X.; Liu, F. Enhanced catalytic behavior for methanol to lower olefins over SAPO-34 composited with ZrO2. Chem. Eng. J. 2020, 380, 122626. [Google Scholar] [CrossRef]
  37. Liu, P.; Cao, J.; Xu, Z.; Yang, C.; Wang, X.; Liu, F. Thiolation of methanol with H2S using core-shell structured ZSM-5@t-ZrO2 catalyst. Chem. Eng. Sci. 2020, 211, 115273. [Google Scholar] [CrossRef]
  38. Wang, Y.; Yang, T.; Liu, F.; Zhao, T.; Wang, X.; Cao, J. High selectivity in methanethiol synthesis over a coated composite comprising ZSM-5 with t-ZrO2. Microporous Mesoporous Mater. 2020, 305, 110358. [Google Scholar] [CrossRef]
  39. Feng, R.; Yan, X.; Hu, X.; Wang, Y.; Li, Z.; Hou, K.; Lin, J. Hierarchical ZSM-5 zeolite designed by combining desilication and dealumination with related study of n-heptane cracking performance. J. Porous Mater. 2018, 25, 1743–1756. [Google Scholar] [CrossRef]
  40. Li, J.; Liu, M.; Guo, X.; Zeng, S.; Xu, S.; Wei, Y.; Liu, Z.; Song, C. Influence of Al coordinates on hierarchical structure and T atoms redistribution during base leaching of ZSM-5. Ind. Eng. Chem. Res. 2018, 57, 15375–15384. [Google Scholar] [CrossRef]
  41. Li, T.; Roy, K.; Krumeich, F.; Artiglia, L.; Huthwelker, T.; Bokhoven, J.A. Variation of aluminium distribution in small-sized ZSM-5 crystals during desilication. Chem.-A Eur. J. 2019, 25, 15879–15886. [Google Scholar] [CrossRef]
  42. Ma, Q.; Fu, T.; Wang, Y.; Li, H.; Cui, L.; Li, Z. Development of mesoporous ZSM-5 zeolite with microporosity preservation through induced desilication. J. Mater. Sci. 2020, 55, 11870–11890. [Google Scholar] [CrossRef]
  43. Peng, P.; Wang, Y.; Zhang, Z.; Qiao, K.; Liu, X.; Yan, Z.; Subhan, F.; Komarneni, S. ZSM-5-based mesostructures by combined alkali dissolution and re-assembly: Process controlling and scale-up. Chem. Eng. J. 2016, 302, 323–333. [Google Scholar] [CrossRef]
  44. Thl, A.; Min, C.; Bhj, C.; Jhp, B.; Shk, A.; Kbl, A. Prevention of deactivation of HZSM-5 by mixing with NaZSM-5 in catalytic reaction of methylcyclohexane. Catal. Today 2020, 358, 116–121. [Google Scholar]
  45. Frei, M.S.; Mondelli, C.; Cesarini, A.; Krumeich, F.; Hauert, R.; Stewart, J.A.; Curulla Ferré, D.; Pérez-Ramírez, J. Role of zirconia in indium cxide-catalyzed CO2 hydrogenation to methanol. ACS Catal. 2020, 10, 1133–1145. [Google Scholar] [CrossRef]
  46. Rahman, N.J.A.; Ramli, A.; Jumbri, K.; Uemura, Y. Tailoring the surface area and the acid-base properties of ZrO2 for biodiesel production from Nannochloropsis sp. Sci. Rep. 2019, 9, 16223. [Google Scholar] [CrossRef] [Green Version]
  47. Tanabe, K.; Yamaguchi, T. Acid-base bifunctional catalysis by ZrO2 and its mixed oxides. Catal. Today 1994, 20, 185–197. [Google Scholar] [CrossRef]
  48. Wang, X.; Zhao, J.; Li, Y.; Huang, S.; An, J.; Shi, R.; Pei, Y.; Li, Z.; Ren, J. Effects of surface acid-base properties of ZrO2 on the direct synthesis of DMC from CO2 and methanol: A combined DFT and experimental study. Chem. Eng. Sci. 2021, 229, 116018. [Google Scholar] [CrossRef]
  49. Zhu, Z.; Yang, L.; Ke, C.; Fan, G.; Yang, L.; Li, F. Highly efficient catalytic transfer hydrogenation of furfural over defect-rich amphoteric ZrO2 with abundant surface acid-base sites. Dalton Trans. 2021, 50, 2616–2626. [Google Scholar] [CrossRef]
  50. Petchmark, M.; Ruangpornvisuti, V. Hydrogen adsorption on c-ZrO2(111), t-ZrO2(101), and m-ZrO2(111) surfaces and their oxygen-vacancy defect for hydrogen sensing and storage: A first-principles investigation. Mater. Lett. 2021, 301, 130243. [Google Scholar] [CrossRef]
  51. Hu, X.; Wang, Y.; Wu, R.; Zhao, L.; Wei, X.; Zhao, Y. Effects of zirconia crystal phases on the catalytic decomposition of N2O over Co3O4/ZrO2 catalysts. Appl. Surf. Sci. 2020, 514, 145892. [Google Scholar] [CrossRef]
  52. Barthomeuf, D. Conjugate acid-base pairs in zeolites. J. Phys. Chem. 1984, 88, 42–45. [Google Scholar] [CrossRef]
  53. Corma, A.; Martín-Aranda, R.M.; Sánchez, F. Zeolites as base catalysts: Condensation of benzaldehyde derivatives with activated methylenic compounds on Germanium-substituted faujasite. J. Catal. 1990, 126, 192–198. [Google Scholar] [CrossRef]
  54. Gil, B.; Mokrzycki, Ł.; Sulikowski, B.; Olejniczak, Z.; Walas, S. Desilication of ZSM-5 and ZSM-12 zeolites: Impact on textural, acidic and catalytic properties. Catal. Today 2010, 152, 24–32. [Google Scholar] [CrossRef]
  55. Qi, T.; Zhou, L.; Li, Y.; Chu, G.W.; Sun, B.C. Tailoring oxygen vacancies in ZSM-5@MnOx catalysts for efficient oxidation of benzyl alcohol. Chem. Eng. Sci. 2021, 241, 116691. [Google Scholar] [CrossRef]
  56. Su, J.Y.; Park, E.D. Effects of dealumination and desilication of H-ZSM-5 on xylose dehydration. Microporous Mesoporous Mater. 2014, 186, 121–129. [Google Scholar]
  57. Zhou, F.; Gao, Y.; Wu, G.; Ma, F.; Liu, C. Improved catalytic performance and decreased coke formation in post-treated ZSM-5 zeolites for methanol aromatization. Microporous Mesoporous Mater. 2017, 240, 96–107. [Google Scholar] [CrossRef]
Nanomaterials 12 01803 g001 550

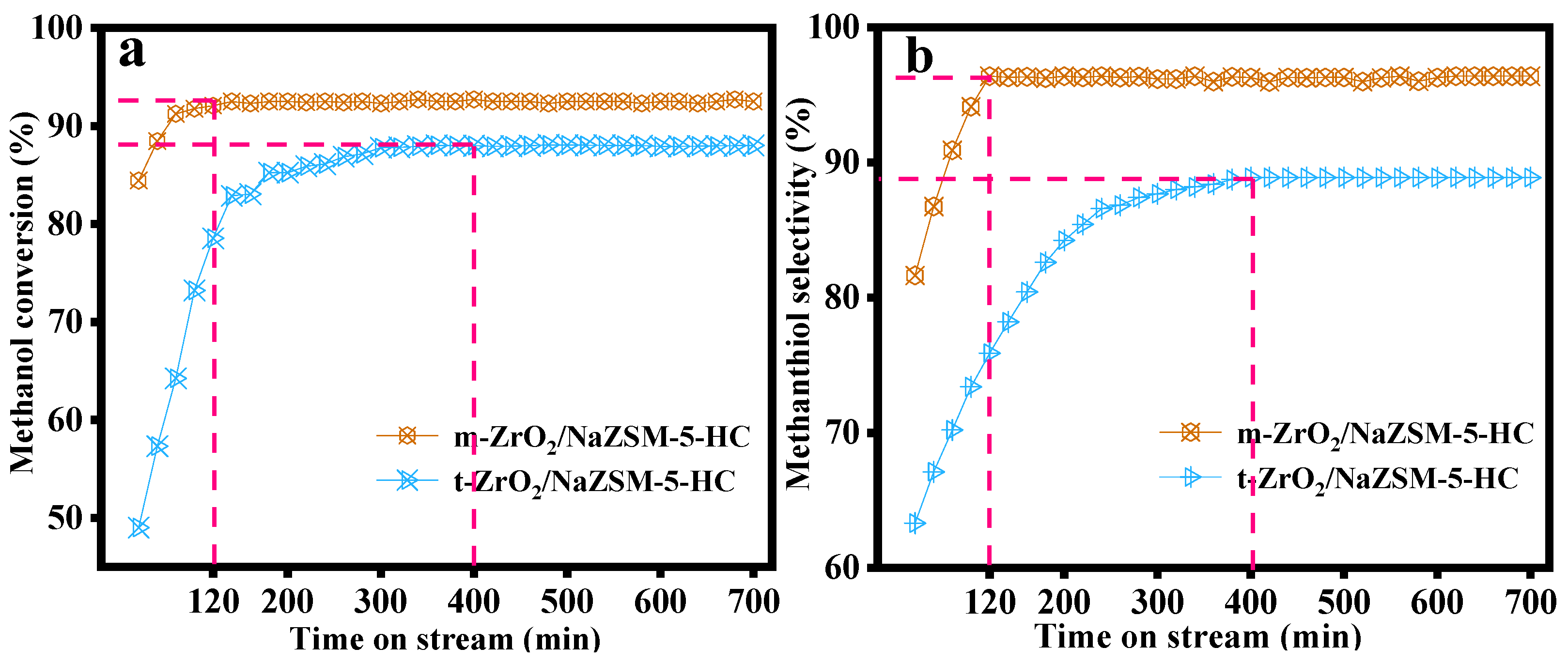

Figure 1. Catalytic performance of m-ZrO2/NaZSM-5-HC and t-ZrO2/NaZSM-5-HC composite catalysts: (a) methanol conversion rate and (b) selectivity to CH3SH.
Figure 1. Catalytic performance of m-ZrO2/NaZSM-5-HC and t-ZrO2/NaZSM-5-HC composite catalysts: (a) methanol conversion rate and (b) selectivity to CH3SH.
Nanomaterials 12 01803 g001
Nanomaterials 12 01803 g002 550

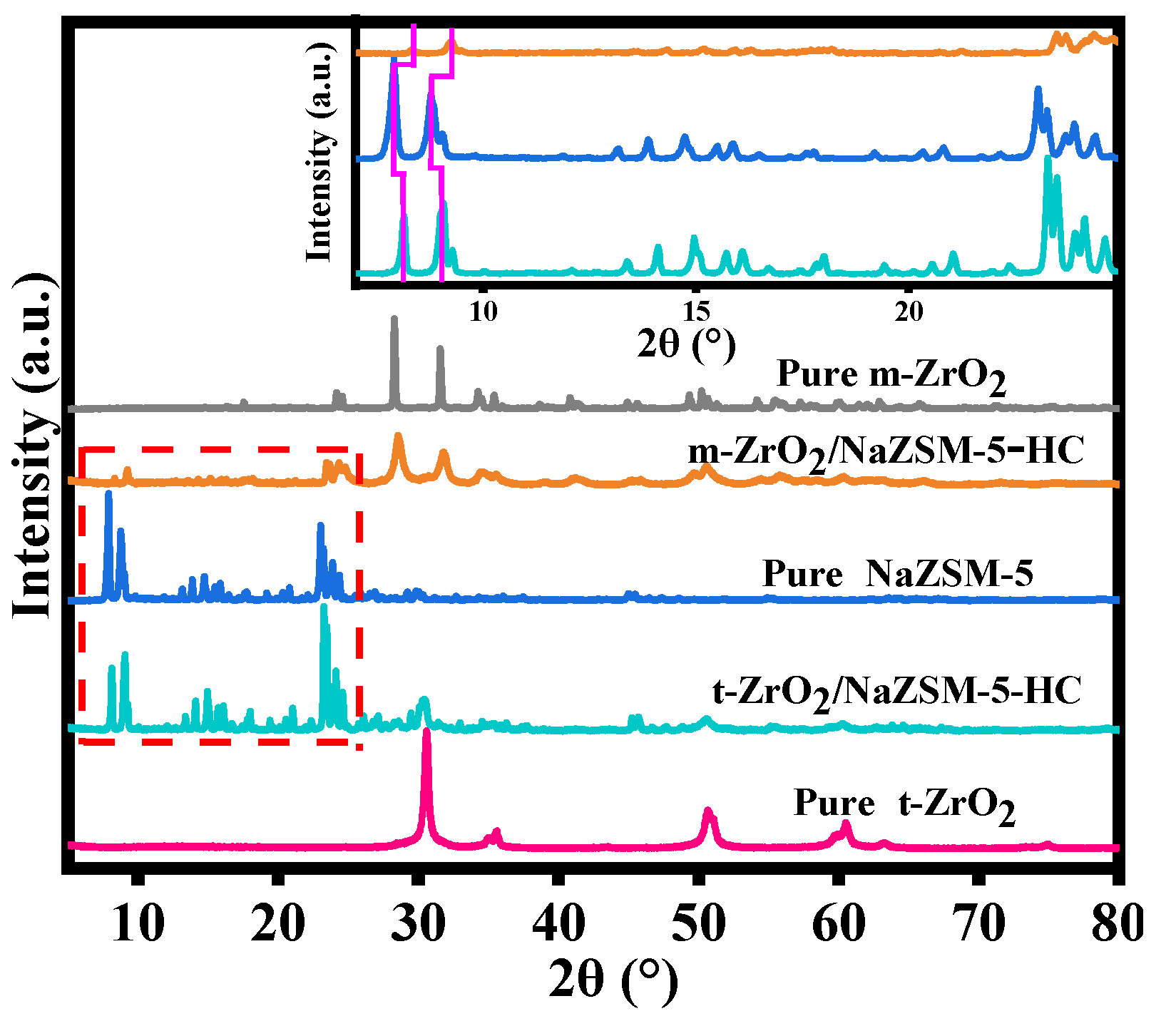

Figure 2. XRD patterns of different catalysts.
Figure 2. XRD patterns of different catalysts.
Nanomaterials 12 01803 g002
Nanomaterials 12 01803 g003 550

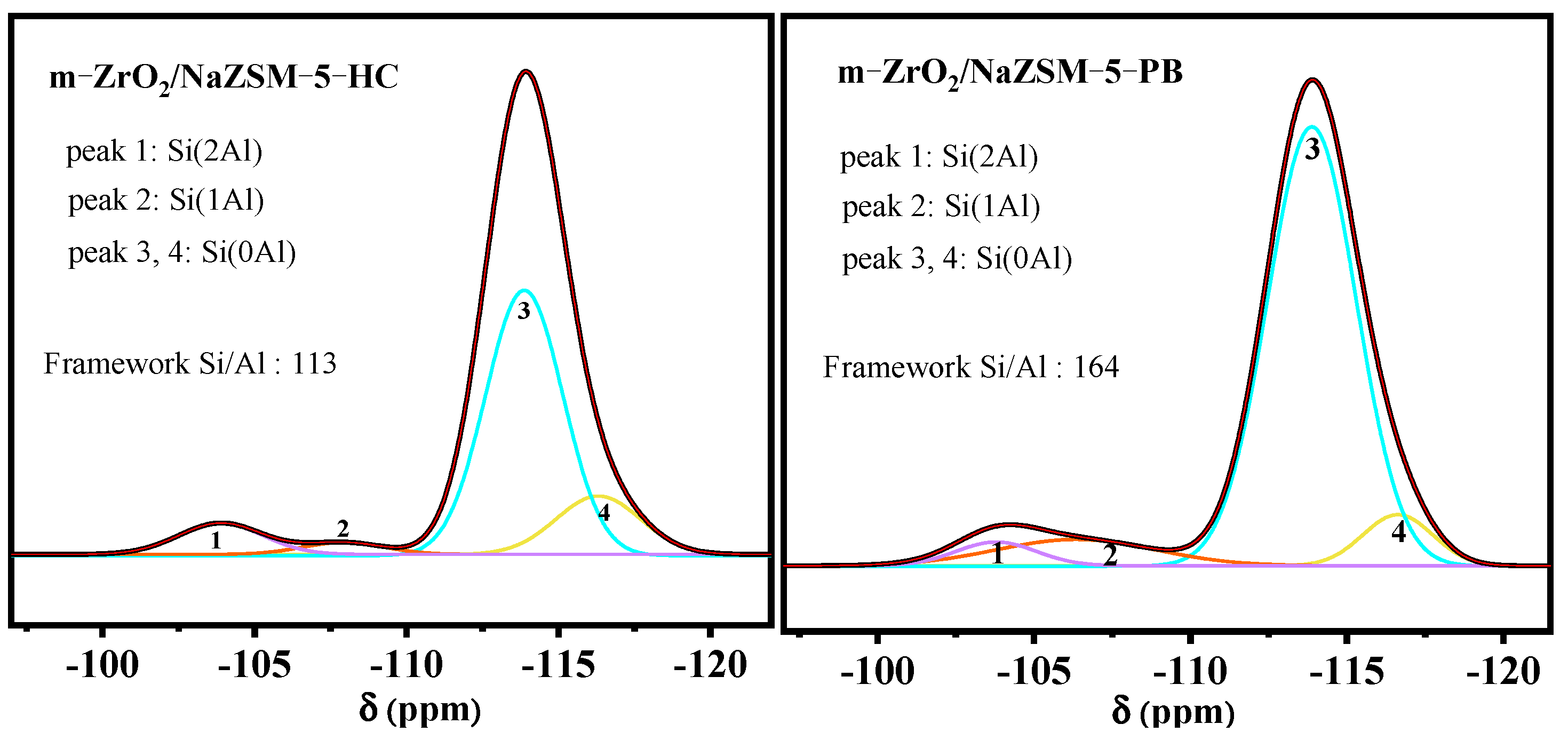

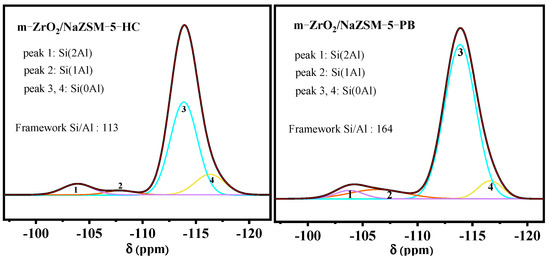

Figure 3. 29Si NMR spectra of m-ZrO2/NaZSM-5-HC and m-ZrO2/NaZSM-5-PB composite catalysts.
Figure 3. 29Si NMR spectra of m-ZrO2/NaZSM-5-HC and m-ZrO2/NaZSM-5-PB composite catalysts.
Nanomaterials 12 01803 g003
Nanomaterials 12 01803 g004 550

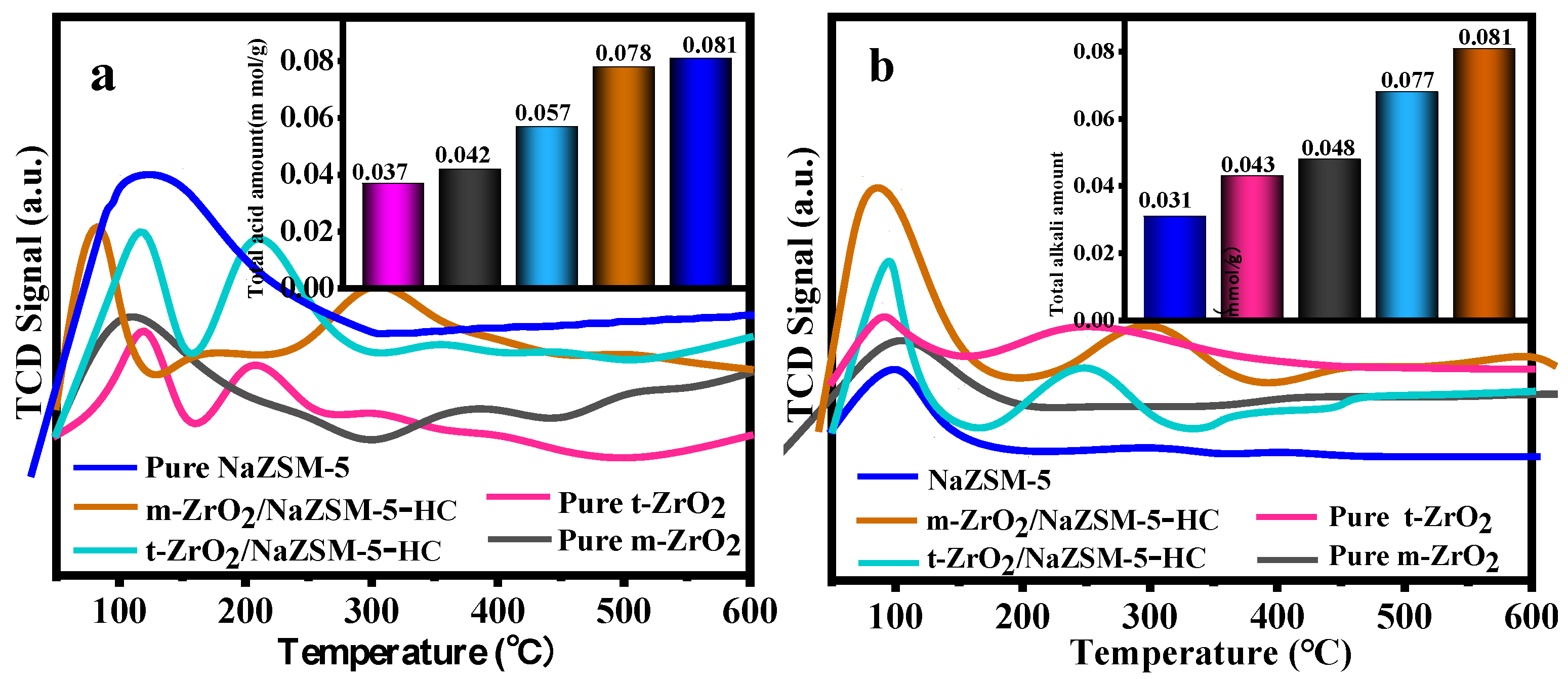

Figure 4. TPD spectra of different catalysts: (a) NH3-TPD and (b) CO2-TPD.
Figure 4. TPD spectra of different catalysts: (a) NH3-TPD and (b) CO2-TPD.
Nanomaterials 12 01803 g004
Nanomaterials 12 01803 g005 550

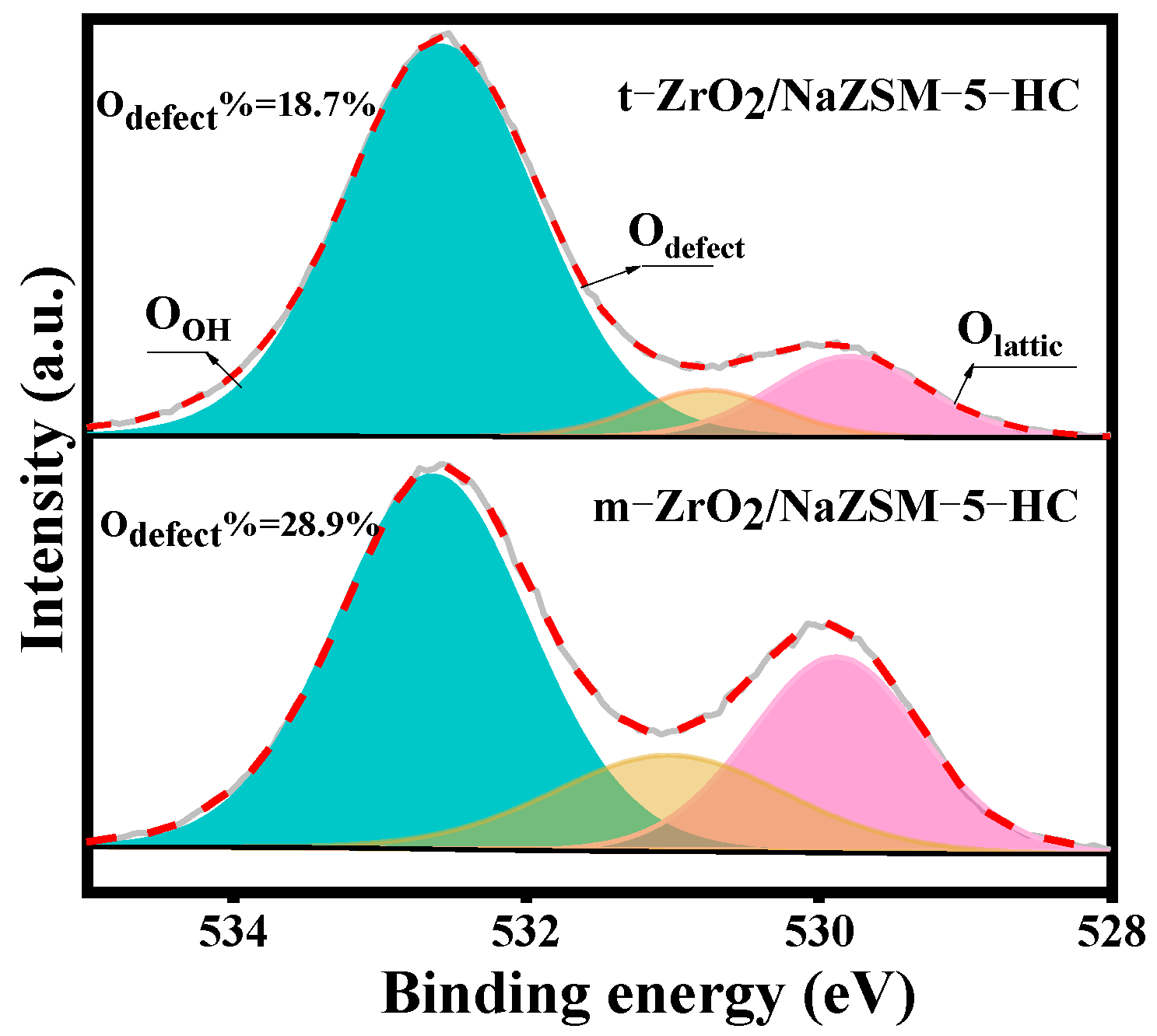

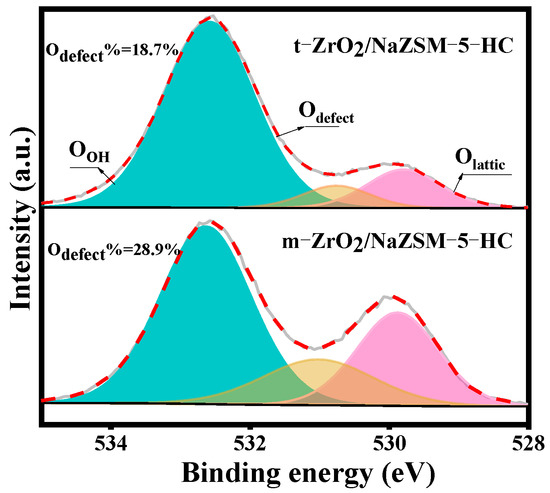

Figure 5. O 1s XPS spectra of t-ZrO2/NaZSM-5-HC and m-ZrO2/NaZSM-5-HC composite catalysts.
Figure 5. O 1s XPS spectra of t-ZrO2/NaZSM-5-HC and m-ZrO2/NaZSM-5-HC composite catalysts.
Nanomaterials 12 01803 g005
Nanomaterials 12 01803 g006 550

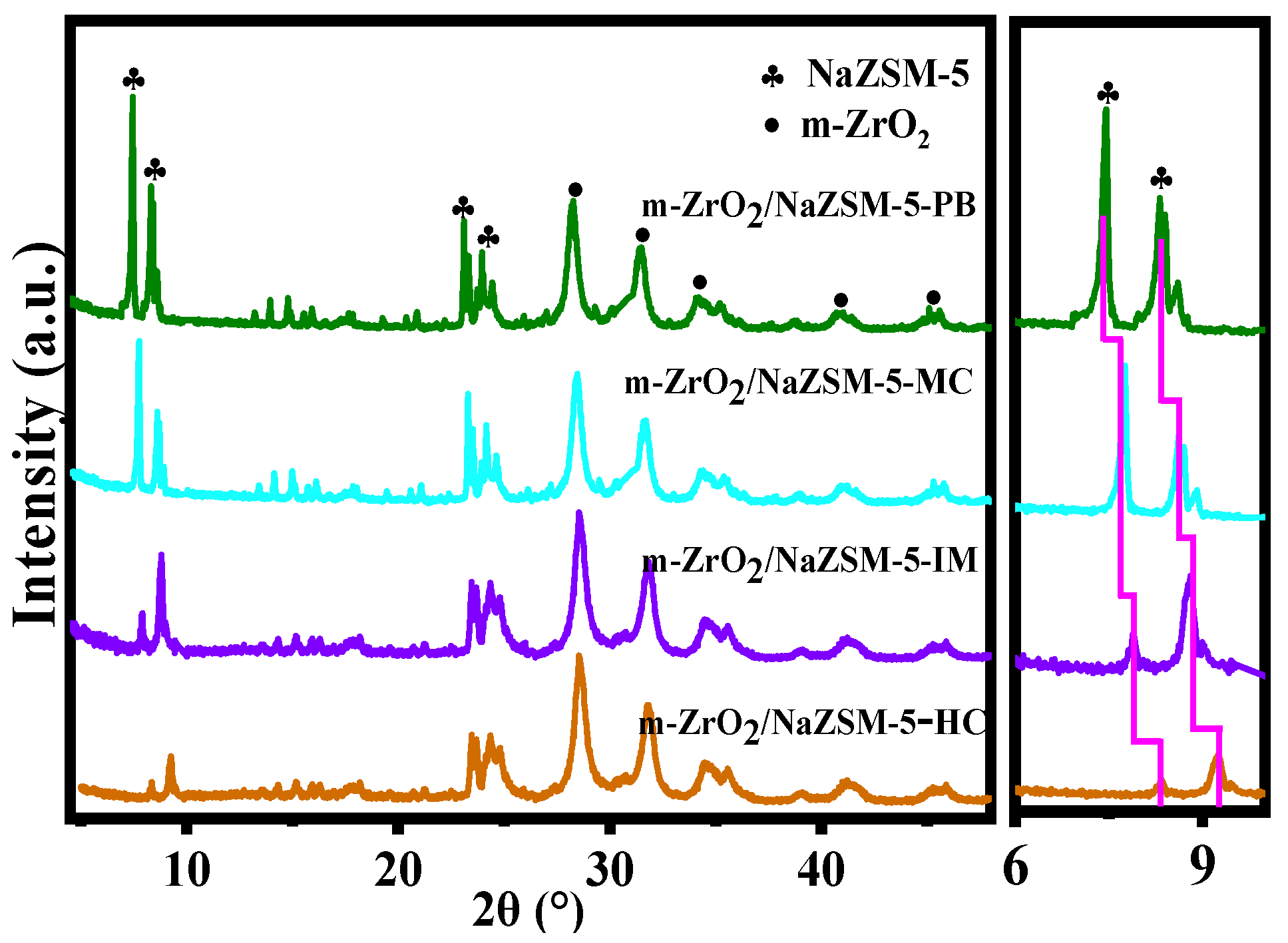

Figure 6. XRD patterns of different composite catalysts.
Figure 6. XRD patterns of different composite catalysts.
Nanomaterials 12 01803 g006
Nanomaterials 12 01803 g007 550

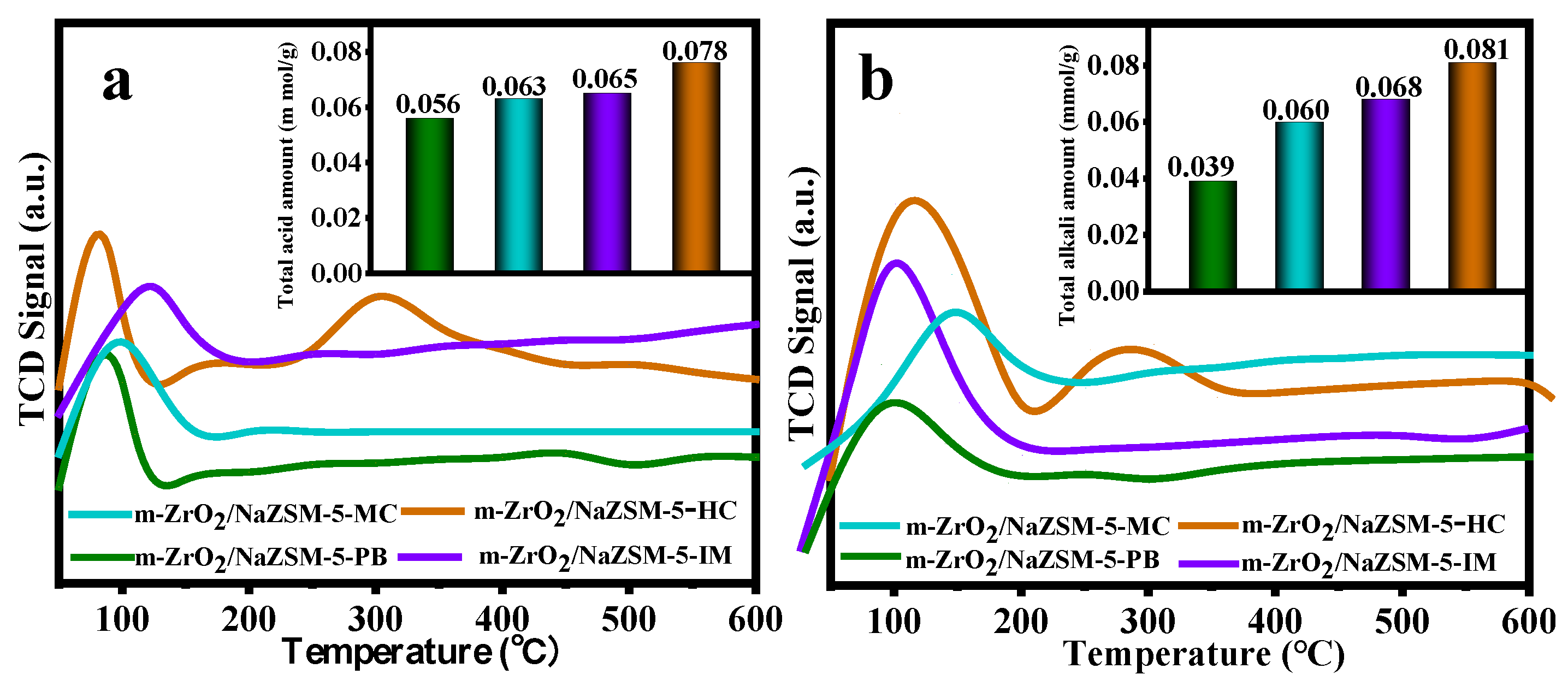

Figure 7. TPD spectra of different composite catalysts: (a) NH3-TPD and (b) CO2-TPD.
Figure 7. TPD spectra of different composite catalysts: (a) NH3-TPD and (b) CO2-TPD.
Nanomaterials 12 01803 g007
Nanomaterials 12 01803 g008 550

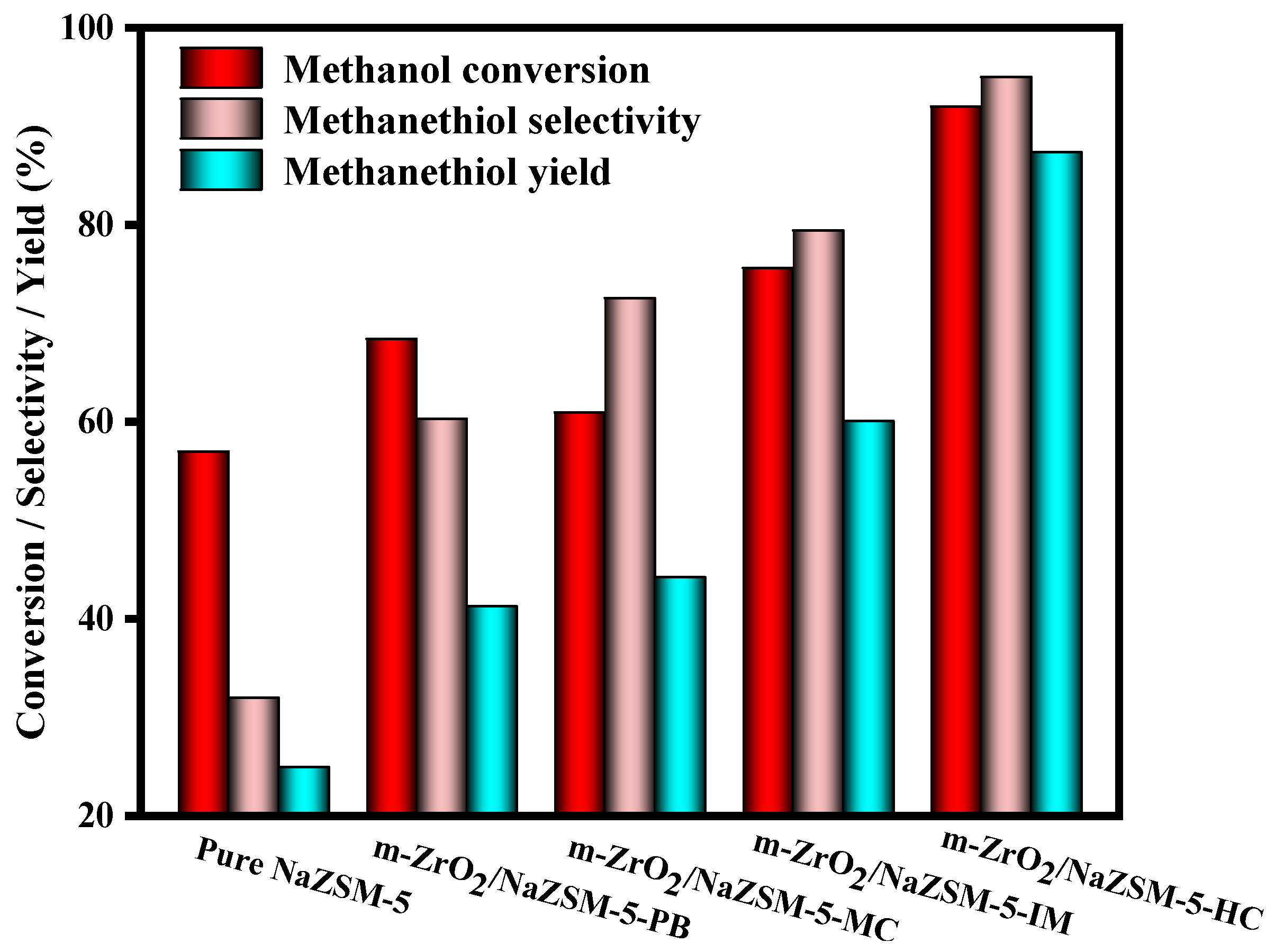

Figure 8. Catalytic performance of different composite catalysts.
Figure 8. Catalytic performance of different composite catalysts.
Nanomaterials 12 01803 g008
Table
Table 1. Elemental composition of different catalysts.
Table 1. Elemental composition of different catalysts.
SamplesElement Content (wt.%) Bulk Zr/Si Bulk Si/Al
SiAlZrONa
m-ZrO2/NaZSM-5-HC17.090.10636.5343.220.1062.14161
t-ZrO2/NaZSM-5-HC20.420.11731.8344.580.1151.56174
NaZSM-535.890.20-60.750.19-179
Table
Table 2. Specific surface areas and pore structure parameters of different catalysts.
Table 2. Specific surface areas and pore structure parameters of different catalysts.
CompositesBET Surface Area (m2/g)Pore Volume (cm3/g)
SBET SmicSmesVtVmicVmes
Pure NaZSM-5365330350.410.340.07
m-ZrO2/NaZSM-5-HC3601262340.520.170.35
t-ZrO2/NaZSM-5-HC2391141250.430.120.31
Pure m-ZrO213440940.470.210.26
Pure t-ZrO2184-1840.50-0.50
Table
Table 3. Pore structure characteristics and elemental compositions of different composite catalysts.
Table 3. Pore structure characteristics and elemental compositions of different composite catalysts.
CatalystBET Surface Area (m2/g) aVolume (cm3/g) aXRF b
Si/Al
SBETSmicSmesVtVmicVmes
m-ZrO2/NaZSM-5-PB2681541140.420.280.14179
m-ZrO2/NaZSM-5-MC 235152830.400.310.09170
m-ZrO2/NaZSM-5-IM2761611150.420. 300.12167
m-ZrO2/NaZSM-5-HC3601262340.520.170.35161
a Measured by N2 sorption at 77K. b Determined by XRF.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Yang, T.; Yao, M.; Ma, J.; Chen, P.; Zhao, T.; Yang, C.; Liu, F.; Cao, J. Role of Zirconia in Oxide-Zeolite Composite for Thiolation of Methanol with Hydrogen Sulfide to Methanethiol. Nanomaterials 2022, 12, 1803. https://doi.org/10.3390/nano12111803

AMA Style

Yang T, Yao M, Ma J, Chen P, Zhao T, Yang C, Liu F, Cao J. Role of Zirconia in Oxide-Zeolite Composite for Thiolation of Methanol with Hydrogen Sulfide to Methanethiol. Nanomaterials. 2022; 12(11):1803. https://doi.org/10.3390/nano12111803

Chicago/Turabian Style

Yang, Tinglong, Mengqin Yao, Jun Ma, Peng Chen, Tianxiang Zhao, Chunliang Yang, Fei Liu, and Jianxin Cao. 2022. "Role of Zirconia in Oxide-Zeolite Composite for Thiolation of Methanol with Hydrogen Sulfide to Methanethiol" Nanomaterials 12, no. 11: 1803. https://doi.org/10.3390/nano12111803

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
