Recent Developments in Atomic Layer Deposition of Functional Overlayers in Perovskite Solar Cells

Park, Helen Hejin; Fermin, David J.

doi:10.3390/nano13243112

Open AccessCommentary

Recent Developments in Atomic Layer Deposition of Functional Overlayers in Perovskite Solar Cells

by

Helen Hejin Park

^1,2,*

and

David J. Fermin

^3,*

¹

Advanced Materials Division, Korea Research Institute of Chemical Technology (KRICT), Daejeon 34114, Republic of Korea

²

Department of Advanced Materials and Chemical Engineering, University of Science and Technology (UST), Daejeon 34113, Republic of Korea

³

School of Chemistry, University of Bristol, Bristol BS8 1TS, UK

^*

Authors to whom correspondence should be addressed.

Nanomaterials 2023, 13(24), 3112; https://doi.org/10.3390/nano13243112

Submission received: 16 November 2023 / Revised: 4 December 2023 / Accepted: 8 December 2023 / Published: 10 December 2023

(This article belongs to the Special Issue Nanomaterials and Thin Films for Perovskite Solar Cells)

Download

Browse Figures

Versions Notes

Abstract

:

Over the last decade, research in organic–inorganic lead halide perovskite solar cells (PSCs) has gathered unprecedented momentum, putting the technology on the brink of full-scale commercialization. A wide range of strategies have been implemented for enhancing the power conversion efficiency of devices and modules, as well as improving stability toward high levels of irradiation, temperature, and humidity. Another key element in the path to commercialization is the scalability of device manufacturing, which requires large-scale deposition of conformal layers without compromising the delicate structure of the perovskite film. In this context, atomic layer deposition (ALD) tools excel in depositing high-quality conformal films with precise control of film composition and thickness over large areas at relatively low processing temperatures. In this commentary, we will briefly outline recent progress in PSC technology enabled by ALD tools, focusing on layers deposited above the absorber layer. These interlayers include charge transport layers, passivation layers, buffer layers, and encapsulation techniques. Additionally, we will discuss some of the challenges and potential avenues for research in PSC technology underpinned by ALD tools.

Keywords:

metal halide perovskite; solar cell materials; atomic layer deposition; photovoltaics

1. Introduction

The most abundant resource available to humanity, solar energy, has been extensively investigated for decades, leading to a technology learning curve of 20%. Indeed, powerful data-driven energy–technology–economy simulations developed by Nijsse et al. have shown conclusive evidence that photovoltaics (PV) has already passed the technology tipping point and are set to dominate the global energy market by 2060 [1]. Researchers are exploring a variety of PV technologies with a shared common goal: the cost-effective and efficient harnessing of solar energy for decarbonizing human activity. Organic–inorganic hybrid perovskite solar cells (PSCs) have rapidly emerged as a promising technology, characterized by a fast increase in conversion efficiency and low-cost fabrication methods, bringing them close to the threshold of commercial viability.

While PSCs have demonstrated remarkable progress in power conversion efficiency, achieving an impressive 26.1% for unit cells [2], they present unique challenges compared to other PV technologies. These challenges are predominantly linked to long-term device stability, which is determined by internal and external factors. Internal factors involve issues such as ion migration in the perovskite and the diffusion of additives from hole transport layers into the perovskite. On the other hand, external factors encompass device degradation caused by exposure to elevated temperatures, high irradiation levels, and their high sensitivity to humidity and oxygen [3,4,5,6,7,8,9,10,11,12,13,14].

High performance at the module scale remains a formidable challenge for the successful commercialization of PSCs. In addition to device stability, other technology bottlenecks include efficiency drop in large-area devices, scalable manufacturing techniques, as well as material toxicity. These efforts will be pivotal in bringing PSCs closer to becoming a practical and sustainable solar energy solution.

Atomic layer deposition (ALD) is an effective and versatile tool for producing pinhole-free, uniform, reproducible, and high-quality inorganic thin films. ALD’s strength lies in its ability to precisely control the thickness of the film and tailor material properties, such as morphology, doping, and stoichiometry [15,16,17]. With the capacity for large-scale deposition at low temperatures, ALD has proven pivotal in a range of applications, spanning from microelectronics to large-scale energy technologies such as batteries and PV.

As summarized in Table 1, ALD has emerged as an attractive tool for depositing device components, from passivating to charge transporting layers (CTL), leading to significant improvement in performance. However, the deposition of ALD thin-film overlayers is far from trivial due to the susceptibility of organic transport layers and perovskite films to precursors, temperatures, and vacuum conditions required in ALD. Naturally, when employing ALD layers prior to the deposition of the perovskite layer in single absorber devices, there are significantly fewer restrictions in the process parameters. This commentary discusses recent advances in the deposition of functional thin films onto PSC absorbers by ALD, highlighting current challenges and opportunities this tool can offer.

2. ALD Films Deposited above Active Layers

2.1. Charge Transport Layers

As illustrated in Figure 1, challenges associated with employing ALD overlayers stem from the vulnerabilities of the perovskite material and organic hole-transport layers (HTL) to environmental factors. These challenges include the sensitivity to exposure to specific ALD precursors (including H₂O), moisture, thermal energy, and prolonged exposure to low vacuum conditions during the deposition process.

As exemplified in Figure 2, one of the strategies in which ALD overlayers have had a strong impact is in interlayers located between the HTL and top contact. Amorphous titanium dioxide (a-TiO₂) [18] and vanadium oxide (V₂O_5−x) [19] by ALD have been inserted above spiro-OMeTAD further improving the photovoltaic performances. Improvement in photovoltaic device performance parameters from ALD interlayer insertion above the absorber is summarized in Table 1. In these cases, processing conditions should be carefully tuned to minimize the impact of temperature and precursor gases on the active layers. As discussed in the next section, the introduction of additional protective layers capable of shielding the active layers from direct exposure to the ALD process [20] has yielded significant improvement in device performance.

Table 1. Summary of recent literature on ALD interlayers inserted above the absorber in perovskite solar cells.

Material	Device Stack	J_SC (mA/cm²)	V_OC (V)	FF (%)	η (%)	Institute, Year [Ref]
Al₂O₃	FTO/c-TiO₂/mp-TiO₂/FAPbI₃/Al₂O₃ (<1 nm)/OAI/spiro-OMeTAD/Au	25.2 → 25.2	1.10 → 1.15	80.0 → 83.6	22.2 → 24.1	KRICT, 2023 [21]
Al₂O₃	FTO/SnO₂/MAPbI₃/OLAI/spiro-OMeTAD/Au/Al₂O₃ (36 nm)	21.9 → 22.6	1.08 → 1.15	76.8 → 81.0	18.2 → 20.9	IIT Bombay, 2023 [22]
Al₂O₃	ITO/c-TiO₂/MAPb(I_1−xCl_x)_3/Al₂O₃ (1 nm)/spiro-OMeTAD/Au	21.3 → 21.7	1.03 → 1.07	69.0 → 77.0	15.1 → 18.0	Eindhoven, 2017 [23]
CuO_x	FTO/c-TiO₂/mp-TiO₂/FA_0.95MA_0.05Pb(I_0.95Br_0.05)₃/PTAA/pulsed-CVD CuO_x (15 nm)/ITO	21.7	1.01	71.1	15.6	KRICT, 2020 [20]
CuO_x	FTO/c-TiO₂/mp-TiO₂/Cs_0.05(MA_0.17FA_0.83)_0.95Pb(I_0.83Br_0.17)₃/PTAA /AP-CVD CuO_x (3 nm)/ITO/MgF₂	20.6	1.10	73.7	16.7	Cambridge, 2020 [24]
Ga₂O₃	FTO/Li:NiO/MAPbI₃/IDIC/PCBM/BCP /Ga₂O₃ (<2 nm)/Ag	22.4	1.12	79.4	19.9	Wuhan, 2018 [25]
SiAl_xO_y/SiO₂	ITO/SnO₂/(FAPbI₃)_0.85(MAPbBr₃)_0.15/PTAA/SiAl_xO_y/SiO₂/Au	22.0 → 22.6	1.12 → 1.14	69.0 → 75.0	17.1 → 19.2	NCEPU, 2023 [26]
SnO_x	ITO/2PACz/Perovskite-Wide/LiF/C₆₀/SnO_x/Au/PEDOT:PSS/Perovskite-Narrow/C₆₀/BCP/Ag	14.8 → 15.2	1.94 → 2.01	77.5 → 77.6	22.3 → 23.7	NREL, 2023 [27]
SnO₂	Si PV/ITO/NiO_x/Perovskite/C₆₀/SnO₂/IZO/Ag	19.01	1.85	75.7	26.7	Nankai U., 2022 [28]
SnO₂	ITO/PTAA/Perovskite/GABr/PCBM/BCP/ SnO₂ (30 nm)/Cu	21.7 → 21.9	1.16 → 1.19	76.2 → 81.1	19.2 → 21.1	Nankai U., 2022 [29]
SnO₂	Si PV/ITO/PTAA/ Cs_0.15(FA_0.83MA_0.17)_0.85Pb(I_0.7Br_0.3)₃/ICBA/C₆₀/ SnO₂/IZO/MgF₂	17.8	1.80	79.4	25.4	UNC, 2019 [30]
SnO₂	Si PV/spiro-TTB/Cs_xFA_1−xPb(I_1−yBr_y)₃/ LiF/C₆₀/SnO₂/IZO/MgF₂	19.5	1.74	74.7	25.4	EPFL, 2019 [31]
SnO_x/Zn:SnO_x	ITO/PTAA/Cs_0.05FA_0.80MA_0.15Pb (I_0.85Br_0.15)₃/C₆₀/BCP/SnO_x (6 nm)/Zn:SnO_x (2 nm)/IZO	20.8	1.12	79.3	18.5	NREL, 2019 [32]
a-TiO₂	FTO/SnO₂/FAPbI₃/spiro-OMeTAD/TiO₂ (5 nm)/Au	24.9 → 24.9	1.08 → 1.11	79.1 → 80.2	21.3 → 22.3	SKKU, 2021 [18]
V₂O_5-x	FTO/SnO₂/FA_0.95Cs_0.05Rb_0.01PbI₃/spiro-OMeTAD/V₂O₅₋_x (5 nm)/Au	24.6 → 24.7	1.14 → 1.15	82.6 → 81.4	23.2 → 23.0	SKKU, 2022 [19]
VO_x	ITO/np-SnO₂/C₆₀/FA_0.83MA_0.17Pb(I_0.83Br_0.17)₃/ spiro-TTB/VO_x (9 nm)/ITO	18.9	1.07	71.0	14.2	Stanford, 2019 [33]
ZrO₂	FTO/NiO_x/e-MoO_x (10 nm)/MAPbI₃/ZrO₂ (<2 nm)/PC₆₁BM/Al	21.5 → 21.9	1.01 → 1.11	75.0 → 75.0	16.3 → 18.2	SCN, 2018 [34]

2.2. Passivation Layers

In cases where passivation layers are located directly above the perovskite absorber, thickness is a crucial parameter, often limited to 1 nm or less [21,23]. In these cases, the exposure time of the perovskite material to ALD precursor gases, thermal energy, and the vacuum environment is usually confined to approximately 10 min. This limited exposure minimizes the potential damage that the ALD process may cause to the perovskite absorber. Ultra-thin films deposited under these conditions are likely to be amorphous, and their electron transport properties can be a complex convolution of parameters, including the chemical nature of the precursors [35].

Ultra-thin films of less than 1 nm are deposited between the perovskite absorber and the CTL, as exemplified in Figure 3. This layer may not only enhance the performance of solar cell devices by improving parameters such as fill factor (FF) and open-circuit voltage (V_OC) but also contribute significantly to the stability of the device [36]. The observed enhancements in operational stability can be attributed to two key mechanisms: the surface passivation of the perovskite and the creation of a barrier separating the absorber from the CTL.

While analogous surface passivation concepts have been successfully demonstrated by generating a two-dimensional perovskite layer on the surface of a three-dimensional perovskite layer using solution processing [37], researchers have also explored the effectiveness of various barrier layers created via ALD. These ALD-deposited barrier layers exhibit notable improvements in device stability when exposed to moisture and light. Specifically, several research groups have employed ALD to create barrier layers utilizing insulating materials such as zirconium oxide (ZrO₂) and aluminum oxide (Al₂O₃) [21,23,34].

Introducing an ultra-thin passivation layer of Al₂O₃, measuring less than 1 nm in thickness, between the perovskite layer and HTL under the so-called n-i-p device architecture has yielded notable enhancements in device performance. This innovation has led to improved open-circuit voltage and fill factor [23]. The Al₂O₃ passivation layer not only boosted the power conversion efficiency of the PSC but also mitigated hysteresis effects and bolstered the device’s resilience against high humidity. X-ray diffraction (XRD) confirmed the structural integrity of Al₂O₃ passivated methylammonium lead iodide (MAPbI₃) films exposed to humidity, while non-passivated films revealed the emergence of a PbI₂ (001) under identical conditions [23]. Additionally, ongoing photovoltaic performance assessments under humid conditions confirmed the superior stability of PSCs containing the Al₂O₃ passivation layer.

A recent study investigated the impact of combining perovskite surface passivation with octylammonium iodide (OAI) and ALD AlO_x [21]. While the introduction of OAI on the perovskite layer yielded enhancements in device performance, it was noted that the light stability and resistance to damp heat conditions diminished when compared to unpassivated perovskite devices. However, when ALD AlO_x was introduced after OAI on the perovskite layer, a different outcome was observed. This dual approach not only improved device performance but also enhanced the light stability and damp heat stability of the devices, as shown in Figure 3. This improvement can likely be attributed to the diffusion of aluminum from AlO_x into the perovskite, which contributes to uniform photo-generated carrier transport, both at the surface and within the bulk of the material. Additionally, this process leads to the formation of light-induced two-dimensional perovskite structures. These structural changes play a role in preventing the loss of octylammonium cations due to the presence of AlO_x, resulting in a reduction in the number of iodine anions. This reduction, in turn, helps suppress light-induced degradation in the perovskite, ultimately enhancing the stability of the devices.

Exploring the impact of ZrO₂ passivation has yielded positive results, leading to enhanced power conversion efficiencies via improved V_OC values in p-i-n devices. In the case of PSCs based on MAPbI₃, the addition of the ZrO₂ passivation layer between the perovskite and ETL resulted in a V_OC enhancement of 0.1 V. Meanwhile, PSCs based on methylammonium lead bromide (MAPbBr₃) exhibited an even more substantial V_OC improvement of 0.5 V with the incorporation of the ZrO₂ insertion. Furthermore, the stability of both device types, without and with ZrO₂, displayed significant enhancements, underscoring the overall enhancement in device stability [34].

At the interface between the CTL and the top metal contact, passivation or protective measures can also be applied. In this context, between the electron transport layer (ETL) and the top metal contact, silver (Ag), a thin layer (measuring less than 2 nm) of a wide bandgap material, gallium oxide (Ga₂O₃), was introduced using ALD [25]. One of the well-known degradation mechanisms in perovskite solar cell devices is the formation of AgI due to the diffusion of Ag and iodine ions, which leads to a decline in device performance over time. The inclusion of Ga₂O₃ acts as a stabilizing factor, preventing the formation of AgI. This Ga₂O₃ protective layer acts as a barrier, protecting against moisture ingress and hindering the corrosion process at the interface between the top Ag electrode and the device. Moreover, the introduction of this protective layer serves to reduce carrier recombination, lower current leakage, and enhance the quality of interfacial contact. Overall, the Ga₂O₃ protection layer plays a substantial role in improving PSC performance and durability.

S. Ghosh et al. reported that the process of spiro-OMeTAD coating on perovskite forms buried defect states, which are detrimental to device stability [22]. Passivation of these buried defect states was shown to be possible by depositing 36 nm of ALD Al₂O₃ on top of fully functional devices. Such passivation technique resulted in an increase in efficiency mainly due to improvement in V_OC by ~60–70 mV and enhanced device stability under MPPT under ambient and even high vacuum conditions.

2.3. Buffer Layers in Tandem and Semitransparent Applications

Tandem and semitransparent architectures necessitate a semitransparent top electrode to replace the opaque metal one. The prevailing technique for creating transparent electrodes in such applications involves employing sputtered transparent conducting oxides (TCOs), such as indium zinc oxide (IZO) and indium tin oxide (ITO). However, this approach typically necessitates the inclusion of a buffer layer beneath the TCO to shield the underlying organic layer from sputtering damage during the TCO deposition process.

In p-i-n architectures for tandem applications, the commonly used sputter buffer layers include tin oxide (SnO₂) [30] or a combination of SnO₂ and zinc tin oxide (ZTO) [32], generally deposited by ALD. The introduction of these buffer layers not only protects the CTL but also optimizes the band alignment at the buffer/TCO interface.

For semitransparent n-i-p perovskite solar cells, molybdenum oxide (MoO_x) by thermal evaporation has traditionally served as the conventional buffer layer. However, MoO_x suffers from poor stability in the presence of air [38]. To address this limitation, alternative buffer layers have been explored, including copper oxide (CuO_x) and vanadium oxide (VO_x), both deposited via ALD in semitransparent PSCs [20,33]. Innovative growth methods such as atmospheric-pressure chemical vapor deposition (AP-CVD) [24] and pulsed-chemical vapor deposition (pulsed-CVD) [20] have been reported for CuO_x buffer layers in semitransparent n-i-p PSCs. Notably, AP-CVD CuO_x films demonstrated high carrier mobilities exceeding 4 cm²/V·s and achieved impressive power conversion efficiencies exceeding 16% when incorporated into semitransparent devices [24].

2.4. Encapsulation

To shield perovskite solar cells from external environmental influences like oxygen and moisture, encapsulation is an essential requirement. Numerous studies have highlighted effective encapsulation techniques for PSC devices, employing single materials or nanolaminates created via ALD or incorporating organic materials. For instance, in the case of semitransparent PSC devices, a successful encapsulation strategy involved employing a 50-nanometer bilayer of PET (polyethylene terephthalate) coated with Al₂O₃. This approach resulted in durable devices that remained stable when stored in ambient air for a period exceeding 45 days [39].

3. Deposition Process Parameters and ALD Equipment

ALD process parameters, such as precursors and deposition temperature, and equipment information of the studies covered in this commentary article are summarized in Table 2. Most of the deposition temperatures are kept below 120 °C. Trimethylaluminum (TMA), bis(1-dimethylamino-2-methyl-2-butoxy)copper(II) (Cu(dmamb)₂), allyloxytrimethylsilyl hexafluoroacetylacetonate copper(I) (ATHFAACu), tris(dimethylamino)gallium (Ga₂(NMe₂)₆), tetraethyl orthosilicate (TEOS), tetrakis(dimethylamido)tin(IV) (TDMASn), diethylzinc (DEZ), tetrakis(dimethylamido)titanium(IV) (TDMATi), vanadium(V) tri-i-propoxyoxide (VTIP), and tetrakis(dimethylamide) zirconium(IV) (TDMAZr) were used as the aluminum, copper, copper, gallium, silicon, tin, zinc, titanium, vanadium, and zirconium precursors, respectively. Mostly, deionized water was used as the oxygen precursor. However, there were studies also using hydrogen peroxide (H₂O₂) and ozone (O₃).

4. Challenges in Implementing ALD on PSC Device Processing and Alternative Approaches

While ALD offers numerous advantages, including precise control over stoichiometry and thickness with exceptional reliability, it is important to note that for certain layers, particularly those exceeding 15 nm on top of the perovskite absorber, prolonged exposure to specific ALD precursors, elevated temperatures, and low vacuum conditions can have adverse effects on the organic charge transport layer and/or the perovskite [40]. In perovskite solar cells, most ALD processes above the absorber are ideally carried out at low temperatures (typically below 100 °C) to minimize thermal-induced stress.

Concerning damage resulting from exposure to ALD precursors, some studies have indicated a reduction in bending and stretching modes of N-H groups with increasing ALD cycles of Al₂O₃, as observed via in situ infrared spectroscopy. This suggests the potential loss of nitrogen from etching the methylammonium (MA⁺) cations in the perovskite lattice [39]. Consequently, deviations from conventional ALD methods are often required to reduce exposure to degradation sources and minimize deposition time.

Alternative techniques, such as atmospheric-pressure chemical vapor deposition (AP-CVD) [24], pulsed-chemical vapor deposition (pulsed-CVD) [20], and spatial ALD (s-ALD) [41,42], have been employed to address these challenges. Pulsed-CVD, for example, involves pulsing the ALD precursors simultaneously rather than separately and reducing the purging step during the ALD sequence to shorten the deposition time [20]. In the case of atmospheric-pressure spatial ALD methods, precursor vapors are transported via distinct channels to the reactor head, with metal precursors and co-reactant channels isolated from each other by inert gas channels. This configuration prevents precursor reactions above the substrate while a heated moving substrate cycles beneath the gas head and channels [41]. Some laboratories have reported using s-ALD to deposit materials such as nickel oxide (NiO) and SnO₂ for the hole transport layer and electron transport layer, respectively. Additionally, rapid vapor-phase deposition techniques and AP-CVD methods have proven successful in the integration of buffer layers for semitransparent PSC devices.

Another challenge in implementing ALD interlayers is the long deposition times, which may not be favorable for mass production. A possible solution for this can be pulsed-CVD. As mentioned above, pulsed-CVD is a variation of ALD that is useful for cutting down on the deposition time. Pulsed-CVD involves exposing the two precursors at the same time, instead of separately, and reducing the purging time, which results in substantially reducing the deposition time. Pulsed-CVD can be a promising alternative to ALD for mass production.

5. Summary and Future Outlook

ALD tools offer a powerful and versatile approach to depositing high-quality thin films, which can enhance charge collection and stability of perovskite solar cells. However, numerous challenges persist, particularly when incorporating ALD films in layers positioned above the perovskite absorber. These applications include passivation layers at the perovskite surface, barrier or protection layers at the CTL and top metal contact interface, buffer layers in semitransparent and tandem configurations, and encapsulation layers designed to enhance device stability against external degradation factors. ALD delivers pinhole-free, high-quality, and uniform inorganic materials under conditions which can be made compatible with the processing of hybrid devices. It also delivers exceptionally reproducible films and enables precise control of material properties, encompassing doping, stoichiometry, and electrical/optical characteristics. However, several challenges must be addressed for ALD to realize its full potential in advancing perovskite solar cells. These challenges include reducing lengthy deposition times, minimizing damage from ALD precursors, and managing elevated temperatures.

Semitransparent and tandem applications hold great promise for the solar PV industry, as they offer cost-effective pathways to enhance solar cell efficiencies. With commercialization in mind, ALD and its variations, such as pulsed-CVD, AP-CVD, and s-ALD, are poised to play a crucial role in the development of perovskite photovoltaics that demand highly efficient and stable devices for large-area coatings. These innovations also have potential applications in the realm of flexible electronic devices.

Author Contributions

Conceptualization, methodology, investigation, resources: H.H.P. and D.J.F.; writing—original draft preparation, writing—review and editing: H.H.P. and D.J.F. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported financially by the Korea Research Institute of Chemical Technology (KRICT), Republic of Korea (KS2322-20) and was also supported by the National Research Foundation of Korea (NRF) funded by the Ministry of Science and ICT (NRF-2022K1A4A8A02079724). DJF also acknowledges the financial support by the Engineering and Physical Sciences Research Council via the SolPV programme (EP/V008676/1).

Conflicts of Interest

The authors declare no conflict of interest.

References

Nijsse, F.J.M.M.; Mercure, J.F.; Ameli, N.; Larosa, F.; Kothari, S.; Rickman, J.; Vercoulen, P.; Pollitt, H. The momentum of the solar energy transition. Nat. Commun. 2023, 14, 6542. [Google Scholar] [CrossRef] [PubMed]
NREL. Available online: http://www.nrel.gov/pv/ (accessed on 15 November 2023).
Lee, B.; Lee, S.; Cho, D.; Kim, J.; Hwang, T.; Kim, K.H.; Hong, S.; Moon, T.; Park, B. Evaluating the Optoelectronic Quality of Hybrid Perovskites by Conductive Atomic Force Microscopy with Noise Spectroscopy. ACS Appl. Mater. Interfaces 2016, 8, 30985–30991. [Google Scholar] [CrossRef] [PubMed]
Kim, J.; Yun, A.J.; Gil, B.; Lee, Y.; Park, B. Triamine-Based Aromatic Cation as a Novel Stabilizer for Efficient Perovskite Solar Cells. Adv. Funct. Mater. 2019, 29, 1905190. [Google Scholar] [CrossRef]
Gunawan, O.; Pae, S.R.; Bishop, D.M.; Lee, Y.S.; Virgus, Y.; Jeon, N.J.; Noh, J.H.; Shao, X.; Todorov, T.; Mitzi, D.B.; et al. Carrier-resolved photo hall measurement in world record-quality perovskite and kesterite solar absorbers. Nature 2019, 575, 151–155. [Google Scholar] [CrossRef] [PubMed]
Hwang, T.; Lee, B.; Kim, J.; Lee, S.; Gil, B.; Yun, A.J.; Park, B. From Nanostructural Evolution to Dynamic Interplay of Constituents: Perspectives for Perovskite Solar Cells. Adv. Mater. 2018, 30, 1704208. [Google Scholar] [CrossRef] [PubMed]
Hwang, T.; Cho, D.; Kim, J.; Kim, J.; Lee, S.; Lee, B.; Kim, K.H.; Hong, S.; Kim, C.B. Park Investigation of chlorine-mediated microstructural evolution of CH₃NH₃PbI₃(Cl) grains for high optoelectronic responses. Nano Energy 2016, 25, 91–99. [Google Scholar] [CrossRef]
Jung, H.J.; Kim, D.; Kim, S.; Park, J.; Dravid, V.P.; Shin, B. Stability of Halide Perovskite Solar Cell Devices: In Situ Observation of Oxygen Diffusion under Biasing. Adv. Mater. 2018, 30, 1802769. [Google Scholar] [CrossRef]
Kim, J.; Lee, Y.; Yun, A.J.; Gil, B.; Park, B. Interfacial Modification and Defect Passivation by the Cross-Linking Interlayer for Efficient and Stable CuSCN-Based Perovskite Solar Cells. ACS Appl. Mater. Interfaces 2019, 11, 46818–46824. [Google Scholar] [CrossRef]
Gil, B.; Yun, A.J.; Lee, Y.; Kim, J.; Lee, B.; Park, B. Recent Progress in Inorganic Hole Transport Materials for Efficient and Stable Perovskite Solar Cells. Electron. Mater. Lett. 2019, 15, 505–524. [Google Scholar] [CrossRef]
Gil, B.; Kim, J.; Yun, A.J.; Park, K.; Cho, J.; Park, M.; Park, B. CuCrO₂ Nanoparticles Incorporated into PTAA as a Hole Transport Layer for 85 °C and Light Stabilities in Perovskite Solar Cells. Nanomaterials 2020, 10, 1669. [Google Scholar] [CrossRef]
Yun, A.J.; Kim, J.; Hwang, T.; Park, B. Origins of Efficient Perovskite Solar Cells with Low-Temperature Processed SnO₂ Electron Transport Layer. ACS Appl. Energy Mater. 2019, 2, 3554–3560. [Google Scholar] [CrossRef]
Lee, B.; Shin, B.; Park, B. Uniform Cs₂SnI₆ Thin Films for Lead-Free and Stable Perovskite Optoelectronics via Hybrid Deposition Approaches. Electron. Mater. Lett. 2019, 15, 192–200. [Google Scholar] [CrossRef]
Seo, S.; Jeong, S.; Bae, C.; Park, N.-G.; Shin, H. Perovskite Solar Cells with Inorganic Electron- and HoleTransport Layers Exhibiting Long-Term (≈500 h) Stability at 85 °C under Continuous 1 Sun Illumination in Ambient Air. Adv. Mater. 2018, 30, 1801010. [Google Scholar] [CrossRef] [PubMed]
Raiford, J.A.; Oyakhire, S.T.; Bent, S.F. Applications of atomic layer deposition and chemical vapor deposition for perovskite solar cells. Energy Environ. Sci. 2020, 13, 1997–2023. [Google Scholar] [CrossRef]
Park, H.H. Inorganic Materials by Atomic Layer Deposition for Perovskite Solar Cells. Nanomaterials 2021, 11, 88. [Google Scholar] [CrossRef]
Seo, S.; Jeong, S.; Park, H.; Shin, H.; Park, N.-G. Atomic layer deposition for efficient and stable perovskite solar cells. Chem. Commun. 2019, 55, 2403–2416. [Google Scholar] [CrossRef]
Seo, S.; Shin, S.; Kim, E.; Jeong, S.; Park, N.-G.; Shin, H. Amorphous TiO₂ Coatings Stabilize Perovskite Solar Cells. ACS Energy Lett. 2021, 6, 3332–3341. [Google Scholar] [CrossRef]
Park, H.; Jeong, S.; Kim, E.; Shin, S.; Shin, H. Hole-Transporting Vanadium-Containing Oxide (V₂O_5−x) Interlayers Enhance Stability of α-FAPbI3-Based Perovskite Solar Cells (∼23%). ACS Appl. Mater. Interfaces 2022, 14, 42007–42017. [Google Scholar] [CrossRef]
Eom, T.; Kim, S.; Agbenyeke, R.E.; Jung, H.; Shin, S.M.; Lee, Y.K.; Kim, C.G.; Chung, T.-M.; Jeon, N.J.; Park, H.H.; et al. Copper Oxide Buffer Layers by Pulsed-Chemical Vapor Deposition for Semitransparent Perovskite Solar Cells. Adv. Mater. Interfaces 2020, 8, 2001482. [Google Scholar] [CrossRef]
Choi, E.; Lee, J.W.; Anaya, M.; Mirabelli, A.; Shim, H.; Strzalka, J.; Lim, J.; Yun, S.; Dubajic, M.; Lim, J.; et al. Synergetic Effect ofAluminum Oxide and Organic Halide Salts on Two-Dimensional Perovskite Layer Formation and Stability Enhancement ofPerovskite Solar Cells. Adv. Energy Mater. 2023, 13, 2301717. [Google Scholar] [CrossRef]
Ghosh, S.; Pariari, D.; Behera, T.; Boix, P.P.; Ganesh, N.; Basak, S.; Vidhan, A.; Sarda, N.; Mora-Seró, I.; Chowdhury, A.; et al. Buried Interface Passivation of Perovskite Solar Cells by Atomic Layer Deposition of Al₂O₃. ACS Energy Lett. 2023, 8, 2058–2065. [Google Scholar] [CrossRef]
Koushik, D.; Verhees, W.J.; Kuang, Y.; Veenstra, S.; Zhang, D.; Verheijen, M.A.; Creatore, M.; Schropp, R.E.I. High-efficiency humidity-stable planar perovskite solar cells based on atomic layer architecture†. Energy Environ. Sci. 2017, 10, 91. [Google Scholar] [CrossRef]
Jagt, R.A.; Huq, T.N.; Hill, S.A.; Thway, M.; Liu, T.; Napari, M.; Roose, B.; Gałkowski, K.; Li, W.; Lin, S.F.; et al. Rapid Vapor-Phase Deposition of HighMobility p-Type Buffer Layers on Perovskite Photovoltaics for Efficient Semitransparent Devices. ACS Energy Lett. 2020, 5, 2456–2465. [Google Scholar] [CrossRef]
Ma, J.; Zheng, M.; Chen, C.; Zhu, Z.; Zheng, X.; Chen, Z.; Guo, Y.; Liu, C.; Yan, Y.; Fang, G. Efficient and Stable Nonfullerene-Graded Heterojunction Inverted Perovskite Solar Cells with Inorganic Ga₂O₃ Tunneling Protective Nanolayer. Adv. Funct. Mater. 2018, 28, 1804128. [Google Scholar] [CrossRef]
Yang, Y.; Zhang, Y.; Li, R.; Mbumba, M.T.; Akram, M.W.; Pan, J.; Cai, M.; Dai, S.; Guli, M. Low-Temperature Atomic Layer Deposition of Double-Layer Water Vapor Barrier for High Humidity Stable Perovskite Solar Cells. Adv. Opt. Mater. 2023, 11, 2300148. [Google Scholar] [CrossRef]
Johnson, S.A.; White, K.P.; Tong, J.; You, S.; Magomedov, A.; Larson, B.W.; Morales, D.; Bramante, R.; Dunphy, E.; Tirawat, R.; et al. Improving the barrier properties of tin oxide in metal halide perovskite solar cells using ozone to enhance nucleation. Joule 2023, 7, 1–21. [Google Scholar] [CrossRef]
Ren, N.; Zhu, C.; Li, R.; Mazumdar, S.; Sun, C.; Chen, B.; Xu, Q.; Wang, P.; Shi, B.; Huang, Q.; et al. 50 °C low-temperature ALD SnO₂ driven by H₂O₂ for efficient perovskite and perovskite/silicon tandem solar cells. Appl. Phys. Lett. 2022, 121, 033502. [Google Scholar] [CrossRef]
Chen, B.; Wang, P.; Ren, N.; Li, R.; Zhao, Y.; Zhang, X. Tin dioxide buffer layer-assisted efficiency and stability of widebandgap inverted perovskite solar cells. J. Semicond. 2022, 43, 052201. [Google Scholar] [CrossRef]
Chen, B.; Yu, Z.; Liu, K.; Zheng, X.; Liu, Y.; Shi, J.; Spronk, D.; Rudd, P.N.; Holman, Z.; Huang, J. Grain Engineering for Perovskite/Silicon Monolithic Tandem Solar Cells with Efficiency of 25.4%. Joule 2019, 3, 177–190. [Google Scholar] [CrossRef]
Nogay, G.; Sahli, F.; Werner, J.; Monnard, R.; Boccard, M.; Despeisse, M.; Haug, F.-J.; Jeangros, Q.; Ingenito, A.; Ballif, C. 25.1%-Efficient Monolithic Perovskite/Silicon Tandem Solar Cell Based on a p-type Monocrystalline Textured Silicon Wafer and High-Temperature Passivating Contacts. ACS Energy Lett. 2019, 4, 844–845. [Google Scholar] [CrossRef]
Tong, J.; Song, Z.; Kim, D.H.; Chen, X.; Chen, C.; Palmstrom, A.F.; Ndione, P.F.; Reese, M.O.; Dunfield, S.P.; Reid, O.G.; et al. Carrier lifetimes of >1 ms in Sn-Pb perovskites enable efficient all-perovskite tandem solar cells. Science 2019, 364, 475–479. [Google Scholar] [CrossRef] [PubMed]
Raiford, J.A.; Belisle, R.A.; Bush, K.A.; Prasanna, R.; Palmstrom, A.F.; Bent, S.F. Atomic layer deposition of vanadium oxide to reduce parasitic absorption and improve stability in n–i–p perovskite solar cells for tandems. Sustain. Energy Fuels 2019, 3, 1517. [Google Scholar] [CrossRef]
Hu, X.; Jiang, X.F.; Xing, X.; Nian, L.; Liu, X.; Huang, R.; Wang, K.; Yip, H.-L.; Zhou, G. Wide-Bandgap Perovskite Solar Cells With Large Open-Circuit Voltage of 1653 mV Through Interfacial Engineering. Sol. RRL 2018, 2, 1800083. [Google Scholar] [CrossRef]
Nunez, P.; Richter, M.H.; Piercy, B.D.; Roske, C.W.; Caba, M.; Losego, M.D.; Konezny, S.J.; Fermin, D.J.; Hu, S.; Brunschwig, B.S.; et al. Characterization of Electronic Transport through Amorphous TiO2 Produced by Atomic Layer Deposition. J. Phys. Chem. C 2019, 123, 20116–20129. [Google Scholar] [CrossRef]
Lu, Z.; Wang, S.; Liu, H.; Feng, F.; Li, W. Improved Efficiency of Perovskite Solar Cells by the Interfacial Modification of the Active Layer. Nanomaterials 2019, 9, 204. [Google Scholar] [CrossRef] [PubMed]
Kim, B.; Gil, B.; Ryu, S.; Kim, J.; Park, B. Double-Side Passivation ofPerovskite Solar Cells for High Performance and Stability. Adv. Funct. Mater. 2023, 2307640. [Google Scholar] [CrossRef]
Park, H.H.; Kim, J.; Kim, G.; Jung, H.; Kim, S.; Moon, C.S.; Lee, S.J.; Shin, S.S.; Hao, X.; Yun, J.S.; et al. Transparent Electrodes Consisting of a Surface-Treated Buffer Layer Based on Tungsten Oxide for Semitransparent Perovskite Solar Cells and Four-Terminal Tandem Applications. Small Methods 2020, 4, 2000074. [Google Scholar] [CrossRef]
Koushik, D.; Hazendonk, L.; Zardetto, V.; Vandalon, V.; Verheijen, M.A.; Kessels, W.M.M.; Creatore, M. Chemical Analysis of the Interface between Hybrid Organic–Inorganic Perovskite and Atomic Layer Deposited Al₂O₃. ACS Appl. Mater. Interfaces 2019, 11, 5526–5535. [Google Scholar] [CrossRef]
Zardetto, V.; Williams, B.L.; Perrotta, A.; Di Giacomo, F.; Verheijen, M.A.; Andriessen, R.; Kessels, W.M.M.; Creatore, M. Atomic layer deposition for perovskite solar cells: Research status, opportunities and challenges. Sustain. Energy Fuels 2017, 1, 30. [Google Scholar] [CrossRef]
Zhao, B.; Lee, L.C.; Yang, L.; Pearson, A.J.; Lu, H.; She, X.-J.; Cui, L.; Zhang, K.H.L.; Hoye, R.L.Z.; Karani, A.; et al. In Situ Atmospheric Deposition of Ultrasmooth Nickel Oxide for Efficient Perovskite Solar Cells. ACS Appl. Mater. Interfaces 2018, 10, 41849–41854. [Google Scholar] [CrossRef]
Hsu, C.-H.; Chen, K.T.; Huang, P.-H.; Wang, C.; Liang, L.-S.; Gao, P.; Wu, W.-Y.; Zhang, X.-Y.; Qiu, Y.; Lien, S.-Y.; et al. Effect of Annealing Temperature on Spatial Atomic Layer Deposited Titanium Oxide and Its Application in Perovskite Solar Cells. Nanomaterials 2020, 10, 1322. [Google Scholar] [CrossRef] [PubMed]

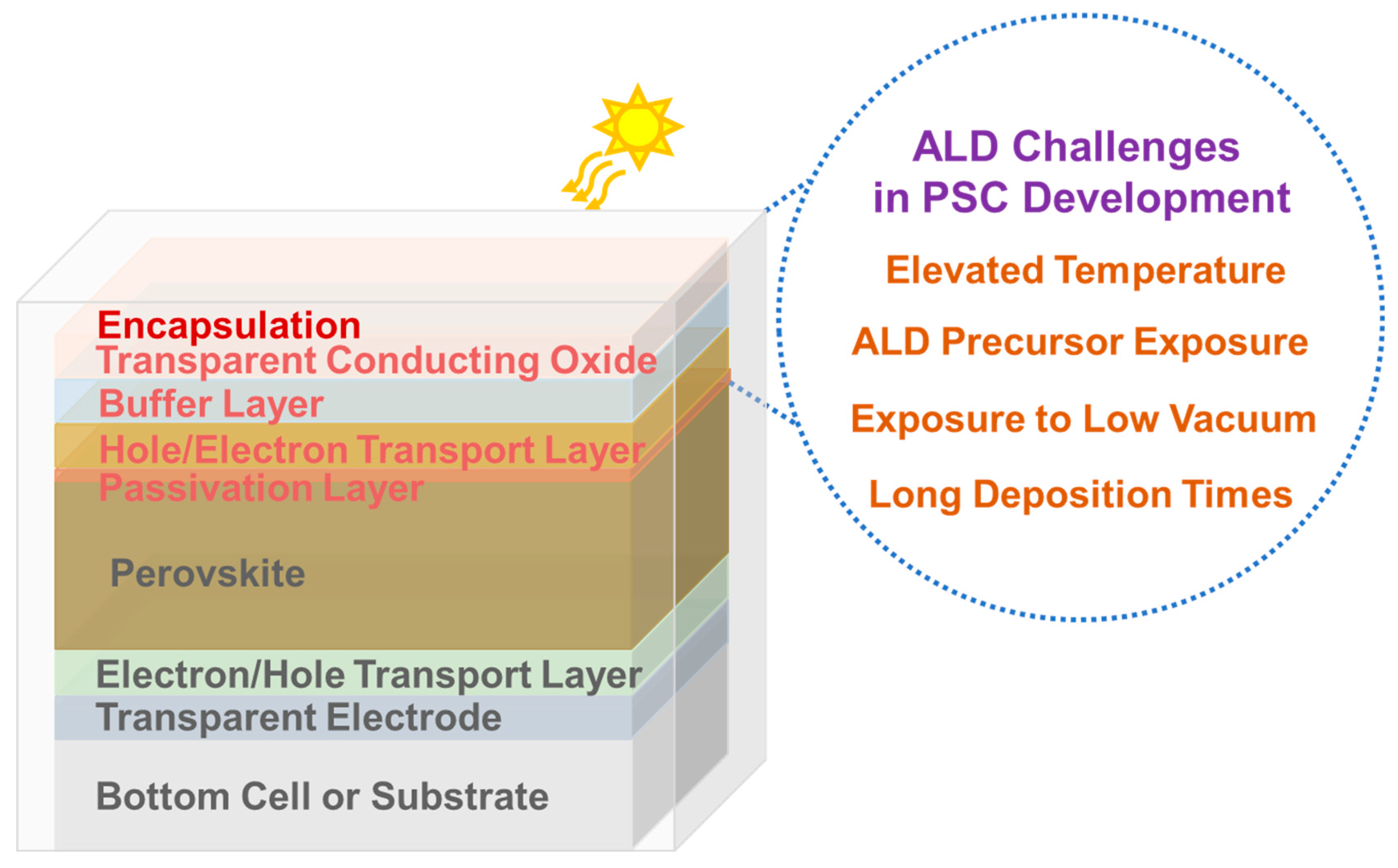

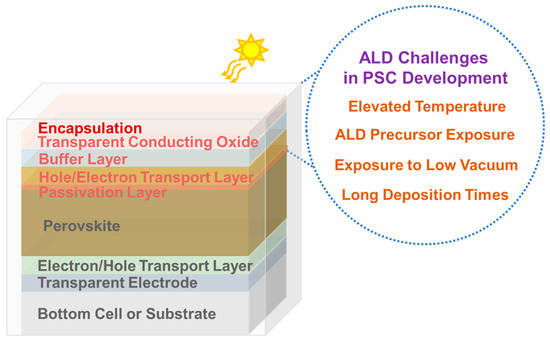

Figure 1. Challenges in incorporating ALD are PSCs for layers above the perovskite.

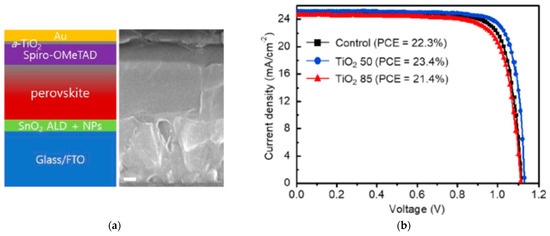

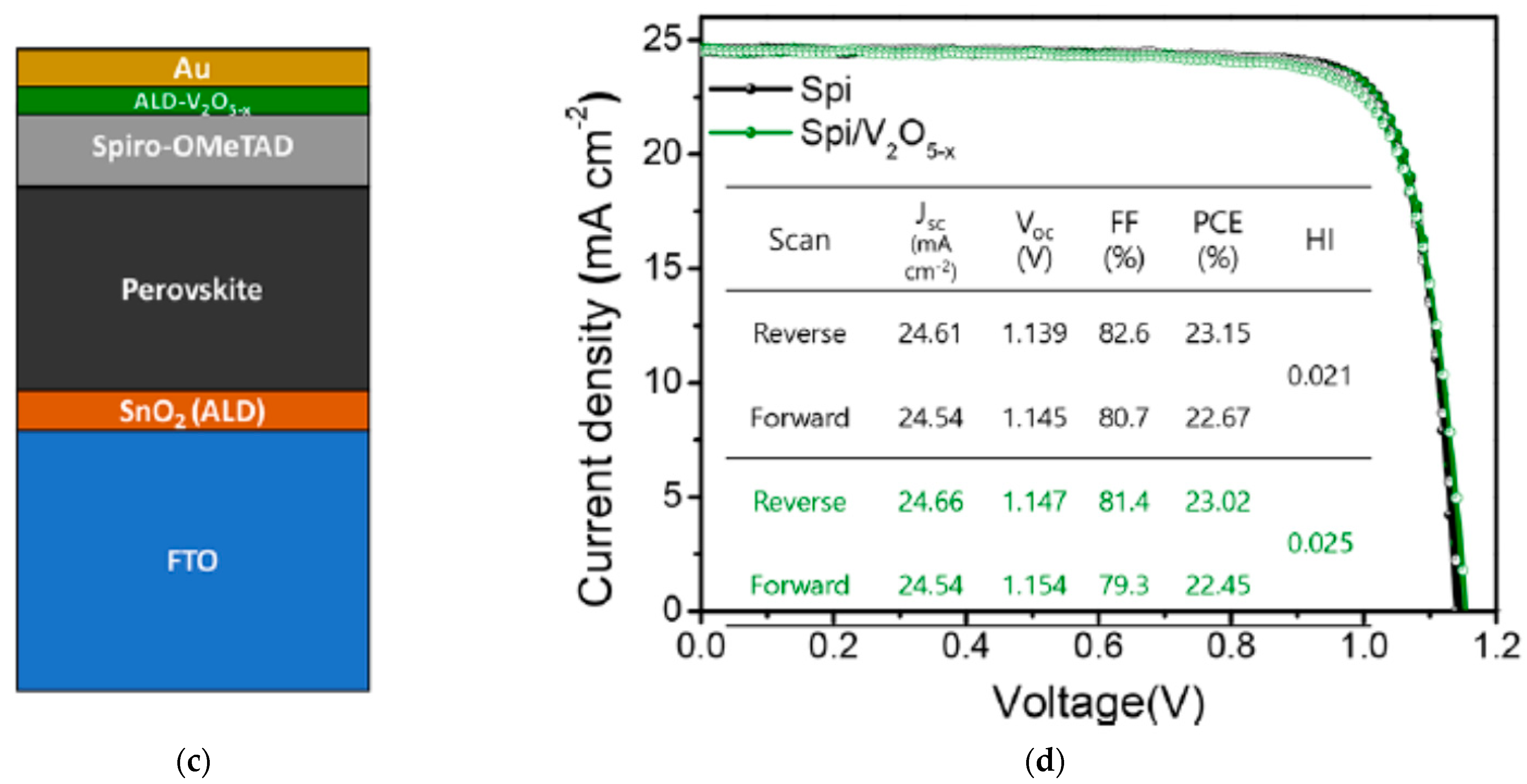

Figure 2. Incorporation of ALD processes for TiO₂ and V₂O_5−x in PSCs: (a) schematic of solar cell device stack and cross-sectional scanning electron microscopy image of PSC device; (b) illuminated J-V scans comparing PSCs without and with ALD TiO₂. Reproduced with permission from [18]. American Chemical Society, 2021. (c) Schematic of solar cell device stack of PSC device; (d) illuminated J-V scans comparing PSCs without and with ALD V₂O_5−x. Reproduced with permission from [19]. American Chemical Society, 2022.

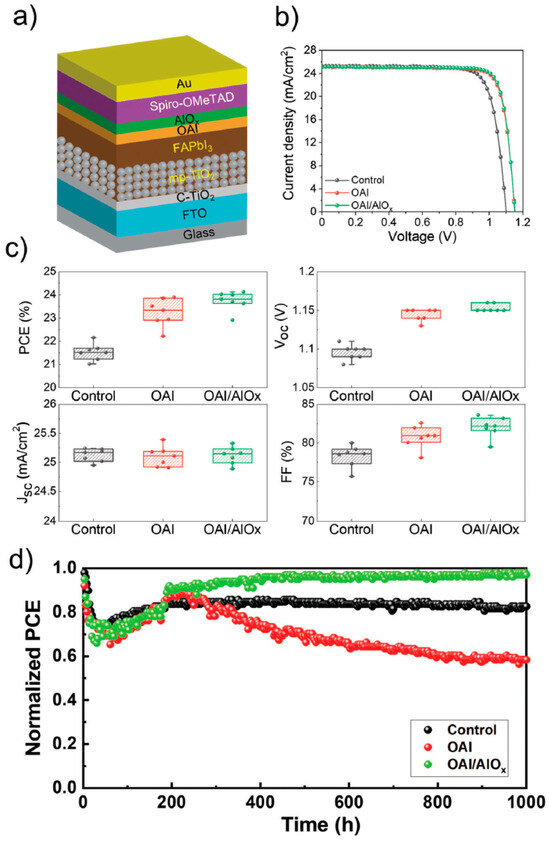

Figure 3. Incorporation of ALD AlO_x in combination with octylammonium iodide (OAI) in PSCs: (a) schematic of solar cell device stack of PSC device; (b) illuminated J-V scans comparing PSCs with OAI and OAI/ALD AlO_x. (c) Photovoltaic device performance parameters based on the different passivation treatments; (d) device stability measurements of encapsulated devices under 1 SUN with maximum power point tracking. Reproduced with permission from [21]. Wiley, 2023.

Table 2. Summary of deposition parameters and equipment on recent literature on ALD interlayers inserted above the absorber in perovskite solar cells.

Material	Precursors	Temp. (°C)	Process	Equipment	Institute, Year [Ref]
Al₂O₃	TMA + H₂O	100	ALD	NCD, Lucida D-100	KRICT, 2023 [21]
Al₂O₃	TMA + HPLC Grade H₂O	70	ALD	Home-made ALD system	IIT Bombay, 2023 [22]
Al₂O₃	TMA + H₂O	100	ALD	Oxford Instrument OpAL^TM	Eindhoven, 2017 [23]
CuO_x	Cu(dmamb)₂ + H₂O	100	Pulsed-CVD	CN-1, Atomic Classic	KRICT, 2020 [20]
CuO_x	ATHFAACu + H₂O	100	AP-CVD	Vertical Cambridge University Close Proximity (V-CUCP)	Cambridge, 2020 [24]
Ga₂O₃	Ga₂(NMe₂)₆ + H₂O	120	ALD	-	Wuhan, 2018 [25]
SiAl_xO_y/SiO₂	TEOS, TMA + H₂O/TEOS + H₂O	100	ALD	-	NCEPU, 2023 [26]
SnO_x	TDMASn + H₂O	90	ALD	Beneq TFS-200	NREL, 2023 [27]
SnO₂	TDMASn + H₂O₂	50	ALD	Sentech SE401adv	Nankai U., 2022 [28]
SnO₂	TDMASn + H₂O	85	ALD	-	Nankai U., 2022 [29]
SnO₂	TDMASn + H₂O	100	ALD	-	UNC, 2019 [30]
SnO₂	TDMASn + H₂O	100	ALD	Oxford Instrument	EPFL, 2019 [31]
SnO_x/Zn:SnO_x	TDMASn/DEZ + H₂O	85	ALD	Beneq TFS-200	NREL, 2019 [32]
a-TiO₂	TDMATi + H₂O	60	ALD	Home-made ALD system	SKKU, 2021 [18]
V₂O_5-x	VTIP + H₂O	45	ALD	Home-made ALD system	SKKU, 2022 [19]
VO_x	VTIP + H₂O	80	ALD	Arradiance Gemstar-6	Stanford, 2019 [33]
ZrO₂	TDMAZr + O₃	80	ALD	LabNano ALD	SCN, 2018 [34]
