AuPd Bimetallic Nanocrystals Embedded in Magnetic Halloysite Nanotubes: Facile Synthesis and Catalytic Reduction of Nitroaromatic Compounds

by
Lei Jia
1,2,
Tao Zhou
1,
Jun Xu
1,2,*,
Fenghai Li
3,
Zhouqing Xu
1,
Beibei Zhang
1,
Shengli Guo
1,
Xiaoke Shen
1 and
Wensheng Zhang
1
1
School of Chemistry and Chemical Engineering, Henan Polytechnic University, Jiaozuo 454000, China
2
Collaborative Innovation Center of Coal Work Safety, Jiaozuo 454000, China
3
School of Chemistry and Engineering, Heze University, Heze 274015, China
*
Author to whom correspondence should be addressed.
Nanomaterials 2017, 7(10), 333; https://doi.org/10.3390/nano7100333
Submission received: 28 September 2017 / Revised: 13 October 2017 / Accepted: 13 October 2017 / Published: 17 October 2017
Browse Figures
Versions Notes

Abstract

:
In this research, a facile and effective approach was developed for the preparation of well-designed AuPd alloyed catalysts supported on magnetic halloysite nanotubes (HNTs@Fe3O4@AuPd). The microstructure and the magnetic properties of HNTs@Fe3O4@AuPd were confirmed by transmission electron microscopy (TEM), high resolution TEM (HRTEM), energy-dispersive X-ray spectroscopy (EDS), and vibrating sample magnetometry (VSM) analyses. The catalysts, fabricated by a cheap, environmentally friendly, and simple surfactant-free formation process, exhibited high activities during the reduction of 4-nitrophenol and various other nitroaromatic compounds. Moreover, the catalytic activities of the HNTs@Fe3O4@AuPd nanocatalysts were tunable via adjusting the atomic ratio of AuPd during the synthesis. As compared with the monometallic nanocatalysts (HNTs@Fe3O4@Au and HNTs@Fe3O4@Pd), the bimetallic alloyed HNTs@Fe3O4@AuPd nanocatalysts exhibited excellent catalytic activities toward the reduction of 4-nitrophenol (4-NP) to 4-aminophenol. Furthermore, the as-obtained HNTs@Fe3O4@AuPd can be recycled several times, while retaining its functionality due to the stability and magnetic separation property.

Graphical Abstract

1. Introduction

Noble metal nanoparticles (NPs), owing to their remarkable chemical and physical properties, have attracted significant attention in recent decades due to their potential use in electronics [1], optical devices [2], fuel cells [3], chemical sensors [4], catalysis [5,6,7] and biological materials [8,9,10]. Among these metals, gold nanoparticles (Au NPs) are frequently used for various catalytic reactions because Au catalyst is completely stable and active under mild condition [11,12]. For instance, Suvith et al. reported that Au NPs can be utilized for the catalytic degradation of methylene blue [13]. Toru Murayama et al. reported that nanoparticulate gold catalysts supported on niobium oxides (Nb2O5) are effective catalysts for CO oxidation [14]. Furthermore, bimetallic NPs have gained much attention due to the bi-functional properties generated from the monometallic component, with applications in optics [15], fuel cells [3], and catalysis [16,17,18]. Many studies demonstrated that the addition of palladium to gold or silver leads to more effective and high catalytic performance in reactions as compared to monometallic NPs. For example, an AuPd–MnOx/ZIF-8–rGO nanocatalyst prepared by a facile wet-chemical strategy showed highly efficient catalytic activity in the additive free dehydrogenation of formic acid [19]. In addition, Liu and co-workers reported that PdAg-N-doped-MOF-C can be used in catalytic transfer hydrogenation of nitro-compounds through the dramatically enhanced effect of Pd and Ag NPs in the reaction [20]. However, due to the high surface energy, free noble metal NPs aggregate easily, leading to a major reduction in catalytic activity and reusability. To solve this problem, many supporting materials, such as organic polymers materials [21], metal-organic framework [19], mesoporous silica [22], carbon materials [23], and so on [24,25], have been used to support and stabilize noble metal NPs.
Besides the above support materials, clay minerals are one of the more interesting nanostructured supports and are also regarded as a potential candidate for supports due to their excellent chemical and thermal stability. Among them, halloysite clay (HNT) is a natural and abundantly available nanoparticle formed by rolled kaolin sheets [26]. Very pure halloysite that possesses 90–98% of tubular structure (HNTs) is available in abundance only in France, Turkey, China, New Zealand, and USA [26,27]. Halloysite nanotubes (HNTs) are promising as a supporting material due to the inherent hollow tubular structure and charge differential between its inside and outside surfaces [28]. Due to its economical efficiency and biocompatibility [29,30,31,32], HNTs were recently studied for the development of innovative nanomaterials useful for catalytic [33,34] and biotechnological applications [35,36,37,38], with excellent geometrical and surface properties (large specific area, hollow tubular shape and tunable surface chemistry). In addition, when compared to other tubulose nanomaterials (such as boron nitride, metal oxide, and carbon nanotubes), HNTs are eco-compatible and non-toxic natural nanomaterials with remarkable and convenient applications in material science [26,27]. It is easy to imagine that in the near future HNTs could replace the much more expensive carbon nanotubes and in many cases, HNTs could be used in high technological applications where carbon nanotubes are just not suitable [26].
Moreover, researchers usually selected the reduction of 4-NP by sodium borohydride (NaBH4) as a model reaction to test the catalytic activity of various nanocatalysts [39,40]. The most likely reason is that 4-NP is one of the most hazardous contaminants, which is present in waste-waters due to the usage of pharmaceuticals, pesticides and dyes [41]. 4-NP can irreversibly damage the central nervous system, liver, and kidney of animals and humans. Therefore, the removal of 4-NP is important to protect the human being. Accordingly, several methods, such as photocatalytic degradation [42], microbial degradation [43], hazardous substances adsorption [44], and electrochemical degradation [45] have been developed to remove 4-NP. However, among the above techniques, the reduction of 4-NP to 4-aminophenol (4-AP) is the easiest way to remove 4-NP from the environment. The product 4-AP is a useful intermediate for applications of antipyretic and analgesic drugs [46]. So, due to the reasons of energy saving and safe operation, it is necessary to develop an effective, stable, easily available, and highly efficient catalyst for the reduction of 4-NP to 4-AP in aqueous solution under mild environments. Usually, noble metal formed nanocatalysts are difficult to recycle and reuse from reaction solution because of their small sizes and the looking for suitable catalyst carrier is very essential. HNTs@Fe3O4 is an ideal magnetic support [33], which is convenient to prepare and has more active sites for the anchoring of noble metal NPs. It can not only prevent the aggregation of noble metal NPs, but can also facilitate the recycle of nanocatalysts with the help of a magnetic field.
In this work, we reported a facile and convenient method to prepare the magnetic recoverable nanocatalysts HNTs@Fe3O4@AuPd. Firstly, the HNTs were coated by magnetite Fe3O4 particles through a one-pot solvothermal synthesis method. Secondly, the magnetic HNTs@Fe3O4 were further modified by the AuPd alloyed NPs or monometallic Au or Pd NPs. The catalytic activities of the above nanocatalysts toward the reduction reaction of 4-NP and its derivative in the presence of NaBH4 were investigated. The synergistic effect between Pd and Au endowed HNTs@Fe3O4@AuPd with superior activity when compared with monometallic HNTs@Fe3O4@Pd or HNTs@Fe3O4@Au catalysts.

2. Results and Discussion

2.1. Structural and Morphology Characterization

To investigate the formation of HNT@Fe3O4@AuPd nanocomposited catalysts, X-ray diffraction (XRD) analyses were conducted. Figure 1 represents the XRD patterns of HNT coated by Fe3O4, Au-Pd alloyed NPs, monometallic Au or Pd NPs, respectively. The exhibited characteristic diffraction peaks at 2θ = 12°, 20.3°, 24.9° originated from the HNTs for each sample, which demonstrate that the original inner structure of halloysite is not damaged during the whole preparation of HNT@Fe3O4@AuPd nanocatalysts. The observed XRD peaks at 2θ = 30.1°, 35.5°, 43.1°, 53.5°, 57.1° can be indexed to the planes of fcc Fe3O4 (JCPDS-19-0629) [47]. The monometallic HNT@Fe3O4@Au and HNT@Fe3O4@Pd composited nanoparticles exhibit wide diffraction peaks which well match to fcc structure of bulk Au (JCPDS-65-8601) [48] and bulk Pd (JCPDS-65-2867) [49]. The weak diffractions detected for Au and Pd from XRD patterns of the above bimetallic and monometallic nancatalysts indicate the formation of small NPs [50]. Furthermore, as compared to the (111) diffraction peak of Pd NPs in HNT@Fe3O4@Pd, the diffraction peaks of HNT@Fe3O4@AuPd shift to lower 2θ values towards the Au(111) peak, which is due to the increase of the lattice parameters and the formation of the crystalline Au-Pd alloy nanoparticles on HNT@Fe3O4 nanorods [19,51].
The TEM images of HNTs@Fe3O4 and HNTs@Fe3O4@AuPd are shown in Figure 2. These images confirm that the nanocatalysts have been successfully fabricated and the HNTs still maintain their rod-like morphology during the preparation process. From Figure 2a, we can see the Fe3O4 nanoparticles (around 150 nm) are attached on the HNTs surface without obvious aggregation. AuPd bimetallic nanoparticles (diameter below 5 nm) have been successfully formed on the surface of HNTs@Fe3O4 by simply mixing the HAuCl4 and K2PdCl4 at room temperature. As shown in Figure 2b,c, there are many small nanoparticles adhered to the HNTs or Fe3O4 surface after the coreduction and there are no isolated AuPd catalysts outside the HNTs@Fe3O4. High-resolution TEM (HRTEM) (Figure 2d) and size distribution images indicate that the average size of AuPd bimetallic is 3.61 ± 0.28 nm. The chemical composition and elemental distribution of HNTs@Fe3O4@AuPd were investigated by EDS-mapping and the energy-dispersive X-ray spectroscopy (EDX). HAADF-STEM measurements (Figure 3) were carried out to investigate the elemental spatial distribution of Pd and Au. Here, it is necessary to mention that for the ultrafine AuPdNPs, while it is really difficult to get their HAADF-STEM results. Therefore, AuPd NPs with some aggregation were found by the HAADF-STEM test. The dark-field images indicate a abundant deposition of AuPd nanocatalysts on the magnetic support. Clearly, from Figure 3, Si, Al and Fe atoms are distributed on HNTs@Fe3O4, whilst Pd and Au atoms are distributed uniformly over the entire HNTs@Fe3O4@AuPd nanocatalysts, which provide a strong proof on the formation of alloy decorated nanocatalyst [51]. Furthermore, the typical HRTEM image (Figure 2d) of the AuPd NPs indicated that the interplanar spacing of the particle lattice is 0.229 nm, which approximated both the (111) lattice spacing of face centered cubic (fcc) Pd (0.223 nm) and Au (0.234 nm), and this may indicate that line defects are formed [52]. From the EDX image (Figure 4a), we can observe the existence of Si, Al, Fe, Au and Pd elements, which can also prove the successful deposition of Au and Pd on the HNTs@Fe3O4 catalysts carrier. According to the ICP-AES analyses, the content of the total metal supported on the HNTs@Fe3O4@AuPd nanocatalysts is 2.81 wt. % and the atomic ratio of Au:Pd is 0.402:0.598, which is consistent with the designed ratio. As shown in Figure 4b, the magnetic properties of HNTs@Fe3O4 and HNTs@Fe3O4@AuPd at room temperature demonstrate that the decreasing magnetization values can be assigned to the loading of non-magnetic AuPd nanoparticles. However, the current magnetism is still strong enough for the recycling and reusing of the catalysts during the whole catalytic experiments.

2.2. Catalytic Activities of Bimetallic or Monometallic Au/Pd Modified Nanocatalysts in the Reduction of 4-NP

The catalytic activities of as-prepared bimetallic and monometallic nanocatalysts were tested by the catalysts for the reduction of 4-NP with an excess of NaBH4, as depicted in Figure 5. The conversion from 4-NP to 4-AP can be easily monitored by the UV–vis spectroscopy. Generally, the UV–Visible spectra of 4-NP solutions have a distinct spectral profile with a maximum absorption peak at 317 nm in neutral or acidic situation, which is presented in Figure 5a. After addition of NaBH4, the absorption band shifts to 400 nm immediately, accompanied with the color change from light yellow to bright yellow. This peak shift is due to the formation of 4-nitrophenolate ion as the alkalinity of the solution increased [39]. Without the addition of the catalysts, the maximum absorption peak at 400 nm can not be altered, indicating that there is no reduction reaction, which is caused by the high kinetic barrier between 4-nitrophenolate ion and BH4− ion.
After the addition of a small amount of HNT@Fe3O4@Au40Pd60 into the 4-NP and NaBH4 mixed solution, the color of the solution changed from bright yellow to colorless quickly, signalling the completion of the reaction. Time-dependent absorbance spectra of this reaction shows the intensity of the absorption spectra at 400 nm gradually decrease along with a concomitant increase of the 300 nm peak of 4-aminophenol, revealing the formation of 4-AP [51]. After 8 min, the peak at 400 nm is no longer observed, indicating that the reduction reaction is completed (Figure 5b). We proposed that BH4− would adsorb onto the surface of HNT@Fe3O4@Au40Pd60 and divert activated hydrogen to the AuPd active centre to form a metal hydride complex [53]. Meanwhile, 4-NP can also simultaneously stick to the surfaces of HNT@Fe3O4@Au40Pd60 via chemical adsorption [54]. In the above factors, the transformation of adsorbed hydrogen species to 4-NP can reduce the nitro groups to amino groups, which is strongly supported by previous results [55,56].
For a comprehensive elucidation of the catalytic property of the HNT@Fe3O4@Au40Pd60 and the synergetic effects of Au and Pd catalytic architecture in the reduction of 4-NP, we investigated the catalytic behaviour of monometallic HNT@Fe3O4@Au, HNT@Fe3O4@Pd, and bimetallic HNT@Fe3O4@Au40Pd60 with different molar compositions of Au versus Pd under the identical conditions (the amount of each catalyst is controlled at 5 μg). As shown in the time-dependent UV-vis absorption spectra of Figure 5c,d, the time for HNT@Fe3O4@Pd to finish the reduction is slight shorter than that for HNT@Fe3O4@Au, while the time of the two catalysts used are obvious longer than that for HNT@Fe3O4@Au40Pd60. These results indicate that the catalytic activity of magnetic HNT-based AuPd alloyed bimetallic nanocatalysts is evidently enhanced as compared to the Au or Pd monometallic nanocatalysts. As a matter of fact, the catalytic activities of the HNT@Fe3O4@AuPd nanocomposite are tunable by altering the Au versus Pd atomic ratios. The catalytic reactions own the highest reaction rate when the atomic ratio of the alloyed catalysts reaches Au40Pd60, which can be understood in Figure 6a.
To further evaluate the catalytic activities of the above different nanocatalysts, a pseudo-first order kinetics equation was applied, which is due to the amount of BH4− in the catalytic system is more excessive than that of 4-NP and the reaction rate is not affected by the concentration of BH4−. The experiment was carried out under the same conditions and the rate constant (k) is calculated as: kapt = ln(Ct/C0), where C0 is the initial absorbance of the reagents at the maximum absorption wavelength, Ct is the absorbance of reagents at maximum absorption wavelength under different time t and Kap is the apparent rate constant. Figure 6a shows the approximately linear relationships of ln(At/A0) vs. reaction time in the reaction catalyzed by the as synthesized nanocatalysts. It can be clearly seen that the reactions follow the pseudo-first-order reaction kinetics. Hence, the apparent rate constants obtained from the slopes of the linearly plots are 0.520, 0.389, 0.216, 0.023, and 0.174 min−1 for the HNT@Fe3O4@Au40Pd60, HNT@Fe3O4@Au67Pd33, HNT@Fe3O4@Au50Pd50, HNT@Fe3O4@Au and HNT@Fe3O4@Pd, respectively. It is obvious that all the HNT@Fe3O4@Au40Pd60 nanocatalysts have the highest catalytic ability and its reaction rate is about 22.61 and 2.98 times faster than that of the monometallic Au or Pd modified nanocatalysts, which is accordance with the results obtained from the time-dependent UV-vis absorption spectra.
Furthermore, the scope of the catalytic activity of HNT@Fe3O4@Au40Pd60 in the reduction for other nitroaniline derivates was also investigated. All the catalytic conditions of these analogues are same as that of 4-NP and the reaction progress of the nitroaniline was monitored by UV-vis absorption spectrometry. The data of reaction time and the conversion were calculated and are listed in Table 1, revealing our catalysts have excellent catalytic activities with perfect yield toward nitrophenol and nitroaniline derivatives regardless of the types and position of the substituents. Four kinds of nitroaniline can be reduced within 8 min with a conversion more than 99%. Interestingly, when the HNT@Fe3O4@Au40Pd60 was used to reduce the nitrotoluene analog substrate, it displayed a lower activity than those of nitroaniline and nitrophenol, which indicated that the reaction processes of nitrotoluene derivatives are more complicated than those of nitroaniline and nitrophenol derivatives [57].

2.3. Reusability of the HNT@Fe3O4@Au40Pd60

It is well known that the reusability is a main advantage of using a heterogeneous catalyst rather than a homogeneous catalyst. As the Fe3O4 NPs have remarkable magnetic properties [58], the catalysts were recovered by simple magnetic separation with the help of a magnetic field after completion of the reduction reaction and then washed with water for reusing in the next cycle. The reusability of the HNT@Fe3O4@Au40Pd60 were studied for the reduction of 4-nitrophenol with NaBH4. As shown in Figure 6b, even after five successive recycle, HNT@Fe3O4@Au40Pd60 still displayed excellent conversion efficiency without significant loss of its activity. Besides the catalytic activity and reusability, the stability of the catalysts is also a very important issue for industrial applications. To examine the stability of the nanocatalysts, the reduction reaction was repeated using composited catalysts for more than three months. The conversion of 4-NP was similar after the catalysts are prepared three months later, suggesting that the catalysts were stable and can be used within three months without an obvious loss of activity [59].

3. Materials and Methods

3.1. Materials

Halloysite was purchased from China-Kaolinite Company (Suzhou, China). Ferric chloride hexahydrate (FeCl3·6H2O), sodium acetate (NaAc), polyethylene glycol (PEI), ethylene glycol (EG), potassium tetrachloropalladate (K2PdCl4)m and hydrogen tetrachloroaurate (HAuCl4) were obtained from Sinopharm Chemistry Reagent Co., Ltd. (Beijing, China). 4-nitrophenol, p-nitroaniline, m-nitroaniline, o-Nitroaniline (o-NA), 2,4-Nitroaniline and sodium hydroxide (NaBH4) were bought from Sigma Aldrich. All of the chemicals were of chemical reagent grade and used without any further purification. Ultrapure water was prepared by using NANO Pure Infinity System (Barnstead/Thermolyne Corp, Dubuque, IA, USA).

3.2. Preparation of HNT@Fe3O4

HNT coated by Fe3O4 were synthesized through a solvothermal reaction according to a previously described method with some modification [60]. Briefly, 1 g of FeCl3·6H2O was added to 30 mL of ethylene glycol. A clear yellow solution was obtained after sonication for 3 min. Then, 2.7 g of sodium acetate (NaAc) and 0.75 g PEI were added to the above solution and stirred for another 0.5 h. Subsequently, 0.3 g HNT was added. When the mixed solution was ultrasonically dispersed for 3 h to form a homogeneous dispersion, the mixture solution was transferred to a Teflon-lined stainless-steel autoclave (50 mL capacity). The autoclave was sealed and maintained at 200 °C. After reaction for 8 h, the autoclave was naturally cooled to ambient temperature. The obtained HNT@Fe3O4 black magnetic particles were collected by an external magnetic field and washed four times with ethanol and deionized water in sequence. The product was then dried in vacuum at 60 for 12 h.

3.3. Preparation of HNTs@Fe3O4@AuPd, HNTs@Fe3O4@Au and HNTs@Fe3O4@Pd

In a typical synthesis of HNTs@Fe3O4@AuPd, 5.0 mL aqueous solution containing HNT@Fe3O4 (50 mg), HAuCl4 (0.5 mL, 10 mM), and K2PdCl4 (0.5 mL 10 mM) was kept in a glass bottle under stirring for 3 h. Then, the fresh 1.0 mL aqueous solution NaBH4 (28 mg, 0.7 mmol) was added and the resulting solution was stirred for another 0.5 h at ambient temperature. Then, the reaction mixture was centrifuged and washed with pure water to remove the remaining reagents. For comparison, other catalysts were also prepared using the same method: (1) HNT@Fe3O4 (50 mg) and HAuCl4 (0.5 mL, 10 mM) for HNTs@Fe3O4@Au, (2) HNT@Fe3O4 (50 mg) and K2PdCl4 (0.75 mL, 10 mM) for HNTs@Fe3O4@Pd and (3) HNT@Fe3O4 (50 mg), 0.5 mL 10 mM HAuCl4 and v mL 10 mM K2PdCl4 (v = 0.25, 0.75) for HNTs@Fe3O4@AuxPdy.

3.4. Catalytic Reduction of Nitrobenzene

The reduction of 4-NP with NaBH4 was chosen to examine the catalytic activity and reusability of the HNTs@Fe3O4@Au40Pd60 catalysts. In a typical procedure, 1 mL of 4-NP (0.1 mM) and 1.0 mL of fresh NaBH4 (10 mM) was taken in a quartz cuvette, followed by addition of 20 μL of catalysts (0.25 mg/mL) to the mixture. The reaction solution was immediately monitored using UV–vis spectrophotometer at 1 min interval. The color of the solution changed gradually from yellow to colorless. The catalytic reduction of other nitroaniline were conducted under the same condition of 4-NP. Following the similar procedures, HNT@Fe3O4@Au, HNT@Fe3O4@Pd, and HNT@Fe3O4@AuxPdy (each of 5 μg) were also used as catalysts for the reduction of 4-NP.

3.5. Characterization

Transmission electron microscopy (TEM), high resolution transmission electron microscopy (HRTEM), and the energy dispersive spectra (EDS) were determined by a Tecnai-G2-F30 at acceleration voltages of 200 kV. X-ray diffraction (XRD) measurements were carried out on a X’pert PRO X-ray power diffractometer using Cu Ka radiation of 1.5406 A (40 kV, 30 mA). Magnetization measurements were performed on a vibrating sample magnetometry (VSM, LAKESHORE-7304, Westerville, OH, USA) at room temperature. The UV measurement was finished on a Shimadzu UV-240 spectrophotometer. Au, Pd contents of the samples were determined by inductively coupled plasma-atomic emission spectroscopy (ICP-AES) using an IRIS Advantage ER/S spectrophotometer.

4. Conclusions

In conclusion, we fabricated magnetically separable and well dispersed bimetallic Au40Pd60 alloyed nanoparticles on HNT@Fe3O4 by a facile method. The HNT@Fe3O4@Au40Pd60 nanocatalysts were explored for the reduction of organic pollutants in an aqueous medium. When compared with the monometallic HNT@Fe3O4@Au and HNT@Fe3O4@Pd nanocatalysts prepared under the same conditions, the AuPd alloyed HNT@Fe3O4@Au40Pd60 nanocatalysts exhibited the much better catalytic performance, which may be ascribed to the synergistic effects of Pd and Au. Furthermore, the HNT@Fe3O4@Au40Pd60 catalysts can be easily separated from the reaction system with the help of an external magnet and reused several cycles without significant loss of the activity. The as-obtained hybrids may become ideal recyclable catalysts for the reduction of aromatic nitro compounds owing to their stability and efficient magnetism.

Acknowledgments

This work was supported, in part, by the National Natural Science Foundation of China (No. 51773052, No. 21404033 and No. 21401046), the Science and Technology Research Project of Henan province (162102210065 and 152102210314) and the Fundamental Research Funds for the Universities of Henan Province.

Author Contributions

Lei Jia conceived and designed the experiments; Tao Zhou, Zhouqing Xu, Beibei Zhang, Fenghai Li, Shengli Guo and Xiaoke Shen performed the experiments and analyzed the data; Jun Xu provided the concept of this research and managed all the experimental and writing process as the corresponding authors; all authors discussed the results and commented on the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Toyoda, K.; Hamada, I.; Lee, K.; Yanagisawa, S.; Morikawa, Y. Density functional theoretical study of pentacene/noble metal interfaces with van der Waals corrections: Vacuum level shifts and electronic structures. J. Chem. Phys. 2010, 132, 134703. [Google Scholar] [CrossRef] [PubMed]
  2. Mulvihill, M.J.; Ling, X.Y.; Henzie, J.; Yang, P. Anisotropic etching of silver nanoparticles for plasmonic structures capable of single-particle SERS. J. Am. Chem. Soc. 2009, 132, 268–274. [Google Scholar] [CrossRef] [PubMed]
  3. Bulut, A.; Yurderi, M.; Karatas, Y.; Say, Z.; Kivrak, H.; Kaya, M.; Gulcan, M.; Ozensoy, E.; Zahmakiran, M. MnOx-Promoted PdAg Alloy Nanoparticles for the Additive-Free Dehydrogenation of Formic Acid at Room Temperature. ACS Catal. 2015, 5, 6099–6110. [Google Scholar] [CrossRef]
  4. Doria, G.; Conde, J.; Veigas, B.; Giestas, L.; Almeida, C.; Assunção, M.; Rosa, J.; Baptista, P.V. Noble metal nanoparticles for biosensing applications. Sensors 2012, 12, 1657–1687. [Google Scholar] [CrossRef] [PubMed]
  5. Hunt, S.T.; Milina, M.; Alba-Rubio, A.C.; Hendon, C.H.; Dumesic, J.A.; Román-Leshkov, Y. Self-assembly of noble metal monolayers on transition metal carbide nanoparticle catalysts. Science 2016, 352, 974–978. [Google Scholar] [CrossRef] [PubMed]
  6. Sapurina, I.; Stejskal, J.; Šeděnková, I.; Trchová, M.; Kovářová, J.; Hromádková, J.; Kopecká, J.; Cieslar, M.; El-Nasr, A.A.; Ayad, M.M. Catalytic activity of polypyrrole nanotubes decorated with noble-metal nanoparticles and their conversion to carbonized analogues. Synth. Met. 2016, 214, 14–22. [Google Scholar] [CrossRef]
  7. Zhang, L.; Fan, Q.; Sha, X.; Zhong, P.; Zhang, J.; Yin, Y.; Gao, C. Self-Assembly of Noble Metal Nanoparticles into Sub-100 nm Colloidosomes with Collective Optical and Catalytic Properties. Chem. Sci. 2017, 8, 6103–6110. [Google Scholar] [CrossRef]
  8. Howes, P.D.; Chandrawati, R.; Stevens, M.M. Colloidal nanoparticles as advanced biological sensors. Science 2014, 346, 1247390. [Google Scholar] [CrossRef] [PubMed]
  9. Rai, M.; Ingle, A.P.; Birla, S.; Yadav, A.; Santos, C.A.D. Strategic role of selected noble metal nanoparticles in medicine. Crit. Rev. Microbiol. 2016, 42, 696–719. [Google Scholar] [CrossRef] [PubMed]
  10. Rai, M.; Ingle, A.P.; Gupta, I.; Brandelli, A. Bioactivity of noble metal nanoparticles decorated with biopolymers and their application in drug delivery. Int. J. Pharm. 2015, 496, 159–172. [Google Scholar] [CrossRef] [PubMed]
  11. Bi, Q.Y.; Du, X.L.; Liu, Y.M.; Cao, Y.; He, H.Y.; Fan, K.N. Efficient subnanometric gold-catalyzed hydrogen generation via formic acid decomposition under ambient conditions. J. Am. Chem. Soc. 2012, 134, 8926–8933. [Google Scholar] [CrossRef] [PubMed]
  12. Miyamura, H.; Yasukawa, T.; Kobayashi, S. Aerobic oxidative esterification of alcohols catalyzed by polymer-incarcerated gold nanoclusters under ambient conditions. Green Chem. 2010, 12, 776–778. [Google Scholar] [CrossRef]
  13. Suvith, V.; Philip, D. Catalytic degradation of methylene blue using biosynthesized gold and silver nanoparticles. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2014, 118, 526–532. [Google Scholar] [CrossRef] [PubMed]
  14. Murayama, T.; Haruta, M. Preparation of gold nanoparticles supported on Nb2O5 by deposition precipitation and deposition reduction methods and their catalytic activity for CO oxidation. Chin. J. Catal. 2016, 37, 1694–1701. [Google Scholar] [CrossRef]
  15. Xiong, Z.; Qin, F.; Huang, P.S.; Nettleship, I.; Lee, J.K. Effect of Synthesis Techniques on Crystallization and Optical Properties of Ag-Cu Bimetallic Nanoparticles. JOM 2016, 68, 1163–1168. [Google Scholar] [CrossRef]
  16. Tuteja, J.; Nishimura, S.; Ebitani, K. Change in reactivity of differently capped AuPd bimetallic nanoparticle catalysts for selective oxidation of aliphatic diols to hydroxycarboxylic acids in basic aqueous solution. Catal. Today 2016, 265, 231–239. [Google Scholar] [CrossRef]
  17. Wu, W.; Lei, M.; Yang, S.; Zhou, L.; Liu, L.; Xiao, X.; Jiang, C.; Roy, V.A. A one-pot route to the synthesis of alloyed Cu/Ag bimetallic nanoparticles with different mass ratios for catalytic reduction of 4-nitrophenol. J. Mater. Chem. A 2015, 3, 3450–3455. [Google Scholar] [CrossRef]
  18. Xiang, J.; Li, P.; Chong, H.; Feng, L.; Fu, F.; Wang, Z.; Zhang, S.; Zhu, M. Bimetallic Pd-Ni core-shell nanoparticles as effective catalysts for the Suzuki reaction. Nano Res. 2014, 7, 1337–1343. [Google Scholar] [CrossRef]
  19. Yan, J.M.; Wang, Z.L.; Gu, L.; Li, S.J.; Wang, H.L.; Zheng, W.T.; Jiang, Q. AuPd-MnOx/MOF-graphene: An efficient catalyst for hydrogen production from formic acid at room temperature. Adv. Energy Mater. 2015, 5, 4502–4505. [Google Scholar] [CrossRef]
  20. Liu, Z.; Dong, W.; Cheng, S.; Guo, S.; Shang, N.; Gao, S.; Feng, C.; Wang, C.; Wang, Z. Pd9Ag1-N-doped-MOF-C: An efficient catalyst for catalytic transfer hydrogenation of nitro-compounds. Catal. Commun. 2017, 95, 50–53. [Google Scholar] [CrossRef]
  21. Puthiaraj, P.; Pitchumani, K. Palladium nanoparticles supported on triazine functionalised mesoporous covalent organic polymers as efficient catalysts for Mizoroki–Heck cross coupling reaction. Green Chem. 2014, 16, 4223–4233. [Google Scholar] [CrossRef]
  22. Shang, L.; Bian, T.; Zhang, B.; Zhang, D.; Wu, L.Z.; Tung, C.H.; Yin, Y.; Zhang, T. Graphene-supported ultrafine metal nanoparticles encapsulated by mesoporous silica: Robust catalysts for oxidation and reduction reactions. Angew. Chem. 2014, 126, 254–258. [Google Scholar] [CrossRef]
  23. Guo, D.; Shibuya, R.; Akiba, C.; Saji, S.; Kondo, T.; Nakamura, J. Active sites of nitrogen-doped carbon materials for oxygen reduction reaction clarified using model catalysts. Science 2016, 351, 361–365. [Google Scholar] [CrossRef] [PubMed]
  24. Óvári, L.; Berkó, A.; Majzik, Z.; Kiss, J. Formation of Rh-Au core-shell nanoparticles on TiO2(110) surface studied by STM and LEIS. Langmuir 2010, 2, 2167–2175. [Google Scholar] [CrossRef] [PubMed]
  25. Óvári, L.; Bugyi, L.; Majzik, Z.; Berkó, A.; Kiss, J. Surface structure and composition of Au-Rh bimetallic nanoclusters on TiO2(110): A LEIS and STM study. J. Phys. Chem. C 2008, 112, 18011–18016. [Google Scholar] [CrossRef]
  26. Massaro, M.; Colletti, C.G.; Lazzara, G.; Milioto, S.; Noto, R.; Riela, S. Halloysite nanotubes as support for metal-based catalysts. J. Mater. Chem. A 2017, 5, 13276–13293. [Google Scholar] [CrossRef]
  27. Massaro, M.; Riela, S.; Cavallaro, G.; Colletti, C.G.; Milioto, S.; Noto, R.; Parisi, F.; Lazzara, G. Palladium supported on Halloysite-triazolium salts as catalyst for ligand free Suzuki cross-coupling in water under microwave irradiation. J. Mol. Catal. A Chem. 2015, 408, 12–19. [Google Scholar] [CrossRef]
  28. Zhang, Y.; Tang, A.; Yang, H.; Ouyang, J. Applications and interfaces of halloysite nanocomposites. Appl. Clay. Sci. 2016, 119, 8–17. [Google Scholar] [CrossRef]
  29. Cavallaro, G.; Danilushkina, A.A.; Evtugyn, V.G.; Lazzara, G.; Milioto, S.; Parisi, F.; Rozhina, E.V.; Fakhrullin, R.F. Halloysite nanotubes: Controlled access and release by smart gates. Nanomaterials 2017, 7, 199. [Google Scholar] [CrossRef] [PubMed]
  30. Cavallaro, G.; Lazzara, G.; Milioto, S.; Parisi, F. Hydrophobically modified halloysite nanotubes as reverse micelles for water-in-oil emulsion. Langmuir 2015, 31, 7472–7478. [Google Scholar] [CrossRef] [PubMed]
  31. Fakhrullina, G.I.; Akhatova, F.S.; Lvov, Y.M.; Fakhrullin, R.F. Toxicity of halloysite clay nanotubes In Vivo: A Caenorhabditis elegans study. Environ. Sci. Nano 2015, 2, 54–59. [Google Scholar] [CrossRef]
  32. Kryuchkova, M.; Danilushkina, A.; Lvov, Y.; Fakhrullin, R. Evaluation of toxicity of nanoclays and graphene oxide In Vivo: A Paramecium caudatum study. Environ. Sci. Nano 2016, 3, 442–452. [Google Scholar] [CrossRef]
  33. Machado, G.S.; de Freitas Castro, K.A.D.; Wypych, F.; Nakagaki, S. Immobilization of metalloporphyrins into nanotubes of natural halloysite toward selective catalysts for oxidation reactions. J. Mol. Catal. Chem. 2008, 283, 99–107. [Google Scholar] [CrossRef]
  34. Wang, R.; Jiang, G.; Ding, Y.; Wang, Y.; Sun, X.; Wang, X.; Chen, W. Photocatalytic activity of heterostructures based on TiO2 and halloysite nanotubes. ACS Appl. Mater. Interfaces 2011, 3, 4154–4158. [Google Scholar] [CrossRef] [PubMed]
  35. Cavallaro, G.; Lazzara, G.; Massaro, M.; Milioto, S.; Noto, R.; Parisi, F.; Riela, S. Biocompatible poly(N-isopropylacrylamide)-halloysite nanotubes for thermoresponsive curcumin release. J. Phys. Chem. C 2015, 119, 8944–8951. [Google Scholar] [CrossRef]
  36. Lvov, Y.M.; DeVilliers, M.M.; Fakhrullin, R.F. The application of halloysite tubule nanoclay in drug delivery. Expert Opin. Drug Deliv. 2016, 13, 977–986. [Google Scholar] [CrossRef] [PubMed]
  37. Bonifacio, M.A.; Gentile, P.; Ferreira, A.M.; Cometa, S.; De Giglio, E. Insight into halloysite nanotubes-loaded gellan gum hydrogels for soft tissue engineering applications. Carbohydr. Polym. 2017, 163, 280–291. [Google Scholar] [CrossRef] [PubMed]
  38. Fakhrullin, R.F.; Lvov, Y.M. Halloysite clay nanotubes for tissue engineering. Nanomedicine 2016, 11, 2243–2246. [Google Scholar] [CrossRef] [PubMed]
  39. Li, J.; Liu, C.Y.; Liu, Y. Au/graphene hydrogel: Synthesis, characterization and its use for catalytic reduction of 4-nitrophenol. J. Mater. Chem. 2012, 22, 8426–8430. [Google Scholar] [CrossRef]
  40. Rostami-Vartooni, A.; Nasrollahzadeh, M.; Alizadeh, M. Green synthesis of perlite supported silver nanoparticles using Hamamelis virginiana leaf extract and investigation of its catalytic activity for the reduction of 4-nitrophenol and Congo red. J. Alloys. Compd. 2016, 680, 309–314. [Google Scholar] [CrossRef]
  41. Giribabu, K.; Suresh, R.; Manigandan, R.; Munusamy, S.; Kumar, S.P.; Muthamizh, S.; Narayanan, V. Nanomolar determination of 4-nitrophenol based on a poly (methylene blue)-modified glassy carbon electrode. Analyst 2013, 138, 5811–5818. [Google Scholar] [CrossRef] [PubMed]
  42. Urkude, K.; Thakare, S.R.; Gawande, S. An energy efficient photocatalytic reduction of 4-nitrophenol. J. Environ. Chem. Eng. 2014, 2, 759–764. [Google Scholar] [CrossRef]
  43. Silambarasan, S.; Vangnai, A.S. Biodegradation of 4-nitroaniline by plant-growth promoting Acinetobacter sp. AVLB2 and toxicological analysis of its biodegradation metabolites. J. Hazard. Mater. 2016, 302, 426–436. [Google Scholar] [CrossRef] [PubMed]
  44. Ahmaruzzaman, M.; Gayatri, S.L. Batch adsorption of 4-nitrophenol by acid activated jute stick char: Equilibrium, kinetic and thermodynamic studies. Chem. Eng. J. 2010, 158, 173–180. [Google Scholar] [CrossRef]
  45. Murugaesan, P.; Aravind, P.; Guruswamy, M.N.; Kandasamy, S. Performance of three different anodes in electrochemical degradation of 4-para-nitrophenol. Environ. Technol. 2015, 36, 2618–2627. [Google Scholar] [CrossRef] [PubMed]
  46. Mandlimath, T.R.; Gopal, B. Catalytic activity of first row transition metal oxides in the conversion of p-nitrophenol to p-aminophenol. J. Mol. Catal. A Chem. 2011, 350, 9–15. [Google Scholar] [CrossRef]
  47. Lara, L.R.; Zottis, A.D.; Elias, W.C.; Faggion, D.; de Campos, C.E.M.; Acuña, J.J.S.; Domingos, J.B. The catalytic evaluation of in situ grown Pd nanoparticles on the surface of Fe3O4@dextran particles in the p-nitrophenol reduction reaction. RSC Adv. 2015, 5, 8289–8296. [Google Scholar] [CrossRef]
  48. Wang, D.; Li, Y. One-pot protocol for Au-based hybrid magnetic nanostructures via a noble-metal-induced reduction process. J. Am. Chem. Soc. 2010, 132, 6280–6281. [Google Scholar] [CrossRef] [PubMed]
  49. Xiong, Y.; McLellan, J.M.; Yin, Y.; Xia, Y. Synthesis of palladium icosahedra with twinned structure by blocking oxidative etching with citric acid or citrate ions. Angew. Chem. 2007, 119, 804–808. [Google Scholar] [CrossRef]
  50. Jiang, H.L.; Akita, T.; Ishida, T.; Haruta, M.; Xu, Q. Synergistic catalysis of Au@Ag core—Shell nanoparticles stabilized on metal—Organic framework. J. Am. Chem. Soc. 2011, 133, 1304–1306. [Google Scholar] [CrossRef] [PubMed]
  51. Chen, X.; Cai, Z.; Chen, X.; Oyama, M. AuPd bimetallic nanoparticles decorated on graphene nanosheets: Their green synthesis, growth mechanism and high catalytic ability in 4-nitrophenol reduction. J. Mater. Chem. A 2014, 2, 5668–5674. [Google Scholar] [CrossRef]
  52. Jiang, F.; Li, R.; Cai, J.; Xu, W.; Cao, A.; Chen, D.; Zhang, X.; Wang, C.; Shu, C. Ultrasmall Pd/Au bimetallic nanocrystals embedded in hydrogen-bonded supramolecular structures: Facile synthesis and catalytic activities in the reduction of 4-nitrophenol. J. Mater. Chem. A 2015, 3, 19433–19438. [Google Scholar] [CrossRef]
  53. Zhu, H.Z.; Lu, Y.M.; Fan, F.J.; Yu, S.H. Selective hydrogenation of nitroaromatics by ceria nanorods. Nanoscale 2013, 5, 7219–7223. [Google Scholar] [CrossRef] [PubMed]
  54. Liu, C.H.; Liu, R.H.; Sun, Q.J.; Chang, J.B.; Gao, X.; Liu, Y.; Lee, S.T.; Kang, Z.H.; Wang, S.D. Controlled synthesis and synergistic effects of graphene-supported PdAu bimetallic nanoparticles with tunable catalytic properties. Nanoscale 2015, 7, 6356–6362. [Google Scholar] [CrossRef] [PubMed]
  55. Ai, L.; Yue, H.; Jiang, J. Environmentally friendly light-driven synthesis of Ag nanoparticles in situ grown on magnetically separable biohydrogels as highly active and recyclable catalysts for 4-nitrophenol reduction. J. Mater. Chem. 2012, 22, 23447–23453. [Google Scholar] [CrossRef]
  56. Lv, J.J.; Wang, A.J.; Ma, X.; Xiang, R.Y.; Chen, J.R.; Feng, J.J. One-pot synthesis of porous Pt–Au nanodendrites supported on reduced graphene oxide nanosheets toward catalytic reduction of 4-nitrophenol. J. Mater. Chem. A. 2015, 3, 290–296. [Google Scholar] [CrossRef]
  57. Huang, J.; Zhang, L.; Chen, B.; Ji, N.; Chen, F.; Zhang, Y.; Zhang, Z. Nanocomposites of size-controlled gold nanoparticles and graphene oxide: Formation and applications in SERS and catalysis. Nanoscale 2010, 2, 2733–2738. [Google Scholar] [CrossRef] [PubMed]
  58. Veisi, H.; Gholami, J.; Ueda, H.; Mohammadi, P.; Noroozi, M. Magnetically palladium catalyst stabilized by diaminoglyoxime-functionalized magnetic Fe3O4 nanoparticles as active and reusable catalyst for Suzuki coupling reactions. J. Mol. Catal. A Chem. 2015, 396, 216–223. [Google Scholar] [CrossRef]
  59. Zhu, Y.; Zhou, X.; Chen, D.; Li, F.; Xue, T.; Ahmed, S.F. Ternary Fe3O4@PANI@Au nanocomposites as a magnetic catalyst for degradation of organic dyes. Sci. China Tech. Sci. 2017, 60, 749–757. [Google Scholar] [CrossRef]
  60. Xie, Y.; Qian, D.; Wu, D.; Ma, X. Magnetic halloysite nanotubes/iron oxide composites for the adsorption of dyes. Chem. Eng. J. 2011, 168, 959–963. [Google Scholar] [CrossRef]
Nanomaterials 07 00333 g001 550

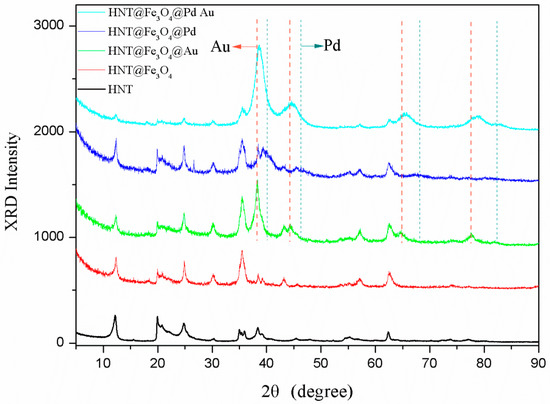

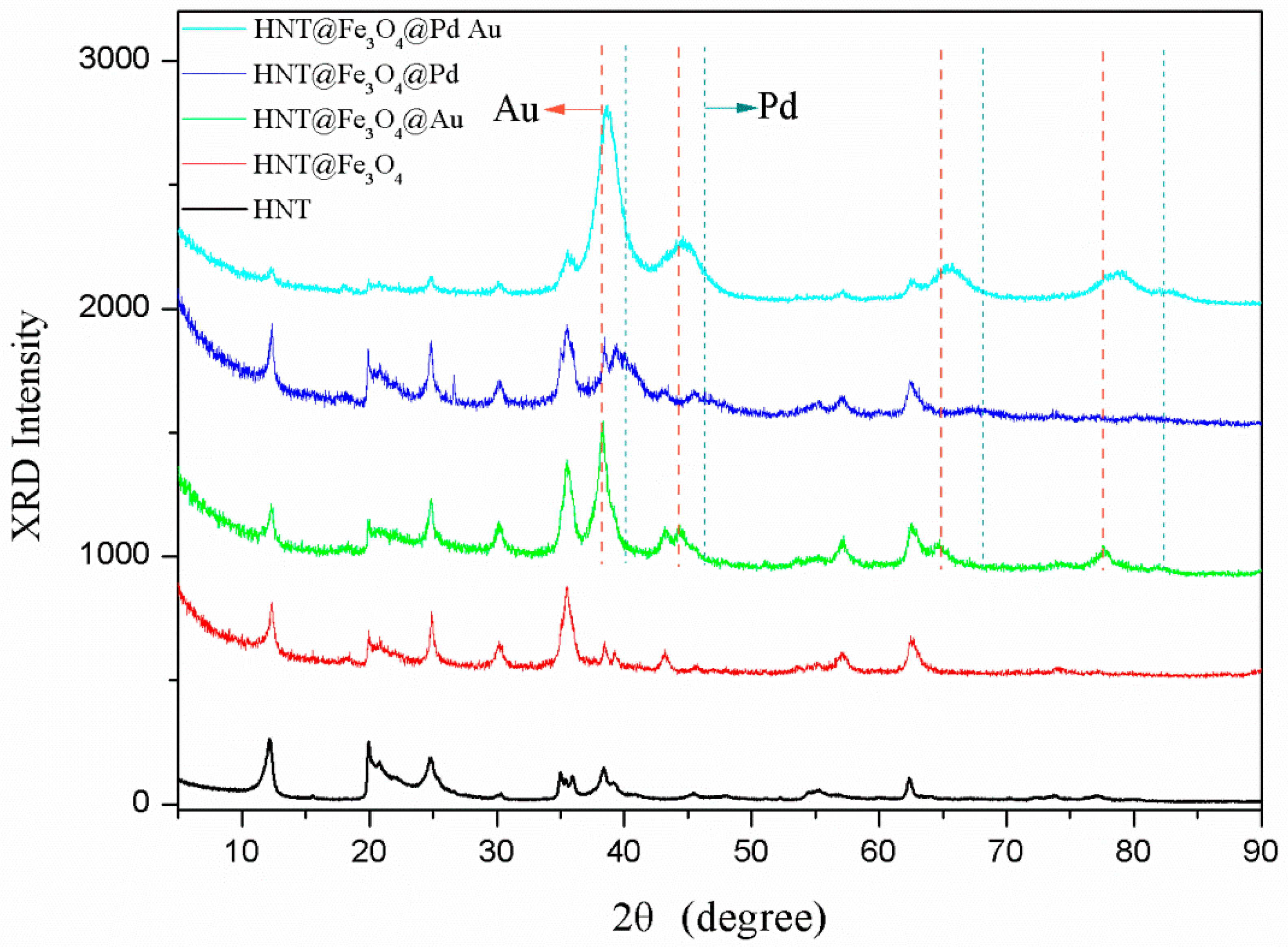

Figure 1. X-ray diffraction (XRD) patterns of as-synthesized nanocatalysts.
Figure 1. X-ray diffraction (XRD) patterns of as-synthesized nanocatalysts.
Nanomaterials 07 00333 g001
Nanomaterials 07 00333 g002 550

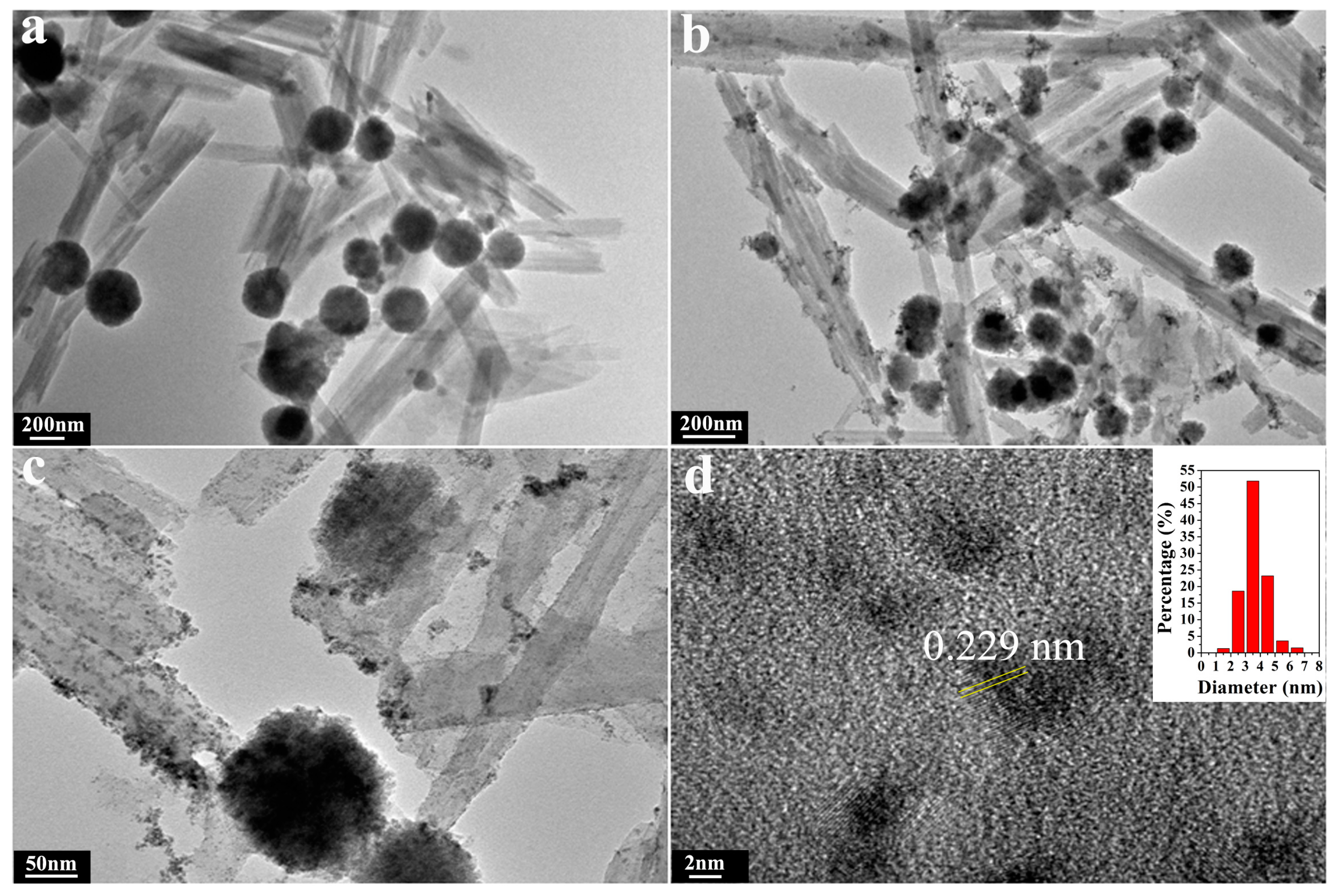

Figure 2. Transmission electron microscopy (TEM) images of HNTs@Fe3O4 (a), HNTs@Fe3O4@AuPd (b,c); high resolution TEM (HRTEM) image of AuPd bimetallic nanoparticles on the HNTs@Fe3O4 catalysts carrier (d); The inner image in (d) is the size distribution of AuPd bimetallic NPs.
Figure 2. Transmission electron microscopy (TEM) images of HNTs@Fe3O4 (a), HNTs@Fe3O4@AuPd (b,c); high resolution TEM (HRTEM) image of AuPd bimetallic nanoparticles on the HNTs@Fe3O4 catalysts carrier (d); The inner image in (d) is the size distribution of AuPd bimetallic NPs.
Nanomaterials 07 00333 g002
Nanomaterials 07 00333 g003 550

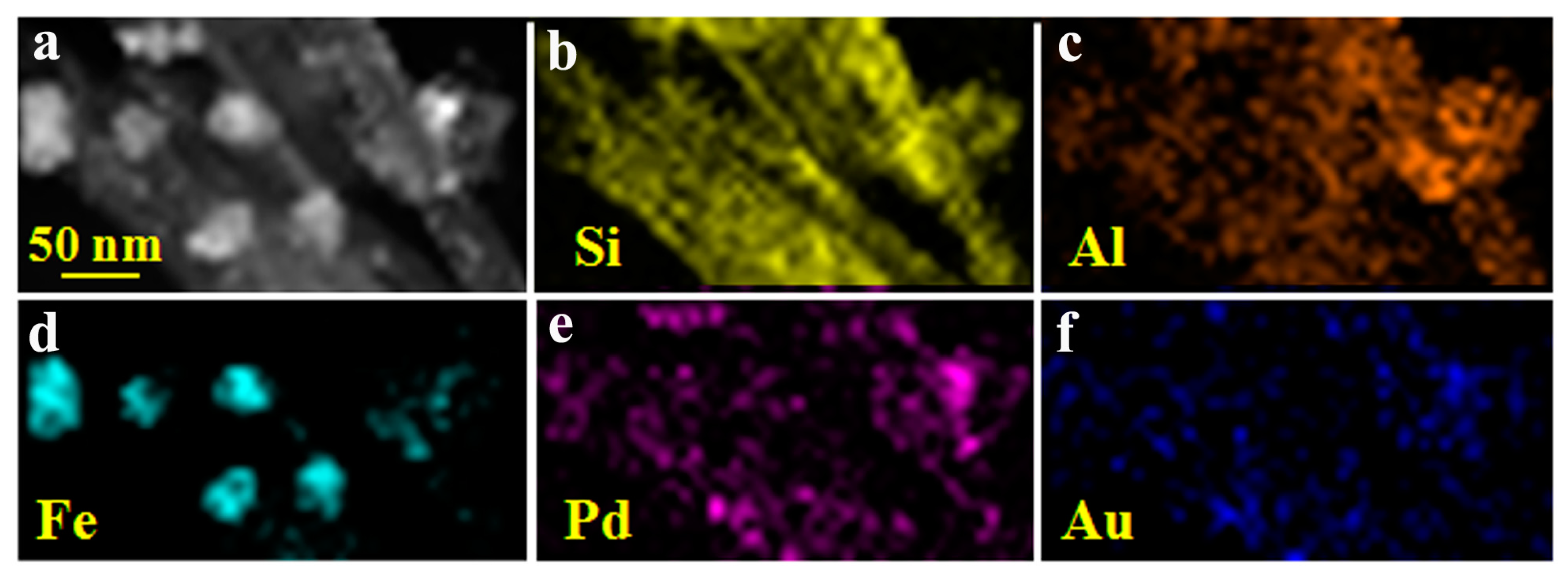

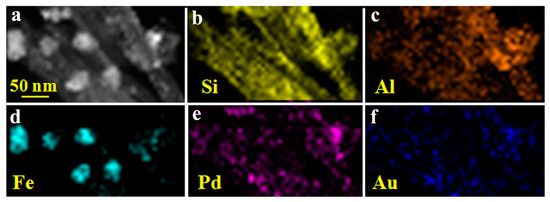

Figure 3. HAADF-STEM images of HNTs@Fe3O4@AuPd (a); energy-dispersive X-ray spectroscopy (EDX) mapping of Si element (b); Al element (c); Fe element (d); Pd element (e); and, Au element (f).
Figure 3. HAADF-STEM images of HNTs@Fe3O4@AuPd (a); energy-dispersive X-ray spectroscopy (EDX) mapping of Si element (b); Al element (c); Fe element (d); Pd element (e); and, Au element (f).
Nanomaterials 07 00333 g003
Nanomaterials 07 00333 g004 550

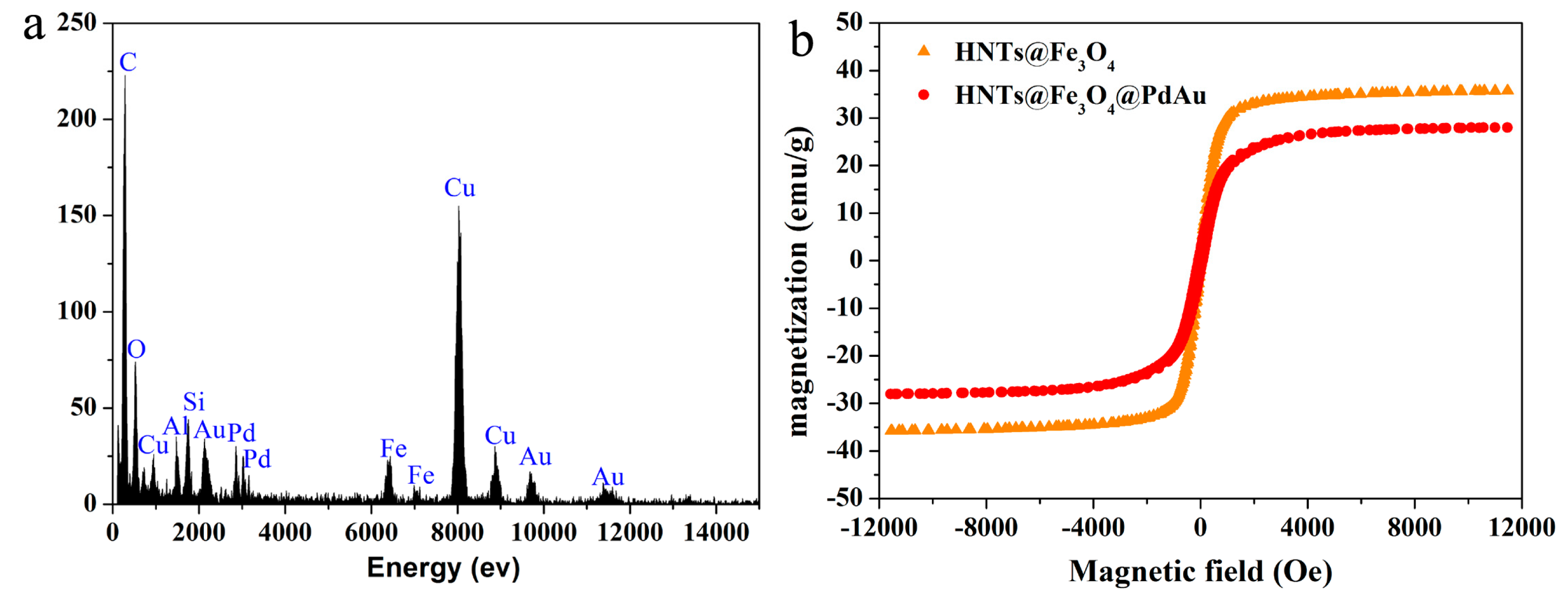

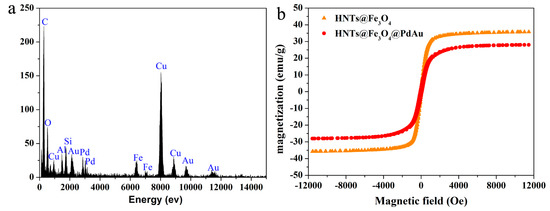

Figure 4. (a) EDX spectrum of HNTs@Fe3O4@AuPd nanocatalysts; (b) Room-temperature magnetization hysteresis loops of the as-prepared HNTs@Fe3O4 and HNTs@Fe3O4@AuPd.
Figure 4. (a) EDX spectrum of HNTs@Fe3O4@AuPd nanocatalysts; (b) Room-temperature magnetization hysteresis loops of the as-prepared HNTs@Fe3O4 and HNTs@Fe3O4@AuPd.
Nanomaterials 07 00333 g004
Nanomaterials 07 00333 g005 550

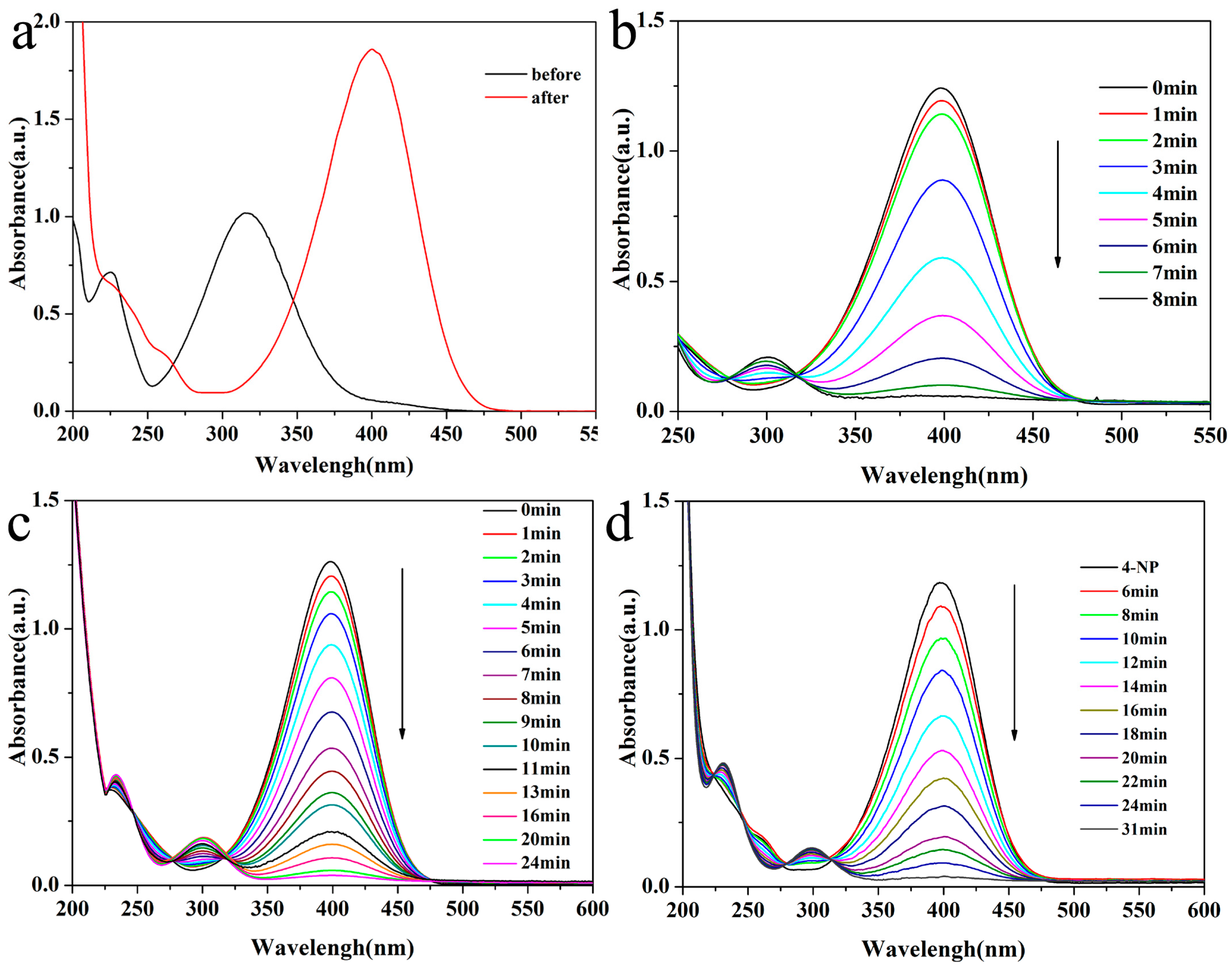

Figure 5. (a) UV-vis spectra of 4-NP before and after adding NaBH4 solution without catalysts; time-dependent UV-vis absorption spectra of reduction of 4-NP by NaBH4 in presence of HNT@Fe3O4@Au40Pd60 (b); HNT@Fe3O4@Pd (c) and HNT@Fe3O4@Au (d).
Figure 5. (a) UV-vis spectra of 4-NP before and after adding NaBH4 solution without catalysts; time-dependent UV-vis absorption spectra of reduction of 4-NP by NaBH4 in presence of HNT@Fe3O4@Au40Pd60 (b); HNT@Fe3O4@Pd (c) and HNT@Fe3O4@Au (d).
Nanomaterials 07 00333 g005
Nanomaterials 07 00333 g006 550

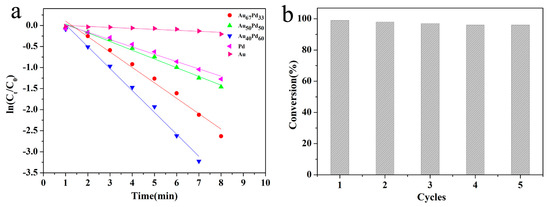

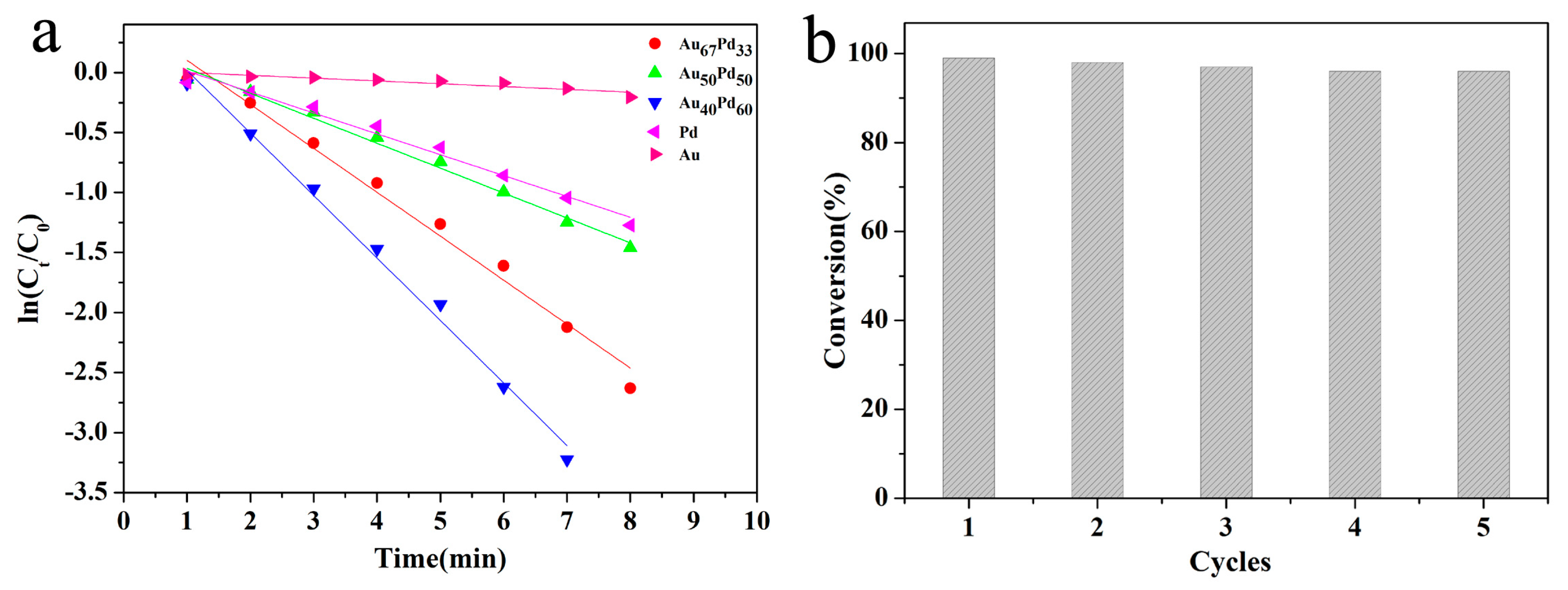

Figure 6. (a) The relationships between ln(Ct/C0) and reaction time t (d) for the reduction of 4-NP over different catalysts; (b) the reusability of the Au40Pd60@HNT@Fe3O4 nanocatalysts for the catalytic reduction of 4-NP.
