In Situ Synthesis of a Stable Fe3O4@Cellulose Nanocomposite for Efficient Catalytic Degradation of Methylene Blue

by
Quan Lu
1,
Yanjuan Zhang
1,*,
Huayu Hu
1,
Wen Wang
1,
Zuqiang Huang
1,*,
Dong Chen
2,
Mei Yang
1 and
Jing Liang
1
1
School of Chemistry and Chemical Engineering, Guangxi University, Nanning 530004, China
2
State Key Laboratory of Non-Food Biomass and Enzyme Technology, Guangxi Academy of Sciences, Nanning 530007, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2019, 9(2), 275; https://doi.org/10.3390/nano9020275
Submission received: 25 January 2019 / Revised: 10 February 2019 / Accepted: 13 February 2019 / Published: 16 February 2019
Browse Figures
Versions Notes

Abstract

:
To rapidly obtain a stable Fe3O4@cellulose heterogeneous Fenton catalyst, a novel in situ chemical co-precipitation method was developed. Compared with mechanical activation (MA)-pretreated cellulose (MAC), MA + FeCl3 (MAFC)-pretreated cellulose (MAFCC) was more easily dissolved and uniformly distributed in NaOH/urea solvent. MAFCC and MAC solutions were used as precipitators to prepare Fe3O4@MAFCC and Fe3O4@MAC nanocomposites, respectively. MAFCC showed stronger interaction and more uniform combination with Fe3O4 nanoparticles than MAC, implying that MAFC pretreatment enhanced the accessibility, reactivity, and dissolving capacity of cellulose thus, provided reactive sites for the in situ growth of Fe3O4 nanoparticles on the regenerated cellulose. Additionally, the catalytic performance of Fe3O4@MAFCC nanocomposite was evaluated by using for catalytic degradation of methylene blue (MB), and Fe3O4@MAC nanocomposite and Fe3O4 nanoparticles were used for comparative studies. Fe3O4@MAFCC nanocomposite exhibited superior catalytic activity for the degradation and mineralization of MB in practical applications. After ten cycles, the structure of Fe3O4@MAFCC nanocomposite was not significantly changed owing to the strong interaction between MAFCC and Fe3O4 nanoparticles. This study provides a green pathway to the fabrication of a stable nanocomposite catalyst with high catalytic performance and reusability for the degradation of organic pollutants.

Graphical Abstract

1. Introduction

The Fenton reaction, one of the typical advanced oxidation processes (AOPs), has been proven to be one of the most promising alternative wastewater treatment technologies due to its excellent ability to produce strongly reactive hydroxyl radicals, which can attack the organic pollutants and convert the pollutants into small molecules or mineralize them into CO2 and H2O [1,2]. However, homogeneous Fenton systems have some drawbacks, especially the formation of iron sludge leading to secondary pollution and high cost. On the contrary, heterogeneous Fenton processes have showed great efficiency to overcome these problems [3]. Recently, Fe3O4 nanocatalyst has attracted more attention because of its unique properties, including excellent magnetism, reusability, and low toxicity [4]. Nevertheless, Fe3O4 nanoparticles are easy to agglomerate, which will lead to the reduction of their catalytic activity. To preserve the particular performances of Fe3O4 nanocatalyst, many support materials have been used to immobilize Fe3O4 nanoparticles to enhance their dispersity, such as activated carbon [5], graphene oxide [6], montmorillonite [7], etc. Additionally, magnetic composites have been widely used as heterogeneous catalysts to treat wastewater. Therefore, it is crucial to select a suitable support for preparing environment-friendly, stable, and renewable supported Fe3O4 Fenton catalyst for catalytic degradation of organic pollutants in wastewater.
Cellulose is regarded as one of the most abundant organic polymers in nature [8], and has been studied and applied as a precursor of functional materials [9]. It has been reported that cellulose could be used as an excellent support because of its large surface area, good mechanical properties, and almost inexhaustible, biodegradable, and renewable properties [9,10]. Besides, cellulose contains strong inter- and intramolecular hydrogen bonds owing to plenty of hydroxyl groups, which may be an important factor to anchor Fe3O4 nanoparticles. For instance, Jiao et al. [11] immobilized Fe3O4 nanoparticles onto cellulose aerogel to prepare Fenton-like catalyst by a hydrothermal method, which displayed a higher degradation rate for Rhodamine B than pure Fe3O4 nanoparticles. The approach was simply described that cellulose hydrogels were immersed in a mixed iron solution for 24 h in the existence of CH3COONa and PEG-4000, and then were heated to 200 °C for 8 h. Qin et al. [12] adopted cellulose nanospheres to support Fe3O4 nanoparticles through adding two alkaline solutions. Cellulose was treated in NaOH solution for 8 h, and then the composite was precipitated with ammonia aqueous solution. The combination of cellulose nanospheres and Fe3O4 could remove textile dye rapidly in the existence of H2O2. Zhu et al. [13] reported the preparation of cellulose/Fe3O4/activated carbon composite which was applied to adsorption removal of Congo Red. Pure Fe3O4 was first synthesized, and then Fe3O4 and activated carbon were added into a cellulose solution to prepare the magnetic adsorbent in the presence of epichlorohydrin. In the aforementioned reports, cellulose acted as encapsulating medium for the magnetic nanoparticles mainly through two processes: monophase cellulose precursor and monophase Fe3O4 were first prepared separately, and then they were combined to synthesize the composites for dye wastewater treatment. Furthermore, cellulose@Fe3O4 composite was similarly prepared by multiple processes for the use of other applications [14,15,16]. These sophisticated methods involve high temperatures, long reaction times, use of crosslinker agents, and high cost, which may restrict their structural integrity and practical applications in severe environment.
Additionally, the high degree of polymerization (DP) of cellulose also hinders its application, because a high DP can prevent the dissolution of cellulose in commonly used solvents. It has been reported that cellulose could rapidly dissolve in a green solvent of 7 wt% NaOH/12 wt% urea aqueous solutions, but the solvent system was also hampered by the high viscosity molecular weight of native cellulose [17,18]. In our previous studies, mechanical activation (MA) and MA + metal salt pretreatments have witnessed the successful destruction of inter- and intramolecular hydrogen bonds and stable crystal structure of native cellulose [19]. Especially, MA + metal salt pretreatment can greatly reduce the DP and crystallinity of cellulose, thus, increase its accessibility and dissolving capacity [8]. Therefore, MA + FeCl3 (MAFC) pretreatment was used to destroy the crystal structure and molecular chains of cellulose in this study, which would be beneficial to improve the application of cellulose.
Herein, we present a novel and facile in situ chemical co-precipitation method for the preparation of a stable cellulose supported Fe3O4 nanoparticles heterogeneous Fenton catalyst without the use of crosslinker agents or intermediate fusion. MAFC-pretreated cellulose (MAFCC) was dissolved in a NaOH/urea solvent system to prepare the cellulose solution, which was used as the alkaline agent and precipitator to prepare the Fe3O4@MAFCC nanocomposite. In addition, MA-pretreated cellulose (MAC) was also applied to synthesize Fe3O4@MAC nanocomposite for investigating the effect of pretreatment on the interaction between cellulose and Fe3O4 nanoparticles. Methylene blue (MB) was selected as a model dye wastewater for the study of catalytic degradation in a heterogeneous Fenton system. The catalytic performance, mineralization capacity, and reusability of Fe3O4@MAFCC, Fe3O4@MAC, and pure Fe3O4 were comprehensively investigated.

2. Materials and Methods

2.1. Materials

Bagasse pulp, provided by a local sugar factory (Nanning, China), was used as native cellulose material with a DP of 1010. Anhydrous FeCl3, FeCl3·6H2O, FeCl2·4H2O, NaOH, H2O2 (30%), ethanol, H2SO4 (98%), and tert-butanol were purchased from Guangdong chemical reagents Co. Ltd. (Guangzhou, China). Glucose anhydrous and urea were purchased from Sinopharm Chemical Reagent Co. Ltd. (Shanghai, China). MB was provided by Guangfu Fine Chemical Institute (Tianjin, China). All chemical reagents were of analytical grade and used without further purification. Deionized water was used throughout the experiments.

2.2. Pretreatment of Cellulose

The pretreatment of cellulose was performed according to our previous studies [8,20]. MA + FeCl3 (MAFC) and MA were applied to pretreat cellulose, respectively. 500 mL of milling balls (5 mm diameter) was firstly put into a jacketed stainless-steel canister (1200 mL), and then 20 g of dry cellulose and 0.5 g of anhydrous FeCl3 were added into the canister. The mixture was stirred for 2 h at a speed of 300 rpm and a temperature of 50 °C by circulating the thermostatic water in the jacket of canister. Finally, MAFCC was obtained by sieving. In addition, MAC was prepared by the same way as MAFCC, without the addition of FeCl3.

2.3. Preparation of Cellulose@Fe3O4 Nanocomposite

MAFCC (2.0 g) was added into 7 wt% NaOH/12 wt% urea/81 wt% H2O solvent system. The mixed aqueous solution was cooled to −12 °C, and then was immediately thawed and vigorously stirred for 5 min at ambient temperature. The resultant cellulose solution was centrifuged at 9000 rpm for 10 min to remove undissolved cellulose and obtain a transparent cellulose solution.
Fe3O4@MAFCC nanocomposite was prepared by chemical co-precipitation method where the cellulose solution was used as a precipitator under nitrogen bubbling. FeCl3·6H2O and FeCl2·4H2O with Fe3+/Fe2+ molar ratio of 2:1 (the addition of FeCl3·6H2O should subtract the amount of FeCl3 that added in MAFC pretreatment) and 0.1 g of anhydrous glucose were dispersed in 80 mL water. The aqueous solutions of Fe3+ and Fe2+ were magnetic stirred for dissolving at 30 °C under nitrogen bubbling. Then the dissolved cellulose solution was added dropwise into the Fe3+/Fe2+ solution to adjust pH to 12 at 30 °C, followed by constant mechanical stirring to achieve chemical precipitation. After stirring for 30 min, the reaction system was vigorously stirred for 2 h at 80 °C. Consequently, the precipitant was collected by magnetic separation and washed three times using ethanol and distilled water, respectively. Then, the Fe3O4@MAFCC nanocomposite was freeze dried for 24 h. For comparison, Fe3O4@MAC nanocomposite was prepared by the same method as Fe3O4@MAFCC. Pure Fe3O4 nanoparticle was synthesized by precipitating in 7 wt% NaOH solution under the similar conditions without adding cellulose.

2.4. Characterization

The structure of cellulose in NaOH/urea solution was observed by a JEM-2100 transimission electron microscope (TEM, JOELF, Tokyo, Japan). The diluted cellulose solution was suspended on a porous carbon film and dried at ambient temperature, and then the characterization was operated at a voltage of 200 kV. Crystal structure of the samples was measured by a D/MAX2500 V X-ray diffraction (XRD, Rigaku, Tokyo, Japan) using Cu-Kα radiation (λ = 0.154 nm) at 40 kV and 30 mA with 2θ range from 5° to 80°. The d values of the mean diameter of (311) for Fe3O4 nanoparticles were calculated using the Scherrer equation [21]:
d = kλ/(βcosθ)
where d is crystallite size, k is a constant applied as 0.89, λ is the X-ray wavelength, β is the full width at half maximum, and θ is the Bragg angle.
Fourier transform infrared spectroscopy (FTIR) spectra were recorded by a FTIR-8400S Spectrometer (SHIMADZU, Kyoto, Japan) in the range of 400 to 4000 cm−1. The surface chemical blinding energies between Fe3O4 and cellulose were characterized by X-ray photoelectron spectroscopy (XPS, Thermo Fisher Scientific, Waltham, MA, USA). Field emission scanning electron microscopy (FESEM, SUPRA 55 Sapphire, Carl Zeiss, Oberkochen, Germany) was used to analyze the surface morphologies of the samples. A thin layer of gold was coated on the samples to improve the conductivity. Magnetic properties were measured by a Series 7400 model 7404 vibrating sample magnetometer (VSM, LakeShore, Beijing, China), and the hysteretic loop was obtained under an applied magnetic field between −20,000 and 20,000 Oe at 300 K.

2.5. Degradation Experiments

MB was used to assess the catalytic properties of Fe3O4@MAFCC, Fe3O4@MAC, and Fe3O4 catalysts in a heterogeneous Fenton reaction as it was one of the most difficult dyes to treat. Typically, 50 mL of MB solution (50 mg L–1) was initially adjusted to pH = 2.5 with 0.1 M H2SO4. Then, the heterogeneous Fenton experiment was performed by adding 0.03 g of catalyst (0.6 g L–1) and 0.3 mL H2O2 (6 mL L–1) into 50 mL of MB solution in a thermostat shaker, with a shaking speed of 120 rpm at 50 °C. At different time intervals, the supernatant was drawn and separated rapidly by a magnet. The concentration of remnant MB in supernatant was analyzed by measuring the absorbance of MB at 664 nm on a TU–1901 UV–vis spectrophotometer (Beijing purkinje, Beijing, China). The leaching of Fe from the catalysts was measured according to the 1,10-phenanthroline method [22]. Total organic carbon (TOC) was used to evaluate the degree of mineralization for the heterogeneous Fenton system. Tert-butanol was employed as hydroxyl radical scavenger to determine the generation of •OH species, which played an important role in this catalytic degradation.

2.6. Recyclability Experiments

The wet catalysts were collected by a magnet and washed with deionized water before reused in the next degradation experiment. The degradation procedures were the same as the first degradation experiment during the process of recycling. After ten cycles, the used catalysts were collected and washed with deionized water, and then were freeze-dried for 24 h. The structure and morphology of the used catalysts were determined by XRD and FESEM analyses and compared with those of the fresh catalysts.

3. Results and Discussion

3.1. Structure of the Cellulose Solutions

Previous studies by our group had proved that metal ions could combine with oxygen atoms of hydroxyl groups on the surface of cellulose induced by ball milling to destroy the inter- and intramolecular hydrogen bonds of cellulose, which greatly reduced the DP and crystallinity of cellulose and, thus, improved the dissolution of cellulose [8,23]. As shown in Figure 1a,b, MAC and MAFCC dissolved in NaOH/urea solution display a wormlike pattern, which could be ascribed to that the hydrogen bonds between cellulose and NaOH hydrates were surrounded by urea [24]. Significantly, MAFCC was more uniformly distributed in the solvent than MAC, indicating that MAFC pretreatment enhanced the accessibility of cellulose, which caused a better dispersion in the solvent. As a result, it could be deduced that the uniform distribution of FeCl3 on the surface of cellulose by MAFC pretreatment could act as active sites, which was beneficial to prevent the self-aggregation of cellulose chain and enhance the accessibility and reactivity of cellulose. Moreover, the uniform dispersion and combination of the Fe3+ ions with the hydroxyl groups of MAFCC could act as anchored sites for in situ growth of Fe3O4, which could result in the enhanced interaction between cellulose and Fe3O4.

3.2. Analysis of the Interaction between Cellulose and Fe3O4

3.2.1. XRD Analysis

XRD analysis was used to investigate the crystal structure of the samples, and the XRD patterns are presented in Figure 2. Figure 2a shows the XRD patterns of native cellulose, which the two strong peaks at 16.2° and 22.8° were assigned to (110) and (200) planes of crystalline cellulose I [23]. Clearly, two distinctive peaks of native cellulose were replaced by a broad band after MA and MAFC pretreatments, and the decrease in the diffraction intensity of MAFCC was more significant compared with that of MAC (Figure 2b,c), confirming that MAFC pretreatment could more remarkably destroy the crystal structure of cellulose, thus, enhance the accessibility and dissolving capacity of cellulose [8]. Additionally, the crystalline structure of the cellulose in the nanocomposites was not obvious (Figure 2e,f), implying that the interaction between Fe3O4 and cellulose disrupt the crystal structure of cellulose. Moreover, Fe3O4, Fe3O4@MAC, and Fe3O4@MAFCC (Figure 2d–f) exhibit similar diffraction peaks at 30.2°, 35.6°, 43.3°, 53.7°, 57.2°, and 62.8°, which accorded with the (220), (311), (400), (422), (511), and (440) crystal planes with a cubic structure (JCPDS card No. 19-0629) [11,25], suggesting that the anchored Fe3O4 nanoparticles on the cellulose retained their cubic spinel crystal phase properties. The d values of the mean diameter of (311) on Fe3O4@MAFCC, Fe3O4@MAC, and Fe3O4 were 4.16, 7.21, and 15.28 nm, respectively, indicating that the crystallite size of the Fe3O4 in the nanocomposites was smaller than that of pure Fe3O4 nanoparticles. The intensity of the diffraction peaks of the nanocomposites was relatively low, resulting from a decrease in the crystalline phase of the Fe3O4 nanoparticles. Furthermore, the crystallite size and crystalline phase of the Fe3O4 nanoparticles in the Fe3O4@MAFCC nanocomposite were weaker than those in the Fe3O4@MAC nanocomposite, which may attribute to that MAFCC exhibited stronger interaction with Fe3O4 owing to higher accessibility and reactivity of the cellulose pretreated by MAFC.

3.2.2. FTIR Analysis

FTIR analysis can reveal some evidence to further confirm the interaction between cellulose and Fe3O4 nanoparticles. As illustrated in Figure 3, the FTIR spectra of native cellulose, MAC, and MAFCC show the characteristic peaks of cellulose at 3428, 2921, 1437, 1378, and 1046 cm‒1, corresponding to the O‒H stretching vibration, C‒H stretching vibration, C‒H banding vibration, C‒H deformation vibration, and C‒O stretching vibration, respectively [12,26]. These characteristic peaks of cellulose were also observed on the spectra of Fe3O4@MAC and Fe3O4@MAFCC nanocomposites (Figure 3e,f). The characteristic bands at around 1643 cm‒1 ascribed to absorbed water are presented in all samples [27]. In the spectrum of Fe3O4 (Figure 3d), a peak at 580 cm‒1 was the essential characteristic of Fe3O4 [25], and the peak at 3423 cm‒1 was belong to the O‒H bond of water. It was noted that the characteristic peak of Fe3O4 also displayed on the spectra of the nanocomposites (Figure 3e,f). In particular, the broad peak of the O‒H bond in the nanocomposites shifted to a lower wavenumber compared with that of cellulose, implying the presence of interaction between cellulose and Fe3O4 through hydrogen bonds [28]. The shift in the spectrum of Fe3O4@MAFCC was more than that of Fe3O4@MAC, indicating a stronger interaction appeared in Fe3O4@MAFCC. It is probably related to that MAFC pretreatment could improve the distribution of Fe3+ on the cellulose and the dispersion and accessibility of cellulose in the solvent, leading to a stronger interaction between cellulose and Fe3O4. These results demonstrate that Fe3O4 nanoparticles have been immobilized on the cellulose through in situ chemical co-precipitation method, and the MAFC pretreatment is important for enhancing the properties of the Fe3O4@cellulose nanocomposite.

3.2.3. Surface Element Composition Analysis

XPS analysis was performed to investigate the element composition and the surface chemical bonding of the samples. Figure 4a shows the main surface species of all the samples were C, O, and Fe, and no other elements were investigated. Figure 4b,c display the high-resolution O 1s XPS spectra. The binding energies at around 530.1 and 532.9 eV were attributed to Fe‒O bonds with area peak of 38.7% and C‒O bonds with area peak of 61.3% for Fe3O4@MAC nanocomposite [29,30]. The O 1s spectrum of Fe3O4@MAFCC was also deconvoluted to two peaks, which were Fe‒O bonds (39.8%) and C‒O bonds (60.2%). These results could indicate that the Fe3O4 nanoparticles were supported on cellulose. Moreover, the C 1s core-level peak can be fitted into three peaks in Figure 4d. The peaks at 287.2, 286.3, and 284.5 eV for Fe3O4@MAC were ascribed to C=O, C‒OH or C‒O‒C, and C‒C [11,31], respectively. However, these peaks in Figure 4e were shifted to lower binding energies in the spectrum of Fe3O4@MAFCC, which may be related to a stronger interaction between MAFCC and Fe3O4 according to XRD and FTIR analyses. Particularly, these groups would provide many reactive sites for the bonding between Fe3O4 and cellulose, and the combination mainly through hydroxyl groups on cellulose because the characteristic peak (286.3 eV) was the strongest peaks (Figure 4d). Furthermore, as shown in Figure 4f, the high resolution Fe 2p (10.6%) spectrum of Fe3O4@MAC contains two peaks at around 710.8 and 724.0 eV, corresponding to Fe 2p3/2 and Fe 2p1/2 belonging to Fe3+ and Fe2+ species [32,33], respectively. However, the weak peak of 716.5 eV represented the satellite peak of Fe2+ species [34]. The area peaks of Fe3+ and Fe2+ species were calculated to be 58.6% and 41.4%, respectively. For Fe3O4@MAFCC (Figure 4g), the Fe 2p (11.8%) spectrum also shows three peaks, which were attributed to Fe3+ (54.3%) and Fe2+ (45.7%) species. It was found that the atomic concentrations of Fe 2p and area peak of Fe2+ for Fe3O4@MAFCC were more than those of Fe3O4@MAC, which could lay a foundation for a heterogeneous Fenton reaction. In addition, this analysis could further confirm that the oxide in the nanocomposites was Fe3O4, which was in good agreement with the reported studies [6,31].

3.2.4. Magnetic Behaviors

The magnetic properties of different samples were obtained by a vibrating sample magnetometer (VSM) at room temperature. As presented in Figure 5, pure Fe3O4 nanoparticles performed a higher saturation magnetization (MS = 60.2 emu g‒1), while the MS values for Fe3O4@MAC and Fe3O4@MAFCC nanocomposites were 29.4 and 23.3 emu g‒1, respectively. These mainly due to the fact that cellulose is non-magnetic and thus, reduced the Ms of the nanocomposites, which agreed with other magnetic composites reported by Zhu [13] and Fan [30]. However, the Ms of Fe3O4@MAFCC was lower than that of Fe3O4@MAC, which may also be attributed to the strong interaction between MAFCC and Fe3O4. Despite the reduction of MS, the nanocomposites still exhibited superparamagnetic properties, which could be quickly separated from the solution using an external magnetic field, as shown in the inset picture in Figure 5. The magnetic responsivity would be advantageous for their reuse in the treatment of dye wastewater.

3.2.5. Surface Morphology Analysis

Morphology of the samples was studied by Field emission scanning electron microscopy (FESEM), and the images are shown in Figure 6. It can be seen from Figure 6a that pure Fe3O4 was the aggregation of sphere-like nanoparticles. In Figure 6b,c, Fe3O4@MAC and Fe3O4@MAFCC nanocomposites display porous morphologies, indicating that the presence of cellulose reduced the agglomeration of Fe3O4 nanoparticles. In particular, Fe3O4 nanoparticles were evenly distributed on the surface of the regenerated cellulose in the Fe3O4@MAFCC nanocomposites. This could be ascribed to that the uniform distribution of FeCl3 on the surface of cellulose by MAFC pretreatment promoted a good dispersion of cellulose in the solvent and provided reaction sites for the in situ growth of Fe3O4 nanoparticles, resulting in a uniform combination between cellulose and Fe3O4 nanoparticles. Meanwhile, the uniform distribution of the Fe3O4 nanoparticles in cellulose could increase the activities of the nanocomposites, which would help to improve their catalytic properties.

3.2.6. Process of the Combination of Cellulose and Fe3O4 Nanoparticles

Based on the aforementioned analyses, a reasonable process of the combination of cellulose and Fe3O4 nanoparticles in the nanocomposites can be illustrated in Figure 7. At first, cellulose was pretreated by MAFC for improving its dissolving capacity. The cellulose displayed a rapid dissolution and a good dispersion in the NaOH/urea solvent, and a wormlike cellulose inclusion complex could be self-assembled with small molecules of the solvent [24]. Afterward, the transparent cellulose solution used as a precipitant was added into the Fe2+/Fe3+ solution for the formation of Fe3O4 nanoparticles by chemical co-precipitation method. Simultaneously, the presence of Fe2+ and Fe3+ ions in the solution and increased temperature could destroy the stability of cellulose solution, resulting in the destruction of the inclusion complex structure of cellulose. Therefore, the cellulose solution could transform into gels by the self-aggregation and entanglement network of cellulose molecules [35,36]. During the process of cellulose regeneration, Fe3O4 nanoparticles were in situ grown in the regenerated cellulose at the anchored and reactive sites as the uniform distribution of FeCl3 on the surface of MAFCC, resulting in an evenly-distributed Fe3O4 nanoparticles. This novel approach provides a simple method to synthesize eco-friendly nanocomposites and achieves an effective use of resources. Especially, NaOH aqueous solution was not only considered as solvent for the dissolution of cellulose but also used as the precipitator for the preparation of Fe3O4 nanoparticles in this method.

3.3. Catalytic Degradation of MB

Heterogeneous Fenton degradation of MB was chosen to evaluate the catalytic activity of the as-prepared samples. As shown in Figure 8a, the degradation of MB by only H2O2 was almost negligible, indicating that the lack of degradation of the dye discards any visible light induced reactivity [37]. With the addition of catalysts, a significant reduction of the MB concentration was observed. After reacting for 20 min, only 42.7% of MB was degraded in the presence of Fe3O4 and H2O2, while the degradation of MB achieved 90.8% and 98.2% when using Fe3O4@MAC and Fe3O4@MAFCC as the catalysts, respectively. It was found that the introduction of cellulose obviously enhanced the catalytic activity and a higher degradation was obtained in H2O2-Fe3O4@MAFCC heterogeneous Fenton system than in H2O2-Fe3O4@MAC heterogeneous Fenton system. On the other hand, Figure 8b shows the adsorption curves of MB on all the samples. When only the catalysts existed in the MB solution, Ct/C0 decreased to 0.88 at 20 min, demonstrating that about 13% of MB was adsorbed by the catalysts. The adsorption capacity of these three catalysts exhibited no obvious difference. However, after adsorbing for 20 min by Fe3O4@MAFCC catalyst, the concentration of MB sharply decreased as the addition of H2O2 after reacting for only 5 min, indicating that the catalysis included two processes, the adsorption of MB onto the catalysts and the catalytic degradation of the adsorbed MB. Evidently, catalytic degradation played a crucial role in the removal of MB.
To verify the excellent catalytic action in H2O2-Fe3O4@MAFCC heterogeneous Fenton system in comparison with other systems, the pseudo-first-order kinetics was adopted to simulate the degradation rate of MB as follows:
ln(C/C0) = −kt
where C represents the concentration of MB at time t, C0 is the initial concentration of MB, and k is the apparent pseudo first order rate constant. As shown in Figure 8c, a fitting data of ln(C/C0) versus time (0–20 min) is linear for different catalysts, and the correlation coefficient R2 ≥ 0.98, suggesting that the degradation of MB by these catalysts followed a pseudo first order kinetics model. The k values for Fe3O4, Fe3O4@MAC, and Fe3O4@MAFCC catalysts were calculated to be 0.026, 0.141, and 0.219 min‒1, respectively. Clearly, Fe3O4@MAFCC exhibited a maximum rate constant, which could further prove that Fe3O4@MAFCC showed the best catalytic performance among these catalysts. This phenomenon could be ascribed to the smaller crystallite size of Fe3O4, higher atomic concentration of Fe 2p and area peak of Fe2+, and the uniform distribution of Fe3O4 in Fe3O4@MAFCC nanocomposite, which could accelerate the contact between Fe3O4 and H2O2 to generate active sites [11]. Therefore, H2O2-Fe3O4@MAFCC heterogeneous Fenton system may provide numerous reactive sites to greatly improve the catalytic degradation of MB.
As reported in many studies, hydroxyl radicals (•OH) are the master active species in the whole heterogeneous Fenton degradation process, which display a much higher oxidation potentials than •O2− and •OOH [12,38]. Tert-butanol is a common radical scavenger to determine whether the catalytic degradation involved •OH. As presented in Figure 8d, with the addition of 0.6 mol L‒1 tert-butanol, the degradation rate of MB was severely inhibited by comparison with that without tert-butanol in H2O2-Fe3O4@MAFCC system, suggesting that the severely quenched production of •OH imposed a significant impact on the reaction process. Additionally, it is evident that the degradation of MB was greatly inhibited in H2O2-Fe3O4@MAC and H2O2-Fe3O4 systems than in H2O2-Fe3O4@MAFCC system, indicating that the H2O2-Fe3O4@MAFCC heterogeneous Fenton system could produce more •OH to enhance the degradation rate of MB.
As mentioned above, a process for the degradation of MB was explained in the following reactions [38,39,40]:
≡FeIII + H2O2 → ≡FeIII H2O2
≡FeIII H2O2 → ≡FeII + •O2H + H+
≡FeIII + •O2H → ≡FeII + O2 + H+
≡FeII + H2O2 → ≡FeIII + •OH + OH−
•OH + MB →low molecular substances + CO2 + H2O
the initial stage of the reaction was the formation of a composite of ≡FeIII H2O2, where ≡FeIII stands for Fe (III) sites on the surface of the catalysts (Equation (3)). Afterward, ≡FeIII species could be reduced to ≡FeII species (Equations (4) and (5)), and the ≡FeII species were the main reactive sites to catalyze the activation of H2O2 for generating •OH radicals (Equation (6)), resulting in effective degradation of MB molecules to low molecular substances and even mineralization of MB to CO2 and H2O (Equation (7)). In this study, the mineralization of MB in different systems was measured and shown in Figure 9a. During the initial 60 min, the TOC removal efficiencies were 37.2%, 30.3%, and 20.4% with Fe3O4@MAFCC, Fe3O4@MAC, and Fe3O4 as catalysts, respectively. When the reaction proceeded to 6 h, the TOC removal increased significantly. In contrast, Fe3O4@MAFCC displayed a greater mineralization of MB in the reaction. To analyze the difference in the degradation and mineralization of MB, the temporal evolution of the degradation of MB in the H2O2-Fe3O4@MAFCC heterogeneous Fenton system was presented in Figure 9b. The maximum absorption wavelength at 665 nm was ascribed to the functional groups of the chromophore of MB and its dimers, which were attributed to ‒C=S and ‒C=N [41]. Notably, the intensity of the peak was obviously decreased and almost disappeared with the reaction time of only 20 min, indicating that the rapid destruction on the conjugate structure of MB molecules. A high degradation efficiency (98.2%) was obtained at a short time, because the chromophore groups of MB molecules were broken down rapidly, but TOC removal (37.2%) was relatively slower. Therefore, the process of mineralization fell behind the procedure of degradation. Nevertheless, a high TOC removal could be achieved by prolonging reaction time in this study. The extent of the mineralization efficiency of MB was an evidence for the practical applications of the catalysts.

3.4. Reusability Analysis

The reusability analysis was carried out to evaluate the potential applications of catalysts. Figure 10 shows the degradation of MB catalyzed by different catalysts for ten cycles. It is noted that the nanocomposites showed better reusability than pure Fe3O4 nanoparticles for each cycle, demonstrating that the catalysts in the presence of cellulose loaded with MB could be regenerated and reused several times [42]. However, when the number of cycles increased to ten times, the catalytic performance of the nanocomposites appeared different degree of reduction. The degradation efficiency of MB catalyzed by reused Fe3O4@MAFCC (61.2%) was markedly higher than that by reused Fe3O4@MAC (37.8%) at the tenth cycle, which could be attributed to the strong interaction between MAFCC and Fe3O4, leading to a better reusability of the catalyst. In addition, catalyst deactivation may be related to the adsorption of organic intermediates reducing the active catalytic sites and the loss of catalysts during the reaction and rinsing process [12]. Thus, it is important to investigate the causes of catalyst deactivation.
To clearly analyze the structural properties of the catalysts after catalytic degradation of MB, XRD and FESEM analyses were used to further prove the stability of the catalysts. As can be seen in Figure 11a, the crystal phase of the recycled Fe3O4@MAFCC and Fe3O4@MAC catalysts were the same as that of the original ones. However, the morphology of the used Fe3O4@MAC catalyst was different from that of the fresh one (Figure 11b). The interface between cellulose and Fe3O4 nanoparticles was easier to be observed from the recycled Fe3O4@MAC nanocomposite, which may be associated with the shedding of the Fe3O4 nanoparticles from the surface of cellulose during degradation experiments. This may be one of the reasons for the deactivation of catalyst. Particularly, the FESEM image of the recycled Fe3O4@MAFCC nanocomposite did not remarkably change after ten cycles (Figure 11c), which was also the porous morphology with uniform combination of the Fe3O4 nanoparticles on the surface of cellulose. These results show that the stability of Fe3O4@MAFCC catalyst was higher than that of Fe3O4@MAC catalyst, which was mainly owing to the strong interaction between MAFCC and Fe3O4. In addition, the level of iron leaching for Fe3O4@MAFCC catalyst was calculated to be lower than that of Fe3O4@MAC catalyst, but the amount was lower than 2 ppm, which conforms to the European standard [43]. Therefore, Fe3O4@MAFCC nanocomposite could be considered as an efficient and stable catalyst for the degradation and mineralization of the organic pollutants in practical applications.

4. Conclusions

In summary, a stable cellulose supported Fe3O4 nanocomposite was successfully synthesized through a facile in situ chemical co-precipitation method with cellulose solution as a precipitator for the catalytic degradation of MB. Using Fe3O4@MAC nanocomposite as a comparison, the cellulose pretreated by MAFC showed a good dispersion in the solvent and enhanced accessibility and reactivity, resulting in a uniform combination and strong interaction between MAFCC and Fe3O4 nanoparticles. The uniform distribution of FeCl3 on the surface of cellulose by MAFC pretreatment could provide reactive sites for the in situ growth of Fe3O4 nanoparticles in the regenerated cellulose. Moreover, Fe3O4@MAFCC catalyst could produce more •OH to enhance the catalytic degradation and mineralization of MB in the presence of H2O2, which was mainly attributed to the uniform dispersion of Fe3O4 nanoparticles on the cellulose. Additionally, the Fe3O4@MAFCC catalyst exhibited better reusability and stability than Fe3O4@MAC catalyst even after ten cycles, owing to the stronger interaction between MAFCC and Fe3O4 nanoparticles. Consequently, this novel approach could make full use of renewable resources to prepare stable nanocomposite catalyst for practical application of organic pollutants.

Author Contributions

Q.L., Y.Z. and H.H. conceived the subject of the study, performed the main analyses and experiments, and wrote the manuscript; Z.H. participated in the design of the study and wrote and revised the manuscript; W.W. collected and analyzed some of the experiment data; D.C., M.Y. and J.L. provided the materials, equipment, and suggestions, and collected and analyzed some of the characterizations.

Funding

This research was supported by National Natural Science Foundation of China (No. 21666005 and 51463003), Guangxi Natural Science Foundation, China (No. 2017GXNSFEA198001), Guangxi Distinguished Experts Special Foundation, China, and the Scientific Research Foundation of Guangxi University, China (Grant No. XJPZ160713).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lee, J.; Kim, J.; Chang, Y.; Chang, Y. Steel dust catalysis for Fenton-like oxidation of polychlorinated dibenzo-p-dioxins. J. Hazard. Mater. 2009, 163, 222–230. [Google Scholar] [CrossRef] [PubMed]
  2. Sable, S.S.; Panchangam, S.C.; Lo, S. Abatement of clofibric acid by Fenton-like process using iron oxide supported sulfonated-ZrO2: Efficient heterogeneous catalysts. J. Water Process Eng. 2018, 26, 92–99. [Google Scholar] [CrossRef]
  3. Rubeena, K.K.; Hari Prasad Reddy, P.; Laiju, A.R.; Nidheesh, P.V. Iron impregnated biochars as heterogeneous Fenton catalyst for the degradation of acid red 1 dye. J. Environ. Manag. 2018, 226, 320–328. [Google Scholar] [CrossRef] [PubMed]
  4. Keihan, A.H.; Veisi, H.; Biabri, P.M. Facile synthesis of PEG-coated magnetite (Fe3O4) and embedment of gold nanoparticle as a nontoxic antimicrobial agent. Appl. Organomet. Chem. 2017, 31, e3873. [Google Scholar] [CrossRef]
  5. Kakavandi, B.; Jonidi, J.A.; Rezaei, K.R.; Nasseri, S.; Ameri, A.; Esrafily, A. Synthesis and properties of Fe3O4-activated carbon magnetic nanoparticles for removal of aniline from aqueous solution: Equilibrium, kinetic and thermodynamic studies. Iran. J. Environ. Health Sci. Eng. 2013, 10, 19. [Google Scholar] [CrossRef] [PubMed]
  6. Jiang, X.; Li, L.; Cui, Y.; Cui, F. New branch on old tree: Green-synthesized RGO/Fe3O4 composite as a photo-Fenton catalyst for rapid decomposition of methylene blue. Ceram. Int. 2017, 43, 14361–14368. [Google Scholar] [CrossRef]
  7. Chang, J.; Ma, J.; Ma, Q.; Zhang, D.; Qiao, N.; Hu, M.; Ma, H. Adsorption of methylene blue onto Fe3O4/activated montmorillonite nanocomposite. Appl. Clay Sci. 2016, 119, 132–140. [Google Scholar] [CrossRef]
  8. Zhang, Y.; Li, Q.; Su, J.; Lin, Y.; Huang, Z.; Lu, Y.; Sun, G.; Yang, M.; Huang, A.; Hu, H.; et al. A green and efficient technology for the degradation of cellulosic materials: Structure changes and enhanced enzymatic hydrolysis of natural cellulose pretreated by synergistic interaction of mechanical activation and metal salt. Bioresour. Technol. 2015, 177, 176–181. [Google Scholar] [CrossRef]
  9. Arantes, A.C.C.; Almeida, C.D.G.; Dauzacker, L.C.L.; Bianchi, M.L.; Wood, D.F.; Williams, T.G.; Orts, W.J.; Tonoli, G.H.D. Renewable hybrid nanocatalyst from magnetite and cellulose for treatment of textile effluents. Carbohydr. Polym. 2017, 163, 101–107. [Google Scholar] [CrossRef]
  10. Mahmoud, K.A.; Male, K.B.; Hrapovic, S.; Luong, J.H.T. Cellulose Nanocrystal/Gold Nanoparticle Composite as a Matrix for Enzyme Immobilization. ACS Appl. Mater. Interfaces 2009, 1, 1383–1386. [Google Scholar] [CrossRef] [Green Version]
  11. Jiao, Y.; Wan, C.; Bao, W.; Gao, H.; Liang, D.; Li, J. Facile hydrothermal synthesis of Fe3O4@cellulose aerogel nanocomposite and its application in Fenton-like degradation of Rhodamine B. Carbohydr. Polym. 2018, 189, 371–378. [Google Scholar] [CrossRef] [PubMed]
  12. Qin, Y.; Qin, Z.; Liu, Y.; Cheng, M.; Qian, P.; Wang, Q.; Zhu, M. Superparamagnetic iron oxide coated on the surface of cellulose nanospheres for the rapid removal of textile dye under mild condition. Appl. Surf. Sci. 2015, 357, 2103–2111. [Google Scholar] [CrossRef]
  13. Zhu, H.Y.; Fu, Y.Q.; Jiang, R.; Jiang, J.H.; Xiao, L.; Zeng, G.M.; Zhao, S.L.; Wang, Y. Adsorption removal of congo red onto magnetic cellulose/Fe3O4/activated carbon composite: Equilibrium, kinetic and thermodynamic studies. Chem. Eng. J. 2011, 173, 494–502. [Google Scholar] [CrossRef]
  14. Sriplai, N.; Mongkolthanaruk, W.; Eichhorn, S.J.; Pinitsoontorn, S. Magnetically responsive and flexible bacterial cellulose membranes. Carbohydr. Polym. 2018, 192, 251–262. [Google Scholar] [CrossRef] [PubMed]
  15. Zhu, H.; Jia, S.; Wan, T.; Jia, Y.; Yang, H.; Li, J.; Yan, L.; Zhong, C. Biosynthesis of spherical Fe3O4/bacterial cellulose nanocomposites as adsorbents for heavy metal ions. Carbohydr. Polym. 2011, 86, 1558–1564. [Google Scholar] [CrossRef]
  16. An, X.; Cheng, D.; Dai, L.; Wang, B.; Ocampo, H.J.; Nasrallah, J.; Jia, X.; Zou, J.; Long, Y.; Ni, Y. Synthesis of nano-fibrillated cellulose/magnetite/titanium dioxide (NFC@Fe3O4@TNP) nanocomposites and their application in the photocatalytic hydrogen generation. Appl. Catal. B-Environ. 2017, 206, 53–64. [Google Scholar] [CrossRef]
  17. Qi, H.; Chang, C.; Zhang, L. Effects of temperature and molecular weight on dissolution of cellulose in NaOH/urea aqueous solution. Cellulose 2008, 15, 779–787. [Google Scholar] [CrossRef]
  18. Yang, Q.; Qi, H.; Lue, A.; Hu, K.; Cheng, G.; Zhang, L. Role of sodium zincate on cellulose dissolution in NaOH/urea aqueous solution at low temperature. Carbohydr. Polym. 2011, 83, 1185–1191. [Google Scholar] [CrossRef]
  19. Hu, H.; Zhang, Y.; Liu, X.; Huang, Z.; Chen, Y.; Yang, M.; Qin, X.; Feng, Z. Structural changes and enhanced accessibility of natural cellulose pretreated by mechanical activation. Polym. Bull. 2014, 71, 453–464. [Google Scholar] [CrossRef]
  20. Gan, T.; Zhang, Y.; Chen, Y.; Hu, H.; Yang, M.; Huang, Z.; Chen, D.; Huang, A. Reactivity of main components and substituent distribution in esterified sugarcane bagasse prepared by effective solid phase reaction. Carbohydr. Polym. 2018, 181, 633–641. [Google Scholar] [CrossRef]
  21. Burton, A.W.; Ong, K.; Rea, T.; Chan, I.Y. On the estimation of average crystallite size of zeolites from the Scherrer equation: A critical evaluation of its application to zeolites with one-dimensional pore systems. Microporous Mesoporous Mat. 2009, 117, 75–90. [Google Scholar] [CrossRef]
  22. Xu, L.; Wang, J. Fenton-like degradation of 2,4-dichlorophenol using Fe3O4 magnetic nanoparticles. Appl. Catal. B-Environ. 2012, 123, 117–126. [Google Scholar] [CrossRef]
  23. Gan, T.; Zhang, Y.; Su, Y.; Hu, H.; Huang, A.; Huang, Z.; Chen, D.; Yang, M.; Wu, J. Esterification of bagasse cellulose with metal salts as efficient catalyst in mechanical activation-assisted solid phase reaction system. Cellulose 2017, 24, 5371–5387. [Google Scholar] [CrossRef]
  24. Cai, J.; Zhang, L.; Liu, S.; Liu, Y.; Xu, X.; Chen, X.; Chu, B.; Guo, X.; Xu, J.; Cheng, H.; et al. Dynamic Self-Assembly Induced Rapid Dissolution of Cellulose at Low Temperatures. Macromolecules 2008, 41, 9345–9351. [Google Scholar] [CrossRef]
  25. Li, X.; He, Y.; Sui, H.; He, L. One-Step Fabrication of Dual Responsive Lignin Coated Fe3O4 Nanoparticles for Efficient Removal of Cationic and Anionic Dyes. Nanomaterials 2018, 8, 162. [Google Scholar] [CrossRef] [PubMed]
  26. Zheng, Y.; Yang, J.; Zheng, W.; Wang, X.; Xiang, C.; Tang, L.; Zhang, W.; Shiyan Chen, H.W. Synthesis of flexible magnetic nanohybrid based on bacterial cellulose under ultrasonic irradiation. Mater. Sci. Eng. C 2013, 33, 2407–2412. [Google Scholar] [CrossRef] [PubMed]
  27. Lan, W.; Liu, C.; Yue, F.; Sun, R.; Kennedy, J.F. Ultrasound-assisted dissolution of cellulose in ionic liquid. Carbohydr. Polym. 2011, 86, 672–677. [Google Scholar] [CrossRef]
  28. Luo, X.; Liu, S.; Zhou, J.; Zhang, L. In situ synthesis of Fe3O4/cellulose microspheres with magnetic-induced protein delivery. J. Mater. Chem. 2009, 19, 3538. [Google Scholar] [CrossRef]
  29. Huang, Z.; Ye, Y.; Zhu, S.; Yao, Y.; Lu, W.; Chen, W. Enhanced catalytic decoloration of Rhodamine B based on 4-aminopyridine iron coupled with cellulose fibers. J. Chem. Technol. Biotechnol. 2015, 90, 1144–1151. [Google Scholar] [CrossRef]
  30. Fan, T.; Zhao, Z.; Zhou, J.; Li, L.; Liu, Y.; Lu, M. Fabrication of magnetic cotton fabrics using surface micro-dissolving technology in ZnCl2 aqueous solution. Cellulose 2018, 25, 1437–1447. [Google Scholar] [CrossRef]
  31. Ma, J.; Xing, J.; Wang, K.; Yang, H.; Fei, B.; Liu, X. Inspired by efficient cellulose-dissolving system: Facile one-pot synthesis of biomass-based hydrothermal magnetic carbonaceous materials. Carbohydr. Polym. 2017, 164, 127–135. [Google Scholar] [CrossRef] [PubMed]
  32. Abbas, M.; Zhang, J.; Lin, K.; Chen, J. Fe3O4 nanocubes assembled on RGO nanosheets: Ultrasound induced in situ and eco-friendly synthesis, characterization and their excellent catalytic performance for the production of liquid fuel in Fischer-tropsch synthesis. Ultrason. Sonochem. 2018, 42, 271–282. [Google Scholar] [CrossRef] [PubMed]
  33. Lu, H.; Wang, J.; Li, F.; Huang, X.; Tian, B.; Hao, H. Highly Efficient and Reusable Montmorillonite/Fe3O4/Humic Acid Nanocomposites for Simultaneous Removal of Cr(VI) and Aniline. Nanomaterials 2018, 8, 537. [Google Scholar] [CrossRef] [PubMed]
  34. Grosvenor, A.P.; Kobe, B.A.; Biesinger, M.C.; McIntyre, N.S. Investigation of multiplet splitting of Fe 2p XPS spectra and bonding in iron compounds. Surf. Interface Anal. 2004, 36, 1564–1574. [Google Scholar] [CrossRef]
  35. Ruan, D.; Lue, A.; Zhang, L. Gelation behaviors of cellulose solution dissolved in aqueous NaOH/thiourea at low temperature. Polymer 2008, 49, 1027–1036. [Google Scholar] [CrossRef]
  36. Cai, J.; Zhang, L. Unique Gelation Behavior of Cellulose in NaOH/Urea Aqueous Solution. Biomacromolecules 2006, 7, 183–189. [Google Scholar] [CrossRef] [PubMed]
  37. Hoque, M.; Guzman, M. Photocatalytic Activity: Experimental Features to Report in Heterogeneous Photocatalysis. Materials 2018, 11, 1990. [Google Scholar] [CrossRef] [PubMed]
  38. Hu, X.; Liu, B.; Deng, Y.; Chen, H.; Luo, S.; Sun, C.; Yang, P.; Yang, S. Adsorption and heterogeneous Fenton degradation of 17α-methyltestosterone on nano Fe3O4/MWCNTs in aqueous solution. Appl. Catal. B-Environ. 2011, 107, 274–283. [Google Scholar] [CrossRef]
  39. Luo, W.; Zhu, L.; Wang, N.; Tang, H.; Cao, M.; She, Y. Efficient Removal of Organic Pollutants with Magnetic Nanoscaled BiFeO3 as a Reusable Heterogeneous Fenton-Like Catalyst. Environ. Sci. Technol. 2010, 44, 1786–1791. [Google Scholar] [CrossRef]
  40. Wang, W.; Liu, Y.; Li, T.; Zhou, M. Heterogeneous Fenton catalytic degradation of phenol based on controlled release of magnetic nanoparticles. Chem. Eng. J. 2014, 242, 1–9. [Google Scholar] [CrossRef]
  41. Zhou, B.; Zhao, X.; Liu, H.; Qu, J.; Huang, C.P. Visible-light sensitive cobalt-doped BiVO4 (Co-BiVO4) photocatalytic composites for the degradation of methylene blue dye in dilute aqueous solutions. Appl. Catal. B-Environ. 2010, 99, 214–221. [Google Scholar] [CrossRef]
  42. Luo, X.; Zhang, L. High effective adsorption of organic dyes on magnetic cellulose beads entrapping activated carbon. J. Hazard. Mater. 2009, 171, 340–347. [Google Scholar] [CrossRef] [PubMed]
  43. Sabhi, S.; Kiwi, J. Degradation of 2, 4-dichlorophenol by immobilized iron catalysts. Water Res. 2001, 35, 1994–2002. [Google Scholar] [CrossRef]
Nanomaterials 09 00275 g001 550

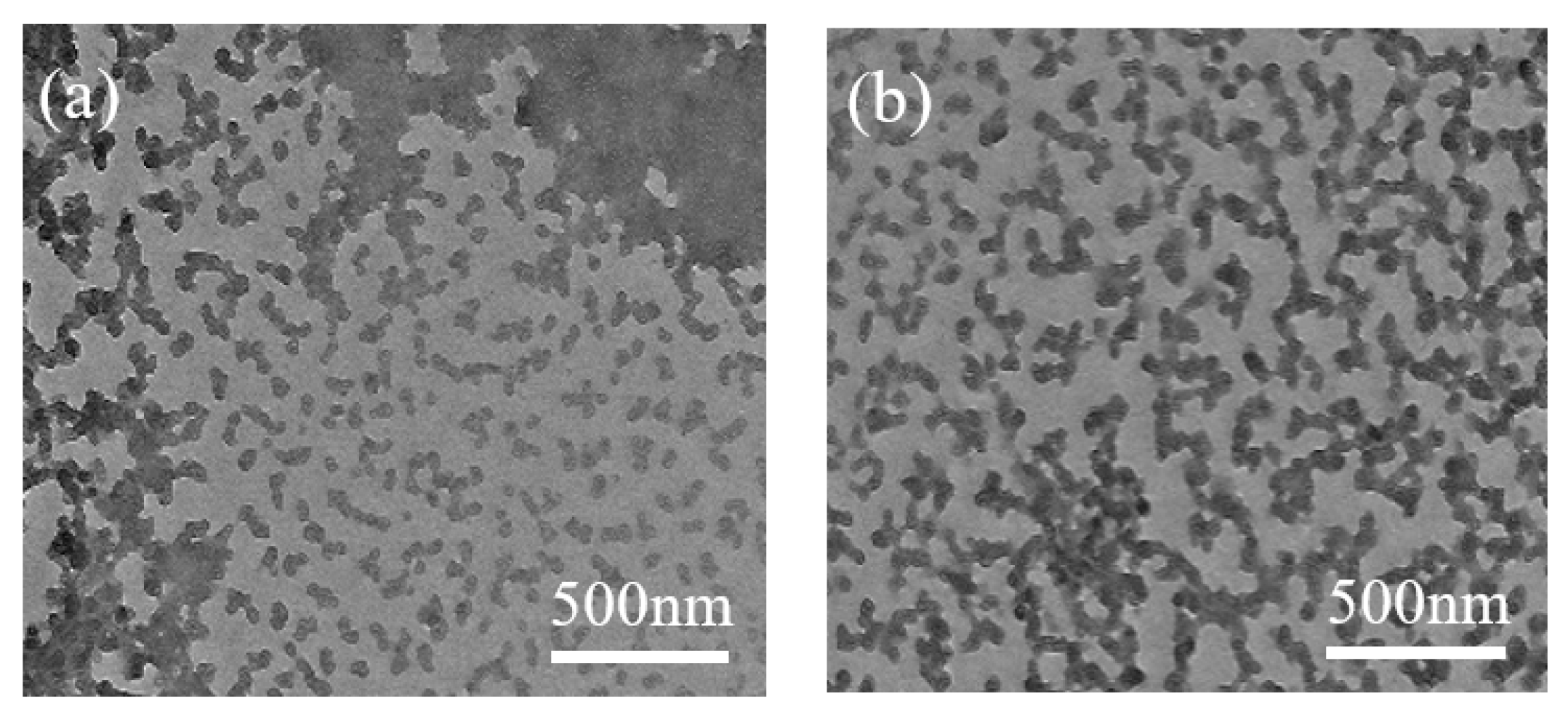

Figure 1. TEM images of (a) MAC and (b) MAFCC dissolved in NaOH/urea solution.
Figure 1. TEM images of (a) MAC and (b) MAFCC dissolved in NaOH/urea solution.
Nanomaterials 09 00275 g001
Nanomaterials 09 00275 g002 550

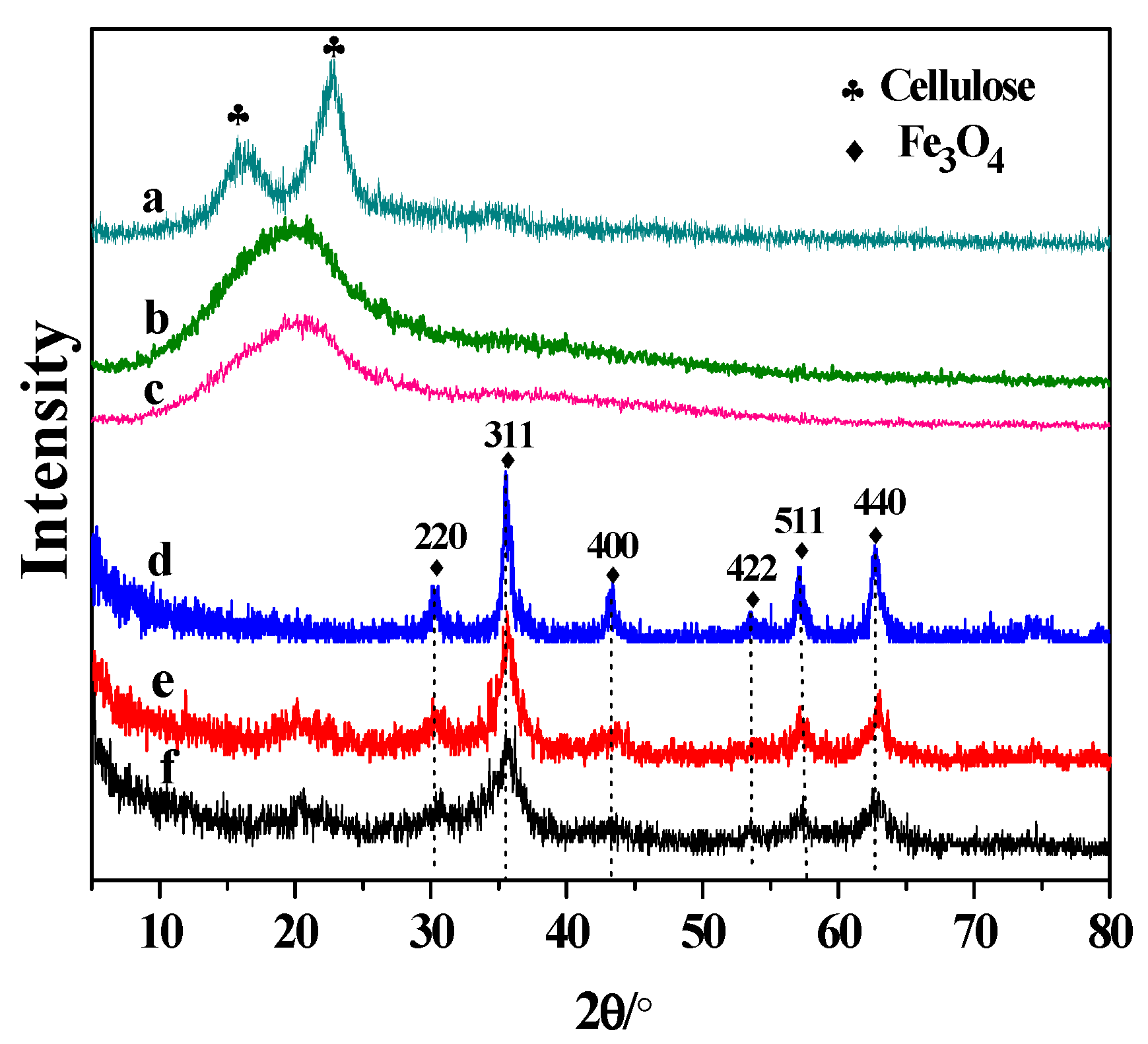

Figure 2. XRD patterns of (a) native cellulose, (b) MAC, (c) MAFCC, (d) Fe3O4, (e) Fe3O4@MAC, and (f) Fe3O4@MAFCC.
Figure 2. XRD patterns of (a) native cellulose, (b) MAC, (c) MAFCC, (d) Fe3O4, (e) Fe3O4@MAC, and (f) Fe3O4@MAFCC.
Nanomaterials 09 00275 g002
Nanomaterials 09 00275 g003 550

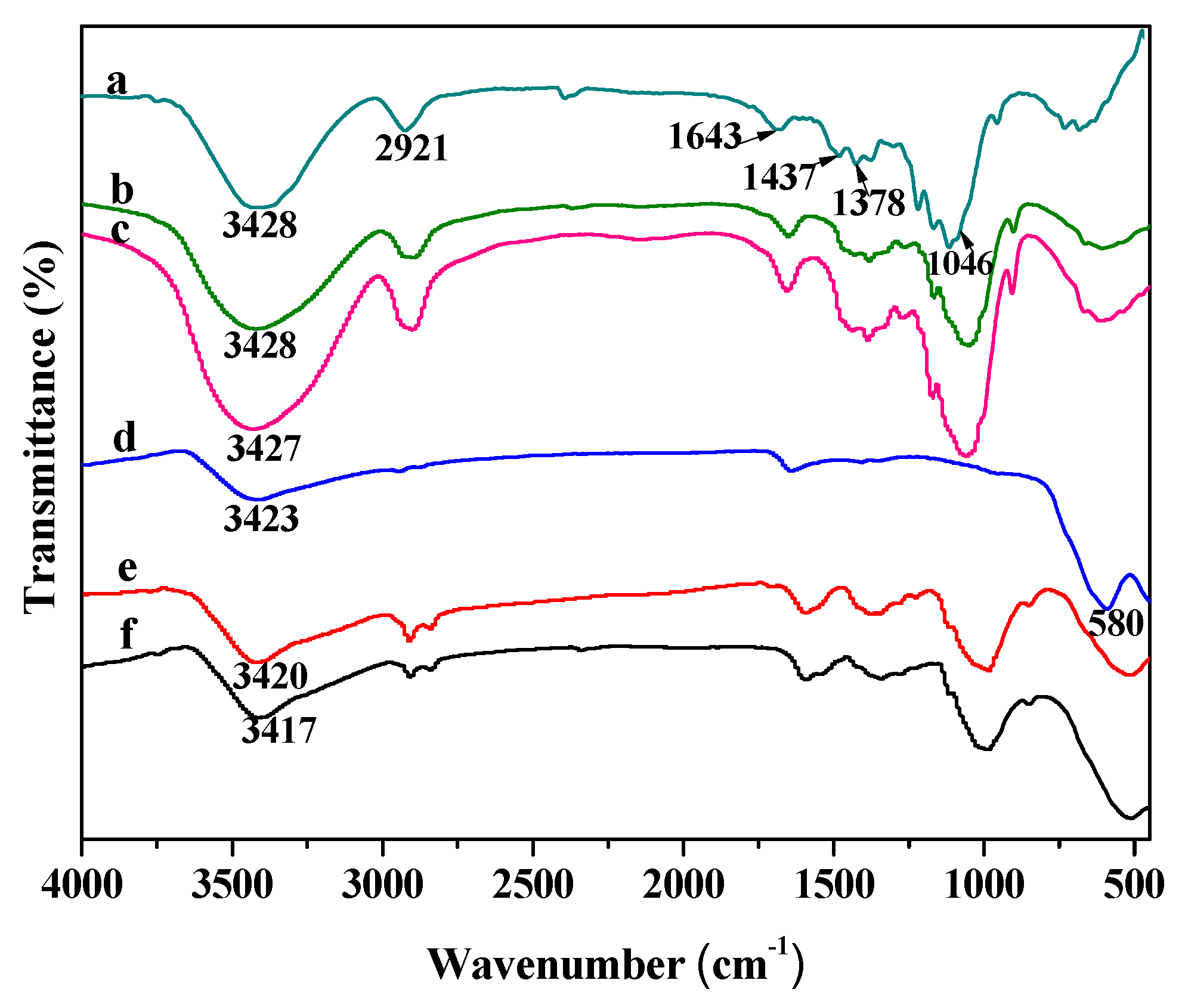

Figure 3. FTIR spectra of (a) native cellulose, (b) MAC, (c) MAFCC, (d) Fe3O4, (e) Fe3O4@MAC, and (f) Fe3O4@MAFCC.
Figure 3. FTIR spectra of (a) native cellulose, (b) MAC, (c) MAFCC, (d) Fe3O4, (e) Fe3O4@MAC, and (f) Fe3O4@MAFCC.
Nanomaterials 09 00275 g003
Nanomaterials 09 00275 g004 550

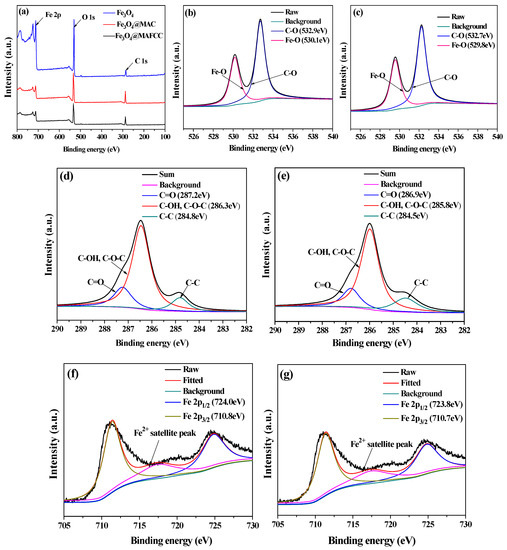

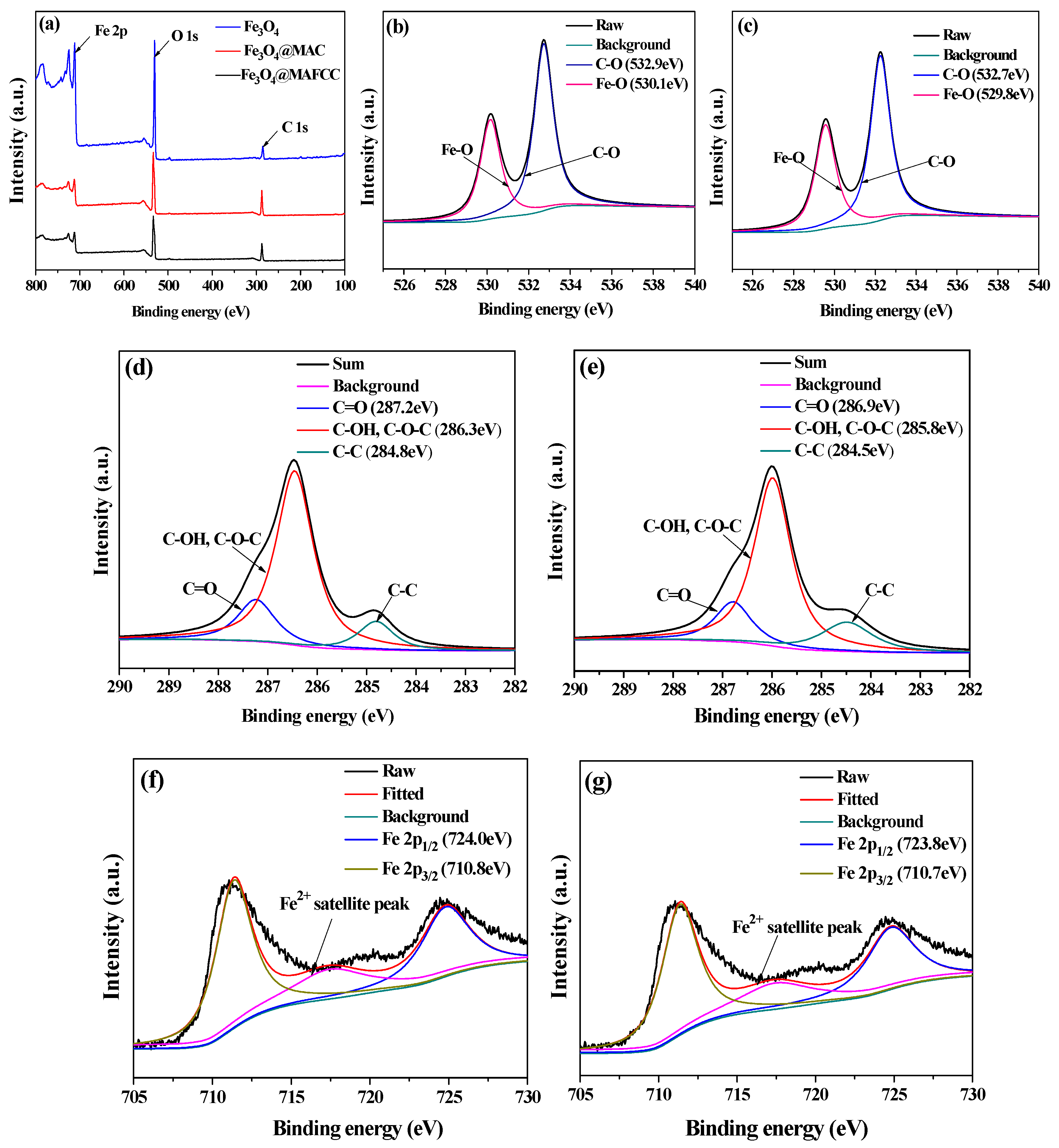

Figure 4. XPS spectra of different samples: (a) full-survey of all samples; (b,c) curve fitting of O 1s spectra of Fe3O4@MAC and Fe3O4@MAFCC, respectively; (d,e) curve fitting of C 1s spectra of Fe3O4@MAC and Fe3O4@MAFCC, respectively; (f,g) curve fitting of Fe 2p spectra of Fe3O4@MAC and Fe3O4@MAFCC, respectively.
Figure 4. XPS spectra of different samples: (a) full-survey of all samples; (b,c) curve fitting of O 1s spectra of Fe3O4@MAC and Fe3O4@MAFCC, respectively; (d,e) curve fitting of C 1s spectra of Fe3O4@MAC and Fe3O4@MAFCC, respectively; (f,g) curve fitting of Fe 2p spectra of Fe3O4@MAC and Fe3O4@MAFCC, respectively.
Nanomaterials 09 00275 g004
Nanomaterials 09 00275 g005 550

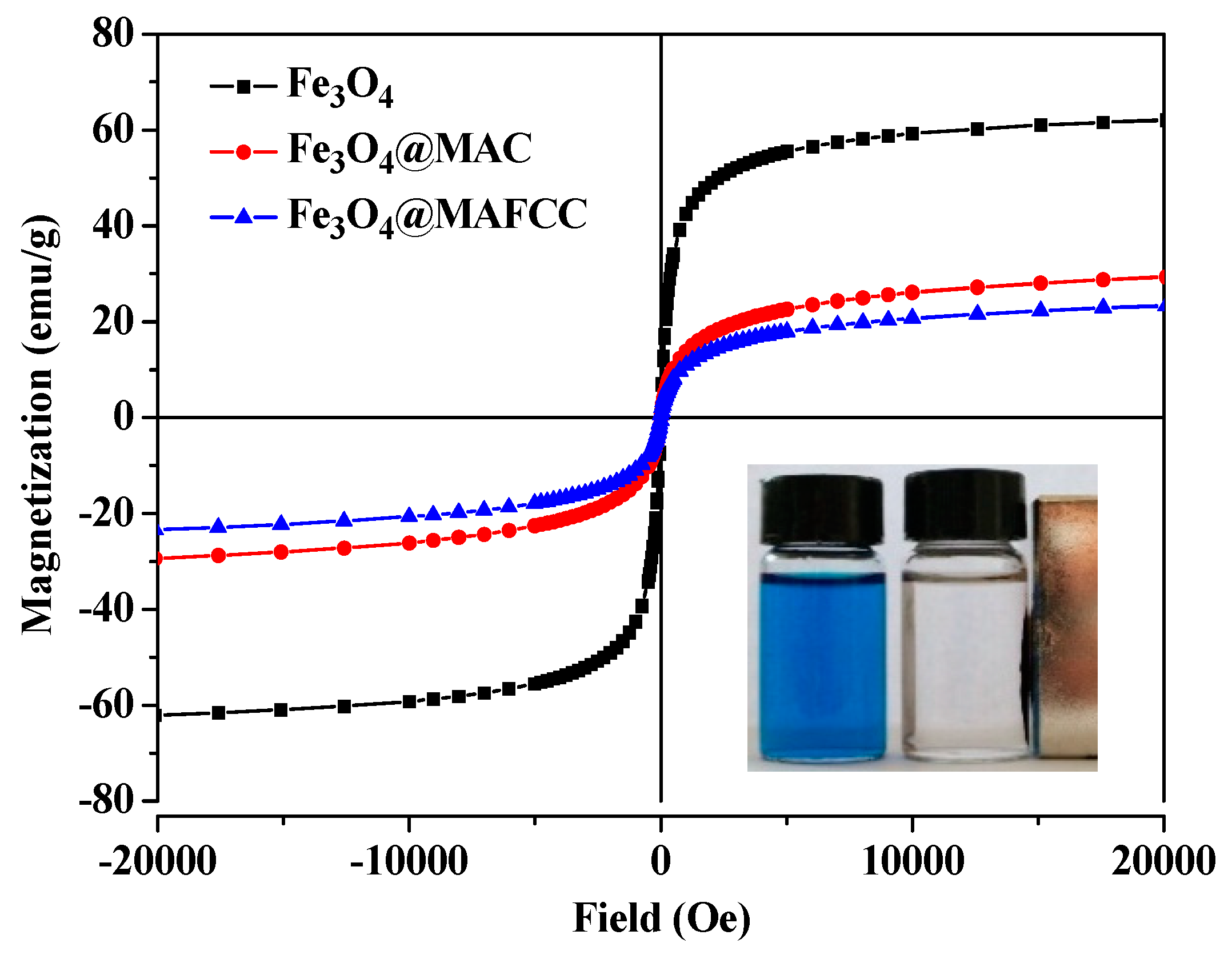

Figure 5. Hysteresis loops of Fe3O4, Fe3O4@MAC, and Fe3O4@MAFCC (inset picture shows the separation of Fe3O4@MAFCC from the solution by a magnet).
Figure 5. Hysteresis loops of Fe3O4, Fe3O4@MAC, and Fe3O4@MAFCC (inset picture shows the separation of Fe3O4@MAFCC from the solution by a magnet).
Nanomaterials 09 00275 g005
Nanomaterials 09 00275 g006 550

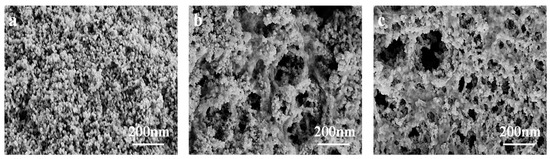

Figure 6. FESEM images of (a) Fe3O4, (b) Fe3O4@MAC, and (c) Fe3O4@MAFCC.
Figure 6. FESEM images of (a) Fe3O4, (b) Fe3O4@MAC, and (c) Fe3O4@MAFCC.
Nanomaterials 09 00275 g006
Nanomaterials 09 00275 g007 550

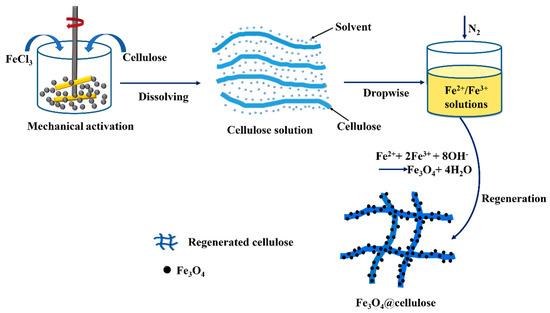

Figure 7. Scheme illustration of the combination of cellulose and Fe3O4 nanoparticles.
Figure 7. Scheme illustration of the combination of cellulose and Fe3O4 nanoparticles.
Nanomaterials 09 00275 g007
Nanomaterials 09 00275 g008 550

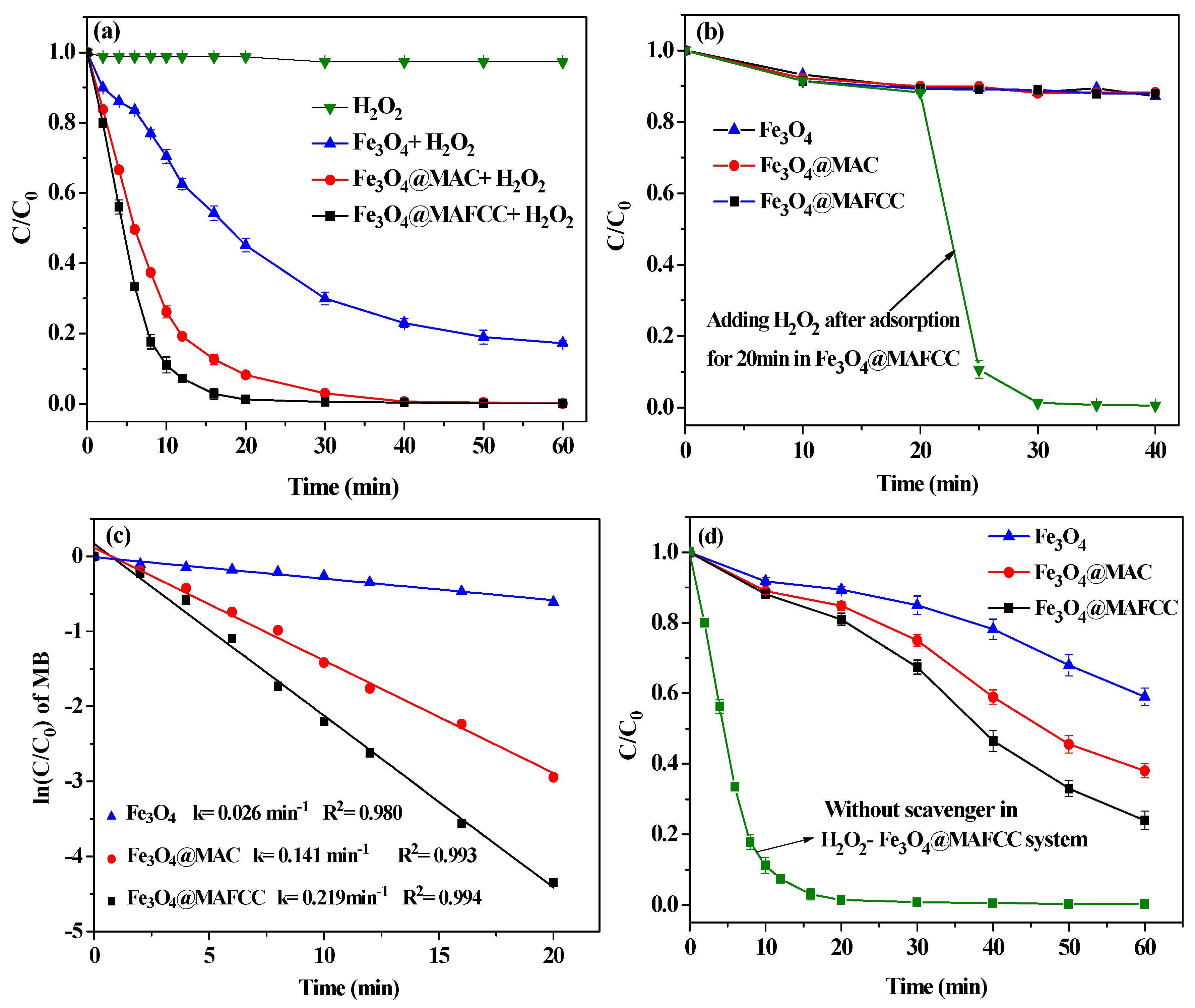

Figure 8. (a) Degradation of MB without and with different catalysts in the presence of H2O2; (b) adsorption performance of different catalysts without H2O2 and catalytic performance of Fe3O4@MAFCC with adding H2O2 after adsorption for 20 min; (c) pseudo-first-order kinetics fitting results for the degradation of MB with different catalysts; (d) degradation of MB with different catalysts in the presence of radical scavenger and H2O2 and without scavenger in H2O2-Fe3O4@MAFCC system. (C0(MB) = 50 mg L–1, C(catalysts) = 0.6 g L–1, C(H2O2) = 6 mL L–1, pH = 2.5).
Figure 8. (a) Degradation of MB without and with different catalysts in the presence of H2O2; (b) adsorption performance of different catalysts without H2O2 and catalytic performance of Fe3O4@MAFCC with adding H2O2 after adsorption for 20 min; (c) pseudo-first-order kinetics fitting results for the degradation of MB with different catalysts; (d) degradation of MB with different catalysts in the presence of radical scavenger and H2O2 and without scavenger in H2O2-Fe3O4@MAFCC system. (C0(MB) = 50 mg L–1, C(catalysts) = 0.6 g L–1, C(H2O2) = 6 mL L–1, pH = 2.5).
Nanomaterials 09 00275 g008
Nanomaterials 09 00275 g009 550

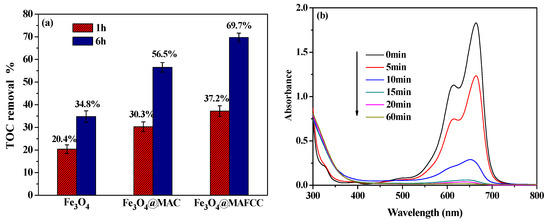

Figure 9. (a) TOC removal of the MB solution catalyzed by different catalysts and (b) temporal evolution of the UV–vis spectra during the degradation of MB in the H2O2-Fe3O4@MAFCC heterogeneous Fenton system. (C0 (MB) = 50 mg L–1, C(catalysts) = 0.6 g L–1, C(H2O2) = 6 mL L–1, pH = 2.5).
Figure 9. (a) TOC removal of the MB solution catalyzed by different catalysts and (b) temporal evolution of the UV–vis spectra during the degradation of MB in the H2O2-Fe3O4@MAFCC heterogeneous Fenton system. (C0 (MB) = 50 mg L–1, C(catalysts) = 0.6 g L–1, C(H2O2) = 6 mL L–1, pH = 2.5).
Nanomaterials 09 00275 g009
Nanomaterials 09 00275 g010 550

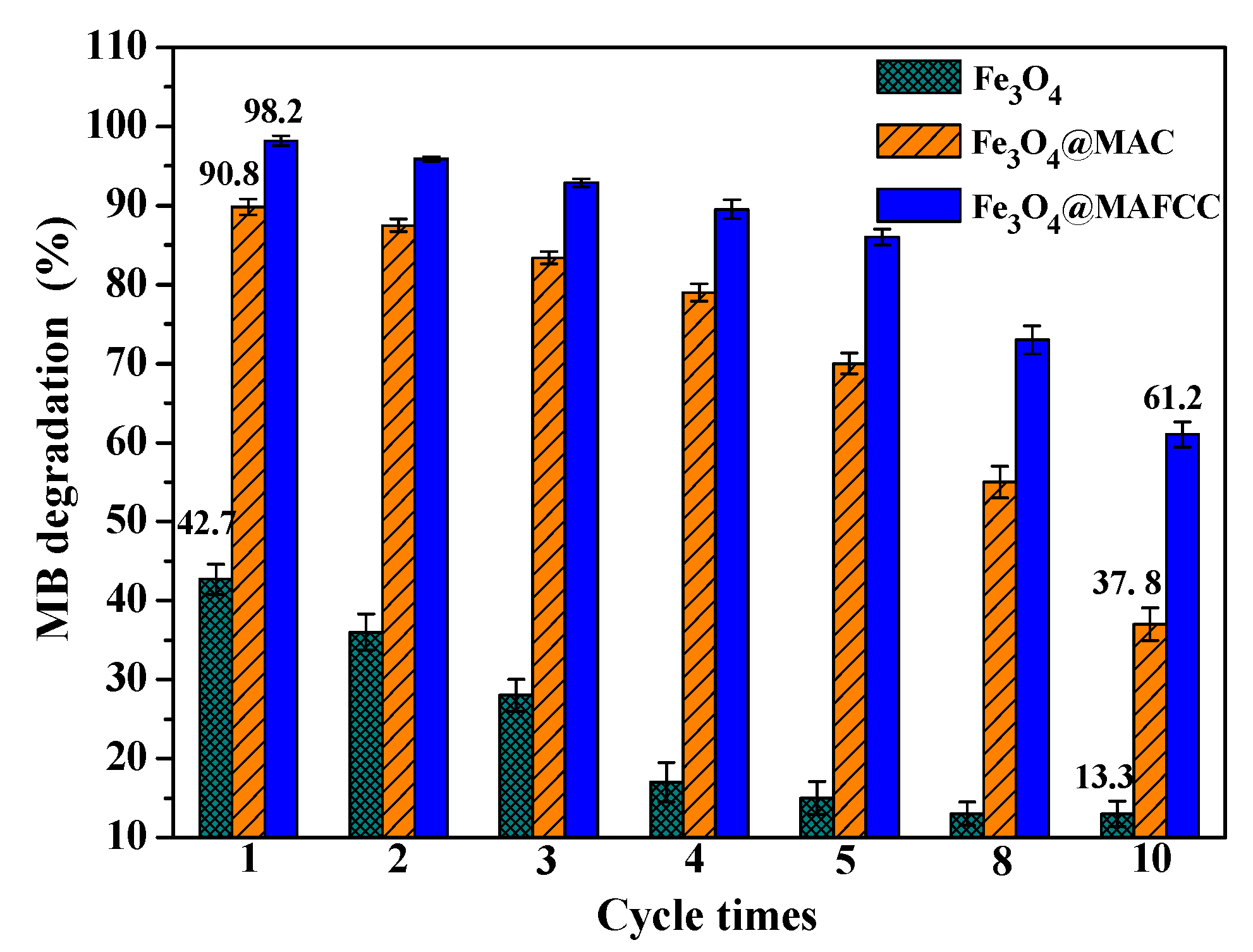

Figure 10. Degradation efficiency of MB catalyzed by Fe3O4, Fe3O4@MAC, and Fe3O4@MAFCC recycled for different times. (C0 (MB) = 50 mg L–1, C(catalysts) = 0.6 g L–1, C(H2O2) = 6 mL L–1, pH = 2.5).
Figure 10. Degradation efficiency of MB catalyzed by Fe3O4, Fe3O4@MAC, and Fe3O4@MAFCC recycled for different times. (C0 (MB) = 50 mg L–1, C(catalysts) = 0.6 g L–1, C(H2O2) = 6 mL L–1, pH = 2.5).
Nanomaterials 09 00275 g010
Nanomaterials 09 00275 g011 550

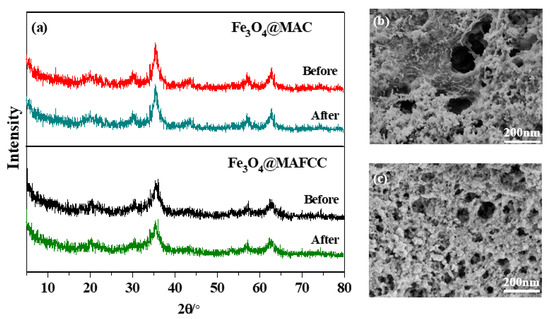

Figure 11. (a) XRD patterns of Fe3O4@MAC and Fe3O4@MAFCC before and after ten cycles; (b) FESEM image of the recycled Fe3O4@MAC after ten cycles; (c) FESEM image of the recycled Fe3O4@MAFCC after ten cycles.
