Pd Nanocatalyst Adorning Coral Reef Nanocomposite for the Synthesis of Nitriles: Utility of Cucurbita pepo Leaf Extract as a Stabilizing and Reducing Agent

by
Mahmoud Nasrollahzadeh
1,*,
Fatemeh Ghorbannezhad
1,
S. Mohammad Sajadi
2 and
Rajender S. Varma
3,*
1
Department of Chemistry, Faculty of Science, University of Qom, Qom 37185-359, Iran
2
Department of Petroleum Geoscience, Faculty of Science, Soran University, P.O. Box 624 Soran, Kurdistan Regional Government, Iraq
3
Regional Centre of Advanced Technologies and Materials, Department of Physical Chemistry, Faculty of Science, Palacky University, Šlechtitelů 27, 783 71 Olomouc, Czech Republic
*
Authors to whom correspondence should be addressed.
Nanomaterials 2019, 9(4), 565; https://doi.org/10.3390/nano9040565
Submission received: 25 February 2019 / Revised: 28 March 2019 / Accepted: 1 April 2019 / Published: 7 April 2019
(This article belongs to the Special Issue Sustainable Nanoparticles - Their Synthesis and Catalytic Applications)
Browse Figures
Versions Notes

Abstract

:
A simple procedure for the palladium-catalyzed cyanation of aryl halides is described via a nucleophilic non-toxic cyanide source, K4[Fe(CN)6] in the presence of Pd/coral reef nanocomposite as a heterogeneous catalyst; the protocol provides a useful and easy method for the synthesis of aryl nitriles that are generated from the corresponding variant aryl halides, with sodium carbonate as a base. The nanocatalyst was prepared by a biological process using aqueous extract of leaves of Cucurbita pepo as a stabilizing and reducing agent and coral reef as a natural support, without deploying any hazardous chemicals. The catalyst, that is easily separable from the reaction mixture and reused multiple times, was characterized by FT-IR (Fourier-Transform Infrared Spectroscopy), ICP-AES (Inductively Coupled Plasma Atomic Emission Spectroscopy), XRD (X-ray Diffraction), TEM (Transmission Electron Microscopy), FE-SEM (Field Emission Scanning Electron Microscopy), EDS (Energy Dispersive X-ray Spectroscopy) and elemental mapping.

1. Introduction

Nitriles are implicated in the syntheses of a variety of organic compounds, and thus occupy a key position in organic chemistry manipulations. In the chemical industry, nitriles are oftentimes found as an impartible part of dyes, natural products, pharmaceuticals, agricultural and materials [1,2,3]. Aromatic nitriles have been utilized in diverse fields as both synthetic intermediates, as well as a final product in their own right, as shown by few examples in Scheme 1 [4]. Historically, two classical methods have been used for the introduction of a cyano group on to the aromatic ring: diazotization of anilines followed by a Sandmeyer reaction [5,6] with superstoichiometric amounts of copper(I) cyanide and Rosenmund-von Braun reaction [7,8,9], which commonly deploys excessive amounts of copper(I) cyanide and an aryl iodide at high temperature. Both methods lack today’s stringent criteria of clean synthesis that follows a greener strategy. In large-scale industrial synthesis, ammoxidation of toluene derivatives have been applied for the preparation of aryl nitriles where reaction proceeds at high temperature (300–550 °C) in the presence of a heterogeneous catalyst. Nevertheless, as the aforementioned procedures suffered from harsh reaction conditions [10,11,12], efforts are being made to address safety concerns, and to develop mild and efficient methods for the synthesis of aryl nitriles.
The cyanation of aryl halides is a traditional strategy for C–C coupling and the preparation of aryl nitriles with transition-metal-catalyzed reactions has been an important pathway in synthetic organic chemistry. Takagi et al. [13], for the first time, disclosed Pd(II)-catalyzed cyanation of aryl halides with KCN about 40 years ago. Mechanistic studies revealed the main shortcoming of the reaction owing to excess dissociative of CN− to palladium (Pd) thus initiating catalyst deactivation which poisons all the intermediates in catalytic cycle. To tackle such problems, much attention was expanded to include the addition of reducing agents or applying less soluble NaCN [14,15,16,17,18,19], trimethylsilylcyanide (TMSCN) [20], KCN [21,22,23] and Zn(CN)2 [24,25,26,27] salts in organic solvents; all these cyanide sources are universally toxic, due to the generation of hazardous hydrogen cyanide gas. Beller and colleagues introduced K4[Fe(CN)6] as a robust and non-toxic CN− source in Pd-catalyzed coupling reactions [28] which was followed by many others using DDQ [29], N-cyano-N-phenyl-p-toluenesulfonamide [30], ethyl cyanoacetate [31], K3[Fe(CN)6] and K4[Fe(CN)6] [32,33,34,35,36] to name a few as safer reagents deployed in modern “cyano” chemistry.
Variety of catalytic systems constructed from palladium homogeneous catalysts have been successfully employed in the cyanation reaction due to their availability, low cost and environmental benignity [28,32,33,34,35]. Some of these methods are effective with good yields, but others suffer from one or more drawbacks such as the use of expensive ligands, prolonged reaction time, the use of homogeneous catalysts which cannot be easily recovered, and harsh reaction conditions procedures. Clearly, the development of air and thermally stable heterogeneous nanocatalysts with high activity and broad substrate tolerance is needed to allow reactions to be carried out by using K4[Fe(CN)6] as a non-toxic CN− source under ligand-free conditions, then to broader industrial use of the reaction.
Metal-based nanoparticles (MNPs) have become topics of great current interest due to their potential applications in many diverse areas of science, industry, medicine and pharmaceuticals, etc., especially for catalysis [37,38,39,40]. The physical techniques and chemical methods are severely applied for the synthesis of MNPs. Although, most of these methods are rather expensive and suffer from various environmental and health side effects which restrict their application in medicinal chemistry processes besides difficulty in purification and low yield [41,42,43]. Therefore, improvements leading to simplify the preparative methods for MNPs is of great importance.
Our strategy entailed the generation of palladium nanoparticles (Pd NPs) using Cucurbita pepo leaf extract. In view of the high propensity of metal NPs to agglomerate, solid supports have been usually applied [44,45,46,47,48] which in this study was replaced by coral reef to anchor Pd NPs. Thus, biogenically synthesized Pd/coral reef nanocomposite, assembled by a facile and eco-friendly method, has been introduced in this unprecedented cyanation reaction using a plant extract.
The Curcurbiteae family, a very large group with approximately 130 genera and 800 species, is widely used as food and herbal remedies around the world and they contain numerous phyto-constituents belonging to the categories of alkaloids, flavonoids, and fatty acids (palmitic-, oleic- and linoleic acids) [49,50,51,52,53,54,55]. We envisioned the leaves of the plant being an excellent source of bioreducers to biosynthesize Pd NPs nanocatalyst.
In continuation of our previous efforts on the heterogeneous nanocatalysts [44,45,46], herein, for the first time, we report a convenient method for the synthesis of aryl nitriles under ligand-free conditions using K4[Fe(CN)6] as a safe source of cyanide and Pd NPs/coral reef nanocomposite as a heterogeneous catalyst (Scheme 2). This catalyst was prepared using Cucurbita pepo plant extract as a reducing media and fully characterized by various techniques. Moreover, an overall investigation of the effective parameters on the cyanation reaction such as solvent, bases, catalyst loading and reaction time, is described.

2. Experimental

2.1. Apparatus and Analysis

All chemicals used in the current study were obtained from Merck (Darmstadt, Germany) and Sigma-Aldrich Chemical (Sigma-Aldrich, M6250, St. Louis, MO, USA) Companies and were used without further purification. The natural (dead) coral reef used in this study originated from Persian Gulf, Iran. FT-IR (Fourier-Transform Infrared Spectroscopy) spectra were recorded using KBr pellets on a Varian model 640 spectrophotometer (Agilent Technologies, Santa Clara, CA, USA). 1H NMR and 13C NMR spectra were recorded on a Bruker Avance III 400 spectrometer (Bruker, Billerica, MA, USA) at 400 and 100 MHz, respectively. Melting points were measured on a BUCHI 510 melting point apparatus (Derwood, MD, USA) that are uncorrected. The catalyst characterization was performed by using various characterization techniques including FTIR, XRD (X-ray Diffraction), SEM (Scanning Electron Microscopy) and EDS (Energy Dispersive X-ray Spectroscopy) analysis. A Philips model X’Pert-Pro MRD diffractometer (Amsterdam, The Netherland) with a Ni-filtered Cu Kα source (λ = 0.15418 nm) was used to perform X-ray diffraction (XRD) measurements. The chemical composition of the prepared nanocomposite was performed using EDS (Energy Dispersive X-ray Spectroscopy) performed in a FESEM (Field Emission Scanning Electron Microscopy, TESCAN MIRA3-XMU, Brno-Kohoutovice, Czech Republic).

2.2. Preparation of the Cucurbita Pepo Leaf Extract

Fifty grams of dried powdered leaves of Cucurbita pepo and 300 mL double distillated water were well mixed on a magnetic heating stirrer at 80 °C for 30 min, the mixture was then centrifuged (7000 rpm) and filtered. Finally, the extract was kept at refrigerator for subsequent use.

2.3. Bioreduction of Pd Ions and Synthesis of Pd NPs

Ten milliliters of the extract were added dropwise to 50 mL of 0.005 M PdCl2 solution at 80 °C in an open glass vessel. Bioreduction process to form the nano palladium (Pd°) was completed in 5 min as color changed to dark brown; the reaction being monitored by UV-Vis spectroscopy (Shimadzu, Kyoto, Japan). Then the colored solution was centrifuged at 7000 rpm for 45 min to accomplish separation.

2.4. Biological Preparation of Pd/Coral Reef Nanocomposite Using Cucurbita Pepo Leaf Extract

The Pd/coral reef nanocomposite was fabricated by immobilization of Pd NPs on coral reef surface. The powdered coral reef, 1.0 g of powder was dispersed in 250 mL of the aqueous extract for 15 min at 80 °C under vigorous stirring. After that, 0.1 g of PdCl2 dissolved in 10 mL water and 1 mL of hydrochloric acid (37%) was added dropwise to the mixture and magnetically stirred and heated at 80 °C for 3 h. The prepared nanocomposite was centrifuged, washed with ethanol and dried in an oven and then characterized.

2.5. General Procedure for Synthesis of Aryl Nitriles

In a 150 mL flat bottom flask fitted with a magnetic stirrer, a mixture of aryl halide (1.0 mmol), K4[Fe(CN)6] (0.2 mmol), potassium carbonate (1.0 mmol) and nanocatalyst (0.05 g) were stirred in DMF (5.0 mL) at 120 °C and the progress of reaction was monitored using TLC. The catalyst was separated using filtration after ending the process. After completion of the reaction (as monitored by TLC), 5.0 mL of water was added then the reaction mixture was diluted using ethyl acetate (EtOAc) with vigorous stirring. The organic layer was separated, dried over MgSO4, filtered and the solvent removed under vacuum to afford the desired crude products. The crude product was purified by recrystallization with EtOAc and n-hexane to provide pure product.

3. Result and Discussion

Aryl nitriles were simply prepared from aryl halide in high yields by using inexpensive, readily available and non-toxic K4[Fe(CN)6], catalyzed via biosynthesis Pd/coral reef nanocomposite. The basic concept of bioreduction was followed that exploits the use of plant extract as a reducing agent and efficient stabilizer to convert metal ions to metal NPs; the synthesis of nanocomposite benefits from the combination of Cucurbita pepo leaf extract and coral reef as inexpensive sources. The leaf extract was characterized and then Pd NPs were separately synthesized using the Cucurbita pepo leaf extract as described below.

3.1. Characterization of Cucurbita Pepo Leaf Extract and Biosynthesized Pd Nanoparticle

Although the exact mechanism for the biosynthesis of metal nanoparticles (MNPs) using plant extracts has not been confirmed, in view of the already established criteria [56,57,58,59], polar hydroxyl groups are responsible for the synthesis of MNPs [60]. Scheme 3 depicts a plausible mechanism for the bioreduction of Pd(II) ions to Pd NPs using Cucurbita pepo leaf extract.
The UV spectrum of the Cucurbita pepo leaf extract (Figure 1) shows specified signals at around 400 nm (bond Ι) and 260 nm (bond ΙΙ) due to the cinnamoyl and benzoyl systems, respectively, referring to the π → π* transitions of polyphenolics.
The UV-vis spectrum of biosynthesized Pd NPs shows the effect of surface Plasmon resonance following the appearance of maximum wavelength around 295 nm. The stability study of nanoparticles revealed that they are stable for more than 4 weeks because the wavelength of nanoparticles shows no significant deviation or disruption during this time. This stability may be due to possible adsorption of antioxidant phytochemicals on nanosurfaces, thus preventing their decomposition and deformation processes for extended periods of time.
Figure 2 shows the FT-IR signals of Pd NPs synthesized by Cucurbita pepo plant extract. The main signals around 3550, 1745 and 1435–1575 cm−1 are assigned to the OH, carbonyl group (C=O) and C=C aromatic ring vibrations, respectively which clearly confirm the presence of plant phytochemicals on the surface of Pd NPs and their effect on protection and stability of nanoparticles.
The XRD pattern of synthesized Pd NPs (Figure 3) exhibited a crystalline structure for the sample with peaks at 40.13° (111), 46.4° (200) and 66.5° (220), which precisely pertain to the signals of Pd NPs as corroborated by previous reports [61].

3.2. Characterization of Pd/Coral Reef Nanocomposite

Pd NPs, synthesized via bioreduction of Pd2+ ions to Pd° with assurance of stability and feasibility of their recovery, were immobilized on coral reef surface using an aqueous extract of Cucurbita pepo leaves. Pd/coral reef nanocomposite was confirmed by FT-IR, FE-SEM, EDS and elemental mapping.
The surface morphology and size of the as-prepared Pd/coral reef nanocomposite was examined by FE-SEM (Figure 4) and Transmission Electron Microscopy (TEM, Figure 5); the structure of the nanocatalyst was found to be well-organized pure spherical form with the monodispersity of the Pd NPs being clearly observed. Figure 6 shows the Pd NP size distributions; TEM images and histogram indicate that the average size of the Pd NPs is about 12 nm.

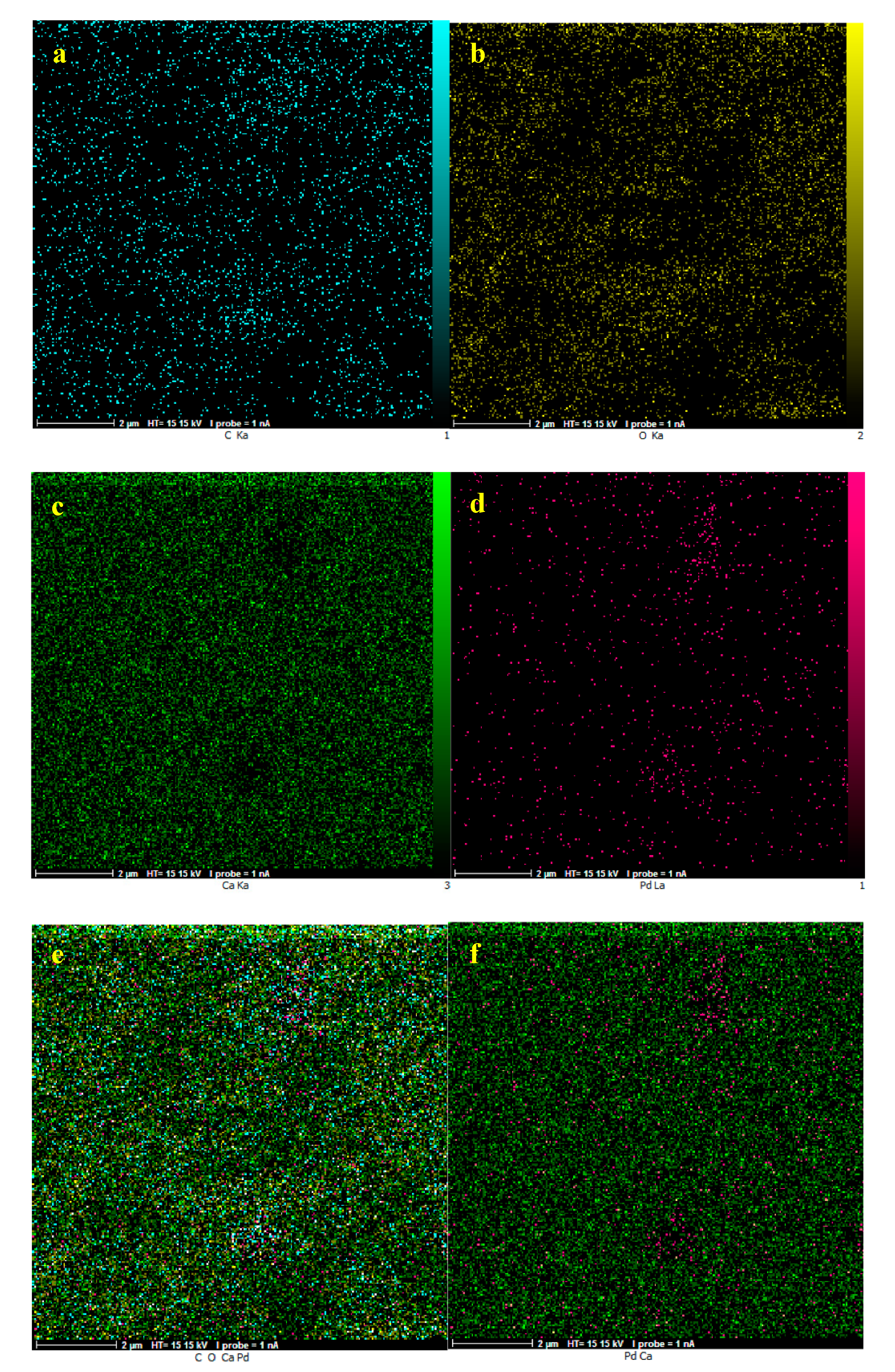

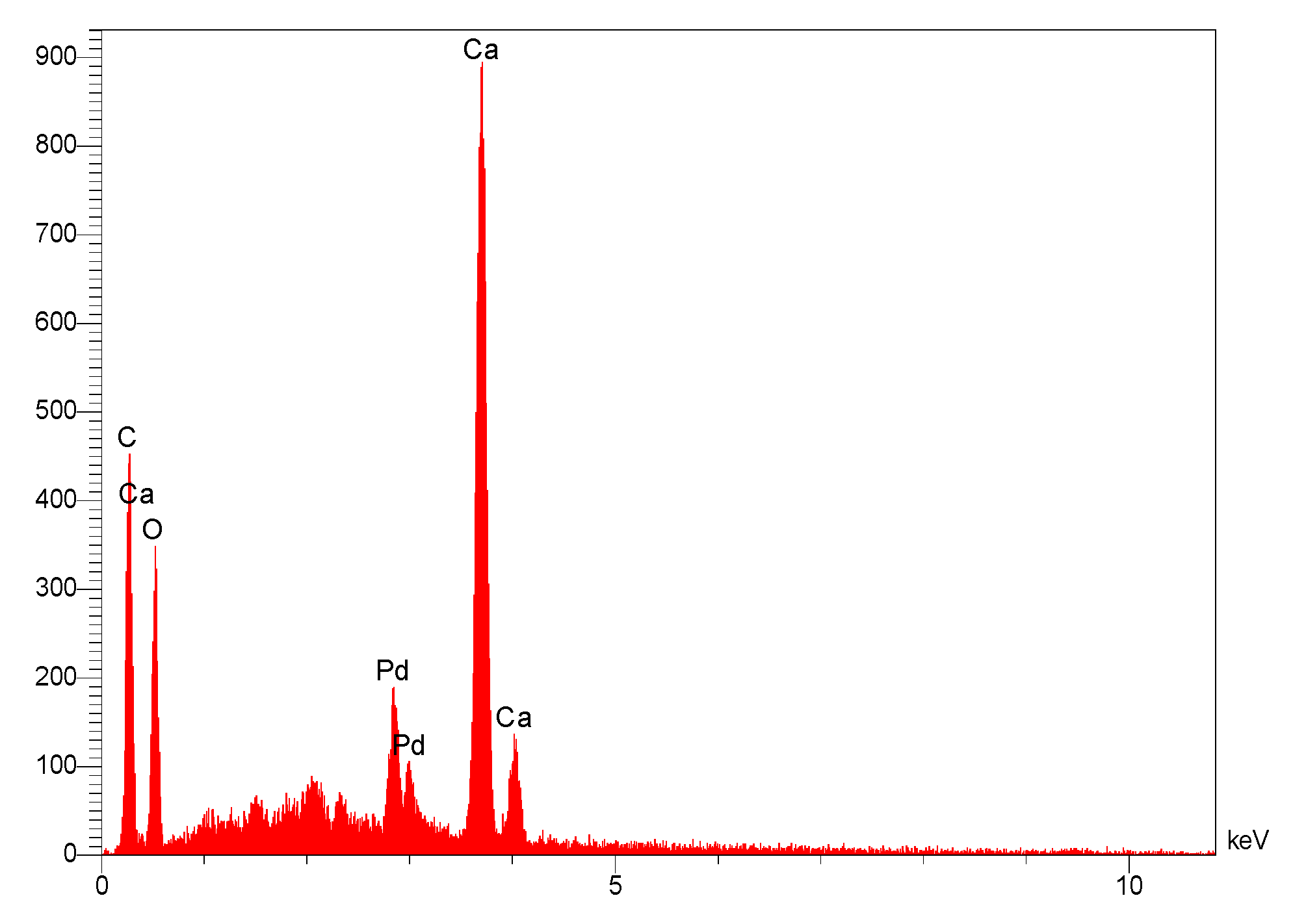

Further reaffirmation of the surface composition was attained by examining its composition using EDS analysis. The EDS spectrum in Figure 7 shows the presence of the C, Ca, O and Pd with the presence of Pd being endorsed by elemental mapping images (Figure 8).
In order to further elucidate the presence of functional groups in the phytosynthesized nanocomposite, FT-IR analysis was recorded in the range of 400–4000 cm−1. As shown in Figure 9, the positions of the observed peaks are approximately similar to the corresponding peaks in the spectrum of Cucurbita pepo plant extract. The FT-IR spectrum of Pd/coral reef nanocomposite shows peaks at 3414, 1787, 1472, 1386, 1080, 856 cm−1 represent the OH functional groups, carbonyl group (C=O), stretching C=C aromatic ring, C–OH stretching vibrations and monosubstituted, ortho- or meta-disubstituted aromatic compounds vibrations, respectively. This indicates that organic compounds from the extract are adsorbed on the surface nanocatalyst through π-electron interaction; flavonoid and other phenolic compounds comprising the extract being mainly responsible for the reduction Pd2+ ions.

3.3. Catalytic Performance of the Pd/Coral Reef Nanocomposite in the Cyanation of Aryl Halides

A safe and efficient method is mandatory to generate the aryl–CN bonds for compounds used in drug development program which is adequately addressed by this work; a non-toxic cyanide source in the presence of Pd/coral reef biocatalyst was deployed. Initial experiments were conducted to determine the optimum reaction conditions (Table 1), using a model reaction between iodobenzene (1.0 mmol), K4[Fe(CN)6] (0.2 mmol), in the presence of varying amounts of the Pd/coral reef nanocomposite as catalyst and assorted solvents and bases (1.0 mmol). The reaction in the absence of Pd/coral reef nanocatalyst, produced no benzonitrile product (Table 1, entry 1). Apparently, the reaction was influenced significantly by the solvent and base deployed; the reaction was examined in solvents such as DMF (dimethylformamide), DMSO (dimethyl sulfoxide), toluene, H2O and N-methyl-2-pyrrolidone (NMP) in the presence of various bases (K2CO3, Et3N, NaF, Na2CO3 and KOAc). The use of DMF as solvent and K2CO3 as base gave the excellent yield (Table 1, entry 2). As shown in Table 1, catalyst was necessary for the cyanation of iodobenzene and the best results were obtained in the presence of 0.05 g of the Pd/coral reef nanocomposite (Table 1, entry 2). Decreasing the catalyst amount from 0.05 to 0.03 g decreases the product yield (Table 1, entry 11). The study further revealed that when the catalyst amount was increased from 0.05 to 0.08 g, the reaction time and yield did not show much changes (Table 1, entry 12).
The general scope of the cyanation reaction was next examined using a variety of aryl halides bearing numerous electron-donating or electron-withdrawing groups under optimized conditions and the results are summarized in Table 2. A wide variety of aryl iodides, aryl bromides and aryl chlorides were transformed into their corresponding substituted aryl nitriles in good to excellent yields. The reaction was tolerated by various functional groups such as methoxy, nitrile, nitro and hydroxyl functionalities; the nature of the substituent on the aryl halides did not affect the reaction yield including the steric effects of the ortho-substituents (Table 2, entry 5). As an example, among the electron-poor nitrogen heterocycles, 3-iodo- and 4-iodopyridines produced the corresponding products in good yields (Table 2, entries 9 and 10) and the reaction displayed selectivity for 1-chloro-3-iodobenzene and 1-chloro-4-iodobenzene (Table 2, entries 11 and 12). In the scenario when two I or Br groups were present, 1,4-diiodobenzene, 1,3-dibromobenzene and 1,4-dibromobenzene, (Table 2, entries 8, 15 and 16) interestingly afforded the double-addition product.
All products were obtained in good to excellent yields and characterized by FT-IR, 1HNMR, 13CNMR spectra and melting point. FT-IR spectra showed one sharp peak between 2225–2360 cm−1 for the CN stretching band. The formation of products was also confirmed by 1HNMR and 13CNMR spectra.
Table 3 compares the results of the present study with previously reported findings [62,63,64,65,66,67,68,69,70,71,72,73,74,75,76] for the synthesis of 4-methoxybenzonitrile. It is clearly indicated that Pd/coral reef nanocomposite is an efficient catalyst displaying excellent catalytic activity under ligand-free conditions and affording the high yield of 4-methoxybenzonitrile under short reaction time, at low catalyst loadings (Table 3). Buchwald and co-workers developed two effective protocols for cyanation of 4-methoxybromobenzene and 4-methoxychlorobenzene using K4Fe(CN)6 in the presence of palladacycle precatalyst and ligands such as t-BuXPhos and XPhos in excellent yields [75,76]. However, our procedure does not require any ligand for the cyanation of aryl halides. Additionally, the Pd/coral reef nanocomposite can be synthesized, via a simpler method using Cucurbita pepo leaf extract as a stabilizing and reducing agent without any hazardous, toxic and expensive chemicals and ligands, and the catalyst could be recovered and recycled for multiple uses. Finally, coral reef as a natural support and the plant extracts utilized the local sustainable resources originated from Persian Gulf, Iran.

3.4. Reusability and Stability of Catalyst

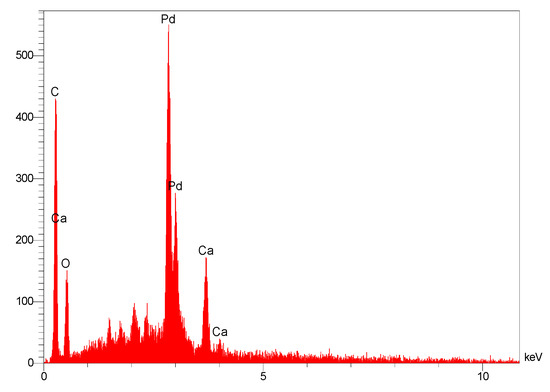

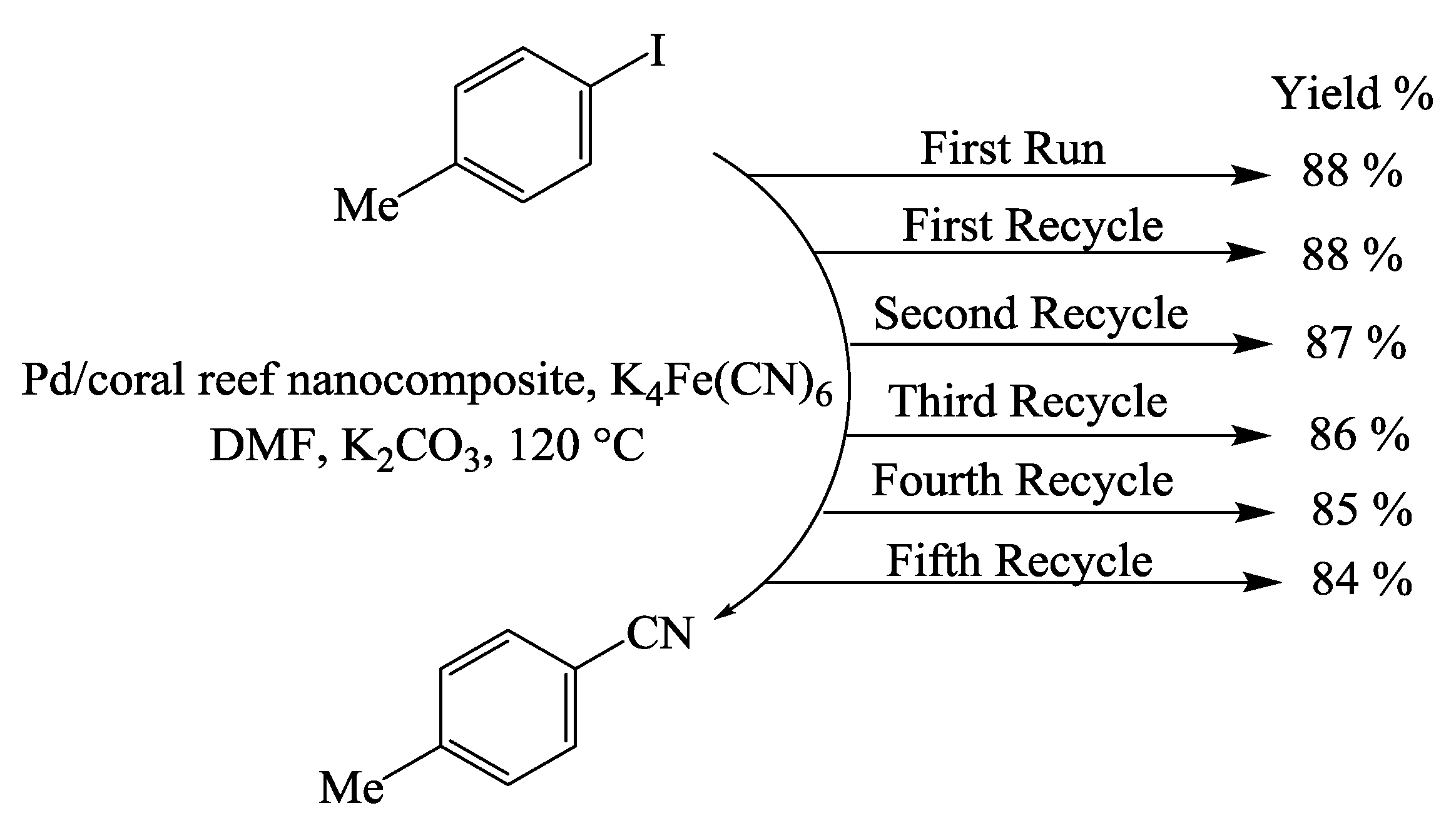

The reusability of the catalysts is one of the most important aspect; it makes them useful for commercial applications, especially for precious metal use. The Pd/coral reef nanocomposite performed under heterogeneous conditions and the recovery studies were performed by conducting the cyanation reaction of 4-iodotoluene with K4Fe(CN)6 under the optimized reaction conditions. After completion of the reaction, the catalyst was separated from the reaction mixture by filtration, washed with distillated water and ethanol, dried in oven at 100 °C for 1 h and reused for the next reaction. It was interesting to observe that the catalyst can be reused up to 5 cycles with no loss of activity (Figure 10). The recovered catalyst, after five cycles, was examined by FE-SEM (Figure 4d,e) and EDS (Figure 11) analysis and the results revealed good stability of the Pd/coral reef nanocomposite in the consecutive cyanation cycles; the chemical composition and size of Pd NPs did not reveal any significant changes. To check Pd/coral reef nanocomposite heterogeneity, the leaching phenomenon was investigated by using ICP-AES (Inductively Coupled Plasma Atomic Emission Spectroscopy (Perkin Elmer 5300V, Akron, OH, USA) analysis of the resulting solution of reaction. The content of the Pd within Pd/coral reef nanocomposite, as determined by ICP-AES, was found to be 0.2 mmol/g. A hot filtration study for the cyanation reaction of 4-iodotoluene with K4Fe(CN)6 was accomplished and catalyst, immediately at the end of the reaction, was separated. The results of heterogeneity test confirm that the leaching of Pd species during reaction progress is low and Pd/coral reef nanocomposite is a heterogeneous catalyst in nature. According to the obtained results, it was revealed that less than 0.2% of the palladium was observed in the solution during the cyanation reaction.

4. Conclusions

In summary, we have developed a simple procedure for the cyanation of aryl halides using K4[Fe(CN)6] in the presence of Pd/coral reef nanocomposite as an efficient and recyclable heterogeneous nanocatalyst. The catalyst is obtainable via bioreduction of Pd(II) to Pd(0) NPs and its immobilization achieved on the coral reef surface as a natural support by using aqueous extract of the leaves of Cucurbita pepo as stabilizing and reducing agent without employing hazardous chemicals. The synthesized catalyst exhibits excellent catalytic activity for the synthesis of aryl nitriles in high yields, with a wide range of aryl halides, including electron-donating and electron-withdrawing groups. In comparison with traditional cyanation of aryl halides, our protocol provides an eco-friendlier benign and practical organic process, especially since nanocomposite were synthesis by biologically process using local resources. This protocol offers several advantages such as simple work-up procedure, high product yields, ease of preparation; separation and reusability of catalyst from the reaction mixture bodes well for its applications. Finally, in keeping with sustainability principles, the described strategy uses the readily available local resources (dead coral reef and abundant plant) for the assembly of the nanocomposite catalyst that can be exploited for synthetic transformations under greener conditions.

Author Contributions

Methodology and experimental design, M.N., F.G., and S.M.S.; resources: M.N.; supervision: M.N., and R.S.V.; writing-original draft: M.N., F.G., and R.S.V.; writing-review and editing: M.N., and R.S.V.

Funding

This research received no external funding.

Acknowledgments

We gratefully acknowledge from the Iranian Nano Council and University of Qom for the support of this work.

Conflicts of Interest

All authors declare no conflict of interest.

References

  1. Kleemann, A.; Engel, J.; Kutscher, B.; Reichert, D. Pharmaceutical Substance: Synthesis, Patents, Applications, 4th ed.; Georg Thieme: Stuttgart, Germany, 2001. [Google Scholar]
  2. Larock, R.C. Comprehensive Organic Transformations: A Guide to Functional Group Preparations; Wiley-VCH: Weinheim, Germany, 1989; pp. 819–995. [Google Scholar]
  3. Grundmann, C. Houben-Weyl: Methoden der Organischen Chemie, 4th ed.; Falbe, J., Ed.; Thieme: Stuttgart, Germany, 1985; Volume E5, p. 1313. [Google Scholar]
  4. Anbarasan, P.; Schareina, T.; Beller, M. Recent developments and perspectives in palladium-catalyzed cyanation of aryl halides: Synthesis of benzonitriles. Chem. Soc. Rev. 2011, 40, 5049–5067. [Google Scholar] [CrossRef]
  5. Sandmeyer, T. Ueber die Ersetzung der Amidgruppe durch Chlor in den aromatischen Substanzen. Ber. Dtsch. Chem. Ges. 1884, 17, 2650–2653. [Google Scholar] [CrossRef]
  6. Hodgson, H.H. The Sandmeyer reaction. Chem. Rev. 1947, 40, 251–277. [Google Scholar] [CrossRef] [PubMed]
  7. Rosenmund, K.W.; Struck, E. Das am Ringkohlenstoff gebundene Halogen und sein Ersatz durch andere Substituenten. I. Mitteilung: Ersatz des Halogens durch die Carboxylgruppe. Ber. Dtsch. Chem. Ges. 1919, 52, 1749–1756. [Google Scholar] [CrossRef]
  8. Von Braun, J.; Manz, G. Fluoranthen und seine Derivate. III. Mitteilung, in Justus. Liebigs Ann. Chem. 1931, 488, 111–126. [Google Scholar] [CrossRef]
  9. Ellis, G.P.; Romney-Alexander, T.M. Cyanation of aromatic halides. Chem. Rev. 1987, 87, 779–794. [Google Scholar] [CrossRef]
  10. Martin, A.; Kalevaru, N.V.; Lücke, B.; Sans, J. Eco-friendly synthesis of p-nitrobenzonitrile by heterogeneously catalysed gas phase ammoxidation. Green Chem. 2002, 4, 481–485. [Google Scholar] [CrossRef]
  11. Rombi, E.; Ferino, I.; Monaci, R.; Picciau, C.; Solinas, V.; Buzzoni, R. Toluene ammoxidation on α-Fe2O3-based catalysts. Appl. Catal. A. Gen. 2004, 266, 73–79. [Google Scholar] [CrossRef]
  12. Lücke, B.; Narayana, K.V.; Martin, A.; Jähnisch, K. Oxidation and ammoxidation of aromatics. Adv. Synth. Catal. 2004, 346, 1407–1424. [Google Scholar] [CrossRef]
  13. Takagi, K.; Okamoto, T.; Sakakibara, Y.; Oka, S. Palladium(II) catalyzed synthesis of aryl cyanides from aryl halide. Chem. Lett. 1973, 2, 471–474. [Google Scholar] [CrossRef]
  14. Friedman, L.; Shechter, H. Preparation of nitriles from halides and sodium cyanide. An advantageous nucleophilic displacement in dimethyl sulfoxide. J. Org. Chem. 1960, 25, 877–879. [Google Scholar] [CrossRef]
  15. Wu, J.X.; Beck, B.; Ren, R.X. Catalytic Rosenmund-von Braun reaction in halide-based ionic liquids. Tetrahedron Lett. 2002, 43, 387–389. [Google Scholar] [CrossRef]
  16. Zanon, J.; Klapars, A.; Buchwald, S.L. Copper-catalyzed domino halide exchange-cyanation of aryl bromides. J. Am. Chem. Soc. 2003, 125, 2890–2891. [Google Scholar] [CrossRef]
  17. Arvela, R.K.; Leadbeater, N.E. Rapid, easy cyanation of aryl bromides and chlorides using nickel salts in conjunction with microwave promotion. J. Org. Chem. 2003, 68, 9122–9125. [Google Scholar] [CrossRef]
  18. Ushkov, A.V.; Grushin, V.V. Rational catalysis design on the basis of mechanistic understanding: Highly efficient Pd-catalyzed cyanation of aryl bromides with NaCN in recyclable solvents. J. Am. Chem. Soc. 2011, 133, 10999–11005. [Google Scholar] [CrossRef]
  19. Anderson, B.A.; Bell, E.C.; Ginah, F.O.; Harn, N.K.; Pagh, L.M.; Wepsie, J.P. Cooperative catalyst effects in palladium-mediated cyanation reactions of aryl halides and triflates. J. Org. Chem. 1998, 63, 8224–8228. [Google Scholar] [CrossRef]
  20. Sundermeier, M.; Mutyala, S.; Zapf, A.; Spannenberg, A.; Beller, M. A convenient and efficient procedure for the palladium-catalyzed cyanation of aryl halides using trimethylsilylcyanide. J. Organomet. Chem. 2003, 684, 50–55. [Google Scholar] [CrossRef]
  21. Beletskaya, I.P.; Sigeev, A.S.; Peregudov, A.S.; Petrovskii, P.V. Catalytic sandmeyer cyanation as a synthetic pathway to aryl nitriles. J. Organomet. Chem. 2004, 689, 3810–3812. [Google Scholar] [CrossRef]
  22. Schareina, T.; Zapf, A.; Beller, M. Improving palladium-catalyzed cyanation of aryl halides: Development of a state-of-the-art methodology using potassium hexacyanoferrate(II) as cyanating agent. J. Organomet. Chem. 2004, 689, 4576–4583. [Google Scholar] [CrossRef]
  23. Yang, C.; Williams, J.M. Palladium-catalyzed cyanation of aryl bromides promoted by low-level organotin compounds. Org. Lett. 2004, 6, 2837–2840. [Google Scholar] [CrossRef]
  24. Kubota, H.; Rice, K.C. Palladium-catalyzed cyanation of hindered, electron-rich aryl triflates by zinc cyanide. Tetrahedron Lett. 1998, 39, 2907–2910. [Google Scholar] [CrossRef]
  25. Alterman, M.; Hallberg, A. Fast microwave-assisted preparation of aryl and vinyl nitriles and the corresponding tetrazoles from organo-halides. J. Org. Chem. 2000, 65, 7984–7989. [Google Scholar] [CrossRef]
  26. Jin, F.; Confalone, P.N. Palladium-catalyzed cyanation reactions of aryl chlorides. Tetrahedron Lett. 2000, 41, 3271–3273. [Google Scholar] [CrossRef]
  27. Ramnauth, J.; Bhardwaj, N.; Renton, P.; Rakhit, S.; Maddaford, S.P. The room-temperature palladium-catalyzed cyanation of aryl bromides and iodides with tri-t-butylphosphine as ligand. Synlett 2003, 2237–2239. [Google Scholar] [CrossRef]
  28. Schareina, T.; Zapf, A.; Beller, M. Potassium hexacyanoferrate(II)-a new cyanating agent for the palladium-catalyzed cyanation of aryl halides. Chem. Commun. 2004, 12, 1388–1389. [Google Scholar] [CrossRef]
  29. Zhang, G.; Chen, S.; Fei, H.; Cheng, J.; Chen, F. Copper-catalyzed cyanation of arylboronic acids using DDQ as cyanide source. Synlett 2012, 23, 2247–2250. [Google Scholar]
  30. Li, J.; Xu, W.; Ding, J.; Lee, K.-H. The application of NCTS (N-cyano-N-phenyl-p-toluenesulfonamide) in palladium-catalyzed cyanation of arenediazonium tetrafluoroborates and aryl halides. Tetrahedron Lett. 2016, 57, 1205–1209. [Google Scholar] [CrossRef]
  31. Zheng, S.; Yu, C.; Shen, Z. Ethyl cyanoacetate: A new cyanating agent for the palladium-catalyzed cyanation of aryl halides. Org. Lett. 2012, 14, 3644–3647. [Google Scholar] [CrossRef] [PubMed]
  32. Sundermeier, M.; Zapf, A.; Beller, M.; Sans, J. A new palladium catalyst system for the cyanation of aryl chlorides. Tetrahedron Lett. 2001, 42, 6707–6710. [Google Scholar] [CrossRef]
  33. Yeung, P.Y.; So, C.M.; Lau, C.P.; Kwong, F.Y. A mild and efficient palladium-catalyzed cyanation of aryl chlorides with K4[Fe(CN)6]. Org. Lett. 2011, 13, 648–651. [Google Scholar] [CrossRef]
  34. Yeung, P.Y.; Tsang, C.P.; Kwong, F.Y. Efficient cyanation of aryl bromides with K4[Fe(CN)6] catalyzed by a palladium-indolylphosphine complex. Tetrahedron Lett. 2011, 52, 7038–7041. [Google Scholar] [CrossRef]
  35. Yan, G.; Kuang, C.; Zhang, Y.; Wang, J. Palladium-catalyzed direct cyanation of indoles with K4[Fe(CN)6]. Org. Lett. 2010, 12, 1052–1055. [Google Scholar] [CrossRef] [PubMed]
  36. Jia, X.; Yang, D.; Wang, W.; Luo, F.; Cheng, J. Chelation-assisted palladium-catalyzed cascade bromination/cyanation reaction of 2-arylpyridine and 1-arylpyrazole C-H bonds. J. Org. Chem. 2009, 74, 9470–9474. [Google Scholar] [CrossRef]
  37. Rosi, N.L.; Mirkin, C.A. Nanostructures in biodiagnostics. Chem. Rev. 2005, 105, 1547–1562. [Google Scholar] [CrossRef]
  38. Zhang, H.; Jin, M.; Xia, Y. Enhancing the catalytic and electrocatalytic properties of Pt-based catalysts by forming bimetallic nanocrystals with Pd. Chem. Soc. Rev. 2012, 41, 8035–8049. [Google Scholar] [CrossRef]
  39. Jain, P.K.; Huang, X.; El-Sayed, I.H.; El-Sayed, M.A. Noble metals on the nanoscale: Optical and photothermal properties and some applications in imaging, sensing, biology, and medicine. Acc. Chem. Res. 2008, 41, 1578–1586. [Google Scholar] [CrossRef]
  40. Alkilany, A.M.; Lohse, S.E.; Murphy, C.J. The gold standard: Gold nanoparticle libraries to understand the nano-bio interface. Acc. Chem. Res. 2013, 46, 650–661. [Google Scholar] [CrossRef]
  41. Saleh, R.; Djaja, N.F. Transition-metal-doped ZnO nanoparticles: Synthesis, characterization and photocatalytic activity under UV light. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2014, 130, 581–590. [Google Scholar] [CrossRef]
  42. Huang, X.; Wu, H.; Pu, S.; Zhang, W.; Liao, X.; Shi, B. One-step room-temperature synthesis of Au@Pd core-shell nanoparticles with tunable structure using plant tannin as reductant and stabilizer. Green Chem. 2011, 13, 950–957. [Google Scholar] [CrossRef]
  43. Zhou, X.; Huang, X.; Qi, X.; Wu, S.; Xue, C.; Boey, F.; Yan, Q.; Chen, P.; Zhang, H. In situ synthesis of metal nanoparticles on single-layer graphene oxide and reduced graphene oxide surfaces. J. Phys. Chem. C 2009, 113, 10842–10846. [Google Scholar] [CrossRef]
  44. Nasrollahzadeh, M.; Atarod, M.; Sajadi, S.M. Biosynthesis, characterization and catalytic activity of Cu/RGO/Fe3O4 for direct cyanation of aldehydes with K4[Fe(CN)6]. J. Colloid Interface Sci. 2017, 486, 153–162. [Google Scholar] [CrossRef] [PubMed]
  45. Atarod, M.; Nasrollahzadeh, M.; Sajadi, S.M. Euphorbia heterophylla leaf extract mediated green synthesis of Ag/TiO2 nanocomposite and investigation of its excellent catalytic activity for reduction of variety of dyes in water. J. Colloid Interface Sci. 2016, 462, 272–279. [Google Scholar] [CrossRef] [PubMed]
  46. Nasrollahzadeh, M.; Atarod, M.; Sajadi, S.M. Green synthesis of the Cu/Fe3O4 nanoparticles using Morinda morindoides leaf aqueous extract: A highly efficient magnetically separable catalyst for the reduction of organic dyes in aqueous medium at room temperature. Appl. Surf. Sci. 2016, 364, 636–644. [Google Scholar] [CrossRef]
  47. Gawande, M.B.; Branco, P.S.; Varma, R.S. Nano-magnetite (Fe3O4) as a support for recyclable catalysts in the development of sustainable methodologies. Chem. Soc. Rev. 2013, 42, 3371–3393. [Google Scholar] [CrossRef]
  48. Bordbar, M.; Alimohammadi, T.; Khoshnevisan, B.; Khodadadi, B.; Yeganeh Faal, A. Preparation of MWCNT/TiO2-Co nanocomposite electrode by electrophoretic deposition and electrochemical study of hydrogen storage. Int. J. Hydrog. Energy 2015, 40, 9613–9620. [Google Scholar] [CrossRef]
  49. Smith, B.D. The initial domestication of Cucurbita pepo in the Americas 10,000 years ago. Science 1997, 276, 932–934. [Google Scholar] [CrossRef]
  50. Wang, X.L.; Liu, J.; Chen, Z.H.B.; Gao, F.; Liu, J.X.; Wang, X.L. Preliminary study on pharmacologically effect of Curcurbita pepo cv Dayanggua. J. Tradit. Chin. Vet. Med. 2001, 20, 6–9. [Google Scholar]
  51. Jiang, Z.; Du, Q. Glucose-lowering activity of novel tetrasaccharide glyceroglycolipids from the fruits of Cucurbita moschata. Bioorg. Med. Chem. Lett. 2011, 21, 1001–1003. [Google Scholar] [CrossRef]
  52. Dabaghian, F.H.; Kamalinejad, M.; Shojaei, S.; Abdollahi Fard, M. Presenting antidiabetic plants in Iranian traditional medicine. J. Diabetes Endocrinol. 2012, 3, 70–76. [Google Scholar] [CrossRef]
  53. Xanthopoulou, M.N.; Nomikos, T.; Fragopoulou, E.; Antonopoulou, S. Antioxidant and lipoxygenase inhibitory activities of pumpkin seed extracts. Food Res. Int. 2009, 142, 641–646. [Google Scholar] [CrossRef]
  54. Nawirska-Olszanska, A.; Kita, A.; Biesiada, A.; Sokol Letowska, A.; Kucharska, A.Z. Characteristics of antioxidant activity and composition of pumpkin seed oils in 12 cultivars. Food Chem. 2013, 139, 155–161. [Google Scholar] [CrossRef]
  55. Available online: https://commons.wikimedia.org/wiki/File:Cucurbita_pepo_ssp._pepo_convar._giromontiina_02.JPG (accessed on 5 September 2009).
  56. Varma, R.S. Greener approach to nanomaterials and their sustainable applications. Curr. Opin. Chem. Eng. 2012, 1, 123–128. [Google Scholar] [CrossRef]
  57. Nadagouda, M.N.; Varma, R.S. Green synthesis of silver and palladium nanoparticles at room temperature using coffee and tea extract. Green Chem. 2008, 10, 859–862. [Google Scholar] [CrossRef]
  58. Hebbalalu, D.; Lalley, J.; Nadagouda, M.N.; Varma, R.S. Greener techniques for the synthesis of silver nanoparticles using plant extracts, enzymes, bacteria, biodegradable polymers, and microwaves. ACS Sustain. Chem. Eng. 2013, 1, 703–712. [Google Scholar] [CrossRef]
  59. Iyanna, N.; Lalley, J.; Han, C.; Dionysiou, D.D.; Varma, R.S.; Nadagouda, M.N. Synthesis of silver and gold nanoparticles using antioxidants from blackberry, blueberry, pomegranate, and turmeric extracts. ACS Sustain. Chem. Eng. 2014, 2, 1717–1723. [Google Scholar]
  60. Kharissova, O.V.; Dias, H.R.; Kharisov, B.I.; Pérez, B.O.; Pérez, V.M. The greener synthesis of nanoparticles. Trends Biotechnol. 2013, 31, 240–248. [Google Scholar] [CrossRef]
  61. Nasrollahzadeh, M.; Sajadi, S.M.; Maham, M. Green synthesis of palladium nanoparticles using Hippophae rhamnoides Linn leaf extract and their catalytic activity for the Suzuki-Miyaura coupling in water. J. Mol. Catal. A Chem. 2015, 396, 297–303. [Google Scholar] [CrossRef]
  62. Nasrollahzadeh, M. Pd/CuO nanoparticles as a highly effective catalyst for the cyanation of aryl halides under ligand-free conditions. Tetrahedron Lett. 2016, 57, 337–339. [Google Scholar] [CrossRef]
  63. Wen, Q.; Jin, J.; Zhang, L.; Luo, Y.; Lu, P.; Wang, Y. Copper-mediated cyanation reactions. Tetrahedron Lett. 2014, 55, 1271–1280. [Google Scholar] [CrossRef]
  64. Sawant, D.N.; Bhanage, B.M. Pd(OAc)2/DPPF-catalysed microwave-assisted cyanide-free synthesis of aryl nitriles. J. Chem. Sci. 2014, 126, 319–324. [Google Scholar] [CrossRef]
  65. Rokade, B.V.; Malekar, S.K.; Ramaiah Prabhu, K. A novel oxidative transformation of alcohols to nitriles: An efficient utility of azides as a nitrogen source. Chem. Commun. 2012, 48, 5506–5508. [Google Scholar] [CrossRef]
  66. Tao, C.; Liu, F.; Zhu, Y.; Liu, W.; Cao, Z. Copper-catalyzed aerobic oxidative synthesis of aryl nitriles from benzylic alcohols and aqueous ammonia. Org. Biomol. Chem. 2013, 11, 3349–3354. [Google Scholar] [CrossRef]
  67. Khemnar, A.B.; Bhanage, B.M. Copper catalyzed nitrile synthesis from aryl halides using formamide as a nitrile source. RSC Adv. 2014, 4, 3405–13408. [Google Scholar] [CrossRef]
  68. Zhang, L.; Lu, P.; Wang, Y. Cu(NO3)2.3H2O-mediated cyanation of aryl iodides and bromides using DMF as a single surrogate of cyanide. Chem. Commun. 2015, 51, 2840–2843. [Google Scholar] [CrossRef]
  69. Luo, Y.; Wen, Q.; Wu, Z.; Jin, J.; Lu, P.; Wang, Y. Copper-mediated cyanation of aryl boronic acids using benzyl cyanide. Tetrahedron 2013, 69, 8400–8404. [Google Scholar] [CrossRef]
  70. Khemnar, A.B.; Sawant, D.N.; Bhanage, B.M. Rhodium catalyzed cyanide-free cyanation of aryl halide by using formamide as a cyanide source. Tetrahedron Lett. 2013, 54, 2682–2684. [Google Scholar] [CrossRef]
  71. Zheng, K.; Liu, B.; Chen, S.; Chen, F. Copper-catalyzed cyanation of aryl iodide with the combined cyanide source of urea and DMSO. Tetrahedron Lett. 2013, 54, 5250–5252. [Google Scholar] [CrossRef]
  72. Ganapathy, D.; Srinivas Kotha, S.; Sekar, G. Stable palladium nanoparticles catalyzed synthesis of benzonitriles using K4[Fe(CN)6]. Tetrahedron Lett. 2015, 56, 175–178. [Google Scholar] [CrossRef]
  73. Saha, D.; Adak, L.; Mukherjee, M.; Ranu, B.C. Hydroxyapatite-supported Cu(I)-catalysed cyanation of styrenyl bromides with K4[Fe(CN)6]: An easy access to cinnamonitriles. Org. Biomol. Chem. 2012, 10, 952–957. [Google Scholar] [CrossRef]
  74. Chatterjee, T.; Dey, R.; Ranu, B.C. ZnO-supported Pd nanoparticle-catalyzed ligand- and additive-free cyanation of unactivated aryl halides using K4[Fe(CN)6]. J. Org. Chem. 2014, 79, 5875–5879. [Google Scholar] [CrossRef]
  75. Senecal, T.D.; Shu, W.; Buchwald, S.L. A general, practical palladium-catalyzed cyanation of (hetero)aryl chlorides and bromides. Angew. Chem. Int. Ed. 2013, 52, 10035–10039. [Google Scholar] [CrossRef] [PubMed]
  76. Cohen, D.T.; Buchwald, S.L. Mild palladium-catalyzed cyanation of (hetero)aryl halides and triflates in aqueous media. Org. Lett. 2015, 17, 202–205. [Google Scholar] [CrossRef] [PubMed]
Nanomaterials 09 00565 sch001 550
Scheme 1. Selected examples of pharmaceuticals containing benzonitriles as the integral part.
Scheme 1. Selected examples of pharmaceuticals containing benzonitriles as the integral part.
Nanomaterials 09 00565 sch001
Nanomaterials 09 00565 sch002 550

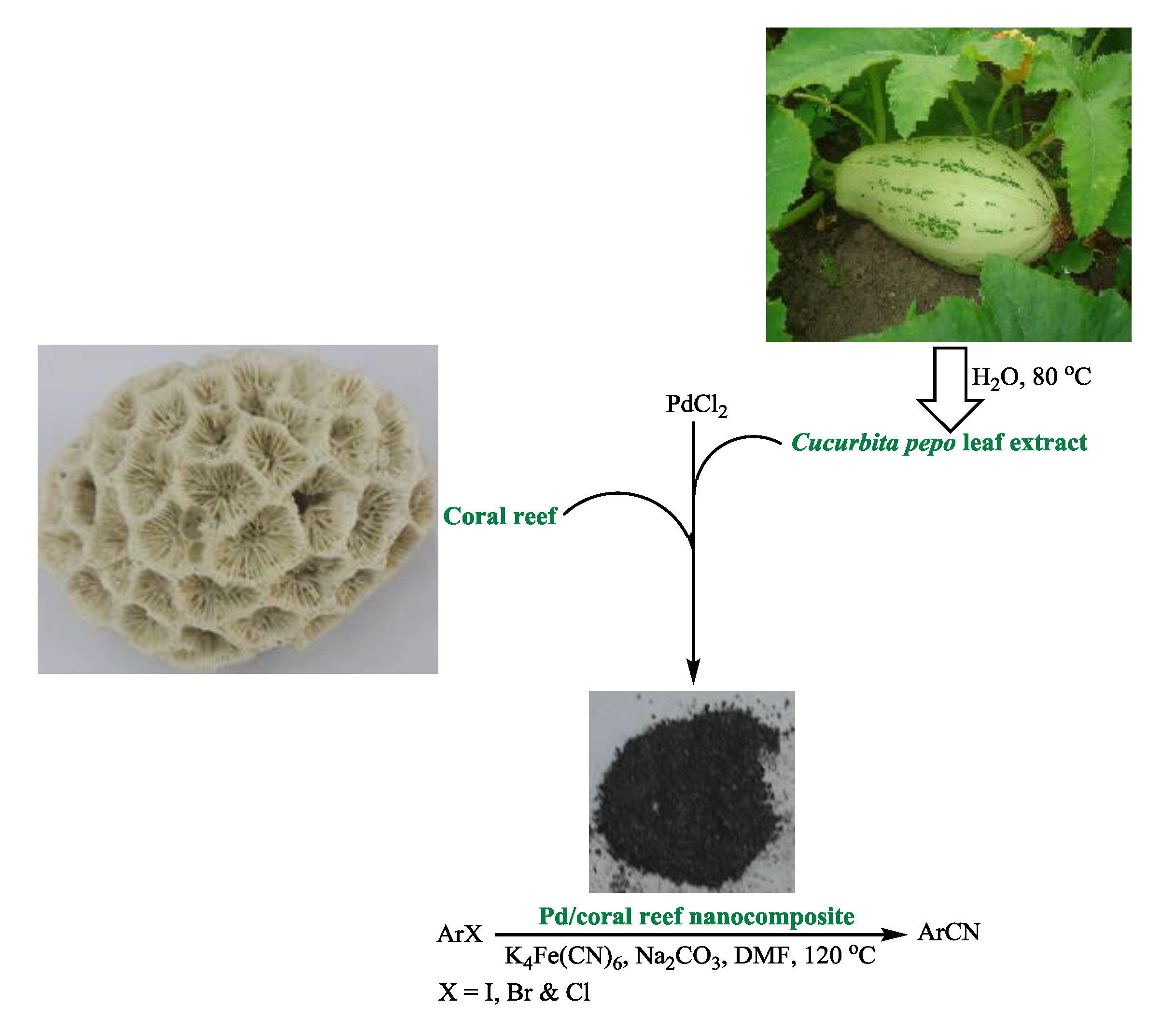

Scheme 2. Preparation of Pd/coral reef nanocomposite using Cucurbita pepo leaf extract and its application for the synthesis of aryl nitriles using K4[Fe(CN)6].
Scheme 2. Preparation of Pd/coral reef nanocomposite using Cucurbita pepo leaf extract and its application for the synthesis of aryl nitriles using K4[Fe(CN)6].
Nanomaterials 09 00565 sch002
Nanomaterials 09 00565 sch003 550

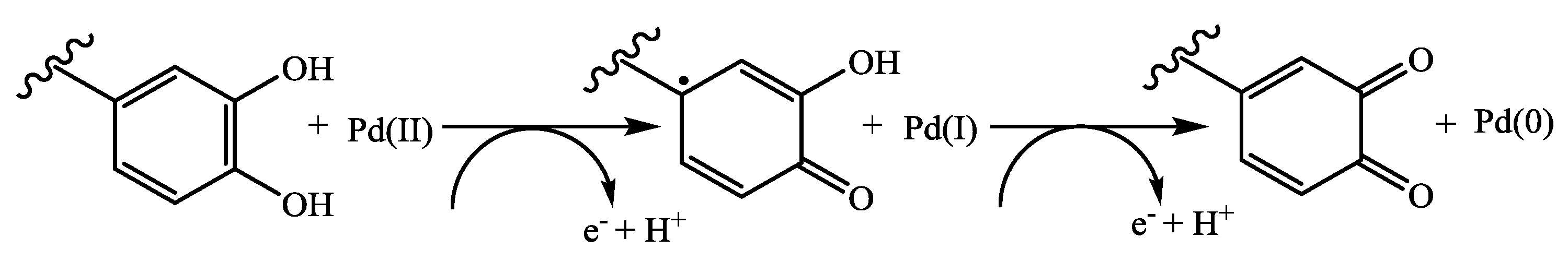

Scheme 3. Proposed mechanism for the synthesis of Pd nanoparticles (NPs).
Scheme 3. Proposed mechanism for the synthesis of Pd nanoparticles (NPs).
Nanomaterials 09 00565 sch003
Nanomaterials 09 00565 g001 550

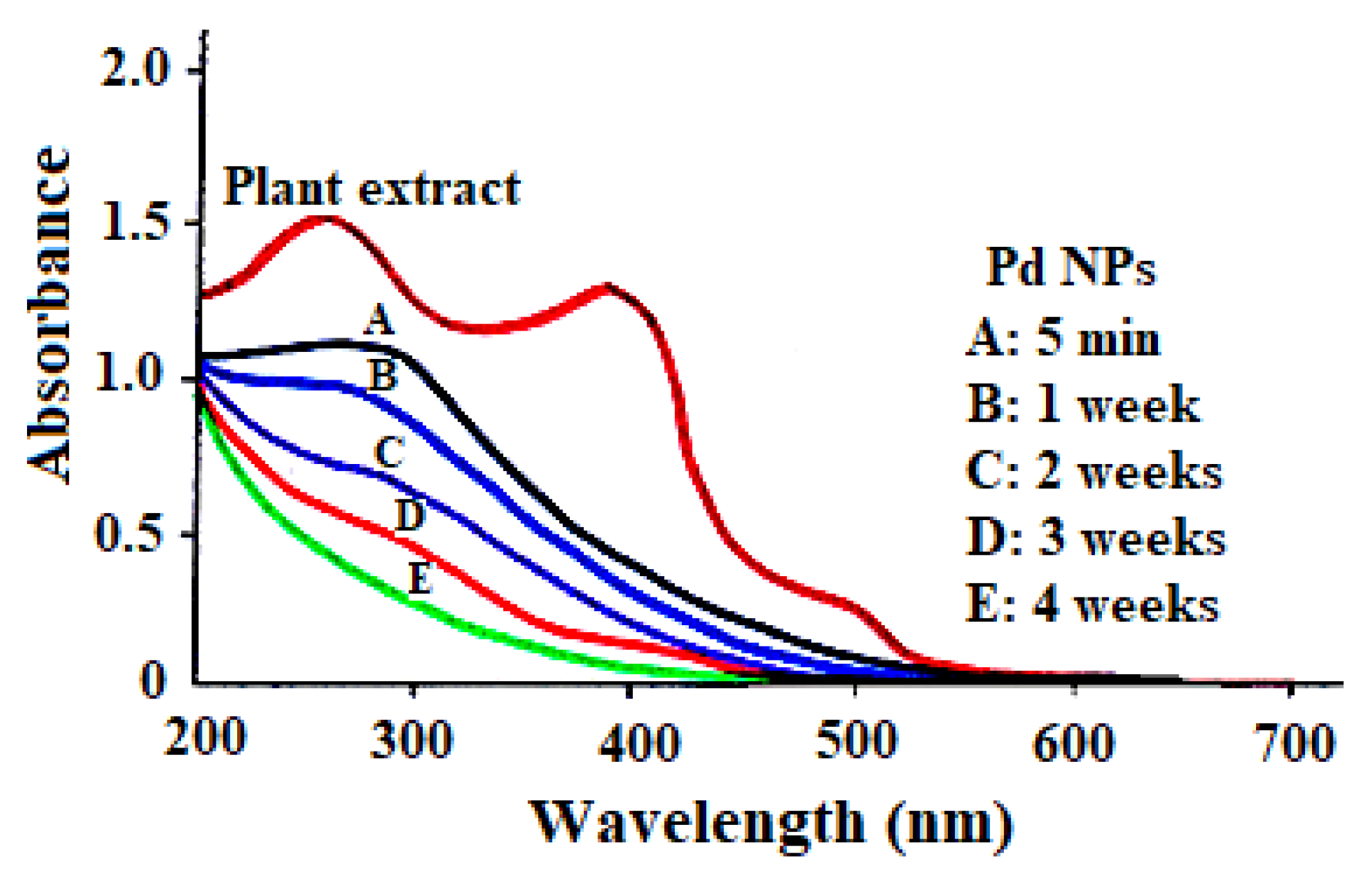

Figure 1. UV-Vis spectrum of plant extract and Pd NPs at different times.
Figure 1. UV-Vis spectrum of plant extract and Pd NPs at different times.
Nanomaterials 09 00565 g001
Nanomaterials 09 00565 g002 550

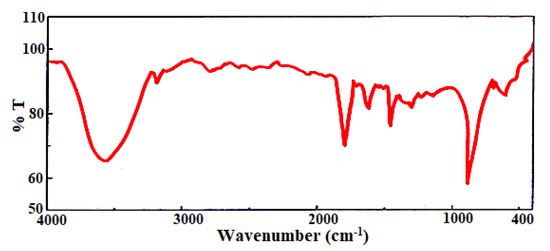

Figure 2. FT-IR spectrum of Pd NPs.
Figure 2. FT-IR spectrum of Pd NPs.
Nanomaterials 09 00565 g002
Nanomaterials 09 00565 g003 550

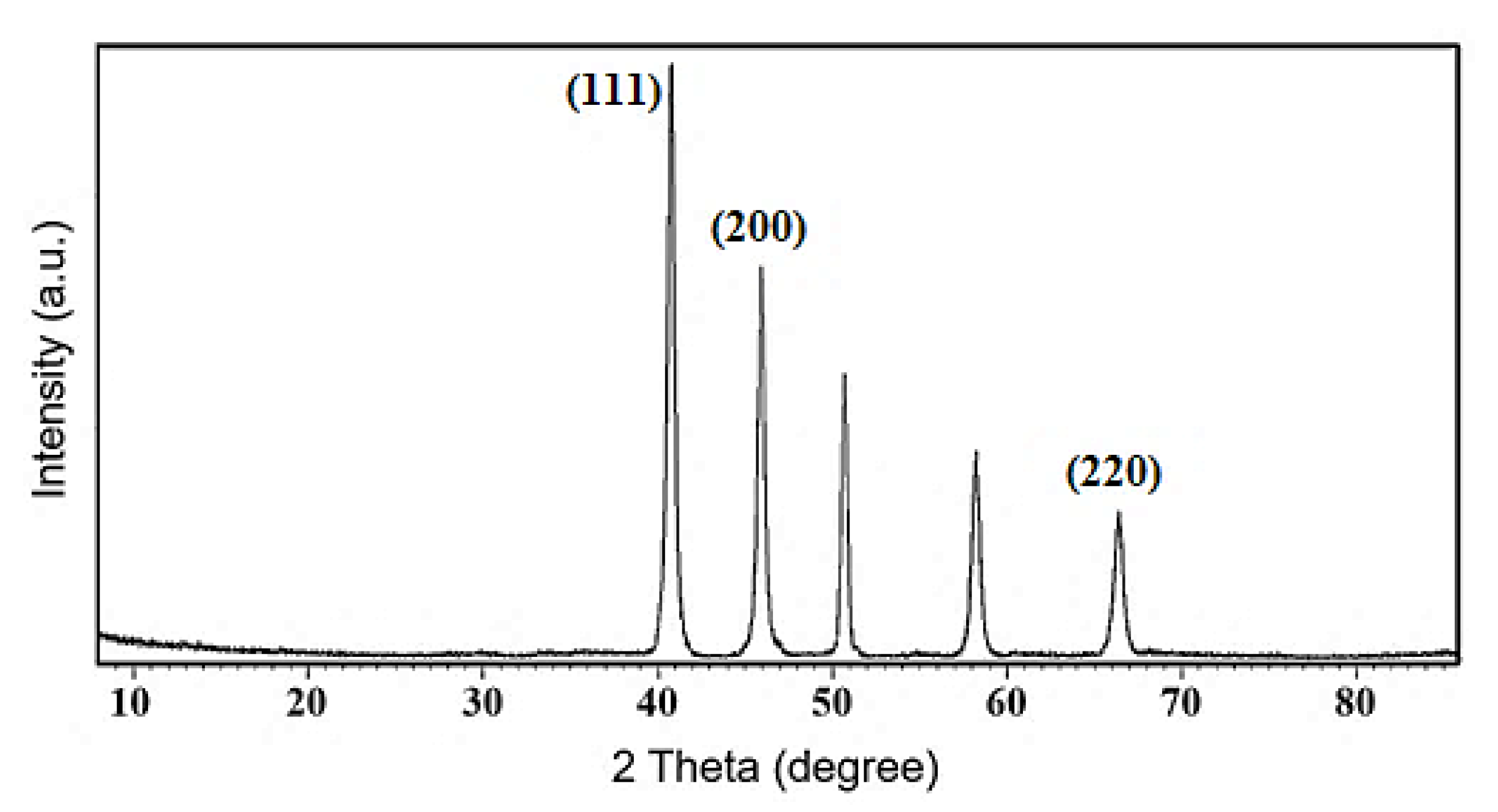

Figure 3. X-ray Diffraction (XRD) pattern of Pd NPs.
Figure 3. X-ray Diffraction (XRD) pattern of Pd NPs.
Nanomaterials 09 00565 g003
Nanomaterials 09 00565 g004 550
Figure 4. FE-SEM images of Pd/coral reef nanocomposite (a–c) and recycled Pd/coral reef nanocomposite (d,e).
Figure 4. FE-SEM images of Pd/coral reef nanocomposite (a–c) and recycled Pd/coral reef nanocomposite (d,e).
Nanomaterials 09 00565 g004
Nanomaterials 09 00565 g005 550
Figure 5. TEM images of Pd/coral reef nanocomposite. (a) 120 nm; (b) 100 nm.
Figure 5. TEM images of Pd/coral reef nanocomposite. (a) 120 nm; (b) 100 nm.
Nanomaterials 09 00565 g005
Nanomaterials 09 00565 g006 550

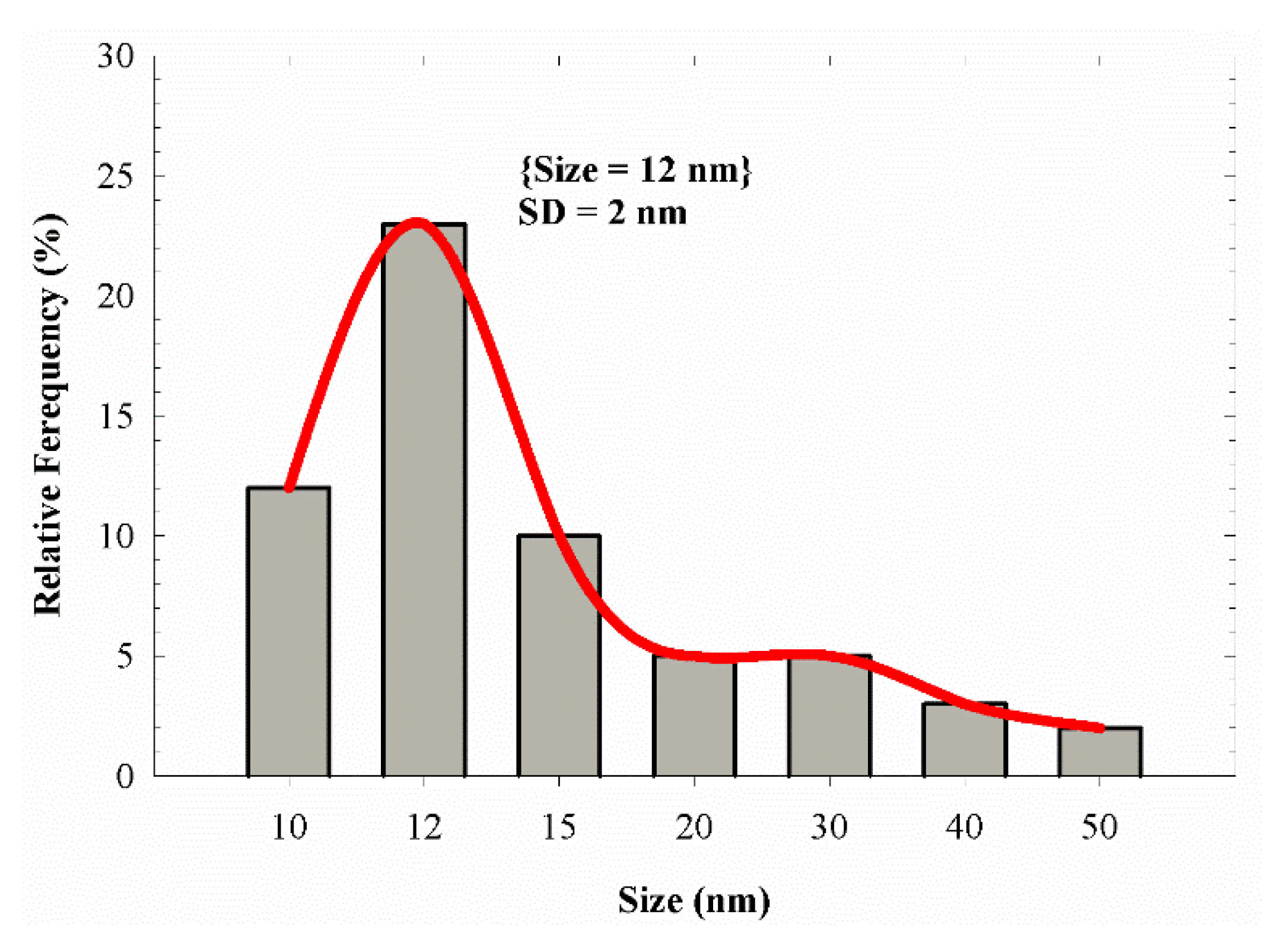

Figure 6. Size distribution histogram of Pd/coral reef nanocomposite.
Figure 6. Size distribution histogram of Pd/coral reef nanocomposite.
Nanomaterials 09 00565 g006
Nanomaterials 09 00565 g007 550
Figure 7. EDS spectrum of Pd/coral reef nanocomposite.
Figure 7. EDS spectrum of Pd/coral reef nanocomposite.
Nanomaterials 09 00565 g007
Nanomaterials 09 00565 g008 550
Figure 8. EDS elemental mapping of Pd/coral reef nanocomposite (a: C; b: O; c: Ca; d: Pd; e: C, O, Ca and Pd; f: Pd and Ca).
Figure 8. EDS elemental mapping of Pd/coral reef nanocomposite (a: C; b: O; c: Ca; d: Pd; e: C, O, Ca and Pd; f: Pd and Ca).
Nanomaterials 09 00565 g008
Nanomaterials 09 00565 g009 550
Figure 9. FT-IR spectrum of Pd/coral reef nanocomposite.
Figure 9. FT-IR spectrum of Pd/coral reef nanocomposite.
Nanomaterials 09 00565 g009
Nanomaterials 09 00565 g010 550
Figure 10. Reusability of Pd/coral reef nanocomposite for cyanation of 4-iodotoluene using K4Fe(CN)6.
Figure 10. Reusability of Pd/coral reef nanocomposite for cyanation of 4-iodotoluene using K4Fe(CN)6.
Nanomaterials 09 00565 g010
Nanomaterials 09 00565 g011 550
Figure 11. EDS spectrum of recycled Pd/coral reef nanocomposite.
Figure 11. EDS spectrum of recycled Pd/coral reef nanocomposite.
Nanomaterials 09 00565 g011
Table
Table 1. Pd/coral reef-catalyzed cyanation of iodobenzene using K4Fe(CN)6 at 120 °C under different conditions a.
Table 1. Pd/coral reef-catalyzed cyanation of iodobenzene using K4Fe(CN)6 at 120 °C under different conditions a.
EntryPd/Coral Reef (g)SolventBaseTime (h)Yield (%) b
10DMFK2CO370
20.05DMFK2CO3288
30.05DMFNaF729
40.05DMFKOAc379
50.05DMFEt3N726
60.05DMFNa2CO3375
70.05DMSOK2CO3285
80.05NMPK2CO3728
90.05TolueneK2CO31018
100.05H2OK2CO31015
110.03DMFK2CO3264
120.08DMFK2CO3288
a Reaction conditions: Iodobenzene (1.0 mmol), K4Fe(CN)6 (0.2 mmol), base (1.0 mmol), DMF (5.0 mL), 120 °C; b Isolated yields are after work-up.
Table
Table 2. Cyanation of aryl halides with K4Fe(CN)6 in the presence of the Pd/coral reef nanocomposite a.
Table 2. Cyanation of aryl halides with K4Fe(CN)6 in the presence of the Pd/coral reef nanocomposite a.
EntryAryl HalideProductTime (h)Yield (%) bTOF (h−1)
Nanomaterials 09 00565 i001
1 Nanomaterials 09 00565 i002 Nanomaterials 09 00565 i00328844,000
2 Nanomaterials 09 00565 i004 Nanomaterials 09 00565 i00528844,000
3 Nanomaterials 09 00565 i006 Nanomaterials 09 00565 i00728944,500
4 Nanomaterials 09 00565 i008 Nanomaterials 09 00565 i00929045,000
5 Nanomaterials 09 00565 i010 Nanomaterials 09 00565 i01129246,000
6 Nanomaterials 09 00565 i012 Nanomaterials 09 00565 i01329145,500
7 Nanomaterials 09 00565 i014 Nanomaterials 09 00565 i01529246,000
8 Nanomaterials 09 00565 i016 Nanomaterials 09 00565 i017293c46,500
9 Nanomaterials 09 00565 i018 Nanomaterials 09 00565 i01929145,500
10 Nanomaterials 09 00565 i020 Nanomaterials 09 00565 i02129246,000
11 Nanomaterials 09 00565 i022 Nanomaterials 09 00565 i02329145,500
12 Nanomaterials 09 00565 i024 Nanomaterials 09 00565 i02529246,000
13 Nanomaterials 09 00565 i026 Nanomaterials 09 00565 i02738628,666
14 Nanomaterials 09 00565 i028 Nanomaterials 09 00565 i02938929,666
15 Nanomaterials 09 00565 i030 Nanomaterials 09 00565 i031390c30,000
16 Nanomaterials 09 00565 i032 Nanomaterials 09 00565 i033391c30,333
17 Nanomaterials 09 00565 i034 Nanomaterials 09 00565 i03568013,333
18 Nanomaterials 09 00565 i036 Nanomaterials 09 00565 i03768313,833
19 Nanomaterials 09 00565 i038 Nanomaterials 09 00565 i03968213,666
a Reaction conditions: Catalyst (0.05 g containing 0.001 mol% of Pd), aryl halides (1.0 mmol), K4Fe(CN)6 (0.2 mmol), K2CO3 (1.0 mmol), DMF (5.0 mL), 120 °C; b Isolated yields are after work-up; c The reaction was carried out in the presence of 0.4 mmol of K4Fe(CN)6.
Table
Table 3. Comparison of the Pd/coral reef nanocomposite with other previously reported catalysts in the synthesis of 4-methoxybenzonitrile.
Table 3. Comparison of the Pd/coral reef nanocomposite with other previously reported catalysts in the synthesis of 4-methoxybenzonitrile.
EntryReaction ConditionsTimeYield (%) aRef.
1p-CH3OC6H4I, Pd/CuO NPs, K4Fe(CN)6, K2CO3, DMF, 120 °C15 h88[62]
2p-CH3OC6H4Br, CuCN, L-proline, DMF, 120 °C45 h81[63]
3p-CH3OC6H4I, Pd(OAc)2, 1,1-bis(diphenylphosphino)ferrocene, HCONH2, POCl3, MW, N2, 160 °C50 min78[64]
4p-CH3OC6H4CH2OH, Cu(ClO4)2.6H2O, TMSN3, DDQ, DCE, 60 °C4 h82[65]
5p-CH3OC6H4CHO, Cu(NO3)2, NH3, O2, DMSO, 80 °C5 h86[66]
6p-CH3OC6H4I, CuI, HCONH2, PPh3, POCl3, N2, 140 °C24 h83[67]
7p-CH3OC6H4I, Cu(NO3)2.3H2O, HCON(Me)2, HOAc, TBHP, DMF, air, 140 °C48 h87[68]
8p-CH3OC6H4B(OH)2, CuI, PhCH2CN, TBHP, air, DMAc, 130 °C20 h72[69]
9p-CH3OC6H4I, [Rh(cod)Cl]2, Xantphos, HCONH2, POCl3, N2, 135-140 °C24 h85[70]
10p-CH3OC6H4I, CuF2, Li2CO3, CO(NH2)2, 1,10-phenanthroline, O2, DMSO, 150 °C36 h87[71]
11p-CH3OC6H4I, Pd-BNPs, K4Fe(CN)6, K3PO4, DMF, 120 °C2 h88[72]
12p-CH3OC6H4I, Cu(I)-HAP, K4Fe(CN)6, KF, DMF, 120 °C15 h80[73]
13p-CH3OC6H4Br, ZnO-Pd NPs, K4Fe(CN)6, KF, DMF, 130 °C14 h76[74]
14p-CH3OC6H4Cl, palladacycle precatalyst, XPhos, K4Fe(CN)6, KOAc, dioxane/H2O (1:1), 110 °C1 h95[75]
15p-CH3OC6H4Br, palladacycle precatalyst, t-BuXPhos, Zn(CN)2, THF/H2O (1:5), r.t.18 h97[76]
16p-CH3OC6H4I, Pd/coral reef, K4Fe(CN)6, K2CO3, DMF, 120 °C2 h89This work
17p-CH3OC6H4Br, Pd/coral reef, K4Fe(CN)6, K2CO3, DMF, 120 °C3 h89This work
a Isolated Yield.

Share and Cite

MDPI and ACS Style

Nasrollahzadeh, M.; Ghorbannezhad, F.; Sajadi, S.M.; Varma, R.S. Pd Nanocatalyst Adorning Coral Reef Nanocomposite for the Synthesis of Nitriles: Utility of Cucurbita pepo Leaf Extract as a Stabilizing and Reducing Agent. Nanomaterials 2019, 9, 565. https://doi.org/10.3390/nano9040565

AMA Style

Nasrollahzadeh M, Ghorbannezhad F, Sajadi SM, Varma RS. Pd Nanocatalyst Adorning Coral Reef Nanocomposite for the Synthesis of Nitriles: Utility of Cucurbita pepo Leaf Extract as a Stabilizing and Reducing Agent. Nanomaterials. 2019; 9(4):565. https://doi.org/10.3390/nano9040565

Chicago/Turabian Style

Nasrollahzadeh, Mahmoud, Fatemeh Ghorbannezhad, S. Mohammad Sajadi, and Rajender S. Varma. 2019. "Pd Nanocatalyst Adorning Coral Reef Nanocomposite for the Synthesis of Nitriles: Utility of Cucurbita pepo Leaf Extract as a Stabilizing and Reducing Agent" Nanomaterials 9, no. 4: 565. https://doi.org/10.3390/nano9040565

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
