Iron-Doped Titanium Dioxide Nanoparticles As Potential Scaffold for Hydrazine Chemical Sensor Applications

Abstract

Herein, we report the fabrication of a modified glassy carbon electrode (GCE) with high-performance hydrazine sensor based on Fe-doped TiO₂ nanoparticles prepared via a facile and low-cost hydrothermal method. The structural morphology, crystalline, crystallite size, vibrational and scattering properties were examined through different characterization techniques, including FESEM, XRD, FTIR, UV–Vis, Raman and photoluminescence spectroscopy. FESEM analysis revealed the high-density synthesis of Fe-doped TiO₂ nanoparticles with the average diameter of 25 ± 5 nm. The average crystallite size of the synthesized nanoparticles was found to be around 14 nm. As-fabricated hydrazine chemical sensors exhibited 1.44 μA µM⁻¹ cm⁻² and 0.236 µM sensitivity and limit of detection (LOD), respectively. Linear dynamic ranged from 0.2 to 30 µM concentrations. Furthermore, the Fe-doped TiO₂ modified GCE showed a negligible inference behavior towards ascorbic acid, uric acid, glucose, SO₄²⁻, NO₃⁻, Pb²⁺ and Ca²⁺ ions on the hydrazine sensing performance. Thus, Fe-doped TiO₂ modified GCE can be efficiently used as an economical, easy to fabricate and selective sensing of hydrazine and its derivatives.

1. Introduction

Hydrazine is extensively used in rocket propellants, pesticides, explosives, photography chemicals, antioxidants and plant growth regulators in various related industries and laboratories [1,2]. Effluents released from these industries and laboratories are the foremost environmental source of hydrazine. It is considered one of the poisonous chemicals even at low concentration and is very hazardous to living organisms. The potential symptoms of hydrazine exposure range from eye and nose irritation, pulmonary edema, skin dermatitis, temporary blindness and serious damage to many human organs such as the kidney and liver [3,4,5]. Due to its mutagenic and carcinogenic behavior, it has been cited in the Environmental Protection Agency (EPA) list. It is therefore mandatory to trace the presence of minor amounts of hydrazine in the aqueous medium.

Previously reported techniques for the detection of hydrazine include spectrophotometry [6], fluorimetry [7,8], chemiluminescence [9] and potentiometry [10,11]. However, all these methods are accompanied by several disadvantages like low sensitivity, and they require expensive instrumentation followed by complicated procedures. Electrochemical determination is considered to be the promising alternative for the determination of hydrazine in terms of selectivity, sensitivity and portability, with an economical and simple operating procedure [12,13]. Unfortunately, hydrazine undergoes direct oxidation at the bare electrode surface, thus resulting in sluggish electrode kinetics and high over potentials [14,15]. Therefore, chemically modified electrodes have been used to detect hydrazine, which significantly reduce the overpotential, as well as accelerate redox reactions and hence the oxidation current responses [16,17].

Recently, there is a big interest in the utilization of new materials in scientific societies due to improved processibility, applicability and vast applications in various fields of sciences. In the past few years, tremendous work has been done on metal oxide based nanomaterials or composites, especially ZnO [18], CuO [19,20], TiO₂ [21,22] and MnO₂ [23], which are considered an ideal platform for material preparation used in pharmaceuticals and cosmetics industries, for the treatment of wastewater and in other fields [24]. TiO₂ is one of the most extensively used semiconductor materials owing to its non-toxicity, high performance, great stability and low preparation cost. Due to its good conductivity, high electrocatalytic activity and electron transport properties, TiO₂ is the most suitable material for devising the electrodes for various electrochemical and biosensing applications. Khodari et al. [25] used an electrochemical sensor, prepared by casting TiO₂ nanoparticles (NPs) onto a carbon electrode surface, for the determination of resorcinol. The TiO₂ NPs were demonstrated to be competent in boosting the electron transfer between resorcinol and the electrode surface as well as transport of resorcinol molecules to the surface of the sensor. Guo and coworkers [26,27] synthesized TiO₂ nanofibers for the bio-sensing of glucose. The fabricated TiO₂ nanofibers exhibited good direct electrochemistry as well as magnificent sensitivity along with fast response time for the detection of glucose. In order to further increase the electron transfer rate between the working modified electrode and the analyte solution and, hence, rapid and sensitive current response, doping of metal oxides has been reported as one of the best ways. Among the various dopants, Fe³⁺ ions are most suitable owing to their similar ionic radii to that of Ti⁴⁺ ions. Fe³⁺ ions (63 pm) can easily replace the Ti⁴⁺ ions (68 pm) from the TiO₂ crystal lattice. Further, Fe³⁺ ions prevent electron–hole (e⁻–h⁺) recombination, better charge separation and incorporation of oxygen vacancies in the crystal lattice and surface of the TiO₂ [28,29]. Additionally, the choice of Fe³⁺ ions as dopant has also been confirmed for some other semiconductor metal oxides. Hexamethylenediamine (HMDA) grafted and Fe nanoparticles incorporation into SnO₂ nanostructures exhibited strong surface affinity of 8.5 µmol/m² for H₂, as an important aspect of green energy storage applications at ambient temperature and pressure conditions [30]. ZnO powders doped with Fe nanoparticles through an in situ dispersion method showed improved conductivity and capacitance as compared to undoped ZnO nanoparticles [31]. HMDA grafted and Fe nanoparticles doped ZnO nanoparticles showed excellent conductivity which was attributed to the formation of effective proton-conductivity on the surface of the ZnO as well as proton transfer between Fe nanoparticles [32]. Fe-doped TiO₂ nanoparticles displayed superior photocatalytic degradation of methylene blue dye, phenol and toxic organic compounds as compared to undoped TiO₂ under UV and visible light illumination [33,34,35].

Herein, Fe-doped TiO₂ nanoparticles were prepared through a facile hydrothermal technique and subsequently analyzed using different characterization techniques for their various characteristics and to affirm the formation of the doped TiO₂ nanoparticles. Modified glassy carbon electrode (GCE) was fabricated by coating a thin film of Fe-doped TiO₂ nanoparticles onto it. As-fabricated hydrazine chemical sensors exhibited excellent hydrazine chemical sensing parameters.

2. Experimental Details

2.1. Synthesis of Fe-Doped TiO₂ Nanoparticles

For the preparation of Fe-doped TiO₂ nanoparticle, a facile hydrothermal method was adopted (2% doping of Fe ion was performed in the Fe-doped TiO₂ nanoparticle). Tetrabutyl titanate (Ti(BuO)₄) and ferric nitrate (Fe(NO₃)₃) were used as TiO₂ precursor and Fe dopant, respectively. Twenty milliliters of 0.5 M Ti(BuO)₄ solution was poured drop-wise to 5 M aqueous NaOH solution followed by the addition of 20 mL of 0.1 M Fe(NO₃)₃ solution dropwise. A Teflon lined stainless steel autoclave containing above solution was then heated at 200 °C for 10 h. The following reaction mechanisms have been proposed for the synthesis of Fe-doped TiO₂ nanoparticles (Equations (1)–(3)).

Ti(BuO)₄+ 4 NaOH → Ti(OH)₄ + 4 BuONa

(1)

Fe(NO₃)₃+ 3 NaOH→ Fe(OH)₃ + 3 NaNO₃

(2)

$$\mathrm{Ti}(\mathrm{OH}{)}_4\stackrel{Calcination}{\to }{\mathrm{TiO}}_2+2{\mathrm{H}}_2\mathrm{O}$$

(3)

During the hydrothermal process, tetrabutyl titanate was hydrolyzed to titanium hydroxide (Ti(OH)₄) and sodium butoxide. Ferric nitrate used as dopant was also hydrolyzed to its hydroxide, i.e., ferric hydroxide (Fe(OH)₃). BuONa and NaNO₃ were removed by washing with ethanol and deionized (DI) water. These washings also eliminated any unreacted Fe(NO₃)₃. Thoroughly washed Ti(OH)₄ and Fe(OH)₃ were dried for 6 h in an electric oven at 70 °C. During calcination, titanium hydroxide was converted into TiO₂ with Fe³⁺ ions occupying the lattice sites in the TiO₂ crystal lattice. The calcination was carried out in oxygen atmosphere at 450 °C for 2 h. The calculated synthesis yield of the synthesized Fe-doped TiO₂ nanoparticles were found to be 0.8 g.

2.2. Characterizations of Fe-Doped TiO₂ Nanoparticles

X-ray diffraction (XRD; PAN analytical Xpert Pro. Cambridge, UK) with Cu–Kα radiation was performed for the analysis of crystal phase and crystallite size. The optical characteristics were estimated by using UV–Vis Spectrophotometer (Perkin Elmer-Lamda 950, Waltham, MA, USA) within the wavelength range of 200–800 nm by dispersing and sonicating the Fe-doped TiO₂ in distilled water for 30 min. Scattering properties of the doped TiO₂ material were analyzed by Raman spectrum and examined using Raman spectrometer (Perkin Elmer-FTIR Spectrum-100, Waltham, MA, USA) from 100 to 900 cm⁻¹. FTIR spectrum of the Fe-doped TiO₂ was collected by FTIR spectrophotometer (Perkin Elmer-FTIR Spectrum-100, Waltham, MA, USA) through KBr pelletization from 500 to 4000 cm⁻¹. The photoelectronic properties of the Fe-doped TiO₂ nanoparticles were analyzed through photoluminescence spectral measurement.

2.3. Hydrazine Chemical Sensor Fabrication

Prior to electrode coating with Fe-doped TiO₂ nanoparticles, the GCE with surface area of 0.071 cm² (Bio-Logic SAS, Seyssinet-Pariset, France) was polished with a 1 µm polishing diamond. After this, the surface of the GCE was further polished with 0.05 µm alumina slurry and finally washed with distilled water. The modified GCEs with active materials (Fe-doped TiO₂) were fabricated as follows: The GCE surface was smoothly coated by the Fe-doped TiO₂ using ethyl acetate and conducting binder–butyl carbitol acetate followed by drying at 60 °C for 3 h. A three electrode electrochemical cell was connected to electrochemical workstation, Zahner Zennium, Germany, with a Pt wire as a counter electrode, and Fe-doped TiO₂ nanoparticle modified GCE as working electrode and an Ag/AgCl (saturated KCl) as a reference electrode were used during the electrochemical measurements. Different concentrations of hydrazine (0.2 µM–30 µM) were electrochemically tested. All the electroanalytical experiments were performed in 0.1 M phosphate buffer solution (PBS) of pH 7.4 at room temperature.

3. Results and Discussion

3.1. Characterizations and Properties of Fe-Doped TiO₂ Nanoparticles

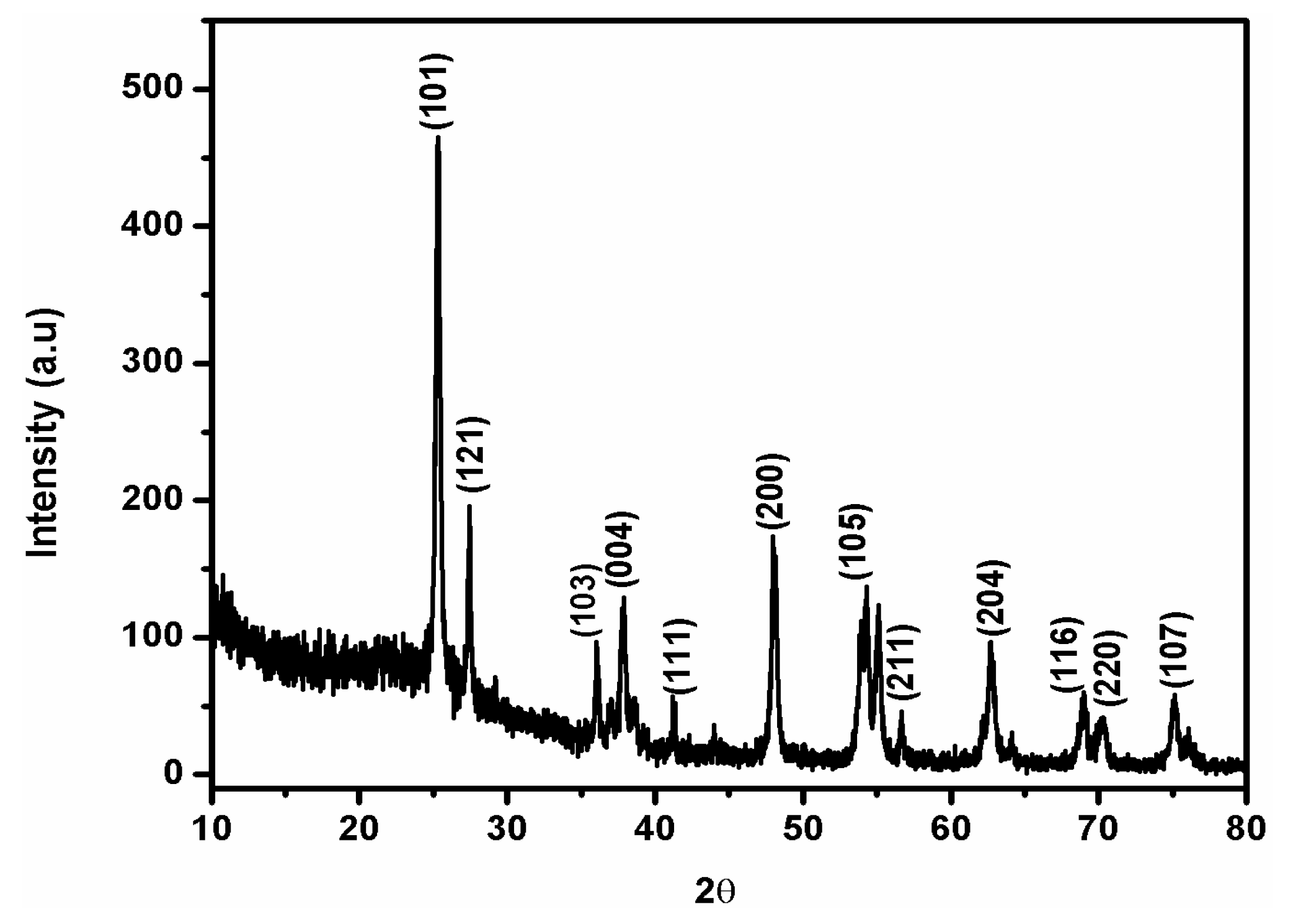

Figure 1 depicts the XRD diffraction patterns of Fe-doped-TiO₂ nanoparticles. The XRD studies clearly demonstrated the presence of both anatase and rutile phases with anatase as the major phase. The presence of main diffraction peaks in the XRD pattern of Fe-doped-TiO₂ nanoparticles at 2θ = 25.28, 37.8, 48.07, 54.25 and 62.63, 68.9, 70.28 and 75.13 were consistent with (101), (103), (004), (200), (105), (211), (204), (116), (220) and (107) lattice planes of anatase phase (JCPDS No. 21-1272) [24].

The XRD peaks corresponding to rutile phase also emerged at 2θ = 27.50 and 41.54 diffraction angles corresponding to (121) and (111) diffraction planes (JCPDS No. 21-1276). The synthesized samples did not exhibit any diffraction peaks for Fe, which suggests that the Fe³⁺ content in the Fe-doped TiO₂ was below the detection limit, and due to almost similar ionic radii, the Fe³⁺ ions could substitute Ti⁴⁺ from some of the lattice sites of TiO₂ as discussed earlier. This further indicates that Fe³⁺ ions were successfully integrated into TiO₂ matrix homogeneously without the development of iron oxide on the TiO₂ surface. This homogeneous distribution of Fe³⁺ ions in TiO₂ matrix and low concentration, responsible for the absence of any Fe³⁺ peaks in the XRD patterns, have also been reported earlier in the literature [36,37]. The average crystallite size of the synthesized nanoparticles was estimated using the Scherrer formula (Equation (4)) and was found to be around 14 nm.

$$\mathrm{d}=\frac{0.89\mathsf{\lambda }}{\mathsf{\beta }\cos \mathsf{\theta }}$$

(4)

where λ = 1.542 Å, θ = Bragg angle of diffraction, β = full width at half maximum.

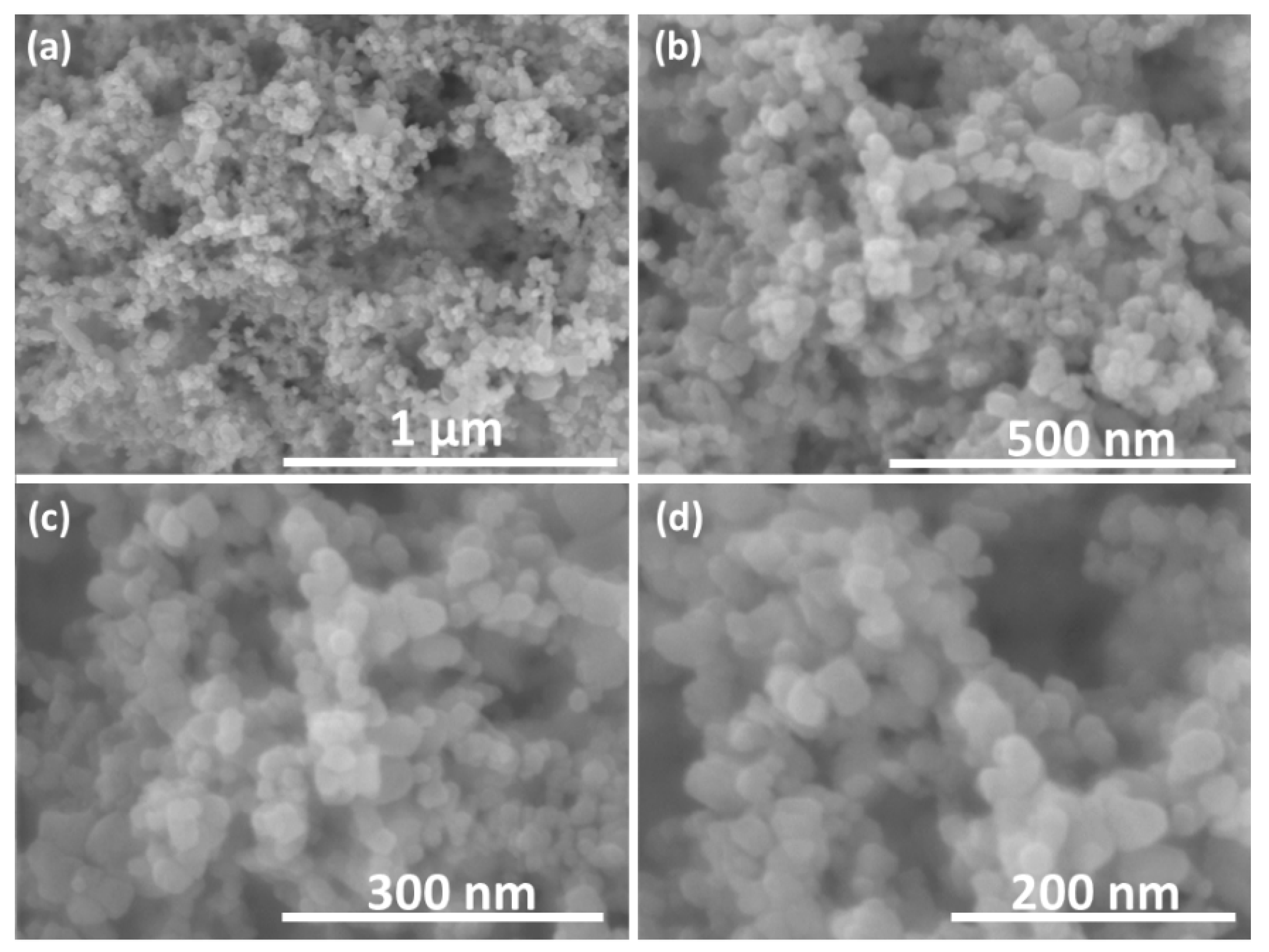

The detailed structural and morphological properties of Fe-doped TiO₂ were examined by FESEM analysis. The corresponding low and high magnification FESEM images are depicted in Figure 2a–d. A large number of spherical shaped and highly agglomerated Fe-doped TiO₂ particles with an average diameter of about 20 nm can be seen. In addition to spherical shapes, some Fe-doped TiO₂ with cubic, pentagonal, oval and other irregular geometries can also be seen from high magnification FESEM images (Figure 2c,d).

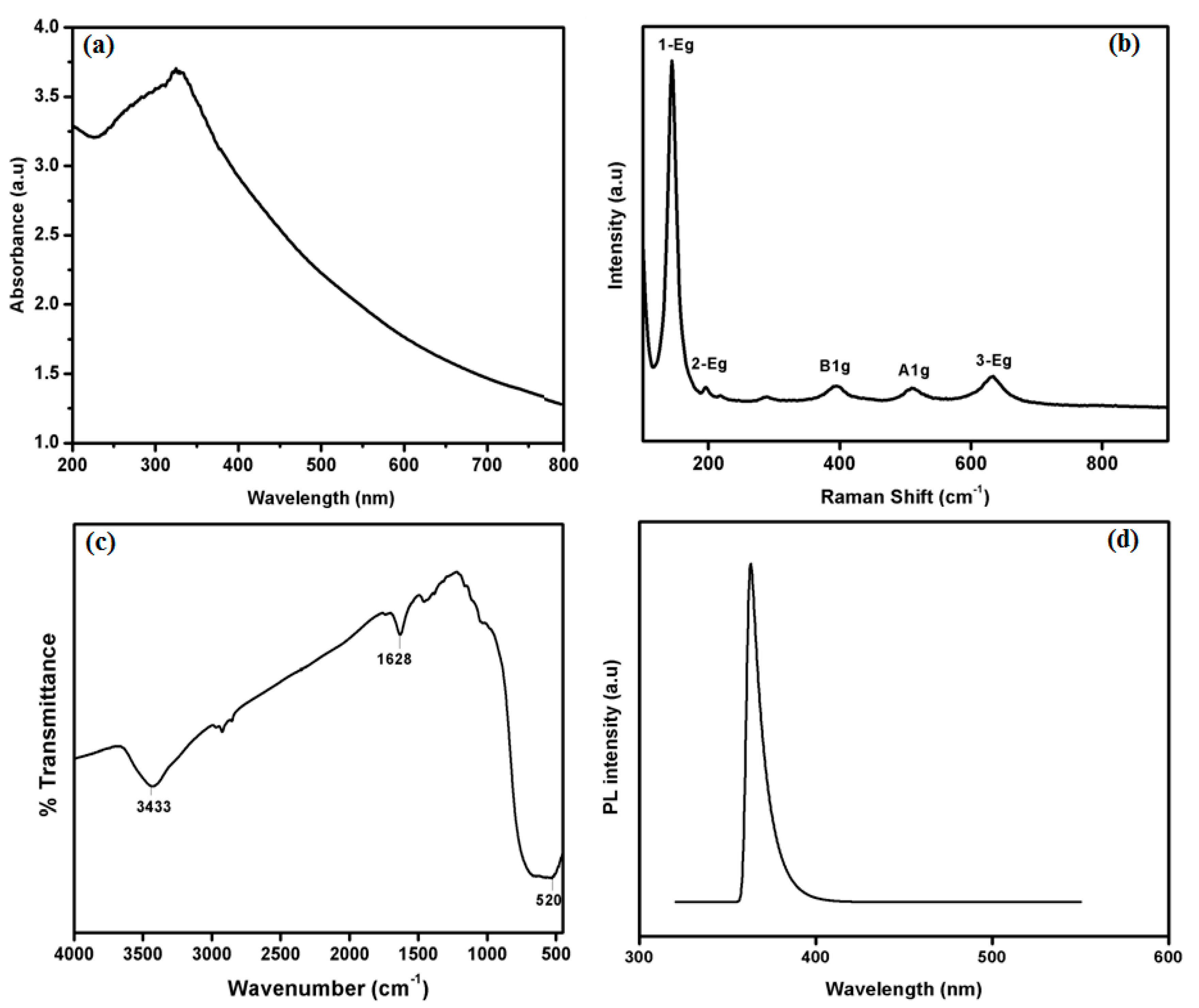

To observe the optical properties of the Fe-doped TiO₂ nanoparticles, a UV–Vis absorption spectroscopic study was performed. It can be examined from Figure 3a that Fe-doped TiO₂ nanoparticles exhibited a wide absorption peak below 400 nm, which is the typical absorption of TiO₂. This peak can be attributed to the electronic excitation from lower energy level to higher energy level in the anatase phase of the TiO₂. Furthermore, the change in color of the sample from white (pure TiO₂) to creamish yellow (Fe-doped TiO₂) depicted the increase in absorption towards visible light due to the incorporation of dopant metal [38].

Figure 3b illustrates the Raman spectra of Fe-doped TiO₂ nanoparticles. Five main bands—144.2, 195, 396.4, 513.2 and 634.8 cm⁻¹, corresponding to the six Raman active modes—were illustrated for the anatase phase of TiO₂ (3E_g, 2B_1g and 1A_2g) [39]. The spectra indicated the crystalline nature of the synthesized nanoparticles. Furthermore, no additional peak related to the iron oxide was seen, which corroborates the results of XRD.

Figure 3c shows the FTIR spectra of Fe-doped TiO₂ nanoparticles. The spectrum reflects that doping had no effect on the bonding environment of the TiO₂ host nanoparticles. The broadband at 3433 cm⁻¹ was assigned to the symmetric and asymmetric stretching vibrations of O–H bonds of the adsorbed water molecules during sample formation. An additional peak at 1628 cm⁻¹ was attributed to the bending vibration related to the hydroxyl group of the adsorbed water. The band centered at ~520 cm⁻¹ was due to metal–oxygen, i.e., Ti–O and Fe–O, bonds [40].

The photoelectronic properties of Fe-doped TiO₂ nanoparticles were studied from the photoluminescence spectrum (Figure 3d). The UV region peak at around 375 nm is likely related to the near-band-edge (NBE) excitonic emission. Interestingly, the energy corresponding to above NBE peak is close to the energy gap of 3.17 eV of anatase TiO₂ as reported earlier [40]. The NBE transition originated from the electrons–holes recombination. The incorporation of dopant Fe did not cause any significant alteration in the PL spectrum.

3.2. Electrochemical Sensing Properties of Hydrazine Using Fe-Doped TiO₂ Nanoparticles

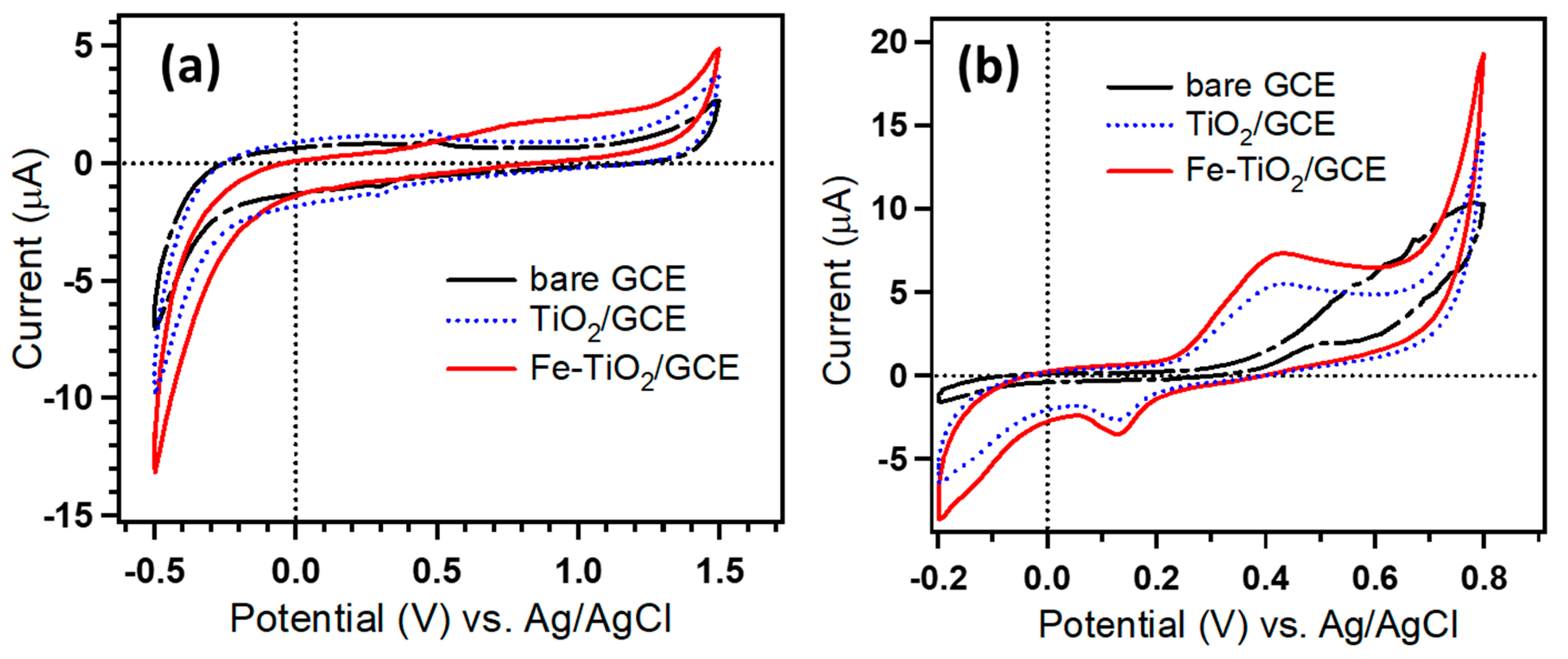

The electrochemical sensing capability of Fe-doped TiO₂ nanostructure was examined using cyclic voltammetry. Figure 4a,b shows typical cyclic voltammogram (CV) of bare GCE, undoped TiO₂ modified GCE and Fe-doped TiO₂ modified GCE in absence and presence, respectively, of 0.5 mM hydrazine in 0.1 M PBS (pH 7.4) at 50 mVs⁻¹ scan rate. As can be observed from Figure 4a, in blank PBS solution bare GCE, undoped TiO₂ modified GCE, and Fe-doped TiO₂ modified GCE did not generate any characteristic peak in the selected voltage range. However, with the addition of 0.5 mM hydrazine, no significant peak was observed by bare electrode, but a significant oxidation peak at 0.45 V vs. Ag/AgCl was detected in the case of both undoped TiO₂ modified GCE and Fe-doped TiO₂ modified electrode (Figure 4b), which clearly illustrated the efficient electrocatalytic activity of the modified GCE. The current response at Fe-doped TiO₂ modified electrode was much larger than the undoped TiO₂ modified GCE, ~137% larger, which indicates the enhanced electrocatalytic activity of coated GCE after the addition of Fe.

3.3. Amperometric Studies

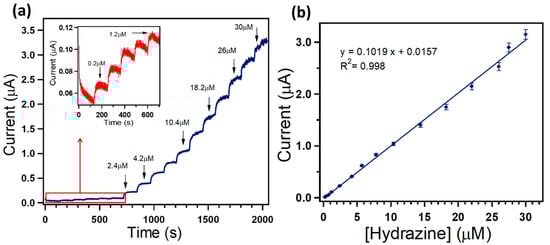

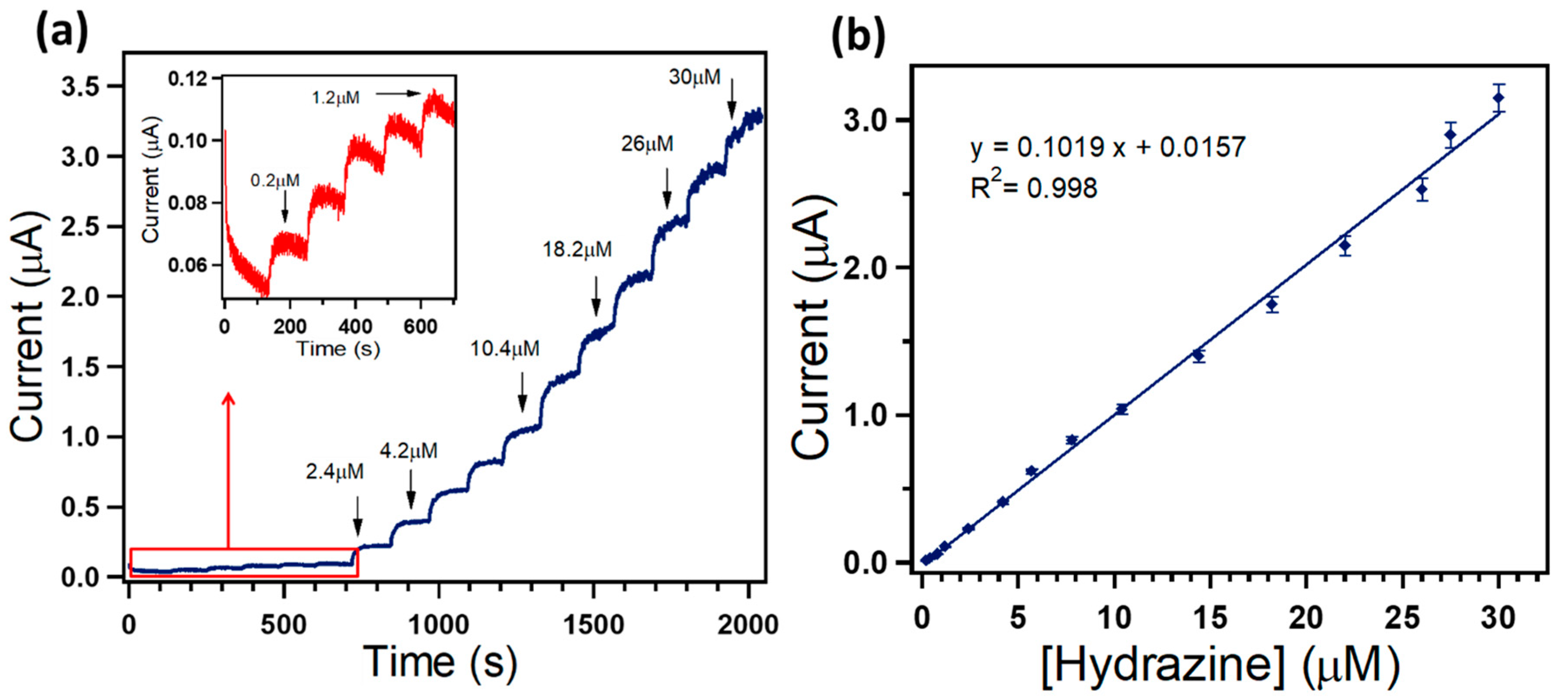

The amperometric (i–t) response was also carried out with the purpose to detect the hydrazine analyte using Fe-doped TiO₂ nanoparticle modified GCE. Amperometric studies were performed, and the constant potential was set at a value of 0.45 V with successive addition of hydrazine (0.2–30 µM) into a continuously stirred 0.1 M PBS (pH 7.4). As revealed in Figure 5a, Fe-doped TiO₂ modified GCE fabricated sensor illustrated a significant and steep rise in the current value after each successive addition of hydrazine. The measured current increased rapidly with a response time of ~20 s during the amperometric measurements. The corresponding calibration curve for amperometric hydrazine sensing showed a linear response in the concentration range 0.2 to 30 µM (Figure 5b). The correlation coefficient of the line R² was found to be 0.998, and the linear equation was y = 0.1019x + 0.0157. The linearity in the plot also confirmed that the hydrazine oxidation process was diffusion-controlled and indicated the fast electron transfer rate, which led to the sharper and well-defined peaks.

It has been proposed that hydrazine in slightly basic medium (pH = 7.4) is oxidized onto the surface of the Fe-doped TiO₂ to release electrons (Equation (5)) [41,42].

N₂ H₄ + 8 HO⁻ →2 NO + 6 H₂ O+8 e⁻

(5)

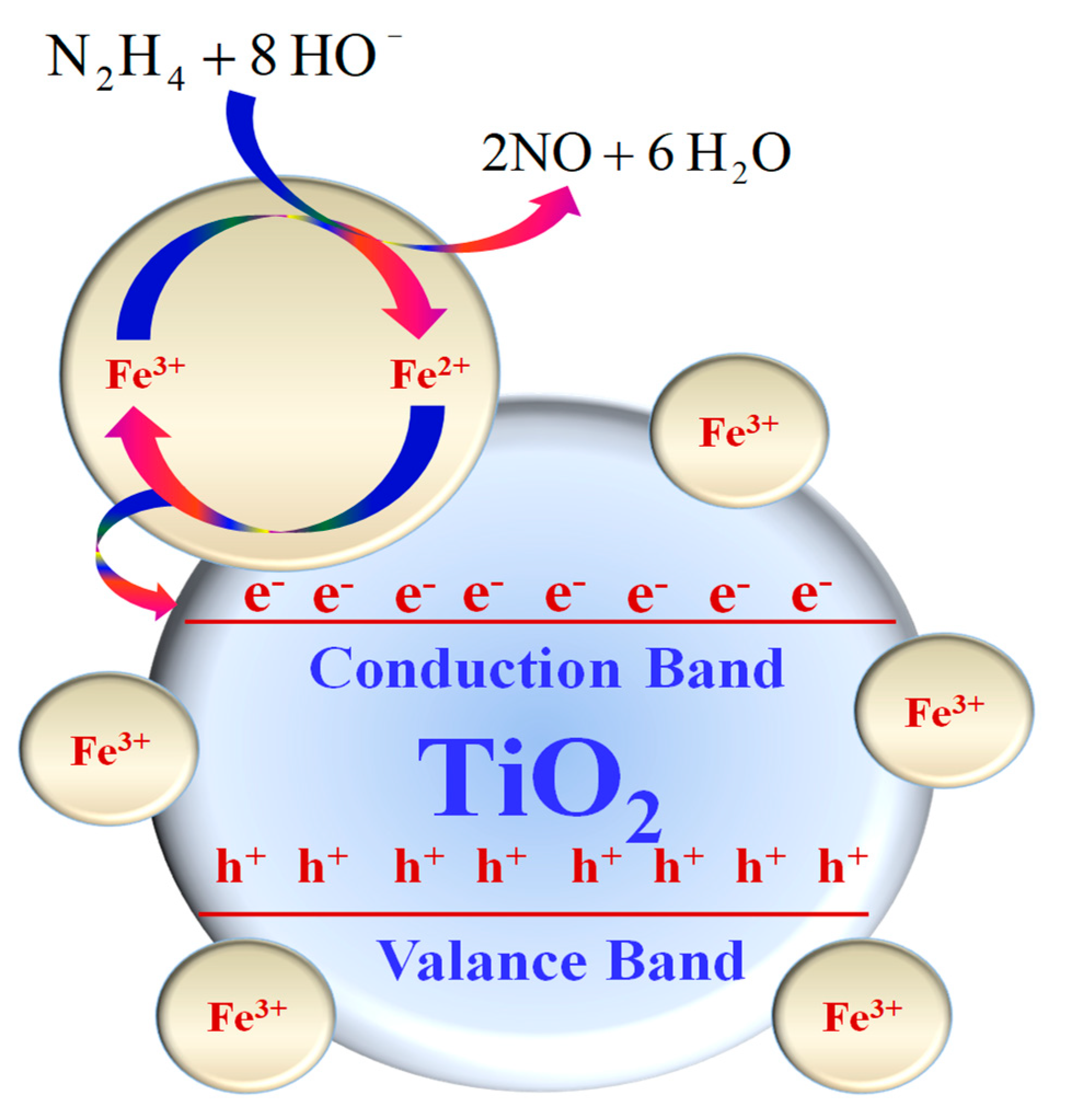

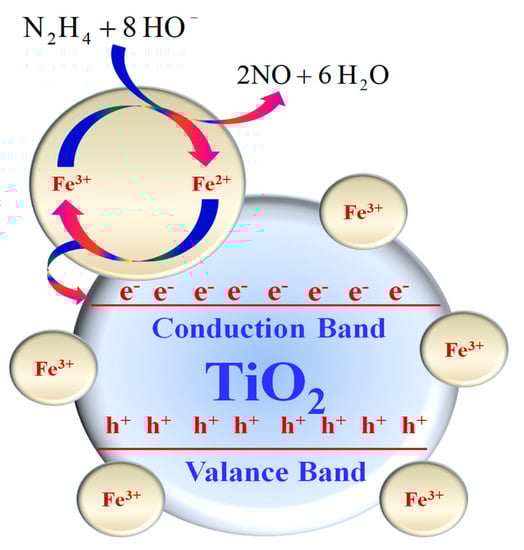

The schematic proposed hydrazine sensing by Fe-doped TiO₂ is shown in Figure 6.

The redox behavior of the Fe³⁺ ions facilitate the transfer of electrons released from the oxidation of the hydrazine to the conduction band of the TiO₂ or migrate the electrons to reduce the Ti⁴⁺ to Ti³⁺ ions. Li et al. [43] proposed that Fe³⁺ can act as a hole as well as an electron trap, which further enhances the electron transfer process. Furthermore, Zhu et al. [44] proposed the following reactions to depict the redox nature of Fe³⁺ ions ((Equations (6)–(9)).

Fe³⁺ + e⁻ → Fe²⁺

(6)

Fe³⁺ + h⁺ → Fe⁴⁺ (Hole trap)

(7)

Fe³⁺ + Ti⁴⁺ → Fe³⁺ + Ti³⁺ (Electron migration)

(8)

Fe³⁺ + Ti³⁺ → Fe²⁺ + Ti³⁺ (Recombination)

(9)

Therefore, when hydrazine comes in contact with Fe-doped TiO₂, the electron density in the conduction band increases, which leads to the increase in electrical conductivity and, thus, increase in the current potential. The higher the concentration of the hydrazine, the greater is the electron density in the conduction band and, hence, the current potential is higher.

The sensitivity of the synthesized sensor was calculated from the slope of the calibration curve divided by the electrode area [45,46]. The limit of detection (LOD) of the fabricated hydrazine sensor was accordingly estimated via the following equation (Equation (10)):

LOD = 3.0* σ_B/b

(10)

where σ_B is the standard deviation of the population of the blank signals (0.008 μA) and b is the slope of the regression line. It is possible to replace σ_B by the residual standard deviation of the regression, s_y/x, also known as standard error of the regression [47]. The sensitivity and LOD were found to be 1.44 μA µM⁻¹ cm⁻² and 0.236 µM, respectively. These obtained results demonstrated the potential of the Fe-doped TiO₂ nanostructure modified electrode as a suitable electrochemical sensor for sensitive and selective determination of hydrazine. The synthesized hydrazine electrochemical sensor was reliable and depicted fantastic reproducibility. It was ascertained that no significant decrease in sensitivity was observed when tested for more than three weeks while being stored at room temperature in a closed container.

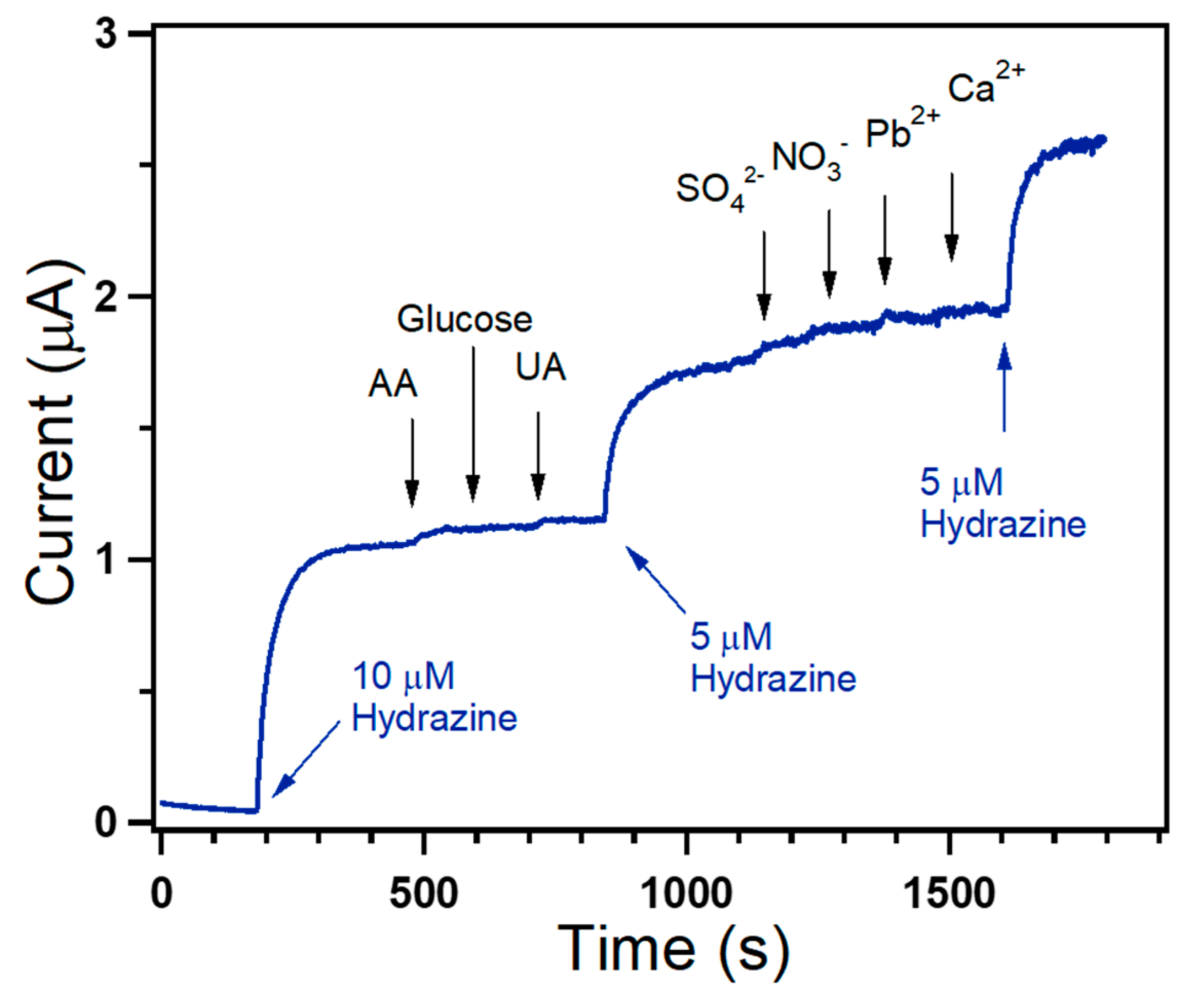

In order to assess the analytical potential of the fabricated sensor for real sample analysis, the selectivity of Fe-doped TiO₂ nanostructures to hydrazine was evaluated. The selectivity test of the sensor was conducted to check the influence of some interfering electro-active chemical species on the sensing property of Fe-doped TiO₂ by measuring the i–t response. Figure 7 demonstrates the amperometric responses of Fe-doped TiO₂ modified GCE for the successive addition of different concentrations of hydrazine and 100 μM of ascorbic acid (AA), uric acid (UA), glucose, SO₄²⁻, NO₃⁻, Pb²⁺ and Ca²⁺ at a regular interval of 100 s in 0.1 M PBS at an applied potential value of +0.45 V. The negligible change in the observed current, even if the various co-existing interfering species were present, undoubtedly revealed the excellent selectivity of the fabricated sensor.

The sensor parameters of Fe-doped TiO₂ nanoparticle modified GCE and other recently reported sensors are compared in

Table 1. Comparison of the sensor parameters of the Fe-doped TiO₂ coated GCE sensor with some recently reported hydrazine electrochemical sensor materials.

Sensor Electrode	Sensitivity	LOD	Ref.
Leaf shape CuO/OMC/GCE	0.00487 μA.μM−1·cm−2	0.887 μM	[4]
NiCo2S4 sphere/GCE	179.1μA.mM−1·cm−2	0.6μM	[5]
WO3 NPs/Au electrode	0.185 μA.μM−1·cm−2	144.73 μM	[32]
Polythiophene/ZnO/GCE	1.22 μA.μM−1·cm−2	0.207μM	[48]
Ag@Fe3O4 nanosphere/GCE	270.0μA.mM−1·cm−2	0.06μM	[49]
CdO/CNT nanocomposites/GCE	25.79μA.μM−1·cm−2	4.0 pM	[50]
Pd/Co-NCNTs	343.9 μA.mM−1·cm−2	0.007 μM	[51]
Pd (CNT-Pd)/GCE	0.3 μA.mM−1·cm−2	8.0 μM	[52]
Nanoporous gold/ITO	0.161 μA.μM−1·cm−2	0.0043 μM	[53]
α-Fe2O3/polyaniline nanocomposite	1.93 mA.μM−1·cm−2	0.153 μM	[54]
Chrysanthemum-like Co3O4/GCE	107.9 μA.mM−1·cm−2	3.7 μΜ	[55]
AuNPs/CNTs-rGO/GCE	9.73 μA.μM−1·cm−2	0.065 μΜ	[56]
Fe-doped TiO2 NPs/GCE	1.44 μA.µM−1·cm−2	0.236 μΜ	This work

. Detailed comparison shows that the fabricated sensor had excellent electrocatalytic performance for selective detection and sensing of hydrazine.

4. Conclusions

In summary, highly crystalline Fe-doped TiO₂ nanoparticles were synthesized through hydrothermal synthesis and subsequently characterized by different characterization techniques. Finally, Fe-doped TiO₂ nanoparticles were applied as an efficient electron mediator for the fabrication of hydrazine chemical sensor using GCE. As-fabricated modified GCE showed sensitivity, LOD and LDR of 1.44 μA µM⁻¹ cm⁻², 0.236 µM and 0.2–30 µM, respectively, through an amperometric sensing approach. It was proposed that redox behavior of the Fe³⁺ ions facilitates the transfer of electrons released from the oxidation of the hydrazine to the conduction band of the TiO₂, which leads to the increase in electrical conductivity. The negligible change in the observed current in the presence of various co-existing interfering chemical species further confirms the excellent selectivity of the fabricated sensor towards hydrazine.
