Sustainable Integration of Zinc Oxide Nanoparticles: Enhancing Properties of Poly(ε-Caprolactone) Electrospun Nanofibers and Cast Films

by
Johar Amin Ahmed Abdullah
1,*,
José J. Benítez
2,
Antonio Guerrero
1 and
Alberto Romero
3
1
Departamento de Ingeniería Química, Escuela Politécnica Superior, Universidad de Sevilla, 41011 Sevilla, Spain
2
Instituto de Ciencia de Materiales de Sevilla, Centro Mixto CSIC, Universidad de Sevilla, 41092 Sevilla, Spain
3
Departamento de Ingeniería Química, Facultad de Química, Universidad de Sevilla, 41012 Sevilla, Spain
*
Author to whom correspondence should be addressed.
Coatings 2023, 13(10), 1665; https://doi.org/10.3390/coatings13101665
Submission received: 25 August 2023 / Revised: 18 September 2023 / Accepted: 20 September 2023 / Published: 22 September 2023
(This article belongs to the Special Issue New Developments of Protective Coatings, Organic Polymers, and Surface Analysis: 2nd Edition)
Browse Figures
Review Reports Versions Notes

Abstract

:
This study investigated the impact of adding zinc oxide nanoparticles (ZnO-NPs) to electrospun membranes and cast films made of poly(ε-caprolactone) (PCL). The physicochemical, mechanical, and morphological properties of the samples were analyzed. Physicochemical parameters included water contact angle (WCA), water vapor transmission rate (WVTR), permeance, water vapor permeability (WVP), light transmission (T600), and transparency (T). Mechanical properties, such as maximum stress (Ϭmax), elongation (εmax), and Young’s modulus (MPa), were also evaluated. Morphological properties were analyzed in terms of thickness, dispersion, and surface roughness (measured by the arithmetic (Ra) and quadratic (Rq) averages). The crystallinity and melting point, as well as the functional DPPH• scavenging percentage (SP%), were also studied. The results showed that adding 1 wt% ZnO-NPs improved the water barrier properties of PCL membranes and films, increasing WCA by 1%–6% and decreasing WVTR by 11%–19%, permeance by 34%–20%, and WVP by 4%–11%, respectively. The T600 values of PCL/ZnO-NPs membranes and films were 2–3 times lower than those of neat PCL samples, indicating improved optical properties. The mechanical properties of the composite membranes and films also improved, with Ϭmax increasing by 56%–32% and Young’s modulus increasing by 91%–95%, while εmax decreased by 79%–57%. The incorporation of ZnO-NPs also increased the thickness and surface roughness of the samples. The SP% of PCL/ZnO-NPs increased by almost 69%, demonstrating the beneficial effects of ZnO-NPs on the system. These findings suggest that incorporating ZnO-NPs into PCL membranes and films can enhance their properties, making them well suited for various applications, such as those within the realm of materials science and nanotechnology.

1. Introduction

Electrospinning (ES) is one of the most novel and effective technologies used to produce nano- and µ-scale fibers [1]. The process involves accelerating a jet of charged polymer solution under a carefully induced electric field to form an interconnected network of nanofibers on a drum collector surface [2,3,4]. ES can produce nanofibers or nanofiber mats from several polymers and/or polymer blends [5,6] with the incorporation of several metallic and non-metallic oxide nanomaterials [7,8,9] or molecules with functional properties into systems [10,11,12]. Material composition and applications play a significant role in the performance of the nanofibers, for example, in biomedical applications [13,14,15], gas and fluid filtration [16,17,18], energy harvesting and storage, such as the production of hydrogen (H2) [19,20,21], oil–water separation, water purification, and environmental protection [22,23,24,25], catalytic applications [26,27,28], food packaging [29], protein adsorption [30], waterproof and breathable clothing [31], sensors [32], optical applications [33], and lithium-ion batteries [34].
Among the well-known aliphatic polymers, polycaprolactone (PCL) has been utilized extensively for producing a wide range of synthetic nanofibers, due to its outstanding characteristics, since it is biodegradable, biocompatible, bioresorbable, hydrophobic, easy to process, and non-toxic [2,24]. PCL exhibits exceptional solubility in a wide range of solvents, allowing for facile and efficient electrospinning processes. Its ability to form uniform and fine nanofibers makes it an excellent choice for various applications. These processing advantages further solidify PCL’s position as a valuable material in the realm of electrospinning [3]. Furthermore, electrospun PCL nanofibers may also display higher levels of hydrophilicity and biocompatibility if they are treated with surface coatings, polydopamine, plasma, alkali, copolymer blends, and polymer grafting, thereby providing an attractive option for several applications [35,36,37,38]. Regarding packaging purposes, particular attention should be devoted to containment, protection, convenience, and communication. A significant loss of food’s economic value occurs when its lipids deteriorate during storage due to oxygen spoilage and microorganisms. A product’s shelf life is significantly reduced by oxidation, which depletes its nutritional value and causes the appearance of unpleasant odors, flavors, and pigments. As rancidity and the aforementioned alterations are caused by free radical molecules, food packaging designers are continually developing new methods to prevent and reduce products’ auto-oxidation [39].
This problem may be solved by the incorporation of nanoparticles into polymer-based materials, due to the highly efficient antioxidant and antimicrobial properties of nanoparticles [6,40,41]. Therefore, in recent years, the use of metal nanoparticles in combination with polymer nanofibers (metal–polymer nanocomposites) has generated a great deal of interest due to the synergistic combination of optical, electrical, specific, unique, functional, and catalytic characteristics. Several factors contribute to this, including the high surface area of polymer nanofibers and the interaction between metal nanoparticles and polymer nanofibers. Accordingly, nanoparticles of metal oxides, including nanofillers, are introduced into films and nanofiber-based polymers to enhance their properties [42,43,44]. Furthermore, the nature of PCL interaction with nanoparticles has been demonstrated in several studies [45,46]. Among the best-known nanoparticles, inorganic semiconducting zinc oxide nanoparticles (ZnO-NPs) have found use in various applications due to their diverse chemical and physical characteristics [47].
Nevertheless, owing to the readily agglomerating properties of nanoparticles and the high viscosity of polymer solutions, mechanical mixing of metal nanoparticles into the dissolved polymer matrix results in an inhomogeneous dispersion of particles within the highly viscous matrix [6,40,41,48,49]. DMF (N,N-dimethylformamide) has been successfully employed to reduce metal ions (M+) to zero-valent metal, thereby reducing the formation of aggregates or agglomerates [50]. Despite this, the aforementioned studies did not provide sufficient information regarding nanoparticle incorporation and their effect on physicochemical (including hydrophobicity, water vapor permeability, and optical properties), mechanical, and morphological characteristics. The majority of these studies did not address the functional properties of nanoparticles that contribute to improving the antioxidant properties of membranes and films in order to extend their shelf lives and to prevent autoxidation. Therefore, this study primarily contributes to the development of electrospun membranes and cast films containing zinc oxide nanoparticles (ZnO-NPs). To this end, PCL (10% w/v dissolved in chloroform: DMF [9:1]) with 1% (w/w) of zinc oxide nanoparticles (ZnO-NPs) was processed via two methods: electrospinning to produce PCL-based electrospun nanofiber membranes and casting to fabricate PCL-based cast films. PCL electrospun membranes and cast films were characterized for their physicochemical, mechanical, morphological and antioxidant properties. According to the results, ZnO-NPs’ incorporation significantly improved the properties mentioned above and could be applied to a wide range of applications.

2. Materials and Methods

2.1. Materials

Polycaprolactone PCL (C6H10O2)n (with average Mn 80,000; Sigma Aldrich, Saint Louis, MI, USA), DMF (CH3)2NC(O)H (Merck, Darmstadt, Germany), Chloroform (Friendemann Schmidt, Parkwood, Australia), DPPH (2,2-diphenyl-1-picrylhydrazyl), methanol (CH3OH), and gallic acid (C7H6O5) were purchased from Sigma Aldrich. The other substances and reagents used in this study were all of analytical grade.
Green synthesized zinc oxide nanoparticles (ZnO-NPs) with an average diameter of 15–20 nm were obtained as described in an earlier study [51].

2.2. Electrospun Membrane and Cast Film Processing

Nanofibrous membranes based on electrospun neat PCL (neat PCL) and PCL with ZnO-NPs (PCL/ZnO-NPs) were prepared by solution electrospinning according to prior studies with minor modifications [2,51]. Firstly, 1 g of PCL was carefully dissolved in 10 mL of chloroform/DMF (9:1 v/v) and stirred continuously at room temperature for 24 h to prepare the electrospinning dope and the film-forming solution. Then, ZnO-NPs (1.0 w/w of the dry PCL) were dispersed in the PCL solution for 2 h using an ultrasound bath at 50 Hz frequency and 0.1 kW sonication power (Ultrasounds, J.P Selecta, S.A., Barcelona, Spain). In the case of the electrospinning process, 10 mL of PCL solution was electrospun through an electrospinning machine (BioInicia, Fluidnatek LE-50 setup, Valencia, Spain) for 2 h at 12 kV voltage, 13 cm distance between the needle and the collector (rotating drum collector, 200 rpm) and 0.9 mL/h feed rate on an aluminum foil. In the case of the films, 10 mL of the same solution was cast into glass Petri plates (80 × 17 mm) and dried at room temperature for 48 ± 24 h. The electrospun membranes and cast films were carefully removed after drying and stored for further use and analysis.

3. Characterization Techniques

3.1. Water Contact Angle (WCA)

WCAs of the electrospun membranes and cast films were assessed with an Optical Tensiometer (Attension TL100, KSV, Helsinki, Finland) to evaluate the hydrophobicity of their surfaces as described in prior studies [51,52]. Briefly, ≈2 µL of distilled water was dropped onto a horizontally level surface membrane or film (1 cm2) using a µ-syringe and allowing stabilization.
The WCA was calculated from both the left and right sides of the drop contour; values differing more than 2° were rejected.

3.2. Water Vapor Permeability (WVP)

WVP of membranes and films were measured based on ASTM E96 methodology [53], and as described in [52], using Equation (1):
W V P = P × t = W V T R ∆ p × t = α A S ( R H 1 − R H 2 ) × t
where P refers to the permeance (g/h·m2·Pa) and thickness ( t , m) of the membrane or film, W V T R ( α / A ) is the water vapor transmission rate (g/h·m2), α is the slope of the linear regime of the weight loss vs. time curve, A refers to the permeation area (cm−2), and ∆ p = S R H 1 − R H 2 is the water vapor gradient ( S = 2646 P a ) at 22° between the water-exposed surface ( R H 1 = 1 ) and chamber-exposed surface ( R H 2 = 0 ).

3.3. Light Transmission ( T 600 %) and Transparency (T)

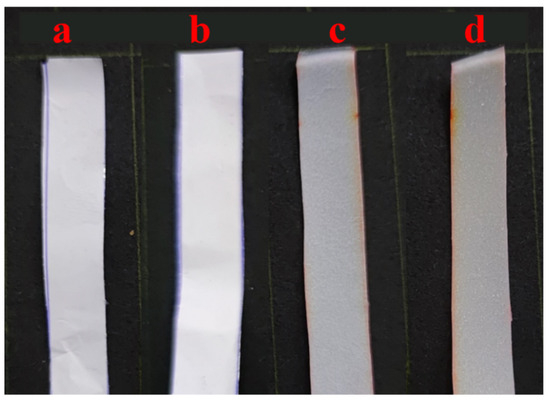

The different membranes and films were evaluated for their optical properties through transmittance and transparency measurements, using a UV-vis spectrophotometer (Model 8451A, Hewlett Packard Co., Spring, TX, USA) as reported in previous studies [51,54]. Briefly, the transmittance% of the samples (1 × 2 cm2) was read at 600 nm ( T 600 %), and the transparency (T) was calculated from the ( T 600 %) fraction according to Equation (2) [55]:
T = − L o g T 600 t
where t is the thickness of the sample (mm).

3.4. Mechanical Properties

The mechanical characteristics of the different membranes and films were evaluated following the ISO 527-3:2019 standard [52,56]. As a result of this test, the maximum stress (Ϭmax), elongation (εmax), and Young’s modulus (MPa) of the samples were determined.

3.5. Optical Microscopy

The morphological characteristics of the different membranes and films were assessed using a high-precision zoom lens (Edmund Optics, Barrington, NJ, USA) calibrated with a 22GA needle. In addition, measurements of specimen diameters and thicknesses were assessed using ImageJ (free software v.1.53q; National Institutes of Health, Bethesda, MD, USA).

3.6. Scanning Electron Microscopy (SEM)

The morphological characteristics of the different membranes and films were assessed using SEM (Zeiss EVO microscope, Pleasanton, CA, USA) as described in an earlier study [57]. In brief, SEM analysis was conducted at a 10 kV acceleration voltage and 3 KX magnification. In addition, measurements of specimen diameters and thicknesses were assessed using ImageJ (free software v.1.53q; National Institutes of Health, Bethesda, MD, USA).

3.7. Transmission Electron Microscopy (TEM)

TEM analysis was performed at 200 kV to confirm the morphological properties of the different membranes and films (Talos S200 microscope, Field Electron, and Ion Company, FEI, San Juan Capistrano, CA, USA). A further assessment was conducted using ImageJ (free software v.1.53q; National Institutes of Health, Bethesda, MD, USA).

3.8. Confocal Microscopy

The surface roughness profiles of different PCL electrospun membranes and cast films were measured using a Confocal-Interferometric Optical Microscope (Sensofar S-NEOX, Sky Tech, Bukit Batok, Singapore) with a Robust Gaussian filter at an amplitude of 8 µm and magnification of 50–150× (ISO 4287) [58]. The samples were coated with a 10 nm platinum thin layer to allow for better light reflection. Accordingly, surface roughness was determined by both the arithmetic (Ra) and quadratic (Rq) averages using SensoMAP Premium (v.7.4.8114; SENSOFAR METROLOGY, Barcelona, Spain).

3.9. X-ray Diffraction (XRD)

Diffractograms of electrospun membranes and cast films were recorded at room conditions between 2θ (°) = 5–70° using an X’Pert Pro (PANalytical, Malvern, UK) diffractometer with CuKα radiation. Diffractograms were fitted using the Gaussian function (R2 = 0.98) and crystallinity (Crl%) was determined according to Equation (3) [59]:
C r l ( % ) = A C P C P A + A M × 100
where ACP is the area of crystalline peaks, CPA is the crystalline peak area, and AM is the amorphous area.

3.10. Differential Scanning Calorimetry (DSC)

Thermograms were measured using a differential scanning calorimeter (Q-20, TA Instruments, New Castle, DE, USA) under nitrogen flow (50 mL/min) in the −70–120 °C range at 10 °C/min. Samples were previously dried in a desiccator for 48 h. The crystallization percentage or crystallinity degree χ c % of the polymer is calculated from the melting enthalpy Δ H f , based on the melting or fusion heat according to Equation (4) [60].
χ c % = Δ H f Δ H f 100 % × 100
Δ H f 100 % is the melting enthalpy of the 100% crystalline form of PCL (J/g). The Δ H f 100 % value has been reported to be 142 J/g [61], 139.3 J/g [62], 136 J/g [63], and 135 J/g [60,64]. Here, the value of 139.5 J/g was adopted.

3.11. Antioxidant Activity (DPPH• Scavenging Activity)

The antioxidant activity of the membrane and film solution (neat PCL and PCL/ZnO-NPs solution) was assessed using the DPPH• scavenging test as reported in a previous study [54]. Briefly, 1 mL of membrane or film-forming solution was mixed with 1 mL of methanolic DPPH free radical solution (40 ppm) using gallic acid as a positive control. After 30 min incubation, the absorbance of the samples was measured at 517 nm with a spectrophotometer. Finally, the DPPH• scavenging percentage (SP%) was determined according to Equation (5).
SP (%) = ((ADPPH• − ADPPH)/ADPPH•) × 100
where ADPPH• is the absorbance of raw DPPH• solution and ADPPH is the absorbance of scavenged DPPH by the membrane and film solution.

3.12. Statistical Analysis

The samples were subjected to at least three measurements. A summary of the results is provided as an M ± SD (a mean value ± standard deviation). The significance of the difference between measurements was evaluated using IBM SPSS software (IBM Corp., Armonk, NY, USA. Released 2019. IBM SPSS Statistics for Windows, Version 26.0. Armonk, NY, USA, IBM Corp.) and one-way ANOVA (p < 0.05).

4. Results

4.1. WCA

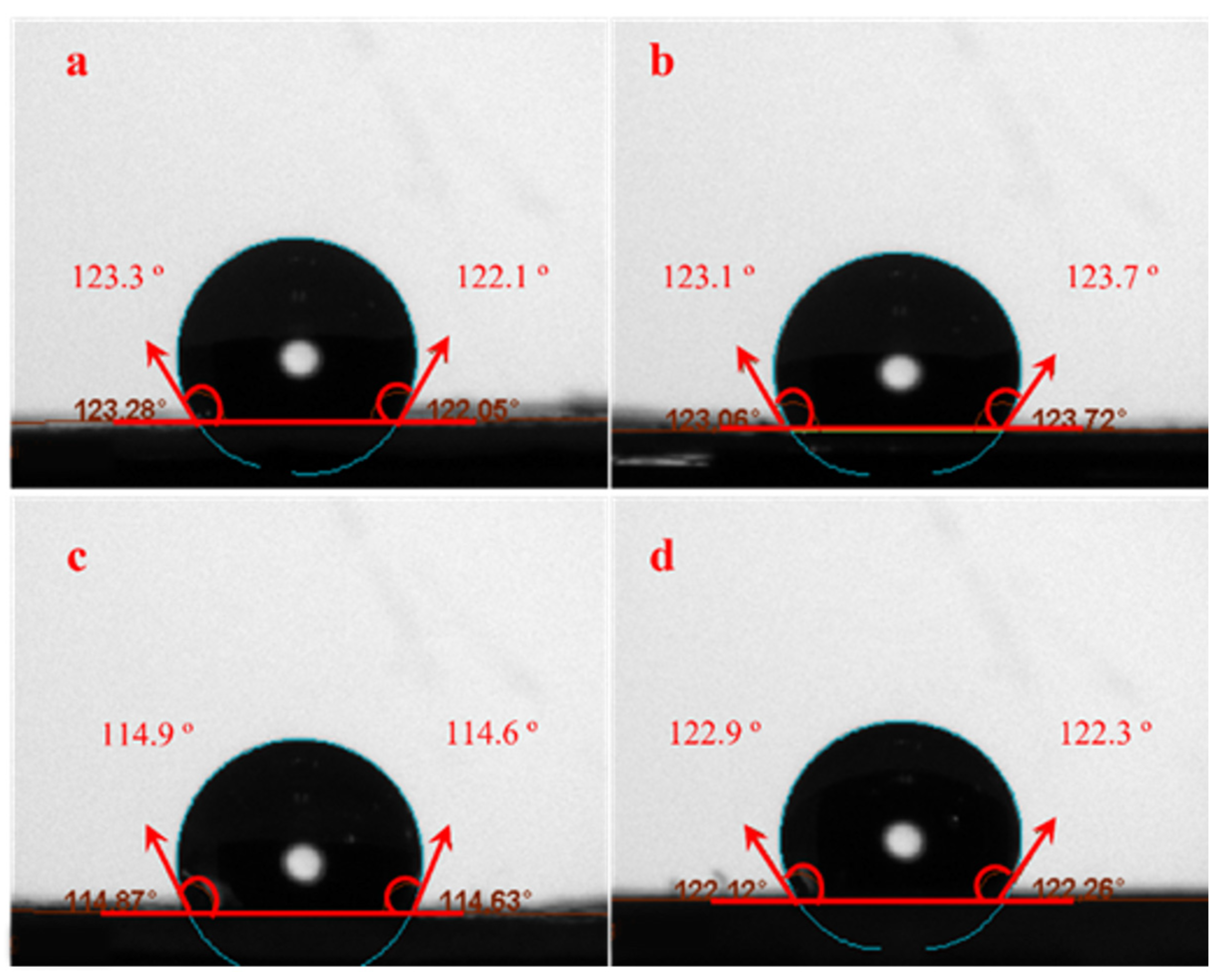

The membrane and film surface wettability and hydrophobicity/hydrophilicity and the effect of nanoparticle incorporation were evaluated using WCA measurements [55,65]. The WCAs of neat electrospun and cast PCL, as well as their composite membranes and films (PCL/ZnO-NPs), are depicted in Figure 1 and summarized in Table 1. Regarding the processing, the neat PCL electrospun nanofibrous membrane exhibited a more hydrophobic surface than the cast film with WCA = 122.7 ± 0.9° vs. WCA = 114.8 ± 0.2°. As a result, the porous and free spaces within the electrospun membrane may be smaller than those within cast film, resulting in well-connected networks [66]. It was determined that PCL electrospun (12% w/v in acetic-formic acid mixture 3:7) had a WCA value of 118° [67]. With the ZnO-NPs incorporation, the WCA of PCL/ZnO-NPs electrospun membranes did not significantly increase (Table 1), but they did show a significant increase in the PCL/ZnO-NPs cast film from 114.8 ± 0.2 to 122.2° (Table 1, p < 0.05), which is consistent with the hydrophobic nature of PCL (due to the presence of CH2 groups in the main chain) and the hydrophobicity of ZnO-NPs [68]. The ZnO-NPs enhanced the hydrophobic behavior due to several interactions, including ionic and hydrogen bonds, resulting in the formation of strong across-linked networks or structures [69]. The surface roughness may also increase due to the presence of nanoparticles, which increases the chemical effect of the nanoparticles on the composite membrane, thereby increasing the film’s hydrophobicity [70]. PCL electrospun membranes and cast films prepared in a variety of solvent systems were previously reported to have similar WCA values [71,72,73,74,75].

4.2. Water Vapor Permeability (WVP)

WVTR (water vapor transmission rate) measurements were conducted to assess the effects of membrane and film processing, as well as the incorporation of zinc oxide nanoparticles. The results of the different parameters, including WVTR, permeance, and WVP means are summarized in Table 1. Accordingly, the neat PCL electrospun nanofibrous membrane exhibited lower WVTR, permeance, and WVP than the cast film. Cast films may exhibit increased permeability due to the more rapid diffusion of water molecules through the contact zones between the circular structures (see Section 4.5). In other words, a less compact structure. As these circular structures are finer, the passage of water molecules may be favored. In contrast, studies have reported that the amorphous structure of electrospun membranes provides better physicochemical properties than the semicrystalline structure [76]. Furthermore, zinc oxide nanoparticles have demonstrated significant reductions in these parameters in both types of processes.
The mean WVP of the neat PCL electrospun membrane was reduced from 27.7 ± 0.02 to 26.5 ± 0.01 (g·m/h·m2·Pa) × 10 − 7 , while the WVP of the cast film decreased from 62.3 ± 0.03 to 55.0 ± 0.04 (g·m/h·m2·Pa) × 10 − 7 with ZnO-NPs incorporation (Table 1, p < 0.05).
In the presence of ZnO-NPs, three-dimensional structures may develop, and twisted pathways may be formed along the matrix, which delays the passage of water molecules [75,77,78,79]. The reason for this is that nanoparticles interact strongly with polymer chains, consuming hydrophilic groups, which reduces water transmission [80]. Nevertheless, the water vapor permeability of composite membranes or films is affected by several factors, including compaction, crystallinity, hydrophobicity and/or hydrophilicity behavior, nanofiber orientation, roughness, thickness, particle crystallinity, size, and distribution or orientation [71,81,82]. In this regard, ZnO-NPs improved the WVP of the composite PCL electrospun membranes and cast films due to their size and crystalline characteristics. The hydrophobic nanoparticles enhance the hydrophobicity within the polymer matrix by reducing the free hydroxyl groups, increasing their moisture resistance, and decreasing water vapor permeability [83,84].

4.3. Light Transmission ( T 600 %) and Transparency (T)

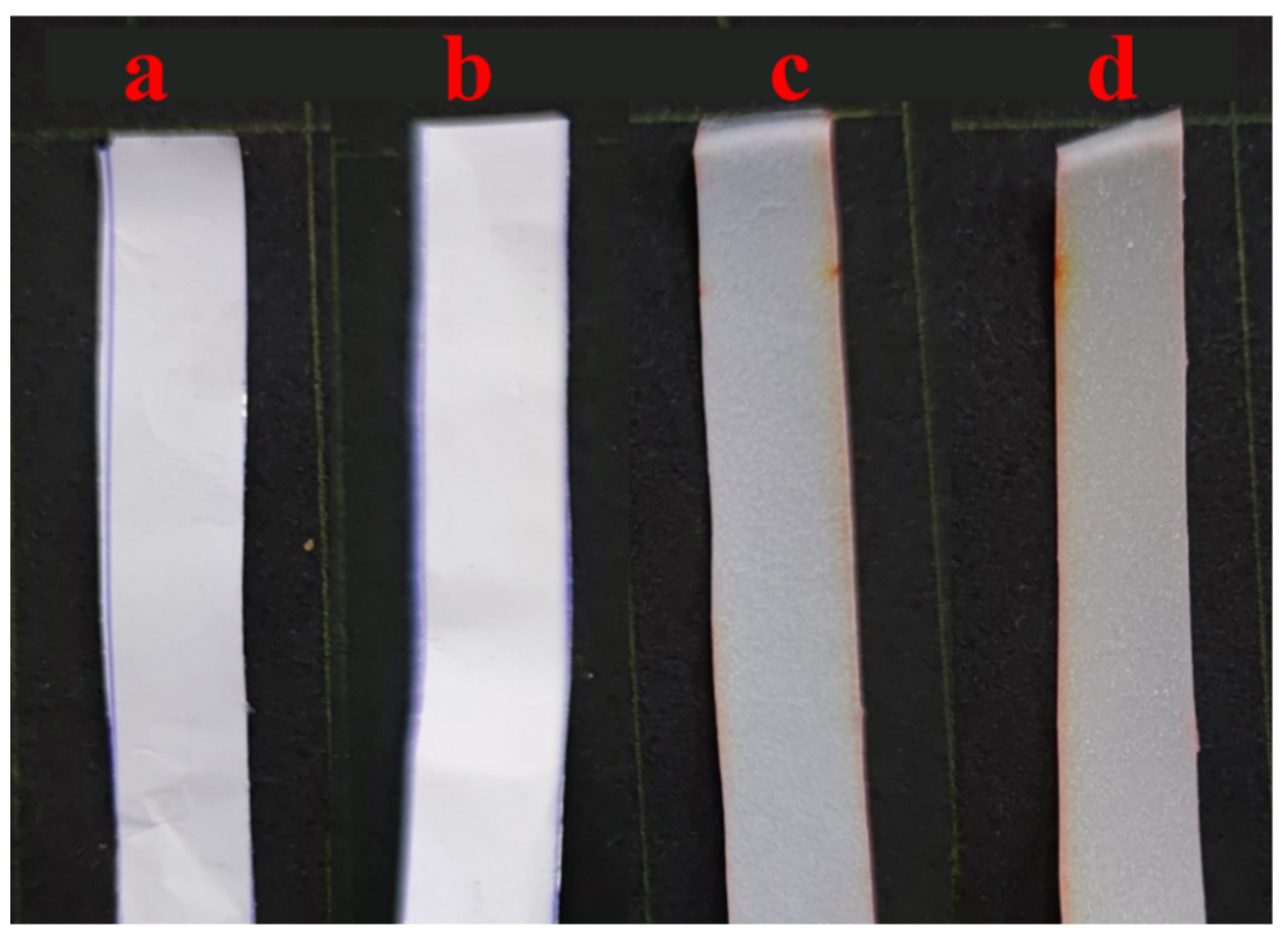

Table 1 also summarizes the values of T 600 % and transparency T for neat electrospun and cast PCL as well as their composite membranes and films (PCL/ZnO-NPs). Figure 2 provides a visual representation of these membranes and films.
In both electrospun membranes and cast films, ZnO-NP incorporation led to a significant decrease in T 600 %, with increases in T indexes, since the membranes were almost opaque (it was not possible to look through the membrane, Figure 2). As a result, PCL-cast films have the highest transmissions (6.4 ± 1.4%), which is possibly due to a less compact structure, which allows light to pass through the films. Both electrospun membranes and cast films, when treated with ZnO-NPs, showed a decrease in T 600 % of almost 56 and 66%, respectively, by blocking the free spaces and favoring the compaction between the nanofibers and those present in the film, thereby forming a more closed structure. This resulted in an increase in T values of approximately 11 and 25%, respectively (Table 2, p < 0.05).
Essentially, the presence of crystalline nanoparticle content in the polymer chains hinders their mobility and fills up free spaces in the matrix through dispersion. Therefore, it blocks the passage of light through the system. A variety of polymers blended with other nanoparticles have also produced similar results [55,85,86,87,88].

4.4. Mechanical Properties

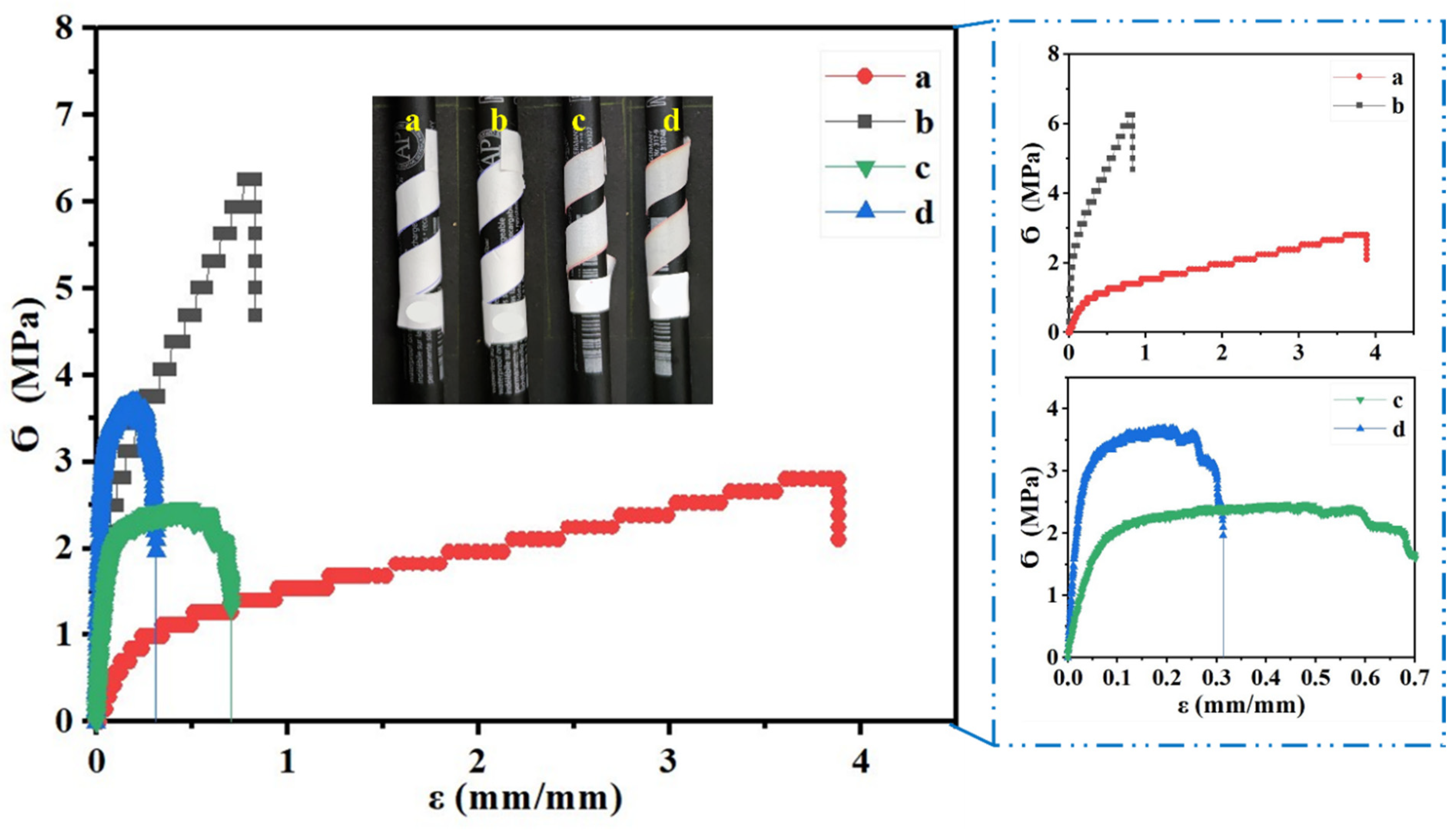

Figure 3 shows the tensile profile of neat electrospun and cast PCL as well as their composite membranes and films (PCL/ZnO-NPs), with a photograph showing the membrane and film flexibility.
A summary of the mechanical parameters is provided in Table 2.
Accordingly, the neat PCL electrospun membranes exhibited the greatest elongation with εmax ≈ 3.9 mm/mm, whereas the cast films exhibited lower Ϭ max (≈2.5 MPa) and greater Young’s modulus (≈6.5 MPa) than the neat PCL electrospun membranes (≈2.8 MPa and ≈4.3 MPa, respectively) (Table 2, p < 0.05). As the PCL electrospun membranes and films were blended with ZnO-NPs (1% w/w), increases in Ϭmax and Young’s modulus were observed, as well as decreases in εmax. The nanofiber structure seems to favor sliding and orientation in the direction of stress, resulting in high elongation and low modulus. Through the incorporation of ZnO-NPs, the nanofibers intertwine and prevent slippage, resulting in an increase in modulus, a decrease in breaking stress, and a decrease in elongation. The cast films also exhibit the same pattern.
For PCL/ZnO-NPs electrospun membranes, the Ϭmax and Young’s modulus increased by about 56 and 91%, whereas these parameters increased by about 32 and 95%, respectively, in the PCL/ZnO-NPs cast film system. Similar increases in these parameters have been observed in studies of similar designs [89]. The mechanical properties may be affected by several parameters, including processing conditions, mechanical procedure, thickness, etc. Therefore, the consequence of the nanoparticle dispersion as an immiscible content within the polymer matrix, hydrogen bonds may form between the nanoparticles and the polymer chains, resulting in nonhomogeneous networks in the matrix, thereby enhancing the mechanical properties of the membranes and the films [85,90]. Moreover, a reduction in εmax was observed over ZnO-NPs reinforcement, suggesting that the incorporation of solid materials into the polymer matrix may enhance the film thickness and decrease surface cohesion forces [85,91]. Several investigations have shown that nanoparticles have a similar effect on the mechanical properties of polymers [54,92].

4.5. Optical Properties

A morphological and microstructural illustration of neat electrospun, cast PCL, and their composite membranes and films (PCL/ZnO-NPs) is shown in Figure 4.
As an electrospun membrane, the neat electrospun membrane exhibited a quiet, unseen roughness due to its homogeneous smooth surface, whereas the one embedded with ZnO-NPs exhibited a heterogeneous surface with ripples on its surface. Furthermore, the neat PCL cast film exhibited loosely interconnected fissures and pores. As ZnO-NPs were incorporated, these fissures and pores seemed to be reduced and better interconnected.

4.6. Confocal Microscopy (Roughness)

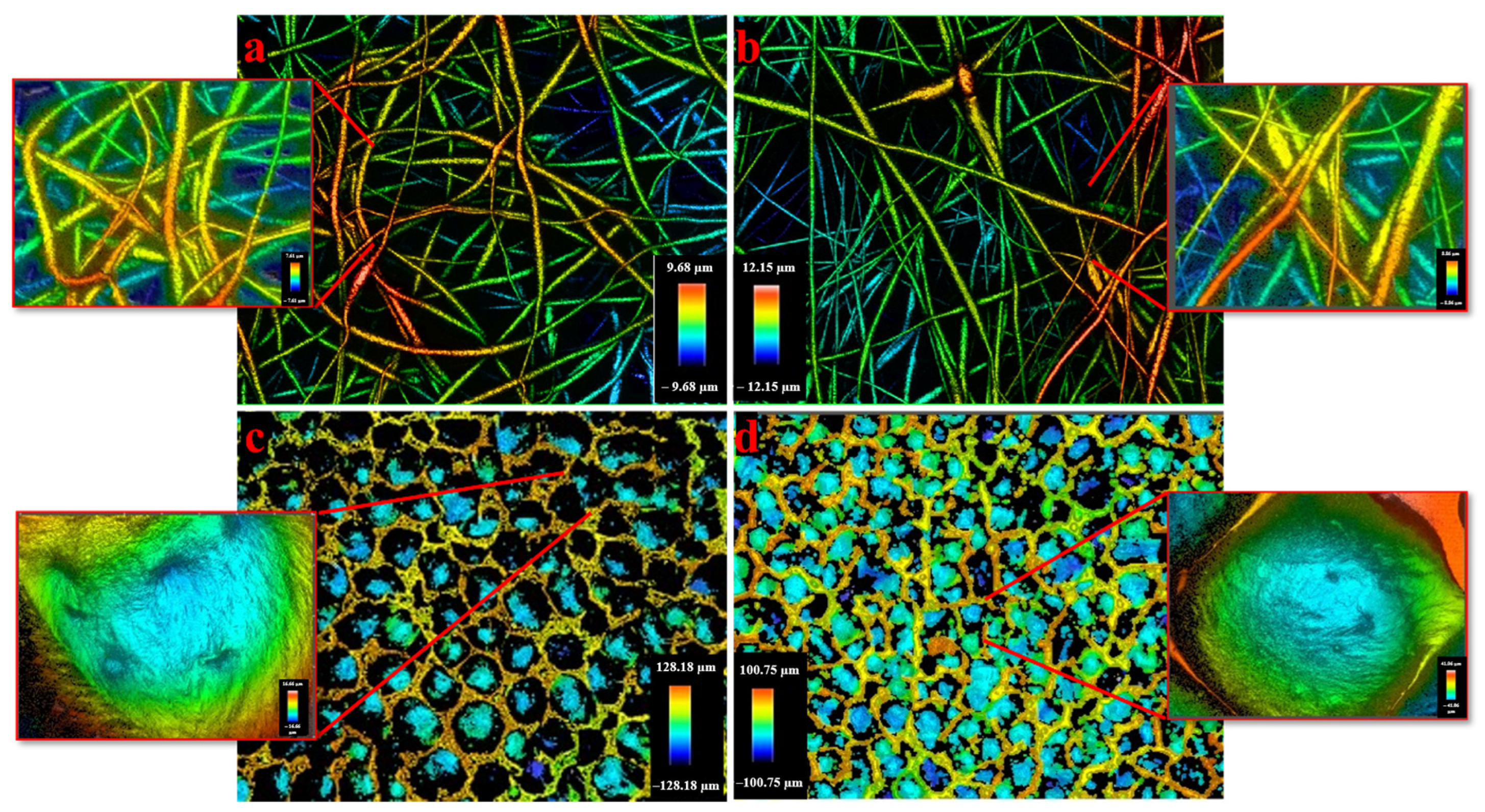

Surface roughness is an important parameter in determining the growth and adhesion of different cell lines for use as biomaterials. The 3D surface plots and profiles of neat electrospun, cast PCL, and their composite membranes and films (PCL/ZnO-NPs) are depicted in Figure 5 and Figure 6.

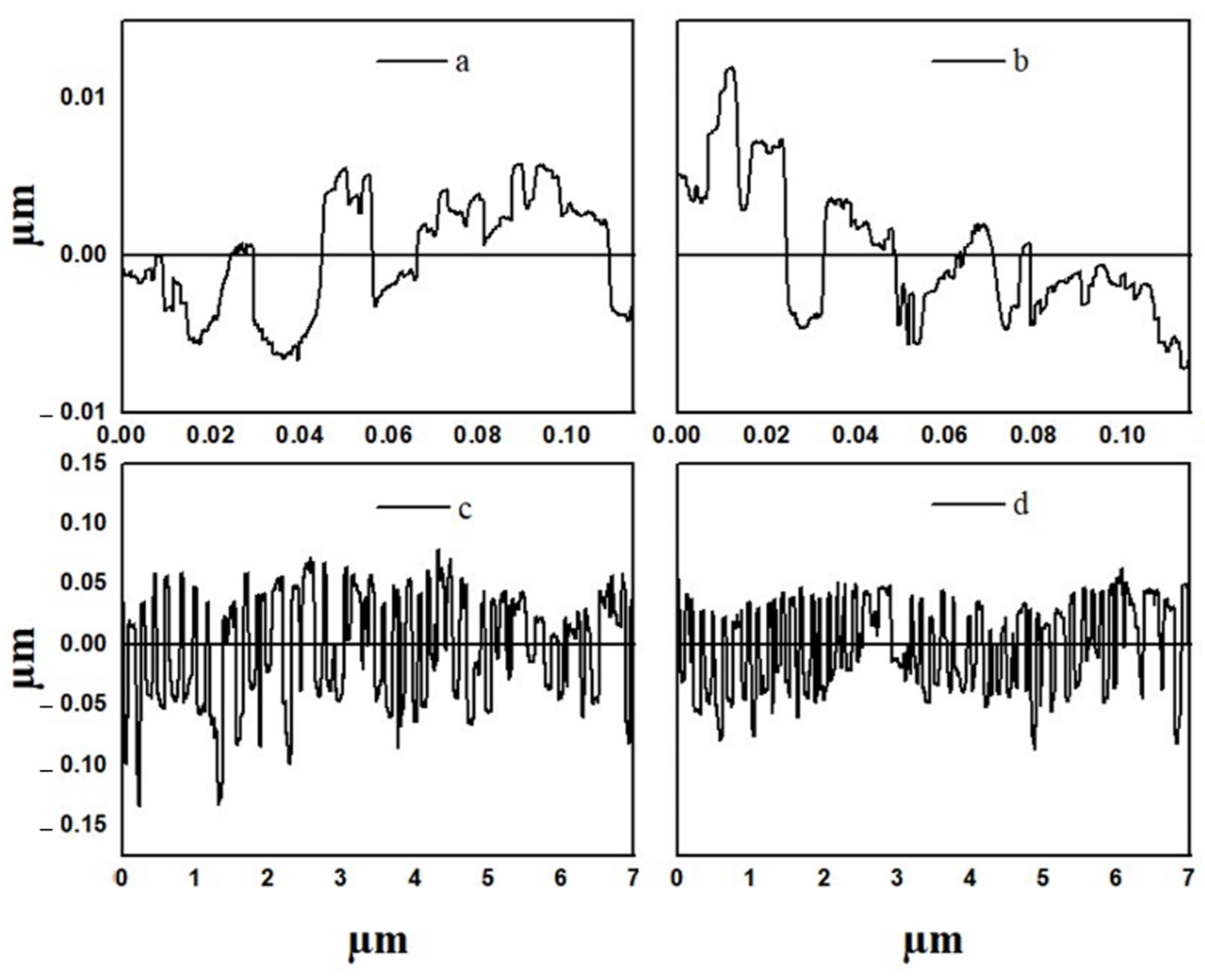

The roughness analysis was performed at the level of high-resolution images. A summary of the roughness results (Ra and Rq) was included in Table 3.
Therefore, the Ra and Rq values (nm) of the cast films were higher than those of the electrospun membrane, most likely due to the fact that the porous and free spaces within the cast films are wider than those within the electrospun membrane, resulting in heterogeneous networks [66]. Nevertheless, when the PCL electrospun membrane and cast film were processed with ZnO-NPs, increases in Ra and Rq were observed (Table 3). This is mainly due to the presence of well-dispersed and aggregated nanoparticles. Thus, the surface roughness increases as the average aggregation size increases from two nanoparticles (30 nm) to sixty nanoparticles (888 nm) in different orientations (Section 4.8). Similar altered structures have also been found in other studies [93,94], as confirmed by SEM and TEM analyses.

4.7. Scanning Electron Microscopy (SEM)

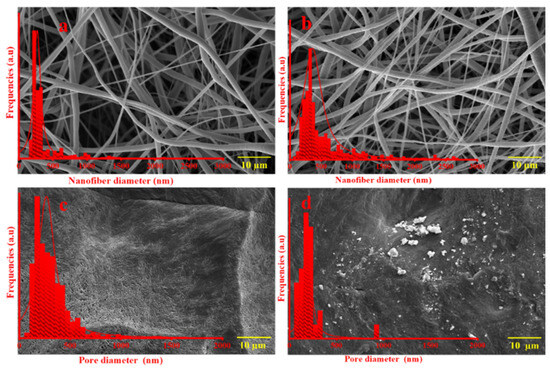

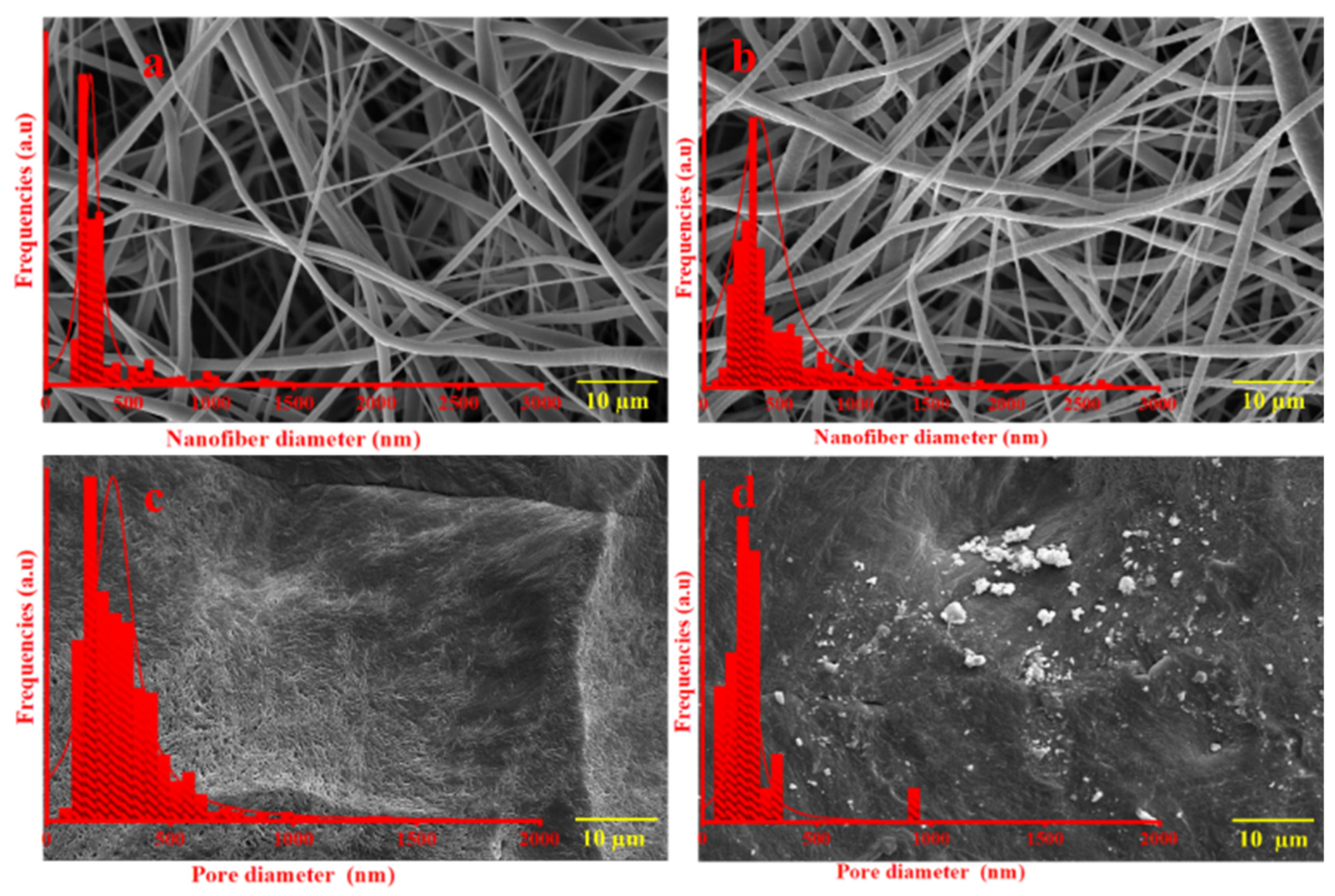

An illustration of the morphologies of neat electrospun, cast PCL and their composite membranes and films (PCL/ZnO-NPs) is shown in Figure 7, along with the diameter distributions of the electrospun nanofibers and film pores (summarized in Table 3).
Therefore, the neat PCL membrane exhibits homogeneous, smooth, randomly arranged nanofibers, whereas the neat PCL cast film exhibits a semi-crystalline structure and looks like a multi-layered capillary with fissures and pores.
On the other hand, when ZnO-NPs were incorporated, irregularities and roughness were produced on the nanofiber surface along with an increase in its diameter. Furthermore, the incorporation of ZnO-NPs into the PCL cast films produced roughness and irregularities on the film surface, as well as a reduction in its free pores. This is attributed to the characteristics of nanoparticles during solvent evaporation, including granulation, agglomeration, and dispersion on and within membranes and films [55,71]. The structural characteristics and surface roughness exhibited by nanoparticles were similar to those found in the stands uniformly and the micro-plateaus were sculpted by a solvent evaporation force that lifts them up and wears them down into buttes, mesas, and canyons. However, the aggregation was a little knotty in some places, which may be affected by the concentration of nanoparticles [95]. The findings were similar to those found elsewhere in the literature [96].

4.8. Transmission Electron Microscopy (TEM)

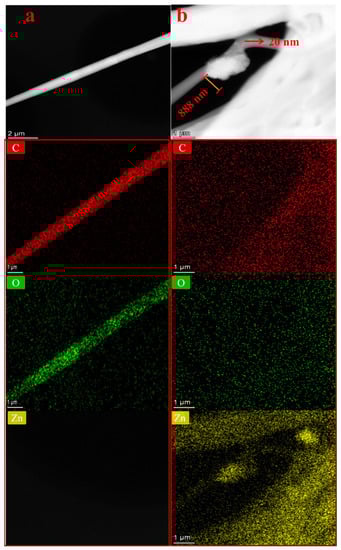

A further illustration of the morphologies of neat electrospun and its composite membranes (PCL/ZnO-NPs) is shown in Figure 8.
Furthermore, EDX mappings of the elemental components (Zn, O, and C) were included to confirm the excellent dispersion of ZnO-NPs within the fibers (Figure 8a,b). Accordingly, a uniform distribution of ZnO-NPs was observed, although some aggregation can be observed. As the ZnO-NPs were synthesized using green methods, the aggregation is largely caused by interactions between phytochemical compounds on the ZnO-NP surface and the polymer chains [93,94]. Nanoparticles’ aggregation may also be affected by the nature of the solvent; therefore, there may be a variation in the rate at which solvents and non-solvents are interchanged [97]. Regarding this, enhancing the surface roughness of polymer surfaces is essential, since it affects macromolecule adsorption and membrane formation to some extent [98]. The surface roughness measurements were further calculated and are discussed in the next section.

4.9. XRD

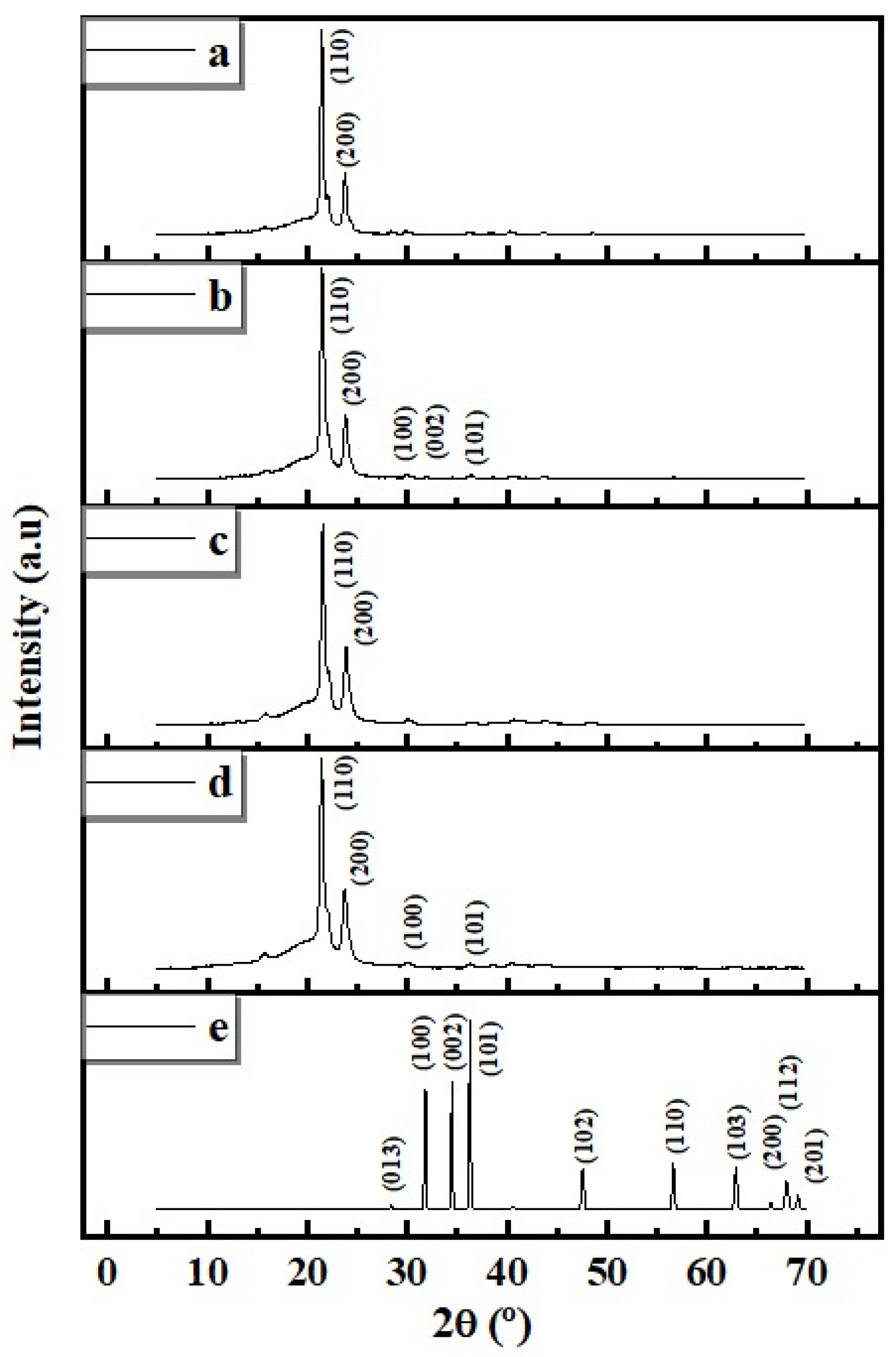

The XRD diffractograms of neat electrospun, cast PCL, and composite membranes and films (PCL/ZnO-NPs) are shown in Figure 9, along with the XRD pattern of ZnO-NPs for reference.
The neat PCL showed peaks near 21.4 and 24.1° corresponding to crystallographic reflection planes (110 and 200, respectively), in agreement with the polymer’s crystalline orthorhombic structure. When ZnO-NPs were incorporated, residual peaks corresponding to the ZnO phase were observed (Figure 9b,d). Crystallinity (%) from XRD patterns was determined and is summarized in Table 4.
As can be observed, values for electrospun mats are slightly higher than those of cast films; thus, crystallization in the direction of the fiber is promoted. However, the effect of ZnO-NPs incorporation is not univocal, thus an increase in crystallinity index (%) was obtained in cast films, whereas it decreased in the electrospun nanofibers. Such variations are subtle and may be assigned to the experimental error, although they have been observed in other systems. For instance, Gibril et al., 2022 [68] incorporated nanocrystalline cellulose and zinc oxide (NCC-ZnO) into PCL-based film (10% w/v in DCM) at different concentrations (2, 4, 6, 8 wt%). They found that the crystallinity degree increased only at 2% (from 59.9 to 61.0%) followed by decreases to 58.7, 52.6, and 42.9% when NCC-ZnO-NPs were incorporated at 4, 6, and 8 wt%, respectively. These decreases in the crystallinity degree were due to the nanofiller aggregation, which confined the mobility of the polymer chains [68].

4.10. DSC

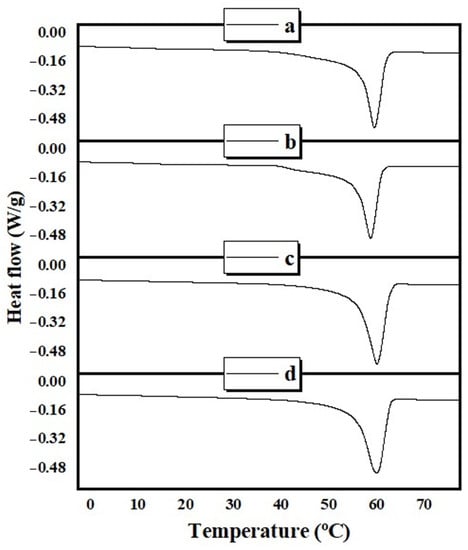

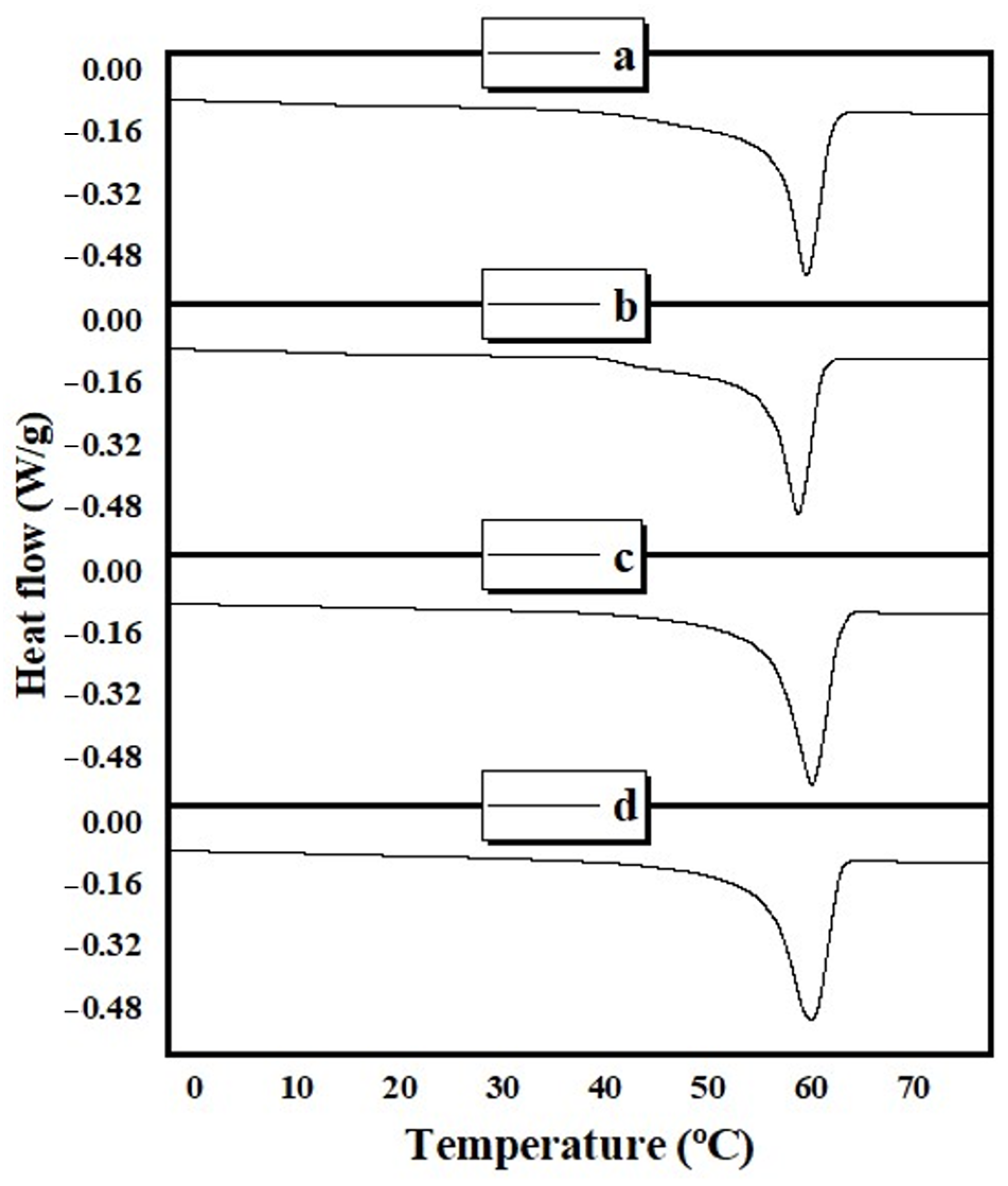

The thermal behavior of neat electrospun cast PCL and composite membranes and films (PCL/ZnO-NPs) was assessed and quantified using DSC curves, as shown in Figure 10.
Table 5 summarizes the results for melting temperature (Tm, °C), fusion enthalpy ( Δ H f , J/g), and crystallinity degree ( χ c , % ).
Accordingly, the addition of ZnO-NPs (1 wt%) showed a slight decrease in Tm of the PCL/ZnO-NPs electrospun and cast films, which is probably due to the aggregation of ZnO-NPs with film and membrane chains that hinder the polymer crystallization, forming a thinner lamellar crystal, thereby decreasing the melting temperature [99]. In terms of fusion enthalpy, ZnO-NPs decreased this parameter in the electrospun membrane and increased it in the cast film. Consequently, the crystallinity degree decreased in the presence of ZnO-NPs in the case of PCL/ZnO-NPs electrospun membrane and increased in the cast films. Such an observation was also corroborated by XRD and explained in the previous section by nanoparticle aggregation and the reduction of the mobility of the polymer chains.
The crystallinity degree for PCL reported in the literature was found between 39.1% [62] and 78% [100] (Table 5). Values in this study are around 60%–65%, although there were some differences between the XRD and DSC methods. For instance, according to XRD, the electrospun membranes were more crystalline than the cast films, while the opposite was deduced from DSC. With such a tight range of crystallinity values, it is feasible to reach contradictory conclusions. Both methods have their peculiarities. The XRD is based on a mathematical decomposition into components and the assumption that the peak ratio between amorphous and crystalline phases is quantitative. The DSC is very sensitive to operational conditions (sample weight, instrument calibration, etc.) and to the certainty of the assumption of the melting enthalpy value for a 100% crystalline sample. Consequently, no conclusive results regarding the modification of the crystallinity of samples prepared by either casting or electrospinning can be provided. However, the incorporation of ZnO-NPs had a small effect that was consistently supported by both XRD and DSC. Nevertheless, other studies have concluded that the incorporation of nanoparticles into polymer matrices has no impact on melting or crystallization [61,100]. In this light, it is concluded that the changes in physicochemical and mechanical characteristics, revealed in this study, may be attributed to the incorporation of metal oxide nanoparticles themselves, due to their physicochemical properties.

4.11. Functional Properties (Antioxidant Activity)

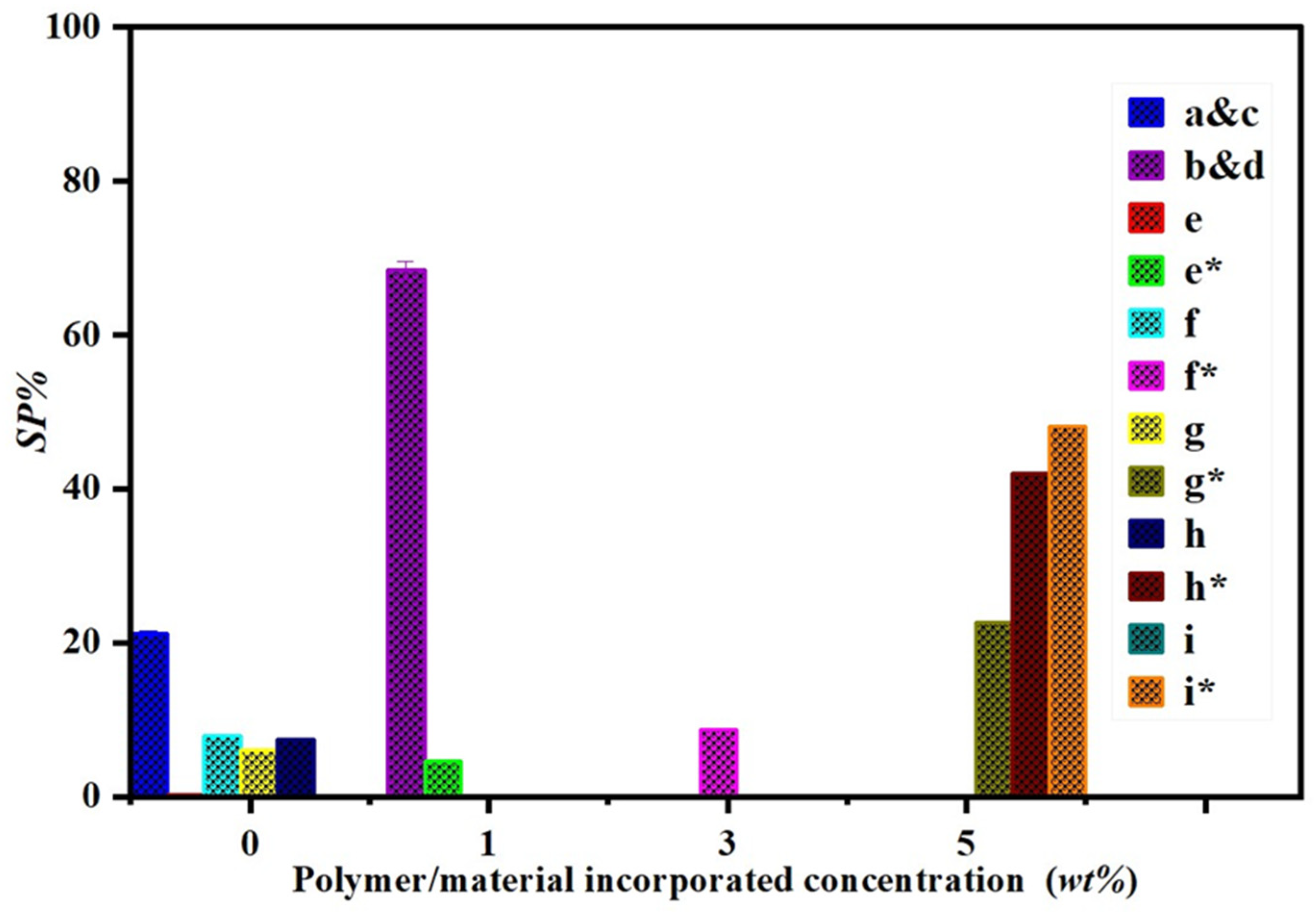

The antioxidant activity of neat electrospun and composite membranes (PCL/ZnO-NPs) was assessed by measuring the DPPH• scavenging percentage (SP%) (Figure 11).
A further evaluation was conducted for gallic acid (positive control) with a SP% of 95%. According to Figure 9, the SP% of PCL/ZnO-NPs increased from 21.2 ± 0.3 to 68.4 ± 1.2a (by almost 69% enhancement), demonstrating the beneficial effects of ZnO-NPs on the system in which they are incorporated. This is mainly due to the presence of the phytochemical groups, which produce reactive oxygen species (H2O2, O2–, 1O2, –OH) as antioxidants [54,85,106]. Consequently, the antioxidant property of ZnO-NPs may contribute to their antimicrobial properties, as demonstrated in previous studies [54]. Interestingly, Radisavljevic et al. (2022) have evaluated the DPPH• SP% of PCL electrospun (8% w/v in 2,2,2-trifluoroethanol) with the incorporation of yarrow extract at different concentrations (5, 10, 15, and 20 wt%). They found that the SP% increases as the concentration of yarrow extract and incubation time increase, which were about 17, 22, 61 and 55% at 0 h; 48, 75, 90, and 91% after 1 h; and 57, 76, 92, and 92% after 24 h incubation [105]. Another study has reported about 55% of SP% for iron oxide nanoparticles (20% w/w) incorporated into gelatin cast film for 45 min [85]. This study reports about 68% of SP% for 1% wt of ZnO-NPs incubated for 30 min.

5. Conclusions

There is increasing interest in the incorporation of nanoparticles of zinc oxide into polycaprolactone-based electrospun membranes and films due to their ability to improve the properties of such membranes and films in a variety of ways. For instance, the reduction of water vapor permeability and the increment of surface hydrophobicity adds potential uses. Furthermore, the incorporation of ZnO-NPs increased the opacity of both the membrane and the film by blocking light transmission. In addition, the PCL containing ZnO-NPs provided superior mechanical performance and antioxidant activity than the PCL without ZnO-NPs. A significant effect of ZnO-NPs was the increase in the roughness of polymer surfaces, which facilitates macromolecule adsorption. However, nanoparticles may show some contradictory behaviors in terms of melting temperatures and crystallizations, as they tend to agglomerate or aggregate, and thus they do not have a significant effect on these properties.
Moreover, this study shows that green ZnO-NPs possess numerous beneficial properties, including a substantial increase in antioxidant activity. Furthermore, zinc oxide nanoparticles will benefit future applications, such as eliminating toxic waste and reducing costs. A well-controlled dispersion of green ZnO-NPs in both electrospun nanofibrous membranes and cast films may enhance their functional properties in sustainable applications. The combination of all the characteristics discussed above makes PCL suitable for a variety of applications, including pharmaceutical biomaterials, therapeutic applications, and agricultural uses.

Author Contributions

Conceptualization, J.A.A.A., A.R. and A.G.; methodology, J.A.A.A. and A.R.; software, J.A.A.A. and J.J.B.; validation, J.A.A.A. and A.R.; formal analysis, J.A.A.A.; investigation, J.A.A.A., J.J.B. and A.R.; resources, J.J.B. and A.G.; data curation, J.A.A.A.; writing—original draft preparation, J.A.A.A. and J.J.B.; writing—review and editing, A.G. and A.R.; visualization, A.G. and A.R.; supervision, J.J.B. and A.R.; project administration, A.G.; funding acquisition, A.R. All authors have read and agreed to the published version of the manuscript.

Funding

This study was financially supported by MCIN/AEI/10.13039/501100011033/FEDER, UE, a way to make Europe through the project PID2021-124294OB-C21.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The authors acknowledge the MCI/AEI/FEDER, EU project (Ref. PID2021-124294OB-C21) that supported this work. In addition, the authors are grateful for the predoctoral grant from J.A.A.A. (Universidad de Sevilla, CODE 810). J.A.A.A. also would like to thank the support from HSA Group represented by Abdul Jabbar Hayel Saeed Anam. The authors also thank CITIUS for granting access to and their assistance with the SEM and TEM area characterization, and microscopy services. The authors would like to extend special thanks to Consuelo Cerrillos for helping with 3D optical profiling.

Conflicts of Interest

The authors declare no conflict of interest.
