Review of Antibacterial Activity of Titanium-Based Implants’ Surfaces Fabricated by Micro-Arc Oxidation

by
Xiaojing He
,
Xiangyu Zhang
*,
Xin Wang
and
Lin Qin
College of Materials Science and Engineering, Taiyuan University of Technology, Taiyuan 030024, China
*
Author to whom correspondence should be addressed.
Coatings 2017, 7(3), 45; https://doi.org/10.3390/coatings7030045
Submission received: 28 November 2016 / Revised: 8 March 2017 / Accepted: 14 March 2017 / Published: 22 March 2017
(This article belongs to the Special Issue Advanced Biomimetic Calcium Phosphate Coatings)
Browse Figures
Versions Notes

Abstract

:
Ti and its alloys are the most commonly-used materials for biomedical applications. However, bacterial infection after implant placement is still one of the significant rising complications. Therefore, the application of the antimicrobial agents into implant surfaces to prevent implant-associated infection has attracted much attention. Scientific papers have shown that inorganic antibacterial metal elements (e.g., Ag, Cu, Zn) can be introduced into implant surfaces with the addition of metal nanoparticles or metallic compounds into an electrolyte via micro-arc oxidation (MAO) technology. In this review, the effects of the composition and concentration of electrolyte and process parameters (e.g., voltage, current density, oxidation time) on the morphological characteristics (e.g., surface morphology, bonding strength), antibacterial ability and biocompatibility of MAO antimicrobial coatings are discussed in detail. Anti-infection and osseointegration can be simultaneously accomplished with the selection of the proper antibacterial elements and operating parameters. Besides, MAO assisted by magnetron sputtering (MS) to endow Ti-based implant materials with superior antibacterial ability and biocompatibility is also discussed. Finally, the development trend of MAO technology in the future is forecasted.

1. Introduction

Biomedical titanium (Ti) and its alloys have been widely used in blood vessels, artificial joints, dental implantations and bone screws [1,2,3] on account of their excellent mechanical properties, good corrosion resistance and favorable biocompatibility. However, implant-associated infection (IAI) remains one of the most devastating postoperative complications [4,5] despite strict sterilization and systemic antibiotic prophylaxis prior to surgery. IAI often commences with bacterial adhesion to the implant and colonization on the implant surface, followed by biofilm formation. The biofilms are extraordinarily resistant to antibiotics and the host immunity defensive system [6,7,8], leading to further complications. Once the biofilm is formed, it is often not effectively treated except for prosthesis removal and re-implantation [9,10]. This devastating complication may result in chronic suffering and extremely huge medical expenses [11,12]. Therefore, it is highly desirable to introduce antimicrobial agents into implant surfaces to provide antibacterial activities and prevent peri-implant infections [13,14,15,16,17]. In comparison with organic antibiotics, inorganic antibacterial metal elements (e.g., silver (Ag) [18,19,20,21,22], copper (Cu) [23,24,25,26] and zinc (Zn) [27,28,29]) have attracted great attention due to their perfect stabilities, superior broad-spectrum antibacterial properties, relatively low toxicity to human cells and low risk of producing resistant strains [30,31].
Dizaj et al. [32] have reviewed the antimicrobial activity of metal and metal oxide nanoparticles together with their antimicrobial mechanisms and have indicated that the particle size determined the antimicrobial effectiveness of the metal nanoparticles. Rai et al. [33] have extensively reviewed the antibacterial, antifungal and antiviral properties of Ag ions, Ag compounds and Ag nanoparticles, but there is no discussion about the antibacterial properties of Cu or Zn. In addition, the toxicities of metal and metal oxide nanoparticles to apply as proper alternatives for antibiotics in biomedical applications were not discussed in the reviews. In order to obtain antibacterial metallic surfaces, numerous surface modifications have been performed. Ferraris et al. [34] have reported the surface modification technologies, such as ion implantation [35,36], ion beam-assisted deposition [37], electrochemical techniques [38], ion exchange [39], sol-gel [40], sputtering [41,42], plasmas pray [43] and chemical vapor deposition [44]. However, micro-arc oxidation (MAO) is not fully described.
MAO, which can produce porous, adhesive and bioactive coatings for implantation, has aroused considerable attention [45,46,47]. On the one hand, a porous bioactive calcium phosphate-based composite layer can be deposited on Ti-based implant surfaces according to the selected electrolyte, which would enhance the biocompatibility [48,49] and the bonding strength of the coated layer [50]. On the other hand, antibacterial metal elements can be incorporated into implant surfaces to inhibit initial adhesion of bacteria and prevent post-surgery complications, thus enhancing the antibacterial property [34]. Furthermore, the content of bioactive elements and antibacterial metal elements on the MAO coating surface can be tuned by controlling voltage, electrolyte components and MAO time [51]. To our best knowledge, this specific topic has not been reviewed in the recent literature. The aim of the review is to collect and compare the recent scientific papers concerning surface modification of Ti with the incorporation of antibacterial metal elements (e.g., Ag, Cu, Zn) to endow antibacterial properties by MAO. The review focuses mainly on the effects of the composition and concentration of electrolyte and process parameters (voltage, current density, oxidation time) on the morphological characteristics, antibacterial ability and biocompatibility of MAO coating. MAO assisted by magnetron sputtering (MS) to achieve a superior antibacterial property and biocompatibility is also discussed, following the forecast of the development trend of MAO in the future.

2. Micro-Arc Oxidation Method

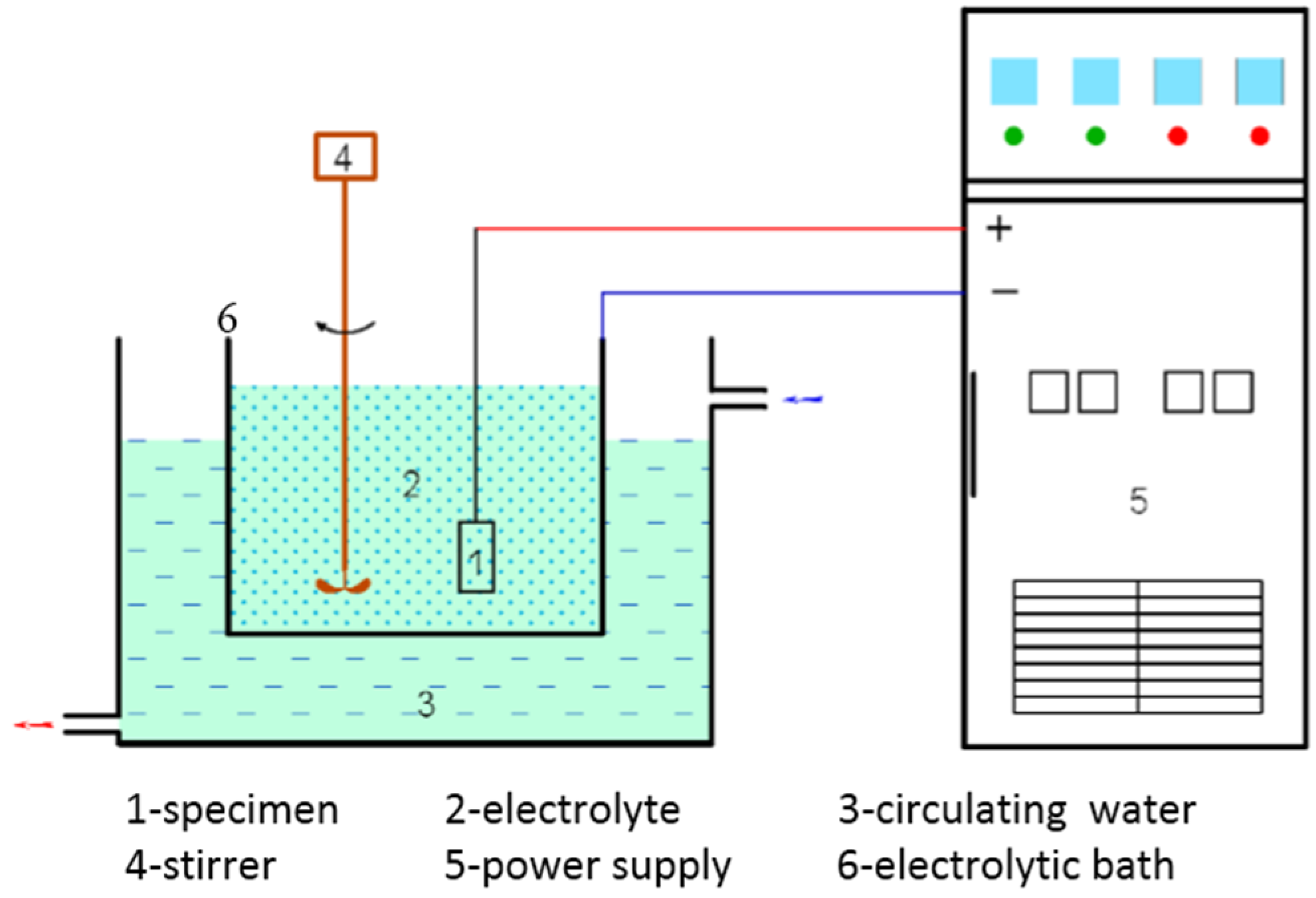

MAO, which is also referred to as plasma electrolyte oxidation (PEO), is a high voltage plasma-assisted anodic oxidation process. MAO is a relatively convenient technique for forming firmly adherent oxide ceramic layers on the surfaces of valve metal, such as Ti, Al, Mg, Zr, Ta and their alloys. As shown in Figure 1, the MAO process was controlled by an MAO power supply. Before MAO, the non-working side of the specimen was connected with a copper conductor and coated with acrylate adhesive. During the MAO process, the specimen was treated as the anode, and the stainless steel electrolytic bath was regarded as the cathode to fill with electrolyte. The stirrer was applied to keep the electrolyte uniform, and the circulating water treatment system was used to sustain the temperature of the electrolyte below 30 °C.

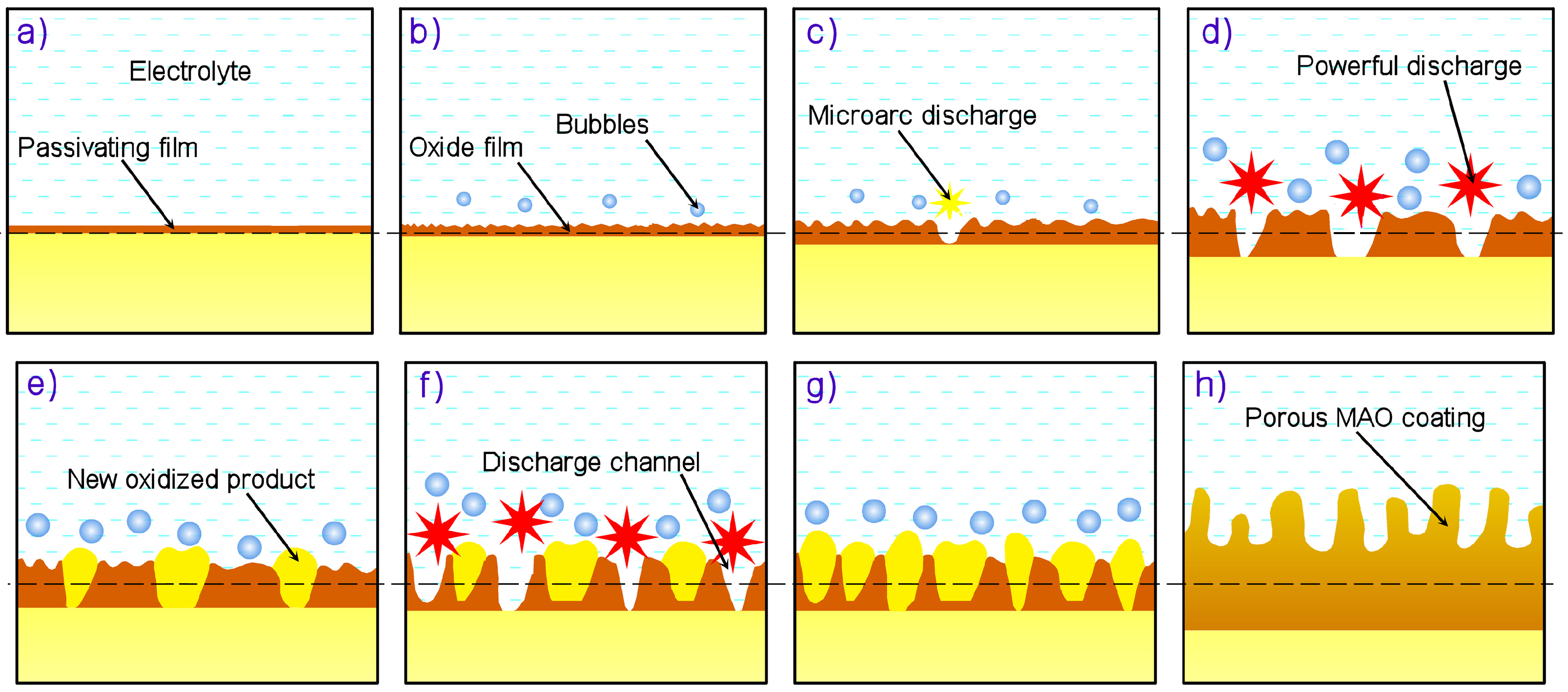

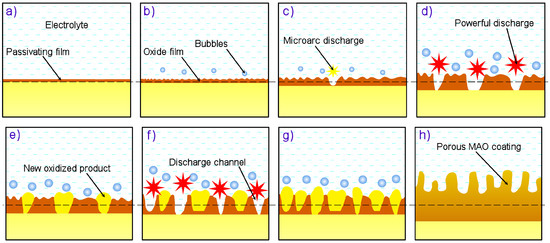

The principle of MAO is explained in Figure 2. At the initial stage of MAO treatment, as soon as the specimen is exposed to the electrolyte, the voltage increases rapidly and linearly with time, and an anodic barrier film, also called a passivating film (Figure 2a), is initially formed on the surface of the specimen. Soon afterwards, with the increase of voltage, some tiny oxygen bubbles can be observed, and a porous insulating oxide layer, which usually grows under conditions of dielectric breakdown, forms on the surface of the specimen [52]. At this stage, the voltage and current flow follow Faraday’s law, which corresponds to the conventional anodizing stage (Figure 2b). When the applied voltage on the specimen surpasses the dielectric breakdown of the insulating oxide coating, dielectric breakdown takes place, leading to the formation of spark discharges (Figure 2c). The current flow only concentrates on regions of breakdown, and the Ca and P elements from the electrolyte and the other elements from the specimen enter into regions of breakdown by diffusion and electrophoresis at intense local high temperatures, resulting in localized forming and thickening of the porous structure oxide coating. The discharge sparks gradually grow bigger, and the micro-arcs’ discharges are transformed into powerful arc discharges (Figure 2d). When the new generated oxide coating (Figure 2e) is capable of resisting current flow, the other regions are vulnerable to breakdown due to the smaller resistance, and finally, the chemical reaction interface would move towards the entire surface [53]. Breakdown of the coating occurs at a vulnerable spot of the growing oxide film. Meanwhile, the new porous structure oxide coating might also be formed and thickened by the emission of gas due to intense local high temperatures at the sites of breakdown [54]. With the prolonging of oxidation time, large discharge channels with intense sparking and gas bubbles would emerge at the surface, leading to the formation of larger protruding pores, even a spongy interconnected microstructure (Figure 2f). The continuous formation and breakdown of the oxide coating (Figure 2g) causes the potential to fluctuate. Both the dissolution of the base material and gasification of the electrolyte enable the formation of the porous ceramic oxide coating (Figure 2h).

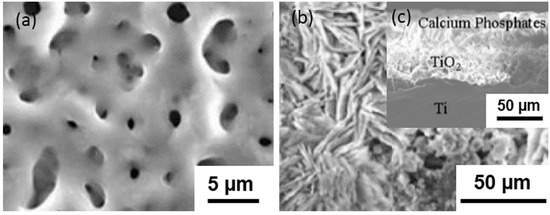

The composition of the MAO electrolytes has a dramatic effect on the morphological characteristics, such as the porosity and thickness of MAO coatings. Hence, the proper selection of the electrolyte composition is imperative to obtain satisfactory performance. Generally, different antibacterial metal elements mixed with calcium acetate (CA) and glycerophosphate disodium (GP) are used as the base electrolyte in the MAO process to enhance the antibacterial property of the implant materials. The characteristics of the fabricated antibacterial coating prepared by MAO techniques are briefly summarized in Table 1, and the details are reviewed according to the difference of the doping method of the antibacterial metal elements.

2.1. Introduction of Metal Nanoparticles into MAO Electrolyte

NPs present a greater chemical activity than the bulk material for the advantage of their larger ratio of surface area to volume [67]. Ag NPs are the most popular inorganic antimicrobial NPs [68] and can be incorporated into implants by direct dispersion of solid Ag NPs in the electrolyte during MAO. The antibacterial mechanisms as reported are that Ag NPs can directly interact with the microbial cells, leading to the increase of membrane permeability [69], the degradation of lipopolysaccharide molecules with the formation of pits and gaps in the bacterial membrane and the damage of the bacterial outer membrane [70,71]. Ag NPs can also penetrate the bacterial cell envelope and cause DNA damage and protein oxidation by producing secondary products, such as reactive oxygen species [72]. It has also been demonstrated that the antimicrobial activity of Ag NPs is higher than that of Ag ion [73]. The use of Ag NPs will lead to anti-bacterial effects maximized due to the increased numbers of particles per unit area [67].

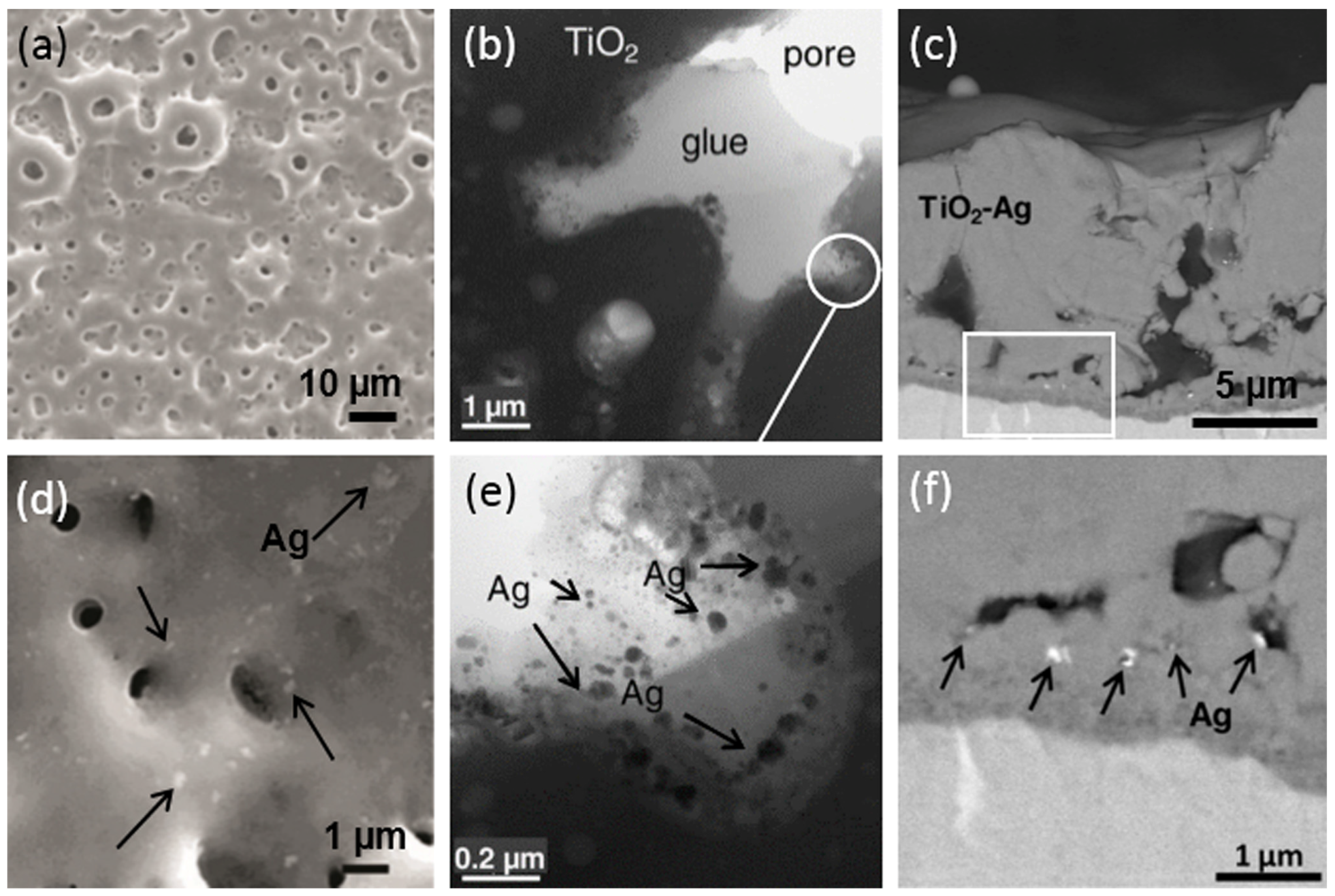

Necula et al. [55] have successfully fabricated Ag-bearing TiO2 coatings with different contents of Ag NPs by MAO in the electrolyte, including CA, calcium glycerophosphate (Ca-GP) with Ag NPs. The morphology of metallic Ag NPs is similar to that of the particles in the electrolyte [56]. The average size of Ag NPs was measured to be 37 ± 6 nm. Under the assistance of electrophoresis during MAO, Ag NPs were homogeneously absorbed on the porous surface (Figure 3a,d) [38], transmitted to the inner pore walls of the titanium oxide along the short-circuit paths (Figure 3b,e) [55,56] or embedded in the dense oxide layer (Figure 3c,f) [56]. The incorporation of Ag NPs in the titanium dioxide (TiO2) matrix has no effect on the surface morphology of the coatings. All of the layers were porous with well-defined pores ranging in size from a few nanometers up to 5 μm [38], which is the typical morphology of MAO. Moreover, the contents of Ag NPs on the surface went up with the increased amount of Ag NPs in the electrolyte. They found that Ag NPs displayed good antibacterial activity against methicillin-resistant Staphylococcus aureus (S. aureus), one of the most problematic pathogens for orthopedic implants, while showing little cytotoxicity to a human osteoblastic cell line with the adjustment of the content of Ag NPs on TiO2/Ag coating by decreasing the concentration of the Ag NPs in the electrolyte [74]. However, the coatings prepared by this method are expensive due to the high price of Ag NPs.

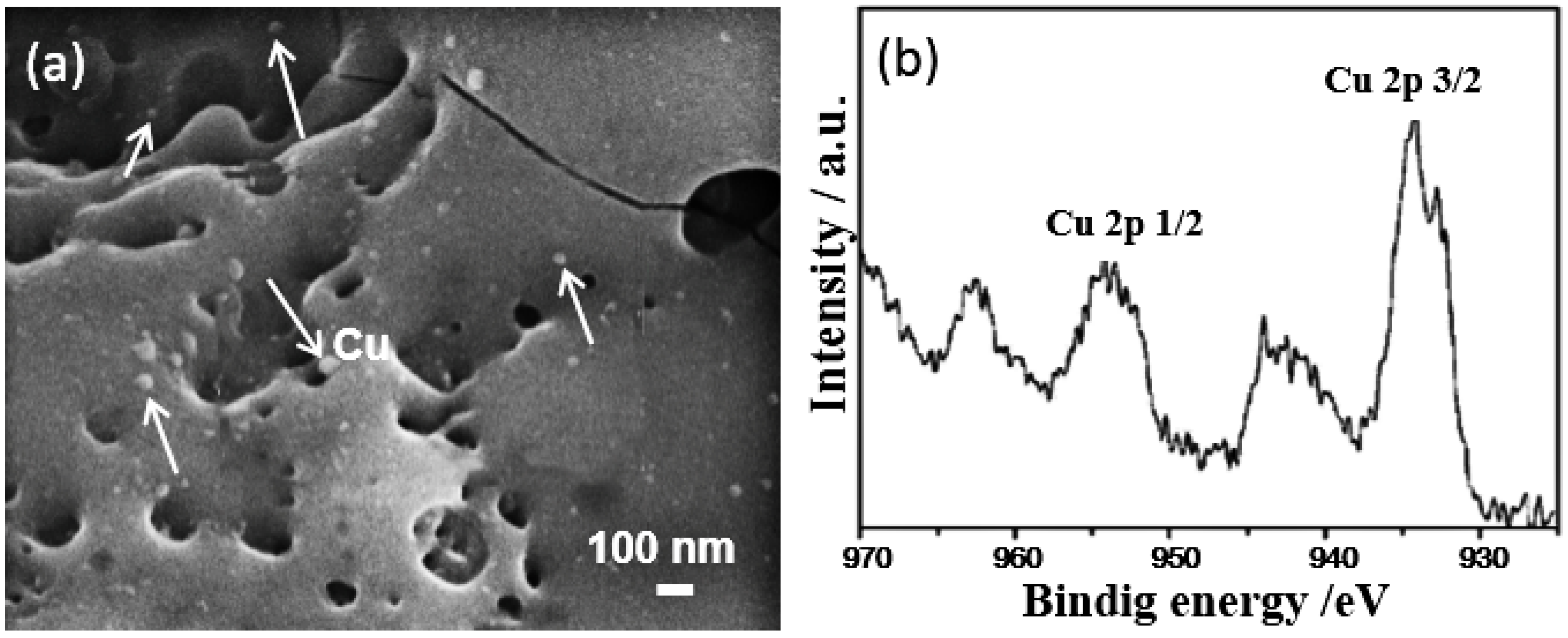

Cu can inactivate the central catabolic and biosynthetic pathways, namely catalytic clusters of dehydratases [75], which endows Cu with strong antibacterial properties. Yao et al. [57] have prepared Cu-doped TiO2 coatings by MAO in the working electrolyte containing NaOH, NaH2PO4 and 3 g·L−1 Cu NPs. The results of top-surface morphologies revealed that Cu NPs distributed both on the Cu-doped coating surface and inside the pores (Figure 4a). The size of most of the NPs was less than 60 nm. High-resolution XPS spectra indicated that Cu mainly existed in the Cu2+ (from CuO) state (Figure 4b). Cu-doped TiO2 coatings showed excellent antibacterial properties attributed to the incorporation of Cu NPs with a high surface area to volume ratio, which would directly kill bacteria and release copper ions. A similar mechanism was reported by Raffi et al. [76], in which the reason for the antibacterial property of Cu NPs was mainly ascribed to the adhesion of Cu NPs onto bacteria surfaces, namely direct contact-killing, since Cu NPs are oppositely charged with respect to bacteria. When they encounter each other, the reduction reaction will occur at the bacterial cell wall, resulting in the formation of cavities/pits. Though Usman et al. [77] have also testified to the antimicrobial and antifungal activities of Cu-chitosan NPs against methicillin-resistant S. aureus, B. subtilis, C. albicans, P. aeruginosa and Salmonella choleraesuis, Pape et al. [78] have confirmed that the antibacterial activity of Cu NPs was significantly weaker than that of Ag NPs. Moreover, Cu NPs were rapidly oxidized when exposed to air [79], limiting their application.
With the consideration of the bad dispersion of NPs in solution and the weak adhesion of NPs onto the coating surface, only several valuable studies have been documented in the field of antibacterial NPs by MAO so far.

2.2. Introduction of Metallic Compounds into MAO Electrolyte

For the biomedical industry, it seems to be an attractive strategy to endow implants’ surfaces with metallic coatings. Recent studies [45,80,81] have shown that biological or antibacterial elements can be incorporated into the coating during the MAO process by the introduction of metallic compound into the MAO electrolyte. Ag-containing coatings have occupied the largest share of the global antibacterial market.
Song et al. [58] have incorporated Ag into Ti implants by MAO in 0.04 M β-glycerophosphate disodium salt pentahydrate (β-GP), 0.4 M CA and silver nitrate (AgNO3) or silver acetate (CH3COOAg) electrolytic solution at a fixed applied voltage range from 250 to 450 V. The addition of AgNO3 reduced the required voltage for the formation of calcium phosphate compounds from 450 down to 400 V [82,83]. When the concentration of AgNO3 was fixed at 0.004 M, the oxidized layer was a porous microstructure with spherical pores at voltages below 350 V (Figure 5a), while the coating surface became rough and covered with spherical particles and flakes above 380 V (Figure 5b) due to the existence of calcium phosphate compounds (Figure 5c). MAO coatings containing 0.21–0.45 wt % of Ag were cytotoxic to human osteosarcoma MG63 cells, while Chen et al. [84] reported that 2.05 wt % Ag displayed no osteoblast cytotoxicity. The comparison results indicated that the cell proliferation not only has a relation to the content of Ag, but also depends on other factors, such as the surface roughness of the coatings [85]. The relatively smooth coating oxidized at 400 V with a lower content of Ag (0.00006 M AgNO3) exhibited no cytotoxicity with an unreduced antibacterial property.

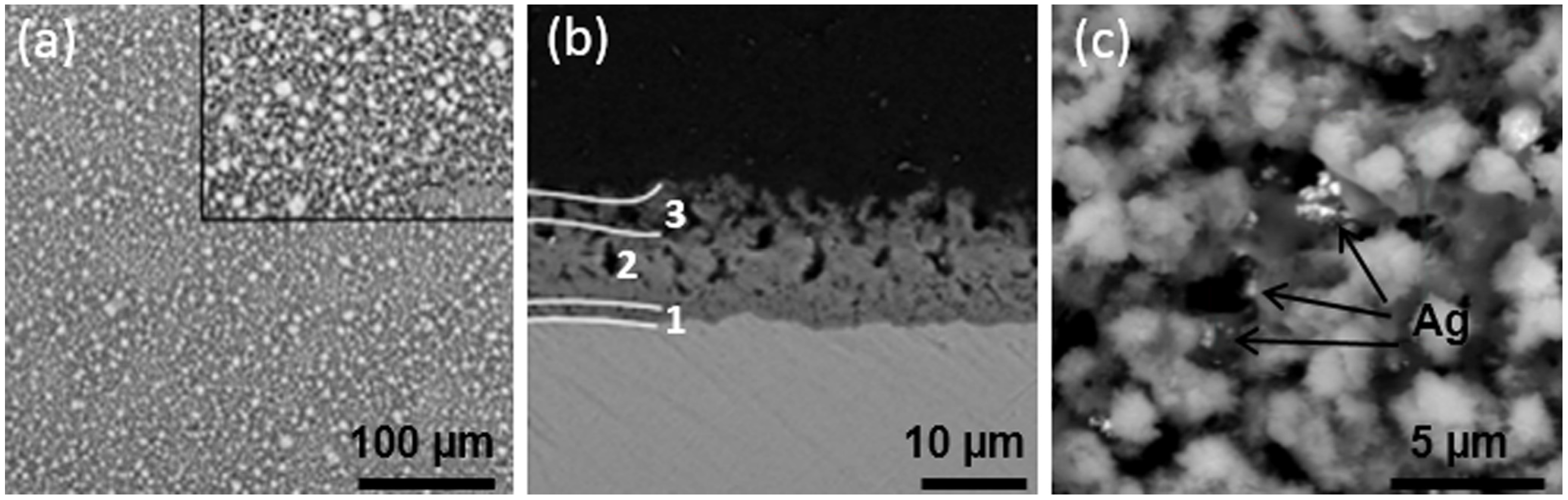

Muhaffel et al. [59] have also prepared novel multi-layer coatings composed mainly of inner TiO2 layers and outer HA (HA (Ca10(PO4)6(OH)2)) layers via MAO in β-GP and CA electrolyte with different addition levels of AgNO3 (0.1 g·L−1 and 0.4 g·L−1). Unlike the general surface characteristics of MAO coatings, micro-pores were hardly identified owing to the existence of outer granular HA on MAO-0 (Figure 6a), MAO-0.1 (Figure 6b) or needle-like HA layers on MAO-0.4 (Figure 6c). The addition of AgNO3 can speed up the MAO process at higher current density levels, enhance the crystallinity of the HA layer and precipitation of Ag NPs on the HA layer. Compared to amorphous HA, the crystalline HA exhibits better bioactivity in SBF (simulated body fluid) and biointegration [86]. Ag NPs with a size of 20–30 nm were deposited on the HA layer of MAO-0.1 (Figure 6e) and MAO-0.4 (Figure 6f). The rapid release of Ag+ ions at the initial periods and the subsequent slower release contributed to long-term antibacterial activity occurred. Moreover, cumulative release of Ag+ ions (2.5 ppm for MAO-0.1 and 8 ppm for MAO-0.4) was lower than the toxic concentration (10 ppm) of Ag for human cells [87]. Overall consideration, 0.1 g·L−1 AgNO3 appeared to exhibit sufficient antibacterial activity and no risk of cytotoxicity, while preserving the structural characteristics. Muhaffel et al. [60] have further reported a multi-layer coating consisting of subnatant TiO2 layers and upper bio-mimetic precipitation in disodium hydrogen phosphate (Na2HPO4), CA and 0.0025 M CH3COOAg electrolyte at 380 V. Incorporation of 4.6 wt % Ag into the multi-layer led to superior antibacterial efficiency against Escherichia. coli (E. coli) and S. aureus while conserving the biomimetic apatite precipitation. The multilayer consisted of three layers: A thin compact TiO2 layer above the substrate showing better substrate bonding, a middle porous and thick TiO2 layer on the compact layer and a flake-like top layer of biocompatible compound incorporated with regional Ag particles (Figure 7).

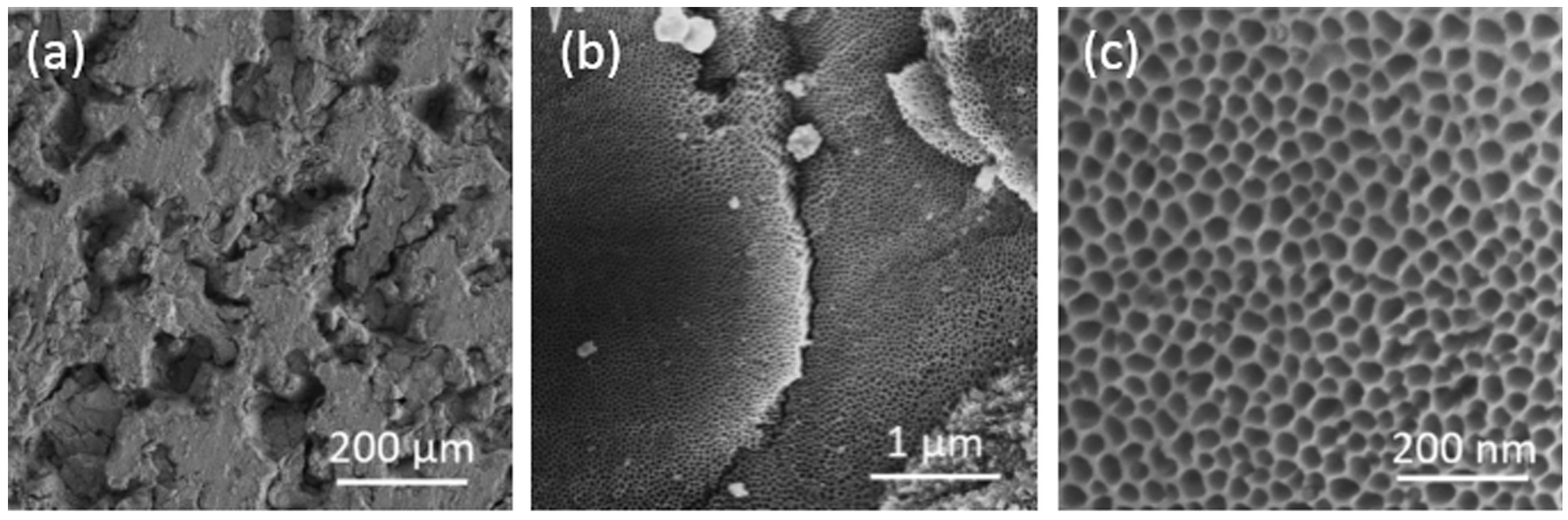

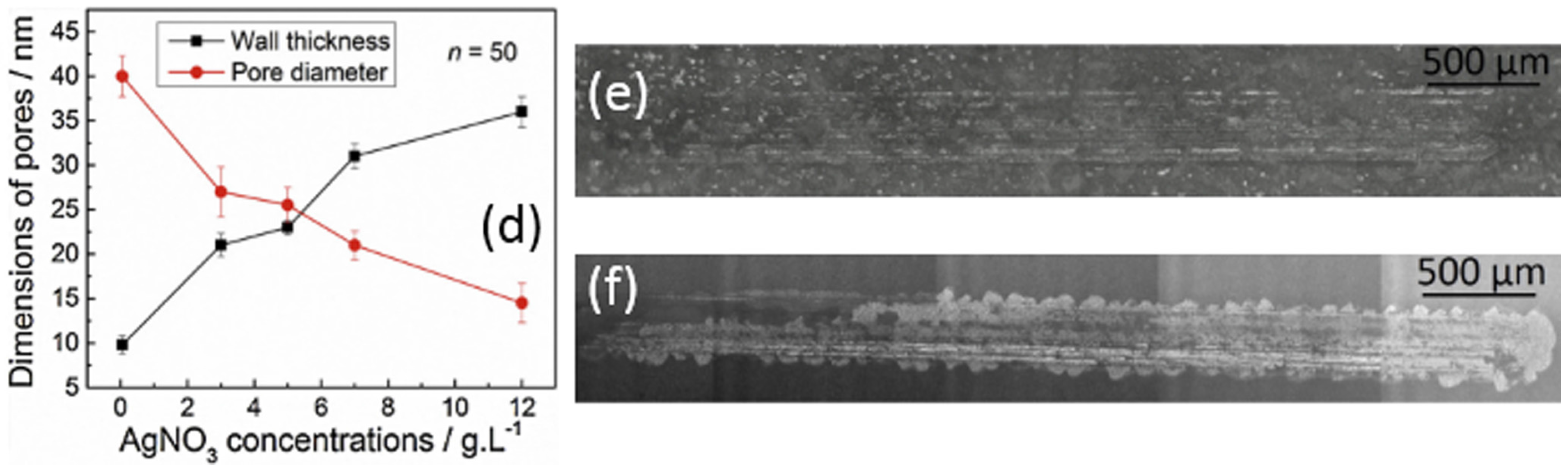

Unlike the common surface micrometer-sized pores of MAO coatings, highly ordered nanopores (Figure 8b,c) within micropits (Figure 8a) were successfully prepared by Chang et al. [61] via a novel one-step high-current anodization (HCA) at the current density of 65 A·dm−2 in the AgNO3 electrolyte range from 0.5–16 g·L−1. The nanopore diameter decreased and the wall thickness increased with increasing of AgNO3 concentrations (Figure 8d). Due to the controllable dimensions, the nanoporous structure modulated osteoblast functions, accommodating various clinical needs [88,89,90]. Scratch tests showed significantly enhanced bonding strength on the HCA treated sample (Figure 8e) in comparison with flaking on the anodized sample (Figure 8f), even at a small normal load. The TEM and XRD showed that Ag was embedded in crystallized TiO2 in the form of crystallized AgO NPs with diameters between 10 nm and 30 nm. The crystallized TiO2 also contributed to good bioactivity [49]. Gao et al. [91] reported that several ppb of Ag released quantity were capable of killing all the bacteria. Therefore, the high release level of Ag (>200 ppb) revealed strong antimicrobial properties, but resulted in severe cytotoxicity. To improve the cytocompatibility and reduce toxicity, Na3PO4 and Ca(NO3)2 were added into the electrolyte to inhibit the formation of nanopores to a certain extent and to lower the release of Ag+ while preserving their antibacterial ability.
Likewise, a unique structure with a micro-/nano-morphology can also be obtained in Cu(NO3)2 electrolyte due to field-assisted chemical etching of NO3−. Huang et al. [62] believed that the use of Cu(NO3)2 instead of AgNO3 as the electrolyte may avoid the potential cytotoxicity of heavy metal ions. Ag+ was easily oxidized to higher valence (Ag2+), which will lead to severe cytotoxicity [61]. However, bivalent Cu2+ in Cu(NO3)2 cannot be further oxidized. The results of EDX and XPS confirmed that toxic elements Cu were not incorporated into the coating surface, so copper will not directly contact the cells to produce cell toxicity. Cross-sectional images (Figure 9) also indicated that highly-ordered nano-channels were perpendicular to the substrate, and a compact layer can be observed between the nanopore arrays and the substrate. Besides, the addition of PO 4 3 − in the electrolyte further improved the cellular performance [92,93]. Moreover, A well-defined micro-/nano-morphology can also be acquired by this HCA technique in electrolytes, such as Cu(NO3)2, Zn(NO3)2, (Na3PO4 + Ca(NO3)2 + Na2SiO3) and (Na3PO4 + AgNO3 + Na2SiO3), which will extend its application.

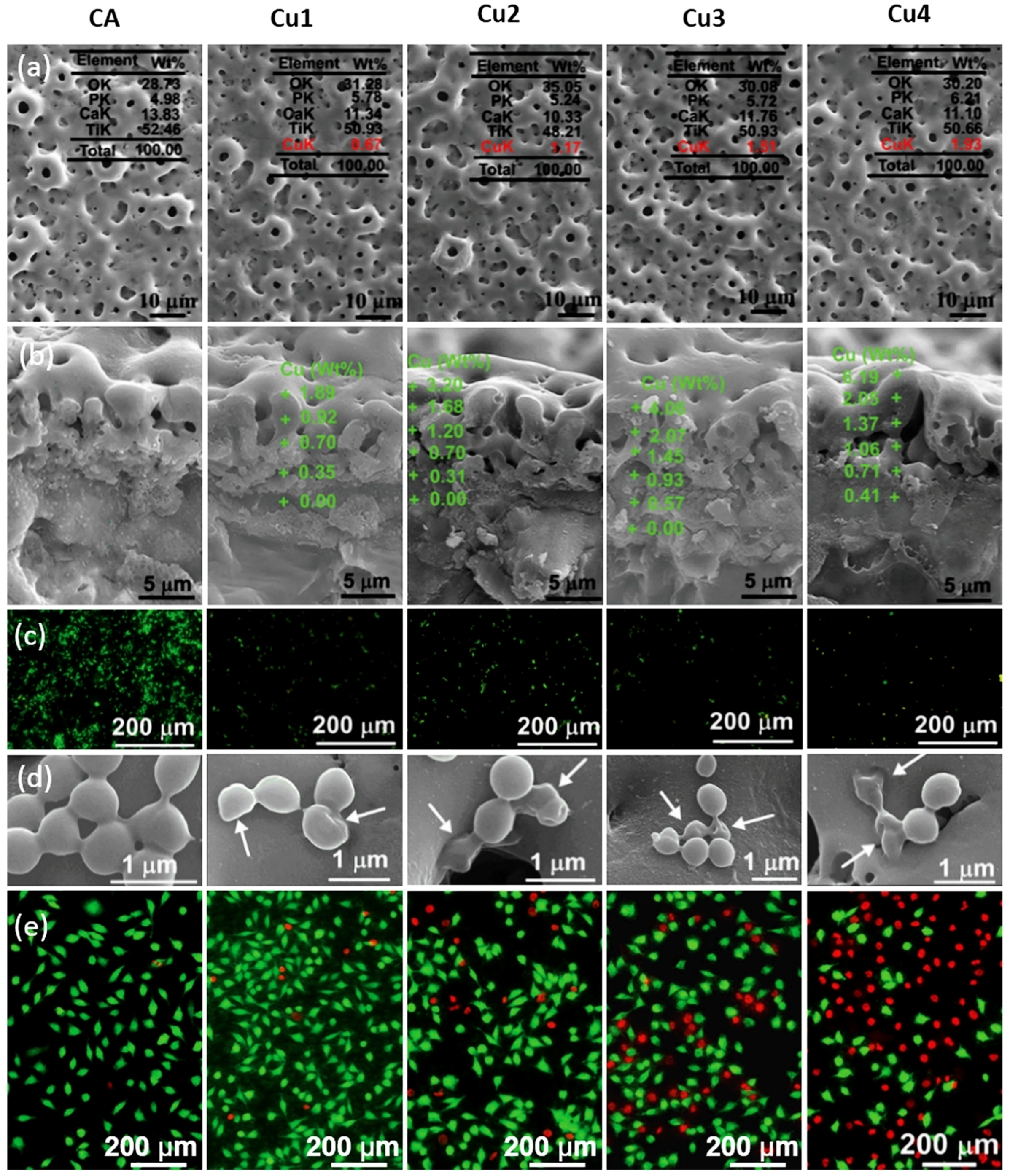

As an essential trace element for living organisms, Cu participates in a variety of metabolic activities, so it might be more suitable for antibacterial application compared to Ag. Zhu et al. [63] prepared porous and nano-structured Cu-incorporated TiO2 coatings by MAO in a novel Cu-containing electrolyte containing 0.05 M β-GP, 0.1 M CA and 0.05 M copper acetate (Cu(CH3COO)2) at 16.5 A·dm−2 for 4 min. The result showed that Cu-TiO2 coatings displayed rough micropores or crater structures with diameters of 3–5 μm (Figure 10a), and the coatings were fully covered with nano-grains with a size of 30–50 nm (Figure 10b) at a higher magnification. The antimicrobial activity of Cu-TiO2 coatings was improved due to the inhibitory effect of Cu. Meanwhile, the osteoblastic adhesion, spreading, early proliferation and late differentiation on Cu-TiO2 coatings were significantly enhanced due to the existence of the porous nano-structured surface produced during MAO, just like those found by other researchers [81,94]. Besides, the Cu element also plays a vital role in various cell behaviors, including osteoblasts [95], endothelial cells [96], bone marrow stem cells [63] and fibroblasts [64].
Zhang et al. [64] have investigated the tolerable and safe upper intake level of Cu2+ in order to improve the response of fibroblasts while maintaining the antibacterial activity. TiO2 coatings doped with different amounts of Cu2+ were directly fabricated via MAO in copper acetate 0.02 M β-GP, 0.2 M CA and various amounts of Cu(CH3COO)2 (0.00125 M, 0.0025 M, 0.00375 M and 0.005 M). As shown in Figure 11a, the coatings still maintained the typical porous structure of MAO, and Cu content on the surface of the sample increased with the increase of the concentration of Cu(CH3COO)2 in electrolyte. Cu content also increased gradually from the substrate to the coating surface, and the apparent continuity between the coatings and Ti substrates indicated the strong bonding forces (Figure 11b). As the dose of Cu2+ was increased, the number of adhering bacteria (Figure 11c) was obviously reduced due to the contact-killing and release-killing mechanism, and the bacterial morphologies and membrane integrities were subject to serious disruption (Figure 11d). Results of biological compatibility experiments showed that the appropriate dose of Cu (0.67 wt %, Cu1) can improve the adhesion and proliferation of fibroblasts and significantly support denser collagen deposition, while excess Cu2+ was poisonous to the cells (Figure 11e), will disrupt fundamental cellular processes and trigger apoptosis, just as mesenchymal stem cells [97]. Cu1 prepared in 0.00125 M Cu(CH3COO)2 electrolyte with a Cu mass fraction of 0.67 delivered the best compromise between antibacterial effectiveness and cytotoxicity.

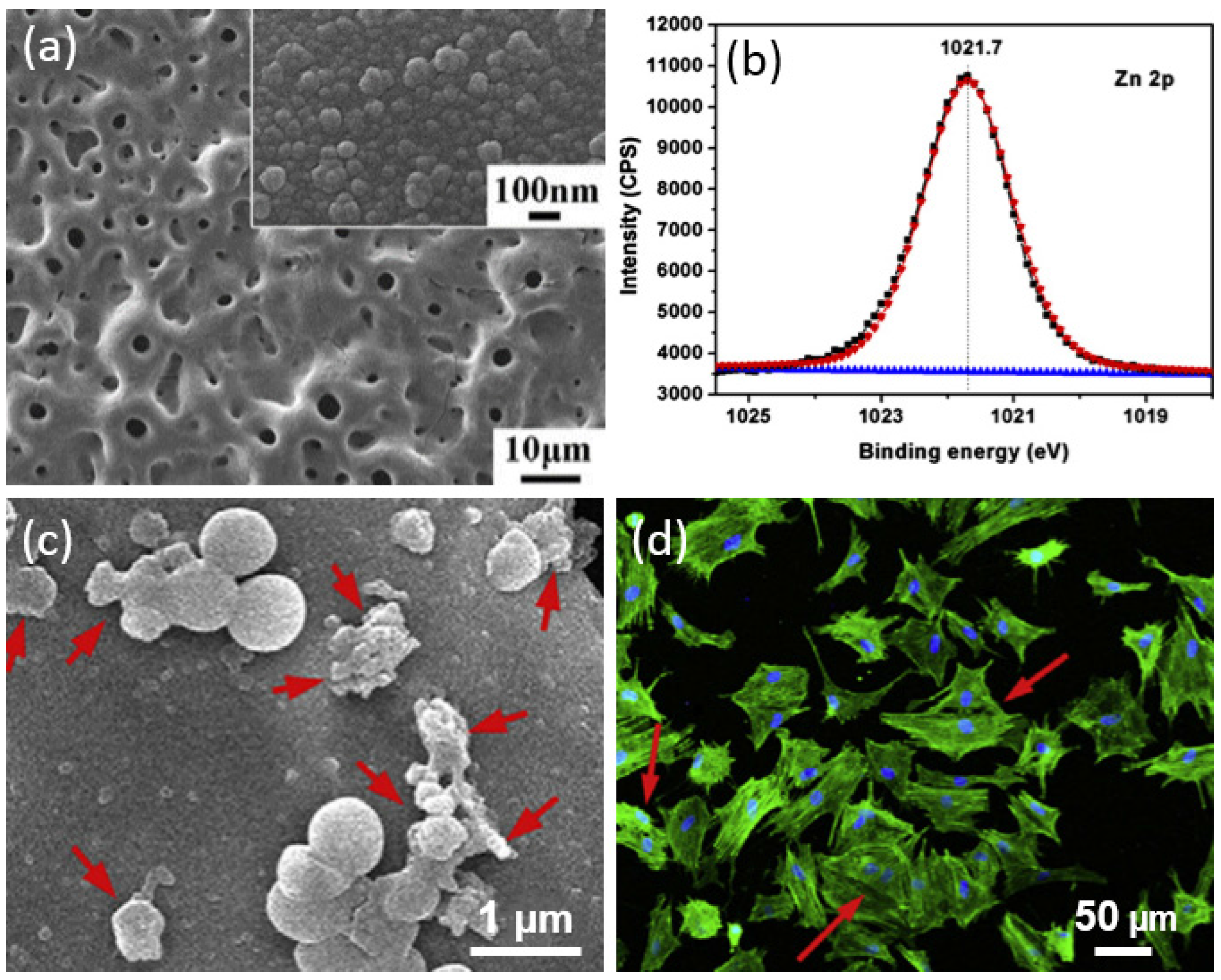

As one of the most important trace elements in the human body, Zn also has been recognized recently [98], although the antibacterial activity of Zn is relatively weaker than that of Ag and Cu. For example, both Zhang et al. [65] and Hu et al. [10] used zinc acetate (ZA) solution to modify a titanium surface by MAO. Zhang et al. [65] prepared Zn-incorporated TiO2 coatings in 0.06 M ZA, 0.02 M CA and 0.15 M Ca-GP solution at a current density of 30 A·dm−2 for 5 min. Hu et al. [10] obtained Zn-incorporated TiO2 coatings with different Zn contents (Z0, Z2, Z4, Z6) in mixture solutions of different concentrations (0 M, 0.02 M, 0.04 M, 0.06 M) of ZA, 0.1 M CA and 0.05 M β-GP at 16.5 A·dm−2 for 4 min. It has been found that the incorporation of Zn in TiO2 did not apparently change the surface topography; all of the TiO2 coatings were still of a typical porous surface morphology, and the micropores with a pore size less than 5 μm were uniformly distributed on the coating surface (Figure 12a). The coatings were primarily composed of the anatase and rutile phase. Increasing the content of ZA in the electrolyte led to a slight increase in the Zn content of the oxide layer. However, the feature peaks of Zn-containing compounds were not detected due to the low concentration of Zn (4.6–9.3 wt %). The XPS showed that Zn existed in the form of ZnO (Figure 12b). The antibacterial mechanism of ZnO was attributed to the generation of reactive oxygen species (ROS) [99] on the coating surface with higher Zn content (Figure 12c), rather than the low zinc ions release (<3.62 ppm) [100]. The accumulated released Zn ions not only facilitated the initial adhesion (Figure 12d), spreading and proliferation of bone marrow stem cells (bMSC) [98,101], but also upregulated the gene and protein expression of bMSC while producing no cytotoxicity.

2.3. Introduction of Both Metal Nanoparticles and Metallic Compound into MAO Electrolyte

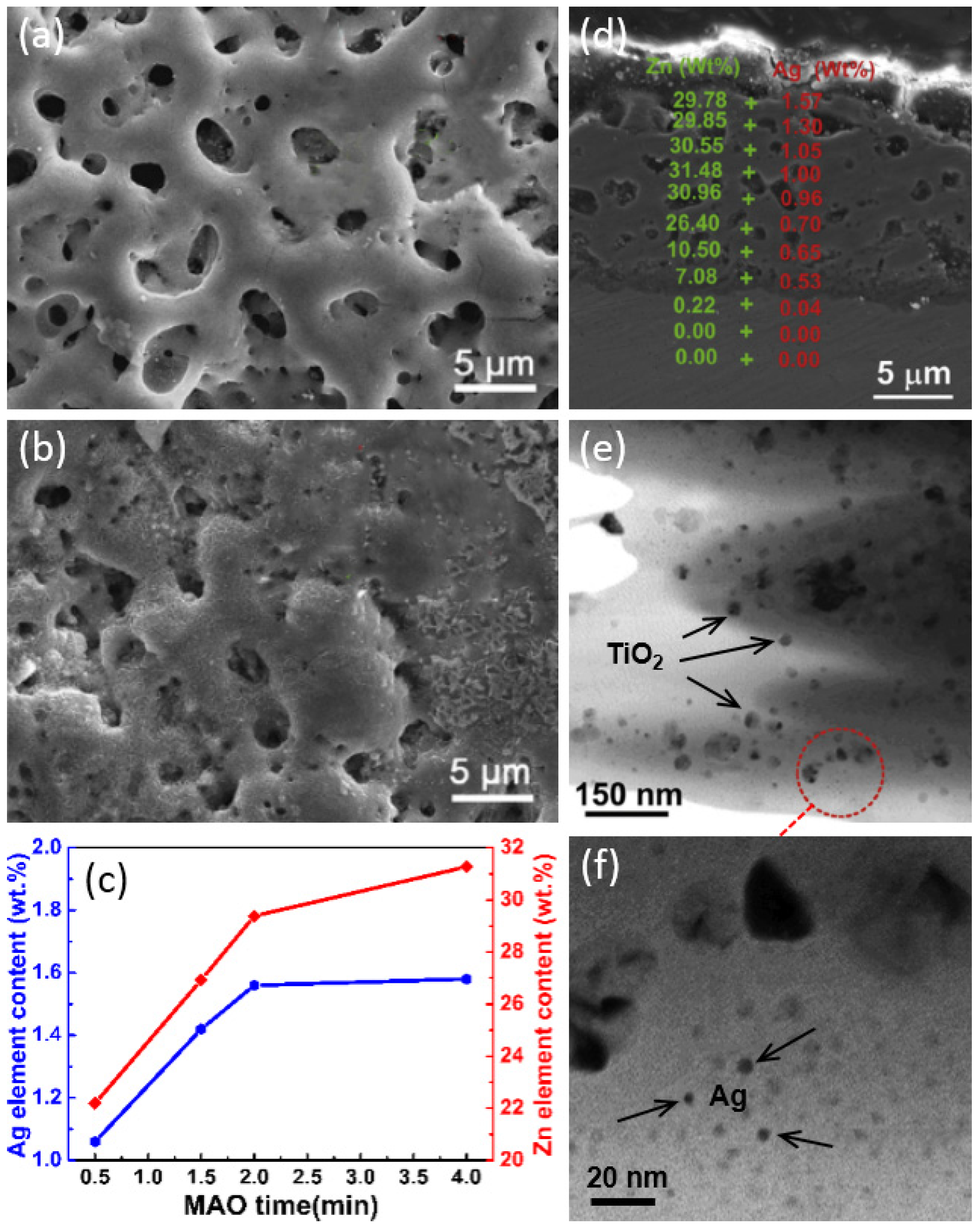

Recently, it has found that Zn2+ co-doped with small amount of Ag+ may lead to an obvious increase of the antibacterial ability [102] in comparison with single Zn2+. Zhang et al. [66] fabricated micro-porous TiO2 coatings co-doped with Zn2+ and Ag NPs by MAO in the electrolyte composed of 0.1 M CA, 0.1 M ZA, 0.02 M β-GP, 6 g·L−1 Ag NPs and 0.25 g·L−1 sodium dodecyl benzene sulfonate for 0.5, 1.5, 2 and 4 min. All of the coatings were micro-porous with pore diameters of 1–4 μm (Figure 13a), but some deposits were displayed on micro-pores at 4 min (Figure 13b). The contents of Ag and Zn on the coating surfaces increased with prolonged MAO time (Figure 13c). Continuity between coating and substrate indicated strong bonding force by MAO, and the Ag and Zn contents increased gradually from the substrate to the coating surface (Figure 13d). Ag was composed of 73% Ag2O and 27% metallic Ag [103,104], while Zn existed in the form of ZnO [105]. TEM images indicated that many large rutile or anatase grains of 20–40 nm in size (Figure 13e,f) and many relatively small Ag nano-grains with sizes of 5–10 nm (Figure 13f) were homogenously embedded in amorphous TiO2 matrix. However, the diffraction spots of ZnO with trace amounts were not detected. The cumulative ion releases of Zn2+ (6.88 ppm) [10] and Ag+ (0.684 ppm) played an important role in inhibiting the growth of bacteria. Besides, the secondary products such as reactive oxygen species produced by Zn2+ and Ag+ were also harmful to bacteria. Carvalho et al. [106] and Jin et al. [28] have also proven the enhanced antibacterial activities of simultaneous incorporation of Zn and Ag into Ti. Jin et al. [28] believed that the interactions between Zn ions and bacteria were long-range based on the release of Zn ions [27], while the interactions between embedded Ag NPs and bacteria were short-range via the micro-galvanic effects without the release of Ag ions [37,107]. Moreover, an appropriate amount of released Zn2+ also accelerated the osteogenic activity of rat bone mesenchymal stem cells (rBMSCs) via the long-range interactions.

2.4. MAO Assisted by MS

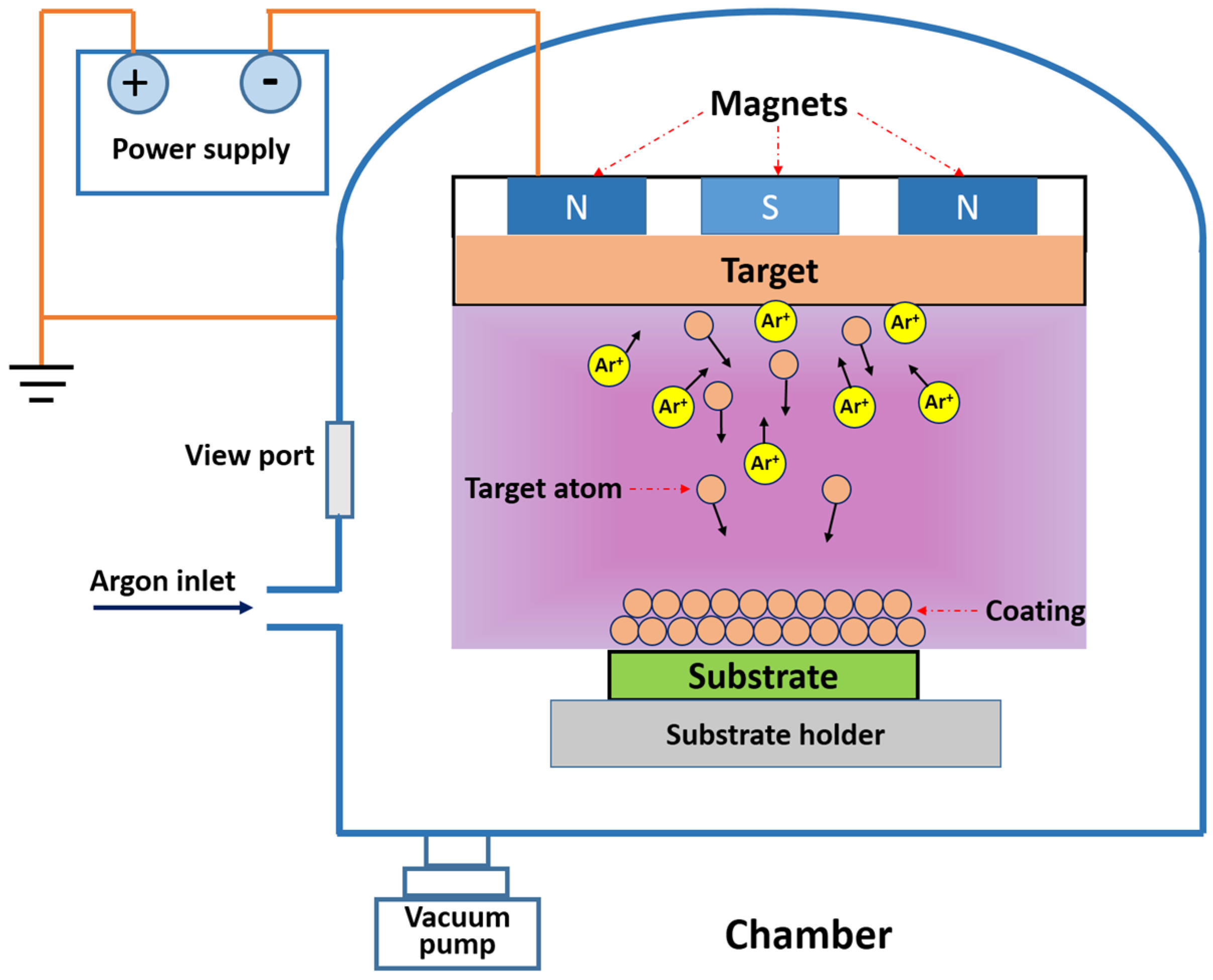

MS magnetron sputtering (MS) is a deposition technique belonging to the sputtering processes and is one of the physical vapor deposition (PVD) technologies. The MS deposition process is conducted in an inert gas (usually high-purity argon (Ar) gas) atmosphere regulated by the flow meter in a vacuum chamber. The specimens were placed in the sputtering chamber, and high-purity Ar (99.999%) is introduced when the chamber sputtering is evacuated to a base pressure below 6 × 10−3 Pa. Films are deposited at various sputtering parameters, such as gas flow, working pressure, sputtering power and sputtering time, in order to acquire the desired properties of the material. For the sputtering process, there exists an electric field between the target material and the substrates. Under the action of the electric field, Ar is ionized and bombards the target material located in the cathode of the discharge, which often causes the ejection of ions or atoms from the surface of the target material toward that of the substrates. However, the lower ionization and bombardment rates of Ar often lead to the slower deposition rates and lower film densities. Given this, MS technology is introduced by installing a set of magnets beneath the target. The schematic of the MS deposition system has been described in Figure 14. The magnets are used to provide a magnetic field to capture the secondary electrons emitted by the target. Under the action of the magnetic field, secondary electrons are bound in the high density plasma region near the target surface, perform a circular motion around the target surface and constantly impact ionized large amounts of argon ion in the process of movement, thus improving the intensity of Ar ion bombardment and the deposition rate of the films.
MS is also an effective technique to incorporate antibacterial agents into the implant materials. The desired antibacterial ability can be obtained only by the choice of the optimal processing parameters. Bai et al. [108] have fabricated Ti-Ag composite coatings with different Ag contents (1.2–21.6 at %) using co-sputtering Ti-Ag targets by MS. The composite coating showed long-term antibacterial ability. However, only the Ag on the surface of Ti-Ag composite coatings contributed to the antibacterial activity [109]. It is hence necessary to carry out a post-treatment to fully use the Ag on Ti-Ag composite coatings while the antibacterial activity is preserved.
By MS, the deposited AgTi layers cover the entire surface and are firmly combined with the substrate. The concentration of Ag in the layers can be accurately controlled only by adjusting the technological parameters. Though Ag will be dissolved in the electrolyte during the MAO process, a great quantity of Ag is still reserved in the MAO coating. MAO coating shows a dense inner layer and a rough porous outer structure. The dense inner layer can improve the mechanical interlocking ability and prevent the corrosion from body fluid, while the porous outer structure may increase the surface roughness, thus promoting cell reaction. The desirable antibacterial ability and compatibility can achieve a balance by this duplex technique of combining MS and MAO.
Zhang et al. [110] have developed the novel duplex-treatment technique combining MS with MAO to prepare the Ag-containing bioactive antibacterial coatings. AgTi layers were first deposited onto Ti by MS, then subjected to MAO at 20 A·dm−2 for 2, 5 and 8 min in the electrolyte containing 26.4 g·L−1 CA and 4.3 g·L−1 β-GP. The presence of Ag did not exert a significant influence on the voltage and surface morphology. Micron-sized pores were still distributed over the surfaces, and pore sizes tend to increase (Figure 15a–c) due to the generated larger breakdown channels and more intense sparking with the increase of oxidation time. The coatings were comprised of rutile, anatase and a little Ag. However, Ag was uniformly distributed throughout the coating surface (Figure 15d), but in the form of Ag NPs [56]. During MAO, a large amount of Ag was dissolved in the electrolyte, which caused a sharp decrease in the Ag content of the MAO coatings. Ag, existing as the metallic Ag0 state, also showed excellent antibacterial ability.
Furthermore, Zhang et al. [111] produced TiO2 coatings with different Ag concentrations (M0, M1, M2, M3) by the above duplex-treatment technique. The concentration of Ag in the TiO2 coatings increased with the increase of Ag incorporated in the AgTi layers. The initially high level and subsequently low level of Ag release provided relatively long-term antibacterial activities and met the clinical requirements. Nonetheless, M2 and M3 with 1.36 and 1.93 wt % (Figure 15g,h) Ag exhibited cytotoxic effect, which restricted cell proliferation and caused cell death. M0 with 0.95 wt % Ag (Figure 15f) achieved a balance between antibacterial properties and good pre-osteoblast cell viability.

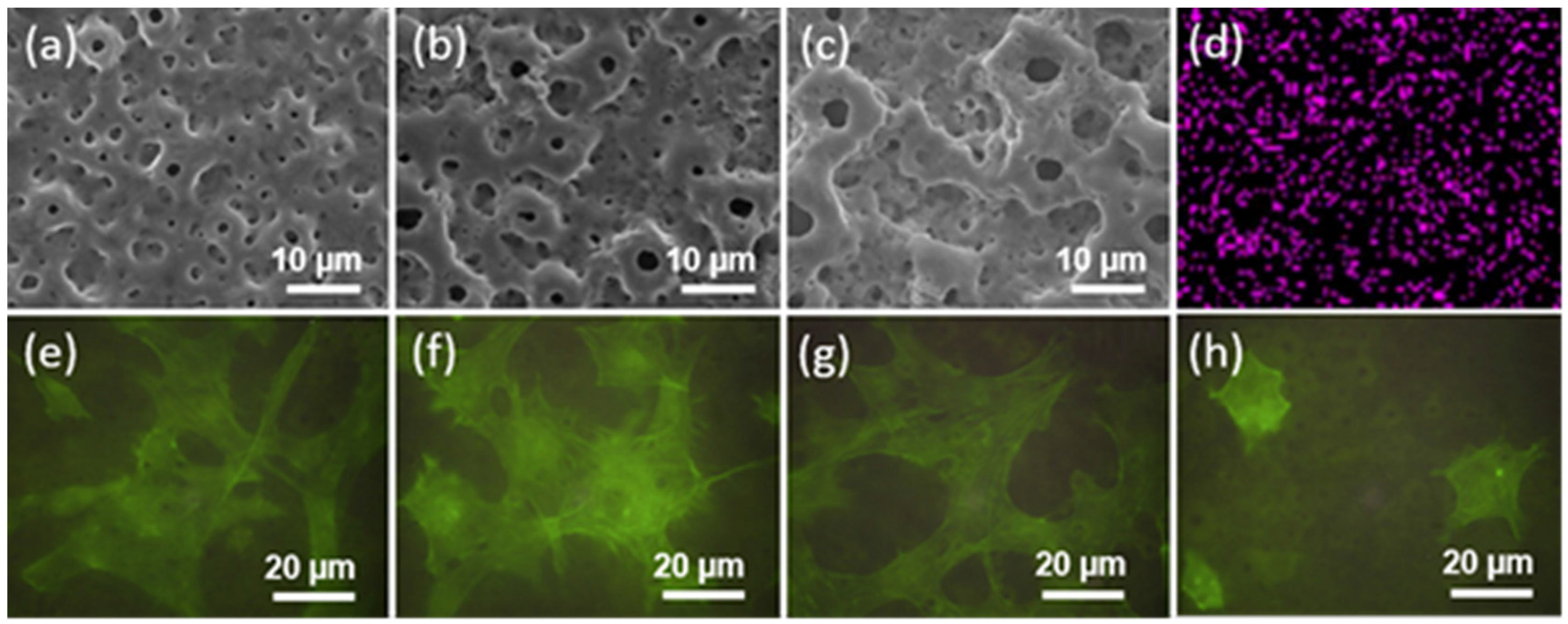

On this basis, He et al. [112] fabricated porous Ag/Sr-containing TiO2 coatings via a similar method in the MAO electrolyte containing 0.167 M CA, 0.02 M β-GP and 0.033 M strontium acetate hemihydrate (SA). The coating displayed long-lasting antibacterial ability even up to 28 days due to the incorporation of Ag. An addition of the bioactive element Sr alleviated the potential cytotoxic effect of the excessive Ag and further facilitated the proliferation and differentiation of MC3T3-E1 osteoblasts (Figure 16).

3. Conclusions and Future Outlook

Implant-associated infections are still one of the critical issues for dental and orthopedic implantology. The surface modification of Ti and Ti alloy seems to be a challenging strategy to prevent the development of peri-implant infection. In the present paper, the MAO technique effectively and versatilely introduces inorganic antibacterial metal elements (e.g., Ag, Cu, Zn) into biomedical implants, which successfully solves the growing problem of peri-implant infection. In this mini-review, the research advance in the fabrication of anti-microbial surfaces by MAO is summarized. Antibacterial metal elements were introduced into the electrolyte in the form of either metal NPs or metallic compounds.
However, the main open problems related to this strategy are that the antibacterial effect increases in a dose-dependent manner, but coupled to cytotoxic behavior at a higher concentration. In fact, many Ti-based implants with strong antibacterial properties are still not available in the field of medicine, probably due to the problem mentioned above. In this review, we can also see that many studies have only focused on the development of Ti-based surfaces with an effective antibacterial effect, but ignored the study of bioactivity and toxicity. Therefore, it is necessary to precisely control the content of the antibacterial metal elements and MAO parameters towards an optimal trade-off between antibacterial properties and cytotoxicity. It is a potential way to achieve an enhancement of both the antibacterial property and bioactivity directly by the simultaneous addition of antibacterial metal elements and bioactive elements, such as strontium (Sr) and silicon (Si) in the MAO electrolyte.
In addition, the MAO method combined with MS was introduced to obtain the desired antibacterial property and fabricate bioactive coatings in this review. Ca-P ions can be formed in the porous bio-ceramic layer on the Ti surface by MAO and further transformed into crystal HA through other treatment, such as heat treatment or electrophoretic deposition. The good crystallinity of HA is conducive to cell reaction and bioactivity. Therefore, it is still a trend to develop new methods that can promote the formation of high crystallinity HA.
In conclusion, in order to overcome the toxicity concerns and guarantee the prolonging antibacterial properties, it seems to be a future research trend in the biomaterial field to add antibacterial metal elements and bioactive elements by MAO directly or assisted by other surface modification techniques, such as heat treatment, hydrothermal treatment and plasma spraying, in the near future.

Acknowledgment

This work was supported by the National Natural Science Foundation of China (51671140 and 31400815), the Natural Science Foundation of Shanxi Province (2015021063), the Qualified Personnel Foundation of Taiyuan University of Technology (QPFT) (tyutrc-2011257a) and the Research Project Supported by Shanxi Scholarship Council of China (2013-030 and 2015-034).

Conflict of Interest

The authors declare no conflict of interest.

References

  1. Wang, K. The use of titanium for medical applications in the USA. Mater. Sci. Eng. C 1996, A213, 134–137. [Google Scholar] [CrossRef]
  2. Liu, X.; Chu, P.; Ding, C. Surface modification of titanium, titanium alloys, and related materials for biomedical applications. Mater. Sci. Eng. R Rep. 2004, 47, 49–121. [Google Scholar] [CrossRef]
  3. Pohrelyuk, I.; Yaskiv, O.; Tkachuk, O.; Lee, D.B. Formation of oxynitride layers on titanium alloys by gas diffusion treatment. Met. Mater. Int. 2009, 15, 949–953. [Google Scholar] [CrossRef]
  4. Glinel, K.; Thebault, P.; Humblot, V.; Pradier, C.M.; Jouenne, T. Antibacterial surfaces developed from bio-inspired approaches. Acta Biomater. 2012, 8, 1670–1684. [Google Scholar] [CrossRef] [PubMed]
  5. Zhao, L.; Wang, H.; Huo, K.; Cui, L.; Zhang, W.; Ni, H.; Zhang, Y.; Wu, Z.; Chu, P.K. Antibacterial nano-structured titania coating incorporated with silver nanoparticles. Biomaterials 2011, 32, 5706–5716. [Google Scholar] [CrossRef] [PubMed]
  6. Donlan, R.M.; Costerton, J.W. Biofilms: Survival mechanisms of clinically relevant microorganisms. Clin. Microbiol. Rev. 2002, 15, 167–193. [Google Scholar] [CrossRef] [PubMed]
  7. Stewart, P.S.; Costerton, J.W. Antibiotic resistance of bacteria in biofilms. Lancet 2001, 358, 135–138. [Google Scholar] [CrossRef]
  8. Huang, R.; Han, Y.; Lu, S. Enhanced osteoblast functions and bactericidal effect of Ca and Ag dual-ion implanted surface layers on nanograined titanium alloys. J. Mater. Chem. B 2014, 2, 4531–4543. [Google Scholar] [CrossRef]
  9. Hetrick, E.M.; Schoenfisch, M.H. Reducing implant-related infections: Active release strategies. Chem. Soc. Rev. 2006, 35, 780–789. [Google Scholar] [CrossRef] [PubMed]
  10. Hu, H.; Zhang, W.; Qiao, Y.; Jiang, X.; Liu, X.; Ding, C. Antibacterial activity and increased bone marrow stem cell functions of Zn-incorporated TiO2 coatings on titanium. Acta Biomater. 2012, 8, 904–915. [Google Scholar] [CrossRef] [PubMed]
  11. Esposito, S.; Leone, S. Prosthetic joint infections: Microbiology, diagnosis, management and prevention. Int. J. Antimicrob. Agents 2008, 32, 287–293. [Google Scholar] [CrossRef] [PubMed]
  12. Zimmerli, W. Infection and musculoskeletal conditions: Prosthetic-joint-associated infections. Best Pract. Res. Clin. Rheumatol. 2006, 20, 1045–1063. [Google Scholar] [CrossRef] [PubMed]
  13. Tsai, M.T.; Chang, Y.Y.; Huang, H.L.; Hsu, J.T.; Chen, Y.C.; Wu, A.Y.J. Characterization and antibacterial performance of bioactive Ti–Zn–O coatings deposited on titanium implants. Thin Solid Films 2013, 528, 143–150. [Google Scholar] [CrossRef]
  14. Bai, X.; Sandukas, S.; Appleford, M.; Ong, J.L.; Rabiei, A. Antibacterial effect and cytotoxicity of Ag-doped functionally graded hydroxyapatite coatings. J Biomed. Mater. Res. B Appl. Biomater. 2012, 100, 553–561. [Google Scholar] [CrossRef] [PubMed]
  15. Lim, P.N.; Teo, E.Y.; Ho, B.; Tay, B.Y.; Thian, E.S. Effect of silver content on the antibacterial and bioactive properties of silver-substituted hydroxyapatite. J Biomed. Mater. Res. A 2013, 101, 2456–2464. [Google Scholar] [CrossRef] [PubMed]
  16. Mai, L.; Wang, D.; Zhang, S.; Xie, Y.; Huang, C.; Zhang, Z. Synthesis and bactericidal ability of Ag/TiO2 composite films deposited on titanium plate. Appl. Surf. Sci. 2010, 257, 974–978. [Google Scholar] [CrossRef]
  17. Chen, L.; Zheng, L.; Lv, Y.; Liu, H.; Wang, G.; Ren, N.; Liu, D.; Wang, J.; Boughton, R.I. Chemical assembly of silver nanoparticles on stainless steel for antimicrobial applications. Surf. Coat. Technol. 2010, 204, 3871–3875. [Google Scholar] [CrossRef]
  18. Alarcon, E.I.; Udekwu, K.; Skog, M.; Pacioni, N.L.; Stamplecoskie, K.G.; Gonzalez-Bejar, M.; Polisetti, N.; Wickham, A.; Richter-Dahlfors, A.; Griffith, M.; et al. The biocompatibility and antibacterial properties of collagen-stabilized, photochemically prepared silver nanoparticles. Biomaterials 2012, 33, 4947–4956. [Google Scholar] [CrossRef] [PubMed]
  19. Jia, Z.; Xiu, P.; Li, M.; Xu, X.; Shi, Y.; Cheng, Y.; Wei, S.; Zheng, Y.; Xi, T.; Cai, H.; et al. Bioinspired anchoring agnps onto micro-nanoporous TiO2 orthopedic coatings: Trap-killing of bacteria, surface-regulated osteoblast functions and host responses. Biomaterials 2016, 75, 203–222. [Google Scholar] [CrossRef] [PubMed]
  20. Mei, S.; Wang, H.; Wang, W.; Tong, L.; Pan, H.; Ruan, C.; Ma, Q.; Liu, M.; Yang, H.; Zhang, L.; et al. Antibacterial effects and biocompatibility of titanium surfaces with graded silver incorporation in titania nanotubes. Biomaterials 2014, 35, 4255–4265. [Google Scholar] [CrossRef] [PubMed]
  21. Reithofer, M.R.; Lakshmanan, A.; Ping, A.T.; Chin, J.M.; Hauser, C.A. In situ synthesis of size-controlled, stable silver nanoparticles within ultrashort peptide hydrogels and their anti-bacterial properties. Biomaterials 2014, 35, 7535–7542. [Google Scholar] [CrossRef] [PubMed]
  22. Wang, Y.; Ding, X.; Chen, Y.; Guo, M.; Zhang, Y.; Guo, X.; Gu, H. Antibiotic-loaded, silver core-embedded mesoporous silica nanovehicles as a synergistic antibacterial agent for the treatment of drug-resistant infections. Biomaterials 2016, 101, 207–216. [Google Scholar] [CrossRef] [PubMed]
  23. Wu, H.; Zhang, X.; He, X.; Li, M.; Huang, X.; Hang, R.; Tang, B. Wear and corrosion resistance of anti-bacterial Ti–Cu–N coatings on titanium implants. Appl. Surf. Sci. 2014, 317, 614–621. [Google Scholar] [CrossRef]
  24. Zhang, X.; Huang, X.; Jiang, L.; Ma, Y.; Fan, A.; Tang, B. Surface microstructures and antimicrobial properties of copper plasma alloyed stainless steel. Appl. Surf. Sci. 2011, 258, 1399–1404. [Google Scholar] [CrossRef]
  25. Zhang, X.; Huang, X.; Ma, Y.; Lin, N.; Fan, A.; Tang, B. Bactericidal behavior of cu-containing stainless steel surfaces. Appl. Surf. Sci. 2012, 258, 10058–10063. [Google Scholar] [CrossRef]
  26. Zhang, X.; Ma, Y.; Lin, N.; Huang, X.; Hang, R.; Fan, A.; Tang, B. Microstructure, antibacterial properties and wear resistance of plasma Cu–Ni surface modified titanium. Surf. Coat. Technol. 2013, 232, 515–520. [Google Scholar] [CrossRef]
  27. Huo, K.; Zhang, X.; Wang, H.; Zhao, L.; Liu, X.; Chu, P.K. Osteogenic activity and antibacterial effects on titanium surfaces modified with Zn-incorporated nanotube arrays. Biomaterials 2013, 34, 3467–3478. [Google Scholar] [CrossRef] [PubMed]
  28. Jin, G.; Qin, H.; Cao, H.; Qian, S.; Zhao, Y.; Peng, X.; Zhang, X.; Liu, X.; Chu, P.K. Synergistic effects of dual Zn/Ag ion implantation in osteogenic activity and antibacterial ability of titanium. Biomaterials 2014, 35, 7699–7713. [Google Scholar] [CrossRef] [PubMed]
  29. Jin, G.; Qin, H.; Cao, H.; Qiao, Y.; Zhao, Y.; Peng, X.; Zhang, X.; Liu, X.; Chu, P.K. Zn/Ag micro-galvanic couples formed on titanium and osseointegration effects in the presence of S. Aureus. Biomaterials 2015, 65, 22–31. [Google Scholar] [CrossRef] [PubMed]
  30. Dastjerdi, R.; Montazer, M. A review on the application of inorganic nano-structured materials in the modification of textiles: Focus on anti-microbial properties. Colloids Surf. B Biointerfaces 2010, 79, 5–18. [Google Scholar] [CrossRef] [PubMed]
  31. He, X.; Li, M.; Wang, H.; Zhang, X.; Tang, B.I.N. Preparation of copper and chromium alloyed layers on pure titanium by plasma surface alloying technology. Surf. Rev. Lett. 2015, 22, 1550056. [Google Scholar] [CrossRef]
  32. Dizaj, S.M.; Lotfipour, F.; Barzegar-Jalali, M.; Zarrintan, M.H.; Adibkia, K. Antimicrobial activity of the metals and metal oxide nanoparticles. Mater. Sci. Eng. C Mater. Biol. Appl. 2014, 44, 278–284. [Google Scholar] [CrossRef] [PubMed]
  33. Rai, M.; Yadav, A.; Gade, A. Silver nanoparticles as a new generation of antimicrobials. Biotechnol. Adv. 2009, 27, 76–83. [Google Scholar] [CrossRef] [PubMed]
  34. Ferraris, S.; Spriano, S. Antibacterial titanium surfaces for medical implants. Mater. Sci. Eng. C Mater. Biol. Appl. 2016, 61, 965–978. [Google Scholar] [CrossRef] [PubMed]
  35. Wan, Y.Z.; Raman, S.; He, F.; Huang, Y. Surface modification of medical metals by ion implantation of silver and copper. Vacuum 2007, 81, 1114–1118. [Google Scholar] [CrossRef]
  36. Wan, Y.Z.; Xiong, G.Y.; Liang, H.; Raman, S.; He, F.; Huang, Y. Modification of medical metals by ion implantation of copper. Appl. Surf. Sci. 2007, 253, 9426–9429. [Google Scholar] [CrossRef]
  37. Cao, H.; Qiao, Y.; Liu, X.; Lu, T.; Cui, T.; Meng, F.; Chu, P.K. Electron storage mediated dark antibacterial action of bound silver nanoparticles: Smaller is not always better. Acta Biomater. 2013, 9, 5100–5110. [Google Scholar] [CrossRef] [PubMed]
  38. Necula, B.S.; van Leeuwen, J.P.T.M.; Fratila-Apachitei, L.E.; Zaat, S.A.J.; Apachitei, I.; Duszczyk, J. In vitro cytotoxicity evaluation of porous TiO2–Ag antibacterial coatings for human fetal osteoblasts. Acta Biomater. 2012, 8, 4191–4197. [Google Scholar] [CrossRef] [PubMed]
  39. Lee, S.-B.; Otgonbayar, U.; Lee, J.-H.; Kim, K.-M.; Kim, K.-N. Silver ion-exchanged sodium titanate and resulting effect on antibacterial efficacy. Surf. Coat. Technol. 2010, 205, S172–S176. [Google Scholar] [CrossRef]
  40. García-Serrano, J.; Gómez-Hernández, E.; Ocampo-Fernández, M.; Pal, U. Effect of Ag doping on the crystallization and phase transition of TiO2 nanoparticles. Curr. Appl. Phys. 2009, 9, 1097–1105. [Google Scholar] [CrossRef]
  41. Meng, F.; Sun, Z. A mechanism for enhanced hydrophilicity of silver nanoparticles modified TiO2 thin films deposited by RF magnetron sputtering. Appl. Surf. Sci. 2009, 255, 6715–6720. [Google Scholar] [CrossRef]
  42. Tian, X.B.; Wang, Z.M.; Yang, S.Q.; Luo, Z.J.; Fu, R.K.Y.; Chu, P.K. Antibacterial copper-containing titanium nitride films produced by dual magnetron sputtering. Surf. Coat. Technol. 2007, 201, 8606–8609. [Google Scholar] [CrossRef]
  43. Li, B.; Liu, X.; Meng, F.; Chang, J.; Ding, C. Preparation and antibacterial properties of plasma sprayed nano-titania/silver coatings. Mater. Chem. Phys. 2009, 118, 99–104. [Google Scholar] [CrossRef]
  44. Mungkalasiri, J.; Bedel, L.; Emieux, F.; Doré, J.; Renaud, F.N.R.; Maury, F. Dli-CVD of TiO2–Cu antibacterial thin films: Growth and characterization. Surf. Coat. Technol. 2009, 204, 887–892. [Google Scholar] [CrossRef] [Green Version]
  45. Sul, Y.T.; Kang, B.S.; Johansson, C.; Um, H.S.; Park, C.J.; Albrektsson, T. The roles of surface chemistry and topography in the strength and rate of osseointegration of titanium implants in bone. J. Biomed. Mater. Res. A 2009, 89, 942–950. [Google Scholar] [CrossRef] [PubMed]
  46. Wei, D.; Zhou, Y.; Yang, C. Structure, cell response and biomimetic apatite induction of gradient TiO2-based/nano-scale hydrophilic amorphous titanium oxide containing ca composite coatings before and after crystallization. Colloids Surf. B Biointerfaces 2009, 74, 230–237. [Google Scholar] [CrossRef] [PubMed]
  47. Yan, J.; Sun, J.F.; Chu, P.K.; Han, Y.; Zhang, Y.M. Bone integration capability of a series of strontium-containing hydroxyapatite coatings formed by micro-arc oxidation. J Biomed. Mater. Res. A 2013, 101, 2465–2480. [Google Scholar] [CrossRef] [PubMed]
  48. Zhao, B.H.; Lee, I.S.; Han, I.H.; Park, J.C.; Chung, S.M. Effects of surface morphology on human osteosarcoma cell response. Curr. Appl. Phys. 2007, 7, e6–e10. [Google Scholar] [CrossRef]
  49. Sun, J.; Han, Y.; Cui, K. Microstructure and apatite-forming ability of the mao-treated porous titanium. Surf. Coat. Technol. 2008, 202, 4248–4256. [Google Scholar] [CrossRef]
  50. Miao, S.; Cheng, K.; Weng, W.; Du, P.; Shen, G.; Han, G.; Yan, W.; Zhang, S. Fabrication and evaluation of Zn containing fluoridated hydroxyapatite layer with zn release ability. Acta Biomater. 2008, 4, 441–446. [Google Scholar] [CrossRef] [PubMed]
  51. Wang, Y.; Yu, H.; Chen, C.; Zhao, Z. Review of the biocompatibility of micro-arc oxidation coated titanium alloys. Mater. Des. 2015, 85, 640–652. [Google Scholar] [CrossRef]
  52. Matykina, E.; Arrabal, R.; Skeldon, P.; Thompson, G.E. Transmission electron microscopy of coatings formed by plasma electrolytic oxidation of titanium. Acta Biomater. 2009, 5, 1356–1366. [Google Scholar] [CrossRef] [PubMed]
  53. Wan, L.; Li, J.F.; Feng, J.Y.; Sun, W.; Mao, Z.Q. Anatase TiO2 films with 2.2 eV band gap prepared by micro-arc oxidation. Mater. Sci. Eng. B 2007, 139, 216–220. [Google Scholar] [CrossRef]
  54. Cheng, Y.L.; Wu, X.Q.; Xue, Z.G.; Matykina, E.; Skeldon, P.; Thompson, G.E. Microstructure, corrosion and wear performance of plasma electrolytic oxidation coatings formed on Ti–6Al–4V alloy in silicate-hexametaphosphate electrolyte. Surf. Coat. Technol. 2013, 217, 129–139. [Google Scholar] [CrossRef]
  55. Necula, B.S.; Fratila-Apachitei, L.E.; Zaat, S.A.; Apachitei, I.; Duszczyk, J. In vitro antibacterial activity of porous TiO2-Ag composite layers against methicillin-resistant staphylococcus aureus. Acta Biomater. 2009, 5, 3573–3580. [Google Scholar] [CrossRef] [PubMed]
  56. Necula, B.S.; Apachitei, I.; Tichelaar, F.D.; Fratila-Apachitei, L.E.; Duszczyk, J. An electron microscopical study on the growth of TiO2-Ag antibacterial coatings on Ti6Al7Nb biomedical alloy. Acta Biomater. 2011, 7, 2751–2757. [Google Scholar] [CrossRef] [PubMed]
  57. Yao, X.; Zhang, X.; Wu, H.; Tian, L.; Ma, Y.; Tang, B. Microstructure and antibacterial properties of Cu-doped TiO2 coating on titanium by micro-arc oxidation. Appl. Surf. Sci. 2014, 292, 944–947. [Google Scholar] [CrossRef]
  58. Song, W.H.; Ryu, H.S.; Hong, S.H. Antibacterial properties of Ag (or Pt)-containing calcium phosphate coatings formed by micro-arc oxidation. J. Biomed. Mater. Res. A 2009, 88, 246–254. [Google Scholar] [CrossRef] [PubMed]
  59. Muhaffel, F.; Cempura, G.; Menekse, M.; Czyrska-Filemonowicz, A.; Karaguler, N.; Cimenoglu, H. Characteristics of multi-layer coatings synthesized on Ti6Al4V alloy by micro-arc oxidation in silver nitrate added electrolytes. Surf. Coat. Technol. 2016, 307, 308–315. [Google Scholar] [CrossRef]
  60. Teker, D.; Muhaffel, F.; Menekse, M.; Karaguler, N.G.; Baydogan, M.; Cimenoglu, H. Characteristics of multi-layer coating formed on commercially pure titanium for biomedical applications. Mater. Sci. Eng. C Mater. Biol. Appl. 2015, 48, 579–585. [Google Scholar] [CrossRef] [PubMed]
  61. Chang, C.; Huang, X.; Liu, Y.; Bai, L.; Yang, X.; Hang, R.; Tang, B.; Chu, P.K. High-current anodization: A novel strategy to functionalize titanium-based biomaterials. Electrochim. Acta 2015, 173, 345–353. [Google Scholar] [CrossRef]
  62. Huang, X.; Liu, Y.; Yu, H.; Yang, X.; Wang, Y.; Hang, R.; Tang, B. One-step fabrication of cytocompatible micro/nano-textured surface with TiO2 mesoporous arrays on titanium by high current anodization. Electrochim. Acta 2016, 199, 116–125. [Google Scholar] [CrossRef]
  63. Zhu, W.; Zhang, Z.; Gu, B.; Sun, J.; Zhu, L. Biological activity and antibacterial property of nano-structured TiO2 coating incorporated with Cu prepared by micro-arc oxidation. J. Mater. Sci. Technol. 2013, 29, 237–244. [Google Scholar] [CrossRef]
  64. Zhang, L.; Guo, J.; Huang, X.; Zhang, Y.; Han, Y. The dual function of Cu-doped TiO2 coatings on titanium for application in percutaneous implants. J. Mater. Chem. B 2016, 4, 3788–3800. [Google Scholar] [CrossRef]
  65. Zhang, X.; Wang, H.; Li, J.; He, X.; Hang, R.; Huang, X.; Tian, L.; Tang, B. Corrosion behavior of Zn-incorporated antibacterial TiO2 porous coating on titanium. Ceram. Int. 2016, 42, 17095–17100. [Google Scholar] [CrossRef]
  66. Zhang, L.; Gao, Q.; Han, Y. Zn and Ag co-doped anti-microbial TiO2 coatings on Ti by micro-arc oxidation. J. Mater. Sci. Technol. 2016, 32, 919–924. [Google Scholar] [CrossRef]
  67. Yeo, S.Y.; Jeong, S.H. Preparation and characterization of polypropylene/silver nanocomposite fibers. Polym. Int. 2003, 52, 1053–1057. [Google Scholar] [CrossRef]
  68. Zinjarde, S. Bio-inspired nanomaterials and their applications as antimicrobial agents. Chron. Young Sci. 2012, 3, 74–81. [Google Scholar] [CrossRef]
  69. Sondi, I.; Salopek-Sondi, B. Silver nanoparticles as antimicrobial agent: A case study on E. Coli as a model for gram-negative bacteria. J. Colloid Interface Sci. 2004, 275, 177–182. [Google Scholar] [CrossRef] [PubMed]
  70. Yun, H.; Kim, J.D.; Choi, H.C.; Lee, C.W. Antibacterial activity of CNT-Ag and Go-Ag nanocomposites against gram-negative and gram-positive bacteria. B Korean Chem. Soc. 2013, 34, 3261–3264. [Google Scholar] [CrossRef]
  71. Iavicoli, I.; Fontana, L.; Leso, V.; Bergamaschi, A. The effects of nanomaterials as endocrine disruptors. Int. J. Mol. Sci. 2013, 14, 16732–16801. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  72. Morones, J.R.; Elechiguerra, J.L.; Camacho, A.; Holt, K.; Kouri, J.B.; Ramirez, J.T.; Yacaman, M.J. The bactericidal effect of silver nanoparticles. Nanotechnology 2005, 16, 2346–2353. [Google Scholar] [CrossRef] [PubMed]
  73. Jo, Y.K.; Kim, B.H.; Jung, G. Antifungal activity of silver ions and nanoparticles on phytopathogenic fungi. Plant Dis. 2009, 93, 1037–1043. [Google Scholar] [CrossRef]
  74. Cao, H.; Liu, X. Activating titanium oxide coatings for orthopedic implants. Surf. Coat. Technol. 2013, 233, 57–64. [Google Scholar] [CrossRef]
  75. Macomber, L.; Imlay, J.A. The iron-sulfur clusters of dehydratases are primary intracellular targets of copper toxicity. Proc. Natl. Acad. Sci. USA 2009, 106, 8344–8349. [Google Scholar] [CrossRef] [PubMed]
  76. Raffi, S.M.; Bhatti, T.M.; Akhter, J.I.; Hameed, A.; Yawar, W.; Hasan, M.M. Investigations into the antibacterial behavior of copper nanoparticles against escherichia coli. Ann. Microbiol. 2010, 60, 75–80. [Google Scholar] [CrossRef]
  77. Usman, M.S.; El Zowalaty, M.E.; Shameli, K.; Zainuddin, N.; Salama, M.; Ibrahim, N.A. Synthesis, characterization, and antimicrobial properties of copper nanoparticles. Int. J. Nanomed. 2013, 8, 4467–4479. [Google Scholar] [PubMed]
  78. Le Pape, H.; Solano-Serena, F.; Contini, P.; Devillers, C.; Maftah, A.; Leprat, P. Evaluation of the anti-microbial properties of an activated carbon fibre supporting silver using a dynamic method. Carbon 2002, 40, 2947–2954. [Google Scholar] [CrossRef]
  79. Mahapatra, O.; Bhagat, M.; Gopalakrishnan, C.; Arunachalam, K.D. Ultrafine dispersed CuO nanoparticles and their antibacterial activity. J. Exp. Nanosci. 2008, 3, 185–193. [Google Scholar] [CrossRef]
  80. Li, L.H.; Kong, Y.M.; Kim, H.W.; Kim, Y.W.; Kim, H.E.; Heo, S.J.; Koak, J.Y. Improved biological performance of Ti implants due to surface modification by micro-arc oxidation. Biomaterials 2004, 25, 2867–2875. [Google Scholar] [CrossRef] [PubMed]
  81. Zhao, Z.; Chen, X.; Chen, A.; Shen, M.; Wen, S. Synthesis of bioactive ceramic on the titanium substrate by micro-arc oxidation. J. Biomed. Mater. Res. A 2009, 90, 438–445. [Google Scholar] [CrossRef] [PubMed]
  82. Song, W.H.; Jun, Y.K.; Han, Y.; Hong, S.H. Biomimetic apatite coatings on micro-arc oxidized titania. Biomaterials 2004, 25, 3341–3349. [Google Scholar] [CrossRef] [PubMed]
  83. Sun, J.; Han, Y.; Huang, X. Hydroxyapatite coatings prepared by micro-arc oxidation in Ca- and P-containing electrolyte. Surf. Coat. Technol. 2007, 201, 5655–5658. [Google Scholar] [CrossRef]
  84. Chen, W.; Liu, Y.; Courtney, H.S.; Bettenga, M.; Agrawal, C.M.; Bumgardner, J.D.; Ong, J.L. In vitro anti-bacterial and biological properties of magnetron co-sputtered silver-containing hydroxyapatite coating. Biomaterials 2006, 27, 5512–5517. [Google Scholar] [CrossRef] [PubMed]
  85. Boyan, B.D.; Batzer, R.; Kieswetter, K.; Liu, Y.; Cochran, D.L.; Szmuckler-Moncler, S.; Dean, D.D.; Schwartz, Z. Titanium surface roughness alters responsiveness of MG63 osteoblast-like cells to 1α,25-(OH)2D3. J. Biomed. Mater. 1998, 39, 77–85. [Google Scholar] [CrossRef]
  86. Naveena, N.; Venugopal, J.; Rajeswari, R.; Sundarrajan, S.; Sridhar, R.; Shayanti, M.; Narayanan, S.; Ramakrishna, S. Biomimetic composites and stem cells interaction for bone and cartilage tissue regeneration. J. Mater. Chem. 2012, 22, 5239–5253. [Google Scholar] [CrossRef]
  87. Jamuna-Thevi, K.; Bakar, S.A.; Ibrahim, S.; Shahab, N.; Toff, M.R.M. Quantification of silver ion release, in vitro cytotoxicity and antibacterial properties of nanostuctured Ag doped TiO2 coatings on stainless steel deposited by rf magnetron sputtering. Vacuum 2011, 86, 235–241. [Google Scholar] [CrossRef]
  88. Brammer, K.S.; Oh, S.; Cobb, C.J.; Bjursten, L.M.; van der Heyde, H.; Jin, S. Improved bone-forming functionality on diameter-controlled TiO2 nanotube surface. Acta Biomater. 2009, 5, 3215–3223. [Google Scholar] [CrossRef] [PubMed]
  89. Oh, S.; Daraio, C.; Chen, L.H.; Pisanic, T.R.; Finones, R.R.; Jin, S. Significantly accelerated osteoblast cell growth on aligned TiO2 nanotubes. J. Biomed. Mater. Res. A 2006, 78, 97–103. [Google Scholar] [CrossRef] [PubMed]
  90. Von Wilmowsky, C.; Bauer, S.; Lutz, R.; Meisel, M.; Neukam, F.W.; Toyoshima, T.; Schmuki, P.; Nkenke, E.; Schlegel, K.A. In vivo evaluation of anodic TiO2 nanotubes: An experimental study in the pig. J. Biomed. Mater. Res. B Appl. Biomater. 2009, 89, 165–171. [Google Scholar] [CrossRef] [PubMed]
  91. Gao, A.; Hang, R.; Huang, X.; Zhao, L.; Zhang, X.; Wang, L.; Tang, B.; Ma, S.; Chu, P.K. The effects of titania nanotubes with embedded silver oxide nanoparticles on bacteria and osteoblasts. Biomaterials 2014, 35, 4223–4235. [Google Scholar] [CrossRef] [PubMed]
  92. Kim, M.S.; Ryu, J.J.; Sung, Y.M. One-step approach for nano-crystalline hydroxyapatite coating on titanium via micro-arc oxidation. Electrochem. Commun. 2007, 9, 1886–1891. [Google Scholar] [CrossRef]
  93. Ni, J.H.; Shi, Y.L.; Yan, F.Y.; Chen, J.Z.; Wang, L. Preparation of hydroxyapatite-containing titania coating on titanium substrate by micro-arc oxidation. Mater. Res. Bull. 2008, 43, 45–53. [Google Scholar] [CrossRef]
  94. Han, Y.; Chen, D.; Sun, J.; Zhang, Y.; Xu, K. UV-enhanced bioactivity and cell response of micro-arc oxidized titania coatings. Acta Biomater. 2008, 4, 1518–1529. [Google Scholar] [CrossRef] [PubMed]
  95. Hang, R.; Gao, A.; Huang, X.; Wang, X.; Zhang, X.; Qin, L.; Tang, B. Antibacterial activity and cytocompatibility of Cu-Ti-O nanotubes. J. Biomed. Mater. Res. A 2014, 102, 1850–1858. [Google Scholar] [CrossRef] [PubMed]
  96. Zong, M.; Bai, L.; Liu, Y.; Wang, X.; Zhang, X.; Huang, X.; Hang, R.; Tang, B. Antibacterial ability and angiogenic activity of Cu-Ti-O nanotube arrays. Mater. Sci. Eng. C 2017, 71, 93–99. [Google Scholar] [CrossRef] [PubMed]
  97. Burghardt, I.; Luthen, F.; Prinz, C.; Kreikemeyer, B.; Zietz, C.; Neumann, H.G.; Rychly, J. A dual function of copper in designing regenerative implants. Biomaterials 2015, 44, 36–44. [Google Scholar] [CrossRef] [PubMed]
  98. Ramaswamy, Y.; Wu, C.; Zhou, H.; Zreiqat, H. Biological response of human bone cells to zinc-modified Ca-Si-based ceramics. Acta Biomater. 2008, 4, 1487–1497. [Google Scholar] [CrossRef] [PubMed]
  99. Raghupathi, K.R.; Koodali, R.T.; Manna, A.C. Size-dependent bacterial growth inhibition and mechanism of antibacterial activity of zinc oxide nanoparticles. Langmuir 2011, 27, 4020–4028. [Google Scholar] [CrossRef] [PubMed]
  100. Boyd, D.; Li, H.; Tanner, D.A.; Towler, M.R.; Wall, J.G. The antibacterial effects of zinc ion migration from zinc-based glass polyalkenoate cements. J. Mater. Sci. Mater. Med. 2006, 17, 489–494. [Google Scholar] [CrossRef] [PubMed]
  101. Wu, C.; Ramaswamy, Y.; Chang, J.; Woods, J.; Chen, Y.; Zreiqat, H. The effect of Zn contents on phase composition, chemical stability and cellular bioactivity in Zn-Ca-Si system ceramics. J. Biomed. Mater. Res. B Appl. Biomater. 2008, 87, 346–353. [Google Scholar] [CrossRef] [PubMed]
  102. Ibănescu, M.; Muşat, V.; Textor, T.; Badilita, V.; Mahltig, B. Photocatalytic and antimicrobial Ag/ZnO nanocomposites for functionalization of textile fabrics. J. Alloys Compd. 2014, 610, 244–249. [Google Scholar] [CrossRef]
  103. Li, J.; Liu, X.; Qiao, Y.; Zhu, H.; Ding, C. Antimicrobial activity and cytocompatibility of Ag plasma-modified hierarchical TiO2 film on titanium surface. Colloids Surf. B Biointerfaces 2014, 113, 134–145. [Google Scholar] [CrossRef] [PubMed]
  104. Mohapatra, S. Tunable surface plasmon resonance of silver nanoclusters in ion exchanged soda lime glass. J. Alloys Compd. 2014, 598, 11–15. [Google Scholar] [CrossRef]
  105. Kim, T.; Yoshitake, M.; Yagyu, S.; Nemsak, S.; Nagata, T.; Chikyow, T. XPS study on band alignment at Pt-O-terminated ZnO(0001) interface. Surf. Interface Anal. 2010, 42, 1528–1531. [Google Scholar] [CrossRef]
  106. Carvalho, P.; Sampaio, P.; Azevedo, S.; Vaz, C.; Espinós, J.P.; Teixeira, V.; Carneiro, J.O. Influence of thickness and coatings morphology in the antimicrobial performance of zinc oxide coatings. Appl. Surf. Sci. 2014, 307, 548–557. [Google Scholar] [CrossRef] [Green Version]
  107. Cao, H.; Liu, X.; Meng, F.; Chu, P.K. Biological actions of silver nanoparticles embedded in titanium controlled by micro-galvanic effects. Biomaterials 2011, 32, 693–705. [Google Scholar] [CrossRef] [PubMed]
  108. Bai, L.; Hang, R.; Gao, A.; Zhang, X.; Huang, X.; Wang, Y.; Tang, B.; Zhao, L.; Chu, P.K. Nanostructured titanium–silver coatings with good antibacterial activity and cytocompatibility fabricated by one-step magnetron sputtering. Appl. Surf. Sci. 2015, 355, 32–44. [Google Scholar] [CrossRef]
  109. Gao, A.; Hang, R.; Chu, P.K. Recent advances in anti-infection surfaces fabricated on biomedical implants by plasma-based technology. Surf. Coat. Technol. 2016, 312, 2–6. [Google Scholar] [CrossRef]
  110. Zhang, X.; Hang, R.; Wu, H.; Huang, X.; Ma, Y.; Lin, N.; Yao, X.; Tian, L.; Tang, B. Synthesis and antibacterial property of Ag-containing TiO2 coatings by combining magnetron sputtering with micro-arc oxidation. Surf. Coat. Technol. 2013, 235, 748–754. [Google Scholar] [CrossRef]
  111. Zhang, X.; Wu, H.; Geng, Z.; Huang, X.; Hang, R.; Ma, Y.; Yao, X.; Tang, B. Microstructure and cytotoxicity evaluation of duplex-treated silver-containing antibacterial TiO2 coatings. Mater. Sci. Eng. C Mater. Biol. Appl. 2014, 45, 402–410. [Google Scholar] [CrossRef] [PubMed]
  112. He, X.; Zhang, X.; Bai, L.; Hang, R.; Huang, X.; Qin, L.; Yao, X.; Tang, B. Antibacterial ability and osteogenic activity of porous Sr/Ag-containing TiO2 coatings. Biomed. Mater. 2016, 11, 045008. [Google Scholar] [CrossRef] [PubMed]
Coatings 07 00045 g001 550
Figure 1. Schematic diagram of the micro-arc oxidation (MAO) experimental device.
Figure 1. Schematic diagram of the micro-arc oxidation (MAO) experimental device.
Coatings 07 00045 g001
Coatings 07 00045 g002 550
Figure 2. Schematic of the formation process of MAO porous coating. The passivating film (a), and porous insulating oxide film (b) is initially formed. Then under the action of the spark discharges (c) and, powerful arc discharges (d), the new generated oxide coating (e) is formed and thicken. Finally, the porous ceramic oxide coating is formed (h) with the continuous formation and breakdown of the oxide coating (g) at the large discharge channels (f).
Figure 2. Schematic of the formation process of MAO porous coating. The passivating film (a), and porous insulating oxide film (b) is initially formed. Then under the action of the spark discharges (c) and, powerful arc discharges (d), the new generated oxide coating (e) is formed and thicken. Finally, the porous ceramic oxide coating is formed (h) with the continuous formation and breakdown of the oxide coating (g) at the large discharge channels (f).
Coatings 07 00045 g002
Coatings 07 00045 g003 550
Figure 3. Low and high magnification surface SEM images (a,d); bright field TEM images (b,e), and cross-sectional SEM images (c,f) of the bactericidal coatings showing that the Ag NPs are distributed on the porous surface, in the micropores or embedded in the dense oxide layer. (Reprinted with permission from [38,56]; Copyright 2012 Elsevier, Copyright 2011 Elsevier.)
Figure 3. Low and high magnification surface SEM images (a,d); bright field TEM images (b,e), and cross-sectional SEM images (c,f) of the bactericidal coatings showing that the Ag NPs are distributed on the porous surface, in the micropores or embedded in the dense oxide layer. (Reprinted with permission from [38,56]; Copyright 2012 Elsevier, Copyright 2011 Elsevier.)
Coatings 07 00045 g003
Coatings 07 00045 g004 550
Figure 4. SEM micrographs of Cu-doped coatings revealing the presence of Cu nanoparticles on the surface and inside the pores (a); high-resolution XPS spectra of Cu 2p in TiO2 coating indicated that Cu mainly exists in the CuO state (b). (Reprinted with permission from [57]; Copyright 2014 Elsevier.)
Figure 4. SEM micrographs of Cu-doped coatings revealing the presence of Cu nanoparticles on the surface and inside the pores (a); high-resolution XPS spectra of Cu 2p in TiO2 coating indicated that Cu mainly exists in the CuO state (b). (Reprinted with permission from [57]; Copyright 2014 Elsevier.)
Coatings 07 00045 g004
Coatings 07 00045 g005 550
Figure 5. Surface morphologies of MAO samples obtained in electrolyte solution containing 0.004 M AgNO3 for 3 min at 350 V (a), and 400 V (b); (c) the cross-section view of the specimen in (b) [58]. (Reprinted with permission from [58], Copyright 2009 John Wiley & Sons.)
Figure 5. Surface morphologies of MAO samples obtained in electrolyte solution containing 0.004 M AgNO3 for 3 min at 350 V (a), and 400 V (b); (c) the cross-section view of the specimen in (b) [58]. (Reprinted with permission from [58], Copyright 2009 John Wiley & Sons.)
Coatings 07 00045 g005
Coatings 07 00045 g006 550

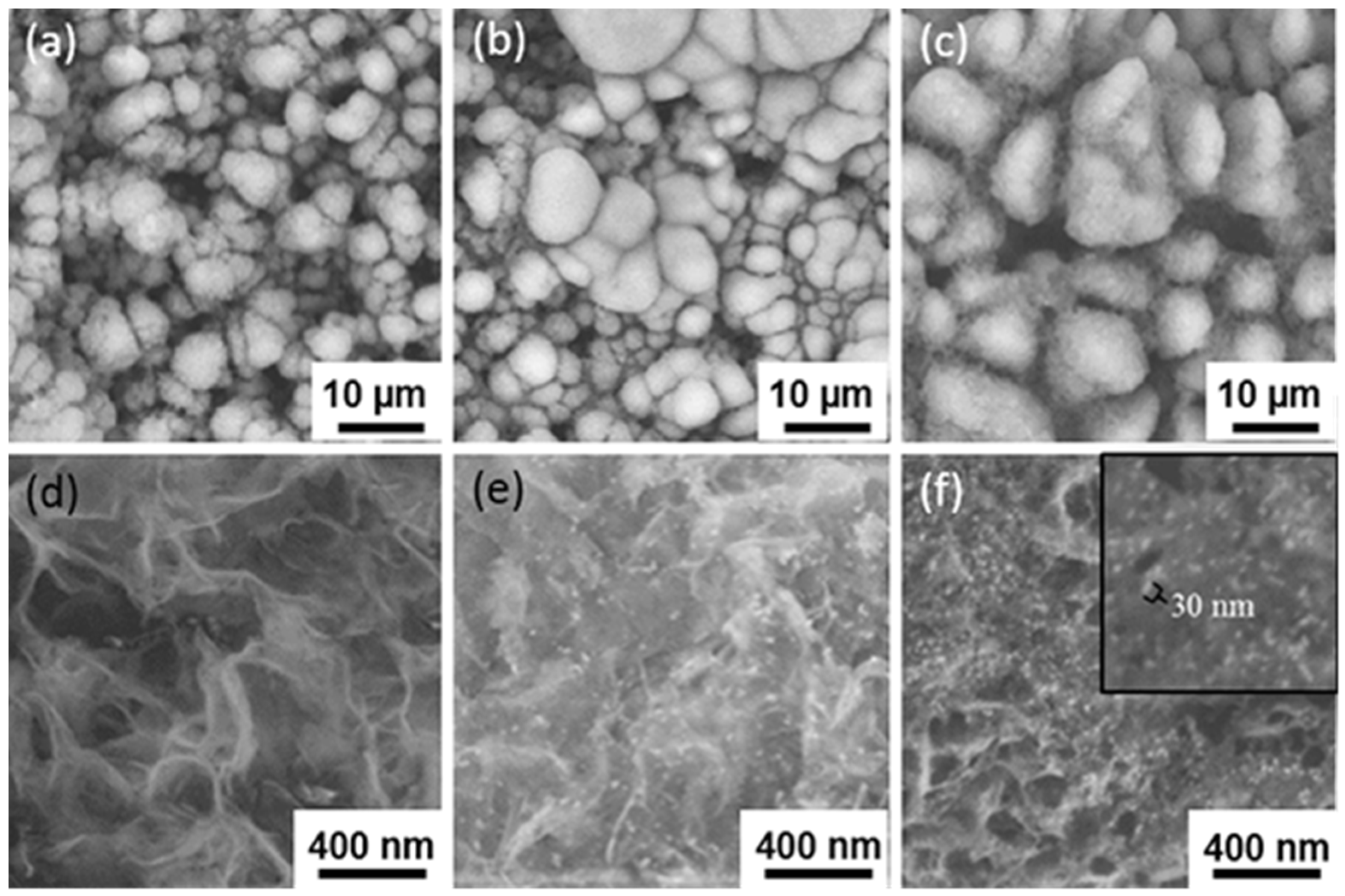

Figure 6. Low and high magnification SEM micrographs of MAO-0 (a,d); MAO-0.1 (b,e) and MAO-0.4 (c,f) [59]. (Reprinted with permission from [59], Copyright 2016 Elsevier.)
Figure 6. Low and high magnification SEM micrographs of MAO-0 (a,d); MAO-0.1 (b,e) and MAO-0.4 (c,f) [59]. (Reprinted with permission from [59], Copyright 2016 Elsevier.)
Coatings 07 00045 g006
Coatings 07 00045 g007 550
Figure 7. Low magnification surface (a) and cross-sectional SEM (b) micrographs for the MAO-Ag samples obtained in electrolyte solution containing 0.0025 M CH3COOAg (1: compact TiO2 layer; 2: porous TiO2 layer; 3: biocompatible compound containing layer); (c) high magnification surface SEM micrographs indicated that regional Ag particles covered the surface [60]. (Reprinted with permission from [60], Copyright 2015 Elsevier.)
Figure 7. Low magnification surface (a) and cross-sectional SEM (b) micrographs for the MAO-Ag samples obtained in electrolyte solution containing 0.0025 M CH3COOAg (1: compact TiO2 layer; 2: porous TiO2 layer; 3: biocompatible compound containing layer); (c) high magnification surface SEM micrographs indicated that regional Ag particles covered the surface [60]. (Reprinted with permission from [60], Copyright 2015 Elsevier.)
Coatings 07 00045 g007
Coatings 07 00045 g008a 550Coatings 07 00045 g008b 550
Figure 8. Low-magnification (a) and high-magnification (b,c) SEM images of the high-current anodization (HCA)-treated sample in AgNO3 electrolyte; (d) variation of the pore diameters and thickness of the HCA-treated samples as a function of AgNO3. Scratch SEM images of the sample anodized in the electrolyte with the AgNO3 concentration of 2 g·L−1 (e) and the sample anodized in ethylene glycol supplemented with 0.5 wt % NH4F, 5.0 vol % H2O and 5.0 vol % CH3OH at an applied voltage of 30 V for 1.5 h at room temperature (f) showed the significantly enhanced bonding strength on the HCA-treated sample [61]. (Reprinted with permission from [61], Copyright 2015 Elsevier.)
Figure 8. Low-magnification (a) and high-magnification (b,c) SEM images of the high-current anodization (HCA)-treated sample in AgNO3 electrolyte; (d) variation of the pore diameters and thickness of the HCA-treated samples as a function of AgNO3. Scratch SEM images of the sample anodized in the electrolyte with the AgNO3 concentration of 2 g·L−1 (e) and the sample anodized in ethylene glycol supplemented with 0.5 wt % NH4F, 5.0 vol % H2O and 5.0 vol % CH3OH at an applied voltage of 30 V for 1.5 h at room temperature (f) showed the significantly enhanced bonding strength on the HCA-treated sample [61]. (Reprinted with permission from [61], Copyright 2015 Elsevier.)
Coatings 07 00045 g008aCoatings 07 00045 g008b
Coatings 07 00045 g009 550

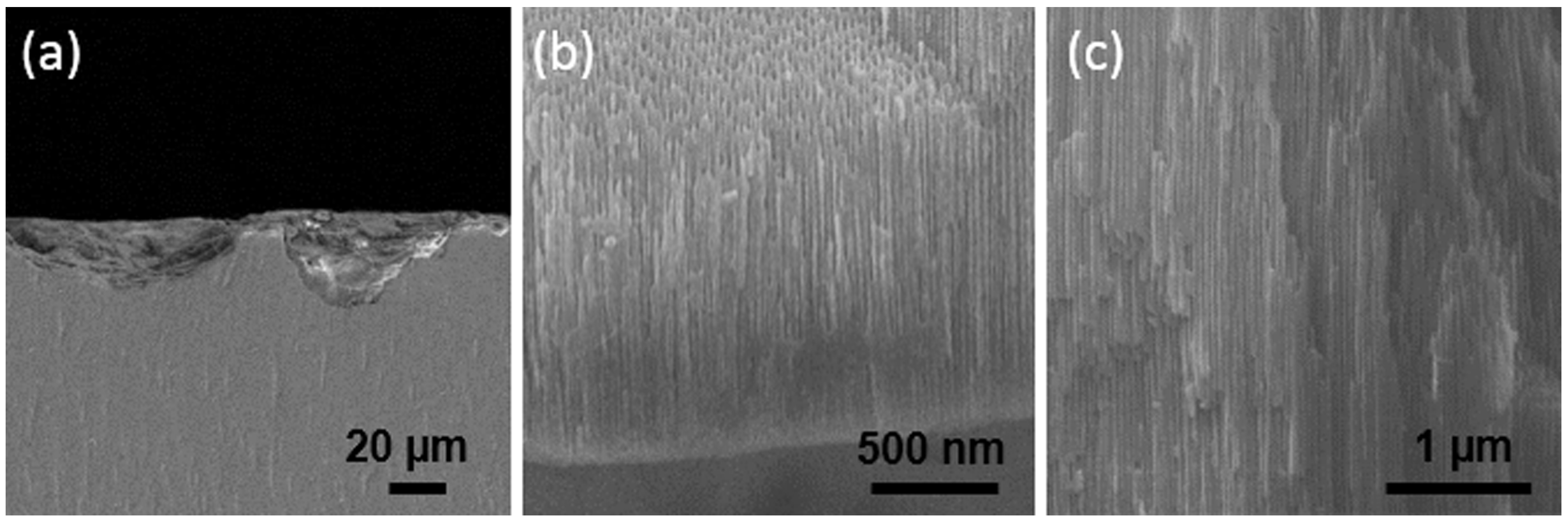

Figure 9. (a) Low and (b,c) high magnification cross-sectional SEM images of the high-current anodization (HCA)-treated sample in Cu(NO3)2 electrolyte indicated the presence of highly-ordered nano-channels [62]. (Reprinted with permission from [62], Copyright 2016 Elsevier.)
Figure 9. (a) Low and (b,c) high magnification cross-sectional SEM images of the high-current anodization (HCA)-treated sample in Cu(NO3)2 electrolyte indicated the presence of highly-ordered nano-channels [62]. (Reprinted with permission from [62], Copyright 2016 Elsevier.)
Coatings 07 00045 g009
Coatings 07 00045 g010 550

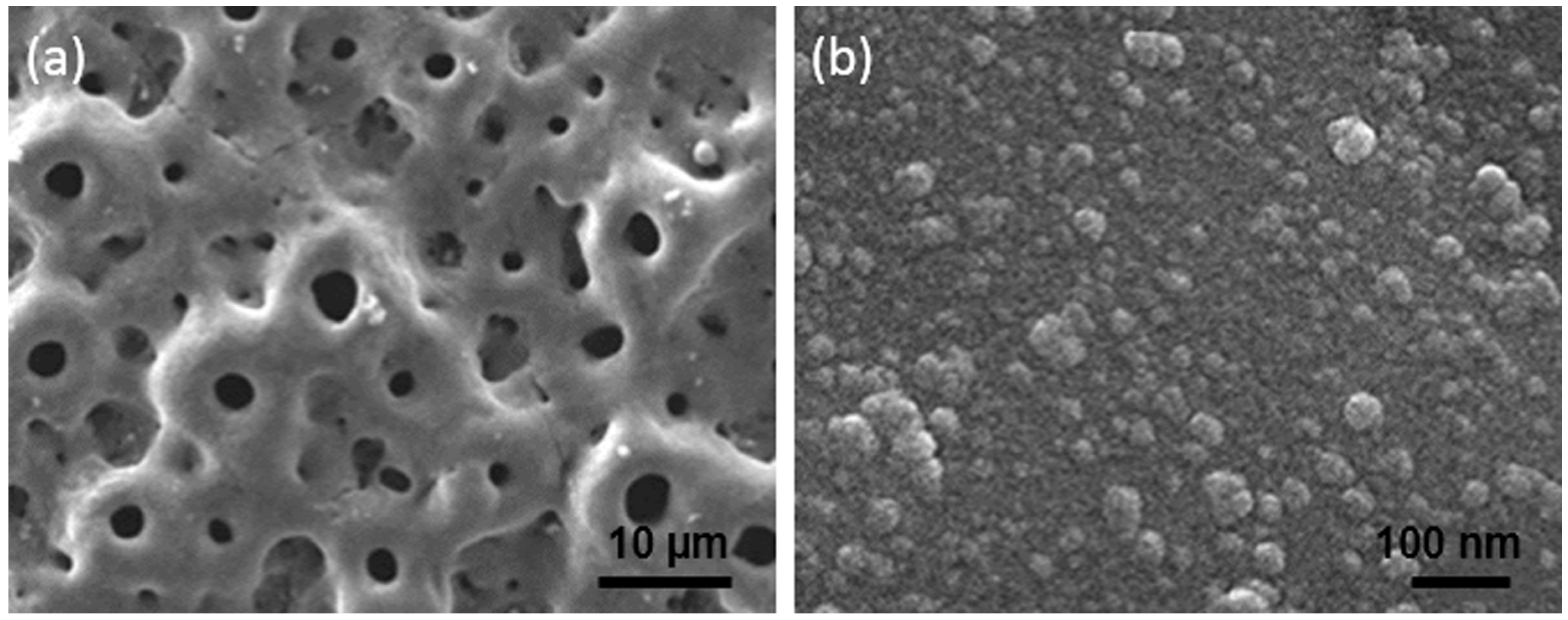

Figure 10. Surface morphologies of Cu-TiO2 coatings at different magnifications showing micropores with a diameter of 3–5 μm (a) and nano-grains with a size of 30–50 nm (b) on the surface of Cu-TiO2 [63]. (Reprinted with permission from [63], Copyright 2013 Elsevier.)
Figure 10. Surface morphologies of Cu-TiO2 coatings at different magnifications showing micropores with a diameter of 3–5 μm (a) and nano-grains with a size of 30–50 nm (b) on the surface of Cu-TiO2 [63]. (Reprinted with permission from [63], Copyright 2013 Elsevier.)
Coatings 07 00045 g010
Coatings 07 00045 g011 550
Figure 11. Surface (a) and cross-sectional (b) SEM morphologies images of the CA, Cu1, Cu2, Cu3 and Cu4 coatings showed that Cu content increases with the increasing concentration of Cu(CH3COO)2 in electrolyte. Live-dead assay (c), the corresponding bacterial morphologies (d) of S. aureus after 24 h of incubation and cell viabilities (e) of the cells cultured for three days are highly dependent on the amount of Cu content incorporated [64]. (Reprinted with permission from [64], Copyright 2016 Royal Society of Chemistry.)
Figure 11. Surface (a) and cross-sectional (b) SEM morphologies images of the CA, Cu1, Cu2, Cu3 and Cu4 coatings showed that Cu content increases with the increasing concentration of Cu(CH3COO)2 in electrolyte. Live-dead assay (c), the corresponding bacterial morphologies (d) of S. aureus after 24 h of incubation and cell viabilities (e) of the cells cultured for three days are highly dependent on the amount of Cu content incorporated [64]. (Reprinted with permission from [64], Copyright 2016 Royal Society of Chemistry.)
Coatings 07 00045 g011
Coatings 07 00045 g012 550
Figure 12. Surface SEM morphologies of Z6 coatings samples obtained in electrolyte solution containing 0.06 M ZA (zinc acetate) (a); high-resolution XPS spectra of Zn 2p in Z6 coating indicated that Zn mainly exists in the ZnO state (b); the obvious bacterial cell debris and completely lysed cells (indicated by red arrows) showed the improved antimicrobial property of Z6 coatings surfaces (c). The initial adhesion and spreading activity of bMSC cells after 24 h incubation on Z6 coatings were verified by the extraordinarily stretched cell morphology structure (d) and the presence of mitosis phase cells (indicated by red arrows) [10]. (Reprinted with permission from [10], Copyright 2012 Elsevier.)
Figure 12. Surface SEM morphologies of Z6 coatings samples obtained in electrolyte solution containing 0.06 M ZA (zinc acetate) (a); high-resolution XPS spectra of Zn 2p in Z6 coating indicated that Zn mainly exists in the ZnO state (b); the obvious bacterial cell debris and completely lysed cells (indicated by red arrows) showed the improved antimicrobial property of Z6 coatings surfaces (c). The initial adhesion and spreading activity of bMSC cells after 24 h incubation on Z6 coatings were verified by the extraordinarily stretched cell morphology structure (d) and the presence of mitosis phase cells (indicated by red arrows) [10]. (Reprinted with permission from [10], Copyright 2012 Elsevier.)
Coatings 07 00045 g012
Coatings 07 00045 g013 550
Figure 13. MAO treated coatings at 2 min (a), and 4 min (b) showed different surface morphologies in electrolyte solution containing 0.1 M ZA (zinc acetate), 6 g·L−1 Ag NPs. Cross-sectional morphology of the 2 min coating showed that the contents of Ag and Zn on the coating surfaces increased with prolonged MAO time (c), and increased gradually from the substrate to the coating surface (d); low (e), and high (f) magnification TEM images showed the TiO2 grains of 20–40 nm in size and nano-grains with a size of 5–10 nm [66]. (Reprinted with permission from [66], Copyright 2016 Elsevier.)
Figure 13. MAO treated coatings at 2 min (a), and 4 min (b) showed different surface morphologies in electrolyte solution containing 0.1 M ZA (zinc acetate), 6 g·L−1 Ag NPs. Cross-sectional morphology of the 2 min coating showed that the contents of Ag and Zn on the coating surfaces increased with prolonged MAO time (c), and increased gradually from the substrate to the coating surface (d); low (e), and high (f) magnification TEM images showed the TiO2 grains of 20–40 nm in size and nano-grains with a size of 5–10 nm [66]. (Reprinted with permission from [66], Copyright 2016 Elsevier.)
Coatings 07 00045 g013
Coatings 07 00045 g014 550
Figure 14. The schematic of the magnetron sputtering (MS) system.
Figure 14. The schematic of the magnetron sputtering (MS) system.
Coatings 07 00045 g014
Coatings 07 00045 g015 550
Figure 15. SEM surface micrographs of M-AgTi coating oxidation for 2 min (a), 5 min (b) and 8 min (c) indicated that the pore size increase with the increasing oxidation time. EDX maps showed that Ag were uniformly distributed throughout the coating surface (d). Fluorescence microscopy images of F-actin cytoskeleton of pre-osteoblast cells cultured for 48 h on M0 (e), M1 (f), M2 (g) and M3 (h) coatings indicated that a high concentration of Ag exhibited cytotoxic effect [110,111]. (Reprinted with permission from [110,111]; Copyright 2013 Elsevier, Copyright 2014 Elsevier.)
Figure 15. SEM surface micrographs of M-AgTi coating oxidation for 2 min (a), 5 min (b) and 8 min (c) indicated that the pore size increase with the increasing oxidation time. EDX maps showed that Ag were uniformly distributed throughout the coating surface (d). Fluorescence microscopy images of F-actin cytoskeleton of pre-osteoblast cells cultured for 48 h on M0 (e), M1 (f), M2 (g) and M3 (h) coatings indicated that a high concentration of Ag exhibited cytotoxic effect [110,111]. (Reprinted with permission from [110,111]; Copyright 2013 Elsevier, Copyright 2014 Elsevier.)
Coatings 07 00045 g015
Coatings 07 00045 g016 550

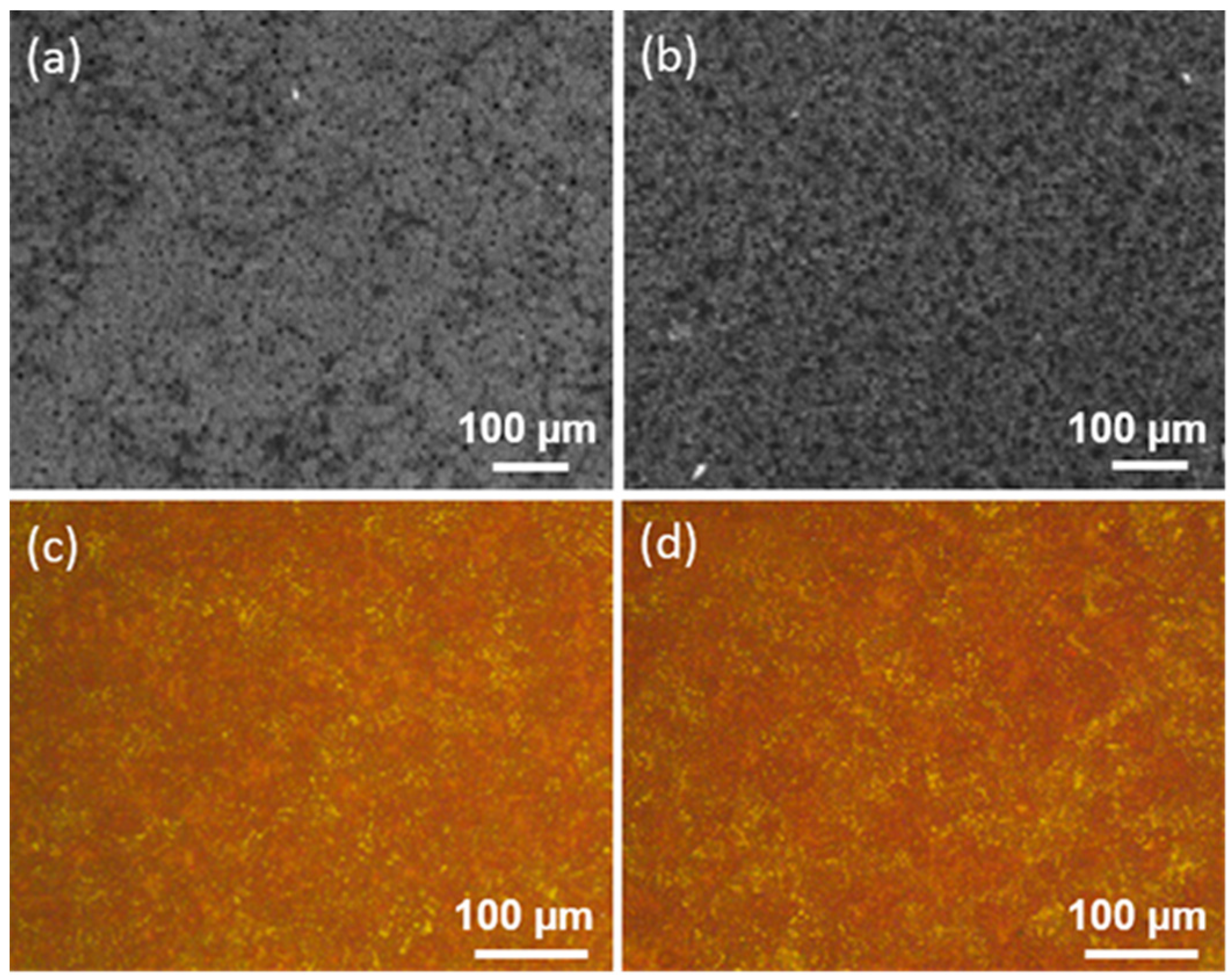

Figure 16. SEM images of MC3T3-E1 cells after culturing for 3 days and quantitative results of collagen secreted by MC3T3-E1 cells after culturing for 7 days on M-Ag0.40 (a,c) and M-Sr/Ag0.40 (b,d) indicated that the bioactive element Sr is able to facilitate cell proliferation and differentiation of MC3T3-E1 osteoblasts and alleviate the potential cytotoxic effect of excessive Ag [112]. (Reprinted with permission from [112], Copyright 2016 IOP.)
Figure 16. SEM images of MC3T3-E1 cells after culturing for 3 days and quantitative results of collagen secreted by MC3T3-E1 cells after culturing for 7 days on M-Ag0.40 (a,c) and M-Sr/Ag0.40 (b,d) indicated that the bioactive element Sr is able to facilitate cell proliferation and differentiation of MC3T3-E1 osteoblasts and alleviate the potential cytotoxic effect of excessive Ag [112]. (Reprinted with permission from [112], Copyright 2016 IOP.)
Coatings 07 00045 g016
Table
Table 1. Summary of the characteristics of antibacterial coating by MAO.
Table 1. Summary of the characteristics of antibacterial coating by MAO.
Ti AlloyElectrolyteElectrical ParameterSurface Topography (Pore Size)XRD Detected PhaseSurface Content of Ag/Cu/Zn (wt %)Release Amount of Ag/Cu/Zn (ppb)Tested BacteriaBiocompatibilityReferences
Voltage (V)Current Density (A·dm−2)Oxidation Time (s)
Ti-6Al-7Nb0.02 M Ca-GP, 0.15 M CA, and 3.0 g·L−1 Ag NPs<25020300Porous structures (<3 μm) with Ag NP of 37 nmTi, rutile and anatase0.03–S. aureus–[55]
Ti-6Al-7Nb0.02 M Ca-GP, 0.15 M CA, and 3.0 g·L−1 Ag NPs<250200–300Porous structures (<5 μm) with Ag NP of 7–25 nm–––––[56]
Ti-6Al-7Nb0.02 M Ca-GP, 0.15 M CA, and 0.3 g·L−1 Ag NPs234 ± 320300Porous structures (<5 μm)––12S. aureusHuman osteoblastic cell[38]
Ti-6Al-7Nb0.02 M Ca-GP, 0.15 M CA, and 3.0 g·L−1 Ag NPs237 ± 220300Porous structures (<5 μm)––89S. aureusHuman osteoblastic cell[38]
Cp-Ti2 g·L−1 NaOH, 15 g·L−1 NaH2PO4 and 3.0 g·L−1 Cu NPs–20300Porous structures (<5 μm) with Cu NP of 60 nm–––Escherichia coli, S. aureus–[57]
Cp-Ti0.04 M β-GP, 0.4 M CA 2 and 0.004 M AgNO3250–350–180Spherical pores (<3 μm)Ti, rutile, and anatase––S. aureusHuman osteosarcoma (HOS) cell[58]
Cp-Ti0.04 M β-GP, 0.4 M CA and 0.004 M AgNO3420–180Irregular and rough pores with spherical particles and flakeRutile, β-Ca2P2O7, α-TCP 3 and HA 40.21–0.45–S. aureusHuman osteosarcoma (HOS) cell[58]
Cp-Ti0.04 M β-GP, 0.4 M CA and 0.00006 M AgNO3420–180Irregular and rough pores with spherical particles and flakeRutile, β-Ca2P2O7, α-TCP and HA0.1–S. aureusHuman osteosarcoma (HOS) cell[58]
Ti6Al4Vβ-GP, CA and 0.1 g·L−1 AgNO3400–300Granular
morphology with Ag NPs of 20–30 nm		Ti, rutile, anatase, CaTiO3 and HA0.62500E. coli–[59]
Ti6Al4Vβ-GP, CA and 0.4 g·L−1 AgNO3400–300Needle-like morphology with Ag NPs of 20–30 nmTi, rutile, anatase, CaTiO3 and HA2.18000E. coli–[59]
Cp-TiNa2HPO4, CA, and 0.0025 M CH3COOAg380–300Flake-like morphology with regional Ag particles less than 200 nmTi, rutile, anatase, CaTiO3 and HA4.6–E. coli, S. aureus–[60]
Cp-Ti0.5–1.0 g·L−1 AgNO3–655–240Highly ordered nanopores with Ag NPs of 10–30 nm within micropits––200–450S. aureusNewborn mouse pre-osteoblast cells[61]
Cp-Ti7.6 g·L−1 Na3PO4, 9.4 g·L−1 Ca(NO3)2 and 1.0 g·L−1 AgNO3–65240Highly ordered nanopores with Ag NPs of 10–30 nm within micropits–––S. aureusNewborn mouse pre-osteoblast cells[61]
Cp-Ti1.0~8.0 g·L−1 Cu(NO3)2–65240Mesopores (20–40 nm) within micropitsTi–––Osteoblast cells[62]
Cp-Ti3.8~7.6 g·L−1 Na3PO4 and 1.0 g·L−1 Cu(NO3)2–65240Mesopores (20–40 nm) within micropitsTi–––Osteoblast cells[62]
Cp-Ti0.05 M β-GP, 0.1 M CA and 0.05 M (CH3COO)2Cu–16.5240Micropores or crater structures (3–5 μm) with nano-grains of 30–50 nmTi and anatase1.43–S. aureusHuman osteosarcoma cell[63]
Cp-Ti0.02 M β-GP, 0.2 M CA and 0.00125~0.005 M Cu (CH3COO)2450–90Micropore structures (1–4 μm)Rutile and anatase0.67–1.932.8–60.2S. aureusMouse fibroblast cell[64]
Cp-Ti0.15 M Ca-GP, 0.02 M CA and 0.06 M ZA–30300Porous structures (<5 μm)Ti, rutile and anatase8.7–E. coli, S. aureusOsteoblast cells[65]
Cp-Ti0.05 M β-GP, 0.1 M CA and 0.02~0.06 ZA–16.5240Microporous structures (<5 μm)–4.6–9.31000–3620E. coli, S. aureusRat bone mesenchymal stem cells[10]
Cp-Ti0.02 M β-GP, 0.1 M CA, 0.1 M ZA, and 6 g·L−1 Ag NPs390–30–90Microporous structures (1–4 μm)Anatase and rutile1.06–1.42 (Ag), 22.19–26.93 (Zn)–S. aureus–[66]
Cp-Ti0.02 M β-GP, 0.1 M CA, 0.1 M ZA, and 6 g·L−1 Ag NPs390–120Microporous structures (1–4 μm) with Ag NPs of 5–10 nmAnatase, rutile and ZnO1.56 (Ag), 29.38 (Zn)684 (Ag), 6880 (Zn)S. aureus–[66]
Cp-Ti0.02 M β-GP, 0.1 M CA, 0.1 M ZA, and 6 g·L−1 Ag NPs390–240Microporous structures (1–4 μm) with some depositsAnatase, rutile, ZnO and Zn2TiO41.58 (Ag), 31.27 (Zn)–S. aureus–[66]
Notes: (1) GP: Glycerophosphate; (2) CA: Calcium acetate; (3) α-TCP: Ca3(PO4)2; (4) HA: Ca10(PO4)6(OH)2.

Share and Cite

MDPI and ACS Style

He, X.; Zhang, X.; Wang, X.; Qin, L. Review of Antibacterial Activity of Titanium-Based Implants’ Surfaces Fabricated by Micro-Arc Oxidation. Coatings 2017, 7, 45. https://doi.org/10.3390/coatings7030045

AMA Style

He X, Zhang X, Wang X, Qin L. Review of Antibacterial Activity of Titanium-Based Implants’ Surfaces Fabricated by Micro-Arc Oxidation. Coatings. 2017; 7(3):45. https://doi.org/10.3390/coatings7030045

Chicago/Turabian Style

He, Xiaojing, Xiangyu Zhang, Xin Wang, and Lin Qin. 2017. "Review of Antibacterial Activity of Titanium-Based Implants’ Surfaces Fabricated by Micro-Arc Oxidation" Coatings 7, no. 3: 45. https://doi.org/10.3390/coatings7030045

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
