Effects of Island-Coated PVdF-HFP Composite Separator on the Performance of Commercial Lithium-ion Batteries

Abstract

The widespread industrialization of high-energy density commercial lithium-ion batteries has long been challenged by issues of safety and efficiency stemming from uncontrollable lithium dendritic growths. Here, an island-coated composite separator has been fabricated using a pre-swelling process with water-based dispersions to address the issue of dendrite growth. The pre-swelling of the polymer particle surface balances the contradiction between the high crystallinity and electrolyte compatibility showing high electrolyte wettability and electrolyte uptake ability. Furthermore, the point-to-point surface structure can balance the high interfacial adhesion of electrodes and anti-deformation ability well, which is beneficial for preventing ripple-shaped and pot-shaped deformation, smoothing the solid particle morphology of the electrode and achieving a steady interfacial structure for lithium diffusion in cells. This new strategy constructs a non-continuous novel structure, achieving greatly improved dendrite growth suppressing and cell interface stabilization. This paper has opened up a new method for the development of low cost, simple process and easy industry of the lithium-ion pouch cell with improved quality and efficiency.

1. Introduction

Secondary lithium-ion batteries (LIB) are currently widely used in electronics, electric vehicles, and energy storage systems, due to their superior properties, such as high energy density, long cycle life, and high operational voltage [1,2,3,4,5,6]. Increasing demand for LIB with high energy and power density drives the improvement of lithium battery design, such as development of high-energy storage systems and optimization of electrode structure or design parameters [2,3]. However, the formation of uncontrolled dendritic and mossy lithium on the anode surface leads to low capacity retention and serious safety concerns [4,5,6,7], such as thermal runaway or even fire/explosion of the battery [8]. Lithium dendrite is formed near the edge of the anode by asymmetrical lithium-ion conductivity and mechanical stress, which can be described by the classical deposition/dissolution model [7]. Based on this model, two categories of methods are given for suppressing the growth of lithium dendrite: interface modification and manufacturing three-dimensional (3D) pore structure. Many efforts have been devoted successfully to suppressing lithium dendrite, including surface-treated anode, modification electrolyte, and novel separator/anode structure, etc. [4,5,6,7]. However, most of those strategies have a complex process of synthesis or electrochemical control, which is hard for industrial application.

Composite separators remain one of the few effective ways of industrial production, because of their versatility, simpleness, and high efficiency [9,10,11,12,13,14]. PVdF-based polymer-coated composite separator (PPCS) is convenient for ionic transformation (Li⁺) diffusion because of lower interfacial resistance and higher ionic conductivity [9,10]. Dendrite growth can be efficiently monitored by in-situ voltage observation between the metallic interlayer of the polyethylene (PE) separator and electrode [13]. However, a PPCS is synthesized mainly using a solution casting technique and phase inversion technique [15,16], using organic solvents and being sensitive to temperature and humidity level, which result in environmental pressure and compromised function. The higher the compatibility of separator to the electrolyte, the lower the crystallinity of the polymer [17]. This results in the decrease of mechanical moduli and electrochemical stability in the electrolyte. In addition, the strong surface bonding between anode and separator suffers from poor yield upon repeated charge-discharge cycles due to the battery deformation. Therefore, to solve the notorious dendrite growth problem, it is desirable to find a proper low-cost industrialization process with homogeneous and stable interface concurrently.

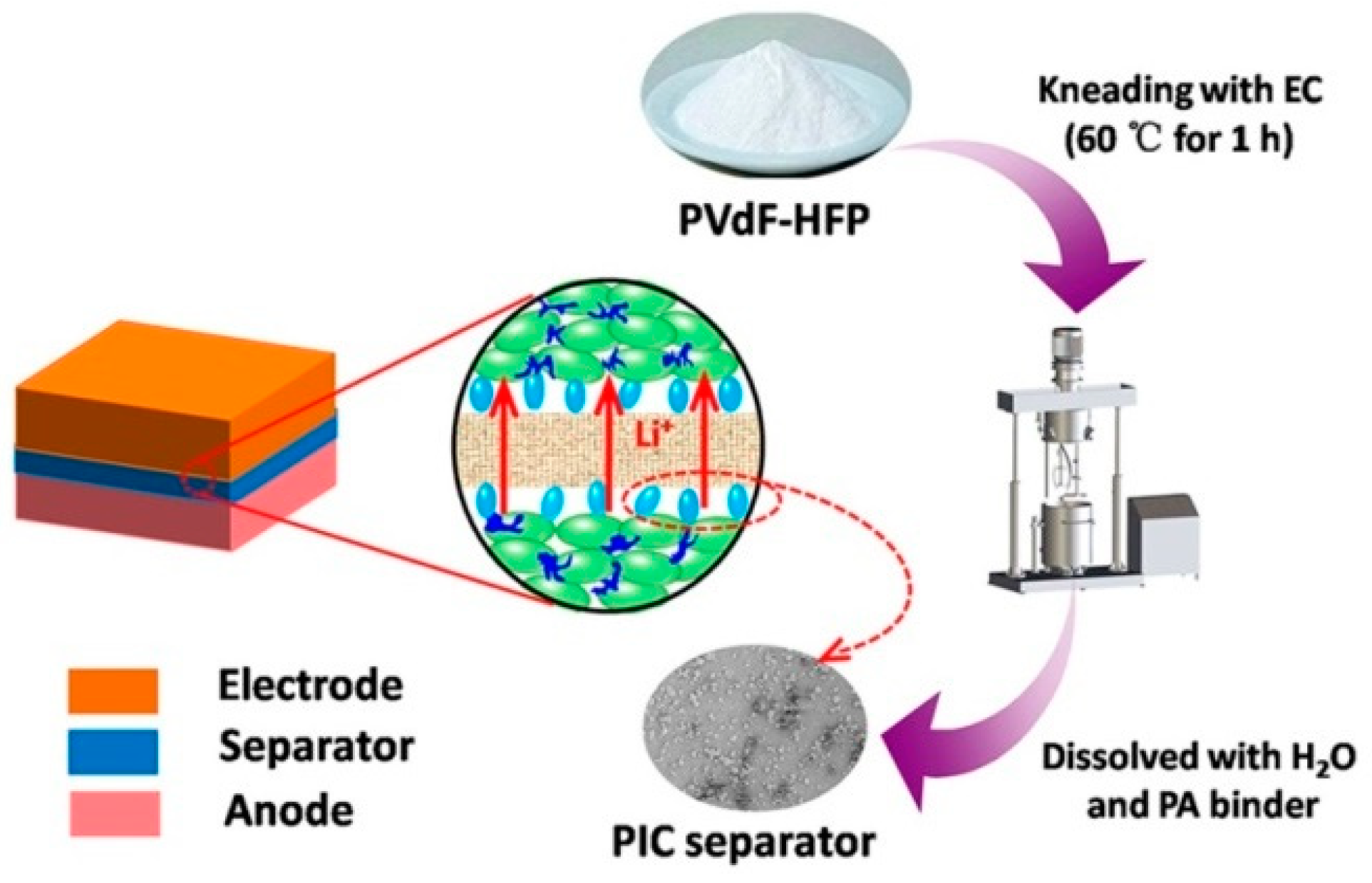

Herein, a polymer island-coated (PIC) separator is designed and synthesized using a pre-swelling process with water-based dispersions. The contradiction between high crystallinity and electrolyte compatibility is balanced by the pre-swelling of the polymer particle surface, and the unique island-like surface structure can balance the high interfacial adhesion of electrodes and anti-deformation ability well. The effect mechanism of a PIC separator on the suppression of dendrite growth and stabilization of interface is studied.

2. Materials and Methods

Polyethylene (PE) membrane (40% porosity, 9 μm thickness, Toray, Tokyo, Japan) and polyacrylate (PA) binder were kindly provided by Cube Energy Technology Co., Ltd., Dongguan, Guangdong, China. Poly(vinylidenefluoride-co-hexafluoropropylene) (PVdF-HFP) was purchased from Kynar, Arkema, Colombes, France. Vinyl ester (VE) plasticizer, lithium cobaltate (LiCoO₂), dimethyl carbonate (DMC), and N-methyl-2-pyrrolidone (NMP) were obtained from Shan-shan Co., Ltd., Changsha, China. Sodium carboxymethyl cellulose (CMC) was manufactured by Tianjing Yuanli Chemical Co., Ltd., Tianjin, China. Styrene-butadiene rubber (SBR) was manufactured by Jilin Chemical Industry Co., Ltd., Jilin, China.

For the fabrication of PVdF-HFP island-coated composite (PIC) separator, PVdF-HFP and ethylene carbonate (EC) were dry-mixed firstly, followed by kneading at 60 °C for 1 h, resulting in pre-swelling PVdF-HFP particles. After that, polyacrylate (PA) binder (5 wt.%) and deionized water were added in turn under vigorous magnetic stirring at room temperature. The slurry was coated onto both sides of the PE separator by micro-gravure printing and dried at 60 °C for 30 min.

For comparison, PVdF-HFP porous-coated (PPC) separator was synthesized by dipping method. PVdF-HFP powders were weighed and dissolved in DMC to form a homogeneous solution by stirring for 1 h at 65 °C. The functional layer was prepared by dipping the PE separator into solution. The residual solvent was evaporated slowly at room temperature with humidity-controlled atmosphere.

The surface morphology was determined by field emission scanning electron microscopy (SEM, Hitachi S-4800, Tokyo, Japan). The separators were measured using a Gurley densometer (Gurley 4110, Gurley Precision Instruments, Troy, NY, USA). Differential scanning calorimetry (DSC) measurements were carried out on a Mettler-Toledo thermogravimetric analysis/differential scanning calorimetry from 50 to 200 °C at 10 °C/min. Degree of crystallinity (χ_c) of the separator coatings was determined from the DSC curve using the following equation:

$${\mathsf{\chi }}_{\mathrm{c}}=\frac{\Delta H_f}{\Delta H_f^{*}}\times 100\%$$

(1)

where $\Delta H_f$ and $\Delta H_f^{*}$ are melting enthalpies of the separator coatings and of perfectly crystalline PVdF-HFP, respectively. $\Delta H_f^{*}$ can be assumed to be 104.7 J/g [18].

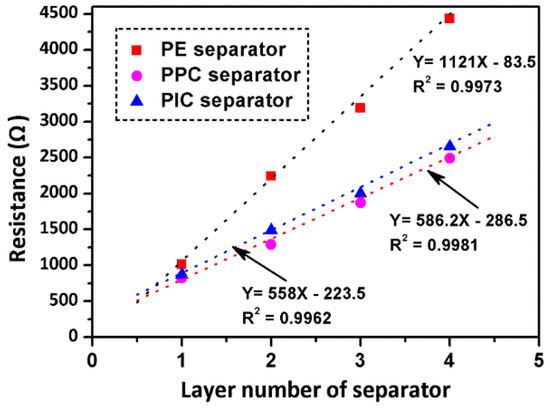

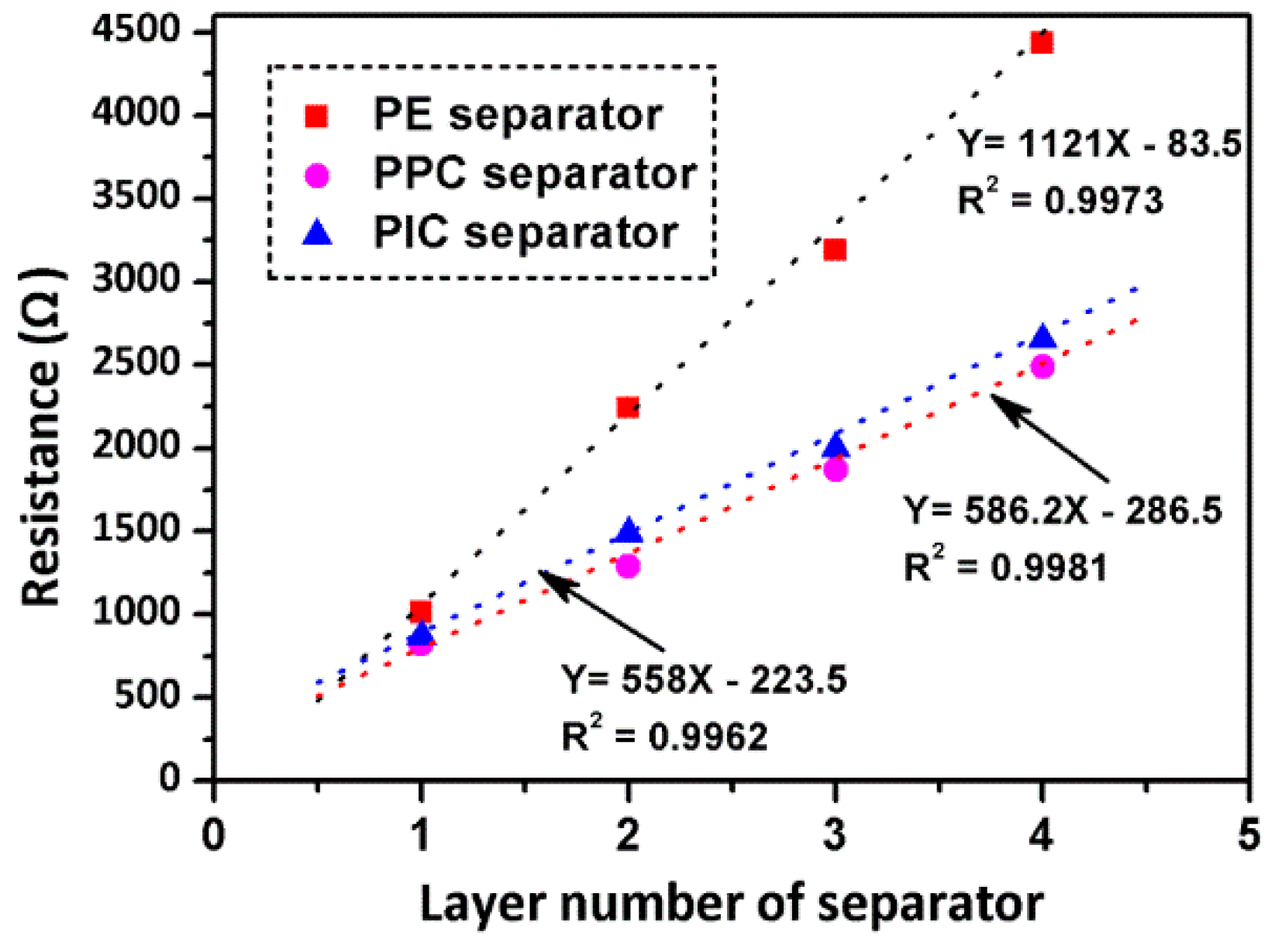

The ionic conductivities were measured by electrochemical impedance spectroscopy (EIS, CHI760D, Shanghai, China). The samples to be tested were cut into round pieces with a diameter of 45 mm and soaked for an hour in liquid electrolyte (1.1 M LiPF₆ in EC/DMC (1/1 by volume)). The resistance (R) of pieces of separator was obtained from the low-frequency intercept on the ReZ axis, which was analyzed in the 1 to 10⁵ Hz frequency range at 25 °C. The separator was placed in the copper fixture, which underwent surface grinding before use to remove the oxide layer and was sealed with 245 N forces. Each sample was tested repeatedly by changing the thickness from 1 to 4 layers with a correlation coefficient of linear regression (R²) of >0.99. The ionic conductivities (σ) were calculated using the equation:

$$\mathsf{\sigma }=\frac{L}{\overline{R}A}\times 100\%$$

(2)

where L is the thickness of the separator, $\overline{R}$ is the average resistance of pieces of separator, and A is the area of the testing electrode. The water contact angle measurements were carried out using a contact angle measuring system (AL200C, Tomey Instruments, Cambridge, MA, USA). The electrolyte uptake was computed using the following equation:

$$EU\%=\frac{w_1-w_0}{w_0}\times 100\%$$

(3)

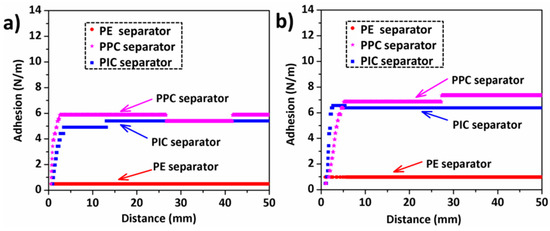

where w₀ and w₁ are the weights of separator before and after absorbing the liquid electrolyte completely, respectively [19]. The mechanical properties were all tested using an electronic universal testing machine (MTS systems, Eden Prairie, MN, USA) at a speed of 15 mm/min with a 25 mm width. The adhesion strength between the separator and electrodes was measured using a 180° pull-off test for the final commercial pouch cell. The thickness of the middle part of the pouch cells was measured from left to right after the cycling test.

For industrial applications of this technique, ATL’s (Amperex Technology Limited, Hong Kong, China) commercial pouch cell was designed with a LiCoO₂-graphite system. The geometry of the pouch cell was about 3.6 mm in thickness, 3.4 cm in width and 9.1 cm in length, with a nominal capacity of 1800 mAh. The pouch cells were assembled by sandwiching the separator between a LiCoO₂ cathode and a graphite anode. The cathode was prepared by casting a slurry of the active material LiCoO₂ (90 wt.%), conductive carbon (5.0 wt.%), and PVdF (5.0 wt.%) in NMP on aluminum foil. The anode was fabricated by casting a slurry of commercial graphite (96.5 wt.%), conductive carbon (1.0 wt.%), CMC (0.5 wt.%), and SBR (2.0 wt.%) in water on copper foil. The cathode and anode were dried at 85 °C. The active material mass loading and the electrode density of the anode was 9.0 mg/cm² and 1.65 g/cm³, respectively, and that of the cathode was 19.2 mg/cm² and 4.1 g/cm³. Before the injection process, the jelly rolls were baked at 80 °C, until the cell contained ≤200 ppm H₂O. The assembled pouch cells were cycled on a cell testing system (LAND CT2001A, Wuhan LAND electronics Co., Ltd., Wuhan, China) between 3.0 and 4.3 V under different current rates.

3. Results and Discussion

A separate adhesive layer (PVdF) is applied to the separator to bond the electrode and separators [20], industrialization by Samsung SDI, LG Chemical, ATL, etc. The amorphous region of PVdF could be swelled by electrolyte uptake and bonded to electrodes during the lamination step [21]. However, good mechanical strength is needed to maintain a microporous structure. It has been reported that mechanical properties will increase 50%–100% by increasing crystallinity degree [22]. Here, a pre-swelling process is developed to balance the swelling degree and mechanical strength, which is schematically illustrated in Figure 1. The PVdF-HFP particles are pre-swelled with EC, using a kneading method, and used to synthesise PVdF-HFP island-coated composite (PIC) separator by micro-gravure printing. The rhombus-mesh structure of anilox roll is beneficial to retain the dispersed polymer particle structure. Typically, a PIC separator retains the “island-like” morphology of PVdF-HFP particles, which are exposed on the surface (Figure 2c,f). For reference, the sample of PE separator and PVdF-HFP porous-coated (PPC) separator are shown in Figure 2a,d,b,e, respectively. The PE separator shows a typical porous structure with a uniform diameter of approximately 20–50 nm, while the PPC separator has a microporous structure with a pore size around 1–8 μm, synthesized using a dipping process. The PIC separator maintains a consistent structure of PVdF-HFP polymer particle for high crystallinity of the coating, which is confirmed by the DSC data (

Table 1. DSC data of raw PVdF-HFP materials and separators with different coatings.

Sample	Tm (°C)	$\Delta {\mathit{H}}_{\mathit{f}}(\mathbf{J}/\mathbf{g})$	${\mathsf{\chi }}_{\mathbf{c}}(\%)$
PVdF-HFP	152.5	18.69	17.85
PPC	99.1	2.43	2.32
PIC	141.1	11.11	10.61

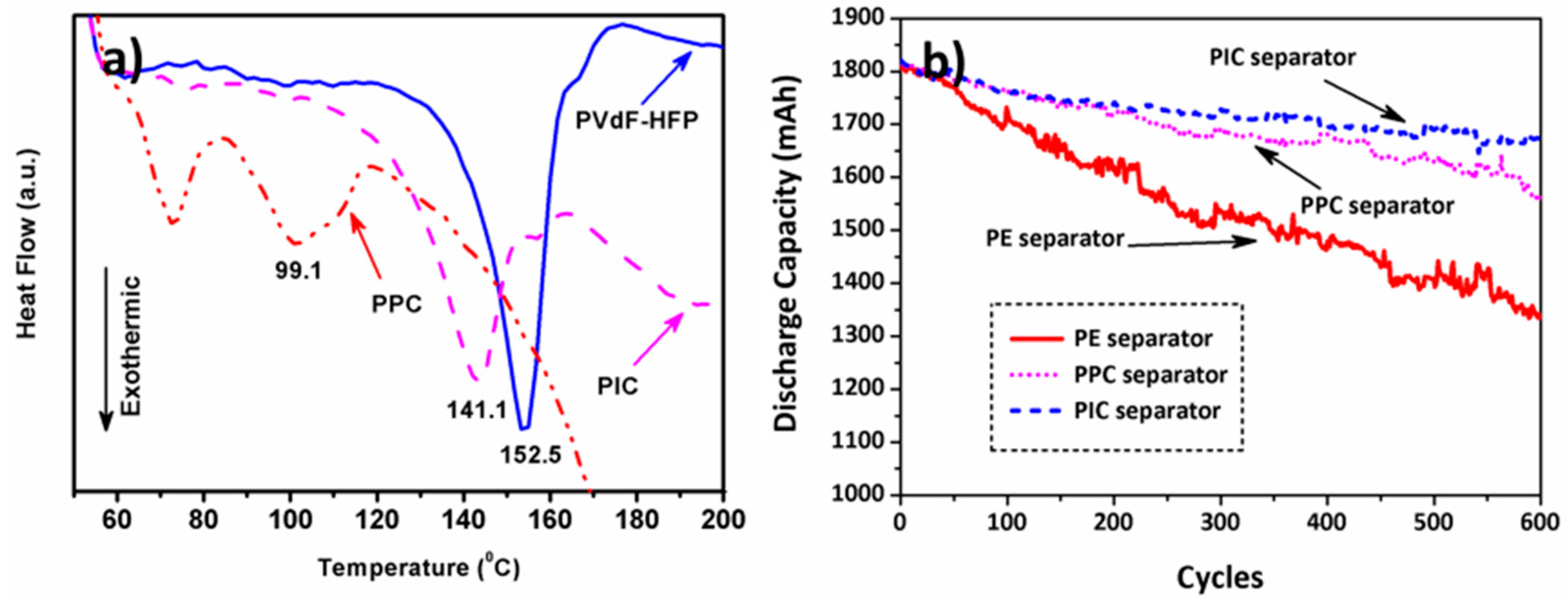

and Figure 3a). The endothermic peak for the PIC separator shifts 42 °C negatively, slightly higher than that of PPC separator. Compared with the raw PVdF-HFP material, the PIC separator shows a close crystallinity of 10.61%, while the PPC separator has a relative crystallinity of 2.32%.

As reported in previous studies, cosolvents penetrate the semi-crystalline polymer and swell the polymer chains, resulting in the reduction of crystalline phase content with improved affinity of the separator for electrolyte solution and ionic transformation (Li⁺) diffusion ability [17,20]. The basic physical and electrical parameters of separators are considered and presented in

Table 2. Basic physical and electrical parameters of separators.

Separators	Gurley Value (s/10 mL)	Electrolyte Uptake (%)	Ionic Conductivity (mS/cm)	Contact Angle (°)
PE	7.8	62	0.23	99
PPC	14.2	115	0.98	75
PIC	8.0	130	0.96	50

. The Gurley value of the PIC separator has the same level as the PE separator, showing high permeability on the “island-like” structure. However, The Gurley value of the PPC modified separator is about twice that of the PE separator. This indicates that some flow paths of the PPC separator may be blocked, which is supported by the high magnification SEM images shown in Figure 2e. The electrolyte uptake and ionic conductivity of separators are crucial for excellent electrochemical performance. Before testing, all samples were fully infiltrated with liquid electrolyte. For the PVdF-HFP coated separators, both the PPC and PIC separator shows superior electrolyte uptake values and ionic conductivities (Table 2 and Figure 4). These are the result of the excellent material properties of PVdF-HFP, such as the porous structure, lyophilic surface, and high dielectric constant [15,23]. It can be seen that the ionic transformation diffusion ability is mainly concerned with the high-affinity surface of coatings for the electrolyte, that is, PPC separator and PIC separator have similar high ionic conductivities, while the amorphous proportions are different.

The cycling performance of pouch cells with PIC separator (Figure 3b) keeps stable at a constant charge/discharge current density (0.7C/1.0C @ 25 °C) up to 600 cycles. For the cell with PIC separator, the capacity retention is 1673 mAh after 600 cycles, whereas the cell with PE separator decreases to 1336 mAh. These results clearly demonstrate that the PIC separator is critical to the long-term reliable performance of the rechargeable battery. We believe that PVdF-HFP coated separators must be present to form a uniform interface, which includes a suitable condition to form a high quality solid electrolyte interphase (SEI) layer and suppress dendrite/mossy lithium growth. As demonstrated in Figure 5, the surface morphology of anode electrodes for cells with PIC separator shows smooth solid particle morphology, whereas a highly rough and loose surface morphology is obtained for conventional cells with PE separator. Furthermore, as mentioned above, the PE separator shows less membrane-electrolyte affinity than the PIC separator. Thus, a smaller meniscus of electrolyte may be formed on the surface of the electrode as described in reference [24].

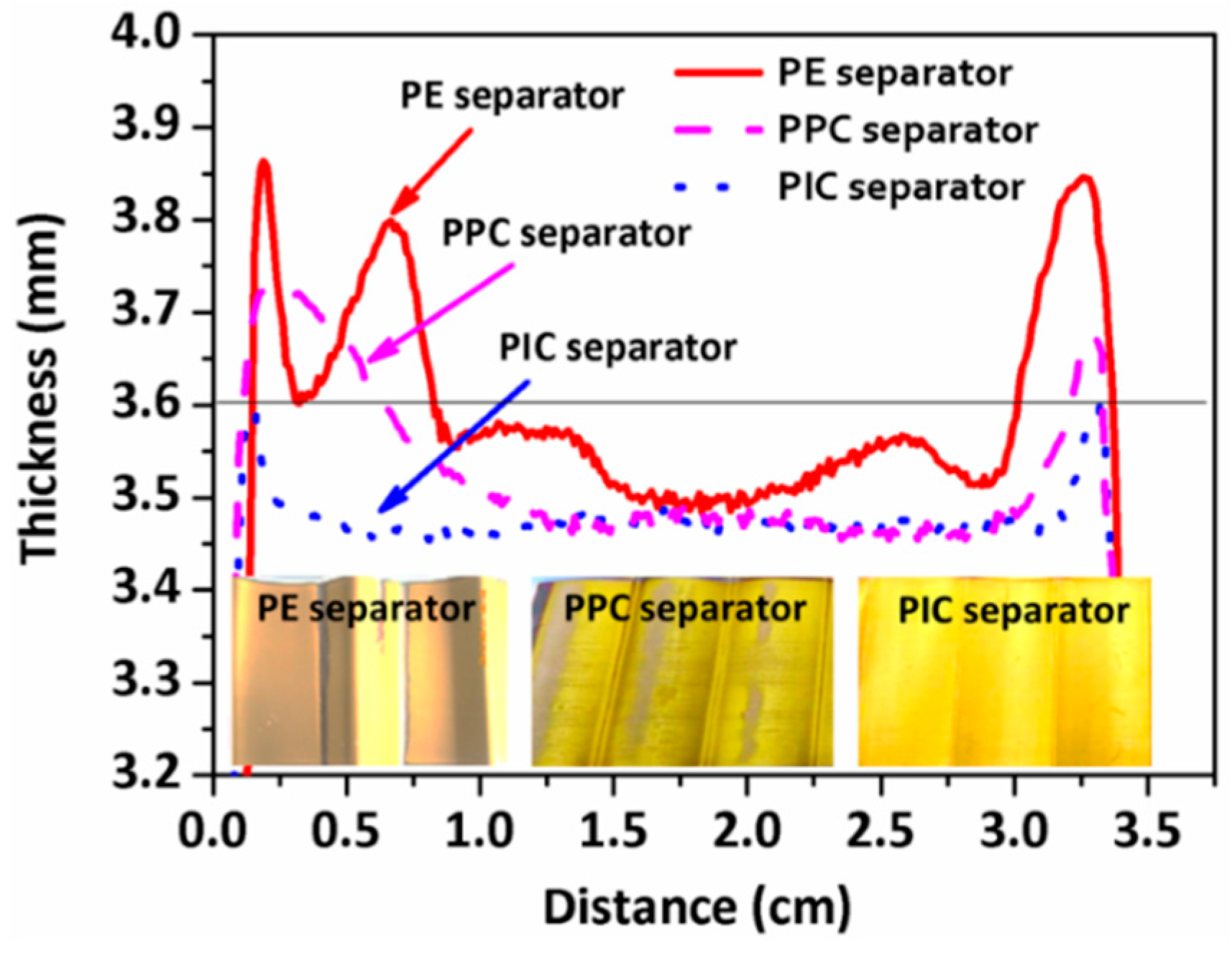

To reveal the mechanism of how PIC separators helped form a homogeneous SEI layer and excellent cycling performance, we tested the pouch cell further. A comparison of the thickness of the middle part of the pouch cell after the 600th cycle is shown in Figure 6. The cells with PIC separator show the typical jelly roll structure of commercial LIB [25], while the cells with PE separator and PPC separator have a periodic wavy-like profile and a pot-shaped profile, respectively. Furthermore, the anode surface of a disassembled cell shows a gray color at the wave site of cells with PE separator, and shows a light-gray color in the middle area of cells with PPC separator (Figure 6 inset). As we all know, the color of anode film is related to Li concentration and phase [26]. The gray color indicates a low concentration of Li in the anode electrode and usually accompanies lithium dendrite at the surface of this area. The interfacial adhesion strength between separator and electrodes is also tested using a 180° pull-off test (Figure 7). It can be seen that the pouch cells with PPC or PIC had the same level of adhesion strength between separator and electrodes, and this was over six times larger than that of the conventional cell. It is also proved that the pre-swelling of the polymer particle surface of the PIC separator could provide enough interfacial adhesion strength between separator and electrodes. For commercial pouch cells, internal stress is engendered during electrochemical process by volumetric expansion of the individual particles in the electrode film. A buckling behavior is displayed resulting in the formation of gaps/voids between electrodes, showing a periodic wavy-like profile [25]. The expanded void/gap in rippled cells needs enough electrolyte to fill it, resulting in the shortage of electrolyte in pouch cells for lithium transportation and the cycling fading [25]. Based on the classical deposition/dissolution model, improving uniformity of lithium distribution and avoiding potential active sites are favourable to inhibiting the growth of lithium dendrite [7]. The separate adhesive layer brings in a stable interfacial structure by intimate contact of the separator to the electrodes [27,28], minimizes the stresses development by strengthening the stiffness, limits interface dislocation between separator and electrode, and finally prevents ripple-shaped deformation.

It should be noted that the pouch cells using PPC separator have low capacity retention (1560 mAh) and a pot-shaped deformation after 600 cycles (Figure 3b). The PPC separator offers a strong face-to-face bonding between electrodes. Then, a tightly-bound structure is formed in the pouch cell, resulting in the internal-stress concentration instead of diffusion. The stress gradient in this pouch cell leads to edge tilting and pot shaping, and can also increase the compaction density of the central part of the electrode [28,29]. This may be the main reason for dendrite growth at the central area of the electrode. In contrast, pre-swelled isolated-polymer island for the PIC separator, not only provides an additional constraining effect for the separator to form a stable and compatible surface between the electrodes, but also eliminates stress concentration by the non-continuous structure (strong point-to-point bonding) to reduce/eliminate pouch cell deformation [30]. Therefore, it may be postulated that the superior interfacial stability with electrodes, along with the well-developed deformation-suppressed structure, allows the PIC separator to prevent dendrite growth and provide a good cycling performance, compared to that of the PPC and PE separator. It should be noted that for the pouch cell with PIC separator, the steady interfacial structure, which is beneficial for lithium diffusion, is considered to be the result of multiple factors. The pre-swelling surface improves the affinity of the separator to the electrolyte solution, and the isolated structure provides enough volume for electrolyte storage. Furthermore, the point-to-point surface structure can balance the high interfacial adhesion of electrodes and anti-deformation ability. To offer optimal electrochemical performance, the size and quantity of the island structure of the PIC separator should be carefully structured and well designed and needs further exploration.

4. Conclusions

In conclusion, we have demonstrated that lithium dendrite growth can be effectively suppressed via a new kind of PVdF-HFP island-coated composite (PIC) separator through a pre-swelling process. The advanced separator not only improved electrolyte wettability and uptake, but also enhanced the interfacial stability of electrodes and anti-deformation ability of pouch cells, which could significantly suppress the growth of lithium dendrites. The pre-swelled polymer surface was beneficial for the interfacial compatibility between PIC separator and electrode materials. The strong point-to-point bonding interfacial adhesion between separator and electrodes significantly smoothed the solid particle morphology of the electrode and prevented ripple-shaped deformation to obtain steady interfacial structure for lithium diffusion. In addition, this non-continuous structure also effectively eliminated stress concentration of the cell and prevented pot-shaped deformation. This paper illustrates a new strategy for the suppression of lithium dendrite growth and opens up a new method for the development of low cost, simple process and easy industry of the lithium-ion pouch cell with improved quality and efficiency.
